Universal Remote Control (URS) R6 User Manual
Page 2
Congratulations!
Congratulations on purchasing Universal Remote
Control’s AVEX™ R6 Pre--Programmed and Learning
remote control. You now have the power to control
your entire home entertainment system with one
easy--to--use remote. The AVEX R6 can be used with
thousands of audio/video components because of
the extensive library of codes that have already
been programmed into the remote. So... get ready
to sit back, relax, and simplify your home
entertainment experience.
This Owner’s Manual is designed to assist you in
programming your AVEX R6 remote to work with
your components by guiding you through an easy
step-by-step process. Everything you need to know
about programming the AVEX R6 is contained in
this Manual. AVEX R6 Owner’s Manual © 2007
Universal Remote Control, Inc.
This document is protected by the copyright laws
of the United States and internationally by the
Berne Convention. No part of this manual may be
reproduced in any form without the express written
consent of Universal Remote Control, Inc. Although
reasonable care has been taken to assure the accuracy of the information herein contained, Universal
Remote Control, Inc. is not responsible for operational,
technical or editorial errors or omissions. The specifications and information in this manual may be
subject to change without notice. MacroPower,
SimpleSound and AVEX are trademarks of Universal
Remote Control, Inc. Entertainment Made Simple®
is a registered trademark of Universal Remote
Control, Inc. All other brand or product names
are trademarks or registered trademarks of their
respective owners.
UNIVERSALUNIVERSAL
remote controlremote control
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
The Pioneer in Control Technology
Table of Contents
Getting Started - Overview
• Control up to 6 Components…………………..5
• Activating Component Buttons…………………5
• Learning Capability……………………………..5
• Battery Installation………………………..........6
• Low Battery Warning…………………………...6
• Couch Mode……….………….........…..........6
Special Advanced Features
• MacroPower™ & Other Macros……………....7
• ‘My Favorites’ - Favorite Channels……………..7
• SimpleSound™ & Other ‘Punch Throughs’......7
Keypad Layout & Button Functions...8
Programming AVEX R6 Using
Pre-Programmed Codes...................9
• Quick Set-Up Method...................................9
• Three-Digit Code Entry Method......................10
• Auto-Search Method....................................12
Programming AVEX R6 Using the
Learning Method............................14
AUX Function: Programming a 6th
Component....................................16
Finding a Component’s Set-Up
Code Number.................................16
Programming Special Advanced
Features
• Programming Multi-Commands to
Macro Buttons............................................17
• MacroPower™ Total System On/Off.............17
• ‘My Favorites’ – Favorite Channels................20
• SimpleSound™ Total System Volume
Control......................................................21
• Channel Control ‘Punch Through’..................23
• Transport Control ‘Punch Through’.................24
• OSD (On-Screen Display) Control
‘Punch Through’...........................................25
Erasing Commands-Overview .......26
• Erasing a Single Learned Command..............26
• Erasing All Learned Commands from
One Component..........................................27
• Erasing MacroPower & Other Macro
Commands.................................................28
• Erasing SimpleSound & Other ‘Punch
Through’ Commands....................................29
• Factory Reset.............................................. 30
Page 3
Pre-Programmed Code Tables ......31
• CABLE/SAT ...........................................32
• TV ........................................................33-34
• DVR/VCR ..............................................35-36
• DVD ..................................................... 37
• AUDIO ..................................................38
• AUX ......................................................39
FAQs ........................................40
Warranty ..................................41
Specifications ............................41
Page 4
Getting Started - Overview
Control up to 6 Components
The AVEX R6 remote control is designed to control
up to six different Audio/Video components and
operate virtually all brands of AUDIO, TV, DVD,
VCR/DVR, SAT/CABLE and AUX (Light, Music
Server, etc.) components.
Component Buttons
Once you have programmed the AVEX R6 for all
of your components, all you need to do is press a
component button and all the buttons on the AVEX
R6 will work with that component. For example,
when you press the TV component button, all the
buttons on your AVEX R6 will operate your TV.
If you press the DVD component button, all the
buttons on the AVEX R6 will operate your DVD.
Each time you press any of the buttons on the
remote, the LED light in the component button
will light up to indicate which component you
are controlling.
Page 5
TV BUTTON
Learning Capability
The AVEX R6 has the ability to ‘learn’ functions from
the original remote controls of other manufacturers,
even if they are not in the Pre-programmed database.
Battery Installation
Press the tab and remove the cover of the battery
compartment located in the back of your remote.
Insert the two AAA batteries (included in the package) making sure to match the positive (+) and
negative (-) symbols as shown in the diagram.
Place the cover back over the battery compartment.
Low Battery Warning
When the batteries are low and need to be
replaced the component LED will quickly blink
three times when you press the Power [ON] button.
Couch Mode
The AVEX R6 is designed to automatically turn itself
off if a button is pressed for more than 30 seconds.
This prevents battery power from being depleted
should the remote accidentally slip between the
couch cushions.
Page 6
INSERT BATTERIES
CORRECTLY
Special Advanced Features
The AVEX R6 also offers the following special
advanced features that can offer you many time-saving
conveniences:
MacroPower™ & Other Macro Buttons
MacroPower is a unique feature that enables you
to turn all your components ON or OFF, all at the
same time, simply with the press of one button.
The AVEX R6 has six Macro buttons that are
designed to store up to 20 commands in each button.
Pressing any one of the Macro buttons will send out
the series of commands that are stored in that button.

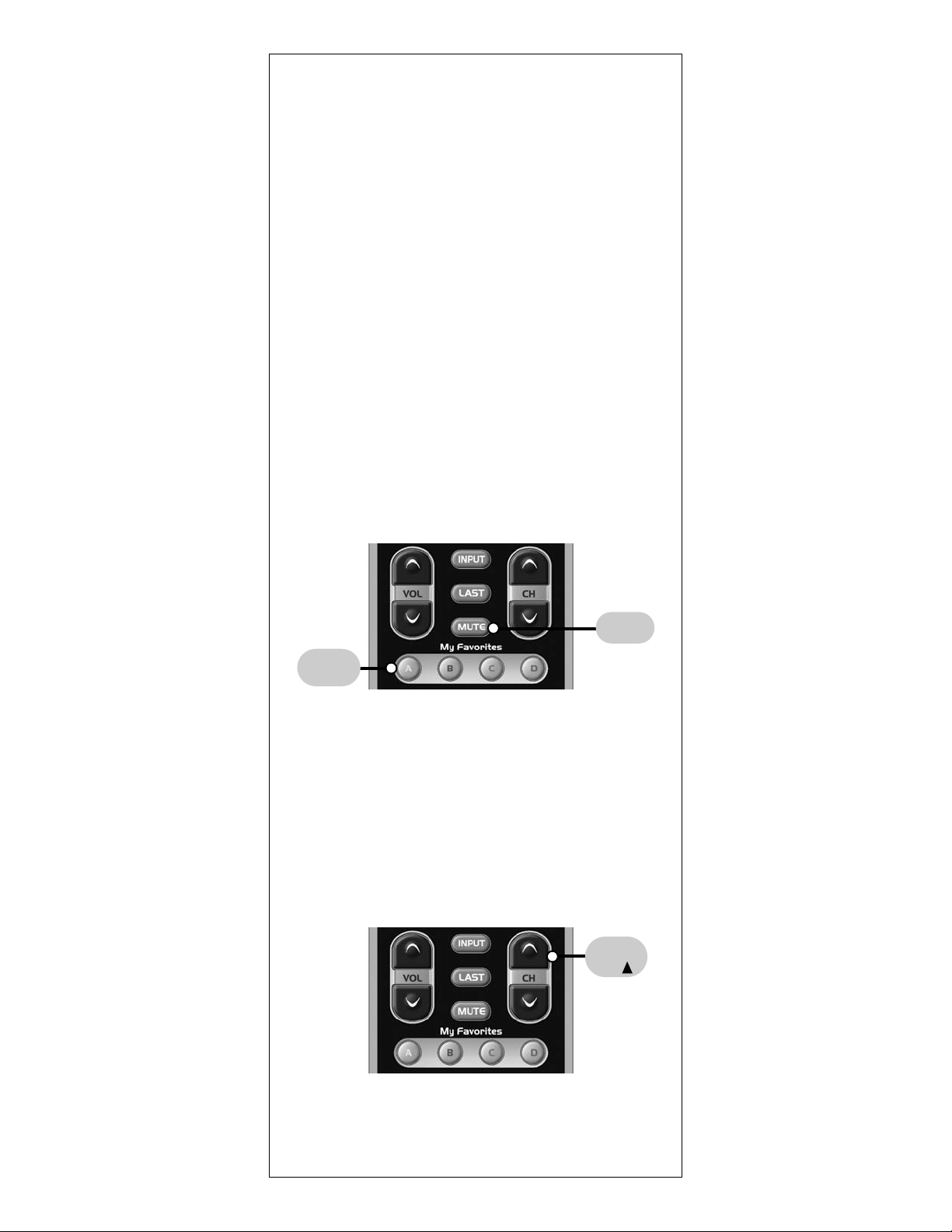

‘My Favorites’ (Favorite Channels)
This is one of the most desirable features of the
AVEX R6 remote control. Once it’s set up, you can
select one of four favorite channels with the press of
one button – without the need to type in a channel
number. So, whether it’s CNN or the Food Network,
your favorite viewing spot is just one click away.
SimpleSound™ & Other ‘Punch Throughs’
SimpleSound Volume Control is a dynamic feature
that gives you total volume control over all the
components in your system, even those that do not
have their own built--in volume control, such as
TIVO, DVD and VCR... saving you the hassle and
inconvenience of constantly needing to switch
between component modes on the remote. As an
example, in order to increase the volume while
watching a DVD, you would typically have to pick
up the TV remote control to increase the volume.
With the AVEX R6, you do not even have to press
the TV component button. Once you program
SimpleSound in your DVD mode, you will
automatically have TV volume control in
DVD mode.
SimpleSound is what is called a ‘Punch Through’
feature and is not limited to volume control. It can
also be applied to Channel Control, Transport
Control, and OSD Control.
Page 7

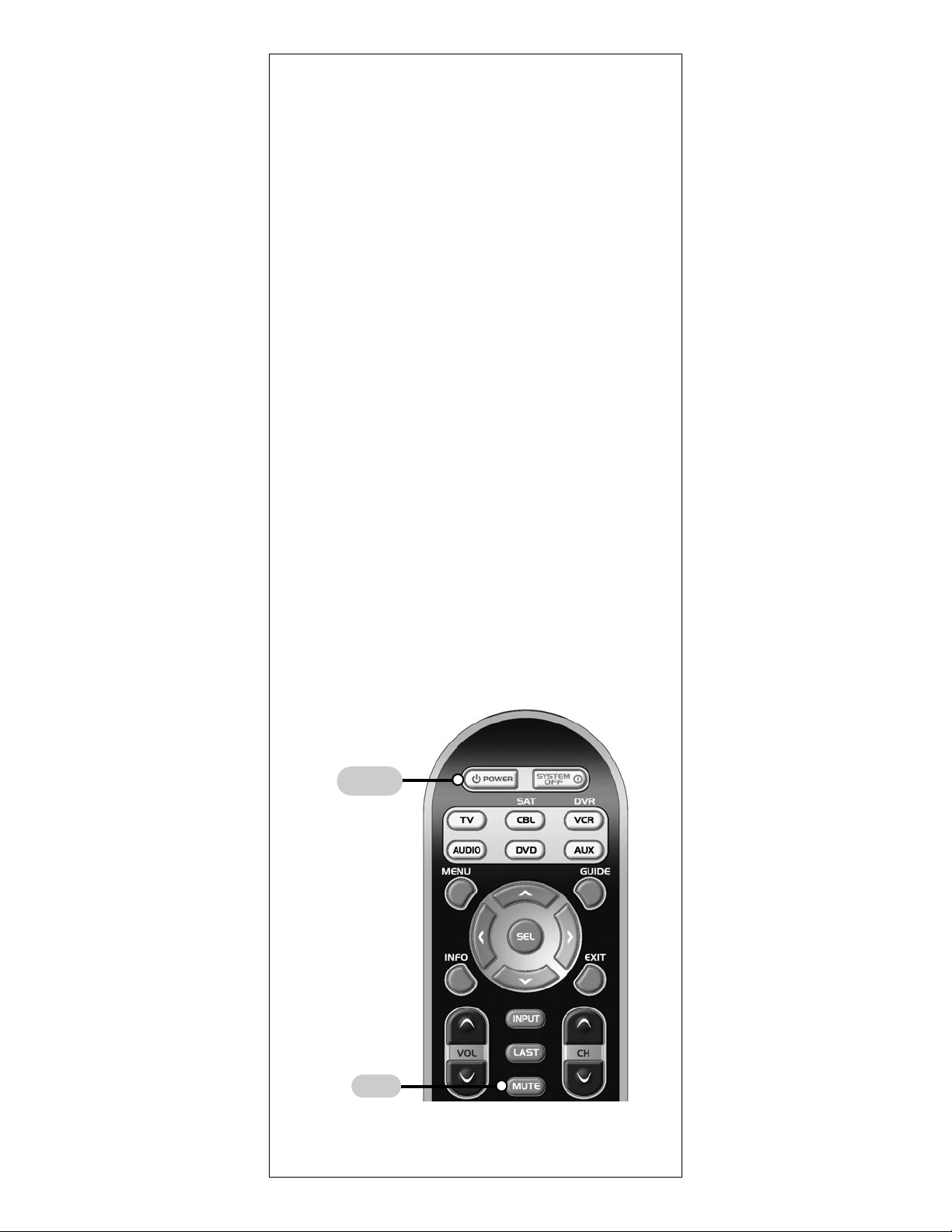

Keypad Layout &
Button Functions
Page 8
POWER
Allows you to turn the
selected component on
and off.
SYSTEM OFF
Designed to send Power
On/Off commands for up
to six components with
one button press.
Used to select the
component you want
to operate and signals
remote control activity.
Displays the Applications
Menu through the Cable
Set Top Box.
MENU
Displays the
Program
Guide listings
through the Cable
Set Top Box.
Used for programming steps
and on-screen navigation
and highlighting.
Displays information
about the program
currently playing or highlighted in the Program
Guide through the Cable
Set Top Box.
INFO
Selects highlighted
screen options.
Exits from current
screen through the
Cable Set Top Box.
Controls Picture-InPicture actions.
PIP
CONTROLS
Use to enter code
numbers for programming components and to
enter channel numbers
to tune in channels.
Also used to make
numeric entries on
on-screen menus.
NUMBER
PAD
Raises or lowers the
sound volume.
VOLUME
Selects the
video source from
available components.
Returns to the
previously tuned
channel through the
Cable Set Top Box.
LAST
Silences the
Audio. Press to activate.
Press again to restore sound
to the previous level.
MUTE
Custom-programmable
Favorite Channel Buttons
MY
FAVORITES
Perform standard VCR
and DVD functions when
in VCR and DVD mode,
or VOD (Video-OnDemand) and DVR
(Digital Video Recorder)
functions when in
Cable mode.
TRANSPORT
CONTROLS
TV, CBL,
VCR, AUDIO,
DVD, AUX
GUIDE
CURSOR
NAVIGATION
PAD
EXIT
SELECT
INPUT
Programming AVEX R6 using
Pre-Programmed Codes
There are three ways you can program your AVEX
R6 using the component brand codes that are preprogrammed into the remote.
• Quick Set-Up Method
• Three-Digit Code Entry Method
• Auto-Search Method
The Quick Set-Up Method is a unique new feature
that enables the fastest and easiest set-up by using
one-digit codes for up to 10 major brands for each
component. The Three-Digit Code Entry Method
allows you to set-up the AVEX R6 using 3-digit codes
for component brand names. It is also a fast and
easy way to program the remote. The Auto-Search
Method scans through all the brands in the remote
control, one at a time. It should be used when either
the Quick Set-Up or Three-Digit Code Entry Methods
do not work.
* * *
Quick Set-Up Method
STEP 1: Manually or using your old remote, turn
on the component you want to program—for example,
to program your TV, turn on your TV set.
STEP 2: Point the AVEX R6 toward the component
that you want to program (in this case the TV set)
and press the component button (in this case the
TV button). While keeping the component button
pressed, press 1~0, in sequence, using the Number
Pad. When the correct number is selected, the
remote will send a POWER OFF command and the
component will turn off. For example, the Sony
Power Code is sent if you press the Number “1” button.
STEP 3: Release the component button to save the
code. The component LED light will blink three times
to confirm that the code has been stored.
Repeat the above three steps for other components.
Page 9
COMPONENT
BUTTONS
NUMBER
PAD
Three-Digit Code Set-Up Method
STEP 1: Find the 3-digit code numbers assigned
to your brand from the lists in the back of this manual.
The codes are listed by component category (i.e.,
TV, VCR, DVD, etc.), then by brand name. For
instance, if you would like to locate a code for a
Sony television, first locate the TV category and
then look for the Sony brand.
STEP 2: Once you have located the 3-digit codes
for each of the components that you wish to operate
with your AVEX R6, write them ALL down on a
piece of paper. It’s important that you write down
all the codes listed for your brand because only
one code is going to work with your component.
STEP 3: Manually or using your old remote, turn
on the component you want to program—for example, to program your TV turn on your TV set.
STEP 4: On the AVEX R6, press the Component
button that you want to program (in this case the
button that says TV) and the SELECT [SEL] button
at the same time. Hold down both buttons for 2
seconds until the TV Component LED light turns on.
This signals that you are in programming mode.
IMPORTANT: You have 30 seconds to perform
the next step while you are in programming mode.
If you do not press a button within 30 seconds,
the component LED light will turn off. The remote
will exit the programming mode and you will
have to start over.
Page 10
COMPONENT
BUTTONS
SELECT
BUTTON
STEP 5: Point the AVEX R6 toward the component
(in this example the TV) and punch in the first 3-digit
code that you wrote down for that specific component. Use the Number buttons 0~9 on the remote to
punch in the code. The TV LED light will blink each
time a number is pressed.
If the 3-digit code number you just punched in is
the correct number, the component you are trying to
program will turn off. If it did not turn off, enter the
next code number from your list until it does turn off.
STEP 6: Once you’ve entered the code number
and the component has turned off, press the
POWER button on the AVEX R6 remote to turn
the component back on.
Next test the VOLUME and CHANNEL buttons (or
PLAY and STOP buttons for VCR and DVD) to make
sure they all work. For example, perhaps your Sony
TV turned off with code number 147, but the volume
controls did not work properly. In this case, try the
next code number listed for that component. Repeat
Step 5 using the next code number until you find a
perfect match.
STEP 7: Once you’ve entered a correct code you
must save it. Press the component button you just
programmed (in this case TV) one more time to save
the code number. The component LED light will blink
three times to confirm that the code was successfully
stored. Now when you press the TV component
button, all of the buttons will work with your TV.
Program the remaining components by repeating
steps 3 through 7.
IMPORTANT: If you have tried all the set-up
codes in the list and the component still did not
turn off after Step 5, either the Auto-Search Method
(page 12) or the Learning Method (page 14) will
help you program.
Page 11
NUMBER
BUTTONS
Auto-Search Method
The Auto-Search Method is a way you can scan
through all of the codes in the table to find the right
code for your component.
STEP 1: Manually or using your old remote, turn
on the component you want to program—for example,
to program your TV, turn on your TV set.
STEP 2: On the AVEX R6, press the Component
button that you want to program (in this case the
button that says TV) and the SELECT [SEL] button at
the same time. Hold down both buttons for 2 seconds
until the TV Component button light turns on. This
signals that you are in programming mode.
IMPORTANT: You have 30 seconds to perform
the next step while you are in programming mode.
If you do not press a button within 30 seconds,
the component LED light will turn off. The remote
will exit the programming mode and you will have
to start over.
Page 12
UP
ARROW
DOWN
ARROW
STEP 3: Point the AVEX R6 remote control toward
the component and press the UP arrow (or
DOWN arrow) button once. Each time the UP or
DOWN arrow button is pressed, the code will count
up (or down) one code number and send a Power
OFF signal. When the correct code is sent out, the
component will turn off.
STEP 4: Once you have found the right code
number and the component has turned off, press the
POWER button on the AVEX R6 remote to turn the
component back on.
Next test the VOLUME and CHANNEL buttons (or
PLAY and STOP buttons for VCR and DVD) to make
sure they all work. If any of the buttons do not work
properly, you need to find a new code. Continue
pressing the UP (or DOWN) arrow button until you
find a new code that turns off the component and
makes the VOLUME or PLAY buttons respond correctly.
STEP 5: Once you have found the right code, you
must save it. Press the component button you just
programmed (in this case TV) one more time to save
the code number. The component LED light will blink
three times to confirm that the code was successfully
stored. Now when you press the TV component button, all of the buttons will work with your TV.
Repeat the above five steps for other components.
NOTE: Use this method for those components
you cannot program with either the Quick Set-Up
or 3-digit Code Entry Methods.
IMPORTANT: If you cannot find the right code
after 5 minutes of trying the Auto-Search Method,
try the Learning Method (page 14).
PLEASE DO NOT RETURN
THIS PRODUCT TO THE STORE
PLEASE CONTACT OUR TECHNICAL
SUPPORT CENTER . IF YOU NEED ASSISTANCE
E-MAIL techsupport@UniversalRemote.com or dial
1-800-901-0800 (9:00AM - 6:00PM EST)
Page 13
THANK YOU
UNIVERSAL REMOTE CONTROL, INC
500 Mamaroneck Avenue
Harrison, New York 10528
(914) 835-4484 U.S.A.
UNIVERSALUNIVERSAL
remote controlremote control
www.universalremote.com
Loading...
