Universal Remote Control (URS) MC-75CD User Manual

MC-75CD Network Camera
Owner’s Manual
MC-75CD Indoor IP Camera Owner’s Manual ©2010 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER­ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE
OF CONTENTS
Introduction 1
Features and Benefits 1
Parts Guide 1
MC-75CD Front & Rear View under
the Dome Cover 2
Specifications 3
USA Limited Warranty Statement 4
Federal Communication Commission
Interference Statement 6
Page 1
MC-75CD NETWORK CAMERA
Introduction
Congratulations on your purchase of the MC-75CD Premium Surveillance Dome IP Camera! The MC-75CD is an outdoor IP camera that allows for seamless viewing over the network with Total Control products such as the TRC-1280, TKP-2000 and MRX-10. Once joined to the network it will relay video over the CAT5 cable to the MRX-10 which will then send that information to the TRC-1280, TKP-2000 even to your PC.
Features and Benefits
Video viewable on the TRC-1280, TKP-2000 or PC.
Outputs live video up to 30 fps using VGA resolution.
The MC-75CD uses a Super HAD CCD sensor, H.264/M-JPEG dual encoding and transmission with simultaneous dual streaming capabilities.
The camera has a usable 0.3 Lux for (color), 0.002 Lux for (Mono).
Comes with a vandal-proof/ weatherproof dome which helps protect what protects you.
Parts Guide
The MC-75CD Premium Surveillance Dome IP Camera includes:
1 - MC-75CD IP Camera 1 - AC Power Adapter 3 - Bracket Screws 1 - Star Key Wrench 1 - Mount Cap 1 - LAN Cable 1 - Mount Cap Key 1 - Owner’s Manual
Page 2
MC-75CD NETWORK CAMERA

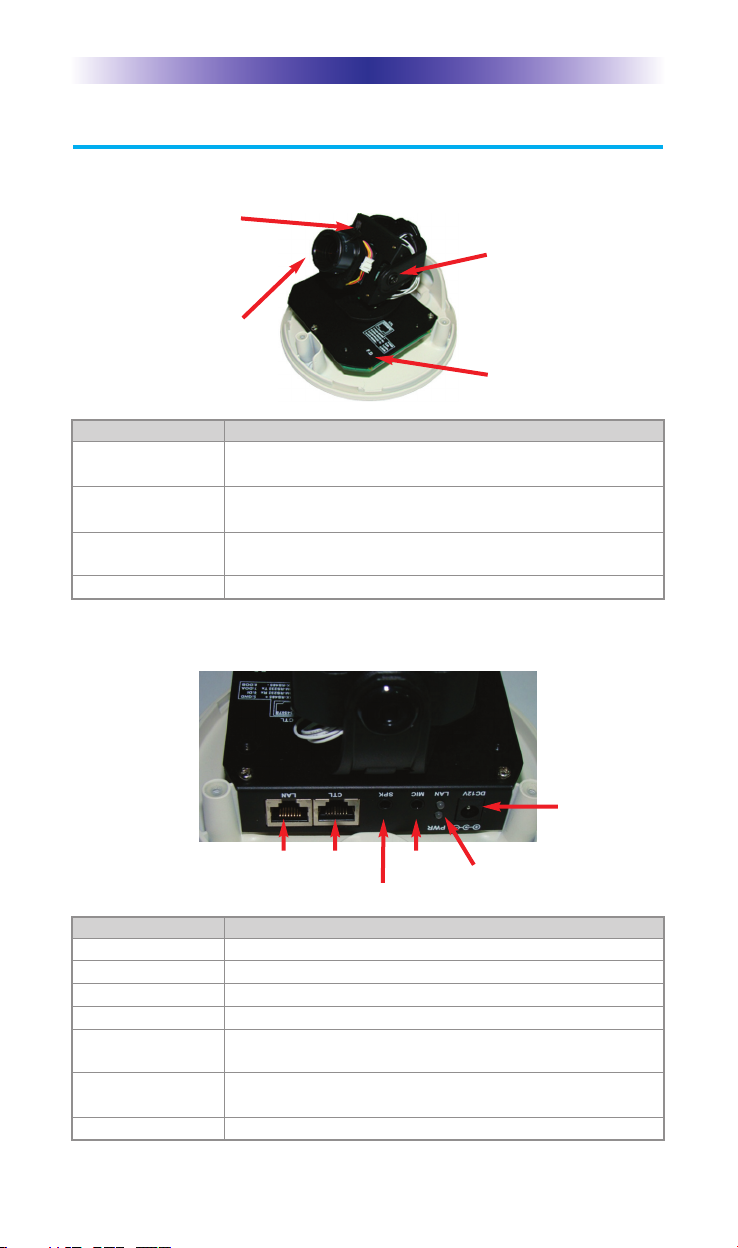

MC-75CD Front & Rear View under the Dome Cover
Front View under the Dome Cover
Adjust for
Up /Down
Camera Module
Factory Default Switch
Adjust for Right/Left
Rear View under the Dome Cover
LAN
Connector
CTL
Connector
Speaker Jack
MIC Jack
POWER Jack
POWER & LAN
LED
Name
Adjust for Up/Down
Adjust for Right/Left
Factory Default Switch
Camera Module
Description
Adjust the position of camera module Up or Down (Needs to be fixed when installing)
Adjust the position of camera module Right or Left (Needs to be fixed when installing)
Button to Set the Camera to Factory Default Values, DO NOT PRESS! Installer feature only
Board mount lens
Name LAN Connector CTL Connector Speaker Jack MIC Jack
POWER LED
LAN LED
Power Jack
Description
RJ-45 Jack for network connection and power supply from PoE Switch Control Port (RS-485, RS-232, DI, DO) The 3.5mm Jack Audio Output Port The 3.5mm Jack Audio Input Port
RED - Light blinks when power is provided.) ORANGE - Light blinks when IP setup is done.
ORANGE - LAN TX/RX (Blinks when there is data activities) GREEN - LAN LINK (Turn on when physical LAN connection is made)
DC 12V Input from Power Adaptor
Specifications
Video Encoding JPEG/H.264 (simultaneous dual stream)
H.264/MJPEG H.264/H.264 (true H.264 dual streaming) Simultaneous streaming with independent control
Resolution D1 - 720x480 (NTSC) / 720x576 (PAL),
4CIF - 704x480 (NTSC) / 704x576 (PAL), CIF - 352x240 (NTSC) / 352x288 (PAL), QCIF - 160x112 (NTSC) / 160x144 (PAL)
Audio Encoding 8 bit PCM (G.711-u-low), Sampling rates
8KHz, Mono Audio
Security Channel based user password protection for
live-cast, PTZ, alarm output and audio.
Working Environment 32~122 F (0~50 °C) / Humidity: 20~80% RH Temperature
Lens DC IRIS & Varifocal 2.8-10.5 mm F1.2 board
mount lens
Weight 1.98 lbs.(0.9Kg) without Power Supply
Page 3
MC-75CD NETWORK
CAMERA
Page 4
MC-75CD NETWORK
CAMERA
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new con­dition, is warranted against defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod- uct against defects in material or workmanship for a period of one (1) year and as set forth below. Universal Remote Control will, at its sole option, repair the product using new or comparable rebuilt parts, or exchange the product for a comparable new or rebuilt product. In the event of a defect, these are your exclusive remeies.
This Limited Warranty covers only the hardware components pack­aged with the Product. It does not cover technical assistance for hardware or software usage and it does not cover any software products whether or not contained in the Product; any such soft­ware is provided "AS IS" unless expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid, in its original packaging or packaging affording adequate protection to Universal Remote Control at the address provided in the Owner's Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have been programmed into your unit. It is likely that such data, soft­ware, or other materials will be lost during service and Universal Remote Control will not be responsible for any such damage or loss. A dated purchase receipt, Bill of Sale, Installation Contract or
other verifiable Proof of Purchase is required. For product support and other important information visit Universal Remote Control's website: http://www
.UniversalRemote.com
or call the Customer
Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects in material or workmanship during ordinary consumer use. It does not cover product issues caused by any other reason, including but not limited to product issues due to commercial use, acts of God, third-party installation, misuse, limitations of technology, or modifi­cation of or to any part of the Universal Remote Control product. This Limited Warranty does not cover Universal Remote Control products sold as USED, AS IS, REFURBISHED, so-called “B STOCK” or consumables (such as batteries). This Limited Warranty is invalid if the factory-applied serial number has been altered or removed from the product. This Limited Warranty is valid only in the United States of America. This Limited Warranty specifically excludes
products sold by unauthorized resellers.
Page 5
MC-75CD NETWORK
CAMERA
LIMITATION OF REMEDIES UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDI­TION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REV­ENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMA­TION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCES­SORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNI­VERSAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR STATEMENTS MADE BY OTHERS CONCERNING THE MER­CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT. Some states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This Limited Warranty gives you specific legal rights and you may have other rights which vary from state to state or jurisdiction to jurisdiction.
REV020708
Page 6
MC-75CD NETWORK
CAMERA
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc­tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele­vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:
Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
Page 7
NOTE
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0108A Rev 01
