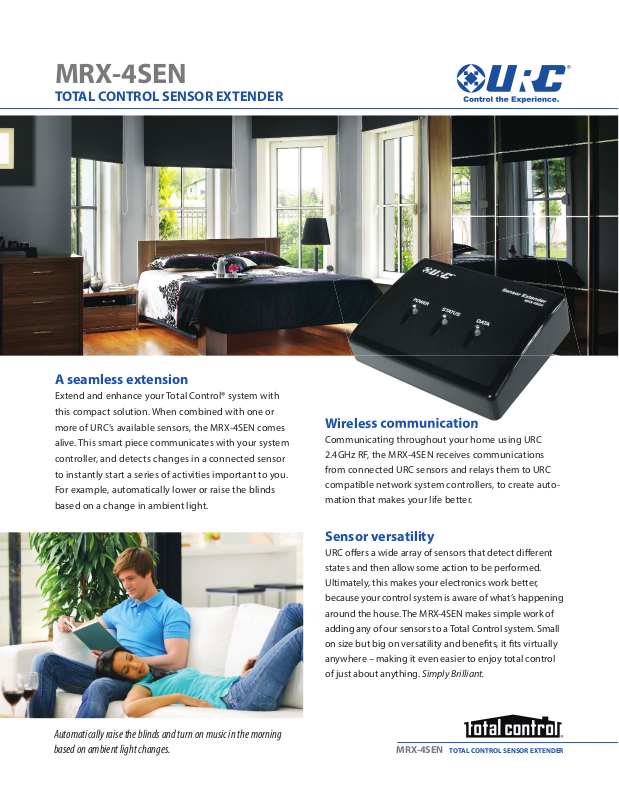

MRX-4SEN
TOTAL CONTROL SENSOR EXTENDER
A seamless extension
Extend and enhance your Total Control® system with
this compact solution. When combined with one or
more of URC’s available sensors, the MRX-4SEN comes
alive. This smart piece communicates with your system
controller, and detects changes in a connected sensor
to instantly start a series of activities important to you.
For example, automatically lower or raise the blinds
based on a change in ambient light.
Wireless communication
Communicating throughout your home using URC
2.4GHz RF, the MRX-4SEN receives communications
from connected URC sensors and relays them to URC
compatible network system controllers, to create auto-
mation that makes your life better.
Sensor versatility
URC o ers a wide array of sensors that detect di erent
states and then allow some action to be performed.
Ultimately, this makes your electronics work better,
because your control system is aware of what’s happening
around the house. The MRX-4SEN makes simple work of
adding any of our sensors to a Total Control system. Small
on size but big on versatility and bene ts, it ts virtually
anywhere – making it even easier to enjoy total control
of just about anything. Simply Brilliant.
Automatically raise the blinds and turn on music in the morning
based on ambient light changes.
MRX-4SEN TOTAL CONTROL SENSOR EXTENDER
Tech Talk
FEATURES
Communicates with URC compatible Advanced Network System
Controllers via URC 2.4GHz RF
Compatible with URC’s Total Control® system
Four sensor ports
Compact size
Includes mounting hardware
SPECIFICATIONS
USB: Mini USB for rmware upgrade use
RF Range: 50 to 100 feet, depending upon the environment
RF Frequency: 2.4GHz
Power: 12V DC 1A
Size: 3.75”(W) x 1.7”(H) x 2.7”(D)
Weight: 2.98 oz
MRX Advanced Network System Controller required
One Year USA Limited Warranty
MRX-4SEN
TOTAL CONTROL SENSOR EXTENDER
Available URC Sensors
Voltage Sensor (SEN-VOLT)
Detects AC or DC voltage between 5 – 24
volts and sends a signal to any sensor
input starting an activity for connected
components.
Video Sensor (SEN-VID)
Detects an active video signal from
components such as a satellite receiver,
DVD player etc. and starts an activity such
as dimming lights or playing a movie.
All URC Sensors may not be shown. Speci cations and screen designs are subject to change without notice. Universal Remote Control and Total Control are trademarks of
Universal Remote Control, Inc.
Contact Closure Sensor (SEN-CCLS)
Detects when a switch/relay is opened or
closed and sends a signal to the MRX unit
with sensor ports starting an activity for
connected components.
Light Sensor (SEN-LITE )
Senses ambient light present or detects a
unit’s power state via an LED light on its
front panel and sends a signal to any sensor input starting an activity for connected
components.
Audio Sensor (SEN-AUD)
Detects an active audio signal from
components such as a satellite receiver,
DVD player etc. and starts an activity such
as dimming lights or turning on music.
Current Sensor / Magnetic Field
(SEN-CMF )
Detects AC power in power cords and AC
magnetic elds created by audio/video
components. The Total Control sensor can
also track a unit’s power state.
WE GIVE YOU TOTAL CONTROL.
MyTotalControl.com
© 2013 Universal Remote Control, Inc.
MRX-4SEN AUGUST 2013
