U-Line CLR2160, CLR2160OD User Manual
®
USE AND CARE GUIDE
CLEAR & CLEAR COMBO® MODELS
CLEAR ICE & CLEAR ICE COMBO MODELS
CLR2160OD Outdoor
CLR2160 Stainless
CLRCO2175
The Built-In Undercounter Leader Since 1962 U-LINE.COM
FOR PRODUCT ASSISTANCE, CALL 1-800-779-2547
MILWAUKEE, WI U.S.A.
Serial/Serie:Model/Modele:
HIGH SIDE DESIGN PRESSURE 300 PSI
LOW SIDE DESIGN PRESSURE 140 PSI
REFRIGERATOR AND/
BTL
LISTED 674R
OR FREEZER
HOUSEHOLD
U
C
L
R
US
www.u-line.com
1
2
Introduction
IMPORTANTIMPORTANT
Congratulations on your purchase of a U-Line refrigeration
product.
Building on 45 years, U-Line has captivated those with an
appreciation for the finer things with exceptional design, inspired
innovations and attention to even the smallest details.
U-Line is synonymous with premium built-in under counter ice
making, refrigeration and wine storage appliances, the U-Line
Corporation is committed to luxury under the counter. U-Line is
known and respected for unwavering dedication to product
innovation, quality and selection. A bold and broad line of models
is the product of visionaries in the pursuit of distinctive living
environments in the kitchen and spaces beyond.
In 1962, Henry Uihlein founded U-Line Corporation as an
outgrowth of Ben-Hur Freezer Company and was the first to
develop and patent an automatic stand-alone under counter
residential ice maker. His foresight and determination to develop
new ideas and to succeed when there were no clear guidelines or
solutions are evident today. The Milwaukee, Wisconsin based
family operated business provides continuity and vision from which
innovations continue to be born.
Going forward, U-Line will continue offering best-in-class products
that build on the company's numerous patents and world firsts to
guide the under counter industry in realizing its unlimited
potential.
Read and save this Use and Care Guide.

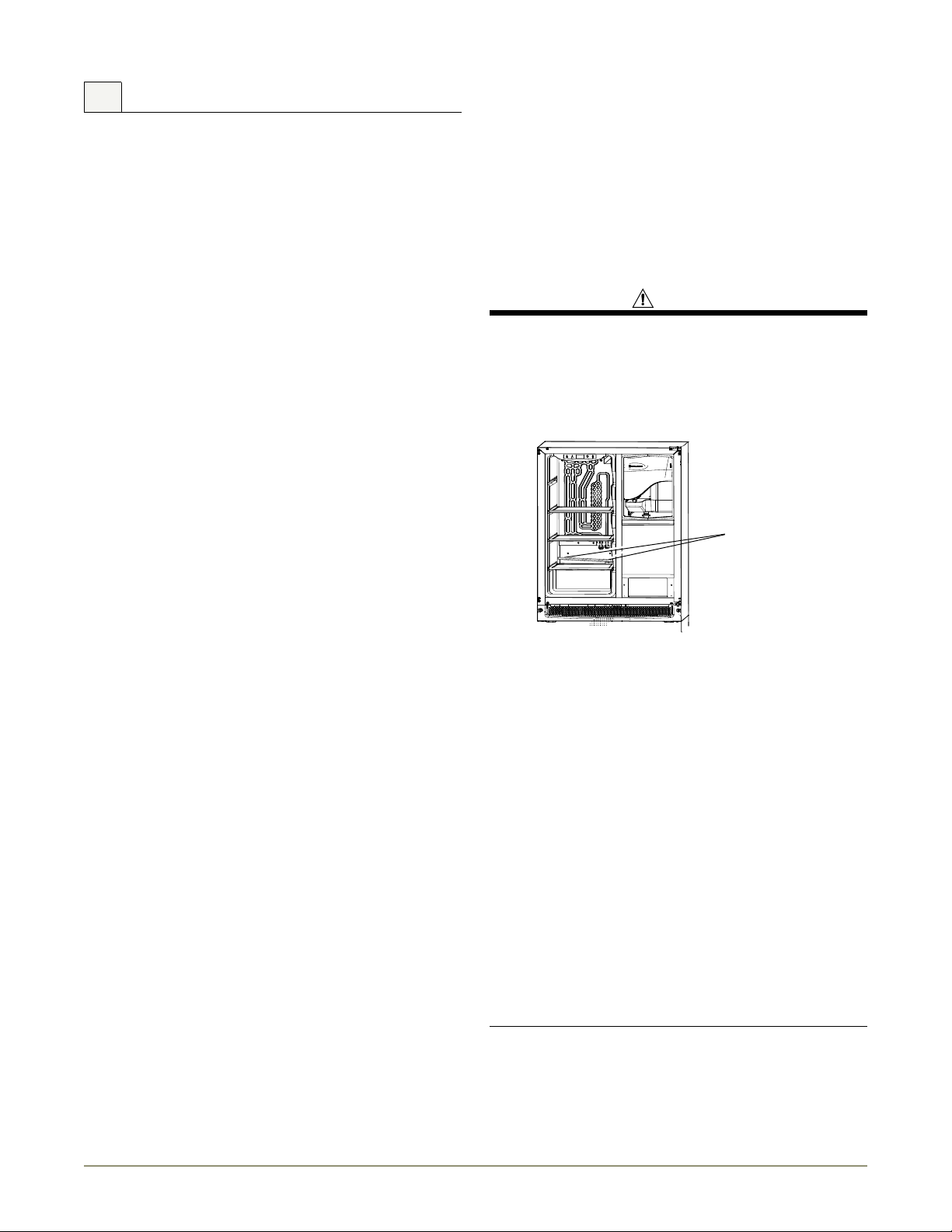

Please Record Your Model Information
You will need your product model and serial number when you
request additional information or services. You can find this
information on the serial plate located on the upper right or back
wall in the interior of your product. This information also appears
on the warranty registration card.
Please record the model number (1), serial number (2), date of
purchase, and dealer contact information for your U-Line product
below:
Model Number:
________________________________________________
Serial Number:
________________________________________________
Purchase Date:
READ all instructions in this guide completely before
using the appliance for the first time.
For future reference, keep this guide in a safe, accessible location.
If you need additional information or assistance, please contact ULine Corporation direct. Contact information appears on the back
cover of this guide.
Before Calling Service. If you think your U-Line product is
malfunctioning, read the OPERATION section of this guide to
understand clearly the function of the control. If the problem
persists, read the TROUBLESHOOTING GUIDE section of this
guide to help you quickly identify common problems, and provide
information on possible causes and remedies.
________________________________________________
Dealer Name:
________________________________________________
Dealer Address:
________________________________________________
Dealer Telephone:
________________________________________________
Introduction to U-Line
1 Table of Contents
U-Line Clear Ice & Clear Combo® Models
i - Introduction .................................................................................................................................................................i
Read and save this Use and Care Guide. .........................................................................................................i
Please Record Your Model Information ...........................................................................................................i
1 - Table of Contents .....................................................................................................................................................1
2 - Safety Precautions .....................................................................................................................................................3
Safety Alert Definitions ........................................................................................................................................3
General Precautions .............................................................................................................................................3
3 - Product Features .......................................................................................................................................................4
Model Features: .....................................................................................................................................................4
Combo® Model Features: ..................................................................................................................................4
4 - Product Operation ...................................................................................................................................................5
Air Flow ...................................................................................................................................................................5
Electronic Control Panel .....................................................................................................................................5
Adjusting Air Temperature CLRCO2175 .......................................................................................................5
Initial Startup ..........................................................................................................................................................5
Checking Product Temperature ........................................................................................................................6
Interior Lighting .....................................................................................................................................................6
Electronic Control Quick Guide .......................................................................................................................7
Clear Ice Maker Cleaning Cycle ........................................................................................................................8
5 - Clear Ice Maker .........................................................................................................................................................8
Ice Cube Thickness Adjustment ........................................................................................................................9
6 - Maintenance ............................................................................................................................................................ 10
Leveling ................................................................................................................................................................. 10
Removing and Installing Interior Shelves ...................................................................................................... 10
Lightbulb Replacement ...................................................................................................................................... 10
Removing and Installing Door Shelves .......................................................................................................... 11
Removing and Installing Grille ......................................................................................................................... 11
7 - Self-Closing Doors ................................................................................................................................................ 12
Door Alignment and Adjustment ................................................................................................................... 12
Door Reversability ............................................................................................................................................. 12
Reversing the door ............................................................................................................................................ 12
8 - Cleaning .................................................................................................................................................................... 14
Exterior Cleaning ............................................................................................................................................... 14
Interior Cleaning ................................................................................................................................................ 14
Defrosting ............................................................................................................................................................ 14
Condensor Cleaning .......................................................................................................................................... 15
Storage, Vacation and Moving ......................................................................................................................... 15
Product Disposal ................................................................................................................................................ 15
9 - Service ...................................................................................................................................................................... 16
Normal Operating Sounds ............................................................................................................................... 16
Troubleshooting Guide ..................................................................................................................................... 16
Before Calling for Service ................................................................................................................................ 16
If Service is Required ......................................................................................................................................... 16
Replacement Parts ............................................................................................................................................. 16
ii - U-Line Corporation Limited Warranty ...............................................................................................................ii
U-Line Use and Care Table of Contents 1
2 U-Line Use and Care Guide
IMPORTANTIMPORTANT
DANGER
WARNING
CAUTION
2 Safety Precautions
DANGER
WARNING
WARNING
CAUTION
IMPORTANTIMPORTANT
• PLEASE READ all instructions before installing,
operating, or servicing the appliance.
General Precautions
Use this appliance for its intended purpose only and follow these
general precautions with those listed throughout this guide:
• Proper installation procedures must be followed when
completing an installation or relocation of a unit.
Consult the installation guide before any installation
begins. U-Line contact information appears on the rear
cover of this guide.
• This unit requires connection to a dedicated 15 Amp
grounded (three-prong), polarized receptacle, installed
by a qualified electrician, compliant with applicable
electrical codes.
Safety Alert Definitions
Throughout this guide are safety items labeled with a Danger,
Warning or Caution based on the risk type:
Danger means that failure to follow this safety statement will
result in severe personal injury or death.
RISK OF CHILD ENTRAPMENT. Before you throw away your
old refrigerator or freezer, take off the doors and leave shelves
in place so children may not easily climb inside.
SHOCK HAZARD - Electrical Grounding Required.
• Never attempt to repair or perform maintenance on
the unit until the electricity has been disconnected.
• Never remove the round grounding prong from the
plug and never use a two-prong grounding adaptor.
• Altering, cutting of power cord, removal of power
cord, removal of power plug, or direct wiring can
cause serious injury, fire and or loss of property and
or life, and will void the warranty.
• Never use an extension cord to connect power to the
unit.
• Always keep your working area dry.
Install provided Anti-Tip kit on all Wine Captain
Models and Beverage Centers. Serious personal injury
could occur.
Warning means that failure to follow this safety
statement could result in serious personal injury,
property or equipment damage.
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
• Use care when moving and handling the unit. Use gloves
to prevent personal injury from sharp edges.
• If your model requires defrosting, DO NOT use an ice
pick or other sharp instrument to help speed up
defrosting. These instruments can puncture the inner
lining or damage the cooling unit. DO NOT use any type
of heater to defrost. Using a heater to speed up
defrosting can cause personal injury and damage to the
inner lining.
• Do not lift unit by door handle.
• Never install or operate the unit behind closed doors.
Be sure front grille is free of obstruction. Obstructing
free airflow can cause the unit to malfunction and will
void the warranty.
• Failure to clean the condenser every six months can
cause the unit to malfunction. This could void the
warranty.
• Allow unit temperature to stabilize for 24 hours before
use.
• Do not Block any internal Fans
Use only genuine U-Line replacement parts. Imitation
parts can damage the unit, affect its operation or
performance and may void the warranty.
U-Line Safety Precautions 3
3 Product Features
Model Features:
High daily ice production and storage. The CLR2160
produces up to 60 pounds of ice per day and stores up to 30
pounds. While the CLRCO2175 can produce up to 40 pounds or
ice per day and store up to 15 pounds.
Electronic control module. Automatically adjusts for changes
in room and water temperatures to maximize ice production and
provide consistently sized cubes.
Touch control digital technology. Provides an elegant interface
and allows for complete control over the self cleaning process,
thickness of ice cubes, and power control. The unit also provides
temperature control functions for the CLRCO2175
Easy, self-cleaning process. Both models have a simple to use
self cleaning process. Within one hour all ice making internal
components have been thoroughly cleaned and rinsed.
Optional 3/4” full overlay door panel. Provides a fully
integrated appearance with surrounding décor while maintaining
zero clearance. (Black & White models).
1/4” panel. Models will also accept a 1/4” door panel to match
surrounding décor. (Black & White Models)
Flexible water drain options. Water may be drained using
either a gravity fed drain or a U-Line supplied P60 drain pump.
Built in or freestanding. Provides custom look, no additional
clearance needed around top, rear or sides of unit.
Combo® Model Features:
Clear ice production capability plus refrigeration all in one
unit. Both clear ice capability and refrigeration all in on 24” wide
compact unit.
Three glass shelves. Maximizes storage capacity and easy to
clean.
Two adjustable in-door storage shelves. Provides easy access
to commonly used product. Allows for flexible storage options.
Cripser Drawer. Optimizes product storage.
Recessed interior light. Located in the refrigerator, this light
automatically illuminates when the door is open.
Stainless steel model. Offers a stainless door and cabinet, along
with a commercial stainless door handle.
Self-closing door. Engages when door is open 8”-10” and
ensures a positive door seal. Also prevents door bounce back.
Field reversible doors. Flexible installation options. Allows your
unit to be installed almost anywhere.
Integrated handle. Sleek designer look that does not add depth
to the cabinet when built in (Black & White models).
Vinyl-clad cabinets. Textured, rich look. More resistant to
scratching, peeling and flaking. (Black, White & Stainless Indoor
models).
Leveling legs. Provides a more precise under counter fit. Durable
and factory installed.
Sabbath or “Black Out” mode. Easily turn off all lights and
control displays for up to 36 hours.
Contemporary grille design. Integrates and accents
surrounding décor.
LED illumination. Provides efficient and elegant lighting to the
interior of your unit. Automatically illuminates when door is open
(CLR2160 indoor models only.).
4 U-Line Combo Model and Ice Maker Product Features
Loading...
