Installation Guide
BI2015 — Ice Maker
™
www.U-LineService.com
Phone (414) 354-0300 • FAX (414) 354-7905
Service & Parts Tech Lines Phone (800) 779-2547 • FAX (414) 354-5696
OnlineService@U-Line.com
©2005 U-Line Corporation
02/2005
BI2015 — Ice Maker
™
Contents
Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Door Swing/Clearances Information . . . . . . . . . . . . . . 5
Reversing the Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6
Side-By-Side Installation Instructions . . . . . . . . . . . . . . 7
Custom 1/4'' Door Panel Insert . . . . . . . . . . . . . . . . . . . 7
Full Overlay Door Panel . . . . . . . . . . . . . . . . . . . . . . . . . 8
Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . . 12
Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . . 12
Water Supply Connection . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 14
Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation of the BI2015 . . . . . . . . . . . . . . . . . . . . . . . 15
Installation Troubleshooting . . . . . . . . . . . . . . . . . . . . . 15
Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 16
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1 Follow Safety Precautions
IMPORTANT
PLEASE READ all instructions completely before
attempting to install or operate the unit.
• This unit requires connection to the water supply.
Improper hook-up can result in substantial property
damage! If you are unsure of your ability to safely
connect the water supply to the unit, consult a licensed
plumber for assistance.
• This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a
qualified electrician in accordance with applicable
electrical codes.
Safety Alert Definitions
Safety items throughout this guide are labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury,
or death.
CAUTION
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
www.U-LineService.com 2 02/2005
™
BI2015 — Ice Maker
General Precautions
Use this appliance for its intended purpose only and
follow these general precautions along with those listed
throughout this guide:
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Keep the unit unplugged throughout installation
except during testing.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
• Always keep your working area dry.
CAUTION
• Use care when moving and handling the unit. Use
gloves to prevent personal injury from sharp edges.
• Do not lift the unit by the door or door handle.
• Do not install the unit behind closed doors or in any
way that would obstruct airflow to the front grille,
which may cause the unit to malfunction.
2 Inspect and Plan
You have received a carton containing your BI2015 Ice
Maker with a package inside containing a User Manual, a
Product Registration Card and water connection parts.
Complete and mail the Product Registration Card or
register online at www.U-LineService.com. Once your unit
is installed, keep the User Manual and this Installation
Guide in a safe place for future reference.
Your unit is Black, White or Stainless Steel. Black and
White units have a reversible door with a slightly
contoured handle across the top. They come with a flush
mounted door panel that, when removed, will accept a
custom 1/4-inch thick door panel or a 3/4-inch thick full
overlay door panel. Stainless Steel units are covered with
a protective coating and have been ordered left- or righthand hinged. The Stainless doors are not reversible and
do not accept custom panels. Please carefully follow the
directions that apply to your unit and your intended
design.
Tools/Materials Required
• 7/64" Allen wrench
• Screwdrivers — slotted and Phillips head
• 1/4-inch OD copper tubing and shut-off valve for water
supply line
• 1/4-inch thick door panel material and cutting tools
(Black or White units)
• Full Overlay Door Panel Kit (part number U-OL2015B —
Black or part number U-OL2015W — White), 3/4-inch
door panel overlay, cutting tools, drill and bits (Black or
White units)
Inspection
Unwrap and inspect the unit on a flat, level surface
capable of supporting its entire weight.
Removing Protective Coating
(Stainless Steel Units Only)
When inspecting/installing a Stainless Steel unit, the
protective coating covering the unit must be removed
first. Start at a corner of the unit/door and pull back the
protective coating to remove it from the unit/door.
02/2005 3 www.U-LineService.com
BI2015 — Ice Maker
™
After all the protective coating has been removed from
the unit/door, clean all Stainless Steel surfaces with Claire
Stainless Steel Polish and Cleaner or comparable product
or a mild detergent and warm water solution and soft
cloth. Do NOT use abrasive cleaning agents.
Note: If cleaning with mild detergent and warm water
solution and soft cloth, the unit MUST be treated with
Claire Stainless Steel Polish and Cleaner or comparable
product to prevent discoloration.
Exterior Cleaning
(As Required)
Black and White Models:
• The door, grille and cabinet may be cleaned with a mild
detergent and warm water solution. Do not use
solvent-based or abrasive cleaners. Use a soft sponge
and rinse with clean water. Wipe with a soft, clean
towel to prevent water spotting.
Stainless Steel Models:
• Stainless steel models can discolor when exposed to
chlorine gas, pool chemicals, salt water or cleaners with
bleach.
• Keep your stainless steel unit looking new by cleaning
with a good quality all-in-one stainless steel cleaner/
polish on a monthly basis. For best results use Claire
Stainless Steel Polish and Cleaner, which can be
purchased from U-Line Corporation. (The part number
is 173348.) Comparable products are acceptable.
Frequent cleaning will remove surface contamination
that could lead to rust. Some installations may require
cleaning on a weekly basis.
• Do not clean with steel wool pads.
• Do not use cleaners that are not specifically
intended for stainless steel (this includes glass,
tile and counter cleaners).
• If any surface discolors or rusting appears, clean it
quickly with Bon-Ami or Barkeepers Friend Cleanser
and a non-abrasive cloth. Always clean in the direction
of the grain. Always finish this process with Claire
Stainless Steel Polish and Cleaner or comparable
product to prevent further problems.
• Use of abrasive pads such as Scotchbrite will
cause the graining in the stainless to become
blurred.
• Rust that is allowed to linger can penetrate into the
surface of the stainless steel and complete removal of
the rust may not be possible.
3 Prepare Site
Your U-Line product has been designed for either freestanding or built-in installation. When built-in, your unit
does not require additional air space for top, sides or rear.
However, the front grille must NOT be obstructed and
clearance is required for water, drain and electrical
connections in the rear.
Note: Unit can NOT be installed behind a closed cabinet
door.
Cut-Out Dimensions
See Electrical
Specifications
34-1/4"
to
35-1/8"
for Power Supply
8"
15-3/16"
Figure 1
Follow the cut-out drawing in
Figure 1
. The 15-3/16"
width allows 1/4" for ease in installation and removal of
the unit. 24" is the counter depth in most installations.
The unit is 23-11/16" deep including the handle on Black
and White models and 23-11/16" deep including the
door and not the handle on Stainless Steel models (see
Figure 2
).
23-11/16"
www.U-LineService.com 4 02/2005
™
BI2015 — Ice Maker
Product Dimensions
23-11/16"
Including
Handle
34-1/8"
14-15/16"
Black and White
Figure 2
Please note that the unit has adjustable feet that can add
one additional inch to height during leveling or to match
adjacent cabinets (see Figure 35 on Page 14).
25-13/16"
Including
Handle
34-1/8"
14-15/16"
Stainless Steel
Door Swing/Clearances Information
Reversing the Door
(Black and White Units Only)
All U-Line units (except
Stainless Steel models) may
be left- or right-hand
opening. The door opening is
easily reversed by moving the
hinge hardware to the
opposite side. The top hinge
hardware will be used on the
bottom of the other side and
the bottom hinge hardware
will be used on the top of the
other side (see Figure 4).
To reverse the door:
1. Remove top hinge screw
pin from door (7/64"
Allen wrench or Phillips
screwdriver, depending
on your unit’s
construction) (see Figure 5). Remove door by tilting
forward and lifting off bottom hinge pin.
2.
Remove plastic screw plugs (3 each, top and bottom)
from new hinge location. Do not discard (see
Figure 4
Figure 6
).
Black and White units have a zero clearance for the door
to open 90° (see Figure 3). Stainless Steel models require
a minimum of 2-1/8" door clearance to accommodate the
handle if the unit is installed next to a wall or similar type
of structure.
1/4" Min.
90°
Door Swing
Wall
Black and White
21-7/16"
16-1/2"
90°
Door Swing
Wall
2-1/8" Min.
21-7/16"
16-1/2"
Stainless Steel
Figure 3
Screw Plugs
Figure 5 Figure 6
3. Remove top hinge (3 screws), reinstall hinge screw pin,
and remount on opposite side BOTTOM (see
Figure 7
).
02/2005 5 www.U-LineService.com
BI2015 — Ice Maker
™
4. Remove the two door closer inserts from the existing
bottom hinge and install as shown on the new bottom
hinge (see
Hinge
Screw
Pin
Figure 7
Figure 8
).
Door
Closer
Inserts
Figure 8
5. Remove existing bottom hinge (3 screws) and remount
on opposite side TOP. Remove hinge screw pin.
6. Remove the plastic hole plug from the top of the door
to allow the pivot pin to be inserted in the new
location. Install the plug into the vacated hole on the
opposite side.
7. With bottom of door facing up, remove pivot plate
(2 screws), flip over, and remount on opposite side of
door (see
Figure 9
). Be sure notch in plate faces center.
Other Site Requirements
Power Supply
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A circuit (normal household current). See
Electrical Specifications on Page 14.
Water Supply
The unit requires a 1/4-inch OD water supply line and a
shut-off valve. For more information see Page 13.
Environmental Requirements
The surrounding air temperature must be at least 50°F
(10°C) but must not exceed 110°F (40°C). High ambient
temperature ranges and warmer water supply will cause
reduced ice production. Black and White units may be
installed outdoors in a covered area. Stainless Steel BI2015
units are deemed suitable for outdoor use by UL. The unit
must not be located near heat-generating equipment or
in direct sunlight.
Figure 9
8. Holding door upright with top of door tilted forward,
place hole of door pivot plate on bottom hinge screw
pin (see
Figure 10
).
9. Tilt top of door into
position in top hinge and
install top hinge screw pin.
10. Install plastic screw plugs
removed in Step 2 in old
hinge holes (3 each, top
and bottom).
Figure 10
www.U-LineService.com 6 02/2005
™
BI2015 — Ice Maker
Side-By-Side Installation
Instructions
For a complete refreshment center, install your BI2015 Ice
Maker beside a U-Line Refrigerator, Combo, or Wine
Captain Model (see Figure 11 for typical cut-out). Note
that each Side-By-Side Installation will be different.
• Cut-out width for a side-by-side installation is the total
of the widths listed under Cut-Out Dimensions in each
unit’s Installation Guide.
For example:
Placing a BI2015 Ice Maker next to a 2015 series unit
would require a cut-out width of:
15-3/16" + 15-3/16" = 30-3/8"
Placing a BI2015 Ice Maker next to a 2075 series unit
would require a cut-out width of:
15-3/16" + 24-3/16" = 39-3/8"
No trim kit is required. However, 1/4-inch space needs to
•
be maintained
unobstructed door swing.
• Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
Electrical Specifications.
between the units to ensure
4 Prepare and Install Door Panel
(Black and White Units Only)
Two types of custom door panels can be installed on your
Black or White unit to harmonize with or accent the
surrounding décor: a Custom 1/4" Insert or a Full Overlay.
If no custom door panel is used, go on to 5 Adjust Door.
Custom 1/4'' Door Panel Insert
Door Panel Preparation
A custom door panel can be inserted into the doorframe.
Custom door panels can be flat or raised, as long as the
maximum panel thickness where inserted into the door
reveal (channel) is 1/4"-thick. For raised panels, the depth
of the reveal is 1/4" on all four sides.
IMPORTANT
Raised panels will reduce the door’s 90° swing/zero
clearance if the unit is installed next to a wall or similar
type of structure (see Page 5).
Cut the panel insert to the following dimensions.
Custom 1/4" Dimensions:

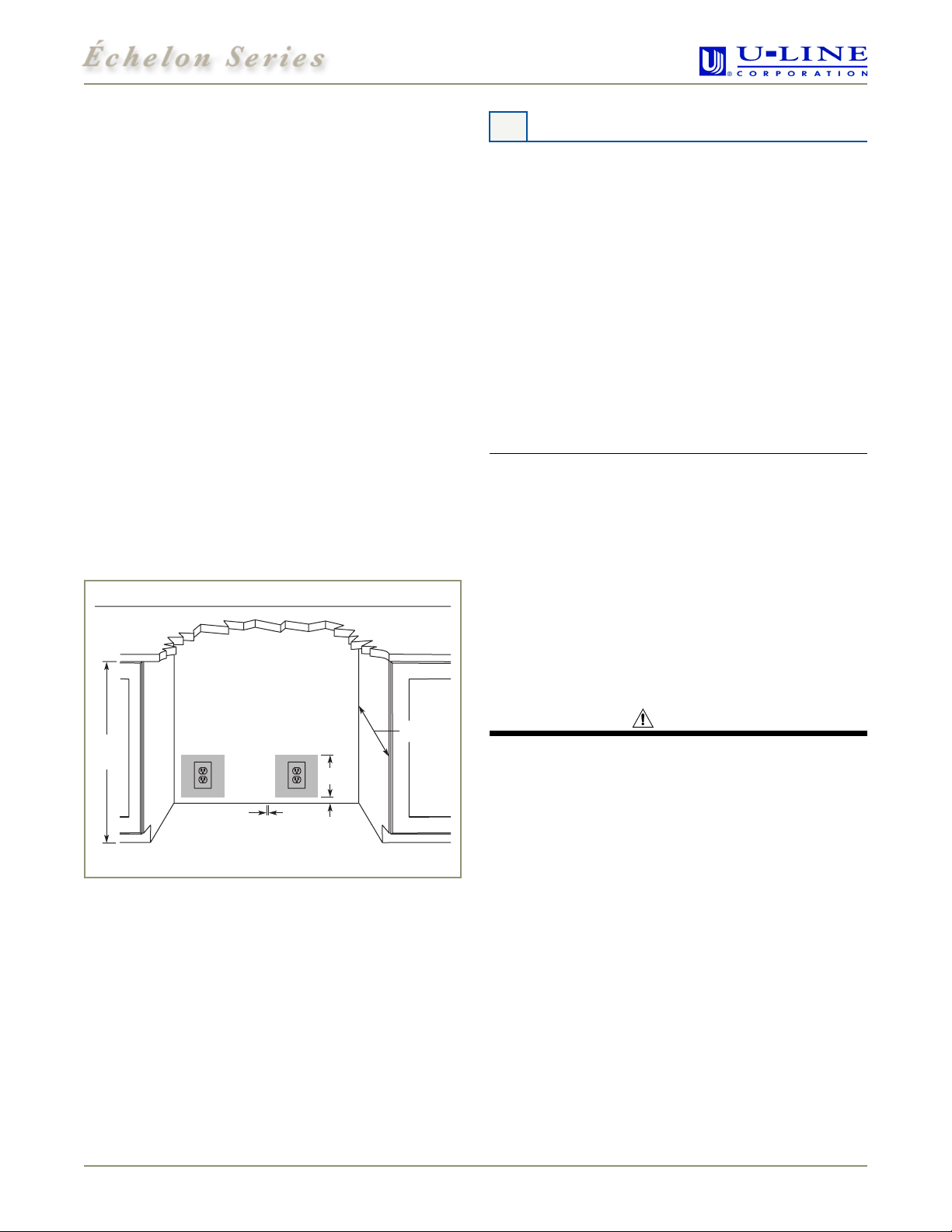

Typical Side-By-Side Cut-Out
34-1/4"
to
35-1/8"
1/4" Space
Between Appliances
Figure 11
Width: 14-1/32"
Height: 28-5/32"
The door panel must not weigh more than 20 lbs.
Door Panel Installation
Install the insert as follows:
23-11/16"
Use care when handling the insert. Insert edges may be
7"
sharp.
1. Remove top hinge screw pin (7/64" Allen wrench or
1"
Phillips screwdriver, depending on your unit’s
construction, see Figure 12). Remove door by tilting
forward and lifting off bottom hinge pin.
CAUTION
02/2005 7 www.U-LineService.com
BI2015 — Ice Maker
Figure 12 Figure 13
2. Pull door gasket out of groove (top edge of door only).
Start in the middle and pull outward, moving toward
the edge (see
Figure 13
). This may take some force. Do
not remove the three screws behind gasket.
3. Remove two outside screws holding door handle.

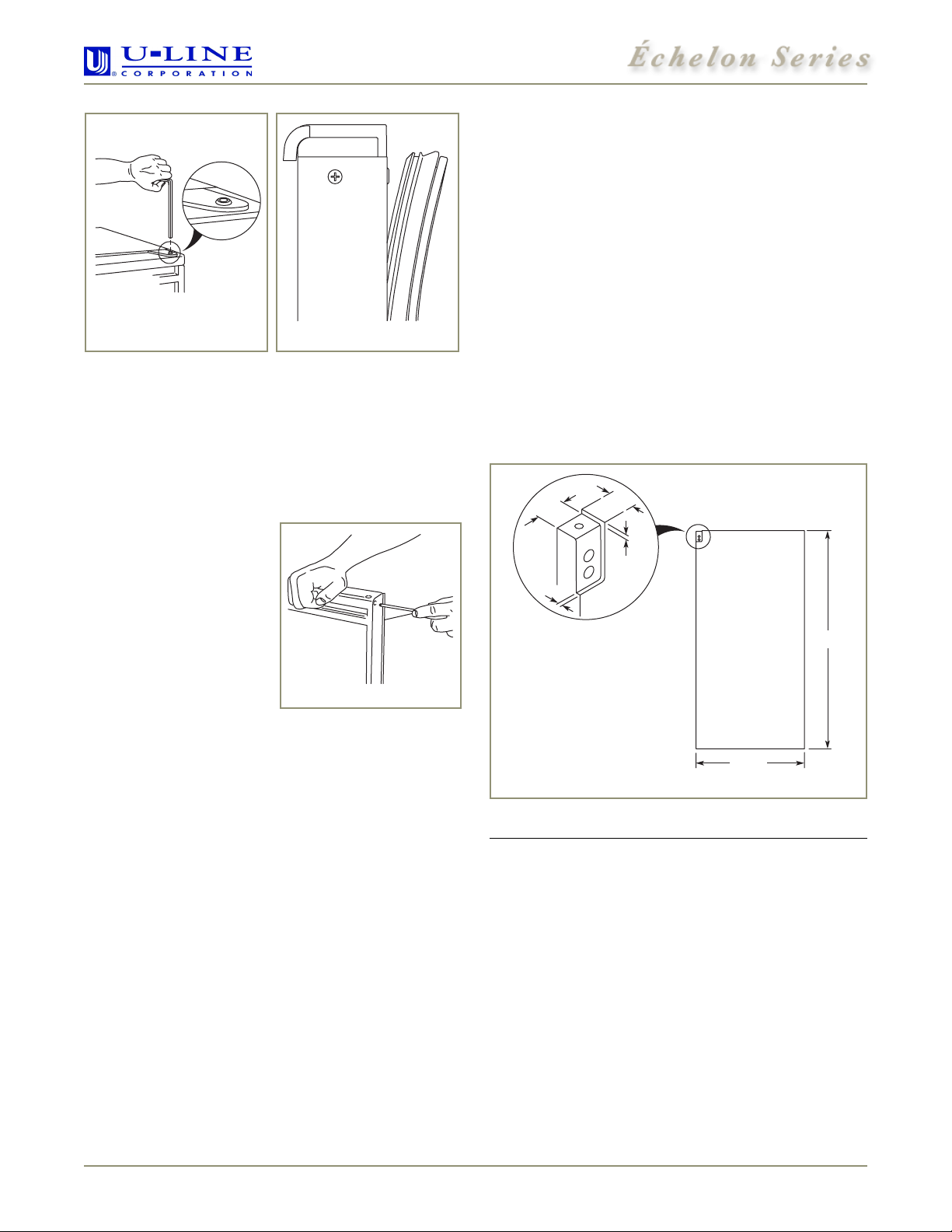

Slightly separate door handle from door (see
Figure 14
).
4. Pull handle up and off.
™
Full Overlay Door Panel
Door Panel Preparation
A full overlay door panel completely covers the
doorframe and handle to give a built-in appearance. See
your U-Line dealer for the optional Full Overlay Door
Panel Kit (P/N U-OL2015B — Black or P/N U-OL2015W —
White). Appropriate hardware, Modified Handle,
Replacement Hinges and a copy of these instructions will
be included in the kit.
1. Cut the overlay to the following dimensions (see
Figure 15).
Full Overlay Dimensions:
Width: 14-3/4"
Height: 29-7/8"
The door panel must not weigh more than 20 lbs.
13/16"
3/4"
5. Remove and discard
existing panel and
cardboard spacer.
6. Slide custom door panel
insert into 1/4-inch
channel in door front.
7. Holding door gasket out
of the way, replace handle
Figure 14
on door, making sure it is
seated properly on insert and that screw holes
line up.
8. Install two small screws removed in Step 3.
9. Starting at the corners and working inward, push door
gasket into place on door.
10. Place door on bottom hinge pin and install upper hinge
screw. Go on to
5 Adjust Door
.
1/8"
1/8"
Relief Notch
for Pivot Plate
Rear View
of
Wood Panel
14-3/4"
29-7/8"
Figure 15
IMPORTANT
Rear View of wood panel for right-hand hinge shown. Use
mirror image for left-hand hinges.
2. Create a relief (
notch in top corner and coinciding back corner of
overlay panel. Refer to
specifications.
Figure 15
Figure 16
) for pivot plate by cutting
for exact
www.U-LineService.com 8 02/2005
™
BI2015 — Ice Maker
3/8"
1-17/32"
5/16" Dia.
x
13/32"
13/16"
7/16"
1/2" Deep
13/16"
Top View
1/8"
Back View
0.177" Dia. (#16 Drill)
x
11/16" Deep
13/32"
13/16"
3/8"
Door Bottom:
5/16" Dia. x 1/4" Deep
Chamfer 1/32" x 45
Bottom View
1/32" R
1/8" R
Side View
13/32"
°
1/8"
3/4"
Figure 16
Route notch in top corner of overlay panel as shown
(see Top and Side Views). Top of notch is entire depth
of panel, front to back.
Width: 13/16"
Depth: 1/8"
Route notch in backside of top corner of overlay panel
(see Back and Side Views).
Width: 13/16"
Depth: 1/8"
Height: 1-17/32" from top edge of panel (less 1/8" for
depth of notch on top of panel)
Radius of corner notch: 1/8" (see Back View)
3. Drill holes for pivot plate mounts (see
Figure 16
View).
5/16" diameter x 1/2" deep, from the routed surface
1/8"
, Back
4. Drill hole for upper door hinge (top of panel) (see
Figure 16
, Top View).
0.177" diameter
(#16 drill) x 11/16" deep
5. Drill hole for lower door hinge (see
Figure 16
, Bottom
View).
5/16" diameter x 1/4" deep
CAUTION
It is important to ensure that all drilled holes are drilled to
the correct depth in order to avoid splits in the wood
when hardware is installed.
Installation Instructions
Removing Existing Door
1. Remove top hinge screw pin (7/64" hex key or Phillips
screwdriver, depending on your unit’s construction).
Remove the door by tilting forward and lifting off the
bottom hinge pin.
2. Pull door gasket out of the groove (top edge of door
only). Start in the middle and pull outward, moving
toward the edge (see
Figure 17
force.
Figure 17 Figure 18
3. Remove the three screws located on the back of the
handle (see
Figure 18
).
). This may take some
New Handle
Old Handle
CAUTION
Be careful not to drill too deep! Drilling holes too deep
may destroy your door panel.
02/2005 9 www.U-LineService.com
BI2015 — Ice Maker
™
4. Remove the top handle and discard. (This handle will be
replaced with the Modified Handle included in the Full
Overlay Door Panel Kit.)
5. Remove the two screws located on both sides of the
lower handle. Remove the handle.
6. Attach the Modified Handle to the lower handle using
the three screws removed in Step 3. Set aside.
7. Slide the existing door panel out of the doorframe.
Attaching the Full Overlay Panel

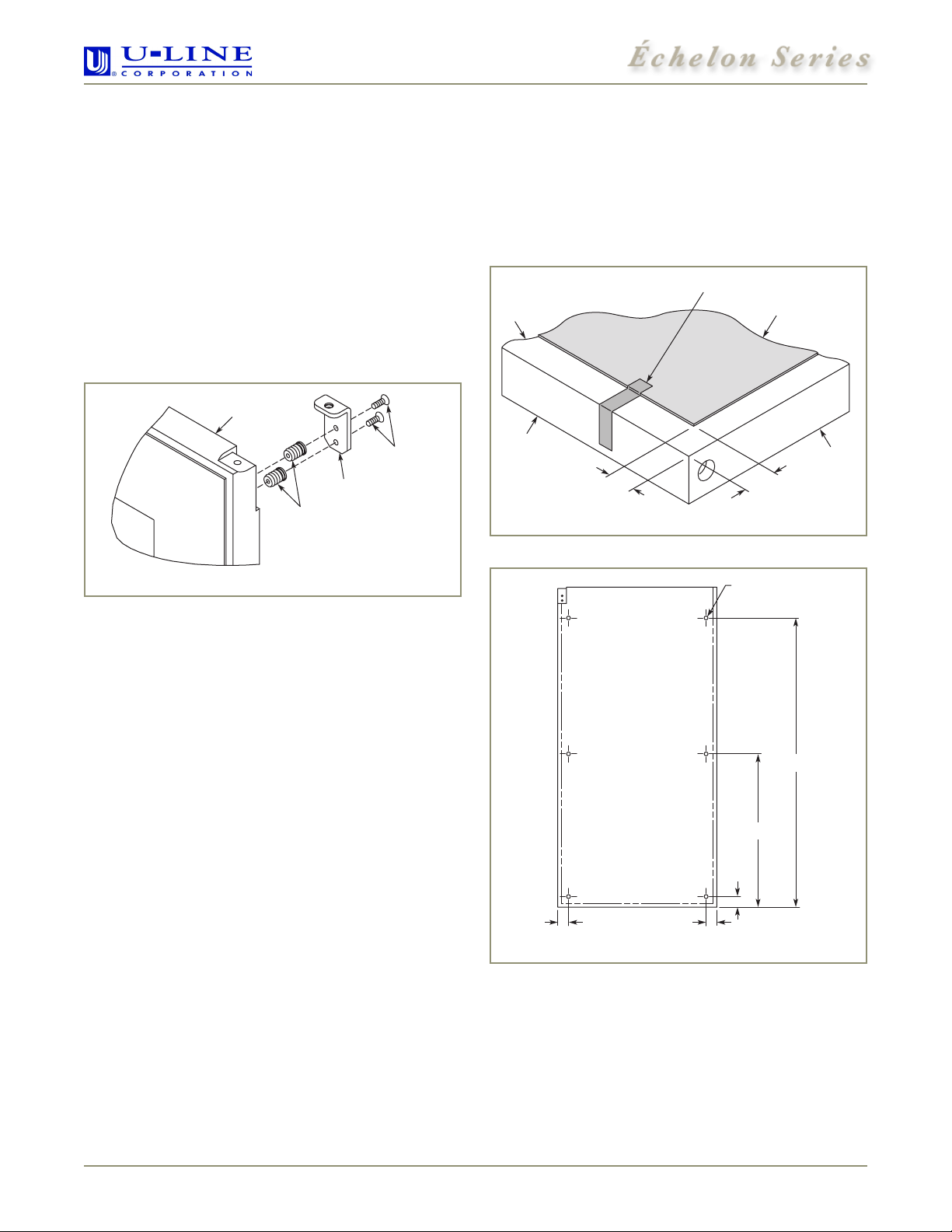

1. Tap nylon inserts into the top holes drilled in the
overlay panel. Use two #6 screws to attach top pivot
bracket to the overlay panel (see Figure 19).
Typical Wood
Panel
#6 X 5/8"
Flat Head Screw
Top Pivot
8 mm Plug Insert
Two Required
Two Required
Plate
Figure 19
2. Place and tape the existing door panel on the back of
the overlay panel (see
Figure 20
through both panels according to
) and drill holes
Figure 21
. Remove
tape adjoining the panels and enlarge the six holes in
the overlay panel using a 0.201" (#7) drill.
3. If a user-supplied cabinet handle will be used, attach its
hardware to the overlay panel at this time.
Back of
Wood
Panel
Side of
Wood Panel
5/16"
Bottom
Tape
Removed
Door Panel
3/8"
Both Sides
Bottom of
Wood Panel
Figure 20
Drill 5/32" x 3/8" Deep for use
with #10 x 5/8" Wood Screw
and Nylon Spacer –
6 Places
Rear View
of
Wood Panel
14-5/16"±1/4"
1"±1/8"
1"±1/32"1"±1/32"
27"±1/4"
Figure 21
4. Attach the door panel to the overlay panel using #10 x
5/8" wood screws and nylon spacers. The nylon spacers
fit between the overlay panel and the door panel as
shown in
Figure 22
door panel to slide back into the
. The spacers
allow the original
1/4"-thick door
reveal (channel).
www.U-LineService.com 10 02/2005
™
BI2015 — Ice Maker
Typical
Wood Panel
Top
Pivot Plate
Plastic Spacer
Six Required
Door Panel
Round
Six Required
#10 x 5/8"
Head Screw
Figure 22

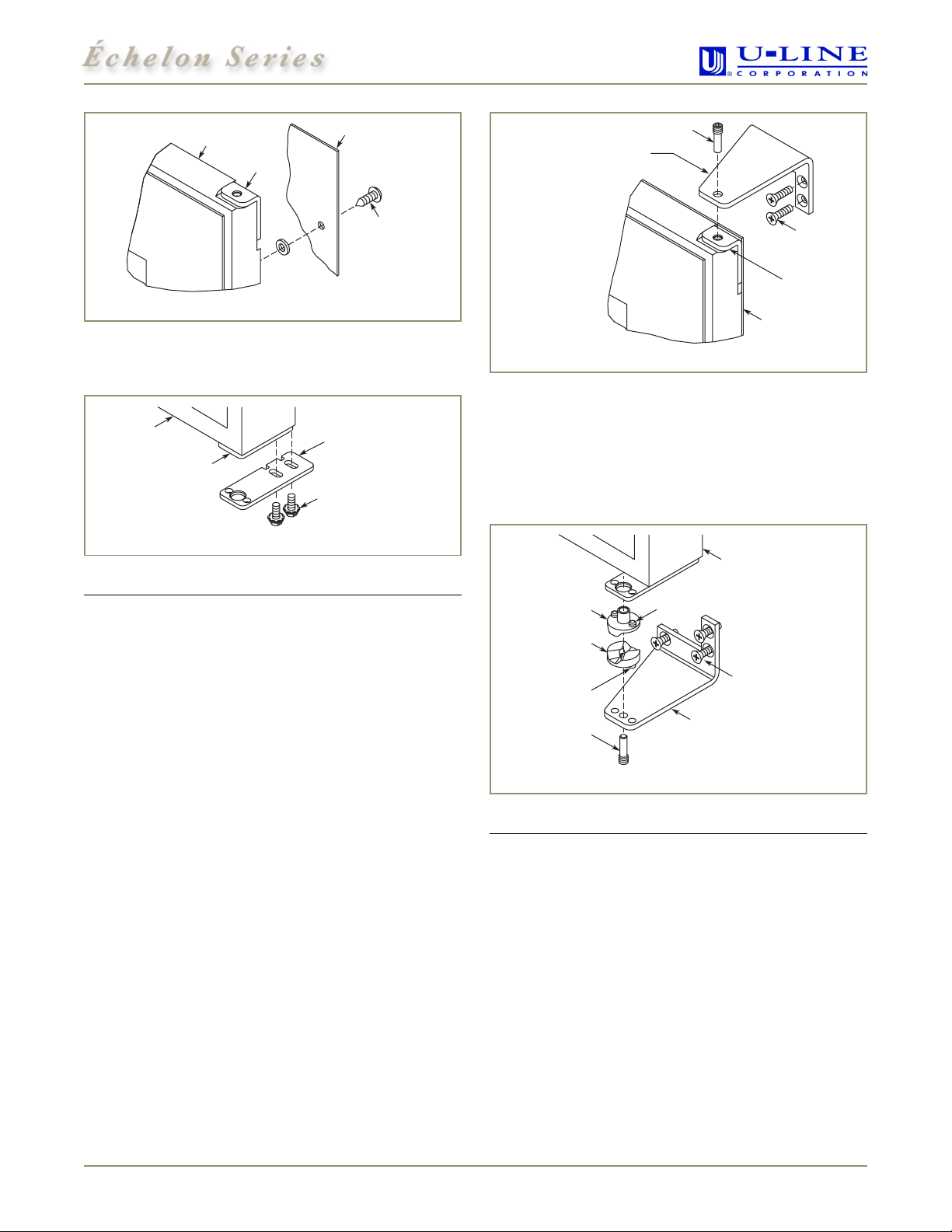

5. Remove the existing bottom pivot plate and replace
with the Full Overlay pivot plate (see
Existing
Door
Existing Bottom Pivot Plate
(Remove and Discard)
Figure 23
Wood Panel Bottom Pivot Plate
(5/8" Longer Than
Existing Bottom Pivot Plate,
Flush Side Facing Out)
#8-32 x 3/8" SEMS Hex Screw
Two Places
).
Figure 23
IMPORTANT
Door panel and overlay panel must be aligned properly or
the door will not operate correctly.
Assembling the Door
1. Install the assembled panel by sliding the original door
panel back into the doorframe.
2. Replace the two-piece Modified Handle assembly and
secure with the two screws removed in Step 5 under
Removing Existing Door.
3. Starting at the corners and working toward the center,
push the door gasket back into place.
Installing the Door
1. Remove the existing hinges from the unit, saving the
door closure assembly.
2. Install the new Replacement Top Hinge onto the unit
(see
Figure 24
).
Pivot Post
Wood Panel Top Hinge Plate
(5/8" Longer than Existing Top Hinge Plate)
#8-32 x 1/2"
Flat Head Screw
Three Places
Top Pivot Plate
Door Panel
Figure 24
3. Install the pivot post into the new Replacement Bottom
Hinge (using the 7/64" hex key or Phillips screwdriver)
and install the hinge onto the unit.
4. Replace the door closure assembly onto the bottom
pivot post (see
Figure 25
). Be sure that bosses on
closers align with holes in hinge and hinge plate.
Existing
Door
Door Closure Top
Door Closure Bottom
Boss
Pivot Post
Boss
#8-32 x 1/2" Flat Head Screw
Three Places
Wood Panel Bottom Hinge Plate
(5/8" Longer than Existing Bottom Hinge Plate)
Figure 25
IMPORTANT
Pivot posts must be cleaned. Closers must also be clean
and greased to ensure proper operation.
5. Place the modified door onto the pivot post.
6. Position door and install the pivot post into the top
hinge (using the 7/64" hex key or Phillips screwdriver).
7. Adjust door as needed for proper closure. Go on to
Adjust Door
.
5
02/2005 11 www.U-LineService.com
5 Adjust Door
Checking Door Alignment
BI2015 — Ice Maker
™
The unit’s door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment or during door panel installation.
IMPORTANT
Properly aligned, the door should be 1/8" below the top of
the unit’s cabinet, NOT flush with the top (see
1/8"
Figure 26
).
Figure 26
1. Compare the top edge of the door to the top edge of
the cabinet.
2. If the door edge is 1/8" below and parallel to the top of
the cabinet, go on to
6 Prepare Plumbing
. If it is not,
note whether the side opposite the hinge needs to be
moved UP or DOWN, and use the following procedure.
Note: If door is adjusted correctly, but panel is not square
with the adjacent cabinets, slight adjustments can be
made by drilling the holes in the vinyl coated steel panel
slightly oversized. See Figure 21 on Page 10.

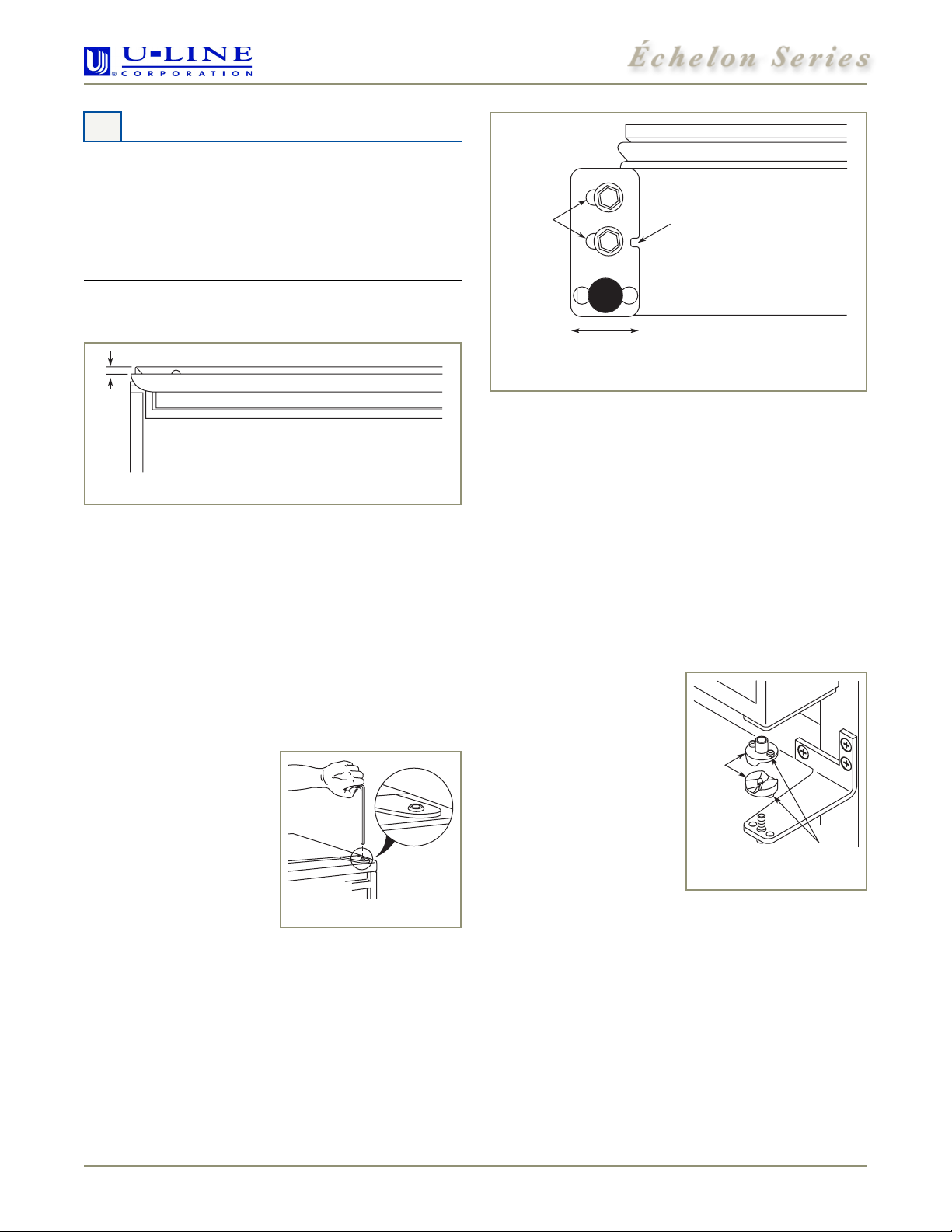

Adjusting Door Alignment
1. Remove top hinge screw
"
pin (7/64
Phillips screwdriver,
depending on your unit’s
construction, see Figure
27). Remove door by
tilting forward and lifting
off bottom hinge pin.
2. With door upside-down,
loosen but do not remove
the two screws on the
door’s bottom hinge plate.
Allen wrench or
Figure 27
Slotted
Mounting
Holes
Outside
Door Edge
Raise
Lower
Outside
Door Edge
Notch
Figure 28
3. See
Figure 28
. If the top far edge of the door needs to
move UP, move the hinge plate toward the outside of
the door and retighten screws. If the top far edge of the
door needs to move DOWN, move the hinge plate
toward the inside of the door and retighten screws.
4. Mount the door to recheck alignment and repeat Steps
2 and 3 if further adjustment is necessary.
5. When top edge of door is parallel to top edge of
cabinet, remove the door and ensure the two screws
are secure.
6. Remove the door closers from the bottom hinge, clean
thoroughly and lubricate the mating surfaces with
petroleum jelly.
7. Reinstall the closers, lining
up the bosses with holes in
hinge and hinge plate (see
Figure 29
8. Mount the door, install top
hinge pivot pin and go on
to
6 Prepare Plumbing
).
Door
Closer
Inserts
.
Boss
Figure 29
www.U-LineService.com 12 02/2005
™
BI2015 — Ice Maker
6Prepare Plumbing
CAUTION
Plumbing installation must observe all state and local
codes. All water connections MUST BE made by a licensed/
qualified plumbing contractor. Failure to follow
recommendations and instructions may result in damage
and/or harm.
WARNING
To prevent accidental electrocution, make certain
that the floor surfaces surrounding the unit are
dry whenever power is removed from, or applied
to, the unit.

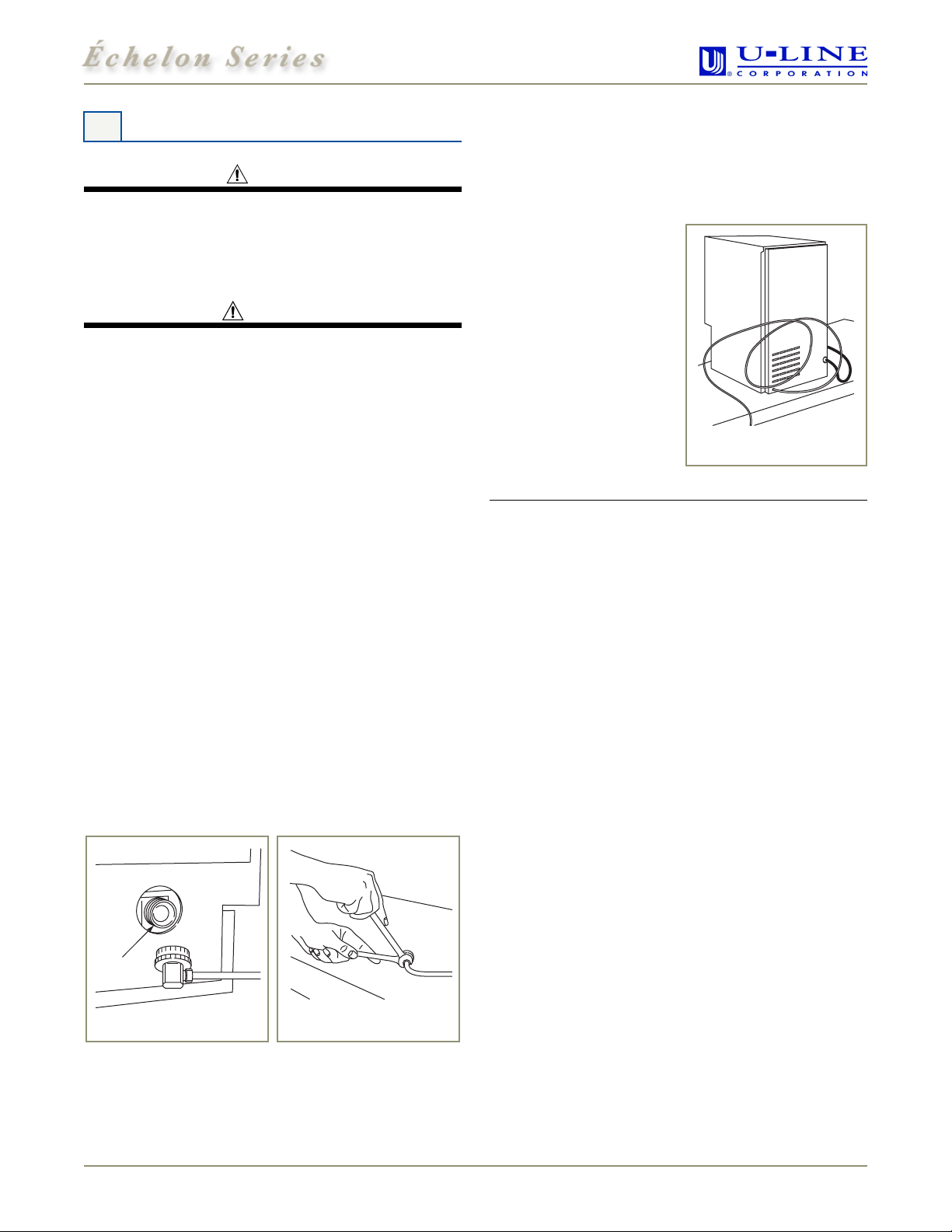

Water Supply Connection
When connecting the water supply, follow these
guidelines:
• Review the local plumbing codes before you install the
unit.
• Connect to the cold water supply.
• The water pressure should be between 20 and 120 psi.
• Install a shut-off valve in the 1/4 inch OD water supply
line.
• Connect sufficient tubing to the unit so that tubing
may be looped, allowing the unit to be removed for
cleaning and servicing (see Figure 32). However, make
certain that the tubing is not pinched or damaged
during installation.
• U-Line recommends the use of copper tubing for
installation.
2. Locate the compression fitting and ferrule packed with
the unit. Slide the compression fitting and ferrule over
the 1/4-inch OD water supply line. Do not use thread
sealing compound or tape. Using two wrenches,
tighten the compression fitting on the supply line
(see Figure 31).
3. Carefully bend the water
supply line into position
and connect the line to
the solenoid valve (see
Figure 32
the water supply line.
). Avoid kinking
Figure 32
IMPORTANT
Normal operation creates some vibration. A water supply
line contacting cabinet wall may cause excessive noise
during operation or damage to the line.
4. For recessed installations, allow extra water supply line
length to provide slack for easy removal from the
recessed area (see
against kinking the line.
5. Go on to
7 Prepare Power Supply.
Figure 32
). This will also safeguard
To connect to water supply:
1. Install the 1/4 inch OD copper water line from the
main water source (see Figure 30).
Water
Connection
Figure 31Figure 30
02/2005 13 www.U-LineService.com
BI2015 — Ice Maker
™
7 Prepare Power Supply
Electrical Specifications
CAUTION
Electrical installation must observe all state and local
codes. This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a
qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or circuit
breaker is recommended. GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
a GFCI could be prone to nuisance tripping. However, be
sure to consult your local codes.
See Figure 33 for recommended receptacle location.
8 Level the Unit
Leveling Information
IMPORTANT
It is extremely important that the unit is level. If it is not
level, the ice mold will not fill evenly.
1. Use a level to check the
levelness of the ice maker
from front to back and
from side to side. Level
should be placed along
top edge and side edge
as shown (see Figure 34).
Check
Level
Figure 34
2. If the ice maker is not level, adjust the feet on the
corners of the unit as necessary (see
Figure 35
).
23-11/16"
7"
1"
Figure 33
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
Go on to 8 Level the Unit.
Turn Foot to Adjust
Figure 35
3. Check the levelness after each adjustment and repeat
the previous steps until the unit is level. Go on to
9 Install the Unit
.
Installation Tip
If the room floor is higher than the floor in the cut-out
opening, adjust the rear feet to achieve a total unit rear
height of 1/8" less than the opening’s rear height. Shorten
the unit height in the front by adjusting the front feet.
This allows the unit to be gently tipped into the opening.
Readjust the front feet to level the unit after it is correctly
positioned in the opening.
www.U-LineService.com 14 02/2005
™
BI2015 — Ice Maker
9 Install the Unit 10 Start-Up for the First Time
Installation of the BI2015
1. Open the water supply valve in the main water source.
2. Make sure the ON/OFF switch is in the OFF position (see
Figure 36
).
3. Plug in the power cord.
4. Gently push the unit into position. Be careful not to
kink the water supply line or entangle the electrical
cord.
5. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" below the
countertop.
Installation Troubleshooting
Problem
Q:
Water is leaking under the unit.
Solution
A:
A water leak under the unit is most likely caused by a bad
connection in the water supply line. Make sure the water
line’s brass fitting is screwed tight to its valve and
threaded correctly.
Problem
Q:
The door remains open unless it is pushed closed.
Solution
A:
The hinges should be self-closing when the door is open
"
approximately 8
closers (at the bottom of the hinge pin) are clean, greased
and installed correctly. Also, re-check leveling from front
to back of the unit and readjust if necessary. Make sure
that pivot plate is installed correctly.
Problem
Q:
The custom overlay door was designed to align with the
rest of the cabinet doors, but the unit has crept forward.
. If this is not the case, make sure the

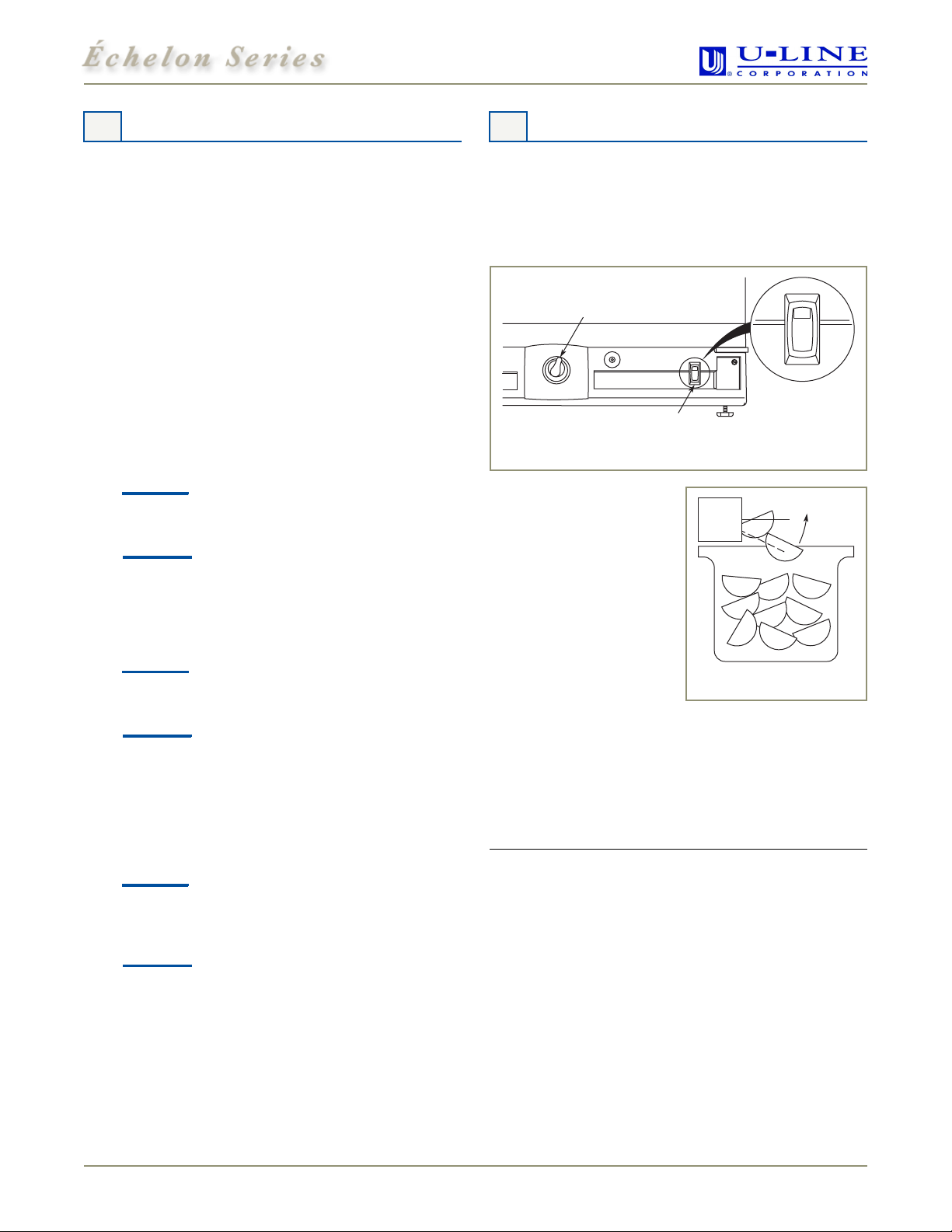

Initial Start-Up
Once installation and leveling is complete, the unit is
ready for initial start-up and operation. The ON/OFF
switch is located in the front grille (see Figure 36).
Temperature
Control Knob
345
26
17
WARMER
COLDER
ON/OFF
Switch
OF
F
O
N
Figure 36
1. Put the ON/OFF switch in
the ON position, and set
the Temperature Control
Knob at 4.
2. As soon as the ice maker
mold reaches the proper
temperature, the ice
maker mechanism will fill
the mold with water.
Note: The first cubes may be
small because of air in the
Figure 37
water line. Subsequent cubes
will be standard size.
3. The ice maker will continue to produce until the bin is
full. You may interrupt production by raising the bin
arm into an upright and locked position (see
). While the bin arm is locked, the unit will maintain
37
temperature for ice storage.
IMPORTANT
It is possible that dirt or scale will dislodge in the water
line. Always throw away all ice cubes made during the
first twenty-four (24) hours of operation.
About Settings
OFF
O
N
Figure
Solution
A:
Make sure that the electrical cord and water supply line
are not obstructing the installation.
No adjustments should be necessary at this time. For
information about Adjusting the Temperature Control
and Adjusting Ice Cube Size, see the User Manual.
02/2005 15 www.U-LineService.com
BI2015 — Ice Maker
Start-Up Troubleshooting
Problem
Q:
Unit does not appear to turn on when switch is set to ON.
Solution
A:
Make sure unit is plugged in and outlet has power (circuit
breaker has not tripped). Remember that the ice maker
mechanism will not fill the mold with water until the
mold reaches the proper temperature.
Problem
Q:
Water does not appear to be flowing into unit.
Solution
A:
Check that the water is connected and turned on and the
line is not obstructed.
Problem
Q:
Ice cubes produced during the first two to three hours of
operation have been discarded. New cubes still appear
cloudy.
™
Solution
A:
This is normal and is caused by air being trapped in the
cube during fast freezing.
IMPORTANT
See the User Manual’s Troubleshooting Guide for more
solutions.
www.U-LineService.com 16 02/2005
™
Who to Call
Service Information
If the need for service arises, contact the dealer from
whom the unit was purchased. State the Model Number
and Serial Number and explain the problem. The Model
and Serial Number plate is located inside unit at upper
right hand corner.
If you need to locate a service company, you can go online
at www.U-LineService.com and search for a service
company by zip code.
For more than four decades, U-Line has distinguished itself as the leader in built-in
U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in
undercounter icemakers, Combo
©2005 U-Line Corporation
Publication No. 30056E
02/2005 Rev. A
undercounter ice making, refrigeration and wine storage appliances.
®
refrigerators, refrigerated drawers and refrigerator/freezers.
icemaker/refrigerators, Wine Captain® wine storage units,
Loading...
