INSTALL GUIDE
2000 SERIES DRAWER MODELS
REFRIGERATORS
COMBO® REFRIGERATOR/FREEZER/ICE MAKERS
WINE CAPTAIN® MODELS
2275DWRCS
C2275DWROL
C2275DWRS
2275DWRCOL
2275DWRW
The Built-In Undercounter Leader Since 1962
U-LINE.COM
1 Table of Contents
Safety Precautions
Safety Alert Definitions.........................................................................................................................................1
General Precautions..............................................................................................................................................1
Inspect & Plan
Product Registration .............................................................................................................................................2
Models Covered.....................................................................................................................................................2
Inspection.................................................................................................................................................................2
Removing Protective Coating .................................................................................................................. 2
Tools / Material Required ....................................................................................................................................2
Exterior Cleaning ...................................................................................................................................................2
Overlay Models: .......................................................................................................................................... 2
Stainless Models:.......................................................................................................................................... 2
Prepare Site
2275DWRC Series..................................................................................................................................... 3
C2275DWR Series..................................................................................................................................... 3
Product Dimensions
C2275DWR & 2275DWRC..................................................................................................................... 4
Clearance Information
Other Site Requirements.....................................................................................................................................5
Power Supply ............................................................................................................................................... 5
Water Supply ............................................................................................................................................... 5
Standard Drawers
Drawer Panel Installation
Wood Grille Overlay
Prepare Plumbing
Level The Unit
Install Unit
Environmental Requirements................................................................................................................... 5
Checking Drawer Alignment............................................................................................................................... 6
Adjusting Drawer Alignment...............................................................................................................................6
Re-installation of Drawer.....................................................................................................................................7
Custom 1/4" Drawer Panel Inserts....................................................................................................................8
Drawer Panel Preparation ........................................................................................................................ 8
Drawer Panel Installation.......................................................................................................................... 8
Full Overlay Drawer Panels.................................................................................................................................8
Drawer Panel Preparation ........................................................................................................................ 8
Drawer Panel Installation.......................................................................................................................... 8
Grille Overlay .......................................................................................................................................................10
Preparation................................................................................................................................................ 10
Installation.................................................................................................................................................. 10
Water Supply Connection .................................................................................................................................12
Installation Tip.......................................................................................................................................................12
Anti-Tip Kit Installation ......................................................................................................................................13
Installation Troubleshooting..............................................................................................................................13
First Time Start Up..............................................................................................................................................14
Start-Up Troubleshooting..................................................................................................................................14
IMPORTANTIMPORTANT
DANGER
WARN ING
CAUTION
2 Safety Precautions
DANGER
WARN ING
WARN ING
CAUTION
IMPORTANTIMPORTANT
• PLEASE READ all instructions before installing,
operating, or servicing the appliance.
General Precautions
Use this appliance for its intended purpose only and follow these
general precautions with those listed throughout this guide:
• Proper installation procedures must be followed when
completing an installation or relocation of a unit.
Consult the installation guide before any installation
begins. U-Line contact information appears on the rear
cover of this guide.
• This unit requires connection to a dedicated 15 Amp
grounded (three-prong), polarized receptacle, installed
by a qualified electrician, compliant with applicable
electrical codes.
Safety Alert Definitions
Throughout this guide are safety items labeled with a Danger,
Warning or Caution based on the risk type:
Danger means that failure to follow this safety statement will
result in severe personal injury or death.
RISK OF CHILD ENTRAPMENT. Before you throw away your
old refrigerator or freezer, take off the doors and leave shelves
in place so children may not easily climb inside.
SHOCK HAZARD - Electrical Grounding Required.
• Never attempt to repair or perform maintenance on
the unit until the electricity has been disconnected.
• Never remove the round grounding prong from the
plug and never use a two-prong grounding adaptor.
• Altering, cutting of power cord, removal of power
cord, removal of power plug, or direct wiring can
cause serious injury, fire and or loss of property and
or life, and will void the warranty.
• Never use an extension cord to connect power to the
unit.
• Always keep your working area dry.
Install provided Anti-Tip kit on all Wine Captain
Models and Glass Door Refrigerators. Serious personal
injury could occur.
Warning means that failure to follow this safety
statement could result in serious personal injury,
property or equipment damage.
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
• Use care when moving and handling the unit. Use gloves
to prevent personal injury from sharp edges.
• If your model requires defrosting, DO NOT use an ice
pick or other sharp instrument to help speed up
defrosting. These instruments can puncture the inner
lining or damage the cooling unit. DO NOT use any type
of heater to defrost. Using a heater to speed up
defrosting can cause personal injury and damage to the
inner lining.
• Do not lift unit by door handle.
• Never install or operate the unit behind closed doors.
Be sure front grille is free of obstruction. Obstructing
free airflow can cause the unit to malfunction and will
void the warranty.
• Failure to clean the condenser every six months can
cause the unit to malfunction. This could void the
warranty.
• Allow unit temperature to stabilize for 24 hours before
use.
• Do not Block any internal Fans
Use only genuine U-Line replacement parts. Imitation
parts can damage the unit, affect its operation or
performance and may void the warranty.
U-Line Safety Precautions 1
3 Inspect & Plan
WARN ING
Product Registration
You have received a carton containing your U-Line Combo Drawer
Model Ice Maker/Refrigerator or U-Line Refrigerator with a
package inside containing a Use and Care Guide, a Product
Registration Card, water connection parts and Anti-Tip Kit.
Complete and mail the Product Registration Card or register
online at www.U-LineService.com. Once your unit is installed,
keep the Use and Care Guide and this Installation Guide in a safe
place for future reference.
Models Covered
This installation guide covers the following models
Tools / Material Required
• Screwdrivers — slotted and Phillips head
(If installing a 3/4” Full Overlay panel)
• 3/4” overlay frame material
• Cutting Tools
• Drill & Drill Bits
(If installing 1/4” Panel Insert)
• 1/4” thick door panel material
• Cutting Tools
Exterior Cleaning
Overlay Models:
• The drawers, grille and cabinet may be cleaned with a mild
detergent and warm water solution. Do not use solvent-based
or abrasive cleaners. Use a soft sponge and rinse with clean
water. Wipe with a soft, clean towel to prevent water spotting.
U-2275DWRCOL-00 U-2275DWRWS-00
U-2275DWRCS-00 U-C2275DWROL-00
U-2275DWRWOL-00 U-C2275DWRS-00
Inspection
Inspect the unit on a flat, level surface capable of supporting it’s
entire weight.
Removing Protective Coating
All Models:
The protective coating covering the inside of the top drawer must
be removed before using.
Stainless Steel Models:
When inspecting/installing a Stainless Steel unit, the protective
coating covering the drawer fronts must be removed. Start at a
corner of the drawers and pull back the protective coating to
remove it from the drawer fronts.
After all the protective coating has been removed from the
drawers, clean all Stainless Steel surfaces with Claire Stainless Steel
Polish and Cleaner or comparable product or a mild detergent and
warm water solution and soft cloth. Do NOT use abrasive cleaning
agents.
If cleaning with mild detergent and warm water solution and soft
cloth, the unit MUST be treated with Claire Stainless Steel Polish
and Cleaner or comparable product to prevent discoloration.
Stainless Models:
• Stainless steel models can discolor when exposed to chlorine
gas, pool chemicals, salt water or cleaners with bleach.
• Keep your stainless steel unit looking new by cleaning with a
good quality all-in-one stainless steel cleaner/polish on a
monthly basis. For best results use Claire Stainless Steel Polish
and Cleaner, which can be purchased from U-Line Corporation.
(The part number is 173348.) Comparable products are
acceptable. Frequent cleaning will remove surface
contamination that could lead to rust. Some installations may
require cleaning on a weekly basis.
• Do not clean with steel wool pads.
• Do not use cleaners that are not specifically intended
for stainless steel (this includes glass, tile and counter
cleaners).
• If any surface discolors or rusting appears, clean it quickly with
Bon-Ami or Barkeepers Friend Cleanser and a non-abrasive
cloth. Always clean in the direction of the grain. Always finish
this process with Claire Stainless Steel Polish and Cleaner or
comparable product to prevent further problems.
• Use of abrasive pads such as Scotchbrite will cause the
graining in the stainless to become blurred.
• Rust that is allowed to linger can penetrate into the surface of
the stainless steel and complete removal of the rust may not be
possible.
Rust that is allowed to linger can penetrate into the
surface of the stainless steel and complete removal of
the rust may not be possible.
U-Line Inspect & Plan 2
4 Prepare Site
IMPORTANTIMPORTANT
WARN ING
IMPORTANTIMPORTANT
34-1/4"
to
35-1/8"
24-1/4"
24"
1-1/2"
7"
34-1/4"
to
35-1/8"
24-1/4"
24"
1-1/2"
7"
34-1/4"
to
35-1/8"
24-1/4"
24"
1-1/2"
7"
Your U-Line product has been designed for either free-standing or
built-in installation. When built-in, your unit does not require
additional air space for top, sides, or rear. However, the front grille
must NOT be obstructed and clearance is required for an
electrical connection in the rear.
• Unit can NOT be installed behind a closed cabinet door.
SHOCK HAZARD — Electrical Grounding Required.
• Never remove the round grounding prong from the
plug and never use a two-prong grounding adapter.
• Never use an extension cord to connect power to the
unit.
Electrical installation must observe all state and local
codes. This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a
qualified electrician.
The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A
power supply (normal household current). An individual, properly
grounded branch circuit or circuit breaker is recommended. GFCI
(ground fault circuit interrupter) is usually not required for fixed
location appliances and is not recommended for your unit because
a GFCI could be prone to nuisance tripping. However, be sure to
consult your local codes.
See below for recommended receptacle location & cut out
dimensions
C2275DWR Series
Follow the cut-out drawing The 24-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
2275DWRW Series
2275DWRC Series
Follow the cut-out drawing The 24-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
Follow the cut-out drawing. The 24-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
Prepare Site 3
5 Product Dimensions
Black
Stainless Steel
33-7/8"
24"
23-3/8”
3-7/8”
23-1/4"
33-7/8”
24"
3-7/8”
33-7/16”
23-3/8”
23-15/16”
3-7/8”
Stainless
2275DWRW
Black
Stainless Steel
33-7/8"
24"
23-3/8”
3-7/8”
23-1/4"
33-7/8”
24"
3-7/8”
C2275DWR
33-7/8”
23-1/4”
23-15/16”
3-7/8”
Overlay
C2275DWR & 2275DWRC
2275DWRC
2275DWRW
Product Dimensions 4
WARN ING

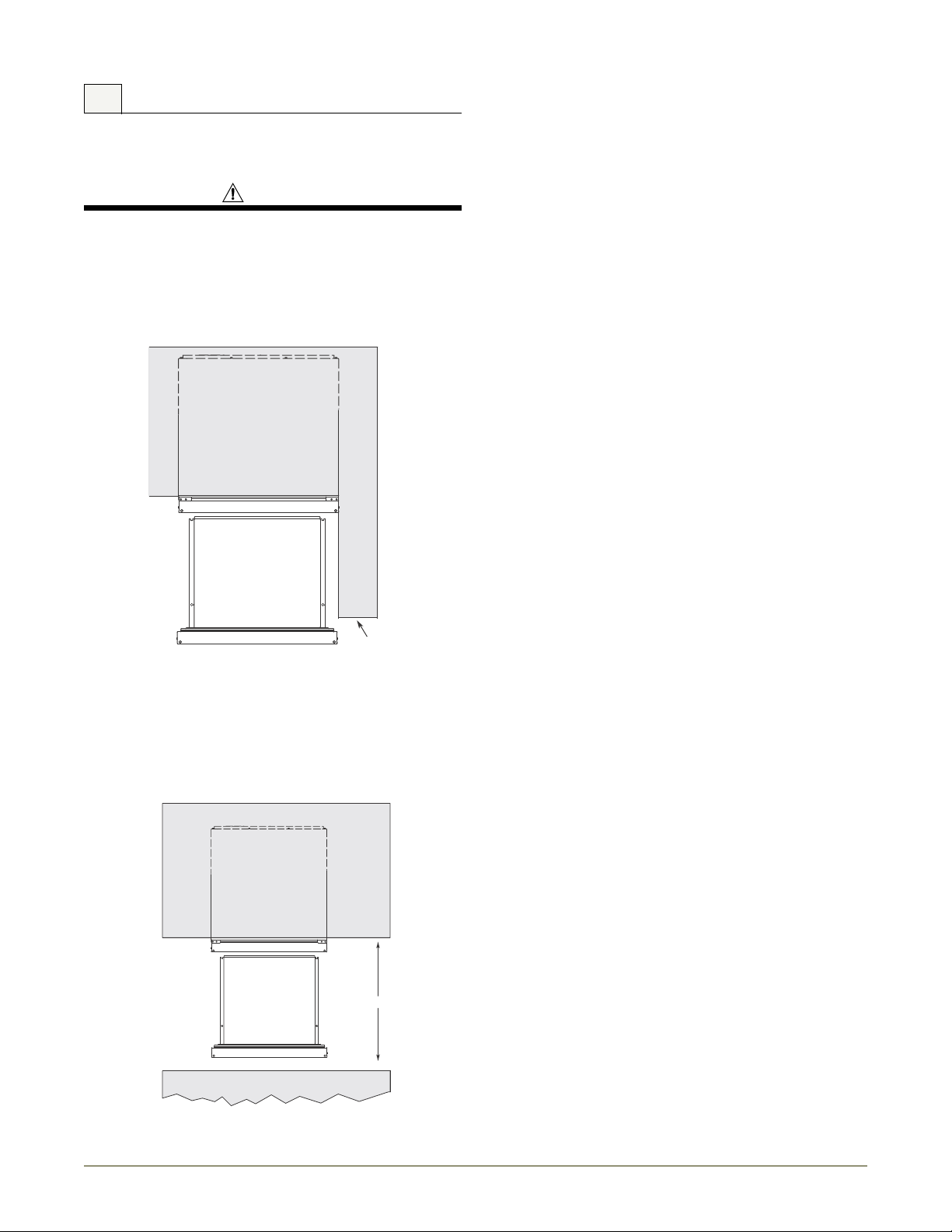

6 Clearance Information
Cabinet
or Wall
24" Min.
The unit must be installed in a wall or under a counter-top to allow
for the installation of the Anti-Tip Kit (see Page 14).
Other Site Requirements
Power Supply
The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A
circuit (normal household current). See Electrical Specifications.
Water Supply
The Anti-Tip Kit must be installed on this unit before it
is used. Never use the drawers as steps or as a shelf to
support more than the drawers’ contents. Serious
personal injury could occur.
The unit is designed so it can be installed next to a wall on either
side.
The unit requires a 1/4-inch OD water supply line and a shut-off
valve. For more information see Page 12.
Environmental Requirements
The units are designed to operate between 50°F (10°C) and 100°F
(37°C). High ambient temperatures (100°F [37°C] or higher) may
reduce the unit’s ability to reach low temperatures and may also
reduce the ice production rate for those models with icemakers.
If the ambient temperature is expected to drop below 45°F (7°C),
drain all water from the unit to prevent freezing damage, which is
not covered by the warranty.
For best performance, keep the unit out of direct sunlight and away
from heat generating equipment.
For best performance and life outdoors, place under a counter or
provide shelter of some kind.
In climates where high humidity and dew points are present,
condensation may appear on outside surfaces. This is considered
normal. The condensation will evaporate when the humidity drops.
The drawer unit can be installed with an appliance or fixture
located in front of it, as long as there is adequate clearance for the
drawer to be opened and removed when servicing.
U-Line recommends you consider additional clearance in front of
the open drawer for convenience.
Door Swing Dimensions 5
WARN ING
CAUTION
IMPORTANTIMPORTANT
7 Standard Drawers
Aligned
Side-to-Side
Aligned
Front-to-Back
Aligned
Top-to-Bottom
Mounting
Screw
Top View of Unit
Not Aligned Side-to-Side
Push Slide
Backward
Loosen
Mounting Screws
Mark and Drill New
Mounting Holes
Push Slide
Backward
k
Side View of Unit
Checking Drawer Alignment
The unit’s drawers are aligned at the factory before shipment.
However, their alignment could have been disturbed during
shipment or during overlay panel installation. Check each drawer
to confirm that it is aligned:
Drawer adjustments are made by moving the slide that carries the
drawer’s rail. Minor adjustments may be made by loosening one of
the slide’s mounting screws, adjusting the slide and retightening the
screw. Severe adjustments may be made by removing the slides’
mounting screws, drilling new mounting holes and remounting the
slide.
Side-to-Side Adjustment
The drawer will need a Side-toSide Adjustment if, when viewed
from the top, the drawer front is
not square with the sides of the
cabinet. This is caused by one of
the slides being mounted too far
forward on the unit’s liner.
Minor Adjustment:
Note: The mounting holes on the
slide are slightly larger than the
screws’ diameter.
1. Loosen the slide’s mounting
screws.
• Side-to-Side — When viewed from the top, the drawer front
should be square with the sides of the cabinet.
• Front-to-Back — When viewed from the side, the drawer
front should be straight with the cabinet’s sides, not cocked
forward or back.
• Top-to-Bottom — When viewed from the front, the drawer
should be level horizontally.
Adjusting Drawer Alignment
SHOCK HAZARD — The unit must be unplugged from
the wall outlet during drawer removal, adjustment and
re-installation.
Drawer Removal
1. Confirm that the unit is
unplugged from wall outlet.
2. Unplug the drawer’s connection
wiring (top drawer only).
3. Remove the mounting screws.
4. Pull the drawer completely out
of the unit.
Use care when handling the drawer. Drawer edges, drawer
rail and the unit’s slide may be sharp.
2. Push the slide backward.
3. Retighten the screws.
Severe Adjustment:
Note: The slides have extra
mounting holes that may be used.
1. Remove the slide’s mounting
screws.
2. Reposition the slide so it is the
same distance from the front
of the liner as the other slide.
Measure to confirm.
3. Mark new drilling holes using
different sets of mounting holes on the slide.
Note: Front location holes are shown. Corresponding rear holes
will also need to be marked.
4. Drill all the new holes with a #30 drill bit.
5. Remount the slide.
Not Aligned Front-to-Bac
Front-to-Back Adjustment
The drawer will need a Front-toBack Adjustment if, when viewed
from the side, the drawer front is
cocked forward or back. This is
caused by the front slide
mountings not being level with
the rear slide mountings.
U-Line Drawer Alignment 6
Minor Adjustment:
CAUTION
Screws Should
Be Loose
Level the Slide
Mark and Drill New
Mounting Holes
Level the Slide
Not Aligned Left-to-Right
Top View of UnitFront View of Unit
Not Aligned
Top-to-Bottom
Push Slide
Upward or
Downward
Mounting Screws
Mark and Drill New
Mounting Holes
Push Slide
Upward or
Downward
Note: The mounting holes on the
slide are slightly larger than the
screws’ diameter.
1. Loosen one slide’s mounting
screws.
2. Level the slide.
3. Retighten the screws. See
Figure 18.
4. Repeat procedure for the
other slide.
Severe Adjustment:
Note: The slides have extra mounting holes that may be used.
1. Loosen one slide’s rear
mounting screws.
2. Remove the slide’s front
mounting screws.
3. Reposition the slide so it is
level.
4. Mark new front drilling holes
using a different set of
mounting holes on the slide.
5. Drill the new holes with a #30 drill bit.
6. Remount the slide.
7. Repeat procedure for the other slide.
Top-to-Bottom (and Left-to-Right) Adjustment
Minor Adjustment:
Note: The mounting holes on the slide are slightly larger than the
screws’ diameter.
1. Loosen one slide’s mounting
screws.
2. Push the slide upward or
downward to match the
position of the other slide.
3. Retighten the screws.
4. Repeat the procedure with
the other slide if necessary.
Severe Adjustment:
Note: The slides have extra mounting holes that may be used.
1. Remove one slide’s mounting
screws.
2. Reposition the slide so it is
the same distance from the
bottom of the liner as the
other slide. Measure to
confirm.
3. Mark new drilling holes using
different sets of mounting
holes on the slide. See Figure
22.
Note: Front location holes are shown. Corresponding rear holes
will also need to be marked.
4. Drill all the new holes with a #30 drill bit.
5. Remount the slide.
The drawer will need a Top-to-Bottom Adjustment if, when viewed
from the front, the drawer is not level horizontally. Viewed from
the top, one side will protrude. This is caused by one of the slides
being mounted higher than the other slide on the unit’s liner.
Re-installation of Drawer
Use care when handling the drawer. Drawer edges, drawer
rail and the unit’s slide may be sharp.
1. Set the drawer’s rails onto the slides.
2. Re-install the rails’ mounting screws. See Figure 13 on Page 10.
3. Plug in the drawer’s connection wiring (top drawer only).
U-Line Drawer Alignment 7
IMPORTANTIMPORTANT
CAUTION
IMPORTANTIMPORTANT
8 Drawer Panel Installation
Gasket
Handle
Screw
Full Handle
Standard
Handle
Gasket
Handle
Screw
1
Custom 1/4" Drawer Panel Inserts
Drawer Panel Preparation
Custom drawer panels can be inserted into the drawer fronts.
Custom drawer panels can be flat or raised, as long as the
maximum panel thickness where inserted into the drawer front
reveal (channel) is 1/4"-thick. For raised panels, the depth of the
reveal is 1/4" on all four sides.
Raised panels will reduce the drawer’s front clearance if
the unit is installed facing an appliance or structure (see
Page 5).
Cut the panel inserts to the following dimensions.
Custom 1/4" Dimensions:
Width:23-1/32"
Height:12-15/32"
The door panels must not have a total weight of more than 20 lbs.
Drawer Panel Installation
Install the insert as follows:
Full Overlay Drawer Panels
Drawer Panel Preparation
Full overlay drawer panels completely cover the drawer fronts and
handles to give a built-in appearance. Overlay units are shipped
ready for Full Overlay installation.
Note: For standard installations, both drawers mount the same and
a 1/2" gap is achieved between drawers.
Cut the overlay to the following dimensions.
Full Overlay Dimensions:
Width:23-3/4"
Height:14-3/4"
The thickness of the wood overlay panel must be 3/4". The
door panel must not weigh more than 20 lbs.
Drawer Panel Installation
Removing Existing Drawer Fronts
1. Open drawer. Pull drawer gasket out of groove (top edge of
drawer only). Start in the middle and pull outward, moving
toward the edge (see below). This may take some force.
2. Remove and save the two screws (1) located at the ends of the
handle. Remove the handle.
Use care when handling the insert. Insert edges may be
sharp.
1. Open drawer. Pull drawer gasket
out of groove (top edge of drawer
only). Start in the middle and pull
outward, moving toward the edge .
This may take some force.
2. Remove and save the two outside
screws.
3. Remove the original handle and
discard.
4. Remove and discard existing panel
and cardboard spacer.
5. Slide custom drawer panel insert
into 1/4-inch channel in drawer
front.
6. Holding drawer gasket out of the
way, replace handle on drawer,
making sure it is seated properly on
insert and that screw holes line up.
7. Install two small screws removed in
Step 2.
8. Starting at the corners and working
inward, push drawer gasket into
place on drawer.
3. Remove existing panel and cardboard spacer. Discard the spacer.
U-Line Drawer Panel Installation 8
Attaching the Full Overlay Panel
IMPORTANTIMPORTANT
CAUTION
IMPORTANTIMPORTANT
Drawer Panel
Bottom of
Wood Panel
Back of
Wood
Panel
Side of
Wood Panel
Tape
11/32"
Bottom
3/8"
Both Sides
Top of
Wood Panel
14-3/4"
1"
11-7/8"
1"
23-3/4"
5/32" x 3/8" Deep –
5 Places
Vinyl Coated
Steel Panel
11-13/16"
1"
2-15/16"
Drawer Panel
Typical
Wood Panel
Plastic
Spacer
Five
Required
#10 x 5/8"
Round Head Screw
Five Required
1. If user-supplied cabinet handles will be used, attach their
hardware to the overlay panel at this time.
It is important to ensure that all drilled holes are drilled to
the correct depth in order to avoid splits in the wood
when hardware is installed.
User-supplied cabinet handles MUST be counter bored to
make sure mounting hardware is below surface of overlay
panel. Failure to do so can cause damage to overlay panel
and/or drawer. Overlay panel will not sit flush to drawer if
mounting hardware is not counter bored.
2. Place and tape the existing drawer panel on the back of the
overlay panel (see above).
3. Drill the five holes (5/32" drill 3/8" deep) through both panels
according.
4. Remove tape adjoining the panels and enlarge the five holes in
the overlay panel using a 0.201" (#7) drill.
5. Attach the drawer panel to the overlay panel using #10 x 5/8"
wood screws and nylon spacers. The nylon spacers fit between
the overlay panel and the door panel as shown in Figure 11. The
spacers allow the original drawer panel to slide back into the 1/
4"-thick drawer front reveal (channel).
Drawer panel and overlay panel must be aligned properly
or the drawer will not operate correctly.
Assembling the Drawer Front
1. Install the assembled panel by sliding the original door panel
back into the drawer front.
2. Replace the handle assembly and secure with the two screws
removed in Step 2 under Removing Existing Drawer Fronts.
3. Starting at the corners and working toward the center, push the
drawer gasket back into place. Go on to 5 Adjust Drawers.
U-Line Drawer Panel Installation 9
WARN ING
WARN ING
IMPORTANTIMPORTANT
9 Wood Grille Overlay
Remove Screw
Remove Screw
Back
Front
Wood Overlay
Grille
24 Inch Models
Application
Area
Grille Overlay
Your models grille is designed to accept a wood grille overlay. An overlay may be used to compliment a door overlay
and provides a seamless look for your surrounding decor.
Follow the instructions below to prepare and install your
grille overlay. Be sure to read over this chapter completely
before beginning.
Preparation
The grille overlay MUST have venting as shown in the
drawing below. Failure to have proper venting can
result in damage to your model.
You may also mount your overlay to your grille using hook and
loop type fasteners. U-Line recommends using 3M® Dual lock®
fasteners. To mount your overlay using a hook and loop fastener
follow the instructions below.
1. Read the instructions provided with your hook and loop
fastener carefully.
2. Apply hook and loop fastener system to the back of the overlay
and front of the grille. Use the shaded areas in the diagram
below for application location.
The grille overlay may only be installed on indoor units.
1. Prepare your overlay using the dimensions provided in the
figure on page 11. If using a hook and loop style mount, drill
hole A will not be used.
2. If desired, stain and finish your grille to match your surrounding
decor. Follow the stain manufacturers instructions to apply stain
to your overlay.
Installation
The wood overlay grille must be installed in such a
manner that the grille assembly can still be removed from
the unit.
Screw Mount (Recommended)
1. Remove the grille from your unit by removing the two
mounting screws. See below.
3. Carefully align the wood overlay with the grille and press into
position.
2. Lay the back of your grille overlay onto the front of the grille.
Make certain the screw holes and vents are aligned.
3. Slide each of the screws removed in step 1 through the grille
overlay and grille.
4. Mount your new overlay onto your unit by screwing the overlay
back onto the base of your unit.
Hook and Loop Fastener Mount
U-Line Grill Overlay Installation 10
1/4
8-1/2
3-3/32
19-5/8
1/2
1/2
TYP 3X
5/16
TYP 2X
(7/16 )
5/16
10-5/16
11/64
2-1/8
1/2
22-7/8
23-7/8
FULL R
Grille Overlay Dimensions 24 Inch Models
Grille Drawing
U-Line Grill Overlay Installation 11
CAUTION
IMPORTANTIMPORTANT
10 Prepare Plumbing
9/16" Wrench
1/4" Copper Water
Supply Line
7/16" Wrench
From Water Supply
to Ice Maker
Plumbing installation must observe all state and local
codes. All water and drain connections MUST BE made by
a licensed/qualified plumbing contractor. Failure to follow
recommendations and instructions may result in damage
and/or harm.
Water Supply Connection
When connecting the water supply, follow these guidelines:
• Review the local plumbing codes before you install the unit.
• Connect to the cold water supply.
• The water pressure should be between 20 and 120 psi.
• The water line MUST have a shut-off valve in the 1/4” O.D.
supply line.
• Leave approximately 8’ of water line to be coiled behind the
appliance. The water line should be looped into 2 coils. This
will allow the unit to be removed for cleaning and servicing.
However, make certain that the tubing is not pinched or
damaged during installation.
10 Level The Unit
Leveling Information
Note: It is recommended that the unit is level.
1. Use a level to check the
levelness of the unit
from front to back and
from side to side. Level
should be placed along
top edge and side edge
as shown (see Figure
24).
2. If the unit is not level,
adjust the feet on the
corners of the unit as
necessary.
3. Check the levelness
after each adjustment
and repeat the previous
steps until the unit is level.
U-Line requires the use of copper tubing, or U-Line water
line hook up kit (U-MPWATERHOOKUP) for installation.
Do not use any plastic water supply line. The line is under
pressure at all times. Plastic may crack or rupture with
age and cause water damage to your home.
To connect to water supply:
1. Locate the desired cold water
supply location. Attach a 1/4”
copper line to this location
and route the tubing to the
appliance. Leave
approximately 8’ of water line
to be coiled behind the
appliance. The water line
should be looped into 2 coils.
This will allow the line to flex
when removing the unit for
cleaning and servicing.
2. Locate the U-Line supplied garden
hose fitting. Ensure the end of the
copper tubing has been cut straight
and free of burrs. Slide the
compression nut and ferrule onto
the copper tubing as shown. Push
the assembly completely into the
garden hose fitting and tighten
using the two wrenches.
Installation Tip
If the room floor is higher than the floor in the cut-out opening,
adjust the rear feet to achieve a total unit rear height of 1/8" less
than the opening’s rear height. Shorten the unit height in the front
by adjusting the front feet. This allows the unit to be gently tipped
into the opening. Readjust the front feet to level the unit after it is
correctly positioned in the opening.
U-Line Electrical / Plumbing Specfications 12
WARN ING
IMPORTANTIMPORTANT
CAUTION
Problem
Solution
A:
Problem
Solution
A:
11 Install Unit
A
B
Countertop or Wall Header
C
Cabinet or Wall Stud
A
C
B
Horizontal Mounting
(Left Side Shown)
Vertical Mounting
(Left Side Shown)
1. Plug in the power cord.
2. Open the top drawer and press the
OFF
unit
C2275DWR Only:
3.
water source.
4. Gently push the unit into position. Be careful not to entangle the
electrical cord.
5. Re-check the leveling, from front to back and side to side. Make
any necessary adjustments. The unit’s top surface should be
approximately 1/8" below the countertop.
.
Open the water supply valve in the main
POWER
icon to turn the
2. Insert the screws through the anti-tip bracket (B) and attach the
bracket to the unit. Tighten screws securely.
3. Repeat for the other side.
Note: The bracket should be flush with the surface it is being
attached to. If it is not, loosen the screws and slide the bracket
against the mounting surface. Tighten screws securely.
4. Using two of the screws (C) supplied, fasten the screws through
the bracket and into the counter, cabinet or wall.
Certain cabinets or countertops may require special
fasteners or additional wood blocking to anchor properly.
Anti-Tip Kit Installation
• The Anti-Tip Kit must be installed on this unit before
it is used.
• Additional blocking or special fasteners may be
required for installation. Installer is responsible for
secure attachment to prevent the unit from tipping.
• Make sure the mounting screws attaching the unit to
the counter, cabinet or wall are deep enough into the
mounting surface to support the weight of the
drawers and the items that will be inside the drawers.
• Never use the drawers as steps or as a shelf to
support more than the drawers’ content. Serious
personal injury could occur.
After leveling, the unit must be secured to a counter, a cabinet or a
wall to prevent tipping.
1. Open the upper drawer to expose the six screws (A) installed
at the top two corners (three at each corner). Remove the
appropriate screws for horizontal or vertical mounting Do not
discard.
Make sure the screws are back far enough so they do not
damage any exposed front surface of the cabinet.
Installation Troubleshooting
The drawer remains open unless it is pushed closed.
The drawer should be self-closing when it is open approximately
8". If it is not, re-check leveling from front to back of the unit and
readjust if necessary.
Water is leaking under the unit (C2275DWR units)
A water leak under the unit is most likely caused by a bad
connection in the water supply line. Make sure the water line’s
brass fitting is screwed tight to its valve and threaded correctly.
U-Line Electrical / Plumbing Specfications 13
First Time Start Up
Problem
Solution
A:
IMPORTANTIMPORTANT
All U-line units are shipped from the factory with controls that are
preset. No initial adjustments are required.
Once installation and leveling is complete, the unit is ready for
initial start-up and operation. Open the top drawer press and hold
the POWER icon on the display panel for aproximately ten
seconds until the °F symbol flashes and release.
U-Line recommends that the unit be allowed to run overnight
prior to loading the refrigerator with product.
Start-Up Troubleshooting
Unit does not appear to turn on POWER icon is pressed.
Make sure unit is plugged in and outlet has power (circuit breaker
has not tripped).
See the Use and Care Guide’s Troubleshooting Guide for
more solutions.
U-Line Electrical / Plumbing Specfications 14
®
INSTALLATION GUIDE
SERVICE INFORMATION
If you have a problem with this appliance, your use and care guide has troubleshooting information to help you
quickly identify common problems and provide information on possible cause and remedy. Answers to
Customers Frequently Asked Questions are available at www.u-line.com/customer/faq.cfm. You may contact
U-Line directly:
GENERAL INQUIRIES:
U-Line Corporation
P.O. Box 245040
Milwaukee, Wisconsin 53224-9540 U.S.A.
Phone (414) 354-0300
FAX (414) 354-7905
Email: sales@u-line.com
www.u-line.com
SERVICE ASSISTANCE:
Phone (800) 779-2547
FAX (414) 354-5696
Email: onlineservice@u-line.com
www.u-lineservice.com
PARTS ASSISTANCE:
E-mail: onlineparts@u-line.com
ABOUT U-LINE
Building on 45 years, U-Line has captivated those with an appreciation for the finer things with exceptional
design, inspired innovations and attention to even the smallest details.
U-Line is synonymous with premium built-in under counter ice making, refrigeration and wine storage appliances, the U-Line Corporation is committed to luxury under the counter. U-Line is known and respected for
unwavering dedication to product innovation, quality and selection. A bold and broad line of models is the product of visionaries in the pursuit of distinctive living environments in the kitchen and spaces beyond.
In 1962, Henry Uihlein founded U-Line Corporation as an outgrowth of Ben-Hur Freezer Company and was
the first to develop and patent an automatic stand-alone under counter residential ice maker. His foresight and
determination to develop new ideas and to succeed when there were no clear guidelines or solutions are evident today. The Milwaukee, Wisconsin based family operated business provides continuity and vision from
which innovations continue to be born.
Going forward, U-Line will continue offering best-in-class products that build on the company's numerous patents and world firsts to guide the under counter industry in realizing its unlimited potential.
The Built-In Undercounter Leader Since 1962
U-LINE.COM
©2010 U-Line Corporation
Publication Number 30288 1/2011 Rev. D
Loading...
