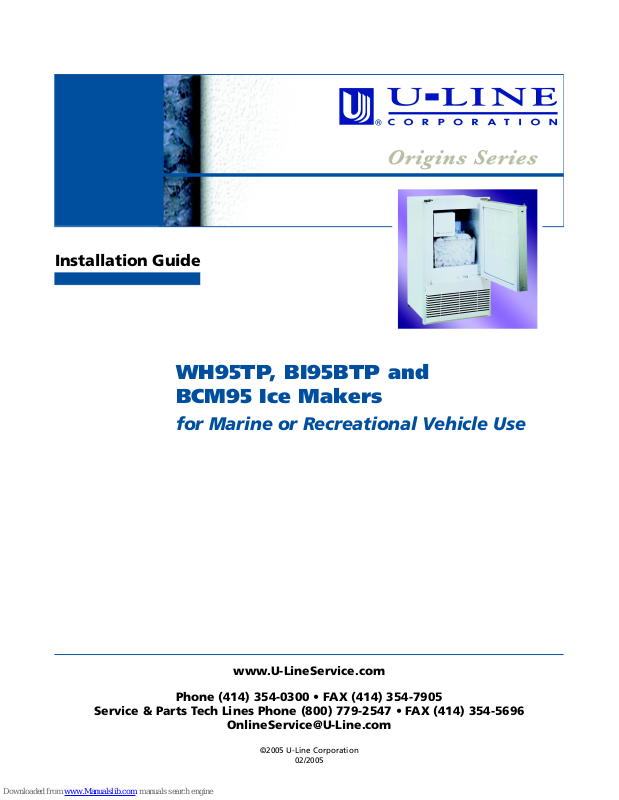

Installation Guide
WH95TP, BI95BTP and
BCM95 Ice Makers
for Marine or Recreational Vehicle Use
Phone (414) 354-0300 • FAX (414) 354-7905
Service & Parts Tech Lines Phone (800) 779-2547 • FAX (414) 354-5696
www.U-LineService.com
OnlineService@U-Line.com
©2005 U-Line Corporation
02/2005
WH95TP, BI95BTP and BCM95 Ice Makers
Contents
Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Door Swing/Clearances Information . . . . . . . . . . . . . . 4
Reversing the Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6
Custom 1/4" Thick Door Panel Insert . . . . . . . . . . . . . . 7
Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . . 8
Water Supply Connection . . . . . . . . . . . . . . . . . . . . . . . 8
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 9
Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation of the WH95TP, BI95BTP or BCM95 . . . . . 10
Grille Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation Troubleshooting . . . . . . . . . . . . . . . . . . . . . 11
Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 12
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1 Follow Safety Precautions
IMPORTANT
PLEASE READ all instructions completely before
attempting to install or operate the unit.
• This unit requires connection to the water supply.
Improper hook-up can result in substantial property
damage! If you are unsure of your ability to safely
connect the water supply to the unit, consult a licensed
plumber for assistance.
• This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a
qualified electrician in accordance with applicable
electrical codes.
Safety Alert Definitions
Safety items throughout this guide are labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury,
or death.
CAUTION
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
www.U-LineService.com 2 02/2005
WH95TP, BI95BTP and BCM95 Ice Makers
General Precautions
Use this appliance for its intended purpose only and
follow these general precautions along with those listed
throughout this guide:
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Keep the unit unplugged throughout installation
except during testing.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
• Always keep your working area dry.
CAUTION
• Use care when moving and handling the unit. Use
gloves to prevent personal injury from sharp edges.
• Do not lift the unit by the door or door handle.
• Do not install the unit behind closed doors or in any
way that would obstruct airflow to the front grille,
which may cause the unit to malfunction.
2 Inspect and Plan
You have received a carton containing your WH95TP,
BI95BTP or BCM95 Ice Maker with a package inside
containing a User Manual, a Product Registration Card
and water connection parts. Complete and mail the
Product Registration Card or register online at www.ULineService.com. Once your unit is installed, keep the User
Manual and this Installation Guide in a safe place for
future reference.
WH95TP units are available in vinyl clad cabinets with
matching doors which have a metal door frame and
handle, a travel pin to secure closure and are reversible.
1/4-inch thick panel not available for this model.
BI95BTP units are available in vinyl clad cabinets with
matching doors which have a slightly contoured handle
across the top, a travel pin to secure closure and are
reversible. The doors have recessed front panels that will
accept a custom 1/4-inch thick door panel.
BCM95 units are available in vinyl clad cabinets with doors
that have a black glass panel, a handle across the top, a
travel pin to secure closure and are reversible. 1/4-inch
thick panel not available for this model.
Please carefully follow the directions that apply to your
unit and your intended design.
Tools/Materials Required
• Screwdrivers — slotted and Phillips head
• 1/4-inch OD copper tubing and shut-off valve for water
supply line
• 1/4-inch thick door panel material and cutting tools
(item only needed if 1/4-inch panel will be used)
Inspection
Unwrap and inspect the unit on a flat, level surface
capable of supporting its entire weight.
Exterior Cleaning
(As Required)
Black and White Models:
Black and white surfaces may be cleaned with a mild
detergent and warm water solution. Do not use solventbased or abrasive cleaners. Use a soft sponge and rinse
with clean water. Wipe with a soft, clean towel to prevent
water spotting.
02/2005 3 www.U-LineService.com
WH95TP, BI95BTP and BCM95 Ice Makers
3 Prepare Site
Your U-Line product has been designed for built-in
installation. When built-in, your unit does not require
additional air space for top, sides or rear. However, the
front grille must NOT be obstructed and clearance is
required for water and electrical connections in the rear.
Note: Unit can NOT be installed behind a closed cabinet
door.
Cut-Out Dimensions
Filler Panel (Not Provided by U-Line) –
Needed to Attach Mounting Flange on Unit
18-1/2" Minimum
Cut-Out
Height
24-3/4"
See Electrical
Specifications
for Power Supply
8" Height
From Floor
Product Dimensions
15-1/16"
13-13/16"
17"
Including
Handle
25-1/4"
24-3/4"
Figure 2
Door Swing/Clearances Information
Units have a zero clearance for the door to open
90° (see Figure 3). U-Line recommends a minimum door
clearance of 3/4" to accommodate the flange if the unit is
right-hand hinged and installed next to a wall or similar
type of structure.
Note: When a raised panel is used, additional clearance is
needed for easy removal of ice bin if door hinge side is
installed adjacent to wall.
3/4"
Minimum Flange
Mounting Area
14-1/16"
Cut-Out Width
15-3/16"
Minimum Opening
Toe Kick
Figure 1
Follow the cut-out drawing in Figure 1. The unit must sit
in a frame structure with a frame thick enough to
accommodate mounting the 1/2" flange to its sides and
top and a base high enough to align the door with other
cabinet doors. Make the frame’s inside dimensions 1/4"
larger than the cabinet’s dimensions (without flange) for
ease in installation and removal of the unit. 24" is the
counter depth in most installations. 18-1/2" depth
includes the door, handle and water line connection (see
Figure 2).
IMPORTANT
It is extremely important that the unit sits on a level
surface, as it does not have feet levelers. If it is not level,
the ice mold will not fill evenly.
Figure 3
90°
Door Swing
Wall
3/4" Min.
14-3/8"
15-1/2"
www.U-LineService.com 4 02/2005
WH95TP, BI95BTP and BCM95 Ice Makers
Reversing the Door
All units may be left- or right-hand opening.
Note: The grille should not yet be installed. If it has been
installed, remove it for door reversing. See Page 10.
To reverse the door:
1.
Remove travel pin from
cabinet (two screws).
See Figure 4. Slide
assembly through
flange and set aside
to be used later
.
2. Remove top hinge from
cabinet (three screws).
See
Figure 5
. Hold door
to keep it from falling.
Slide hinge through
flange.
3. Lift the door off the
Figure 4
bottom hinge.
Figure 5 Figure 6
4. Remove bottom hinge from cabinet (two screws). See
Figure 6
Figure 7
(
. Remove screws on opposite side of cabinet
). Note that there may be a nut behind one or
both screws on either side.
Figure 7 Figure 8
5. Install hinge on opposite side, bottom of cabinet. See
Figure 8
. Replace nut on back side where installed.
Align hinge outer edge with cabinet before tightening
screws.
6. Relocate plastic spacer/
bushing on bottom of
door to opposite side,
and place door on
bottom hinge pin. See
Figure 9
. Clean out
Bushing
bushing hole in door
bottom with a
screwdriver if necessary.
7. Remove plastic travel
pin from door handle
and relocate on
Figure 9
opposite side. See
Figure 10
Travel
Pin Hole
Right Side
Door Swing
.
Right Side
Hinge
Hinge
Screw
Invert
Screw
Invert
Hinge
Travel
Pin Hole
Left Side
Door Swing
Figure 10
02/2005 5 www.U-LineService.com
8. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge. See
Figure 10
.
WH95TP, BI95BTP and BCM95 Ice Makers
Other Site Requirements
Power Supply
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A circuit (normal household current) or 220 VAC,
50/60 Hz. See Electrical Specifications on Page 9.
Water Supply
The unit requires a 1/4-inch OD water supply line and a
shut-off valve. For more information see Page 8.
Environmental Requirements
.
Figure 12
Figure 13
Figure 13
.
Figure 11
9. Gently slide upper hinge through flange and fasten
upper hinge to unit (three screws). Partially tighten
screws. See
10. Place door on lower hinge pin.
11. Align door pivot hole
with pivot hole in upper
hinge and insert pivot
screw into upper hinge
and tighten securely.
See
Figure 12
12. Adjust door to assure
proper seal. Tighten
upper and lower hinge
screws securely.
13. Gently slide travel pin
assembly through
flange and then fasten
to unit. Make sure
travel pin in door
engages the closer in the assembly, then tighten screws
on travel pin assembly securely. See
Figure 11
.
The surrounding air temperature must be at least 45°F
(7°C) but must not exceed 110°F (40°C). Units may be
installed outdoors in a covered area. The unit must not be
located near heat-generating equipment or in direct
sunlight.
www.U-LineService.com 6 02/2005
WH95TP, BI95BTP and BCM95 Ice Makers
4 Prepare and Install Door Panel
(BI95BTP units only)
Units will accept a Custom 1/4" Thick Insert to harmonize
with or accent the surrounding decor.
If this treatment is not included in this installation, go on
to 5 Adjust Door.
Custom 1/4" Thick Door Panel Insert
Door Panel Preparation
A custom door panel can be inserted into the doorframe.
Custom door panels can be flat or raised, as long as the
maximum panel thickness where inserted into the door
reveal (channel) is 1/4"-thick. For raised panels, the depth
of the reveal is 1/4" on all four sides.
IMPORTANT
Raised panels will reduce the door’s 90° swing/zero
clearance if the unit is installed next to a wall or similar
type of structure (see Page 4).
Cut the panel insert to the following dimensions.
Custom 1/4" Dimensions:
Width: 12-15/16"
Height: 13-15/32"
The door panel must not weigh more than 20 lbs.
Door Panel Installation
Install the insert as follows:
CAUTION
Use care when handling the insert. Insert edges may be
sharp.
1.
Remove top hinge screw pin with a Phillips head
screwdriver (see
forward and lifting off bottom hinge pin.
Figure 14
). Remove door by tilting
Figure 14 Figure 15
2. Pull door gasket out of
groove (top edge of door
only). Start in the middle
and pull outward, moving
toward the edge (see
Figure 15
some force.
3. Remove two outside
screws holding door
handle. Slightly separate
door handle from door
(see
4. Pull handle up and off.
5. Slide custom door panel insert into 1/4-inch channel in
door front.
6. Holding door gasket out of the way, replace handle on
door, making sure it is seated properly on insert and
that screw holes line up.
7. Install two small screws removed in
8. Starting at the corners and working inward, push door
gasket into place on door.
9. Place door on bottom hinge pin and install upper hinge
screw.
10. Go on to
). This may take
Figure 16
5 Adjust Door
Figure 16
).
Step 3.
.
02/2005 7 www.U-LineService.com
WH95TP, BI95BTP and BCM95 Ice Makers
5 Adjust Door
Checking Door Alignment
The unit’s door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment or during door panel installation.
IMPORTANT
Properly aligned, the door's gasket should be firmly in
contact with the cabinet all the way around the door (no
gaps).
1. Carefully examine the door's gasket to assure that it is
firmly in contact with the cabinet.
Note: When inspecting door alignment, make sure the
door gasket is not pinched on the hinge side of the door.
2. If the door is properly aligned, go on to
Plumbing
. If it is not, use the following procedure.
6 Prepare
Adjusting Door Alignment
1. Loosen (do not remove)
top and bottom hinge
screws. See Figure 17.
2. Align door squarely with
cabinet. Make sure gasket
is firmly in contact with
cabinet all the way around
the door (no gaps).
3. Tighten bottom hinge
screws.
4. Tighten top hinge screws.
Go on to
Plumbing
6 Prepare
.
Figure 17
6 Prepare Plumbing
CAUTION
Plumbing installation must observe all state and local
codes. All water connections MUST BE made by a licensed/
qualified plumbing contractor. Failure to follow
recommendations and instructions may result in damage
and/or harm.
WARNING
To prevent accidental electrocution, make certain
that the floor surfaces surrounding the unit are
dry whenever power is removed from, or applied
to, the unit.
Water Supply Connection
Note: Water temperature from source will affect ice
production. U-Line recommends room temperature or
colder water be used.
When connecting the water supply, follow these
guidelines:
• Review any applicable plumbing codes before you
install the unit.
• Connect to the cold water supply.
• The water pressure should be between 20 and 120 psi.
• Install a shut-off valve in the 1/4 inch OD water supply
line.
• Connect sufficient tubing to the unit so that tubing
may be looped, allowing the unit to be removed for
cleaning and servicing (see Figure 20). However, make
certain that the tubing is not pinched or damaged
during installation.
• U-Line recommends the use of copper tubing for
installation.
www.U-LineService.com 8 02/2005
To connect to water supply:
1. Install the 1/4 inch OD copper water line from the
main water source.
WH95TP, BI95BTP and BCM95 Ice Makers
Water Line
Figure 19Figure 18
2. Locate the compression fitting and ferrule packed with
the unit. Slide the compression fitting and ferrule over
the 1/4-inch OD water supply line. Do not use thread
sealing compound or tape. Using two wrenches,
tighten the compression fitting on the supply line (see
Figure 18).
3. Carefully bend the water supply line into position and
connect the line to the solenoid valve (see
Figure 19
).
Avoid kinking the water supply line.
7 Prepare Power Supply
Electrical Specifications
CAUTION
Electrical installation must observe all state and local
codes. This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a
qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current)
or a 220 VAC, 50/60 Hz power supply. An individual,
properly grounded branch circuit or circuit breaker is
recommended. GFCI (ground fault circuit interrupter) is
usually not required for fixed location appliances and is
not recommended for your unit because a GFCI could be
prone to nuisance tripping. However, be sure to consult
your local codes.
See Figure 21 for recommended receptacle location.
Figure 20
IMPORTANT
Route the water supply line through the unit so it does not
come into contact with any internal components other
than the solenoid valve. See Figure 20. Normal operation
creates some vibration. A water supply line contacting an
internal component or cabinet wall can cause excessive
noise during operation or damage to the line.
4. For recessed installations, allow extra water supply line
length to provide slack for easy removal from the
recessed area (see
against kinking the line.
5. Go on to
7 Prepare Power Supply
Figure 20
). This will also safeguard
.
18-1/2" Minimum
7"
1-1/2"
Figure 21
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
Go on to 8 Level the Unit.
02/2005 9 www.U-LineService.com
WH95TP, BI95BTP and BCM95 Ice Makers
8 Level the Unit
Leveling Information
IMPORTANT
It is extremely important that the unit sits on a level
surface, as it does not have feet levelers. If it is not level,
the ice mold will not fill evenly.
Use a level to check the
levelness of the unit from
front to back and from side
to side. Level should be
placed along top edge and
side edge as shown (see
Figure 22). Go on to
9 Install the Unit.
Check
el
Lev
Figure 22
9 Install the Unit
Installation of the WH95TP, BI95BTP
or BCM95
1. Open the water supply valve in the main water source.
2. Plug in the power cord.
3. Gently push the unit into position. Be careful not to
kink the water supply line or entangle the electrical
cord.
4. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" below the
countertop.
5. Secure the flange to the frame structure using the four
holes in the flange. The type of fasteners will depend
on the structure you are mounting the flange to.
Grille Installation
1. Locate and remove the grille screw from the cabinet,
using a standard blade screwdriver (or a 1/4"
nutdriver). See Figure 23
.
Grille Screw
Figure 23
2. Identify the grille screw hole on the grille itself. It is
located toward the top of the middle recessed section
of the grille.
3. Place the two hook-hinges (located on the rear bottom
side of the grille) onto the front lip of the unit base.
Swing the grille up into position, aligning the grille
screw hole on the grille to the grille screw hole on the
cabinet. See
Figure 24
.
www.U-LineService.com 10 02/2005
WH95TP, BI95BTP and BCM95 Ice Makers
10 Start-Up for the First Time
Initial Start-Up
Grille
Hook-Hinge
Figure 24
4. Insert the screw. Do not overtighten.
Unit Base
Front Lip
Installation Troubleshooting
Problem
Q:
Water is leaking under the unit.
Solution
A:
A water leak under the unit is most likely caused by a bad
connection in the water supply line. Make sure the water
line’s brass fitting is screwed tight to its valve and
threaded correctly. Make sure that plumbers tape was
NOT used; if it was remove all traces before reinstalling.
The on/off switch is located behind the front grille. A
small opening in the top of the grille is provided to access
the switch. Ensure that the switch is turned on.
No setting adjustments should be necessary at this time.
For information about Adjusting the Temperature
Control, see the User Manual.
As soon as the ice maker
mold reaches the proper
temperature, the ice maker
mechanism will fill the mold
with water.
Note: The first cubes may be
small because of air in the
water line. After two hours,
cubes will be standard size.
The ice maker will continue
to produce until the bin is
full. You may interrupt
production by raising the bin
arm into an upright and locked position (see Figure 25).
While the bin arm is locked, the unit will maintain
temperature for ice storage.
Figure 25
IMPORTANT
It is possible that dirt or scale will dislodge in the water
line. Always throw away all ice cubes made during the
first twenty-four (24) hours of operation.
02/2005 11 www.U-LineService.com
Start-Up Troubleshooting
Who to Call
Problem
Q:
Unit does not appear to turn on when plugged in.
Solution
A:
Make sure outlet has power (circuit breaker has not
tripped). Make sure the on/off switch is turned on.
Problem
Q:
Water does not appear to be flowing into unit.
Solution
A:
Check that the water is connected and turned on and the
line is not obstructed. Water coming into the unit may
take an hour or more.
Problem
Q:
The cubes produced during the first two to three hours of
operation have been discarded. New cubes still appear
cloudy.
Solution
A:
This is normal and is caused by air being trapped in the
cube during fast freezing.
Service Information
If the need for service arises, contact the dealer from
whom the unit was purchased. State the Model Number
and Serial Number and explain the problem. The Model
and Serial Number plate is located inside unit behind the
ice bucket.
If you need to locate a service company, you can go online
at www.U-LineService.com and search for a service
company by zip code.
IMPORTANT
See the User Manual’s Troubleshooting Guide for more
solutions.
For more than four decades, U-Line has distinguished itself as the leader in built-in
©2005 U-Line Corporation
Publication No. 30070E
02/2005
undercounter ice making, refrigeration and wine storage appliances.
U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in
undercounter icemakers, Combo
refrigerators, refrigerated drawers and refrigerator/freezers.
®
icemaker/refrigerators, Wine Captain® wine storage units,
Loading...
