ADA SERIES
Use and Care Guide
Refrigerator Models:
ADA24
ADA24R ADA24RGL
ADA SERIES
Introduction
Congratulations on your purchase of a U-Line refrigeration product. U-Line Corporation, a pioneer in the appliance
industry for more than 40 years, is the world’s number one manufacturer of built-in, undercounter, specialty
refrigeration and ice making products. U-Line dedicates 100% of its research and development to these products. U-Line
technology consistently leads the market with innovation, design, depth of product line and performance.
U-Line products are making life more convenient in homes, businesses, and hotels around the world. U-Line supports its
products with a strong dealer network, and the U-Line commitment to quality even extends to environmental safe
packaging.
IMPORTANT
READ all instructions in this guide completely before using the appliance for the first time.
For future reference, keep this guide in a safe, accessible location. If you need additional information or assistance,
please contact U-Line Corporation direct. Contact information appears on the back cover of this guide.
If you have a problem with this appliance, the SERVICE section of this guide will help you quickly identify common
problems and provide information on possible cause and remedy. If your product needs service, contact U-Line direct.
Warranty Registration
Located on the inside rear cover of this guide is your U-Line Corporation Limited Warranty . Register the product and the
original purchase date to validate your warranty. Included in the package containing this guide is a Warranty
Registration Card. Complete and mail the Warranty Registration Card, or register your product online at www.ULineService.com as soon as possible after purchase.
If there is a request for warranty coverage and your product registration is not on file, the date of sale to the U-Line
Selling Dealer or Distributor will establish the first date of warranty coverage for your product .
Please Record Your Model Information
You will need your product model and serial number when you request additional information or services. You can find
this information on the serial plate located on the upper right or back wall in the interior of your product. This
information also appears on the warranty registration card.
1
ULIN_0023_A
Figure 1
Please record the model number (Figure 1, 1), serial number (Figure 1, 2), date of purchase, and dealer contact
information for your U-Line product below:
Model Number:
_____________________________________________________
Serial Number:
_____________________________________________________
Purchase Date:
_____________________________________________________
Dealer Name:
_____________________________________________________
Dealer Address:
_____________________________________________________
Dealer Telephone:
_____________________________________________________
2
ADA24,
ADA SERIES
1 Table of Contents
ADA24
Introduction .................................................................................................. Inside Front Cover
Warranty Registration .......................................................................... Inside Front Cover
Please Record Your Model Information .............................................. Inside Front Cover
Table of Contents .......................................................................................................................1
Safety Precautions ......................................................................................................................2
Safety Alert Definitions .....................................................................................................2
General Precautions ...........................................................................................................2
Product Features ........................................................................................................................3
Origins Refrigerator ADA24R, ADA24RGL ........................................................................3
Operation ...................................................................................................................................3
Air Flow ..............................................................................................................................3
Initial Startup .....................................................................................................................3
Interior Lighting .................................................................................................................4
Electronic Control Panel ....................................................................................................4
Normal Operating Sounds .................................................................................................6
Outdoor, Marine and RV Usage ........................................................................................6
Storage, Vacation, Moving ................................................................................................6
Product Disposal .................................................................................................................6
General Cleaning ...............................................................................................................7
Cleaning and Maintenance .......................................................................................................7
Maintenance ......................................................................................................................7
Service .......................................................................................................................................12
Before Calling for Service ................................................................................................12
If Service is Required ........................................................................................................12
Replacement Parts ...........................................................................................................12
Troubleshooting Guide ....................................................................................................13
Electronic Control Quick Guide ...............................................................................................15
U-Line Corporation Limited Warranty .......................................................... Inside Back Cover
ADA24 1
2 Safety Precautions
ADA SERIES
IMPORTANTIMPORTANT
PLEASE READ all instructions completely before
attempting to install, operate, or service your unit.
• Proper installation procedures must be followed
if this unit is being initially installed, or is moved
to a new location after being in service. An
INSTALLATION GUIDE for your unit, providing
complete installation information is available
from U-Line Corporation directly, and must be
consulted before any installation is begun. U-Line
contact information appears on the rear cover of
this guide.
• This unit requires connection to a grounded
(three-prong), polarized receptacle that has been
placed by a qualified electrician in accordance
with applicable electrical codes.
Safety Alert Definitions
Safety items throughout this guide are labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
SHOCK HAZARD - Electrical Grounding Required.
• Never attempt to repair or perform
maintenance on the unit until the electricity
has been disconnected.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Altering, cutting of power cord, removal of
power cord, removal of power plug, or direct
wiring can cause serious injury, fire and/or loss
of property and/or life, and will void the
warranty.
• Never use an extension cord to connect power
to the unit.
• Always keep your working area dry.
CAUTION
• Use care when moving and handling the unit. Use
gloves to prevent personal injury from sharp
edges.
• If your model requires defrosting, DO NOT use any
type of heater to defrost. Using a heater to speed
up defrosting can cause personal injury and
damage to the inner lining.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
CAUTION
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
General Precautions
Use this appliance for its intended purpose only and
follow these general precautions along with those listed
throughout this guide:
DANGER
RISK OF CHILD ENTRAPMENT. Before you throw away
your old refrigerator or freezer, take off the doors
and leave shelves in place so that children may not
easily climb inside.
IMPORTANTIMPORTANT
• Do not lift unit by door handle.
• Never install or operate the unit behind closed
doors. Be sure front grille is free of obstruction.
Obstructing free air flow can cause the unit to
malfunction and may void the warranty.
• Failure to clean the condenser every three months
can cause the unit to malfunction. This could void
the warranty.
• Allow unit temperature to stabilize for 24 hours
before use.
• If your model requires defrosting, never use an
ice pick or other sharp instrument to help speed
up defrosting. These instruments can puncture
the inner lining or damage the cooling unit.
• Use only genuine U-Line replacement parts.
Imitation parts can damage the unit, affect its
operation or performance and may void the
warranty.
2 ADA24
ADA SERIES
_
3 Product Features 4 Operation
Origins Refrigerator ADA24R,
ADA24RGL
• Features an electronic control panel with digital display
that allows you to display the interior temperature and
adjust the setting to your preference. The electronic
control and digital display provide an attractive
appearance and its method of control permits precise
temperature settings.
• An interior light illuminates automatically as the
cabinet door is opened. Another mode of operation is
available. A blackout/Sabbath mode (not Star K
certified) allows you to darken both interior light and
the LED display, while maintaining complete
temperature control in the unit.
• Qualifies for the U.S. Government ENERGY STAR
program.
• Maintenance-free automatic (cycle) defrost.
• A generous capacity, one piece molded interior is very
durable and easy to clean.
• Provides 5.27 cu ft (161 L) of refrigeration.
• Four adjustable wire shelves are used, may be
positioned evenly throughout the interior to use all
space efficiently.
• All black solid door models accommodate custom flat
or raised door panels, and can achieve a custom, builtin look by matching surrounding cabinets. Please visit
www.u-line.com for additional panel information.
• Doors on black models are field-reversible. Stainless
steel doors are not field-reversible.
• Door locks are factory-installed.
• Vinyl clad steel cabinets provide a rich textured look,
and resist scratching, peeling, or flaking.

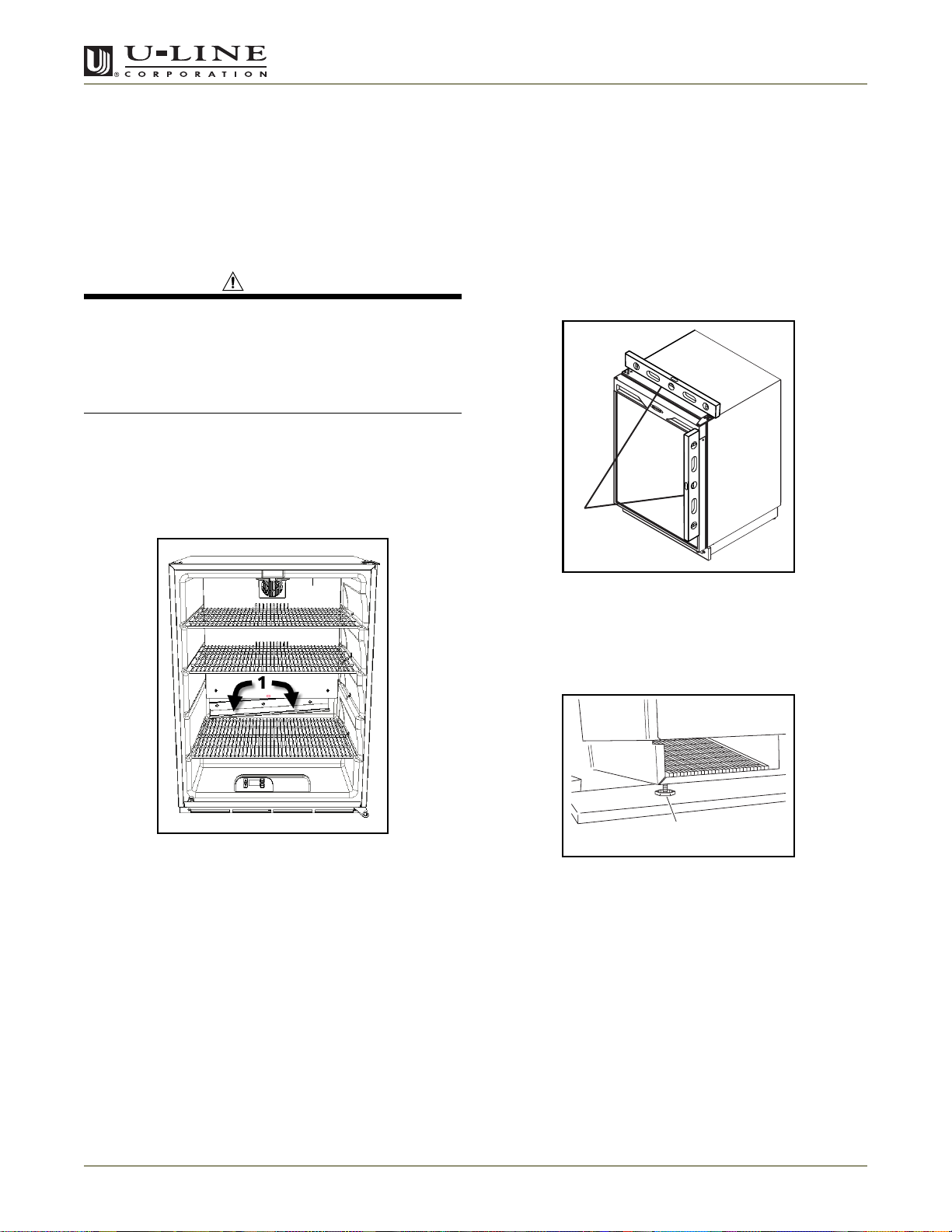

Air Flow
Figure 1
IMPORTANTIMPORTANT
Do not place any obstructions in front of the fan
found inside the refrigerator. Do not place any
obstructions in front of the grille found at the
bottom of the refrigerator. Blocking airflow (Figure
1) will cause the unit to not cool properly.
IMPORTANTIMPORTANT
Blocking airflow (Figure 1) will cause the icemaker
to not cool properly.
Initial Startup
All U-Line units are shipped with controls that are preset.
No initial adjustments are required.
IMPORTANTIMPORTANT
U-Line recommends the unit be allowed to run
overnight prior to loading with product.
1
Figure 2
To turn the unit ON or OFF, press and hold the ON/OFF
button (Figure 2, 1) for approximately ten seconds and
release. The display will show the unit set-point
temperature when turned ON and display OFF when the
unit is OFF.
ADA24 3
54321
ULIN_0074_A
ULIN
ADA SERIES
Interior Lighting
The interior of the cabinet can be illuminated whenever
the door is opened or remained darkened for a 36-hour
period (blackout/Sabbath mode [not Star K certified]).
54321
ULIN_0074_A
Figure 3
The LIGHT button (Figure 3, 1) on the control panel is
used to change the lighting functions.
To turn the lights and display OFF for a preset 36-hour
interval (blackout/Sabbath mode [not Star K certified]):
1. Press and hold the LIGHT button (Figure 3, 1) for ten
seconds and release (the °F symbol will flash briefly at
the end of the ten second period).
2. The interior light and control display
go dark for the next 36 hours.
NOTE: Although the display will not be visible, the
temperature controls in the unit remain active, and the
interior temperature will be maintained.
3. To exit the blackout/Sabbath mode (not Star K certified)
before the 36-hour period, repeat Step 1.
(Figure 3, 3)
will
Electronic Control Panel
54321
ULIN_0074_A
Figure 4
The electronic control with digital display (Figure 4) is
configured to show a single temperature continuously.
This set-point temperature is a base number used by the
controller to maintain the temperature zone in your unit.
The factory default set-point is 38°F. This set-point
temperature is used as a gauge if further temperature
adjustments are required.
Temperature Display Selection
U-Line products supplied for 110 VAC operation have
temperatures displayed in a default Fahrenheit (°F)
configuration (Figure 4, 3). Models supplied for 220 VAC
operation have temperatures displayed in a default
Celsius (°C) configuration.
The display can easily be adjusted for either type of
temperature display. Press and hold the LIGHT button
(Figure 4, 1) and simultaneously within five seconds
press the COOLER button (Figure 4, 5) three times to
change the display as desired.
Temperature Display
To display actual temperature:
1. Press the WARMER button (Figure 4, 4) for five
seconds. The display (Figure 4, 3) will indicate the
actual temperature.
2. After approximately 10 seconds, the set point
temperature will return to the display.
4 ADA24
ADA SERIES
Checking Product Temperature
ULIN_0093_A
Figure 5
IMPORTANTIMPORTANT
U-Line recommends a set temperature of 38°F on all
refrigerators.
To check the actual product temperature in your unit,
insert an accurate thermometer into a plastic (nonbreakable) bottle that is partially filled with water.
Tighten the bottle cap securely (Figure 5).
Place the bottle in the desired area for 24 hours. Refrain
from opening the unit during the testing period. After 24
hours, check the temperature of the water. If required,
adjust the temperature control in a small increment (See
ADJUSTING TEMPERATURE).
Factors which affect the internal temperatures of the
cabinet include:
• Temperature setting.
• Ambient temperature where installed.
• The number of times and length of time a door is
opened and closed.
• The amount of time the internal light is illuminated.
(This affects primarily product on top rack or shelf.)
• Installation in direct sunlight or near a heat source.
Adjusting Temperature
IMPORTANTIMPORTANT
Adjust the set point temperature in single
increments, and wait 24 hours for the temperature
to stabilize before rechecking.
54321
ULIN_0074_A
Figure 6
To adjust the set point temperature:
1. Press and release either the WARMER (Figure 6, 4) or
COOLER (Figure 6, 5) button to put the controller in
the SET TEMPERATURE mode. The °F (or °C) symbol will
begin to flash.
NOTE: If no further action is taken, this mode will self
cancel in five seconds, and the original set-point
temperature will be displayed.
2. Within five seconds (while the °F (or °C) symbol is
flashing), press the WARMER or COOLER button as
required to adjust the set point temperature.
3. The change will be set five seconds after adjusting the
temperature, and the new set-point will be displayed
(Figure 6, 3)
Many factors can affect the internal temperatures of the
cabinet. They include:
• Temperature setting.
• Ambient temperature where installed.
• The number of times and length of time the door is
opened and closed.
• The amount of time the internal light is illuminated.
(This affects primarily product on top rack or shelf.)
• Installation in direct sunlight or near a heat source.
.
ADA24 5
ADA SERIES
Normal Operating Sounds
All models incorporate rigid foam insulated cabinets to
provide high thermal efficiency and maximum sound
reduction for its internal working components. In spite of
this technology, your model may make sounds that are
unfamiliar.
Normal operating sounds may be more noticeable
because of the unit’s environment. Hard surfaces such as
cabinets, wood/vinyl/tiled floors and paneled walls have a
tendency to reflect normal appliance operating noises.
Common refrigeration components, and a brief
description of the normal operating sounds they make,
are listed below. NOTE: Your product may not contain all
of the components listed.
• Compressor: The compressor makes a hum or pulsing
sound that may be heard when it operates.
• Evaporator: Refrigerant flowing through an evaporator
may sound like boiling liquid.
• Condenser Fan: Air moving through a condenser may be
heard.
• Automatic Defrost/Drain Pan: Water may be heard
dripping or running into the drain pan when the unit is in
the defrost cycle.
Outdoor, Marine and RV Usage
Some U-Line models are designed to operate in outdoor,
marine and RV environments. For best performance, keep
the unit out of direct sunlight.
• If the unit will be shut off for five days or more, prop
door open to allow for air circulation and prevent mold
and mildew.
IMPORTANTIMPORTANT
If the ambient temperature is expected to drop
below 50°F, turn off and unplug unit, and drain all
water from the unit to prevent freezing damage not
covered by the warranty.
Storage, Vacation, Moving
If the unit will not be used for an extended period, or
otherwise stored, follow these steps completely:
WARNING
Electrical Shock Hazard. Disconnect power before
servicing. Before operating, replace all panels.
Failure to do so may result in death or electrical
shock.
1. Remove all consumable contents from the unit.
2. Disconnect the power cord from its outlet, and leave it
disconnected until the unit is returned to service.
3. Clean and dry the interior of the cabinet (See CLEANING
AND MAINTENANCE: GENERAL CLEANING).
4. During periods of non-use, the cabinet must remain
open to prevent the formation of mold and mildew.
Open door a minimum of 2 in. (5 cm) to provide the
necessary ventilation.
Product Disposal
If the unit is being removed from service for disposal,
check and obey all Federal, State and/or Local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Disconnect power to the unit and unplug the power
cord from its outlet.
DANGER
RISK OF CHILD ENTRAPEMENT. Before you throw
away your old refrigerator or freezer, take off the
doors and leave shelves in place so that children
may not easily climb inside.
3. Remove the cabinet door.
• High ambient temperatures (100°F or higher) may
reduce the unit's ability to reach low temperatures.
6 ADA24
ADA SERIES
5 Cleaning and Maintenance
General Cleaning
Exterior Cleaning (As Required)
Vinyl Clad (Black or White) Models:
• Surfaces may be cleaned with a mild detergent and
warm water solution. Do not use solvent-based or
abrasive cleaners. Use a soft sponge and rinse with
clean water. Wipe with a soft, clean towel to prevent
water spotting.
• Clean any glass surfaces with a non-chlorine glass
cleaner.
Stainless Doors:
• Stainless door panels, handles and frames can discolor
when exposed to chlorine gas, pool chemicals, salt
water or cleaners with bleach.
• Keep your stainless unit looking new by cleaning with
a good quality all-in-one stainless steel cleaner/polish
on a monthly basis. For best results use Claire
Steel Polish and Cleaner, which can be purchased from
U-Line Corporation (P/N 173348). Comparable products
are acceptable. Frequent cleaning will remove surface
contamination that could lead to rust. Some
installations may require cleaning on a weekly basis.
• Do not clean with steel wool pads.
• Do not use stainless steel cleaners/polishes on
any glass surfaces.
• Clean any glass surfaces with a non-chlorine glass
cleaner.
• Do not use cleaners that are not specifically
intended for stainless steel on stainless surfaces
(this includes glass, tile and counter cleaners).
• If any surface discoloring or rusting appears, clean it
quickly with Bon-Ami
and a non-abrasive cloth. Always clean in the direction
of the grain. Always finish this process with Claire
Stainless Steel Polish and Cleaner or comparable
product to prevent further problems.
• Using abrasive pads such as Scotchbrite™ will
cause the graining in the stainless to become
blurred.
• Rust that is not cleaned up promptly can penetrate into
the surface of the stainless steel and complete removal
of the rust may not be possible.
®
or Barkeepers Friend Cleanser®
®
Stainless
Maintenance
Proper maintenance of your U-Line product will ensure
efficiency, top performance and long life. The
maintenance intervals listed are based on normal
conditions. You may want to shorten the intervals if you
have pets or other special considerations.
Interior Cleaning (As Required)
• Disconnect power to the unit. Clean the interior and all
removed components using a mild non-abrasive
detergent and warm water solution applied with a soft
sponge or non-abrasive cloth. Rinse the interior using a
soft sponge and clean water.
• Do not use any solvent-based or abrasive cleaners.
These types of cleaners may transmit taste to the
interior products and damage or discolor the interior.
ADA24 7
ADA SERIES
Defrosting
Automatic (Cycle) Defrost Models
Automatic defrost models do not produce frost in normal
operating conditions. However, a frost pattern may be
noticed on the interior walls if the unit is repeatedly
opened in a high heat or high humidity location. If this
frost pattern does not clear within 24 hours, your unit will
require manual defrosting.
WARNING
DO NOT use any type of electrical heating device,
ice pick, knife or other sharp instrument to
defrost; this could damage the inner lining or
refrigeration system and void the warranty.
IMPORTANTIMPORTANT
The drain pan was not designed to capture the
water created when manually defrosting. To
prevent water from overflowing the drain pan,
place towels or other absorbent materials over the
interior drain trough, under the evaporator (Figure
7, 1), before defrosting.
4. Dampen a soft sponge or non-abrasive cloth in clean
water and wipe down the cabinet interior and removed
components to remove any detergent residue. Rinse the
sponge or cloth in clean water and repeat as necessary
until the cabinet and components are clean.
5. When the interior is dry, turn unit on.
Leveling
It is important that units equipped with adjustable feet
are level, for proper door and ice maker (if equipped)
1
ULIN_0041_A
Figure 7
To defr ost:
1. Turn unit off.
2. Remove all products from the interior and prop the
door in an open position (2 in. (5 cm) minimum).
3. Allow the frost to completely melt naturally. Clean the
interior and all removed components using a mild nonabrasive detergent and warm water solution applied
NOTE:
with a soft sponge or non-abrasive cloth.
NOT use any solvent-based or abrasive cleaners. They
will discolor or damage the interior.
DO
Figure 8
1. Use a level to check the levelness of the unit from
front to back and from side to side. Level should be
placed along top edge and side edge as shown
(Figure 8).
1
Figure 9
2. If the unit is not level, adjust the feet on the corners of
the unit as necessary
3. Check the levelness after each adjustment and repeat
the previous steps until the unit is level.
(Figure 9)
ULIN_0042_A
.
8 ADA24
ADA SERIES
Wire Shelf Removal/Installation
Reposition the shelves as follows:
Figure 10
1. Remove shelf retention clip.
2. Pull shelf out about 6"
shelf clears the “hump” on the right-hand side.
3. Tilt up right-hand edge of shelf
4. Remove shelf from unit by pulling out
Insert the shelves as follows:
1. To move to a different position in the unit, insert shelf
at an angle, approximately 15-20°, over the rib in the
side of the unit where you want to place the shelf. The
shelf must be started into the unit at an angle to clear
the door.
2. Continue to slide the shelf into the unit at an angle
until it clears the door.
(Figure 10, 1)
(Figure 10, 2)
, until back of
.
(Figure 10, 3)
.
Light Bulb Replacement
To replace the light bulb in your U-Line unit:
1
Figure 11
1. Grasp the edges of the light housing lens
(Figure 11, 1) opposite the exposed tab, and gently
push the lens towards the tab (Figure 11, 2).
2. Pull the edge of the lens down
swing it out of the light housing.
IMPORTANTIMPORTANT
ALWAYS use a genuine U-Line replacement bulb (P/N
31317) in the light housing. Use of any other bulb
within the housing will generate excessive heat,
causing damage to the light housing and cabinet
interior, and compromising the precise temperature
control of your unit.
3. Replace the bulb only with a genuine U-Line P/N 31317
replacement.
4. Replace the lens by first inserting the tab side back into
the housing at a slight angle. While gently pushing the
lens towards the tab end, push the free end up into the
housing, and release when you will hear a snap/click.
2
ULIN_0001_A
(Figure 11, 1)
, and
3. Lower the shelf and push it in completely.
4.
Install shelf retention clip.
ADA24 9
ADA SERIES
Door Alignment Check and Adjustment
IMPORTANTIMPORTANT
Properly aligned, the door’s gasket should be firmly
in contact with the cabinet all the way around the
door (no gaps). Carefully examine the door’s gasket
to assure that it is firmly in contact with the
cabinet. Also make sure the door gasket is not
pinched on the hinge side of the door.
ULIN_0143_A
Figure 12
1. Loosen (do not remove) top (Figure 12) and bottom
hinge screws.
2. Align door squarely with cabinet.
3. Make sure gasket is firmly in contact with cabinet all
the way around the door (no gaps).

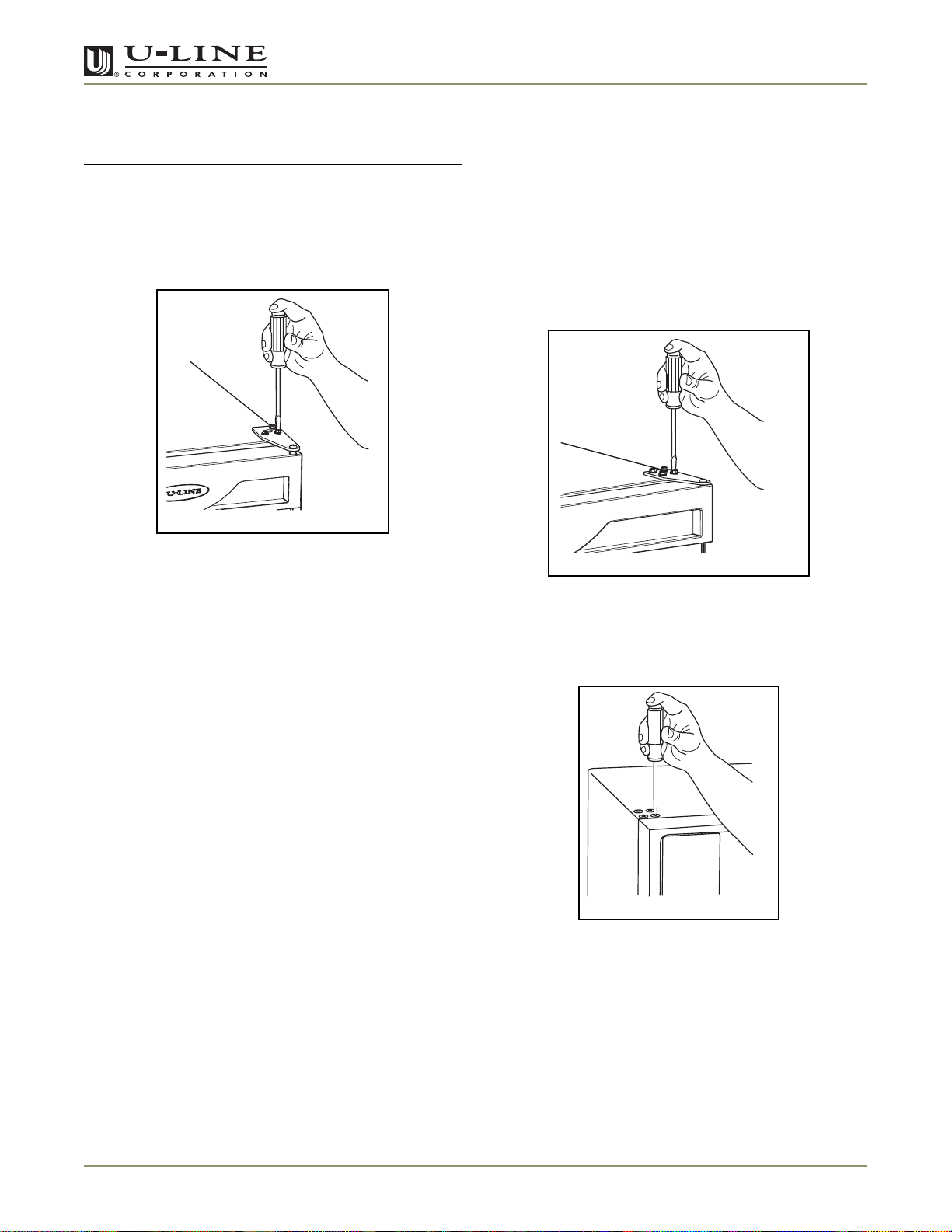

Door Reversal
Black or white unit doors may be left- or right-hand
opening. Depending upon the location of the unit, it may
be desirable to change the side on which the door is
mounted.
6.
Black or White Model
To reverse the door, perform the following:
1. Remove the grille (two screws).
ULIN_0104_A
Figure 13
2. Remove top hinge from cabinet (four screws)
13)
. Hold door to keep it from falling.
3. Lift the door off the bottom hinge.
(Figure
4. Tighten bottom hinge screws.
5. Tighten top hinge screws.
ULIN_0105_A
Figure 14
4. Remove four plastic plugs
top of cabinet, opposite side. Be careful not to scratch
cabinet.
(Figure 14)
in hinge holes,
10 ADA24
ADA SERIES

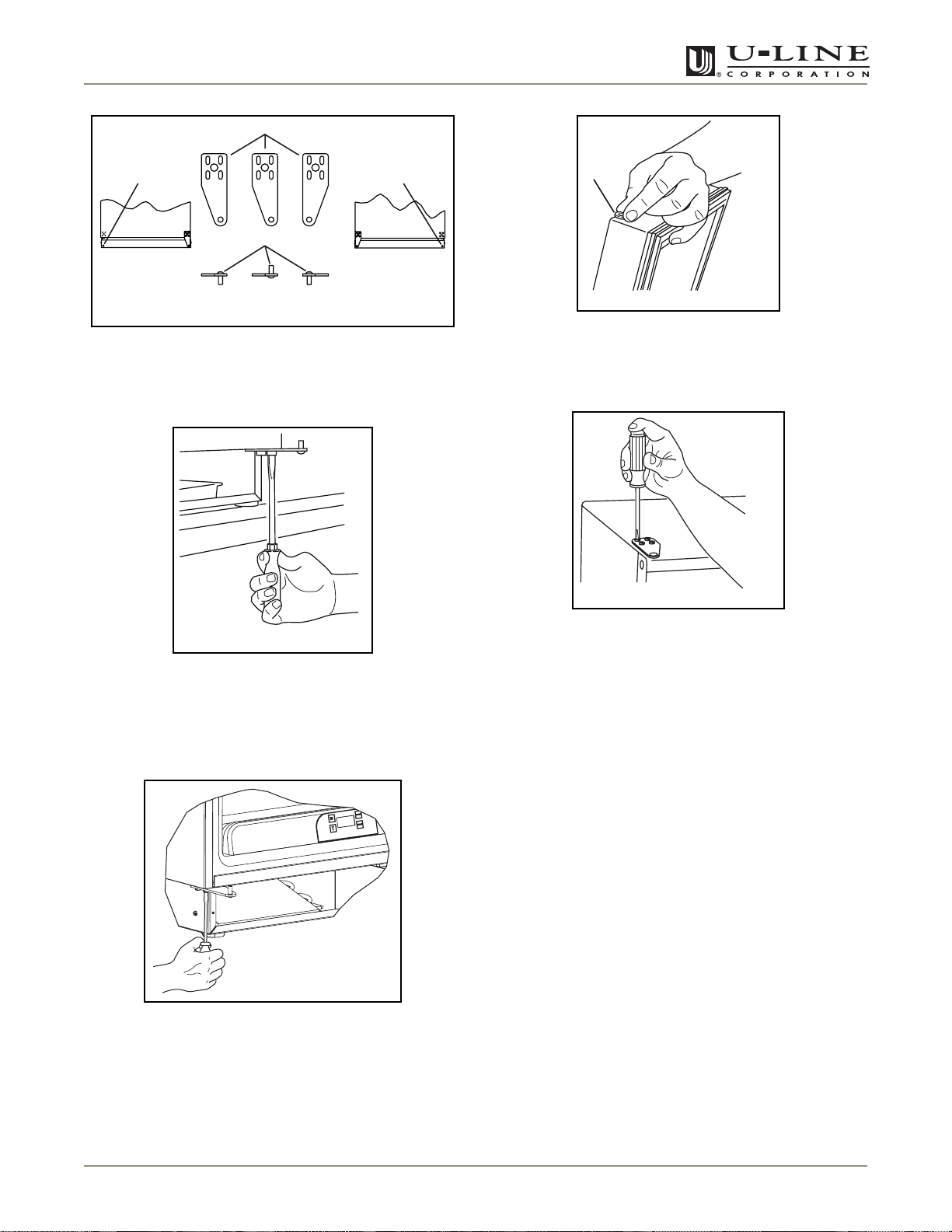

Hinge
Plastic
Plug Hole
Right Side
Door Swing
Right Side
Hinge
Screw
Invert
Screw
Invert
Hinge
Plastic
Plug Hole
Left Side
Door Swing
ULIN_0106_A
Figure 15
5. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge
(Figure 15)
. Do not
install hinge on cabinet at this time.
ULIN_0107_A
Figure 16
6. Remove bottom hinge from cabinet (four screws) and
screws on opposite side of cabinet
(Figure 16)
.
7. Remove pivot screw from bottom hinge, invert screw
and reinstall pivot screw in hinge
(Figure 15)
.
1
ULIN_0109_A
Figure 18
9. Relocate plastic spacer/bushing
of door to the opposite side. Clean out bushing hole in
door bottom if necessary.
Figure 19
10. Place door on lower hinge pin. Align flat edge of top
hinge with outer edge of unit and fasten upper hinge
to unit (four screws)
(Figure 19)
screws until door is aligned.
11. Adjust door to assure proper seal. Tighten upper and
lower hinge screws securely.
12. Replace four plastic plugs removed in Step 4 into holes
on top of unit. Replace screws in holes in bottom of unit
on opposite side.
13. Replace the grille.
(Figure 18)
ULIN_0110_A
on bottom
. Partially tighten
ULIN_0160_A
Figure 17
8. Install bottom hinge on cabinet, opposite side, aligning
flat edge of hinge with outer edge of unit
(Figure 17)
Partially tighten screws.
.
ADA24 11
ADA SERIES
6 Service
Before Calling for Service
If your U-Line product appears to be malfunctioning, read through the OPERATION section of this guide to ensure that
the function of all controls are clearly understood. If the malfunction persists, the TROUBLESHOOTING GUIDE in this
guide will assist you in quickly identifying common problems, and provide information on possible causes and remedies.
Most often, this will resolve the problem without the need to call for service.
If Service is Required
If you do not understand a troubleshooting remedy, or your product needs service, contact U-Line Corporation directly.
Contact information appears on the rear cover of this guide.
You will be asked for your product Model and Serial Numbers. This information should be recorded inside the front cover
of this guide, following the products original purchase. It also appears on the Model and Serial number plate located on
the upper right or rear wall of the interior of your product.
Replacement Parts
When you need replacement parts, always request that genuine U-Line replacements be used. U-Line products have
been designed and engineered using components that work efficiently, and provide superior service life and
performance. The use of aftermarket parts or components may affect the safety, operation, performance or durability of
your product, and may also void its warranty.
12 ADA24
ADA SERIES
Troubleshooting Guide
DANGER
ELECTROCUTION HAZARD
Never attempt to repair or perform maintenance on the unit until the main electrical power has been
disconnected.
NOTE: Recommended temperature setting is 38°.
Troubleshooting - What to check when problems occur:
PROBLEM POSSIBLE CAUSE REMEDY
Unit does not operate and
electronic display is blank.
No interior light Loose or burned out bulb Tighten or replace bulb (See MAINTENANCE; LIGHT
Light won't go out when door is
closed (Model 1175BEV).
Unit not cold enough Light staying on Adjust door (See MAINTENANCE; DOOR ALIGNMENT
The unit frosts up. Door gasket not sealing properly.
Noise during operation Certain sounds are normal. Soft sounds from the fan and water/dropping sounds
Unit too cold Temperature control set too cold Set control to warmer setting (See OPERATION).
Freezing product Product touching evaporator in back
No electrical supply Plug unit in or check circuit breaker.
BULB REPLACEMENT).
Light on/off switch is turned to ON. Turn switch to OFF (See OPERATION).
CHECK AND ADJUSTMENT).
Door gasket not sealing properly Adjust door (See MAINTENANCE; DOOR ALIGNMENT
Item(s) interfering with door Reposition or remove item(s).
Dirty condenser coils Clean condenser (See MAINTENANCE; CONDENSER
Airflow to interior fan or front grille
blocked
High ambient temperature or
exposure to direct sunlight
Temperature not set cold enough Set control to a cooler setting (See OPERATION). Allow
Door left open
High ambient temperatures or
humidity
Fan blade touching obstruction
(wiring, foam insulation, etc.)
of unit
CHECK AND ADJUSTMENT).
CLEANING).
Airflow must not be obstructed to interior fan or front
grille (See OPERATION).
Reposition unit.
24 hours for temperature to stabilize.
Adjust door (See MAINTENANCE; DOOR ALIGNMENT
CHECK AND ADJUSTMENT).
Defrost unit manually (See MAINTENANCE;
DEFROSTING).
from the ice maker will be heard.
Remove obstruction.
Move product away from evaporator, making sure it is
not touching evaporator.
ADA24 13
Troubleshooting - Models with an electronic display:
PROBLEM POSSIBLE CAUSE REMEDY
Electronic display is blank and
interior light is off with door open.
Electronic display is blank and
interior light is on with door open.
Electronic display shows repeating,
randomly flashing symbols and
partial characters.
Electronic display shows:
0, 1 to 16, or 99.
Electronic display shows one or
more of the following:
E1, E2, E4, E5, E6.
Unit is in blackout/Sabbath mode
(not Star K certified).
A display function has changed. Touch and hold the WARMER button and touch and
A factory control mode has been
inadvertently entered.
A factory control mode has been
inadvertently entered.
The unit is displaying an error code. Record the error code(s) displayed and call for service.
Exit blackout/Sabbath mode (not Star K certified)
(See OPERATION).
release the ON/OFF button three times, then release the
temperature button. The display should become visible.
Touch and hold the warmer temperature button and
touch and release the LIGHT button three times, then
release the temperature button to exit the factory
control mode. The set-point temperature should now
be displayed.
Repeatedly touch the WARMER button to advance any
number shown to 99 and touch and release the LIGHT
button. The set-point temperature should now be
displayed.
ADA SERIES
14 ADA24
ADA SERIES
Electronic Control Quick Guide
Task Touch Touch Display Comment
Turn ON/OFF Hold 10 seconds Release when °F flashes. or
Adjust
ON/
OFF
WARMER
or
COOLER
WARMER
or
COOLER
Temperature
Touch and release
View Actual
Tem p
WARMER
Hold 5 seconds Release when °F flashes.
Change F/C Hold or
Blackout
Mode
Hold 10 seconds
Touch to change temperature
COOLER COOLER COOLER
Display (and cabinet light) will not
operate in Blackout Mode.
Glass Door Models Only
Cabinet Light
Display Off
Mode
WARMER
ON/
OFF
ON/
OFF
ON/
OFF
°F flashes after first
touch, set-point saved
after 5 seconds of
inactivity and °F stops
flashing.
WC models will scroll
top/mid/bottom temps.
Blackout will end in 36
hours, or hold again to
terminate early.
Light normally goes on/
off with door opening.
Pressing light button
will turn interior light
on for 4 hours, then it
will turn off.
Display off when door is
closed (unless cabinet
light is turned on).
Repeat to switch back.
NOTE: 38°F is an example; the display will vary with actual set-point.
IMPORTANT
Factory recommended set-point is 38°F for refrigerators and beverage centers, and 50°F for wine coolers.
ADA24 15
ADA SERIES
16 ADA24
ADA SERIES
U-Line Corporation Limited Warranty
1. U-Line Corporation ("U-Line") warrants each U-Line
product to be free from defects in materials and
workmanship for a period of one year from the date of
purchase. U-Line further warrants the sealed system
(consisting of the compressor, the condenser, the
evaporator, the hot gas bypass valve, the dryer and the
connecting tube) in each U-Line product to be free from
defects in materials and workmanship for a period of five
years from the date of purchase.
2. During the initial one year warranty period for all U-
Line products U-Line shall: (1) repair any product or
replace any part of a product; and (2) for all Marine, RV
and Domestic U-Line products sold and serviced in the
United States (including Alaska and Hawaii) and Canada,
U-Line shall be responsible for the labor costs performed
by a U-Line authorized service company, incurred in
connection with the replacement of any defective part.
During years two through five of the warranty period for
the sealed system, U-Line shall: (1) at U-line’s option repair
or replace any part of the sealed system; and (2) for all
Marine, RV and Domestic U-Line products sold and
serviced in the United States (including Alaska and
Hawaii) and Canada, U-Line shall be responsible for the
labor costs incurred in connection with the replacement
of any defective part of the sealed system. All other
charges, including transportation charges for
replacements under this warranty and labor costs not
specifically covered by this warranty, shall be the
responsibility of the purchaser. This warranty extends
only to the original purchaser of the U-Line product. The
registration Card included with the product should be
promptly completed by you and mailed back to U-Line or
you can register on-line at www.u-lineservice.com.
continue to be covered by the warranty terms set forth in
Paragraphs 1 and 2 above, to the extent such models:
A. Are subjected to temperatures between 50 and 100
degrees Fahrenheit. Although these products will
function in ambient temperatures below 50 degrees and
above 100 degrees Fahrenheit, performance may decline.
Performance degradation due to operating above or
below the designated ambient temperature range is not a
manufacturing defect and any issues resulting from
exposure to higher temperatures, such as spoiled food or
low ice production, are not covered under this warranty
policy; and/or
B. Come into contact with rain by virtue of outdoor use.
Exposure to other sources of water shall also cause this
warranty to be void, including flooding of the area in
proximity of the unit greater than 1/8” deep in water,
hurricanes, splashing of pool water, or directing a spray
from a hose or similar device into and around the unit.
5. If a product defect is discovered during the applicable
warranty period, you must promptly notify either U-Line
at P.O. Box 245040, Milwaukee, Wisconsin 53224 or at
800-779-2547 or the dealer from whom you purchased the
product. In no event shall such notification be received
later than 30 days after the expiration of the applicable
warranty period. U-line may require that defective parts
be returned, at your expense, to U-Line's factory in
Milwaukee, Wisconsin, for inspection. Any action by you
for breach of warranty must be commenced within one
year after the applicable warranty period.
3. The following conditions are excluded from this limited
warranty: damage caused by outdoor use; use of cleaners
other than the recommended stainless steel cleaners and
U-Line Clear Ice Maker cleaner; installation charges;
damages caused by disasters or acts of God, such as fire,
floods, wind and lightning; damages incurred or resulting
from shipping, improper installation, unauthorized
modification, or misuse/abuse of the product; customer
education calls; food loss and spoilage; door and water
level adjustments (except during the first 30 days from the
date of installation); defrosting the product; adjusting the
controls; door reversal; and cleaning the condenser.
4. U-Lines' Outdoor Limited Warranty, set forth in this
Paragraph 4, shall apply to U-Line models deemed
suitable for outdoor use by Underwriters Laboratory
("UL") as noted in the U-Line Product Catalog, U-Line's
website and/or on the serial tag located inside the
product. Exposure to temperatures below freezing may
cause damage to the product. Damage resulting to the
product (and/or the surroundings) caused by this exposure
is not covered under this warranty. Such models shall
6. THIS LIMITED WARRANTY IS IN LIEU OF ANY AND
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR IMPLIED WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE, ALL OF WHICH
ARE DISCLAIMED. U-Line’s sole liability and your
exclusive remedy under this warranty is set forth in
the paragraphs above. U-Line shall have no liability
whatsoever for any incidental, consequential or
special damages arising from the sale, use or
installation of the product or from any other cause
whatsoever, whether based on warranty (express or
implied) or otherwise based on contract, tort or any
other theory of liability.
7. Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above
limitations may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights
which vary from state to state.
For General Inquiries:
P.O. Box 245040
Milwaukee, Wisconsin
53224-9540 U.S.A.
Phone (800) 779-2547
FAX (414) 354-5696
www.U-Line.com
For Service and Parts
Assistance:
Phone (800) 779-2547
(414) 354-0300
FAX (414) 354-5696
Email:
OnLineService@U-Line.com
www.U-LineService.com
E-mail:
OnlineParts@u-line.com
ADA SERIES
For more than four decades, U-Line has distinguished itself as the
leader in built-in under-counter ice making, refrigeration and
wine storage appliances.
An INSTALLATION MANUAL for your unit, providing complete
installation information, is available for download at
www.U-Line.com. Information for custom panel inserts per model,
including panel size, and instructions are available by visiting
www.U-Line.com.
When you need replacement parts, always request genuine U-Line
replacements be used. Visit www.U-Line.com to locate a parts
distributor in your area.
U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in
undercounter ice makers, Combo
refrigerators, refrigerated drawers and refrigerator/freezers.
®
ice maker/refrigerators, Wine Captain® wine storage units,
©2009 U-Line Corporation
Publication No. 30259
July 1, 2009 Rev. A
Loading...
