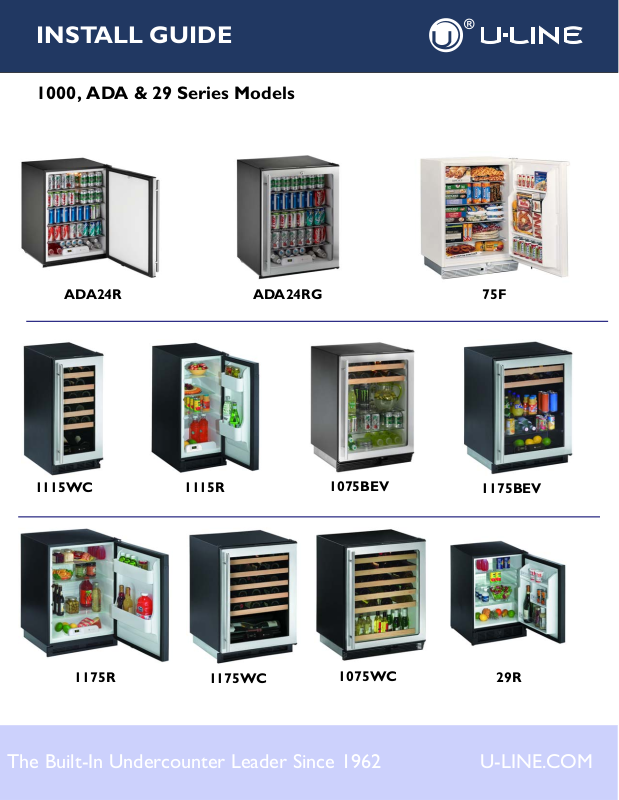

U-Line ADA24RG User Manual

INSTALL GUIDE

1000, ADA & 29 Series Models

ADA24R ADA24RG 75F

1115WC

1175R

1115R

1175WC

1075BEV

1075WC

The Built-In Undercounter Leader Since 1962

1175BEV

29R

U-LINE.COM

1 Table of Contents

Safety Precautions

Safety Alert Definitions.........................................................................................................................................1

General Precautions..............................................................................................................................................1

Inspect & Plan

Product Registration .............................................................................................................................................2

Models Covered.....................................................................................................................................................2

Tools / Material Required ....................................................................................................................................2

Exterior Cleaning ...................................................................................................................................................2

Black and White Models:........................................................................................................................... 2

Stainless Models:.......................................................................................................................................... 2

Prepare Site

Cut-Out Dimensions.............................................................................................................................................3

1175, 1075 & 75F Series............................................................................................................................ 3

1115 Series ................................................................................................................................................... 3

29 Series........................................................................................................................................................ 3

Product Dimensions

Door Swing Dimensions

Standard Doors

Wood Trim Finishing

Door Panel Installation

Installation

ADA24 Series .............................................................................................................................................. 3

1115 Series ................................................................................................................................................... 4

1175 Series ................................................................................................................................................... 4

1075 Series ................................................................................................................................................... 4

29 Series........................................................................................................................................................ 4

ADA24 Series .............................................................................................................................................. 5

Other Site Requirements.....................................................................................................................................6

Side-By-Side Installation............................................................................................................................. 6

Power Supply ............................................................................................................................................... 6

Environmental Requirements................................................................................................................... 6

Door Alignment and Adjustment.......................................................................................................................7

Door Reversability.................................................................................................................................................7

Reversing the door................................................................................................................................................7

Staining and final finish application: ......................................................................................................... 9

Final finish-only application: ...................................................................................................................... 9

Custom 1/4'' Thick Door Panel Insert............................................................................................................10

Door Panel Preparation.......................................................................................................................... 10

Panel Dimensions..................................................................................................................................... 10

Door Panel Installation ........................................................................................................................... 10

Leveling Information............................................................................................................................................11

Installation..............................................................................................................................................................11

Relocating the Shelves............................................................................................................................. 11

Installation Troubleshooting.................................................................................................................. 11

IMPORTANTIMPORTANT

DANGER

WARN ING

CAUTION

2 Safety Precautions

DANGER

WARN ING

CAUTION

IMPORTANTIMPORTANT

• PLEASE READ all instructions before installing, operating, or servicing the appliance.

General Precautions

Use this appliance for its intended purpose only and follow these general precautions with those listed throughout this guide:

• Proper installation procedures must be followed when completing an installation or relocation of a unit. Consult the installation guide before any installation begins. U-Line contact information appears on the rear cover of this guide.

• This unit requires connection to a dedicated 15 Amp grounded (three-prong), polarized receptacle, installed by a qualified electrician, compliant with applicable electrical codes.

Safety Alert Definitions

Throughout this guide are safety items labeled with a Danger, Warning or Caution based on the risk type:

Danger means that failure to follow this safety statement will result in severe personal injury or death.

RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside.

SHOCK HAZARD - Electrical Grounding Required.

• Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.

• Never remove the round grounding prong from the plug and never use a two-prong grounding adaptor.

• Altering, cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire and or loss of property and or life, and will void the warranty.

• Never use an extension cord to connect power to the unit.

• Always keep your working area dry.

Install provided Anti-Tip kit on all Wine Captain Models and Beverage Centers. Serious personal injury could occur.

Warning means that failure to follow this safety statement could result in serious personal injury, property or equipment damage.

Caution means that failure to follow this safety statement may result in minor or moderate personal injury, property or equipment damage.

• Use care when moving and handling the unit. Use gloves to prevent personal injury from sharp edges.

• If your model requires defrosting, DO NOT use an ice pick or other sharp instrument to help speed up defrosting. These instruments can puncture the inner lining or damage the cooling unit. DO NOT use any type of heater to defrost. Using a heater to speed up defrosting can cause personal injury and damage to the inner lining.

• Do not lift unit by door handle.

• Never install or operate the unit behind closed doors. Be sure front grille is free of obstruction. Obstructing free airflow can cause the unit to malfunction and will void the warranty.

• Failure to clean the condenser every six months can cause the unit to malfunction. This could void the warranty.

• Allow unit temperature to stabilize for 24 hours before use.

• Do not Block any internal Fans

Use only genuine U-Line replacement parts. Imitation parts can damage the unit, affect its operation or performance and may void the warranty.

U-Line Safety Precautions 1

3 Inspect & Plan

WARN ING

Product Registration

You have received a carton containing your U-Line Wine Captain®, Refrigerator, or Beverage Center with a package inside containing a Use and Care Guide and a Product Registration Card. Complete and mail the Product Registration Card or register online at www.U-LineService.com. Once your unit is installed, keep the Use and Care Guide and this Installation Guide in a safe place for future reference.

Models Covered

This installation guide covers the following models.

U-1075BEVS-00 U-ADA24RGLB-13

U-1075WCS-00 U-ADA24RGLS-13

U-1115RB-00 U-ADA24RGLS-15

U-1115RS-01 U-ADA24RS-13

U-1115WCB-00 U-ADA24RS-15

U-1115WCS-00 ULN-29RB-00

U-1175BEVS-00 ULN-29RB-13

U-1175RB-00 ULN-29RB-15

U-1175RB-13 ULN-29RWH-00

U-1175RS-00 ULN-29RWH-13

U-1175RS-01 ULN-29RWH-15

U-1175RW-00 ULN-75FB-00

U-1175RW-13 ULN-75FB-00

U-1175WCB-00 ULN-75FB-13

U-1175WCS-00 ULN-75FWH-00

U-ADA24RB-13 ULN-75FWH-13

Inspection

Unwrap and inspect the unit on a flat, level surface capable of supporting it’s entire weight.

Tools / Material Required

• Screwdrivers — slotted and Phillips head

• 1/4-inch thick door panel material and cutting tools (If installing

a 1/4” Panel)

(optional for finishing wood fronts)

• Minwax® Water-Based Wood Stain

• Minwax® Polycrylic® Protective Finish

• Foam Applicator and / or Synthetic Bristle Brush

• 220 grit Sandpaper

• 280 grit Sandpaper

Exterior Cleaning

(As Required)

Black and White Models:

• Black and White surfaces may be cleaned with a mild detergent

and warm water solution. Do not use solvent-based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft, clean towel to prevent water spotting.

Stainless Models:

• Stainless door panels, handles and frames can discolor when

exposed to chlorine gas, pool chemicals, salt water or cleaners with bleach.

• Clean any glass door fronts with a non-chlorine glass cleaner.

• Keep your Stainless unit looking new by cleaning with a good

quality all-in-one stainless steel cleaner/polish on a monthly basis. For best results use Claire Stainless Steel Polish and Cleaner, which can be purchased from U-Line Corporation (Part numbers 173348). Frequent cleaning will remove surface contamination that could lead to rust. Some installations may require cleaning on a weekly basis.

• Do not clean with steel wool pads.

• Use of abrasive pads such as Scotchbrite will cause the

graining in the stainless to become blurred.

• Do not use stainless steel cleaners/polishes on any glass

surfaces.

• Do not use cleaners that are not specifically intended

for stainless steel on stainless surfaces (this includes glass, tile and counter cleaners).

• If any surface discolors or rust appears, clean it quickly with

Bon-Ami or Barkeepers Friend Cleanser and a non-abrasive cloth. Always clean in the direction of the grain. Always finish this process with Claire Stainless Steel Polish and Cleaner or comparable product to prevent further problems.

Rust that is allowed to linger can penetrate into the surface of the stainless steel and complete removal of the rust may not be possible.

U-Line Inspect & Plan 2

4 Prepare Site

WARN ING

IMPORTANTIMPORTANT

24”

1-1/2"

15-1/4"

34-1/8"

35"

24"

Minimum

21-1/16"

Typical

Counter

Height

34-1/4"

35-1/8"

Cut-Out

Height

28-5/8"

28-7/8"

Filler Panel (Not Provided by U-Line) –

May Be Added Above or Below Unit

to Enclose for a Built-In Look

1-1/2"

24"

24-1/4"

24"

24-1/4"

32”

Your U-Line product has been designed for either free-standing or built-in installation. When built-in, your unit does not require additional air space for top, sides or rear. However, the front grille must NOT be obstructed and clearance is required for an electrical connection in the rear.

Unit can NOT be installed behind a closed cabinet door.

SHOCK HAZARD — Electrical Grounding Required.

• Never remove the round grounding prong from the plug and never use a two-prong grounding adapter.

• Never use an extension cord to connect power to the unit.

1115 Series

Follow the cut-out drawing The 15-3/16" width allows 1/4" for ease in installation and removal of the unit. 24" is the cabinet depth in most installations.

29 Series

Electrical installation must observe all state and local codes. This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A power supply (normal household current). An individual, properly grounded branch circuit or circuit breaker is recommended. GFCI (ground fault circuit interrupter) is usually not required for fixed location appliances and is not recommended for your unit because a GFCI could be prone to nuisance tripping. However, be sure to consult your local codes.

Cut-Out Dimensions

1175, 1075 & 75F Series

Follow the cut-out drawing. The 24-1/4" width allows 1/4" for ease in installation and removal of the unit. 24" is the cabinet depth in most installations.

Follow the cut-out drawing. The 21-1/16" width allows 1/4" for ease in installation and removal of the unit. 24" is the counter depth in most installations. The unit is 23" deep including the door.

ADA24 Series

Follow the cut-out drawing The 24 1/4" width allows 1/4" for ease in installation and removal of the unit. 24" is the cabinet depth in most installations.

34-1/4"

35-1/8"

Prepare Site 3
