Ubiquiti XR9 OEM Guide

XTREMERange9

OEM INTEGRATION GUIDE

Carrier-Class 900MHz Radio Module

TECHNICAL SPECIFICATIONS

XTREMERange9

DataRate TX Power Tolerance DataRate Sensitivity Tolerance
1Mbps 27 dBm +/-1.5dB 1Mbps -93 dBm +/-2dB
2Mbps 27 dBm +/-1.5dB 2Mbps -92 dBm +/-2dB

5.5Mbps 27 dBm +/-1.5dB 5.5Mbps -91 dBm +/-2dB
11Mbps 27 dBm +/-1.5dB 11Mbps -88 dBm +/-2dB

6Mbps 27 dBm +/-1.5dB 6Mbps -91 dBm +/-2dB
9Mbps 27 dBm +/-1.5dB 9Mbps -90 dBm +/-2dB
12Mbps 27 dBm +/-1.5dB 12Mbps -88 dBm +/-2dB
18Mbps 27 dBm +/-1.5dB 18Mbps -87 dBm +/-2dB
24Mbps 27 dBm +/-1.5dB 24Mbps -83 dBm +/-2dB
36Mbps 25 dBm +/-1.5dB 36Mbps -83 dBm +/-2dB
48Mbps 23 dBm +/-1.5dB 48Mbps -74 dBm +/-2dB
54Mbps 21 dBm +/-1.5dB 54Mbps -71 dBm +/-2dB

DataRate Current Tolerance DataRate Current Tolerance
1Mbps 1.2 A +/-100 mA 1Mbps 500mA +/-100 mA
2Mbps 1.2 A +/-100 mA 2Mbps 500mA +/-100 mA

5.5Mbps 1.2 A +/-100 mA 5.5Mbps 500mA +/-100 mA
11Mbps 1.2 A +/-100 mA 11Mbps 500mA +/-100 mA

6Mbps 1.2 A +/-100 mA 6Mbps 500mA +/-100 mA
9Mbps 1.2 A +/-100 mA 9Mbps 500mA +/-100 mA
12Mbps 1.2 A +/-100 mA 12Mbps 500mA +/-100 mA
18Mbps 1.2 A +/-100 mA 18Mbps 500mA +/-100 mA
24Mbps 1.2 A +/-100 mA 24Mbps 500mA +/-100 mA
36Mbps 1.1 A +/-100 mA 36Mbps 500mA +/-100 mA
48Mbps 1.0 A +/-100 mA 48Mbps 500mA +/-100 mA
54Mbps 0.85 A +/-100 mA 54Mbps 500mA +/-100 mA

Frequency 5MHz 10MHz 20MHz Frequency 5MHz 10MHz 20MHz

907 MHz 917 MHz
912 MHz 922 MHz

802.11g OFDM

802.11g OFDM

900MHz TX SPECIFICATIONS

900MHz RX SPECIFICATIONS

802.11b

802.11b

802.11g OFDM

802.11g OFDM

CURRENT CONSUMPTION INFORMATION

RANGE PERFORMANCE

Up to 100meters

Indoor (Antenna Dependent):

Over 1km

Outdoor (Antenna Dependent):

OPERATING FREQUENCY 907-922MHz

900MHz TX SPECIFICATIONS

900MHz RX SPECIFICATIONS

802.11b

802.11b

900MHz FREQUENCY CHANNEL SUPPORT

Antenna Ports

Dual u.fl (Primary only required; secondary optional for diversity)

Temperature Range

-45C to +90C

Security

WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP

Data Rates

1Mbps-11Mbps (802.11b), 6-54Mbps (802.11g)

RoHS Compliance

YES

DRIVER INFORMATION

REGULATORY INFORMATION

Wireless Modular Approvals

FCC and Industry Canada

Cisco Support

CCX 4.0 Supported Driver/Utility also available from Ubiquiti

For help with MADWIFI or other Special Driver Support, Please e-mail [e-mail]

Operating System Support

Linux MADWIFI, WindowsXP, Windows2000

Advanced Mobility / QuickHandoff

WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti

Operation Voltage

3.3VDC

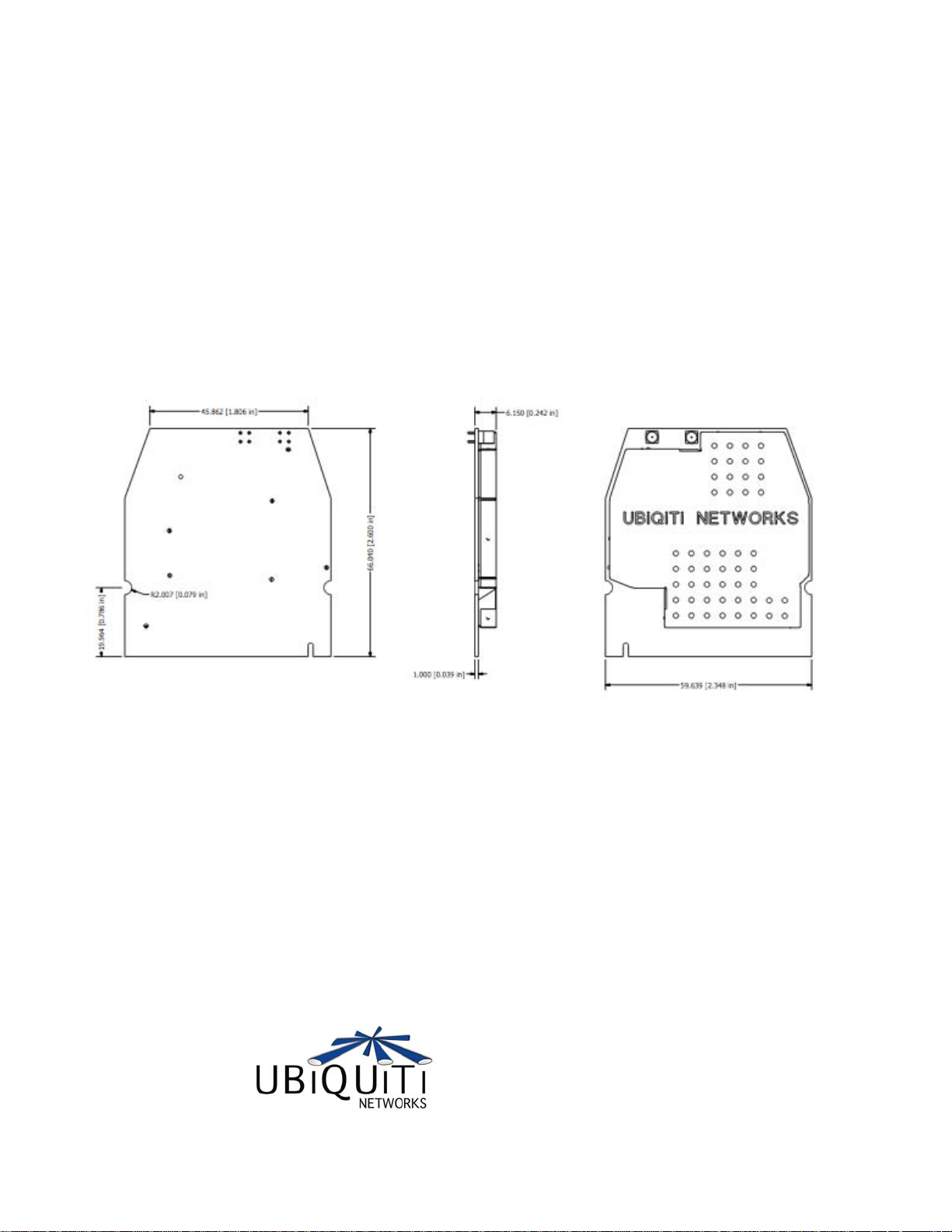

CARD INFORMATION

Radio Operation

Proprietary 900MHz based on 802.11b/g CCK/OFDM

Interface

32-bit mini-PCI Type IIIA
