Ubiquiti UVPX Users Manual
Enterprise VoIP Phone
of the Future
Model: UVP-X
Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi® VoIP
Phone X. This Quick Start Guide is designed to guide you
through installation and includes the warranty terms.
Package Contents
Enterprise VoIP Phone
of the Future
UniFi VoIP Phone X Micro Cloth Quick Start Guide
Model: UVP-X
Installation Requirements
• 802.3 af 48V PoE or 5V/2A Micro-USB Adapter
• UniFi Controller or UniFi VoIP Controller
• Third-Party SIP/PBX Provider
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations and indoor cabling requirements.
Before You Begin
Remove the protective
covering from the handset.
Remove the protective film
from the touchscreen.
Hardware Overview
Calculator
Calculator
Calendar
Calendar
Chrome
Clock
Downloads
Drive
Drive
Email
File Manager
File Manager
Gmail
Gmail
Gallery
Gallery
Google
Google
Google Settings
Maps
Hangouts
Hangouts
Google+
Keep
People
People
Phone
News & Weather
News & Weather
Photos
Front
Touchscreen
Clock
Chrome
Email
Downloads
Google Settings
Google+
Maps
Keep
Photos
Phone
Volume
LED

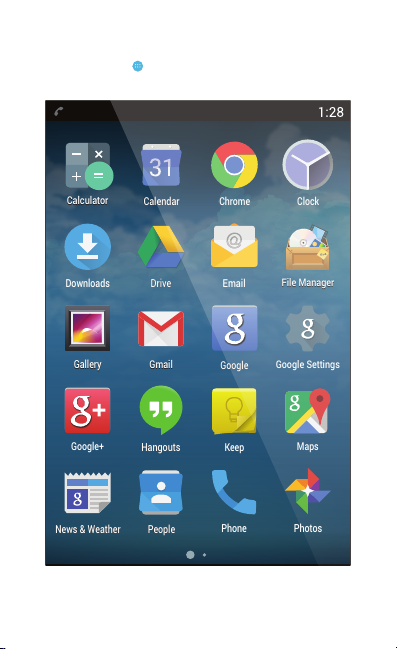

Touchscreen The 4" (diagonal) touchscreen display is used for
all interface navigation and dialing.
Volume Use the volume arrows to adjust audio levels.
LED The LED will light when the device is first connected to
a power source. Once the phone has started up, the LED will
turn off.
IMPORTANT: The LED will flash when a firmware update
is occurring. Do not disconnect power/Ethernet from the
device during this time.
Back Ports
PoE/LAN PCUSB
USB The USB port can be used to power the UniFi VoiP
PhoneX using a 5V/2A Micro-USB adapter.
802.3af 48V PoE/LAN Connects data and power to the
phone. Can be powered by a PoE adapter or switch that
supports 802.3af 48V PoE.
PC The Ethernet port labeled PC is used for bridging.
WARNING: Do not connect a powered Ethernet
connection to the port labeled PC.
Side Ports
Headset Jack 3.5 mm jack for optional wired stereo
and microphone headsets.
Handset
Mute
button
Mute Press the Mute button to mute the microphone on the
handset.
Hardware Installation
The UniFi VoIP Phone X is designed for desktop placement. To
connect the phone, perform the following steps:
1. Connect one end of an Ethernet cable to the wall jack that
is connected to your data network or service provider.
2. Connect the other end of the Ethernet cable to the port
labeled PoE/LAN on the UniFi VoIP Phone X.
*640-00186-06*
640-00186-06
Powering the UniFi VoIP Phone X
The UniFi VoIP Phone X can be powered using either of the
following methods:
• Power over Ethernet Use a switch or PoE adapter that
supports 802.3af/48V PoE.
• Micro-USB Adapter Use a 5V/2A Micro-USB adapter.
Power over Ethernet
If using PoE on a switch, ensure that the switch port connected
to the UniFi VoIP Phone supports 802.3af/48V.
NOTE: We recommend using the UniFi Switch to power
your UniFi VoIP Phones.
Micro-USB Adapter
If using a Micro-USB adapter, plug the Micro-USB connector
into the USB port on the UniFi VoIP Phone X and the power
connector to a power outlet.
Software Configuration
The UniFi VoIP Phone X can be setup via three primary
methods:
• Auto-configuration by your service provider If your
phone was shipped to you by your ISP (Internet Service
Provider) or ITSP (Internet Telephony Service Provider),
follow the hardware installation instructions and the phone
should automatically configure itself when connected.
• Auto-configuration via DHCP Option 66 To automatically
configure UVPs on a Local Area Network, DHCP Option 66
can be used. Refer to: ubnt.link/dhcpoption66
• Configuration using a Ubiquiti Controller The UniFi
VoIP Phone X can be used with the UniFi Controller or the
UniFi VoIP Controller software. The phone is automatically
detected by the Controller software.
NOTE: Ensure that you are using the latest version of the
Controller software. Earlier versions will not detect the
UniFi VoIP Phone X.
Installing the Controller Software
If you haven’t already installed the Controller software or
need to update to the latest version, you can download it at:
downloads.ubnt.com/unifi
Adopting the Phone in the Controller Software
NOTE: The UniFi Controller software is shown but the
steps are the same using the UniFi VoIP Controller.
1. Launch the Controller software and go to the Devices tab.
2. Click Adopt.
