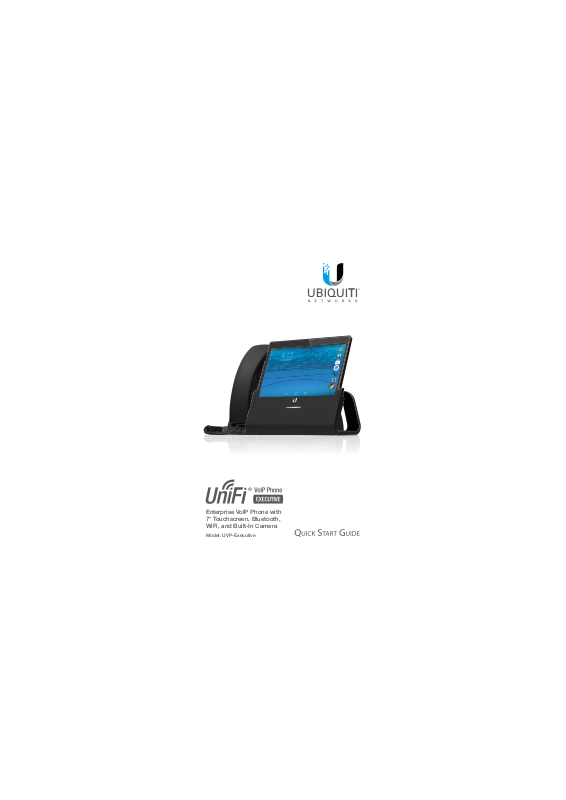

Ubiquiti UVPEXT Users Manual

Enterprise VoIP Phone with

n

, B

luetoo

7" Touchscreen, Bluetooth,
WiFi, and Built-In Camera

Model: UVP-Executive

Introduction

oIP Phon

n, Bluetoo

Thank you for purchasing the UniFi® VoIP Phone Executive,
model UVP-Executive. Designed to integrate easily into a
UniFi network, the interface is based on the popular Android
platform for ease of use. This Quick Start Guide is designed to
guide you through the installation, provide an overview of the

LQWHUIDFH©DQG©DOVR©LQFOXGHV©WKH©ZDUUDQW\WHUPV

Package Contents

Enterprise VoIP Phone with
7" Touchscreen, Bluetooth,
WiFi, and Built-In Camera

Model: UVP-Executive

UniFi VoIP Phone Executive Quick Start Guide

Installation Requirements

• UniFi Switch or PoE+ (802.3at-compliant) switch

• UniFi Controller

• UniFi Security Gateway

Note: The PBX functionality in the UniFi Security Gateway only
supports the English language. If you need to support other
languages (e.g. for your voicemail), a third-party PBX or SIP/PBX
provider is required.

TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations and indoor cabling requirements.

Before You Begin

Remove the protective
covering from the handset.

Remove the protective film
from the touchscreen.

™

Hardware Overview

Front

Camera

Touchscreen

LED

Camera Built-in camera can be used for snapping photos for

avatars or videoconferencing applications.

Touchscreen The 7" (diagonal) touchscreen display is used for

all interface navigation and dialing.

LED The LED will illuminate when the device is first connected

to a 48V power source. Once the phone has started up, the
LED will turn off.

IMPORTANT: The LED will flash when a firmware update

is occurring. Do not disconnect power/Ethernet from the
device during this time.

Back Ports

USB

USB The USB port can connect to an ex ternal speaker or a

mass storage device.

Main/PoE The Main/PoE Ethernet port is 802.3at-compliant

and is used to connect data and power to the phone. Connect
this port to the same network as the UniFi Security Gateway
VOIP port.

Main/PoE

Secondary

Secondary The Secondar y Ethernet port is used for bridging.

WARNING: Do not connect a powered Ethernet

connection to the Secondary port.

Side Ports

Micro-USB Port The Micro-USB port is only

intended for advanced users connecting the phone
to a computer.

Headset Jack 3.5 mm jack for optional wired stereo

and microphone headsets.

Handset

Mute button

Mute Press the Mute button to mute the microphone on the

handset.

*640-00144-01*

640-00144-01

Hardware Installation

The UniFi VoIP Phone Executive is designed for desktop
placement. To connect the phone, perform the following steps:

1. Connect one end of an Ethernet cable to the wall jack that
is connected to your 48V, 802.3at-compliant switch.

2. Connect the other end of the Ethernet cable to the port
labeled Main/PoE on the UniFi VoIP Phone Executive.

Software Configuration

The UniFi VoIP Phone Executive is automatically detected by
the UniFi Controller (4.6.x or above).

Installing the UniFi Controller

If you haven’t already installed the UniFi Controller software,
you can download it at downloads.ubnt.com/unifi

Adopting the Phone in the UniFi Controller

1. Launch the UniFi Controller and go to the Devices tab.

2. Click Adopt.
