1080p Indoor/Outdoor IP Camera with Infrared
Model: UVC-G3-AF
Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi® Video Camera G3. This Quick Start Guide is designed to guide you through installation and also includes warranty terms.

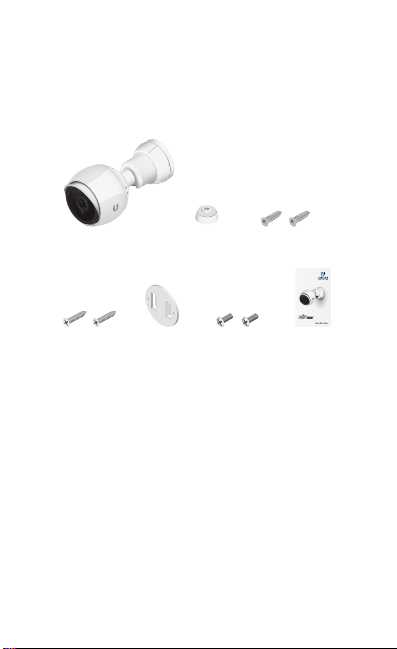

Package Contents
UVC-G3-AF |
Cable Gland |
Screw Anchors |
|||
|
|
|
|
(Qty. 2) |
|
Self-Tapping |
Pole Mount |
Machine Screws |
Quick Start |
||
Screws (Qty. 2) |
|
Bracket |
(Qty. 2) |
|
Guide |
Installation Requirements
•Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). Shielded Ethernet cable and earth grounding must be used for outdoor installations as conditions of product warranty. TOUGHCable™ is designed for outdoor installations. It is the professional installer’s responsibility to follow local country regulations.
Hardware Overview
|
|
|
|
|
|
|
|
|
|

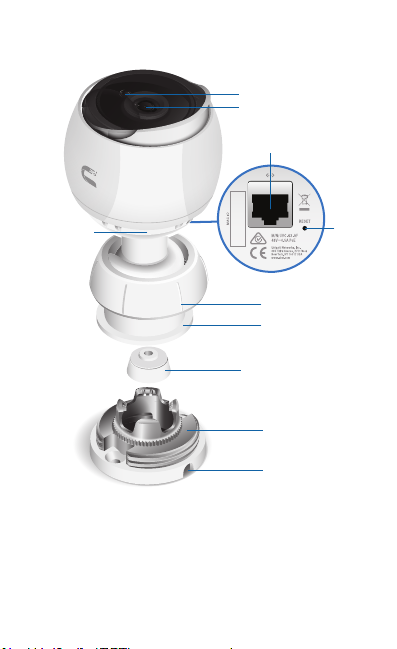

Ambient Light Sensor |
|||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
Camera Lens |
|||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Ethernet |
|||||||
Camera Ring |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Tilt/Mount Lock |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Adjustable Base |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
Cable Gland |
|||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mounting Base |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cable Slot |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||

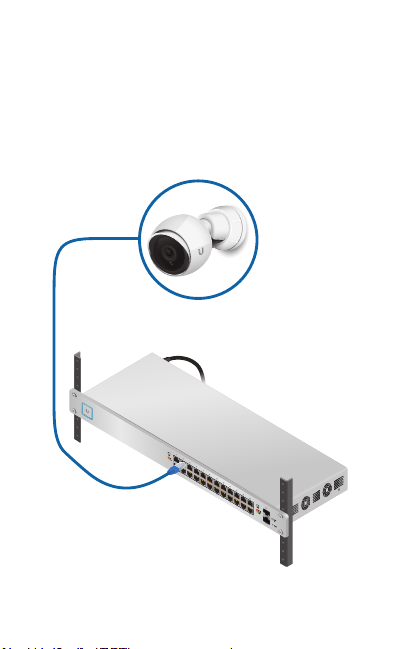

Ethernet 10/100 RJ45 port connects to an 802.3af PoE switch for PoE power and data.
Reset To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the camera is powered on.
Installation Overview
To install the UniFi Video Camera G3, please follow the instructions of the following sections in this order:
1.Hardware Installation
2.Connecting Power over Ethernet

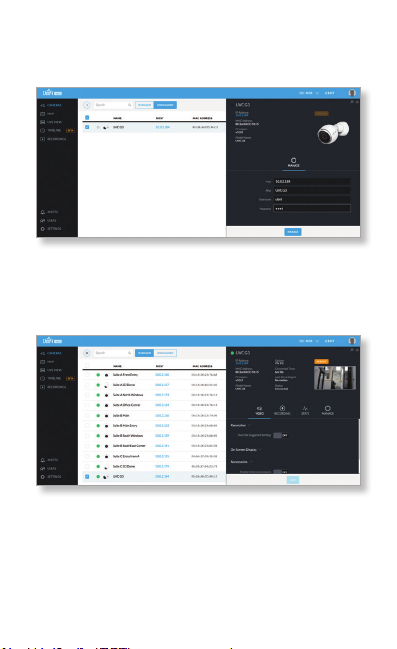

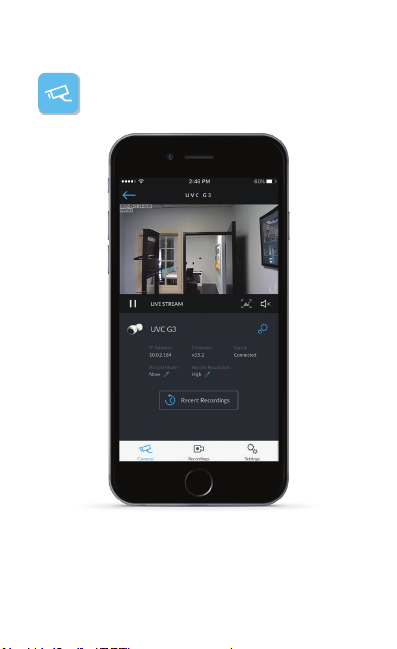

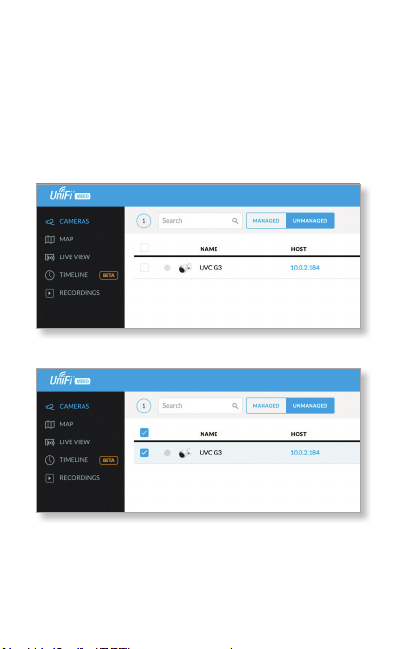

3.UniFi Video

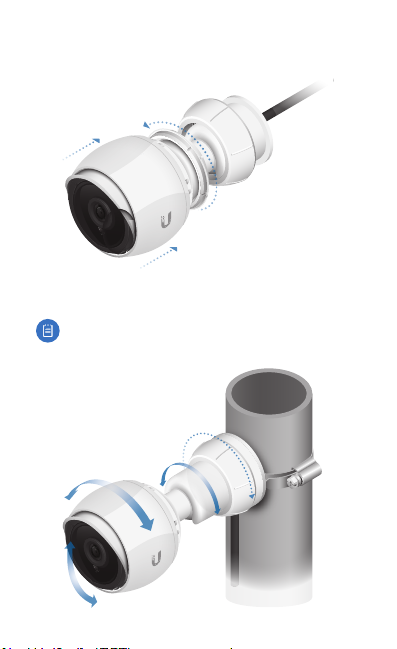

4.Adjusting the Camera View
Hardware Installation
The UniFi Video Camera G3 can be mounted on a wall, ceiling, or pole. Follow the appropriate steps for your installation:
Wall/Ceiling Mount

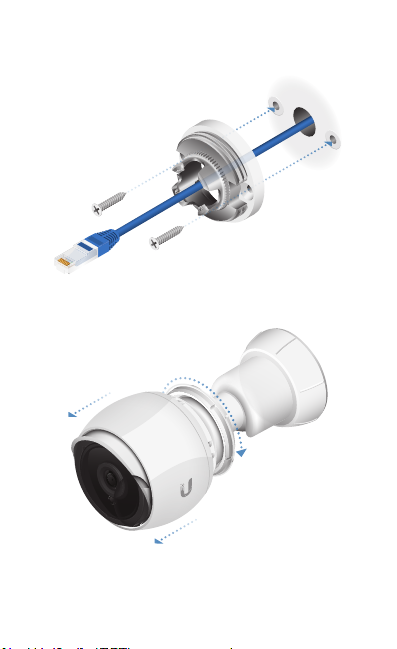

1.Remove the Mounting Base from the camera by turning the Tilt/Mount Lock counterclockwise.

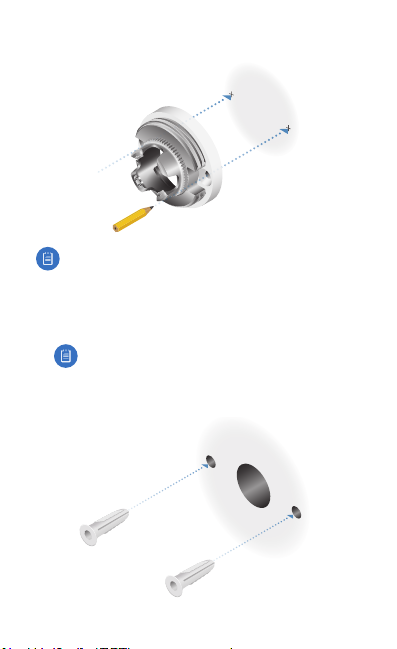

2. Mark the mounting holes on the wall or ceiling.
Note: If you are running the cable along the wall or ceiling, position the Cable Slot towards the direction you want the cabling to run. For outdoor installations, position the Cable Slot downward.
3.Use a 7 mm (¼") drill bit to drill the mounting holes in the wall or ceiling.
Note: If you are running the Ethernet cable through the wall, cut a hole centered between the mounting holes that is large enough to feed the cable through.
4. Insert a Screw Anchor into each mounting hole.

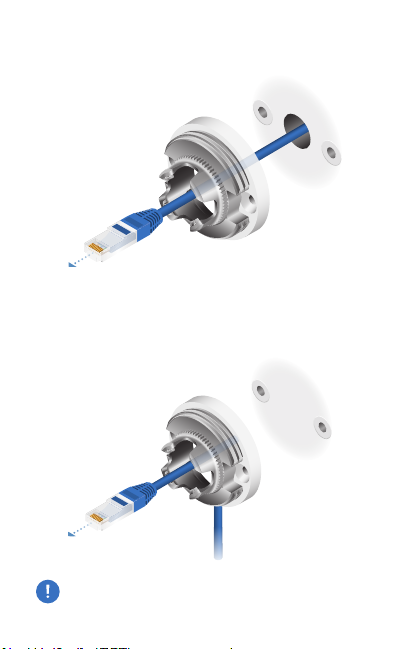

5.If you are feeding the Ethernet cable through the wall or ceiling, do so now and feed it through the Mounting Base.
If not, feed the Ethernet cable through the Mounting Base and place the cable in the Cable Slot. These instructions show the Cable Slot positioned downward.
IMPORTANT: If you are installing your camera outdoors, create a drip loop for the cable below the camera to prevent water ingress.
6.Fasten the Mounting Base to the wall or ceiling using two
Self-Tapping Screws.

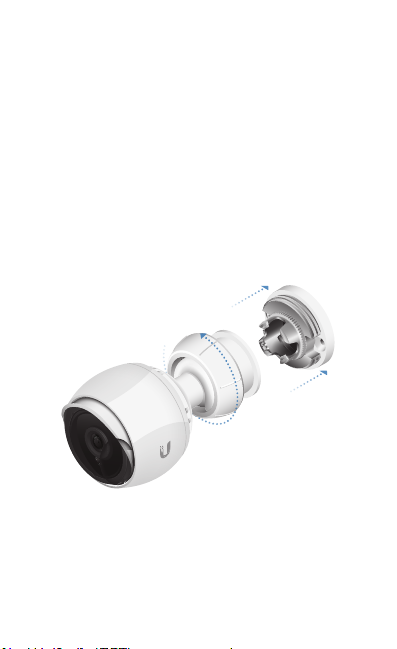

7.Remove the camera from the Adjustable Base by turning the Camera Ring in the direction shown.

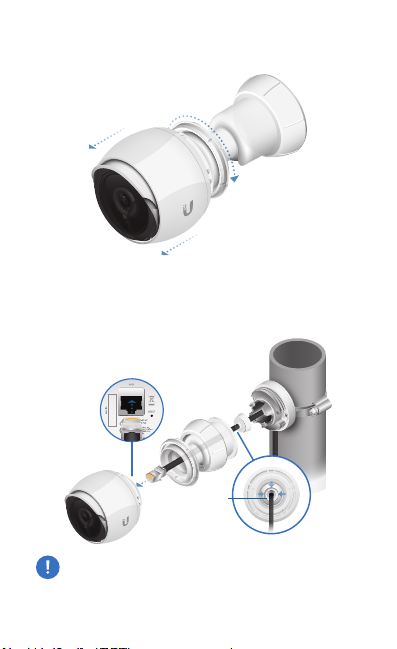

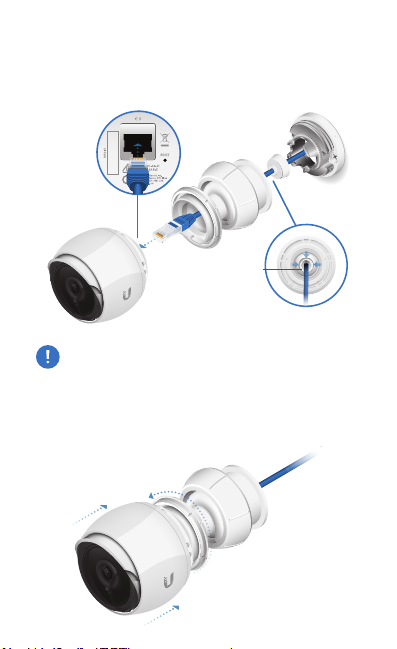

8.Feed the Ethernet cable through the Cable Gland and
Adjustable Base. Seal the Cable Gland in place by firmly pressing around its edges. Then connect the cable to the
Ethernet Port on the camera.
Cable Gland
IMPORTANT: For proper weather sealing, the Cable Gland must fit securely within the Adjustable Base when the camera is mounted. Ensure that the Cable Gland is securely seated during installation and cable routing.
9.Connect the camera back to the Adjustable Base by turning the Camera Ring in the direction shown.

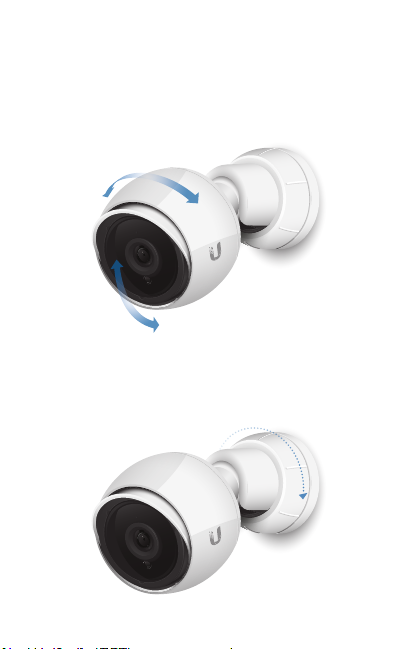

10.Orient the camera to the desired position while connecting the Adjustable Base to the Mounting Base.
Note: You will fine-tune and then lock the positioning after you check the camera view in the UniFi Video software.
11. Proceed to the Connecting Power over Ethernet section.
Pole Mount
To mount the UniFi Video Camera G3 on a pole, a metal strap or hose clamp is required (not included).

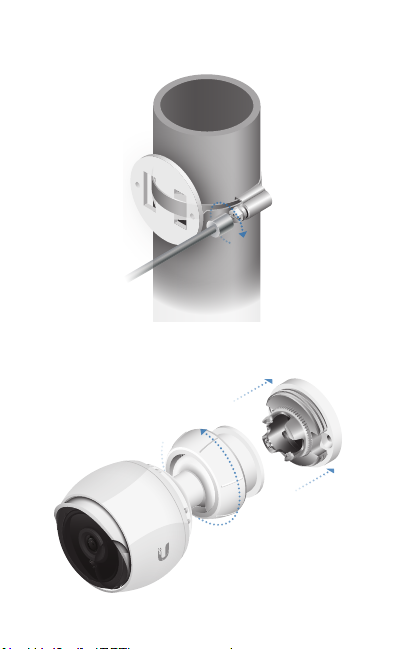

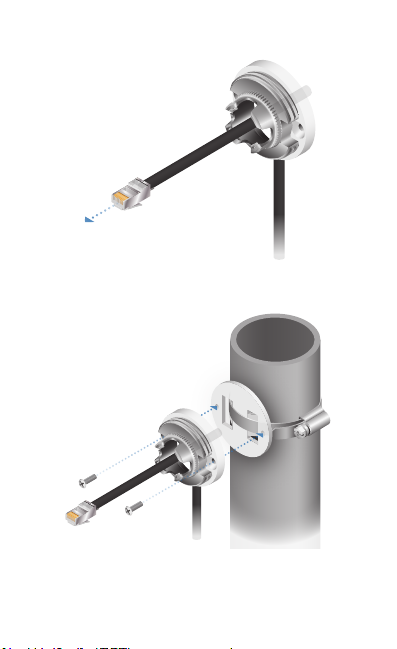

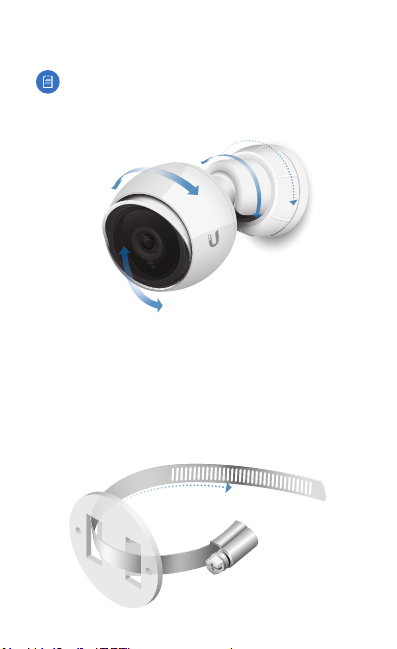

1.Feed the metal strap through the slots on the Pole Mount Bracket.
