Page 1
DATASHEET
802.3at PoE Gigabit Switches with SFP
Auto-Sensing IEEE 802.3af/at PoE
SFP Ports for Gigabit Fiber Connecvity
Fanless, Silent Thermal Cooling
Models: USW-16-PoE, USW-24-PoE
Page 2
Overview
DATASHEET
Expand and power your network with the UniFi® PoE Switch, part of
the Ubiquiti® UniFi Enterprise System. It is available in twomodels:
• USW-16-PoE 16 RJ45 ports with 2SFPports
• USW-24-PoE 24 RJ45 ports with 2SFPports
Compact Form Factor
Measuring only 7.9" in depth, the UniFi PoE Switch is designed for
convenient installation:
• rackmounted in a SOHO rack cabinet
• placed on a desktop
Fiber Connectivity
SFP ports enable network uplinks of up to 1 Gbps.
Fanless, Silent Cooling
The UniFi PoE Switch features fanless, silent thermal cooling, so it
can be located in any workspace.

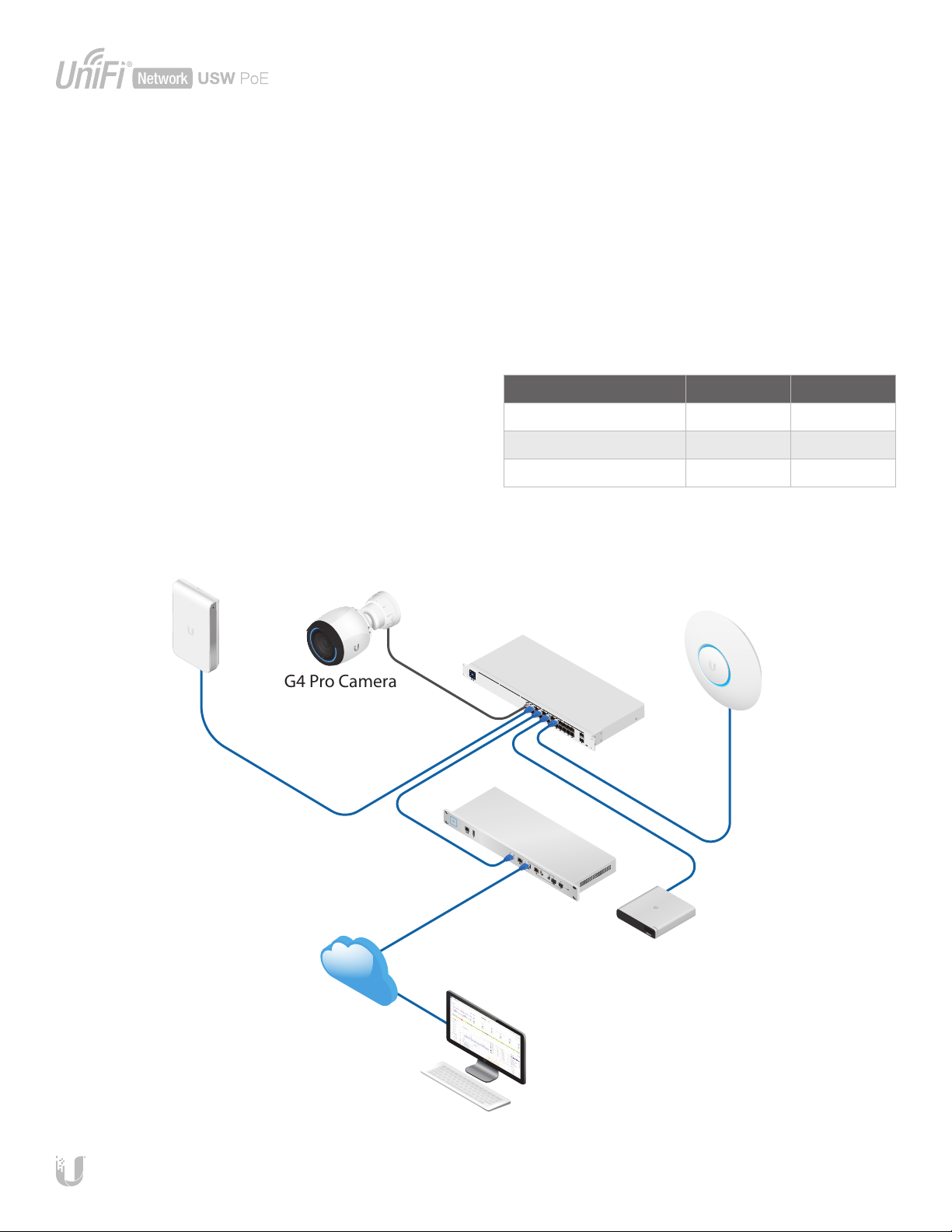

Deployment Example
Switching Performance
The UniFi PoE Switch oers the forwarding capacity to
simultaneously process trac on all ports at line rate without any
packet loss.
802.3af/at PoE
PoE support simplies your network infrastructure and cabling. PoE
ports oer 802.3af/at to power your PoE devices, such as UniFi APs
and cameras.
USW-16-PoE USW-24-PoE
Number of PoE Ports 8 16
Total Available PoE 42W 95W
Max. PoE Wattage per Port 32W 32W
UniFi 24 PoE Switch
UniFi HD
In-Wall AP
G4 Pro Camera
UniFi
nano HD AP
UniFi
Security Gateway
UniFi Cloud Key G2 Plus
Internet
Remote Access to
UniFi Controller
The UniFi 24 PoE Switch powers the UniFi nano HD AP, UniFi HD In-Wall AP, G4 Pro Camera, and UniFi Cloud Key G2 Plus.
2
Page 3

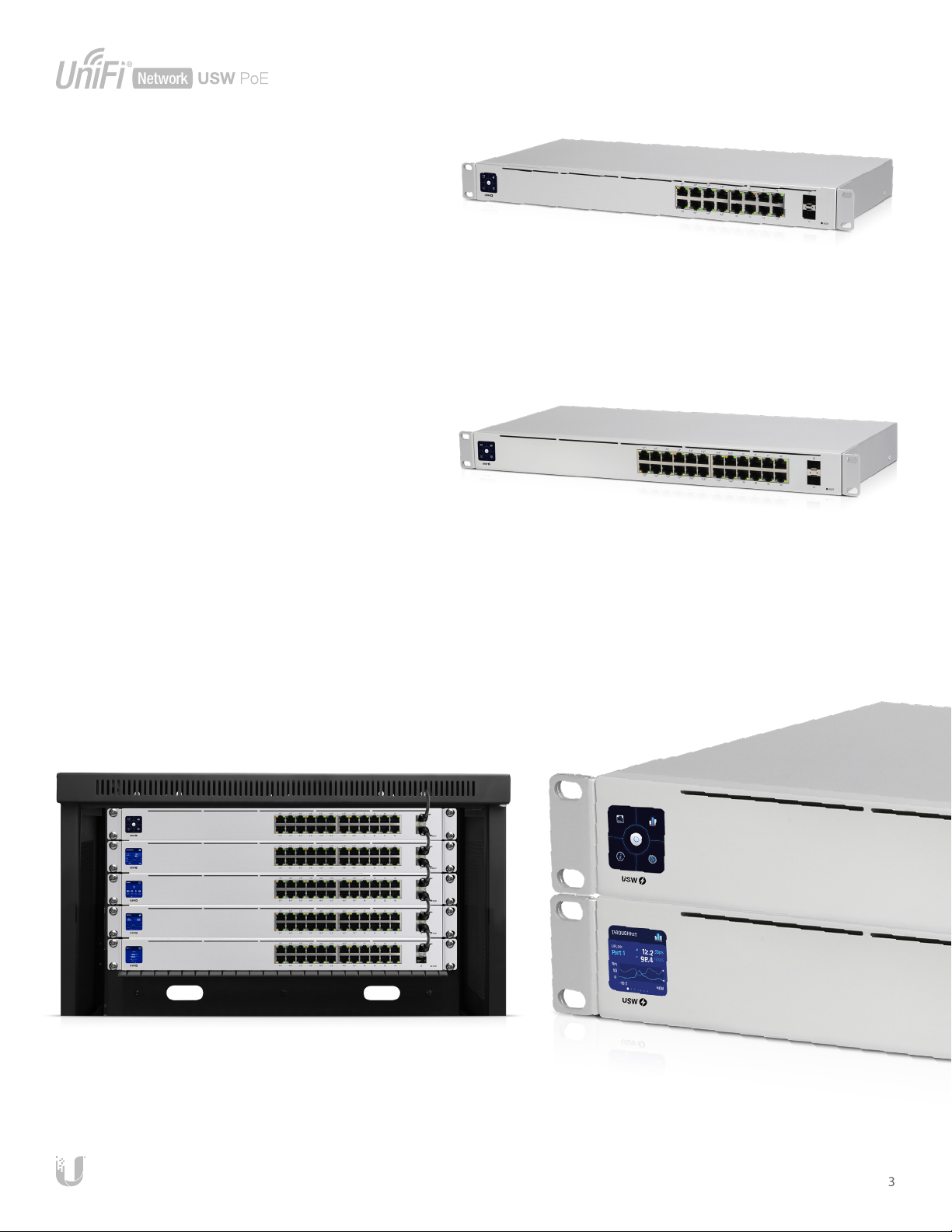

UniFi 16-Port PoE Switch
• (8) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports
• (2) 1G SFP ports
• 1U Rackmountable (hardware included)
UniFi 24-Port PoE Switch
• (16) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports
• (2) 1G SFP ports
• 1U Rackmountable (hardware included)
DATASHEET
USW-16-PoE
USW-24-PoE
Innovative Display
The 1.3" touchscreen displays status
information for easy monitoring and quick
troubleshooting.
3
Page 4

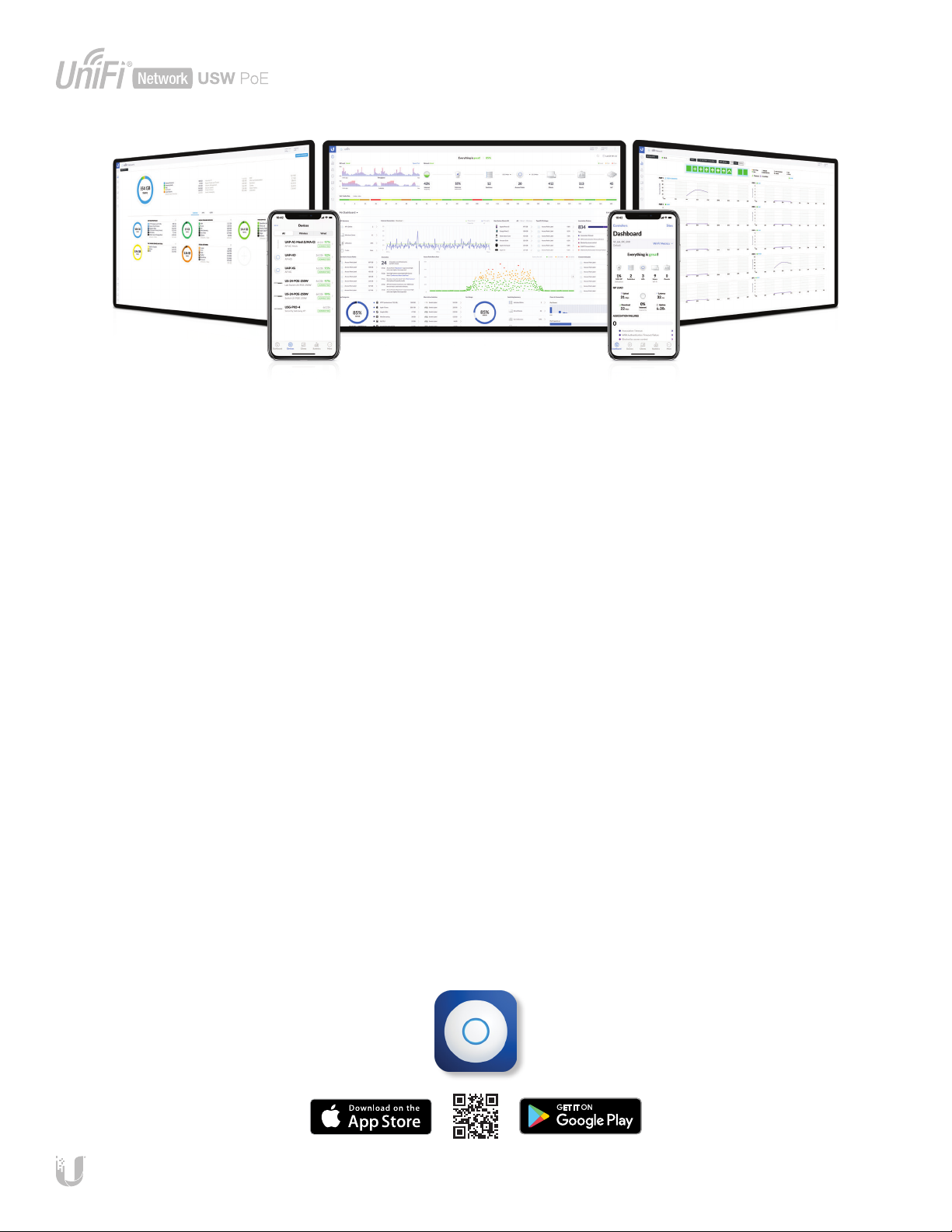

Scalable UniFi Network Controller
DATASHEET
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map
out networks, and quickly manage system trac. Important
network details are logically organized for a simplied, yet
powerful,interface.
Network Overview
From a single pane of glass, view network topology and
conguration, real-time statistics, and debugging metrics. Monitor
your network’s vitals and make on-the-y adjustments as needed.
Deep Packet Inspection
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes
the latest application identication signatures to track which
applications (and IP addresses) are using the most bandwidth.
Detailed Analytics
The UniFi Network Controller provides congurable reporting
and analytics to manage large user populations and expedite
troubleshooting. Advanced search and sorting capabilities make
network management more ecient.
Multi-Site Management
A single controller running in the cloud can manage multiple
sites: multiple, distributed deployments and multi-tenancy for
managed service providers. Each site is logically separated and
has its own conguration, maps, statistics, guest portal, and
administratoraccounts.
Switch Conguration
You can access any managed UniFi Switch through the UniFi
Controller to congure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN conguration
• Jumbo frame and ow control services
• Network settings
• Storm control setting per port
• Spanning tree conguration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface
Switch Port Status
You can also view status information for each port:
• Connection speed and duplexmode
• TX/RX data rates
• Network/VLAN setting
Software Features
The UniFi Network Controller software oers the following features:
• Centralized conguration management (including conguration
cloning)
• Auto-MDIX automatically adjusts as needed for straight through
or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN
4
Page 5

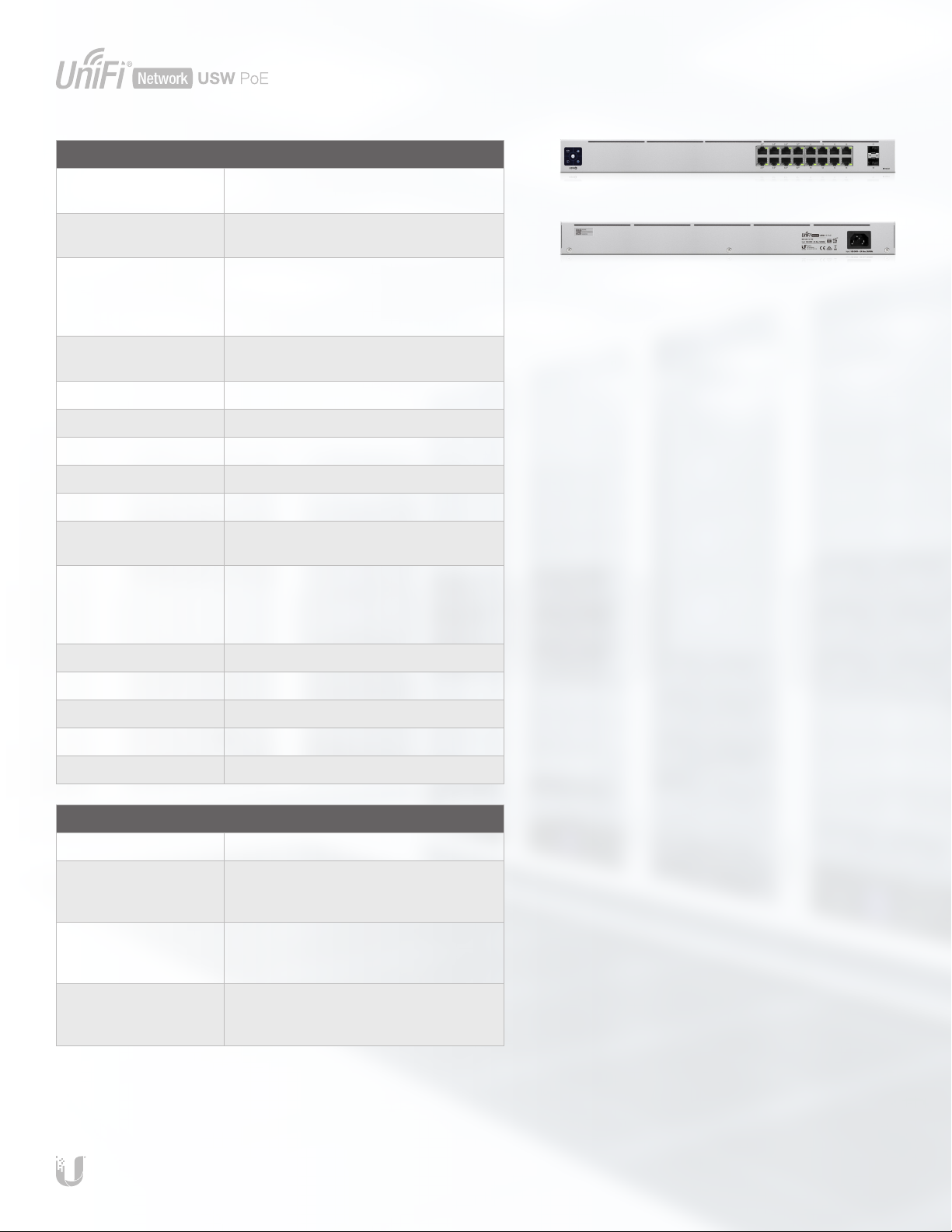

USW-16-PoE
Dimensions 442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72")
SPECIFICATIONS
Weight
With Brackets
Interfaces
Networking
Management
Total Non-Blocking
Throughput
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
Power Method 100-240VAC, 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 60W
Voltage Range 100 to 240VAC
Max Power Consumption
(Excluding PoE Output)
LEDs
System
RJ45 Data Ports
SFP Data Ports
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
(16) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
PoE; Speed/Link/Activity
2.80 kg (6.17 lb)
2.89 kg (6.37 lb)
Ethernet In-Band
18 Gbps
18W
Status
Link/Activity
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certications CE, FCC, IC
PoE
Total Available PoE 42W
PoE Interfaces
Ports 1-8 POE+ IEEE 802.3af/at
(pins 1, 2+; 3, 6-)
Max. PoE Wattage per
Port by PSE
802.3at
Voltage Range
802.3af Mode
802.3at Mode
32W
44-57V
50-57V
5
Page 6

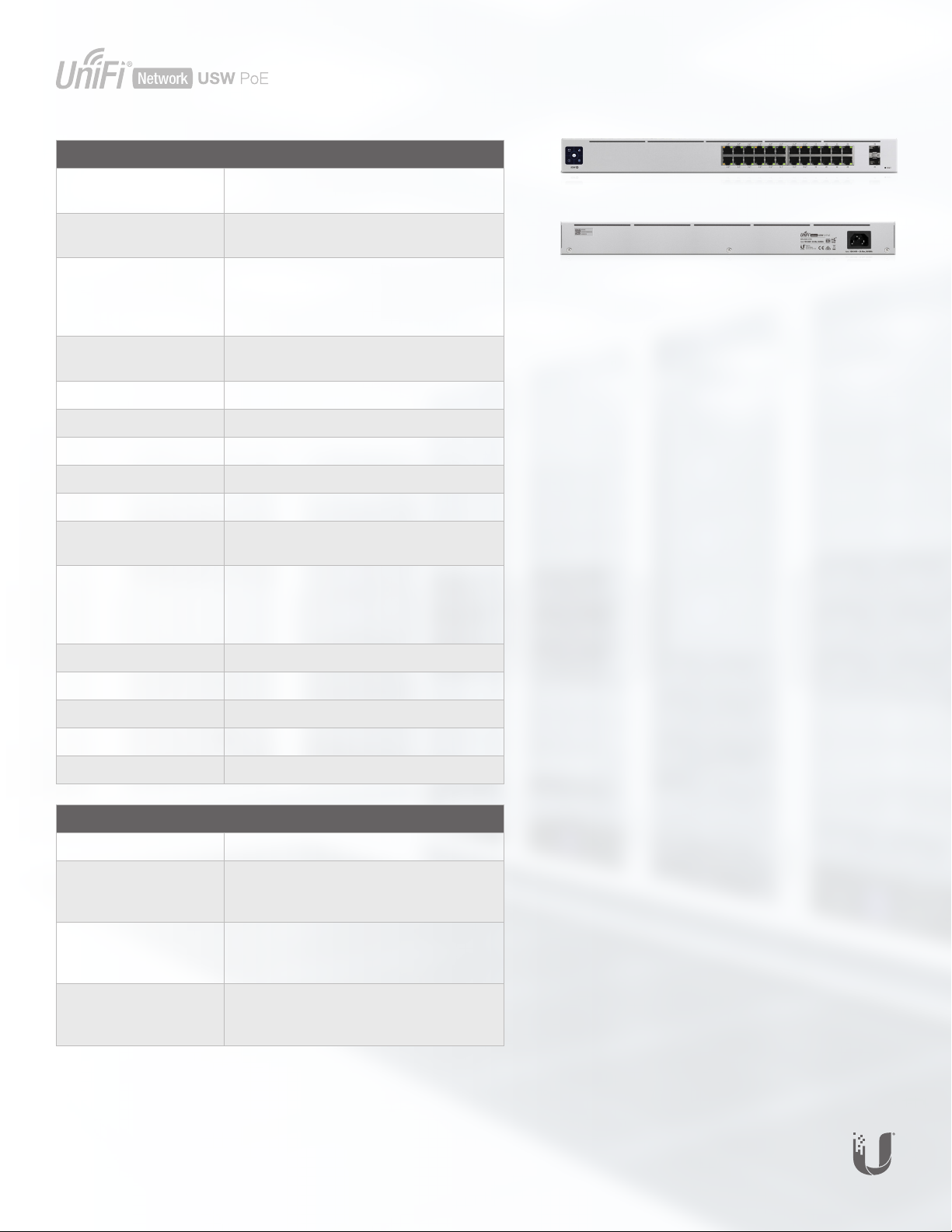

USW-24-PoE
Dimensions 442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72")
SPECIFICATIONS
Weight
With Brackets
3.00 kg (6.61 lb)
3.09 kg (6.81 lb)
Interfaces
Networking
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Management
Total Non-Blocking
Ethernet In-Band
26 Gbps
Throughput
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Power Method 100-240VAC, 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 120W
Voltage Range 100 to 240VAC
Max Power Consumption
25W
(Excluding PoE Output)
LEDs
System
RJ45 Data Ports
SFP Data Ports
PoE; Speed/Link/Activity
Status
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certications CE, FCC, IC
PoE
Total Available PoE 95W
PoE Interfaces
Ports 1-16 PoE+ IEEE 802.3af/at
(pins 1, 2+; 3, 6-)
Max. PoE Wattage per
Port by PSE
802.3at
32W
Voltage Range
802.3af Mode
802.3at Mode
Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.
©2019 Ubiquiti Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the Ubiquiti U logo, the Ubiquiti beam logo, UniFi, and UniFi Network are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other
countries. All other trademarks are the property of their respective owners.
JL111119
44-57V
50-57V
