Page 1

Datasheet

Managed PoE+ Gigabit Switches with SFP

Models: US-8-150W, US-16-150W, US-24-250W, US-24-500W, US-48-500W, US-48-750W

Non-Blocking Throughput Switching Performance

Gigabit Ethernet RJ45 and SFP+/SFP Ports

Auto-Sensing IEEE 802.3af/at PoE

Page 2

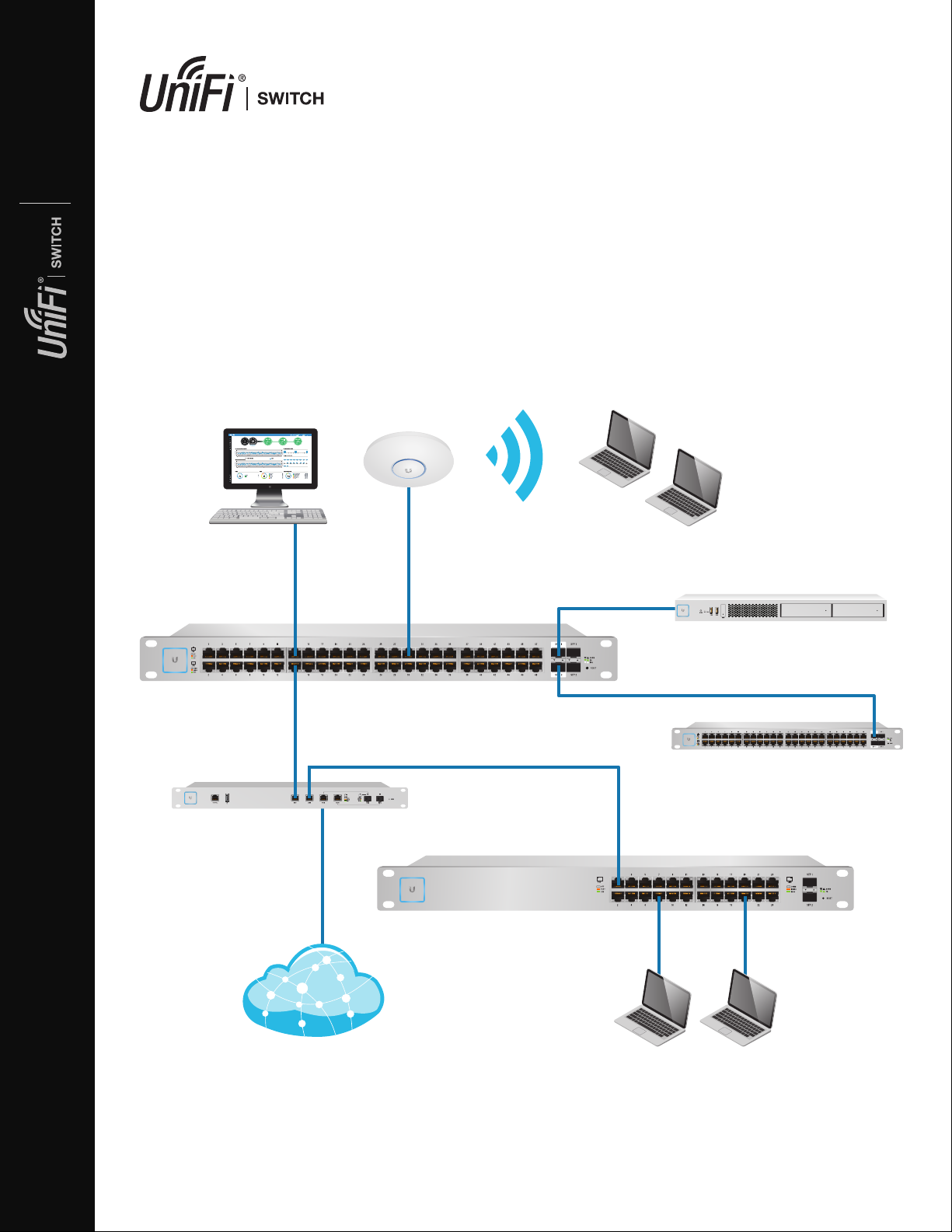

Build and expand your network with

UniFi AC HD

Wired Clients

UniFi Controller

Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products.

Datasheet

The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

Switching Performance

The UniFi Switch offers the forwarding capacity to simultaneously process

trafc on all ports at line rate without

any packet loss.

PoE+ Flexibility

The UniFi Switch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE

802.3af/at or congurable 24V passive

PoE to simplify your infrastructure.

By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive

PoE. For 24V passive PoE devices, manually enable 24V passive PoE

using the UniFi Controller software.

Fiber Connectivity

The UniFi Switch provides ber

connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.

Each 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

Wireless Clients

UniFi Security Gateway PRO

UniFi Server

UniFi Switch (LAN Devices)

UniFi Switch

UniFi Switch (LAN Devices)

Internet

Page 3

UniFi Controller

Designed for convenient management, the UniFi Controller

software allows admins to congure

and monitor the UniFi Switch and other UniFi devices using a graphical user interface. You can download the controller from www.ubnt.com at no additional charge – there is no separate software, licensing, or support fee.

Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own unique network monitoring,

conguration, maps, statistics, and

admin accounts.

Switch Conguration

You can access any managed UniFi Switch through the UniFi Controller to

congure a variety of features:

• PoE setting per port

• Operation mode (switching, mirroring, or aggregate) per port

• Network/VLAN conguration

• Jumbo frame and ow control

conguration

• Network settings

• Storm control setting per port

• Spanning tree conguration

Datasheet

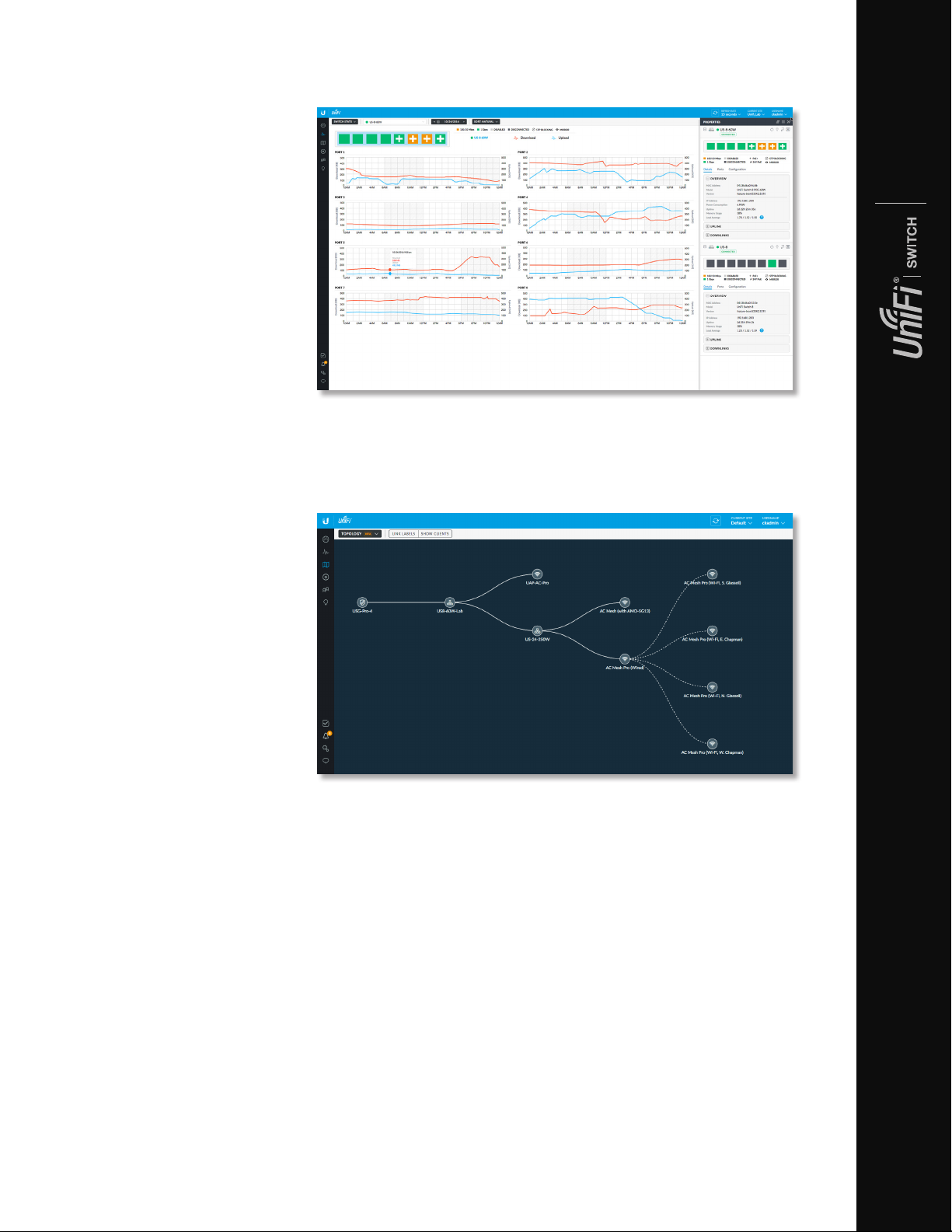

Statistics

The Switch Statistics screen displays a graphical overview of all LAN throughput for each port on the selected switch. Under the same pane of glass, it also shows

LAN, WLAN, and Internet trafc, including the breakdown of protocols being used

(requires a UniFi Security Gateway).

Switch Port Status

You can also view status information

for each port:

• Connection speed and duplexmode

• TX/RX data rates

• PoE status

• Network/VLAN setting

Software Features

The UnIFi Controller software offers

the following features:

• Centralized conguration management (including

conguration cloning)

• Auto-MDIX automatically adjusts as needed for straight through or crossover cable

• 802.1X (RADIUS) authentication and

dynamic VLAN

Topology View

The Topology screen displays a topology diagram of your UniFi system. You can

lter the type of information displayed, such as client devices, labels, and link

settings.

• Auto-generated topology view

• Centralized statistics in controller

• RSTP and Spanning Tree Protocol

• SNMP

• Storm control (independent broadcast, multicast, and unknown destination unicast limits per port)

• 802.3x ow control

• 9216-byte jumbo frame support

• VLAN support

• Port mirroring

• Port aggregation (LACP)

• Port isolation (protected port) for port-level isolation

Page 4

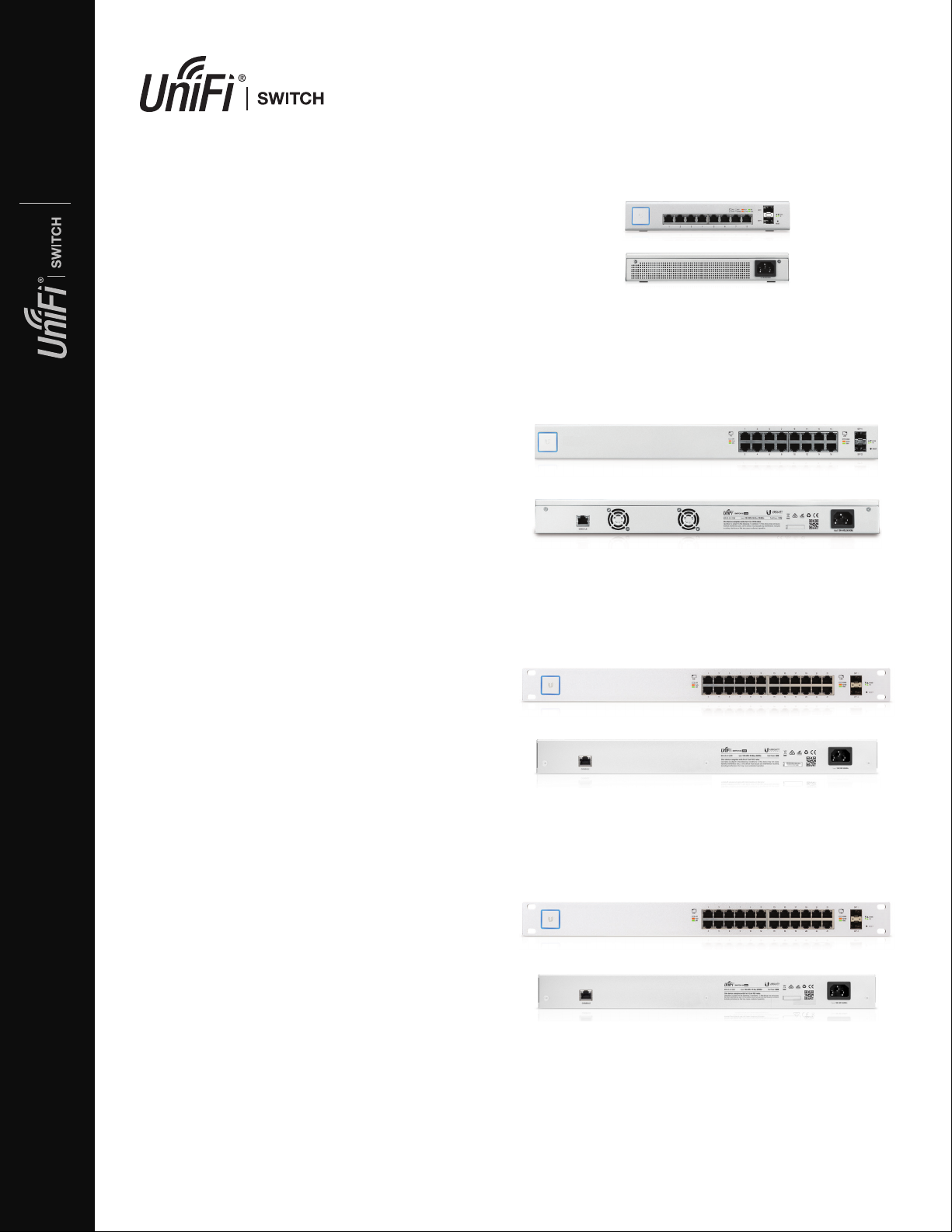

Model: US-8-150W

Datasheet

• (8) Gigabit RJ45 Ports

• (2) SFP Ports

• Non-Blocking Throughput: 10 Gbps

• Switching Capacity: 20 Gbps

• Forwarding Rate: 14.88 Mpps

• Maximum Power Consumption: 150W

• Supports PoE+ IEEE 802.3at/af and 24V Passive PoE

• Quiet, Fanless Operation

• Desktop-Mountable (Do not physically stack the US-8-150W.)

Model: US-16-150W

• (16) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 18 Gbps

• Switching Capacity: 36 Gbps

• Forwarding Rate: 26.78 Mpps

• Maximum Power Consumption: 150W

• Supports PoE+ IEEE 802.3at/af and 24V Passive PoE

• Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included)

Model: US-24-250W

• (24) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 26 Gbps

• Switching Capacity: 52 Gbps

• Forwarding Rate: 38.69 Mpps

• Maximum Power Consumption: 250W

• Supports PoE+ IEEE 802.3at/af and 24V Passive PoE

• Rack-Mountable

Model: US-24-500W

• (24) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 26 Gbps

• Switching Capacity: 52 Gbps

• Forwarding Rate: 38.69 Mpps

• Maximum Power Consumption: 500W

• Supports PoE+ IEEE 802.3at/af and 24V Passive PoE

• Rack-Mountable

Page 5

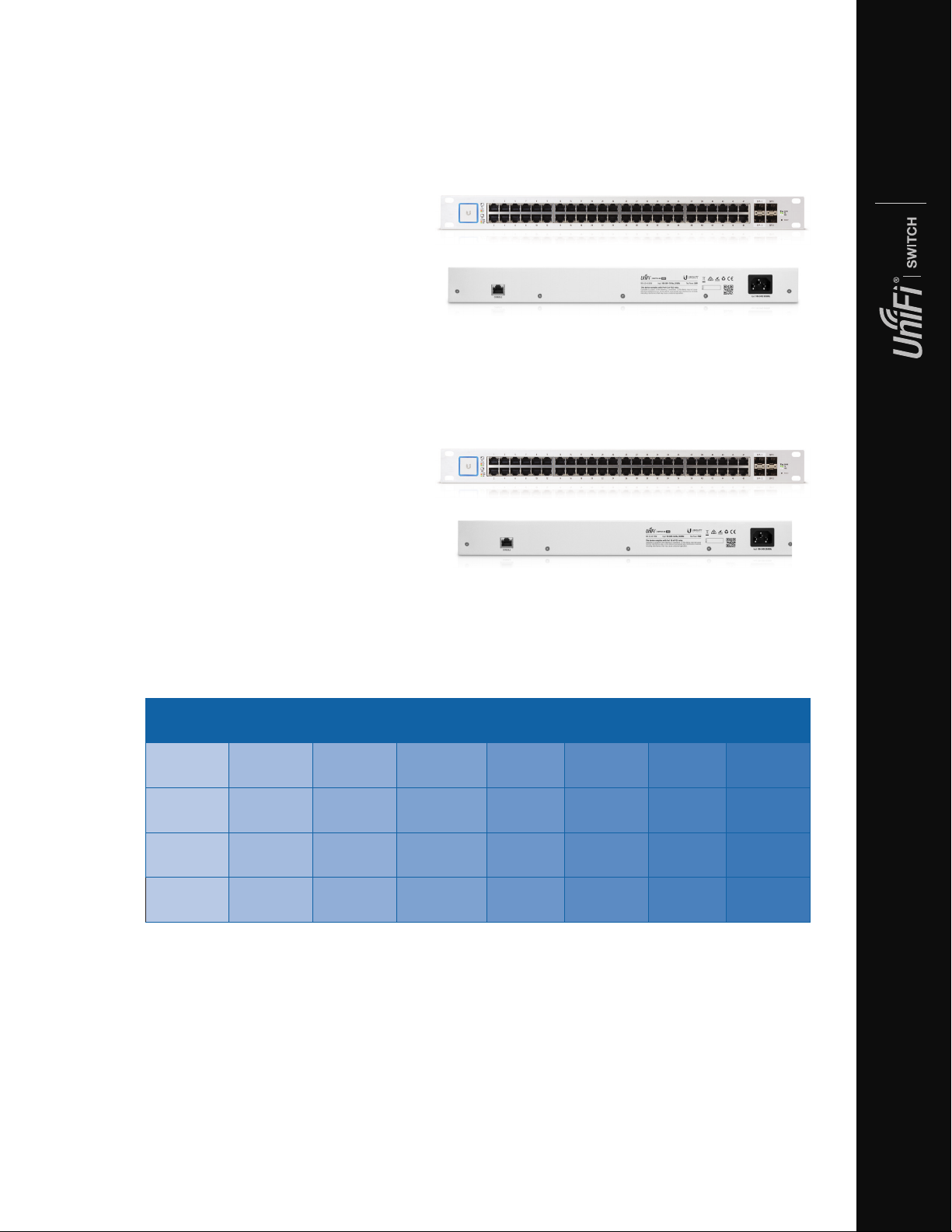

Model: US-48-500W

• (48) Gigabit RJ45 Ports

• (2) SFP+ Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 70 Gbps

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• Maximum Power Consumption: 500W

• Supports PoE+ IEEE 802.3at/af and 24V Passive PoE

• Rack-Mountable

Model: US-48-750W

• (48) Gigabit RJ45 Ports

• (2) SFP+ Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 70 Gbps

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• Maximum Power Consumption: 750W

• Supports PoE+ IEEE 802.3at/af and 24V Passive PoE

• Rack-Mountable

Datasheet

Model Comparison Chart

US-8 US-8-60W US-8-150W US-16-150W US-24

Gigabit RJ45

Ports

SFP Ports 2 2 2 2 2 2

SFP+ Ports 2 2

Sound Level*

(dBr)

8 8 8 16 24 24 48 48

0.7

(fanless)

0.6

(fanless)

0.5

(fanless)

1.7 - 10.8 1.6 - 9.2

US-24-250W US-24-500W

9.1 - 21.2

9.3 - 21.6

US-48

0.7 - 13.5

* Background noise level: 27.5 dBa

US-48-500W US-48-750W

10.7 - 23.6

12.1 - 24.7

Page 6

Specications

US-8-150W

Dimensions 235 x 43 x 204 mm (9.25 x 1.69 x 8.03")

Datasheet

Weight 1.65 kg (3.67 lb)

Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface Ethernet In-Band

Total Non-Blocking Throughput 10 Gbps

Switching Capacity 20 Gbps

Forwarding Rate 14.88 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 150W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

150W 20W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level* 0.5 dBr (Fanless)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

* Background noise level: 27.5 dBa

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Max. Passive PoE Wattage per Port 17W

24V Passive PoE Voltage Range 20-27V

Page 7

Specications

US-16-150W

Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")

Weight Rack-Mount Brackets Excluded Rack-Mount Brackets Included

2.80 kg (6.17 lb) 2.89 kg (6.37 lb)

Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface Ethernet In-Band

Total Non-Blocking Throughput 18 Gbps

Switching Capacity 36 Gbps

Forwarding Rate 26.78 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Datasheet

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 150W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

150W 28W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level* Fan Level: 0 Fan Level: 1, 2, 3

1.7 dBr 10.8 dBr

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

* Background noise level: 27.5 dBa

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Max. Passive PoE Wattage per Port 17W

24V Passive PoE Voltage Range 20-27V

Page 8

Specications

US-24-250W

Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")

Datasheet

Weight 4.7 kg (10.4 lb)

Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 26 Gbps

Switching Capacity 52 Gbps

Forwarding Rate 38.69 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 250W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

250W 30W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

9.1 dBr 14.2 dBr 16.8 dBr 21.2 dBr

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

* Background noise level: 27.5 dBa

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Max. Passive PoE Wattage per Port 17W

24V Passive PoE Voltage Range 20-27V

Page 9

Specications

US-24-500W

Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")

Weight 4.8 kg (10.6 lb)

Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 26 Gbps

Switching Capacity 52 Gbps

Forwarding Rate 38.69 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Datasheet

Monitoring Sessions

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 500W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

500W 30W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

9.3 dBr 15.2 dBr 17.9 dBr 21.6 dBr

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

* Background noise level: 27.5 dBa

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Max. Passive PoE Wattage per Port 17W

24V Passive PoE Voltage Range 20-27V

Page 10

Specications

US-48-500W

Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")

Datasheet

Weight 6.1 kg (13.5 lb)

Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1/10 Gbps SFP+ Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 70 Gbps

Switching Capacity 140 Gbps

Forwarding Rate 104.16 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 500W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

500W 64W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

10.7 dBr 16.2 dBr 19.3 dBr 23.6 dBr

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

* Background noise level: 27.5 dBa

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Max. Passive PoE Wattage per Port 17W

24V Passive PoE Voltage Range 20-27V

Page 11

Specications

US-48-750W

Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")

Weight 6.5 kg (14.3 lb)

Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1/10 Gbps SFP+ Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Management Interface (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

Total Non-Blocking Throughput 70 Gbps

Switching Capacity 140 Gbps

Forwarding Rate 104.16 Mpps

MAC Address Table 16384

Maximum Aggregations 6

Monitoring Sessions 1

Maximum VLANs 255

Datasheet

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 750W DC

Max. Power Consumption Including PoE Output Excluding PoE Output

750W 64W

LEDs Per Port RJ45 Data Ports SFP Data Ports

PoE, Speed/Link/Activity Speed/Link/Activity

Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3

12.1 dBr 18.1 dBr 21.6 dBr 24.7 dBr

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

* Background noise level: 27.5 dBa

PoE+ Per Port

PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50–57V

Max. Passive PoE Wattage per Port 17W

24V Passive PoE Voltage Range 20-27V

Page 12

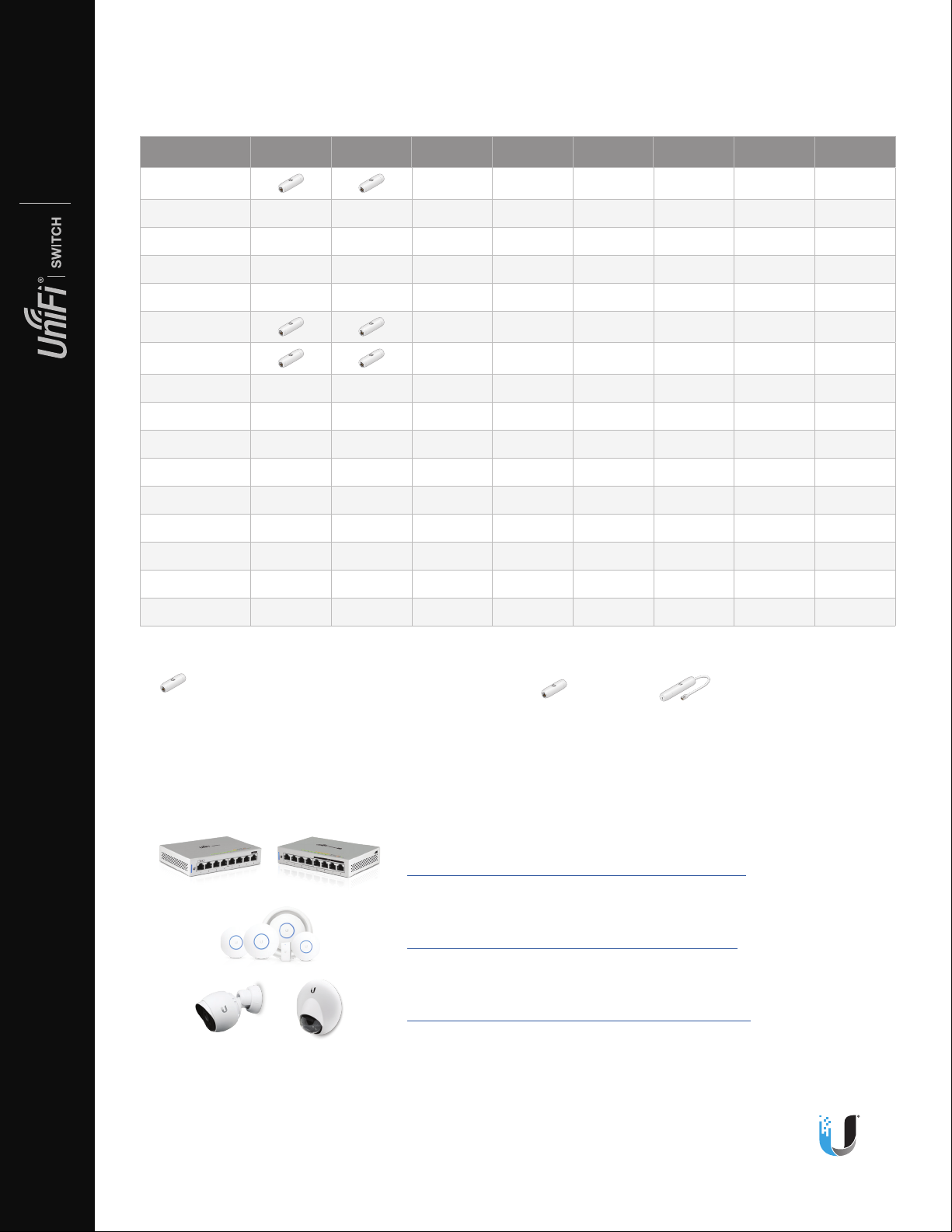

UniFi AP and Video Camera Compatibility

The UniFi Switch is compatible with UniFi Access Points and UniFi G3 Video Cameras, as detailed below.

AP/Camera Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W

Datasheet

UVC-G3

✓ ✓ ✓ ✓ ✓ ✓

UVC-G3-AF

UVC-G3-DOME

UVC-G3-FLEX

UVC-G3-PRO

UAP

UAP-LR

UAP-PRO

UAP-AC-LITE

UAP-AC-LR

UAP-AC-PRO

UAP-AC-M

UAP-AC-M-PRO

UAP-AC-IW

UAP-AC-IW-PRO

UAP-AC-HD

✓

Compatible with the UniFi switch

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

– –

✓ ✓ ✓ ✓ ✓ ✓

AJ_JL041618

Requires Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G or INS-3AF-O-G

Notes:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016 require the Instant 802.3af Gigabit PoE Converter. ² For the UAP-AC-IW and UAP-AC-IW-PRO, PoE passthrough is supported by all of the switches listed above except for models US-8 and US-8-60W.
