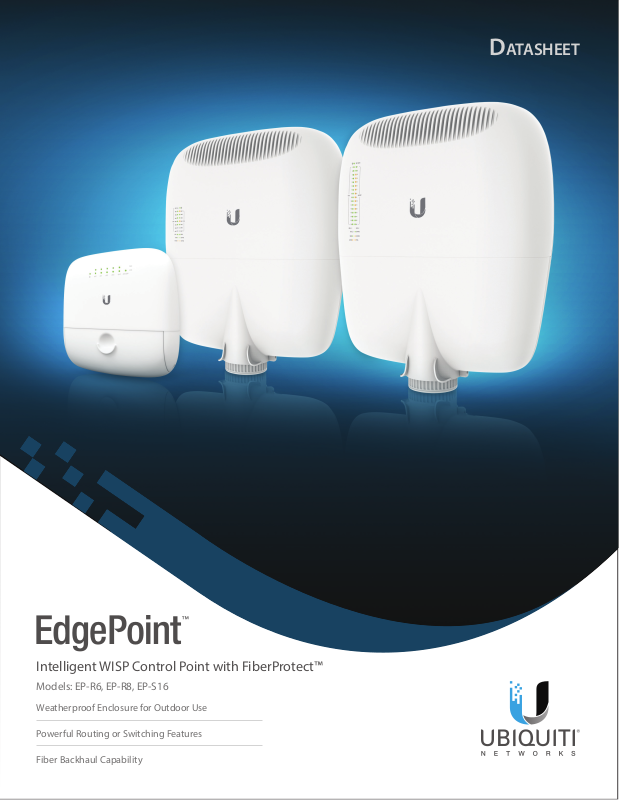

Ubiquiti EP-R6-US, EP-R8-US, EP-S16-US Specsheet

Datasheet

Intelligent WISP Control Point with FiberProtect™

Models: EP-R6, EP-R8, EP-S16

Weatherproof Enclosure for Outdoor Use

Powerful Routing or Switching Features

Fiber Backhaul Capability

Overview

Ubiquiti Networks introduces the
EdgePoint

platform. The rst application-specic

designed WISP control point, the
EdgePoint combines EdgeMAX

routing features with ber backhaul

and versatile powering capabilities.

Datasheet

The EdgePoint is available in three
models:

• EP-R6 Layer-3 router

• EP-R8 Layer-3 router

• EP-S16 Layer-2 switch with some

layer-3 capabilities

™

, part of the EdgeMAX®

Example of EdgePoint as WISP Control Point

The EdgePoint replaces a cabinet containing a patch panel, power rack, multiple
PoE adapters, syslog server, AP (for EdgePoint management), switch, router,

andmodem.

Breakthrough in Tower
Deployment

The EdgePoint features FiberProtect

to signicantly reduce electrostatic

discharge (ESD) failures and
electromagnetic interference (EMI),
greatly improve data signal integrity,
and consolidate the wired data

backhaul to a single ber cable run for
long-distance connectivity.

All-in-One Design

A single, compact controller efciently

eliminates clutter, expensive cabinets,
extraneous installations, and excessive
maintenance.

Robust Construction

The ruggedized case withstands
outdoor conditions, including wind,
rain, and snow. The included cable
sleeve protects the cables and cable
opening. If you prefer, you can swap it
out for your own conduit.

Advanced Applications

For the EP-R6 and EP-R8, powerful

routing features – such as load
balancing and failover– provide
redundancy and increased
performance for outdoor wireless links.

For the EP-S16, layer-2 link

aggregation provides similar
redundancy and increased

performance benets.

Versatile Power Options

Powered by 54VDC or by PoE, the

EP-R8 and EP-S16 can support 54 or

24V passive PoE to power all Ubiquiti®
products, including airFiber® and
airMAX®.

Example of a Backhaul Deployment for the EdgePoint

The EdgePoint runs ber to the top of the tower so no cabinet is needed and there
are no long Ethernet cable runs.

Powered by 24VDC or by PoE, the

EP-R6 can support 24V passive PoE to

power most Ubiquiti products.

2

Intuitive User Interface

The EdgePoint features a graphical
user interface designed for convenient
setup and control. Accessed via a
network port and web browser,

the user-friendly interface provides

intuitive management with a virtual
view of the ports, displaying physical

connectivity, speed, andstatus.

Depending on whether you are

conguring a router (EP-R6 or EP-R8)
or switch (EP-S16), the conguration

interface will differ.

Routing Conguration

The EP-R6 or EP-R8 offers robust

features, including:

• VLAN interfaces for network
segmentation

• Static routes and support of routing

protocols: OSPF, RIP, and BGP

• Firewall policies and NAT rules

• Application identication with Deep
Packet Inspection (DPI)

• DHCP services

• Quality of Service (QoS)

• Network administration and
monitoring tools

• Administrator and operator
accounts

• Comprehensive IPv6 support

Datasheet

For the EP-R8, the Dashboard screen displays detailed statistics: IP information,

MTU, transmit and receive speeds, and status for each interface.

Switching Conguration

The EP-S16 provides advanced

features, including:

• MSTP/RSTP/STP

• VLAN, Private VLAN, Voice VLAN

• Link Aggregation

• DHCP Snooping, IGMP Snooping

• TACACS+, RADIUS, 802.1X, MAC
Filtering, ACL

• DiffServ, CoS

• Static Routing, Policy-Based Routing

Conguration by CLI

The CLI provides quick and exible
conguration by command line and

features the following:

• For power users, conguration and
monitoring of all advanced features

• Direct access to standard Linux

tools and shell commands (EP-R6 or
EP-R8 only)

• CLI access through the following:

• Serial console port (EP-R8 or

EP-S16 only)

• SSH

• Telnet

• Graphical user interface (EP-R6 or

EP-R8 only)

For the EP-R8, the Routing > Routes screen displays static, connected, RIP, and/or

OSFP routes. You can add static routes on this screen.

An industry‑standard command‑line interface (CLI) is available for advanced users.

3

50

50

50

1000Mbps SM/SC 20KM DDM

Tx1550nm/Rx1310nm

SN: 130826179

EF-1000M- 20K M-1 5

50

Hardware Overview

Three EdgePoint models offer a
variety of hardware features for your
application.

EP-R6

The EP-R6 features ve RJ45 Ethernet

ports and one SFP Ethernet port.

Datasheet

• Power Options

• 24VDC, 3A Terminal Block

• PoE Input

• (5) 24V, 0.7A Passive PoE

OutputPorts

*

• (1) SFP Port

EP-R6 Bottom Panel

EP-R8

The EP-R8 features six RJ45 Ethernet
ports and two combination RJ45/SFP

Ethernet ports.

Bottom Panel

• Power Options

• 54VDC, 6A Terminal Block

• Dual PoE Input

Bottom Panel

• (1) Console Port

• Data Ports

• (6) RJ45 Ports

• (2) Combination RJ45/SFP Ports

Nine RJ45 ports support PoE:

• PoE Input

• (1) 54V, 1.5A (No Data)

• (1) 54V, 1.5A

• PoE Output

• (2) 54 or 24V, 1.4A Passive PoE
Output Ports*

• (5) 24V, 0.7A Passive PoE
OutputPorts*

EP-R8 Bottom Panel

Cabling Protection

• Strain Relief for Fiber Optic Strands

• Cable Sleeve and Option for
Conduit (Not Included)

• Cable Tie Slots (Cable Ties Not
Included)

EP-R8 Strain Relief for Fiber Optic Strands

Back Panel

• Lanyard Loop for Ease of Installation

• Slot for PicoStation®M2HP (Not
Included) to Allow for Wireless
Management

• Pole-Mount Bracket (Wall-Mount

Bracket Also Included)

• Ground Bonding Point

* Check produc t specications to verify PoE compatibility.

4

EP-S16

50

50

50

1000Mbps SM/SC 20KM DDM

Tx1550nm/Rx1310nm

SN: 130826179

EF-1000M- 20K M-1 5

50

The EP-S16 features 16 RJ45 Ethernet

ports and two SFP+ ports.

Bottom Panel

• Power Options

• 54VDC, 6A Terminal Block

• Dual PoE Input

• (1) Console Port

• Data Ports

• (16) RJ45 Ports

• (2) SFP+ Ports

Sixteen RJ45 ports support PoE:

• PoE Input or Output

• (2) Ports with Two Options:

54V, 1.5A Passive PoE Input

or

54 or 24V, 1.4A Passive PoE

Output*

• PoE Output

• (2) 54 or 24V, 1.4A Passive PoE
Output Ports*

• (12) PoE+ or 24V, 0.7A Passive PoE
Output Ports*

Cabling Protection

• FiberProtect Strain Relief for Fiber
Optic Strands

• Cable Sleeve and Option for
Conduit (Not Included)

• Cable Tie Slots (Cable Ties Not
Included)

Datasheet

EP-S16 Bottom Panel

EP-S16 Strain Relief for Fiber Optic Strands

Lanyard Loop

Back Panel

• Lanyard Loop for Ease of Installation

• Slot for PicoStationM2HP (Not
Included) to Allow for Wireless
Management

PicoStation

(Optional)

• Pole-Mount Bracket (Wall-Mount
Bracket Also Included)

• Ground Bonding Point

Pole-Mount

Bracket

Ground

Bonding

Point

EP-S16 Back Panel

5

Hardware Specications

EP-R6

Dimensions

Weight 605 g (1.33 lb)

Datasheet

Enclosure Characteristics Polycarbonate with UV Resistance

Max. Power Consumption 7W (Excludes PoE Output)

Power Input (1) DC Terminal Block

(Self-Correcting Polarity Protection on DC Terminal Block Only,

Power Supply Min. 24V / 0.3A (Excludes PoE Output Power)

VDC Input 24V, 3A

Passive PoE Input (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0

Passive PoE Output (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4

Power Monitoring (1) DC Terminal Block, Input Power

Supported Voltage Range 26 to 16VDC

Button Reset

LEDs

System

eth0 to eth4

eth5/SFP

Ports

Data Ports (5) 10/100/1000 RJ45 Ports

Processor Dual-Core 880 MHz, MIPS1004Kc

System Memory 256 MB DDR3-1600 RAM

Code Storage 256 MB NAND

Certications CE, FCC, IC

Pole Mount Yes

Wind Loading 46 N @ 200 km/h (10.34 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

Operating Temperature -40 to 65° C (-40 to 149° F)

Operating Humidity 10 to 90% Noncondensing

188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96

(1) RJ45 (eth0)

Diode ORed Protection on All Power Inputs)

(Do NOT Congure eth0 in PoE Output Mode

if You Are Using a PoE Input Power Source.)

(1) RJ45, eth0, Input Power

Speed/Link/Activity, PoE

Speed/Link/Activity

(1) 1 Gbps SFP Port

")

or

Power

6

Hardware Specications

EP-R8

Dimensions

With Wall-Mount

Weight

With Wall-Mount

Enclosure Characteristics Diecast Aluminum Alloy and Polycarbonate with UV Resistance

Max. Power Consumption 40W (Excludes PoE Output)

Power Input (1) DC Terminal Block

(Self-Correcting Polarity Protection on DC Terminal Block Only,

Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)

VDC Input 54VDC, 6A

Passive PoE Input (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In

Passive PoE Output (2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2

(5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7

Power Monitoring (1) DC Terminal Block, Input Power

Supported Voltage Range 56 to 42VDC

Button Reset

LEDs

System

eth0

eth1 to eth7

SFP

Ports

Serial Console Port

PoE In Port

Data Ports

Processor Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing

System Memory 2 GB DDR3-1600 RAM

Code Storage 4 GB

Certications CE, FCC, IC

Pole/Wall Mount Yes

Wind Loading 153 N @ 200 km/h (34 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

Operating Temperature -40 to 65° C (-40 to 149° F)

Operating Humidity 10 to 90% Noncondensing

326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50

326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")

3.4 kg (7.50 lb)

3.8 kg (8.38 lb)

or

(2) RJ45 (PoE In and eth0)

Diode ORed Protection on All Power Inputs)

(PoE In is DC Only, No Data)

(2) RJ45, PoE In and eth0, Input Power

Power

Speed/Link/Activity

Speed/Link/Activity, PoE

Speed/Link/Activity

(1) RJ45 Serial Port

(1) RJ45 Port

(6) 10/100/1000 RJ45 Ports

(2) 10/100/1000 RJ45/SFP Combination Ports

")

Datasheet

7

Router Software Specications

EdgeOS

Interface/Encapsulation Ethernet

802.1q VLAN
PPPoE

Datasheet

Bonding (802.3ad)

Addressing Static IPv4/IPv6 Addressing

DHCP/DHCPv6

Routing Static Routes

OSPF/OSPFv3

BGP (with IPv6 Support)

Security ACL-Based Firewall

Zone-Based Firewall

Application Identication with Deep Packet Inspection (DPI)

VPN IPSec Site-to-Site and Remote Access

OpenVPN Site-to-Site and Remote Access

PPTP Remote Access

L2TP Remote Access

Services DHCP/DHCPv6 Server

DHCP/DHCPv6 Relay

Dynamic DNS

DNS Forwarding

RADIUS Client

Web Caching
PPPoE Server

QoS FIFO

Stochastic Fairness Queueing

Random Early Detection

Token Bucket Filter

Decit Round Robin

Hierarchical Token Bucket

Ingress Policing

Management Web UI

CLI (Console, SSH, Telnet)

UBNT Discovery Protocol

GRE

IP in IP

Bridging

RIP/RIPng

IGMP Proxy

NAT

PPTP Client

VRRP

SNMP

NetFlow

LLDP

NTP

Logging

8

Hardware Specications

EP-S16

Dimensions

With Wall-Mount

Weight

With Wall-Mount

Enclosure Characteristics Diecast Aluminum Alloy and Polycarbonate with UV Resistance

Non-Blocking Throughput 36 Gbps

Switching Capacity 72 Gbps

Forwarding Rate 53.57 Mpps

Max. Power Consumption 40W (Excludes PoE Output)

Power Input (1) DC Terminal Block

(Self-Correcting Polarity Protection on DC Terminal Block Only,

Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)

VDC Input 54VDC, 6A

Passive PoE Input (2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2

(Do NOT Congure Port 1 or 2 in PoE Output Mode

Passive PoE Output (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4

(12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16

Power Monitoring (1) DC Terminal Block, Input Power

Supported Voltage Range 56 to 42VDC

Button Reset

LEDs

System

1 to 16

SFP

Ports

Serial Console Port

Data Ports

Processor ARM Cortex-A9 400 MHz

System Memory 256 MB DDR3 RAM

Code Storage 32 MB

Certications CE, FCC, IC

Pole/Wall Mount Yes

Wind Loading 153 N @ 200 km/h (34 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

Operating Temperature -40 to 65° C (-40 to 149° F)

Operating Humidity 10 to 90% Noncondensing

326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50

326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")

3.4 kg (7.50 lb)

3.8 kg (8.38 lb)

or

(2) RJ45 (Ports 1 and 2)

Diode ORed Protection on All Power Inputs)

if You Are Using PoE Input Power Sources.)

(2) RJ45, Ports 1 and 2, PoE Input or Output Power

(14) RJ45, Ports 3 to 16, PoE Output Power

Power

Speed/Link/Activity, PoE

Speed/Link/Activity

(1) RJ45 Serial Port

(16) 10/100/1000 RJ45 Ports

(2) 1/10 Gbps SFP+ Ports

")

Datasheet

9

Switch Software Specications

Software Information

Core
Switching

Datasheet

Features

Advanced
Layer 2
Features

• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)

• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)

• IEEE 802.1D: Spanning Tree Compatibility

• IEEE 802.1S: Multiple Spanning Tree Compatibility

• IEEE 802.1W: Rapid Spanning Tree Compatibility

• IEEE 802.1Q: Virtual LANs with Port-Based VLANs

• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping

• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support

• IEEE 802.3: 10BASE-T

• IEEE 802.3u: 100BASE-T

• IEEE 802.3ab: 1000BASE-T

• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol

• IEEE 802.3ac: VLAN Tagging

• IEEE 802.3ad: Link Aggregation

• IEEE 802.3x: Flow Control

• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)

• IEEE 802.1D-2004: Dynamic L2 Multicast Registration: Clause 10 (GMRP)

• IEEE 802.1Q-2003: Dynamic VLAN Registration: Clause 11.2 (GVRP)

• RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches

• RFC 5171: Unidirectional Link Detection (UDLD) Protocol

• Broadcast Storm Recovery

• Broadcast/Multicast/Unknown Unicast Storm Recovery

• DHCP Snooping

• IGMP Snooping Querier

• Independent VLAN Learning (IVL) Support

• Jumbo Ethernet Frame Support

• Port MAC Locking

• Port Mirroring

• Protected Ports

• Static MAC Filtering

• TACACS+

• Voice VLANs

• Unauthenticated VLAN

• Internal 802.1X Authentication Server

10

Software Information

Platform

Specications

System
Facilities

• DHCP Server

• Maximum Number of Pools: 128

• Maximum Number of Leases (Total): 2048

• Routing

• Number of Routes: 16

• Number of Routing Interfaces: 15

• VLANs: 255

• MAC Addresses: 8k

• ARP Cache Size: 493

• MSTP Instances: 4

• LAGs: 6

• ACLs: 100 with 10 Rules per Port

• Trafc Classes (Queues): 8

• Event and Error Logging Facility

• Run-Time and Conguration Download Capability

• PING Utility

• FTP/TFTP Transfers via IPv4/IPv6

• Malicious Code Detection

• BootP and DHCP

• RFC 2021: Remote Network Monitoring Management Information Base Version 2

• RFC 2030: Simple Network Time Protocol (SNTP)

• RFC 2819: Remote Network Monitoring Management Information Base

• RFC 2865: RADIUS Client

• RFC 2866: RADIUS Accounting

• RFC 2868: RADIUS Attributes for Tunnel Protocol Support

• RFC 2869: RADIUS Extensions

• RFC 3579: RADIUS Support for EAP

• RFC 3580: IEEE 802.1X RADIUS Usage Guidelines

• RFC 3164: BSD Syslog Protocol

Datasheet

Management • Web UI

• Industry-Standard CLI

• IPv6 Management

• Password Management

• Autoinstall Support for Firmware Images and Conguration Files

• SNMP v1, v2, and v3

• SSH 1.5 and 2.0

• SSL 3.0 and TLS 1.0

• Secure Copy (SCP)

• Telnet (Multi-Session Support)

Layer 3
Routing

• Static Routing

• Policy-Based Routing

11

Software Information

QoS

• Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Trafc Classication Based on:

• Time-Based ACL

Datasheet

• Source/Destination IP Address

• TCP/UDP Source/Destination Port

• IP Protocol Type

• Type of Service (ToS) or Differentiated Services (DSCP) Field

• Source/Destination MAC Address

• EtherType

• IEEE 802.1p User Priority

• VLAN ID

• RFC 1858: Security Considerations for IP Fragment Filtering

• Optional ACL Rule Attributes

• Assign Flow to a Specic Class of Service (CoS) Queue

• Redirect Matching Trafc Flows

• Differentiated Services (DiffServ)

• Classify Trafc Based on Same Criteria as ACLs

• Mark the IP DSCP or Precedence Header Fields, Optional

• Police the Flow to a Specic Rate with Two-Color Aware Support

• RFC 2474: Denition of the Differentiated Services Field (DS eld) in the IPv4 and IPv6 Headers

• RFC 2475: An Architecture for Differentiated Services

• RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group

• RFC 3246: An Expedited Forwarding PHB

• RFC 3260: New Terminology and Clarications for DiffServ

• Class of Service (CoS) Queue Mapping Conguration

• AutoVoIP: Automatic CoS Settings for VoIP

• IP DSCP-to-Queue Mapping

• Congurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted)

• Interface Egress Shaping Rate

• Strict Priority versus Weighted Scheduling per Queue

JL122016

12

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty
©2015-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, airMAX, airOS,

EdgeMAX, EdgeOS, EdgePoint, FiberProtect, and PicoStation are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and
in other countries. All other trademarks are the property of their respective owners.

www.ubnt.com
