Ubiquiti EdgeRouter X User manual
Advanced Gigabit
Ethernet Router
Model: ER-X
Introduction
Thank you for purchasing the Ubiquiti Networks®
EdgeRouter
you through installation and also includes warranty terms.
Package Contents
Installation Requirements
• For indoor applications, use Category 5 (or above) UTP
• For outdoor applications, shielded Category 5 (or above)
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.
™
X. This Quick Start Guide is designed to guide
Advanced Gigabit
Ethernet Router
Model: ER-X
EdgeRouter X Power Adapter
(12V, 0.5A)
Quick Start Guide
cabling approved for indoor use.
cabling should be used for all wired Ethernet connections.
To enhance ESD protection, attach a ground wire (not
included) to the back panel of the EdgeRouter X.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit
WARNING: To reduce the risk of fire or electric shock, do
not expose the EdgeRouter X to rain or moisture.
Note: Although the cabling can be located outdoors,
the EdgeRouter X itself should be housed inside a
protective enclosure.
www.ubnt.com/toughcable
Hardware Overview
Top Panel
Power
LED State Status
Off Power Off
Power
Green Power On
Off No Link
Green
eth0‑eth4
Front Panel
Ethernet (eth0/PoE In) Ethernet (eth1-eth3) Ethernet (eth4/PoE Out)
Port Description
eth0/PoE In
eth1‑3
eth4/PoE Out
Ethernet (eth0-eth4)
Link Established at 10/100/1000Mbps
Flashing Indicates Activity
RJ45 port accepts 24V passive PoE
and supports a 10/100/1000 Ethernet
connection.
RJ45 ports support 10/100/1000 Ethernet
connections.
RJ45 port supports passive PoE passthrough
and a 10/100/1000 Ethernet connection.
Passive PoE Passthrough
The EdgeRouter X can be powered by either method:
• Power adapter
• 24V passive PoE on the eth0/PoE Inport
Passive PoE output on port eth4/PoE Out works as a
passthrough and depends on the input power source.
If the included Power Adapter (12V, 0.5A) is used, there may not
be sufficient passthrough to power another device because
the EdgeRouter X can consume up to 5 watts on its own.
We recommend using a more powerful input power source
(not included); here are a few examples of viable power input
options for passive PoE passthrough:
Power Input Passive PoE Passthrough
24V passive PoE (on eth0/PoE In)* ≈23V, 5W
12V, 1A
(ERLite-3 Power Adapter)
24V, 2.5A
(ERPoe-5 Power Adapter)
≈11V, 5W
≈23V, 11W
* Not compatible with 24V, 1A Gigabit PoE Adapter.
Back Panel
Reset
Button D escription
There are two methods to reset the
EdgeRouter X to factory defaults:
Runtime Reset (Recommended)
The EdgeRouter X should be running after
bootup is complete. Press and hold the Reset
button for about 10 seconds until the eth4
LED starts flashing and then becomes solidly
lit. After a few seconds, the LED will turn off,
and the EdgeRouter X will automatically
Reset
reboot.
Power‑on Reset
1. Disconnect the Power Adapter from the
EdgeRouter X.
2. Press and hold the Reset button while
connecting the Power Adapter to the
EdgeRouter X. Keep holding the button
until the eth4 LED starts flashing and then
stops flashing after a few seconds.
Detail Description
ESD grounding for enhanced ESD protection.
Ground
The ground wire and screw with washer
are not included (recommended screw size:
M3-0.5 x 4 mm).
Power Connect the Power Adapter.
PowerGround
Hardware Installation
Place the EdgeRouter X on a flat, horizontal surface or mount it
on a wall (mounting screws not included).
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.

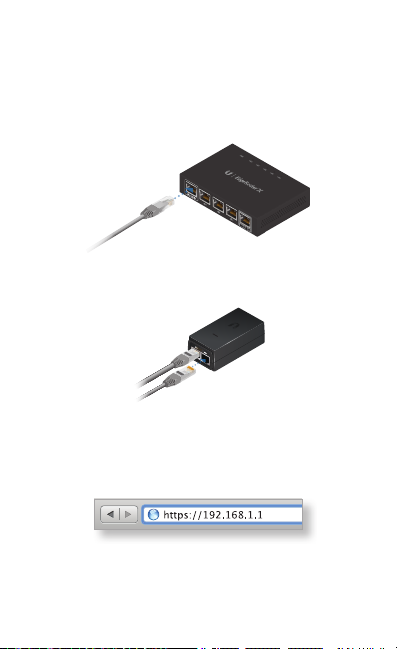

Connecting Power
Follow the appropriate instructions for your installation:
Connecting Power Using the Power Adapter
Connect the Power Adapter to the Power port of the
EdgeRouter X. Then plug the Power Adapter into a
poweroutlet.
Connecting Power Using PoE
Connect the PoE cable of a PoE switch or adapter to the
eth0/PoE In port of the EdgeRouter X.
