Ubiquiti EdgePoint S16 Quick Start Manual

Intelligent WISP Control
with FiberProtect

™

Model: EP-S16

Introduction

Thank you for purchasing the Ubiquiti Networks® EdgePoint™
Switch. This Quick Start Guide is designed to guide you through
installation and includes the warranty terms.

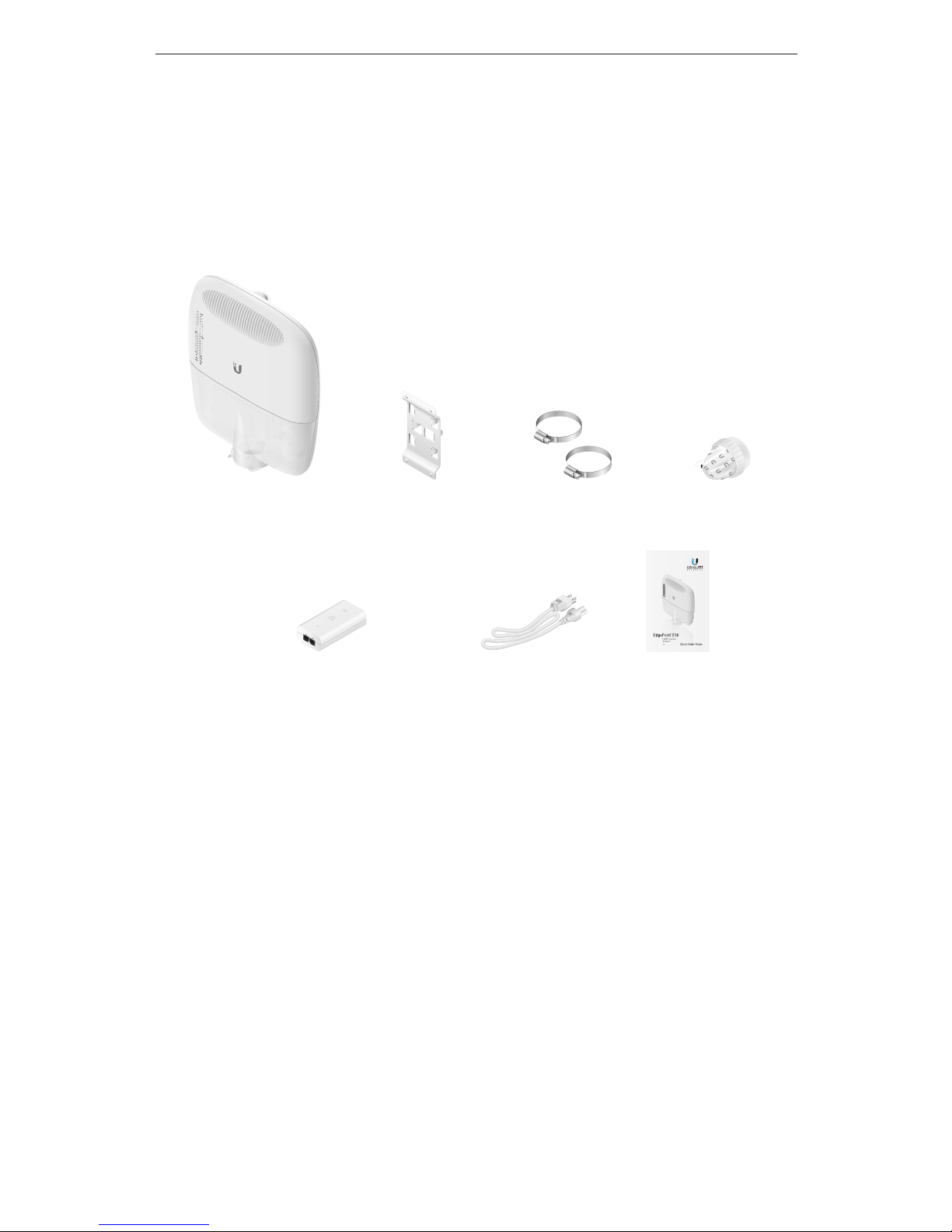

Package Contents

EdgePoint Switch Wall-Mount

Bracket

Metal Straps

(Qty. 2)

Cable Sleeve

Intelligent WISP Control
with FiberProtect

™

Model: EP-S16

Gigabit PoE (54V, 1.5A) with

Mounting Bracket

Power Cord Quick Start

Guide

Installation Requirements

• 7 mm socket wrench

• S2 hex wrench

• Ground wire – min. 10 AWG (5 mm

2

) and max. length: 1m. Asa

safety precaution, ground the EdgePoint to a grounded mast,
pole, tower, or grounding bar.

• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through
the AC ground of the PoE.

• We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit: www.ubnt.com/toughcable

TERMS OF USE: Shielded Ethernet cable and earth grounding must be used as conditions of product
warranty. TOUGHCable

™

is designed for outdoor installations. It is the customer’s responsibility to
follow local country regulations, including operation within legal frequency channels, output power,
and Dynamic Frequency Selection (DFS) requirements.

1

Introduction

Hardware Overview

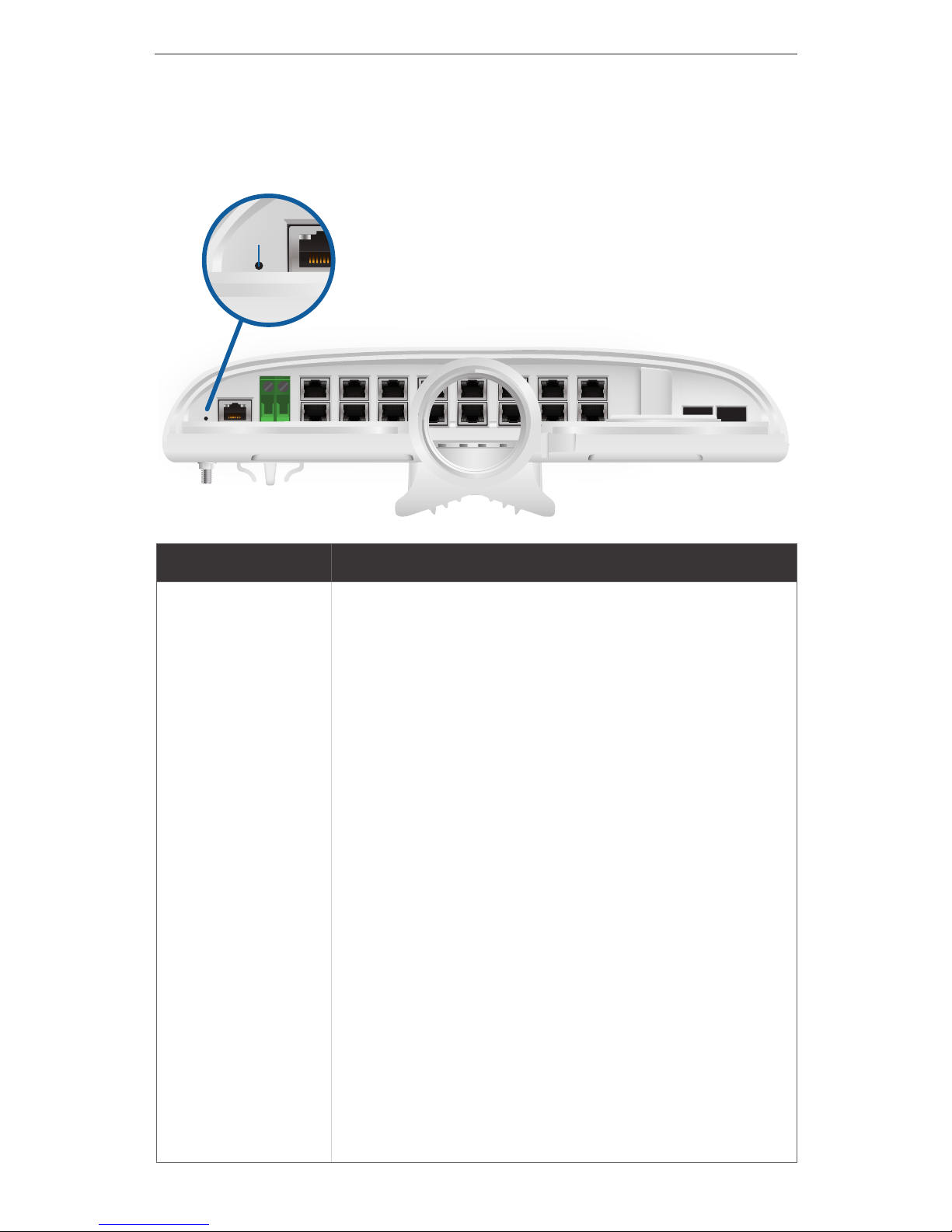

Bottom Panel Button

Reset

Button

Description

Reset

There are two methods to reset the EP-S16 to
factory defaults:

Runtime Reset (Recommended)

The EP-S16 should be running after bootup is
complete, and the power LED is white. Press
and hold the Reset button. The EP-S16 will

reboot, and the power LED becomesblue

after three seconds. Continue to hold the

Reset button for about 15seconds until the

power LED flashes blue for two seconds.
This indicates that the EP-S16 has reset to its

factorydefaults.

Power-on Reset

1. Disconnect power from the EP-S16.

2. While connecting power to the EP-S16,
hold the Reset button for about

15seconds until the power LED flashes

blue for two seconds. This indicates that
the EP-S16 has reset to its factory defaults.

2

EdgePoint

™

EP-S16 Quick Start Guide

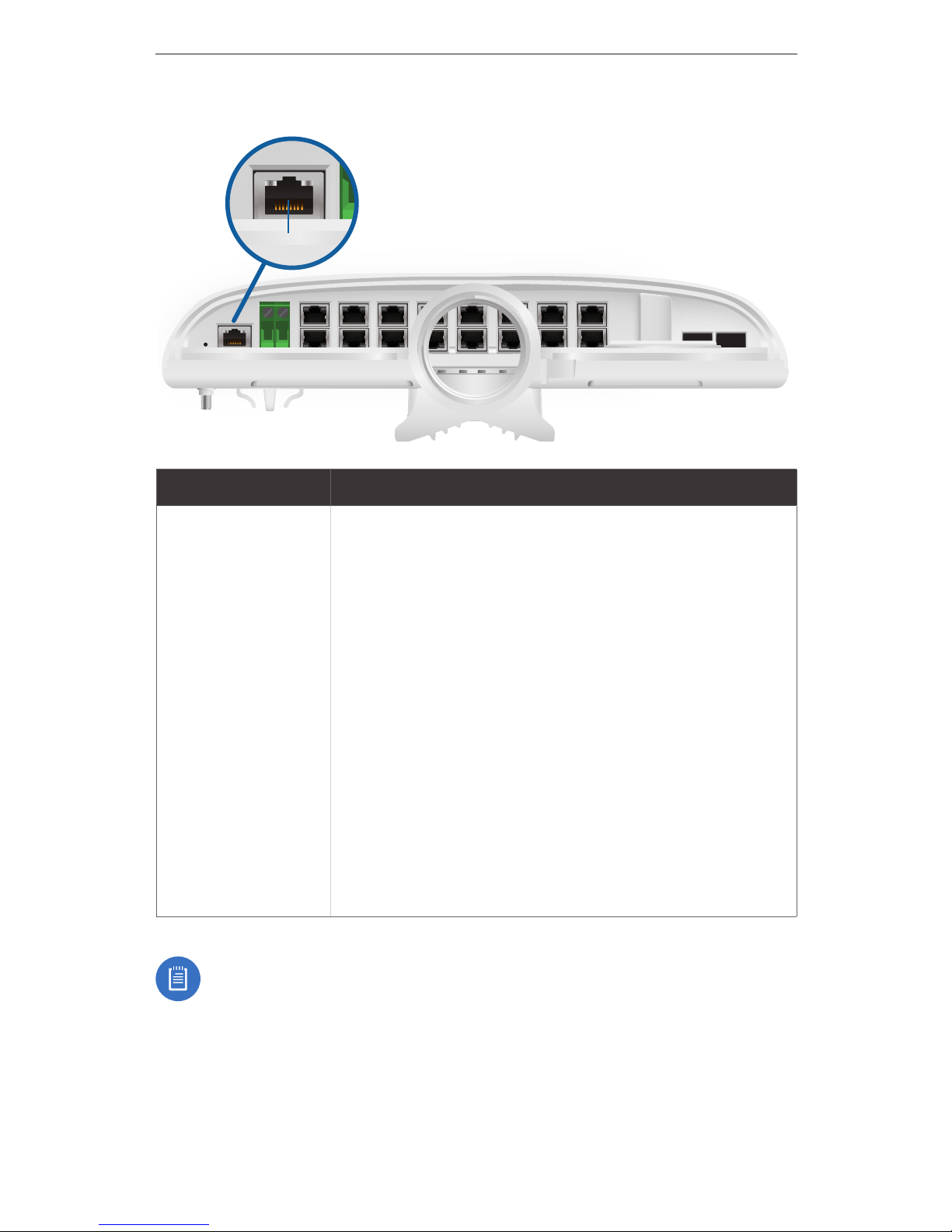

Bottom Panel Console Port

Console

Interface Description

Console

RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also known
as a rollover cable, to connect the Console
port to your computer. (If your computer does
not have a DB9 port, then you will also need
a DB9 adapter.) Then configure the following
settings as needed:

• Baud rate 115200

• Data bits 8

• Parity NONE

• Stop bits 1

• Flow control NONE

Note: Remove the protective plug from the Console port

before use.

3

Hardware Overview

Power Options

Either the VDC or PoE input type is used at any one time. If both
are connected, only the input type with the highest voltage will be
used; the other can be used as a backup.

Both PoE inputs can be used at the same time. If there is a voltage
difference, the higher-voltage source will be used first. The voltage
from the initial source will drop as the load increases. When the
voltage drops to the same level as the lower-voltage source, then
the lower-voltage source will also start providing power.

Power Input Options

• 54VDC, 6A

• 54V, 1.5A on PoE In/1

• 54V, 1.5A on PoE In/2

Power Output Options

• EdgePoint (required)

• Passive 54/24V, 4-Pair PoE on 1-4

• PoE+ or Passive 24V, 2-Pair PoE
on 5-16

The number of devices that can be powered depends on the
power consumption of the specific devices. Example: If you use
54VDC, 1.5A, then you have 81W. If the EdgePoint uses 40W, then
you have 41W for PoE output. Check product specifications for the
power consumption values to use in your calculations.

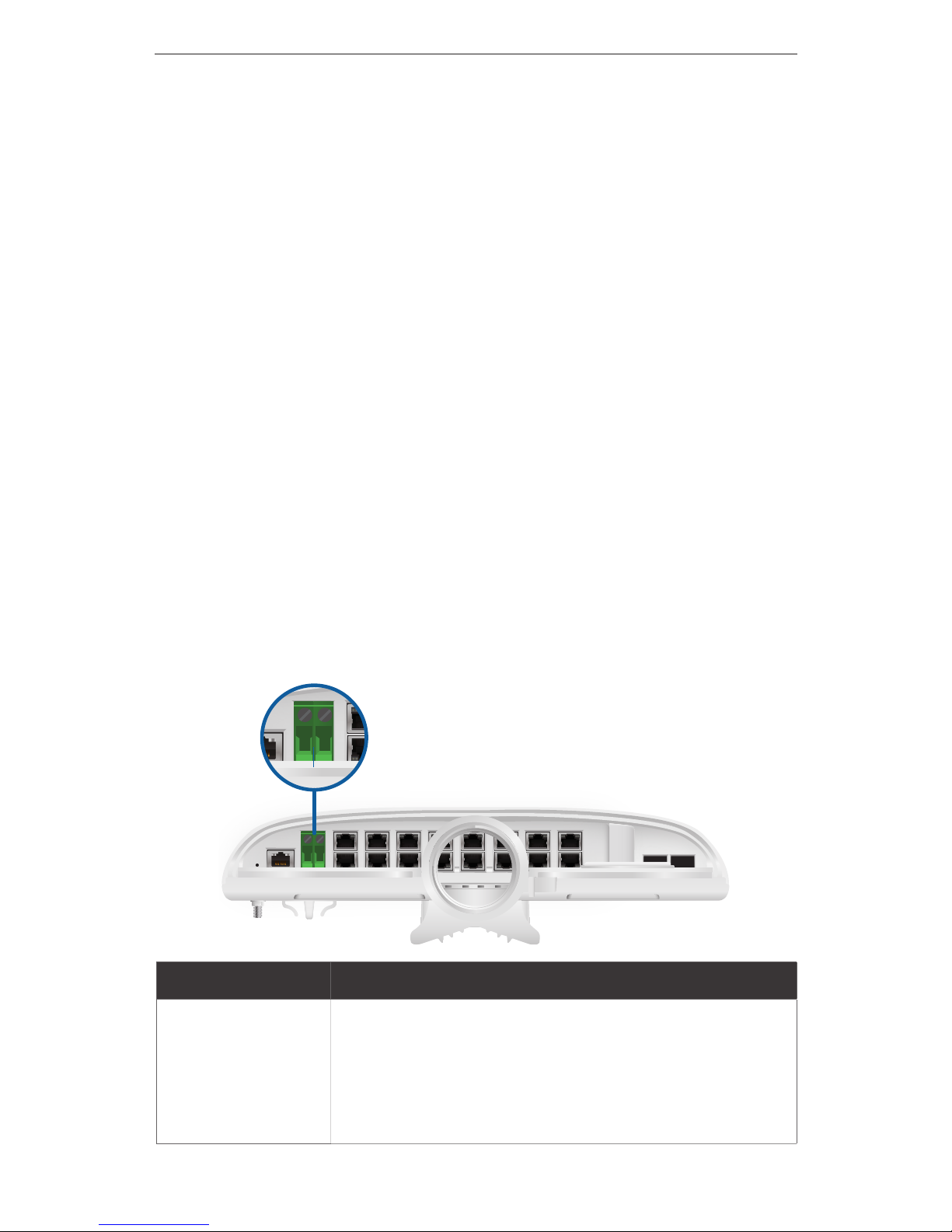

Bottom Panel DC Input

VDC

Interface Description

VDC In

Terminal block connector uses auto-polarity
detection and accepts +42 to +56VDC, 6A
input (including the Ubiquiti Networks
EdgePower

™

, model EP-54V-150W) to power

the EdgePoint and passive PoE output.

4

EdgePoint

™

EP-S16 Quick Start Guide

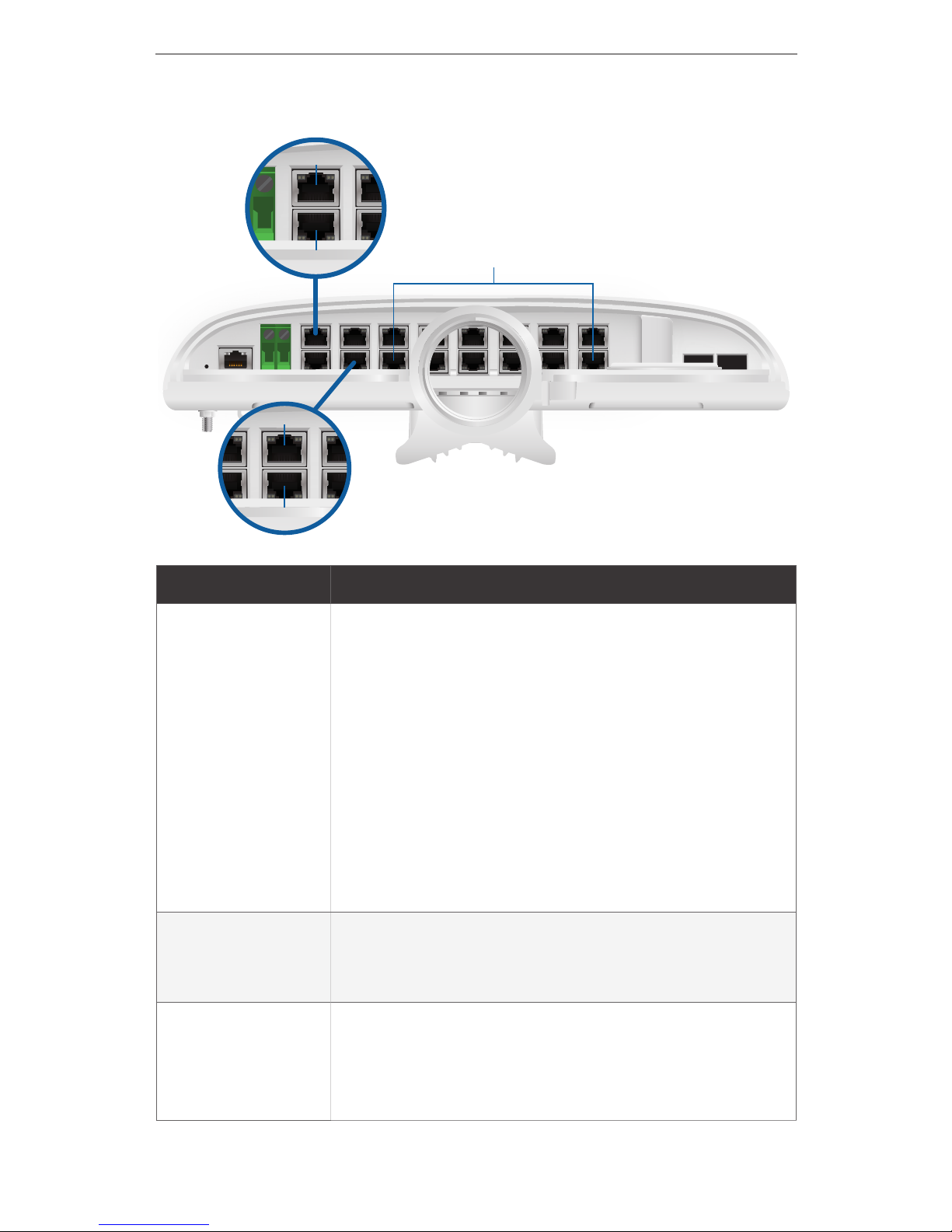

Bottom Panel RJ45 Ports

5-16

PoE In/1

PoE In/2

3

4

Interface

Description

PoE In / 1-2

(54/24V

PoE Out)

RJ45 ports support 10/100/1000 Ethernet
connections and have PoE input or output
functionality:

• PoE Input Accepts 54V, 1.5A PoE input to
power the EdgePoint and PoE output.

• PoE Output You can configure the ports
for 54/24V 4-pair PoE output.

Do NOT configure port PoE In / 1 or 2 in PoE
output mode if you are using it as a PoE input
power source.

3-4

(54/24V

PoE Out)

RJ45 ports support 10/100/1000 Ethernet
connections and passive 54/24V, 4-pair PoE
output for airFiber® devices.

5-16

(PoE+ or 24V

PoE Out)

RJ45 ports support 10/100/1000 Ethernet
connections and PoE+ (IEEE 802.3af/802.3at)
or passive 24V, 2-pair PoE output for airMAX®
or other devices.

5

Hardware Overview

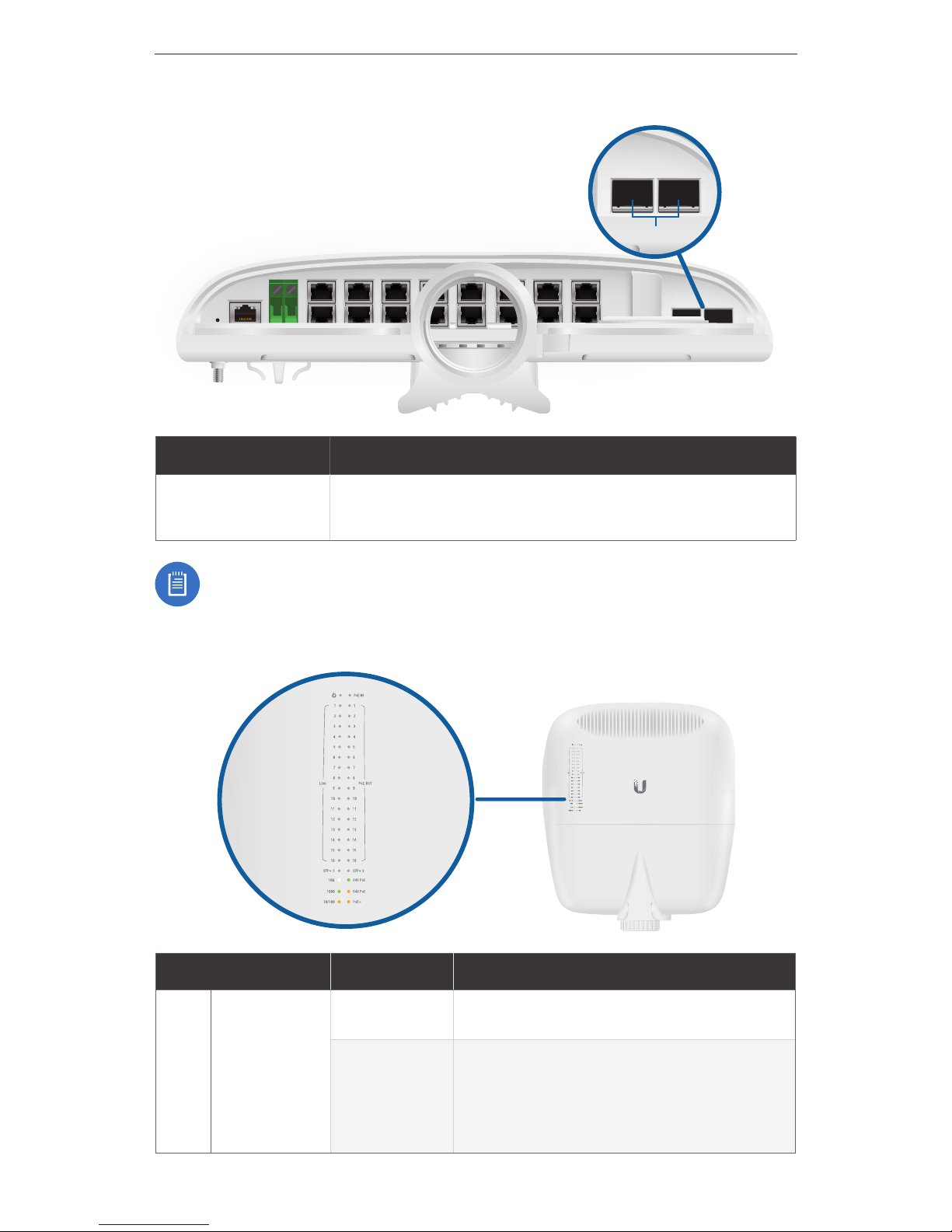

Bottom Panel SFP Ports

SFP+ 1-2

Interface

Description

SFP+ 1-2

SFP+ ports are hot-swappable and support
1/10 Gbps fiber SFP/SFP+ modules.

Note: For extreme temperatures, please use industrial-grade

fiber SFP/SFP+ modules.

Front Panel LEDs

LED State Status

power

White Ready for Use

Blue

Bootup in Progress

Flashing Indicates Reset to
Factory Defaults

6

EdgePoint

™

EP-S16 Quick Start Guide

LED State Status

PoE Input

Off No PoE

Green 54V Passive

1-4

Speed/

Link/Act

Off No Link

Amber

10/100Mbps Link
Flashing Indicates Activity

Green

1000Mbps (1 Gbps) Link
Flashing Indicates Activity

PoE

Output

Off No PoE

Amber 54V Passive, 4-Pair

Green 24V Passive, 4-Pair

5-16

Speed/

Link/Act

Off No Link

Amber

10/100Mbps Link
Flashing Indicates Activity

Green

1000Mbps (1 Gbps) Link
Flashing Indicates Activity

PoE

Output

Off No PoE

Amber PoE+ Auto (IEEE 802.3af/802.3at)

Green 24V Passive, 2-Pair

SFP+ 1-2

Speed/

Link/Act

Off No Link

Green

1000Mbps (1 Gbps) Link
Flashing Indicates Activity

White

10 Gbps Link
Flashing Indicates Activity

7

Hardware Overview

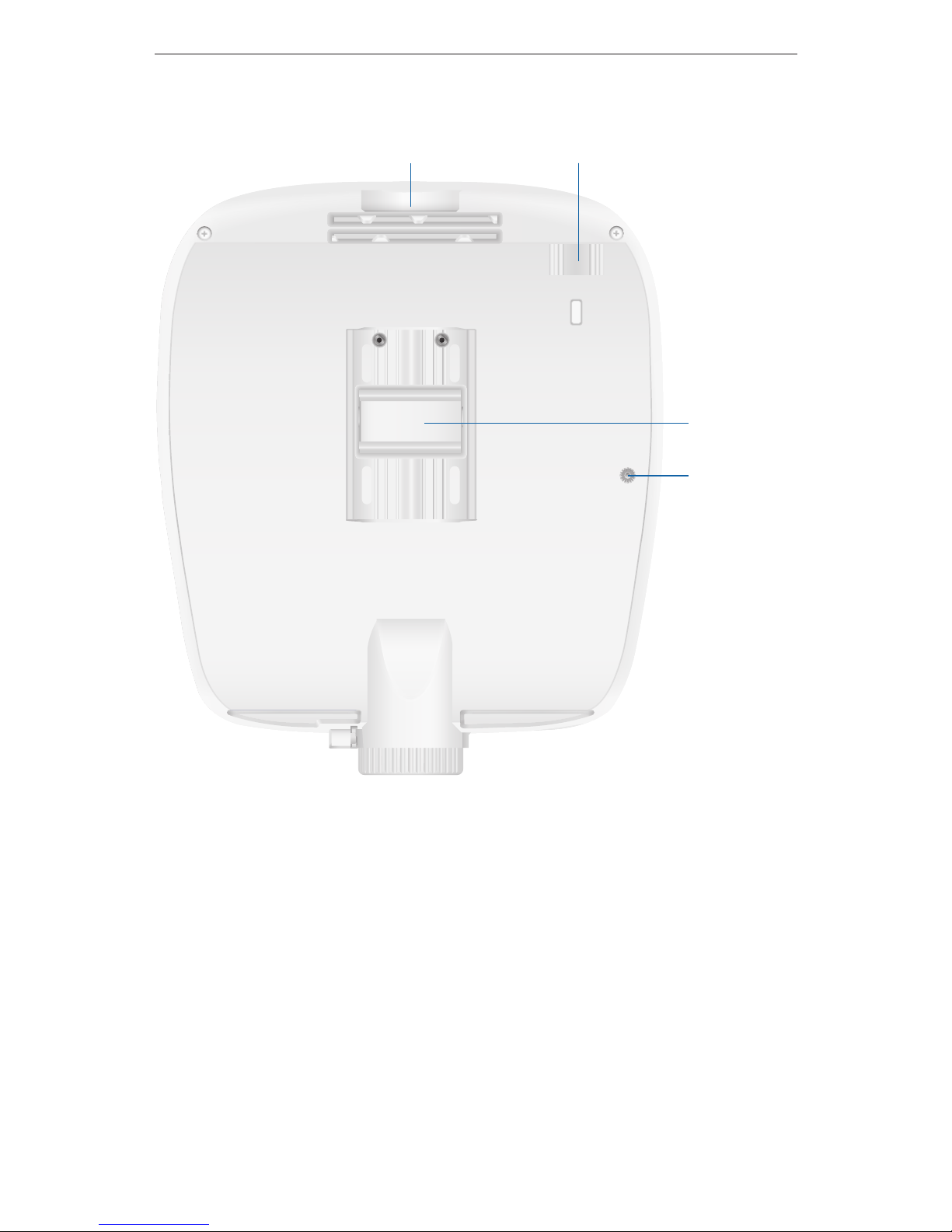

Back Panel

PicoStation Slot

Lanyard Loop

Pole-Mount

Bracket

Ground

Bonding Point

Lanyard Loop Used for temporary support during installation.
PicoStation®M2HP Slot Used for mounting an optional

PicoStationM2HP (not included) to the back of the EdgePoint. (You
can use the PicoStationM2HP for wireless management of the
EdgePoint.)

Pole-Mount Bracket Used for pole-mounting or in combination

with the included Wall-Mount Bracket for wall-mounting.

Ground Bonding Point Used to secure a ground wire (not

included).

8

EdgePoint

™

EP-S16 Quick Start Guide

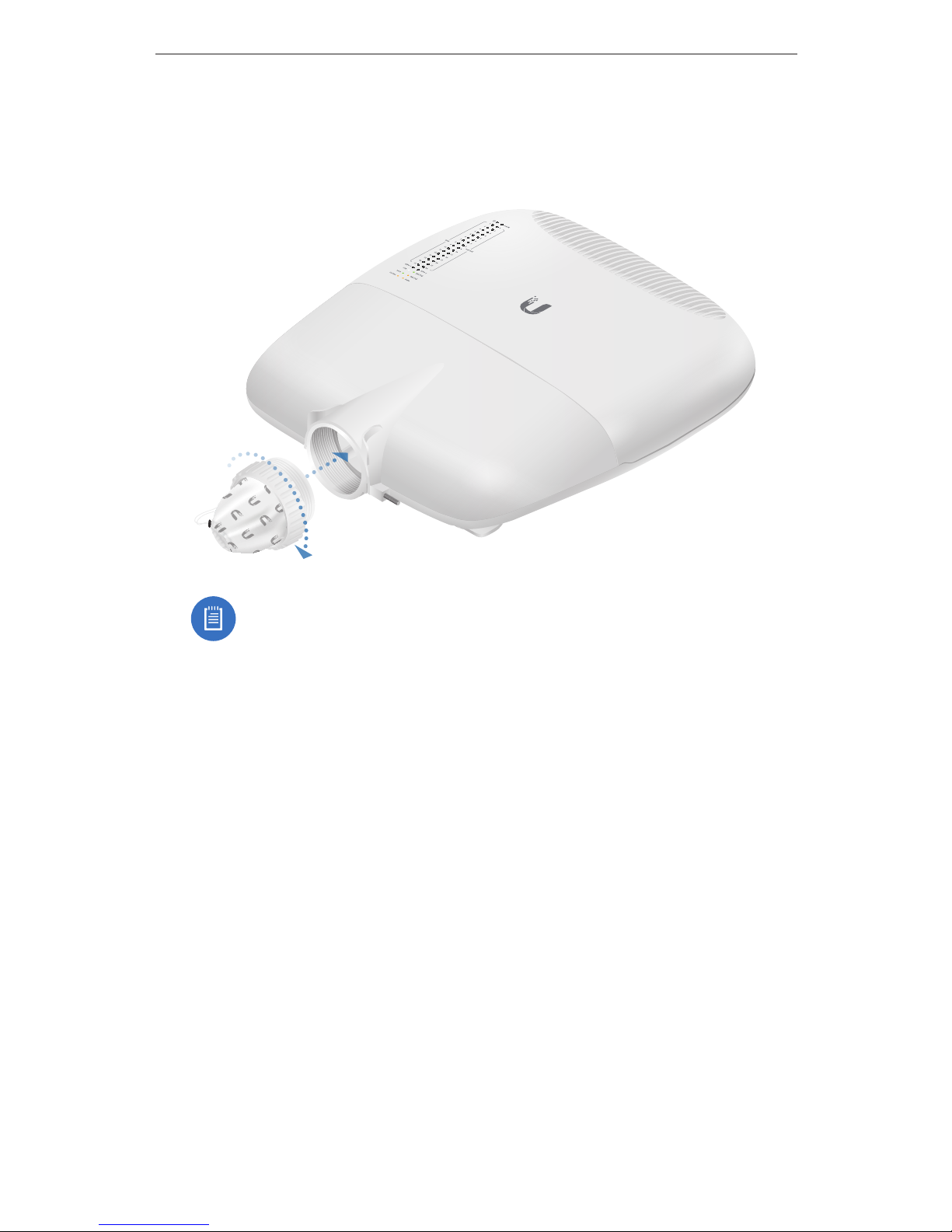

Attaching the Cable Sleeve

1. Insert and rotate the coupling to attach the Cable Sleeve to the
EdgePoint.

Note: You have two options for using a 2.0-inch NPT

(National Pipe Thread) male conduit (not included):

• Use the conduit instead of the CableSleeve.

• Use the conduit to extend the CableSleeve.

9

Attaching the Cable Sleeve

Hardware Installation

You can mount the EdgePoint on a pole or to a wall. Follow the
appropriate instructions for your installation method.

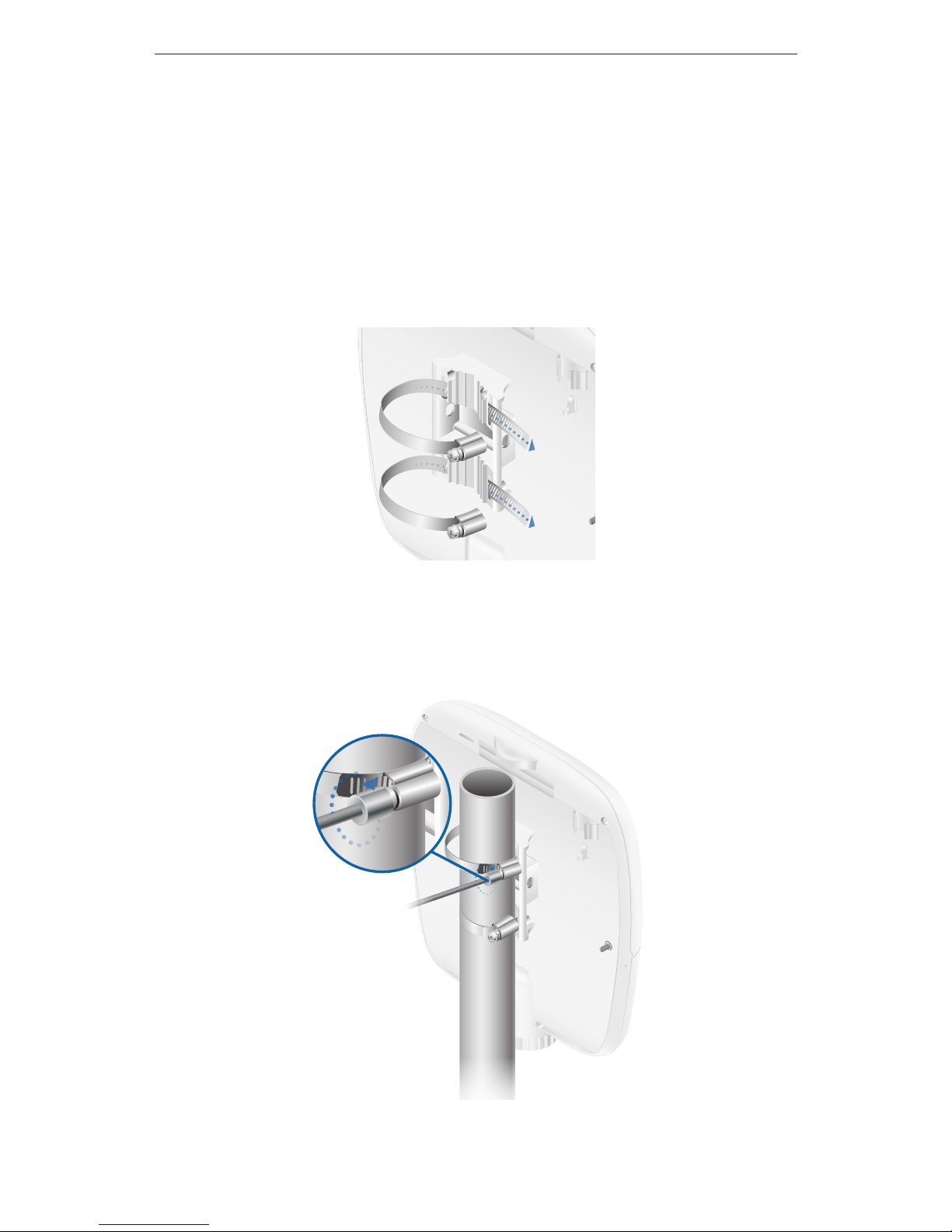

Pole-Mounting

1. Open the two Metal Straps and feed them through the
mounting slots on the back of the EdgePoint.

2. Wrap the Metal Straps around the pole. Use a 7 mm socket
wrench to turn the screws clockwise and securely fasten the
straps to the pole.

3. Proceed to the Grounding the EdgePoint section.

10

EdgePoint

™

EP-S16 Quick Start Guide

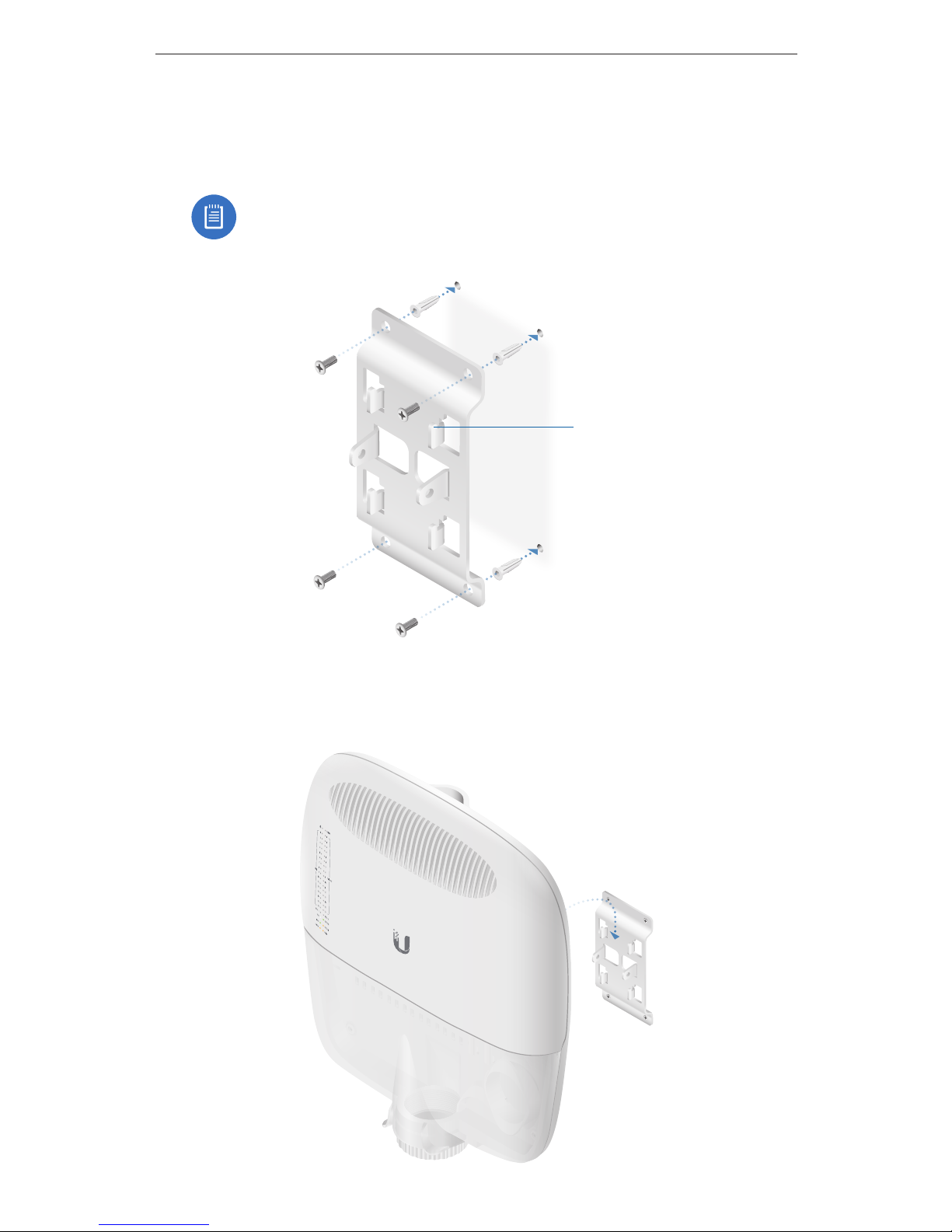

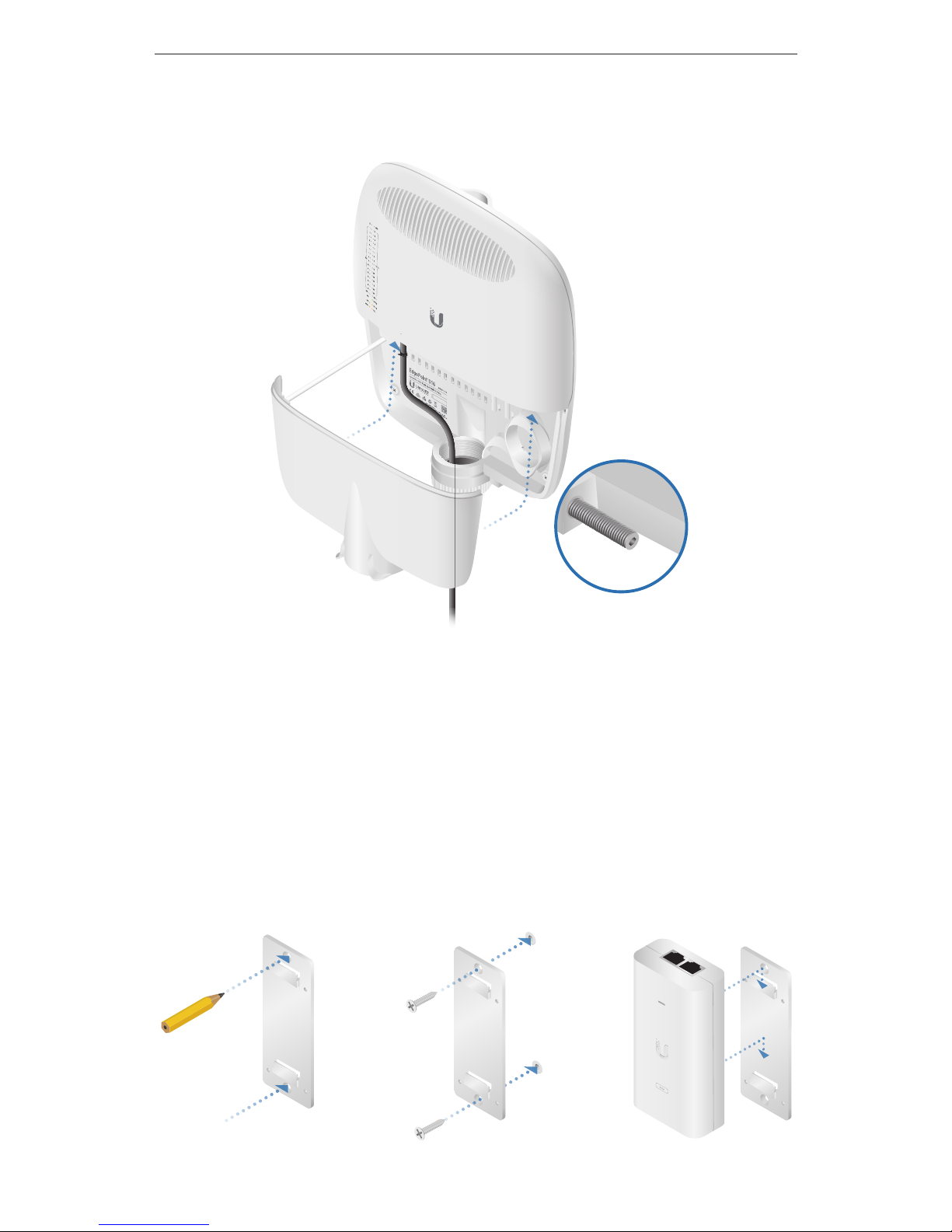

Wall-Mounting

1. Use M8 screws and anchors (not included) to attach the
Wall-Mount Bracket to the wall.

Note: The Wall-Mount Bracket must attach directly to a

stud or other structurally stablesurface.

Tab

Pointing

Up

2. Insert the tabs of the Wall-Mount Bracket into the slots of the
EdgePoint. Slide the EdgePoint down.

11

Hardware Installation

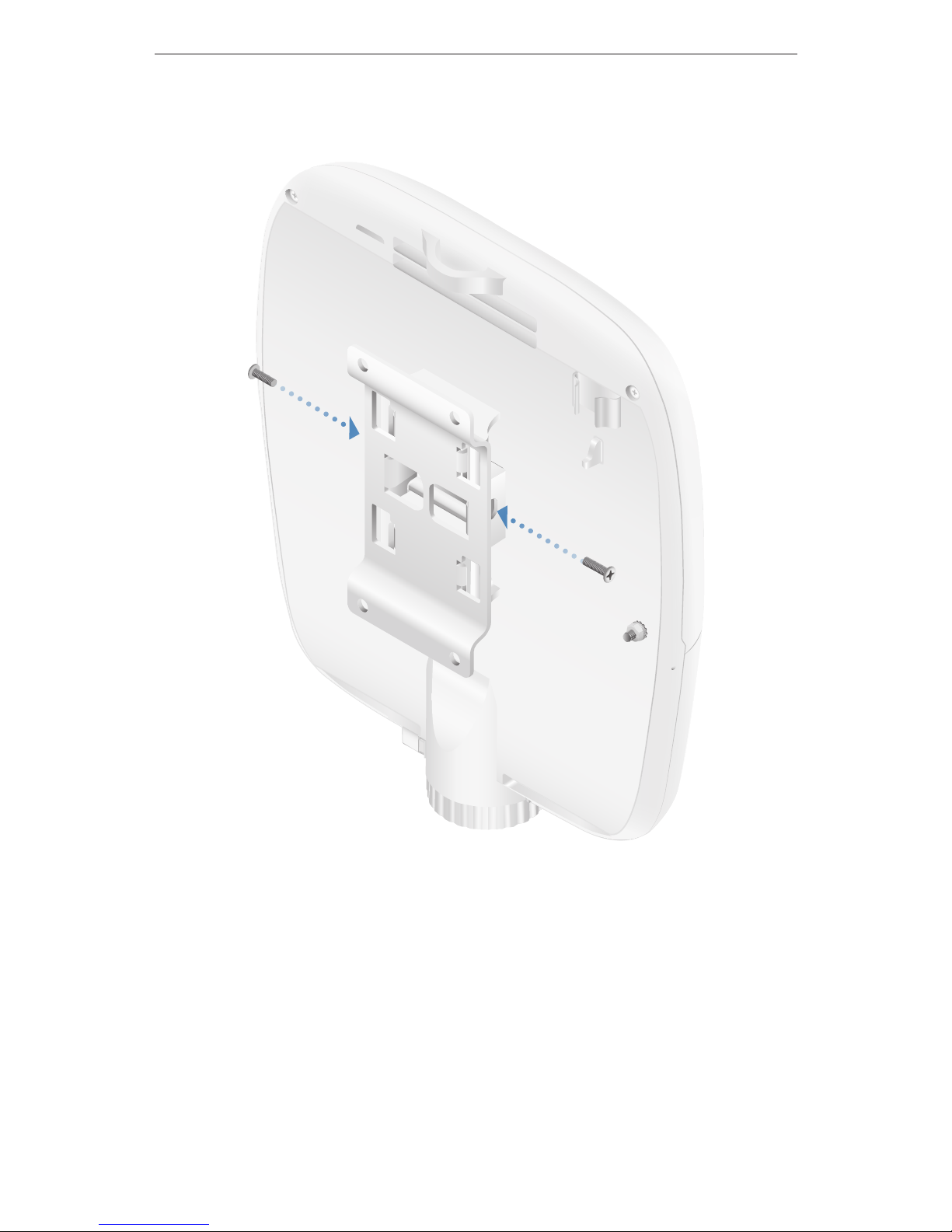

3. Use two M8x10 screws (not included) to attach the EdgePoint
to the Wall-Mount Bracket.

12

EdgePoint

™

EP-S16 Quick Start Guide

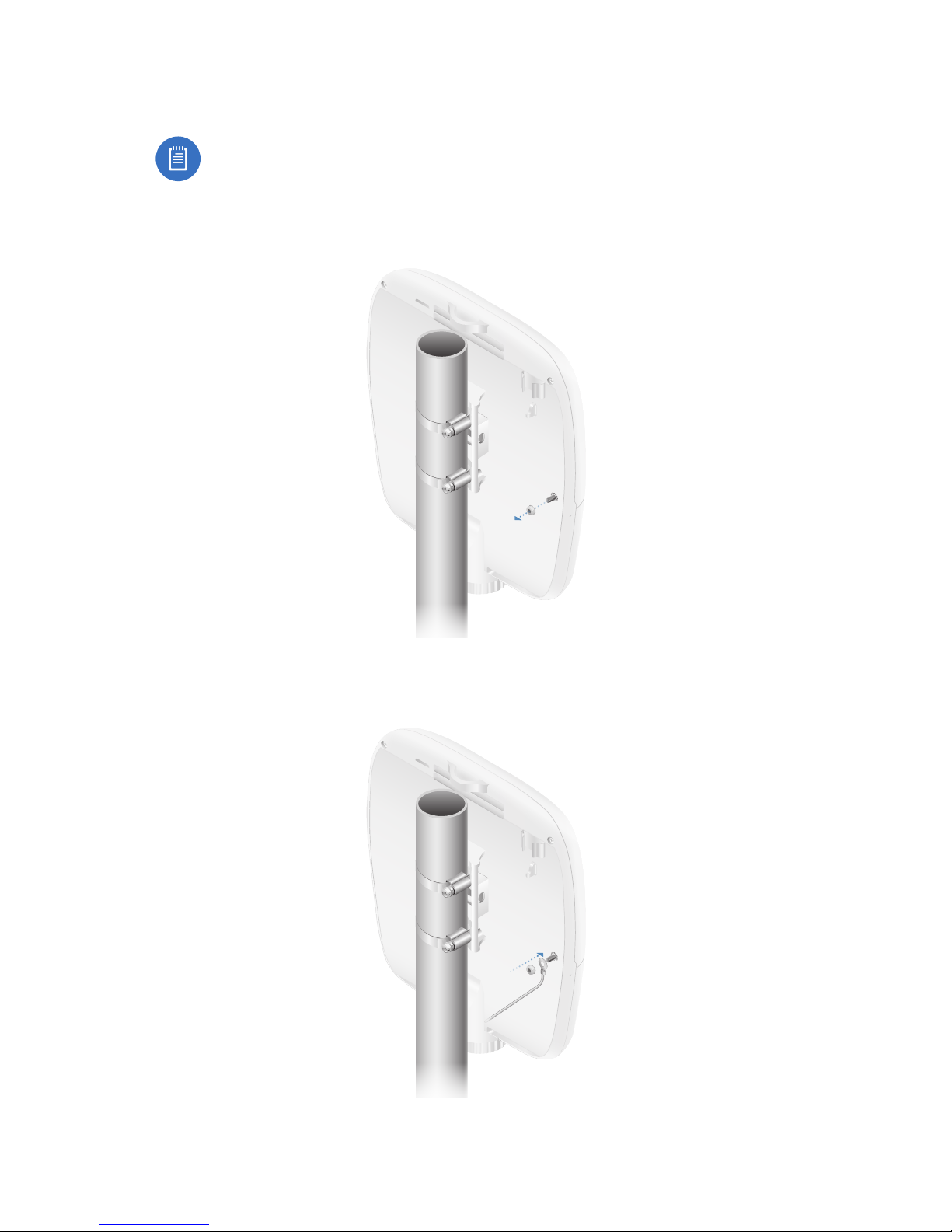

Grounding the EdgePoint

Note: The ground wire should be as short as possible and

no longer than one meter in length.

1. Remove the nut from the Ground Bonding Point located on the
back of the EdgePoint.

2. Attach a ground wire (min. 10 AWG or 5 mm2) to the lug and
replace the nut to secure the wire.

3. Secure the other end of the ground wire to a grounded mast,
pole, tower, or grounding bar.

13

Grounding the EdgePoint

Connecting Ethernet

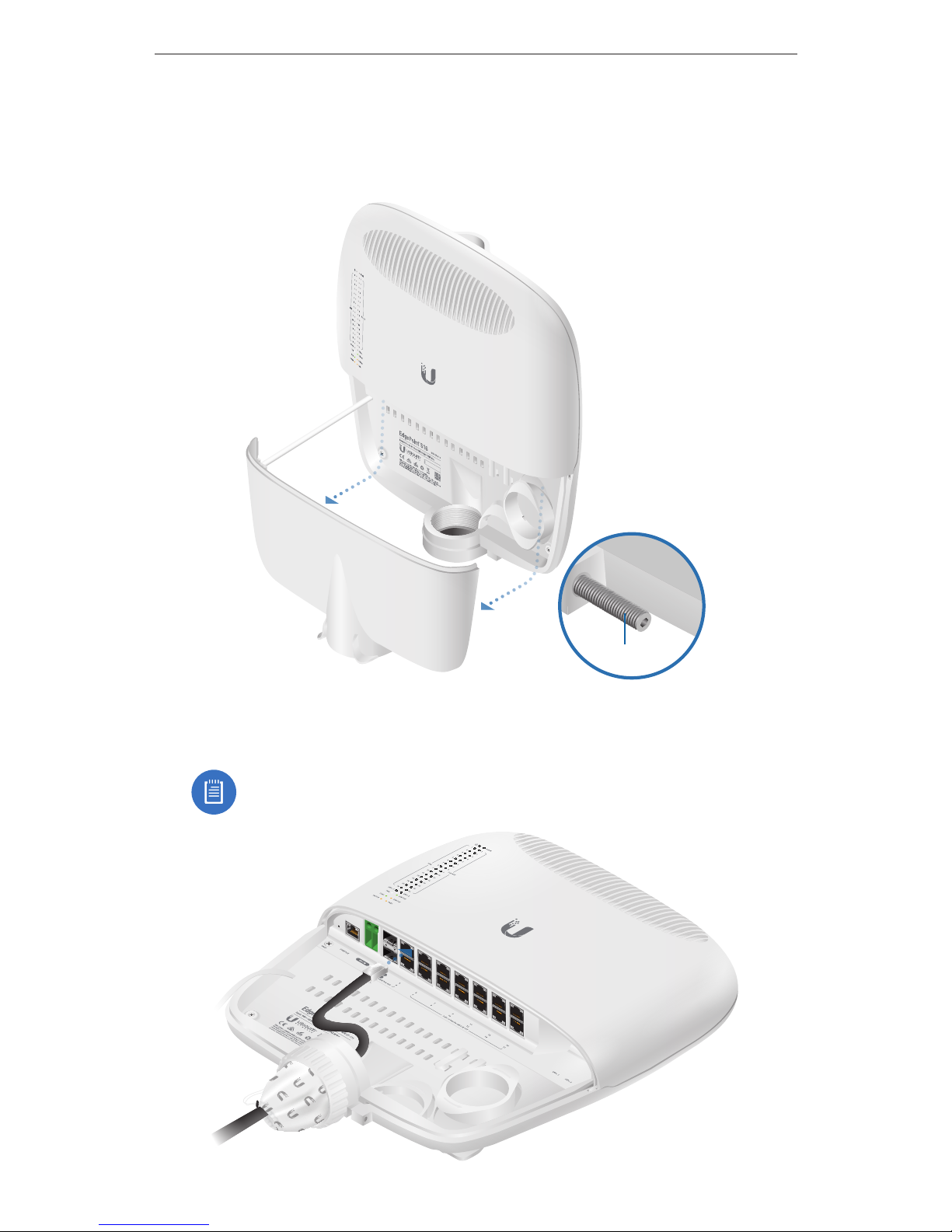

1. Use an S2 hex wrench to loosen the Screw and remove the port
cover from the EdgePoint.

Screw

2. Feed the Ethernet cables through the Cable Sleeve and connect
them to ports in this range: 1-16.

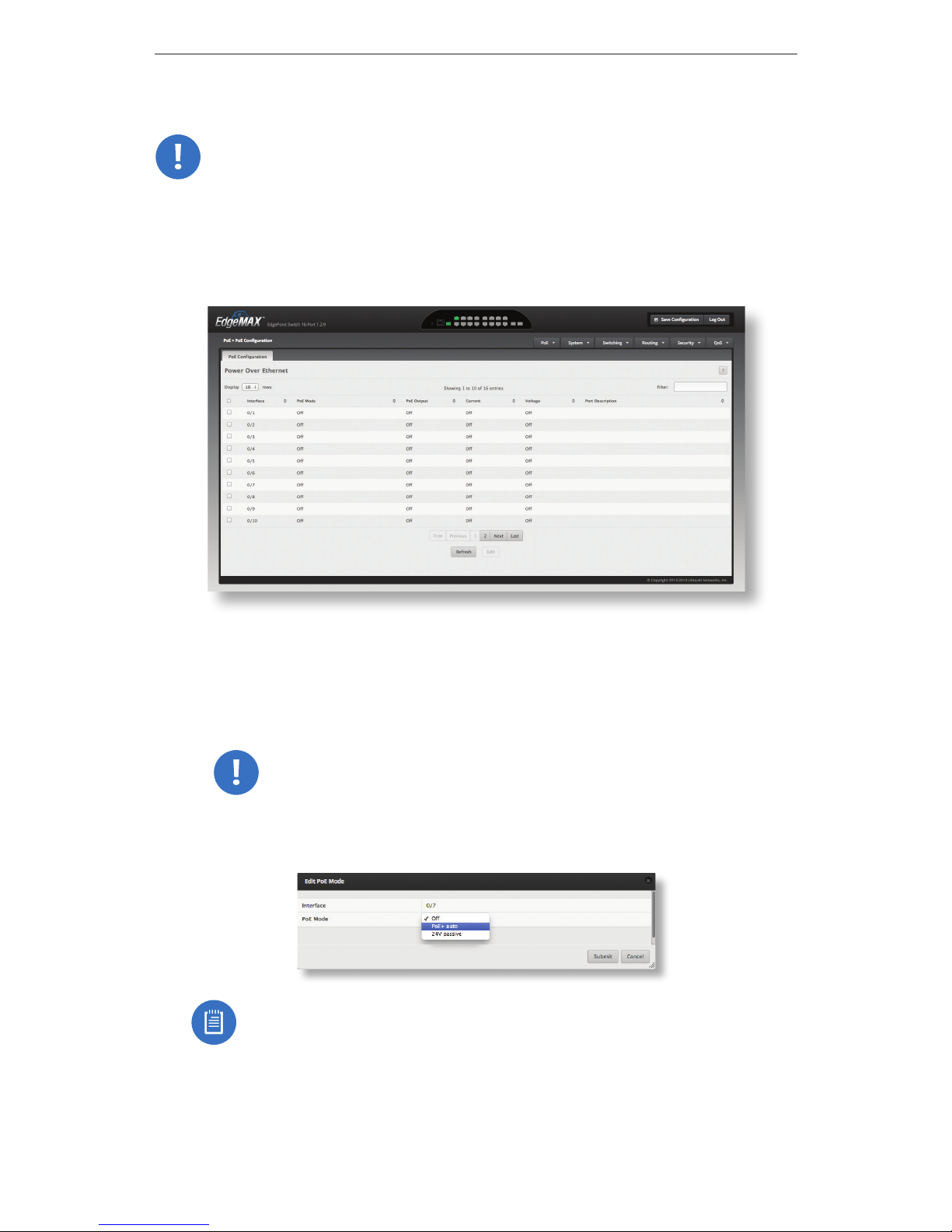

Note: PoE is disabled by default.

14

EdgePoint

™

EP-S16 Quick Start Guide

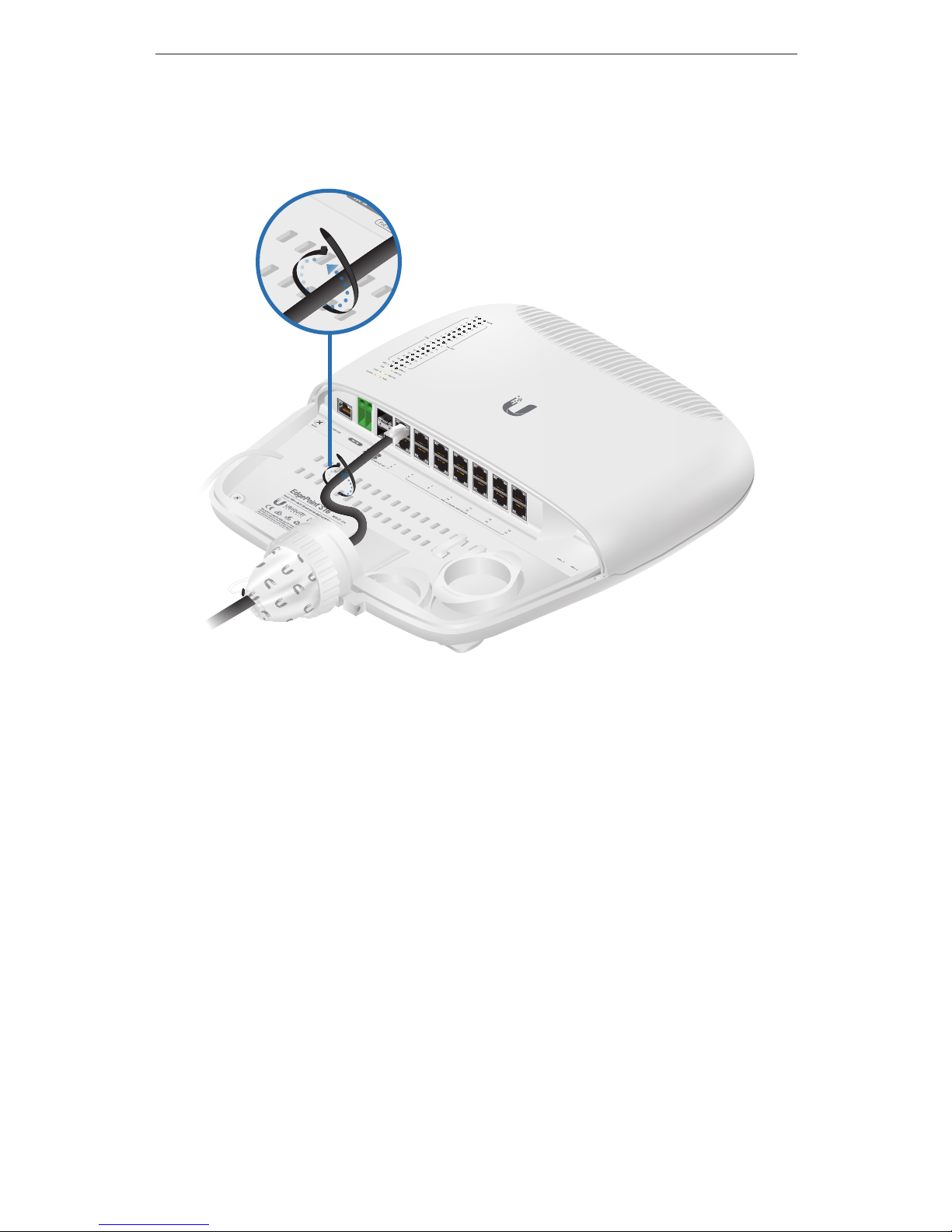

3. You can create a strain relief for any Ethernet cable by feeding
a cable tie (not included) through the tie slot under the cable.
Then wrap the cable tie around the cable and tighten.

4. Connect the other ends of the Ethernet cables to your network
devices.

15

Connecting Ethernet

Using SFP Ports

For information about compatible fiber SFP/SFP+ modules, visit:

community.ubnt.com/edgemax

To use an SFP+ port:

1. Plug a compatible fiber module into the SFP+ port.

2. Feed the fiber optic cable through the Cable Sleeve, and
remove the cable jacket from the fiber optic cable.

1000Mbps SM/SC 20KM DDM

Tx1550nm/Rx1310nm

SN: 1308261 79

EF-1000M -20 KM -15

50

50

50

50

16

EdgePoint

™

EP-S16 Quick Start Guide

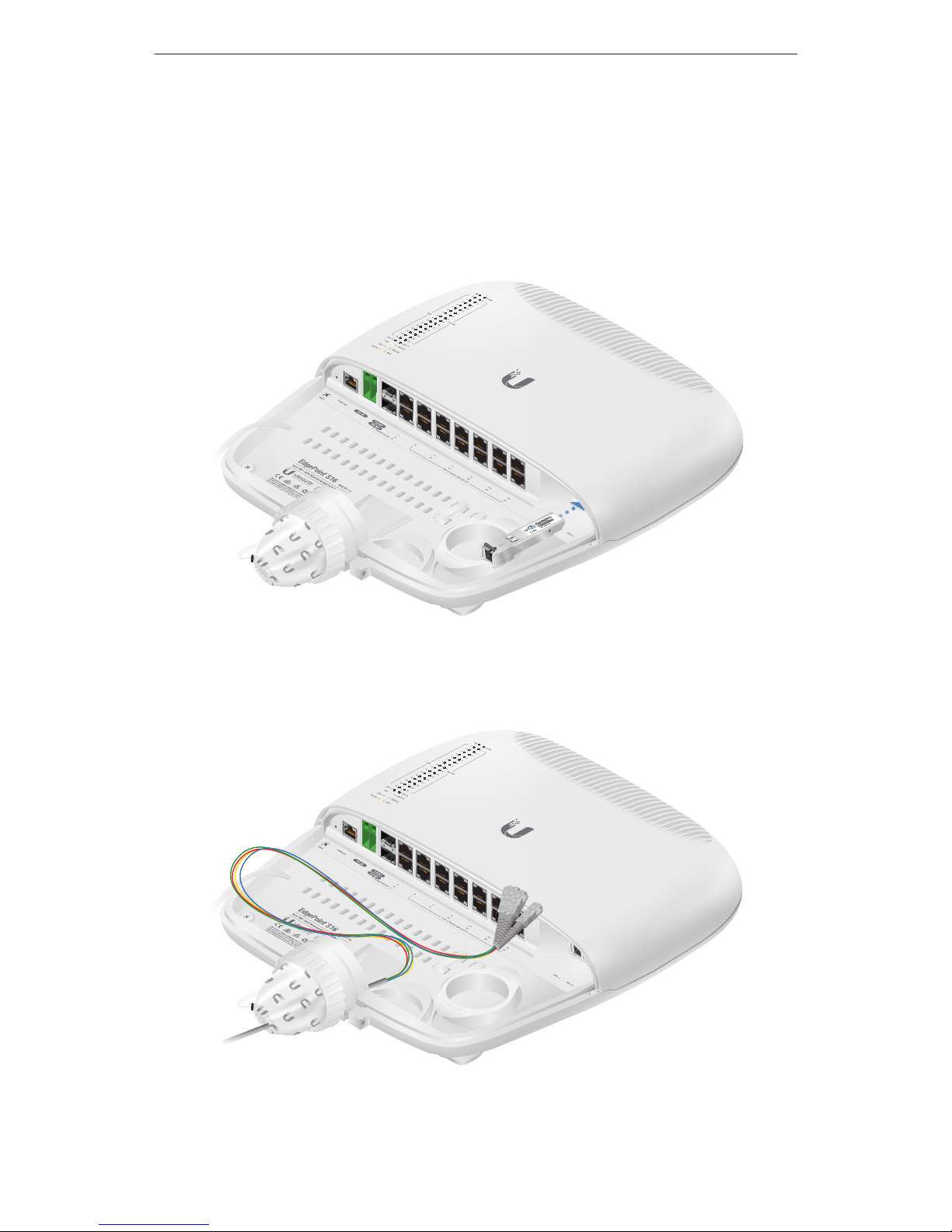

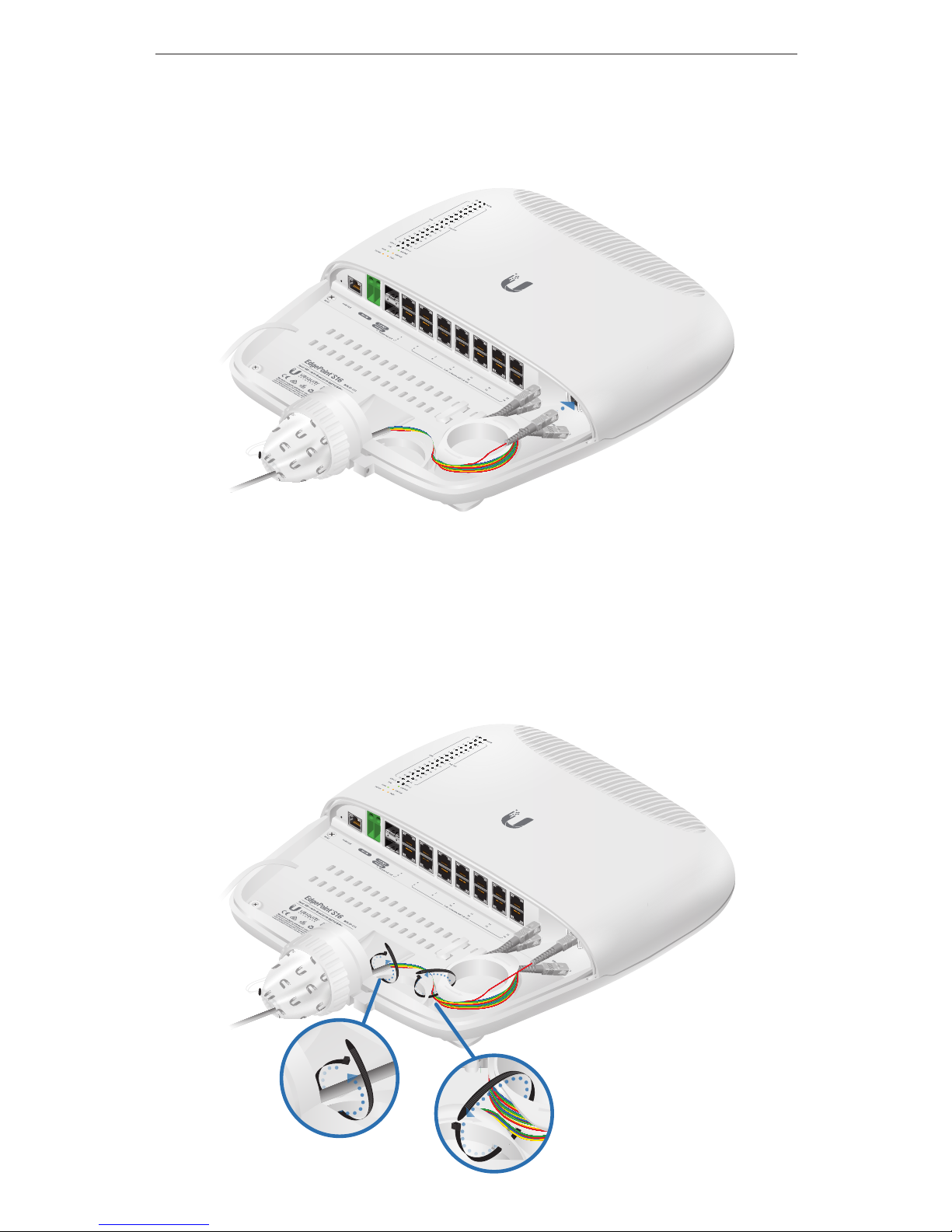

3. Separate the fiber optic strands and spool them around the
strain relief reels in the direction of the arrows. Then connect a
fiber optic strand to the fiber module.

50

50

50

1000Mbps SM/SC 20KM DDM

Tx1550nm/Rx1310nm

SN: 1308261 79

EF-1000M -20 KM- 15

50

4. To finish the strain relief:

a. Feed a cable tie (not included) through the tie slot near the

cable opening.

b. Feed an additional cable tie (not included) through the tie

slots at the bottom of the strain relief reels.

1000Mbps SM/SC 20KM DDM

Tx1550nm/Rx1310nm

SN: 1308261 79

EF-1000M -20 KM- 15

50

50

50

1000Mbps SM/SC 20KM DDM

Tx1550nm/Rx1310nm

SN: 1308261 79

EF-1000M -20 KM- 15

50

17

Using SFP Ports

Connecting to Power

Either the +42 to +56VDC input or PoE input is used at any one
time. If both input types are connected, only the input type
with the highest voltage will be used; the other can be used as a
backup. Follow the appropriate instructions for your installation:

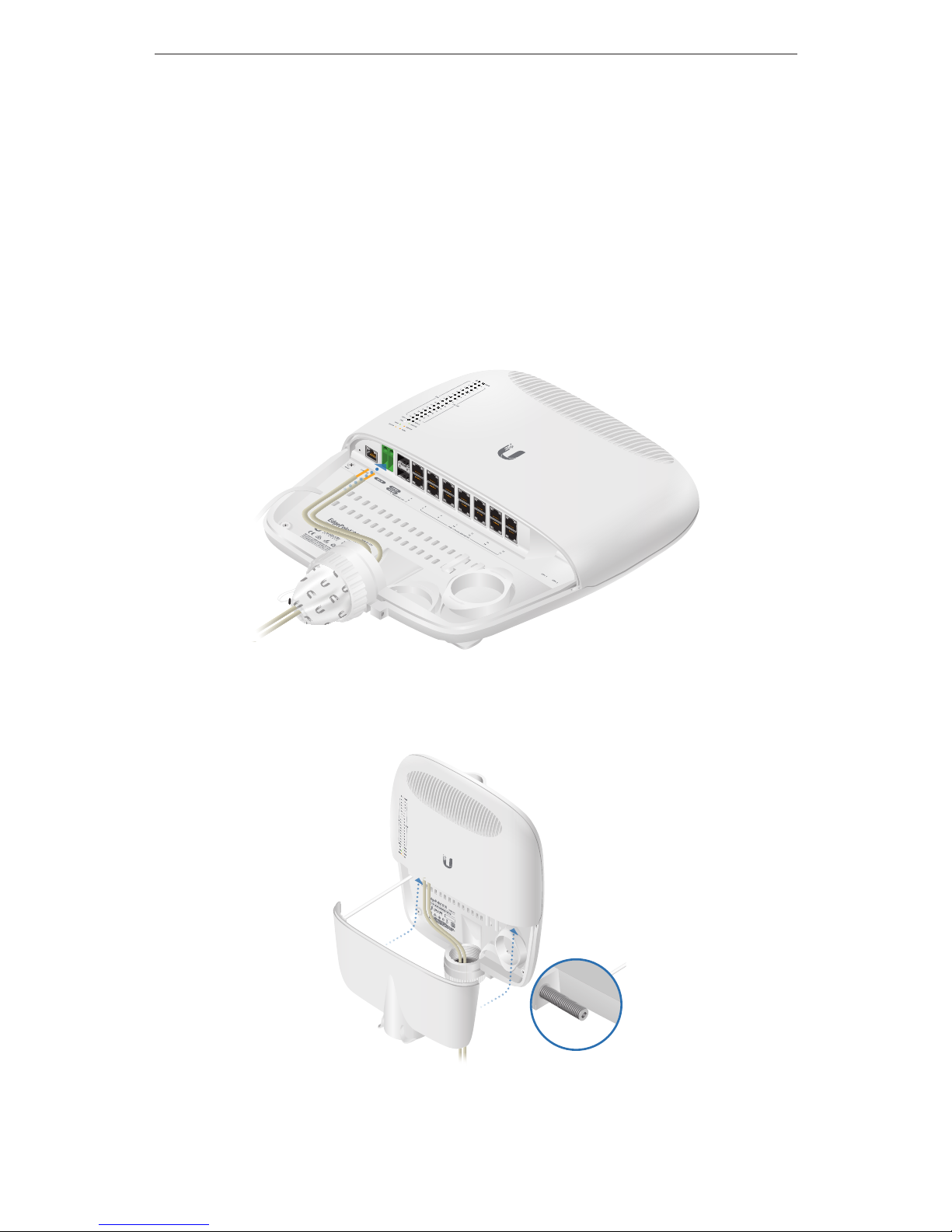

Connecting to the 54VDC Input

1. Wire one end of the DC power cable to the VDC terminal block,
which uses auto-polarity detection.

2. Replace the port cover and use an S2 hex wrench to tighten
the Screw and secure the port cover.

3. Wire the other end of the cable to a DC power supply.

4. Connect the DC power supply to its power source.

18

EdgePoint

™

EP-S16 Quick Start Guide

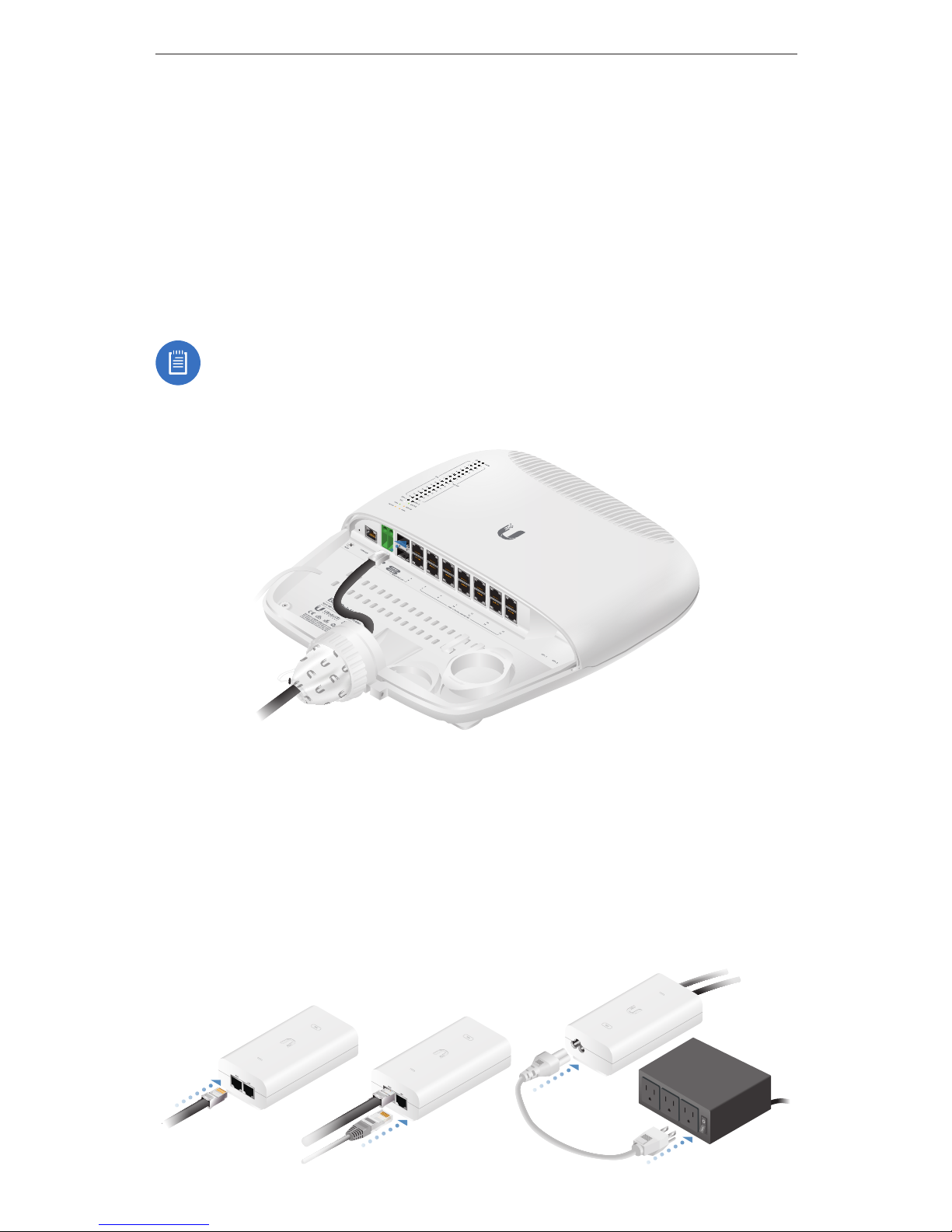

Connecting Power Using PoE

The following instructions show port PoE In / 1; however, you can
use portPoE In / 2 instead.

Both PoE inputs can be used at the same time. If there is a voltage
difference, the higher-voltage source will be used first. The voltage
from the initial source will drop as the load increases. When the
voltage drops to the same level as the lower-voltage source, then
the lower-voltage source will also start providing power.

Note: Do NOT configure port PoE In / 1 or 2 in PoE output

mode if you are using it as a PoE input power source.

1. Connect an Ethernet cable to port PoE In / 1 of the EdgePoint.

2. Connect the other end of the Ethernet cable to the POE port
on the Gigabit PoE adapter.

3. Connect an Ethernet cable from the LAN to the LAN port on
the Gigabit PoE adapter.

4. Connect the Power Cord to the Gigabit PoE adapter. Then plug
the Power Cord into a power outlet.

19

Connecting to Power

5. When you are finished, replace the port cover and use an
S2hex wrench to tighten the Screw and secure the port cover.

Mounting the PoE Adapter (Optional)

1. Remove the PoE Mounting Bracket from the adapter, place the
bracket at the desired location, and mark the two holes.

2. Pre-drill the holes if necessary, and secure the bracket using
two fasteners (not included).

3. Align the slots on the adapter with the tabs on the PoE
Mounting Bracket, and then slide the adapter down.

20

EdgePoint

™

EP-S16 Quick Start Guide

Accessing the Configuration Interface

The EP-S16 is set to DHCP by default, so it will try to automatically
obtain an IP address. If that fails, then it will use the default fallback
IP address, 192.168.1.2. Proceed to the appropriate section, DHCP
or Fallback IP Address:

DHCP

Use one of the following methods:

• Set up the DHCP server to provide a specific IP address to the

EP-S16 based on its MAC address (on the label).

• Let the EP-S16 obtain an IP address and then check the DHCP

server to see which IP address was assigned.

To log in, follow these steps:

1. Launch your web browser. Type the appropriate IP address in
the address field. Press enter (PC) or return (Mac).

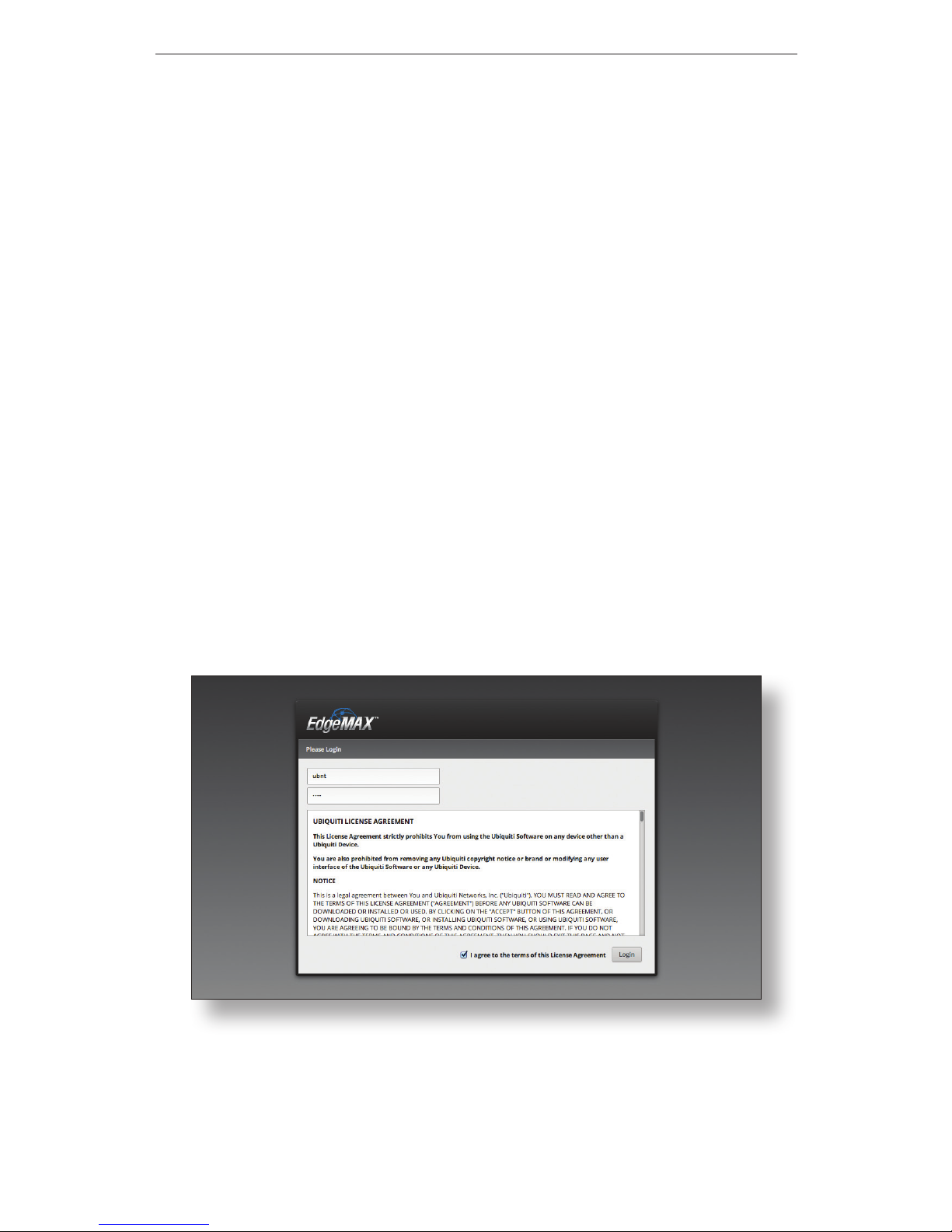

2. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.

The EP-S16 Configuration Interface will appear. Customize
additional settings as needed. For more information on PoE
configuration, refer to the Configuring PoE Settings section.

21

Accessing the Configuration Interface

Fallback IP Address

1. Ensure that your computer (or other host machine) is
connected to the EP-S16.

2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.

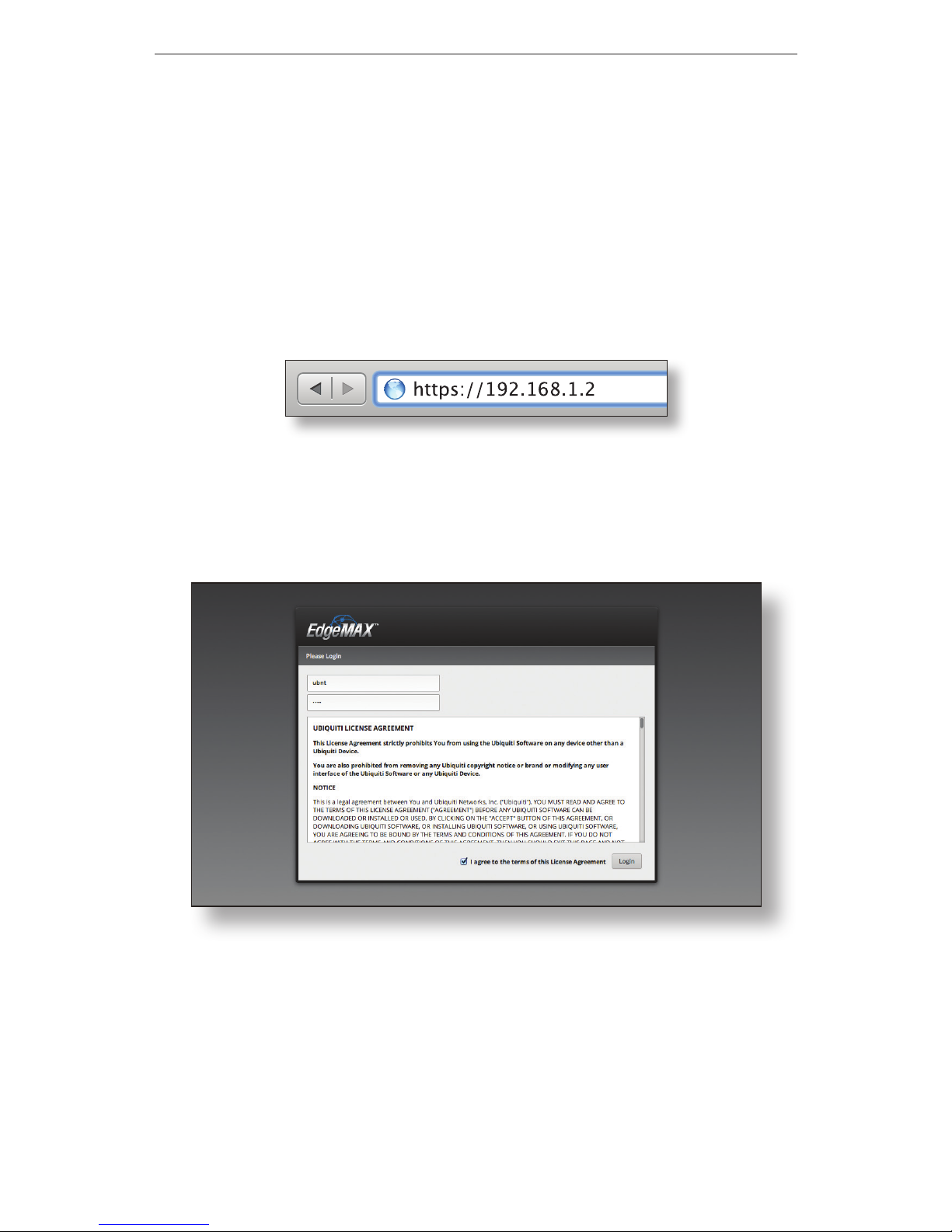

3. Launch your web browser. Type the appropriate IP address in
the address field (192.168.1.2 is the default fallback IP address).
Press enter (PC) or return (Mac).

4. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.

22

EdgePoint

™

EP-S16 Quick Start Guide

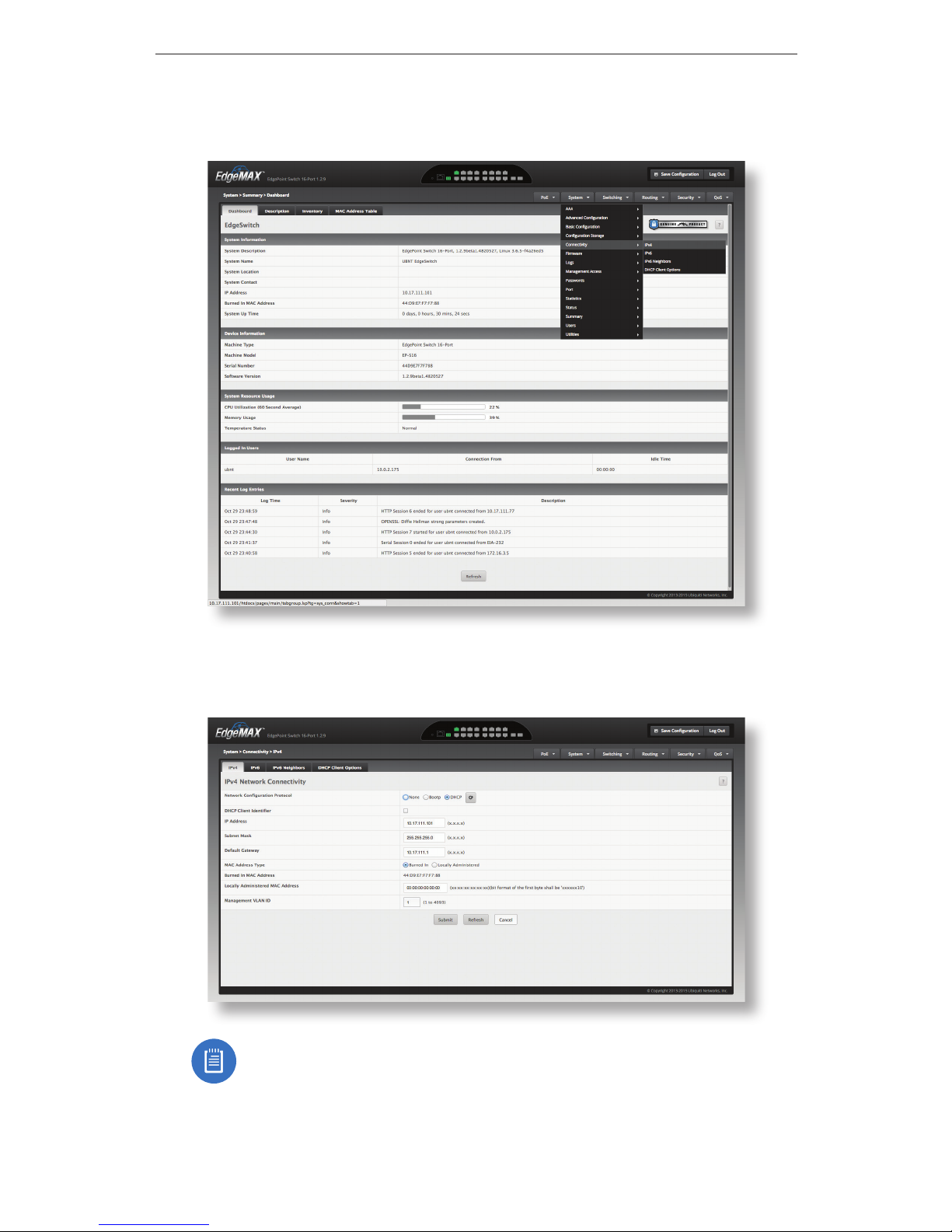

5. The EP-S16 Configuration Interface will appear. Go to System >
Connectivity > IPv4.

6. Change the IP Address to a unique IP address or select DHCP
on the IPv4 tab. Click Submit.

Note: If you change the IP settings, then the session will

be cut off, and you will need to reconnect to the EP-S16
using the new IP address.

Customize additional settings as needed. For more information on
PoE configuration, refer to the Configuring PoE Settings section.

23

Accessing the Configuration Interface

Configuring PoE Settings

WARNING: Before activating 54V or 24V passive PoE,

ensure that the connected device supports PoE and the

suppliedvoltage.

1. Go to PoE > PoE Configuration.

2. Select the Ethernet port you want to configure. Then clickEdit.

3. Configure the PoE Mode setting:

• For ports 1-4, select Off, 54V passive 4-pair, or 24Vpassive

4-pair.

• For ports5-16, select Off, PoE+ auto, or 24Vpassive.

WARNING: Do NOT connect 4-pair PoE devices, such

as airFiber devices, to ports 5-16. They support 2-pair
PoE only.

ThenclickSubmit.

Note: If the PoE screen states that PoE is not supported,

then there is insufficient power. You will need to increase
the power input to the EdgePoint.

For more information, refer to the EdgeSwitch

™

documentation,

which is available at documentation.ubnt.com/edgemax

24

EdgePoint

™

EP-S16 Quick Start Guide

Specifications

EP-S16

Dimensions

With Wall-Mount

326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")

326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")

Weight

With Wall-Mount

3.4 kg (7.50 lb)

3.8 kg (8.38 lb)

Max. Power Consumption 40W (Excludes PoE Output)

Power Input (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2)

(Self-Correcting Polarity Protection on DC Terminal

Block Only,

Diode ORed Protection on All Power Inputs)

Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)

VDC Input 54V / 6A

Passive PoE Input (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive

PoE, Ports 1 and 2

(Do NOT Congure Port 1 or 2 in PoE Output Mode

if You Are Using PoE Input Power Sources.)

Passive PoE Output (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8)

Passive PoE, Ports 1 to 4

(12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8)

Passive PoE, Ports 5 to 16

Power Monitoring (1) DC Terminal Block, Input Power

(2) RJ45, Ports 1 and 2, PoE Input or Output Power

(14) RJ45, Ports 3 to 16, PoE Output Power

Supported Voltage Range +42 to +56VDC

Button Reset

LEDs

System
PoE In
1 to 16
SFP

Power

PoE

Speed/Link/Activity, PoE

Speed/Link/Activity

Ports

Serial Console Port
Data Ports

(1) RJ45 Serial Port

(16) 10/100/1000 RJ45 Ports

(2) 1/10 Gbps SFP+ Ports

Certications CE, FCC, IC

Pole/Wall Mount Yes

Operating Temperature -40 to 65° C (-40 to 149° F)

Operating Humidity 10 - 90% Noncondensing

25

Specifications

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specified by the manufacturer.

WARNING: Do not use this product in location that can be

submerged by water.

WARNING: Avoid using this product during an electrical

storm. There may be a remote risk of electric shock from
lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a different
power source than those specified may result in improper operation, damage to
the equipment or pose a fire hazard if the limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service should be
provided only by a qualified service technician.

3. This equipment is provided with a detachable power cord which has an integral
safety ground wire intended for connection to a grounded safety outlet.

a. Do not substitute the power cord with one that is not the provided approved

type. Never use an adapter plug to connect to a 2-wire outlet as this will
defeat the continuity of the grounding wire.

b. The equipment requires the use of the ground wire as a part of the safety

certification, modification or misuse can provide a shock hazard that can
result in serious injury or death.

c. Contact a qualified electrician or the manufacturer if there are questions

about the installation prior to connecting the equipment.

d. Protective earthing is provided by Listed AC adapter. Building installation

shall provide appropriate short-circuit backup protection.

e. Protective bonding must be installed in accordance with local national wiring

rules and regulations.

26

EdgePoint

™

EP-S16 Quick Start Guide

Limited Warranty

UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the product(s)
furnished hereunder (the “Product(s)”) shall be free from defects in material and
workmanship for a period of one (1) year from the date of shipment by UBIQUITI
NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and
exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI
NETWORKS, at its discretion, to repair or replace any Product that fails to conform to
the above warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty period of
any repaired or replaced Product shall not extend beyond its original term.

Warranty Conditions

The above warranty does not apply if the Product:

(I) has been modified and/or altered, or an addition made thereto, except by

Ubiquiti Networks, or Ubiquiti Networks’ authorized representatives, or as
approved by Ubiquiti Networks in writing;

(II) has been painted, rebranded or physically modified in any way;

(III) has been damaged due to errors or defects in cabling;

(IV) has been subjected to misuse, abuse, negligence, abnormal physical,

electromagnetic or electrical stress, including lightning strikes, or accident;

(V) has been damaged or impaired as a result of using third party firmware;

(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti

label(s); or

(VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

In addition, the above warranty shall apply only if: the product has been properly
installed and used at all times in accordance, and in all material respects, with the
applicable Product documentation; all Ethernet cabling runs use CAT5 (or above),
and for outdoor installations, shielded Ethernet cabling is used, and for indoor
installations, indoor cabling requirements are followed.

Returns

No Products will be accepted for replacement or repair without obtaining a Return
Materials Authorization (RMA) number from UBIQUITI NETWORKS during the
warranty period, and the Products being received at UBIQUITI NETWORKS’ facility
freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products
returned without an RMA number will not be processed and will be returned freight
collect or subject to disposal. Information on the RMA process and obtaining an RMA
number can be found at: www.ubnt.com/support/warranty.

27

Limited Warranty

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS,
ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND
HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION
OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING,
BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF
MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A
PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY WARRANTIES ARISING
FROM ANY COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH
SUCH PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI
NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT
OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO
LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS
INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS
AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR
ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS,
CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the
operation of the Products will be error-free or that operation will be uninterrupted.
In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any
nature or description relating to system performance, including coverage, buyer’s
selection of products (including the Products) for buyer’s application and/or failure of
products (including the Products) to meet government or regulatory requirements.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI
OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT,
LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE,
OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY,
CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.

Note

Some countries, states and provinces do not allow exclusions of implied warranties
or conditions, so the above exclusion may not apply to you. You may have other
rights that vary from country to country, state to state, or province to province. Some
countries, states and provinces do not allow the exclusion or limitation of liability for
incidental or consequential damages, so the above limitation may not apply to you.
EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY
STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED
IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the
International Sale of Goods shall not apply to any transactions regarding the sale of
the Products.

28

EdgePoint

™

EP-S16 Quick Start Guide

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that
may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

Industry Canada

CAN ICES-3(A)/NMB-3(A)

This Class A digital apparatus complies with Canadian CAN ICES-003.

CAN ICES-3(A)/NMB-3(A)

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Australia and New Zealand

Warning: This is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required to take
adequate measures.

CE Marking

CE marking on this product represents the product is in compliance with all directives
that are applicable to it.

29

Compliance

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing this symbol on
the product and/or its packaging must not be disposed of with unsorted municipal
waste. The symbol indicates that this product should be disposed of separately from
regular household waste streams. It is your responsibility to dispose of this and other
electric and electronic equipment via designated collection facilities appointed by
the government or local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and human health. For more
detailed information about the disposal of your old equipment, please contact
your local authorities, waste disposal service, or the shop where you purchased the
product.

Deutsch

Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die
direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist,
nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das
Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt
entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere
elektrische und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen.
Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle negative
Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere
Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die
örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei
dem Sie das Produkt erworben haben.

Español

La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio
aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no
seleccionados. El símbolo indica que el producto en cuestión debe separarse de los
residuos domésticos convencionales con vistas a su eliminación. Es responsabilidad
suya desechar este y cualesquiera otros aparatos eléctricos y electrónicos a través
de los puntos de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará contribuyendo
a evitar posibles consecuencias negativas para el medio ambiente y la salud de las
personas. Si desea obtener información más detallada sobre la eliminación segura
de su aparato usado, consulte a las autoridades locales, al servicio de recogida
y eliminación de residuos de su zona o pregunte en la tienda donde adquirió el
producto.

30

EdgePoint

™

EP-S16 Quick Start Guide

Français

La directive européenne 2012/19/UE exige que l’équipement sur lequel est apposé
ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures
ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit
distinct de celui pour les déchets des ménages. Il est de votre responsabilité de jeter
ce matériel ainsi que tout autre matériel électrique ou électronique par les moyens
de collecte indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour but de
lutter contre l’impact néfaste potentiel de ce type de produits sur l’environnement et
la santé publique. Pour plus d’informations sur le mode d’élimination de votre ancien
équipement, veuillez prendre contact avec les pouvoirs publics locaux, le service de
traitement des déchets, ou l’endroit où vous avez acheté le produit.

Italiano

La direttiva europea 2012/19/UE richiede che le apparecchiature contrassegnate
con questo simbolo sul prodotto e/o sull’imballaggio non siano smaltite insieme
ai rifiuti urbani non differenziati. Il simbolo indica che questo prodotto non deve
essere smaltito insieme ai normali rifiuti domestici. È responsabilità del proprietario
smaltire sia questi prodotti sia le altre apparecchiature elettriche ed elettroniche
mediante le specifiche strutture di raccolta indicate dal governo o dagli enti pubblici
locali. Il corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano. Per ricevere
informazioni più dettagliate circa lo smaltimento delle vecchie apparecchiature in
Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di
smaltimento rifiuti o il negozio nel quale avete acquistato il prodotto.

Declaration of Conformity

Česky
[Czech]

UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI NETWORKS zařízení, je ve
shod se základními požadavky a dalšími příslušnými ustanoveními směrnic 2014/30/
EU, 2014/35/EU.

Dansk
[Danish]

Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enhed, er
i overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiver
2014/30/EU, 2014/35/EU.

Nederlands
[Dutch]

Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI NETWORKS apparaat, in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijnen 2014/30/EU, 2014/35/EU.

English

Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS device, is in
compliance with the essential requirements and other relevant provisions of Directives
2014/30/EU, 2014/35/EU.

Eesti
[Estonian]

Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI NETWORKS seade, on
vastavus olulistele nõuetele ja teistele asjakohastele sätetele direktiivide 2014/30/EL,
2014/35/EL.

Suomi
[Finnish]

Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI NETWORKS laite, on
yhdenmukainen olennaisten vaatimusten ja muiden sitä koskevien direktiivien 2014/30/
EU, 2014/35/EU.

Français
[French]

Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI NETWORKS,
est conforme aux exigences essentielles et aux autres dispositions pertinentes des
directives 2014/30/UE, 2014/35/UE.

Deutsch
[German]

Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI NETWORKS Gerät, in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinien 2014/30/EU, 2014/35/EU befindet.

31

Declaration of Conformity

Ελληνική
[Greek]

Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI
NETWORKS, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές
διατάξεις των οδηγιών 2014/30/ΕE, 2014/35/ΕE.

Magyar
[Hungarian]

Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék
megfelel az alapvető követelményeknek és más vonatkozó 2014/30/EU, 2014/35/EU
irányelvek rendelkezéseit.

Íslenska
[Icelandic]

Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við
grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB.

Italiano
[Italian]

Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI
NETWORKS, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti delle
direttive 2014/30/UE, 2014/35/UE.

Latviski
[Latvian]

Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS ierīce, ir saskaņā ar
būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās 2014/30/ES,
2014/35/ES.

Lietuviškai
[Lithuanian]

UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka
esminius reikalavimus ir kitas 2014/30/ES, 2014/35/ES Direktyvų nuostatas.

Malti
[Maltese]

Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz UBIQUITI NETWORKS huwa
konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħrajn ta ‘Direttivi 2014/30/
UE, 2014/35/UE.

Norsk
[Norwegian]

Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enheten, er i
samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene
2014/30/EU, 2014/35/EU.

Polski
[Polish]

Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI NETWORKS, jest
zgodny z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami
Dyrektyw 2014/30/UE, 2014/35/UE.

Português
[Portuguese]

UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, está
conforme com os requisitos essenciais e outras disposições das Directivas
2014/30/UE, 2014/35/UE.

Română
[Romanian]

Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI NETWORKS
este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivelor
2014/30/UE, 2014/35/UE.

Slovensky
[Slovak]

Týmto UBIQUITI NETWORKS, prehlasuje, že toto UBIQUITI NETWORKS zariadenie, je v
súlade so základnými požiadavkami a ďalšími relevantnými ustanoveniami smernice
2014/30/EÚ, 2014/35/EÚ.

Español
[Spanish]

Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI
NETWORKS, cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de las Directivas 2014/30/UE, 2014/35/UE.

Svenska
[Swedish]

Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI NETWORKS enhet
är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiven 2014/30/EU, 2014/35/EU.

Online Resources

Support support.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com

JL033116

32

EdgePoint

™

EP-S16 Quick Start Guide

www.ubnt.com

© 2015-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks,
the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, airMAX, EdgeMAX, EdgePoint,
EdgePower, EdgeSwitch, FiberProtect, PicoStation, and TOUGHCable are trademarks
or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other
countries. All other trademarks are the property of their respective owners.

*640-00221-05*

640-00221-05
