Ubiquiti AF-5X-US Quick Start Guide
5 GHz Carrier
DATA
MGMT
GPS
LINK
Backhaul Radio
Model: AF-5X
LINK
GPS
MGMT
DATA
Introduction
DATA
MGMT
GPS
LINK
Thank you for purchasing the Ubiquiti Networks® airFiber®
5GHz Carrier Backhaul Radio. This Quick Start Guide is
designed to guide you through the installation, show you how
to access the airFiber Configuration Interface, and explain how
to set up an airFiber link. This Quick Start Guide is for use with
the airFiber AF-5X.
Warranty terms, safety notices, and compliance information
are in the airFiber AF-5X User Guide, available at:
downloads.ubnt.com
Package Contents
airFiber AF-5X GPS Antenna
Cable Ties
(Qty. 2)
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable
is designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.
Mount
airFiber PoE Adapter
with Mounting
Bracket
(24V, 1A)
External GPS
Antenna
Power Cord Quick Start
Metal Strap
LINK
GPS
MGMT
DATA
5 GHz Carrier
Backhaul Radio
Model: AF-5X
Guide
™
Installation Requirements
The airFiber AF-5X radio operates only with an airFiber X
antenna or a converted RocketDish™ antenna.
airFiber X antenna models:
• AF-5G23-S45
• AF-5G30-S45
• AF-5G34-S45
Conversion Kit for RocketDish (RD-5G30/RD-5G34):
• AF-5G-OMT-S45
Other Requirements
• Clear line of sight between airFiber radios
• Clear view of the sky for proper GPS operation
• Vertical mounting orientation
• Mounting point:
• At least 1 m below the highest point on the structure
• For tower installations, at least 3 m below the top of
thetower
• Ground wires – min. 10 AWG (5 mm2) and max. length:
1m. Asa safety precaution, ground the airFiber radio to
grounded masts, poles, towers, or grounding bars.
WARNING: Failure to properly ground your
airFiber radio will void your warranty.
• (Recommended) 2 Outdoor Gigabit PoE surge protectors
Note: For guidelines about grounding and lightning
protection, follow your local electrical regulatory
codes.
• Outdoor, shielded Category 6 (or above) cabling and
shielded RJ-45 connectors are required for all wired Ethernet
connections.
Hardware Overview
Chain 0:
Connects to
+ 45° on
airFiber Antenna
LED
Panel
Connects to
External GPS
Antenna
Port Cover
Chain 1:
Connects to
- 45° on
airFiber Antenna
Ports
Management
Port

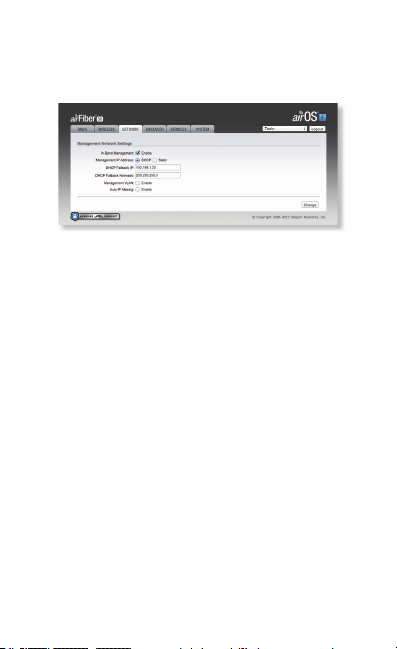

Management Port 10/100 Mbps, secured Ethernet port for
configuration. In-Band Management is enabled by default
in the airFiber Configuration Interface. When In-Band
Management is disabled, the MGMT port is the only port that
can monitor, configure, and/or update firmware.
Reset Button To reset to factory defaults, press and hold the
Reset button for more than 10 seconds while the device is
already poweredon.
Data Port Gigabit PoE port for handling all user traffic and
powering the device.
Reset
Button
Data
Port
LEDs
Signal LEDs
Signal 4 LED will light blue when on.
Signal 3 LED will light green when on.
Signal 2 LED will light yellow when on.
Signal 1 LED will light red when on.
Bootup to airOS When powering on, the Power, GPS, LINK,
and Signal 1-4 LEDs light on. Once the CPU code takes over, the
GPS, LINK, and Signal 1-3 LEDs turn off. Signal 4 LED remains on
to indicate the boot sequence is underway.
Initializing airFiber Software When the airFiber application
begins to boot under airOS, the Signal 4 LED goes from solidly
on to a 2.5 Hz flash. This continues until the AF-5X is fully
booted.
Signal Level Once fully booted, the Signal 1-4 LEDs act as a
bar graph showing how close the AF-5X is to ideal aiming. This
is auto-scaled based on the link range, the antenna gains, and
the configured TX power of the remote AF-5X. Each Signal LED
has three possible states: On, Flashing, and Off. All Signal LEDs
would be solidly on in an ideal link. If the link has a 1 dB loss,
the Signal4 LED will flash; a 2 dB loss and the Signal 4 LED will
turn off. The full bar graph LED states are shown below.
dB
0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13
loss
1 F 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 F 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 F F 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 F F F 0
0 = Off, 1 = On, F = Flashing
Additional LEDs
LED State Status
Off RF Off
Short Flash* Syncing
LINK
Normal Flash* Beaconing
Long Flash* Registering
On Operational
Off No GPS Synchronization
GPS
Normal Flash* Non-Operational (Weak Signal)
On Operational (Strong Signal)
Off No Ethernet Link
MGMT
On Ethernet Link Established
Random Flashing Ethernet Activity
Off No Ethernet Link
DATA
On Ethernet Link Established
Random Flashing Ethernet Activity
Off No Power
On Powered On
* Short Flash (1:3 on/off cycle)
Normal Flash (1:1 on/off cycle)
Long Flash (3:1 on/off cycle)

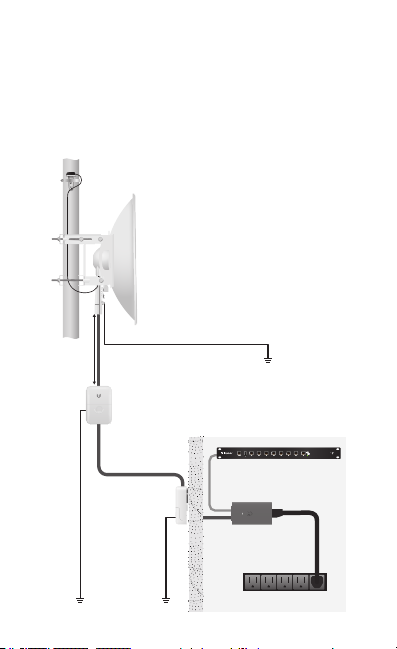

Installation Overview
We recommend that you configure your paired AF-5X radios
before site installation. Below is an overview of the installation
with specific details in the following instructions:
• Connect the airFiber PoE Adapter to the DATA por t, and
connect your computer to the MGMTport.

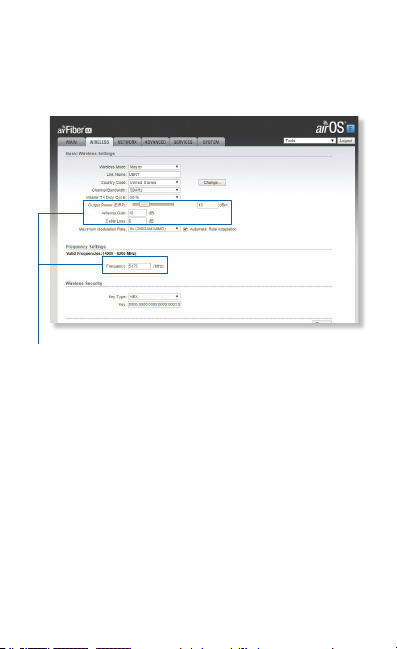

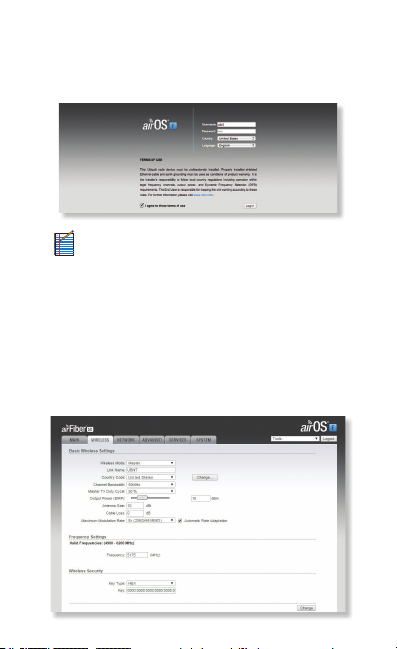

• Configure the AF-5X.

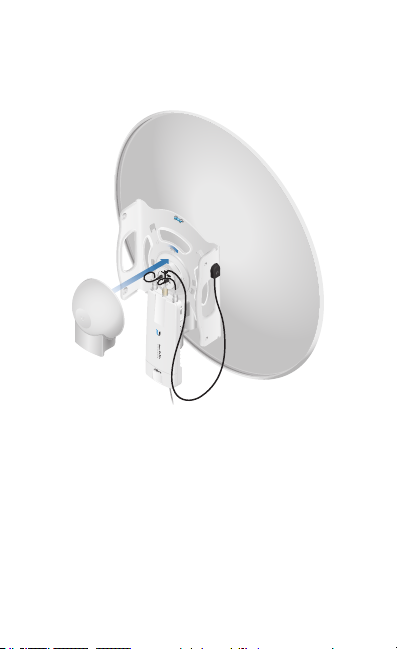

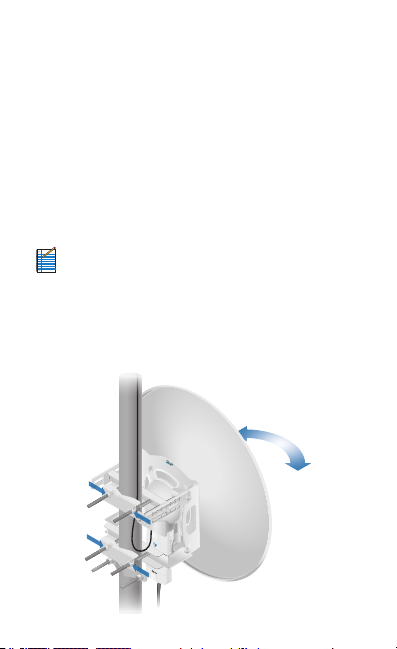

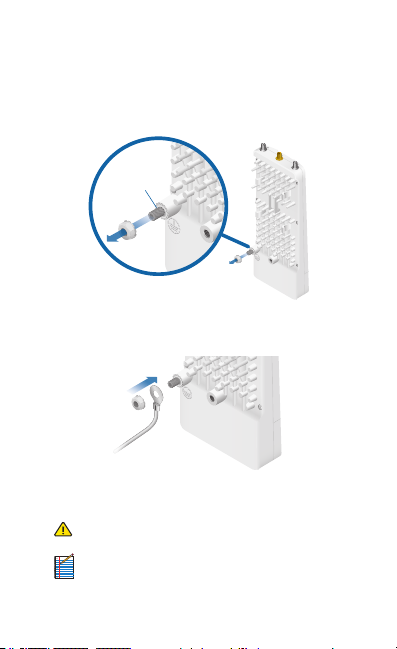

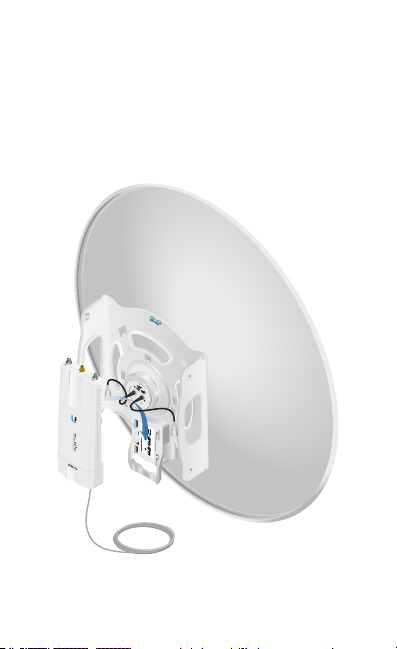

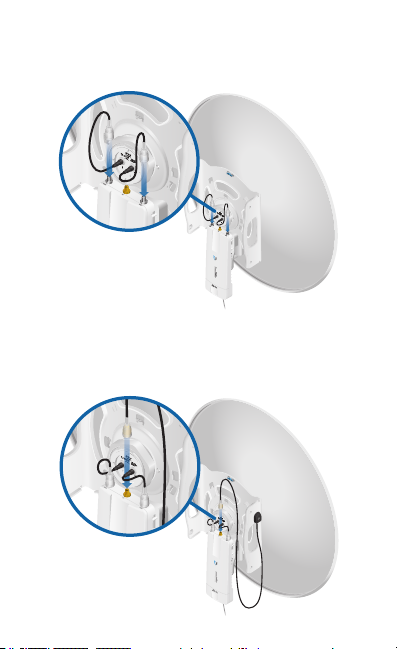

• Install a ground wire and mount the AF-5X on an
airFiber X antenna.
• At the installation site, install the airFiber X antenna with the
mounted AF-5X radio (see the antenna’s Quick Start Guide
for installation instructions).

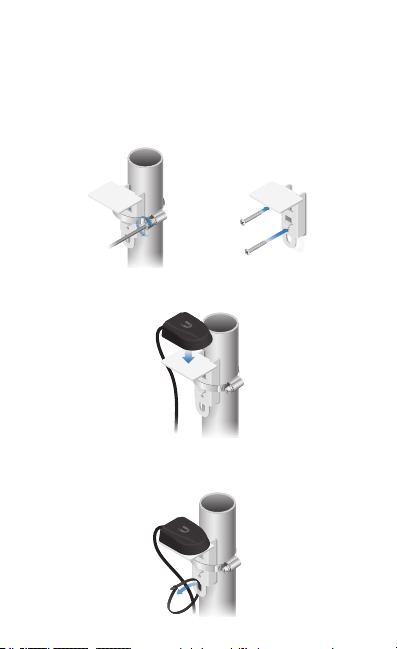

• Secure the ground wire and mount the GPS antenna.

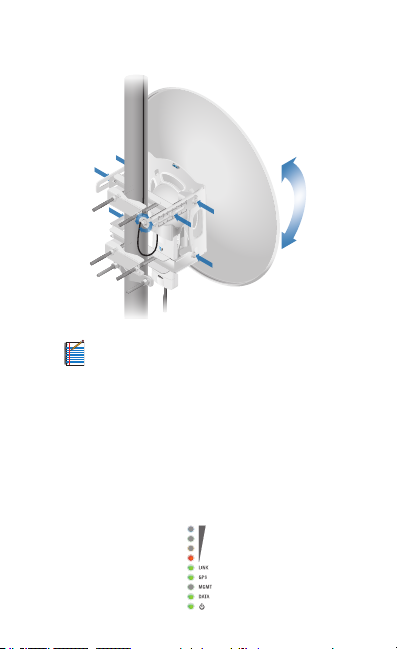

• Establish and optimize the RF link.

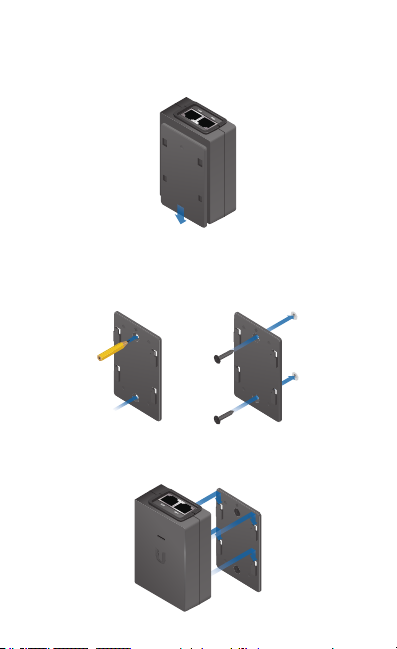

Connecting Power over Ethernet

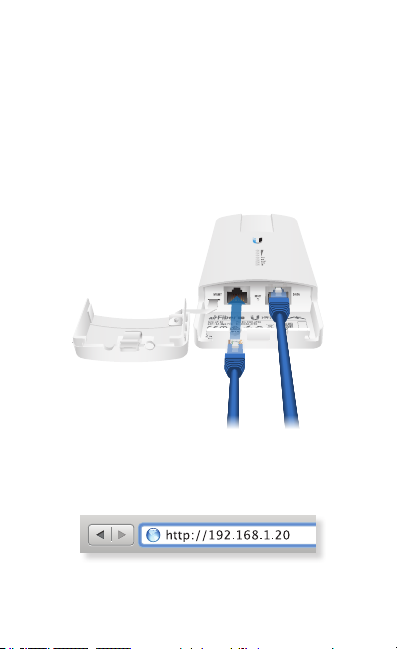

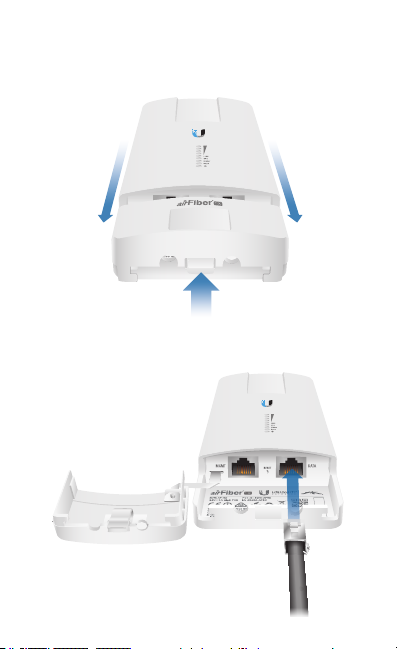

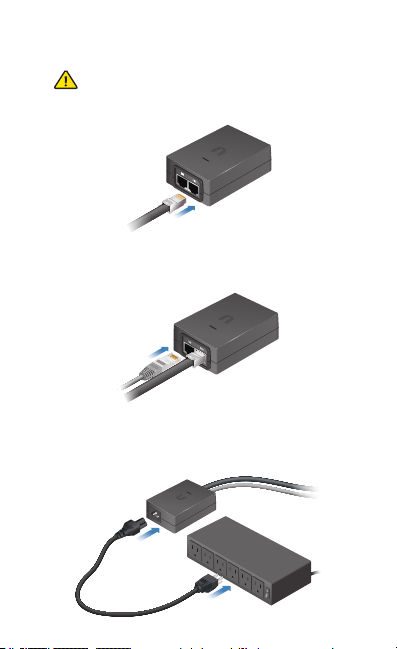

1. Lift the release latch on the bottom of the AF-5X and slide
the Port Cover off.
2. Connect an Ethernet cable to the DATA port.
3. Connect the Ethernet cable from the DATA port to the
Ethernet port labeled POE on the airFiber PoE Adapter.
WARNING: Use only the included airFiber PoE Adapter,
Model: GP-H240-100G-4. Failure to do so can damage
the unit and void the product warranty.
4. Connect the Power Cord to the power port on the airFiber
PoE Adapter. Connect the other end of the Power Cord to a
powersource.
