Trust 350WB Instruction

350WB MOUSE WIRELESS

1

UK

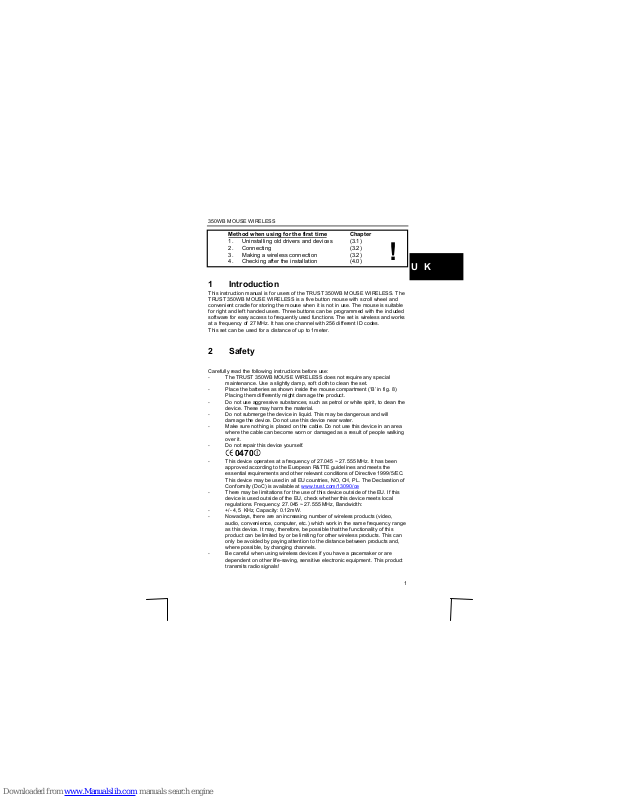

Method when using for the first time Chapter

1. Uninstalling old drivers and devices (3.1)

2. Connecting (3.2)

3. Making a wireless connection (3.2)

4. Checking after the installation (4.0)

1 Introduction

This instruction manual is for users of the TRUST 350WB MOUSE WIRELESS. The
TRUST 350WB MOUSE WIRELESS is a five button mouse with scroll wheel and
convenient cradle for storing the mouse when it is not in use. The mouse is suitable
for right and left handed users. Three buttons can be programmed with the included
software for easy access to frequently used functions. The set is wireless and works
at a frequency of 27 MHz. It has one channel with 256 different ID codes.
This set can be used for a distance of up to 1meter.

2 Safety

Carefully read the following instructions before use:

- The TRUST 350WB MOUSE WIRELESS does not require any special
maintenance. Use a slightly damp, soft cloth to clean the set.

- Place the batteries as shown inside the mouse compartment (‘B’ in fig. 8)
Placing them differently might damage the product.

- Do not use aggressive substances, such as petrol or white spirit, to clean the
device. These may harm the material.

- Do not submerge the device in liquid. This may be dangerous and will
damage the device. Do not use this device near water.

- Make sure nothing is placed on the cable. Do not use this device in an area
where the cable can become worn or damaged as a result of people walking
over it.

- Do not repair this device yourself.

0470

- This device operates at a frequency of 27.045 ~ 27.555 MHz. It has been
approved according to the European R&TTE guidelines and meets the
essential requirements and other relevant conditions of Directive 1999/5/EC.
This device may be used in all EU countries, NO, CH, PL. The Declaration of
Conformity (DoC) is available at www.trust.com/13090/ce

- There may be limitations for the use of this device outside of the EU. If this
device is used outside of the EU, check whether this device meets local
regulations. Frequency: 27.045 ~ 27.555 MHz, Bandwidth:

- +/- 4,5 KHz, Capacity: 0.12mW.

- Nowadays, there are an increasing number of wireless products (video,

audio, convenience, computer, etc.) which work in the same frequency range
as this device. It may, therefore, be possible that the functionality of this
product can be limited by or be limiting for other wireless products. This can
only be avoided by paying attention to the distance between products and,
where possible, by changing channels.

- Be careful when using wireless devices if you have a pacemaker or are
dependent on other life-saving, sensitive electronic equipment. This product
transmits radio signals!

UK

350WB MOUSE WIRELESS

2

3 Installation

3.1 Uninstalling old drivers and devices

The most common cause of faults during installation is the presence of a driver for a
similar, old product. The best solution is to first remove all drivers related to old
devices before installing the new driver.

1. Enter the Windows ‘Safe Mode’ (press F8 when starting Windows and then
select ‘Safe Mode’ from the menu which is displayed).

2. Go to ‘Start – Settings – Control Panel’ and double-click on the ‘Add/Remove
Programs’ icon.

3. Find all the programs for similar, old devices and remove these by clicking on
the ‘Add/Remove’ button. When in the ‘Safe Mode’, it is possible for some
programs to appear twice. In that case, remove all the programs which
appear twice.

4. Restart the computer.

3.2 Connecting

1. Make sure the computer is turned off.

2. Connect the green plug of the cradle to the PS/2 mouse connection on your
computer. Read the manual of the pc/mainboard how to do this.

3. Place the batteries in the battery compartment (‘B’ in fig. 8).

4. Turn the computer on.

5. The PC will automatica lly detected and install a standard PS/2 Wheel mouse.

3.3 Making a wireless connection

1. Make sure your computer is turned on.

2. Make sure that all products are not more than 1meter apart and that there are
no objects (or a total metal surface) in between since this will reduce the
functionality of the connection.

3. Make sure that the batteries are placed and that they have enough power.

4. The receiver has a green indicator to show the connection status. This
indicator is located inside the purple button of the receiver.

5. Press the purple button (‘E’ in fig.1) on the front of the receiver. The
indicators will start to fla sh.

6. Press the round ID button on the bottom of the mouse (see ‘A’ in figure 8).
The green indicator will also stop flashing. The ind icator will remain
constantly lit. The mouse has now made a connection with the receiver. The
mouse will now work as a standard mouse. W hen the receiver receives data
(from the mouse ) it will flash rapidly.

7. Continue with the installation of the software if you wish to use the extra
functions.

350WB MOUSE WIRELESS

3

UK

3.3 Installation software in Windows 98 / ME / 2000 / XP

Note: The latest software (driver) can be downloaded from

www.trust.com/13090. Check whether a new driver is available and use
this for the installation.

Note: Make sure all other programs are closed during the installation.
Note: During installation in Windows XP, you may receive a message saying

that the driver has not been signed. This does not cause a problem for
the functionality. Click ok to continue.

Note: In the example, ‘D:\’ is used to indicate the CD-ROM drive. This may be

different for your computer.

Note: Software is for programmin g the three bu ttons. Mouse w ill work without

installing it.

1. Insert the CD-ROM into your computer’s CD-ROM drive. The installation
program will start automatica lly. If it does not start automatically, carry out
the following:
a) Select 'Run' from the Start menu.
b) Type [D:\SETUP.EXE] and click on 'OK' to start the Trust Software

Installer.

2. Figure 2 will appear.

3. Click on the language you wish to use for the installation.

4. Click on ‘Trust Mouse Utility‘ to start the insta llation of the mo use.

5. Follow the on-screen instructions.

6. Restart the computer.

The installation of the software for the mouse has now been completed.

4 Checking after the installation

After installing the device and the driver, the following are installed on your computer
and can be checked:
Taskbar
– The icons as shown in figure 3 should be visible in your taskbar.
‘Start – Settings – Control Panel’. Double-click on the ‘System’ icon and select the
‘Device Manager’ tab.

- Mouse – WHEEL MOUSE PS/2

‘Start – Settings – Control Panel’ and then double-click on the ‘Add/Remove
Programs’ icon.
Start - Programs – Trust Mouse Utility

- Trust Mouse Utility

- Uninstall Trust Mouse Utility

Note: The information given in this chapter will vary when the installation has

been altered by the user (for example, not everything has been installed
or locations other than the default locations have been selected).

Note: Deviations may also occur as a result of using new drivers available on

the Internet.

Note: The location or name in the ‘Control Panel’ may vary for different

Operating Systems.
