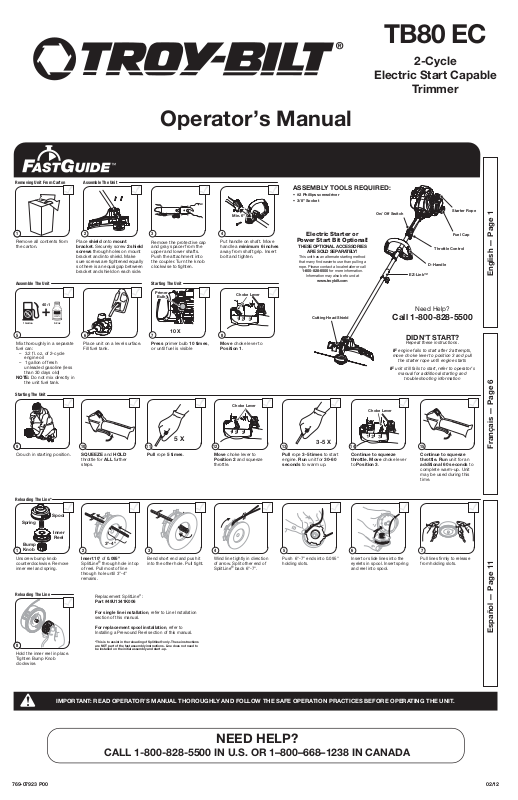

Troy-Bilt TB80 EC Operator's Manual

769-07923 P00 02/12

Español — Page 11 English — Page 1Français — Page 6

NEED HELP?

CALL 1-800-828-5500 IN U.S. OR 1–800–668–1238 IN CANADA

TB80 EC

2-Cycle

Electric Start Capable

Trimmer

Operator’s Manual

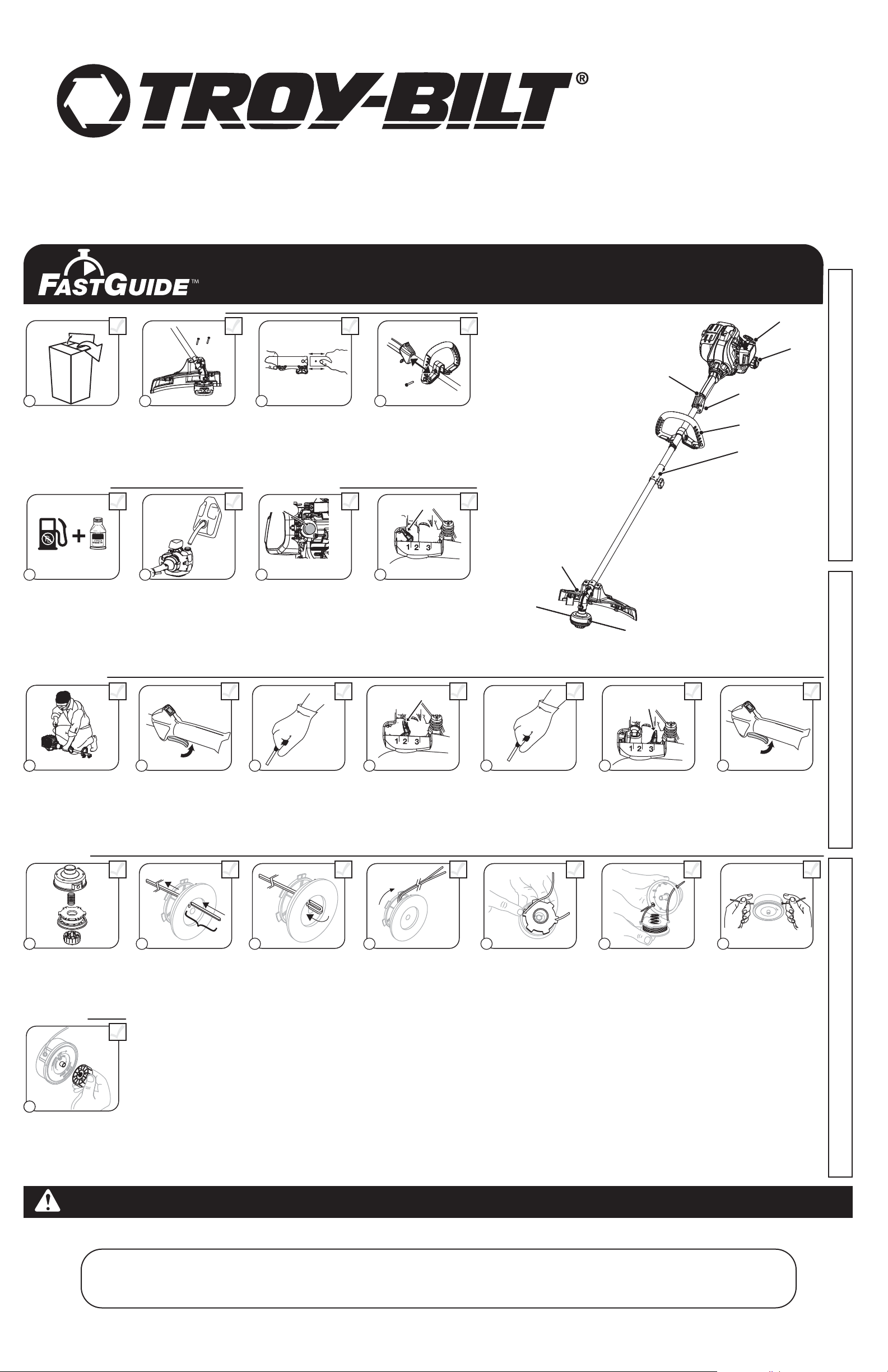

Removing Unit From Carton

11 2

Remove all contents from the carton.

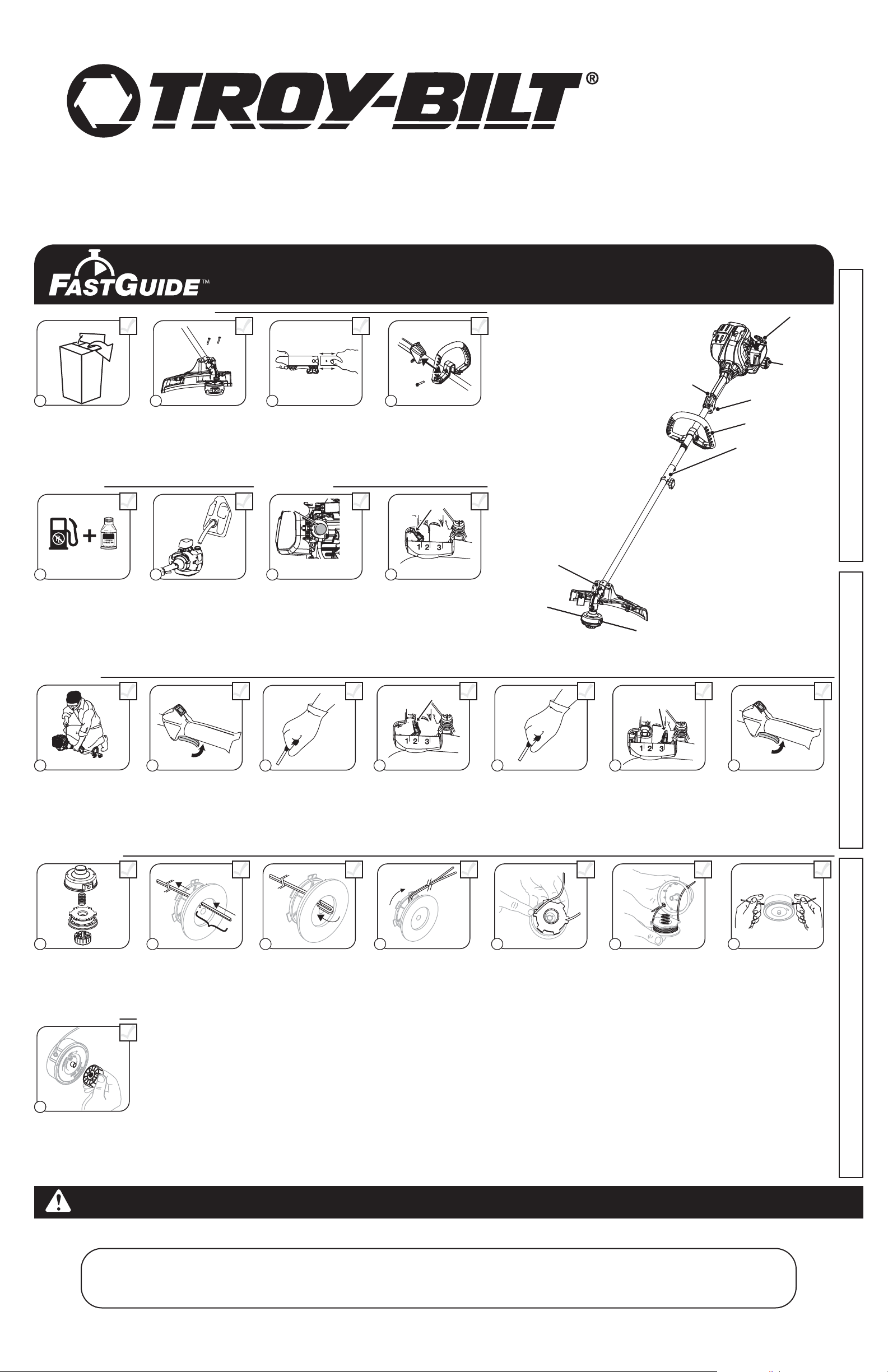

Assemble The Unit

40:1

1 Gallon 3.2 oz

5 6 7

Mix thoroughly in a separate fuel can: – 3.2 fl. oz. of 2-cycle

engine oil

– 1 gallon of fresh

unleaded gasoline (less than 30 days old)

NOTE: Do not mix directly in

the unit fuel tank.

Assemble The Unit

Place shield onto mount bracket. Securely screw 2 shield screws through holes on mount

bracket and into shield. Make sure screws are tightened equally so there is an equal gap between bracket and shield on each side.

Place unit on a level surface. Fill fuel tank.

Remove the protective cap and gray spacer from the upper and lower shafts. Push the attachment into the coupler. Turn the knob clockwise to tighten.

Starting The Unit

Primer

Bulb

10 X

Press primer bulb 10 times,

or until fuel is visible

Min. 6"

Put handle on shaft. Move handle a minimum 6 inches away from shaft grip. Insert bolt and tighten.

Choke Lever

Move choke lever to Position 1.

ASSEMBLY TOOLS REQUIRED:

• #2 Phillips screwdriver

• 3/8” Socket

On/ Off Switch

Electric Starter or

Power Start Bit Optional!

THESE OPTIONAL ACCESSORIES

ARE SOLD SEPARATELY!

This unit has an alternate starting method that many find easier to use than pulling a rope. Please contact a local retailer or call

1-800-828-5500 for more information.

Information may also be found at

www.troybilt.com

Cutting Head Shield

Starter Rope

Fuel Cap

Throttle Control

D-Handle

EZ-Link™

Need Help?

Call 1-800-828-5500

DIDN’T START?

Repeat these instructions.

IF engine fails to start after 2 attempts,

move choke lever to position 3 and pull

the starter rope until engine starts

IF unit still fails to start, refer to operator’s

manual for additional starting and

troubleshooting information

Starting The Unit

19 10

Crouch in starting position. SQUEEZE and HOLD

Reloading The Line*

Spool

Spring

Inner

Reel

Bump Knob

11 2

Unscrew bump knob counterclockwise. Remove inner reel and spring.

throttle for ALL further steps.

3"-4

Insert 10' of 0.095"

SplitLine

through hole in top of reel. Pull most of line through hole until 3"-4" remains.

Choke Lever

5 X

Pull rope 5 times. Move choke lever to

Bend short end and push it into the other hole. Pull tight.

Position 2 and squeeze throttle.

Wind line tightly in direction of arrow. Split other end of

SplitLine

back 6"-7".

Pull rope 3-5 times to start engine. Run unit for 30-60 seconds to warm up.

Push 6"-7" ends into 0.095" holding slots.

3-5 X

Choke Lever

Continue to squeeze throttle. Move choke lever to Position 3.

Insert or slide lines into the eyelets in spool. Insert spring and reel into spool.

Continue to squeeze throttle. Run unit for an additional 60 seconds to

complete warm-up. Unit may be used during this time.

Pull lines firmly to release from holding slots.

Reloading The Line

Hold the inner reel in place. Tighten Bump Knob clockwise.

IMPORTANT: READ OPERATOR’S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING THE UNIT.

Replacement SplitLine® :

Part #49U1341K006

For single line installation, refer to Line Installation

section of this manual.

For replacement spool installation, refer to Installing a Prewound Reel section of this manual.

*This is to assist in the reloading of Splitline® only. These instructions are NOT part of the fast assembly instructions. Line does not need to be installed on the initial assembly and start-up.

• SAFETY AND INTERNATIONAL SYMBOLS •

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating, maintenance, and repair information.

RULES FOR SAFE OPERATION

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the

equipment.

SYMBOL MEANING

SPARK ARRESTOR NOTE NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington.

All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grasscovered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the Accessory Part #753-06182 Muffler Assembly.

READ ALL INSTRUCTIONS BEFORE OPERATING

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.

• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication.

• Children and teens under the age of 15 must not use the unit, except for teens guided by an adult.

• All guards and safety attachments must be installed properly before operating the unit.

• Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.

• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Be aware of the risk of injury to the head, hands and feet.

• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15 m) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If approached, stop the unit immediately.

• Use only 0.095 inch (2.41 mm) diameter original equipment manufacturer replacement line. Never use metal-reinforced line, wire or rope. These can break off and become dangerous projectiles.

• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using unit.

SAFETY WARNINGS FOR GAS UNITS

• Store fuel only in containers specifically designed and approved for the storage of such materials.

• Always stop the engine and allow it to cool before filling the tank. Never remove the fuel tank cap or add fuel when the engine is hot. Always loosen the fuel tank cap slowly to relieve any pressure in the tank before fueling.

• Always mix and add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. DO NOT smoke.

• Never operate the unit without the fuel cap securely in place.

• Avoid creating a source of ignition for spilled fuel. Wipe up any spilled fuel from the unit immediately, before starting the unit. Move the unit at least 30 ft. (9.1 m) from the fueling source and site before starting the engine. DO NOT smoke.

• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can kill. Operate this unit only in a well ventilated outdoor area.

WHILE OPERATING

• Wear safety glasses or goggles that are marked as meeting ANSI Z87.1 standards. Also wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty. Long sleeve shirts are recommended.

• Wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

• The cutting head shield must always be in place while operating the unit. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield.

• The cutting attachment may spin during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

• Adjust the D-handle to provide the best grip.

• Be sure the cutting head is not in contact with anything before starting the unit.

• Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. See Starting/Stopping Instructions.

• Use the right tool. Only use this tool for the purpose intended.

• Do not overreach. Always keep proper footing and balance.

• Always hold the unit with both hands when operating. Keep a firm grip on both the front and rear handle or grips.

• Keep hands, face, and feet at a distance from all moving parts. Do not touch or try to stop the cutting head when it is rotating.

• Do not touch the engine or muffler. These parts get extremely hot from operation. They remain hot for a short time after turning off the unit.

• Do not operate the engine faster than the speed needed to cut, trim or edge. Do not run the engine at high speed when not cutting.

• This unit has an overspeed protection switch to keep the unit from overheating. When the unit is run at full throttle while not in use for extended lengths of time the overspeed protection switch will engage.

• Always stop the engine when cutting is delayed or when walking from one cutting location to another.

• If the unit is struck or becomes entangled with a foreign object, stop the engine immediately and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts.

• Stop and switch the engine to off for maintenance, repair, or for changing the cutting head or other Add-Ons.

• Use only original equipment manufacturer replacement parts and accessories for this unit. These are available from an authorized service dealer. The use of any unauthorized parts or accessories could lead to serious injury to the user, or damage to the unit, and void the warranty.

• Keep unit clean of vegetation and other materials. They may become lodged between the cutting head and shield.

• To reduce fire hazard, keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

OTHER SAFETY WARNINGS

• Never store the unit, with fuel in the tank, inside a building where fumes may reach an open flame or spark.

• Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting.

• Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use. See the Cleaning and Storage instructions.

• Keep these instructions. Refer to them often and use them to instruct other users. If loaning someone this unit, also loan them these instructions.

SAVE THESE INSTRUCTIONS

• IMPORTANT SAFETY INSTRUCTIONS •

SERVICE INFORMATION

TABLE OF CONTENTS

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Starting/Stopping Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Maintenance & Repair Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Optional Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

For service call 1-800-828-5500 in the United States or 1-800-668-1238 in Canada to obtain a list of authorized service dealers near you. For more details about your unit, visit our website at www.troybilt.com or www.troybilt.ca.

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Support Department.

DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

Service on this unit both within and after the warranty period should be performed only by an authorized and approved service dealer.

CAUTION: Signals a MODERATE hazard.

Failure to obey a safety CAUTION signal MAY result in property damage or injury to yourself or to others.

DANGER: Signals an EXTREME hazard.

Failure to obey a safety DANGER signal WILL result in serious injury or death to yourself or to others.

WARNING: Signals a SERIOUS hazard.

Failure to obey a safety WARNING signal CAN result in serious injury to yourself or to others.

WARNING:

When using the unit, you must follow the safety rules. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

WARNING: Gasoline is highly flammable and its vapors can explode if ignited. Take the

following precautions:

RULES FOR SAFE OPERATION

SYMBOL MEANING

• SAFETY ALERT SYMBOL

Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.

• READ OPERATOR'S MANUAL

WARNING: Read the operator’s manual(s) and follow all warnings and safety

instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye injury and hearing

loss. Wear eye protection meeting ANSI Z87.1 standards and ear protection when operating this unit. Use a full face shield when needed.

• UNLEADED FUEL

Always use clean, fresh unleaded fuel

• ON/OFF STOP CONTROL

ON / START / RUN

• ON/OFF STOP CONTROL

OFF or STOP

• DO NOT USE E85 FUEL IN THIS UNIT

WARNING: It has been proven that fuel containing greater than 10% ethanol will

likely damage this engine and void the warranty.

• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Small objects can be propelled at high speed, causing injury. Keep

away from the rotating rotor.

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m.)

from the operating area.

• HOT SURFACE WARNING

Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off they remain hot for a short time.

• OIL

Refer to operator’s manual for the proper type of oil.

• CHOKE CONTROL

1. • FULL choke position

2. • PARTIAL choke position

3. • RUN choke position

• SHARP BLADE

WARNING: Sharp blade on cutting attachment shield. To prevent serious injury, do

not touch the line cutting blade.

READ THE OPERATOR’S MANUAL AND FOLLOW ALL WARNINGS AND SAFETY INSTRUCTIONS. FAILURE TO DO SO CAN RESULT IN SERIOUS INJURY TO THE OPERATOR AND/OR BYSTANDERS.

FOR QUESTIONS, CALL 1-800-828-5500 IN U.S. OR 1-800-668-1238 IN CANADA

CALIFORNIA PROPOSITION 65

WARNING: Engine exhaust, some of its constituents and certain finished components

contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

OPERATING THE EZ-LINK™ SYSTEM

NOTE: To make installing or removing the attachment easier, place the unit on the

ground or on a work bench.

Installing the Attachment NOTE: Remove the protective cap and gray spacer from the upper and lower

shafts prior to assembling the attachment.

1. Turn the knob counterclockwise to loosen (Fig. 3).

2. While firmly holding the attachment, push it straight into the coupler until the release button snaps firmly into the primary hole (Fig. 5).

NOTE: Aligning the release button with the guide recess will help installation (Fig. 4).

3. Turn the knob clockwise to tighten (Fig. 3).

For decorative edging with the line head trimmer attachment, lock the release button of the attachment into the 90° hole (Fig. 3).

Removing the Attachment

1. Turn the knob counterclockwise to loosen (Fig. 3).

2. Press and hold the release button (Fig. 4).

3. While firmly holding the upper shaft housing, pull the attachment straight out of the coupler (Fig. 5).

The EZ-Link™ System

The EZ-Link™ system enables the use of these optional attachments:

• Edger*

• Cultivator

• Turbo Blower

• Brushcutter*

• Pole Saw

• Hedge Trimmer*

• Straight-shaft trimmer

• Curved-shaft trimmer

*DO NOT use this attachment with an electric powered unit.

STARTING INSTRUCTIONS

1. Mix fuel with oil. Fill fuel tank with fuel/oil mixture. See Oil and Fuel Mixing Instructions.

2. Fill the fuel tank with fresh, clean unleaded fuel. Refer to Fueling the Unit.

NOTE: There is no need to turn the unit on. The On/Off Control is in the ON ( I )

position at all times (Fig. 6).

3. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb and fuel lines (Fig. 7). If fuel can not be seen in the bulb, press and release the bulb until fuel is visible.

4. Place the choke lever in Position 1 (Fig. 7).

5. Crouch in the starting position (Fig. 8). Squeeze the throttle control lever. Pull the starter rope 5 times.

6. Place the choke lever in Position 2 (Fig. 7)

7. Squeeze the throttle control, pull the starter rope in a controlled motion 3 to 5 times to start engine.

8. Keep the throttle squeezed and allow the engine to warm up for 30 to 60 seconds.

9. Continue squeezing the throttle control, move the choke lever to Position 3 (Fig. 7) and continue warming the engine for an additional 60 seconds. The unit may be used during this time.

NOTE: Unit is properly warmed up when engine accelerates without hesitation. IF... the engine hesitates, return the choke lever to Position 2 (Fig. 7) and continue warm-up. IF... the engine does not start, go back to step 3. IF... the engine fails to start after 2 attempts, place the choke lever in Position 3 and squeeze the throttle

control. Pull the starter rope out with a controlled and steady motion 3 to 8 times. The engine should start. If not, repeat.

IF WARM... If the engine is already warm, start the unit with the choke lever in Position 2. After the unit starts, move

the choke lever to Position 3.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to cool down by idling.

2. Press and hold the On/Off Control switch in the OFF (O) position until the unit comes to a complete stop (Fig. 6).

OIL AND FUEL MIXING INSTRUCTIONS

Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture.

DEFINITION OF BLENDED FUELS

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol, or MTBE (ether). Alcoholblended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate. It forms acids when stored. When using alcohol-blended fuel, use fresh fuel (less than 30 days old).

USING BLENDED FUELS

If choosing to use a blended fuel, or its use is unavoidable, follow recommended precautions:

• Always use the fresh fuel mix explained in the operator's manual

• Always agitate the fuel mix before fueling the unit

• Drain the tank and run the engine dry before storing the unit

USING FUEL ADDITIVES

The bottle of 2-cycle oil contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended to use our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for air-cooled engines along with a fuel additive, such as STA-BIL® Gas Stabilizer or an equivalent. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded fuel in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix them directly in the engine fuel tank. See the table for specific gas and oil mixing ratios.

NOTE:

One gallon (3.8 liters) of unleaded fuel mixed with one 3.2 oz. (95 ml.) bottle of 2-cycle oil makes a 40:1 fuel/oil ratio.

NOTE: Dispose of the old fuel/oil mix in accordance to Federal, State and

Local regulations.

FUELING THE UNIT

1. Turn unit on its side, with the fuel cap facing up, and remove the fuel cap.

2. Place the gas container’s spout into the fill hole on the fuel tank and fill the tank.

NOTE: Do not overfill the tank.

3. Wipe up any gasoline that may have spilled.

4. Reinstall the fuel cap.

5. Move the unit at least 30 ft. (9.1 m) from the fueling source and site before starting the engine.

MIXING RATIO - 40:1

OIL AND FUEL INFORMATION

INSTALL CUTTING ATTACHMENT SHIELD

Use the following instructions if the cutting attachment shield on the unit is not installed.

1. Place the cutting head shield onto the guard mount bracket, making sure to align the holes on the shield with the ones in the guard mount bracket. (Fig. 1)

2. Take the 2 shield screws and screw each one into the shield until finger tight.

3. Using an appropriate screw driver, tighten the screws until the shield is firmly in place.

ADJUSTING THE D-HANDLE

1. Loosen the bolt on the handle just enough to move it (Fig. 2).

2. While holding the unit in the operating position (Fig. 9), move the D-handle to the location that provides the best grip.

3. Tighten the bolt until the D-handle is secure. (Fig. 2)

ASSEMBLY INSTRUCTIONS

WARNING:

To prevent serious personal injury, never operate the trimmer without the cutting

attachment shield in place.

UNLEADED GAS 2 CYCLE OIL

1 GALLON US

(3.8 LITERS)

3.2 FL. OZ. (95 ml)

1 LITER 25 ml

CAUTION:

For proper engine operation and maximum reliability, pay strict attention to the oil and fuel

mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

WARNING:

Gasoline is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING:

Remove fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place.

WARNING:

Add fuel in a clean, level and well ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

STARTING/STOPPING INSTRUCTIONS

WARNING:

Avoid accidental starting. Make sure you are in the starting position when pulling the starter rope (Fig. 8). To avoid serious injury, the operator and unit must be in a stable position while starting.

OFF (O)

ON (I)

Throttle Control

Fig. 6

Starter

Rope

Starting Position

Fig. 8

Fig. 7

Primer Bulb

Choke Lever

WARNING:

It has been proven that fuel containing greater than 10% ethanol will likely damage this engine

and void the warranty.

WARNING:

Operate this unit in a well-ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

Guide Recess

Fig. 4

Release

Button

EZ-Link™ Coupler

Upper Shaft

Housing

Fig. 5

Lower Shaft

Housing

Primary Hole

Knob

Fig. 3

90˚ Edging Hole

(Trimmer Only)

Cutting

Head

Shield

Screw (2)

Guard Mount

Bracket

Fig. 1

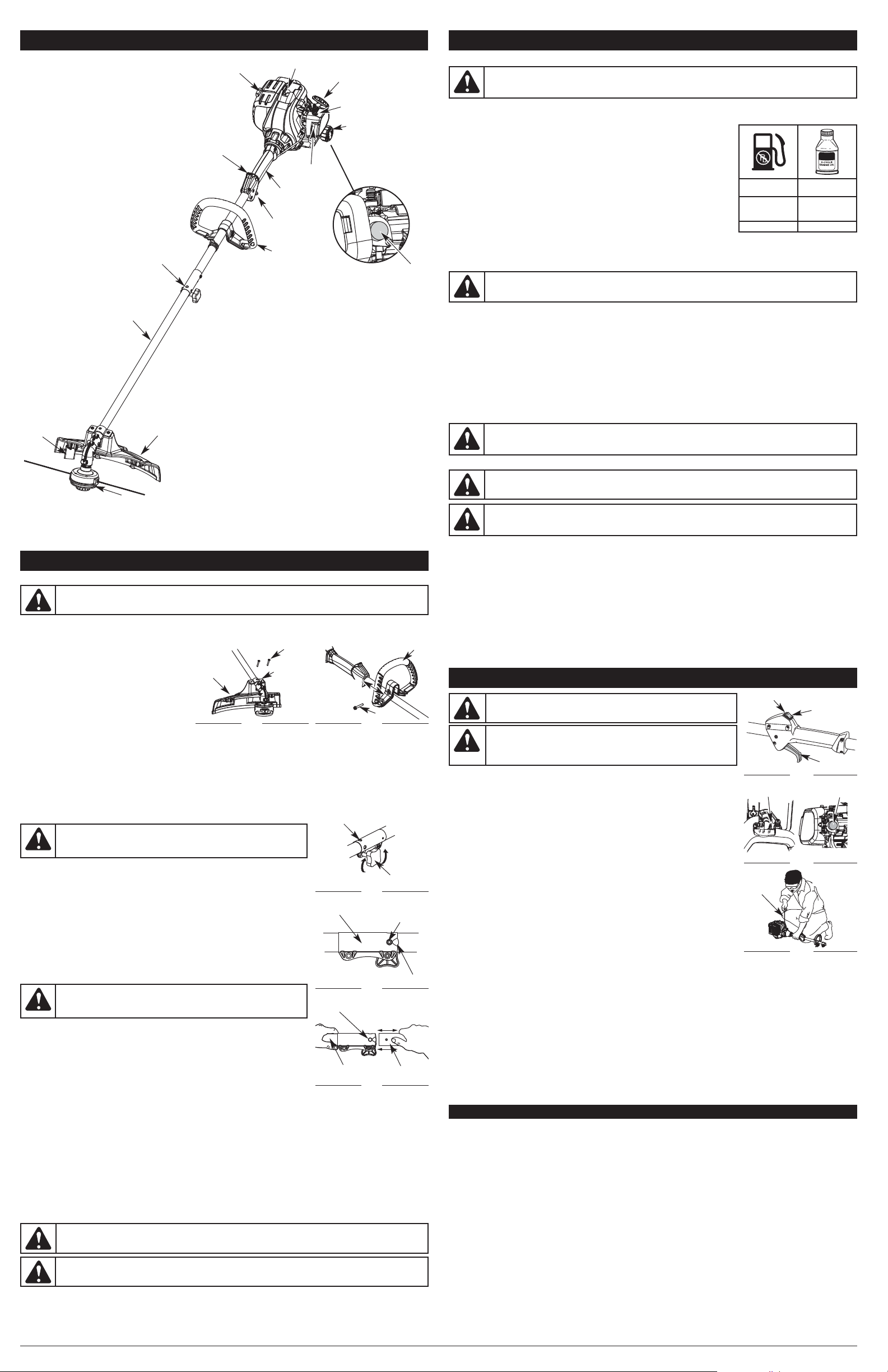

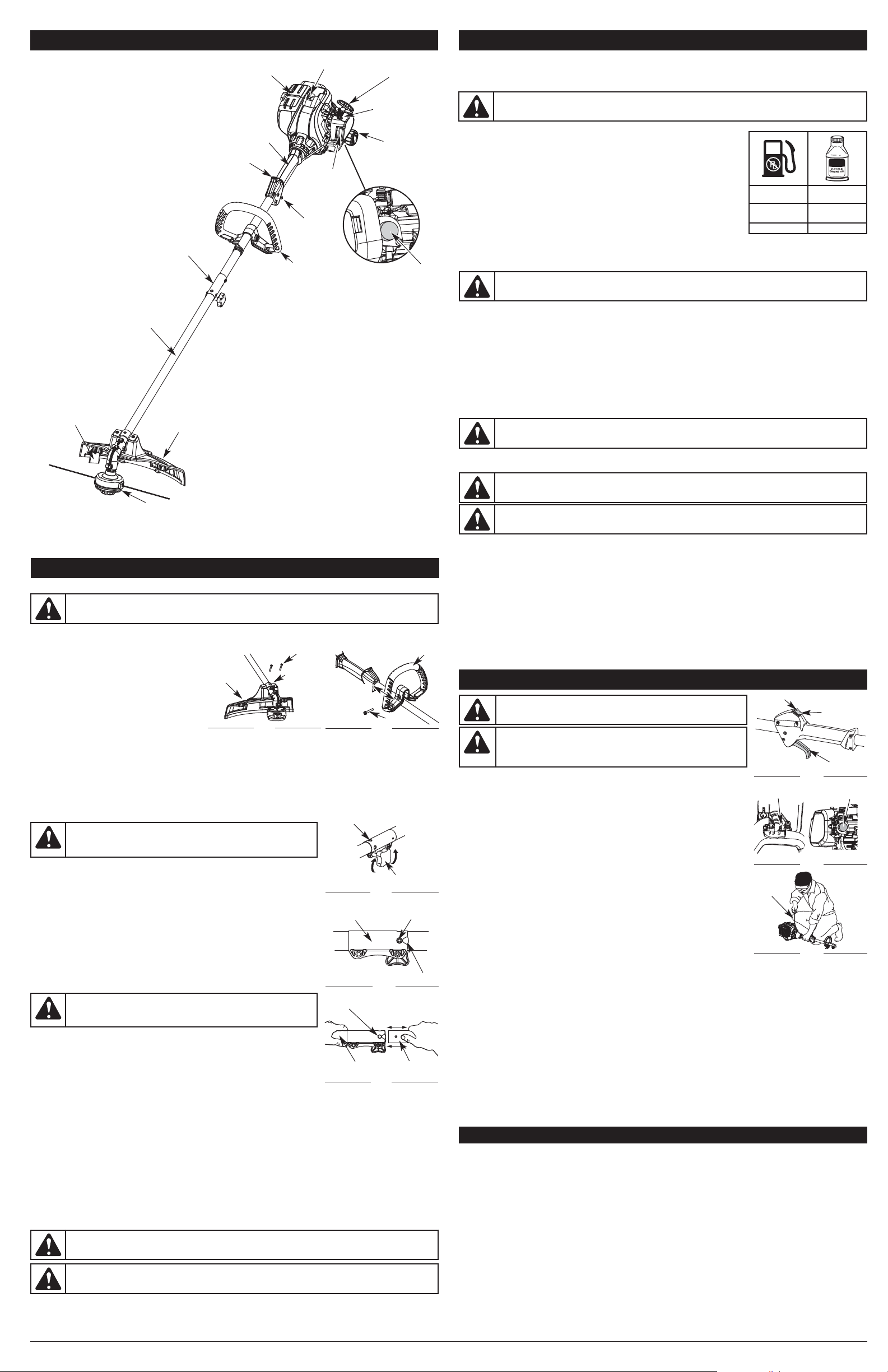

KNOW THE UNIT

APPLICATIONS

As a trimmer:

• Cutting grass and light weeds.

• Edging

• Decorative trimming around trees, fences, etc.

Throttle Control

D-Handle

Shaft Grip

Air Filter

Cover

Spark Plug

Shaft Housing

Starter Rope Grip

Line Cutting

Blade

Muffler

On/Off Control

Cutting Head

Cutting Head Shield

Fuel Cap

Choke Lever

Primer

Bulb

HOW TO START THE UNIT USING THE ELECTRIC STARTER OR POWER START BIT ACCESSORY. NOTE- This Unit Can Use an Electric Start or Power Start Bit™ Optional Accessory!

Please refer to the Electric Starter or Power Start Bit operator’s manual for proper use of this feature. (Items Sold Separately! Please refer to page 5 of this manual about purchasing these accessories.)

STARTING INSTRUCTIONS

1. Mix fuel with oil. Fill fuel tank with fuel/oil mixture. See Oil and Fuel Mixing Instructions.

2. Fill the fuel tank with fresh, clean fuel mix. Refer to Fueling the Unit. NOTE: There is no need to turn the unit on. The On/Off Control is in the ON ( I ) position at all times (Fig. 6).

3. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb (Fig. 7). If fuel cannot be seen in the bulb, press and release the bulb until fuel is visible.

4. Move the choke lever to Position 1 (Fig. 7).

5. Crouch in the starting position (Fig. 8). Place the electric starter or power start bit into the back of the unit. Refer to the Operation section of the Electric Starter or Power Start Bit operator’s manual.

6. Squeeze the throttle control lever. Press and hold the electric starter or drill ON (I) button for 2 seconds.

7. Move the choke lever to Position 2 (Fig. 7).

8. Squeeze the throttle control lever, press and hold the electric starter or drill ON (I) button for 2-second intervals until the unit starts.

9. Continue to squeeze the throttle control, remove the electric starter or drill from the unit and allow the engine to warm up for 30 to 60 seconds.

10. Continue squeezing the throttle control, move the choke lever to Position 3 (Fig. 7) and run the unit for an additional 60 seconds. The unit may be used during this time.

control. Press and hold the electric starter or drill ON (I) button for 2-second intervals until the unit starts.

IF WARM... If the engine is already warm, start the unit with the choker lever in Position 2. After the unit starts, move

the choker lever to Position 3.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to cool down by idling.

2. Press and hold the On/Off Control switch in the OFF (O) position until the unit comes to a complete stop (Fig. 6).

IF USING THE OPTIONAL ELECTRIC STARTER OR POWER START BIT™ ACCESSORY

D-Handle

Bolt

Fig. 2

6 in.

(15.24 cm)

Minimum

EZ-Link™

ASSEMBLY TOOLS REQUIRED:

• #2 Phillips screwdriver

• 3/8” Socket

WARNING:

To avoid serious personal injury and damage to the

unit, shut the unit off before removing or installing an attachment.

CAUTION: Before operating this unit, be sure that the release

button is fully snapped into the primary hole (Fig. 5), and that the knob (Fig. 3) is securely tightened.

WARNING:

Before you begin using any attachment, read and understand the manual that came with

the attachment. Follow all safety information contained within.

CAUTION:

These attachments are to be snapped into the primary hole only. Using the wrong hole

could lead to personal injury or damage to the unit.

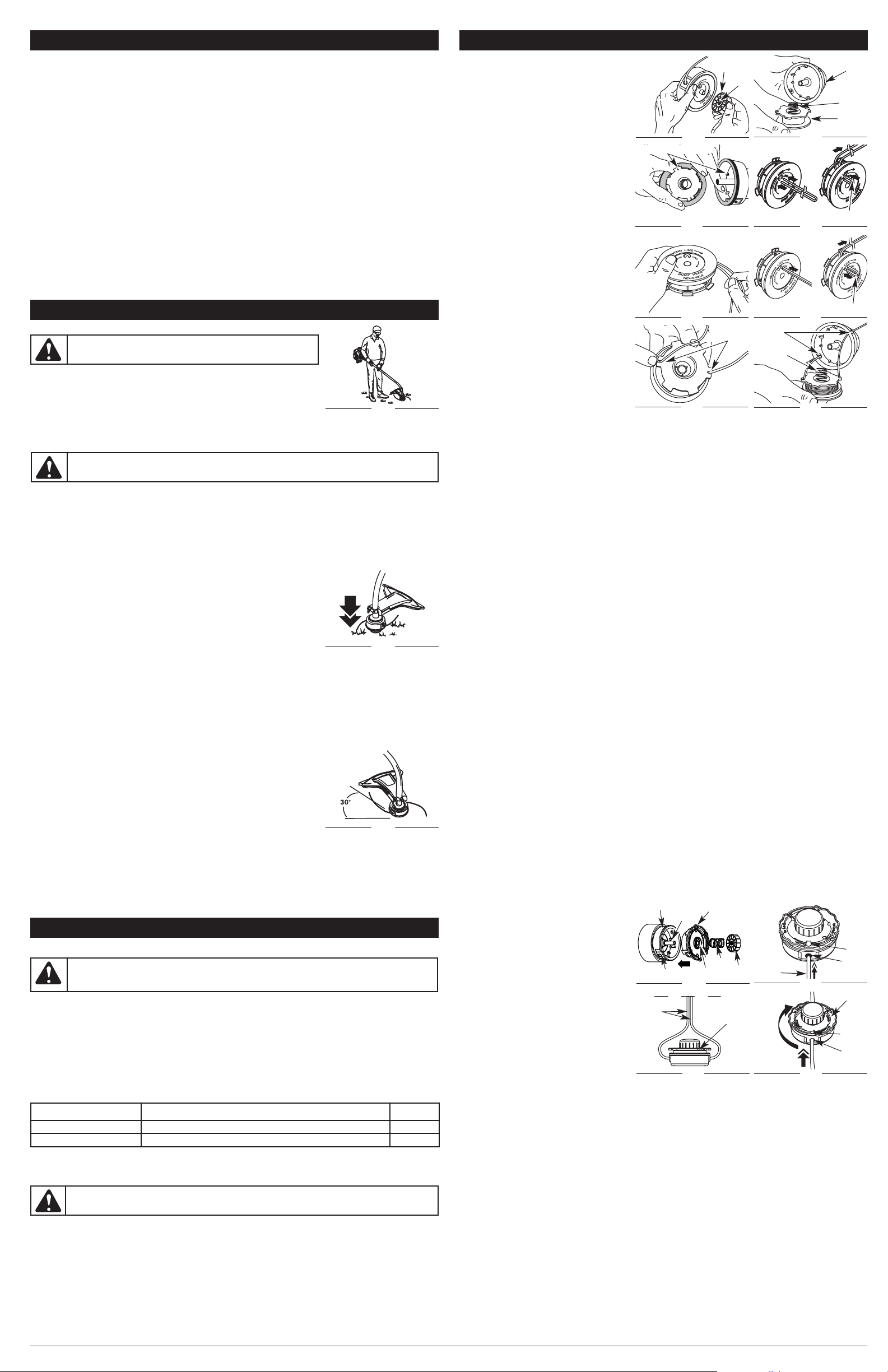

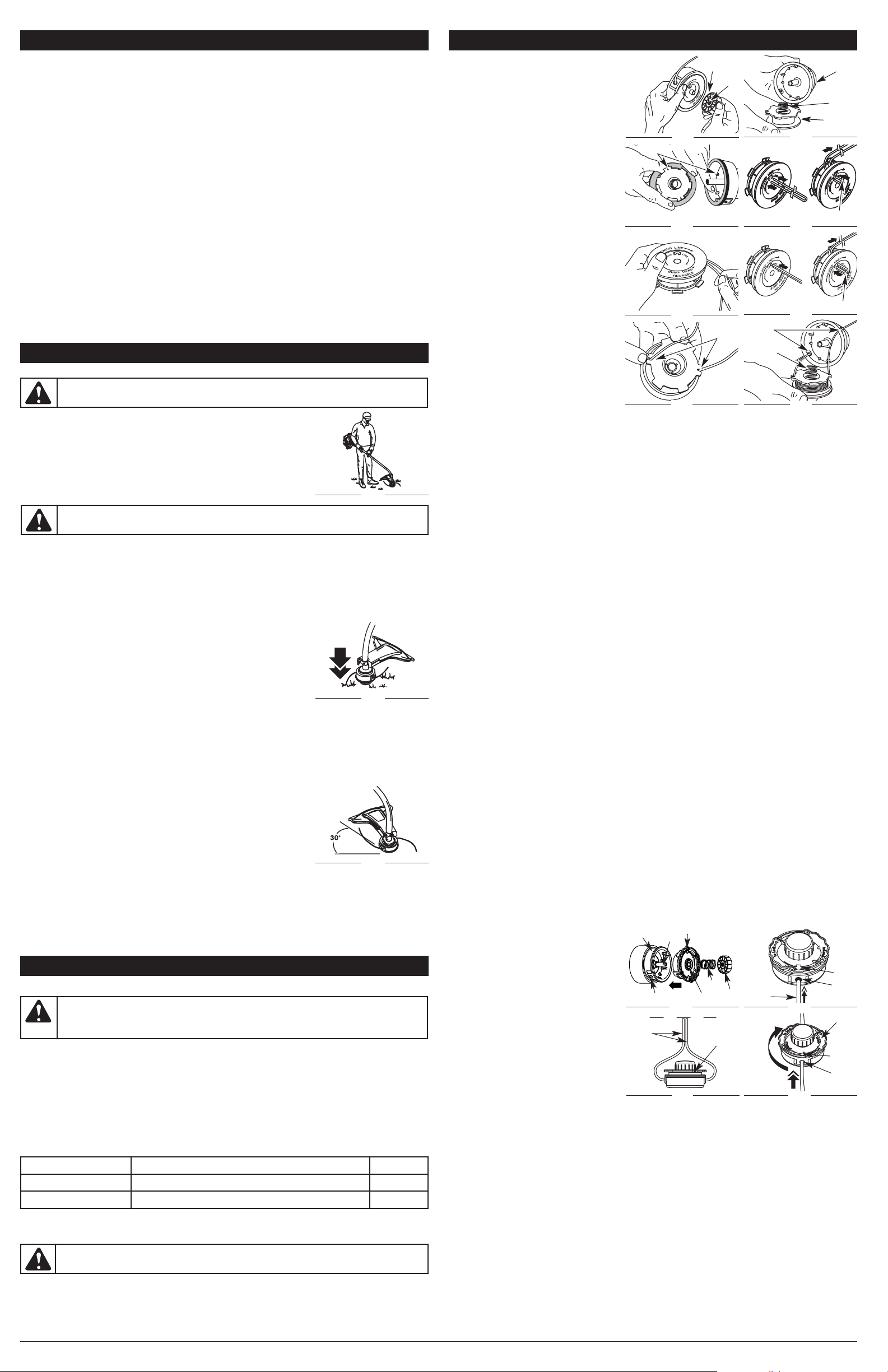

HOLDING THE UNIT

Before operating the unit, stand in the operating position (Fig. 9). Check for the following:

• The operator is wearing eye protection and proper clothing

• With a slightly-bent right arm, the operator’s hand is holding the shaft grip

• The operator’s left arm is straight, the left hand holding the D-handle

• The unit is at waist level

• The cutting head is parallel to the ground and easily contacts the grass without the need to bend over

ADJUSTING TRIMMING LINE LENGTH

The Bump Head™ cutting head allows the release of trimming line without stopping the engine. To release more line, lightly tap the cutting head on the ground (Fig. 10) while operating the unit at high speed.

NOTE:

Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter.

Each time the head is bumped, about 1 inch (25.4 mm) of trimming line releases. A blade in the cutting head shield will cut the line to the proper length if any excess line is released.

For best results, tap the bump knob on bare ground or hard soil. If attempting a line release in tall grass, the engine may stall. Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter. NOTE: Do not rest the Bump Head™ on the ground while the unit is running.

Some line breakage will occur from:

• Entanglement with foreign matter

• Normal line fatigue

• Attempting to cut thick, stalky weeds

• Forcing the line into objects such as walls or fence posts

TIPS FOR BEST TRIMMING RESULTS

• Keep the cutting head parallel to the ground.

• Do not force the cutting head. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting efficiency and may overload the engine.

• Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or engine drag.

• Cut from right to left whenever possible. Cutting to the left improves the unit's cutting efficiency. Clippings are thrown away from the operator.

• Slowly move the unit into and out of the cutting area at the desired height. Move either in a forward-backward or side-to-side motion. Cutting shorter lengths produces the best results.

• Trim only when grass and weeds are dry.

• The life of the cutting line is dependent upon:

• Following the trimming techniques

• What vegetation is being cut

• Where vegetation is cut

For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

DECORATIVE TRIMMING

Decorative trimming is accomplished by removing all vegetation around trees, posts, fences, etc..

Rotate the whole unit so that the cutting head is at a 30° angle to the ground (Fig. 11).

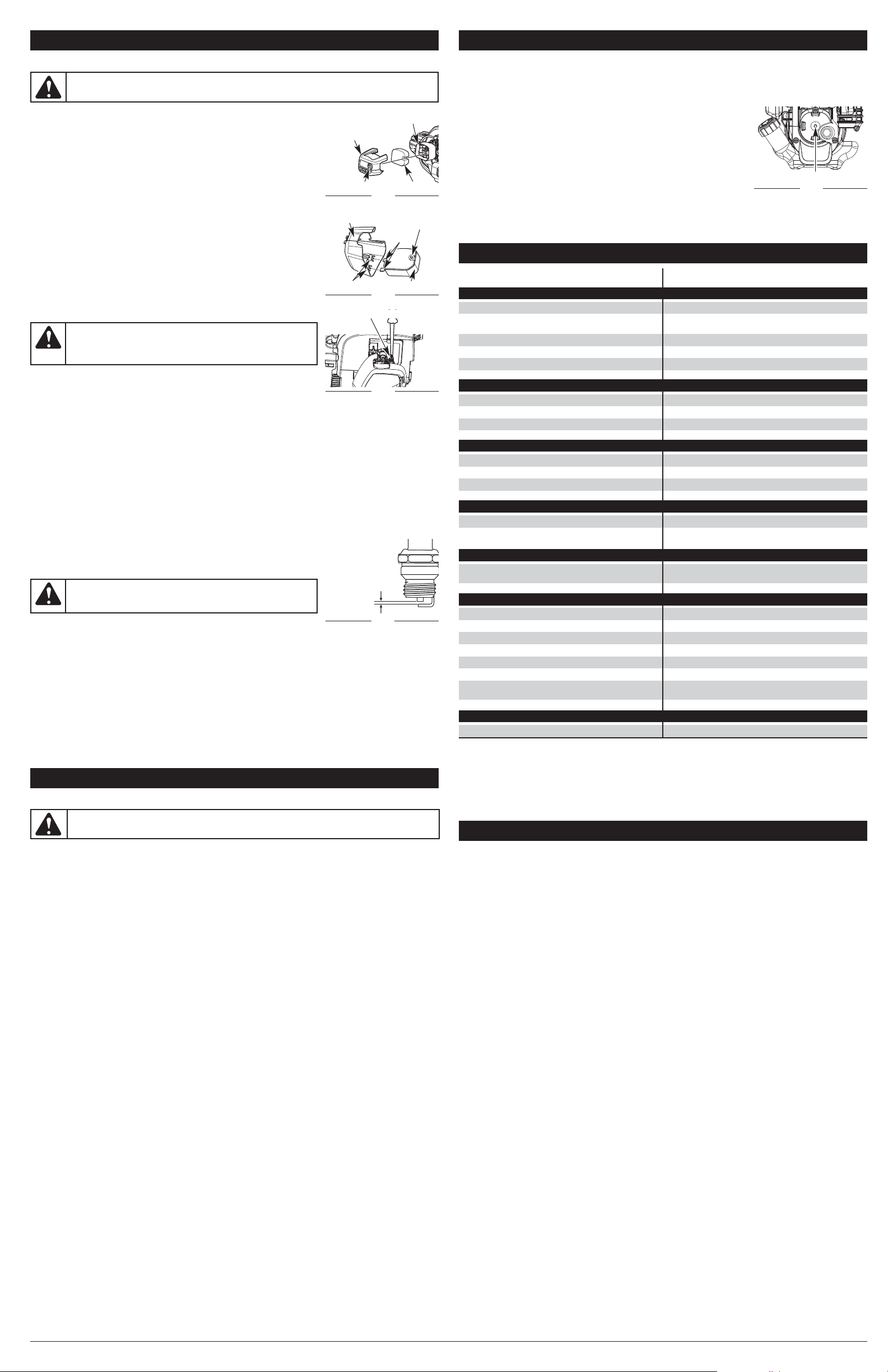

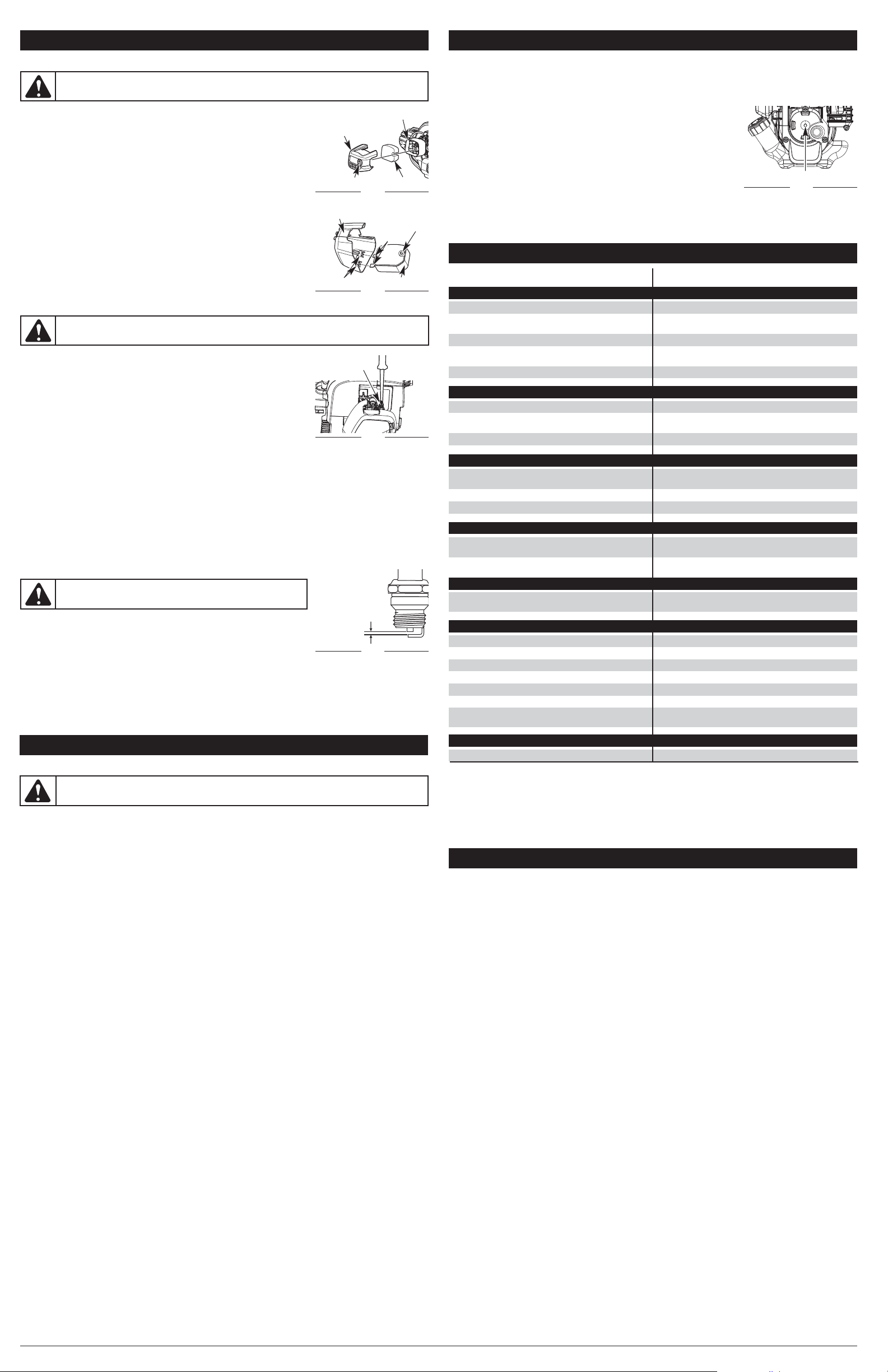

MAINTENANCE AND REPAIR INSTRUCTIONS

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up. NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures,

take your unit to any non-road engine repair establishment, individual or authorized service dealer.

NOTE: Maintenance, replacement, or repair of the emission control devices and system may be performed by any

non-road engine repair establishment, individual or authorized service dealer.

NOTE: Please read the California/EPA statement that came with the unit for a complete listing of terms and

coverage for the emissions control devices, such as the spark arrestor, muffler, carburetor, etc.

WARNING:

To prevent serious injury, never perform maintenance or repairs while the unit is running. Always allow the unit to cool before servicing or repairing the unit. Disconnect the spark plug wire to prevent the unit from starting accidentally.

FREQUENCY MAINTENANCE REQUIRED SEE

Every 10 hours Clean and re-oil air filter p. 4

Every 25 hours Check spark plug condition and gap p. 5

LINE INSTALLATION

This section covers both SplitLine® and standard single line installation.

Always use original equipment manufacturer 0.095 in. (2.41 mm) replacement line. Line other than the specified may make the engine overheat or fail.

There are two methods to replace the trimming line:

• Wind the inner reel with new line

• Install a prewound inner reel

Removing the Existing Inner Reel

1. Hold the outer spool with one hand and unscrew the bump knob counterclockwise (Fig. 12). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged.

Remove the inner reel from the outer spool (Fig. 13).

3. Remove spring from the inner reel (Fig. 13).

4. Use a clean cloth to clean the inner reel, spring, shaft, and inner surface of the outer spool.

5. Check the indexing teeth on the inner reel and outer spool for wear (Fig. 14). If necessary, remove burrs or replace the reel and spool.

NOTE: Always use the correct line length when

installing trimming line on the unit. The line may not release properly if the line is too long.

Single Line Installation

Go To Step 8 for SplitLine® Installation:

6. Take approximately 20 feet (6 m) of new trimming line, loop it into two equal lengths. Insert each end of the line through one of the two holes in the inner reel (Fig. 15). Pull the line through the inner reel so that the loop is as small as possible.

7. Wind the lines in tight even layers onto the reel (Fig. 16). Wind the line in the direction indicated on the inner reel. Place an index finger between the two lines to stop the lines from overlapping. Do not overlap the ends of the line. Proceed to step 12.

Loop

Fig. 15

Fig. 16

Loop

Fig. 17

Indexing Teeth

Fig. 14

Index Teeth

Fig. 18

Spring

Fig. 19

Eyelets

Bolt

Bump Knob

Fig. 12

SplitLine® Installation

8. Take approximately 10 feet (3 m) of new trimming line. Insert one end of the line through one of the two holes in the inner reel (Fig. 17). Pull the line through the inner reel until only about 4 inches is left out.

9. Insert the end of the line into the open hole in the inner reel and pull the line tight to make the loop as small as possible (Fig. 17).

10. Before winding, split the line back about 6 inches.

11. Wind the line in tight even layers in the direction indicated on the inner reel.

NOTE: Failure to wind the line in the direction indicated will cause the cutting head to operate incorrectly.

12. Insert the ends of the line into the two holding slots (Fig. 18).

13. Insert or slide the ends of the line through or into the eyelets in the outer spool and place inner reel with spring inside the outer spool (Fig. 19). Push the inner reel and outer spool together.

NOTE: The spring must be assembled on the inner reel before reassembling the cutting head.

14.

While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the spool.

15. Hold the inner reel in place and install the bump knob by turning clockwise. Tighten securely.

INSTALLING A PREWOUND REEL

1. Hold the outer spool with one hand and unscrew the bump knob counterclockwise (Fig. 12). Inspect the bolt inside the bump knob to make sure it moves freely. Replace the bump knob if damaged.

2. Remove the old inner reel from the outer spool (Fig. 13).

3. Remove the spring from the old inner reel (Fig. 13).

4. Place the spring in the new inner reel.

NOTE: The spring must be assembled on the inner reel before reassembling the cutting head.

5. Insert or slide the ends of the line through or into the eyelets in the outer spool (Fig. 19).

6. Place the new inner reel inside the outer spool. Push the inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the spool.

7. Hold the inner reel in place and install the bump knob by turning clockwise. Tighten securely.

INSTALLATION OF THE SPEEDLOCK™ Removing the Existing Inner Reel

Refer to Removing the Existing Inner Reel in the Maintenance and Repair Instructions section that can be found in the operator’s manual.

Installing the SpeedLock™

1. After removing the inner reel, place the SpeedLock™ onto the shaft, making sure to align the arrows with the eyelets in the outer spool (Fig. 20).

2. Place the spring over the shaft and into the recess in the SpeedLock™ Spool (Fig. 20).

3. While holding the outer spool in place, insert the bolt located in the Bump Knob™ through the end of the spring and into the end of the shaft (Fig. 20).

4. While slightly compressing the spring, screw the Bump Knob™ clockwise into the shaft (Fig.

20). Tighten Securely.

Installing the Trimming Line

1. Align the arrows on the SpeedLock™ with the eyelets on the outer spool (Fig. 21).

2. Insert a piece of precut spiral line, P/N 49UFSHLL953, into an eyelet on the outer spool (Fig. 21).

3. Push the line into the SpeedLock™ until it starts to show from the opposite side.

4. Adjust the line so that both ends are of equal length (Fig. 22).

5. While holding the outer spool in place, pull the SpeedLock™ away from the outer spool and twist the SpeedLock™ clockwise until the dot is in line with the eyelet or until it stops (Fig. 23).

6. Release the SpeedLock™ so that it snaps into place.

7. Check that the SpeedLock™ has seated completely into the outer spool. If it has not, repeat steps 5 thru 7.

Removing the Trimming Line

1. While holding the outer spool in place, pull the SpeedLock™ away from the outer spool and twist the SpeedLock™ counterclockwise until it stops. The arrows should align with the eyelets on the outer spool. (Fig. 21)

2. Release the SpeedLock™.

NOTE: The SpeedLock™ should stand about 1/4 of an inch above the outer spool.

3. Firmly pull one end of the trimming line until the whole piece exits the outer spool.

REMOVING THE SPEEDLOCK™

1. While holding the outer spool in place, turn the Bump Knob™ counterclockwise until it completely unscrews from the shaft.

2. Remove the spring.

3. Remove the SpeedLock™.

AIR FILTER MAINTENANCE

Cleaning the Air Filter

Failure to maintain your air filter properly can result in poor performance or can cause permanent damage to your engine.

1. Open the air filter cover by unscrewing the cover screw (Fig. 24).

2. Remove the air filter (Fig. 24).

3. Wash the filter in detergent and water. Rinse the filter thoroughly and allow it to dry.

4. Apply enough clean SAE 30 motor oil to lightly coat the filter.

5. Squeeze the filter to spread and remove excess oil.

6. Replace the air filter (Fig. 24).

NOTE: Operating the unit without the air filter will VOID the warranty.

7. Reinstall the air filter cover. Insert the hooks on the air filter housing into the slots on the air filter cover (Fig. 25).

8. Swing the air filter cover to the right and align the cover screw with the cover screw hole (Fig. 25). Tighten the cover screw to secure the air filter cover.

NOTE: Do not over tighten as this may strip the screw. ADJUSTING THE IDLE SPEED NOTE: Careless adjustments can seriously damage the unit. A qualified service

dealer should make carburetor adjustments.

If, after checking the fuel and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows:

1. Start the engine. Refer to Starting and Stopping.

2. Release the throttle control and let the engine idle. If the engine stops, use a small Phillips screwdriver to turn the idle speed screw clockwise, 1/8 of a turn at a time (as needed) until the engine idles smoothly (Fig. 26).

3. If the engine is idling too quickly, turn the idle speed screw counterclockwise, 1/8 of a turn at a time (as needed) to reduce the idle speed (Fig. 26).

Checking the fuel, cleaning the air filter, and adjusting the idle speed should solve most engine problems. If not, and any of the following conditions are true, take the unit to a qualified service dealer:

• the engine will not idle

• the engine hesitates or stalls on acceleration

• there is a loss of engine power

WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before

cleaning or maintaining the unit.

WARNING:

The cutting head may spin during idle speed adjustments. Wear protective clothing and

observe all safety instructions to prevent serious personal injury.

WARNING:

Never use metal-reinforced line, wire, chain or rope. These can break off and become

dangerous projectiles.

Fig. 26

Idle Speed Screw

Outer Spool

Spring

Inner Reel

Fig. 13

Fig. 10

Fig. 11

MAINTENANCE AND REPAIR INSTRUCTIONS

Outer Spool

Fig. 20

Trimmer

Line

Fig. 21

Eyelet

Shaft

Arrow

Eyelet

SpeedLock™

Spring

Recess

Bump

Knob™

Trimmer

Line

Fig. 22

Even

Cutting Head

Fig. 23

Dot

SpeedLock™

Eyelet

Fig. 24

OPERATING INSTRUCTIONS

WARNING:

Always wear eye, hearing, foot and body protection to reduce the risk of injury when operating

this unit.

WARNING:

Do not remove or alter the line cutting blade assembly. Excessive line length will cause

premature engine failure and / or unit damage.

Fig. 9

Fig. 25

Air Filter Housing

Air Filter

Cover

Cover Screw

Air Filter Housing

Cover

Screw Hole

Air Filter Cover

Hooks

Slots

MAINTAINING THE SPARK PLUG

1. Stop the engine and allow it to cool. Grasp the spark plug boot firmly and pull it from the spark plug.

2. Clean around the spark plug. Remove the spark plug from the cylinder head with a 5/8-inch socket, turning counterclockwise.

3. Inspect the spark plug. If the spark plug is cracked, fouled or dirty, replace it with a replacement part #753-06193, a Champion RDJ7J or an equivalent spark plug.

4. Use a feeler gauge to set the air gap at 0.025 in. (0.635 mm) (Fig. 27).

5. Install the spark plug in the cylinder head. Tighten the spark plug with a 5/8-inch socket, turning it clockwise until snug.

NOTE: If using a torque wrench, torque to:

110-120 in.•lb. (12.3-13.5 N•m). Do not over tighten.

6. Reattach the spark plug boot.

CAUSE ACTION

Engine overspeed protection engaged

Allow the engine to cool down for 10 minutes before restarting.

Old or improperly mixed fuel Drain fuel tank and add fresh fuel mixture Fouled spark plug Replace or clean the spark plug

Old or improperly mixed fuel Drain fuel tank and add fresh fuel mixture Cutting head bound with grass Stop the engine and clean the cutting head Dirty air filter Clean or replace the air filter

Empty fuel tank Fill fuel tank with properly mixed fuel Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times

Engine is flooded

With the choke lever in position 3, squeeze the trigger

and pull the starter rope Old or improperly mixed fuel Drain fuel tank and add fresh fuel mixture Fouled spark plug Replace or clean the spark plug

Cutting head bound with grass Stop the engine and clean cutting head Cutting head out of line Refill with new line Inner reel bound up Rewind the inner reel Cutting head dirty Clean inner reel and outer spool Line welded Disassemble, remove the welded section and rewind Line twisted when refilled Disassemble and rewind the line

Not enough line is exposed

Push the bump knob and pull out line until 4 inches (102 mm)

of line is outside of the cutting head

Oil, cleaner or lubricant in cutting head Clean and thoroughly dry the cutting head

Air filter is plugged Replace or clean the air filter Old or improperly mixed fuel Drain fuel tank and add fresh fuel mixture The idle speed is incorrect Adjust the idle speed

TROUBLESHOOTING

ENGINE WILL NOT START

ENGINE WILL NOT IDLE

ENGINE WILL NOT ACCELERATE

IF FURTHER ASSISTANCE IS REQUIRED, CONTACT AN AUTHORIZED SERVICE DEALER.

ENGINE LACKS POWER OR STALLS

CUTTING LINE ADVANCES UNCONTROLLABLY

CUTTING HEAD WILL NOT ADVANCE LINE

Engine Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 cc

Operating RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,800+ rpm

Idle Speed RPM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,800 - 3,400 rpm

Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 in. (0.635 mm)

Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture

Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40:1

Fuel Tank Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 fl.oz. (414 ml)

Total Approximate Unit Weight (without fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 lbs. (4.5 kg)

Cutting Mechanism

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bump Head™

Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optional

Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.095 in. (2.41 mm)

Cutting Path Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 in. (40.64 cm)

SPECIFICATIONS*

*All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

WARNING:

Do not sand blast, scrape or clean spark plug

electrodes. Grit in the engine could damage the cylinder.

Fig. 27

0.025 in.

(0.635 mm)

ELECTRIC STARTER AND POWER START BIT™ FEATURES

This unit is designed to be started with an optional electric starter or Power Start Bit™ that are sold separately. If choosing to start the unit using one of these features or have questions please contact your local retailer or call 1-800-828-5500 U.S, (1-800-668-1238 Canada), for more information and purchasing. You may also go to www.troybilt.com or

www.troybilt.ca.

ENGINE STOPS WHILE IN USE

OPTIONAL ACCESSORY

CLEANING

Use a small brush to clean the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic. Wipe off any moisture with a soft cloth.

STORAGE

• Never store a fueled unit where fumes may reach an open flame or spark.

• Allow the engine to cool before storing.

• Lock up the unit to prevent unauthorized use or damage.

• Store the unit in a dry, well-ventilated area.

• Store the unit out of the reach of children.

Short-term Storage (1-2 weeks)

1. Store the unit in a horizontal position. If this is not possible, store the unit vertically with the engine at the top.

Long-term Storage

1. Remove the fuel cap, tip the unit and drain the fuel into an approved container.

2. Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and put 5 drops of any high quality motor oil or 2-cycle oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.

4. Thoroughly clean the unit and inspect it for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts.

Preparing the Unit for Use after Long-term Storage

1. Remove the spark plug and drain all of the oil from the cylinder.

NOTE: Do not use fuel that has been stored for more than 30 days. Dispose of old fuel according to federal, state

and local regulations.

CLEANING AND STORAGE

WARNING:

To avoid serious personal injury, always stop the engine and allow it to cool before

cleaning or maintaining the unit.

Fig. 28

Electric Start Feature

MAINTENANCE AND REPAIR INSTRUCTIONS

+ 11 hidden pages

Troy-Bilt TB80 EC Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
