troy-bilt TB57 operators manual

• IMPORTANT SAFETY INSTRUCTIONS •
(10/09)

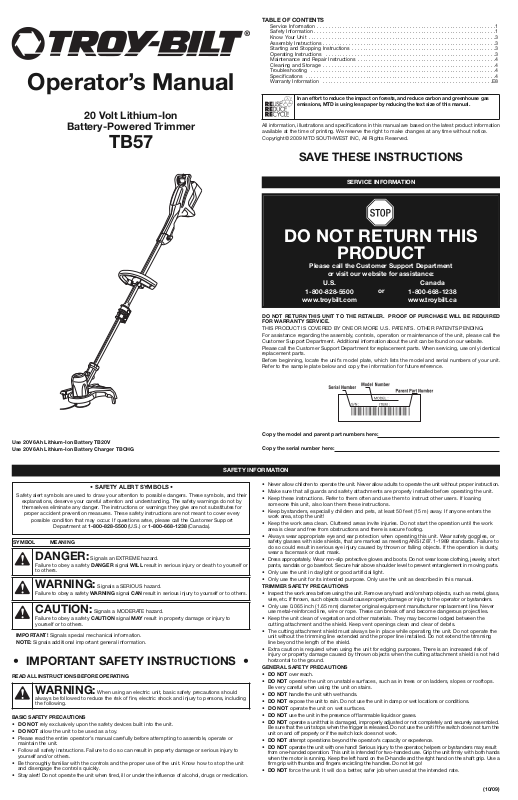

Operator’s Manual
20 Volt Lithium-Ion
Battery-Powered Trimmer
TB57
TABLE OF CONTENTS
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.
THIS PRODUCT IS COVERED BY ONE OR MORE U.S. PATENTS. OTHER PATENTS PENDING. For assistance regarding the assembly, controls, operation or maintenance of the unit, please call the
Customer Support Department. Additional information about the unit can be found on our website. Please call the Customer Support Department for replacement parts. When servicing, use only identical
replacement parts. Before beginning, locate the unit’s model plate, which lists the model and serial numbers of your unit.
Refer to the sample plate below and copy the information for future reference.
Copy the serial number here:
Copy the model and parent part numbers here:
DO NOT RETURN THIS
PRODUCT
Please call the Customer Support Department
or visit our website for assistance:
or
SAFETY INFORMATION
SAVE THESE INSTRUCTIONS
All information, illustrations and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.
Copyright© 2009 MTD SOUTHWEST INC, All Rights Reserved.
In an effort to reduce the impact on forests, and reduce carbon and greenhouse gas emissions, MTD is using less paper by reducing the text size of this manual.
Use 20V 6Ah Lithium-Ion Battery TB20V Use 20V 6Ah Lithium-Ion Battery Charger TBCHG
SERVICE INFORMATION
• Never allow children to operate the unit. Never allow adults to operate the unit without proper instruction.
• Make sure that all guards and safety attachments are properly installed before operating the unit.
• Keep these instructions. Refer to them often and use them to instruct other users. If loaning someone this unit, also loan them these instructions.
• Keep bystanders, especially children and pets, at least 50 feet (15 m) away. If anyone enters the work area, stop the unit!
• Keep the work area clean. Cluttered areas invite injuries. Do not start the operation until the work area is clear and free from obstructions and there is secure footing.
• Always wear appropriate eye and ear protection when operating this unit. Wear safety goggles, or safety glasses with side shields, that are marked as meeting ANSI Z87.1-1989 standards. Failure to do so could result in serious eye injury caused by thrown or falling objects. If the operation is dusty, wear a facemask or dust mask.
• Dress appropriately. Wear non-slip protective gloves and boots. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level to prevent entanglement in moving parts.
• Only use the unit in daylight or good artificial light.
• Only use the unit for its intended purpose. Only use the unit as described in this manual.
TRIMMER SAFETY PRECAUTIONS
• Inspect the work area before using the unit. Remove any hard and/or sharp objects, such as metal, glass, wire, etc. If thrown, such objects could cause property damage or injury to the operator or bystanders.
• Only use 0.065 inch (1.65 mm) diameter original equipment manufacturer replacement line. Never use metal-reinforced line, wire or rope. These can break off and become dangerous projectiles.
• Keep the unit clean of vegetation and other materials. They may become lodged between the cutting attachment and the shield. Keep vent openings clean and clear of debris.
• The cutting attachment shield must always be in place while operating the unit. Do not operate the unit without the trimming line extended and the proper line installed. Do not extend the trimming line beyond the length of the shield.
• Extra caution is required when using the unit for edging purposes. There is an increased risk of injury or property damage caused by thrown objects when the cutting attachment shield is not held horizontal to the ground.
GENERAL SAFETY PRECAUTIONS
• DO NOT over reach.
• DO NOT operate the unit on unstable surfaces, such as in trees or on ladders, slopes or rooftops. Be very careful when using the unit on stairs.
• DO NOT handle the unit with wet hands.
• DO NOT expose the unit to rain. Do not use the unit in damp or wet locations or conditions.
• DO NOT
operate the unit on wet surfaces.
• DO NOT use the unit in the presence of flammable liquids or gases.
• DO NOT operate a unit that is damaged, improperly adjusted or not completely and securely assembled. Be sure that the unit stops when the trigger is released. Do not use the unit if the switch does not turn the unit on and off properly or if the switch lock does not work.
• DO NOT attempt operations beyond the operator’s capacity or experience.
• DO NOT operate the unit with one hand! Serious injury to the operator, helpers or bystanders may result from one-handed operation. This unit is intended for two-handed use. Grip the unit firmly with both hands when the motor is running. Keep the left hand on the D-handle and the right hand on the shaft grip. Use a firm grip with thumbs and fingers encircling the handles. Do not let go!
• DO NOT force the unit. It will do a better, safer job when used at the intended rate.
READ ALL INSTRUCTIONS BEFORE OPERATING
BASIC SAFETY PRECAUTIONS
• DO NOT rely exclusively upon the safety devices built into the unit.
• DO NOT allow the unit to be used as a toy.
• Please read the entire operator’s manual carefully before attempting to assemble, operate or maintain the unit.
• Follow all safety instructions. Failure to do so can result in property damage or serious injury to yourself and/or others.
• Be thoroughly familiar with the controls and the proper use of the unit. Know how to stop the unit and disengage the controls quickly.
• Stay alert! Do not operate the unit when tired, ill or under the influence of alcohol, drugs or medication.
WARNING:
When using an electric unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following.
U.S.
1-800-828-5500
www.troybilt.com
Canada 1-800-668-1238 www.troybilt.ca
DANGER:Signals an EXTREME hazard.
Failure to obey a safety DANGER signal WILL result in serious injury or death to yourself or to others.
WARNING:Signals a SERIOUS hazard.
Failure to obey a safety WARNING signal CAN result in serious injury to yourself or to others.
CAUTION:Signals a MODERATE hazard.
Failure to obey a safety CAUTION signal MAY result in property damage or injury to yourself or to others.
IMPORTANT! Signals special mechanical information. NOTE: Signals additional important general information.
SYMBOL MEANING
• SAFETY ALERT SYMBOLS •
Safety alert symbols are used to draw your attention to possible dangers. These symbols, and their
explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for
proper accident prevention measures. These safety instructions are not meant to cover every
possible condition that may occur. If questions arise, please call the Customer Support
Department at 1-800-828-5500 (U.S.) or 1-800-668-1238 (Canada).
SAFETY INFORMATION
2
• SAFETY AND INTERNATIONAL SYMBOLS •
This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating, maintenance and repair information.
• SAFETY ALERT SYMBOL
Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.
• READ OPERATOR'S MANUAL
WARNING:R
ead the operator’s manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.
• WEAR EYE AND HEARING PROTECTION
WARNING:Thrown objects and loud noise can cause severe eye
injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Use a full face shield when needed.
• KEEP BYSTANDERS AWAY
WARNING:Keep all bystanders, especially children and pets, at
least 50 feet (15 m) from the operating area. If anyone enters the work area, stop the unit!
SYMBOL MEANING
• WEAR SAFETY FOOTWEAR
Wear non-slip safety footwear when using this equipment.
•
WEAR SAFETY GLOVES
Wear non-slip, heavy-duty protective gloves when handling the unit.
• DO NOT USE IN THE RAIN
WARNING:Avoid dangerous environments. Never operate your
unit in the rain or in damp or wet conditions. Moisture is a shock hazard.
• SHARP BLADE
WARNING: There is a sharp blade on the cutting attachment
shield. To prevent serious injury, do not touch the line cutting blade.
• Grip the unit firmly with both hands when the motor is running. Keep the left hand on the D-handle and the right hand on the rear handle. Use a firm grip with thumbs and fingers encircling the handles. Follow all the Proper Grip on Handles instructions in the Operating Instructions section.
• Adjust the D-handle to provide the best grip.
• Keep proper footing and balance at all times.
• Keep hair, loose clothing, fingers and all other body parts away from moving parts. Do not try to touch or stop moving parts when they rotate.
• To reduce the risk of electric shock, avoid body contact with grounded conductors, such as metal pipes or wire fences.
• Always stop the motor when operation is delayed, before setting down the unit or when walking from one location to another. Make sure the unit comes to a complete stop.
•
To avoid accidental starting, never carry the unit with fingers on the switch trigger. Always carry the unit by the handles with the battery removed.
•
Always make sure the lock-off button is in the locked or OFF position before installing or removing the battery.
• If the unit strikes or becomes entangled with a foreign object, stop the motor immediately, remove the battery and check for damage. Do not restart or operate the unit before repairing damage.
• This unit is intended for infrequent use by homeowners. It is not intended for prolonged use.
ELECTRICAL SAFETY PRECAUTIONS
• A battery-operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk or fire when used with another battery.
• Use a battery-operated tool only with specific battery pack. Use of any other batteries may create a risk of fire.
• When the battery is not installed in the unit, keep it away from paper clips, coins, keys, nails, screws or other metal objects that could make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns or a fire.
Battery Pack and Charger Safety
• DO NOT probe the charger with conductive material. The charging terminals hold 120 V.
• DO NOT insert battery into the charger if the battery pack is cracked or damaged.
• DO NOT charge any batteries except the ones specified by the charger.
• DO NOT try to use the charger for any other purposes than what is presented in the operator’s manual.
• Keep charger away from all liquid.
• Do not allow the battery pack or charger to overheat. If they are warm, allow them to cool down. Recharge only at room temperature; 32 and 104˚ F (0 and 40˚ C).
• Do not cover the ventilation slots on the charger. Do not place charger on a soft surface. Keep the ventilation slots of the charger clean and clear of dirt and debris.
• Do not allow small metal items or material such as steel wool, aluminum foil or other foreign particles into the charger cavity.
• Unplug the charger before cleaning and when not in use.
• Do not connect two chargers together.
• Keep the charger in a cool and dry area.
• Never use the cord to carry the charger. Never remove the plug from the power outlet by pulling it by the cord. Keep the cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Do not use the charger if the cord is damaged.
• Do not place the charger where the power cord might be stepped on, tripped over, or subjected to damage.
Grounding
In the event of malfunction or breakdown, grounding provides the path of least resistance for electric current and reduces the risk of electric shock.
This battery charger is double insulated and has a two-prong polarized plug (one blade is wider than the other). This plug will fit a polarized outlet only one way. If the plug does not fit fully into the power outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. DO NOT change the plug in any way. IN ALL cases, make sure the power outlet is properly grounded. If you are not sure, have a certified electrician check the power outlet.
MAINTENANCE AND STORAGE SAFETY
• DO NOT perform
maintenance
procedures other than those described in this manual. Do not
attempt to repair; there are no user serviceable parts inside.
• If the unit is not working as it should, has been dropped, damaged, left outdoors or dropped into water, do not use the unit.
• Follow all maintenance instructions in this manual.
• Before inspecting, servicing, cleaning, storing, transporting or replacing any parts on the unit:
1. Stop the motor. Make sure the lock-off button is in the locked or OFF position.
2.
Make sure all moving parts have stopped.
3. Remove the battery.
4. Allow the unit to cool.
• Never remove, modify or make inoperative any safety device furnished with the unit.
• Frequently inspect the unit for damage. Before further use, any damaged part should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts and any other conditions that may affect its operation. Damaged parts should be properly repaired or replaced.
• If the unit starts to vibrate abnormally, stop the motor, remove the battery and allow the unit to cool. Then inspect the unit for the cause of the vibration. Vibration is generally an indicator of trouble.
• Use only original manufacturer replacement parts and accessories, which are designed specifically to enhance the performance and maximize the safe operation of the product. Failure to do so may cause poor performance and possible injury.
• Remove the battery from the unit when not in use.
• Be sure to secure the unit while transporting.
• When not in use, store the unit indoors in a locked-up and dry, or high and dry, place to prevent unauthorized use or damage. Keep out of the reach of children.
• Keep the handles dry, clean and free from debris, oil and grease. Clean the unit after each use. Never douse or spray the unit with water or any other liquid. Do not wash the unit with a hose; avoid getting water in the motor and electrical connections. Do not use solvents or strong detergents.
• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY
WARNING: Small objects can be propelled at high speed,
causing injury. Keep away from the rotating cutter.
SAVE THESE INSTRUCTIONS
WARNING:
If battery fluid gets in the eyes, flush immediately with clean water for at least 15 minutes. Get immediate medical attention. Do not charge the battery pack in the rain or in wet conditions. Do not immerse the unit, battery pack, or charger in water or other liquid.
WARNING:The battery pack may develop a small leak under extreme usage
or temperature conditions. If the outer seal is broken and the leakage gets on skin:
- Use soap and water to wash the area immediately.
- Neutralize with lemon juice, vinegar or other mild acid. And seek medical attention immediately.
PROPER GRIP ON HANDLE
• Always maintain a proper grip on the handles whenever the motor is running. Grip the unit firmly with both hands. Keep the left hand on the D-handle and the right hand on the shaft grip. The fingers should encircle the handle(s) and the thumb(s) should wrap under the handle(s). The left arm should be straight and the right arm slightly bent.
PROPER STANCE
• Balance body weight securely, with both feet on solid ground.
WORK AREA PRECAUTIONS
• Keep everyone – helpers, bystanders, children and animals – at least 50 feet (15 m) away from the work area. If anyone enters the work area, stop the unit!
• Only operate the unit when visibility and light are adequate to see clearly.
• Remove stones, nails, glass and wire from the area before operating the unit.
• Only operate the unit during reasonable hours. Comply with times listed in local ordinances.
OPERATING THE TRIMMER
1. Hold the unit at waist level with the cutting attachment parallel to the ground so that it easily contacts the grass without the need to
bend over (Fig. 12).
2. Start the motor. Refer to Starting and Stopping Instructions.
3. Slowly move the cutting attachment into and out of the cutting area at the desired height.
• Move either in a forward-backward or side-to-side motion. When cutting from side-to-side, cut from right to left whenever possible.
This improves the unit’s cutting efficiency and directs clippings away from the operator.
• Cutting shorter lengths produces the best results.
• Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or motor drag.
• Do not force the cutting attachment. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip
will reduce cutting efficiency and may overload the motor.
• Only trim when grass or weeds are dry.
4. Dispose of debris appropriately.

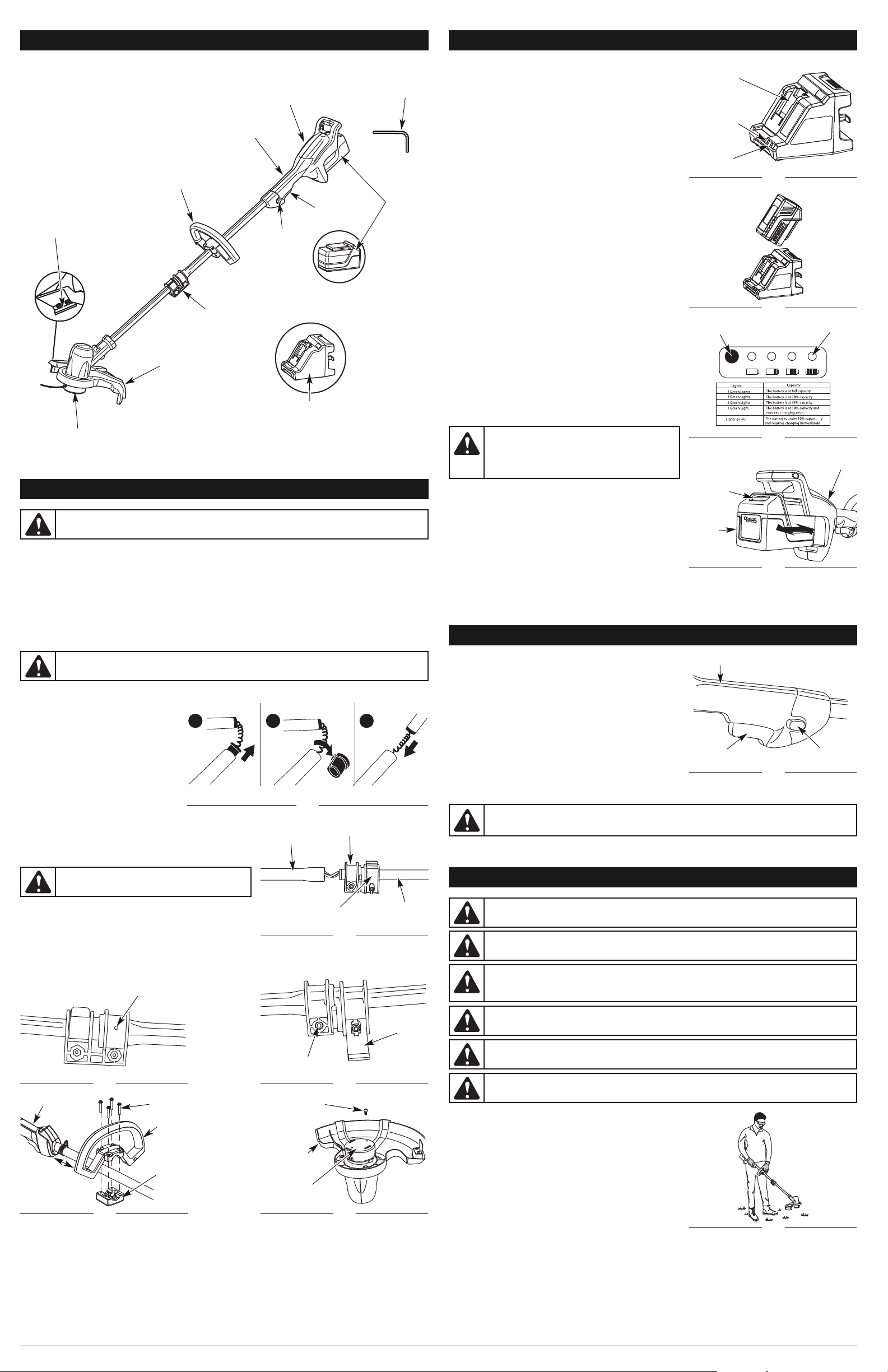

CHARGING THE BATTERY NOTE: The battery is not shipped fully charged. It is recommended to fully
charge the battery before use to ensure that maximum run time can be achieved. The lithium-ion battery will not develop a memory and may be charged at any time. A fully discharged battery will require approximately 4.5 hours to completely charge.
1. Plug the charger into an AC wall outlet/ receptacle.
2. The red Power LED will illuminate (Fig. 7).
3. Insert the battery into the charger (Fig. 7).
NOTE: Make sure the battery is fully inserted into the charge by making sure
the red Indicator LED charge light is on (Fig. 7).
4. Once the battery has reached a full charge level the Indicator LED will turn
from red to green (Fig. 7).
5. The battery may be removed (Fig. 8) or stored in the charger once it is fully
charged; however, it is recommended to disconnect the plug from the wall outlet/receptacle.
NOTE: Lithium-ion batteries, while in use, will continue to provide full power
without power fade unlike typical batteries; when the battery is fully discharged, the battery circuitry will immediately cut power to the tool and require immediate charging.
Battery Instructions
Press the battery capacity indicator (BCI) button. The lights will illuminate according to the battery’s current power level (Fig. 9).
INSTALLING AND REMOVING THE BATTERY
Follow these instructions in order to avoid injury and to reduce the risk of electric shock or fire:
• Verify that the lock-off button is in the locked or OFF position before installing or removing the battery. Refer to Starting and Stopping Instructions.
• Verify that the battery is removed and the lock-off button is in the locked or OFF position before inspecting, adjusting or performing maintenance on any part of the unit.
Installing the Battery
1. Align the tongue of the battery with the handle cavity (Fig. 10).
2. Grasp the rear handle firmly.
3. Push the battery into the handle cavity until the latch locks into place.
4.
Do not use force when inserting the battery. It should slide into position and “click.”
Removing the Battery
1. Press the latch button on the battery down and hold (Fig. 10).
2. Grasp the rear handle firmly and pull the battery out of the handle cavity.
NOTE: The battery fits into the handle cavity snugly in order to prevent
accidental dislodging. It may require a strong pull to remove it.
IMPORTANT! The battery is equipped with an internal circuit breaker that will
automatically shut off power to the unit if the battery is overloaded during heavy use. Once cooled, the battery will reset itself. Follow these steps if an overload occurs:
1. Release the switch trigger and then restart the unit. Refer to Starting and
Stopping Instructions.
2. The battery may need to be removed for approximately 1 minute, allowed
to cool and then reinstalled.
3
This unit requires assembly.
UNPACKING
• Carefully remove the product and any accessories from the box.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
• If any parts are damaged or missing, please call 1-800-828-5500 (U.S.) or 1-800-668-1238 (Canada) for assistance.

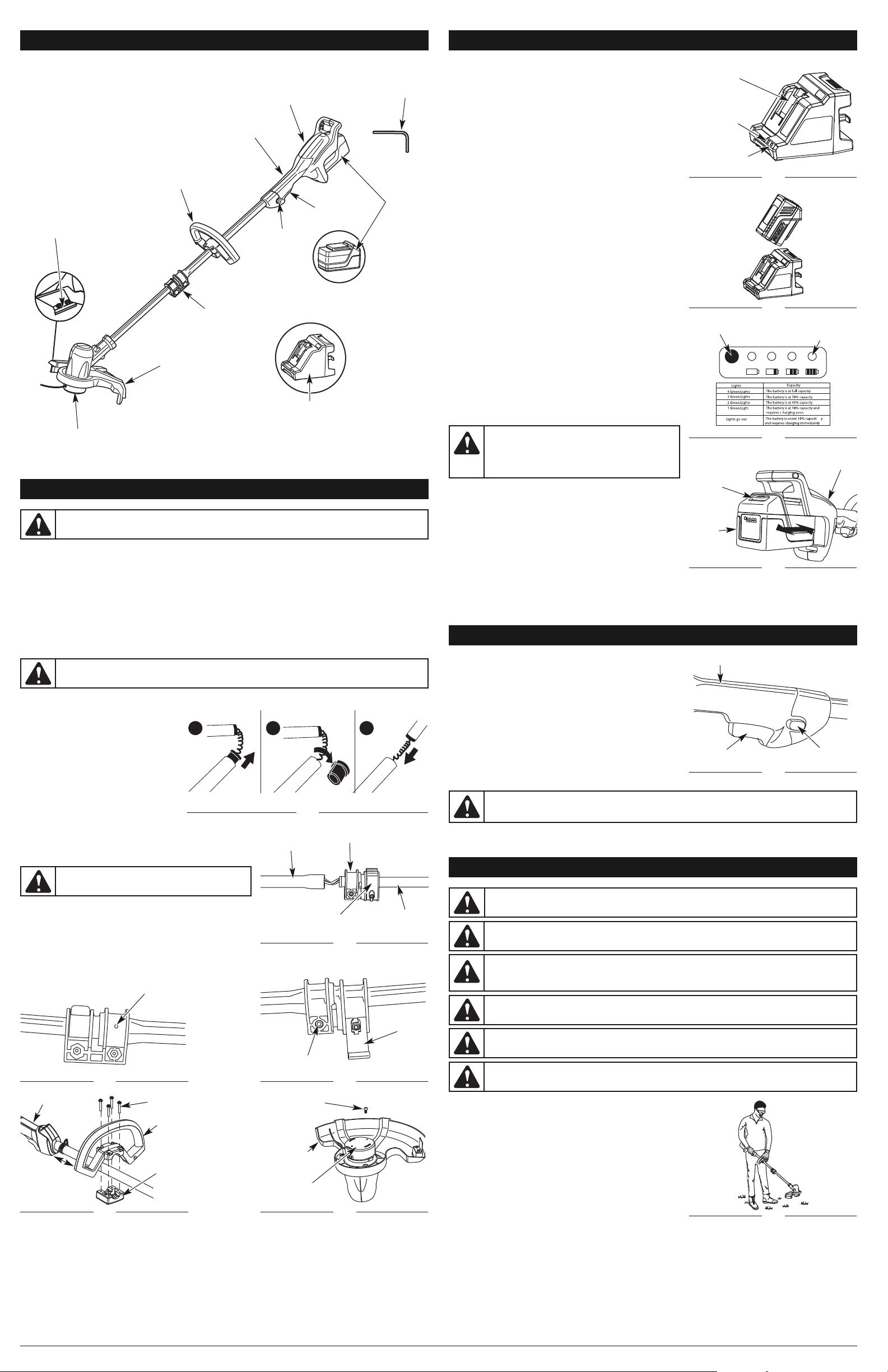

ASSEMBLING THE SHAFT
1. Remove the rubber protector from the end of the upper boom (Fig. 1A and 1B).
2. Unfold the unit so that the lower boom is in line with the upper boom (Fig. 1C). NOTE: Make sure the coupler buckle is in the clamped position and that the coupler is at the top of its travel area on the lower boom. (Fig. 2).
3. Slide the top of the lower boom shaft into the bottom of the upper boom shaft and push together until the coupler is snug against the upper boom. Make sure the coupler lock button snaps into the hole (Fig. 3).
4. Using a 4mm Allen Wrench tighten the upper Allen bolt until the coupler is secure and will not move on the upper boom. (Fig. 4).
INSTALLING AND ADJUSTING THE D-HANDLE
1. Place D-handle over the shaft housing and onto the bottom clamp (Fig. 5). Place it a minimum of 6 inches (15.24 cm) from the end of the shaft grip.
2. Start screws with a large Flat-head or T-25 Torx screwdriver. Do not tighten until you make the handle adjustment.
3. While holding the unit in the operating position (Fig.
12), move the D-handle to the location that provides you the best grip.
4. Tighten the clamp screws evenly, until the D-handle is secure.
INSTALLING THE CUTTING ATTACHMENT SHIELD
1. Turn the unit over so that the cutting head is facing up (Fig. 6).
2. Using a Philips head screwdriver, remove the three screws from the cutting head.
3. Place the shield over the cutting head and onto the motor housing so that the decal is facing down and the 3 screw holes line up with the 3 screw pegs on the motor housing.
4. Install and tighten the screws with a Phillips screwdriver (Fig. 6).
KNOW YOUR UNIT
ASSEMBLY INSTRUCTIONS
APPLICATIONS
This unit may be used for the purposes listed below:
• Cutting grass and light weeds
• Edging
• Decorative trimming around trees, fences, etc.
D-Handle
Switch Trigger
WARNING: Make sure the motor is off and the battery is disconnected before assembling or disassembling any
components.
Line Cutting
Blade
Shaft
Adjustment
Coupler
Cutting Head
Shield
Fig. 1
Fig. 2
Coupler
Lower Boom
Shaft
Upper Boom
Shaft
STARTING AND STOPPING INSTRUCTIONS
STARTING THE MOTOR
Make sure the immediate area is clear of any objects or obstructions that could come in contact with the cutting head.
To help prevent accidental start-ups, this unit has a lock-off button and switch trigger that must be used together to start the unit.
1. Fit the battery into the handle cavity (Fig. 10). Refer to Installing the Battery.
2. Press and hold the lock-off button (Fig. 11). This makes the switch trigger operational.
3. While holding the lock-off button, press and hold the switch trigger.
4. Release the lock-off button and continue to squeeze the switch trigger for continued operation.
STOPPING THE MOTOR
1. Release the switch trigger.
NOTE: Upon release of the switch trigger, the lock-off button will automatically
reset to the locked position.
Switch Trigger
Fig. 11
Lock-off
Button
Battery
CAUTION:
When the battery is not installed in the unit, keep it away from paper clips, coins, keys, nails, screws or other metal objects that could make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns or a fire.
Lock-off
Button
Handle
Housing
Shaft Grip
Cutting Head
Multi-purpose
Tool
Battery Charger
Fig. 4
Coupler
Buckle
Allen Bolt
Fig. 5
Shaft Grip
Fig. 6
Cutting Head
Shield
Cutting
Head
Screws (3)
WARNING: To prevent serious damage to the unit, make sure not to let the lower boom drop or pull excessively while
unfolding the unit.
WARNING: To prevent serious personal injury, never operate
the trimmer without the cutting attachment shield in place.
ASSEMBLY INSTRUCTIONS
Fig. 7
Indicator LED
Power LED
Battery
Compartment
Fig. 8
Fig. 9
LED Meter
BCI Button
Fig. 10
Battery
Handle
Housing
Battery
Latch
Coupler
Buckle
Screws (4)
Bottom
Clamp
Minimum
6 inches
(15.24 cm)
D-Handle
Shaft Grip
CAUTION: Always allow 5 seconds or more for the cutting head to come to a complete stop after releasing the switch
trigger. Do not invert the unit, or place any body parts near the cutting head until it has come to a complete stop.
OPERATING INSTRUCTIONS
WARNING: If any parts are damaged or missing, do not operate the unit until the parts are replaced. Failure to heed this
warning could result in serious personal injury.
WARNING:
Always wear appropriate eye and ear protection when operating this unit. Wear safety goggles, or safety glasses with side shields, that are marked as meeting ANSI Z87.1-1989 standards. Failure to do so could result in serious eye injury caused by thrown objects. If the operation is dusty, wear a facemask or dust mask.
Fig. 12
WARNING: Do not allow familiarity with this unit to promote carelessness. Remember that a careless fraction of a
second is enough to inflict serious injury.
WARNING:
Wear non-slip gloves for maximum grip and protection. Refer to the Safety Information section for appropriate safety equipment.
WARNING:
Do not expose the unit to rain. Do not use the unit in damp or wet locations or conditions.
WARNING:
To avoid serious injury, do not wear loose fitting garments, such as scarves, strings, chains or ties, which could be drawn into the air intake. Long hair must be pulled back and secured at the shoulders and neck.
Fig. 3
Coupler
Lock Button
A
B
C

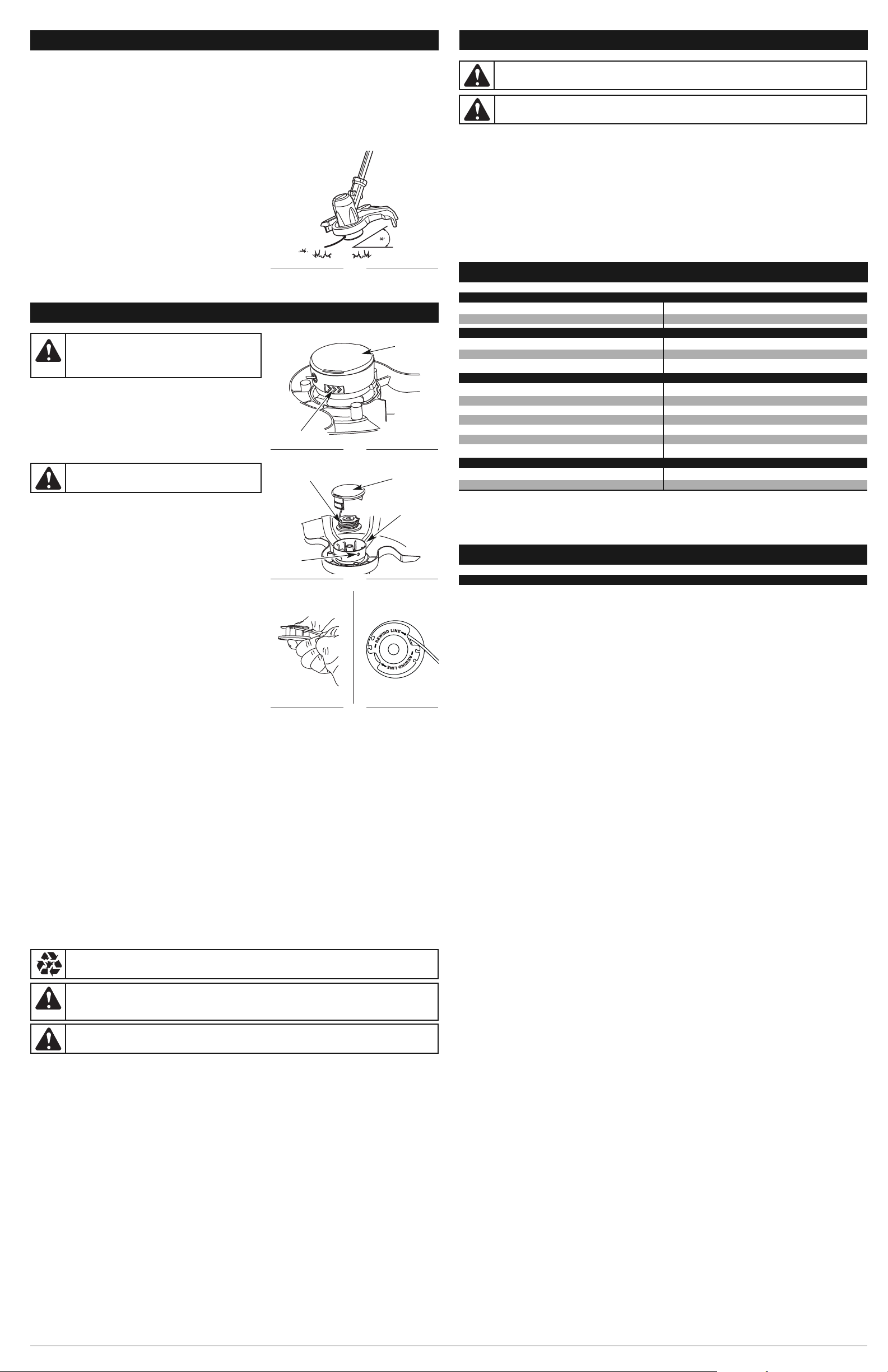

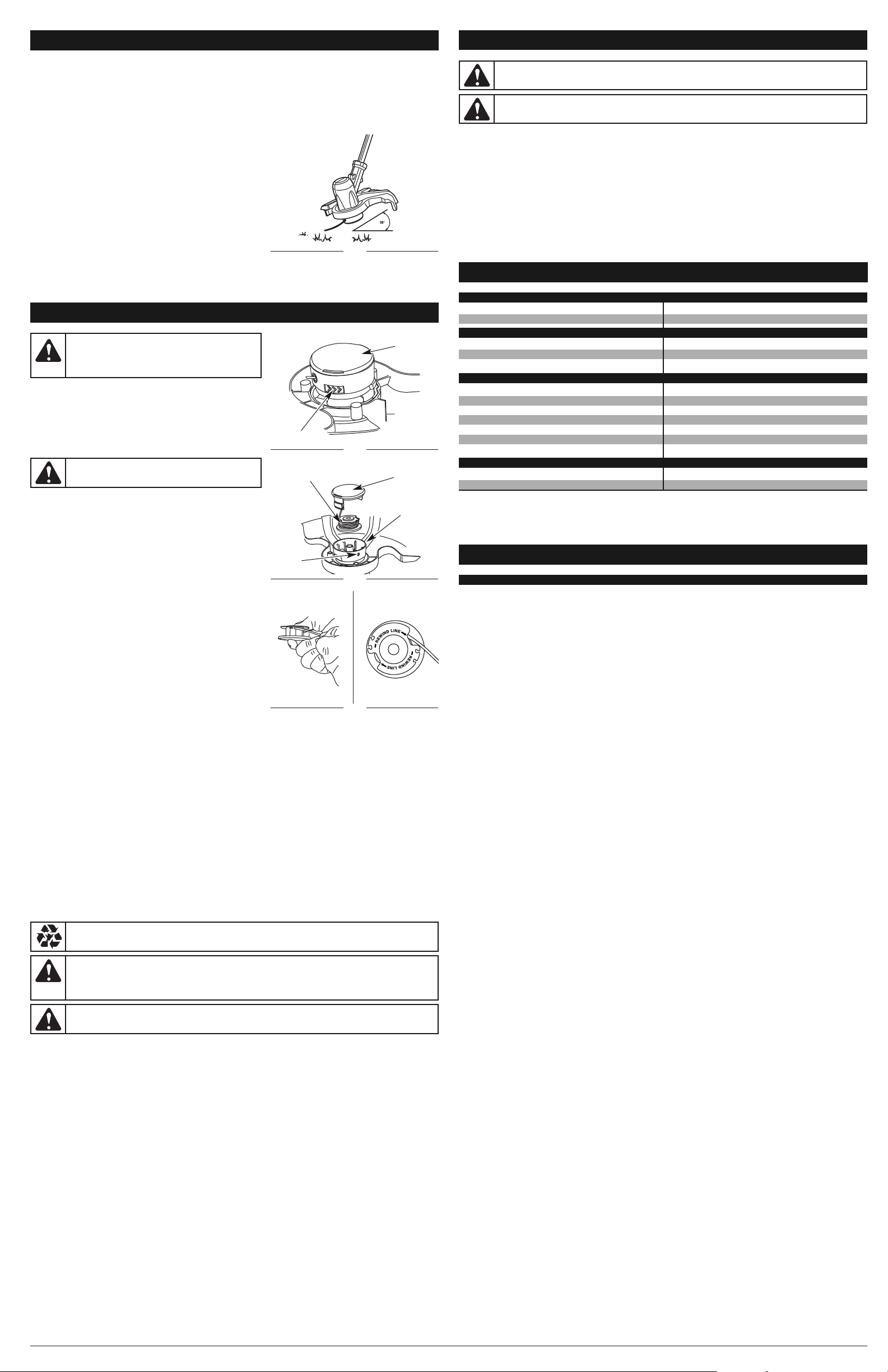

LINE INSTALLATION
This unit accepts up to .080-inch line. For best performance, use original equipment manufacturer 0.065 in. (1.65 mm) replacement line. Line other than the specified may make the motor overheat or fail.
There are two methods to replace the trimming line:
• Wind the inner reel with new line
• Install a prewound inner reel
Winding the Existing Inner Reel
1. Remove the cutting head cover by pressing in both tabs that are visible on either side or the cutting head (Fig. 14).
2. Remove the inner reel from the outer spool (Fig. 15).
3. Remove any old line from the inner reel and use a clean cloth to wipe the inner surface of the outer spool.
NOTE: Use a clean cloth to clean the the inner reel, spring, shaft, and inner
surface of the outer spool.
4. Take approximately 12 feet (3.6 m) of new trimming line and insert one end of the line into the hole at the top of the inner reel (Fig. 16).
5. Wind the line, in even and tight layers, onto the reel (Fig. 16). Wind the line in the direction indicated on the inner reel.
NOTE: Failure to wind the line in the direction indicated will cause the cutting
head to operate incorrectly.
6. Insert the end of the line into one of the holding slots (Fig. 16).
7. Insert the end of the line through the eyelet in the outer spool (Fig. 15).
8. Place the inner reel inside the outer spool.
9. Hold the inner reel in place, grasp the line end and pull firmly to release the line from the holding slot in the inner reel.
10. Install the cutting head cover over the inner reel. Align the tabs on the cover with the slots in the outer spool and press the cover down evenly until it snaps into place (Fig. 15).
NOTE: Make sure the cutting head cover tabs snap into place or the inner reel
will come out during operation.
Installing a prewound reel
Always use genuine replacement line. Using larger line than specified may make the motor overheat or fail.
1. Remove the cutting head cover by pressing in on both of the cutting head cover tabs that are visible on either side of the outer spool (Fig. 14).
2. Remove the old inner reel from the outer spool.
3. Use a clean cloth to wipe the inner surface of the outer spool.
4. Insert the end of the line of the pre-wound reel through the eyelet in the outer spool (Fig. 15).
5. Place the inner reel inside the outer spool (Fig. 15).
6. Hold the inner reel in place, grasp the line end and pull firmly to release the line from the holding slot in the inner reel.
7. Install the cutting head cover over the inner reel. Align the tabs on the cover with the slots in the outer spool and press the cover down evenly until it snaps into place.
NOTE: Make sure the cutting head cover tabs snap into place or the inner reel will come out during operation. CHARGER MAINTENANCE
• Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts.
• Wipe with a dry cloth. Do not use solvents, water or place in wet conditions.
• Always unplug the charger when not in use.
• The battery Pack may be stored in the charger. However, it is recommended to disconnect the charger from the power source.
• To ensure safety and reliability, all repairs should be performed by a qualified service technician.
• Check that the charger contacts have not been shorted by debris or foreign material.
• Keep the charger and battery pack in an area that is between 65 and 75˚ F (18 and 24˚ C).
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
To avoid damage to the environment:
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• DO NOT place the battery pack in the regular household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of any waste landfill or municipal solid waste stream.
• Cover the battery terminals with heavy-duty adhesive tape.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the solution in your eyes or on your skin, and do not
swallow it.
• Dispose of the battery pack in accordance with local state and federal regulations.
CAUSE SOLUTION
The battery lacks sufficient charge Charge the battery
4
CLEANING INSTRUCTIONS
1. Stop the motor and wait for all moving parts to stop.
2. Remove the battery from the unit.
3. Wipe the unit down with a damp cloth. Do not douse the unit with water. Do not use solvents or strong detergents.
4. Scrape the guard and spool area to remove dried clippings and mud.
5. Brush or blow dust, debris and grass clippings out of the air vents. Keep them free or obstructions
STORAGE INSTRUCTIONS
1. Follow the Cleaning Instructions listed above.
2. Store the unit indoors in a dry, high and/or locked location, out of the reach of children and other unauthorized persons.
MAINTENANCE AND REPAIR INSTRUCTIONS
WARNING: Do not let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with
plastic parts. These chemicals may damage, weaken and destroy plastic, which may result in serious personal injury.
SPECIFICATIONS
MOTOR*
* All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at
any time without notice.
Motor Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cordless, Battery-powered
Motor Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 V
Motor Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9000 rpm
Motor Wire Housing Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Aluminum Tube
Unit Weight (With battery, cutting head shield and D-handle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.2 lbs. (3.86 kg.)
Cutting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Feed
Trimming Line Diameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 0.080 in (2.03 mm)
Cutting Path Diameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 in. (30.5 cm)
CLEANING AND STORAGE
WARNING: Before inspecting, cleaning, or servicing the
unit, stop the motor, wait for all moving parts to stop and remove the battery. Failure to follow these instructions can result in serious personal injury or property damage.
CAUSE SOLUTION
The cutting head is broken Replace as needed
TROUBLESHOOTING
NOTE: For maintenance beyond the minor adjustments listed above, or for replacement parts, please call the Customer Support
Department at 1-800-828-5500 (U.S.) or 1-800-668-1238 (Canada).
CAUSE SOLUTION
There is no power to the charger or battery Check the charger and charging station
The battery has failed Replace the battery
CAUSE SOLUTION
The cutting head is bound with grass Stop the motor, remove the battery and clean the cutting head The cutting head is out of line Refill the cutting head with new line The inner reel is bound up Replace the inner reel The cutting head is dirty Clean the inner reel and outer spool The line is welded Disassemble, remove the welded section and rewind the line The line twisted when it was refilled Disassemble and rewind the line
THE CUTTING HEAD WILL NOT ADVANCE LINE
THE CUTTING HEAD ADVANCES LINE UNCONTROLLABLY
ACCESSORIES
Model #
TB20V . . . . .
TBCHG . . . .
Description
20V 6Ah Lithium-ion Battery 20V 6Ah Lithium-ion Battery Charger
Part #
49MLIRBL966. . . . .
49MLIBCL966 . . . .
THE BATTERY WILL NOT CHARGE
THE MOTOR OPERATES SLOWLY OR WILL NOT OPERATE
ADJUSTING THE TRIMMER LINE
While the unit is operating, the trimming line gets worn down and becomes shorter. This unit is equipped with an Automatic Line Advancement cutting head which automatically feeds additional line to the correct length as it wears down. If the line does not automatically advance, the trimming line may be tangled or empty. Refer to the maintenance section of this manual.
The life of your cutting line is dependent upon:
• Following the trimming techniques previously explained
• What vegetation is cut
• Where the vegetation is cut.
For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.
Decorative Trimming
Decorative trimming is the act of removing all vegetation from around trees, posts, fences, etc. To accomplish it, rotate the whole unit so that the cutting attachment is at a 30˚ angle to the ground (Fig. 13).
OPERATING INSTRUCTIONS
Fig. 13
Fig. 14
Fig. 15
Fig. 16
WARNING: Never use metal-reinforced line, wire, chain or
rope. These can break off and become dangerous projectiles.
Cutting
Head
Ta bs
Cutting Head
Cover
Outer Spool
Eyelet
Spool
The following toxic and corrosive materials are used in this units battery pack:
LITHIUM-ION, a toxic material.
WARNING: All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.
Before disposing of damaged or worn out lithium-ion battery packs, contact your local waste disposal agency for information and specific instructions. Take batteries to a local recycling and or disposal center, certified for lithium-ion battery disposal.
WARNING: Do not use the battery pack if there are cracks or if it breaks, regardless if there is leakage or not. Replace
with a new battery pack. DO NOT ATTEMPT TO REPAIR! As this may cause severe personal injury due to explosion or electrical shock.
WARNING: To avoid risk of fire, electric shock or electrocution: DO NOT use a damp cloth or detergent on the battery
or battery charger. Wipe the outside with a dry, soft cloth.
• CONSIGNES DE SÉCURITÉ IMPORTANTES •
(10/09)
Manuel de l’utilisateur
Débroussailleuse à batterie
lithium-ion, 20 Volts
TB57
TABLE DES MATIÈRES
Informations sur l’entretien et le service après-vente . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F1
Informations sur la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F1
Familiarisez-vous avec votre appareil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F3
Instructions d’assemblage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F3
Instructions de démarrage et d’arrêt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F3
Instructions d’utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F3
Entretien et réparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F4
Nettoyage et rangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F4
Résolution des problèmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F4
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F4
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E8
INFORMATIONS SUR LA SECURITÉ
Pour réduire l’impact sur les forêts et les émissions de gaz carbonique et à effet de serre, MTD utilise moins de papier en diminuant la taille du texte de ce manuel.
Utilisez une batterie lithium-ion 20V 6Ah TB20V Utilisez un chargeur de batterie lithium-ion 20V 6Ah TBCHG
• Restez attentif. N’utilisez pas cet appareil lorsque vous êtes fatigué, malade, ou sous l’influence de l’alcool, de drogues, ou de médicaments.
• Ne laissez jamais les enfants utiliser cet appareil. Ne laissez jamais des adultes utiliser cet appareil sans qu’ils aient reçu une formation appropriée.
• Assurez-vous que toutes les protections et tous les dispositifs de sécurité ont été correctement installés avant d’utiliser l’appareil.
• Conservez ces instructions. Consultez-les régulièrement et utilisez-les pour donner des consignes aux autres utilisateurs. Si vous prêtez cet appareil à quelqu’un, prêtez-lui également ces instructions.
• Faites reculer les personnes se trouvant à proximité, en particulier les enfants et les animaux, d’au moins 50 pieds (15 m). Si quelqu’un s’approche de la zone de travail, arrêtez l’appareil !
• Veillez à ce que la zone de travail soit dégagée. Les zones encombrées favorisent les accidents. Ne démarrez pas l’appareil tant que la zone de travail n’est pas complètement dégagée et que votre position n’est pas parfaitement stable.
• Portez toujours des protections oculaires et auditives lorsque vous utilisez cet appareil. Portez des lunettes de sécurité ou une visière dotée de protections latérales conformes aux normes ANSI Z87.1-1989. Le non-port de ces protections peut entraîner de graves lésions oculaires suite à la projection ou la chute d’objets. Si la tâche est poussiéreuse, portez un masque anti-poussière.
• Habillez-vous de manière adéquate. Portez des gants et des bottes de travail antidérapants. Ne portez pas de vêtements amples, de bijoux, de pantalons courts, de sandales et ne soyez pas pieds nus. Attachez-vous les cheveux au dessus du niveau des épaules pour éviter qu’ils ne se prennent dans les parties en mouvement de l’appareil.
• Utilisez l’appareil uniquement à la lumière du jour ou sous un éclairage artificiel satisfaisant.
• N’utilisez pas cet appareil pour des fonctions pour lesquelles il n’a pas été prévu. Utilisez l’appareil uniquement tel qu’indiqué dans ce manuel.
MESURES DE SÉCURITÉ POUR LE COUPE-BORDURE
• Inspectez attentivement la zone d’utilisation avant de démarrer l’outil. Retirez tous les débris et objets durs et/ou tranchants tels que du métal, du verre, des câbles, etc. Si de tels objets sont projetés, ils peuvent causer des dégâts matériels ou blesser l’utilisateur ou les personnes se trouvant à proximité.
• Utilisez uniquement un fil de coupe de rechange de 1,65 mm (0,065 pouces) de diamètre fourni par le fabricant de l’équipement d’origine. N’utilisez jamais de fil, de câble ou de cordon à renfort métallique. Ces derniers peuvent céder et devenir des projectiles dangereux.
• Nettoyez bien l’appareil de tous végétaux ou autres matériaux. Ceux-ci peuvent se coincer entre l’accessoire de coupe et l’écran. Nettoyez toujours les ouvertures de ventilation en retirant les végétaux ou autres débris.
• L’écran de l’accessoire de coupe doit toujours être en place lorsque vous vous servez de cet appareil. N'utilisez pas l’appareil sans une longueur suffisante des fil de coupe, ces derniers devant être ceux recommandés par le fabricant. La longueur du fil de coupe ne doit jamais aller au-delà de celle de l’écran.
• Une vigilance accrue est requise lors de l’utilisation de l’appareil à des fins de taille de bordure. Il existe un risque accru de blessure ou de dommage matériel causé par des objets projetés lorsque l’écran de l’accessoire de coupe n’est pas maintenu horizontal par rapport au sol.
PRECAUTIONS DE SECURITE D’ORDRE GENERAL
• N’essayez PAS d’atteindre des espaces trop éloignés.
• N’utilisez PAS cet appareil sur des surfaces instables telles que des arbres, des échelles, des talus ou des toits. Faites très attention si vous utilisez cet appareil sur un escalier.
• N’utilisez PAS l’appareil avec des mains mouillées.
• NE laissez PAS l’appareil sous la pluie. N’utilisez pas l'appareil dans des conditions ou des endroits humides ou mouillés.
• N’utilisez PAS l'appareil sur des surfaces mouillées.
LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION
PRECAUTIONS DE SECURITE ELEMENTAIRES
• NE vous fiez PAS exclusivement aux protections de sécurité incorporées dans l’appareil.
• NE PAS laisser l'unité à être utilisé comme un jouet.
• Veuillez lire ce manuel de l’utilisateur attentivement et dans sa totalité avant d’essayer de monter, d’utiliser ou d’entretenir l’appareil.
• Conformez-vous à toutes les consignes de sécurité. Le non respect de ces consignes peut entraîner des dégâts matériels ou des blessures graves pour vous-même et/ou pour les autres.
• Familiarisez-vous avec les commandes et la marche à suivre pour une utilisation correcte de cet appareil. Apprenez à rapidement couper le moteur de l’appareil et à mettre les commandes en position neutre.
AVERTISSEMENT :Lors de l’utilisation d'outils électriques,
respectez toujours les précautions de sécurité élémentaires afin de réduire les risques d’incendie, de décharges électriques et de blessures graves :
NE RAMENEZ PAS CET APPAREIL CHEZ LE DÉTAILLANT. UNE PREUVE D’ACHAT SERA EXIGÉE POUR TOUTE PRISE EN CHARGE DANS LE CADRE DE LA GARANTIE.
CE PRODUIT EST COUVERT PAR UN OU PLUSIEURS BREVETS AUX ÉTATS UNIS. AUTRES BREVETS EN INSTANCE.
Si vous éprouvez des difficultés à assembler ce produit ou si vous avez des questions sur les commandes, l'utilisation ou l'entretien de cet appareil, veuillez contacter le service à la clientèle. Des informations supplémentaires sont disponibles sur notre site web.
Veuillez appeler le service à la clientèle pour obtenir des renseignements sur les pièces de rechange. Lors de l’entretien, utilisez uniquement des pièces de rechange identiques.
Avant de commencer, cherchez la plaque mentionnant le modèle et le numéro de série de votre appareil. Reportez-vous à l’exemple ci-dessous et notez-y les informations pour pouvoir vous y référer ultérieurement.
Copiez ici le nº de série :
Copiez ici le modèle ainsi que le nº de l’article :
NE RAMENEZ PAS CET
APPAREIL AU MAGASIN
Pour obtenir de l’aide, veuillez appeler le service à la clientèle
ou visitez notre site web :
ou
CONSERVEZ CES INSTRUCTIONS
L’ensemble des informations, illustrations et caractéristiques sont basées sur les toutes dernières informations disponibles sur le produit à l’impression de ce guide. Nous nous réservons le droit d’effectuer des modifications à tout moment sans notification préalable.
Copyright© 2009 MTD SOUTHWEST INC, Tous droits réservés.
aux États Unis
1-800-828-5500
www.troybilt.com
au Canada 1-800-668-1238 www.troybilt.ca
INFORMATIONS SUR L’ENTRETIEN ET LE SERVICE APRÈS-VENTE
DANGER :Signale un risque EXTREME.
Le non respect d’une consigne de sécurité relative à un signal de DANGER entraînera des blessures graves ou mortelles pour vous-même ou pour les autres.
AVERTISSEMENT :Signale un risque GRAVE.
Le non respect d’un AVERTISSEMENT de sécurité PEUT entraîner des blessures graves pour vous-même ou pour les autres.
ATTENTION :Signale un risque MOYEN.
Le non respect d’une consigne de signal d’ATTENTION PEUT entraîner des dégâts matériels ou des blessures graves pour vous-même ou pour les autres.
IMPORTANT ! Signale une information technique spécifique. REMARQUE : Signale une information générale importante supplémentaire.
SYMBOLE SIGNIFICATION
• SYMBOLE D’ALERTE DE SECURITÉ •
L’objectif de ces symboles d’alerte de sécurité est d’attirer votre attention sur les dangers possibles.
Vous devez être attentifs aux symboles de sécurité, et à leurs explications. Les avertissements de
sécurité en eux-mêmes n’éliminent pas le danger. Les consignes ou avertissements de sécurité ne
se substituent pas aux mesures appropriées de prévention des accidents. Ces consignes de sécurité
ne sauraient couvrir toutes les éventualités susceptibles de se produire. Si vous avez des questions,
veuillez appeler le service à la clientèle au 1-800-828-5500 (E.U.) ou 1-800-668-1238 (Canada).
S/N :
MODEL :
ITEM :
Loading...
+ 11 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
