Tri Tool 236B User Manual

Page 1

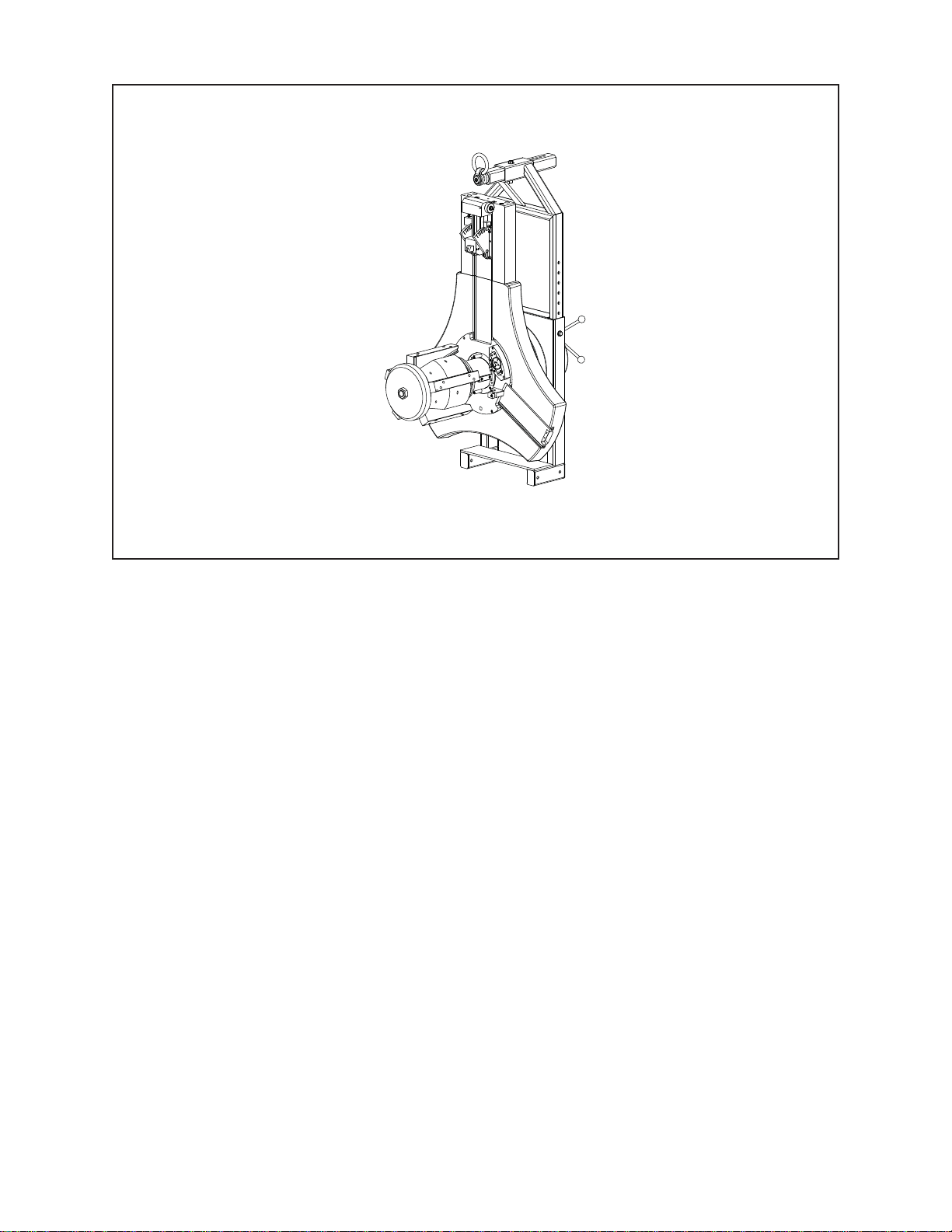

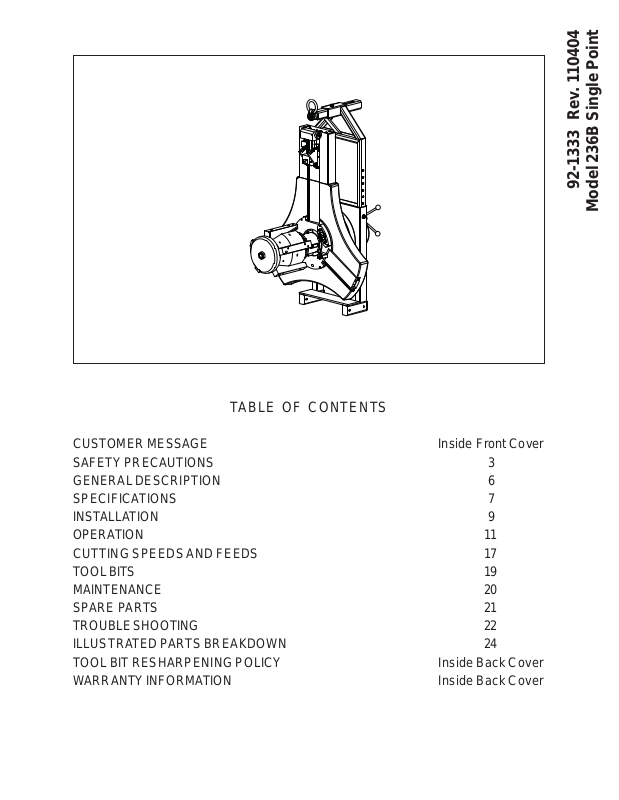

TABLE OF CONTENTS

CUSTOMER MESSAGE Inside Front Cover SAFETY PRECAUTIONS 3

92-1333 Rev. 110404

Model 236B Single Point

GENERAL DESCRIPTION 6 SPECIFICATIONS 7 INST ALLATION 9 OPERA TION 1 1 CUTTING SPEEDS AND FEEDS 1 7 TOOL BITS 19 MAINTENANCE 20 SP ARE P ARTS 2 1 TROUBLE SHOOTING 22 ILLUSTRA TED P ARTS BREAKDOWN 2 4 TOOL BIT RESHARPENING POLICY Inside Back Cover WARRANTY INFORMATION Inside Back Cover

Page 2

Proprietary property of TRI TOOL Inc.

No reproduction, use, or duplication of the

information shown hereon is permitted without the

express written consent of TRI TOOL Inc.

Page 3

SAFETY PRECAUTIONS

IN GENERAL

When using rotating head cutting equipment, basic safety precautions should always be followed to reduce the risk of personal injury .

Operate this tool only in accordance with specific operating instructions.

Do not override the deadman switch on the power unit. Locking down,

W ARNING:

DRESS CONSIDERA TIONS

obstructing, or in any way defeating the deadman switch on the power drive unit may result in serious injury.

Model 236B Single Point

Use standard safety equipment. Hard hats, safety shoes, safety harnesses, protective clothes, and other safety devices should always be used when appropriate.

Use safety glasses. Do not operate cutting tools without eye protection.

Dress properly . Do not wear loose clothing or jewelry . They can be caught in rot ating and moving parts. Avoid slippery floors or wear nonskid footwear . If you have long hair , wear protective hair covering to contain it.

WORK AREA

Keep the work area clean. Cluttered work areas and benches invite injuries.

Consider the work area environment. Keep the area well lit. Keep electrical cords, cables, rags, rigging straps, and etc. clear of rotating equipment. Do not use power-cutting tools in the presence of flammable liquids and gasses.

Keep visitors away . Do not let visitors or untrained personnel at or near operating tools. Enforce eye protection requirements for all observers.

Do not over reach. Keep proper footing at all times.

St ay alert. Watch what you are doing. Use common sense. Do not operate tools when you are tired.

92-1333 : Rev. 110404

Page 4

TRI TOOL INC.

TOOL CARE

Maintain tools with care. Keep tools in good operating condition. Sharp tool bits perform better and safer than dull tool bits. Well maintained tools function properly when needed.

Check for damaged parts. If a tool has malfunctioned, been dropped or hit, it must be checked for damage. Run no-load tests and feed function checks. Do a complete visual inspection.

Electric motors. Use only with proper AC voltage power sources and observe all normal electric shock hazard procedures.

Do not abuse power and control cords. Pulling or running over cords and cables can result in electrical shock hazards and malfunctions. Keep control and power cords out of all cutting fluids and water.

Hydraulic drives. Observe proper procedures for electrically driven power sources. Avoid damage to hydraulic lines. Keep quick-disconnects clean. Grit contamination causes malfunctions.

Air tools. Check the exhaust muffler . Broken or damaged muf flers can restrict air flow or cause excessive noise. Use air motors only with a filtered, lubricated and regulated air supply . Dirty air , low-pressure air or over pressure air will cause malfunctions, including delayed starting.

AREA EQUIPMENT

Secure work. Whenever possible use clamps, vises, chains and straps to secure pipe.

Make sure the tool is secured; it is safer to have both hands free to operate the tool.

TOOL USE

Use the right tool and tool bit for the job. Do not use a tool, which is incorrect for the job you are doing.

Keep the tool bits fully engaged in the tool bit holders. Loose bits are a safety hazard.

92-1333 : Rev. 110404

Page 5

Model 236B Single Point

Disconnect the power supply during setup and maintenance. Use all 'Stop' or 'Shut off' features available when changing or adjusting tool bits, maintaining the tool, or when the tool is not in use.

Remove adjusting keys and wrenches before applying power to the equipment. Develop a habit of checking the tool before turning it on to make sure that all keys and wrenches have been removed.

Do not force tools. Tools and tool bits function better and safer when used at the feed and speed rate for which they were designed.

Do not reach into rotating equipment. Do not reach into the rotating head stock to clear chips, to make adjustments, or to check surface finish. A machine designed to cut steel will not stop for a hand or an arm.

Handle chips with care. Chips have very sharp edges and are hot. Do not try to pull chips apart with your hands; they are very tough.

Avoid unintentional starts. Do not carry or handle tools with your hand on the operating switches or levers. Do not lay the tool down in a manner that will start the drive. Do not allow the tool to flip around or move when adjusting or changing tool bits.

Store idle tools properly . Disconnect tools from the power source and store in a safe place. Remove tool bits for safe handling of the tool.

92-1333 : Rev. 110404

Page 6

TRI TOOL INC.

GENERAL DESCRIPTION

The Model 236B Single Point is supplied as a kit with modular components assembled onto the face of the 236B BEVELMASTER™. The 236B then mounts on the flange or pipe I.D. When used in conjunction with the 236B Miter Mandrel, the 236B Single Point/Flange Facer Kit miters to align to the flange face.

General Nomenclature

Tilt Positioning

T ool Rotation

Manual Radial

Positioning

Autofeed

92-1333 : Rev. 110404

Page 7

SPECIFICATIONS

DESIGN AND OPERATING FEATURES

Easy to assemble 236B SP Kit bolts directly to the face of the 236B without any modification to the machine.

The 236B SP is equipped with 5” (127.0 mm) of feed travel for heavy wall pipe and flange facing with the miter mandrel kit.

The 236B SP has a travel range of 4" (101.6 mm) with the 5-jaw mandrel attached.

Envelope Drawing

Model 236B Single Point

31.41"

(797.8 mm)

26.62"

(676.1 mm)

78.40"

(1991.4 mm)

Max. Rotating DIA.

37 1/2°

5.00" (127.0 mm) Feed Travel

48.16"

(1223.3 mm)

92-1333 : Rev. 110404

Page 8

TRI TOOL INC.

The slide assembly has infinitely variable bevel angle adjustments between 0 and 37 1/2°.

The 236B SP has a total radial travel of 26.30” (668.0 mm) and adjustment for large pipe and flange cutting ranges.

IN SPECIFIC

Range, Beveling 15.00" (381.0 mm) diameter to 60.00" (1524.0 mm)

Bevel Angles 0° to 37 1/2° graduated bevel angle adjustment.

Range, Flange Facing 20.00" (508.0 mm) diameter to 68.00" (1727.2 mm)

Feed Travel 5.0” (127.0 mm) nominal (radial).

diameter cutting range at 37 1/2°

diameter cutting range.

Alignment When used in conjunction with the 236B Miter

Mandrel Head:

Angular - ± 5° Off set - ± .19” (4.83 mm)

Feed Eight (8) selectable positions between .006”

(.152 mm) rev . and .042” (1.07 mm) rev . inclusive

Cutting: .200 max. cut depth/pass.

63 RMS finish may be obtained depending on material. Spiral grooves as coarse as 31 grooves per inch when grooving.

Machines stainless and carbon.

92-1333 : Rev. 110404

Page 9

Model 236B Single Point

INSTALLATION

ATT ACHING THE MODEL 236B SP KIT TO THE MODEL 236B

Remove the Mandrel Assembly , T ool Holder Assembly , Adjustment Rod Assembly and the Cover Plate from the Model 236B Machine.

Secure the Gear (P/N 39-1 102) to the Front Locking Plate using supplied flat head screws (P/N 33-0362).

T ool Configuration prior to Single Point installation

Cover Plate

Adjustment Rod

Assembly

T ool Holder

Assembly

Mandrel Assembly

Secure the Feed Gear Housing Assembly (P/N 82-0226) to the Main Plate, using supplied cap screws (P/N 33-0043).

Install Plate Assembly , Adapter (P/N 24-2707) onto Main Plate (flat), secure in place with retained cap screws.

Slide the Cutter Assembly into T -slots on Adapter Plate Assembly to position desired and secure the six (6) cap screws on the base.

92-1333 : Rev. 110404

Page 10

TRI TOOL INC.

Installation of the 236B Single Point

Cutter Assembly

Adapter Plate

Assembly

Gear Cover

Assembly

Stop Block

Cap Screw

Feed Gear

Housing

Assembly

Cap Screw

Various Adjustment Locations

Dovetail Slide

Lock Screw

Flat Screw

Button Screw

Gear

Mandrel

Seal

Main Plate

Cap Screw

Key Wiper

Mandrel Seal

Manual Directional

Feed Knob

Radial Adjustment

Screws (6)

Angular Adjustment

Screw (both sides)

Index Plate

92-1333 : Rev. 110404

Page 11

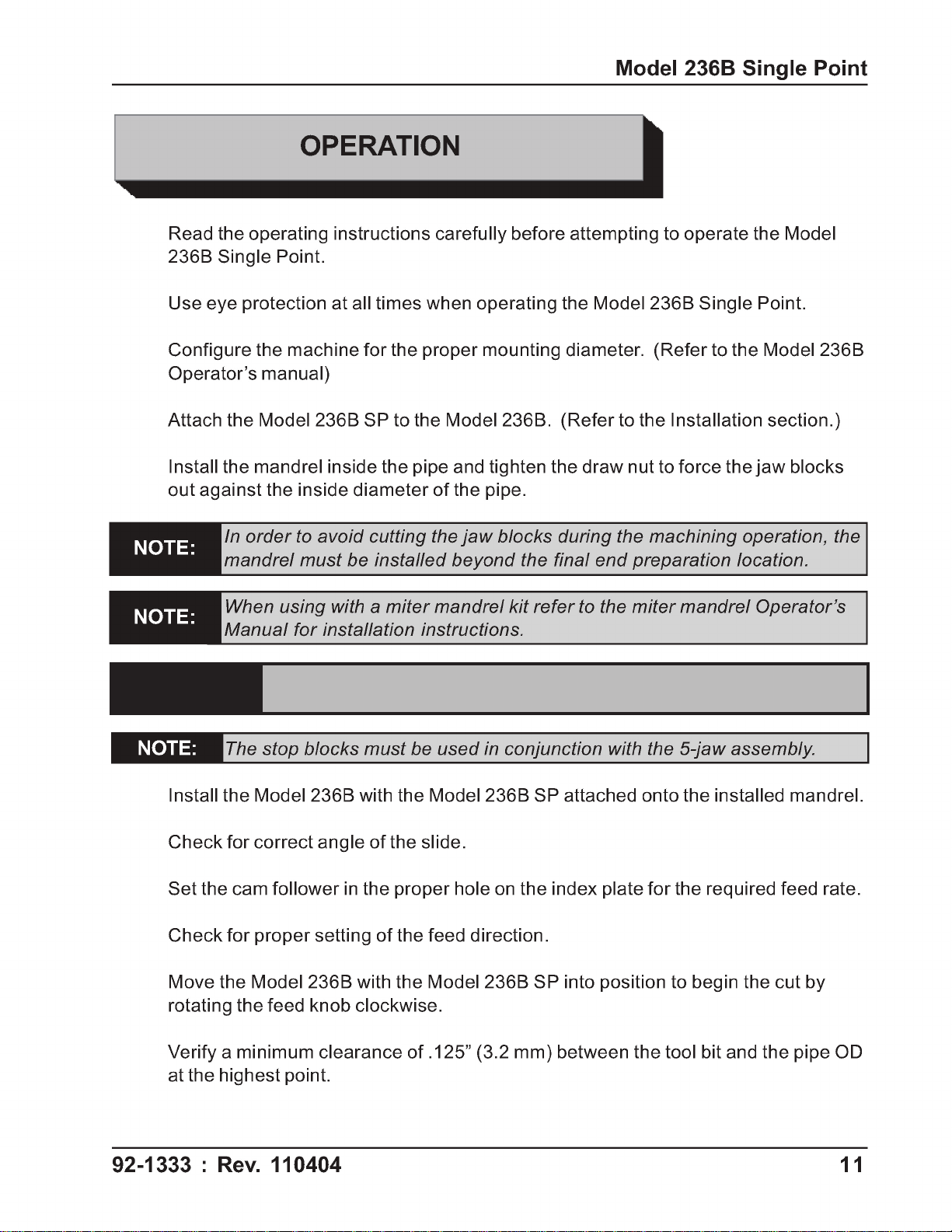

WARNING:

PINCH POINT - Remove the Lathe Stand Feet Supports BEFORE operating.

Page 12

TRI TOOL INC.

Tool Bit Clearance

Jaw Block

Clearance

NOTE:

Pipe

Final Prep Location

Attach the proper power supply line to the drive assembly. If using a pneumatic drive assembly, use an adequate in-line filter, regulator, and lubricator (FRL).

The Tri T ool Air Caddy , a portable combination filter, regulator, and lubricator (FRL) unit is recommended.

Feed

Handle

Plate

Turn the motor on.

Let the machine rotate very slowly for one revolution to verify that the tool bit clears the OD of the pipe.

Adjust the cutting speed by opening the Flow Control V alve at the power supply connection.

The actual machining operation will begin when the tool bit contacts the pipe.

If the pipe end is not square with the pipe axis, the tool bit will contact only a small segment of the pipe during each revolution.

92-1333 : Rev. 110404

Page 13

Remove the machine from the pipe.

Check to see if any of the tool bits are dull or broken.

Damaged or worn tool bits are evident by increased feed pressure, visual observation, poor surface finish, etc.

When the next bevel is going to be the same end preparation as the previous bevel, install the machine and mandrel in the pipe and follow the same sequence of steps that was used to completed the bevel.

When the next bevel is going to be different than the previous bevel, follow the sequence in 'Adjustment of the Tool Block Assembly' section.

For changing the tool bit, follow the sequence in the 'Counter Boring Function' section.

ADJUSTMENT OF THE TOOL BLOCK ASSEMBLY

Model 236B Single Point

While holding the tool block slide assembly , loosen the six (6) screws on the base of the slide.

Reposition the slide assembly and tighten the six (6) screws. This will hold the slide firmly against the plate.

T o adjust the bevel angle of the slide, loosen the locking screws on the sides of the slide, pull the slide up to the required angle and tighten the screws, maximum angle is 37° 30’.

INST ALLATION OF THE TOOL HOLDER AND INSERT

T o select the appropriate tool holder and Insert, reference the 'Tooling' section of this manual.

Use of a dull Insert or Inserts not manufactured by T ri Tool Inc. may result in poor performance and may constitute abuse of this machine and therefore voids the T ri T ool Inc. factory warranty .

Slide the assembled tool holder with Insert into the tool holder slot on the tool block.

Install the tool holder with the Insert with the cutting edge toward the mandrel .

Lock the tool holder into position with the set screws on the side of the tool holder .

92-1333 : Rev. 110404

Page 14

TRI TOOL INC.

FEED ADJUSTMENT

Put the gearbox into neutral.

SETTING THE FEED DIRECTION

Select the proper hole location on the position index plate and the actuator arm for the required feed.

Set the feed direction by pulling out the knob (for feeding toward the mandrel), in the center position (for neutral or no feed) or by pushing in the knob (for feeding away from the mandrel).

Feed System Set-Up

Feed Out

Neutral

Feed In

Actuator Arm

COUNTERBORING FUNCTION

Feed Knob

Index Plate

Lock the tool slide in the flat position.

Replace the tool holder and the Insert with the counterbore tool bit.

Insure that the cutting edge is facing out from the center.

92-1333 : Rev. 110404

Page 15

Model 236B Single Point

Set the feed direction to neutral by moving the feed knob to the center position.

INDEX PLATE POSITIONS

1 2 3 4

Actuator

.004"/rev

(.101 mm/rev)

.007"/rev

(.178 mm/rev)

Arm

Position

.006"/rev

(.152 mm/rev)

.011"/rev

(.279 mm/rev)

*Posittion B should be used for flange facing only.

Feed in of a Counterbore Tool Bit

.010"/rev

(.254 mm/rev)

.015"/rev

(.381 mm/rev)

.013"/rev

(.330 mm/rev)

.018"/rev

(.457 mm/rev)

Install the mandrel inside the pipe and tighten the draw nut to force the jaw blocks out against the inside diameter of the pipe.

In order to avoid cutting the jaw blocks during the machining operation, the mandrel must be installed beyond the final end preparation location.

Advance the machine by turning the feed knob clockwise until the tool bit is slightly inside the pipe.

Move the tool slide out until the tool bit contacts the ID of the pipe and tighten the slide.

Turn the manual feed knob on the tool slide so that the tool bit clears the bore ID and back the machine out of the pipe.

Securely lock the tool slide in position by tightening all six (6) of the radial adjust screws on the slide assembly.

92-1333 : Rev. 110404

Page 16

TRI TOOL INC.

Turn the motor on.

Let the machine rotate very slowly for one revolution to verify that the tool bit clears the ID of the pipe.

Adjust the tool bit into the cutting position, use the manual feed knob on the tool slide.

Tighten the dovetail slide lock screw in the tool block when desired tool bit position has been achieved.

This screw must be loosened and re-tightened whenever the dovetail slide requires repositioning.

When it is not securely tightened, the tool bit may walk out of the cut.

Plunge cut to desired depth.

92-1333 : Rev. 110404

Page 17

CUTTING SPEEDS AND FEEDS

Model 236B Single Point

Pipe Size

62 62.00" 1574.8 mm 2 2 2 60 60.00" 1524.0 mm 2 2 2 58 58.00" 1473.2 mm 2 2 2 56 56.00" 1422.4 mm 2 2 2 54 54.00" 1371.6 mm 2 2 2 52 52.00" 1320.8 mm 2 2 2 50 50.00" 1270.0 mm 2 2 2 48 48.00" 1219.2 mm 2 2 2 46 46.00" 1168.4 mm 2 2 2 44 44.00" 1117.6 mm 2 2 2 42 42.00" 1067.0 mm 2 2 2 40 40.00" 1016.0 mm 2 2 2 38 38.0 0" 965.0 mm 2 2 3

True DIA

RPM for

200 in/min

(5080 mm/min)

RPM for

250 in/min

(6350 mm/min)

RPM for

300 in/min

(7620 mm/min)

36 36.0 0" 914.0 mm 2 2 3 34 34.0 0" 854.0 mm 2 2 3 32 32.0 0" 813.0 mm 2 2 3 30 30.0 0" 762.0 mm 2 3 3 28 28.0 0" 711.0 mm 2 3 3 26 26.0 0" 660.0 mm 2 3 4 24 24.0 0" 610.0 mm 3 3 4 22 22.0 0" 559.0 mm 3 4 4 20 20.0 0" 508.0 mm 3 4 5 18 18.0 0" 457.2 mm 4 4 5 16 16.0 0" 406.4 mm 4 5 6 15 15.0 0" 381.0 mm 5 6 7

Cutting Speed (approximately)

92-1333 : Rev. 110404

Page 18

TRI TOOL INC.

Use 200 surface inches per minute (5080 surface millimeters per minute) for:

Stainless steels in general when no coolant is allowed, all heavy-wall tube and some chrome/molybdenum steels.

Use 250 surface inches per minute (6350 surface millimeters per minute) for:

Mild steels and some thin-wall stainless steels when coolants are permitted and applied.

Use 300 surface inches per minute (7620 surface millimeters per minute) for:

Aluminum and some thin-wall mild steel and tube with coolants.

BASIC FEED RECOMMENDA TION

Use very light feed for initial beveling or until a continuous cut is established.

This is very important for longer tool bit life when cutting through flame cut or out of square pipe ends.

Use adequate feed, .003” (.08 mm) to .006” (.15 mm) per revolution thereafter, to establish a continuous chip cut.

If the feed is too light, only light stringer chips will be removed.

If the feed is too heavy the drive will start to overload and the chip will start to have a rough or torn appearance.

Stainless steel, which work hardens, must be worked with a heavy enough feed to stay under the work hardened surface .003” (.08 mm) to .006” (.15 mm) feed. Never allow the tool bit to burnish the surface.

Reduced feeds and speeds will normally minimize chatter problems.

92-1333 : Rev. 110404

Page 19

TOOL BITS

Tool Bit, Counterbore (P/N 99-1666)

A) Insert, Triangular, .030 R

Model 236B Single Point

(P/N 30-0554)

A) Insert, Triangular, .015 R

(P/N 30-2822)

B) Tool Holder

(P/N 49-0060)

92-1333 : Rev. 110404

Page 20

TRI TOOL INC.

All components should be cleaned and coated with a light film of oil prior to use.

Daily maintenance should include a visual inspection of all parts for damage due to chips, impact or improper use.

Repair or replace broken or damaged parts as necessary.

Wipe the machine clean of cutting fluids, dirt and grime and then coat it with a light film of oil.

For complete weekly maintenance procedures, see the Model 236B BEVELMASTER™ manual.

MAINTENANCE

92-1333 : Rev. 110404

Page 21

Model 236B Single Point

SPARE PARTS

Parts List, Recommended Spare Parts

Item Part

No. No. Description Qty

1. 29-0219 CAM FOLLOWER 1

2. 30-0554 INSERT, TOOL, .030 R 10

3. 30-2822 INSERT, TOOL, .015 R 10

4. 33-0955 SCREW , GIB 1

5. 35-0270 NUT, FEED 1

6. 49-0060 TOOL, HOLDER 1

7. 66-0079 GIB, TAPERED 1

92-1333 : Rev. 110404

Page 22

TRI TOOL INC.

TROUBLE SHOOTING

Problem: The T ool Bit Chatters

The tool bit is loose or overextended. The tool bit is damaged. The tool holder is too loose in the slides. The cutting speed is too fast. The clamping pads are loose on the pipe or tube. Cutting fluid is required. The main bearing pre-load is loose.

Problem: There's Excessive T ool Bit Wear

The pipe or tube material is too hard or abrasive. The cutting speed is too fast. Cutting fluid is required. A dull Tool Bit is causing surface hardening conditions (Stainless pipe or tubing). There is scale or other foreign matter on the pipe or tube, which is dulling the tool bit at the start of the cut. The tool bit is incorrect for the material being cut.

Problem: The Surface Finish is Rough

The tool bit is dull, chipped, etc. Metal build-up on the cutting edge of the tool bit is creating a false cutting edge. Cutting fluid is required.

Problem: The T ool Holder is Not Feeding

The feed pin is broken or out of position. The feed sprocket shear pin is broken. The feed screw is stripped. The feed nut is stripped. The slide rails are too tight.

92-1333 : Rev. 110404

Page 23

Problem: There's a Loss of Air Power

The air supply pressure is too low. The air filter is plugged. The air line size is insufficient. The air line is too long.

Problem: There's a Loss of Hydraulic Power

The hydraulic supply pressure is too low. The hydraulic filter is plugged. The hydraulic line size is insufficient. The hydraulic line is too long.

Problem: The T ool Bit Will Not Reach the Work

Model 236B Single Point

Incorrect tool blocks are installed for the size of the pipe or tube being worked on. Incorrect tool bit is installed.

Problem: The Air Motor Will Not S tart

The air power supply is shut off. The air motor is damaged and will not run free. The air motor needs lubrication. Add lubrication and do not run the air motor for a few minutes, then try running the motor. Tap on the side of the air motor casing lightly with a piece of wood or with a soft rubber mallet just in case the vanes may be sticking. Sand or other foreign material may be in the vanes of the air motor .

Problem: The Hydraulic Motor Will Not Start

The hydraulic power supply is shut off. The hydraulic motor is damaged and will not run free.

92-1333 : Rev. 110404

Page 24

TRI TOOL INC.

ILLUSTRATED PARTS BREAKDOWN

236B SINGLE POINT (P/N 05-0504)

92-1333 : Rev. 110404

Page 25

Model 236B Single Point

Parts List, 236B Single Point Kit (P/N 05-0504)

Item Part

No. No. Description Qty

1 24-2707 PLATE ASSY, ADAPTER, 236B SP 1 2 28-0432 SEAL, MANDERL 2 3 28-0433 SEAL, MANDERL, KEY WIPER 2 4 33-0038 SCREW,CAP,1/4-20 X 1/2 4 5 33-0042 SCREW,CAP,1/4-20 X 1 4 6 33-0046 SCREW,CAP,1/4-20 X 2 2 7 33-0048 SCREW,CAP,1/4-20 X 2-1/2 2 8 33-0286 SCREW ,BUTTON,1/4-20 X 5/8 4

9 33-0362 SCREW,FLAT ,1/4-20 X 1 4 10 39-1102 GEAR, 236B SP 1 11 43-0818 COVER, GEAR, ASSY 1 12 48-2872 BLOCK, STOP 2 13 82-0141 CUTTER ASSY,224B SINGLE POINT 1

14. 82-0226 HOUSING ASSY, FEED GEAR 1

NOT SHOWN

30-0554 INSERT, TRIANGULAR, .031 R 1 36-0003 WRENCH, L, 3/32 HEX 1 36-0004 WRENCH, L, 7/64 HEX 1 36-0005 WRENCH, L, 1/8 HEX 1 36-0006 WRENCH, L, 9/64 HEX 1 36-0007 WRENCH, L, 5/32 HEX 1 36-0008 WRENCH, L, 3/16 HEX 1 36-0010 WRENCH, L, 1/4 HEX 1 36-0012 WRENCH, L, 3/8 HEX 1 36-0025 WRENCH, T, 3/8 HEX 1 49-0060 HOLDER, TOOL, R.H. 1

92-1333 : Rev. 110404

Page 26

TRI TOOL INC.

PLATE ASSEMBLY, ADAPTER (P/N 24-2707)

Parts List, Adapter Plate Assembly (P/N 24-2707)

Item Part

No. No. Description Qty

1. 24-2706 PLATE, ADAPTER 1

2. 34-0382 WASHER, NYLON 4

3. 32-0160 PIN, DOWEL, 1/2 DIA X 2” 2

4. 33-0037 SCREW, CAP, 1/4-20 X 3/8” 1

5. 33-2188 SCREW, CAP, 1/2-13 X 11” 4

92-1333 : Rev. 110404

Page 27

Model 236B Single Point

CUTTER ASSEMBLY (P/N 82-0141)

92-1333 : Rev. 110404

Page 28

TRI TOOL INC.

Parts List, Cutter Assembly (P/N 82-0141)

Item Part

No. No. Description Qty

1. 19-0424 HOUSING , ASSY , GEARBOX 1

2. 24-0733 PLATE,SLIDE,BASE 1

3. 24-0734 PLATE,SIDE 2

4. 26-0828 BAR,RETAIN 2

5. 29-0133 ROD END, 1/4 X 3/4 X 3/8") 1

6. 30-0904 CLAMP,SIDE,RIGHT 1

7. 30-0907 CLAMP,CAM FOLLOWER 1

8. 30-1080 CLAMP,SIDE,LEFT 1

9. 30-2836 CABLE,MOD, 64" LG. 1

10. 32-0081 PIN,DOWEL(3/16 DIA X 3/4") 2

11. 32-0140 PIN,DOWEL(1/4 DIA X 3/4") 4

12. 32-0161 PIN,DOWEL (5/8 DIA X 2") 2

13. 33-0030 SCREW,CAP(# 10-24 X 3/4") 1

14. 33-0040 SCREW,CAP (1/4-20 X 3/4") 8

15. 33-0055 SCREW,CAP (5/16-18 X 7/8") 2

16. 33-0057 SCREW,CAP (5/16-18 X 1 1/4") 6

17. 33-0058 SCREW,CAP (5/16-18 X 1 1/2") 1

18. 33-0063 SCREW,CAP (5/16-18 X 2 3/4") 1

19. 33-0077 SCREW,CAP(3/8-16 X 2 1/2") 2

20. 33-0514 SCREW,SET (5/16-18 X 3/8") 1

21. 33-0517 SCREW,SET (5/16-18 X 5/8") 3

22. 33-0955 SCREW,GIB 1

23. 33-1314 SCREW,SET, HALF DOG (3/8-16 X 1 1/2") 1

24. 33-1535 SCREW, SHLDR (1/4 X 3/8") 1

25. 34-0026 WASHER,FLAT 1

26. 35-0270 NUT,FEED,1/2 -20 1

27. 40-0045 SPRING ,COMP ( 5/8 DIA X 4") 1

28. 49-0091 HOLDER,TOOL 1

29. 66-0078 BASE,SLIDE 1

30. 66-0079 GIB,TAPERED 1

92-1333 : Rev. 110404

Page 29

Model 236B Single Point

HOUSING ASSEMBLY, GEARBOX (P/N 19-0424)

92-1333 : Rev. 110404

Page 30

TRI TOOL INC.

Parts List, Gearbox Housing Assembly (P/N 19-0424)

Item Part

No. No. Description Qty

1. 19-0418 HOUSING , GEAR 1

2. 20-0364 SHAFT, MAIN 1

3. 29-0029 BRG, BALL, .79 X 1.46 X .35 2

4. 30-0489 RING , RETAIN, INT , 2-5/16 ID 1

5. 30-0507 MOUNT, KEYLESS SHAFT 1

6. 30-0910 RING , RET AIN, INT., 37 MM 1

7. 30-0911 PLUNGER, BALL, 3/8-16 X 5/8 2

8. 30-0912 CLUTCH, ROLLER 1

9. 32-0305 PIN, MOD, DOWEL, 3/16 X 3/4 2

10. 33-0052 SCREW, CAP, 5/16-18 X 1/2 1

11. 33-1533 SCREW ASSEMBLY, FEED 1

12. 33-1536 SCREW , MOD, SHOULDER, 3/8 X 1/4 1

13. 39-0482 GEAR, MOD, BEVEL, 20 DEG P.A. 14DP 2

14. 42-0104 KNOB, FEED 1

15. 44-0275 SPACER, GEAR 1

16. 63-0096 ARM, ACTUATOR 1

92-1333 : Rev. 110404

Page 31

Model 236B Single Point

FEED GEAR HOUSING ASSEMBLY (P/N 82-0226)

Parts List, Feed Gear Housing Assembly (P/N 82-0226)

Item Part

No. No. Description Qty

1. 19-1258 HOUSING, ASSY INDEX PLA TE 1

2. 19-1353 HOUSING, FEED GEAR, SP 1

3. 24-3295 PLATE, FEED GEAR 1

4. 30-4508 CLAMP, CABLE, DOGLEG 1

5. 32-0105 PIN,DOWEL,3/8 DIA X 1 2

6. 33-0044 SCREW,CAP,1/4-20 X 1-1/2 2

7. 33-0056 SCREW,CAP,5/16-18 X 1 2

8. 33-0057 SCREW,CAP,5/16-18 X 1-1/4 1

9. 33-0293 SCREW ,BUTTON,5/16-18 X 3/4 4

92-1333 : Rev. 110404

Page 32

TRI TOOL INC.

HOUSING ASSEMBLY, INDEX PLATE (P/N 19-1258)

Parts List, Index plate Housing Assembly (P/N 19-1258)

Item Part

No. No. Description Qty

1. 19-0428 HOUSING ,INDEX PLATE 1

2. 24-1576 HUB,GEAR 1

3. 24-1577 PLATE,INDEX,236B 1

4. 28-0057 SEAL, FELT, 1/8 X 3/16 X BULK 7

5. 29-0104 BRG,BALL,1-13/16 X 2-1/4 X9/32 2

6. 29-0219 CAM FLLWR 3/4 O.D. X 1/2 1

7. 33-0015 SCREW,CAP,#6-32 X 3/4 3

8. 33-0030 SCREW,CAP,10-24 X 3/4 2

9. 39-0852 GEAR,MOD,SPUR,6DP,12T ,2.0 DP 1

10. 44-0276 SPACER 1

92-1333 : Rev. 110404
