Tri Tool 208B User Manual

Page 1

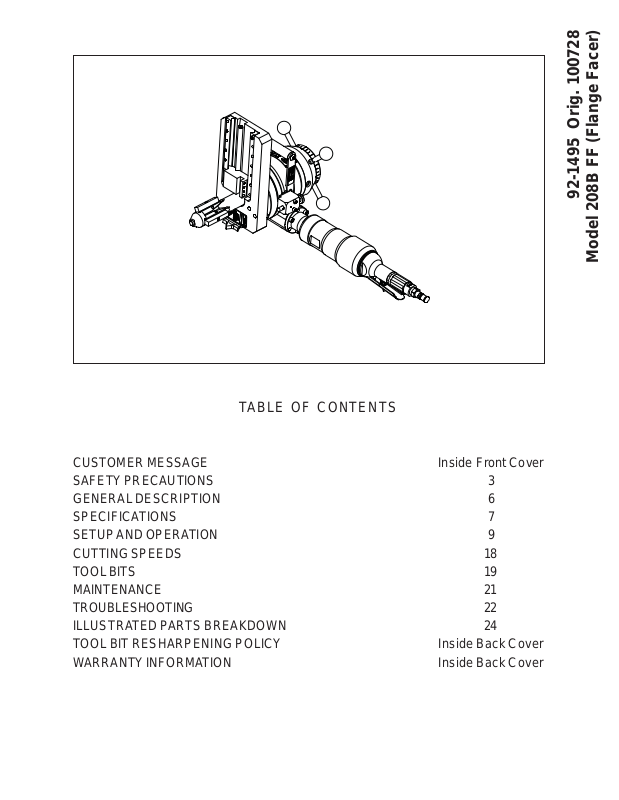

TABLE OF CONTENTS

CUSTOMER MESSAGE Inside Front Cover SAFETY PRECAUTIONS 3

92-1495 Orig. 100728

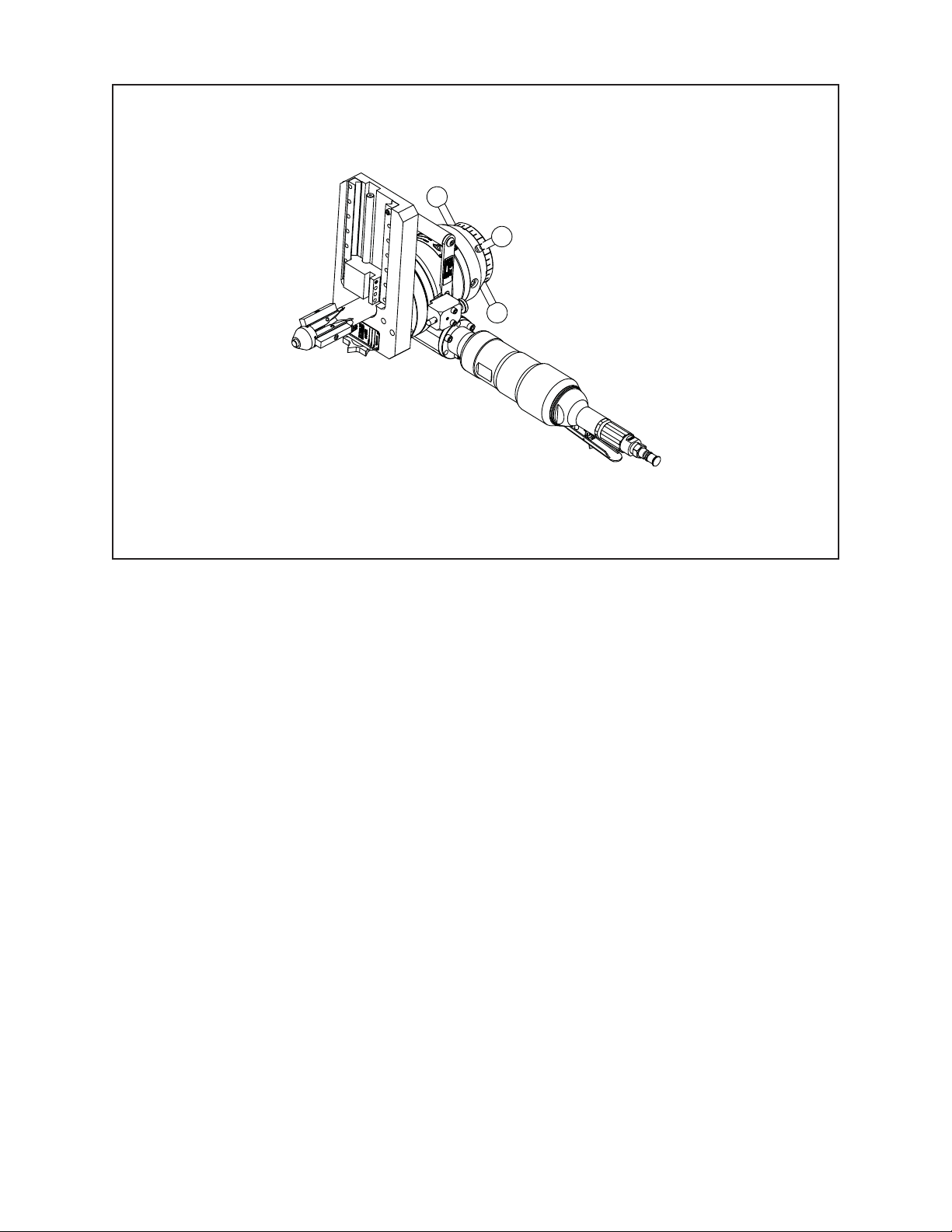

Model 208B FF (Flange Facer)

GENERAL DESCRIPTION 6 SPECIFICATIONS 7 SETUP AND OPERATION 9 CUTTING SPEEDS 18 TOOL BITS 19 MAINTENANCE 21 TROUBLESHOOTING 22 ILLUSTRA TED P ARTS BREAKDOWN 2 4 TOOL BIT RESHARPENING POLICY Inside Back Cover WARRANTY INFORMATION Inside Back Cover

Page 2

Proprietary property of TRI TOOL Inc.

No reproduction, use, or duplication of the

information shown hereon is permitted without the

express written consent of TRI TOOL Inc.

Page 3

SAFETY PRECAUTIONS

IN GENERAL

When using rotating head cutting equipment, basic safety precautions should always be followed to reduce the risk of personal injury .

Operate this tool only in accordance with specific operating instructions.

Do not override the deadman switch on the power unit. Locking down,

W ARNING:

DRESS CONSIDERA TIONS

obstructing, or in any way defeating the deadman switch on the power drive unit may result in serious injury.

Model 208B FF (Flange Facer)

Use standard safety equipment. Hard hats, safety shoes, safety harnesses, protective clothes, and other safety devices should always be used when appropriate.

Use safety glasses. Do not operate cutting tools without eye protection.

Dress properly . Do not wear loose clothing or jewelry . They can be caught in rotating and moving parts. Avoid slippery floors or wear nonskid footwear . If you have long hair, wear protective hair covering to cont ain it.

WORK AREA

Keep the work area clean. Cluttered work areas and benches invite injuries.

Consider the work area environment. Keep the area well lit. Keep electrical cords, cables, rags, rigging straps, and etc. clear of rotating equipment. Do not use power-cutting tools in the presence of flammable liquids and gasses.

Keep visitors away . Do not let visitors or untrained personnel at or near operating tools. Enforce eye protection requirements for all observers.

Do not over reach. Keep proper footing at all times.

Stay alert. W atch what you are doing. Use common sense. Do not operate tools when you are tired.

92-1495 : Orig. 100728

Page 4

TRI TOOL INC.

TOOL CARE

Maintain tools with care. Keep tools in good operating condition. Sharp tool bits perform better and safer than dull tool bits. Well maintained tools function properly when needed.

Check for damaged parts. If a tool has malfunctioned, been dropped or hit, it must be checked for damage. Run no-load tests and feed function checks. Do a complete visual inspection.

Electric motors. Use only with proper AC volt age power sources and observe all normal electric shock hazard procedures.

Do not abuse power and control cords. Pulling or running over cords and cables can result in electrical shock hazards and malfunctions. Keep control and power cords out of all cutting fluids and water.

Hydraulic drives. Observe proper procedures for electrically driven power sources. Avoid damage to hydraulic lines. Keep quick-disconnects clean. Grit contamination causes malfunctions.

Air tools. Check the exhaust muffler . Broken or damaged mufflers can restrict air flow or cause excessive noise. Use air motors only with a filtered, lubricated and regulated air supply . Dirty air , low-pressure air or over pressure air will cause malfunctions, including delayed starting.

AREA EQUIPMENT

Secure work. Whenever possible use clamps, vises, chains and straps to secure pipe.

Make sure the tool is secured; it is safer to have both hands free to operate the tool.

TOOL USE

Use the right tool and tool bit for the job. Do not use a tool, which is incorrect for the job you are doing.

Keep the tool bits fully engaged in the tool bit holders. Loose bits are a safety hazard.

92-1495 : Orig. 100728

Page 5

Model 208B FF (Flange Facer)

Disconnect the power supply during setup and maintenance. Use all 'Stop' or 'Shut off' features available when changing or adjusting tool bits, maintaining the tool, or when the tool is not in use.

Remove adjusting keys and wrenches before applying power to the equipment. Develop a habit of checking the tool before turning it on to make sure that all keys and wrenches have been removed.

Do not force tools. Tools and tool bits function better and safer when used at the feed and speed rate for which they were designed.

Do not reach into rotating equipment. Do not reach into the rotating head stock to clear chips, to make adjustments, or to check surface finish. A machine designed to cut steel will not stop for a hand or an arm.

Handle chips with care. Chips have very sharp edges and are hot. Do not try to pull chips apart with your hands; they are very tough.

Avoid unintentional starts. Do not carry or handle tools with your hand on the operating switches or levers. Do not lay the tool down in a manner that will start the drive. Do not allow the tool to flip around or move when adjusting or changing tool bits.

Store idle tools properly. Disconnect tools from the power source and store in a safe place. Remove tool bits for safe handling of the tool.

92-1495 : Orig. 100728

Page 6

TRI TOOL INC.

GENERAL DESCRIPTION

The Model 208B FF (Flange Facer) is supplied as a kit to provide the Model 208B BEVELMASTER® with Flange Facing capabilities over a cutting range of 1.75" (44.5 mm) to 16.50" (419.1 mm).

The kit allows for quick easy field conversion of the Model 208B BEVELMASTER from a Beveling configuration to a Flange Facer configuration and back again as required.

92-1495 : Orig. 100728

Page 7

SPECIFICATIONS

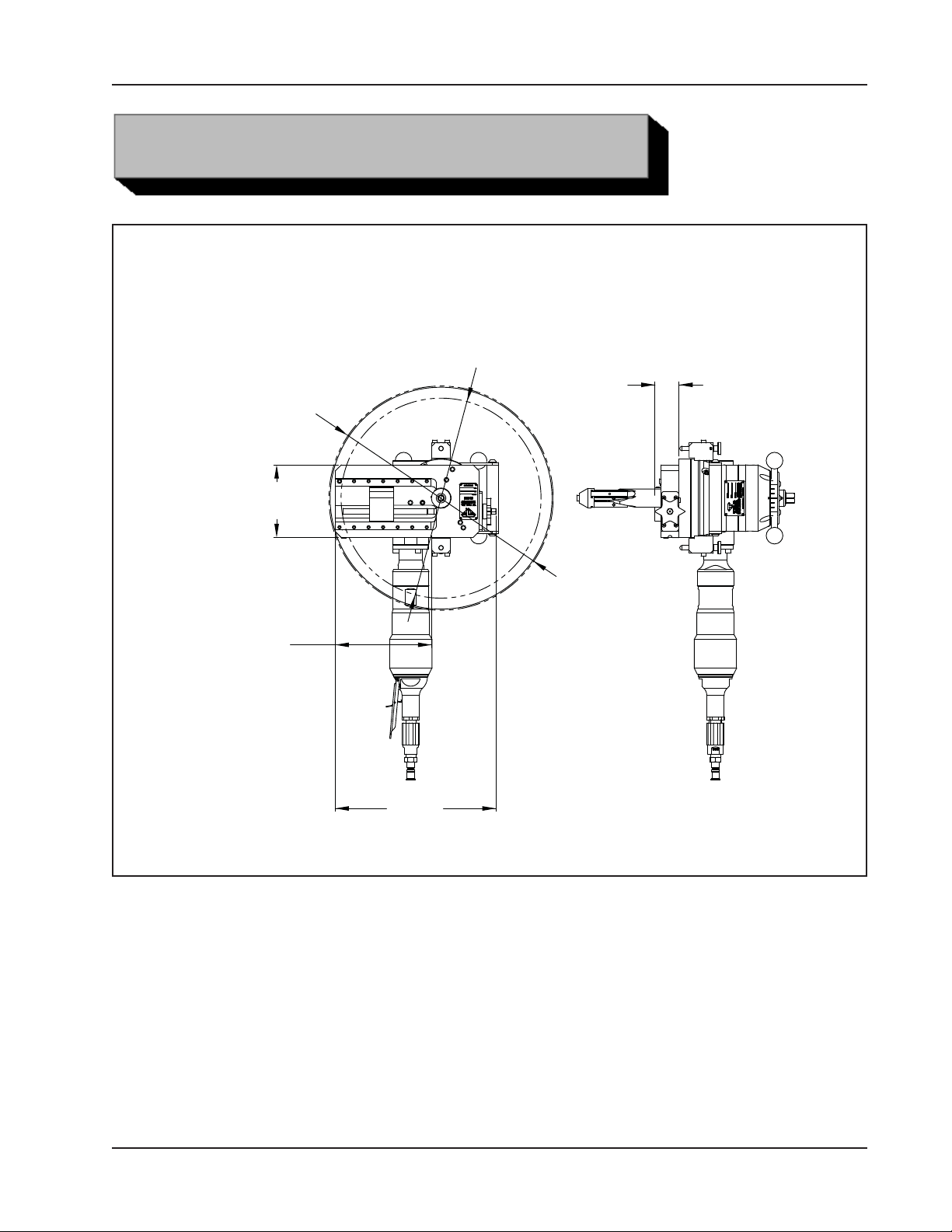

Envelope Drawing

18.31"

(464.9 mm)

Maximum

Rotating DIA

6.00"

(152.4 mm)

Model 208B FF (Flange Facer)

1.75" (44.5 mm)

to 16.50" (419.1 mm)

Cutting DIA

2.00"

(50.8 mm)

7.90" (200.7 mm) Feed Travel

13.25"

(336.7 mm)

WEIGHT

TBD

CLEARANCE AND DIMENSIONS (W/208B A TTACHED)

Max. Rotating Parts DIA

18.31" (464.9 mm)

92-1495 : Orig. 100728

Page 8

TRI TOOL INC.

Radial (Max. from Center Line)

9.16" (232.5 mm)

Feed Travel (Auto)

7.90" (200.7 mm)

CUTTING CAP ACITY

Max. Chip Width

.020" (.51 mm)

Range

1.75" (44.5 mm) to 16.50" (419.1 mm)

MA TERIAL CUTTING CAP ABILITY

Most stainless steels, carbon steels, inconels, etc., provided the Rockwell hardness is less than Rc 35.

FEED RA TE

.013" (.33 mm) to .026" (.66 mm) per revolution.

MOUNTING

ID Range

1.63" (41.4 mm) to 8.63" (219.2 mm)

92-1495 : Orig. 100728

Page 9

Model 208B FF (Flange Facer)

SETUP AND OPERA TION

Always read the operating instructions carefully/completely before attempting to operate the Model 208B FF.

When operating any/all T ri Tool Inc. equipment follow the ‘Note’ statements through the manual for equipment safety and the ‘Warning’ and/or ‘Caution’ notes for operator safety .

A FRL (Filter/Regulator/Lubricator) is required to protect the warranty on all TRI TOOL INC. air or hydraulic driven tools.

For Hydraulic Motors refer to their ‘Operator’s Manual’ for specifics.

All components should be cleaned and coated with a light film of oil prior to use.

Use a clean, non-detergent oil, preferably SAE 10 (90 SSU or lighter) or oil which is specified for the air motor .

ATT ACHING THE FF KIT TO THE 208B

Remove the three (3) tool holders and mandrel from the Model 208B BEVELMASTER®.

Mount the Model 208B FF (Flange Facer) kit to the Model 208B BEVELMASTER and attach it with the six (6) mounting screws provided.

Reinstall the mandrel.

Attach the two (2) tripper block assemblies to the side of the 208B BEVELMASTER®.Position and clamp the Model 208B to the ID of the pipe.

92-1495 : Orig. 100728

Page 10

TRI TOOL INC.

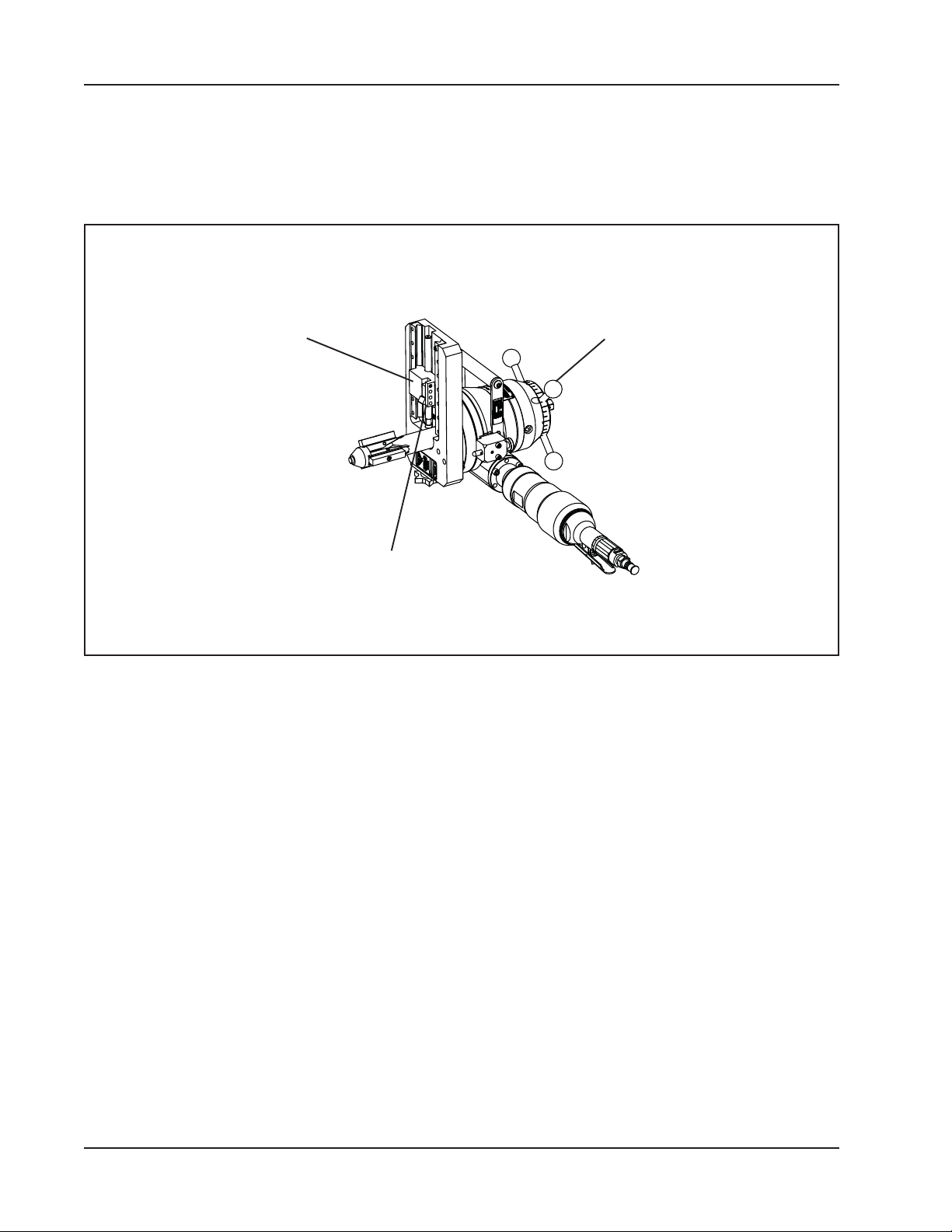

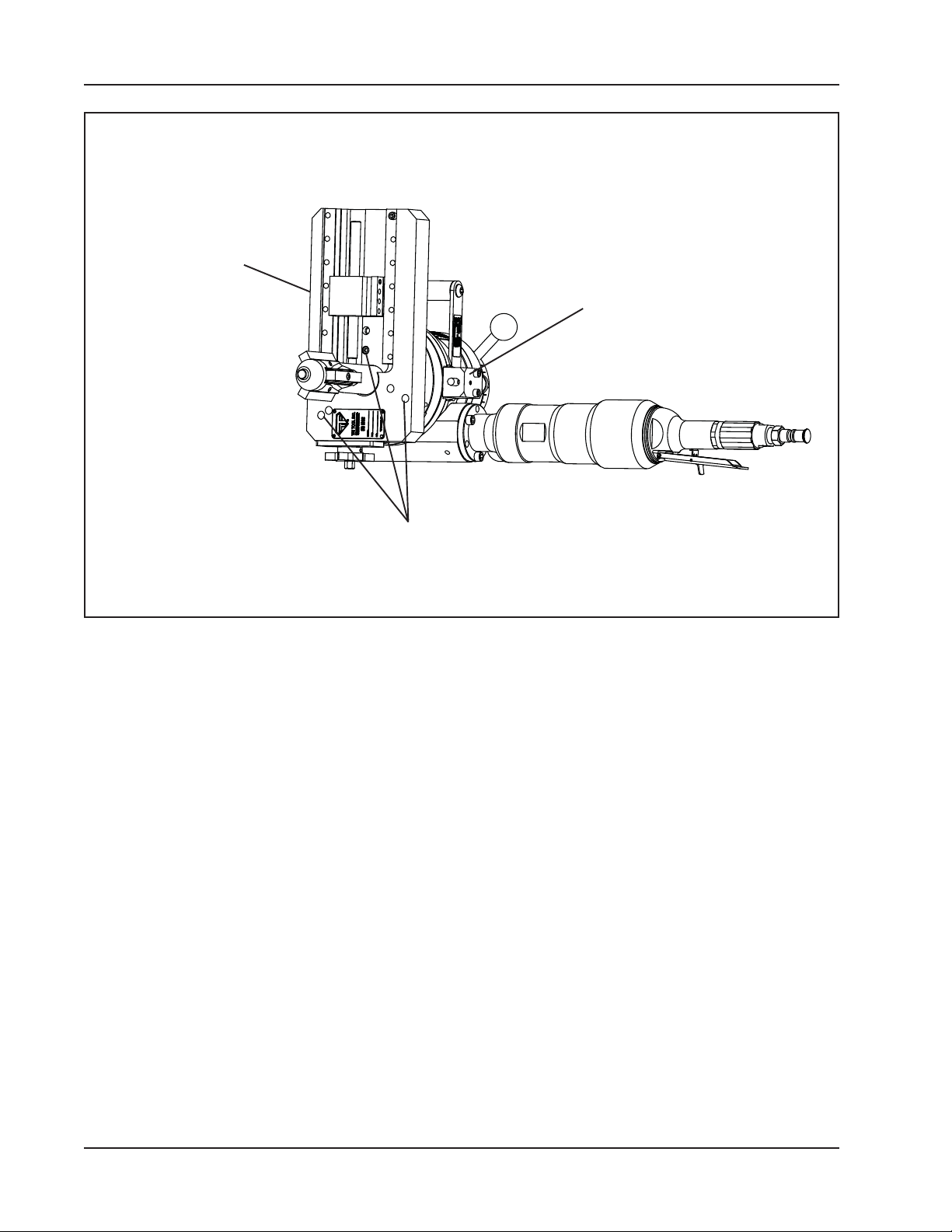

Attaching the Model 208B FF to the Model 208B

Model 208B FF

Tripper Block

Assembly

CONFIGURATION

Reference the Model 208B BEVELMASTER® “Operators’ Manual” for setup instructions.

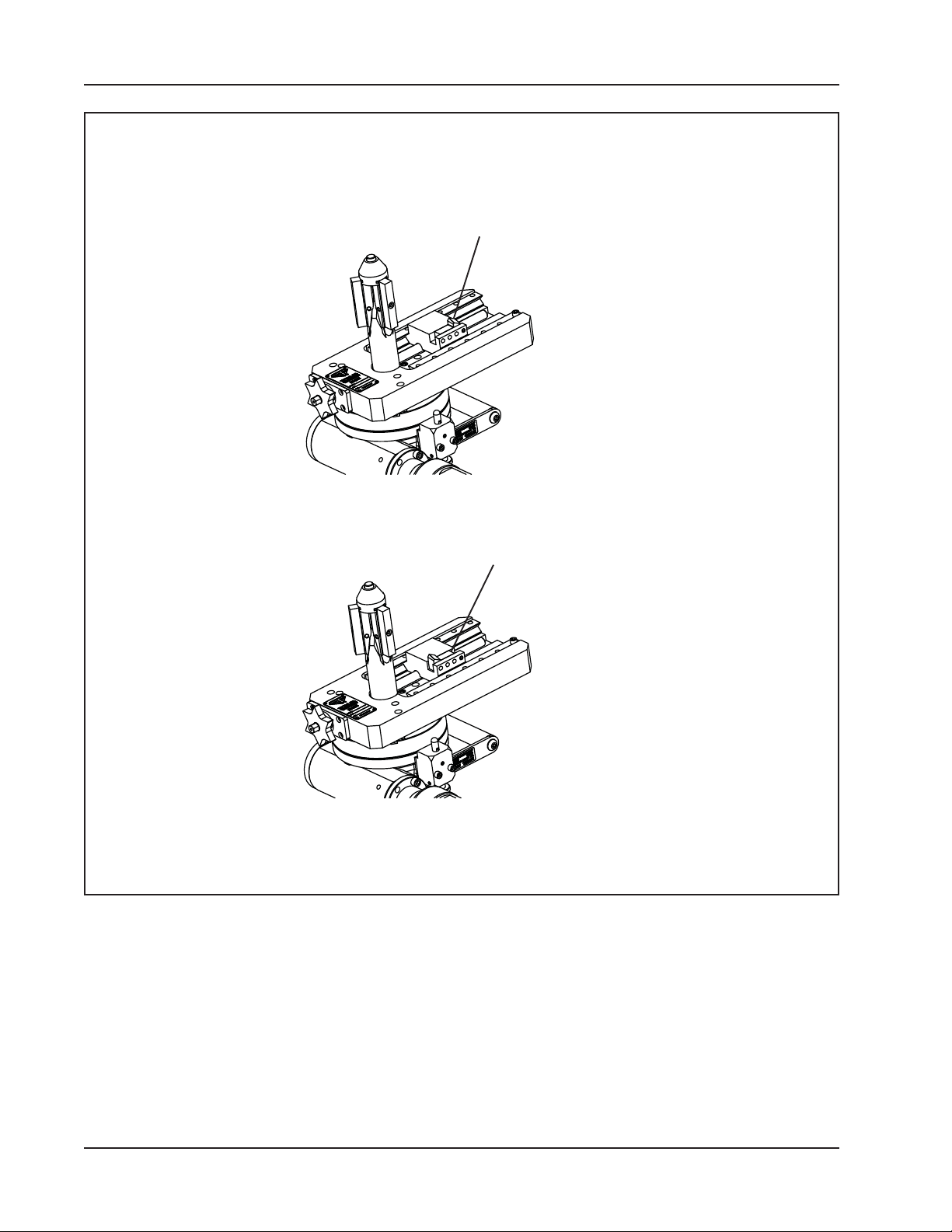

Check the position of the Tool Block.

Positioning the Tool Block

Turn the feed sprocket clockwise to feed the tool holder in.

The Tool holder feed travel is from OD to ID of the pipe.

Tool Block Adjustment

Mounting Screws

Loosen the hold-down screws on the adjustable slide rail.

Run the tool holder to the most outward position.

Using the adjustment set screw(s), apply a light force to the side of the adjustable slide rail so that it is in positive contact with the tool holder .

92-1495 : Orig. 100728

Page 11

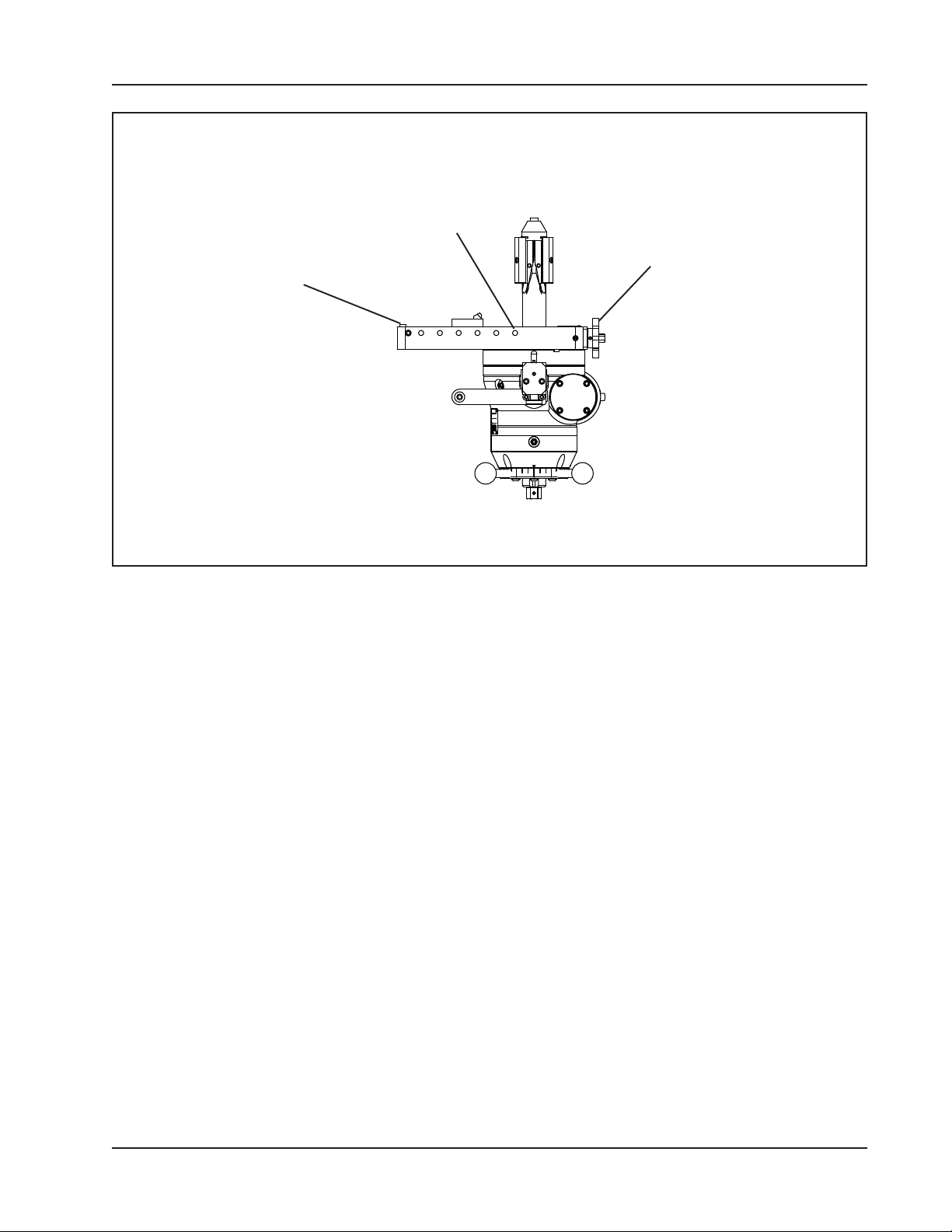

Location of the Various Screws

Adjustment Set

Screws

Model 208B FF (Flange Facer)

Hold Down

Screws

Tighten the hold down screws to about 12 in/lbs (1.4 Nm) to 24 in/lbs (2.7 Nm); Finger tighten using a hex key .

Using the 1/4" drive ratchet, run the tool holder to the inward most position.

Feed Sprocket

Note any changes in the feed pressure.

Some drag from the slide rails should be felt, but only a very light torque should be required to move the tool holder.

Adjust the remaining adjustment set screws so that the tool holder has a smooth, even feel.

Run the tool holder the full length of the slide rail.

Tightly lock the adjustable slide rail in place with the hold down screws and fully snug the adjustment set screws.

Check that the tool holder runs smoothly and evenly for the full length of travel.

Readjust as necessary .

Check the position of the Tool Bit to the Flange.

92-1495 : Orig. 100728

Page 12

TRI TOOL INC.

Tool Bit Depth of Cut

T o adjust the depth of cut of the tool bit to flange, rot ate the feed knob on the Model 208B until the desired position is achieved.

Feed Knob, Tool Holder and Tool Bit

T ool Holder

T ool Bit

Depth of Cut Recommendations

Roughing Cut

Feed Knob

.030" (.76 mm) max. depth

Finish Cut

.010". (.25 mm) depth

Roughing or Record Finish

.026" (.66 mm) feed (both trippers engaged)

Smooth Finish

.013" (.33 mm) feed (one tripper engaged)

92-1495 : Orig. 100728

Page 13

Tool Bit Installation

To select the appropriate tool bit(s) refer to the “Tool Bit s” section of this manual.

Use of dull or improperly designed tool bits or tool bits not manufactured by tri tool inc may result in poor performance and may constitute abuse of this machine and therefore voids the tri tool inc factory warranty .

Slide the tool bit into the tool bit holder slot on the tool block.

Lock the tool bit position with the set screws on the side of the tool block.

Lock the mandrel in place using the mandrel lock set screw located in the back of the handle feed plate.

T ool life may be severely shorted, unless the chip s/debris deposited on the cutting head during the operation are removed.

Model 208B FF (Flange Facer)

To avoid tool bit damage, the tool bit must clear the highest point of the flange on the first revolution.

Damaged or worn tool bits are evident by increased feed pressure, visual observations, poor surface finish, etc.

Check the position of the T ripper Shaft for Feed Rate.

92-1495 : Orig. 100728

Page 14

TRI TOOL INC.

T ool Bit Installation

Tool Bit (P/N 99-2553)

Feed Rate

The feed rate is .013" (.33 mm) per revolution per tripper block.

Tool Bit (P/N 99-2555)

Two (2) tripper blocks are supplied with the kit.

92-1495 : Orig. 100728

Page 15

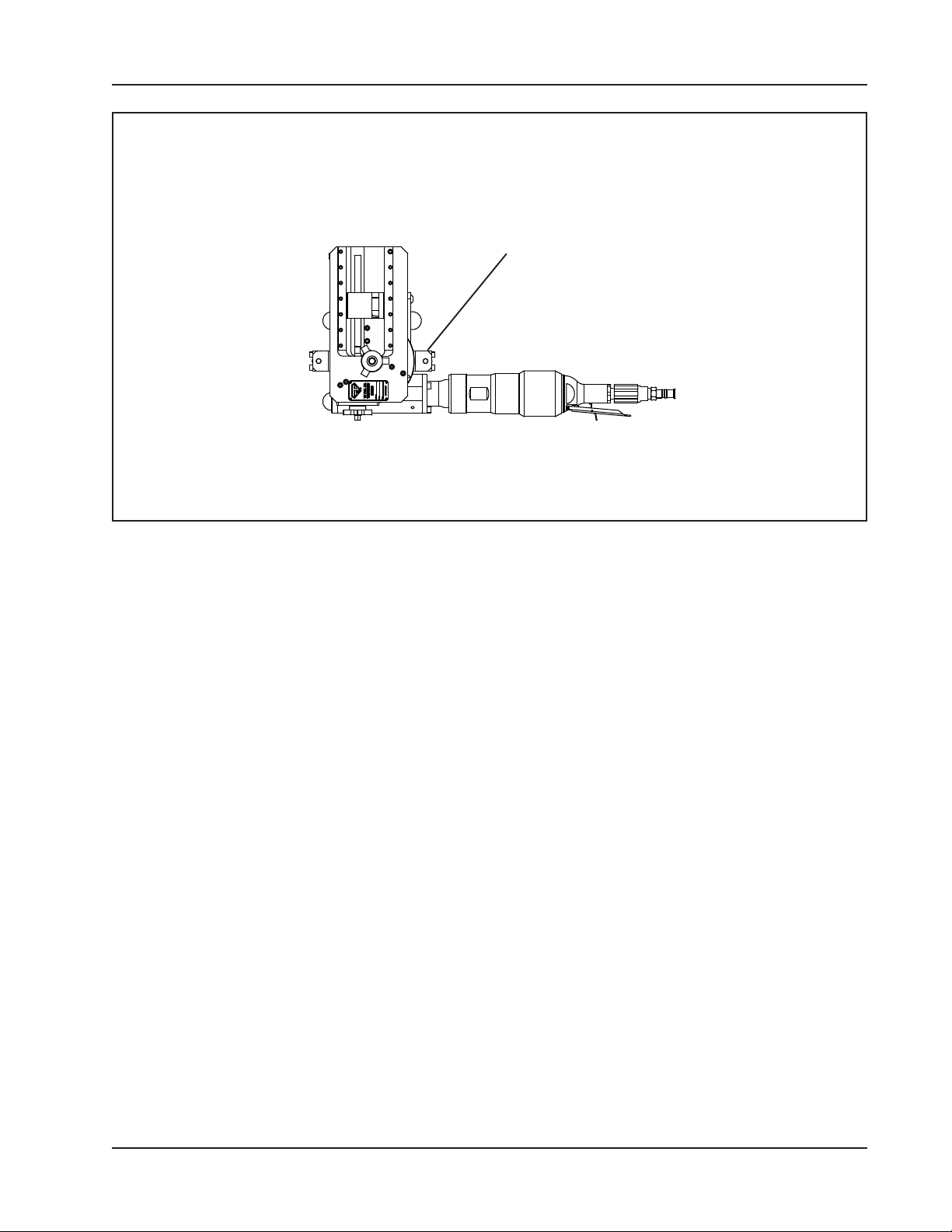

Location of the T ripper Blocks

Model 208B FF (Flange Facer)

Tripper Block

OPERATION

Position and clamp the Model 208B to the ID of the pipe.

Attach the power supply line to the Model 208B.

Turn the motor on and use the manual feed to advance the tool bit to the flange of the pipe.

The actual machining operation will begin when the cutting surface of the tool bit comes in contact with the flange.

If the pipe is out of round, the cutting will contact only a small segment of the flange during each revolution.

92-1495 : Orig. 100728

Page 16

TRI TOOL INC.

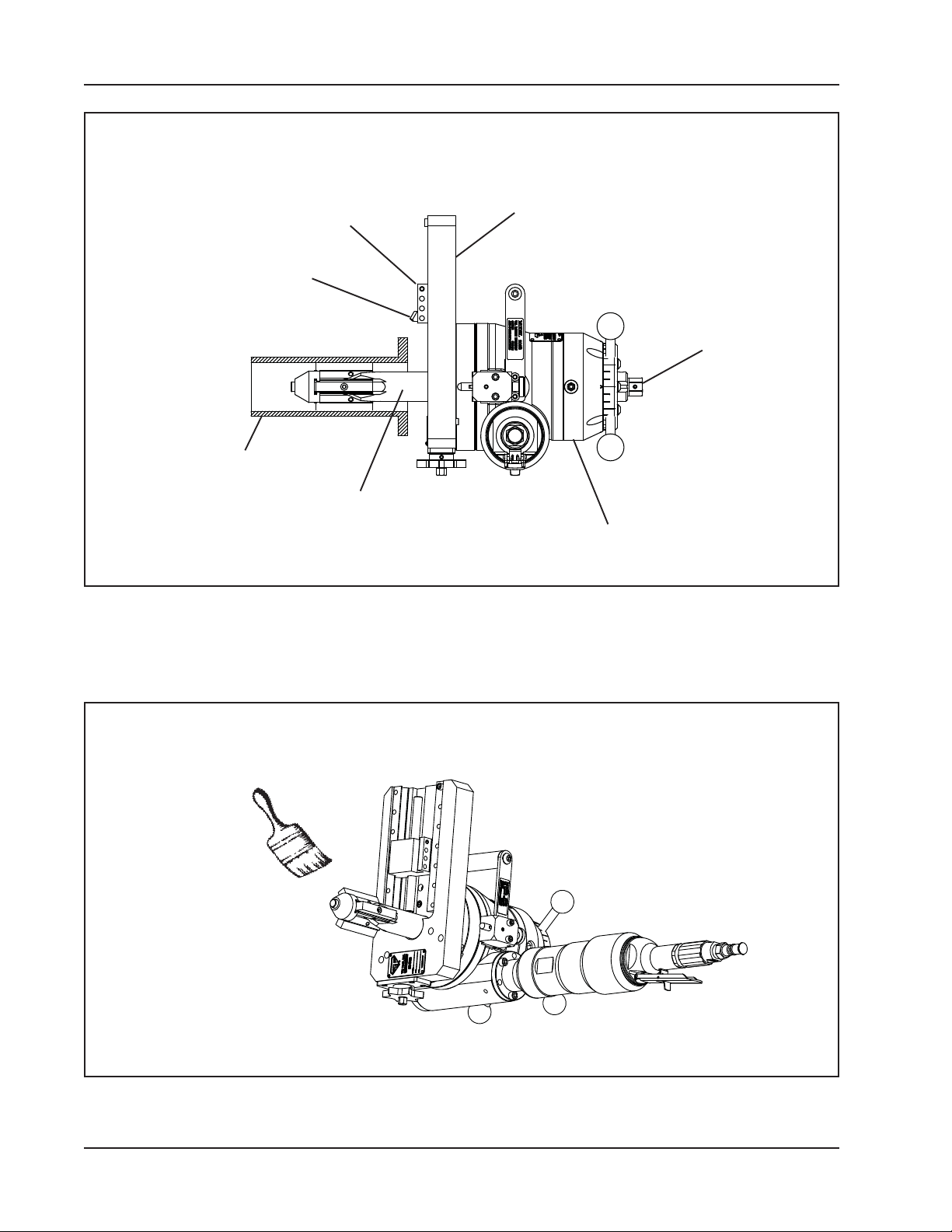

Positioning the Model 208B in a Pipe or Tube

T ool Holder

T ool Bit

Pipe or Tube

Mandrel

If the Model 208B BEVELMASTER® with the Model 208B FF (Flange Facer) is operated in the vertical position, cutting head up, the chips/debris should be removed after each pass has been completed.

Model 208B FF

Draw Nut

Model 208B

Chip/Debris Removal

92-1495 : Orig. 100728

Page 17

Model 208B FF (Flange Facer)

If the next flange is the same as the previous flange, install the machine on the pipe and proceed with the flange.

If the next flange is different than the previous flange, then start back at the beginning with "CONFIGURA TION".

92-1495 : Orig. 100728

Page 18

TRI TOOL INC.

The feed rate is .013" (.33 mm) per revolution per tripper block.

Two (2) tripper blocks are supplied with the kit.

When facing over a mounting hole pattern in a flange, machine speed should be reduced to lessen the impact on the cutting edge of the tool bit and to prevent ripping the edge of the holes.

CUTTING SPEEDS

92-1495 : Orig. 100728

Page 19

Model 208B FF (Flange Facer)

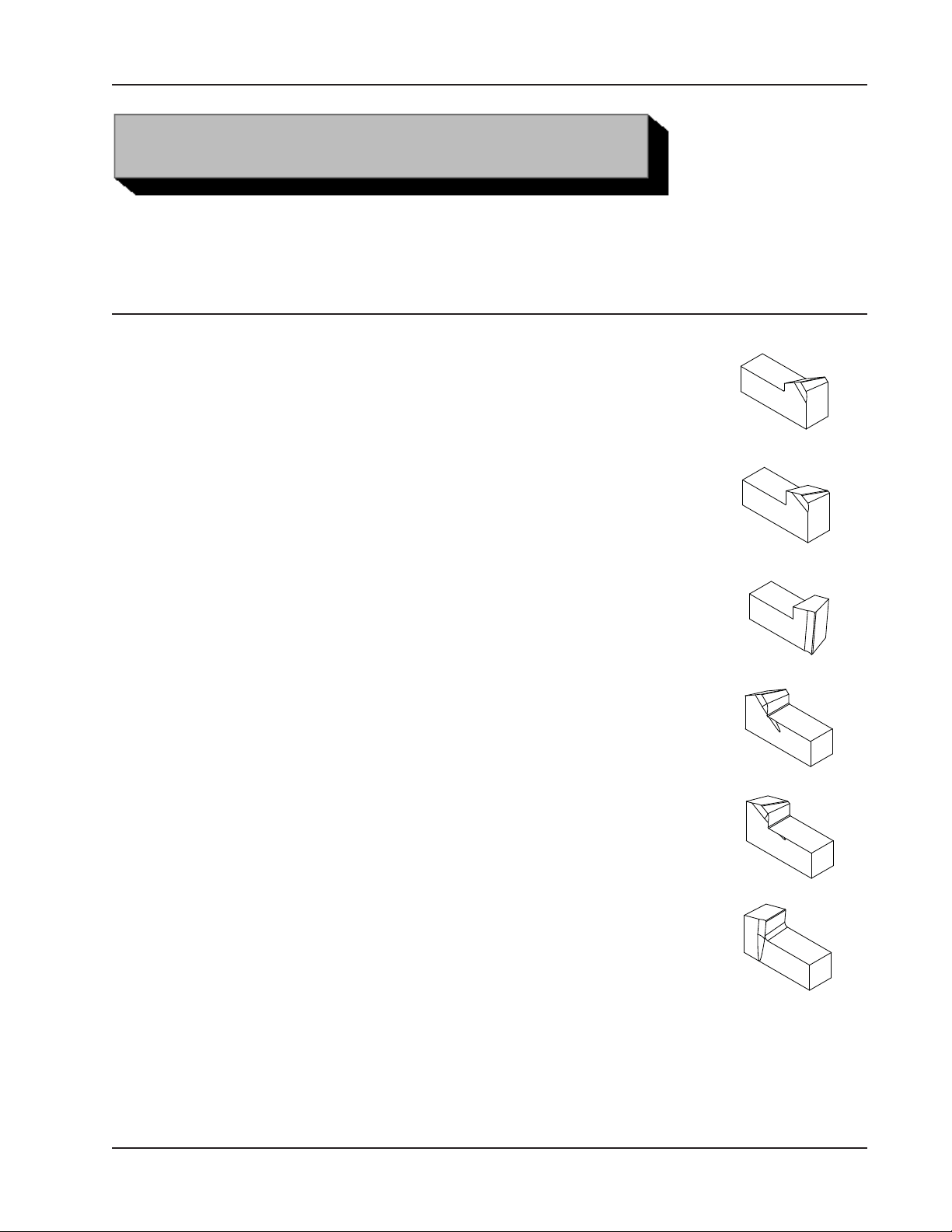

TOOL BITS

Parts List, Tool Bits

Item Part

No. No. Description Qty Part

1. 99-2553 FF, INSIDE RECORD FINISH 1

2. 99-2554 FF, INSIDE SMOOTH FINISH 1

3. 99-2089 FF, INSIDE RECESSED FACE 1

4. 99-2555 FF, OUTSIDE RECORD FINISH 1

5. 99-2556 FF, OUTSIDE SMOOTH FINISH 1

6. 99-2423 FF, OUTSIDE RECESSED FACE 1

92-1495 : Orig. 100728

Page 20

TRI TOOL INC.

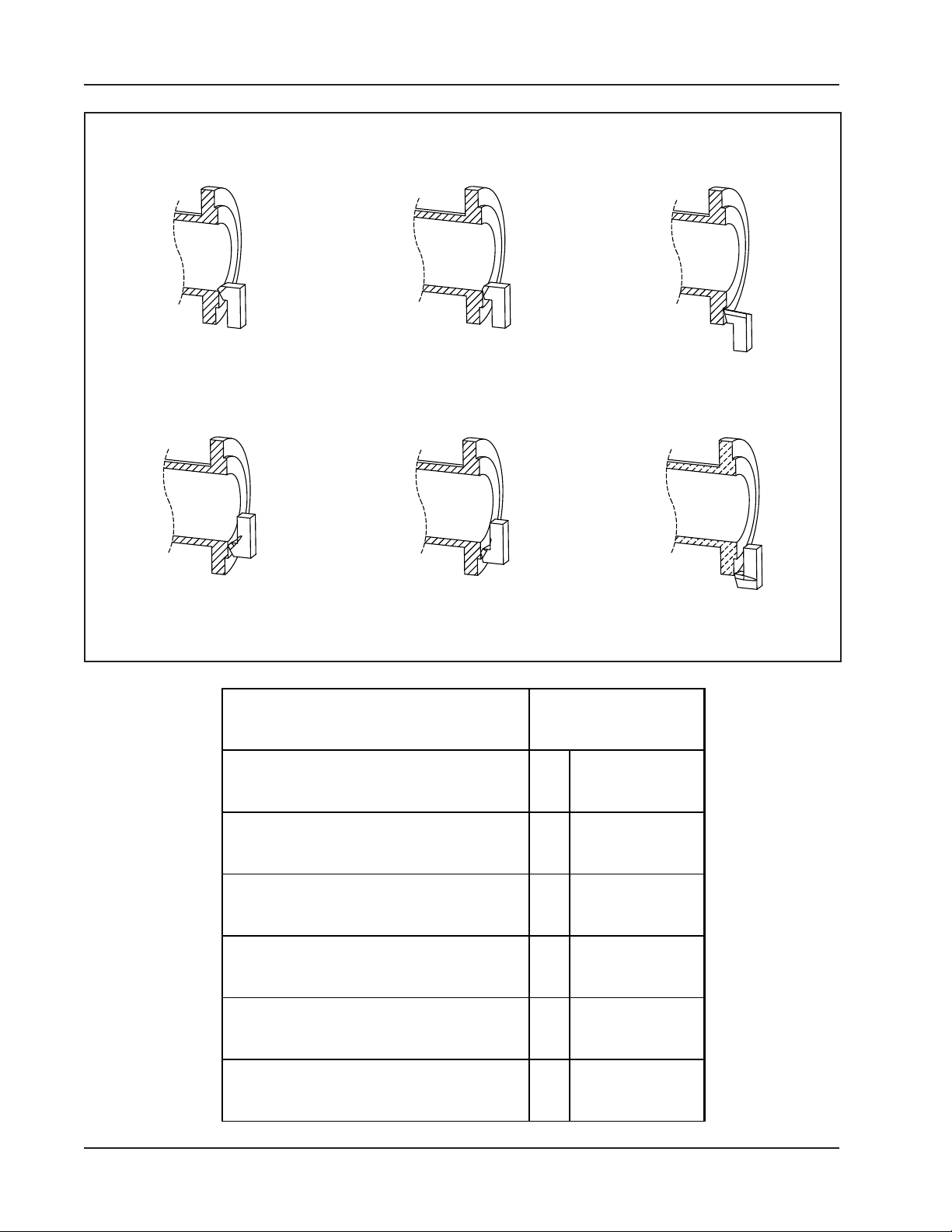

Tool Bit Usage

OD Range

1.75" thru 11.00" (44.5 mm thru 279.4 mm)

Tool Bit

P/N

1 99-2553

1.75" thru 11.00" (44.5 mm thru 279.4 mm)

4.75" thru 16.50" (120.0 mm thru 419.1 mm)

2 99-2554

3 99-2089

4 99-2555

5 99-2556

6 99-2423

92-1495 : Orig. 100728

Page 21

MAINTENANCE

DAIL Y BEFORE/AFTER OPERATION

Visually inspect all parts for damage due to chips, impact or improper use.

Repair or replace broken or damaged parts as necessary.

Wipe the machine clean of cutting fluids, dirt and grime and then coat it with a light film of oil.

Model 208B FF (Flange Facer)

92-1495 : Orig. 100728

Page 22

TRI TOOL INC.

TROUBLESHOOTING

Problem: The T ool Bit Chatters

The tool bit is loose or overextended. The tool bit is damaged. The tool holder is too loose in the slides. The cutting speed is too fast. The clamping pads are loose on the pipe or tube. Cutting fluid is required. The main bearing pre-load is loose.

Problem: There’s Excessive T ool Bit Wear

The pipe or tube material is too hard or abrasive. The cutting speed is too fast. Cutting fluid is required. A dull Tool Bit is causing surface hardening conditions (Stainless pipe or tubing). There is scale or other foreign matter on the pipe or tube, which is dulling the tool bit at the start of the cut. The tool bit is incorrect for the material being cut.

Problem: The Surface Finish is Rough

The tool bit is dull, chipped, etc. Metal build-up on the cutting edge of the tool bit is creating a false cutting edge. Cutting fluid is required.

Problem: The T ool Bit Will Not Reach the Work

Incorrect tool blocks are installed for the size of the pipe or tube being worked on. Incorrect tool bit is installed.

92-1495 : Orig. 100728

Page 23

Problem: The T ool Holder is Not Feeding

The feed pin is broken or out of position. The feed sprocket shear pin is broken. The feed screw is stripped. The feed nut is stripped. The slide rails are too tight.

Problem: There’s a Loss of Air Power

The air supply pressure is too low . The air filter is plugged. The air line size is insufficient. The air line is too long.

Problem: The Air Motor Will Not S tart

The air power supply is shut off. The air motor is damaged and will not run free. The air motor needs lubrication. Add lubrication and do not run the air motor for a few minutes, then try running the motor . Tap on the side of the air motor casing lightly with a piece of wood or with a soft rubber mallet just in case the vanes may be sticking. Sand or other foreign material may be in the vanes of the air motor .

Model 208B FF (Flange Facer)

Problem: There’s a Loss of Hydraulic Power

The hydraulic supply pressure is too low. The hydraulic filter is plugged. The hydraulic line size is insufficient. The hydraulic line is too long.

Problem: The Hydraulic Motor Will Not Start

The hydraulic power supply is shut off. The hydraulic motor is damaged and will not run free.

92-1495 : Orig. 100728

Page 24

TRI TOOL INC.

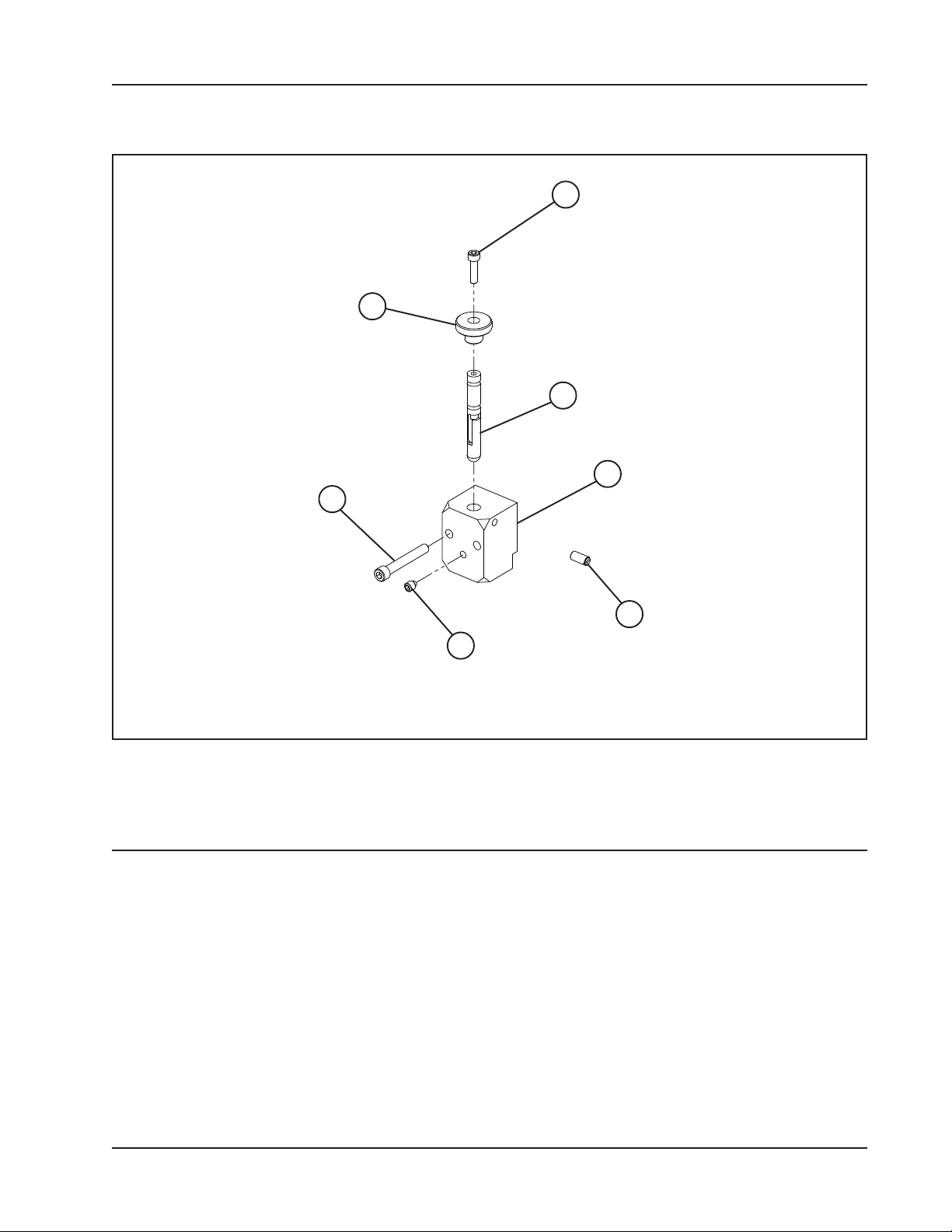

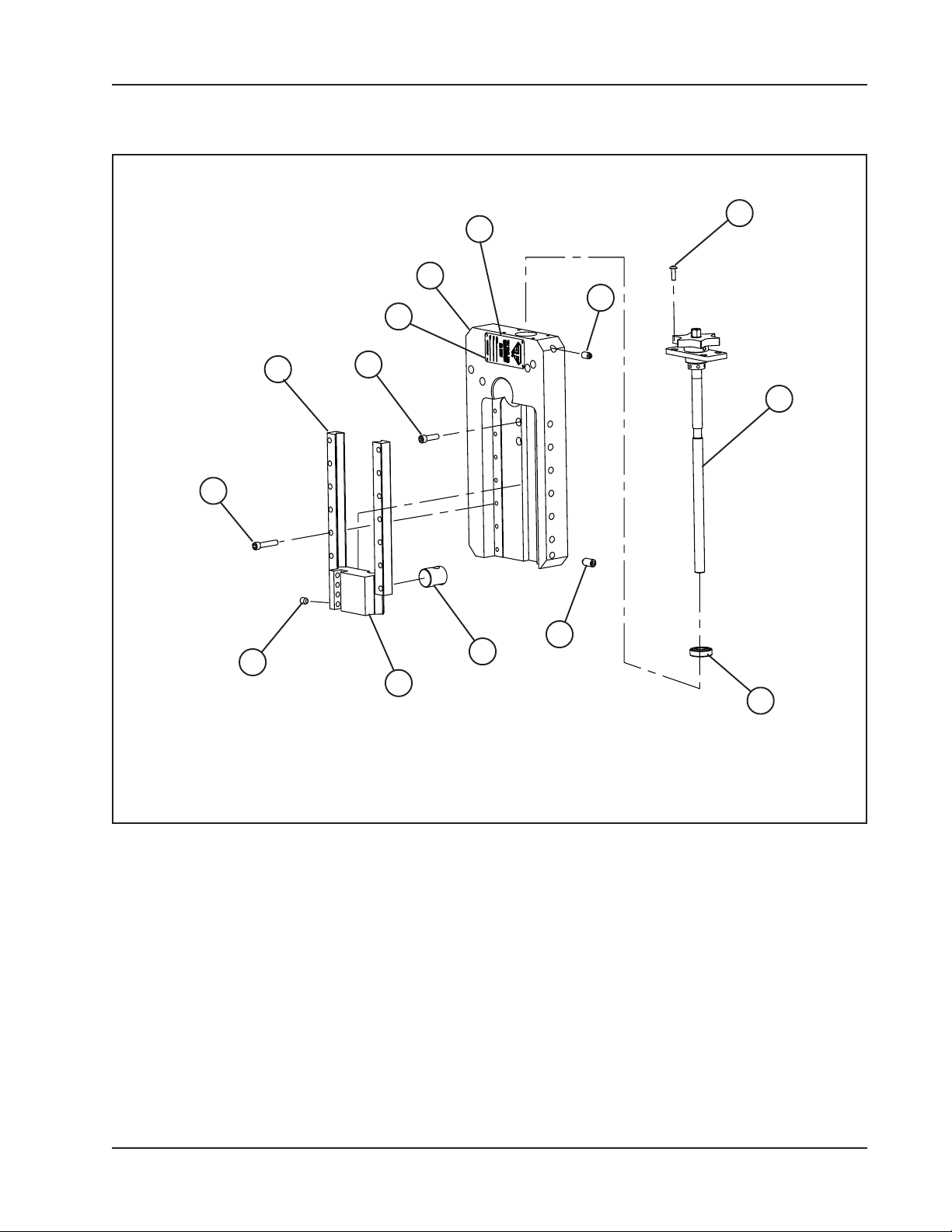

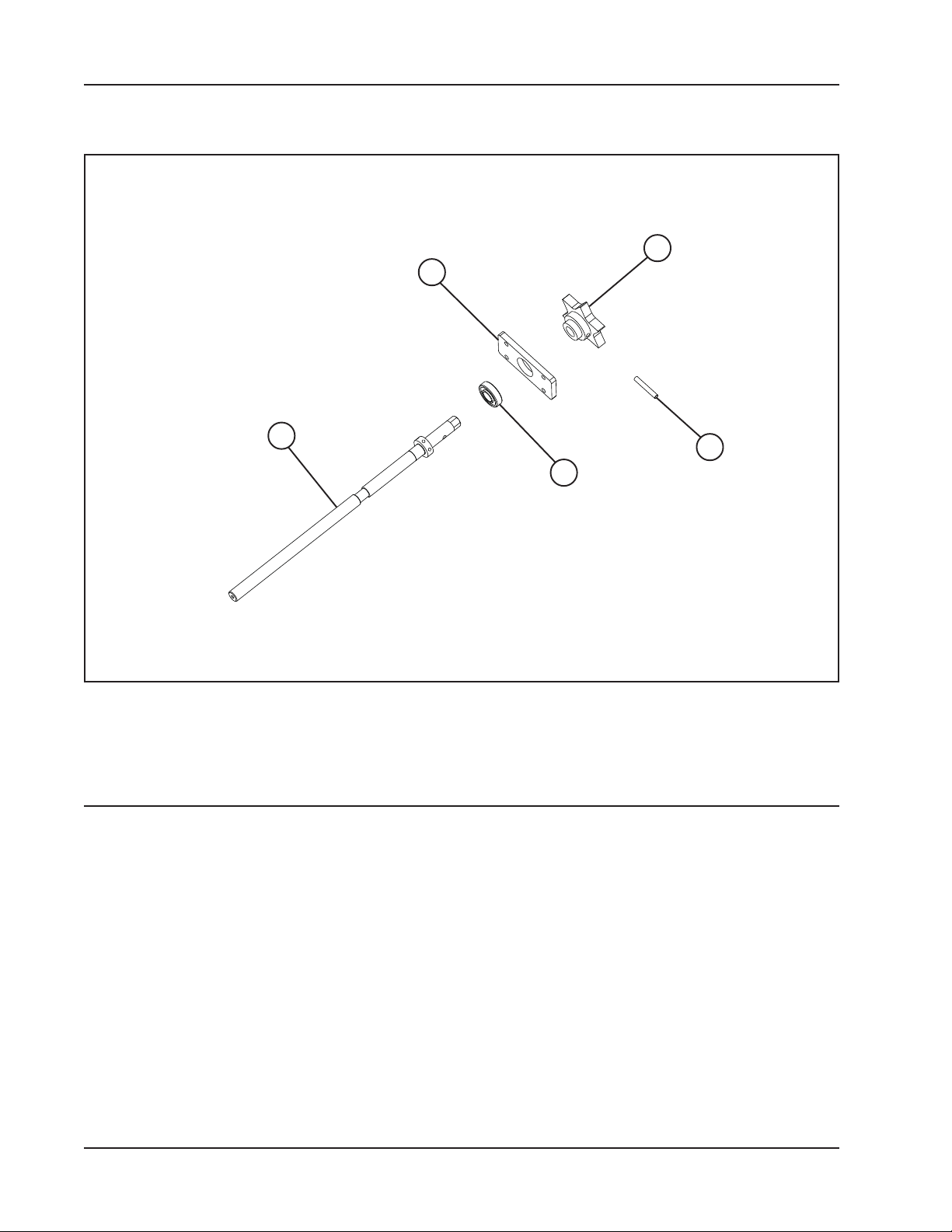

ILLUSTRATED PARTS BREAKDOWN

Parts List, Flange Facer Kit (P/N 05-0604)

Item Part

No. No. Description Qty

1. 30-0514 BRUSH,CHIP 1

2. 30-0727 LABEL,CASE 1

3. 30-2061 LABEL,TRI TOOL 1

4. 36-0020 WRENCH,T,5/32 HEX 1

5. 36-0021 WRENCH,T,3/16 HEX 1

6. 36-0091 WRENCH,RA TCHET,1/4 DRIVE 1

7. 36-0144 SOCKET,1/4 DRIVE X 7/16 HEX 1

8. 48-0478 BLOCK ASSY ,TRIPPER 2

9. 82-0220 FLANGE FACER ASSY, 208B 1

10. 86-0302 CASE, 208B-FF 1 1 1. 99-2555 TOO L BIT,F/FACE,REC.FIN.,OUT 1

12. 99-2556 USN-1064 FLNG FACNG BIT OUT -SD 1

92-1495 : Orig. 100728

Page 25

Model 208B FF (Flange Facer)

MODEL 208B FF [FLANGE FACE] (P/N 82-0220)

92-1495 : Orig. 100728

Page 26

TRI TOOL INC.

Parts List, Model 208B FF [Flange Facer] (P/N 82-0220)

Item Part

No. No. Description Qty

1. 29-0182 BEARING , BALL 1

2. 30-0464 PLUNGER, BALL 1

3. 33-0041 SCREW, CAP, 1/4-20 X 7/8 6

4. 33-0043 SCREW, CAP, 1/4-20 X 1 1/4 14

5. 33-0280 SCREW , BUTTON, #10-24 X 5/8 4

6. 33-0514 SCREW,SET,5/16-18 X 3/8 CUP PT 4

7. 33-1269 SCREW,SET,3/8-24 X 5/8,HDOG 8

8. 33-2811 SCREW, FEED, ASSY 1

9. 35-0266 NUT , FEED 1

10. 47-1905 BRACKET , CARRIER, 208B 1

11. 48-2488 BLOCK, GUIDE, 208B 2

12. 49-0088 HOLDER, TOOL 1

13. 30-0922 PLATE,DATA,GENERIC-1 1

14. 33-0995 SCREW,DRIVE,#2 X 3/16 4

92-1495 : Orig. 100728

Page 27

Model 208B FF (Flange Facer)

TRIPPER BLOCK ASSEMBLY (P/N 48-0478)

Parts List, Tripper Block Assembly (P/N 48-0478)

Item Part

No. No. Description Qty

14-0044 SHAFT ASSEMBL Y , TRIPPER 1

1. 20-0359 SHAFT, TRIPPER 1

2. 33-0030 SCREW, CAP, #10-24 X 3/4" 1

3. 42-0023 KNOB, ROUND 1

3. 30-0125 BALL PLUNGER 1

4. 33-0045 SCREW, CAP, 1/4-20 X 1 3/4" 2

5. 33-0903 SCREW, SET, 1/4-20 X 5/16, HDOG 1

6. 48-0479 BLOCK, TRIPPER 1

92-1495 : Orig. 100728

Page 28

TRI TOOL INC.

FEED SCREW ASSEMBLY (P/N 33-2811)

Parts List, Feed Screw Assembly (P/N 33-2811)

Item Part

No. No. Description Qty

1. 24-0728 PLATE, RET AIN 1

2. 29-0182 BRG,BALL,1/2 X 1-1/8 X 3/8 1

3. 32-0043 PIN,ROLL,3/16 DIA X 1-1/4 1

4. 33-2810 SCREW, FEED 1/2-13 1

5. 38-0080 SPROCKET, FEED 1

92-1495 : Orig. 100728
