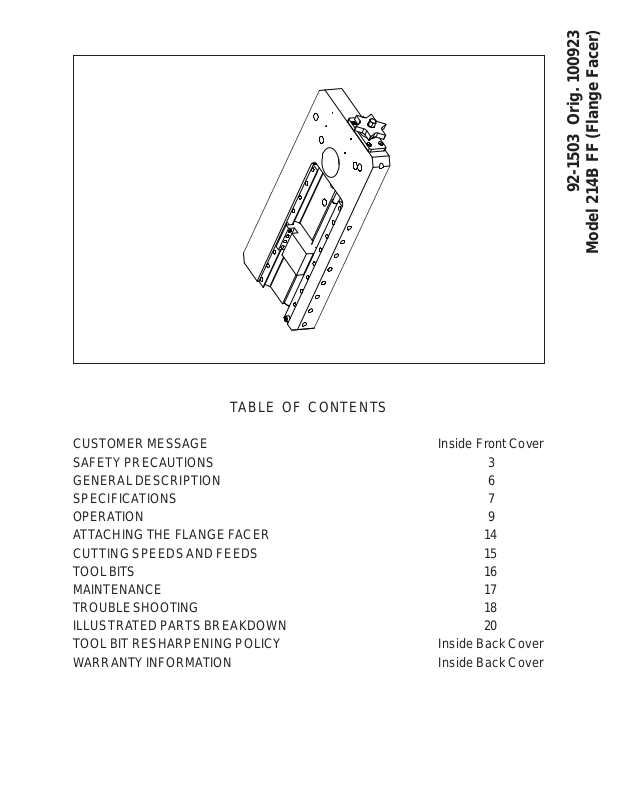

TABLE OF CONTENTS

CUSTOMER MESSAGE Inside Front Cover SAFETY PRECAUTIONS 3 GENERAL DESCRIPTION 6

92-1503 Orig. 100923

Model 214B FF (Flange Facer)

SPECIFICATIONS 7 OPERA TION 9 A TT ACHING THE FLANGE F ACER 1 4 CUTTING SPEEDS AND FEEDS 1 5 TOOL BITS 16 MAINTENANCE 17 TROUBLE SHOOTING 18 ILLUSTRA TED P ARTS BREAKDOWN 2 0 TOOL BIT RESHARPENING POLICY Inside Back Cover WARRANTY INFORMATION Inside Back Cover

Page 2

Proprietary property of TRI TOOL Inc.

No reproduction, use, or duplication of the

information shown hereon is permitted without the

express written consent of TRI TOOL Inc.

Page 3

SAFETY PRECAUTIONS

IN GENERAL

When using rotating head cutting equipment, basic safety precautions should always be followed to reduce the risk of personal injury .

Operate this tool only in accordance with specific operating instructions.

Do not override the deadman switch on the power unit. Locking down,

W ARNING:

DRESS CONSIDERA TIONS

obstructing, or in any way defeating the deadman switch on the power drive unit may result in serious injury.

Model 214B FF (Flange Facer)

Use standard safety equipment. Hard hats, safety shoes, safety harnesses, protective clothes, and other safety devices should always be used when appropriate.

Use safety glasses. Do not operate cutting tools without eye protection.

Dress properly . Do not wear loose clothing or jewelry . They can be caught in rot ating and moving parts. Avoid slippery floors or wear nonskid footwear . If you have long hair , wear protective hair covering to contain it.

WORK AREA

Keep the work area clean. Cluttered work areas and benches invite injuries.

Consider the work area environment. Keep the area well lit. Keep electrical cords, cables, rags, rigging straps, and etc. clear of rotating equipment. Do not use power-cutting tools in the presence of flammable liquids and gasses.

Keep visitors away . Do not let visitors or untrained personnel at or near operating tools. Enforce eye protection requirements for all observers.

Do not over reach. Keep proper footing at all times.

St ay alert. Watch what you are doing. Use common sense. Do not operate tools when you are tired.

92-1503 : Orig. 100923

Page 4

TRI TOOL INC.

TOOL CARE

Maintain tools with care. Keep tools in good operating condition. Sharp tool bits perform better and safer than dull tool bits. Well maintained tools function properly when needed.

Check for damaged parts. If a tool has malfunctioned, been dropped or hit, it must be checked for damage. Run no-load tests and feed function checks. Do a complete visual inspection.

Electric motors. Use only with proper AC voltage power sources and observe all normal electric shock hazard procedures.

Do not abuse power and control cords. Pulling or running over cords and cables can result in electrical shock hazards and malfunctions. Keep control and power cords out of all cutting fluids and water.

Hydraulic drives. Observe proper procedures for electrically driven power sources. Avoid damage to hydraulic lines. Keep quick-disconnects clean. Grit contamination causes malfunctions.

Air tools. Check the exhaust muffler . Broken or damaged muf flers can restrict air flow or cause excessive noise. Use air motors only with a filtered, lubricated and regulated air supply . Dirty air , low-pressure air or over pressure air will cause malfunctions, including delayed starting.

AREA EQUIPMENT

Secure work. Whenever possible use clamps, vises, chains and straps to secure pipe.

Make sure the tool is secured; it is safer to have both hands free to operate the tool.

TOOL USE

Use the right tool and tool bit for the job. Do not use a tool, which is incorrect for the job you are doing.

Keep the tool bits fully engaged in the tool bit holders. Loose bits are a safety hazard.

92-1503 : Orig. 100923

Page 5

Model 214B FF (Flange Facer)

Disconnect the power supply during setup and maintenance. Use all 'Stop' or 'Shut off' features available when changing or adjusting tool bits, maintaining the tool, or when the tool is not in use.

Remove adjusting keys and wrenches before applying power to the equipment. Develop a habit of checking the tool before turning it on to make sure that all keys and wrenches have been removed.

Do not force tools. Tools and tool bits function better and safer when used at the feed and speed rate for which they were designed.

Do not reach into rotating equipment. Do not reach into the rotating head stock to clear chips, to make adjustments, or to check surface finish. A machine designed to cut steel will not stop for a hand or an arm.

Handle chips with care. Chips have very sharp edges and are hot. Do not try to pull chips apart with your hands; they are very tough.

Avoid unintentional starts. Do not carry or handle tools with your hand on the operating switches or levers. Do not lay the tool down in a manner that will start the drive. Do not allow the tool to flip around or move when adjusting or changing tool bits.

Store idle tools properly . Disconnect tools from the power source and store in a safe place. Remove tool bits for safe handling of the tool.

92-1503 : Orig. 100923

Page 6

TRI TOOL INC.

GENERAL DESCRIPTION

The Model 214B BEVELMASTER® FF is supplied as a kit to provide a Model 214B BEVELMASTER® with flange facing capabilities over a cutting range of 3.44" (87.4 mm) to 24.00" (609.6 mm) diameters.

The kit allows a quick, easy field conversion of the Model 214B from a beveling configuration to a flange facer configuration and back again as required.

92-1503 : Orig. 100923

Page 7

SPECIFICATIONS

DESIGN AND OPERATION FEATURES

Radial feed can be either .013" (.33 mm) with one tripper pin or .026" (.66 mm) with two tripper pins per revolution with standard lead screw .

Axial position adjustment is provided with the Model 214B mandrel system and then locked to prevent movement during the facing operation.

The standard 214B mandrel provides mounting from 3.31" (84.1 mm) to 14.08" (357.6 mm) inside diameter range. Short perch length mandrels are available as an optional accessory .

SPECIFICATIONS

Model 214B FF (Flange Facer)

Weight

20 lbs (9.07 kg)

Clearance and Dimensions

Maximum Rotating DIA

26.00" (660.4 mm)

Max Width

10.60" (269.3 mm)

Cutting Capacity

Maximum chip width

.020" (.51 mm)

Range

3.44" (87.4 mm) to 24.00" (609.6 mm) dia.

92-1503 : Orig. 100923

Page 8

TRI TOOL INC.

Feed T ravel (Automatic Radial)

9.50" (241.3 mm)

Feed Rate

013" (.330 mm) or .026" (.66 mm) per rev .

Material Cutting Capability

Mild steels, chrome steels (Rc 35 max.), stainless steel, copper-nickel alloys and aluminum.

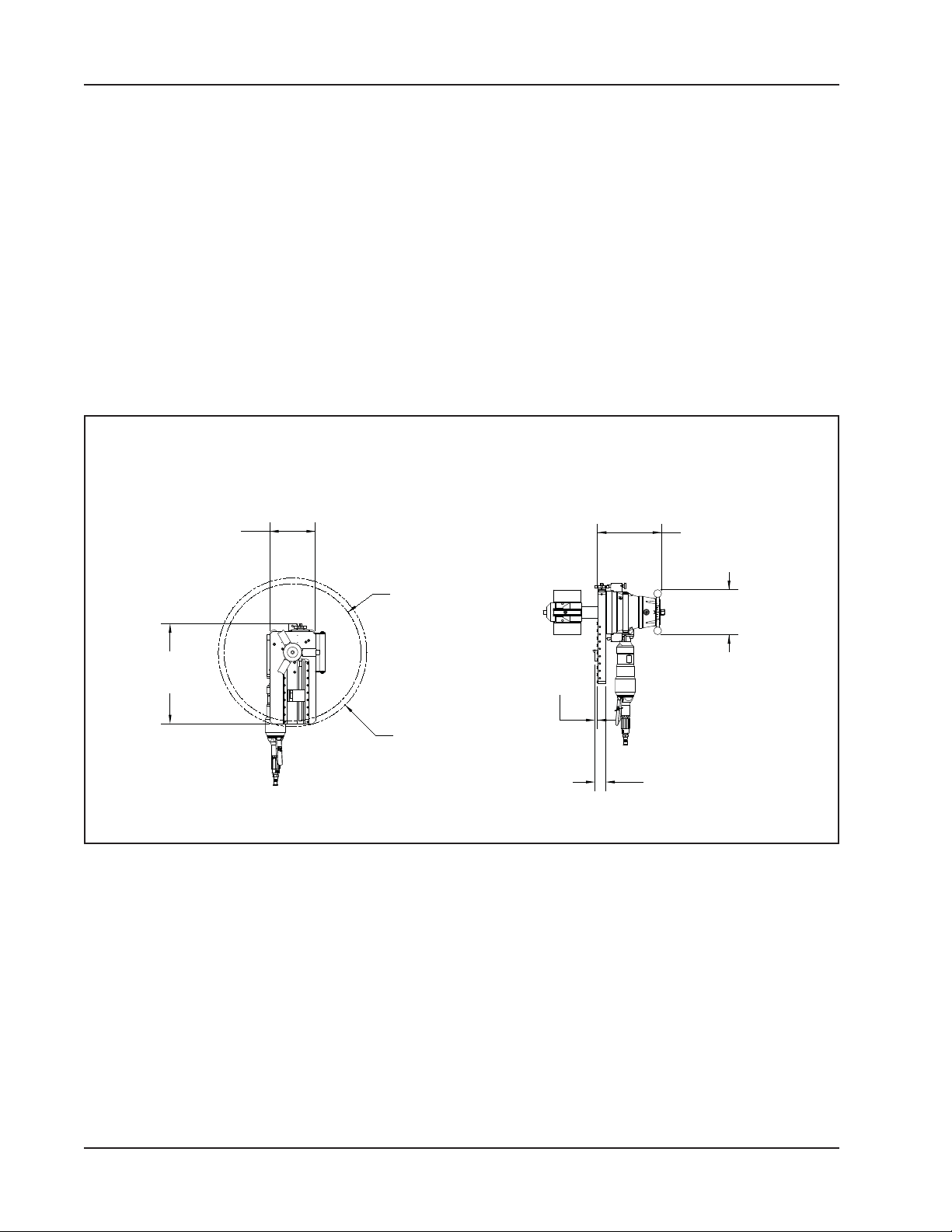

Envelope Drawing

8.00"

(203.0 mm)

17.52"

(445.0 mm)

3.44" - 24.00" (87.4 mm -

609.6 mm) Cutting DIA.

(12.4 mm)

26.00" (660.4 mm)

Rotating Parts DIA.

11.20" (284.5 mm)

10.50"

(266.7 mm)

.50"

2.00" (50.8 mm)

92-1503 : Orig. 100923

Page 9

Model 214B FF (Flange Facer)

OPERATION

Read the operating instructions carefully before attempting to operate the Model 214B FF.

CAUTION:

Configure the machine for the proper task. (Refer to the Model 214B Operator’s Manual.)

Attach the Model 214B FF to the Model 214B. (Refer to "Attaching the Flange Facer" section.)

Position and clamp the Model 214B to the I.D. of the pipe.

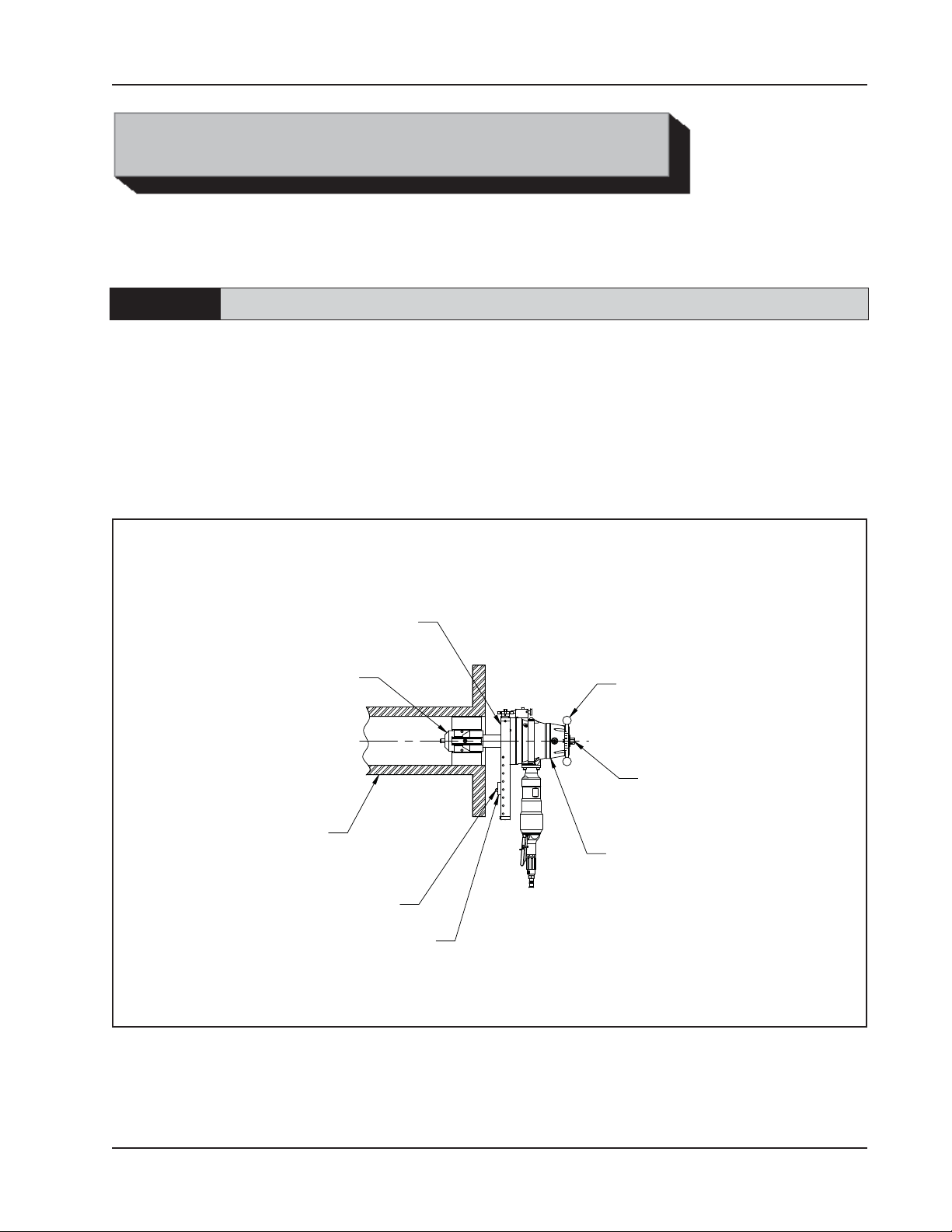

Positioning the Model 214B in a Tube or Pipe

Use eye protection at all times when operating the Model 214B FF.

Model 214B FF

Mandrel

Feed Handle

Pipe or Tube

T ool Bit

T ool Holder

Check for the proper position of the Tool Holder . (Refer to "Positioning of the Tool Holder" later in this section.)

92-1503 : Orig. 100923

Draw Nut

Model 214B

Page 10

TRI TOOL INC.

Check for the proper position of the Tool Bit to the flange. (Refer to "To adjust the

depth of cut of the Tool Bit to flange...." later in this section.)

Check the position of the Tripper Shaf t for feed rate. (Refer to "Feed Rate" later in the section.)

Attach the proper power supply line to the Model 214B.

Check that the air supply filter/regulator/lubricator (FRL) is installed and set properly.

Turn the Motor on. (Refer to "Cutting S peeds and Feeds".)

The actual machining operation will begin when the cutting surface of the Tool Bit comes in contact with the flange.

If the pipe end is not square to the pipe axis, the Tool Bit will contact only a small segment of the flange during each revolution.

NOTE:

After the cut is finished, release the Air Motor Lever to stop the Cutting Head rotation.

Loosen the Mandrel Draw Nut and remove the BEVELMASTER® from the pipe.

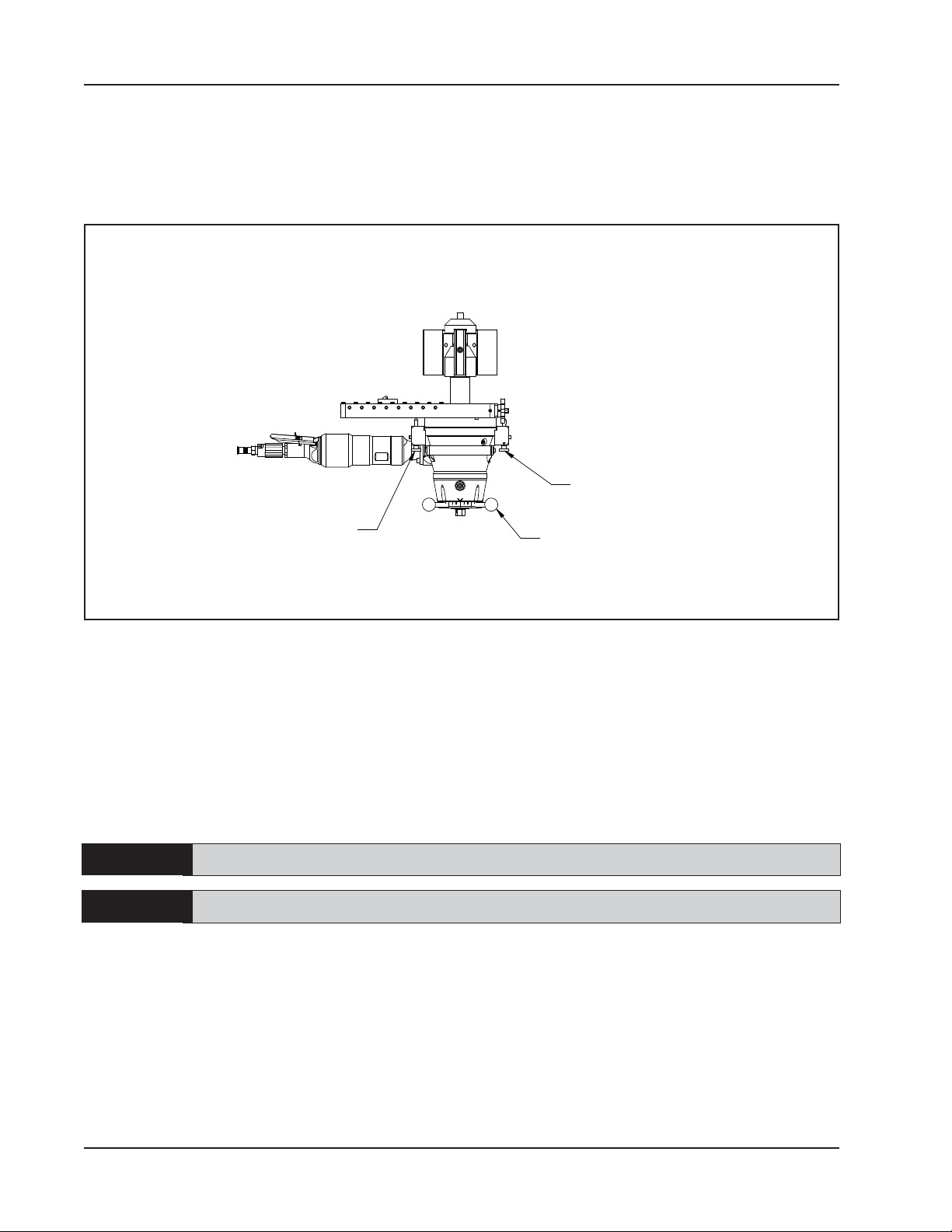

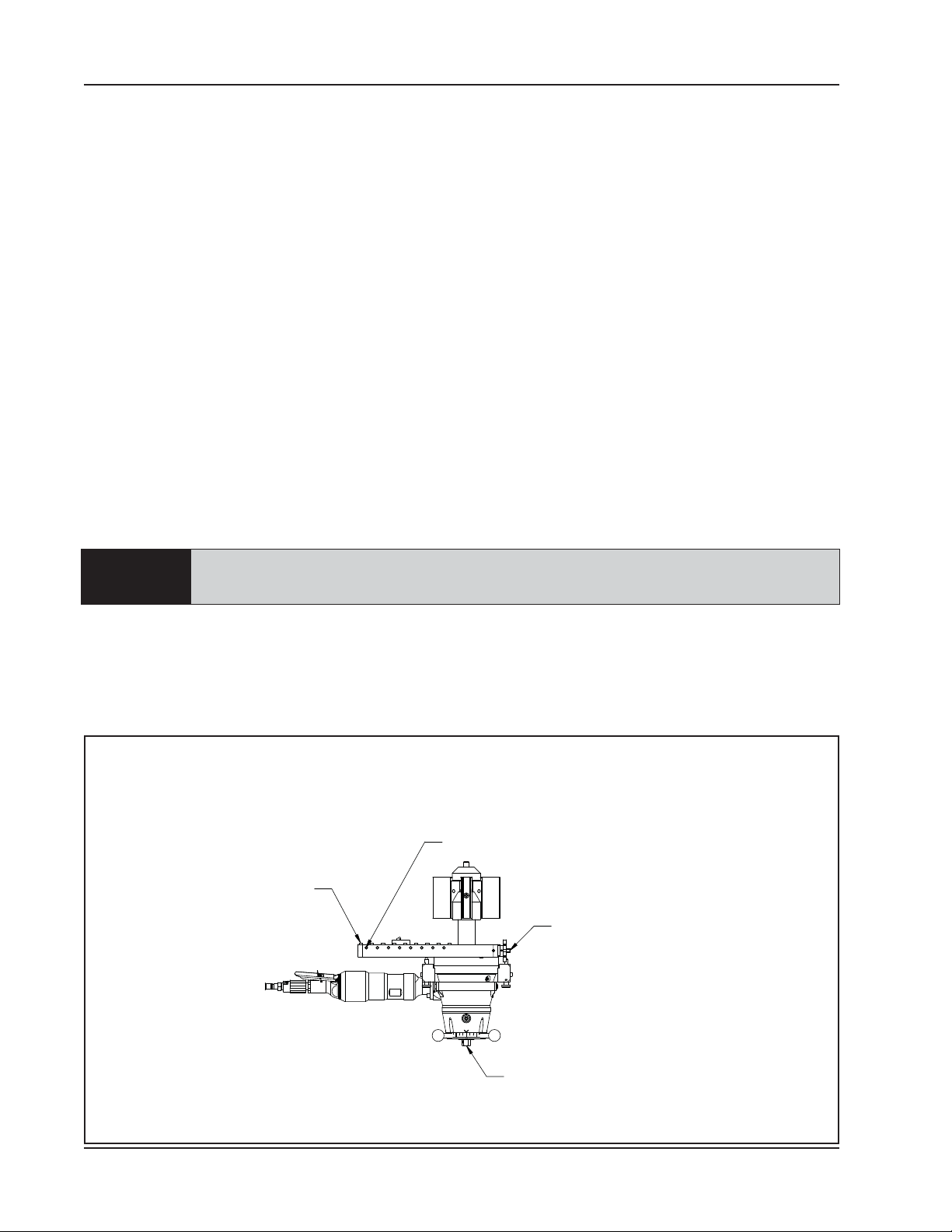

Location of the Various Screws

To avoid Tool Bit damage, the Tool Bit must clear the highest point of the flange on the first revolution.

Adjustment

Set Screws

Hold Down

Screws

Feed

Sprocket

Mandrel Draw Nut

92-1503 : Orig. 100923

Page 11

If the next flange is the same as the previous flange, install the machine onto the ID of the pipe and go back to “Position and clamp the Model 214B to the….”.

Damaged or worn Tool Bits are evident by increased feed pressure, visual observations, poor surface finish, etc.

Replace as necessary and follow "Installation of the Tool Bits" later in this section.

If the next flange is different than the previous flange then follow the sequence earlier in this section starting with “Configure the machine for the…”.

For changing the Tool Bit refer to the paragraph later in this section “Installation of the Tool Bits”.

POSITIONING OF THE TOOL HOLDER

Turn the Feed S procket clockwise to feed the Tool Holder in.

Model 214B FF (Flange Facer)

T ool Holder feed travel is from O.D. to I.D.

ADJUSTMENT OF THE TOOL BLOCK

Loosen the hold-down screws on the Adjustable Slide Rail.

Run the Tool Holder to the most outward position.

Using the Adjustment Set Screws, apply a light force to the side of the Adjustable Slide Rail so that it is in positive contact with the Tool Holder .

Adjust only those screws that bear directly in line with the Tool Holder.

Tighten the Hold Down Screws to about 12 in-lbs. (1.4 N m) to 24 in-lbs. (2.7 N m). Finger tight using a hex key .

Using the 1/4” Drive Ratchet, run the Tool Holder to the inward most position.

Note any changes in the feed pressure.

Some drag from the Slide Rails should be felt, but only a very light torque should be required to move the Tool Holder.

92-1503 : Orig. 100923

Page 12

TRI TOOL INC.

Adjust the remaining Adjustment Set Screws so that the Tool Holder has a smooth, even feel.

Run the Tool Holder the full length of the Slide Rail.

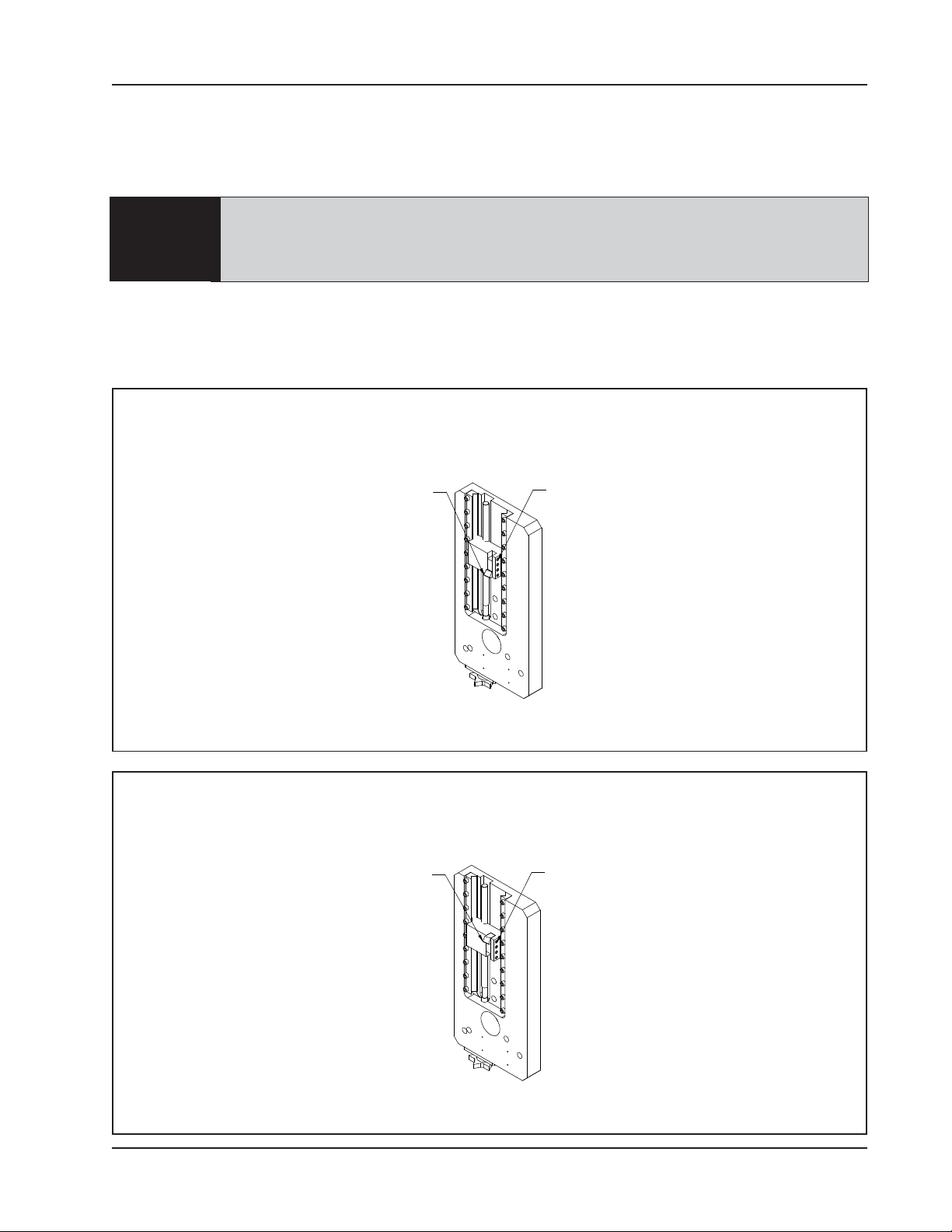

Location of the Tripper Blocks

Tripper Block

Tightly lock the Adjustable Slide Rail in place with the hold-down screws and fully snug the Adjustment Set Screws.

Check that the Tool Holder runs smoothly and evenly for the full length of travel. Re-adjust as necessary .

To adjust the depth of cut of the T ool Bit to flange, rotate the Feed Knob on the Model 214B until the desired position is achieved.

NOTE: NOTE:

Lock the Mandrel in place using the Mandrel Lock Set Screw . Located in the back of the Feed Handle Plate.

Depth of the cut for roughing should not exceed .030” (.76 mm).

Finish cut for optimum finishes should be .005” (.13 mm) to .015” (.38 mm).

Feed Handle

FEED RA TE

The feed rate is .013” (.33 mm) per revolution per Tripper Block.

There are two (2) Tripper Blocks provided in this kit.

92-1503 : Orig. 100923

Page 13

INST ALLA TION OF THE T OOL BITS

To select the appropriate T ool Bits refer to the “Tool Bits” section.

Use of dull or improperly designed Tool Bits or Tool Bits not manufactured

NOTE:

Slide the Tool Bit into the T ool Bit Holder Slot on the Tool Holder.

Lock the Tool Bit into position with the set screws on the side of the T ool Holder .

Installation of a Tool Bit (1 of 2)

by Tri Tool Inc. may result in poor performance and may constitute abuse of this machine and therefore voids the Tri Tool Inc. factory warranty.

Model 214B FF (Flange Facer)

T ool Bit

Cutting Edge

(P/N 99-2553

or 92-2554)

Installation of a Tool Bit (2 of 2)

T ool Bit

Cutting Edge

(P/N 99-2555

or 92-2556)

T ool Bit Set

Screws

T ool Bit Set

Screws

92-1503 : Orig. 100923

Page 14

TRI TOOL INC.

ATTACHING THE FLANGE FACER

A TTACHING THE MODEL 214B FF TO THE MODEL 214B

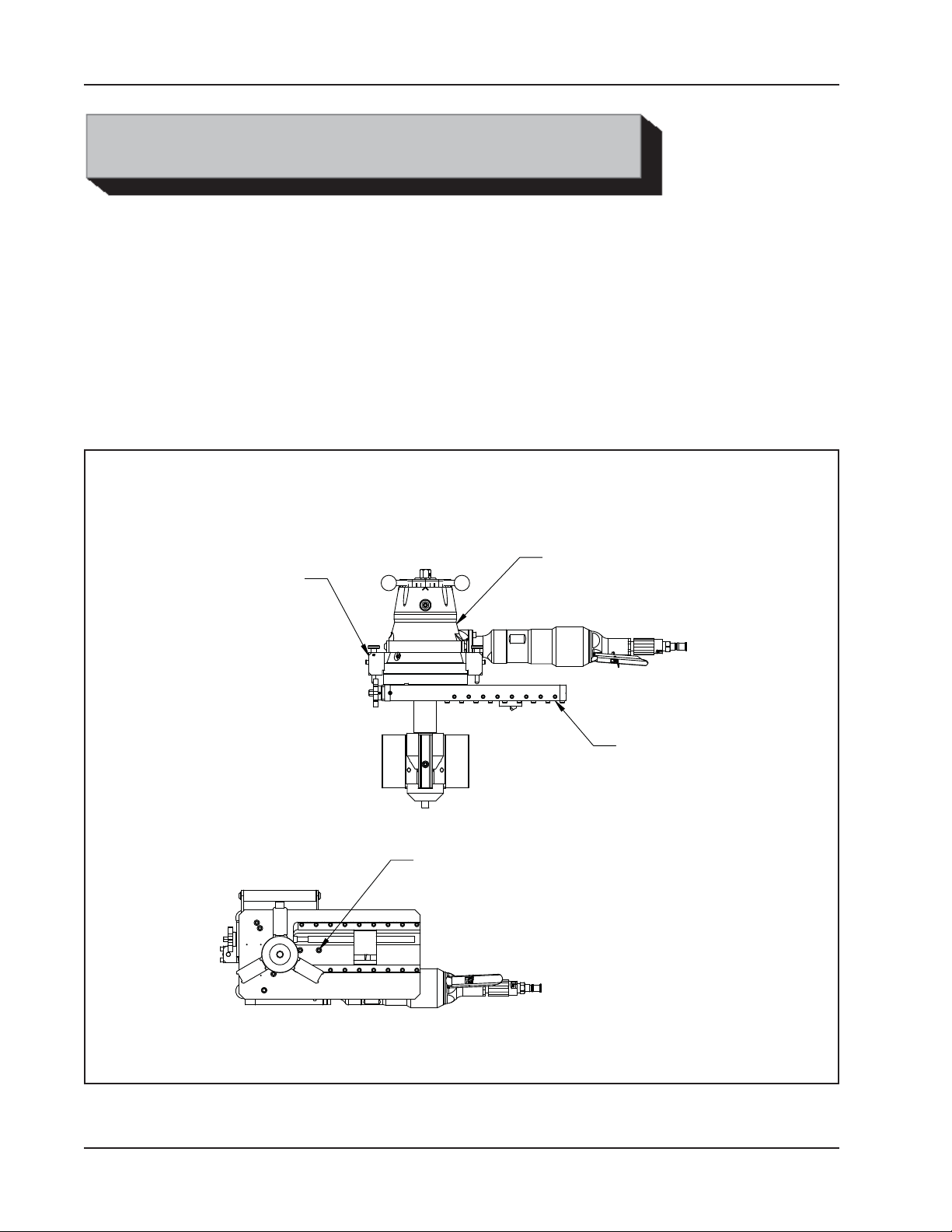

Remove the three (3) Tool Holders from the Model 214B BEVELMASTER®.

Mount the 214B FF kit using the six Mounting Screws provided to the Model 214B BEVELMASTER®.

Attach the two (2) Tripper Block Assemblies to the side of the Model 214B BEVELMASTER®.

Mounting the Model 214B FF onto the Model 214B

Tripper Block

Assembly

(2 Places)

Mounting Screws

(6 Places)

Model 214B BEVELMASTER

Model 214B FF

92-1503 : Orig. 100923

Page 15

Model 214B FF (Flange Facer)

CUTTING SPEEDS

The surface cutting speed will be dependent on the type of material being faced.

When facing over a mounting hole pattern in a flange, machine speed should be reduced to lessen the impact on the cutting edge of the Tool Bit and to prevent ripping the edge of the holes.

DEPTH OF CUT RECOMMENDATIONS

Roughing Cut .030" (.76 mm) maximum depth

Finish Cut .010" (.25 mm) depth

Tool Bit Feed Rate

dependent on the flange material and the type of finish required

Roughing or Record Finish

Smooth Finish

.026" (.66 mm) Feed

Both Trippers Engaged

.013" (.33 mm) Feed

One Tripper Engaged

92-1503 : Orig. 100923

Page 16

TRI TOOL INC.

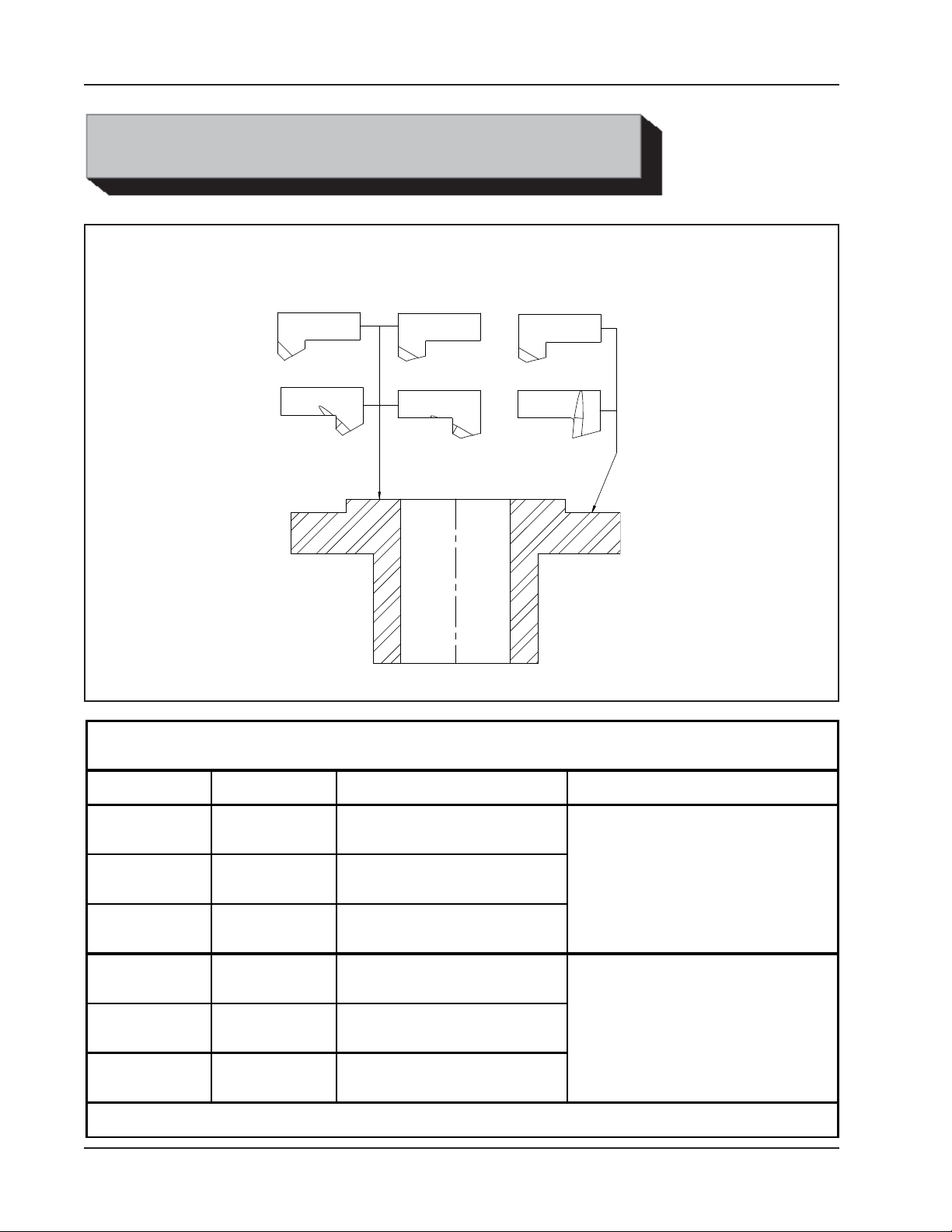

Tool Bit Uaseage

TOOL BITS

For Use With The Model 212B-FF Flange Facer

P/N Figure Description Cutting Range

99-2553 A

99-2554 C

99-2089 E

99-2555* B

99-2556* D

99-2423 F

*Supplied with the kit

Tool Bit, Flange Facing,

Inside Record Finish

Tool Bit, Flange Facing,

Inside Smooth Finish

Tool Bit, Flange Facing,

Inside Recessed Face

Tool Bit, Flange Facing,

Outside Record Finish

Tool Bit, Flange Facing,

Outside Smooth Finish

Tool Bit, Flange Facing, Outside Recessed Face

3.44" to 22.00" dia

(87.4 mm to 558.8 mm dia)

4.75" to 24.00" dia

(120.7 mm to 609.6 mm dia)

92-1503 : Orig. 100923

Page 17

Model 214B FF (Flange Facer)

MAINTENANCE

All components should be cleaned and coated with a light film of oil prior to use.

Use a clean, non-detergent oil, preferably SAE 10 (90 SSU or lighter) or oil which is specified for the air motor.

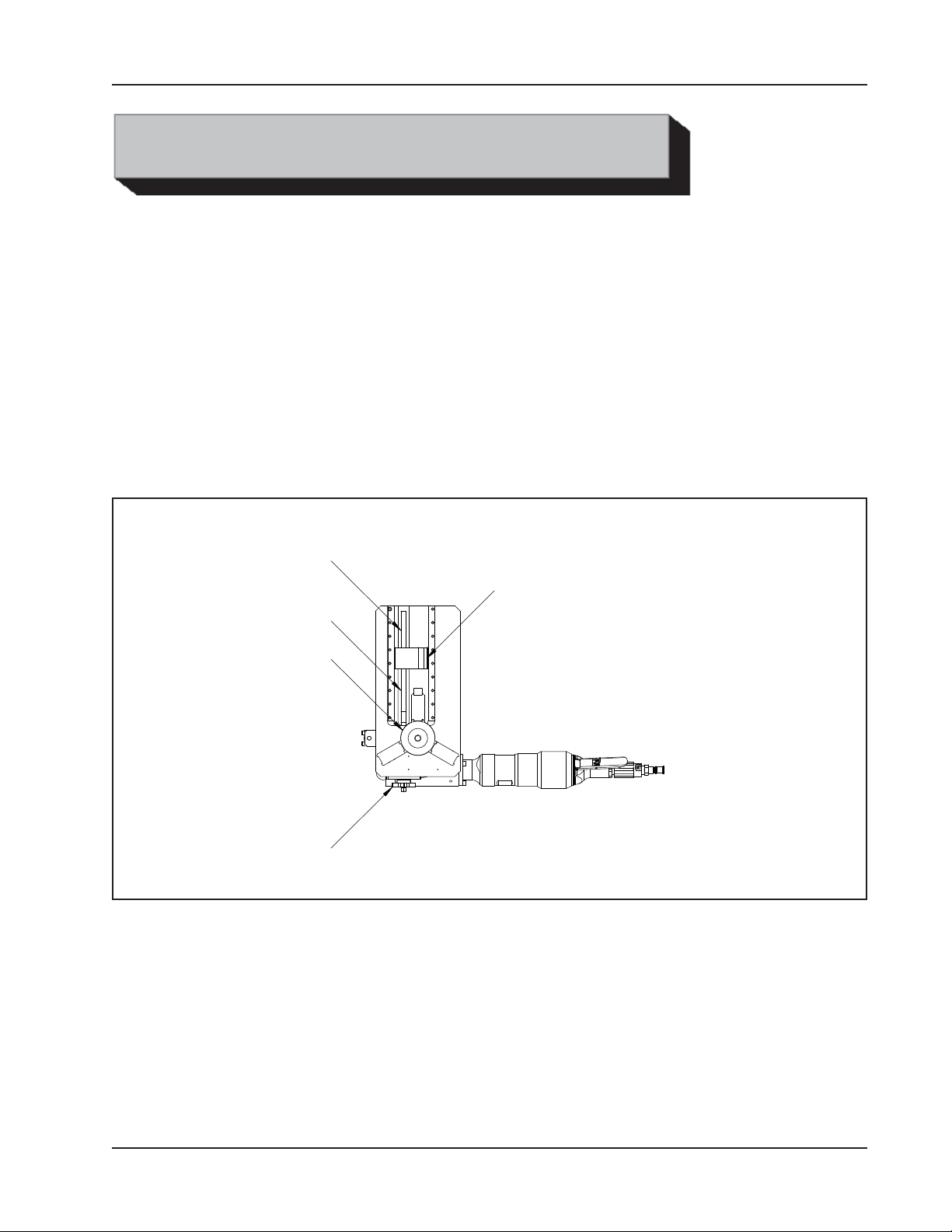

If the Model 214B BEVELMASTER® with the Model 214B FF (Flange Facer) is operated in the vertical position (cutting head up), the chips and/or other debris should be removed after each pass has been completed.

T ool life may be severely shortened, unless chip s and/or other debris that have been deposited on the cutting head during the machining operation are removed.

Clean Up

DAIL Y MAINTENANCE

Visually inspect all parts for damage due to chips, impact or improper use.

Repair or replace broken or damaged parts as necessary.

Wipe the machine clean of cutting fluids, dirt and grime and then coat it with a light film of oil.

92-1503 : Orig. 100923

Page 18

TRI TOOL INC.

TROUBLE SHOOTING

Problem: The T ool Bit Chatters

The tool bit is loose or overextended. The tool bit is damaged. The tool holder is too loose in the slides. The cutting speed is too fast. The clamping pads are loose on the pipe or tube. Cutting fluid is required. The main bearing pre-load is loose.

Problem: There is excessive T ool Bit wear

The pipe or tube material is too hard or abrasive. The cutting speed is too fast. Cutting fluid is required. A dull Tool Bit is causing surface hardening conditions (Stainless pipe or tubing). There is scale or other foreign matter on the pipe or tube, which is dulling the tool bit at the start of the cut. The tool bit is incorrect for the material being cut.

Problem: The surface finish is rough

The tool bit is dull, chipped, etc. Metal build-up on the cutting edge of the tool bit is creating a false cutting edge. Cutting fluid is required.

Problem: The tool holder is not feeding

The feed pin is broken or out of position. The feed sprocket shear pin is broken. The feed screw is stripped. The feed nut is stripped. The slide rails are too tight.

92-1503 : Orig. 100923

Page 19

Model 214B FF (Flange Facer)

Problem: There is a loss of air power

The air supply pressure is too low. The air filter is plugged. The air line size is insufficient. The air line is too long.

Problem: There is a loss of hydraulic power

The hydraulic supply pressure is too low. The hydraulic filter is plugged. The hydraulic line size is insufficient. The hydraulic line is too long.

Problem: The tool bit will not reach the work

Incorrect tool blocks are installed for the size of the pipe or tube being worked on. Incorrect tool bit is installed.

Problem: The hydraulic motor will not start

The hydraulic power supply is shut off. The hydraulic motor is damaged and will not run free.

92-1503 : Orig. 100923

Page 20

TRI TOOL INC.

ILLUSTRATED PARTS BREAKDOWN

Parts List, Model 214B FF Kit (P/N 05-1283) - NOT SHOWN

Item Part

No. No. Description Qty

1. 82-0070 FLANGE FACER ASSEMBLY 1

2. 32-0304 PIN, LOCK 1

3. 33-0055 SCREW, CAP, 5/16-18 X 7/8" 6

4. 33-0507 SCREW, SET, 1/4-20 X 1", CUP PT 1

5. 48-0478 BLOCK ASSEMBL Y , TRIPPER 2

6. 30-0514 BRUSH, CHIP 1

7. 36-0020 WRENCH, T, 5/32" HEX 1

8. 36-0021 WRENCH, T, 3/16" HEX 1

9. 36-0023 WRENCH, T, 1/4" HEX 1

10. 36-0091 WRENCH, RA TCHET, 1/4" DRIVE 1 1 1. 36-0144 SOCKET, 1/4" DRIVE X 7/16" HEX 1

12. 86-0148 CARRYING CASE 1

13. 99-2555 TO OL BIT, FF, FIN, OUT 1

14. 99-2556 TO OL BIT, F F, OUTSIDE 1

92-1503 : Orig. 100923

Page 21

Model 214B FF (Flange Facer)

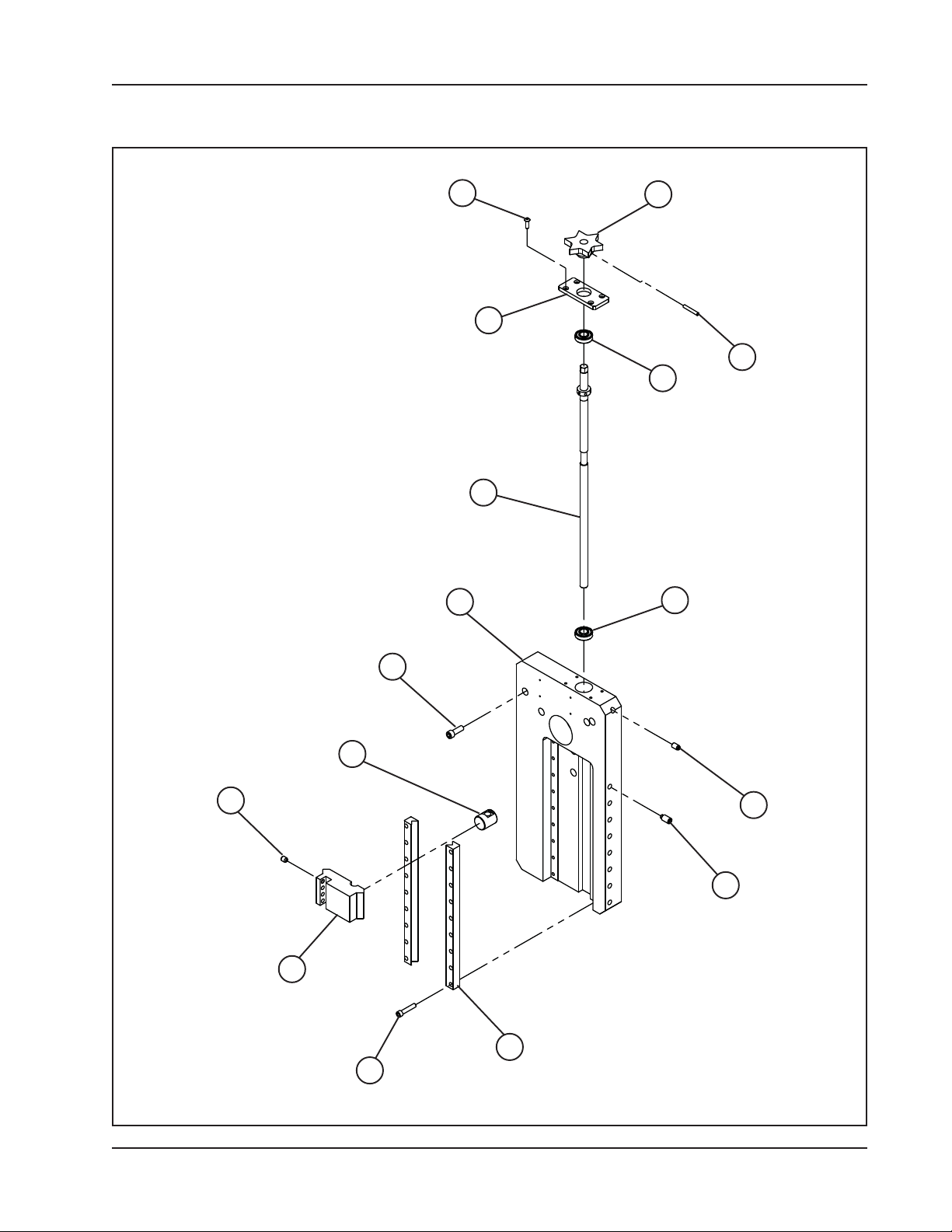

MODEL 214B FF ASSEMBLY (P/N 82-0070)

92-1503 : Orig. 100923

Page 22

TRI TOOL INC.

Parts List, Model 214B FF Assembly (Ref P/N 82-0070)

Item Part

No. No. Description Qty

1. 29-0182 BEARING , BALL 1

2. 30-0464 PLUNGER, BALL 1

3. 33-0043 SCREW, CAP, 1/4-20 X 1 1/4 18

4. 33-0055 SCREW, CAP, 5/16-18 X 7/8 6

5. 33-0280 SCREW, BUTT ON, 10-24 X 5/8 4

6. 33-0514 SCREW, SET, 5/16-18 X 3/8, CUP PT 4

7. 33-1261 SCREW, SET, 3/8-24 X 3/4, HDOG 8 33-1617 SCREW ASSY, FEED 1

8. 24-0728 PLATE, RET AINING 1

9. 29-0182 BEARING , BALL 1

10. 32-0043 PIN, ROLL 1

11. 33-1616 SCREW, FEED, 1/2-13 1

12. 38-0080 SPROCKET, FEED 1

13. 35-0266 NUT, FEED 1

14. 47-0562 BRACKET , CARRIER 1

15. 49-0141 HOLDER, TOOL 1

16. 66-0100 RAIL, SLIDE 2

92-1503 : Orig. 100923

Page 23

Model 214B FF (Flange Facer)

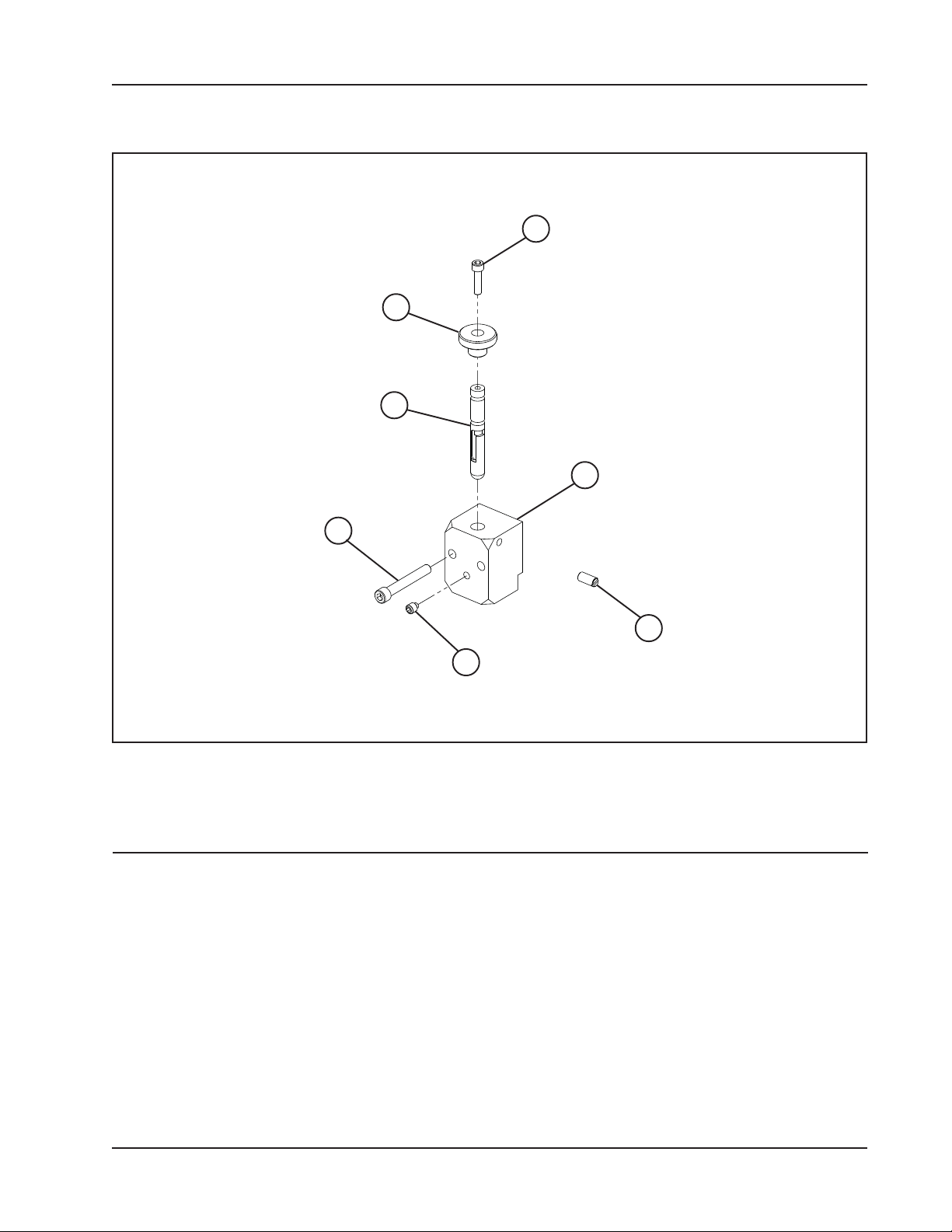

BLOCK ASSEMBLY, TRIPPER (P/N 48-0478)

Parts List, Tripper Block Assembly (P/N 48-0478)

Item Part

No. No. Description Qty

14-0044 SHAFT ASSY, TRIPPER 1

1. 20-0359 SHAFT , TRIPPER 1

2. 33-0030 SCREW, CAP, 10-24 X 3/4 1

3. 42-0023 KNOB, ROUND 1

4. 30-0125 BALL PLUNGER 1

5. 33-0045 SCREW, CAP, 1/4-20 X 1 3/4 2

6. 33-0903 SCREW, SET, 1/4-20 X 5/16, HDOG 1

7. 48-0479 BLOCK, TRIPPER 1

92-1503 : Orig. 100923
