Tri Tool 201BA User Manual

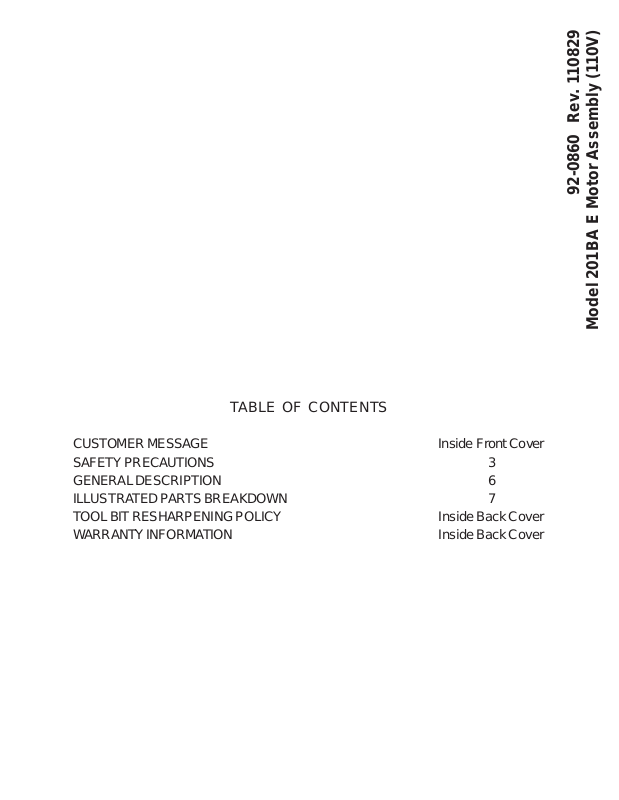

TABLE OF CONTENTS

CUSTOMER MESSAGE Inside Front Cover
SAFETY PRECAUTIONS 3
GENERAL DESCRIPTION 6

92-0860 Rev. 110829

Model 201BA E Motor Assembly (1 10V)

ILLUSTRA TED P ARTS BREAKDOWN 7
TOOL BIT RESHARPENING POLICY Inside Back Cover
WARRANTY INFORMATION Inside Back Cover

Copyright 2011

Proprietary property of TRI TOOL Inc.

No reproduction, use, or duplication of the

information shown hereon is permitted without the

express written consent of TRI TOOL Inc.

SAFETY PRECAUTIONS

IN GENERAL

When using rotating head cutting equipment, basic safety precautions should al­ways be followed to reduce the risk of personal injury .

Operate this tool only in accordance with specific operating instructions.

Do not override the deadman switch on the power unit. Locking down,

WARNING:

DRESS CONSIDERA TIONS

obstructing, or in any way defeating the deadman switch on the power drive
unit may result in serious injury.

Model 201BA E Motor Assembly (110V)

Use standard safety equipment. Hard hats, safety shoes, safety harnesses, protec­tive clothes, and other safety devices should always be used when appropriate.

Use safety glasses. Do not operate cutting tools without eye protection.

Dress properly . Do not wear loose clothing or jewelry . They can be caught in rot at­ing and moving parts. Avoid slippery floors or wear nonskid footwear . If you have
long hair , wear protective hair covering to contain it.

WORK AREA

Keep the work area clean. Cluttered work areas and benches invite injuries.

Consider the work area environment. Keep the area well lit. Keep electrical cords,
cables, rags, rigging straps, and etc. clear of rotating equipment. Do not use
power-cutting tools in the presence of flammable liquids and gasses.

Keep visitors away . Do not let visitors or untrained personnel at or near operating
tools. Enforce eye protection requirements for all observers.

Do not over reach. Keep proper footing at all times.

St ay alert. Watch what you are doing. Use common sense. Do not operate tools
when you are tired.

92-0860 : Rev. 110829

3

TRI TOOL INC.

TOOL CARE

Maintain tools with care. Keep tools in good operating condition. Sharp tool bits
perform better and safer than dull tool bits. Well maintained tools function properly
when needed.

Check for damaged parts. If a tool has malfunctioned, been dropped or hit, it must
be checked for damage. Run no-load tests and feed function checks. Do a com­plete visual inspection.

Electric motors. Use only with proper AC voltage power sources and observe all
normal electric shock hazard procedures.

Do not abuse power and control cords. Pulling or running over cords and cables
can result in electrical shock hazards and malfunctions. Keep control and power
cords out of all cutting fluids and water.

Hydraulic drives. Observe proper procedures for electrically driven power sources.
Avoid damage to hydraulic lines. Keep quick-disconnects clean. Grit contamina­tion causes malfunctions.

Air tools. Check the exhaust muffler . Broken or damaged muf flers can restrict air
flow or cause excessive noise. Use air motors only with a filtered, lubricated and
regulated air supply . Dirty air , low-pressure air or over pressure air will cause
malfunctions, including delayed starting.

AREA EQUIPMENT

Secure work. Whenever possible use clamps, vises, chains and straps to secure
pipe.

Make sure the tool is secured; it is safer to have both hands free to operate the tool.

TOOL USE

Use the right tool and tool bit for the job. Do not use a tool, which is incorrect for the
job you are doing.

Keep the tool bits fully engaged in the tool bit holders. Loose bits are a safety
hazard.

4

92-0860 : Rev. 110829

Model 201BA E Motor Assembly (110V)

Disconnect the power supply during setup and maintenance. Use all 'Stop' or 'Shut
off' features available when changing or adjusting tool bits, maintaining the tool, or
when the tool is not in use.

Remove adjusting keys and wrenches before applying power to the equipment.
Develop a habit of checking the tool before turning it on to make sure that all keys
and wrenches have been removed.

Do not force tools. Tools and tool bits function better and safer when used at the
feed and speed rate for which they were designed.

Do not reach into rotating equipment. Do not reach into the rotating head stock to
clear chips, to make adjustments, or to check surface finish. A machine designed
to cut steel will not stop for a hand or an arm.

Handle chips with care. Chips have very sharp edges and are hot. Do not try to pull
chips apart with your hands; they are very tough.

Avoid unintentional starts. Do not carry or handle tools with your hand on the oper­ating switches or levers. Do not lay the tool down in a manner that will start the
drive. Do not allow the tool to flip around or move when adjusting or changing tool
bits.

Store idle tools properly . Disconnect tools from the power source and store in a
safe place. Remove tool bits for safe handling of the tool.

92-0860 : Rev. 110829

5

TRI TOOL INC.

GENERAL DESCRIPTION

The information contained in this manual should be used in conjunction with
'Operator's Manual' 92-0631.

6

92-0860 : Rev. 110829

Model 201BA E Motor Assembly (110V)

ILLUSTRATED PARTS BREAKDOWN

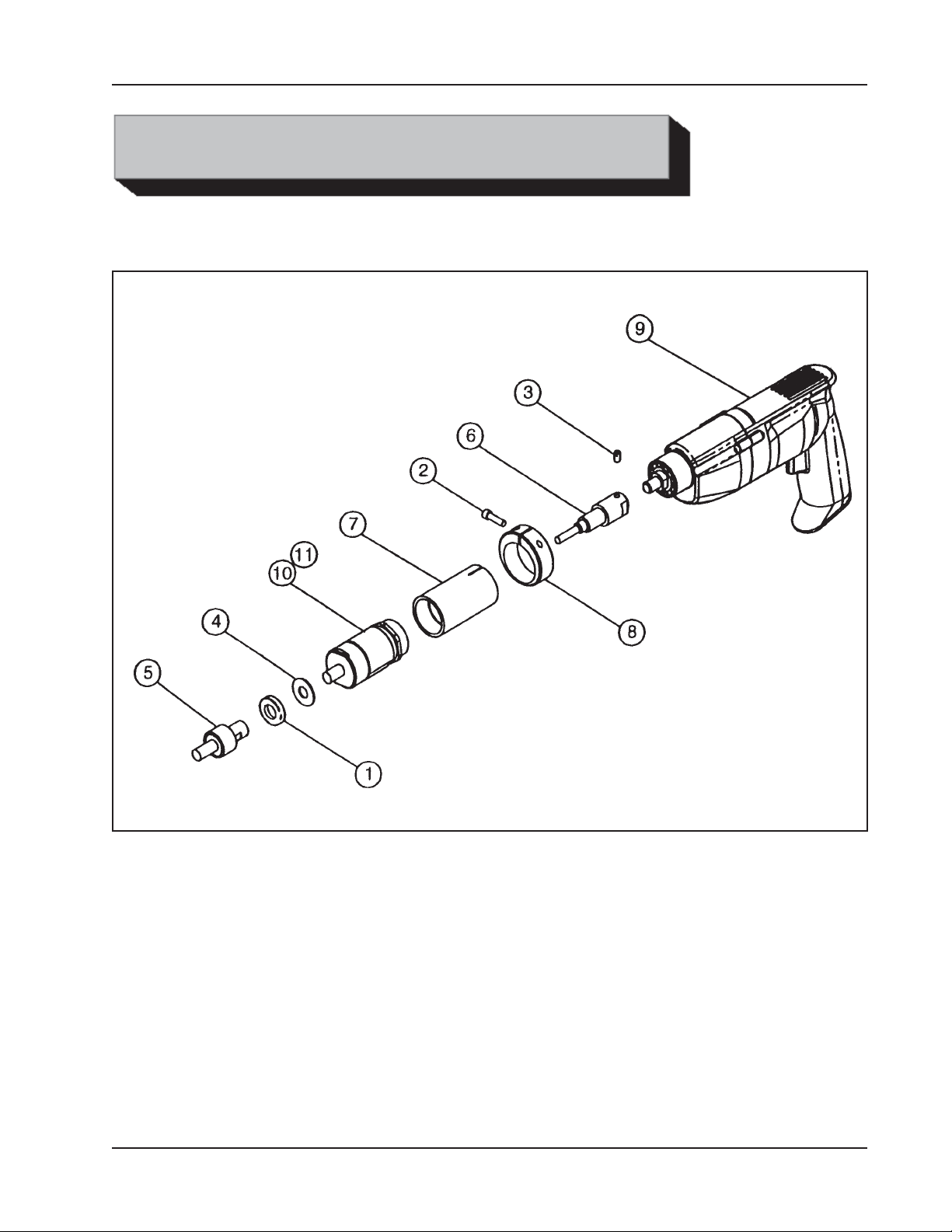

MODEL 201BA E MOTOR ASSEMBLY [110V] (P/N 58-0056)

92-0860 : Rev. 110829

7

TRI TOOL INC.

Parts List, Model 201BA E Motor Assembly [110V] (P/N 58-0058)

Item Part

No. No. Description Qty

1. 28-0219 SEAL, GREASE 1

2. 33-0041 SCREW, CAP, 1/4-20 X 7/8" 1

3. 33-0629 SCREW, SET, 1/4-28 X 1/4", CUP PT 2

4. 34-0246 WASHER 1

5. 39-0582 GEAR ASSEMBL Y, PINION, 12T 1

6. 39-0700 SPINDLE, DRIVE 1

7. 46-0379 SLEEVE, MOTOR 1

8. 47-0175 CLAMP, MOTOR 1

9. 58-0277 MOTOR, ELECTRIC, 1 10 V , CW , MOD. 1

10. 91-0316 GEAR, RING 1

11. 91-0505 GEAR ASSEMBLY 1

8

92-0860 : Rev. 110829
