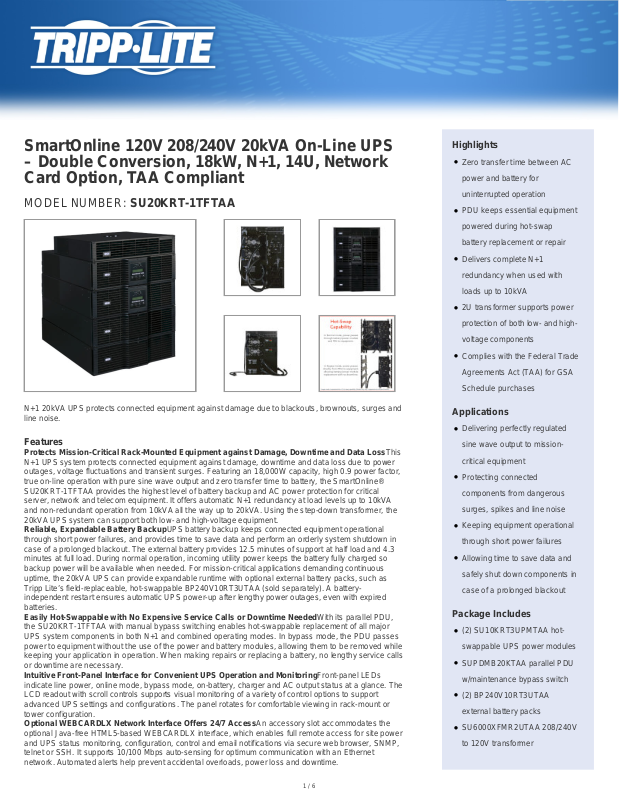

SmartOnline 120V 208/240V 20kVA On-Line UPS
– Double Conversion, 18kW, N+1, 14U, Network
Card Option, TAA Compliant
MODEL NUMBER: SU20KRT-1TFTAA
Highlights
●
Zero transfer time between AC
power and battery for
uninterrupted operation
●
PDU keeps essential equipment
powered during hot-swap
battery replacement or repair
●
Delivers complete N+1
redundancy when used with
loads up to 10kVA
●
2U transformer supports power
protection of both low- and highvoltage components
●
Complies with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
N+1 20kVA UPS protects connected equipment against damage due to blackouts, brownouts, surges and
line noise.
Features
Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data LossThis
N+1 UPS system protects connected equipment against damage, downtime and data loss due to power
outages, voltage fluctuations and transient surges. Featuring an 18,000W capacity, high 0.9 power factor,
true on-line operation with pure sine wave output and zero transfer time to battery, the SmartOnline®
SU20KRT-1TFTAA provides the highest level of battery backup and AC power protection for critical
server, network and telecom equipment. It offers automatic N+1 redundancy at load levels up to 10kVA
and non-redundant operation from 10kVA all the way up to 20kVA. Using the step-down transformer, the
20kVA UPS system can support both low- and high-voltage equipment.
Reliable, Expandable Battery BackupUPS battery backup keeps connected equipment operational
through short power failures, and provides time to save data and perform an orderly system shutdown in
case of a prolonged blackout. The external battery provides 12.5 minutes of support at half load and 4.3
minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so
backup power will be available when needed. For mission-critical applications demanding continuous
uptime, the 20kVA UPS can provide expandable runtime with optional external battery packs, such as
Tripp Lite’s field-replaceable, hot-swappable BP240V10RT3UTAA (sold separately). A batteryindependent restart ensures automatic UPS power-up after lengthy power outages, even with expired
batteries.
Easily Hot-Swappable with No Expensive Service Calls or Downtime NeededWith its parallel PDU,
the SU20KRT-1TFTAA with manual bypass switching enables hot-swappable replacement of all major
UPS system components in both N+1 and combined operating modes. In bypass mode, the PDU passes
power to equipment without the use of the power and battery modules, allowing them to be removed while
keeping your application in operation. When making repairs or replacing a battery, no lengthy service calls
or downtime are necessary.
Intuitive Front-Panel Interface for Convenient UPS Operation and MonitoringFront-panel LEDs
indicate line power, online mode, bypass mode, on-battery, charger and AC output status at a glance. The
LCD readout with scroll controls supports visual monitoring of a variety of control options to support
advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or
tower configuration.
Optional WEBCARDLX Network Interface Offers 24/7 AccessAn accessory slot accommodates the
optional Java-free HTML5-based WEBCARDLX interface, which enables full remote access for site power
and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP,
telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet
network. Automated alerts help prevent accidental overloads, power loss and downtime.
Applications
●
Delivering perfectly regulated
sine wave output to missioncritical equipment
●
Protecting connected
components from dangerous
surges, spikes and line noise
●
Keeping equipment operational
through short power failures
●
Allowing time to save data and
safely shut down components in
case of a prolonged blackout
Package Includes
●
(2) SU10KRT3UPMTAA hotswappable UPS power modules
●
SUPDMB20KTAA parallel PDU
w/maintenance bypass switch
●
(2) BP240V10RT3UTAA
external battery packs
●
SU6000XFMR2UTAA 208/240V
to 120V transformer
1 / 6
Advanced Communications PortsUSB and DB9 ports (cables are included) enable data-saving
unattended shutdown of connected systems when used with Tripp Lite’s free downloadable PowerAlert®
software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions.
Versatile Installation OptionsHardware is included for mounting the 20kVA UPS system in 14U of space
in an EIA-standard 19-inch 4-post rack. Use six optional 2POSTRMKITHD kits for 2-post rack mounting or
two optional 2-9USTAND kits for mounting in an upright tower position.
TAA-Compliant UPS for GSA Schedule PurchasesThe SU20KRT-1TFTAA is compliant with the
Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty, $250K Ultimate Lifetime Insurance and Environmentally Responsible DesignThe
SU20KRT-1TFTAA comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any
connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s
manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to
environmental responsibility.
Specifications
OVERVIEW
UPC Code 037332230959
UPS Type On-Line
INPUT
Rated input current (Maximum Load) 108A (208V), 93.6A (240V)
Nominal Input Voltage(s) Supported 208V AC; 240V AC
●
USB cable
●
DB9 cable
●
EPO cable
●
Rack-mounting hardware
●
Owner’s manual
UPS Input Connection Type Hardwire
UPS Input Connection Description 3 wire single phase input (L1, L2, G)
Recommended Electrical Service 125A @ 208V, or 240V (L1, L2, G)
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 20000
Output kVA Capacity (kVA) 20
Output Watt Capacity (Watts) 18000
Output kW Capacity (kW) 18
Output Capacity Details Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30
Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details This configuration requires the Power Module be set to 208 or 240V output voltage; included step-down transformer
Frequency Compatibility 60 Hz
seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;
Double conversion mode is automatically restored as load levels are reduced to 95% or less
supports 120V output (when the voltage-selection switch on the transformer module is set to match the 208 or 240V
power module setting)
Frequency Compatibility Details Output frequency regulation +/- 0.05Hz (free running)
2 / 6
Output Voltage Regulation (Line
Mode)
+/- 2%
Output Voltage Regulation (Battery
Mode)
+/- 2%
Output Receptacle Details Total 120V output is limited to 4992 watts for 208V input and 5760 watts for 240V input. Additional 120V capacity is
available by adding a second SU6000XFMR2U step-down transformer.
Output Circuit Breakers POWER MODULE: Two built-in 30A breakers protect one L6-30R outlet each, Eight built-in 20A breakers protect
one C19 outlet each; TRANSFORMER MODULE: Two 15A breakers protect 2 5-15R outlets each, Two 20A
breakers protect 4 5-15/20R outlets each
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
Pure Sine wave
120V; 208V; 240V
Output Receptacles (4) 5-15R; (8) 5-15/20R; (2) L6-30R; (8) C19
Individually Controllable Load Banks No
BATTERY
Full Load Runtime (min.) 4.3 minutes (18,000 watts)
Half Load Runtime (min.) 12.5 minutes (9000 watts)
Expandable Battery Runtime Runtime is expandable with external battery packs
External Battery Pack Compatibility <a class="productLink" href="// external-240v-3u-rack-tower-battery-pack-enclosure-dc-
cabling-select-ups-taa~BP240V10RT3UTAA">BP240V10RT3UTAA</a> ; <a class="productLink"
href="// External-240V-Tower-Battery-Pack-for-use-with-Select-Tripp-Lite-UPS-
Systems~BP240V787C-1PH">BP240V787C-1PH</a>
Expandable Runtime Description For best results, add external batteries in multiples of two so that both included 10kVA power modules have an
equal number and type of connected battery packs
DC System Voltage (VDC) 240
Battery Recharge Rate (Included
Batteries)
Less than 6 hours from 10% to 90% (typical, full load discharge)
Battery Replacement Description Hot-swappable, user replaceable external battery packs
Expandable Runtime Yes
VOLTAGE REGULATION
Voltage Regulation Description 2% output voltage regulation in standard online, double-conversion mode
Overvoltage Correction Corrects overvoltages up to 300V
Undervoltage Correction Corrects undervoltages as low as 100V
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;
LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN,
ITALIAN, SPANISH and PORTUGUESE (see manual)
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and
execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module
replacement
3 / 6
Alarm Cancel Operation Alarm cancel switch
Audible Alarm Unique audible alarms for all major UPS, environmental and power conditions (see manual)
LED Indicators 6 LEDs indicate line power, online mode, bypass mode, on-battery, charger and AC output status; LCD screen offers
additional information and control options
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 2565
UPS AC Suppression Response
Time
Instantaneous
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Cooling Method Fans
Included Battery Pack Dimensions
(hwd / in.)
5.25 x 17.50 x 25.00
Included Battery Pack Weight (kg) 72.12
Included Battery Pack Weight (lbs.) 159
Included Mounting Accessory
Description
Installation Form Factors Supported
with Included Accessories
Installation Form Factors Supported
with Optional Accessories
5 sets of adjustable 4 post rack rails included (one for each included 2U/3U module)
4 post 19 inch rackmount
2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Installation-Kit-3U-
Larger-UPS-Transformer-Battery-Pack-Components~2POSTRMKITHD">2POSTRMKITHD</a> ); Tower
( <a class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-
Systems~2-9USTAND">2-9USTAND</a> )
Maximum Device Depth (cm) 83.82
Maximum Device Depth (in.) 33
Maximum Device Depth (mm) 838
Minimum Required Rack Depth (cm) 96.52
Minimum Required Rack Depth
(inches)
38
Optional Mounting Accessory Notes Qty 5 <a class="productLink" href="// 2-Post-Rack-Mount-Installation-Kit-3U-Larger-UPS-
Transformer-Battery-Pack-Components~2POSTRMKITHD">2POSTRMKITHD</a> required; Qty 2 <a
class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-
9USTAND">2-9USTAND</a> required
Primary Form Factor Rackmount
Primary UPS Depth (mm) 656
Primary UPS Height (mm) 131
Primary UPS Width (mm) 445
Rack Height 14U
Shipping Dimensions (hwd / cm) 80.01 x 101.60 x 129.54
Shipping Dimensions (hwd / in.) 31.50 x 40.00 x 51.00
4 / 6
Shipping Weight (kg) 298.01
Shipping Weight (lbs.) 657.00
Stepdown Transformer Depth (mm) 554
Stepdown Transformer Dimensions
(hwd / cm)
Stepdown Transformer Dimensions
(hwd / in.)
8.89 x 44.45 x 55.37
3.50 x 17.50 x 21.80
Stepdown Transformer Height (mm) 89
Stepdown Transformer Weight (kg) 33.11
Stepdown Transformer Weight (lbs.) 73
Stepdown Transformer Width (mm) 445
Unit Dimension Details Includes 2 SU10KRT3UPMTAA UPS/Power modules, 2 BP240V10RT3UTAA Battery packs, 1
SU6000XFMR2UTAA transformers and SUPDMB20KTAA parallel bypass PDU; Listed weights and dimensions for
UPS/Power module, battery pack and transformer each refer to a single unit; MAXIMUM DEVICE DEPTH
specification refers to the whole UPS installed depth with parallel bypass PDU installed
UPS Housing Material Steel
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Dimensions
(hwd, in.)
13.06 x 44.45 x 65.58
5.14 x 17.50 x 25.82
UPS Power Module Weight (kg) 19.96
UPS Power Module Weight (lbs.) 44
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 6830
Battery Mode BTU / Hr. (Full Load) 9185
AC Mode Efficiency Rating (100%
Load)
90%
Operating Elevation (ft.) 0-3000m (0 to 10,000 ft.)
Audible Noise 60 dBA at front side 1 meter
Operating Elevation (m) 0-3000 m
COMMUNICATIONS
Network Management Cards <a class="productLink" href="// SNMP-Web-Management-Accessory-Card-SmartPro-
SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ; <a class="productLink"
href="// Web-Management-Accessory-Card-SmartPro-SmartOnline-UPS-
Systems~TLNETCARD">TLNETCARD</a> ; <a class="productLink" href="// Web-
Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a> ; <a class="productLink"
href="// MODBUS-Management-Accessory-Card-UPS-Remote-Monitoring-
Control~MODBUSCARD">MODBUSCARD</a> ; <a class="productLink"
href="// Programmable-Relay-I-O-Card~RELAYIOCARD">RELAYIOCARD</a>
5 / 6
Network Monitoring Port Description Applications utilizing any supported network management card option, require the installation of two of the same
model network card – install one card per included UPS power module; RELAYIOMINI installation requires removal
of panel containing USB ports on each included UPS power module
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
Communications Cable USB, DB9 serial and EPO cables included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time No transfer time (0 ms.) in online, double-conversion mode
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Automatic inverter bypass; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch;
Green Energy-Saving Features Support for daily startup and shutoff
STANDARDS & COMPLIANCE
http:// poweralert
100V
300V
Cold-start operation supported
Auto Probe Monitoring (requires WEBCARDLX); Zero transfer time; On-Line/Double-Conversion
UPS Certifications Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant; Tested to
Certification Details IEC 61000-4-5 1995 B Surge Immunity
WARRANTY
Product Warranty Period
(Worldwide)
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
CSA (Canada); Tested to UL1778 (USA)
2-year limited warranty
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
6 / 6
Loading...
