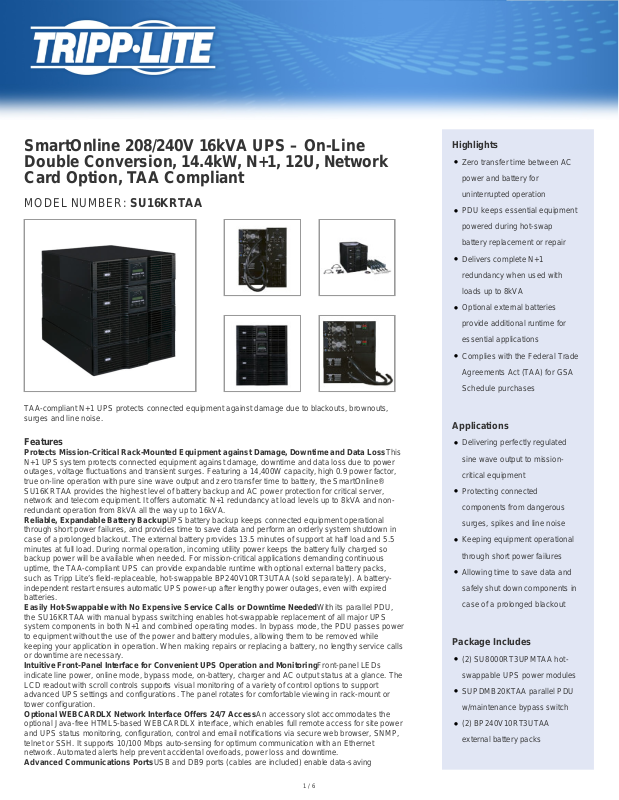

Tripp-Lite SU16KRTAA Data Sheet

SmartOnline 208/240V 16kVA UPS – On-Line
Double Conversion, 14.4kW, N+1, 12U, Network
Card Option, TAA Compliant

MODEL NUMBER: SU16KRTAA

TAA-compliant N+1 UPS protects connected equipment against damage due to blackouts, brownouts,
surges and line noise.

Features

Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data LossThis

N+1 UPS system protects connected equipment against damage, downtime and data loss due to power
outages, voltage fluctuations and transient surges. Featuring a 14,400W capacity, high 0.9 power factor,
true on-line operation with pure sine wave output and zero transfer time to battery, the SmartOnline®
SU16KRTAA provides the highest level of battery backup and AC power protection for critical server,
network and telecom equipment. It offers automatic N+1 redundancy at load levels up to 8kVA and non­redundant operation from 8kVA all the way up to 16kVA.
Reliable, Expandable Battery BackupUPS battery backup keeps connected equipment operational
through short power failures, and provides time to save data and perform an orderly system shutdown in
case of a prolonged blackout. The external battery provides 13.5 minutes of support at half load and 5.5
minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so
backup power will be available when needed. For mission-critical applications demanding continuous
uptime, the TAA-compliant UPS can provide expandable runtime with optional external battery packs,
such as Tripp Lite’s field-replaceable, hot-swappable BP240V10RT3UTAA (sold separately). A battery­independent restart ensures automatic UPS power-up after lengthy power outages, even with expired
batteries.
Easily Hot-Swappable with No Expensive Service Calls or Downtime NeededWith its parallel PDU,
the SU16KRTAA with manual bypass switching enables hot-swappable replacement of all major UPS
system components in both N+1 and combined operating modes. In bypass mode, the PDU passes power
to equipment without the use of the power and battery modules, allowing them to be removed while
keeping your application in operation. When making repairs or replacing a battery, no lengthy service calls
or downtime are necessary.
Intuitive Front-Panel Interface for Convenient UPS Operation and MonitoringFront-panel LEDs
indicate line power, online mode, bypass mode, on-battery, charger and AC output status at a glance. The
LCD readout with scroll controls supports visual monitoring of a variety of control options to support
advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or
tower configuration.
Optional WEBCARDLX Network Interface Offers 24/7 AccessAn accessory slot accommodates the
optional Java-free HTML5-based WEBCARDLX interface, which enables full remote access for site power
and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP,
telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet
network. Automated alerts help prevent accidental overloads, power loss and downtime.

Advanced Communications PortsUSB and DB9 ports (cables are included) enable data-saving

Highlights

●

Zero transfer time between AC
power and battery for
uninterrupted operation

●

PDU keeps essential equipment
powered during hot-swap
battery replacement or repair

●

Delivers complete N+1
redundancy when used with
loads up to 8kVA

●

Optional external batteries
provide additional runtime for
essential applications

●

Complies with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases

Applications

●

Delivering perfectly regulated
sine wave output to mission­critical equipment

●

Protecting connected
components from dangerous
surges, spikes and line noise

●

Keeping equipment operational
through short power failures

●

Allowing time to save data and
safely shut down components in
case of a prolonged blackout

Package Includes

●

(2) SU8000RT3UPMTAA hot­swappable UPS power modules

●

SUPDMB20KTAA parallel PDU
w/maintenance bypass switch

●

(2) BP240V10RT3UTAA
external battery packs

1 / 6

unattended shutdown of connected systems when used with Tripp Lite’s free downloadable PowerAlert®
software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions.
Versatile Installation OptionsHardware is included for mounting the N+1 UPS system in 12U of space in
an EIA-standard 19-inch 4-post rack. Use four optional 2POSTRMKITHD kits for 2-post rack mounting or
two optional 2-9USTAND kits for mounting in an upright tower position.
TAA-Compliant UPS for GSA Schedule PurchasesThe SU16KRTAA is compliant with the Federal
Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty, $250K Ultimate Lifetime Insurance and Environmentally Responsible DesignThe
SU16KRTAA comes with a 2-year warranty and $250,000 of Ultimate Lifetime Insurance for any
connected components damaged by a power surge (U.S., Canada and Puerto Rico only). It’s
manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to
environmental responsibility.

Specifications

OVERVIEW

UPC Code 037332236227
UPS Type On-Line

INPUT

Rated input current (Maximum Load) 92A (200V), 88.4A (208V), 76.6A (240V)
Nominal Input Voltage(s) Supported 200V AC; 208V AC; 240V AC

●

USB cable

●

DB9 cable

●

EPO cable

●

Rack-mounting hardware

●

Owner’s manual

UPS Input Connection Type Hardwire
UPS Input Connection Description 3 wire single phase input (L1, L2, G)
Recommended Electrical Service 100A @ 200V, 208V, or 240V (L1, L2, G)
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 16000
Output kVA Capacity (kVA) 16
Output Watt Capacity (Watts) 14400
Output kW Capacity (kW) 14.4
Output Capacity Details Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30

Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details Voltage selection via front panel LCD interface
Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency Compatibility Details Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to

seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;
Double conversion mode is automatically restored as load levels are reduced to 95% or less

50Hz or 50Hz to 60Hz (no de-rating)

Output Voltage Regulation (Line
Mode)

+/- 2%

2 / 6
