UFO 100, 120
digital antenna
GB
891020A
GB
Mounting instructions
TRIAX - your ultimate connection
1
2
GB
UFO 100, 120
digital antenna
Connection cable and assembly
Mount UFO on base
A: Push forward
B: Push down
Secure with enclosed screws
Ensure that the
UFO shells are
fully mated with
the bracket
3
GB

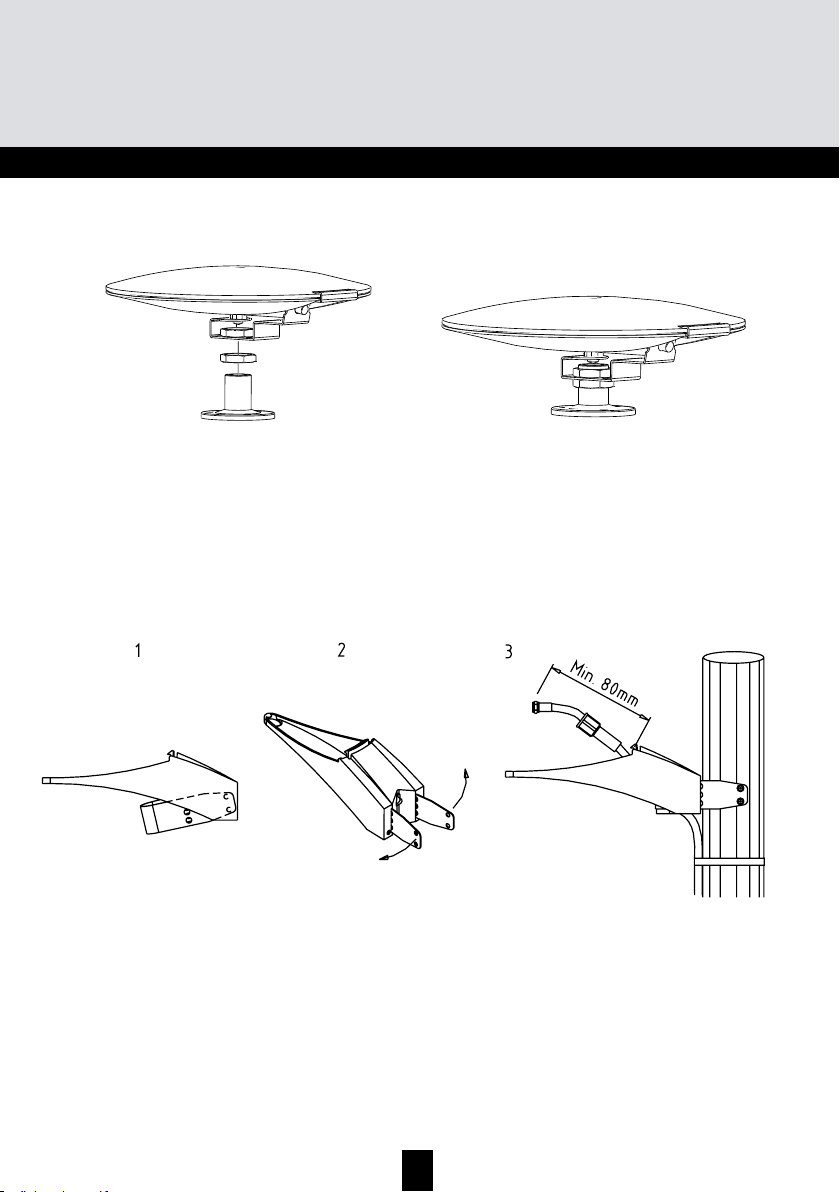

Mounting options on vertical or horizontal surface
Min. 80mm
Positioning the antenna:
Assemble brackets and desk
mount.
Positioning the antenna and
mark off holes for fixing.
Prepare the plastic base for mounting of U-clamp for mast bracket
Mounting on mast.
4
GB
UFO 100, 120
digital antenna
Mounting with centre mount (UFO 120 digital)
Positioning the antenna:
Centre mounting bracket and
deckmount. Position the antenna
and mark off holes for fixing.
Positioned antenna
and counter nut fixed.
Mounting with universal mount (UFO 120 digital)
5
GB
Troubleshooting guide
Problem Possible root cause Solution
Weak or missing signal
-check LED on power supply
(PSU)
Weak or missing signal
-check LED on power supply
(PSU)
-check LED on UFO
Interference; herring-bone pat-
tern or white horizontal stripes
in the picture.
Ghosting; double pictures Ghosting is caused by the TV
NO light indicates no voltage.
Often this is coursed by a short
or a missing connection in the
coax-cable or the cable con-
nectors
NO light indicates no voltage.
Often this is coursed by a short
or a missing connection in the
coax-cable or the cable con-
nectors
Interference is often caused by
different electronic equipment
- mobile phones, computers
or transmitters -being used in
close proximity to the UFO.
signal being reflected from
buildings, large ships etc.
Remove the cable from the
PSU, if the LED goes ON,
there is a short in the cable.
Then repair or replace the
cable.
If the LED is still off replace
the PSU.
If the LED is ON at the PSU,
there is probably a missing
connection in the cable or
connectors.
Repair or replace.
Increase the distance – in-
crease the height of the UFO
Changing position a few
meters, will often solve the
problem.
6
GB
UFO 100, 120
digital antenna
Application examples
+ 5 V
+ 12 V
IFP 529
7
GB

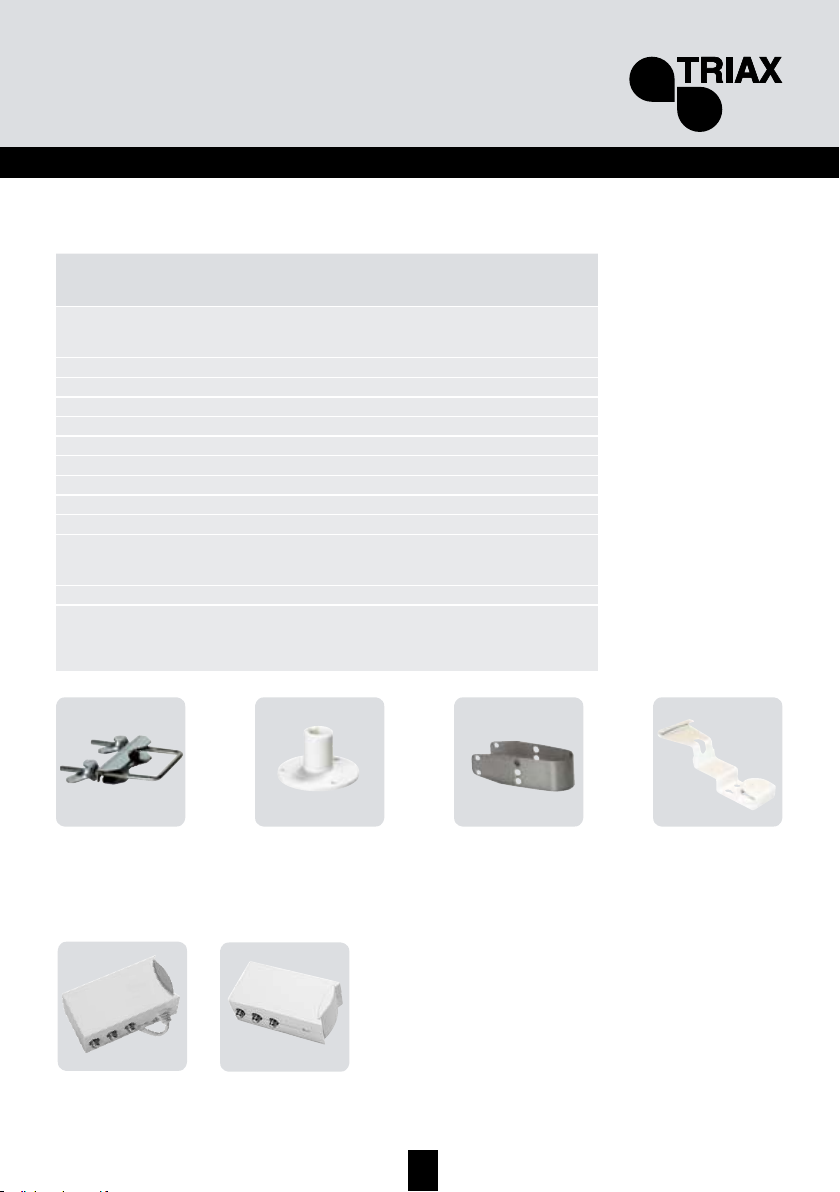

Technical data
Type
Art. No.
Frequency range FM
VHF
UHF
Channels FM/5-12/21-69 FM/5-12/21-69
Elements pcs. 1 1
Opening angle ver./hor. deg. 90/360 90/360
Windload N 5.5 5.5
Gain dB 28 28
Noise figure dB 2.5 2.5
Max. output voltage dBµV
Supply voltage V 5-24 5-24
Power consumption mA 50 50
D i m e n s i o n s l e n g t h
width
height
Connector F-connectors F-connectors
Included
Mast bracket
Ø25-60
Art. No. 133223
MHz
MHz
MHz
mm
mm
mm
UFO 100
Digital
109100
87.5-108
174-230
470-862
108 108
325
255
65
Mast bracket Ø25-60
Plastic base
Plastic base
Art. No. 133220
UFO 120
Digital
109120
87.5-108
174-230
470-862
325
255
65
Mast bracket Ø25-60
Plastic base
Universal mount
Centre mount
Universal mount
Art. No. 133222
Centre mount
Art. No. 133225
Accessories
IFP 502
Power supply
Art. No. 339502
IFP 529
Power inserter
Art. No. 339529
GB
891020A
DECLARATION OF CONFORMITY
TRIAX confirms that the product conforms to relevant EEC harmonized
standards and consequently can carry CE-mark.
Relevant harmonized standards:
EN 50083 and EN 60065
Dealer
8
A product of the TRIAX group
TRIAX - your ultimate connection
06-2009
