Page 1
User's Manual
Wireless Streaming Preamplifier
S10
Wireless Spotify AirPlay
www.arylic.com
Multi-Room
Page 2
Page 3
Table of contents
1. Introduction ..............................................................................................................................................1
2. What's in the box .....................................................................................................................................1
3. Main Features .........................................................................................................................................2
4. Specication ............................................................................................................................................3
5. Interface...................................................................................................................................................4
6. Remote controller ....................................................................................................................................5
7. Connection diagram ................................................................................................................................6
8. How to use...............................................................................................................................................6
8.1 App download ...................................................................................................................................6
8.2 Connection .......................................................................................................................................7
8.2.1 Option 1 - Connection via app .................................................................................................7
8.2.2 Option 2 - Connection via LAN ...............................................................................................8
8.2.3 Option 3 - Bluetooth pair .........................................................................................................8
8.3 App features ......................................................................................................................................9
8.3.1 Device setting ...........................................................................................................................9
8.3.2 To play local storage music ......................................................................................................9
8.3.3 To play music from NAS .........................................................................................................10
8.3.4 To play line in mode ...............................................................................................................10
8.3.5 To play Bluetooth mode ..........................................................................................................10
8.4 Streaming services .......................................................................................................................... 11
8.4.1 Spotify..................................................................................................................................... 11
8.4.2 AirPlay ....................................................................................................................................12
8.4.3 Qplay ......................................................................................................................................12
8.5 Multiroom and Multizone .................................................................................................................13
8.6 Left and right channel ......................................................................................................................14
8.7 Preset ..............................................................................................................................................14
8.8 Source mode change .....................................................................................................................14
8.9 Restore factory setting.....................................................................................................................14
8.10 Firmware update............................................................................................................................15
9. Play on PC.............................................................................................................................................15
9.1 To play music from iTunes on Mac and Windows PC.....................................................................15
9.2 To play music from Windows PC via Foobar2000 ........................................................................... 16
FAQ ...........................................................................................................................................................19
Page 4
1. Introduction
S10 is a wireless streaming preamplier with network and Bluetooth 5.0 connectivity. Applying S10
to your current stereo system will enable you stream music from your smart devices, USB, NAS or
streaming services, such as Spotify, Tidal or Qobuz in high resolution by 4STREAM app, AirPlay,
Bluetooth or other third party compatible apps. It support streaming high quality music in sample
rate up to 24bit,192khz and support decoding lossless audio format such as FLAC, APE, WAV.
Adding more units to your home audio system could set up a wireless multiroom or multizone whole
house audio system, it will give you totally new and great experience to play and enjoy music.
2. What's in the box
Main unit x1
IR
AUX IN NET BT
Power adapter x1
User's Manual x1
Aux 3.5mm cable x1
2-1RCA cable x1
USB
Remote control x1
USB
AUX IN
BT
OPTIN
WIFI
BAS
S+
TREBLE+
FLAT
d.bass
SS-
BA
TREBLE-
12 3
45 6
1
Page 5
3. Main Features
- Streaming music via network without distance limitation or Bluetooth5.0 up to 30 meters.
- Spotify connect ,Airplay, Qplay, DLNA, UPnP streaming protocols supported.
- Support streaming source from online services, smart device memory, USB pen drive, NAS,
Bluetooth and line in.
- Multiroom and multizone streaming enabled by mutiple units connected in same network.
- All music sources can be restreamed in sync to other models from us.
- Airplay,Spotify Connect, Qplay, DLNA, UPnP protocol and 3rd party app compatible.
- High quality music streaming support, sample rate decoding up to 24bit, 192kHz.
- Spotify, Deezer, Tidal, Qobuz, iHeartRadio, TuneIn, Napster, lots of online streaming services
integrated to use in the app.
- Free iOS and Android app available.
- Free global online update for new features.
- Full function remote controller to use without cellphone .
- EQ adjustment via app or remote controller.
- Preset playlist is availble and short buttons on remote controller for one button play.
- iTunes working with PC streaming .
2
Page 6
4. Specication
Connectivity
Bluetooth Distance
Power Input
Audio Output
Frequency response 20Hz to 20kHz
Audio Input Analog 3.5mm mini jack
SNR 91dB
THD 0.03%
Music Format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Sample Rate
Protocols
LED
Dimensions
Weight
Wireless networkI EEE802.11b/g/n 2.4G
Ethernet
Bluetooth
USB Host
RJ45 single 10/100M
5.0
2.0
30M
5V-1A micro USB input
Analog 3.5mm mini jack
Decoding Up to 24bit/192kHz
AirPlay,DLNA,UPnP, Spotify Connect, Qplay
NET: White-power on/WiFi Mode
BT: Blue-Bluetooth Mode
USB: Red-USB Mode
Aux: Green-line input Mode
116.2mm*64mm*22.6mm(4.57*2.52*0.89in)
0.2kg(0.44lb)
3
Page 7
5. Interface
AUX IN
AUX I N AUX OUT
NET BT
IR
USB
LAN USB 5V/1A
AUX I N AUX OUTLAN USB 5V/1A
B C D E F
G H I J K
L
RESET
AUX IN
I
IR receiver: for remote control.
B
AUX IN: Green-line input Mode.
C
NET: White-power on/WiFi Mode.
D
BT: Blue-Bluetooth Mode.
E
USB: Red-USB Mode.
F
LAN: Wired connection to router
G
USB: to connect USB pen drive(1024 tracks at most)
H
AUX IN：for external audio sources from TV, CD player and so on.
I
J
K
L
AUX OUT: to provide analog audio to other devices.
5V/1A : 5V/1A Micro USB input.
* RESET :short press to reset the device WiFi, long press to restore the device to factory setting.
.
(reset button is right behind the AUX input, use a proper stick to press the button)
4
Page 8

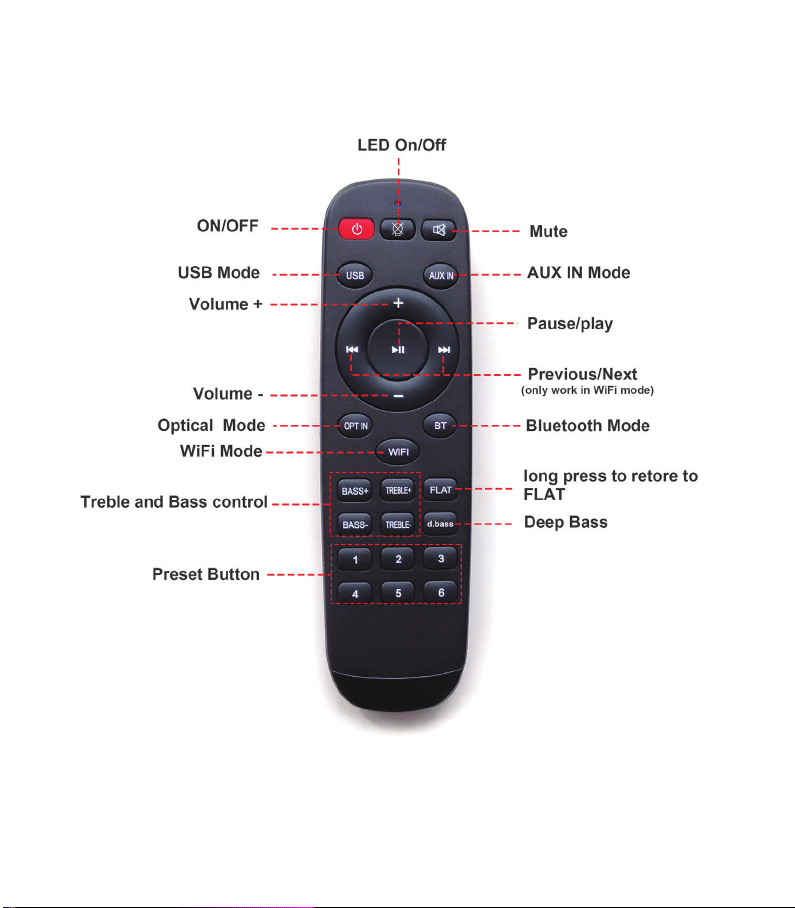

6. Remote controller
5
Page 9

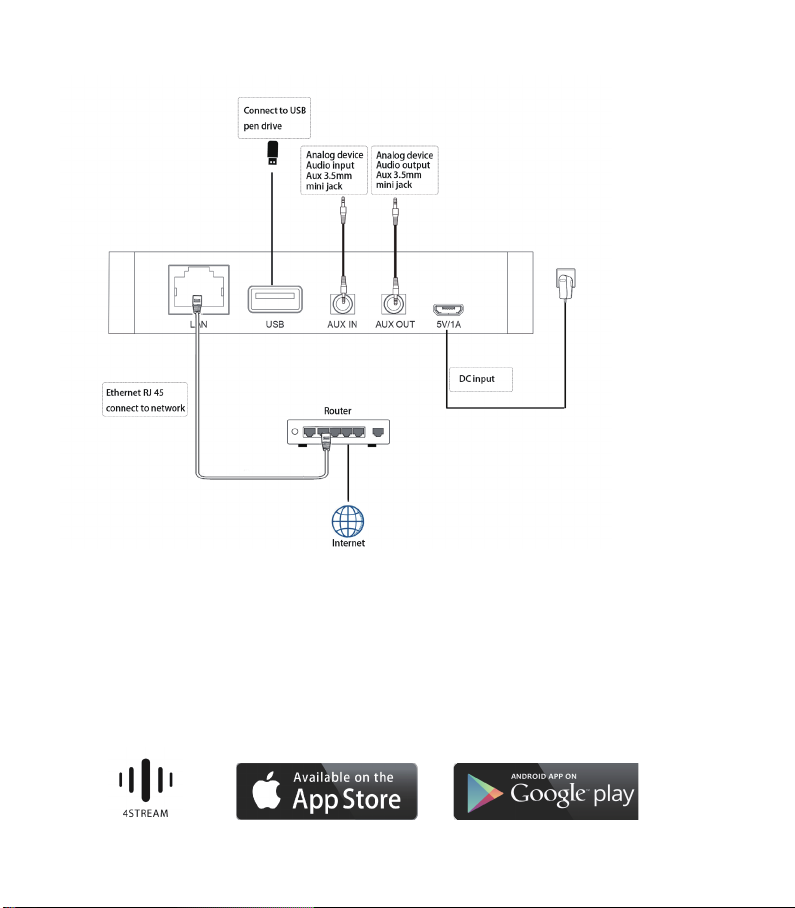

7. Connection diagram
8. How to use
8.1 App download
Download the 4STREAM application from App Store for iOS based devices and Google Play Store
for Android based devices.
The application supports English, Spanish, French, German, Italian, Portugese, Korean, Simplied
Chinese,
Traditional Chinese and Japanese
6
Page 10
8.2 Connection

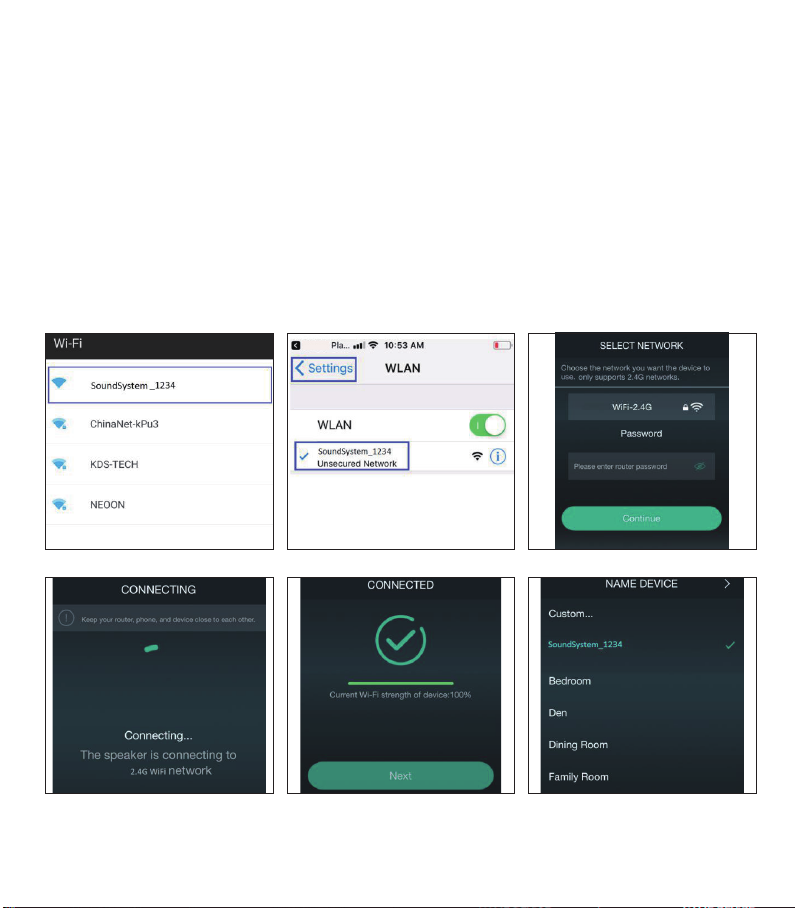

8.2.1 Option 1 - Connection via app
1.Power up S10, then waiting for system ready rstly before setup, when you see the white led
become slow blink from fast link and hear a piano tone, system boot up ready and ok for app to
connect .
2. Please use your cellphone and install 4STREAM app, have your phone connected your home
router in 2.4G mode. (after setup, you can use 5G WiFi for control and playback )
3. Run 4STREAM app, go to your cellphone WiFi setting as app guide, find S10 WiFi
SSID(SoundSystem_XXX) and connect to it. If you don't see any SSID as SoundSystem, please
short press reset button to activate it )
4. Come back to 4STREAM app, it will guide you to type your home router password. Please have
that ready rstly. To add more units, password will be remembered in the app.
7
Page 11

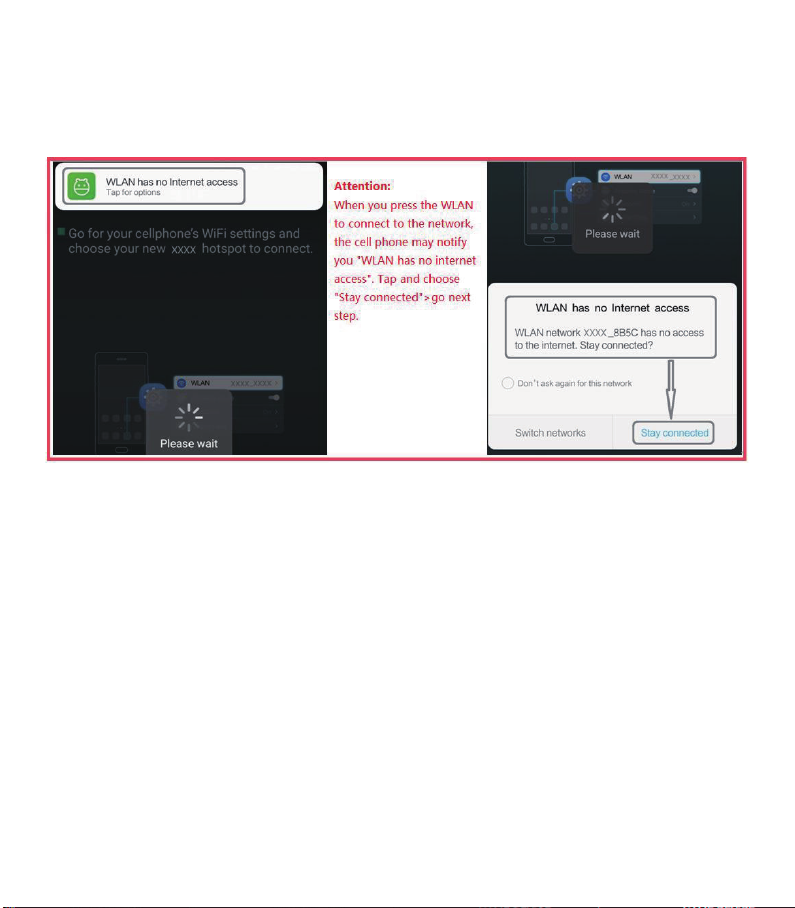

*Attention for Android users
Different brand mobile phones may ask you to allow to use SoundSystem WiFi network ,please
choose yes, if not ,you may not able to set up successfully .
8.2.2 Option 2 - Connection via LAN
1. Plug in the wired cable to the RJ45 Ethernet, the device will show on the app in about 10
seconds. (Note: the cell phone and the device must be in the same network)

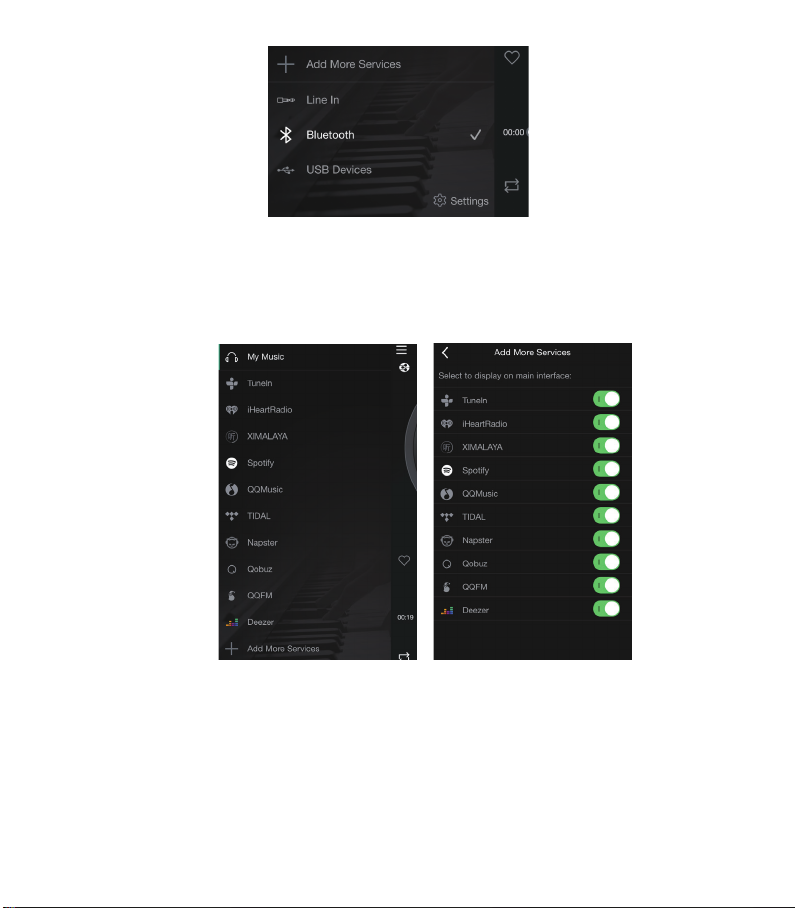

8.2.3 Option 3 - Bluetooth pair
1. Open the 4STREAM app.
2. Choose the Bluetooth mode at the bottom of the music source page of 4STREAM app.(to
activate the Bluetooth).
3. Open the Bluetooth on the mobile device.
4. Pair to device Bluetooth “SoundSystem”.
8
Page 12

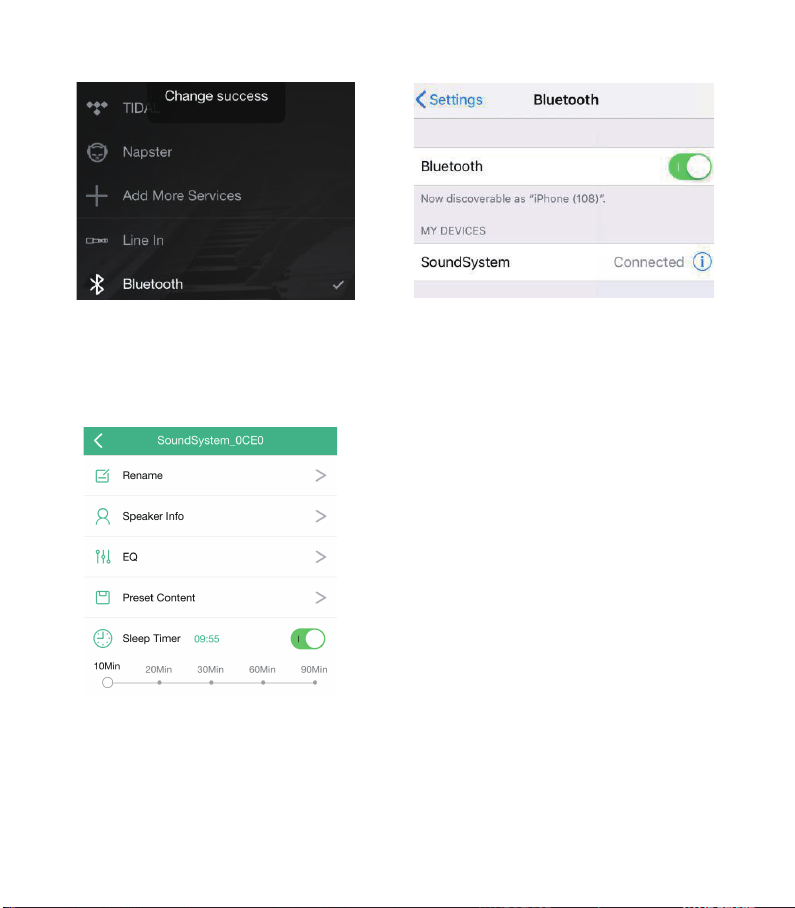

8.3 App features
8.3.1 Device setting
Rename：to customize the device name
Speaker info: you will see the device information
like Mac ID,device,IP, SSID etc
EQ: open to control the device bass and treble
Preset content: you will see all the preset
contents here
Sleep timer: Countdown to stop the music

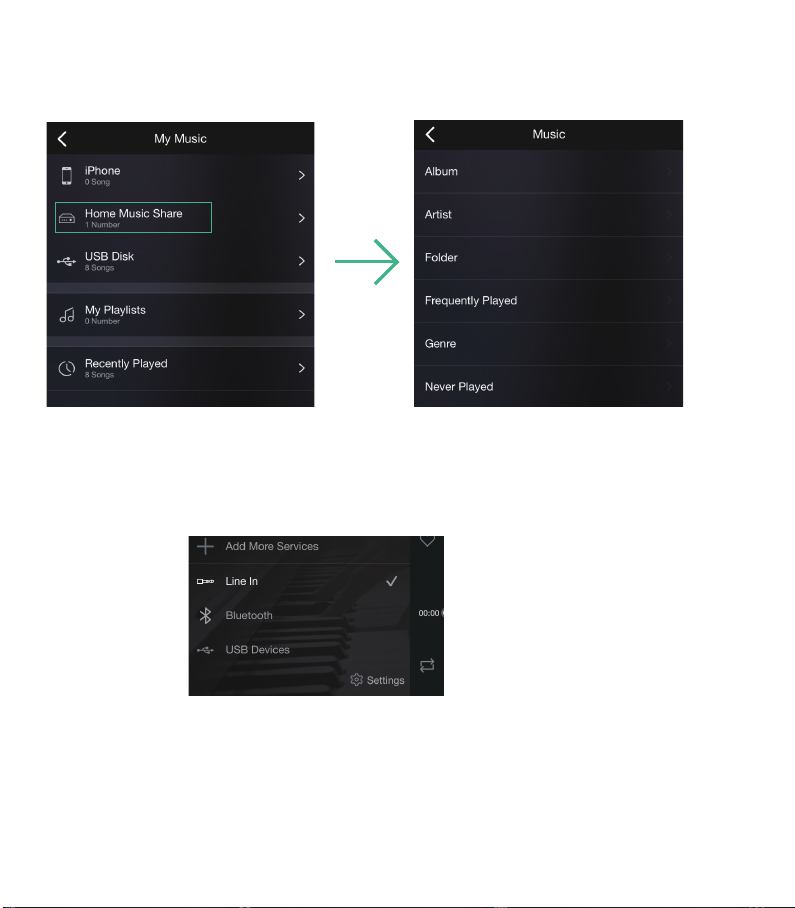

8.3.2 To play local storage music
-Click the “My Music” on the application and choose the music ready there. NOTES: the iOS based
devices have blocked the access to iTunes library.
9
Page 13
8.3.3 To play music from NAS
Please note that our system only support NAS with DLNA feature.
8.3.4 To play line in mode
- Connect the Aux 3.5mm cables to the TV or other audio sources
- Choose line in mode on the application or remote control
8.3.5 To play Bluetooth mode
- Choose the Bluetooth mode on the application or remote control, the LED will change to blue
- Open the Bluetooth on your cellphone/tablet
- Pair the device Bluetooth (SoundSystem) and play
10
Page 14
8.4 Streaming services
To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to
register account at the service provider platform. .

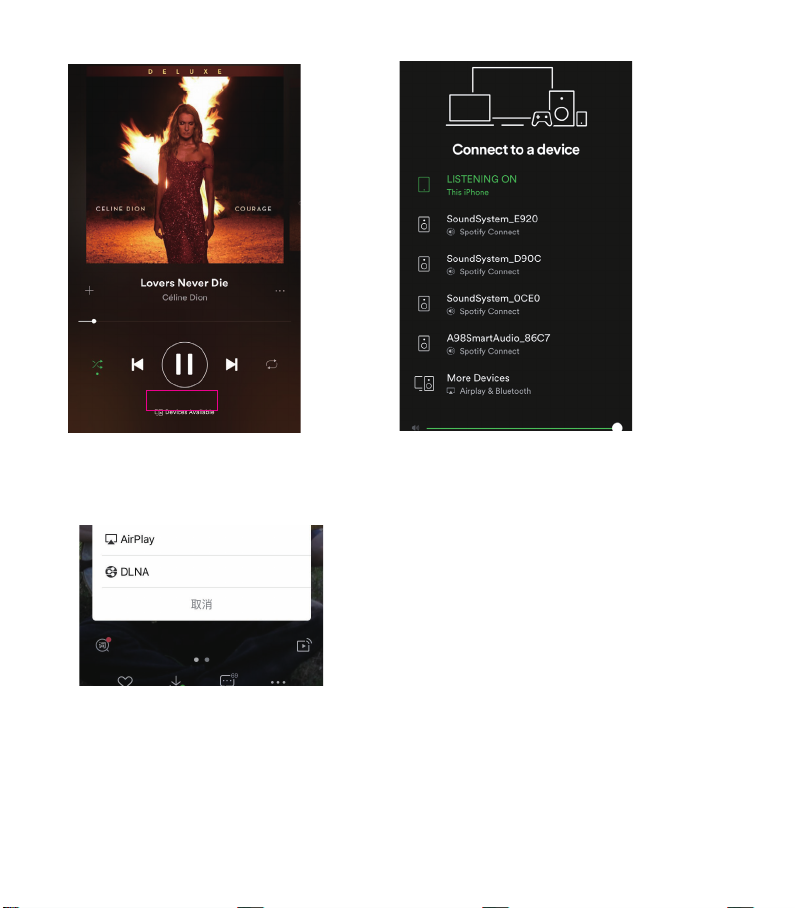

8.4.1 Spotify
To use Spotify, you have to own spotify premium account .
You will nd the device in the device list on the Spotify application and choose the device you want
to play.
NOTE: one Spotify account can only streaming to one device at a time.
11
Page 15
8.4.2 AirPlay
The device supports AirPlay1, you can choose the AirPlay and play music
8.4.3 Qplay
Our devices support QQ music using the Qplay protocol, you have to turn on the Qplay in the QQ
music player setting and then nd the device in the Qplay list.
12
Page 16
8.5 Multiroom and Multizone
Users can group multiroom and multizone on the Application, for example you can group device 1,2,3
and 4 together and play same music in sync, or group device 1 and 2 as zone A and device 3 and 4
as zone B, and play different music in zone A and zone B.
1
Master
Slave
2
3
4
1
Zone A
2
1
Zone B
2
13
Page 17
8.6 Left and right channel
Users can choose the right channel or left channel or stereo mode on the application, or choose
left channel on device A and choose right channel on device B, and group them together and play in
sync to make stereo.

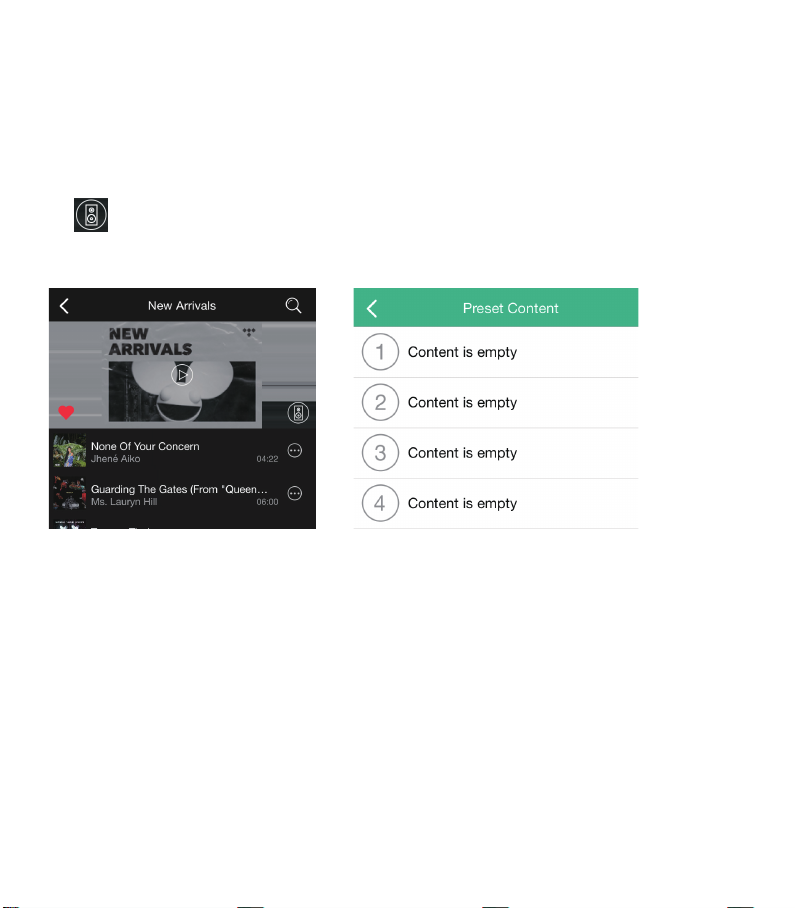

8.7 Preset
There are 6 buttons on the remote control, users can preset play lists(only the lists with speaker
icon
remote, the preset list 1 will play. (Users can preset 10 playlists on the application, but the remote
control can only save from 1-6)
8.8 Source mode change
Method 1: change on application
Users can change play mode on the application, WiFi, Bluetooth, Line input and USB. To change
from Bluetooth/line input/USB to WiFi, only need choose the online streaming services such
as Tidal, Qobuz or Spotify or cell phone local storage music or any music via DLNA or UPnP
streaming.
Method 2: change with remote control
Users can use the remote control to change the play modes-WiFi, Bluetooth, Line input and USB.
can preset) on the application from 1~6 for example, then when you press button 1 on the
8.9 Restore factory setting
Two methods to restore device to factory setting
Method 1-long press the reset button on the device for 8-10seconds
Method 2-go for "App setting-speaker info-restore factory setting"
14
Page 18

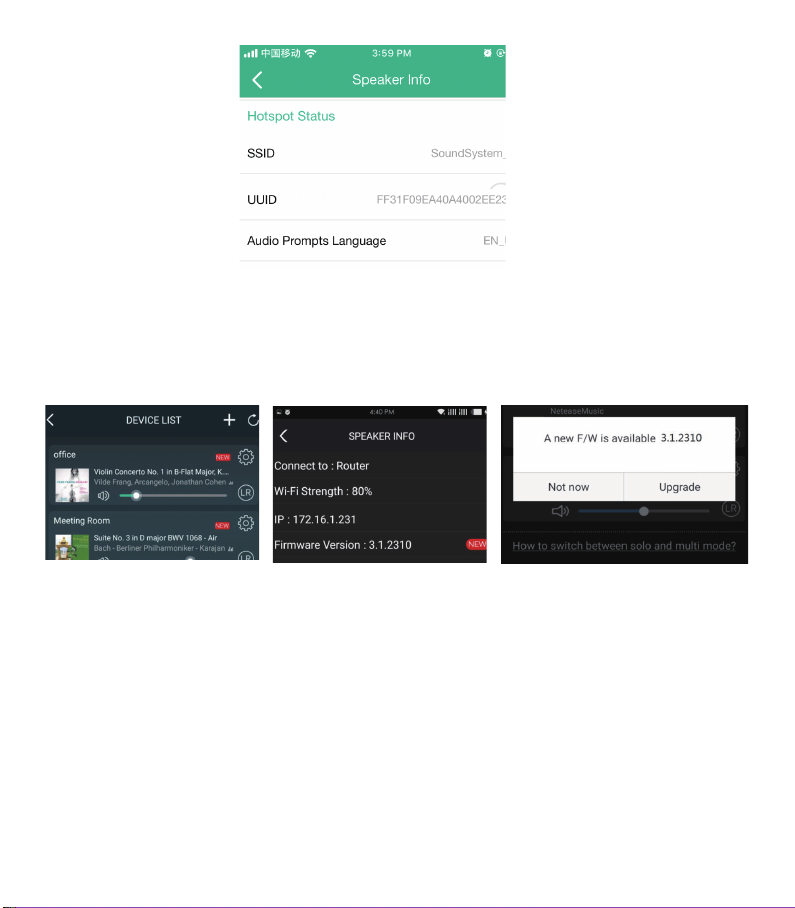

8.10 Firmware update
The application will notify you in app when there is a new fireware version available.It's
recommended to update reware whenever available as this might not only correct bugs or improve
security,but also can add new features or services.
9. Play on PC
There are several tools to play music from the PC

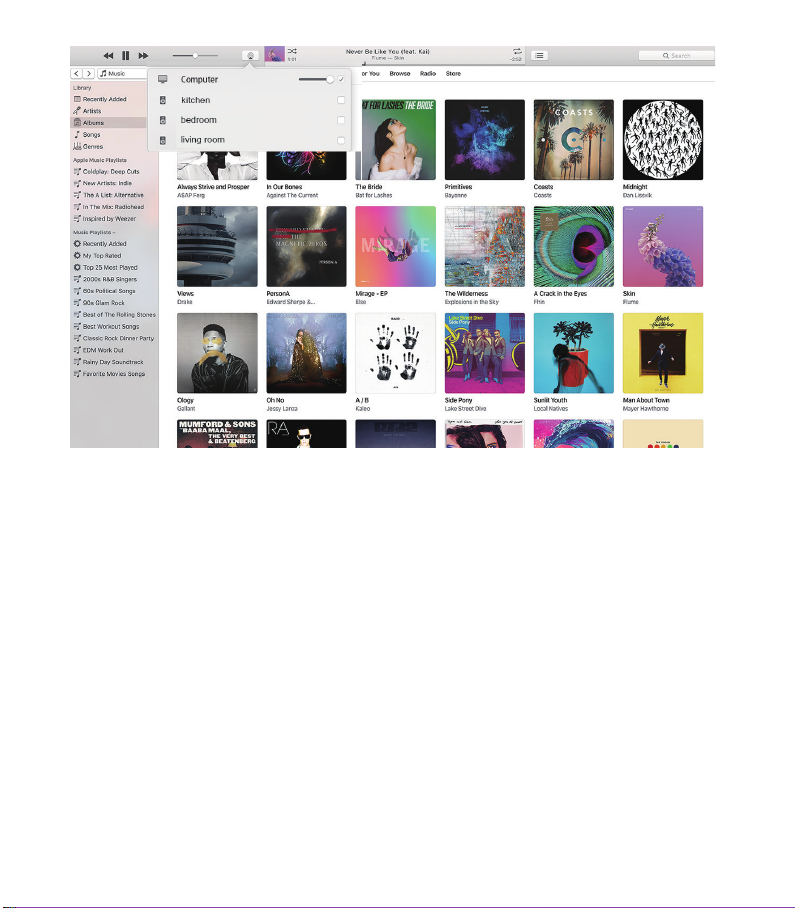

9.1 To play music from iTunes on Mac and Windows PC
Our devices can stream audio sources from local storage, media library in Mac and Windows
PC and online services from iTunes. Users can easily play and switch music, control volume and
choose the audio devices to group and upgroup the audio devices.
15
Page 19

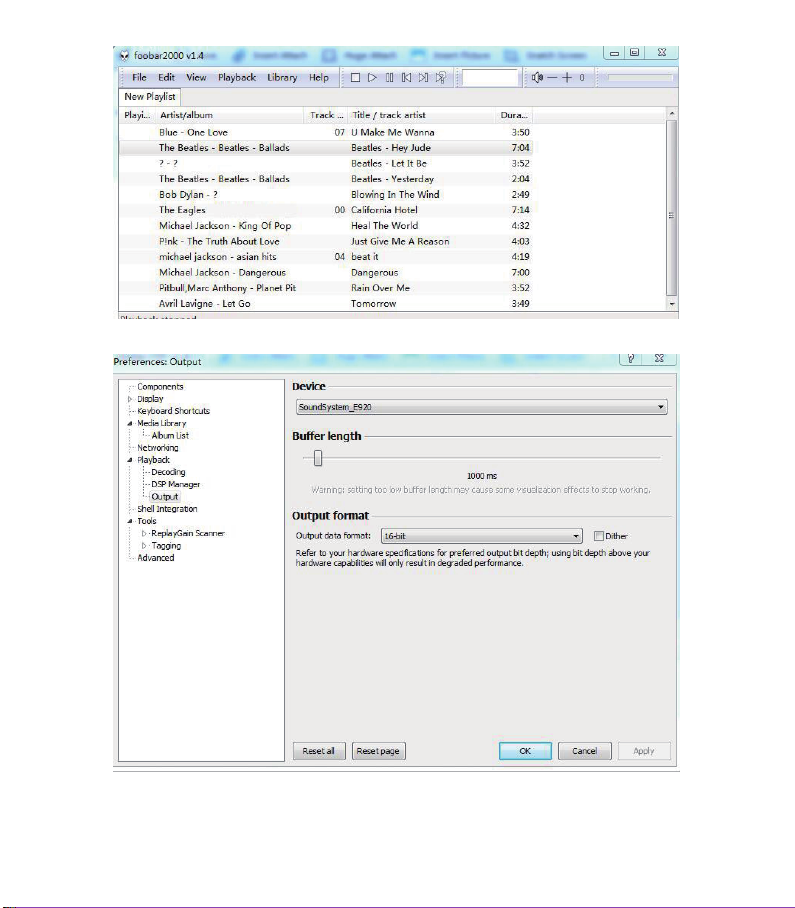

9.2 To play music from Windows PC via Foobar2000
Our devices support UPnP protocol, with the popular foobar2000, you can play music from
Windows PC to our devices. Please follow the steps below:
1. download the foobar2000 and install it.
2. refer to the doc how to add UPnP component at our website download column.
3.refer the link below how to add UPnP component http://wiki.hydrogenaud.io/index.
php?title=Foobar2000:How_to_install_a_component
4. restart the foobar2000, then check: Library>congure>output>device, you will see the PLAYER
in device option column.
5. Choose the device to play the music.
16
Page 20
17
Page 21
Scan the QR codes below for more
www.arylic.com
4STREAM App Facebook: arylicme YouTube:Arylic
Support and After Service : [email protected]
18
Page 22
FAQ
Q: Do your devices support airplay and third-party DLNA apps?
A: Yes. They support airplay and third-party apps like BubbleUPNP...
Q: How many zones can you group in one system?
A: 12 rooms is the maximum, while 8 zones are recommended.
Q: What distance can your wireless audio system cover?
A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi
signal.
Q: Can it play high resolution music?
A: Yes. Our devices can play APE and FLAC within the normal bit rate range. They also support decoding
24bit/192kHz music les.
Q: How many languages do you support?
A: Our devices will auto-detect your mobile device language and change automatically. Currently, we
support English, French, German, Spanish, Chinese, Portuguese, Korean and Japanese and more on the
way.
Q: What online music services do you support?
A: Spotify,Deezer,Quboz, Tidal, iHeartRadio, TuneIn, Napster, and more, with more pending.
Q: Can I play local music?
A: Yes. You can play music from “MY MUSIC” on the application from local storage devices such
as mobile device storage, USB thumb drives and NAS.
Q: Can the device work with Windows devices?
A: The Windows application is not available at the moment, but on the Windows PC, users can use
iTunes, Foobar2000 and Spotify connect.
Q: Can all music sources play in multiroom mode?
A: Yes, the online streaming music, line input and Bluetooth all can play multiroom mode.
Q: Does your device support Google Assistant or Alexa?
A: Our devices donot support Alexa, yet through Bluetooth, our device can work with Google Assistant.
19
Page 23
Page 24
@Copyright 2019 by Arylic. All Rights Reserved.
The information contained in this guide is believed to be accurate and reliable. Arylic assumes no
responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in
the specications and/or design of the above mentioned product without prior notice. The diagrams
contained in this guide may also not fully represent the product that you are using and they are for
illustration purposed. Arylic assumes no responsibility for any differences between
the product mentioned in this guide and the product you may have.
Loading...
