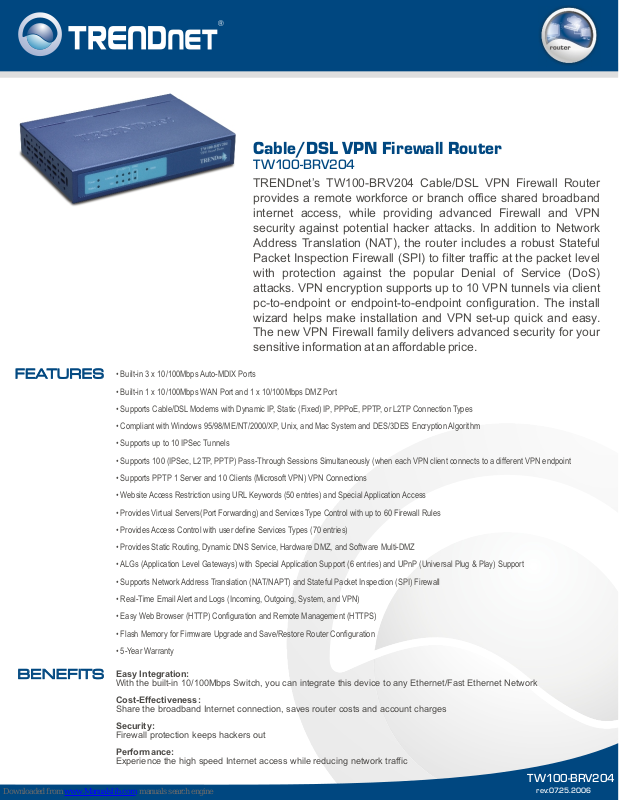

TRENDnet TW100-BRV204 - DATA SHEETS Datasheet
Cable/DSL VPN Firewall Router
TW100-BRV204
TRENDnet’s TW100-BRV204 Cable/DSL VPN Firewall Router
provides a remote workforce or branch office shared broadband
internet access, while providing advanced Firewall and VPN
security against potential hacker attacks. In addition to Network
Address Translation (NAT), the router includes a robust Stateful
Packet Inspection Firewall (SPI) to filter traffic at the packet level
with protection against the popular Denial of Service (DoS)
attacks. VPN encryption supports up to 10 VPN tunnels via client
pc-to-endpoint or endpoint-to-endpoint configuration. The install
wizard helps make installation and VPN set-up quick and easy.
The new VPN Firewall family delivers advanced security for your
sensitive information at an affordable price.
FEATURES
• Built-in 3 x 10/100Mbps Auto-MDIX Ports
• Built-in 1 x 10/100Mbps WAN Port and 1 x 10/100Mbps DMZ Port
• Supports Cable/DSL Modems with Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, or L2TP Connection Types
• Compliant with Windows 95/98/ME/NT/2000/XP, Unix, and Mac System and DES/3DES Encryption Algorithm
• Supports up to 10 IPSec Tunnels
• Supports 100 (IPSec, L2TP, PPTP) Pass-Through Sessions Simultaneously (when each VPN client connects to a different VPN endpoint
• Supports PPTP 1 Server and 10 Clients (Microsoft VPN) VPN Connections
• Website Access Restriction using URL Keywords (50 entries) and Special Application Access
• Provides Virtual Servers(Port Forwarding) and Services Type Control with up to 60 Firewall Rules
• Provides Access Control with user define Services Types (70 entries)
• Provides Static Routing, Dynamic DNS Service, Hardware DMZ, and Software Multi-DMZ
• ALGs (Application Level Gateways) with Special Application Support (6 entries) and UPnP (Universal Plug & Play) Support
• Supports Network Address Translation (NAT/NAPT) and Stateful Packet Inspection (SPI) Firewall
• Real-Time Email Alert and Logs (Incoming, Outgoing, System, and VPN)
• Easy Web Browser (HTTP) Configuration and Remote Management (HTTPS)
• Flash Memory for Firmware Upgrade and Save/Restore Router Configuration
• 5-Year Warranty
BENEFITS
Easy Integration:
With the built-in 10/100Mbps Switch, you can integrate this device to any Ethernet/Fast Ethernet Network
Cost-Effectiveness:
Share the broadband Internet connection, saves router costs and account charges
Security:
Firewall protection keeps hackers out
Performance:
Experience the high speed Internet access while reducing network traffic
TW100-BRV204
rev:07.25.2006
Cable/DSL VPN Firewall Router
TW100-BRV204
SPECIFICATIONS
Hardware
Standards
Protocols
WAN
LAN
DMZ
LED Indicators
Power Adapter
Dimensions (L x W x H)
Weight
Temperature
Humidity
Certifications
Router
Firewall
Security
VPN (IPSec)
VPN Tunnels
VPN Pass-Through
• IEEE 802.3 (10-Base T); 802.3u (100-Base TX)
• NAT, PPPoE, NTP, SMTP, HTTP, TFTP, DHCP, TCP/IP, PAP, CHAP, RIP1, RIP2, DDNS
• 1 x 10/100Mbps Port (Internet)
• 3 x 10/100Mbps Auto-MDIX Ports
• 1 x 10/100Mbps Auto-MDIX Port
• Unit: Power, Status
• Ports/DMZ Port: Link/Act, 100
• 9V DC, 700mA
• 141 x 100 x 27 mm (5.5x 3.9 x 1.06 inches)
• 0.36 kg (12.8 oz.)
• Operating: 0° to 40° C (32° to 104° F); Storage: -10° to 70° C (14° to 158° F)
• Operating: 0 % ~ 80 % (non-condensing); Storage: 0% ~ 95% (non-condensing)
• FCC, CE, VCCI
• NAT Firewall, SPI Firewall
• URL Filter, Access Control, Password Protection, Email Alert and Logs
• MD5-HMAC/SHA1-HMAC Authentication, DES-CBC, 3DES-CBC encryption, Internet Key Exchange, Manual Key Negotiation
• 10 (IPsec), 10 (PPTP)
• IPSec, PPTP, L2TP (100 Sessions)
NETWORKING SOLUTIONS
INTERNET
VPN Tunnel
Cable / DSL
4-Port VPN
Cable / DSL 4-Port
Advanced VPN
Firewall Router
(TW100-BRV304)
Web Server
Printer with
Print Server
(TE100-P1P)
Cable/
DSL Modem
Firewall Router
(TW100-BRV204)
Workstation with
PCI Adapter
(TE100-PCIWN)
Workstation with
PCI Adapter
(TE100-PCIWN)
DSL Modem
FTP Server
Printer with
Print Server
(TE100-P1U)
Cable/
Workstation with
PCI Adapter
(TE100-PCIWN)
Workstation with
PCI Adapter
(TE100-PCIWN)
10/100Mbps
RELATED PRODUCTS
TW100-BRV304
TW100-S4W1CA
TW100-BRF104
Cable/DSL Advanced VPN Firewall Router
DSL/Cable Broadband Router with 4-Port Switch
4- Port Broadband Router + Firewall
