TrekStor eBook Reader Pyrus 2 LED - EN - User manual
1
Index
1 General Information ............................................................................ 8
2 Instructions for Safety and Use ........................................................ 8
3 About the eBook Reader Pyrus 2 LED ......................................... 11
4 Package contents ............................................................................... 12
5 Specifications ...................................................................................... 13
6 Get to know your TrekStor eBook Reader Pyrus 2 LED ......... 15

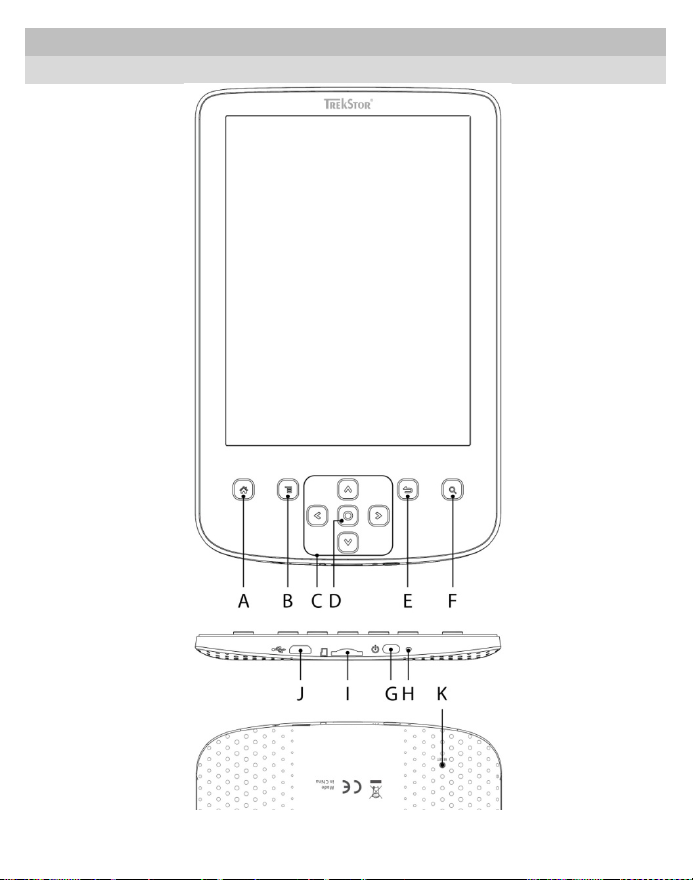

6.1 Controls and connections ..................................................... 15
7 Starting up for the first time ........................................................... 18
7.1 Charging the eBook Reader .................................................. 18
7.2 Switching the eBook Reader on and off ........................... 19
8 eBook Reader home screen ............................................................ 20
9 Other eBook Reader functions ...................................................... 23
9.1 Library .......................................................................................... 23
9.1.1 Favorites.............................................................................. 23
9.1.2 Bookmarks .......................................................................... 23
9.1.3 Search .................................................................................. 24
9.1.4 Sort ....................................................................................... 24
9.1.5 View ...................................................................................... 24
9.1.6 Exit ........................................................................................ 24
9.2 Bookmarks .................................................................................. 24
9.2.1 Delete bookmarks ........................................................... 24
2
9.2.2 Exit ........................................................................................ 25
9.3 eBook Shop ................................................................................ 25
More eBooks? ..................................................................................... 25
9.4 Extras ............................................................................................ 26
9.4.1 Favorites.............................................................................. 26
9.4.2 Already Read eBooks ...................................................... 26
9.4.3 Explorer ............................................................................... 26
9.4.4 User manual ....................................................................... 27
9.4.5 Exit ........................................................................................ 27
9.5 Pictures ........................................................................................ 28
9.5.1 Rotate ................................................................................... 28
9.5.2 Zoom .................................................................................... 28
9.5.3 Slideshow ........................................................................... 28
9.5.4 Picture info ......................................................................... 29
9.5.5 Exit ........................................................................................ 29
9.6 Settings ........................................................................................ 30
9.6.1 Adjusting the brightness ............................................... 30
9.6.2 Page refresh rate .............................................................. 30
9.6.3 Power save settings ........................................................ 31
9.6.4 Time and date ................................................................... 32
9.6.5 Languages .......................................................................... 32
9.6.6 Formatting ......................................................................... 32
3
9.6.7 Default settings ................................................................ 32
9.6.8 Device information.......................................................... 33
9.6.9 DRM authorization info.................................................. 33
10 Use of memory cards ........................................................................ 34
10.1 Inserting a memory card ........................................................ 34
10.2 Removing the memory card ................................................. 34
10.3 Restrictions on NTFS file systems ........................................ 35
11 Reading an eBook .............................................................................. 36
11.1 Open eBooks .............................................................................. 36
11.1.1 Via the library .................................................................... 36
11.1.2 Via the home screen ....................................................... 36
11.2 Read eBooks ............................................................................... 37
11.2.1 Add bookmark .................................................................. 37
11.2.2 Bookmarks .......................................................................... 37
11.2.3 Table of contents ............................................................. 38
11.2.4 Go to page .......................................................................... 38
11.2.5 Search .................................................................................. 38
11.2.6 Font size .............................................................................. 38
11.2.7 Fonts..................................................................................... 38
11.2.8 Line spacing ....................................................................... 38
11.2.9 Margin ................................................................................. 39
11.2.10 Adjusting the brightness ............................................... 39
4
11.2.11 Text only (Reflow) ............................................................ 39
11.2.12 Rotate screen ..................................................................... 39
11.2.13 Auto flip .............................................................................. 39
11.2.14 Page refresh rate .............................................................. 40
11.2.15 Add or remove favorites ................................................ 40
11.2.16 Mark as read....................................................................... 40
11.2.17 Book information ............................................................. 40
11.2.18 Decoding ............................................................................ 40
11.2.19 Close ..................................................................................... 41
12 Connecting your Computer with the eBook Reader .............. 42
13 Loading new eBooks to your eBook Reader ............................. 43
13.1 Transferring eBooks without copy protection and
images onto the eBook Reader ......................................................... 43
13.2 Transferring ePUB and PDF files with DRM copy
protection onto the eBook Reader .................................................. 43
13.2.1 Why DRM? .......................................................................... 43
13.2.2 Adobe® ID ........................................................................... 44
13.2.3 Installing Adobe® Digital Editions (ADE) .................. 44
13.2.4 Device authorization ...................................................... 45
13.2.5 Downloading an eBook using Adobe® Digital
Editions and copying it on your eBook Reader...... 46
13.3 Transferring eBooks via the TrekStor eReader Suite .... 49
5
13.3.1 eReader Suite installation ............................................. 49
13.3.2 Using the TrekStor eReader Suite ............................... 51
14 Logging off and disconnecting the computer from the
eBook Reader ...................................................................................... 52
15 Switching eBook Reader to standby mode ............................... 53
16 Turning off the eBook Reader ........................................................ 53
17 Resetting / Load default settings .................................................. 53
18 Copyrights and trademark notice ................................................ 54
18.1 CE ................................................................................................... 56
18.2 Battery disposal ........................................................................ 57
19 Support information ......................................................................... 58
19.1 FAQ ............................................................................................... 58
19.2 E-Mail ............................................................................................ 58
19.3 Phone support .......................................................................... 59
20 Legal notice .......................................................................................... 60
21 Last Page ............................................................................................... 61
6
We wish you a lot of fun with TrekStor eBook Reader Pyrus 2
LED. Please read the following instructions carefully so that you
can become acquainted with the functions of this product and
its use.
E Ink® technology
When using the E Ink® technology, the illustration of text or
pictures is adopted by a "E Ink®". The display is passive: It does
not light as conventional LCDs and consumes energy only
when loading or flipping a page. This achieves a very long
battery life time. Once set "E Ink®" remains until the next image
build-up, i. e. the last displayed page remains visible, even if the
eBook Reader is already switched off. A "burning-in" into the
display is not possible with E Ink®.
Your eBook Reader Pyrus 2 LED features integrated warm light
LEDs that are scalable in different stages, to allow relaxed
reading in all light conditions.
Current product information can be found at the TrekStor
website http://www.trekstor.de.
Other products and accessories are available at www.trekstor-
onlineshop.de.
7
1 General Information
It is essential to observe the following safety instructions in
section 2 of this manual!
Use the device only for its intended purposes (see Chapter 3).
The manufacturer accepts no liability for any damage resulting
from nonintended use of the device. Furthermore, the
manufacturer accepts no liability for damaged or lost data and
all consequential damages.
The manufacturer retains the right to continually improve the
product. These changes maybe made without being directly
described in these operating instructions. For this reason, the
information provided in these operating instructions may not
reflect the current state of the art.
2 Instructions for Safety and Use
a Attention: Do not use or charge the device if the battery
is damaged or leaks.
a Attention: Do not cover the device during operation or
while charging it. It can lead to overheating.
a Attention: Switch off the device immediately if it gets
wet. Let check your device for safe operation before
using it again.
8
d Only qualified persons may perform technical work on
the product. The product may not be opened or
changed. The components cannot be serviced by the
user.
e Never expose the device to moisture, condensation and
liquids.
j Protect the device from extremely high and low
temperatures and temperature fluctuations.
Use the device within an ambient temperature of 10º C
until 40º C.
m Never place the device close to a source of heat, and
protect it from direct sunlight.
h Make sure that the surroundings are as dust-free as
possible when you use and store the device.
g Never clean the surface of the device with solvents,
paint thinners, cleansers or other chemical products.
Instead, use a soft, dry cloth or soft brush.
9
Notes:
p In certain circumstances, exposing the device to an
electrostatic discharge may interrupt the data transfer
between the device and the computer and impair the
functions of the device. If this occurs, the device should
be unplugged from the USB port and then plugged in
again.
o Do not use USB cables longer than 3 meters.
q The capacity indicated by your operating system can be
different than the actual capacity of your device. Like
most manufacturers of computer hardware, TrekStor
uses the prefixes for units (e.g. 1 GB = 1.000.000.000
bytes) as prescribed by the International System of Units
(SI). Unfortunately, many operating systems do not
comply with this norm and display a lower capacity
because they base their calculations on the assumption
that 1 GB = 230 bytes = 1.073.741.824 bytes.
10
3 About the eBook Reader Pyrus 2 LED
TrekStor eBook Reader Pyrus 2 LED is a reading device for
displaying electronic books and texts. It is used to view files of
the following formats: EPUB, PDF, TXT, FB2, RTF, PDB and HTML.
Thanks to the innovative E Ink® technology your reading will be
as if the text were on paper, razor-sharp and flickerless. Simple
operation impresses with bookmark management and
adjustable text display size for relaxed reading.
Additionally implemented warm-light LEDs provide for
individually adjustable brightness while reading .
The eBook Reader has 2 GB of built-in storage space for about
2,000 books, which can be extended with a microSD/microSDHC memory card of up to 32 GB.
Images in JPEG, BMP, PNG and GIF formats can also be
displayed.
i It is essential to observe the following safety
instructions in section 2!
11
4 Package contents
• TrekStor eBook Reader Pyrus 2 LED
• USB 2.0 cable (USB-A to Micro-USB)
• Quick guide
12
5 Specifications
Dimensions (L x W x H) 113.5 mm x 178.0 mm x 10.0 mm
Weight 205 g
Color black
Internal memory 2 GB internal memory (for approx.
2,000 eBooks)
Integrated card reader microSD/microSDHC memory card
(up to 32 GB)
Display type E Ink® Pearl Display, 16 greyscale
Display size 6" (15,2 cm)
Display dimensions (L x W) 90.5 mm x 122.0 mm
Display resolution 800 x 600 pixel
Interface Hi-Speed USB 2.0 (Micro-USB)
eBook formats ePUB, PDF, TXT, FB2, PDB, RTF,
HTML
DRM formats Adobe® Adept (EPUB, PDF)
Picture formats BMP, GIF (up to 2.5 MB) (not
animated), JPEG, PNG (up to 2.5
MB)
Operating systems Microsoft Windows® 8, 7, Microsoft
Windows Vista™, Microsoft
Windows XP (from SP2), Mac® OS X
from 10.6.x, Linux® from Kernel
2.6.x
File system supported FAT32
13
LED dimmable warm-light LEDs
Power supply integrated lithium polymer battery
Charging via Micro-USB connector
OSD languages German, English, Italian, Spanish,
French, Swedish, Polish, Turkish,
Dutch, Russian
14
6 Get to know your TrekStor eBook Reader Pyrus 2 LED
6.1 Controls and connections
15
A) h Call up the home screen: Use the h button to go
from any page back to the home screen.
B) l Call up menu: This button is used to call up the menus
of the eBook Reader. E.g., if you have opened an eBook, its
menu is called up via this button. Other menus can be called up
for Library, Bookmarks, Extras or Images.
C) Navigation button: Use this button to select books, scroll
through menus and turn pages.
D) OK button: Use this button to confirm the current selection.
You can also illuminate the display here if required (for
example in the dark). To do this, press the OK button for about
2 seconds to turn the built-in lights on or off.
E) 2 Back button: The 2 button always takes you to the
previous menu level respectively closes or exists a menu or a
view.
F) - Search/Zoom in: Here you can activate the search
function to find words in the book, increase the font size, or
perhaps enlarge a section of an image.
G/H) Power button (On/Off) with charging indicator: Press
the /-button for about 2 seconds to switch eBook Reader on
or off. While charging, the status LED lights up. When charging
is finished, the status LED goes out.
16
Press the /-button briefly to activate the standby mode. The
standby screen will appear. To read further at the same place,
press the /-button again.
I) microSD/microSDHC card slot: You can expand the storage
capacity of this eBook Reader with memory cards of a size up to
32 GB. Insert the memory card with the contacts facing up
the memory card slot until you feel a slight snap.
J) Micro USB port: Connect your eBook Reader via the Micro
USB port and the included USB cable to your computer. Thus
you can save new eBook on your reader and charge the battery.
To charge the battery, you can alternatively also charge the
Reader with a suitable power supply (for example, the TrekStor
USB Charger e.fs) via the socket.
K) Resetting: If your eBook Reader no longer responds, you can
restart it by pressing the reset button on the back of the device.
To do this, you will need a small pin or a paper clip.
a Attention: Please do not use needles or similar sharp
objects, because you can damage your eBook Reader.
17
7 Starting up for the first time
You must charge the eBook Reader before initial use and when
the battery is running low.
7.1 Charging the eBook Reader
Once you have connected your eBook Reader via the included
micro USB cable to a computer or to a socket using a suitable
power supply (e. g. TrekStor USB-Charger e.fs), it is
automatically charged. After 1,5 hours with USB power adapter
(3 hours over PC), the battery will be fully charged and the
charging will stop automatically to prevent overcharging.
i Note: During charging, the status LED lights u p green.
Once charging is completed, the status LED turns off.
i Note: The maximum battery life is reached after about 10
battery charging cycles.
Thanks to the intelligent power saving management of the
eBook Reader Pyrus 2 LED you will be able to read for weeks
with only one battery charge. Under "Settings" you can
additionally adjust the power saving setting to your personal
reading behavior. Please note that this can affect battery life.
If the eBook Reader is turned on, the battery status is shown on
the upper right corner of the display.
18
7.2 Switching the eBook Reader on and off
Press the /-button for about 2 seconds to switch the eBook
Reader on. Wait a few seconds for the home screen.
i Note: In case the eBook Reader does not turn on, it has to
be charged.
i Note: When starting the unit for the first time, please
choose your language, set the date and time. To switch off the
eBook Reader Press the /-button for about 2 seconds.
19
Loading...
