Transition Networks SISTG10xx-111-LRT User Manual

SISTG10xx-111-LR(T)
10/100/1000Base-T to 1000Base-X
Industrial Media Converter
Installation Manual
Rev. A
25-Mar-2008
Transition Networks
Table of Contents
Trademark, copyright, and product classification information ......................................................................... iii
Trademark.................................................................................................................................................. iii
Copyright restrictions ................................................................................................................................. iii
FCC warning .............................................................................................................................................. iii
CE Mark ..................................................................................................................................................... iii
About this product and manual ....................................................................................................................... iv
Industrial Media Converter ......................................................................................................................... iv
Term/usage................................................................................................................................................ iv
About this manual ...................................................................................................................................... iv
Manual structure ........................................................................................................................................ iv
Cautions and warnings .................................................................................................................................... v
Cautions and warnings................................................................................................................................ v
Cautions......................................................................................................................................................v
Warnings.................................................................................................................................................... vi
Section I ....................................................................................................................................................................1
SISTG10xx-111 Industrial Media Converter..............................................................................................................1
In this section ..............................................................................................................................................1
General description..........................................................................................................................................2
Overview .....................................................................................................................................................2
Features......................................................................................................................................................2
SISTG10xx-111 Industrial Media Converter part numbers ..............................................................................3
Standard models.........................................................................................................................................3
Package contents ............................................................................................................................................4
Package contents........................................................................................................................................4
Physical description .........................................................................................................................................5
Physical dimensions....................................................................................................................................5

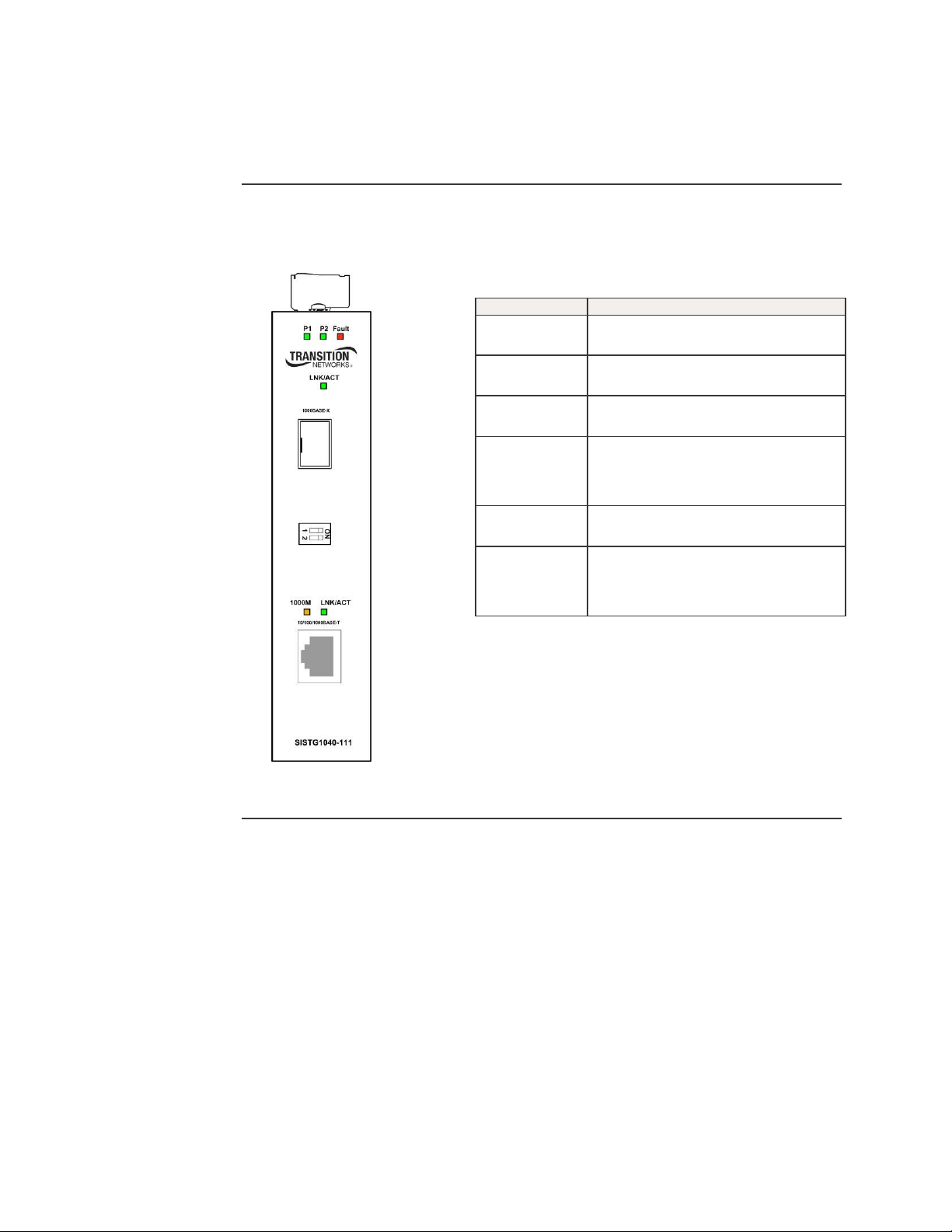

Front panel..................................................................................................................................................5
Bottom panel...............................................................................................................................................6
Back panel ..................................................................................................................................................6
Section II ...................................................................................................................................................................7
Installation .................................................................................................................................................................7
In this section ..............................................................................................................................................7
DIN rail mounting .............................................................................................................................................8
DIN rail clip..................................................................................................................................................8
DIN rail mounting considerations ................................................................................................................8
DIN rail mounting ........................................................................................................................................9
Wall mounting ................................................................................................................................................10
Wall mount bracket ...................................................................................................................................10
Wall mount bracket install .........................................................................................................................10
Grounding the Media Converter.....................................................................................................................11
Wiring considerations................................................................................................................................11
Media Converter grounding.......................................................................................................................11

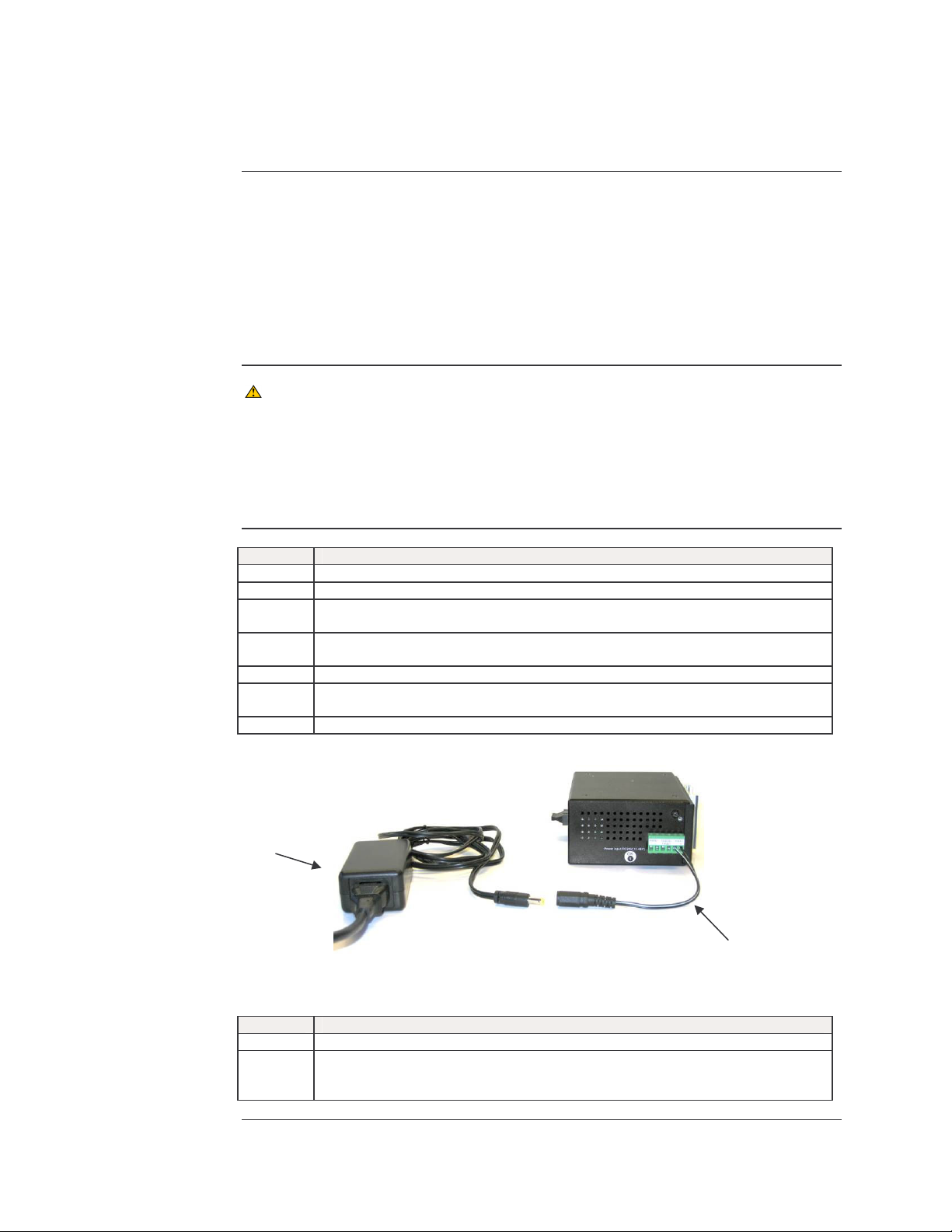

Connecting power to the Media Converter.....................................................................................................12
Redundant power inputs ...........................................................................................................................12
Terminal-block wiring ................................................................................................................................13
Barrel connector interface cable ...............................................................................................................15
Connecting an alarm fixture ...........................................................................................................................16
Alarm relay................................................................................................................................................16
Alarm relay wiring......................................................................................................................................16
Fault indications ........................................................................................................................................17
Connecting fiber cables .................................................................................................................................18
Fiber cable installation ..............................................................................................................................18
Connecting copper cables .............................................................................................................................19
Copper cable installation...........................................................................................................................19
Copper cable configuration .......................................................................................................................19
DIP Switches .................................................................................................................................................20
DIP switch position descriptions................................................................................................................20
Light Emitting Diodes (LEDs).........................................................................................................................21
LEDs .........................................................................................................................................................21
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 i
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
Section III: ...............................................................................................................................................................22
Advanced Features .................................................................................................................................................22
Introduction ...............................................................................................................................................22
In this section ............................................................................................................................................22
Advanced Features........................................................................................................................................23
AutoCrossTM..............................................................................................................................................23
Auto-Negotiation (IEEE 802.3u)................................................................................................................23
Pause (IEEE 802.3xy)..............................................................................................................................23
Link Pass Through ....................................................................................................................................24
Section IV:...............................................................................................................................................................25
Cable Specifications................................................................................................................................................25
Introduction ...............................................................................................................................................25
In this section ............................................................................................................................................25
Copper (RJ-45) cable specifications ..............................................................................................................26
Copper cabling..........................................................................................................................................26
Copper cable specifications ......................................................................................................................26
RJ-45 pinouts............................................................................................................................................26
Fiber cable and optic specifications ...............................................................................................................27
Fiber cable characteristics ........................................................................................................................27
Fiber optic specifications...........................................................................................................................27
Section V:................................................................................................................................................................28
Troubleshooting.......................................................................................................................................................28
Introduction ...............................................................................................................................................28
In this section ............................................................................................................................................28
Troubleshooting problem and corrective action table ....................................................................................29
Section VI:...............................................................................................................................................................30
Contact Us, Warranty, &..........................................................................................................................................30
Compliance Information ..........................................................................................................................................30
Introduction ...............................................................................................................................................30
In this section ............................................................................................................................................30
Contact us......................................................................................................................................................31
Technical support......................................................................................................................................31
Live Web chat ...........................................................................................................................................31
Web-based training...................................................................................................................................31
E-Mail........................................................................................................................................................31
Address.....................................................................................................................................................31
Warranty ........................................................................................................................................................32
Limited lifetime warranty ...........................................................................................................................32
What the warranty does not cover.............................................................................................................32
Warranty Service.......................................................................................................................................32
Who to contact for returns.........................................................................................................................32
How and where to send the returns ..........................................................................................................32
Customer pays non-compliant return costs...............................................................................................33
Non-warranty repair costs .........................................................................................................................33
Repaired non-warranty products...............................................................................................................33
This warranty is your only remedy.............................................................................................................33
Compliance information .................................................................................................................................34
Compliances .............................................................................................................................................34
UL Listed; C-UL Listed (Canada) .............................................................................................................34
FCC Regulations.......................................................................................................................................34
Canadian Regulations...............................................................................................................................34
European Regulations...............................................................................................................................34
Appendix A:.............................................................................................................................................................36
Technical Specifications..........................................................................................................................................36
SISTG10xx-111-LR(T) specifications, notices, and warnings ........................................................................36
Notices ......................................................................................................................................................37
Warnings...................................................................................................................................................37
ii
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Trademark, copyright, and product classification information

Trademark

Copyright restrictions

FCC warning

All trademarks and registered trademarks are the property of their respective owners.
© 2008 Transition Networks: All rights reserved. No part of this work may be reproduced or used in any form or by any means—graphic, electronic, or mechanical—without written permission from Transition Networks.
Printed in the U.S.A.
This equipment has been tested and found to comply with the limits for class A devices,
pursuant to part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and radiates radio frequency energy; therefore, if it is not installed and used in accordance with the instructions in this document, could cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference; the user will be required to correct the interference at the user’s own expense.

CE Mark

CE Marking (European Conformity): This is a Class A product. In a domestic
environment, this product could cause radio interference; as a result, the user may be required to take adequate preventative measures.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
iii
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

About this product and manual

Industrial Media Converter

Term/usage

About this manual

Manual structure

The SISTG10xx-111-LR(T) Industrial Media Converter provides a 10/100/1000Base-T (RJ-45) copper connection and a 1000Base-X fiber connection with either a fixed optical transceiver or an SFP port. These Media Converters are hardened devices designed to reliably operate in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.
In this manual, the term “Media Converter” (first letter upper case) refers to the SISTG10xx-111-LR(T) 10/100/1000Base-T to 1000Base-X Industrial Media Converter.
This manual provides instructions on how to install, configure, and operate the SISTG10xx-111-LR(T) 10/100/1000Base-T to 1000Base-X Industrial Media Converter.
This manual has a beginning table of contents; also, at the beginning of each section there is a table of contents. As you traverse the manual, note the side headings. These side headings make it easier to find specific information. The manual sections are as follows:
Section Description
I Media Converter general description, ordering information, package
contents and physical features/description
II Installation and operation of the Media Converter III Advanced features IV Cable Specifications
V Troubleshooting VI Contacting Transition Networks, product warranty and product compliance
information
Appendix A Presents product specifications, notices, and warnings
iv
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Cautions and warnings

Cautions and warnings

Cautions

Make sure that you read and understand all content identified by these two symbols:
Cautions and warnings appear here and throughout this manual where appropriate. Failure to read and understand the information identified by the “caution” and “warning” symbols could result in poor equipment performance, damage to equipment, or injury to persons.
Cautions indicate the possibility of damage to equipment.
CAUTION
Make sure that the Media Converter is mounted with proper space around it for ventilation (heat dissipation). Failure to observe this caution could result in damage to the Media Converter.
CAUTION
Please exercise caution when using power tools. Do not install this unit in damp or wet locations, or in close proximity to very hot surfaces. Failure to observe this caution could result in damage to the Media Converter and cables.
CAUTION
Only qualified persons should install the Media Converter. Failure to observe this caution
could result in poor performance or damage to the Media Converter.
CAUTION
Install the Media Converter in an environment where the temperature range will not exceed the stated environmental specifications for the particular model being installed. Failure to observe this caution could result in permanent damage to the Media Converter.
CAUTION
DO NOT install the Media Converter in areas where strong electromagnetic fields (EMF) exist. Failure to observe this caution could result in poor Media Converter performance and data corruption.
CAUTION
The Media Converter must be mounted to a well-grounded surface. Failure to observe this caution could result in EMI problems.
CAUTION
When connecting DC power wires to the terminal-block plug, pay close attention to the polarity markings shown near the terminal block of the Media Converter. Failure to observe this caution could result in damage to the equipment.
CAUTION
This is a Class A product. In a residential environment, this product could cause radio interference in which case the user may be required to take adequate corrective measures.
Continued on next page
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
v
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
Cautions and warnings, continued

Warnings

Warnings indicate the possibility of injury to persons.
WARNING
Be sure to disconnect power before installing and wiring the Media Converter. Failure to observe this warning could result in an electrical shock.
WARNING
Fiber optics: Visible and invisible laser radiation when open: DO NOT stare into the beam, or directly view the beam with optical instruments. Failure to observe this warning could result in an eye injury or blindness.
WARNING
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
vi
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

SISTG10xx-111 Industrial Media Converter

In this section

Section I

These are the topics:
Topic See Page
General description 2 SISTG10xx-111 Industrial Media Converter model numbers 3 Package Contents 4 Physical Description 5
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

General description

Overview
Features
The SISTG10xx-111 Industrial Media Converter can help eliminate EMI or RFI issues and help to overcome distance limitations with copper-based cabling by providing a fiber interface to transport data from copper-based industrial networking and communication devices over fiber optic cabling.
Each Media Converter can connect to either 10Base-T or 100Base-TX or 1000Base-T copper ports and provides a 1000Base-X fiber optic connection. Multiple connector options are offered as well as two distinct operating temperature ranges:
- Standard: -10°C to +50°C (14°F to +122°F)
- Extended: -40°C to +65°C (-40°F to +149°F)
The SISTG10xx-111 Industrial Media Converter has the following features:
Auto-Negotiation
AutoCrossTM
Link Pass Through
Dual, redundant auto-sensing 12 to 48VDC inputs with reverse polarity protection
and over current protection
Dry Contact Relay alarm output for failure of primary or redundant power input
IEEE 802.3x flow control support
Flow control on full-duplex
Back pressure on half-duplex
DIN-Rail mounting bracket (installed)
Wall mount brackets included
DIP-switches to set Power Alarm and Link Pass Through
Barrel connector interface cable included for use with external AC/DC power supply
(order separately)
IP30 protection metal enclosure
Lifetime Warranty
2
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

SISTG10xx-111 Industrial Media Converter part numbers

Standard models
The part numbers shown in Tables 1 and 2 perform as described in this manual.
Table 1: Industrial Media Converter Part Numbers
Standard Operating Temperature (-10°C to +50°C)
Part Number Port 1: 10/100/1000Base-T Port 2: 1000Base-X
SISTG1013-111-LR RJ-45
100 m (328ft)
SISTG1014-111-LR RJ-45
100 m (328ft)
SISTG1040-111-LR RJ-45
100 m (328ft)
Table 2: Industrial Media Converter Part Numbers
Extended Operating Temperature (-40°C to +65°C)
Part Number Port 1: 10/100/1000Base-T Port 2: 1000Base-X
SISTG1013-111-LRT RJ-45
100 m (328ft)
SISTG1014-111-LRT RJ-45
100 m (328ft)
SISTG1040-111-LRT RJ-45
100 m (328ft)
Note: The distances for ports 1 and 2 listed in Tables 1 and 2 are typical maximum
distances; the physical characteristics of the network will affect the actual distances.
SC, 850 nm multimode [62.5/125µm: 220 m/722 ft.] [50/125µm: 550 m/1804 ft.] SC, 1310 nm single mode 10 km (6.2 miles) SFP slot (empty)
SC, 850 nm multimode [62.5/125µm: 220 m/722 ft.] [50/125µm: 550 m/1804 ft.] SC, 1310 nm single mode 10 km (6.2 miles) SFP slot (empty)
Table 3: Optional Accessories (sold separately)
Part Number Description
SPS-UA12DHT-xx External power supply includes:
(1) AC/DC power supply, 100-240VAC input, 50-60Hz, 12VDC, 1.5A ouput, -25°C to +70°C operating temp. (1) Regional specific power cord (1) Barrel connector interface cable
Note: Replace the xx in the part number above with one of the following identifiers to match
the region where the Media Converter will be installed:
NA = North America JP = Japan OZ = Australia/New Zealand UK = United Kingdom EU = Europe SA = South Africa
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
3
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

Package contents

Package contents
Quantity Description 1 10/100/1000BaseT to 1000BaseX Industrial Media Converter 1 DIN-Rail mounting bracket (installed) 2 Wall mount brackets 8 Screws (for attaching wall-mount bracket) 1 Installation manual CD 1 Barrel connector interface cable
- For external AC/DC power supply (sold separately)
Compare the package contents of your industrial media converter with the standard checklist above. If any item is damaged or missing, please contact Transition Networks Technical Support.
4
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
1000
Mbps UTP port LED
Lin
k/Activity fiber port LED
DIP Switches 1
-2

Physical description

Physical dimensions
Front panel
Width: 1.2” [30mm] Height: 5.5” [140mm] Depth: 3.7” [95mm]
The front panel of the Media Converter is shown in Figure 1 with corresponding descriptions listed below:
Terminal block - power inputs / relay outputs
Fault LED Secondary power input 2 LED Primary power input 1 LED
1000Base-X Fiber Port – Fixed or SFP port (shown)
10/100/1000Base-T UTP port (RJ-45)
Link/Activity UTP port LED
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
Figure 1: SISTG10xx-111-LR(T) Industrial Media Converter (Front View)
Continued on next page
5
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
Physical description, continued
Bottom panel
The top view of the Media Converter is shown in Figure 2 with corresponding descriptions listed below:
6-position terminal block
Grounding Screw
Secondary power input terminals (2)
Figure 2: SISTG10xx-111-LR(T) Industrial Media Converter (Top View)
Contact relay output terminals (2)
Primary power input terminals (2)
Back panel
The back view of the Media Converter is shown in Figure 3 with corresponding descriptions listed below:
DIN Rail Clip (installed)
Metal spring
Screws (3)
Figure 3: SISTG10xx-111-LR(T) Industrial Media Converter (Back View)
6
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
In this section

Section II

Installation

These are the topics:
Topic See Page
DIN rail mounting 8 Wall mounting 10 Grounding the Media Converter 11 Connecting power to the Media Converter 12 Connecting an alarm fixture 16 Connecting fiber cable 18 Connecting copper cable 19 DIP switches 20 Light Emitting Diodes (LEDs) 21
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

DIN rail mounting

DIN rail clip
The Media Converter includes an aluminum DIN Rail Clip attached to the rear panel. Verify the clip is attached and oriented as pictured in Figure 4 below.
DIN Rail Clip (installed)
Metal spring
Screws (3)
DIN rail mounting considerations
Figure 4: Mounted DIN Rail Clip
Consider the following before mounting the DIN rail to a surface and attaching the Media Converter:
The surface must support at least 450g (1.0 lbs) for the Media Converter.
Do not place heavy objects on the Media Converter.
CAUTION
Mount the Media Converter with proper spacing around it for ventilation (heat dissipation). Failure to observe this caution could result in damage to the Media Converter.
CAUTION
Please exercise caution when using power tools. Do not install this unit in damp or wet locations, or in close proximity to very hot surfaces. Failure to observe this caution could result in damage to the Media Converter and cables.
Continued on next page
8
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
DIN rail mounting, continued
DIN rail mounting
To mount the Media Converter to the DIN rail, see Figure 5 and do the following:
Step Action
1. Align and then position DIN-Rail-clip spring to the top of the DIN rail as shown in Figure 5, step (a).
2. Press DOWN on the Media Converter and then IN to snap it into place on the DIN Rail. See Figure 5, step (b).
Figure 5: Industrial Media Converter Mounting to DIN Rail
To remove the Media Converter from the DIN rail, reverse the steps above.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
9
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
Converter

Wall mounting

Wall mount bracket
Wall mount bracket install
Locate wall mount brackets and screws
The Media Converter includes a wall mount bracket and screws in the contents of the shipping package. The wall mount bracket can be attached to the rear panel of the Media Converter to enable mounting to a vertical surface such as the wall of an enclosure. Locate the brackets (2) and screws (8) and follow the steps below to install the bracket on the Media Converter.
To install the wall mount bracket to the Media Converter, see Figure 6 and do the following:
Step Action
1. Remove existing screws (3) and DIN-Rail bracket from rear of Media Converter.
2. Locate wall mount brackets (2) and screws (8) from Media Converter packaging.
3. Place brackets in correct orientation as shown and insert and tighten screws to secure bracket to the top and bottom of Media Converter.
4. Mount assembled device to a wall per locally accepted practices for anchoring and securing. (Wall mount screws not included.)
2
10
Remove screws and
1
DIN rail bracket
Figure 6: Installing wall mount brackets to Industrial Media Converter
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
Screw brackets onto top and bottom of Media
3
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Grounding the Media Converter

CAUTION
Be sure to disconnect the Media Converter from the DC power source before installing and wiring the device.
Wiring considerations
The following wiring considerations are recommended:
Signal lines must not be directly connected to outdoor wiring.
Use separate paths or conduits to route wiring for power and device data cables. To avoid
interference, wires with different signal characteristics route separately. If power wiring and device data cables must cross make sure that the wires are perpendicular at the intersection point.
Use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is wiring that shares similar electrical characteristics can be bundled together.
Keep input and output wiring separated.
CAUTION
The Media Converter is intended to be grounded to a well-grounded mounting surface such as a metal plate. Install the grounding wire prior to connecting any other device to the Media Converter.
Media Converter grounding
Grounding the Media Converter helps limit the effects of noise due to electromagnetic interference (EMI) via proper grounding. Always run the ground connection from the ground screw to a grounding surface before connecting the Media Converter to a DC power source. See Figure 7.
Figure 7: Industrial Media Converter Ground Screw (Top Panel)
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
11
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
Power Input 2
Power Input 1

Connecting power to the Media Converter

Redundant power inputs
The Media Converter has dual (redundant) power inputs capable of auto-sensing the input voltage, while providing over current protection and reverse polarity protection.
The dual power inputs can be connected simultaneously to live DC power sources. See Figure
8. If one power source fails, the other live source acts as a backup, and automatically supplies
the Media Converter with power.
12
Figure 8: Redundant Power Connections
IMPORTANT
Power is supplied through an external 12-48 VDC power source. Check the Technical Specification section for details about the DC power input voltage.
The Media Converter does not include a power switch; therefore, plugging a wired and active terminal-block plug into its terminal block will immediately power ON the unit.
CAUTION
Before connecting the Media Converter to a DC power source, ensure the power source is stable.
CAUTION
This device is intended to be supplied by a listed power source marked LPS or Limited Power Source, provided with a connector for field wiring terminal.
CAUTION
This device is designed for operation with a safety extra-low voltage (SELV) in compliance with IEC950 / EN60950 / VDE0805 and in compliance with the low voltage directive 73/23/EEC and 93/68/EEC.
Continued on next page
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
Connecting power to the Media Converter, continued
Note: The terminal block can accept 12 – 24 AWG wire for power and alarm relay inputs.
Terminal-block wiring
To wire the 6-position terminal block for redundant power, do the following:
Note: The 6-position terminal-block plug is constructed (keyed) to mate with the Media
Converter terminal block. When wiring the plug for power, use the polarity markings next to the terminal block and on top of the plug to ensure proper connection.
Step Action
1. Turn the external power source OFF.
2. Strip the power wires as required.
3. Insert one stripped power wire into the terminal block plug. Observe polarity.
See Figure 9.
4. Secure the wire using a flathead screwdriver by tightening the contact screw.
See Figure 9.
5. Repeat Steps 3 and 4 until all wires are installed and secured.
Figure 9: 6-Position Terminal-Block (Primary/Redundant Power Wiring)
Continued on next page
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
13
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
Connecting power to the Media Converter, continued
Terminal-block wiring (continued)
Step Action
6.
Insert the terminal block plug into the Media Converter’s terminal block, as shown in Figure 10.
Figure 10: Wired Terminal Block Plug Inserted Into Media Converter
7.
8.
Make sure that the DC power source is stable and clean. Turn ON the power source and the PWR LED should turn ON along with PWR 1 LED and/or PWR 2 LED, depending on whether one or both power supplies are connected and turned ON.
14
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
Connecting power to the Media Converter, continued
Barrel connector interface cable
A barrel connector interface cable is included with the Media Converter and can be used to convert the barrel connector output of an external AC/DC power supply over to a wire interface that can then be inserted into the terminal block following the instructions and figure 9, both located on page 13 of this manual.
Note: An external AC/DC power supply is not included with the Media Converter.
Transition Networks offers an accessory power supply that can be purchased separately, if required. Please see optional accessories in the general information section of this manual for ordering information.
CAUTION
The operating temperature of the Media Converter, when used in conjunction with an AC/DC power supply will be limited to the lesser operating temperature range of either device.
For example: SISTG10xx-111-LRT (-40ºC to +65ºC operating temp) used with SPS-UA12DHT-xx (-25ºC to +65ºC operating temp)
Operating temp for combination is -25ºC to +65ºC
Step Action
1. Locate the barrel interface cable included in the Media Converter packaging.
2. Strip the power wires as required.
3. Insert one stripped power wire into the terminal block plug, Observe polarity. See Figure 9 on page 13.
4. Secure the wire using a flathead screwdriver by tightening the contact screw. See Figure 9 on page 13.
5. Repeat Steps 3 and 4 until all wires are installed and secured.
6. Locate an external AC/DC power supply with barrel connector interface and make sure the power supply is not plugged into any power source.
7. Insert barrel connector into the receptacle on the interface cable. See Figure 11.
External AC/DC power supply with barrel connector
Figure 11: Barrel Connector Interface Cable with external power supply
Step Action
8. Plug external AC/DC power supply into an external power source.
9. Turn ON or plug in the external power supply and the PWR LED should turn ON along with PWR 1 LED and/or PWR 2 LED, depending on whether one or both power supplies are connected and turned ON.
Barrel Connector Interface Cable
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
15
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
Alarm Relay Contacts

Connecting an alarm fixture

Alarm relay
The Media Converter has dry relay contacts for connecting an external alarm fixture. Located on the green terminal block on the top panel, the relay has “normally open” contacts that can be wired to form a circuit for triggering an external alarm when a fault occurs (light or audible alarm). See Figure 12.
Note: Normally open contacts are contacts that form an open circuit when there is a loss of
power to the device or when a fault occurs. Once power is applied to the Media Converter, the contacts will be closed and current will flow through the contacts.
Figure 12: Alarm Relay Contacts
Alarm relay wiring
To wire an alarm to the relay contacts, do the following:
Step Action
1. Verify that the external power source is turned OFF.
2. Strip the wires as required.
3. Wire the alarm relay as shown in Figure 13.
Figure 13: Alarm Relay Wiring
Continued on next page
16
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
Connecting an alarm fixture, continued
Fault indications
Wire the relay contacts to any warning light or audible alarm in the control room as shown in Figure 14. When a fault occurs, the relay contacts open, stopping the flow of current through the contact circuit. This will disable the external alarm or turn OFF a light, indicating a fault. An alarm will occur under the following conditions:
Power failure to either of the Media Converter power inputs:
o Power wires are disconnected, power source malfunction o Input power is out of this range: 12 – 48VDC
Figure 14: Alarm Relay Contacts
Note: DIP switch #1 (Power alarm) must be enabled [ON] for the contact relay circuitry to
work as described in the manual. Fault notification will not take place if the power alarm switch is disabled [OFF].
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
17
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

Connecting fiber cables

Fiber cable installation
When connecting fiber cables to the 1000BASE-X port on the Media Converter, make sure the correct type is used: LC or SC.
To install the fiber cables, do the following:
Step Action
1. Remove and keep the fiber-port protective dust cover(s).
Note: When not connected to a fiber cable, keep the protective cover(s) on the optical ports
to protect the optics and keep dust and debris from entering the optical interface.
2. Check that the fiber connectors on the fiber-optic cabling are clean. If necessary, clean the fiber connectors using locally accepted cleaning procedures.
Note: Dirty fiber connectors on fiber optic cables will impair light transmission quality
through the cable and lead to degraded performance on the port.
3. Connect the fiber cable as shown in Figure 15.

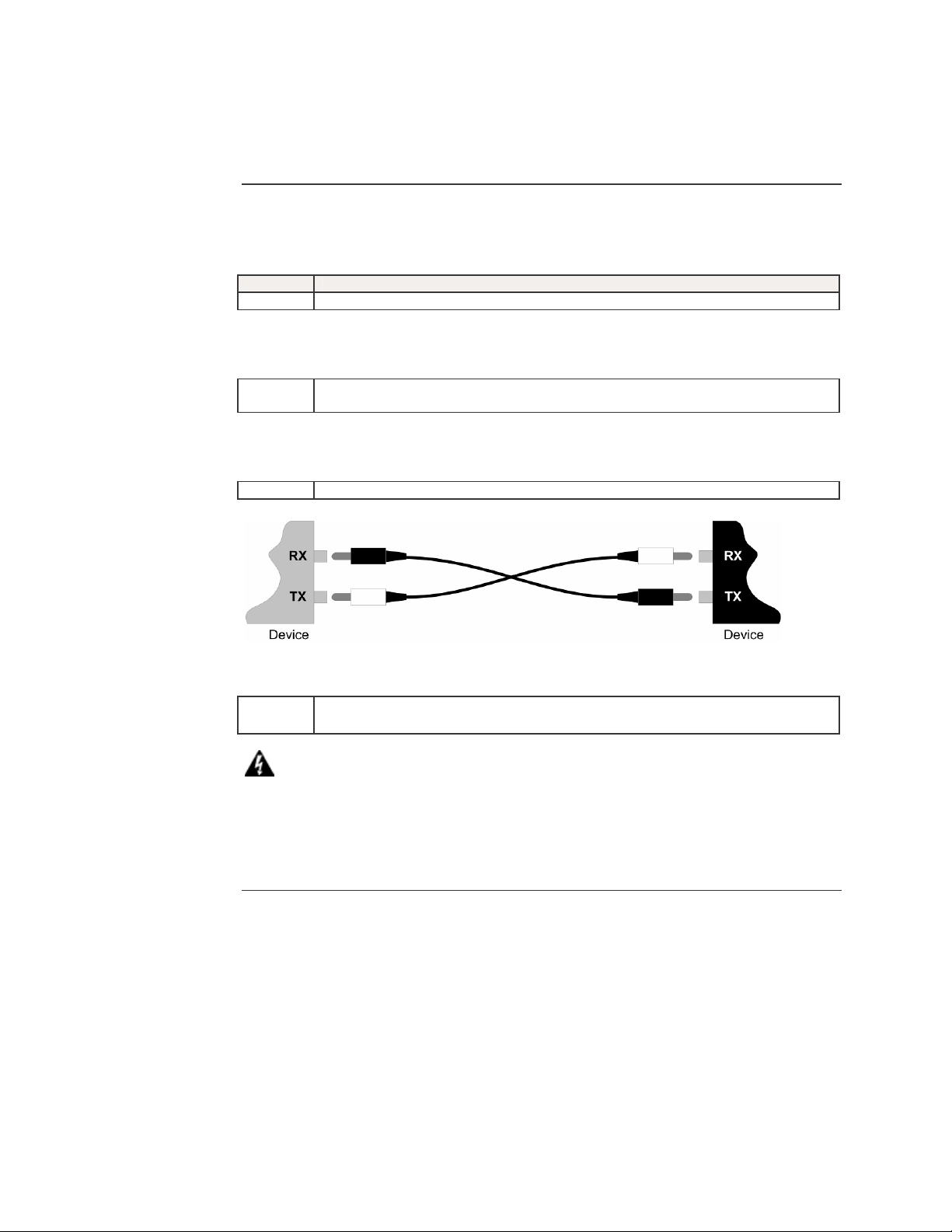

Figure 15: Fiber Cable Connections
4. Check the corresponding fiber port LED on the Media Converter to verify the connection—LNK/ACT LED should be lit.
Warning
Visible and invisible laser radiation when open: DO NOT stare into the beam, or directly view the beam with optical instruments. Failure to observe this warning could result in an eye injury.
Use of controls, adjustments or the performance of procedures other than those
specified herein may result in hazardous radiation exposure.
18
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Connecting copper cables

Copper cable installation
To connect the copper cable to the Media Converter and other equipment, do the following:
Step Action
1. Locate or build 10Base-T or 100Base-TX or 1000Base-T compliant copper cables with male, RJ-45 connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the media converter. See Figure 16 below.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (switch, workstation, PLC, etc.).
4. Check the copper port LED on the Media Converter to verify the connection— LNK/ACT LED should be lit.
Copper cable configuration
Figure 16: Copper Cable Installation
Either a straight-through or cross-over cable may be used. See Figure 17.

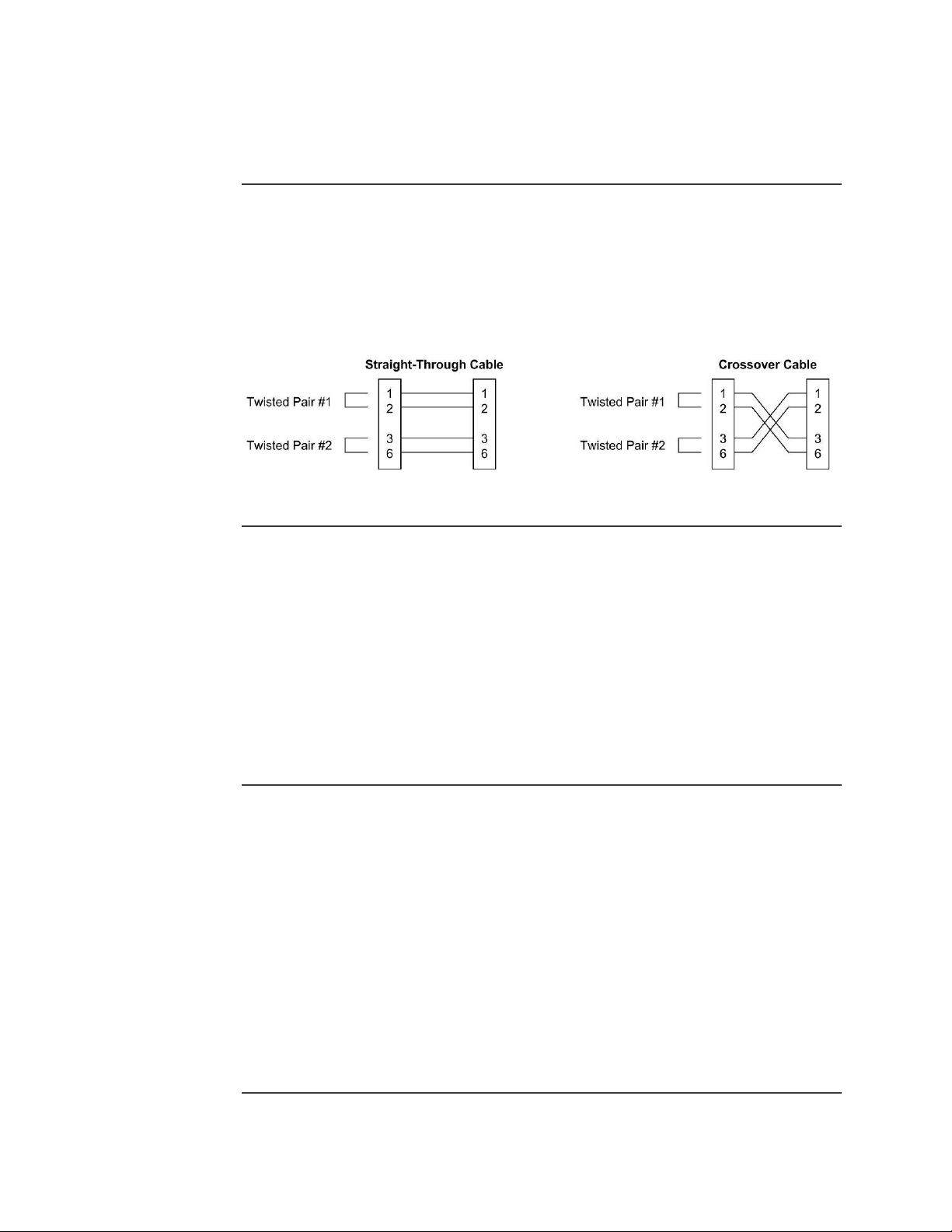

Figure 17: Straight-Through and Crossover Cables
Note: The AutoCrossTM feature determines the characteristics of the cable connection and
automatically configures the unit to link up, regardless of the cable configuration, allowing either straight-through (MDI) or crossover (MDI-X) cables to be used. (Requires no operator intervention.). See Advanced Features section for more information.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
19
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
ON

DIP Switches

DIP switch position descriptions
The Media Converter features two DIP switches on the front panel used to configure the Media Converter for use in a particular network setting. Figure 18 shows the DIP switches and a chart that explains each setting.
1 2
Figure 18: Dip Switch Settings and Explanations
ON
No Description Default
1
Power Alarm (enable ON, disable OFF)
If either PWR1 or PWR2 input fails, the fault LED will light up and the alarm contacts will open
2
Link Pass Through (enable ON, disable OFF)
See Advanced Features, Page xx
OFF
OFF
CAUTION
DIP switch changes will not become active until the Media Converter is power cycled (turned OFF then ON).
20
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Light Emitting Diodes (LEDs)

LEDs
The Media Converter has LED indicators located on its front panel. The LEDs present at-a­glance network status, and provide real-time connectivity information. Figure 19 shows the LEDs and a chart that explains the function of each.
LED Description
P1 Green = input power present on PWR1
input
P2 Green = input power present on PWR2
input
FAULT
LNK/ACT (Fiber port)
1000M Yellow = 1000Mbps
LNK/ACT (UTP port)
Red = Loss of either power input (DIP switch #1 must be enabled [ON])
Green = fiber link Green (blinking) = fiber port is receiving link pulses or data from a 1000Base-X compliant port
Off = 10Mbps or 100Mbps or no link Green = UTP link
Green (blinking) = UTP port is receiving link pulses or data from a 10/100/1000Base-T compliant port
Figure 19: LEDs and Description Chart
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
21
Introduction
In this section

Section III:

Advanced Features

This section provides an explanation of the advanced features on the Media Converter.
These are the topics:
Topic See Page
AutoCrossTM 23 Auto-Negotiation 23 Pause 23 Link Pass Through 24
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Advanced Features

AutoCrossTM
AutoCrossTM automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration allowing either straight-through (MDI) or crossover (MDI-X) cables to be used – see figure 20. No user intervention is required.
* Eliminates an entire category of troubleshooting * No need to identify cable type; straight-through or crossover * No user intervention required to determine correct button / switch settings
Figure 20: Straight-Through and Crossover Cables
Auto-Negotiation
(IEEE 802.3u)
Pause (IEEE 802.3xy)
Auto-Negotiation allows devices to perform automatic configuration to achieve the best possible mode of operation over a link. The Media Converter will broadcast its speed (10Mbps, 100Mbps, 1000Mbps) and duplex (half/full) capabilities to other devices and negotiate the best mode of operation between the two devices.
* No user intervention required to determine best mode of operation * Optimal link established automatically * Quick and easy installation
Note: If the Media Converter is connected to a non-negotiating device over the copper link,
it will default to 10Mb/s speed, half duplex mode.
PAUSE signaling is an IEEE feature that is used to temporarily suspend data transmission between two devices in the event that one of the devices becomes overwhelmed. In the event that a device needs some time to clear network congestion, it will send out a PAUSE signal to the other end device, which will then wait a pre-determined amount of time before re­transmitting the data. Transition's converters will pass PAUSE signaling unhindered; ensuring that the message is delivered to the end device.
* PAUSE enabled devices allowed to work properly * Prevents loss of valuable data transmission * Reduces bottlenecks and allows for efficient use of network devices
Note: PAUSE signaling is not standardized over fiber media. Transition's media converters
will communicate this signaling over fiber between the converters to pass this signaling on to the other end device.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
23
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter
x
Advanced Features, continued
Link Pass Through
Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal. In the event of a loss of RX signal on one media port, the converter will automatically disable the TX signal of the other media port, thus "passing through" the link loss. (see diagram below)
* End device automatically notified of link loss * Prevents loss of valuable data unknowingly transmitted over invalid link
Note: Once the fault condition is resolved, the LNK/ACT LED will blink for 2 ~ 6 seconds
while the connection is recovering from the failure.
Media converter A disables fiber TX
TX
Media
Converter A
End Device End Device
Figure 21: Link Pass Through illustration
RX
Media converter A
loses copper RX link
with end device
2
RX
TX
1
4
Media converter B disables
copper TX link notifying end
device of link loss
Media
Converter B
Media converter B
3
loses fiber RX link
24
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Section IV:

Cable Specifications

Introduction
In this section
This section provides copper and fiber cable specifications.
These are the topics:
Topic See Page
UTP cable specifications 26 Fiber cable and optic specifications 27
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
25
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

Copper (RJ-45) cable specifications

Copper cabling
Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) cabling may be used and can be configured as either Straight-through or crossover – see figure 22.
Figure 22: Straight-Through and Crossover Cables
Note: The AutoCrossTM feature determines the characteristics of the cable connection and
automatically configures the unit to link up, regardless of the cable configuration, allowing either straight-through (MDI) or crossover (MDI-X) cables to be used. (Requires no operator intervention.). See Advanced Features section for more information.
Copper cable specifications
RJ-45 pinouts
Wire category: Category 5 (minimum) Attenuation: 22.0 dB /100m @ 100 MHz Gauge: 24 to 22 AWG Maximum cable distance: 100 meters (328 ft)
Figure 23 shows the RJ-45 connector pin assignment chart for 10Base-T or 100Base-TX.
No MDI Signal Name MDI-X Signal Name
1 Receive Data + (RD+) Transmit Data + (TD+) 2 Receive Data - (RD-) Transmit Data - (TD-) 3 Transmit Data + (TD+) Receive Data + (RD+) 6 Transmit Data - (TD-) Receive Data - (RD-)
Figure 23: RJ-45 Connector Pin Assignment Chart
Note: The Media Converter is configured as a MDI-X device.
26
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Fiber cable and optic specifications

Fiber cable characteristics
Fiber optic specifications
Cable physical characteristics must meet or exceed IEEE 802.3™ specifications.
Parameter Specification
Bit Error Rate: <10-9 Single mode fiber: 9 µm Multimode fiber: 62.5/125 µm Multimode fiber: 100/140, 85/140, 50/125 µm
The following shows the fiber optic specification:
Fiber Cable Specifications
SISTG1040-111-LR(T)
Fiber-optic transmitter power: Fiber-optic receiver sensitivity: Link budget:
SISTG1013-111-LR(T)
Fiber-optic transmitter power: Fiber-optic receiver sensitivity: Link budget:
SISTF1014-111-LR(T)
Fiber-optic transmitter power: Fiber-optic receiver sensitivity: Link budget:
Values will be determined by the SFP used
850 nm multimode min: -9.0 dBm max: -1.0 dBm min: -19.0 dBm max: -1.0 dBm
10.0dB
1310 nm single mode min: -9.5 dBm max: -3.0 dBm min: -20.0 dBm max: -3.0 dBm
10.5 dB
Note: The fiber optic transmitters on this device meet Class I Laser safety requirements per
IEC-825/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
27
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

Section V:

Troubleshooting

Introduction
In this section
This section provides basic troubleshooting information for the Media Converter via a problem and corrective action table. The problems are stated in the problem column and the action(s) to take for the problem is stated in the corrective action column. If the corrective measures listed do not correct the problem, contact our 24-Hour Technical Support department at 1-800­260-1312, International: 00-1-952-941-7600.
These are the topics:
Topic See Page
Troubleshooting problem and corrective action table 29
28
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Troubleshooting problem and corrective action table

Problem Potential Cause Potential Solution
Media Converter does not power up
No link or activity on the UTP port
No link or activity on the Fiber port
Alarm contacts not working
Is the wired terminal-block plug fully inserted into the Media Converter?
Is the power LED lit?
Is the power LED lit?
Is the UTP cable properly installed
at both ends?
Is Link Pass Through enabled (DIP switch #2 ON)?
Note: LPT requires both a copper
and fiber connection at the same time to establish link
Is the power LED lit?
Is the Fiber cable properly installed
at both ends?
Is Link Pass Through enabled (DIP switch #2 ON)?
Note: LPT requires both a copper
and fiber connection at the same time to establish link
Is the wired terminal-block plug fully inserted into the Media Converter?
Is the alarm circuit wired for normally-open contacts?
Wire and insert the terminal-block plug into the Media Converter’s terminal block – See pages 12-16
Check that DC power is at the recommended levels.
Contact Technical Support. US/Canada: 1-800-260-1312, International: 00-1-952-941-7600
Check that the power is turned ON.
Verify that the cable at both ends is
properly inserted into the UTP port
Verify that both the fiber cable and UTP cables are properly installed on both ends
Disable DIP switch #2 (OFF) – if LNK/ACT lights, check the fiber cabling and re-enable DIP switch #2
Contact Technical Support. US/Canada: 1-800-260-1312, International: 00-1-952-941-7600
Check that the power is turned ON.
Verify that the cable at both ends is
properly inserted into the fiber port
Verify that both the fiber cable and UTP cables are properly installed on both ends
Disable DIP switch #2 (OFF) – if LNK/ACT lights, check the UTP cabling and re-enable SIP switch #2
Contact Technical Support. US/Canada: 1-800-260-1312, International: 00-1-952-941-7600
Wire alarm contacts and circuit and insert the terminal-block plug into the Media Converter’s terminal block – See pages 16-17
Check that alarm circuit is wired correctly – See pages 16-17
Contact Technical Support. US/Canada: 1-800-260-1312, International: 00-1-952-941-7600
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
29
Introduction
In this section
Section VI: Contact Us, Warranty, &

Compliance Information

This section explains how to contact Transition Networks via Phone, fax, email, and direct mail. It also explains:
What the warranty covers
Who to contact to return product
How and where to return the product
Industry standards compliance
These are the topics:
Topic See Page
Contact us 31 Warranty 32 Compliance information 34
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks

Contact us

Technical support
Live Web chat
Web-based training
E-Mail
Technical Support is available 24 hours a day. United States: 1-800-260-1312 International: 00-1-952-941-7600
Chat live via the Web with a Transition Networks Technical Support Specialist. Log onto www.transition.com and click the Transition Now link.
Transition Networks provides 8-10 seminars per month via live web-based training. Log onto www.transition.com and click the Learning Center link.
Ask a question anytime by sending an e-mail message to our technical support staff at: techsupport@transition.com
Address
Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. Telephone: 952-941-7600 Toll free U.S.A & Canada: 800-526-9267 Fax: 952-941-2322
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
31
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

Warranty

Limited lifetime warranty
What the warranty does not cover
Warranty Service
Effective for products shipped May 1, 1999 and after, every Transition Networks’ labeled product will be free from defects in material and workmanship for its lifetime. This warranty covers the original user only and is not transferable.
This warranty does not cover damage from accident, acts of God, neglect, contamination, misuse or abnormal conditions of operation or handling, including over-voltage failures caused by use outside the product’s specified rating, or normal wear and tear of mechanical components. If the user is unsure of the proper means of installing or using the equipment, contact Transition Networks’ free technical support services.
Transition Networks will at its option:
Repair the defective product to functional specification at no charge
Replace the product with an equivalent functional product
Refund the purchase price of a defective product
Who to contact for returns
How and where to send the returns
To return a defective product for warranty coverage, contact Transition Networks’ technical support department for a return authorization number (RAN). Transition’s technical support department can be reached through any of the following means:
Technical Support is available 24 hours a day:
Tel: 800-260-1312 x 200 or 952-941-7600 x 200
Fax: 952-941-2322
Email: techsupport@transition.com
Live web chat: Transition Now
Voicemail: 800-260-1312 x 579 or 952-941-7600 x 579
All messages will be answered within one hour
Send the defective product postage and insurance prepaid to the following address:
CSI Material Management Center c/o Transition Networks
10900 Red Circle Drive Minnetonka, MN 55343 U.S.A. Attn: RETURNS DEPT: Credit Return Authorization (CRA)# or Return Material Authorization
(RMA) # ___________
Failure to protect the product during shipping may void this warranty. The return authorization number must be written on the outside of the carton to ensure its acceptance. We cannot accept delivery of any equipment sent to us without a CRA or RMA number.
Continued on next page
32
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
Warranty, continued
Customer pays non-compliant return costs
Non-warranty repair costs
Repaired non­warranty products
The customer must pay the non-compliant product(s) return transportation cost to Transition Networks for evaluation of said product(s) for repair or replacement. Transition Networks will pay for shipping the repaired or replaced in-warranty product(s) back to the customer (any and all customs charges, tariffs, or/and taxes are the customer’s responsibility).
Before making any non-warranty repair, Transition Networks requires a $200 charge, plus actual shipping costs to and from the customer. If the repair is greater than $200, an estimate is issued to the customer for authorization of repair. If no authorization is obtained, or the product is deemed not repairable, Transition Networks will retain the $200 service charge and return the product to the customer not repaired.
Non-warranted products repaired by Transition Networks for a fee will carry a 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document.
Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.”
This warranty is your only remedy
This warranty is your only remedy. No other warranties, such as fitness for a particular purpose, are expressed or implied. Transition Networks is not liable for any special, indirect, incidental or consequential damages or losses, including loss of data, arising from any cause or theory. Authorized resellers are not authorized to extend any different warranty on Transition Networks’ behalf.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
33
Transition Networks SISTG10xx-111-LR(T) Industrial Media Converter

Compliance information

Compliances
UL Listed; C-UL Listed
(Canada)
FCC Regulations
Canadian Regulations
CISPR22/EN5022 Class A + EN55024; EN60950 Class A; FCC Class A; CE Mark
The following part numbers are UL Listed: SISTG1040-111-LR, SISTG1040-111-LRT, SISTG1013-111-LR, SISTG1013-111-LRT, SISTG1014-111-LR, SISTG1014-111-LRT.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at the user’s own expense.
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.
European Regulations
CUATION:
This is a Class A product. In a domestic environment, this product could cause radio interference in which case the user may be required to take adequate corrective measures.
Achtung ! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb
dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen verantwortlich.
Attention ! Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer
des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques appropriées.
34
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
European Regulations, (continued)
In accordance with European Union Directive 2002/96/EC of the European Parliament and of
the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’ portion of this document.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG­Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
35

Appendix A:

Technical Specifications

SISTG10xx-111-LR(T) specifications, notices, and warnings

Parameter Description
Standards IEEE 802.3™, IEEE 802.3ab, IEEE 802.3u,
IEEE 802.3x, IEEE 802.3z Regulatory Compliance for Emissions Safety Compliance UL 60950; cUL; CE/EN60950-1 EMI Compliance EN61000-4-2; EN61000-4-3; EN61000-4-4;
Environmental Compliance IEC60068-2-32 (Free fall)
Ports (1) fiber port single mode/multi-mode or SFP port
Fiber Optic Specifications
Max Distance
Max Data Rate Fiber: 1000 Mb/s
Signals TxD, RxD, CTS, RTS, DTR, DSR, RI, DCD, GND Power Consumption 5.3 watts Ingress Protection IP30 MTBF (MIL-HDBK-217F) SISTG1040-111-LR(T): 525,424 hours
Input Power 12 to 48 VDC, 0.2A-0.7A; dual, redundant auto-
Dimensions
Weight Shipping weight Standard Operating Temperature (-LR models only) Extended Operating Temperature (-LRT models only) Storage Temperature Operating Humidity Warranty Lifetime
CISPR/EN55022 Class A; FCC Class A; CE Mark;
EN61000-4-5; EN61000-4-6
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
(empty)
(1) RJ-45 port
850 nm Multimode
TX power: min: -9.0 dBm max: -1.0 dBm
RX power: min: -19.0 dBm max: -1.0 dBm
Link budget: 10.0dB
1310 nm Single mode
TX power: min: -9.5 dBm max: -3.0 dBm
RX power: min: -20.0 dBm max: -3.0 dBm
Link budget: 10.5dB
Fiber (fixed): up to 10km (6.2 miles)
Fiber (SFP): dependant on SFP
Copper: up to 100 meters (328 ft.)
Copper: 10Mb/s or 100Mb/s or 1000Mbps
SISTG10xx-111-LR(T): 443,839 hours
sensing inputs with reverse polarity and overload
current protection
Width: 1.2" [30 mm]
Depth: 3.7" [95 mm]
Height: 5.5" [140 mm]
0.45 kg (1.0 lbs)
0.59 kg (1.3 lbs)
-10ºC to +50ºC (32 ºF to 140ºF)
-40ºC to +65ºC (-40 ºF to 167ºF)
-40ºC to +85ºC (-40 ºF to 185ºF)
5% to 90% (non-condensing)
SISTG10xx-111-LR(T) Industrial Media Converter Transition Networks
SISTG10xx-111-LR(T) specifications, notices, and warnings, continued
Notices
Warnings
The information in this user’s guide is subject to change. For the most up-to-date information on the SISTG10xx-111-LR(T) Industrial Media Converter, please refer to the user’s guide on-line at: www.transition.com.
Product is certified by the manufacturer to comply with DHHS Rule 21/CFR, Subchapter J applicable at the date of manufacture.
IMPORTANT Copper based media ports: e.g., Twisted Pair (TP) Ethernet, USB, RS-232, RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra-building (inside plant) link segments that are not subject to lightening transients or power faults. Copper based media ports: e.g., Twisted Pair (TP) Ethernet, USB, RS-232, RS-422, RS­485, DS1, DS3, Video Coax, etc., are NOT to be connected to inter-building (outside plant) link segments that are subject to lightening transients or power faults. Failure to observe this caution could result in damage to equipment.
WARNING: Visible and invisible laser radiation when open: Do not stare into the beam
or view the beam directly with optical instruments. Failure to observe this warning could result in an eye injury or blindness.
WARNING: Use of controls, adjustments or the performance of procedures other than
those specified herein may result in hazardous radiation exposure.
24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
37
