SISTM10xx-162-LR(T)

(6) 10/100Base-TX + (2) 100Base-FX

Industrial Managed Switch

Installation Manual

Rev. 1

25-October-2007

Notice

This manual contents are based on the below table listing software kernel version, hardware version, and firmware version. If the switch functions have any different from the manual contents description, please contact Transition Networks for more information.











Firmware Version

v1.02













Kernel Version

v3.22













Hardware Version

A5.00



















FCC Warning

This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

Contents



Notice...........................................................................................................................................

1

FCC Warning ...............................................................................................................................

1

CE Mark Warning ........................................................................................................................

1

Introduction ...................................................................................................................................

1

Features.......................................................................................................................................

1

Package Contents .......................................................................................................................

2

Hardware Description ...................................................................................................................

3

Physical Dimension......................................................................................................................

3

Front Panel ..................................................................................................................................

3

Reset Button ..........................................................................................................................

3

Bottom View.................................................................................................................................

4

DIP-switch....................................................................................................................................

4

LED Indicators .............................................................................................................................

5

Ports ............................................................................................................................................

6

Cabling.........................................................................................................................................

8

Wiring the Power Inputs...............................................................................................................

8

Wiring the Fault Alarm Contact ....................................................................................................

8

Wiring the Fault Alarm Contact ....................................................................................................

9

Mounting Installation ..................................................................................................................

10

DIN-Rail Mounting .....................................................................................................................

10

Wall Mount Plate Mounting ........................................................................................................

11

Hardware Installation ..................................................................................................................

11

Hardware Installation ..................................................................................................................

12

Installation Steps .......................................................................................................................

12

Network Application....................................................................................................................

13

X-Ring Application .....................................................................................................................

14

Coupling Ring Application..........................................................................................................

15

Dual Homing Application............................................................................................................

15

Web-Based Management ............................................................................................................

16

About Web-based Management ................................................................................................

16

Preparing for Web Management ................................................................................................

16

System Login .............................................................................................................................

16

Port status..................................................................................................................................

17

Single Port Information ........................................................................................................

18

Port Statistics.............................................................................................................................

18

Port Control................................................................................................................................

19

Switch Setting ............................................................................................................................

19

Port Mirroring .............................................................................................................................

20

VLAN configuration ....................................................................................................................

21

Port-based VLAN .................................................................................................................

22

802.1Q VLAN.......................................................................................................................

23

802.1Q VLAN.......................................................................................................................

24

Alert ...........................................................................................................................................

27

Email Alert Configuration .....................................................................................................

27

Event Configuration .............................................................................................................

28

Power Alarm Configuration ..................................................................................................

29

IP Configuration .........................................................................................................................

29

SNTP Configuration ...................................................................................................................

30

IP Security .................................................................................................................................

32

RSTP Configuration ...................................................................................................................

32

System Configuration...........................................................................................................

33

Per Port Configuration .........................................................................................................

34

X-Ring........................................................................................................................................

35

QoS Configuration .....................................................................................................................

37

IGMP..........................................................................................................................................

38

Security Manager.......................................................................................................................

39

SNMP Configuration ..................................................................................................................

40

System Options....................................................................................................................

41

Community strings ...............................................................................................................

41

Trap Manager ......................................................................................................................

41

Configuration Backup.................................................................................................................

41

TFTP Restore Configuration ................................................................................................

41

TFTP Backup Configuration.................................................................................................

42

TFTP Update Firmware .............................................................................................................

42

Factory Default ..........................................................................................................................

43

System Reboot ..........................................................................................................................

43

Save Configuration ....................................................................................................................

44

Rate Control...............................................................................................................................

44

System Log................................................................................................................................

45

System Log Configuration....................................................................................................

45

Event Configuration .............................................................................................................

46

Troubles shooting .......................................................................................................................

48

Technical Specification...............................................................................................................

49

Introduction

The SISTM10xx-162-LRx Managed Industrial Switch is a cost-effective solution and meets the high reliability requirements demanded by industrial applications. The switch can be easily managed through the Web GUI. By using fiber port can extend the connection distance that increases the network elasticity and performance. It also provides the X-Ring function that can prevent the network connection failure.

Features

Conform to IEEE 802.3 10Base-T, 802.3u 100Base-TX/100Base-FX

6-port 10/100TX plus 2 100FX port industrial switch

RJ-45 port support auto MDI/MDI-X function

Store-and-Forward switching architecture

Wide-range redundant power design

DIN rail and wall mount design

2K MAC address table

Web management GUI

Per port supports 4 priority queues

Provides Fiber link ability

IEEE 802.3x flow control support

oFlow control with full-duplex

oBack pressure with half-duplex

Support Class of service

Support IGMP with Query mode for multi media application

Supports ingress packet filter and egress rate limit.

Support SNTP/SMTP

Port mirror for TX or TX and RX packet.

Alarm Relay output for system events

Support X-Ring function

Power polarity reverse protect

1Mbits Embedded memory

Support Port based VLAN / 802.1 Q Tag VLAN

IEEE 802.1p class of service and provide port base, Tag base and Type of service priority method

Support DHCP client

SNMP, Web Management, RMON supported

TFTP firmware update and system configure restore and backup

1

Package Contents

Please refer to the package content list below to verify them against the checklist.

SISTM10xx-162-LRx Managed Industrial Switch

DC Jack 2.0/150mm RoHS

User manual CD

DIN-Rail Bracket (attached on the switch)

One wall mount plate and six screws

SISTM10xx-162-LRx

DC Jack 2.0/150mm RoHS

User Manual CD

Wall Mount Plate

Screws

DIN-Rail Bracket (installed)

Compare the contents of the industrial switch with the standard checklist above. If any item is damaged or missing, please contact Transition Networks.

2

Hardware Description

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation.

Physical Dimension

54mm (w) x 135mm (h) x 105mm (d)

Front Panel

The Front Panel of the SISTM10xx-162-LRx Managed Industrial Switch is shown below:

Reset Button

The reset button provides user a quick and easy way to restart and set the configuration back to default value.

Restart: press the button for 2 seconds and release

Set to factory default value: press the button for 5 seconds and release. The switch will

3

set all configurations back to default setting

Bottom View

The bottom view of the switch is shown below:

Grounding Screw

6-position terminal block



Primary power input terminals (2)

Secondary power input

Contact relay output terminals (2)



DIP-switch

The switch provides the 9 DIP-switch for configuring the relay alarm operation mode and the master ring operation mode. The default value of Dipswitch is OFF.



















DIP Switch No





Status



Description



























OFF



Disable port 1 Alarm





1



















ON



Enable port Alarm. If the port’s link fails, the fault

























LED will light up









































OFF



Disable port Alarm





2



















ON



Enable port Alarm. If the port’s link fails, the fault

























LED will light up









































OFF



Disable port Alarm





3



















ON



Enable port Alarm. If the port’s link fails, the fault

























LED will light up









































OFF



Disable port Alarm





4



















ON



Enable port Alarm. If the port’s link fails, the fault

























LED will light up

















































4















OFF

Disable port Alarm





5











ON

Enable port Alarm. If the port’s link fails, the fault







LED will light up

























OFF

Disable port Alarm





6









ON

Enable port Alarm. If the port’s link fails, the fault













LED will light up

























OFF

Disable port Alarm





7









ON

Enable port Alarm. If the port’s link fails, the fault













LED will light up

























OFF

Disable port Alarm





8









ON

Enable port Alarm. If the port’s link fails, the fault













LED will light up

























OFF

Disable the ring master function





9









ON

Enable the switch as the ring master in the X-Ring













group































[NOTE]

1.When port alarm function is enabled, the fault LED will on and Alarm relay will activity when port failure occurs.

2.Please restart the switch after the X-Ring DIP switch is set.

LED Indicators

There are 7 diagnostic LEDs located on the front panel of the industrial switch. They provide realtime information of system and optional status. The following table provides description of the LED status and their meanings for the switch.

















LED



Status



Meaning























Green



The switch unit is power on















Power

















Off



The switch unit is no power input

































Green



Power on





Power 1

















Off



No power inputs





























Power 2



Green



Power on







































5















Off

No power inputs

















Yellow

Power failure or UTP port failure or Fiber port







failure













Fault











Off

No Power failure or UTP port failure or Fiber port







failure occurs

























Green

The industrial switch is the master of X-Ring







group













R.M. (Ring Master)











Off

The industrial switch is not a ring master in X-







Ring group

























Green

The port is linking





LNK/ACT









Blinks

The port is transmitting or receiving packets











(Fiber port)

from the TX device

























Off

No device attached

































Yellow

The port is operating in full-duplex mode





FDX/COL









Blinks

Collision of Packets occurs in the port















(Fiber Port)











Off

The port in half-duplex mode or no device







attached































Ports

RJ-45 ports

There are 6x 10/100Mbps auto-sensing ports for 10Base-T or 100Base-TX devices connection. The UTP ports will auto-sense for 10Base-T or 100Base-TX connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing straight through or crossover cabling. See the below figures for straight through and crossover cable schematic.

RJ-45 Pin Assignments



Pin Number

Assignment













1

Tx+













2

Tx-













3

Rx+













6

Rx-



















[NOTE] “+” and “-” signs represent the polarity of the wires that make up each wire pair.

6

All ports on this industrial switch support automatic MDI/MDI-X operation, user can use straightthrough cables (See figure below) for all network connections to PCs or servers, or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below shows the 10BASE- T/100BASE-TX MDI and MDI-X port pin outs.













Pin MDI-X

Signal Name

MDI Signal Name















1

Receive Data plus (RD+)

Transmit Data plus (TD+)















2

Receive Data minus (RD-)

Transmit Data minus (TD-)















3

Transmit Data plus (TD+)

Receive Data plus (RD+)















6

Transmit Data minus (TD-)

Receive Data minus (RD-)























Straight Through Cable Schematic

Cross Over Cable Schematic

Fiber Port

There are two 100Base-FX ports. The fiber port is ST type connector in multi mode (2Km) or single

mode (30Km).

7

ATTENTION

This is a Class 1 Laser/LED product. Don’t stare into the Laser/LED Beam.

Cabling

Using four twisted-pair, Category 5 cabling for RJ-45 port connection. The cable between the converter and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.

Fiber segment using single-mode connector type must use 9/125 um single-mode fiber cable. User can connect two devices in the distance up to 30 Kilometers.

Fiber segment using multi-mode connector type must use 50 or 62.5/125 um multi-mode fiber cable. User can connect two devices up to 2Km distances.

Wiring the Power Inputs

Please follow below steps to insert the power wire.

V- V+

V- V+

1.Insert the positive and negative wires into the V+ and V- connector on the terminal block connector.

2.To tighten the wire-clamp screws for preventing the DC wires to loose.

[NOTE] The wire range of terminal block is from 12~ 24 AWG.

8

Wiring the Fault Alarm Contact

The fault alarm contact is in the middle of terminal block connector as below figure shows. By inserting the wires and set the DIP switch at “ON” status, it will detect the fault status which the power is failure or port link failure and form an open circuit. And, application example for the fault alarm contact as below:

1A@24V

Insert the wires into the fault alarm contact

[NOTE] The wire range of terminal block is from 12~ 24 AWG.

Fault Alarm Contact

The open circuit will form when the power failure or port link failure.

24V DC Buzzer





24V Battery

















The fault alarm device will send a warning signal to warn the user, ex: alarm sound or flash light.

9

Mounting Installation

DIN-Rail Mounting

The DIN-Rail is screwed on the industrial switch when out of factory.

1.First, insert the top of DIN-Rail into the track.

2.Then, lightly push the DIN-Rail into the track.

10

3.Check the DIN-Rail is tightly on the track.

4.To remove the industrial switch from the track, reverse steps above.

Wall Mount Plate Mounting

Follow the below steps to mount the industrial switch with wall mount plate.

1.Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-Rail.

2.Place the wall mount plate on the rear panel of the industrial switch.

3.Use the screws to screw the wall mount plate on the industrial switch.

4.Use the hook holes at the corners of the wall mount plate to hang the industrial switch on the wall.

5.To remove the wall mount plate, reverse steps above.

Screwing the wall mount plate on the Industrial media converter

11

Hardware Installation

Installation Steps

1.Unpacking the Industrial switch

2.Check the DIN-Rail is screwed on the Industrial switch. If the DIN-Rail is not screwed on the Industrial switch. Please refer to DIN-Rail Mounting section for DIN-Rail installation. If user want to wall mount the Industrial switch, then please refer to Wall Mount Plate Mounting section for wall mount plate installation.

3.To hang the Industrial switch on the DIN-Rail track or wall, please refer to the Mounting Installation section.

4.Power on the Industrial switch. How to wire the power; please refer to the Wiring the Power Inputs section. The power LED on the Industrial switch will light up. Please refer to the LED Indicators section for meaning of LED lights.

5.Prepare the twisted-pair, straight through Category 5 cable for Ethernet connection.

6.Insert one side of RJ-45 cable (category 5) into the Industrial switch Ethernet port (RJ-45 port) and another side of RJ-45 cable (category 5) to the network devices’ Ethernet port (RJ-45 port), ex: Switch PC or Server. The UTP port (RJ-45) LED on the Industrial switch will light up when the cable connected with the network device. Please refer to the LED Indicators section for LED light meaning.

[NOTE] Be sure the connected network devices support MDI/MDI-X. If it does not support then

use the crossover category-5 cable.

7.When all connections are all set and LED lights all show in normal, the installation is complete.

12

Network Application

This chapter provides some sample applications to help user to have more actual idea of industrial switch function application. A sample application of the industrial switch is as below:

13

X-Ring Application

The industrial switch supports the X-Ring protocol that can help the network system to recovery from network connection failure within 300ms or less, and make the network system more reliable. The X- Ring algorithm is like as spanning tree protocol (STP) algorithm but it has faster recovery time than STP. The following figure is a sample X-Ring application.

14

Coupling Ring Application

In the network, it may have more than one X-Ring group. By using the coupling ring function can connect each X-Ring for the redundant backup. It can ensure the transmissions between two ring groups will no failure. The following figure is a sample of coupling ring application.

Dual Homing Application

Dual Homing function is to prevent a lost connection between X-Ring group and upper level/core switch. Assign two ports to be the Dual Homing port that is backup port in the X-Ring group. The Dual Homing function only works when the X-Ring function is active. Each X-Ring group only has one Dual Homing port.

[NOTE] In Dual Homing application architecture, the upper level switches need to enable the Rapid Spanning Tree protocol.

15

Web-Based Management

About Web-based Management

On CPU board of the switch there is an embedded HTML web site residing in flash memory, which offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

The Web-Based Management supports Internet Explorer 6.0. And, it is applied for Java Applets for reducing network bandwidth consumption, enhance access speed and present an easy viewing screen.

Preparing for Web Management

Before to use web management, install the industrial switch on the network and make sure that any one of PC on the network can connect with the industrial switch through the web browser. The industrial switch default value of IP, subnet mask, username and password is as below:

IP Address: 192.168.16.1

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.16.254

User Name: root

Password: root

System Login

1.Launch the Internet Explorer on the PC

2.Key in “http:// “+” the IP address of the switch”, and then Press “Enter”.

3.The login screen will appear right after

4.Key in the user name and password. The default user name and password as “root”

5.Press “Enter” or ”OK”, and then the home screen of the Web-based management appears as below:

16

Function Menu Bar

Home Interface

Panel Figure Display

Configuration Display Screen

Port status

View every port status that depended on user’s setting and the negotiation result

Port: The port number

Type: The speed mode, ex: 100TX = 100Mbps

Link: “Down” means “No Link”. “UP” is for “Link”

State: Display port statuses “disable” or “enable”. “Unlink” will be treated as “off”

Negotiation: Display the auto negotiation mode: auto/force. “Config” means the value that user configured. “Actual” means the current value of the port

Speed Duplex: Display port connection speed. “Config” means the value that user configured. “Actual” means the current value of the port

Flow Control: Display the flow control status is “enable” or “disable” in full mode. “Config” means the value that user configured. “Actual” is for the current value of the port

Port Status interface

17

Single Port Information

Click the port on the Panel figure on the web interface directly. Then, the single port information

window will show up and display the port current information.

Port information interface

Port Statistics

The following information provides the current port statistic information



Click

Clear

button to clean all counts

Port Statistics Interface

18

Port Control

Change the port status

Select the port by scroll the Port column

State: Disable or enable control of this port

Negotiation: Set auto negotiation mode is Auto, Nway (specify the speed/duplex on this port and enable auto-negotiation), or Force

Speed: Set the speed of the port

Duplex: Set full-duplex or half-duplex mode of the port

Flow control: Set flow control function is Symmetric or Asymmetric in Full Duplex mode. The default value is Disable

And then, click

Apply

button to apply all configuration

When user select the port, user can see port current configure shows in below column

Port Control interface

Switch Setting

Assigning the system name, location and view the system information

System Name: Assign the name of switch. The maximum length is 64 bytes

System Description: Display the description of switch. Read only cannot be modified

System Location: Assign the switch physical location. The maximum length is 64 bytes

System Contact: Enter the name of contact person or organization

Firmware Version: Display the switch’s firmware version

Kernel Version: Display the kernel software version

19

Hardware version: Display the switch hardware version

MAC Address: Display the unique hardware address assigned by manufacturer (default)

Switch settings interface

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

Port Mirroring

The Port mirroring is a method for monitor traffic in switched networks. Traffic through ports can be monitored by one specific port. That is, traffic goes in or out monitored ports will be duplicated into mirror port.

Port Mirroring Mode: Set mirror mode -- Disable, TX, and Both. The default value is “Disable”

Analysis Port: It means mirror port can be used to see all monitor port traffic. User can connect mirror port to LAN analyzer or Netxray

Monitor Port: The ports user wants to monitor. All monitor port traffic will be copied to mirror port. User can select max 7 monitor ports in the switch. User can choose which port that wants to monitor in only one mirror mode. Mark the State check box to select the port

And then, click

Apply

20

Port Mirroring interface

[NOTE]

1.Select the monitor mode as disable to disable the mirroring

2.Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

VLAN configuration

A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would, allow you to isolate network traffic so only the members of the VLAN will receive traffic from the same members of VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch. However, all the network devices are still plugged into the same switch physically.

The industrial switch supports port-based and 802.1Q (tagged-based) VLAN. In the default configuration, VLAN operation mode default is “Disable”.

21

VLAN Configuration interface

Port-based VLAN

Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored.

In order for an end station to send packets to different VLAN groups, it itself has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.

VLAN – PortBase interface

22

Click Add to add a new VLAN group(The maximum VLAN group is up to 64 VLAN groups)

Entering the VLAN name, group ID and grouping the members of VLAN group

And then, click

Apply

VLAN—PortBase Add interface

The VLAN group will list

• To view the another VLAN groups, click Next Page

To delete unwanted VLAN, click

Delete

button

To modify existing VLAN group, press

Edit

button

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

23

802.1Q VLAN

Tagged-based VLAN is an IEEE 802.1Q specification standard which it allows to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.

All ports on the switch belong to default VLAN, VID is 1. The default VLAN can’t be deleting. The maximum VLAN group is up to 64 VLAN groups.

802.1q VLAN interface

Basic VLAN

Click

Add

button

Management VLAN ID: It is used for Remote Management Security. In fact, it can remote management that includes telnet, SNMP, and Web browse the switch, only when the port of VLAN group ID is equal to the Management VLAN ID. Fill the specific VLAN ID number in Management VLAN ID column and mark the check box,

and then click

Apply

button to enable the function. For example: the

management VLAN ID is 101, the VLAN group ID 101 includes the port 1, 2, and 4. Therefore, only port 1, 2, and 4 can remote management the switch. And, if the port is in two different VLAN groups and one of VLAN group ID is equal to the assigned Management VLAN ID, it still has the right to remote management the switch.

Group Name: Assign a name for the new VLAN

VLAN ID: Key in a VLAN ID (2~4094). The default is 1

24

Grouping the ports and click

Add

button

802.1q VLAN –Add interface

And then, click

Next

then follow interface as below.

25

Click Apply to set the outgoing frames are VLAN-Tagged frames or untagged

Tag: Outgoing frames with VLAN-Tagged

Untag: Outgoing frames without VLAN-Tagged

Port VLAN ID

Configure port VID settings

Port VLAN ID: Enter the port VLAN ID

And then, click

Apply

To reset back to default value, click

Default

button

802.1q VLAN – Port VLAN ID interface

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

26

Alert

There are three kinds of alert – e-mail, event, and power alarm for user to configure.

Email Alert Configuration

When the specific events occur, the system will send the alert to the email account that is assigned by user. User can set up the mail server IP, mail account, and forwarded email account for receiving the event alert.

Email Alert: To enable or disable the email alert function

SMTP Server IP Address: Set up the mail server IP address

Authentication: Mark the check box to enable and configure the email account and password for authentication

Mail Account: Set up the email account to receive the alert. Ex: johnadmin@123.com. The email account must exist on the mail server, which user had set up in SMTP Server IP Address column

Password: The email account password

Confirm Password: Re-confirm the password

E-mail Address of Receipient 1 ~ 4: Assign up to 4 e-mail accounts also to receive the alert



And then, click

Apply

Email Alert Configuration interface

27

Event Configuration

The selected events that occur will send out the alert to the assigned SMTP server. Also, user can select port events for alerting.

System event selection: 4 selections – Device cold start, Power status, SNMP Authentication Failure, and X-Ring topology changes. Mark the checkbox to select the event. When selected events occur, the system will sent out the alerting

Device cold start: When the device executes cold start action, the system will send out the alert to the dedicate SMTP server

Power status: When the device power status has changed, the system will send out the alert to the dedicate SMTP server

SMNP Authentication Failure: When the SNMP authentication fail, the system will send out the alert to the dedicate SMTP server

X-Ring topology change: When the X-Ring topology has changed, the system will send out the alert to dedicate SMTP server

Port event selection: Select the per port events. Per port has 3 selections – Link UP, Link Down, and Link UP & Link Down. Disable means no event is selected

Link UP: The system will send out an alert when port connection is up only

Link Down: The system will send out an alert message when port connection is down only

Link UP & Link Down: The system will send out an alert message when port connection is up and down

After selected, click

Apply

Event Configuration interface

28

Power Alarm Configuration

Power alarm function enables the Relay alarm action. Without enabling power alarm function, the Relay alarm action will not work even the Relay alarm is set.

Mark the check box and click

Apply

button

Power Alarm interface

IP Configuration

User can configure the IP Settings and DHCP client function

DHCP Client: To enable or disable the DHCP client function. When DHCP client function is enabling, the industrial switch will be assigned the IP address from the network DHCP server. The default IP address will be replace by the DHCP server assigned IP address. After user click “Apply” button, a popup dialog show up. It is to inform the user that when the DHCP client is enabling, the current IP will lose and user should find the new IP on the DHCP server. To cancel the enabling DHCP client function, click “cancel”

IP Address: Assign the IP address that the network is using. If DHCP client function is enabling, and then user don’t need to assign the IP address. And, the network DHCP server will assign the IP address for the industrial switch and display in this column. The default IP is 192.168.16.1

Subnet Mask: Assign the subnet mask of the IP address. If DHCP client function is enabling, and then user do not need to assign the subnet mask

Gateway: Assign the network gateway for the industrial switch. The default gateway is 192.168.16.254

And then, click

Apply

button

29

IP configuration interface

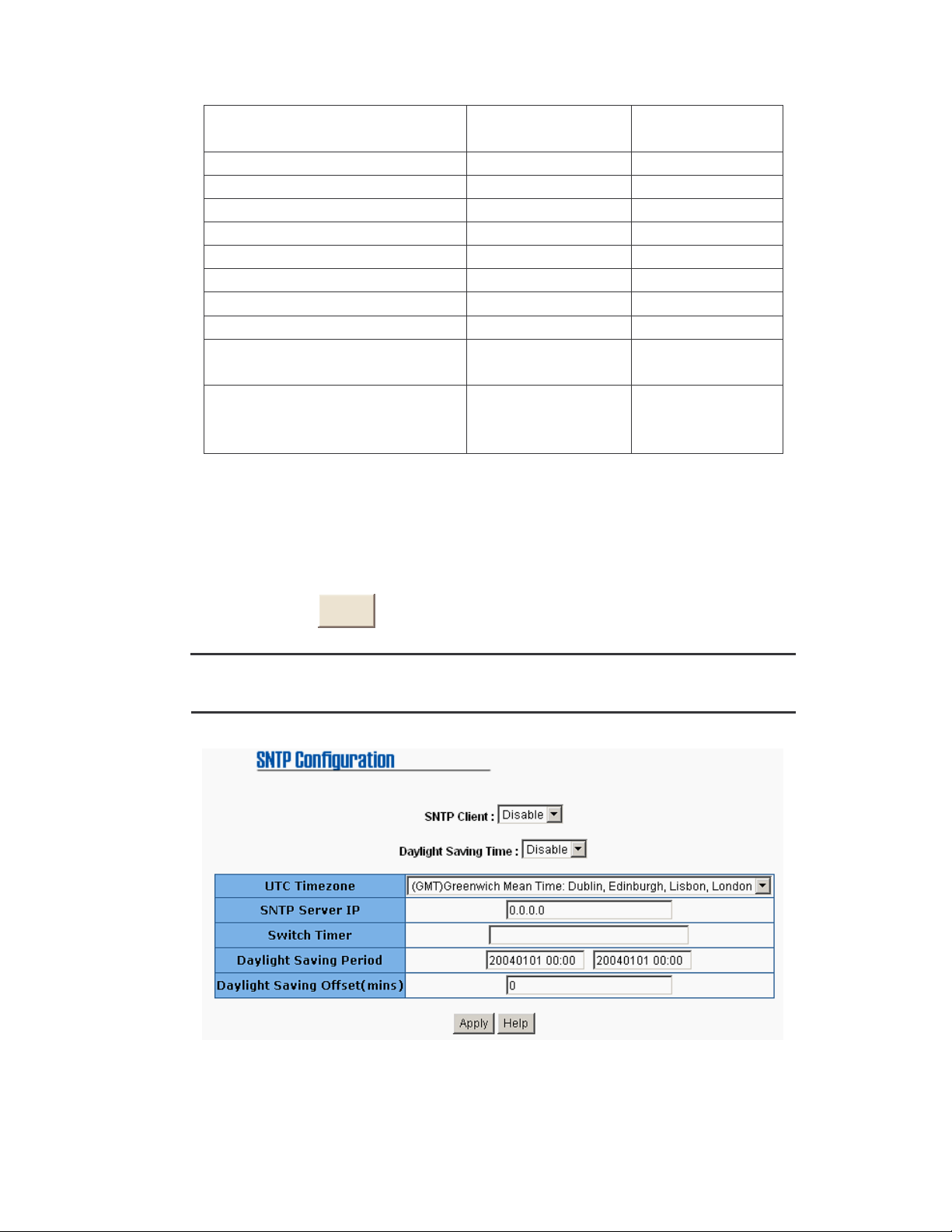

SNTP Configuration

User can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows user to

synchronize switch clocks in the Internet.

SNTP Client: To enable or disable SNTP function to get the time from the SNTP server

Daylight Saving Time: To enable or disable daylight saving time function. When daylight saving time is enabling, user need to configure the daylight saving time period

UTC Timezone: Set the switch location time zone. The following table lists the different location time zone for the reference. User also can drag down the list to find the time zone user want it.

Local Time Zone

Conversion from UTC

Time at 12:00 UTC







November Time Zone

- 1 hour

11am







Oscar Time Zone

-2 hours

10 am







ADT - Atlantic Daylight

-3 hours

9 am







AST - Atlantic Standard

-4 hours

8 am

EDT - Eastern Daylight











EST - Eastern Standard

-5 hours

7 am

CDT - Central Daylight











CST - Central Standard

-6 hours

6 am

MDT - Mountain Daylight











MST - Mountain Standard

-7 hours

5 am

PDT - Pacific Daylight











PST - Pacific Standard

-8 hours

4 am

ADT - Alaskan Daylight











ALA - Alaskan Standard

-9 hours

3 am







HAW - Hawaiian Standard

-10 hours

2 am







Nome, Alaska

-11 hours

1 am







CET - Central European





FWT - French Winter

+1 hour

1 pm

MET - Middle European











30

MEWT - Middle European Winter





SWT - Swedish Winter











EET - Eastern European, USSR Zone 1

+2 hours

2 pm







BT - Baghdad, USSR Zone 2

+3 hours

3 pm







ZP4 - USSR Zone 3

+4 hours

4 pm







ZP5 - USSR Zone 4

+5 hours

5 pm







ZP6 - USSR Zone 5

+6 hours

6 pm







WAST - West Australian Standard

+7 hours

7 pm







CCT - China Coast, USSR Zone 7

+8 hours

8 pm







JST - Japan Standard, USSR Zone 8

+9 hours

9 pm







EAST - East Australian Standard GST

+10 hours

10 pm

Guam Standard, USSR Zone 9











IDLE - International Date Line





NZST - New Zealand Standard

+12 hours

Midnight

NZT - New Zealand











SNTP Sever IP: Set the SNTP server IP address

Switch Timer: Display the switch current time

Daylight Saving Period: Set up the Daylight Saving beginning and ending time. Daylight Saving beginning and ending time will be different in every year

Daylight Saving Offset (mins): Configure the offset value

And then, click

Apply

button

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

SNTP Configuration

31

IP Security

IP security function allows user to assign 10 specific IP addresses that have permission to access

the switch through the web browser for the securing switch management.

Enable the IP Security: Mark the check box to enable the IP security function

Security IP 1 ~ 10: Assign up to 10 specific IP address. Only these 10 IP address can access and manage the switch through the Web browser

And then, click

Apply

button to apply the configuration

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

IP Security Interface

RSTP Configuration

The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol.

32

System Configuration

User can view spanning tree information about the Root Bridge



User can modify RSTP state. After modification, click

Apply

button

RSTP mode: user must enable or disable RSTP function before configure the related parameters

Priority (0-61440): a value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root. If the value changes, user must reboot the switch. The value must be multiple of 4096 according to the protocol standard rule

Max Age (6-40): the number of seconds a bridge waits without receiving Spanning-tree Protocol configuration messages before attempting a reconfiguration. Enter a value between 6 through 40

Hello Time (1-10): the time that controls switch sends out the BPDU packet to check RSTP current status. Enter a value between 1 through 10

Forward Delay Time (4-30): the number of seconds a port waits before changing from its Rapid Spanning-Tree Protocol learning and listening states to the forwarding state. Enter a value between 4 through 30

[NOTE]

1.Must follow the rule to configure the MAX Age, Hello Time, and Forward Delay Time

2 x (Forward Delay Time value –1) > = Max Age value >= 2 x (Hello Time value +1)

2.Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off

33

RSTP– System Configuration Interface

Per Port Configuration

Configure path cost and priority of every port

Select the port in Port column

Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified port. Enter a number 1 through 200000000

Priority: Decide which port should be blocked by priority in LAN. Enter a number 0 through 240. The value of priority must be the multiple of 16

Admin P2P: Some of the rapid state transactions that are possible within RSTP are dependent upon whether the port concerned can only be connected to exactly one other bridge (i.e. it is served by a point-to-point LAN segment), or can be connected to two or more bridges (i.e. it is served by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True is P2P enabling. False is P2P disabling

Admin Edge: The port directly connected to end stations cannot create bridging loop in the network. To configure the port as an edge port, set the port to “True” status

Admin Non Stp: The port includes the STP mathematic calculation. True is not including STP mathematic calculation. False is including the STP mathematic calculation

And then, click

Apply

button

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

34

RSTP – Per Port Configuration interface

X-Ring

X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar with STP or RSTP, but the algorithms not the same.

In the X-Ring topology, every switch should enable X-Ring function and assign two member ports in the ring. Only one switch in the X-Ring group would be set as a backup switch that one of two member ports would be blocking, called backup port, and another port is called working port. Other switches are called working switches and their two member ports are called working ports. When the network connection failure, the backup port will automatically become a working port to recovery the failure.

The switch supports one Dipswitch for setting the switch as the ring master or slave mode. The ring master has the rights to negotiate and place command to other switches in the X-Ring group. If there are 2 or more switches are in master mode, then software will select the switch with lowest MAC address number as the ring master. The X-Ring master ring mode will be enabling by the DIP Switch. When the switch is set to the master ring mode, the X-Ring configuration interface will display the switch as the master ring message. Also, user can identify the switch as the ring master from the R.M. LED panel of the LED panel on the switch.

35

The system also supports the coupling ring that can connect 2 or more X-Ring group for the redundant backup function and dual homing function that prevent connection lose between X-Ring group and upper level/core switch.

Enable X-Ring: To enable the X-Ring function. Marking the check box to enable the X-Ring function.

1st & 2nd Working Ports: Assign two ports as the member ports. One port will be working port and one port will be the backup port. The system will automatically decide which port is working port and which port is backup port.

Enable Coupling Ring: To enable the coupling ring function. Marking the check box to enable the coupling ring function.

Coupling port: Assign the member port.

Control port: Set the switch as the master switch in the coupling ring.

Enable Dual Homing: Set up one of port on the switch to be the Dual Homing port. In an X-Ring group, maximum Dual Homing port is one. Dual Homing only work when the X-Ring function enable.

And then, click

Apply

to apply the configuration.

X-Ring Interface

[NOTE]

1.When the X-Ring function enable, user must disable the RSTP. The X-Ring function and RSTP function cannot exist at the same time.

2.Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

36

QoS Configuration

Configure Qos setting of the every port

Oos Policy: Select the Qos policy rule

Using the 8,4,2,1 weight fair queue scheme: The switch will follow 8:4:2:1 rate to process priority queue from Hi to lowest queue. For example: the system will process 8 high queue packets, 4 middle queue packets, 2 low queue packets, and the one lowest queue packets at the same time

Use the strict priority scheme: The higher queue will always be process first, except higher queue is empty

Priority Type: Every port has 5 priority type selections

Port-base: The port priority will follow the default port priority that user have assigned – High, middle, low, or lowest

COS only: The port priority will only follow the COS priority that user have assigned

TOS only: The port priority will only follow the TOS priority that user have assigned

COS first: The port priority will follow the COS priority first, and then other priority rule

TOS first: The port priority will follow the TOS priority first, and the other priority rule

COS priority: Set the COS priority level 0~7

TOS priority: The system provides 0~63 TOS priority level. Each level has 4 types of priority – high, mid, low, and lowest. The default value is “Lowest” priority for each level. When the IP packet is received, the system will check the TOS level value in the IP packet has received. For example: user set the TOS level 25 is high. The port 1 is following the TOS priority policy only. When the packet received by port 1, the system will check the TOS value of the received IP packet. If the TOS value of received IP packet is 25(priority = high), and then the packet priority will have highest priority.

[NOTE] QoS and Rate control cannot be existed at the same time.

37

QoS configuration Interface

IGMP

The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP have three fundamental types of message as follows:

38

Message

Description





Query

A message sent from the querier (IGMP router or switch) asking





for a response from each host belonging to the multicast group.







A message sent by a host to the querier to indicate that the host

Report

wants to be or is a member of a given group indicated in the





report message.





Leave Group

A message sent by a host to the querier to indicate that the host

has quit to be a member of a specific multicast group.







User can enable IGMP protocol and IGMP Query function in here. User will see the IGMP snooping information in this section -- difference multicast group VID and member port, and IP multicast addresses range from 224.0.0.0 through 239.255.255.255.

IGMP Snooping interface

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

Security Manager

Change web management login user name and password for the management security issue

1.User name: Key in the new user name(The default is “admin”)

2.Password: Key in the new password(The default is “admin”)

3.Confirm password: Re-type the new password

39

4.

And then, click

Apply

Security Manager interface

[NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

SNMP Configuration

The SNMP is a Protocol that governs the transfer of information between management and agent. The switch supports SNMP V1.

User can define management stations as trap managers and to enter SNMP community strings. User also can define a name, location, and contact person for the switch. Fill in the system options data, and then click Apply to update the changes.

SNMP Management interface

40

System Options

Name: Enter a name for the switch

Location: Enter the switch physical location

Contact: Enter the name of contact person or organization

Community strings

Serve as a password.

Strings: Key in the name of string

RO: Read only. Enables requests accompanied by this string to display MIB-object information

RW: Read write. Enables requests accompanied by this string to display MIB-object information and to set MIB objects

And then, click

Add

Trap Manager

A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string.

• IP Address: Key in the trap device IP

Community Strings: The trap device community strings

And then, click

Add

Configuration Backup

In Configuration Backup, user can restore the backup configuration into the industrial switch. Also, user can backup the configuration to TFTP server.

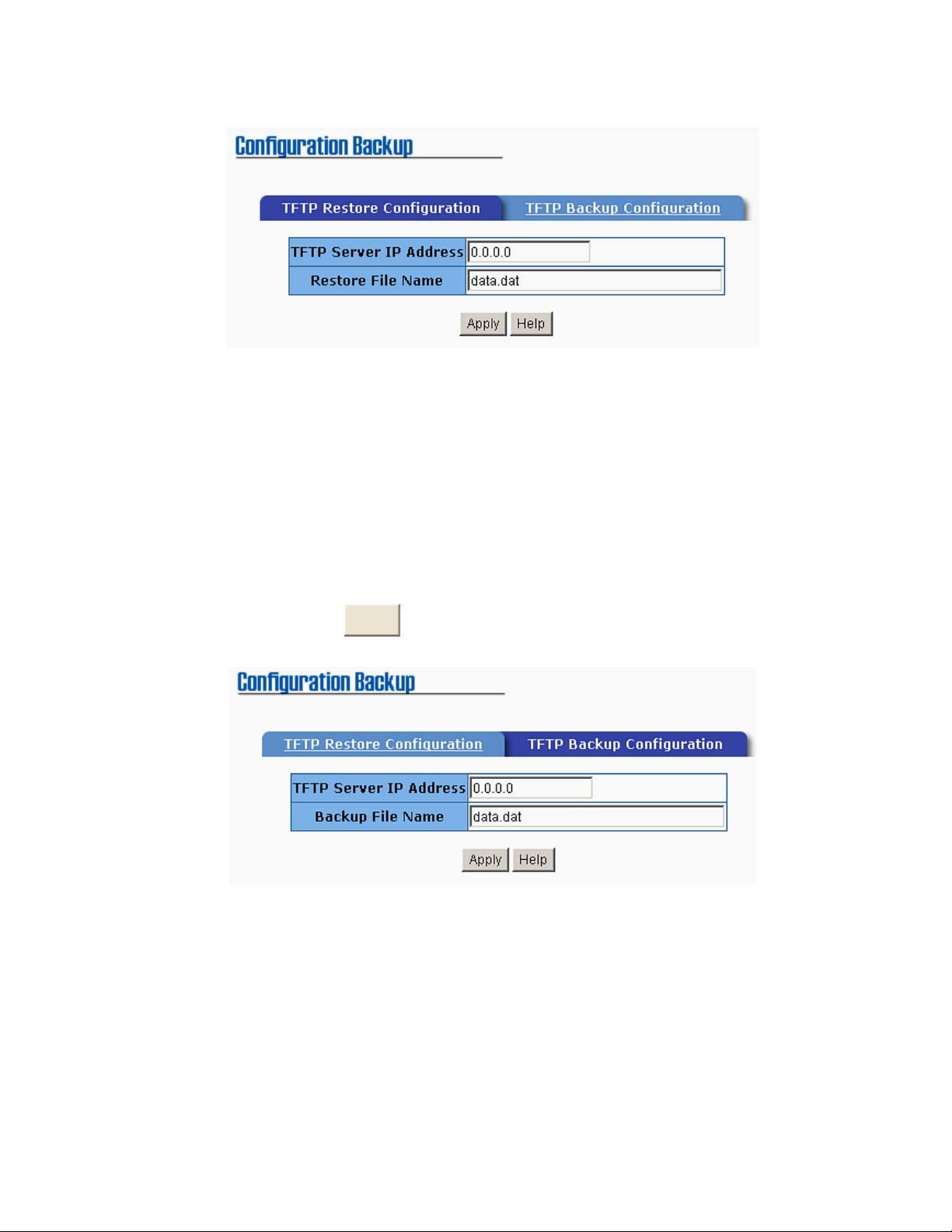

TFTP Restore Configuration

User can restore flash ROM value from TFTP server, but user must put the backup image in TFTP server, industrial switch will download the image back to the flash.

• TFTP Server IP Address: Key in the TFTP server IP

Restore File Name: Key in the restore file image name

And then, click

Apply

41

TFTP Restore Configuration interface

TFTP Backup Configuration

User can save current flash ROM value from the industrial switch to the TFTP server, then go to the TFTP restore configuration page to restore the image value back to the industrial switch.

• TFTP Server IP Address: Key in the TFTP server IP

Backup File Name: Key in the file image name

And then, click

Apply

TFTP Backup Configuration interface

TFTP Update Firmware

It provides the functions to allow a user to update the switch firmware. Before updating, make sure user have user TFTP server ready and the firmware image is on the TFTP server.

TFTP Server IP Address: Key in user TFTP server IP

Firmware File Name: Key in the name of firmware image

42

And then, click

Apply

TFTP Update Firmware interface

Factory Default

Reset Switch to default configuration. Except the IP address, subnet mask, default gateway, username, and password will remain as user configured.

Click

Default

button to reset switch to default setting

Factory Default interface

System Reboot

Reboot the Switch in software reset

Click Reboot button to reboot the switch

System Reboot interface

43

Save Configuration

Save the industrial switch configuration to the flash memory. Power off the industrial switch without the saving, all changed configuration will lost.

• Click the Save Flash button the save the configuration

Save Configuration Interface

Rate Control

Set up every port’s bandwidth rate and packet limitation type

Limit Packet type: Select the packet type that wants to filter. The packet types have all type packet, broadcast/multicast/unknown unicast packet, broadcast/multicast packet, and broadcast packet only. The broadcast/multicast/unknown unicast packet, broadcast/multicast packet, and broadcast packet only are only for ingress packet. The egress rate only supports all type packets

Band Width: The port1 ~ port 8, supports port ingress and egress rate control. For example, assume port 1 is 10Mbps, users can set it’s effective egress rate as 1Mbps, ingress rate is 500Kbps. The switch performs the ingress rate by packet counter to meet the specified rate

Ingress: Select the port effective ingress rate. The valid range options are 128kbps, 256Kbps, 512Kbps, 1MB, 2MB, 4MB, and 8MB. The default value is “disable”

Egress for all: Select the port effective egress rate. The valid range options are 128kbps, 256Kbps, 512Kbps, 1MB, 2MB, 4MB, and 8MB. The default value is “disable”

• And then, click

Apply

button to apply the configuration







44

Rate Control Interface

[NOTE]

1.Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off.

2.Qos and Rate control cannot be existed at the same.

System Log

Set up system log events and view the system log events

System Log Configuration

• Click Reload button to get newest system log event

To clear the log events, click

Clear

button

If log event list more that one page, drag down the list to switch to different page.

System Log Client Mode: user can select in Client Only, Server Only, or Both mode

System Log Server IP: Assign the system log server IP

And then, click

Apply

button to apply the configuration

45

System Log Configuration interface

Event Configuration

User can select the system log events. When selected events occur, the system will send out the log

information. Also, per port log events can be selected.

System event selection: 4 selections – Device cold start, Power status, SNMP Authentication Failure, and X-Ring topology change. Mark the checkbox to select the event. When selected events occur, the system will produce the logs

Device cold start: When the device executes cold start action, the system will produce a log message

Power status: When the device power status has changed, the system will produce a log message

SNMP Authentication Failure: When the SNMP authentication fails, the system will produce a log message

X-Ring topology change: When the X-Ring topology has changed, the system will produce a log message.

Port event selection: Select the per port events. Per port have 3 selections – Link UP, Link Down, and Link UP & Link Down. Disable means no event is selected.

Link UP: The system will produce a log message when port connection is up only

Link Down: The system will produce a log message when port connection is down only

Link UP & Link Down: The system will produce a log message when port connection is up and down

46

After selected, click

Apply

Event Configuration interface

47

Troubles shooting

Verify that is using the right power cord/adapter (DC 12-48V), please don’t use the power adapter with DC output bigger than 48V, or it will burn this converter down.

Select the proper UTP cable to construct user network. Please check that is using the right cable. use unshielded twisted-pair (UTP) or shield twisted-pair ( STP ) cable for RJ-45 connections: 100 Category 3, 4 or 5 cable for 10Mbps connections or 100 Category 5 cable for 100Mbps connections. Also be sure that the length of any twisted-pair connection does not exceed 100 meters (328 feet).

Diagnosing LED Indicators: the Switch can be easily monitored through panel indicators to assist in identifying problems, which describes common problems user may encounter and where user can find possible solutions.

If the power indicator does turn on when the power cord is plugged in, user may have a problem with power cord. Than check for loose power connections, power losses or surges at power outlet. If user still cannot resolve the problem, contact user local dealer for assistance.

If the Industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot transmit. Please check user system’s Ethernet devices’ configuration or status.

48

Technical Specification













IEEE 802.3 10Base-T Ethernet







IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet





Standard

IEEE802.3x Flow Control and Back-pressure





IEEE802.1d spanning tree / IEEE802.1w rapid spanning tree













IEEE802.1p class of service







IEEE802.1Q VLAN Tag













Protocol

CSMA/CD















SNMP management





Management

Web interface management







One default button for system default setting















RFC 1213 MIBII







RFC 1493 Bridge MIB







RMON RFC 1757







RFC 2674 VLAN MIB





SNMP MIB

RFC 1643 Ethernet like MIB







RFC 1215 Trap MIB







Private MIB for switch information, X-Ring, port alarm, TFTP







firmware upgrade, reset, port mirror, IP security management,







IGMP management MIB.















Up to 3 Trap stations







Cold start







Port link Up





SNMP Trap

Port link down





Authentication Failure













Private Trap for power status







Port Alarm configuration







Fault alarm, X-Ring













Technology

Store and forward switching architecture













Transfer Rate

14,880 pps for 10Base-T Ethernet port





148,800 pps for 100Base-TX/FX Fast Ethernet port



















Transfer packet size

64bytes to 1522 bytes (with VLAN tag)



















49





4 types of packet filter rule with different packet combination:





All of packet



Packet filter

Broadcast/ multicast/ unknown unicast packet





Broadcast/ multicast packet





Broadcast packet only









MAC address

2K MAC address table









Memory Buffer

1Mbits











Per port: Link/Activity (Green), Full duplex/Collision (Yellow)



LED

Per unit: Power (Green), Power 1 (Green), Power 2 (Green),





Fault (Yellow), Master (Green)











10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable



Network Cable

EIA/TIA-568 100-ohm (100m)



100Base-TX: 2-pair UTP/STP Cat. 5 cable









EIA/TIA-568 100-ohm (100m)







ST (Multi-mode): 50/125um or 62.5/125um

ST (Single mode): 9/125um

Optical cable

Available distance: 2KM (Multi-mode) / 30KM (single-mode)

Wavelength: 1310nm (multi-mode/ single mode)



Back-plane

1.6Gbps

















Packet throughput

1.19Mpps @64bytes







ability



























12 ~48 VDC







Power Supply

Redundant power with polarity reverse protects function and









connective removable terminal block for master and slave power.

















Power consumption

7.68 Watts



















2 ports for X-Ring to provide redundant backup feature and the







X-Ring

recovery time below 300ms and start by Web interface









management. The ring port can be defined by Web interface.



















Port based VLAN







VLAN

IEEE802.1Q Tag VLAN.









Both of port based and Tag based VLAN group up to 64 VLANs.

















Class of service

IEEE802.1p class of service







Per port provides 4 priority queues.

























Quality of service

The quality of service determined by port, Tag and Ipv4 Type of







service.























50













Spanning tree

IEEE802.1d spanning tree





IEEE802.1w rapid spanning tree.



















IGMP

IGMP v1 and Query mode





Up to 256 groups.



















SMTP

Support SNTP to synchronize system clock in Internet















SNTP

Support SMTP Server and 4 e-mail accounts for receiving





event alert



















Management IP security

IP address security to prevents unauthorized intruder















Port mirror

TX packet only





Both of TX and RX packet



















Firmware update

TFTP firmware update





TFTP backup and restore





















One relay output for port breakdown and power fail





Alarm

Dipswitch to mask link down port







Alarm Relay current carry ability: 1A @ DC24V



















Ingress packets filter and egress packet limit.









The egress rate control supports all of packet type and









the limit rates are 128kbps, 256Kbps, 512Kbps, 1MB,









2MB, 4MB, and 8MB.









Ingress filter packet type combination rule for





Bandwidth control



Broadcast/Multicast/Unknown Unicast packet,







Broadcast/Multicast packet, Broadcast packet only and

















all of packet.









The ingress packet filter rate can be set follow









as:1Mbps 2Mbps 4Mbps 8Mbps 16Mbps









32Mbps 64Mbps.













DHCP client

DHCP client function to obtain IP address from DHCP serve















Install

DIN rail kit and wall mount ear for wall mount or DIN-type





cabinet install





















Standard Operating Temp. Model:





Operation Temp.

-10C to 60C (14F to 140F)





Wide Operating Temp. Model:













-40C to +75C (-40F to 167F)













Operation Humidity

5% to 95% (Non-condensing)















Storage Temperature

-40C to +85C























51









Case Dimension

IP-30, 54 mm (W) x 135 mm (H) x 105mm (D)







FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS),

CE EN-61000-4-4 (EFT),

EMI CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11,

CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4

Safety

UL, cUL, CE/EN60950-1





IEC60068-2-32 (Free fall)

Stability testing IEC60068-2-27 (Shock)

IEC60068-2-6 (Vibration)

52
