19100112
RE
Easy Wi-Fi Extension
Flexible Placement
AC 1900
Wi-Fi Range Extender RE580D
1910011262
REV 1.0.0
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is
a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other
brands and product names are trademarks or registered trademarks of their
respective holders.
No part of the specifications may be reproduced in any form or by any
means or used to make any derivative such as translation, transformation,
or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
Copyright ©2015 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or tv interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This device and its antenna must not be colocated or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is
applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
National Restrictions
This device is intended for home and office use in all EU countries (and
other countries following the EU directive 1999/5/EC) without any limitation
except for the countries mentioned below:
Country
Restriction
Reason/remark
General authorization required for
outdoor use and public service
10 mW e.i.r.p. within
Military Radiolocation use.
current relaxed regulation. Full
implementation planned 2012
general authorization is required
General authorization required for
network and service supply(not for
spectrum)
This subsection does not apply for
Ålesund
Russian Federation
None
Only for indoor applications
Country
Restriction
Reason/remark
Bulgaria
Not implemented
Planned
Croatia
License required
General authorization required if
used outside own premises
Luxembourg
None
General authorization required for
network and service supply (not for
spectrum)
Russian Federation
No info
Bulgaria None
France Outdoor use limited to
Refarming of the 2.4 GHz band has
the band 2454-2483.5
MHz
Italy None If used outside of own premises,
Luxembourg None
Norway Implemented
been ongoing in recent years to allow
the geographical area within a radius
of 20 km from the centre of Ny-
Note: Please don’t use the product outdoors in France.
5150-5250 MHz
Note: Operations in the 5.15-5.25GHz band are restricted to indoor usage
only.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs.
Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes :
1) l'appareil nedoit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Industry Canada Statement
Italy
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
CAN ICES-3 (B)/NMB-3(B)
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性或功能。
信，指依電信規定作業之無線電信。低功率射頻電機需忍受合法通信或工業、
科學以及醫療用電波輻射性電機設備之干擾。
減少電磁波影響，請妥適使用。
安全諮詢及注意事項
● 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
● 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行
清潔。
● 注意防潮，請勿將水或其他液體潑灑到本產品上。
● 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞
或覆蓋開口。
● 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在
密閉位置中。
● 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進
行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на
відповідність вимогам нормативних документів та вимогам, що
передбачені чинними законодавчими актами України.
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通
AT
BG
BY
CA
CZ
DE
DK
EE
ES
FI
FR
GB
GR
HU
IE
IT
RU
SE
SK
TR
UA
US
Safety Information
● When product has power button, the power button is one of the way to
shut off the product; when there is no power button, the only way to
completely shut off power is to disconnect the product or the power
adapter from the power source.
● Don’t disassemble the product, or make repairs yourself. You run the
risk of electric shock and voiding the limited warranty. If you need
service, please contact us.
● Avoid water and wet locations.
This product can be used in the following countries:
LT LV MT NL NO PL PT RO
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: AC1900 Wi-Fi Range Extender
Model No.: RE580D
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all
the technical regulations applicable to the product within the scope of
Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC,
Directives 1999/519/EC, Directives 2011/65/EU
The above product is in conformity with the following standards or other
normative documents
EN 300 328 V1.8.1
EN 301 893 V1.7.1
EN 301 489-1 V1.9.2:2011 & EN 301 489-17 V2.2.1:2012
EN 55022:2010+AC:2011
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
The product carries the CE Mark:
Person responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2015-06-19
EN 61000-3-3:2013
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EN 62311:2008
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China
TP-LINK TECHNOLOGIES CO., LTD.
Contents
Introduction ........................................................................ 1
Product Overview ..................................................................... 1
What can your Extender do .................................................. 1
Support for the 802.11ac wireless technology ..................... 1
Main Features ....................................................................... 2
Appearance .............................................................................. 2
Connect the Extender to the Internet ................................. 4
Before You Begin ..................................................................... 4
Basic Requirements ................................................................. 5
Quick Setup .............................................................................. 5
Using WPS (Wi-Fi Protected Setup) .................................... 5
Using your Web Browser ...................................................... 7
Change the Extender’s IP Address ........................................ 20

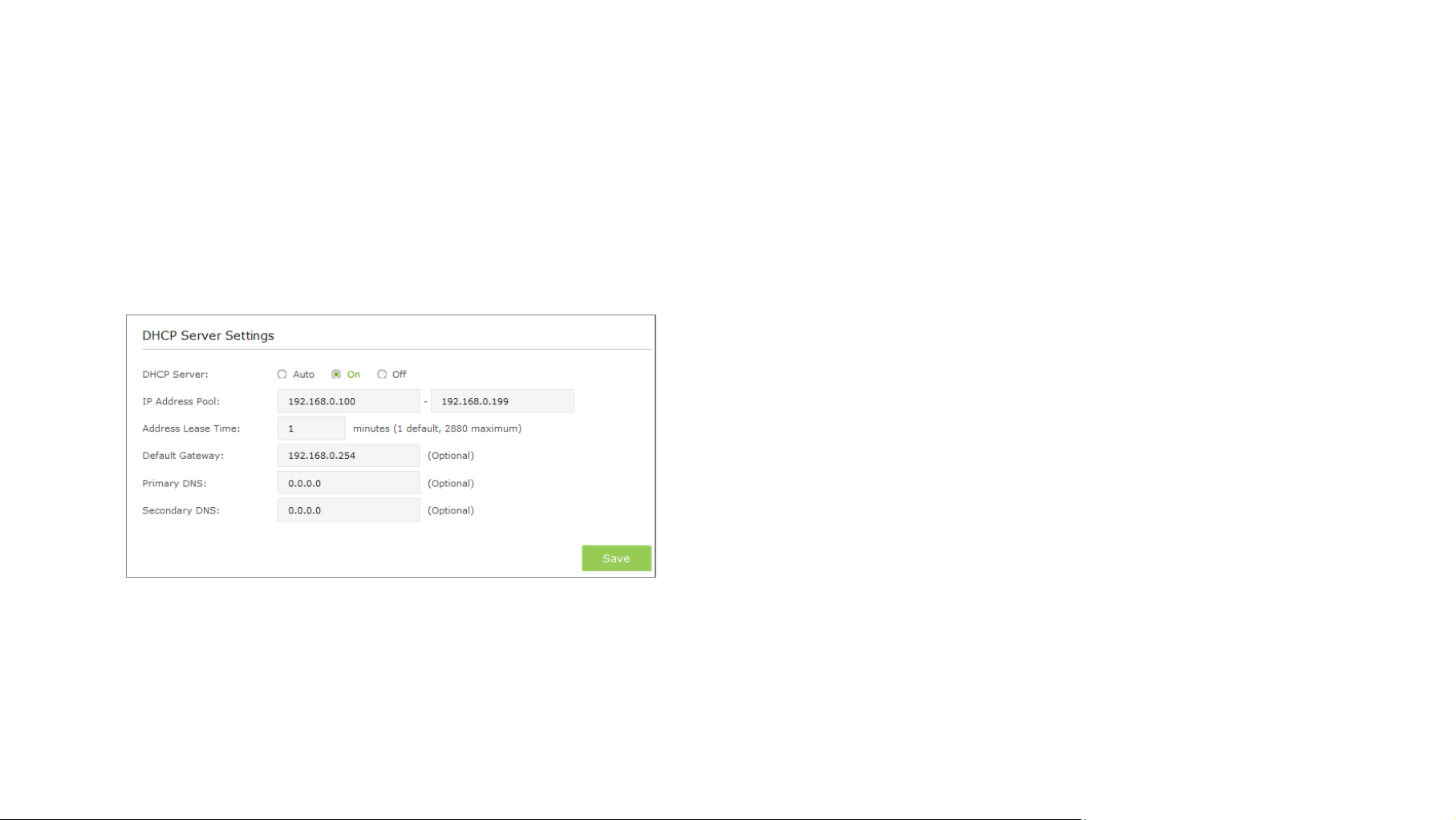

DHCP Server .......................................................................... 20
Settings ............................................................................... 20

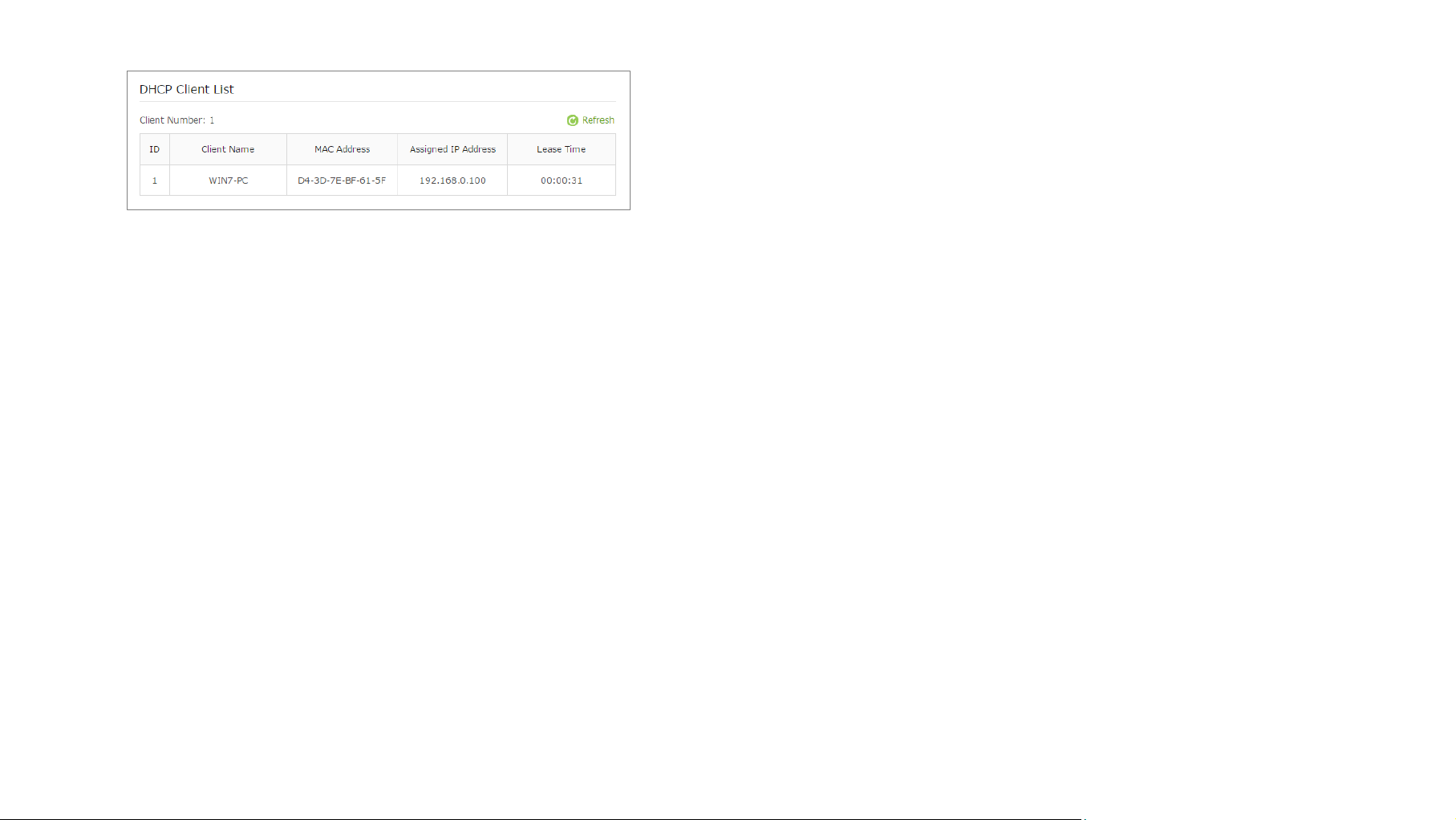

View the DHCP Client List .................................................. 21
More Functions ............................................................... 23

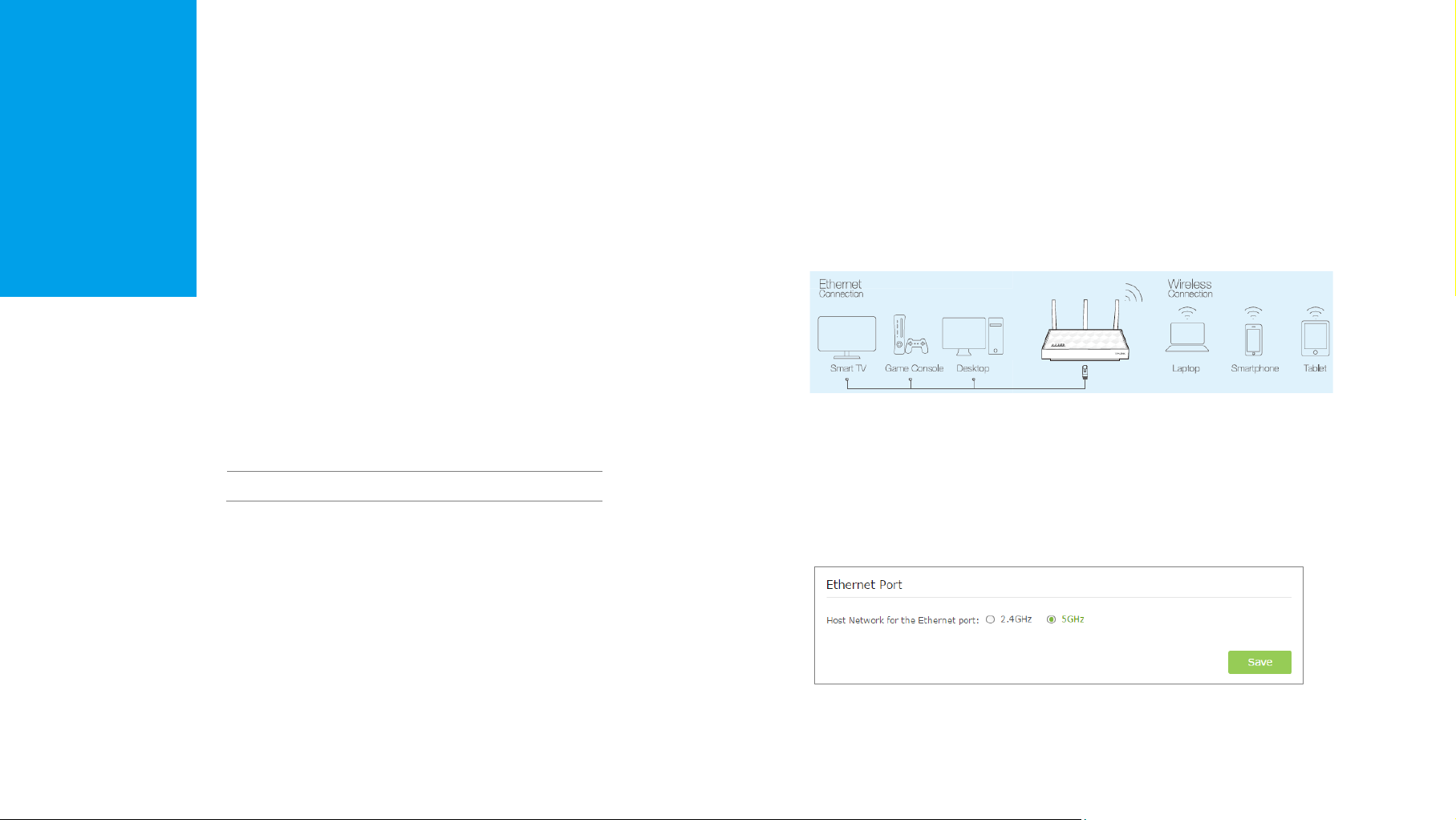

Entertainment Adapter ............................................................ 23
Manage the Extender ..................................................... 24
LED Control ............................................................................ 24
Firmware Upgrade .................................................................. 25
Backup & Restore ................................................................... 25
Factory Defaults ...................................................................... 26
System Log ............................................................................. 26
View the Information of the Extender .............................. 12
View the Extender’s Current Status ....................................... 12
View the Information about the Host Network, the Extender and
the Clients .............................................................................. 13
Manage the Extended Network and Security Settings .... 14
Extend another Network ........................................................ 14
Extender Settings ................................................................... 16
Manage the Extender’s Wi-Fi Security Settings .................... 17
Reboot .................................................................................... 27
Logout ..................................................................................... 27
Appendix ......................................................................... 28
Factory Defaults ...................................................................... 28
Troubleshooting ...................................................................... 29
Specifications .......................................................................... 30
Glossary .................................................................................. 30
Change your Admin Account ............................................. 17
Control the Wireless Devices Access to the Extender ....... 17
1
Product Overview
What can your Extender do
Introduction
This chapter covers the following topics:
Product Overview
Appearance
The RE580D AC1900 Wi-Fi Range Extender is dedicated to Small Office/Home
Office (SOHO) wireless network solutions. It will enlarge your existing wireless
network and mobility within your wireless network while also allowing you to
connect a wired device to a wireless environment. Increased mobility and the
absence of cabling will be beneficial for your network.
The extender provides two options to finish the quick setup.
Option One: an easy wireless connection to the host network (equipped with
WPS/QSS button) by Using WPS
Option Two: Using your Web Browser for installation and management.
Even though you may not be familiar with the extender, you can easily configure
it with the help of this guide. Before installing the extender, please look through
this guide to get the full information of the RE580D AC1900 Wi-Fi Range
Extender.
on the back panel.
Support for the 802.11ac wireless technology
With using IEEE 802.11ac wireless technology, this device can transmit
wireless data at the rate of up to 600Mbps (2.4GHz) + 1300Mbps (5GHz). With
multiple protection measures, including wireless LAN 64/128-bit WEP
encryption, Wi-Fi protected Access (WPA2-PSK, WPA-PSK), the RE580D
AC1900 Wi-Fi Range Extender delivers complete data privacy. It is also
compatible with all IEEE 802.11n, IEEE 802.11a, IEEE 802.11b and IEEE
802.11g products.
Introduction 1
Main Features
Complies with IEEE 802.11ac
Provides multiple encryption security Types including: 64/128-bit WEP and
WPA-PSK/WPA2-PSK
Supports Built-in DHCP server
Supports Firmware Upgrade
Supports Web-based Management
Appearance
LEDs
Ports
Buttons
Introduction
2
has established a secure
has established a secure
The extender is connected to both 2.4GHz and
LED Explanation
Name Status Indication
The extender
connection, and the signal strength is adequate.
The extender
connection, but the signal strength is too weak.
5GHz Wi-Fi bands of your host network.
RE
Name
RE
5GHz/
2.4GHz
Power
Ethernet
Solid blue
Solid orange
Status Indication
Blinking WPS connection is in process.
Off No active connection.
On
Off No connection.
On The extender is on.
Blinking The extender is initializing.
Off The extender is off.
On The Ethernet port is connected.
Off The Ethernet port is not connected.
Button Explanation
Reset Button: This button is used to restore the extender’s factory default
settings.
There are two ways to reset the extender:
Option One: With the extender powered on, use a pin to press the RESET
button until all the LEDs turn on momentarily, then release the button and
wait the extender to reboot to its factory default settings.
Option Two: Restore the default settings from “System Tools > Backup
&Restore” of the extender's Web-based Management page.
LED Button: You can press the LED button to light up or turn off all the LEDs.
After the LEDs are off, the extender can still work normally.
Power Button：You can press the Power button to turn on or off the extender.
Ethernet Port: Five 10/100/1000Mbps RJ45 Ethernet ports used to add
wireless connectivity to an Ethernet-enabled device such as Internet TV,
DVR, Gaming console and so on. Please note that this port is not allowed to
be connected with router.
(Range Extender/WPS) Button: If your Wireless router supports WPS or
QSS function, you can press the WPS or QSS button and then press the RE
button to establish a secure connection between the Wireless router and the
extender.
Introduction 3
Connect the Extender
2
to the Internet
Before You Begin
Please read this guide carefully before installing and using the device. The
operating distance range of your wireless connection can vary significantly
depending on the physical position of the wireless devices. Factors that can
weaken signals by getting in the way of your network’s radio waves are metal
appliances or obstructions, and walls. Typical ranges vary based on the types
of materials and background RF (radio frequency) noise in your home or office.
In order to optimize the performance of RE580D, please follow the instructions
below to achieve an ideal location (please make sure it is always within the
wireless coverage of the wireless router).
This chapter covers the following topics:
Before You Begin
Basic Requirements
Quick Setup
● Half-way Between - Generally, the ideal location for RE580D is half-way
between the Wireless router and Wireless Client. If the wireless signal is
not satisfactory, you may place RE580D somewhat nearer to the Wireless
router.
● No Obstacles and Spacious - Clear obstacles in the way between
RE580D and Wireless router. It’s better to locate it in a spacious place,
such as near the corridors.
● No Interference - Choose a location away from Bluetooth devices and
other household electronics, such as cordless phone, microwave, and
baby monitor, etc., to minimize signal interference.
Connect the Extender to the Internet 4
Basic Requirements
Place your extender in a well-ventilated place far from direct sunlight,
any heater or heating vent.
Leave at least 2 inches (5cm) space around the device for heat
dissipation.
Turn off your extender and unplug the power adapter in a lighting storm
to avoid damage.
Use Web browser, such as Microsoft Internet Explorer 5.0 or above,
Netscape Navigator 6.0 or above.
Operating temperature of the extender should be 0℃~40℃ (32℉
~104℉).
Operating humidity of the extender should be 10%~90%RH (Non-
condensing).
Quick Setup
Using WPS (Wi-Fi Protected Setup)
Your router should support WPS. Otherwise, please use Using
your web browser.
1 Power On
Plug the extender into an electrical outlet near your router, and wait until
the Power LED is lit and solid blue.
2 Connect
1) Press the WPS button on your router/AP.
Connect the Extender to the Internet 5
For more information about using WPS on your router,
please refer to the router manufacturer's user guide.
2) Immediately press the RE button on your extender. The LED
should change from flashing to solid, showing that WPS connection is
successful.
If the RE LED does not change from flashing to solid,
please refer to Using your Web Browser
Some ISP gateways disable the WPS function by
default, if the WPS method fails, please refer to
your Web Browser.
.
Using
3) If you are connecting the extender to a dual-band router but only
2.4GHz or 5GHz LED is on, repeat step 1 and 2 again to connect the
other band.
3 Relocate
Plug the extender into an electrical outlet about halfway between your
router (Host Network) and the Wi-Fi dead zone.
Wait until the LED is lit with a solid blue. If not, relocate the
extender closer to the router to achieve a good (or better) signal quality.
Enjoy!
The extender shares the same wireless network name (SSID) and wireless
password as your router.
Connect the Extender to the Internet 6
Using your Web Browser
1 Power On
Plug the extender into an electrical outlet near your router, and wait until
the Power LED is lit and solid blue.
2 Connect to the Extender
● Connecting via Wireless
Disconnect the Ethernet (wired) connection to your computer. Click the
Wi-Fi icon on the taskbar and connect to the extender's network (e.g. TPLINK_Extender_2.4GHz or _5GHz).
● Connecting via Ethernet Cable
1) Disable the Wi-Fi on your computer.
2) Connect the extender to your computer via an Ethernet cable.
3 Login
Launch a web browser and type http://tplinkrepeater.net into the URL
field and use admin (all lowercase) for both Username and Password to log
in.
Connect the Extender to the Internet 7
4 Configure
1) Create a new username and password to log in the web
management page, then click Confirm.
2) Select your region,then click Next.
Per FCC regulations, all Wi-Fi products marketed in the
U.S. are fixed to the U.S. region.
Connect the Extender to the Internet 8
3) Select your router's 2.4GHz host network and enter the password,
then click Next.
4) Select your router's 5GHz host network and enter the password, then
click Next.
If your router does not support 5GHz wireless network,
please click Skip to continue.
Connect the Extender to the Internet 9
5) Either keep the same SSIDs as your host network or create new
names for the extended networks, then click Next.
6) Verify your wireless settings and click Finish. The corresponding
LEDs (2.4GHz and 5GHz) should turn on and stay solid.
Connect the Extender to the Internet 10
5 Relocate
Plug the extender into an electrical outlet about halfway between your
router (Host Network) and the Wi-Fi dead zone.
Wait until the LED is lit with a solid blue. If not, relocate the extender
closer to the router to achieve a good (or better) signal quality.
Enjoy!
Both extended networks share the same Wi-Fi password as your main network,
but may have different wireless network names if you customize the SSIDs
during the configuration.
Connect the Extender to the Internet 11
View the Information of
Extender and the Clients
3
View the Extender’s Current Status
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings > Status webpage.
2) You can view the network connection in the Status webpage.
the Extender
This chapter covers the following topics:
View the Extender’s Current Status
View the Information about the Host Network, the
● The normal status.
● The extender is failed to connect to the wireless network of your router.
● The extender is connected to the wireless network of your router, but no
transmitting data. Please check your host network.
View the Information of the Extender 12
● The extender is connected to the router unnormally. Maybe the gateway
he wireless is off, or the
is set incorrectly in the Static IP. You can select “Obtain an IP address
automatically” on the “LAN Settings” page.
View the Information about the Host Network, the Extender and the Clients
Instructions for the icons of 2.4GHz/5GHz wireless status:
Name
/
/
The wireless is on and encrypted.
The wireless is on and unencrypted.
Router：T
connection is failed.
Extender：The wireless is off.
The icons are selected.
Instructions
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings > Status webpage.
2) Click the icons of your router, the extender and clients. The detailed
instructions for the corresponding icon are displayed below.
View the Information of the Extender 13
DHCP Server
4
Extend another Network
If you want to extend another network, you can refer to the following steps to
finish it quickly.
Manage the Extended
Network and Security
1) Launch a web browser and type in http://tplinkrepeater.net，then go to
Settings->Wireless->Connect to Network webpage.
2) Enable Connect to 2.4GHz/5GHz Network. Then click Wireless
Scanner to scan the network you want to extend.
Settings
This chapter covers the following topics:
Extend another Network
Extender Settings
Manage the Extender’s Wi-Fi Security Settings
Change the Extender’s IP Address
Manage the Extended Network and Security Settings 14
host network.
3) Select the network you want to extend from the list.
If the network you want to extend is on but not shown in
the list, please try by following the steps below.
4) Once a network is selected, the SSID and security settings of that network
will automatically fill in. If the host network is encrypted, enter the
password in the box of the host wireless security.
Move the extender closer to your router/ AP. Then
click Refresh on the top-right corner of the list to
scan the network again.
You can also enter the information of the network
manually you want to extend on the Connect to
Network page. Then click Save to connect to the
When Host 2.4GHz/5GHz Security is WEP, please select
the index same with the host network.
5) Click Save to save the settings.
Manage the Extended Network and Security Settings 15
6) Relocate.
Plug in the extender halfway between your wireless router/AP (Host
Network) and the Wi-Fi dead zone.
Wait for the extender to reconnect and the LED turns solid blue. If
not, relocate it closer to the router to achieve a good (or better) signal
quality.
Enjoy!
The extender shares the same wireless network name (SSID) and wireless
password as your host network. If you want to change the wireless network
name (SSID), please refer to Extended Network
.
Extender Settings
Extended 2.4GHz/5GHz: Enable or disable the 2.4GHz/5GHz host
network.
On the Extended Network page, you can enable or disable the wireless network
of the extender, change and hide the wireless network name (SSID) of the
extender.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Extended Network webpage.
2) Configure the settings as shown in the figure below.
Extended 2.4GHz/5GHz SSID: Either copy the host SSID or create a
new name using up to 32 characters. This field is case-sensitive.
Hide SSID broadcast: Select this checkbox if you want to hide the
extender’s SSID (of the 2.4GHz/5GHz wireless network) from the
Wi-Fi network list. If you want to connect to the hiden SSID, please
enter the SSID and the password manaully.
3) Click Save to save the settings.
Manage the Extended Network and Security Settings 16
Manage the Extender’s Wi-Fi
：
3) Click Save to save the settings.
Security Settings
Change your Admin Account
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->System Tools->Admin Account webpage.
2) Create a new username and password as shown in the figure below.
Old Username
Enter your current username.
Control the Wireless Devices Access to the Extender
The Access Control function controls the devices connected to the extender by
the wireless connection. For increased security, you can restrict access to the
Wi-Fi network of your extender to allow only specific Wi-Fi devices in the white
list. Devices that are in the black list cannot join the wireless network of the
extender.
Blacklist Mode
The devices in the Blacklist are not allowed to connect to the extender.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Access Control webpage.
2) Click the button to enable the Access Control function.
3) Select Blacklist as shown in the figure below, then click Save to save the
settings.
Old Password: Enter your current password.
New Username: Enter your new username.
New Password: Enter your new password.
Confirm Password: Re-enter your new password.
Manage the Extended Network and Security Settings 17
4) Add the device to the blacklist by following the ways.
● Add the Online Devices to the blacklist.
In the Online Devices list, you can view the information about the
devices connected to the extender. For one device, you can click the
icon to add the device to the blacklist. For several devices,
select them and click Block to add them at the same time.
Device Name: Enter the device name.
MAC Address: Enter the MAC address of the host in XX-XX-XX-XX-
XX-XX format (e.g. 00-11-22-33-44-AA).
5) Click OK to save your settings.
Whitelist Mode
● Add the device to the blacklist manually, if the device is not in the
Online Devices list.
Click Add. Then enter the device name and MAC address in the
figure below.
Only the devices in the Whitelist are allowed to connect to the extender.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Access Control webpage.
2) Click the button to enable the Access Control function.
3) Select Whitelist as shown in the figure below, then click Save to save the
settings.
Manage the Extended Network and Security Settings 18
5) Click OK to save your settings.
Modify or Remove a Device in the Blacklist/Whitelist
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Wireless-> Access Control webpage.
4) Click the Add button.
Device Name: Enter the device name.
2) You can modify or remove the devices in the Blacklist or Whitelist.
● Modify a Device in the Blacklist or Whitelist.
Click the icon , and then enter the device name and MAC
address. Click OK to save the setings.
● Remove a Device in the Blacklist or Whitelist.
For one device, you can click the icon to remove the device from
the list. For several devices, select them and click Delete to remove
them at the same time.
MAC Address: Enter the MAC address of the host in XX-XX-XX-XX-
XX-XX format (e.g. 00-11-22-33-44-AA).
Manage the Extended Network and Security Settings 19
Change the Extender’s IP
We do NOT recommend you change the IP address unless you
demand, random changes may lead to Internet disconnection.
all computers in the LAN as "Obtain an IP Address automatically"
Subnet: Enter the subnet mask in dotted-decimal notation that
determines the size of the network (255.255.255.0 by default).
Address
By default, the extender is set to obtain an IP address automatically from the
front router. If you want to use a specific IP address appropriate to your network
demand, please refer to the steps below.
are quite sure about the IP setting for special network
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Network webpage.
2) Select Use the following IP address, then enter the IP address and
gateway manually.
Default Gateway: Enter the gateway that is in the same subnet as
the IP address in dotted-decimal notation. It is usually the LAN IP
address of your router.
3) Click the Save button to save the settings.
DHCP Server
DHCP stands for Dynamic Host Configuration Protocol. The DHCP Server will
automatically assign dynamic IP addresses to the devices on the network. This
protocol simplifies network management and allows new wireless devices to be
set to IP addresses automatically.
To use the DHCP server function of the device, you should configure
mode.
Settings
IP Address: Enter the IP address in dotted-decimal notation
(192.168.0.254 by default).
● Set the DHCP Server status to Auto (by default)
When the DHCP Server is Auto, the extender automatically detects to find
the devices enabling the DHCP Server. If the DHCP Server of the device
is enabled, the extender’s DHCP Server is disabled. Otherwises, the
extender’s DHCP Server is enabled. The default is Auto.
Manage the Extended Network and Security Settings 20
：
：
● Enable DHCP Server
When the DHCP Server is On, please make sure that IP Address Pool,
Default Gateway for the DHCP server and LAN IP address are in the same
segmengt as the router. Otherwises, the extender cannot access the
Internet.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Network webpage.
2) If the DHCP Server is On, please configure it as shown in the figure
bleow.
Default Gateway (Optional): Enter the LAN IP address of your host
network.
Primary DNS (Optional): Enter the DNS IP address provided by
your ISP.
Secondary DNS (Optional): Enter the second DNS IP address
provided by your ISP.
3) Click Save to save your changes.
● Disable DHCP Server
If the DHCP server of the extender is Off, please make sure the DHCP
server of your router is on. Otherwise, you have to configure the IP
address for each client manually.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Network webpage.
2) Select Off, then click Save to save the settings.
View the DHCP Client List
IP Address Pool
the clients. By default, the starting IP address is 192.168.0.100 and
the ending IP address is 192.168.0.199.
Address Lease Time
leased to the client, between 1 and 2880 minutes. The default is 1
minute.
Enter a range of IP address that can be leased to
Enter the time duration that an IP address is
The DHCP Client List displays the Client Name, MAC Address, Assigned IP
and Lease Time for each DHCP Client attached to the device.
1) Launch a web browser and type in http://tplinkrepeater.net, then log in
to Settings->Network webpage.
2) You can view the information of the DHCP clients connected to the
extender in the DHCP Client List.
Manage the Extended Network and Security Settings 21
Client Name: The name of the DHCP client.
MAC Address: The MAC address of the DHCP client.
Assigned IP Address: The IP address that is allocated to the client
by the DHCP server.
Lease Time: The time duration that the IP address is leased to the
DHCP client.
Click Refresh to refresh the DHCP Client List.
Manage the Extended Network and Security Settings 22
Entertainment Adapter
5
More Functions More
Functions
Entertainment Adapter
The extender RE580D can be used as a wireless adapter to connect any
Ethernet-enabled device, such as a Blu-ray player, game console, DVR, or
smart TV, to your wireless network.
After the extender connected to the Internet, you can connect an Ethernetenabled device to the extender using an Ethernet cable.
More Functions
This chapter covers the following topics:
By default, the Ethernet ports connect to the 5GHz wireless network. If you want
the extender to connect to the 2.4GHz wireless network only, please follow the
steps below to finish the settings:
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->Network webpage.
2) Select the radio button 2.4GHz in the following figure.
3) Click Save to save the settings.
More Functions 23
Logout
：
6
LED Control
LED Control can turn off the LEDs at the specific time. The extender can still work
normally after the LEDs are off.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings-> System Tools -> Time Settings webpage. Select the Time
Zone of your location. Click Save to save your settings.
Manage the Extender
This chapter covers the following topics:
LED Control
Firmware Upgrade
Backup & Restore
Factory Defaults
System Log
Reboot
2) Go to Settings-> System Tools -> LED Control webpage, then set the
time to turn off the LEDs.
● Night Mode
the setting time.
If the Night Mode box is checked, all the LEDs are off in
Manage the Extender 24
● LED Off Time: Set the time to turn off the LEDs.
Click Save to save your settings.
Firmware Upgrade
Please DO NOT power off the extender during the
upgrade process.
1) Launch a web browser and type in http://tplinkrepeater.net，then go to
Settings->System Tools->Firmware Upgrade webpage.
2) You can view the firmware version and the software version. Search the
latest firmware of your extender from the Support page at www.tp-
link.com. Then download the latest firmware upgrade file to your
computer.
3) Click Browse to locate and select the downloaded file.
4) Click Upgrade. The upgrade takes a few minutes to complete and the
extender will automatically reboot itself when finished.
Backup & Restore
It is highly recommended to backup your current configurations, in case a
recovery is needed to restore the system to a previous state or from the factory
defaults.
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->System Tools->Backup & Restore webpage.
2) Backup and restore the configuration on the Backup & Restore page.
● Configuration Backup
Click Backup to save your current configurations as a config.bin file on
your computer. Make sure to save it in a safe location where you can
retrieve it when needed.
Manage the Extender 25
Please DO NOT power off the extender during the
backup process.
● Configuration Restore
Click Browse to locate and select your backup file. Click Restore and then
YES to restore the extender. The restore process may take a few minutes
to complete and the extender will automatically reboot itself when finished.
Please DO NOT power off the extender during the restore
process.
Factory Defaults
1) Launch a web browser and type in http://tplinkrepeater.net, then go to
Settings->System Tools-> Backup & Restore webpage.
Factory Restore will erase all settings that you have configured
for the extender. To re-login to the extender's management
page, use the default admin for both username and password.
System Log
1) Launch a web browser and type in http://tplinkrepeater.net，then go to
Settings->System Tools-> System Log webpage.
2) You can select the Log Type and Log Level in the Log Filter drop-down
list. Here you can quickly trace the logs which you want to view.
2) Click Factory Restore to reset your extender to its factory default settings
in the figure below.
Manage the Extender 26
You can also click the following buttons to apply the settings.
Click Refresh to update the system log.
Click Delete All to permanently remove all logs.
Click Save Log to save the system log as a .txt file on your
computer.
Reboot
1) Launch a web browser and type in http://tplinkrepeater.net.
2) Click Reboot on the top right corner to reboot the extender.
Logout
1) Launch a web browser and type in http://tplinkrepeater.net.
2) Click Logout on the top right corner to log out the management webpage
safely.
Manage the Extender 27
Appendix Appendix Appendix
Glossary
7
AppendixAppendix
This chapter covers the following topics:
Factory Defaults
Troubleshooting
Factory Defaults
Name Status
Common Default Settings
Username admin
Password admin
IP Address 192.168.0.254
Subnet Mask 255.255.255.0
Domain http://tplinkrepeater.net
Wireless
Specifications
2.4GHz: TP-LINK_Extender_2.4GHz
SSID
5GHz: TP-LINK_Extender_5GHz
Wireless Security Disabled
Access Control Disabled
Appendix 28
Troubleshooting
field and get logged in. If you are unable to log in, please RESET the device,
and then use the default IP address to get into the web-based configuration
page, reconfigure the device.
T1. How do I restore my extender’s configuration to its factory default settings?
There are two ways to reset the extender:
● Option One: With the extender powered on, use a pin to press and hold
the RESET button until all LEDs turn on momentarily, then release the
button.
● Option Two: Restore the default settings from “System Tools > Restore
& Backup” of the extender's Web-based Management page.
Once the extender is reset, the current configuration settings
will be lost and you will need to reconfigure it.
T2. What can I do if I forget my password?
● Restore the extender’s configuration to its factory default settings. If you
don’t know how to do that, please refer to previous T1;
● Use the default username and password: admin, admin;
● Try to reconfigure your extender by following the instructions of this guide.
T3. What can I do if I cannot access the web-based configuration page?
● Check to verify all the connections (either wireless or wired ones) are
proper. If yes, please proceed to the next step; otherwise, check the
connections again.
● Try to obtain an IP address and gateway; if succeed, open your web-
browser, enter the default domain http://tplinkrepeater.net in the address
● Feel free to contact our technical support, if the problem still persists.
T4. How can I know that my wireless signal has been repeated and boosted
by RE580D?
An easy way is to compare the signal strength of your target wireless
network (symbolized by its SSID), with RE580D in operation vs. out of
operation. Before comparison, you’d better make sure your computer can
obtain an IP address from your target wireless network and thus access the
Internet, either via RE580D or without.
T5. Will the extender work if I connect the ETHERNET port of it to the router
via Ethernet cable?
Sorry, it won’t work. The extender is designed to connect wirelessly to the
router, while the ETHERNET port is designed to connect with a wired
device, like Internet TV, Gaming console, DVR and so on.
T6. Why does the wireless transmission rate speed down, while the wireless
signal is stronger after repeated by RE580D?
In compliance with the wireless transmission protocol, all the extender
devices are set to work in half-duplex instead of full-duplex mode. In other
words, the extender has to process one-way communication between your
root Wireless router (or AP) and the terminal clients; so the transmission
time will be double-increased, while the speed will be decreased. TP-LINK
recommends that you connect to the extender when your home network
connection is poor, or when you want a larger wireless coverage to
eliminate “dead zones”.
Appendix 29
Specifications
General
IEEE 802.3, IEEE 802.3u, IEEE 802.11a, IEEE
Standards and
Protocols
Safety & Emission CE
Ports
Wireless
Frequency Band
Radio Data Rate
Security WEP, WPA-PSK, WPA2-PSK
Physical and Environment
802.11n, IEEE 802.11b, IEEE 802.11g, IEEE
802.1x, IEEE 802.11e, IEEE 802.11i, IEEE
802.11ac, TCP/IP, DHCP
One 10/100/1000M Auto-Negotiation LAN RJ45
port
2.4GHz：2.4~2.4835GHz
5GHz：5.15~5.25GHz
2.4GHz：
11n：up to 600Mbps
11g：54/48/36/24/18/12/9/6Mbps
11b：11/5.5/2/1Mbps
5GHz：
11ac: up to 1300Mbps
11a: 54/48/36/24/18/12/9/6Mbps
Working Temperature
Working Humidity
Storage Temperature
Storage Humidity
0℃~40℃ (32℉~104℉)
10% ~ 90% RH, Non-condensing
-40℃~70℃(-40℉~158℉)
5% ~ 95% RH, Non-condensing
Glossary
● 802.11b - The 802.11b standard specifies a wireless networking at 11
Mbps using direct-sequence spread-spectrum (DSSS) technology and
operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption
for security. 802.11b networks are also referred to as Wi-Fi networks.
● 802.11g - specification for wireless networking at 54 Mbps using direct-
sequence spread-spectrum (DSSS) technology, using OFDM modulation
and operating in the unlicensed radio spectrum at 2.4GHz, and backward
compatibility with IEEE 802.11b devices, and WEP encryption for security.
● 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO
(multiple-input multiple-output). MIMO uses multiple transmitter and
receiver antennas to allow for increased data throughput via spatial
multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced
Wireless Consortium (EWC) was formed to help accelerate the IEEE
802.11n development process and promote a technology specification for
interoperability of next-generation wireless local area networking (WLAN)
products.
● Access Point (Range Extender) - A wireless LAN transceiver or "base
Appendix
30
station" that can connect a wired LAN to one or many wireless devices.
Access points can also bridge to each other.
● DNS (Domain Name System) – An Internet Service that translates the
names of websites into IP addresses.
● Domain Name - A descriptive name for an address or group of addresses
on the Internet.
● DoS (Denial of Service) - A hacker attack designed to prevent your
computer or network from operating or communicating.
● DSL (Digital Subscriber Line) - A technology that allows data to be sent or
received over existing traditional phone lines.
● ISP (Internet Service Provider) - A company that provides access to the
Internet.
● MTU (Maximum Transmission Unit) - The size in bytes of the largest
packet that can be transmitted.
● SSID - A Service Set Identification is a thirty-two character (maximum)
alphanumeric key identifying a wireless local area network. For the wireless
devices in a network to communicate with each other, all devices must be
configured with the same SSID. This is typically the configuration
parameter for a wireless PC card. It corresponds to the ESSID in the
wireless Access Point and to the wireless network name.
● WPA (Wi-Fi Protected Access) - WPA is a security technology for wireless
networks that improves on the authentication and encryption features of
WEP (Wired Equivalent Privacy). In fact, WPA was developed by the
networking industry in response to the shortcomings of WEP. One of the
key technologies behind WPA is the Temporal Key Integrity Protocol (TKIP).
TKIP addresses the encryption weaknesses of WEP. Another key
component of WPA is built-in authentication that WEP does not offer. With
this feature, WPA provides roughly comparable security to VPN tunneling
with WEP, with the benefit of easier administration and use. This is similar
to 802.1x support and requires a RADIUS server in order to implement. The
Wi-Fi Alliance will call this, WPA-Enterprise. One variation of WPA is called
WPA Pre Shared Key or WPA-Personal for short - this provides an
authentication alternative to an expensive RADIUS server. WPA-Personal
is a simplified but still powerful form of WPA most suitable for home Wi-Fi
networking. To use WPA-Personal, a person sets a static key or
"passphrase" as with WEP. But, using TKIP, WPA-Personal automatically
changes the keys at a preset time interval, making it much more difficult for
hackers to find and exploit them. The Wi-Fi Alliance will call this, WPAPersonal.
● WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a
64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE
802.11 standard.
● Wi-Fi –A trademark of the Wi-Fi Alliance and the brand name for products
using the IEEE 802.11 family of standards.
● WLAN (Wireless Local Area Network) - A group of computers and
associated devices communicate with each other wirelessly, which network
serving users are limited in a local area.
Appendix
31
