TP-Link Archer D7 Quick Installation Guide
Quick Installation Guide
PHONE MODEM
LINE
AC1750 Wireless Dual Band
Gigabit ADSL2+ Modem Router
D7

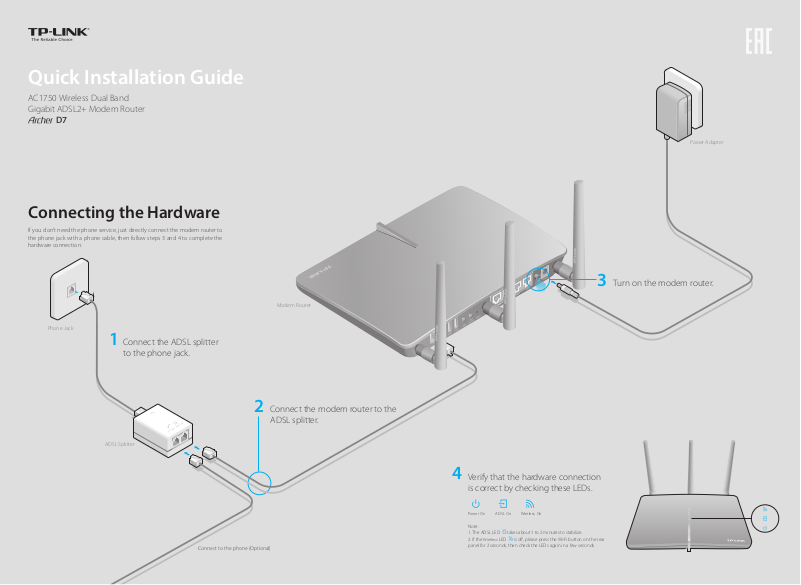

Connecting the Hardware
If you don’t need the phone service, just directly connect the modem router to
the phone jack with a phone cable, then follow steps 3 and 4 to complete the
hardware connection.
Power Adapter
Phone Jack
1 Connect the ADSL splitter
to the phone jack.
ADSL Splitter
3 Turn on the modem router.
Modem Router
2 Connect the modem router to the
ADSL splitter.
Connect to the phone (Optional)
4
Verify that the hardware connection
is correct by checking these LEDs.
Power On
Note:
1. The ADSL LED takes about 1 to 2 minutes to stabilize.
2. If the Wireless LED is o, please press the Wi-Fi button on the rear
panel for 2 seconds, then check the LEDs again in a few seconds.
OnWirelessOnADSL
Conguring the Modem Router
Connections are available
Wireless Network Connection
USB Features
FAQ (Frequently Asked Questions)
Connecting your computer to the modem router (Wired
1.
or Wireless)
Wired
Connect the computer to your modem router and the LAN LED lights up.
Ethernet cable
Wireless
a. Find the SSID (network name) and Wireless Password printed on the product
label at the bottom of the modem router.
b. Click the network icon of your computer or go to Wi-Fi Setting of your smart
device, then select the SSID to join the network.
Computer
TP-LINK_XXXX
TP-LINK_XXXX_5G
√
Connect automatically Connect
OR
< Settings
Wi-Fi
CHOOSE A NETWORK...
TP-LINK_XXXX
TP-LINK_XXXX_5G
Other...
Smart Device
Wi-Fi
Use the USB port for media sharing, storage sharing and printer sharing across your
local network. You can also setup an FTP server to access your files remotely through
the Internet.
USB Sharing Port
Remote Access
via FTP Server
To learn more about the USB features, visit http://tp-link.com/app/usb or simply scan the QR code.
Media Sharing
Local Storage
Sharing
Printer Sharing
Tether App
TP-LINK Tether app lets you conveniently access the modem router. You can view your
network information, block network access, set up parental controls, congure your
wireless settings and more.
Scan the QR code to download the TP-LINK Tether app from
the Apple App Store or Google Play.
Q1. What can I do if the login page does not appear?
A1. Make sure the computer is connected to the modem router properly.
A2. If the computer is set to a static or xed IP address, change it to obtain an IP address
automatically from the modem router.
A3. Verify http://tplinkmodem.net is correctly entered in the web browser and press
Enter.
A4. Use another web browser and try again.
A5. Reboot your modem router and try again.
A6. Disable and enable the active network adapter.
Q2. What can I do if I cannot access the Internet?
A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log into the web management page of the modem router using the default
address at http://tplinkmodem.net. If you can, try the following answers. If you cannot,
change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI, Connection Type, account username
and password are correct. If they are not, please replace them with the correct settings
and try again.
A4. Restore the modem router to its factory default settings and recongure the modem
router by following the instructions in this Quick Installation Guide.
A5. Please contact our Technical Support if the problem still exists.
Q3. How do I restore the modem router to its factory default
settings?
A1. With the modem router powered on,
use a pin to press and hold the RESET
button on the rear panel of the modem
router for 8 seconds until all LEDs turn
o momentarily, then release the
button.
A2. Log into the web management page of the modem router, and go to Advanced >
System Tools > Backup & Restore, click Factory Restore and wait until the reset
process is complete.
RESET Button Use a Pin to Press & Hold 8 seconds
2. Conguring the modem router via a web browser
A
Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.
Create a new password (1-15 characters) and click Save.
Note: If the login page does not appear, please refer to FAQ > Q1.
http://tplinkmodem.net
New Password
HighMiddleLow
Confirm Password
Save
B
Enter the new password that you created and click Log in.
7106506243 REV3.1.0
©2016 TP-LINK
Note: For subsequent logins, use your password you have created.
C
Follow the step-by-step instructions of the Quick Setup to complete the initial
conguration.
Note: For advanced settings, please refer to the User Guide on TP-LINK ocial website at www.tp-link.com.
LED Indicators
LED Status Indication
A WPS synchronization is established.
A wireless device is trying to connect to the network via WPS. This process
may take up to 3 minutes.
A WPS synchronization has been established for more than 5 minutes or a
WPS synchronization failed.
The USB device is identied and ready to use.
The USB device is being identied.
No USB device is plugged into the USB port.
At least one LAN port is connected.
No LAN port is connected.
The wireless 2.4GHz or 5GHz band is enabled.
The wireless function is disabled.
Internet connection is available.
No Internet connection or the modem router is operating in Bridge mode.
ADSL line is synchronized and ready to use.
The ADSL negotiation is in progress.
ADSL synchronization failed.
Power is on.
Power is o.
(WPS)
(USB)
(LAN)
(Wireless)
(Internet)
(ADSL)
(Power)
On
Flashing
O
On
Flashing
O
On
O
On
O
On
O
On
Flashing
O
On
O
Q4. What can I do if I forget my password?
Web Management page password:
Restore the modem router to its factory default settings and then set a new password
using 1-15 characters.
Wireless Network password:
A1. The default Wireless Password/PIN is printed on the product label of the modem
router.
A2. If the default wireless password has been changed, log into the modem router's web
management page and go to Basic > Wireless to retrieve or reset your password.
Q5. What can I do if the ADSL LED does not turn solid on?
A1. Check your cables and make sure they are all plugged in correctly, including the
telephone lines and power adapter.
A2. Manually change your DSL settings. Log into the modem router’s web management
page. Go to Advanced > Network > DSL Settings, change the DSL Modulation Type
to G.dmt, and click Save. You will be prompted a disconnection, and click Yes to
continue. If this cannot work, try to change the DSL Modulation Type to ADSL2.
A3. Restore your modem router to its factory default settings.
A4. Remove the ADSL splitter, directly connect the modem router to the phone jack and
then recongure the modem router by following the instructions in this Quick
Installation Guide.
A5. Contact your ISP to verify if the ADSL line is in good status.
A6. If you have tried all the suggestions above and the problem still exists, contact our
Technical Support.
