Page 1
2014
Yaris Liftback
Quick Reference Guide
Page 2
2014
INDEX
Yaris Liftback
This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Yaris.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Yaris
operations. Every Yaris owner should review the Owner’s Manual
that accompanies this vehicle.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry*
Air Conditioning/Heating 13
Automatic Transmission 8
Clock 14
Cruise control 13
Cup holders 15
Door-Back 15
Light control-Instrument panel 9
Lights & turn signals 9
Multi-Information Display 15
Parking brake 8
Power outlet 11
Seat adjustments-Front 10
Seat-Folding rear seat 10-11
Seats-Head restraints 11
Steering wheel switches 14
Tilt steering wheel 8
USB port/AUX port 14
Windows-Power 12
Windshield wipers & washers
Door locks-Power 16

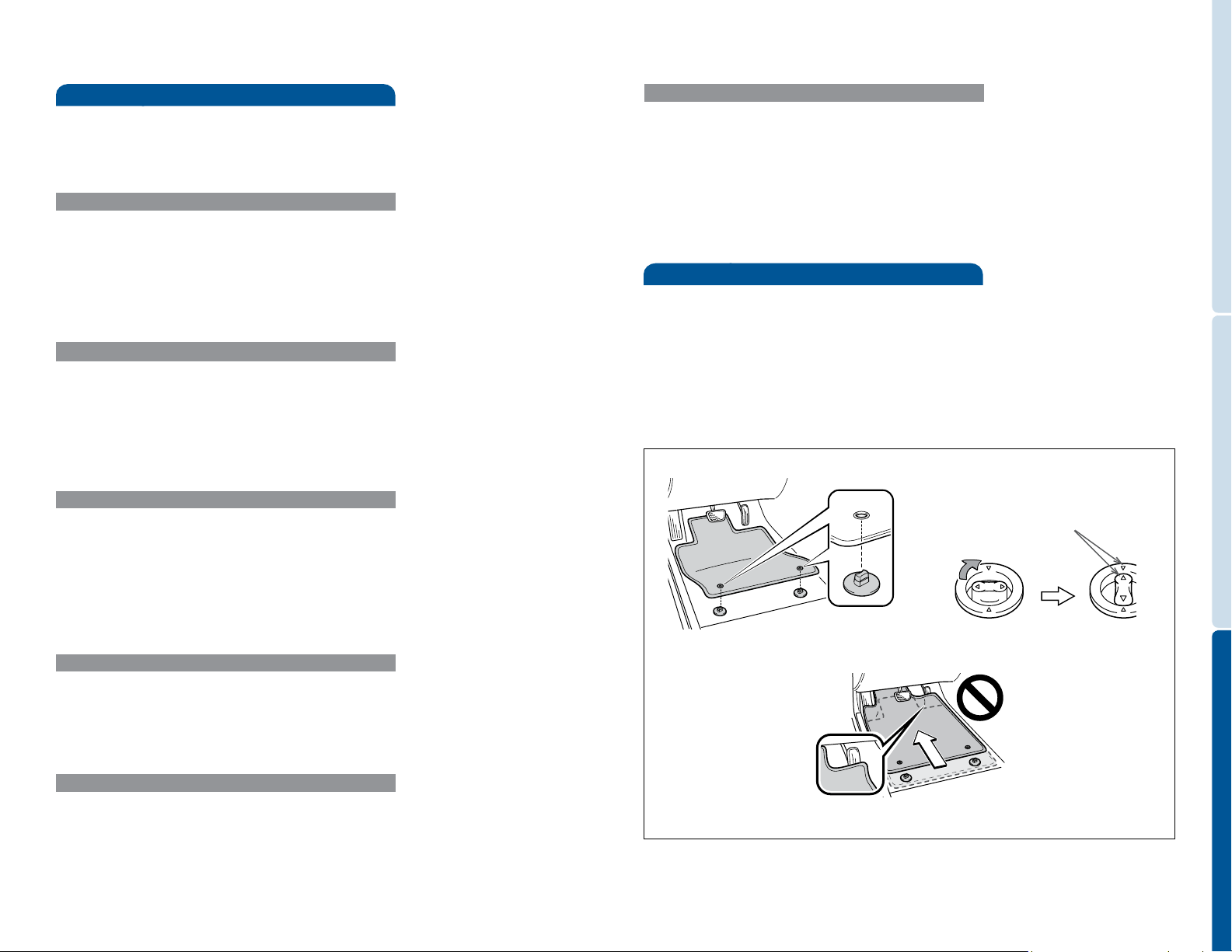

Floor mat installation 19
Seat belts 16
Spare tire & tools 17
Star Safety System
Tire Pressure Monitoring (warning) System 16
6
12
TM
18-19
OVERVIEW
FEATURES/OPERATIONS
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
SAFETY AND EMERGENCY FEATURES
* Visit your Toyota dealer for information on customizing this feature.
1
Page 3
OVERVIEW
Instrument panel
OVERVIEW
FEATURES/OPERATIONS
Steering wheel audio controls
Cruise control
1
1,2
Power outside rearview mirror control switches
Instrument panel light control
Tilt steering lock release lever
Headlight, turn signal and front fog light
1
controls
Ignition switch
Wiper and washer controls
2 3
USB port/AUX port
Emergency flasher switch
1
“AIR BAG ON” and “AIR BAG OFF” indicator
1
SAFETY AND EMERGENCY FEATURES
Rear window defogger switch
Air Conditioning controls
12V DC Power outlet
Tire Pressure Monitoring (warning) System
Hood release
1
If equipped
2
Refer to the Toyota Audio System Owner’s Manual or the Navigation
System Owner’s Manual for more details.
Page 4
OVERVIEW
Instrument cluster
Without tachometer
With tachometer
Eco Driving Indicator Light
Charging system warning
Malfunction/Check Engine indicator
Low engine oil pressure warning
1
1
1
1
Open door warning
Airbag SRS warning
1
Low windshield washer fluid warning
Electric power steering system warning
Low fuel level warning
Engine oil replacement reminder
1
AIR BAG ON indicator
AIR BAG OFF indicator
VSC OFF indicator
TRAC OFF indicator
1
1
1
OVERVIEW
1
FEATURES/OPERATIONS
Service indicator and reminder
Speedometer
Automatic Transmission shift position indicator (if equipped)
Display change button
Odometer, trip meter and Multi-Information Display
Fuel gauge
Clock
Clock adjusting buttons
Outside temperature display
Tachometer
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual.
Brake system warning
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
1
4 5
Headlight high beam indicator
Front fog light indicator
Turn signal indicator
High engine coolant temperature warning
1
Low engine coolant temperature indicator
Slip indicator
Cruise control indicator
1
2
Cruise control SET indicator
Anti-lock Brake System warning
Low Tire Pressure Warning
2
For details, refer to “Cruise control” Section 2-4, 2014 Owner’s Manual.
1
1
SAFETY AND EMERGENCY FEATURES
Page 5
OVERVIEW

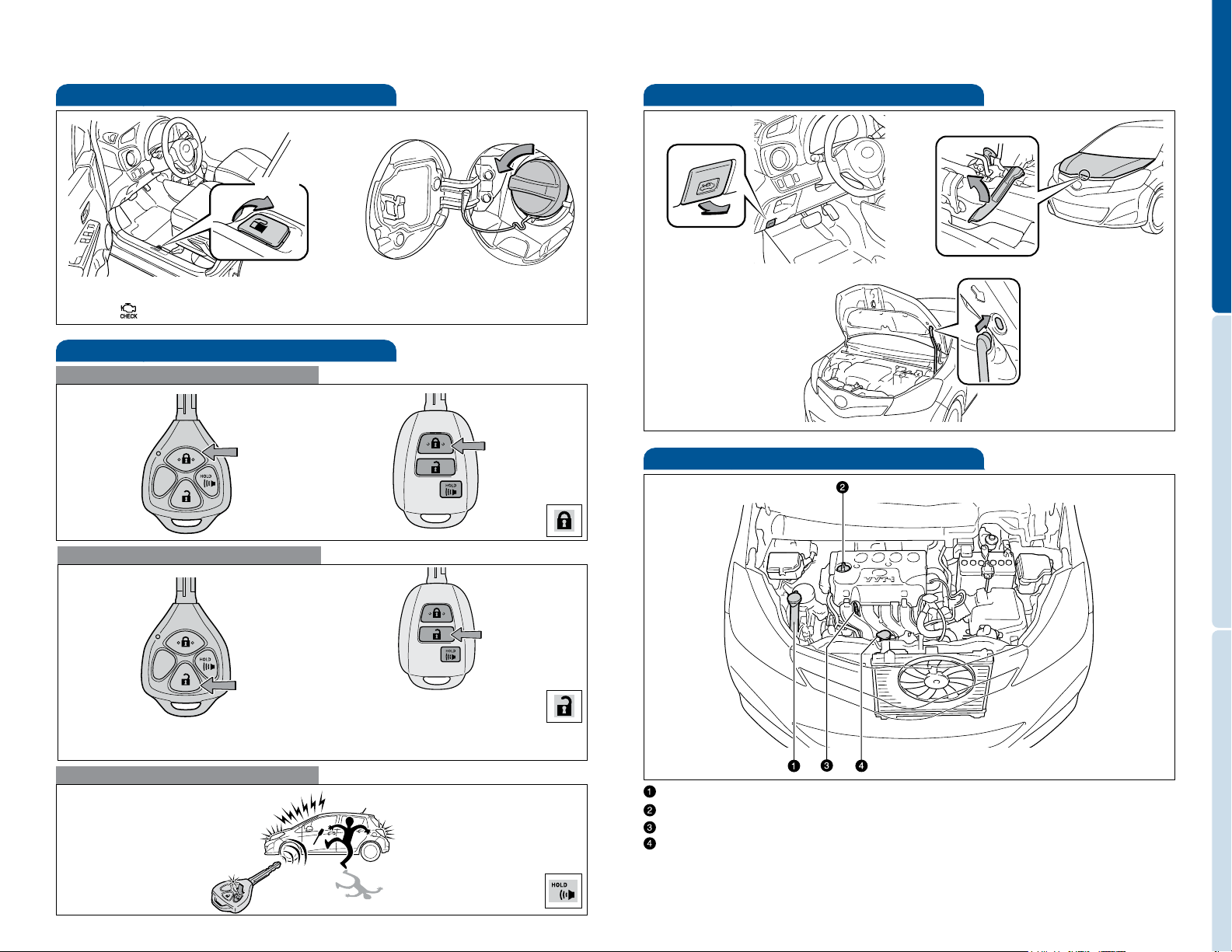

Fuel tank door release and cap
Turn to open
Pull up
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
Keyless entry (if equipped)
Locking operation
Type A
Type B
Push
Hood release
Pull
Engine maintenance
OVERVIEW
Pull up latch
and raise hood
Engage support rod
FEATURES/OPERATIONS
Unlocking operation
Type A
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Type B
Push ONCE: Driver door
TWICE: All doors
Panic button
Push and hold
6 7
SAFETY AND EMERGENCY FEATURES
Windshield washer and rear window washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Page 6
FEATURES/OPERATIONS
P
3
2
L

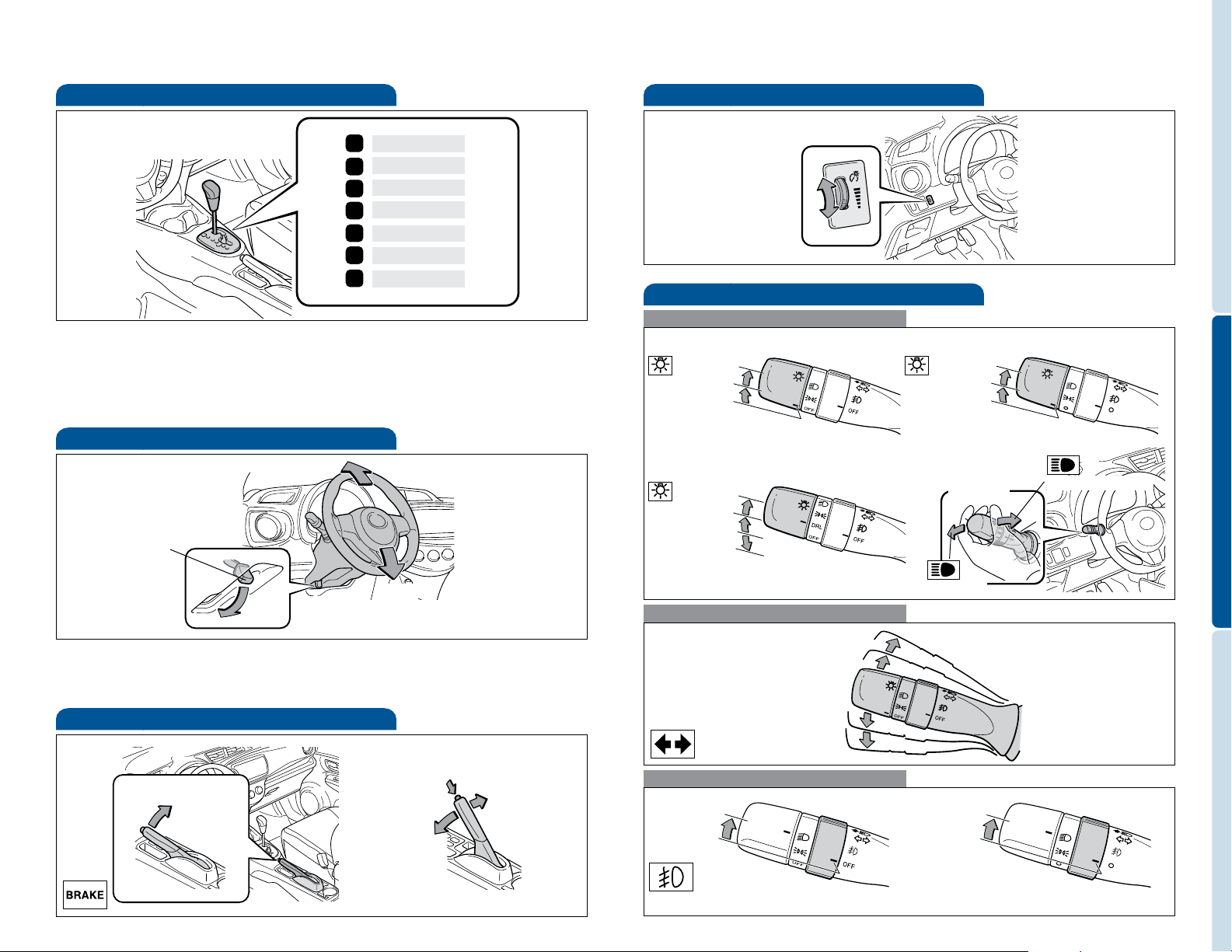

Automatic Transmission (if equipped)
Park*
Reverse
R
Neutral
N
Drive
D
Third gear
Second gear
First gear
* The ignition switch must be “ON” and the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Tilt steering wheel
Lock release lever
Light control-Instrument panel
+
Brightness
control
-
Lights & turn signals
Headlights
Type A
Headlights
Parking lights
Type C
Headlights
Parking lights
DRL ON
DRL OFF
Type B
Headlights
Parking lights
Low beam
OVERVIEW
FEATURES/OPERATIONS
High beam flasher
Angle
High beam
Turn signals
Right turn
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Parking brake
Set
Pull
8 9
Release
(3) Lower
(2) Push
(1) Pull slightly
Front fog lights (if equipped)
Type A
Turn
Front fog lights turn on only when the headlights are on low beam.
Lane change
Lane change
Left turn
SAFETY AND EMERGENCY FEATURES
Type B
Turn
Page 7
FEATURES/OPERATIONS

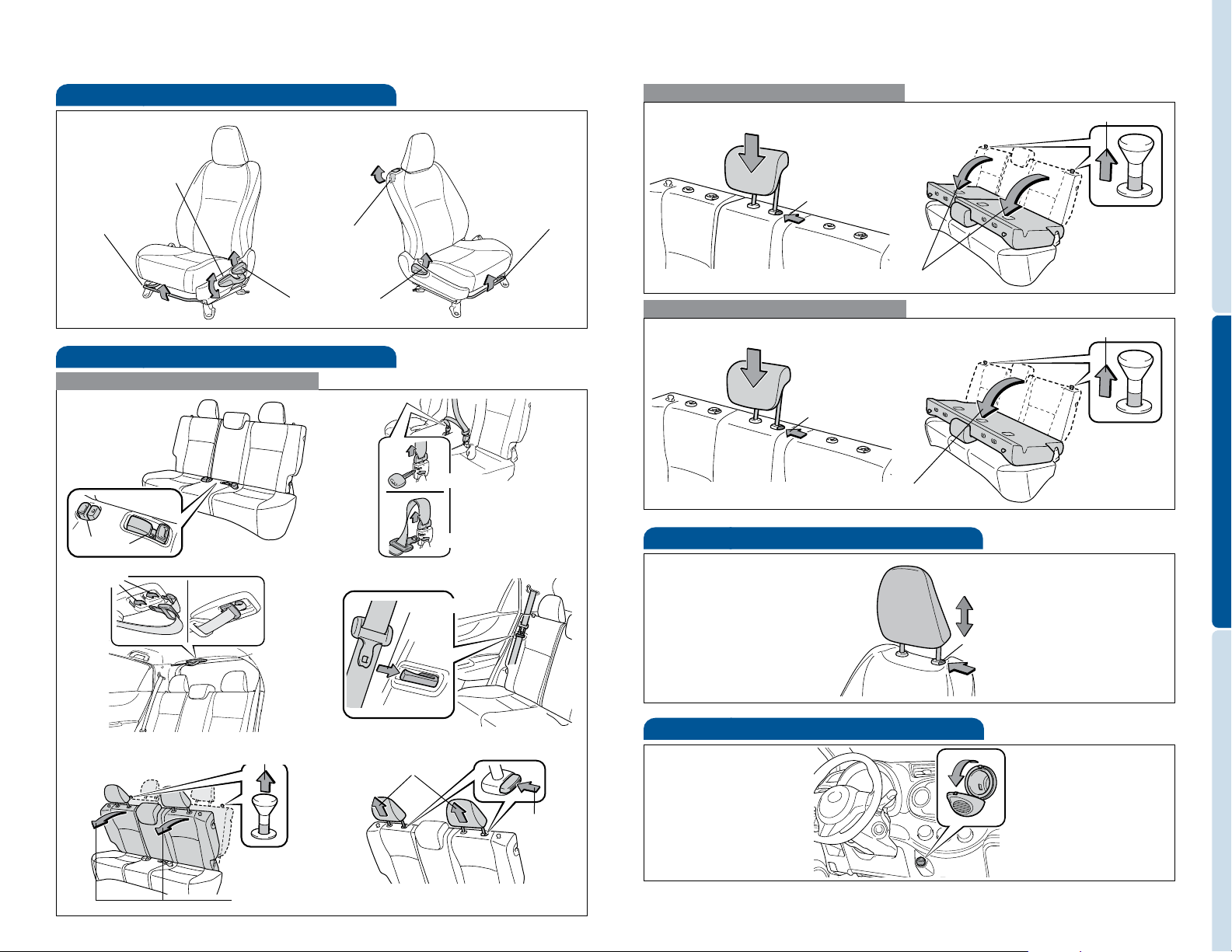

Seat adjustments-Front
Driver seat
Height crank
(if equipped)
Seat position
(forward/backward)
Seat-Folding rear seat
Before folding
(1) Store
Passenger seat
Seatback lock release
(3-door models)
Seatback angle
Seat position
(forward/backward)
(2) Push
(2) Push
Fold (split seat)
(2) Lower
(1) Push
Fold (non-split seat)
(2) Lower
(1) Push
Seats-Head restraints
(3) Pull up
OVERVIEW
(4) Fold down
(3) Pull up
FEATURES/OPERATIONS
(4) Fold down
(3) Store
(5) Pull up
(6) Fold down
(4) Store
(8) Pull up
(7) Push
Lock release button
Power outlet
Designed for 12V car accessories. Key must be in the “ACC” or “ON” position to
be used.
1110
SAFETY AND EMERGENCY FEATURES
Page 8
FEATURES/OPERATIONS

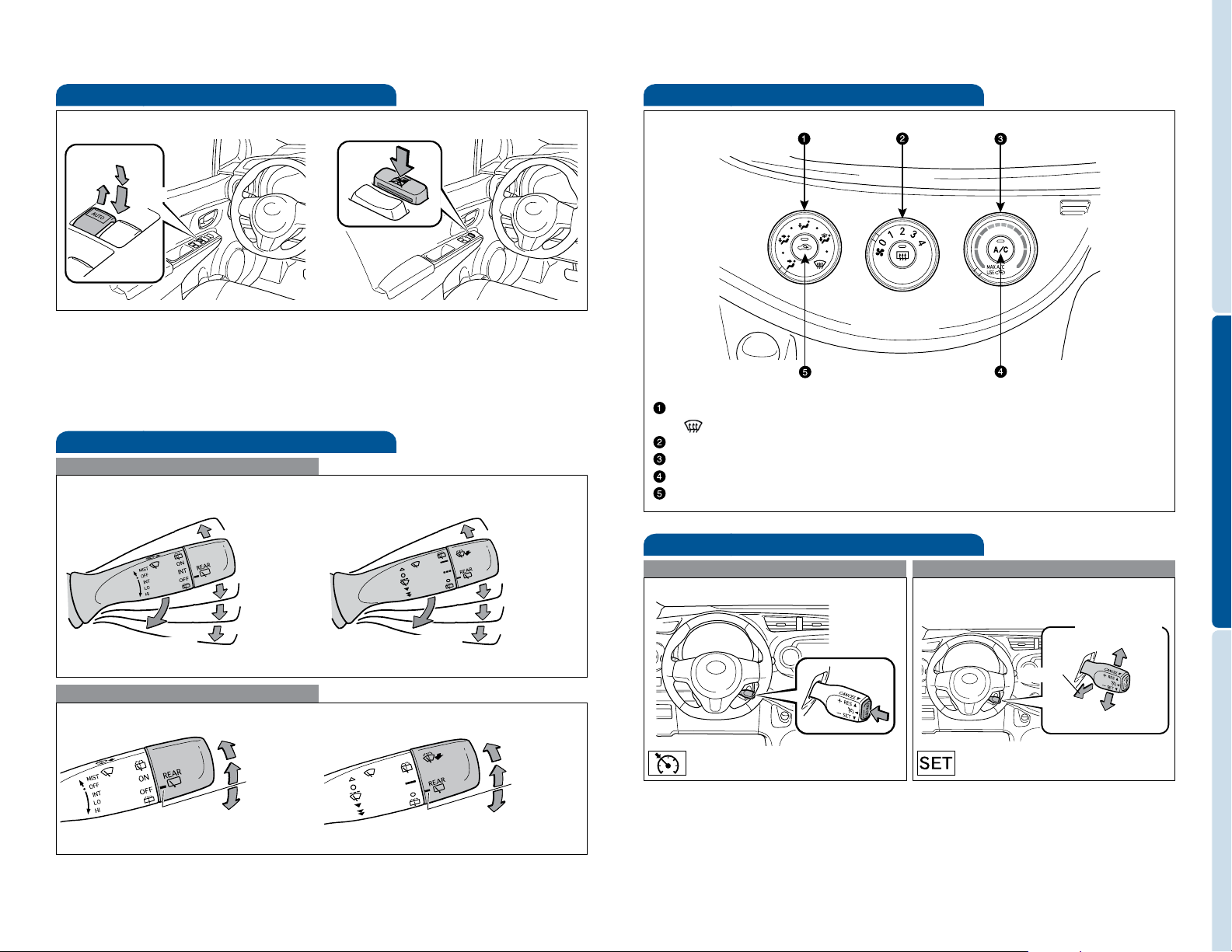

Windows-Power (if equipped)
Driver side
Up
Down
Automatic operation (driver’s window only) Push the switch completely down
and release to fully open. To stop window partway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window lock switch
Windshield wipers & washers
Front
Type A
Single wipe
Interval wipe
Type B
Single wipe
Interval wipe
Air Conditioning/Heating
Airflow vent
“
” mode uses fresh air to reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Cruise control (if equipped)
Turning system ON/OFF Functions
OVERVIEW
FEATURES/OPERATIONS
Pull to wash and wipe
Rear
Type A
Slow
Fast
Wash and wipe
Wipe
Wash
12 13
Pull to wash and wipe
Type B
Slow
Fast
Wash and wipe
Wipe
Wash
Resume2/
Increase speed
1
Cancel
Set/Decrease speed
System ON/OFF
1
The set speed may also be cancelled by depressing the brake pedal or the clutch
pedal (Manual Transmission).
2
Unless vehicle speed drops below 10 mph, the set speed may be resumed once
vehicle exceeds 25 mph.
Refer to the Owner’s Manual for more details.
SAFETY AND EMERGENCY FEATURES
Page 9
FEATURES/OPERATIONS

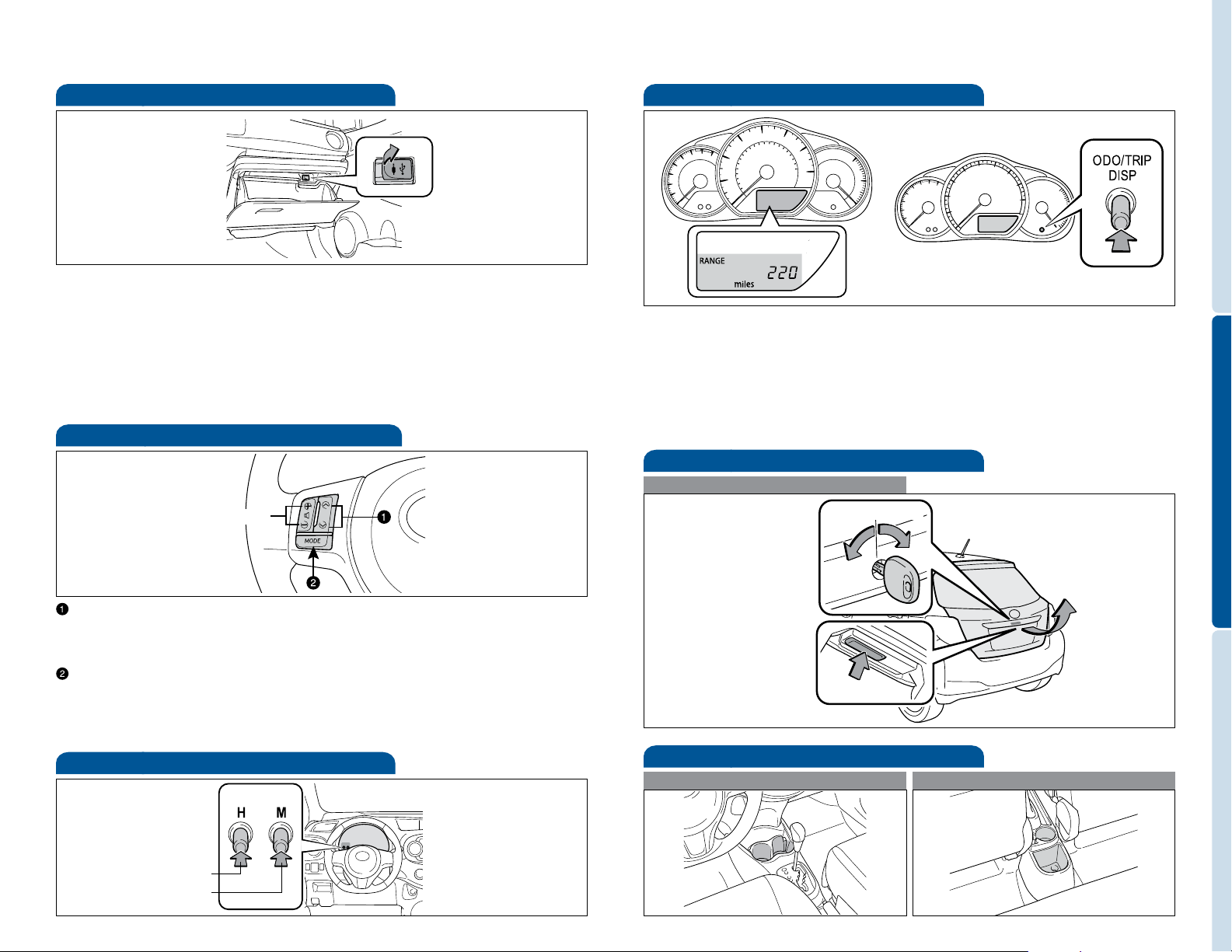

USB port/AUX port (if equipped)
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
Refer to the Toyota Audio or Navigation System Owner’s Manual for more details.
Steering wheel switches (if equipped)
Volume control
Multi-Information Display
Push button to change information in the following succession:
(1) Odometer
(2) Trip meters
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Miles left on remaining fuel (RANGE/MI)
(6) Average vehicle speed from engine start (AVG/MPH)
Door-Back
Open/Close
Lock
*
OVERVIEW
FEATURES/OPERATIONS
>
“ ”
>
-In radio mode Push to select a preset station; push and hold to seek the next
strong station.
-In CD mode Push to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Refer to the Toyota Audio or Navigation System Owner’s Manual for more details.
Clock
Hour set
Minute set
14 15
Unlock
*
* Vehicles with back door keyhole
Cup holders
Front Rear
SAFETY AND EMERGENCY FEATURES
Page 10
SAFETY AND EMERGENCY FEATURES

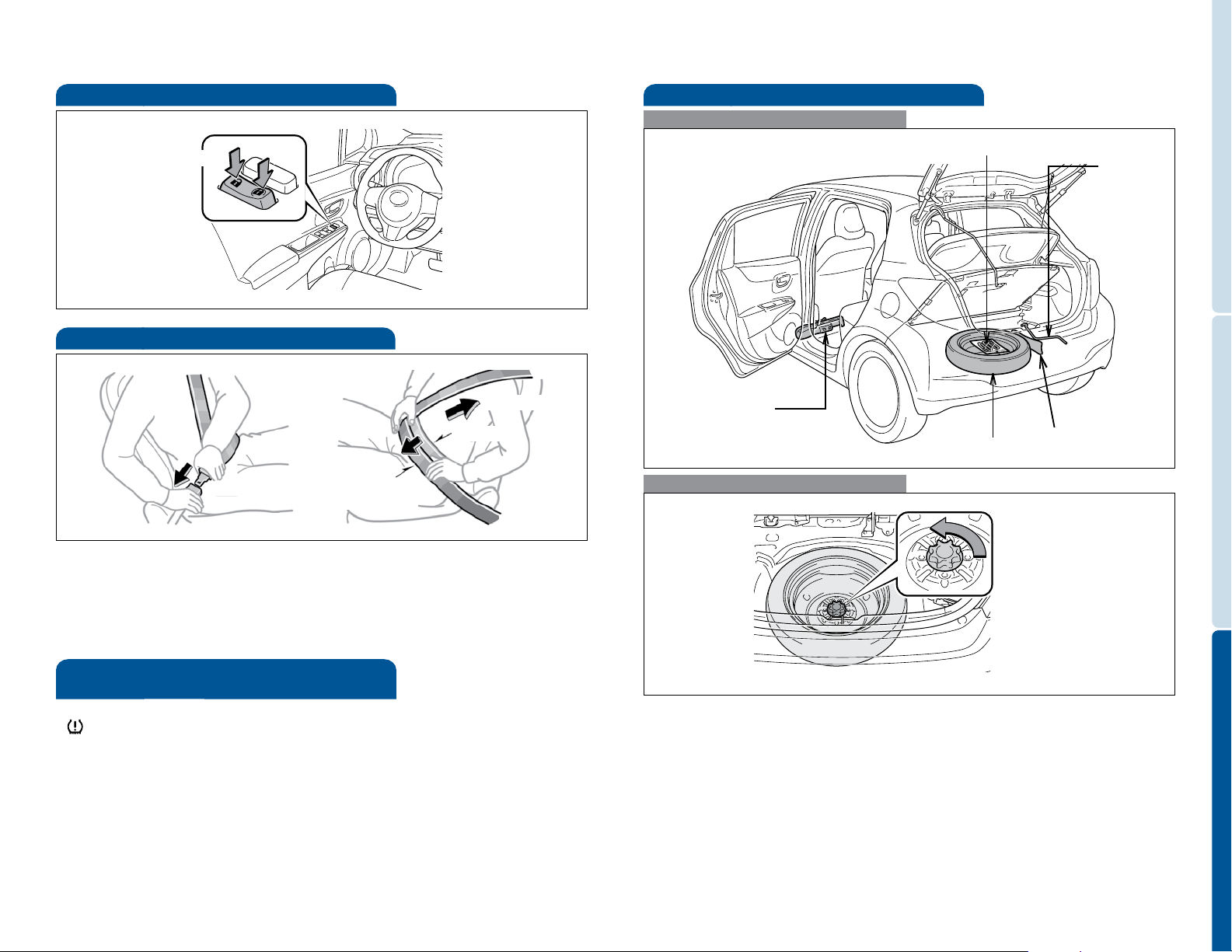

Door locks-Power
Unlock
Lock
Seat belts
Take up slack
Too high
Keep as low on
hips as possible
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
Spare tire & tools
Tool location
Jack
Removing the spare tire
Tie-down belt
Spare tire
Loosen and remove
the bolt.
OVERVIEW
Jack handle
FEATURES/OPERATIONS
Tool bag
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Tire Pressure Monitoring (warning) System
If tire pressure becomes critically low on any of the tires (excluding the spare),
“
” indicator will illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Toyota dealer.
Refer to the Owner’s Manual for more details.
16 17
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
SAFETY AND EMERGENCY FEATURES
Page 11
SAFETY AND EMERGENCY FEATURES
Star Safety System
All new Toyota vehicles come standard with the Star Safety System
TM
TM
, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
Vehicle Stability Control (VSC)
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Traction Control (TRAC)
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Smart Stop Technology (SST)
Smart Stop Technology automatically reduces driving torque when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Always align the Δ marks
OVERVIEW
FEATURES/OPERATIONS
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can.
SAFETY AND EMERGENCY FEATURES
1918
Page 12
NOTES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2120
Page 13
MN 00505-QRG14-YARLB
Printed in the USA 5/13
Loading...
