A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in the vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of the vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new 4Runner.

This Quick Reference Guide is not a full description of 4Runner operations. Every 4Runner owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

11-4Runner.qxd:414839M2 8/3/10 6:22 PM Page 51

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

Doors-Child safety locks

Rear door

Spare tire & tools

Tool location

Removing the spare tire

(1) Assemble the jack handle. (2) Insert the jack handle end through the opening in the bumper, and into

the lowering screw.

(3) Turn the jack handle counterclockwise.

Refer to the Owner’s Manual for tire changing and jack positioning procedures.

Tool bag

Jack

(1)

(2)

(3)

Spare tire

11-4Runner.qxd:414839M2 8/3/10 6:26 PM Page 25

Page 3

Engine maintenance

8 Fuel tank door and cap 6 Hood release 8 Indicator symbols 4-5 Instrument cluster 4 Instrument panel 2-3

Keyless entry

6 Smart Key system

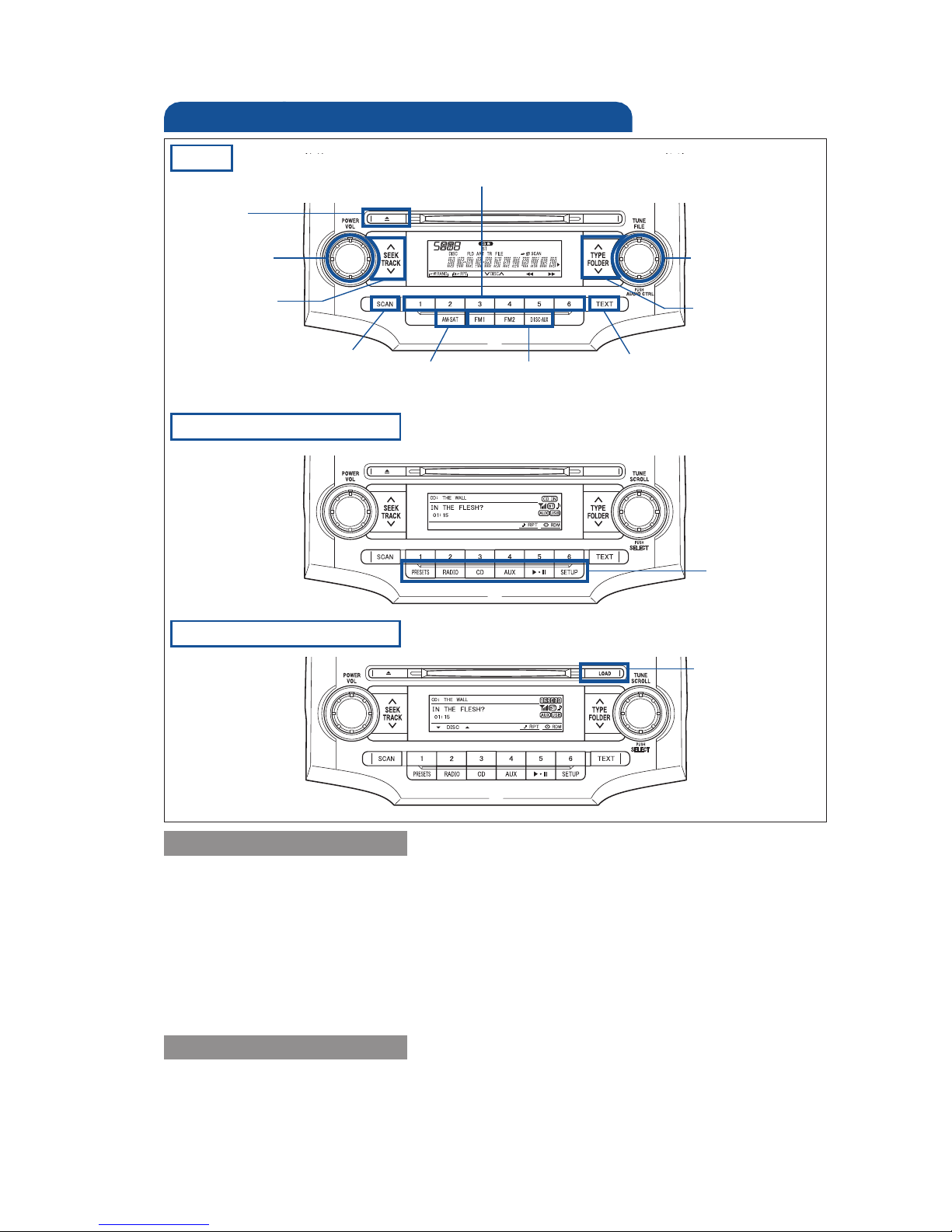

Air Conditioning/Heating 18-19 Audio 20-21

Auto lock functions

1,2

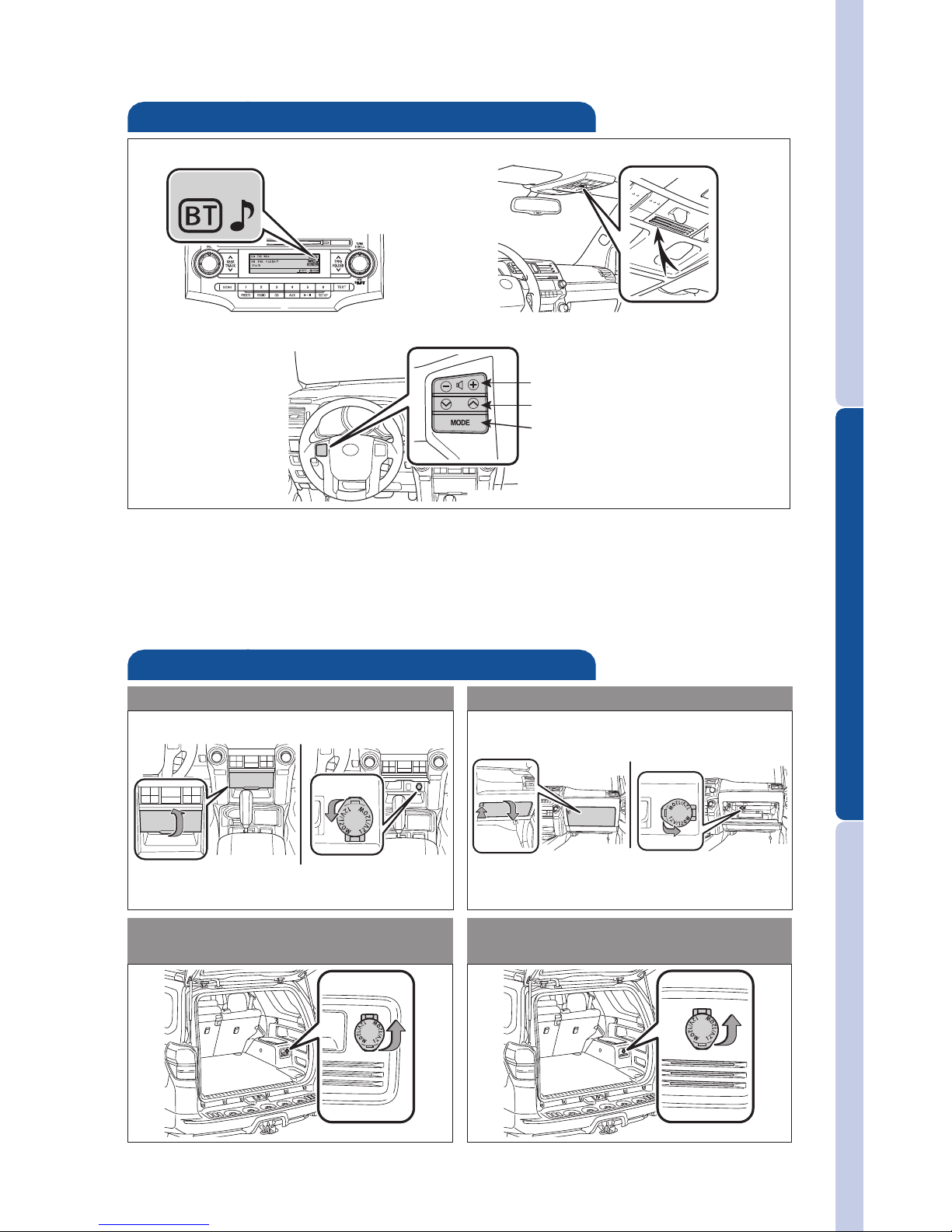

Automatic Transmission 9 Bluetooth®audio 23

Clock 14 Cruise control 17 Four-wheel drive 10 Garage door opener (HomeLink®)

19 iPod®/USB/AUX port 21 Light control-Instrument panel

Lights1& turn signals 16 Moonroof

Parking brake 9 Power outlets-12V DC 23 Power outlets-120V AC 22 Seat adjustments-Front 11 Seat adjustments-Second row seats 11 Seat heaters

18 Seats-Folding down second row seats 12 Seats-Head restraints 13 Seats-Returning third row seats 13 Seats-Stowing third row seats 13 Telephone controls (Bluetooth®) 22 Tilt and telescopic steering wheel 10 VSC OFF button 15

Windows

Window-Back window

Windshield wipers & washers

Door locks

24 Doors-Child safety locks 25 Seat belts 24 Seat belts-Shoulder belt anchor 24 Spare tire & tools 25 Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

Visit your Toyota dealer for information on customizing this feature.

Programmable by customer. Refer to the Owner’s Manual for instructions and more information.

HomeLink®is a registered trademark of Johnson Controls, Inc.

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Page 4

Power outside rearview mirror controls Instrument panel light control Intuitive parking assist switch and indicator

Tilt and telescopic steering lock release “RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch 120V AC Power outlet ON/OFF switch

Windshield wiper de-icer switch

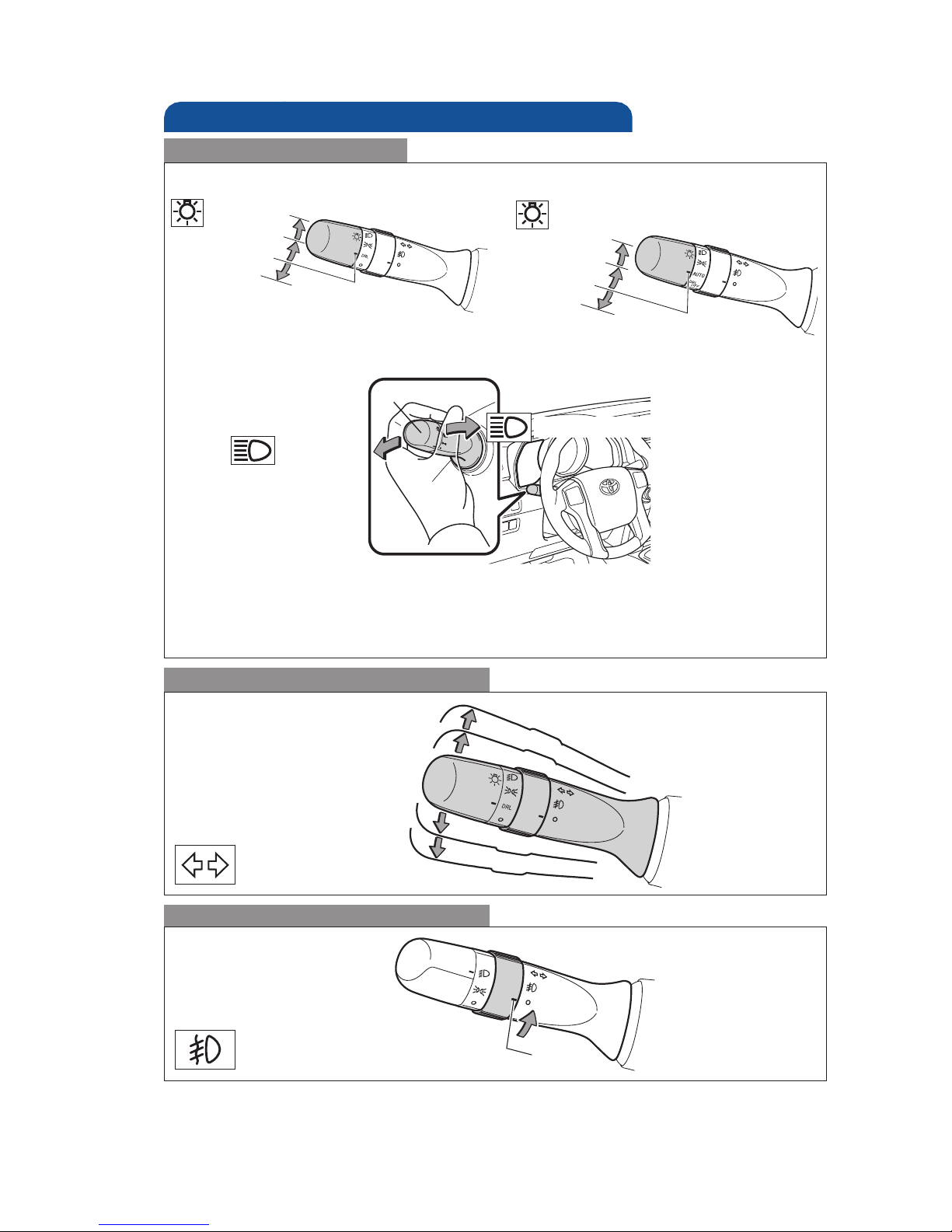

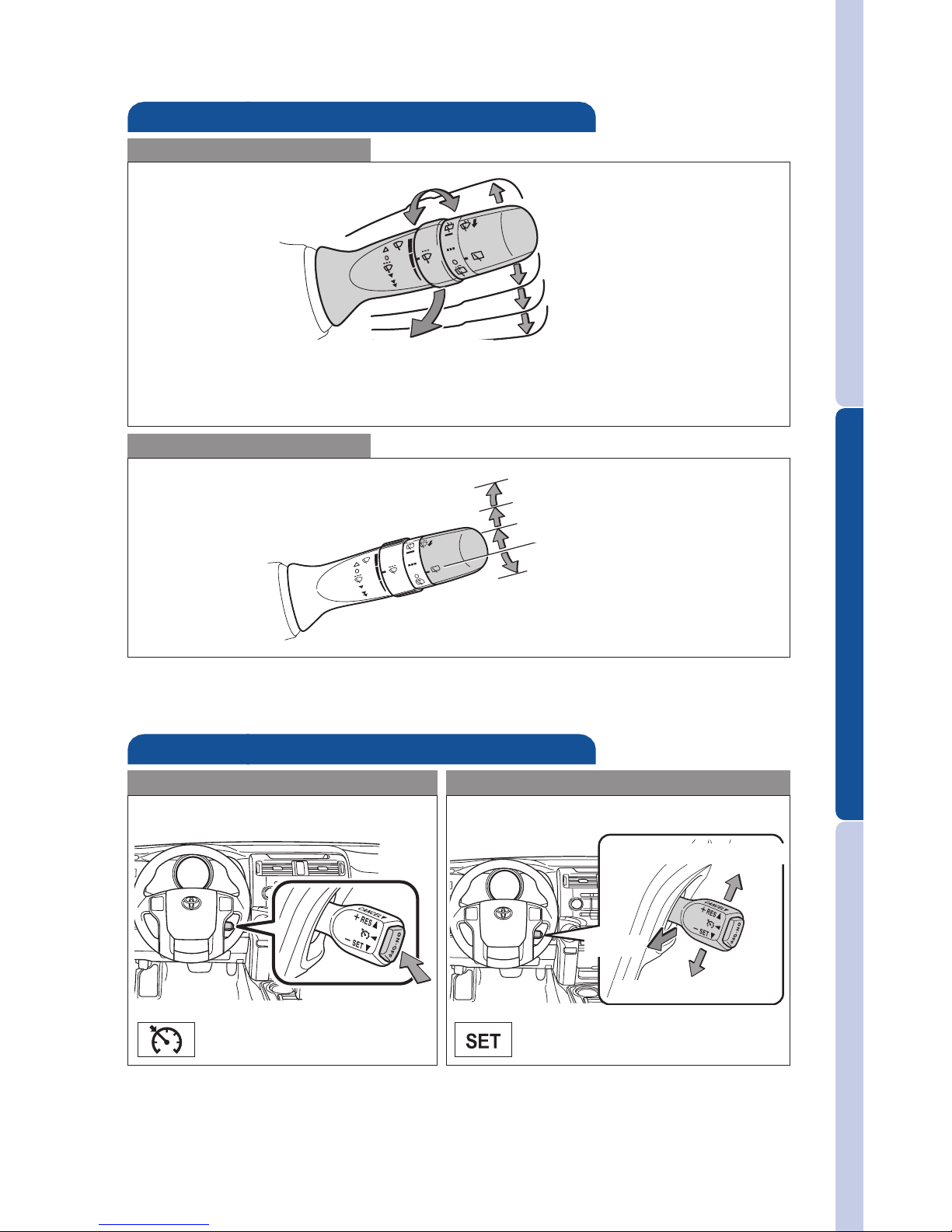

Headlight, turn signal and front fog light1control Wiper and washer controls Accessory meter/Outside temperature display Emergency flasher switch Audio system

or navigation system

Back window and outside rearview mirror defogger switch Front passenger seat belt reminder light Front passenger occupant classification indicator Engine immobilizer/Theft deterrent system indicator 12V DC Power outlet

OVERVIEW

Instrument panel

Steering wheel controls

Center console box

U A Fo H St Vo Te Ig Pa C Se 12 Po

Without Smart Key system

With Smart Key system

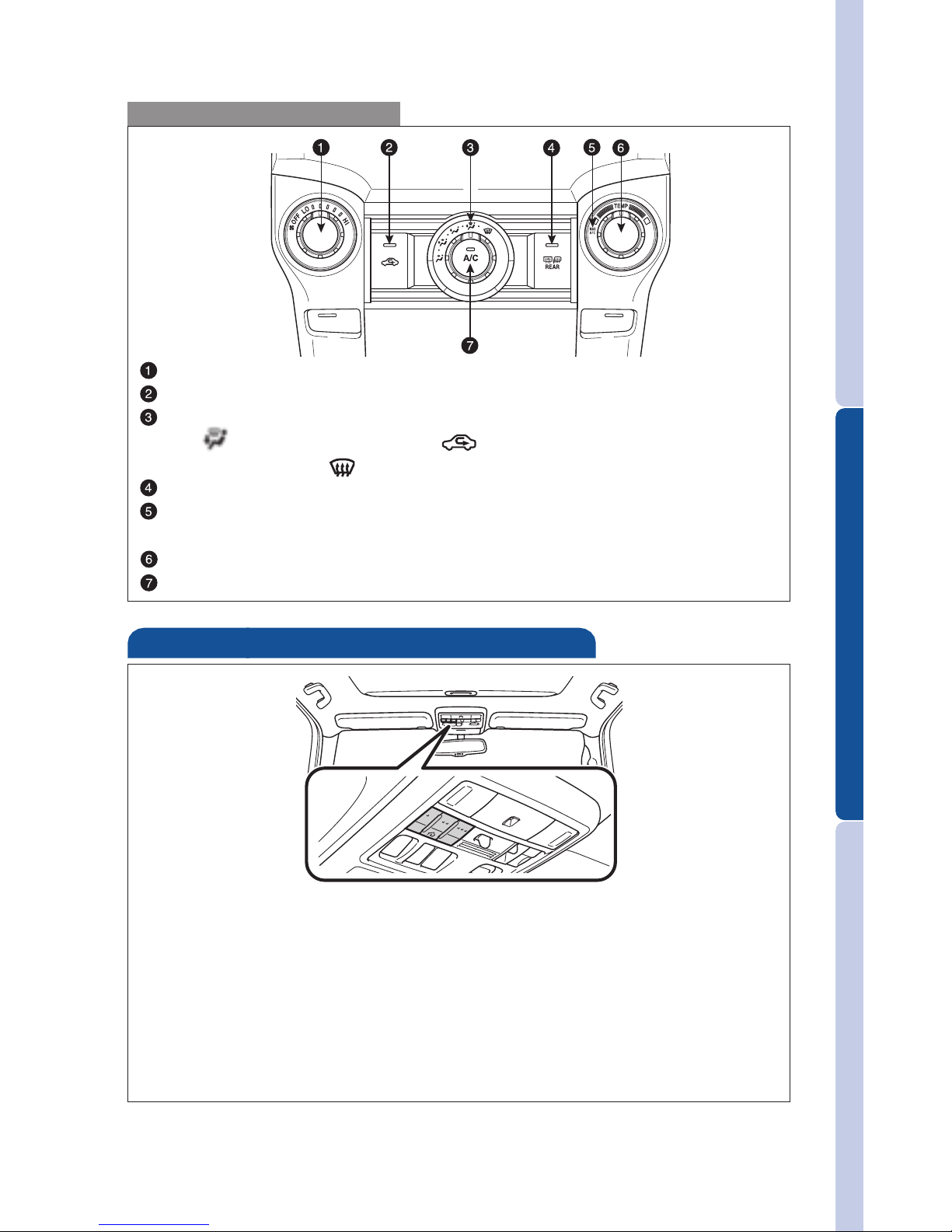

Manual Air Condition

Page 5

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

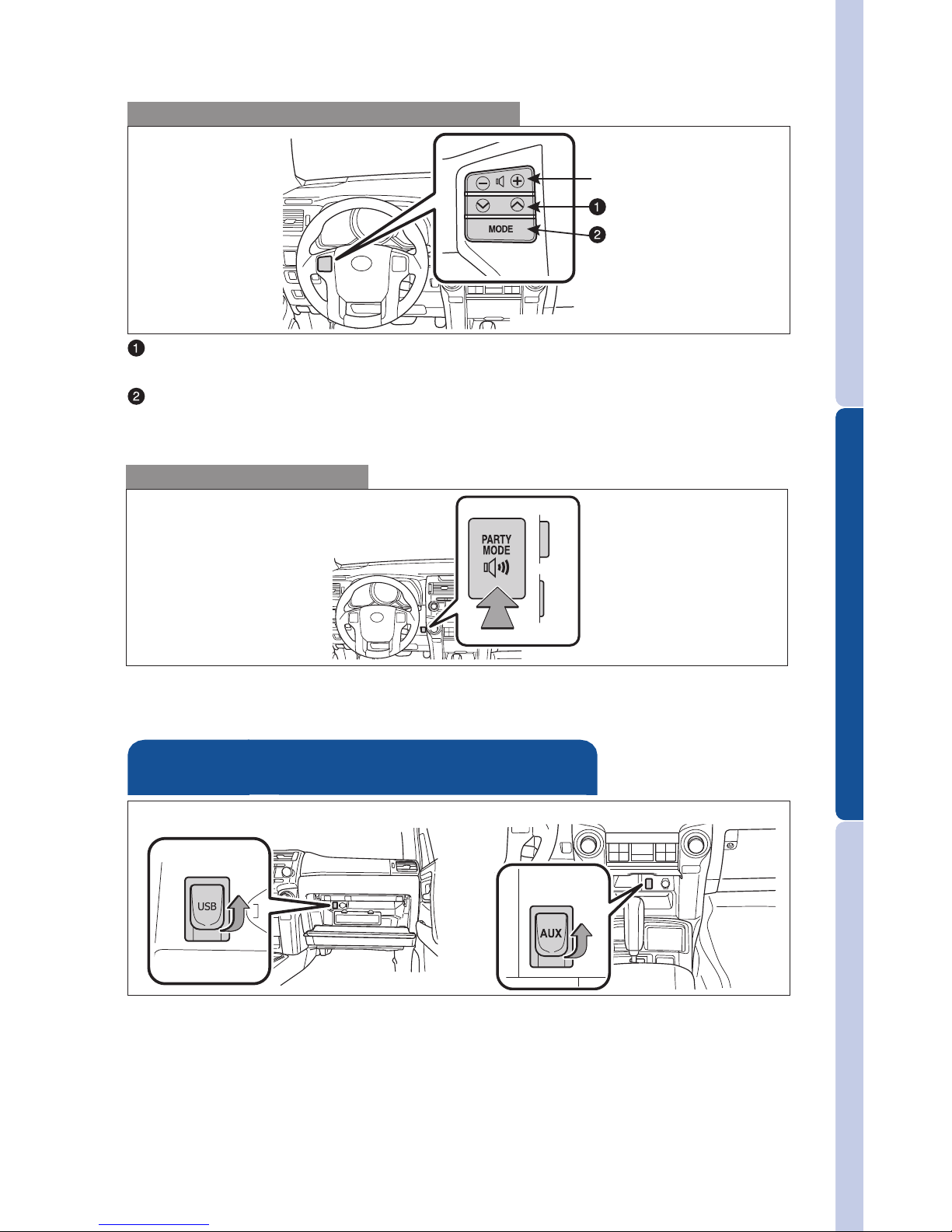

USB port

AUX port Four-wheel drive selector

Hood release Steering wheel audio controls

1,2

Voice command button

1,2

Telephone switches

1,2

Ignition switch (standard key)1/“ENGINE START STOP” button (Smart Key)

Party mode switch Cruise control Seat heater switch

120V AC Power outlet

Power back window switch

If equipped

For vehicles with a navigation system, refer to the “Navigation System

Owner’s Manual.”

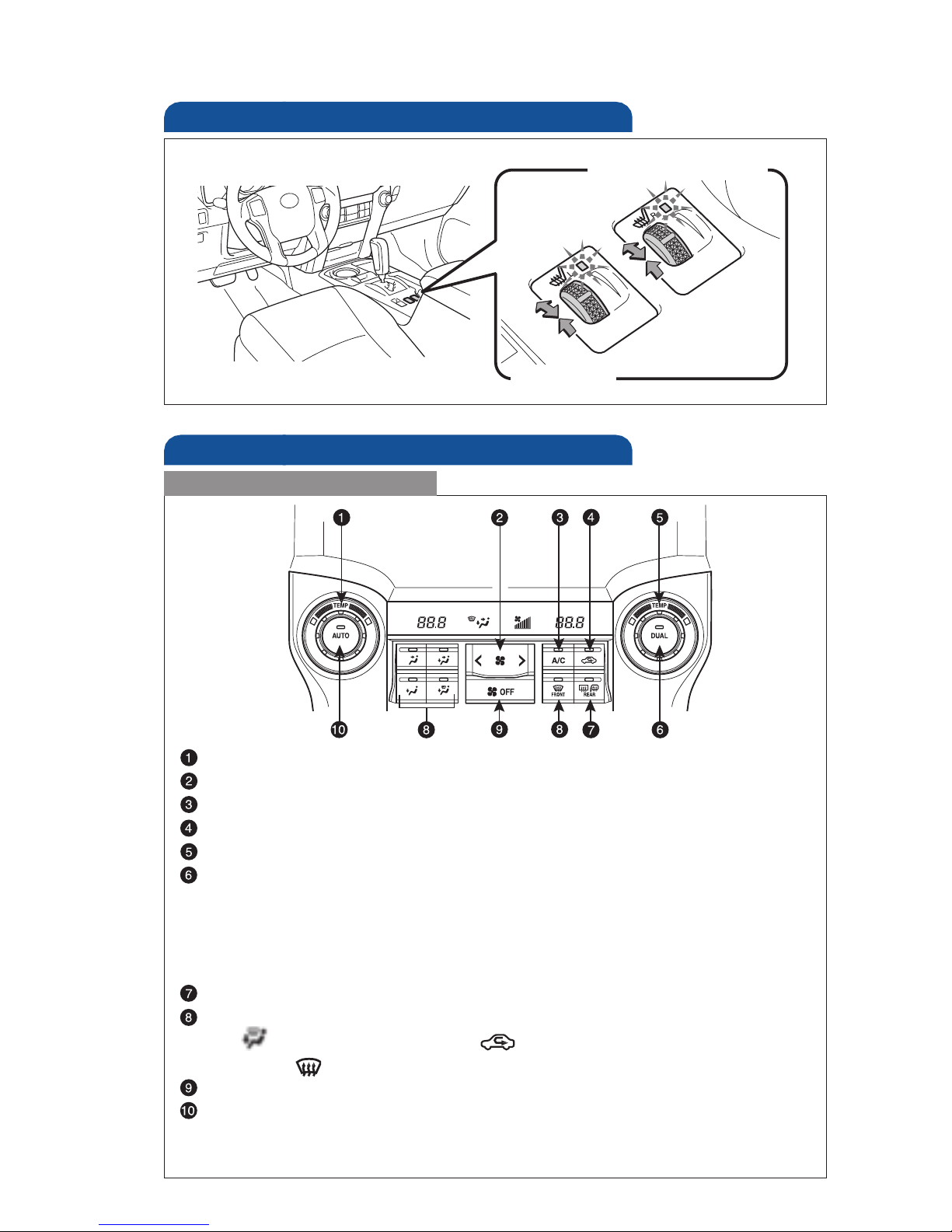

Automatic Air Conditioning

Standard type transmission

Multi-mode type transmission (2WD)

Multi-mode type transmission (part-time 4WD)

Multi-mode type transmission (full-time 4WD)

Page 6

OVERVIEW

Low Tire Pressure Warning

Open door warning

Airbag SRS warning

Tachometer Speedometer Display change button Engine coolant temperature Fuel gauge Eco driving indicator zone display Odometer, trip meter and average fuel consumption display Shift position and shift range indicators Voltmeter

Instrument cluster

Charging system warning

Low engine oil pressure warning

Brake system warning

Malfunction/Check Engine indicator

Engine oil replacement reminder

Indicator symbols

Driver/Front passenger seat belt reminder

(alarm will sound if speed is over 12 mph)

Optitron type meters

AIR BAG ON and AIR BAG OFF indicator

Turn signal indicator

Headlight low/high beam indicator

If th

For details, refer to “If a warning light turns on or a warning buzzer sounds” Section 5-2, 2011 Owner’s Manual.

For details, see “SRS airbags” Section 1-7, 2011 Owner’s Manual.

Low fuel level warning

Non-Optitron type meters

Page 7

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Automatic Transmission fluid temperature warning

Crawl Control indicator

Front fog light indicator

Four-wheel drive indicator

Low speed four-wheel drive indicator

Center differential lock indicator

Slip indicator

Vehicle Stability Control OFF indicator

Downhill Assist Control indicator

AUTO Limited Slip Differential indicator

Cruise control/Cruise control SET indicator

Roll Sensing of Curtain shield Airbag OFF indicator

Engine immobilizer/Theft deterrent system indicator

Anti-lock Brake System warning

If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2011 Owner’s Manual.

If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.

Multi-terrain select

Rear differential lock indicator

Active traction control indicator

Power steering system warning

Kinetic Dynamic Suspension System indicator

Unengaged Park warning light

Smart Key system warning

Intuitive parking assist indicator

Eco driving indicator light

Traction Control OFF indicator

Page 8

OVERVIEW

Fuel tank door and cap

Pull

Turn to open

NOTE: Tighten until one click is heard. If the cap is not properly sealed, Check Engine “ ” indicator may illuminate.

Keyless entry

Locking

Unlocking

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

Push ONCE: Driver door

TWICE: All doors

Push

Without Smart Key system

With Smart Key system

Without Smart Key system

With Smart Key system

Star

NOT

With switc

NOT

Pow

Unl

Loc

Carr

Bac

Carr

Page 9

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

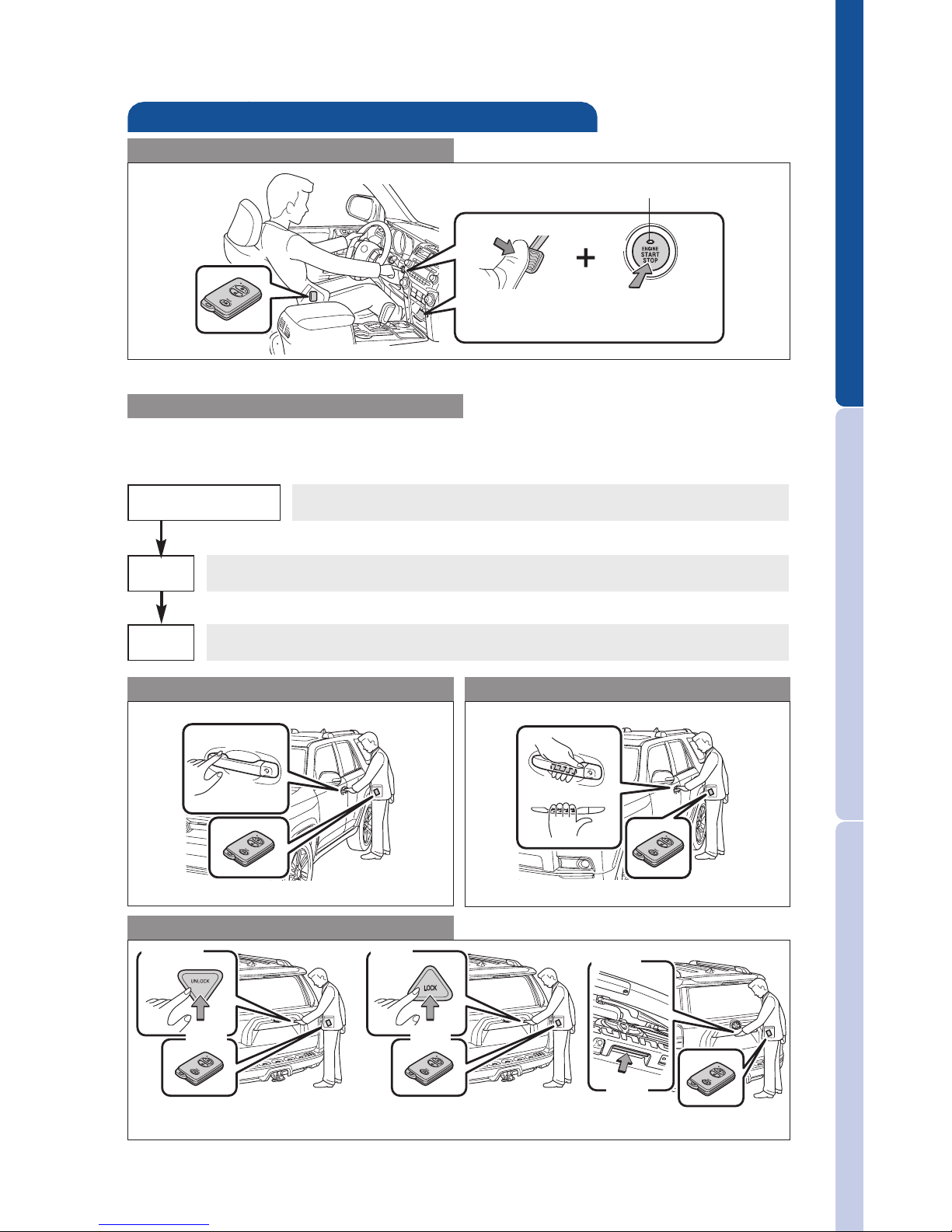

Smart Key system (if equipped)

Start function

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

ACCESSORY

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

NOTE: Doors may also be locked/unlocked using remote.

Power (without starting engine)

Push

Unlock

Push

Lock

Locking

Unlocking

Carry remote to unlock

Front door lock

Front door unlock

Grasp

Carry remote to lock/unlock/open

Back door lock/unlock/open

Carry remote to lock

Touch

Open

Push

Page 10

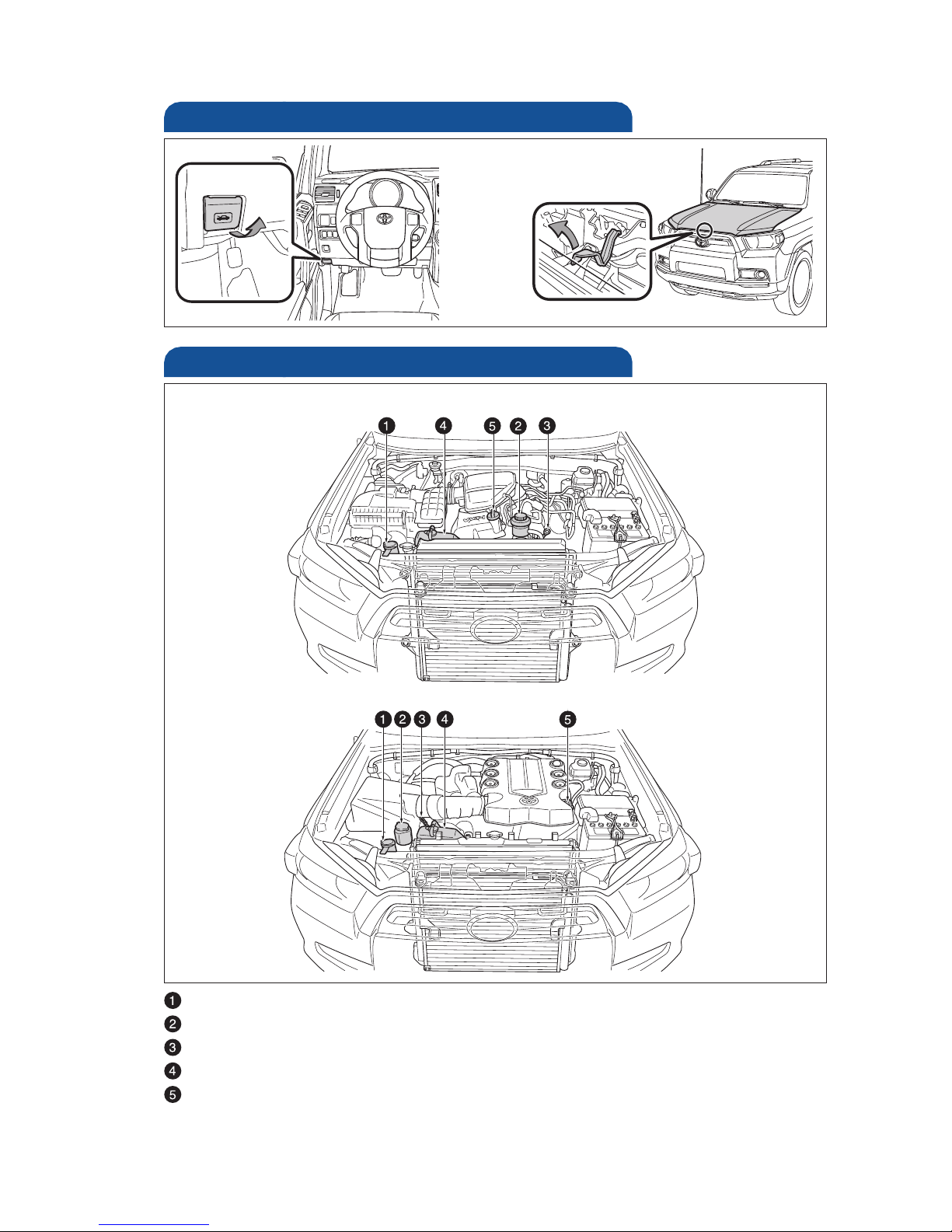

Windshield and back window washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”

Engine maintenance

Hood release

Pull

Pull up latch and raise hood

OVERVIEW

* The

ped

Shift

Down down drive

“S”

Auto mode

-Doo

-Doo turn

Refe

4.0 L V6 (1GR-FE) engine

2.7 L 4-cylinder (2TR-FE) engine

Stan

Page 11

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

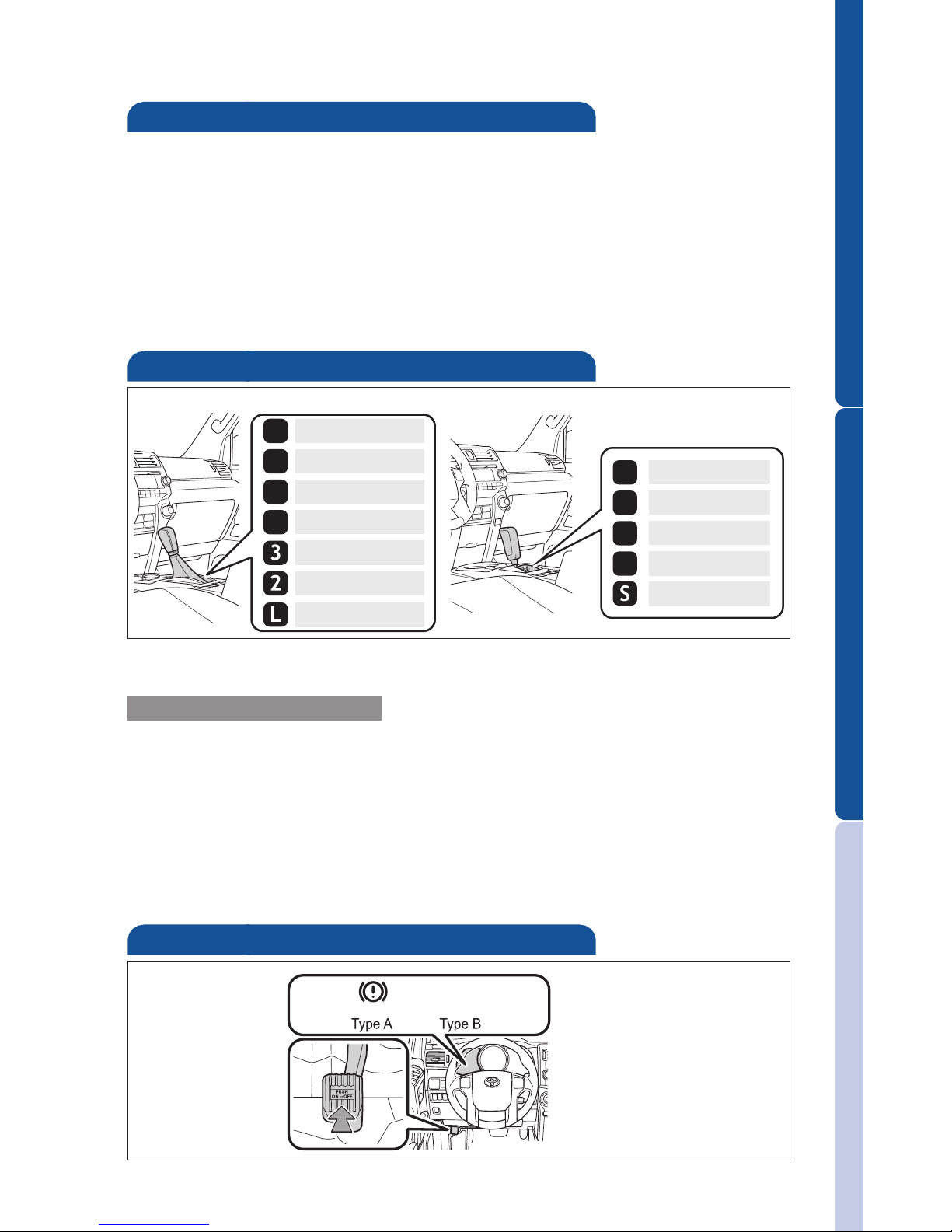

Automatic Transmission

* The ignition/“ENGINE START STOP” switch must be “ON” and the brake

pedal depressed to shift from Park.

Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

“S” (Sequential) mode

Park*

Reverse

Neutral

Drive

RND

“S” mode

Auto lock functions

Automatic door locks can be programmed to operate in four different modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed is approximately 12 mph or higher.

-Doors unlock when shifting into Park.

-Doors unlock when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP” switch or ignition switch OFF.

Refer to the Owner’s Manual for more details.

Parking brake

Set: Depress Release: Depress again

BRAKE

Multi-mode type

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

RND

Standard type

Page 12

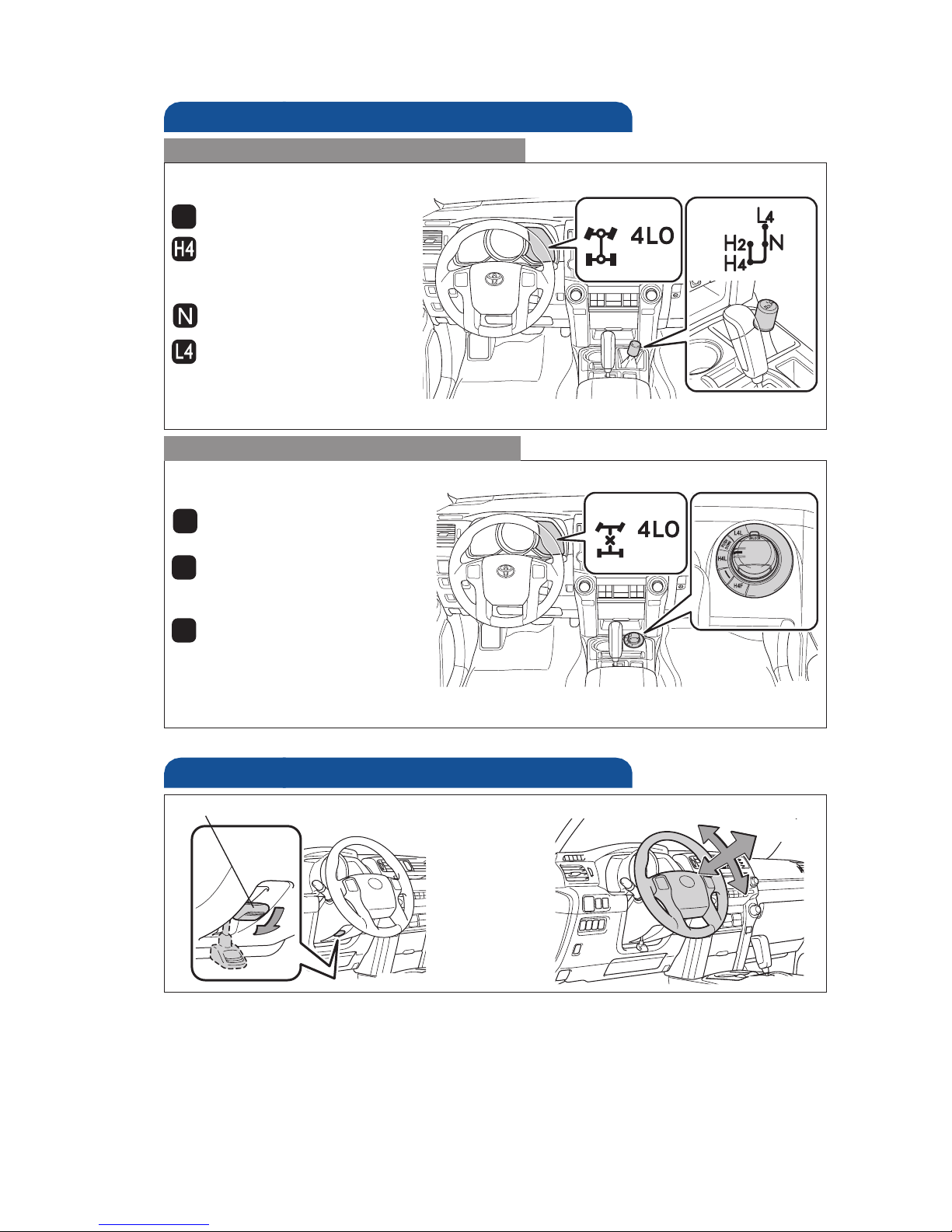

Four-wheel drive (if equipped)

Full-time four-wheel drive models

High speed (2WD)

High speed (4WD)

Shift to “H4” with speed below 50 mph.

Low speed (4WD)

Stop vehicle, shift to “N” position, then move the lever to “L4.”

High speed (center differential locked)

Low speed (center differential locked)

Shift to “N” position, then push and turn to “L4L.”

H4L

L4L

Part-time four-wheel drive models

Neutral

High speed

H4F

FEATURES/OPERATIONS

Tilt and telescopic steering wheel

Hold wheel, push lever down, set angle and length, and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.

Lock release lever

Length

Angle

Se H Se Lu D Pa Se Lu

Sea

Man

Sea

Se Se

Vehi

Page 13

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Seat position (forward/backward) Height crank (driver side only) Seatback angle Lumbar support (driver side only) Driver seat: seat position, cushion angle and height Passenger seat: seat position (forward/backward) Seatback angle Lumbar support (driver side only)

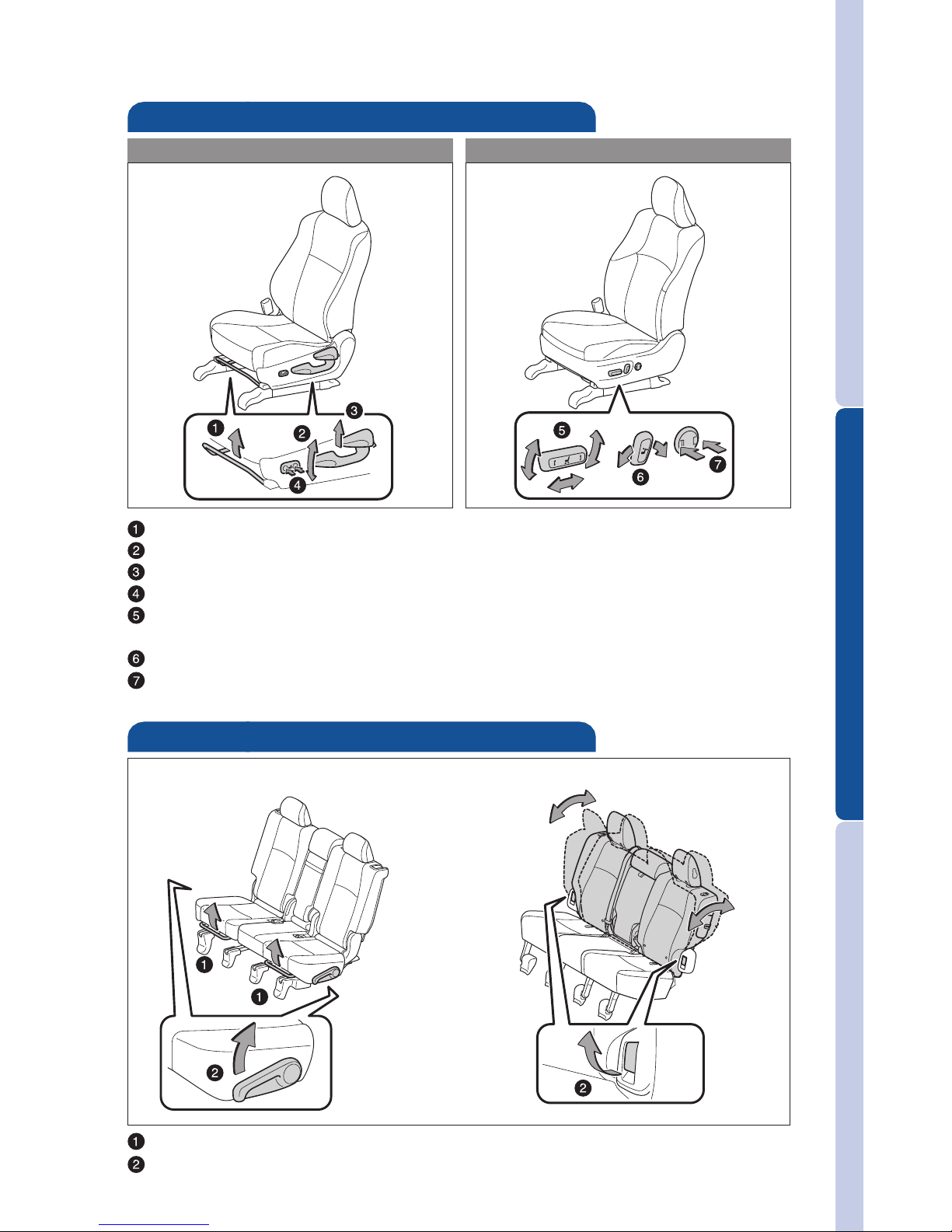

Seat adjustments-Front

Manual seat

Power seat

Seat adjustments-Second row seats

Seat position (forward/backward) Seatback angle

Vehicles with third row seats

Vehicles without third row seats

Page 14

FEATURES/OPERATIONS

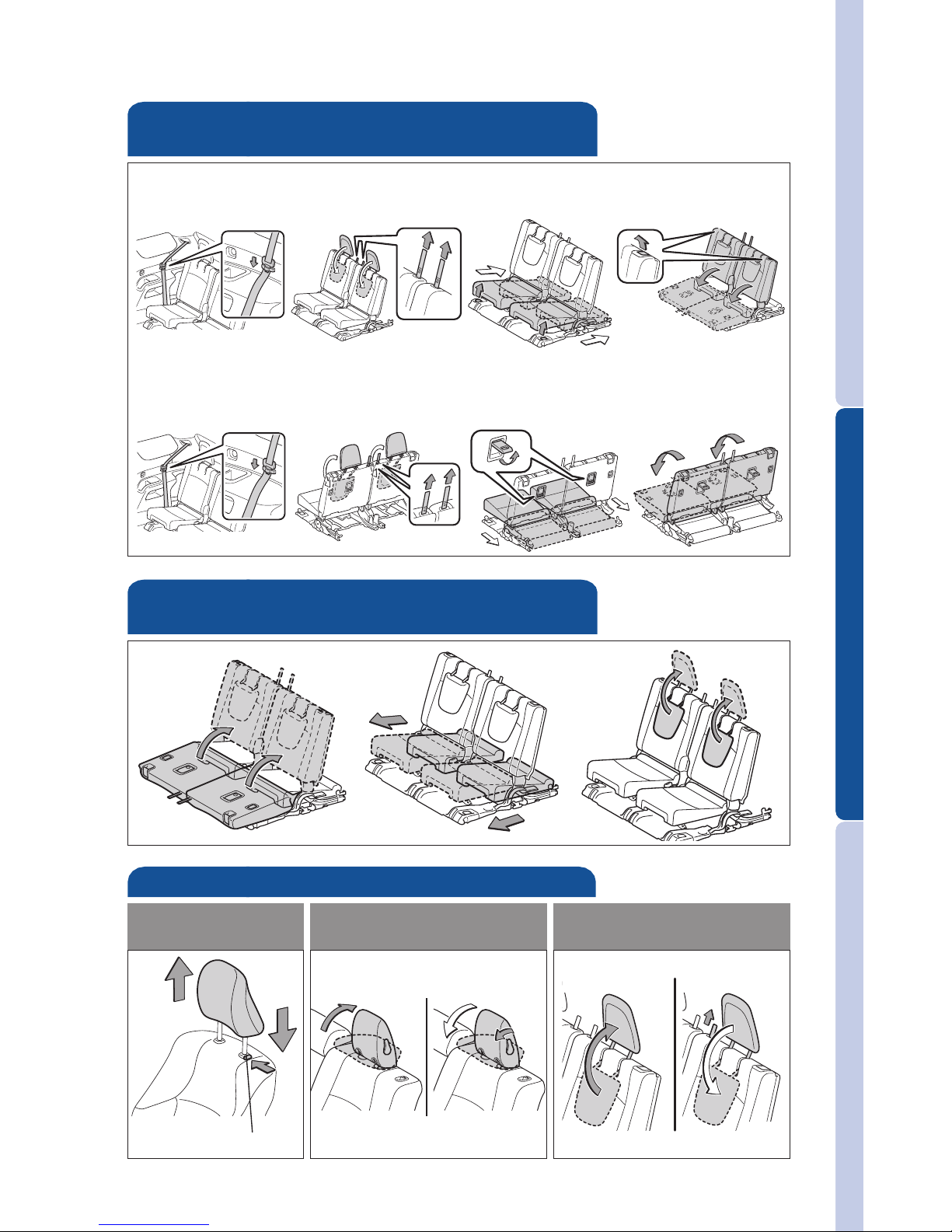

Seats-Folding down second row seats

(1) Push

(2) Lower

(3) Stow

(5) Fold down

(4) Pull up

Sea (if

From

Sea (if

(1) R

Without third row seats

With third row seats

Sea

Fron row

Loc

(1) Push

(2) Lower

(5) Pull up

(3) Fold down

(7) Fold down

(6) Push down

(4) Stow

Page 15

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

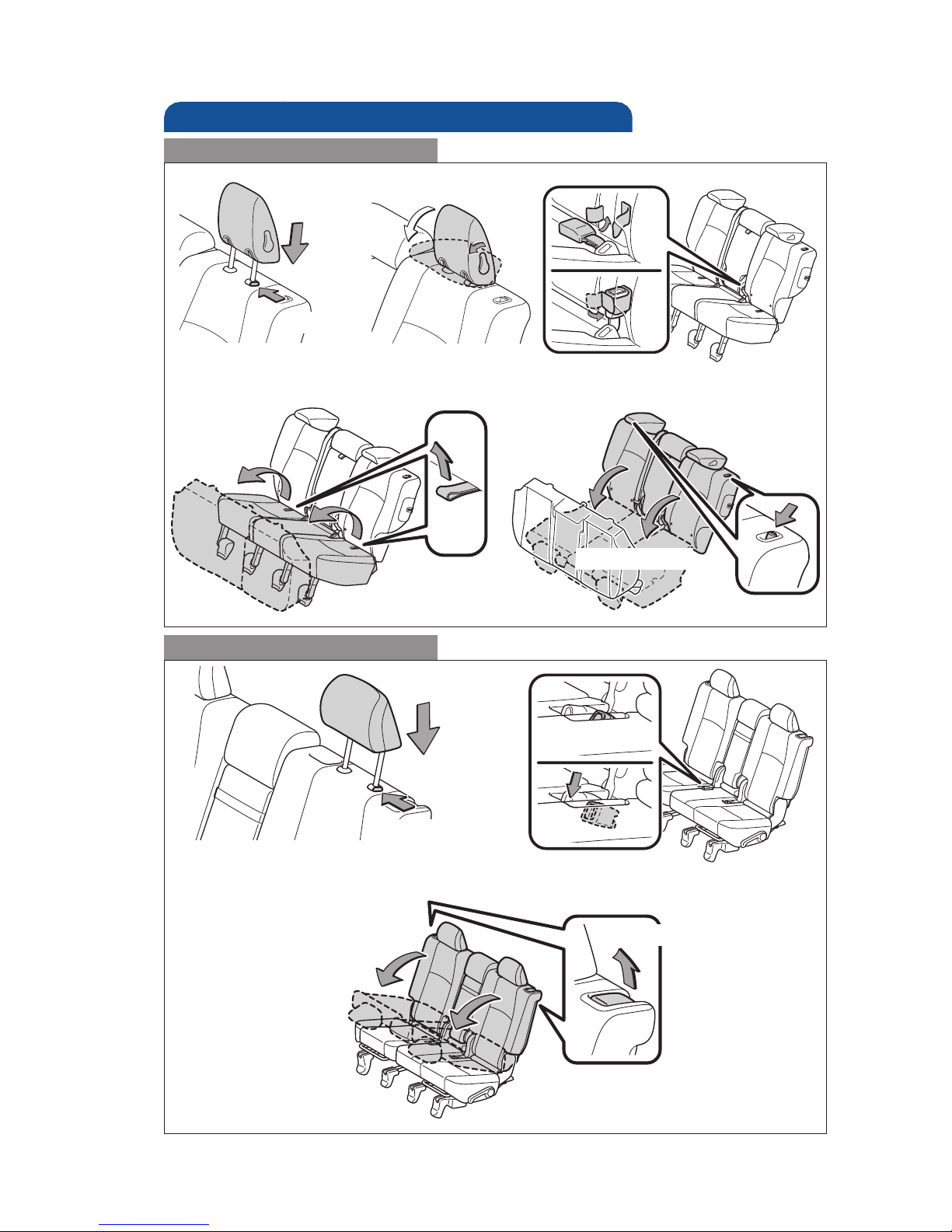

Seats-Stowing third row seats (if equipped)

(1) Stow

(2) Pull up

(3) Pull up

(4) Pull up

(5) Fold down

(1) Stow

(2) Pull up

(3) Pull up

(4) Fold down

From inside

From outside

Seats-Returning third row seats (if equipped)

(1) Raise

(2) Pull

(3) Raise

Seats-Head restraints

Front and second row

Lock release button

Second row (vehicles without third row seats)

Third row (if equipped)

Page 16

FEATURES/OPERATIONS

Lig

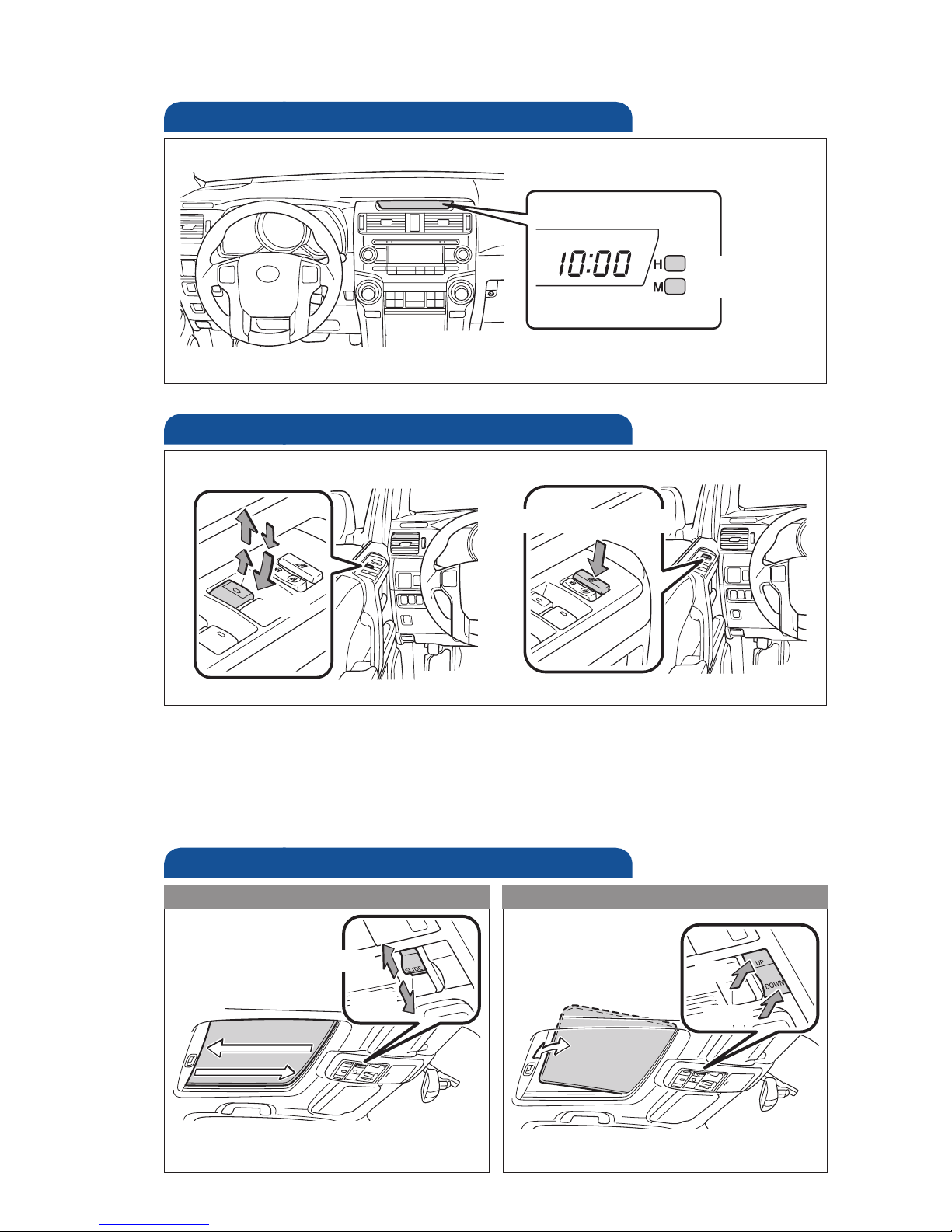

Clock

H- Hour set M- Minute set

Ope

Windows

Driver side

Automatic operation Push the switch completely down or pull it

completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

Down

Window lock switch

Win

Clo

Moonroof (if equipped)

Sliding operation Tilting operation

Open

Tilt

Push once to open/close completely. To stop partway, press switch lightly.

The VSC

Refe

Page 17

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Light control-Instrument panel

Operating from inside

Window-Back window

Operating from outside

Window lock switch

Open

Turn and hold

Open

With Smart Key system

Without Smart Key system

Open

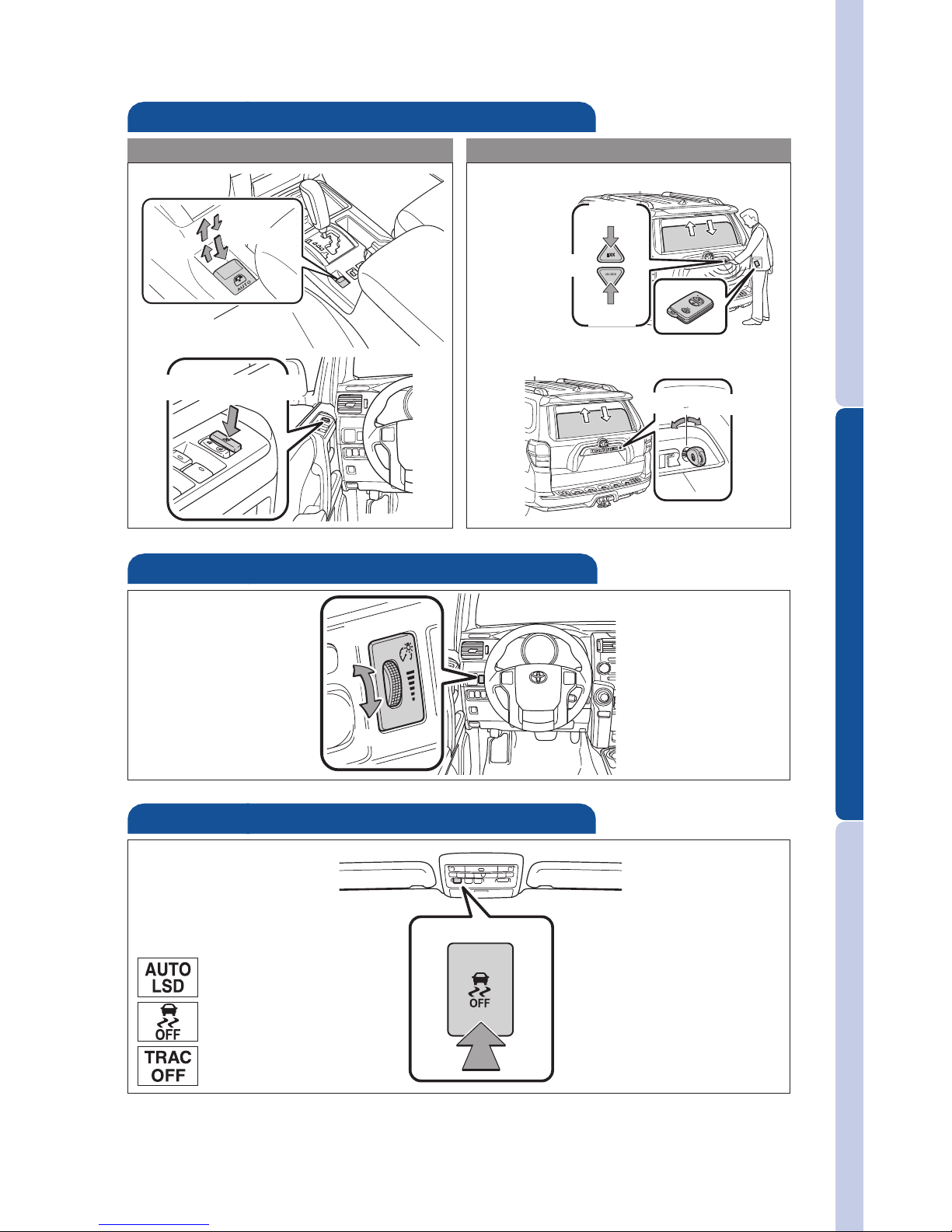

The VSC OFF button is used to switch between modes related to the TRAC, VSC and Auto LSD (2WD) functions.

Refer to Section 2-4 of the Owner’s Manual for more information.

VSC OFF

VSC OFF button

Brightness control

Push and hold

Page 18

FEATURES/OPERATIONS

Turn signals

Front fog lights (if equipped)

Front fog lights come on only when the headlights are on low beam.

Right turn

Turn

Lane change

Left turn

Lights & turn signals

Headlights

High beam flasher

Low beam

Headlights

Parking lights

High beam

Headlights

Parking lights

DRL ON

Auto

DRL OFF

Type B

Type A

-Automatic light cut off system Will automatically turn lights off after a

delay of 30 seconds, or the lock switch on remote may be pushed after locking.

Rea

Fro

NOT

* In

Cru

Refe

Turn

DRL OFF

Page 19

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Windshield wipers & washers

Rear

Front

Interval wipe

Slow

Fast

Pull to wash and wipe

Adjust frequency*

Wash and wipe

Wipe

Interval wipe

Wash and wipe

NOTE: Rear wiper and washer operate only when back window is fully closed.

* Intermittent windshield wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

Single wipe

Cruise control

Refer to the Owner’s Manual for more details.

Turning system ON/OFF

Functions

System ON/OFF

Resume/Increase speed

Set/Decrease speed

Cancel

Page 20

Air Conditioning/Heating

FEATURES/OPERATIONS

Temperature selector (driver side) Fan speed Air Conditioning ON/OFF Fresh or recirculated cabin air Temperature selector (front passenger side) “DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Rear window and outside rearview mirror defoggers Airflow vent In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only. Climate control OFF Automatic climate control ON Adjust the temperature setting, and airflow vents and fan will adjust automatically.

Automatic Air Conditioning

Man

Seat heaters (if equipped)

Driver’s seat

Front passenger’s seat

Gara prog

Refe

For visit

* Hom

Page 21

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

Manual Air Conditioning

Fan speed Recirculate cabin air (fresh air when OFF) Airflow vent In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only. Rear window and outside rearview mirror defoggers Select for maximum cooling. Air intake will automatically be set to recirculate. Temperature selector Air Conditioning ON/OFF

Garage door opener (HomeLink®)*

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to the Owner’s Manual for more details.

For programming assistance, contact HomeLink

at 1-800-355-3515, or

visit http://www.homelink.com.

* HomeLink®is a registered trademark of Johnson Controls, Inc.

Page 22

CD player

To scan tracks on a disc Push “SCAN.” Push again to hold selection. CD Changer (Type 3 only)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until you hear a beep.

Insert one disc. Shutter will close and then re-open for next disc.

To select a file (MP3/WMA only) Turn “TUNE.FILE” or “TUNE.SCROLL.” To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.”

Audio

View radio/CD information

Eject CD

Push to turn ON/OFF

Push to adjust tone & balance

View genre/ Push to skip up/down folder

Seek station/ CD track select

Station/CD track scan

Mode

Preset buttons - functions in other modes indicated above number

Mode

Type 1

Load CD(s)

“

P a

Stee

Radio

To preset stations Tune in the desired station and hold down a preset

button (1-6) until you hear a beep. Push desired preset button (1-6) to select. To scan stations Push “SCAN.” Push and hold to scan preset stations. Push again to hold selection.

FEATURES/OPERATIONS

Type 3 additional functions

Type 2 additional functions

AM/Satellite radio

iPod

By co the U USB

AUX

By in porta mode

iPod

iPo AU

Party optim

Part

Page 23

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

“ ”

Use to search within the selected audio medium (radio, CD, iPod

, etc.).

“MODE”

Push to turn audio ON and select an audio mode. Push and hold to turn audio system OFF.

Steering wheel controls (if equipped)

Volume control

iPod®/USB port

By connecting a USB-compatible portable audio device or USB memory to the USB port, you can listen to music from the portable audio device or USB memory through the vehicle’s speaker system.

AUX port

By inserting a mini plug into the AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX mode.

iPod®/USB

AUX

iPod®/USB (if equipped)/ AUX port

Party mode increases audio amplification in back door speakers, optimizing audio performance outside vehicle when rear hatch is open.

Party mode switch

Page 24

FEATURES/OPERATIONS

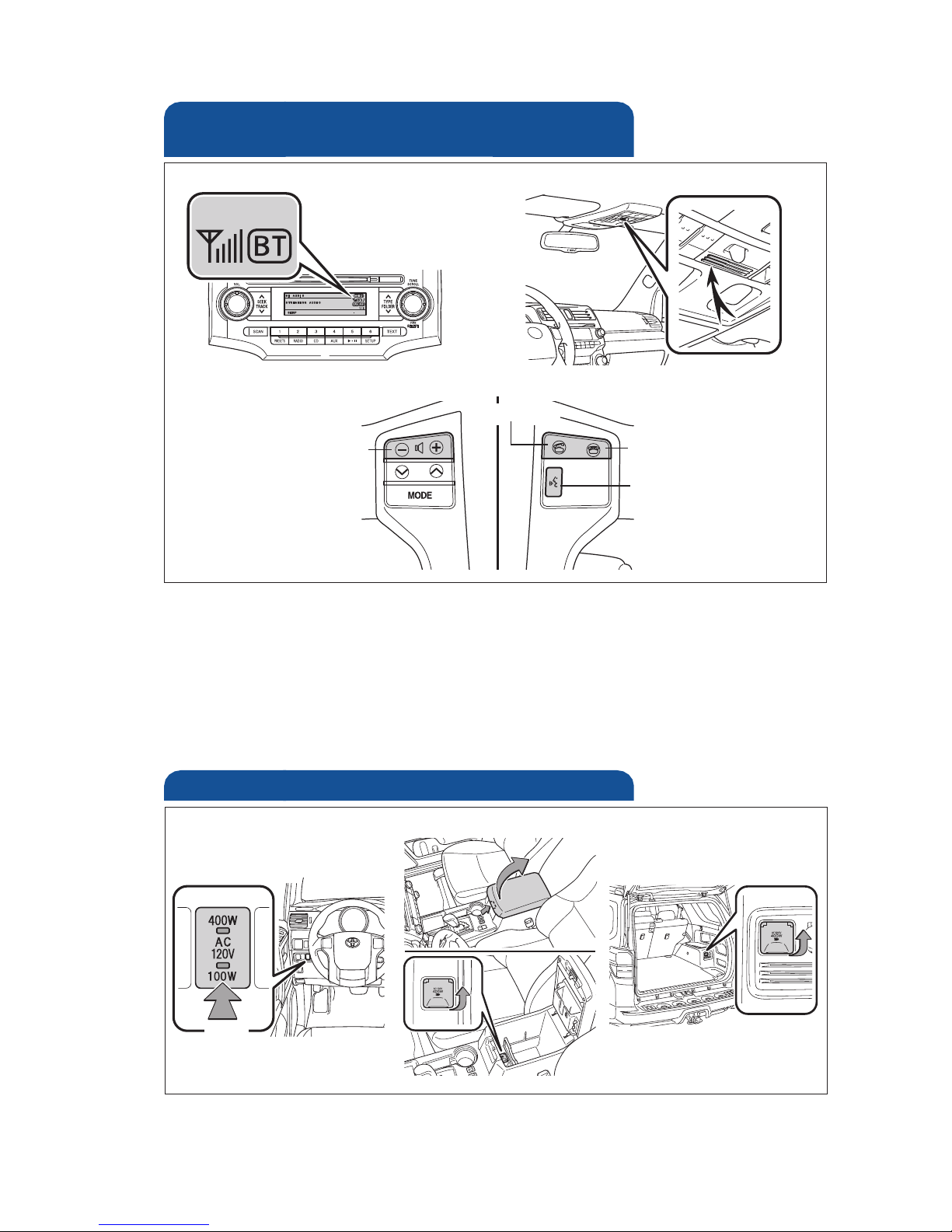

Bluetooth®technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the compatible telephone and the system.

Refer to “Using the hands-free phone system (for cellular phone),” Section 3-4 in the Owner’s Manual for more details, or go to Toyota.com and enter “Bluetooth” in the keyword search.

Telephone controls (Bluetooth®) (if equipped)

Microphone

Audio unit

Steering wheel telephone switches

Start call

End call

Voice command button

Volume

The porta comm

Refe more

Audi

Blu

NOTE

switc

Pow

Cen

Lug (wit

NOTE: The 120V AC power outlet can only be used when engine is running.

Power outlets-120V AC (if equipped)

ON/OFF Main switch

Inside center console

Push

Luggage compartment

Page 25

OVERVIEW FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

The Bluetooth®audio system enables you to enjoy music played on a portable digital audio player from the vehicle speaker via wireless communication.

Refer to “Bluetooth

audio system,” Section 3-3 in the Owner’s Manual for

more details.

Microphone

Audio unit

Steering wheel audio switches

Selects a track and album Turns the power on,

selects an audio source

Volume

Bluetooth®audio (if equipped)

NOTE: Designed for car accessories. Ignition switch/“ENGINE START STOP”

switch must be in the “ACC” or “ON” position to be used.

Power outlets-12V DC

Center panel

Luggage compartment (with the 120V AC outlet)

Glove box

Luggage compartment (without the 120V AC outlet)

Page 26

SAFETY AND EMERGENCY FEATURES

If tire pressure becomes critically low on any of the tires, “ ” indicator light will come on. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer.

Refer to the Owner’s Manual for more details.

Seat belts-Shoulder belt anchor

Push up or squeeze lock release to lower

Movi the o

Rea

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.

Keep as low on hips as possible

Take up slack

Too high

Seat belts

Tire Pressure Monitoring (warning) System

Too

Rem

(1) A (2) In

(3) T

Refe proc

Door locks

Unlock

Lock
