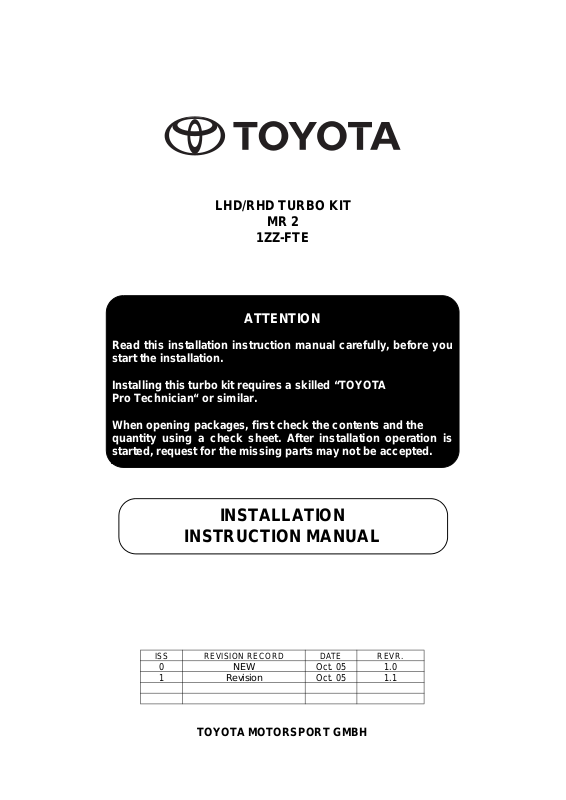

Read this installation instruction manual carefully, before you
start the installation.
Installing this turbo kit requires a skilled “TOYOTA
Pro Technician“ or similar.
When opening packages, first check the contents and the
quantity using a check sheet. After installation operation is
started, request for the missing parts may not be accepted.
PARTS ....................................................................................................................................................................9
1.5. Air intake............................................................................................................................................13
1.7. Oil pan and brackets..........................................................................................................................15
1.8. Electric components..........................................................................................................................16
1.9. Cooling fan ........................................................................................................................................17
1.11. Heat insulation, stickers and sparkplugs.........................................................................................19
2. Parts List ....................................................................................................................................................20
1.1. Si unit.................................................................................................................................................26
1.3. Definition of symbols. ............................................................................................... ... ......................26
1.4. Water hose and clamp.......................................................................................................................26
1.5. Air hose and clamp............................................................................................................................27
1.6. Oil and coolant...................................................................................................................................27
2. Parts to be removed (see workshop manual for detailed instructions) ......................... ...................... 28
8. Cooling fan preparation ............................................................................................................................38
1. Apply liquid gasket to oil pan. ..............................................................................................................49
2. Install oil pan. .......................................................................................................................................49
9. Install air filter. .....................................................................................................................................55
10. Prepare air filter box cover. ...............................................................................................................55
18. Parts to be installed (see workshop manual for detailed instructions) .............................................63
5
6
PRECAUTIONS
PLEASE READ THOROUGHLY THESE PRECAUTIONS BEFORE INSTALLING THE CHARGER KIT
Do not pinch the rear wring or harness in the tightened
part.
When passing the wires through the dashboard or other
panels, use a grommet to ensure waterproofing.
Protect the wiring with tape when it is passed through a
hole.
Grommet
Tape
When disconnecting a connector, be sure to grip the
connector body. Do not tug on the wiring.
Protect the car with fender covers and so on.
Use the correct tool when tightening bolts and nuts.
After fastening band clamps, cut away all the excess of
the clamps.
Do not forcibly pull any car wiring harness.
Rough tugging may result in opened connectors, or a
broken wire harness.
No
After installation, check that all the functions of the car
are normal.
OK
Be sure to disconnect the negative (-) lead from the
battery terminals.
–
+
Be sure to firmly tighten connectors and terminals.
Before connecting the power wiring to the battery,
check the wiring connectors, harness, etc. to see that
they are properly secured.
Check body and trim near area of installation to be certain no dirt or scratches resulted from the installation.
During any operation on fuel system, keep away
from fire.
Engine CoolantEthylene-glycol base
Engine oilAPI grade SH energy-conserving II or SJ energy-conservi ng or ILSAC
multigrade engine oil. Refer to the owners manual for the viscosity to
recommend. (0W - 40)
7
8
VEHICLE LIFT LOCATIONS
In this manual, a plate type or swing arm lift is recomme nded. See the description b elow for det ails of the
supporting and attachment positions.
Plate type lift:
(a) Place the vehicle over the centre of the lift.
(b) Align the cushion gum ends of the plate with
the attachment lower ends (A,B).
(c) Align the attachment upper end with the rocker
flange front notch.
C
AB
Swing arm type lift:
PARTS
1.Location
Numbers with a character (Ex. 14-1) in “PARTS LOCATION” correspondent to numbers in the text and the
illustration in “INSTALLATION PROCEDURES” as well as “No.” in “PARTS LIST”.
1.1. TURBO CHARGER
9
17-3
17-2
13-2
16-4
17-3
17-7
17-1
13-3
13-1
13-3
16-2
3-1
18-2
18-1
18-3
18-3
16-3
16-1
17-4
14-8
14-3
14-314-4
16-2
10
1.2. HEAT SHIELD
10-4
10-4
10-4
10-1
10-2
4-4
10-6
4-1
4-1
4-1
10-3
10-3
10-6
10-6
10-6
10-5
10-810-8
10-5
10-5
1.3. EXHAUST MANIFOLD
11
4-2
4-1
4-1
4-1
4-3
4-3
9-1
9-3
3-7
9-3
9-3
9-3
9-3
9-2
12
1.4. INTERCOOLER
8-1
8-5
8-3
8-5
6-4
7-7
7-3
7-5
8-6
7-2
8-4
8-2
8-4
7-7
7-6
7-8
6-2
6-4
6-1
6-5
7-7
7-6
7-4
7-5
6-4
6-3
6-4
7-1
1.5. AIR INTAKE
25-3
13
25-3
25-4
25-2
2-11
2-9
1-1
25-1
2-2
17-6
2-1
12-4
2-4
2-5
2-7
2-8
12-1
2-10
2-10
2-6
2-10
12-3
12-4
12-1
2-7
25-1
2-1
1-2
14
1.6. OIL FILTER
13-2
13-3
13-3
13-1
15-1
15-3
13-1
15-3
13-4
15-2
13-4
26-7
1.7. OIL PAN AND BRACKETS
14-2
14-7
15
14-1
5-3
5-5
14-6
5-6
27-1
14-5
14-6
19-1
5-5
20-3
5-2
20-1
19-2
20-2
5-4
5-1
16
1.8. ELECTRIC COMPONENTS
15A
23-6
24-6
24-7
24-2
23-5
24-9
23-1
35-1
24-6
23-5
24-7
24-9
24-2
23-2
24-8
24-8
23-9
2x
23-4
24-8
24-3
23-8
15x
1.9. COOLING FAN
17
22-3
22-2
22-3
22-3
22-3
22-1
22-4
22-4
23-3
22-4
24-10
22-4
24-10
24-4
24-5
24-1
24-11
24-11
18
1.10.TEMPLATES
2-12
27-2
27-3
Cutting lines for hose
27-1
27-5
21-5
3x
21-4
21-1
27-4
21-2
21-5
3x
21-4
3x
3x
21-3
1.11.HEAT INSULATION, STICKERS AND SPARKPLUGS
11-2
11-2
19
26-1
11-2
11-2
11-1
26-2
20
2.Parts List
No.PART NAMEQTYPART No.REF
1.0KIT, AIRBOX1AM300-32400
1-1Bellow with spring clamps1AM183-17000
1-2Airfilter, sport1AM181-50000
