TOYOTA Prius 2010 User Manual

CUSTOMER EXPERIENCE CENTER

1-80 0 - 3 31- 4 331

PRIUS

2010

QUICK REFERENCE

GUIDE

Printed in U.S.A. 6/10

08-TCS-04342

00505-QRG10-PRI

2010
Prius

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Prius.

A word about safe vehicle operations

!

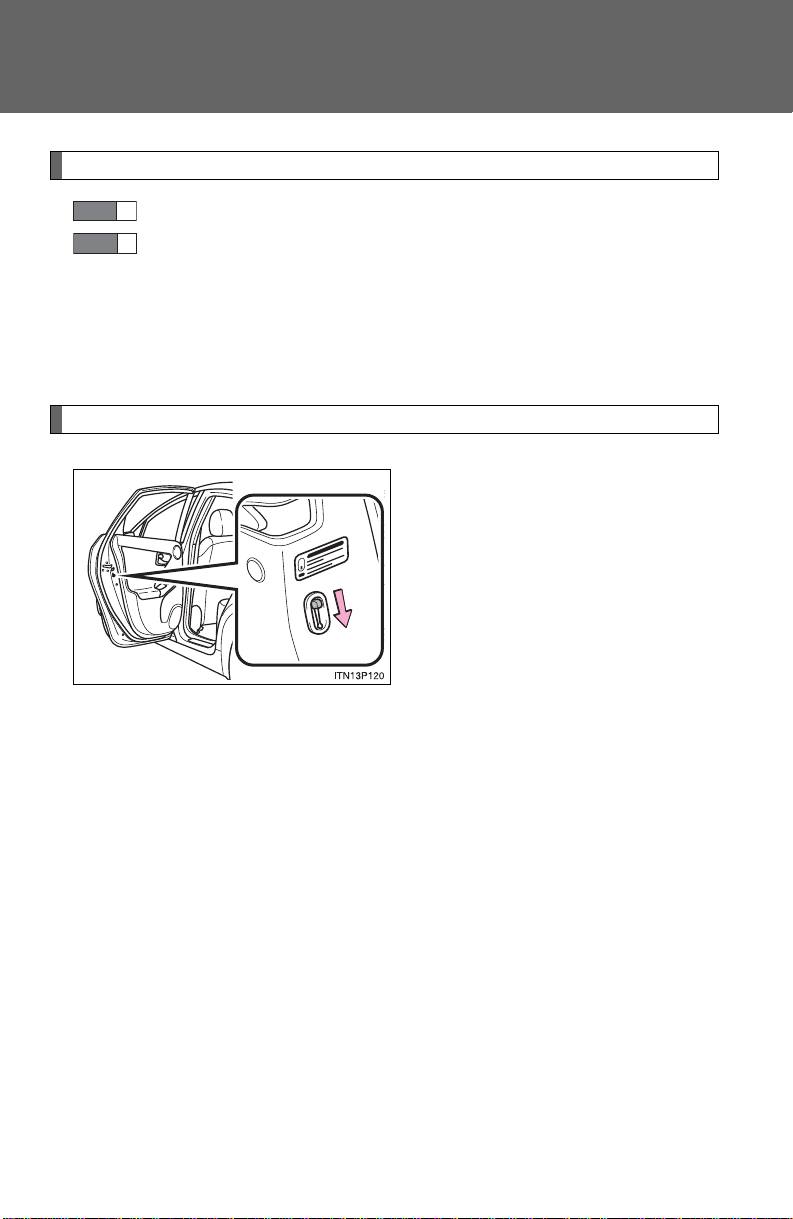

Doors-Child safety locks

Rear door

Moving the lever to “LOCK” will allow the door to be opened only from
the outside.

Spare tire & tools

To o l l o c a t i o n

Center auxiliary box

Wheel nut
wrench

Jack handle

Jack

Towing eyelet

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

This Quick Reference Guide is not a full description of Prius
operations. Every Prius owner should review the Owner’s
Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.

All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.

Spare tire

Removing the spare tire

Refer to the Owner’s Manual for tire changing and jack positioning
procedures.

25

INDEX

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Instrument cluster 4
Instrument panel 2-3

Keyless entry

Light control-Instrument panel 9

Smart Key system

1

1,2

6

7

Air Conditioning/Heating 16
Audio 18-19

Auto lock functions

1

10

Clock 23
Cruise control 20
Dynamic Radar Cruise Control 20-21
EV-Drive Mode 12
Garage door opener (HomeLink®)

3

23
Hill start Assist Control (HAC) 23
Hybrid Synergy Drive System 10

Lights1& turn signals 15

LKA (Lane Keep Assist) 21
Moonroof 17

Multi-information display

2

22

Parking brake 12
Power outlets 19
Seat adjustments-Front 13
Seat heaters 16
Seats-Folding down second row seats 13
Seats-Head restraints 13
Solar ventilation system 17
Steering wheel switches 19
Telephone controls (Bluetooth®)22
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 14
Windshield wipers & washers 14

SAFETY AND

EMERGENCY FEATURES

Doors-Child safety locks 25
Door locks 24
Seatbelts 24
Seatbelts-Shoulder belt anchor 24
Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24

1

Visit your Toyota dealer for information on customizing this feature.

2

Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.

3

HomeLink®is a registered trademark of Johnson Controls, Inc.

1

OVERVIEW

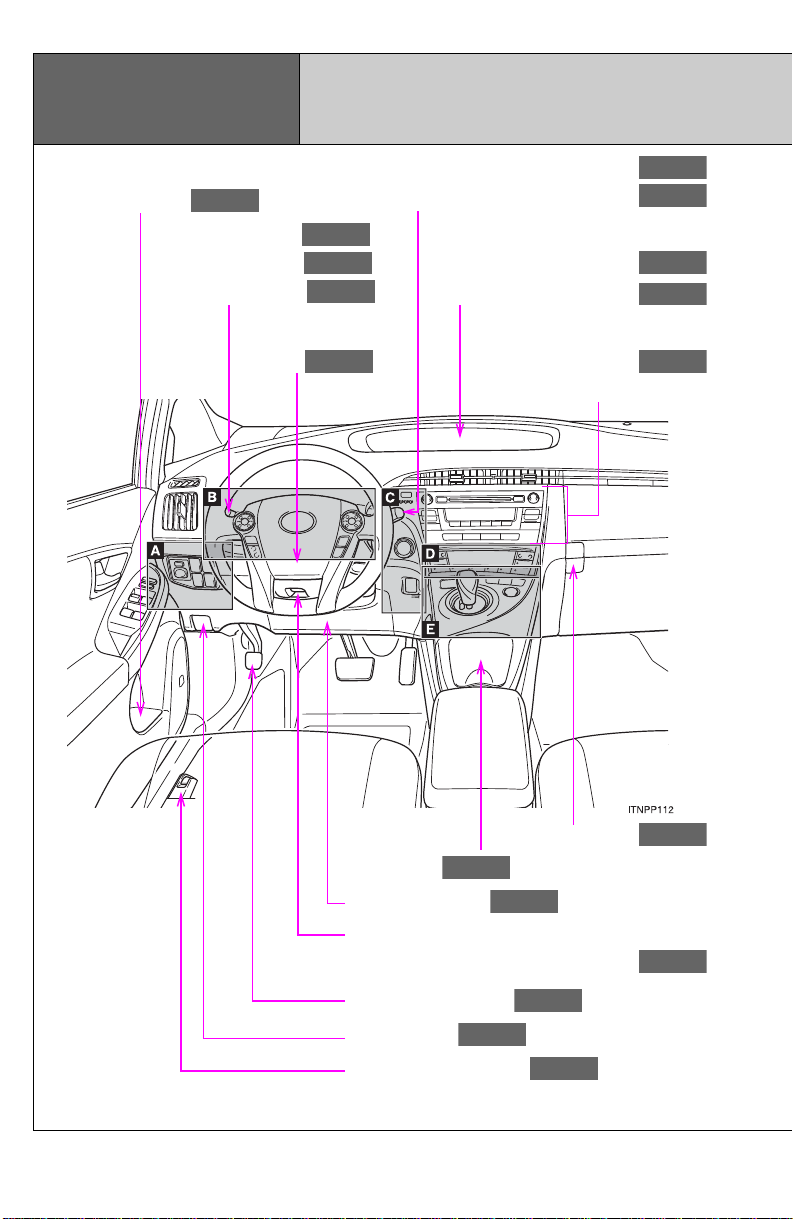

Instrument panel

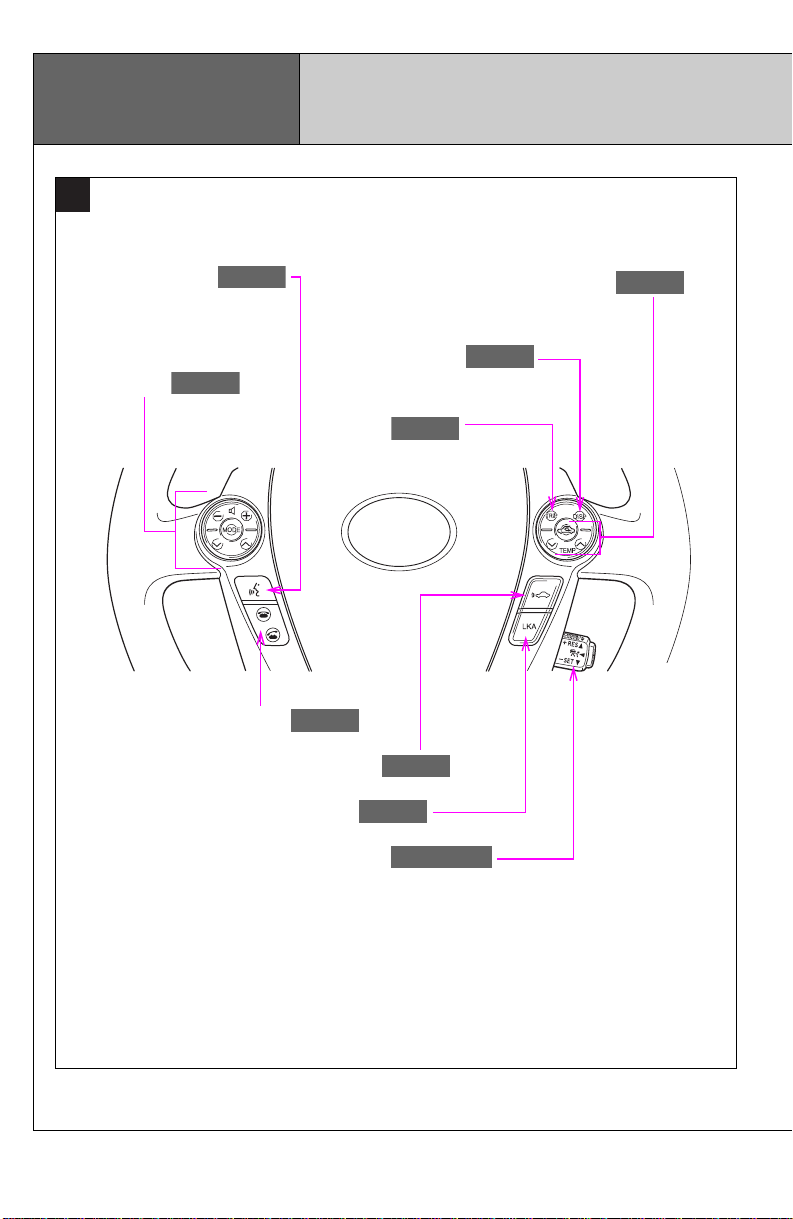

Steering wheel controls

Steering wheel audio controls
Voice command button

1,2

“TRIP” button
Multi-information display button
Steering wheel climate controls
Cruise control
“LKA” switch
Distance switch
Telephone controls

1

1

1

1,2

Headlight and turn signal controls/Headlight, turn signal and front fog
light controls
Wiper and washer controls

1

1

Mph or km/h button
Advance Parking Guide System/Intelligent Parking Assist pre-support

1,2

switch
Power b utton
Multi-information display
Audio system or navigation system-integrated audio system

1,2

2

Automatic Air Conditioning

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

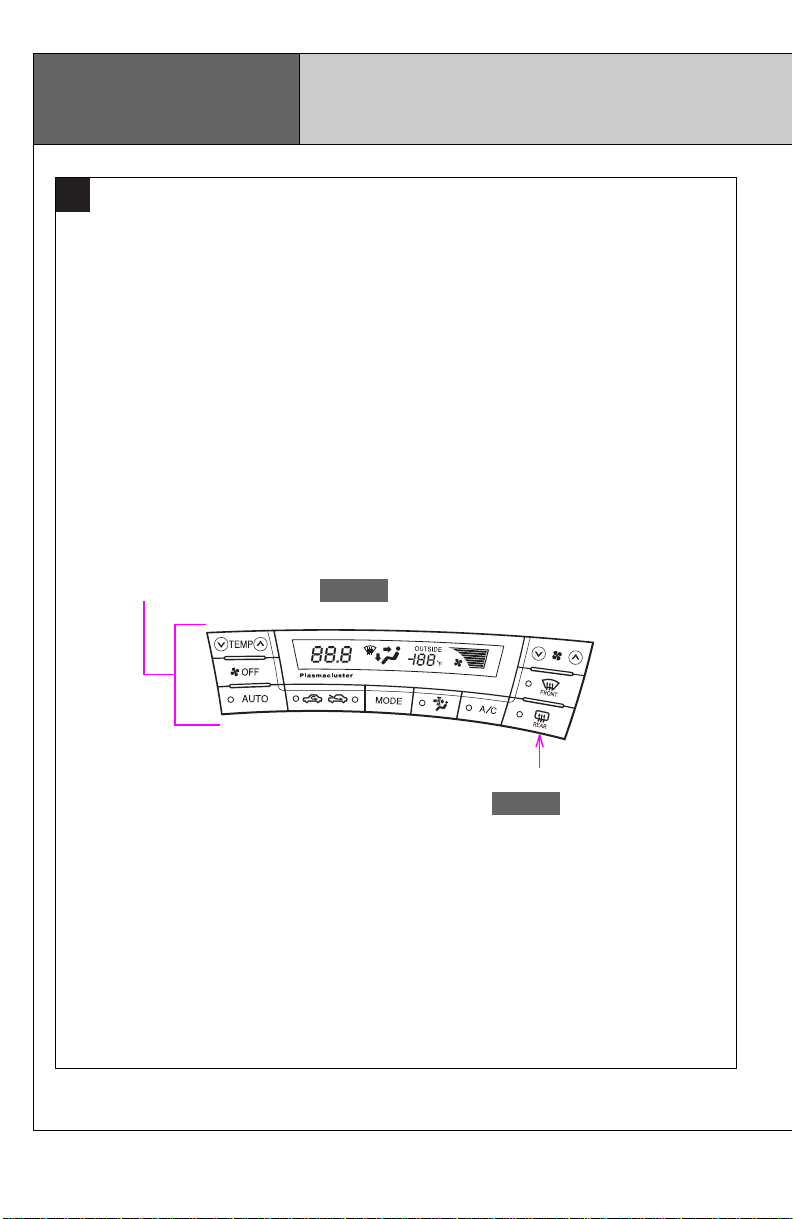

Air Conditioning controls
Outside rearview mirror
“EV” switch

1

1

/Back window defogger button

“ECO MODE” switch
“PWR MODE” switch
Emergency flasher button
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Fuel filler door opener

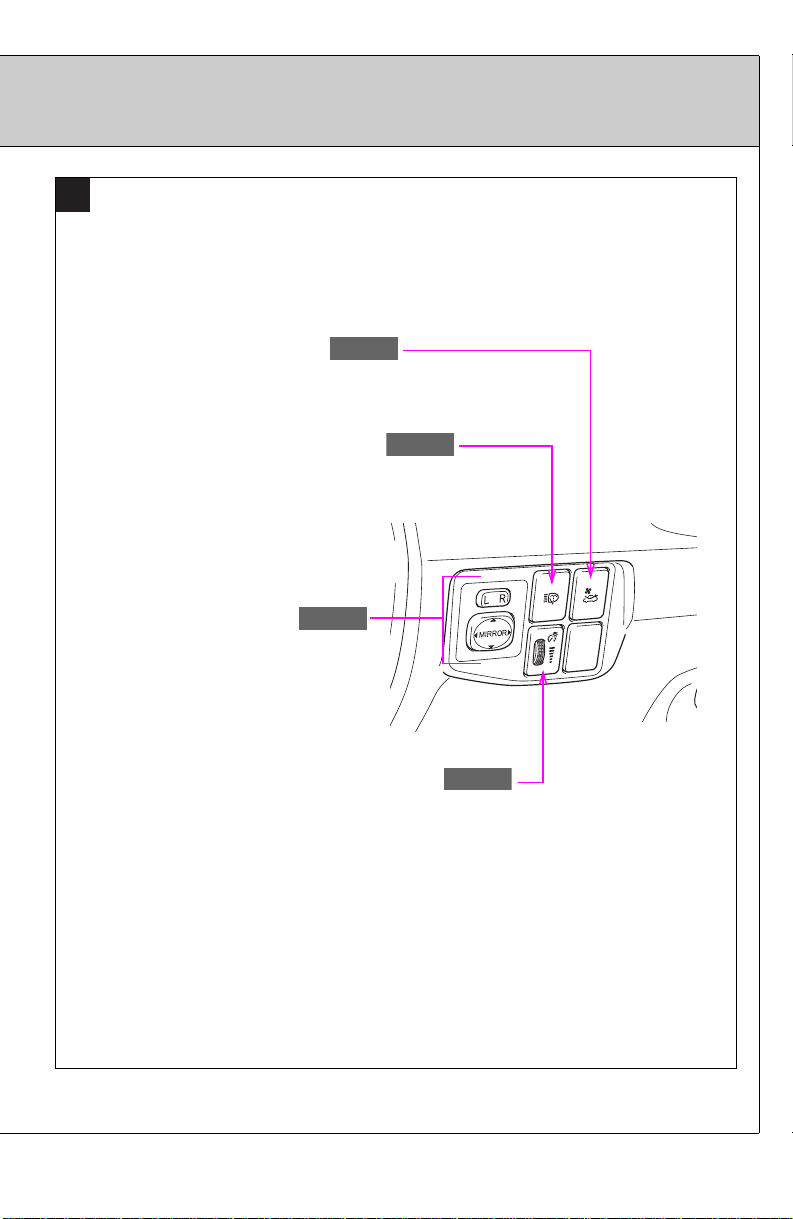

Power rearview mirror control
Headlight cleaner switch
Solar ventilation switch

1

1

Instrument panel light control

1

If equipped

2

For vehicles with a navigation system, refer to the “Navigation System

Owner’s Manual.”

3

OVERVIEW

Instrument cluster

Service indicator and reminder
Fuel gauge
Transmission shift position indicator
Multi-information display
Instantaneous fuel consumption
Speedometer

Indicator symbols

For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.

Brake system warning

1

Brake system warning light (yellow indicator)

1

Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)

Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)

Charging system warning

Front passenger occupant classification or front
passenger airbag ON/OFF indicator

Malfunction/Check Engine indicator

1

1

1

Low fuel level warning

Open door warning

Airbag SRS warning

1

If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

1

4

Master warning

LowTirePressureWarning

Electric power steering system warning

1

1

Theft deterrent/Engine immobilizer system indicator

Headlight low/high beam indicator

Turn signal indicator

READY indicator

EV Drive Mode indicator

Eco Mode indicator

Power Mode indicator

Front fog light indicator

Slip indicator/Hill start Assist Control indicator

1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Cruise control indicator

2

Lane Keep Assist indicator

Anti-lock Brake System warning

Automatic headlight leveling system warning

Pre-Collision System warning light

High coolant temperature warning light

2

If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.

1

1

1

1

5

OVERVIEW

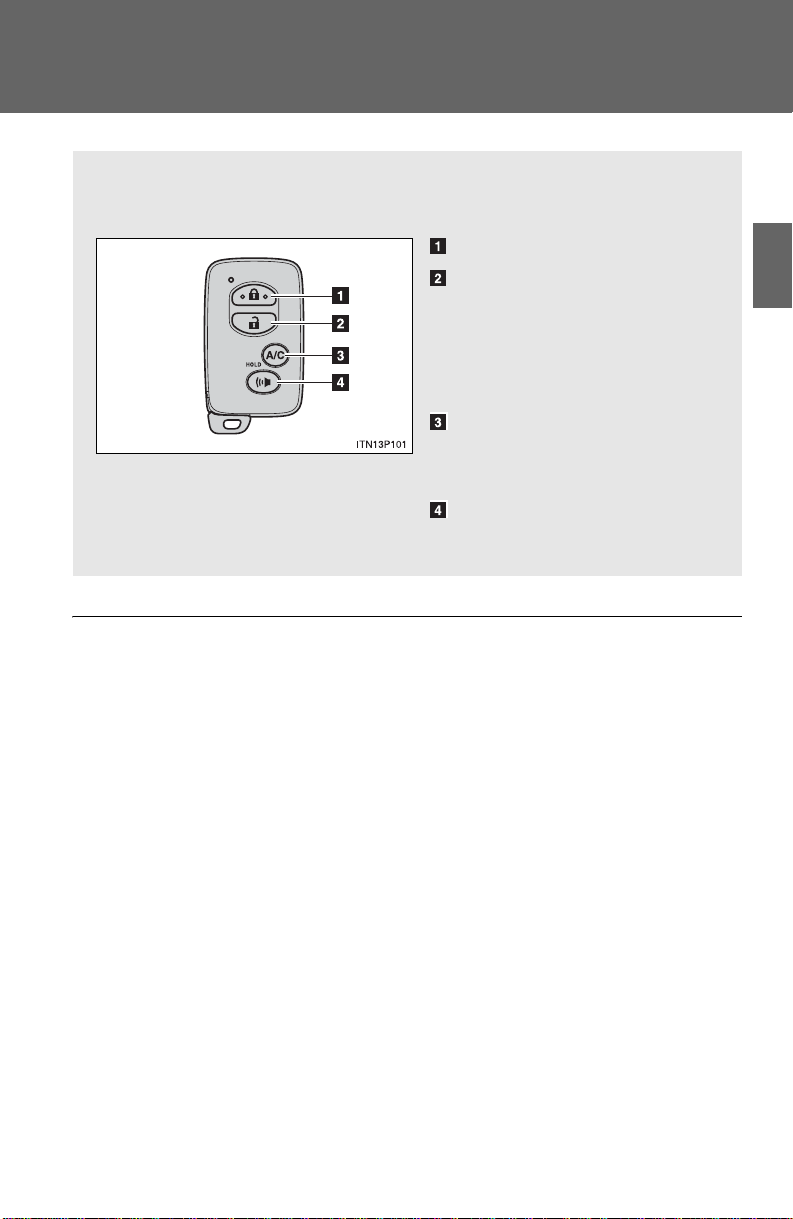

Keyless entry

Locking operation

Push

Unlocking operation

Push ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

Remote Air Conditioning system operation (if equipped)

Will automatically shut off
after three minutes, or if a
door is opened.

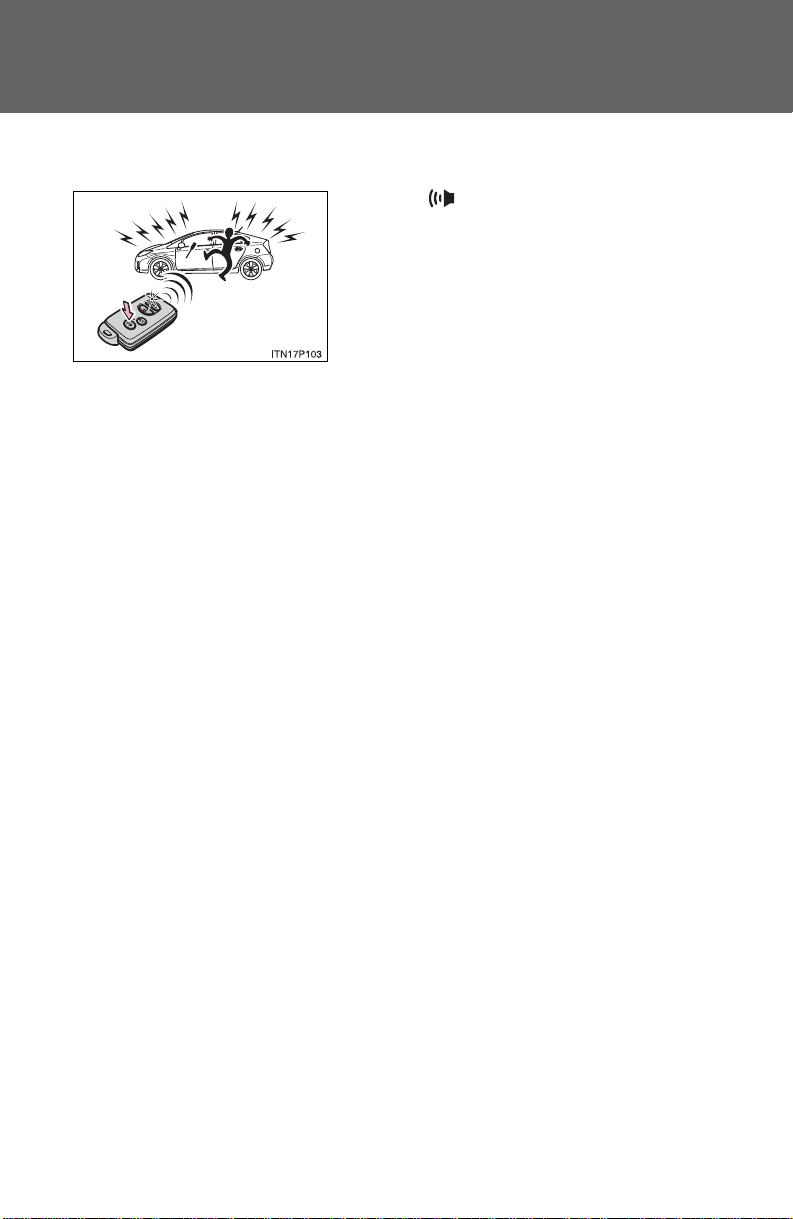

Panic button

Push and hold

Push and hold

6

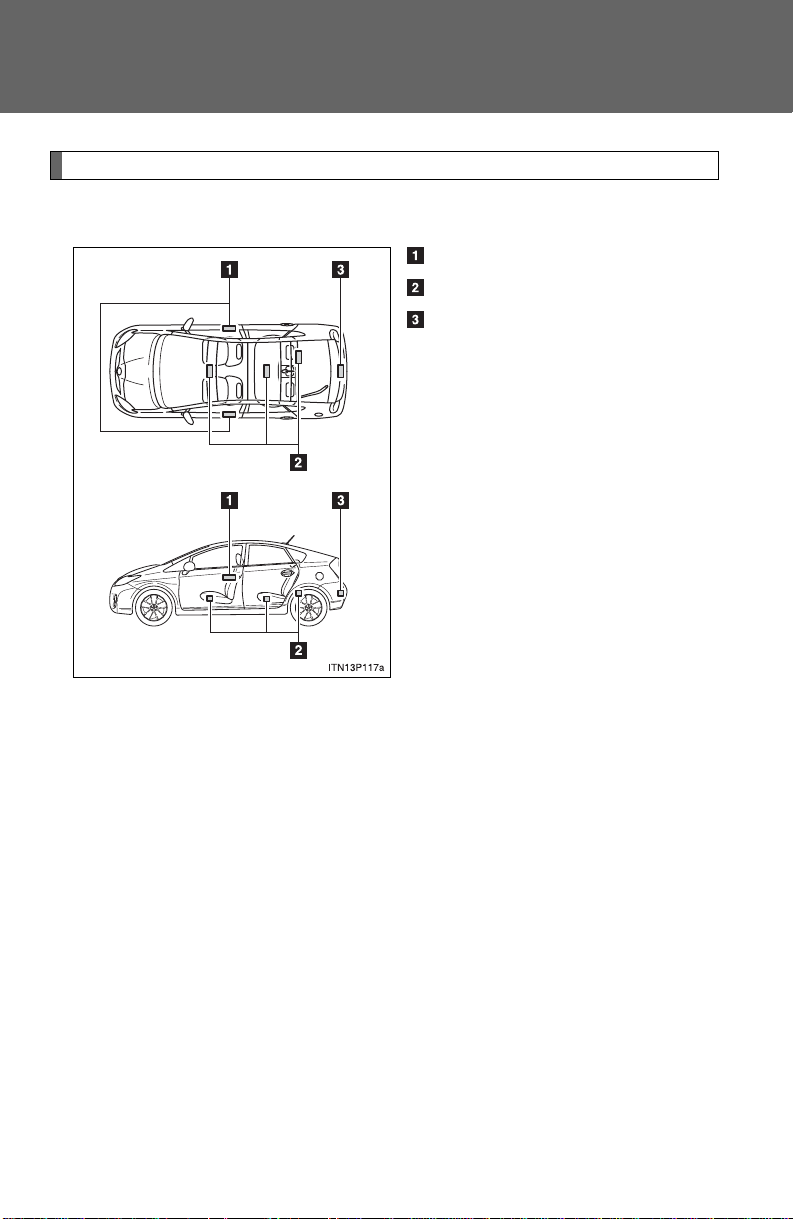

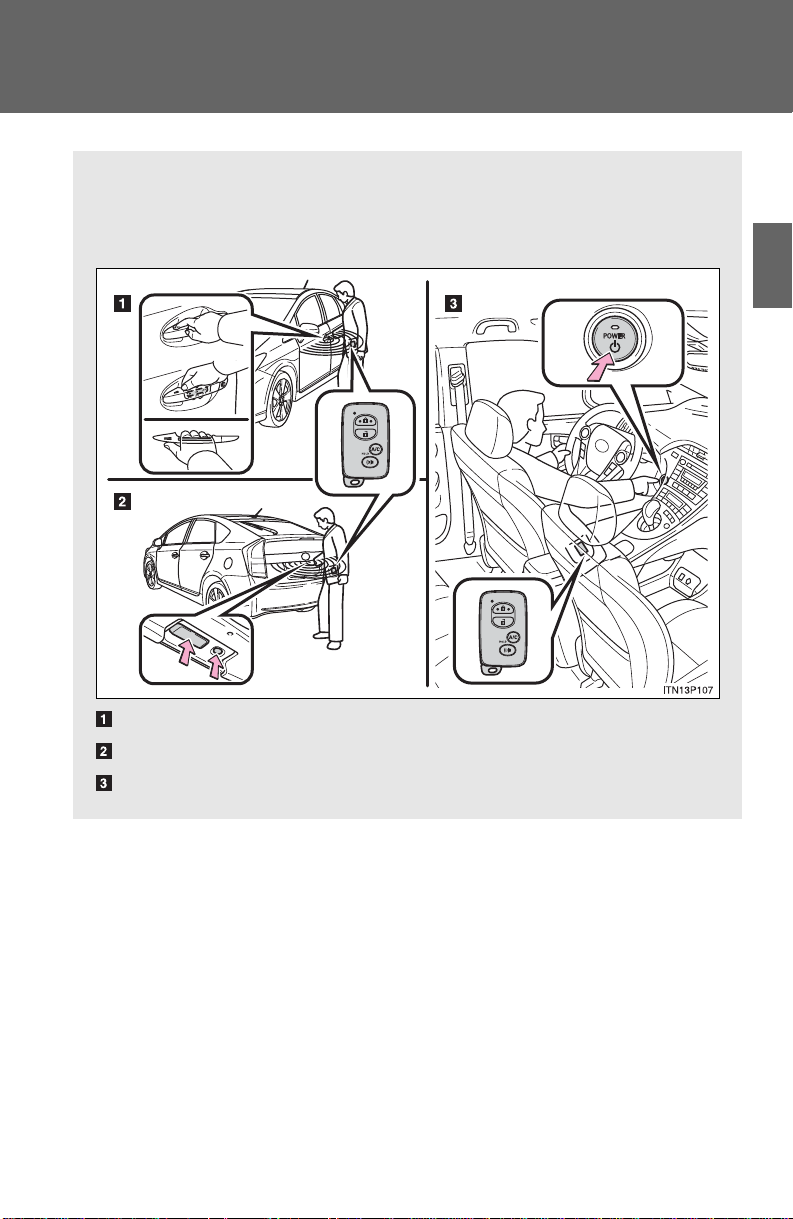

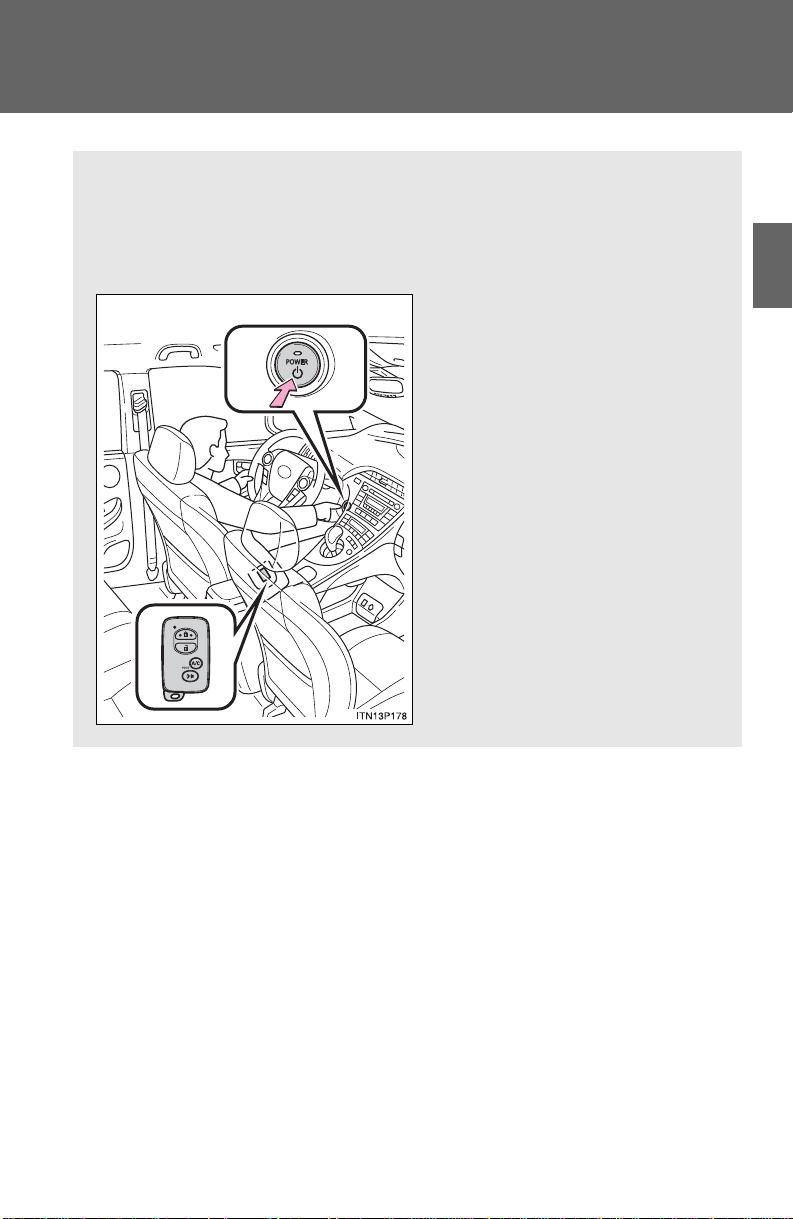

Smart Key system (if equipped)

Start function

Green indicator ON

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Depress
brake pedal

Carrying

Push

Power (without starting Hybrid System)

Without depressing the brake pedal, pressing the “POWER” switch will
change the operation mode in succession from:

ACCESSORY

ON

OFF

Locking operation (if equipped)

Power ON; Hybrid System is not engaged.

All systems OFF.

Accessories such as the radio will operate.

Unlocking operation
(if equipped)

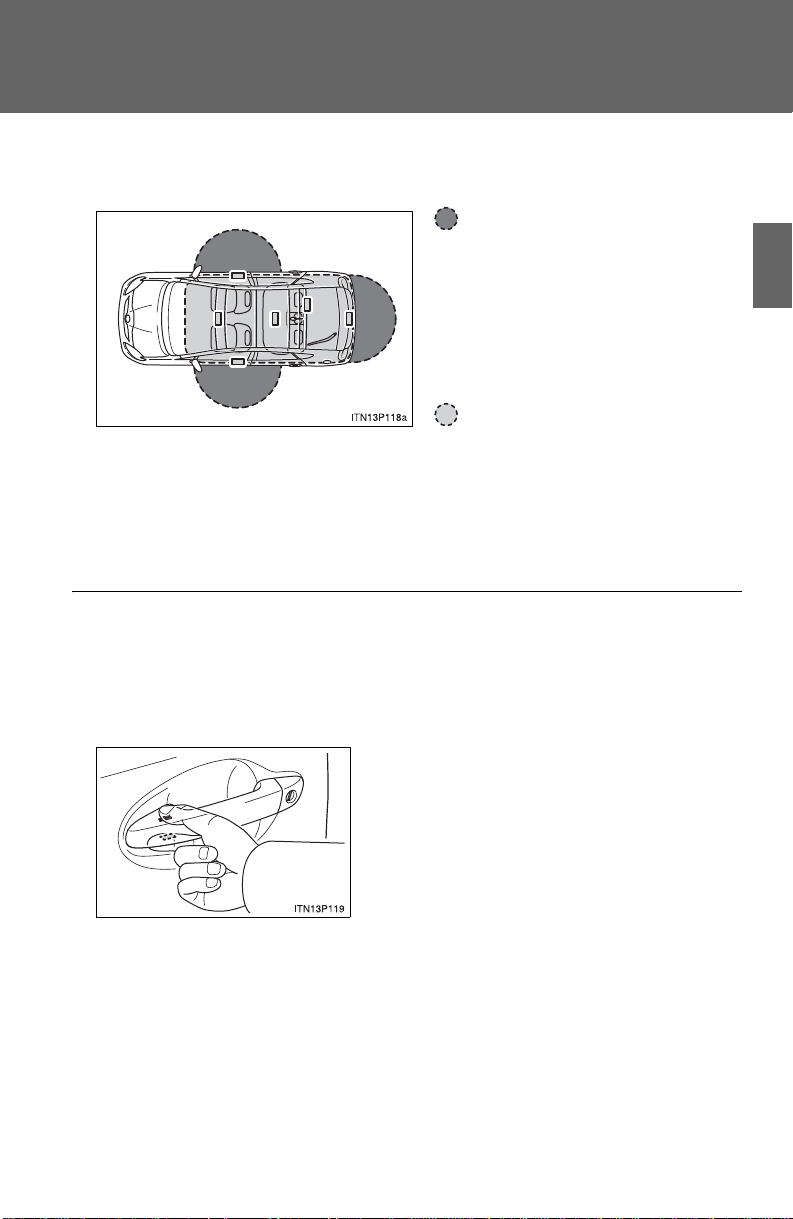

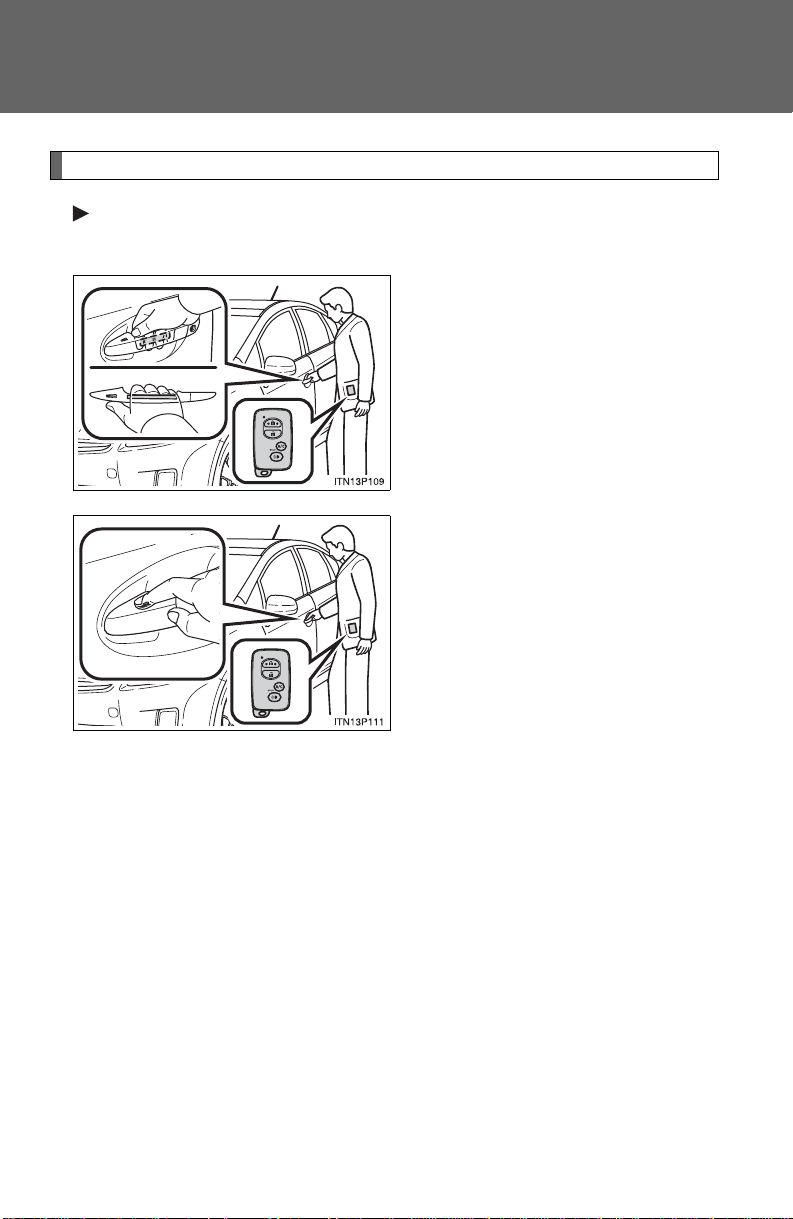

Front door lock

Carry remote to lock/unlock

Touch

Carry remote to lock/unlock

Front door unlock*

Grasp

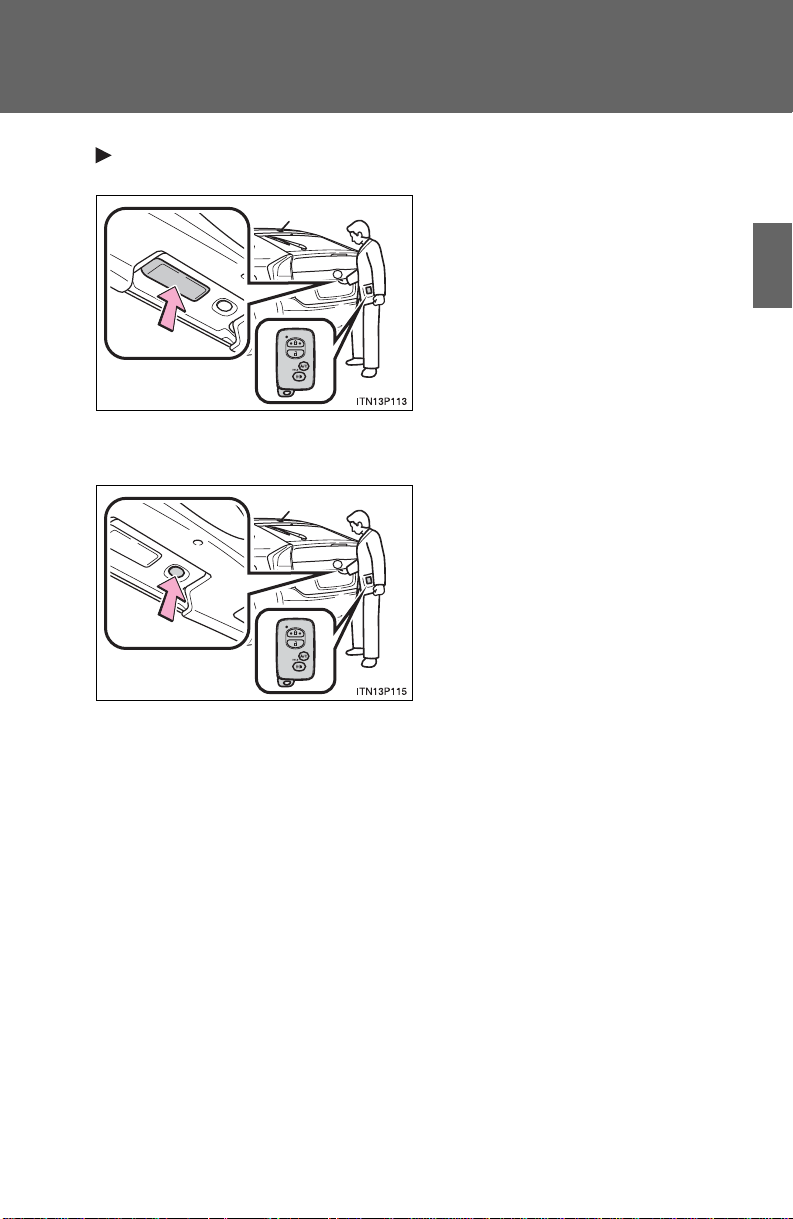

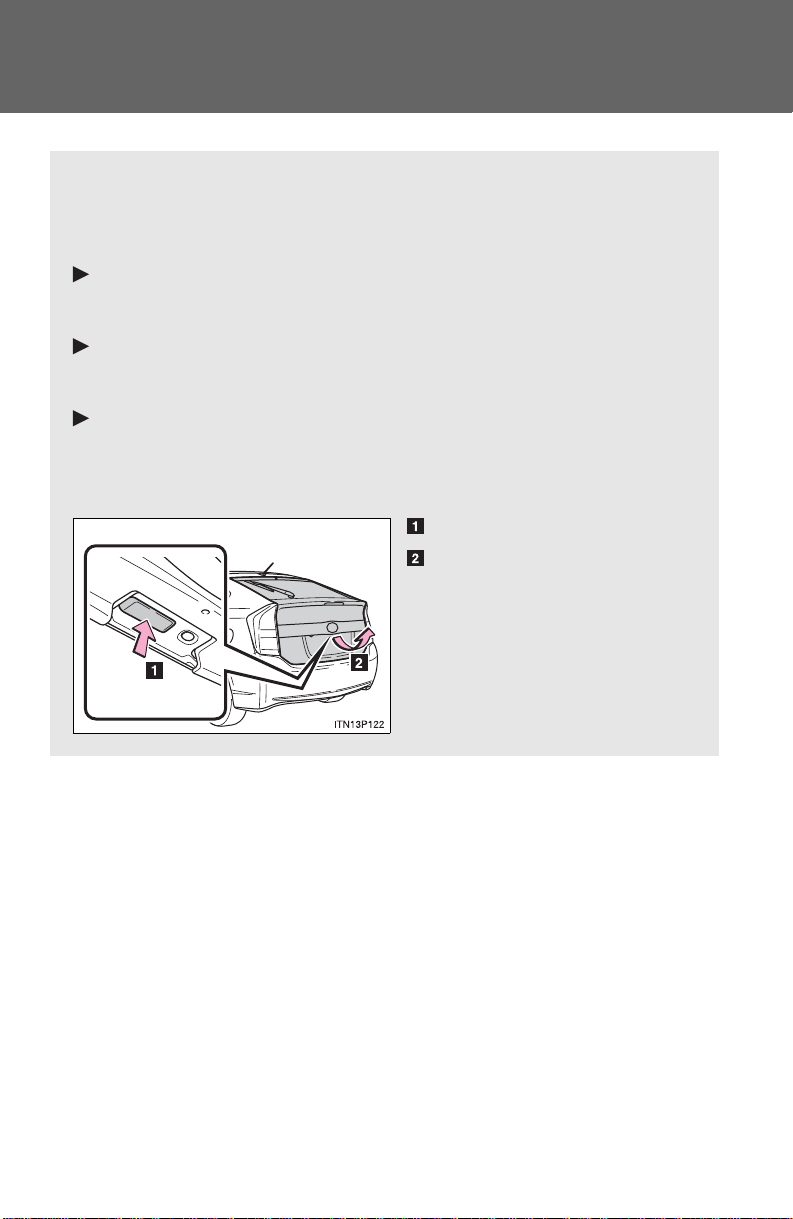

Back door lock/unlock (if equipped)

Carry remote to
lock/unlock

Push

Unlock

Push

Lock

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

7

OVERVIEW

Fuel tank door release and cap

Pull

Store

NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.

Hood release

Tu r n

Pull

Engage support rod

Pull up latch and
raise hood

8

Light control-Instrument panel

+

Brightness
control

-

Engine maintenance

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine coolant reservoir
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”

9

FEATURES/OPERATIONS

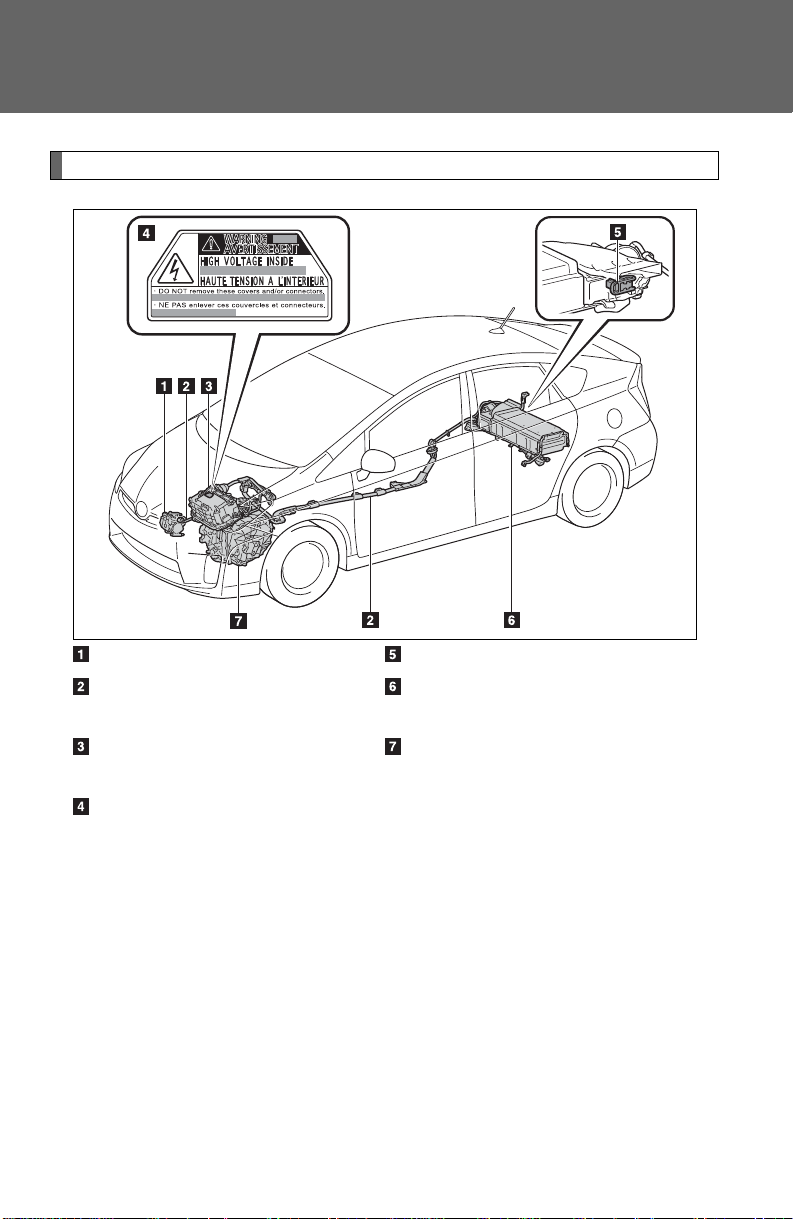

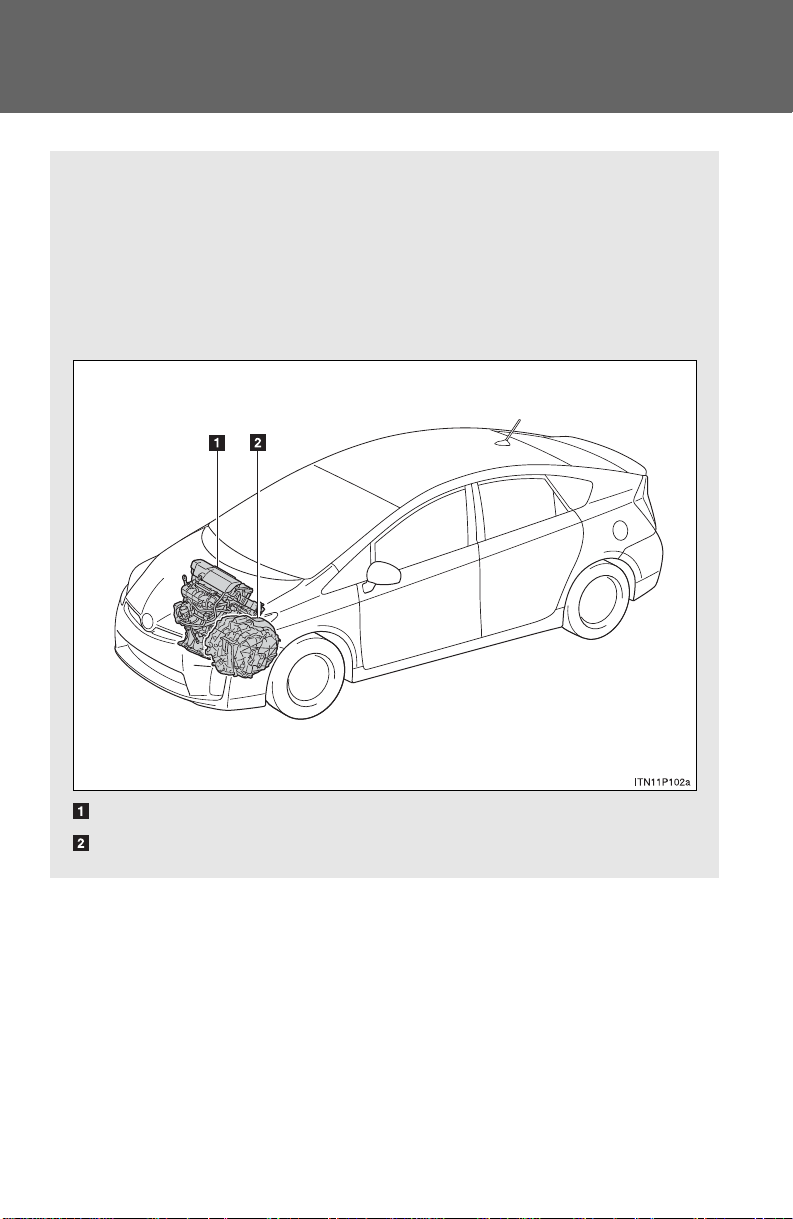

Hybrid Synergy Drive System

The Hybrid Synergy Drive System utilizes a computer-controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.

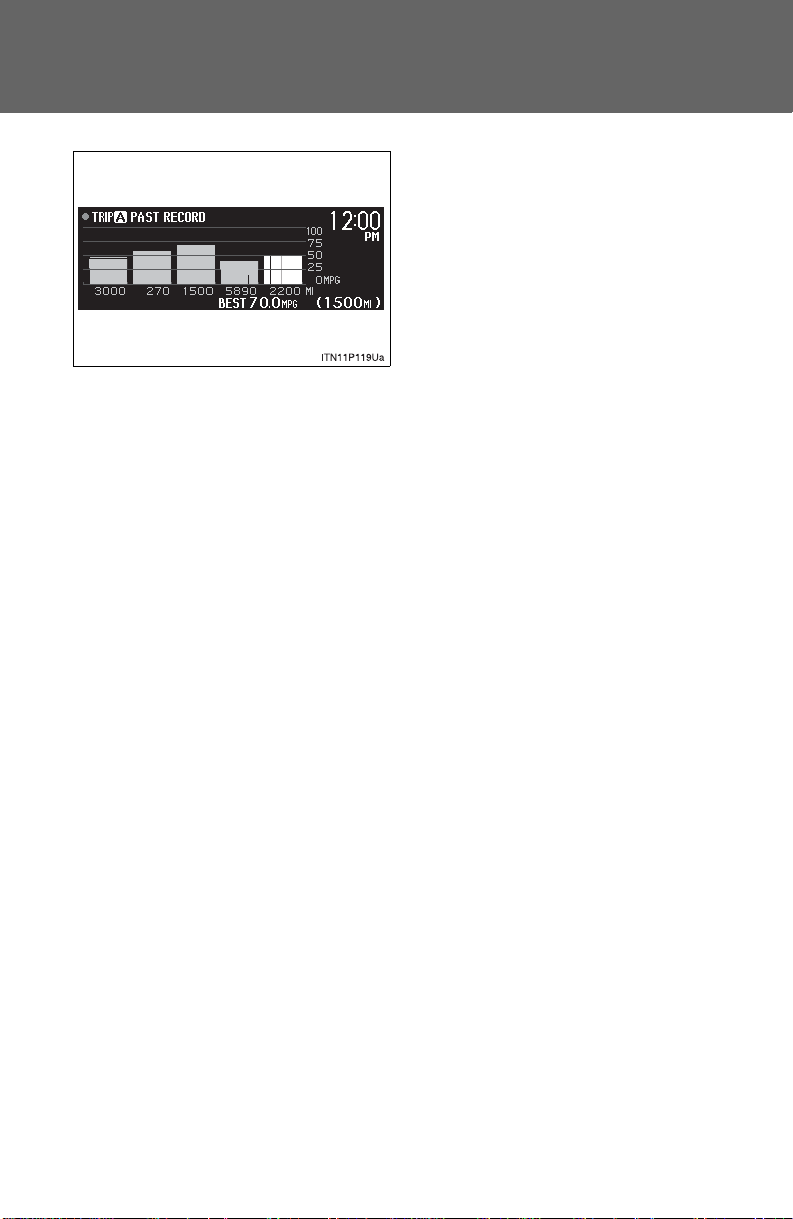

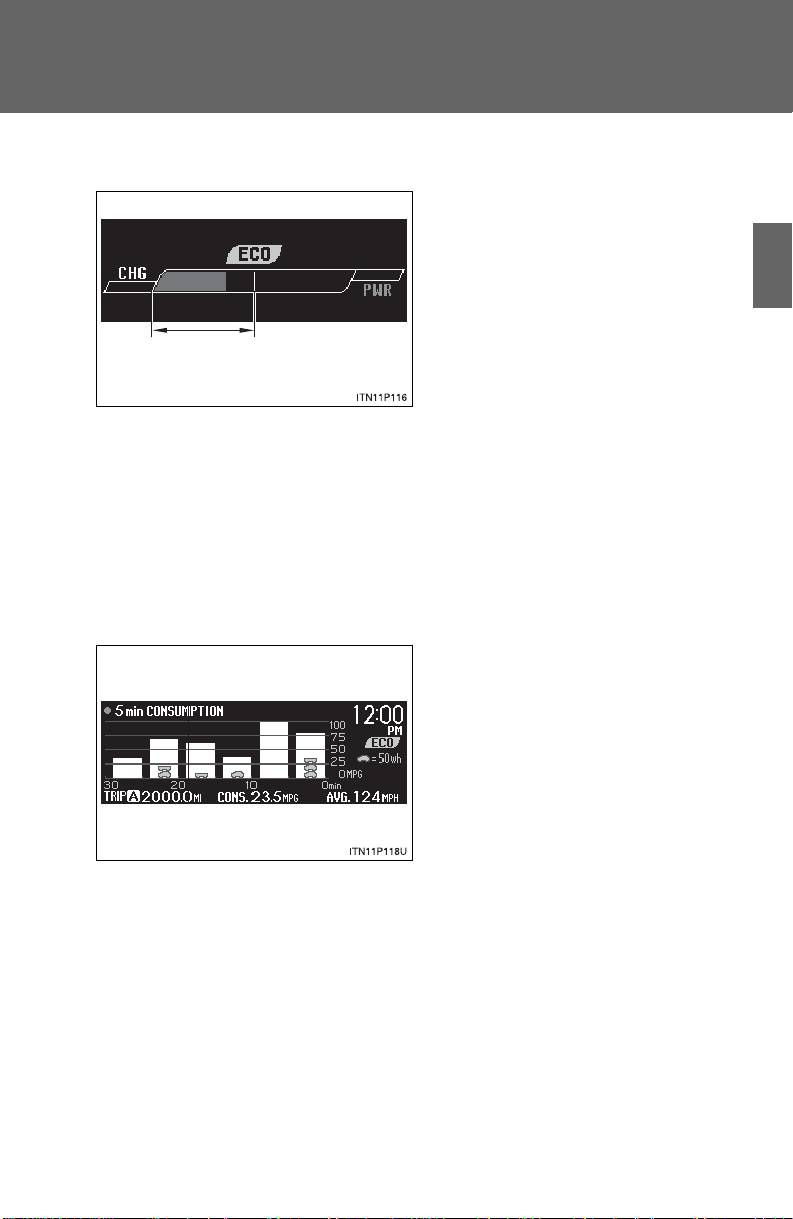

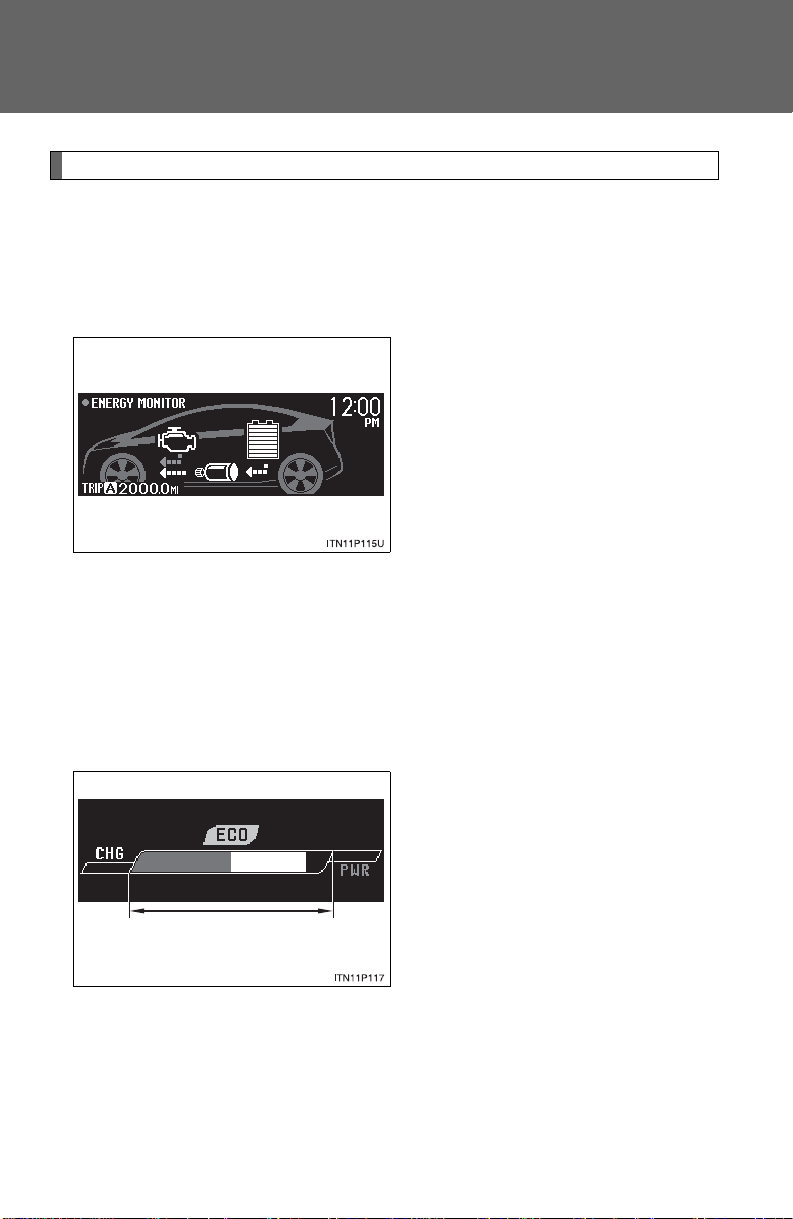

Note: Fuel consumption and energy information of the Hybrid System

are shown on the multi-information display.

Tips for improved fuel economy

-Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.

-When possible, link trips to reduce engine cold starts.

-Avoid driving at speeds that are higher than necessary, especially on the
highway.

-When possible, avoid sudden stops to maximize regenerative braking
energy.

-Minimize use of the Air Conditioning.

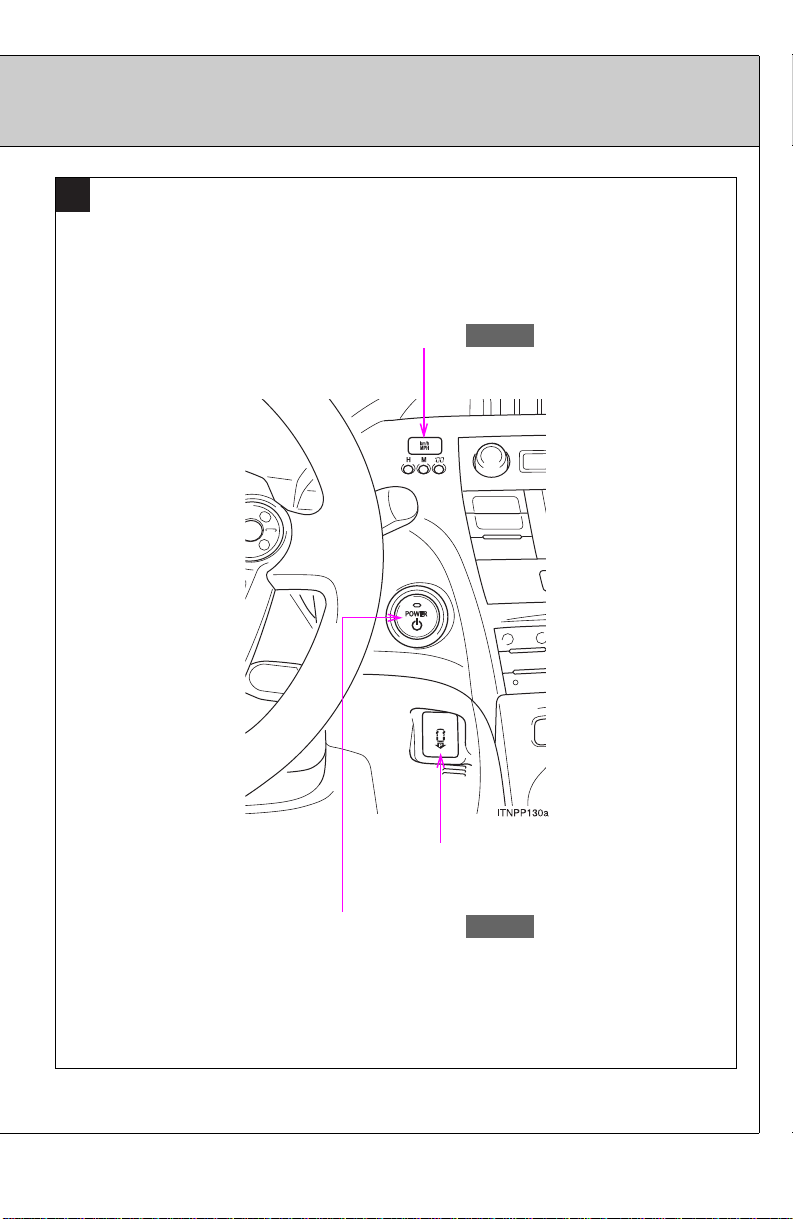

Starting the Hybrid System

(1) Depress the brake pedal, and

press the “POWER” switch
briefly and firmly.

(2) The “READY” light will blink.

After a few seconds, when the
light remains steady and a
beep sounds, you may begin
driving.

Auto lock functions

Automatic door locks can be programmed to operate in two different
modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed is approximately 12 mph or higher.

-Doors unlock when shifting into Park.

-Doors unlock when the driver’s door is opened within 10 seconds after

turning the “POWER” switch or ignition switch OFF.

Refer to the Owner’s Manual for more details.

10

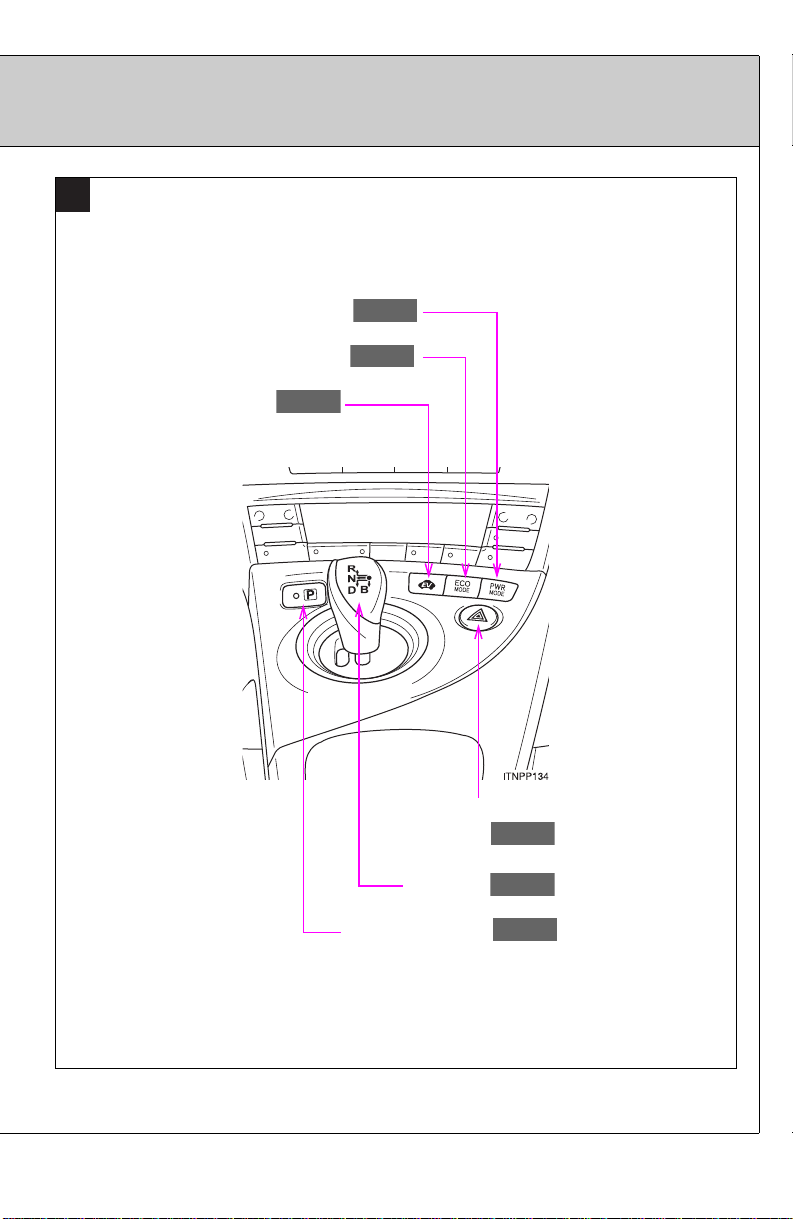

Transmission

Park button

Reverse

Neutral

Drive

Engine brake*

* The engine brake is the equivalent of downshifting. Shift to “B” when

engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).

Eco Mode

Push

Eco Mode helps achieve low fuel consumption during trips that involve
frequent accelerating and braking.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Refer to the Owner’s Manual for more details.

Power Mode

Push

Use when a higher level of response is desired, such as when driving in
mountainous regions.

Refer to the Owner’s Manual for more details.

11

FEATURES/OPERATIONS

EV-Drive Mode (if equipped)

Push

EV-Drive Mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle under
certain driving conditions.

Refer to the Owner’s Manual for more details.

Tilt and telescopic steering wheel

Lock release lever

Hold wheel, push lever down, set angle and length, and return lever.

Note: Do not attempt to adjust while the vehicle is in motion.

Angle

Parking brake

Set: Depress
Release: Depress again

Length

12

Seat adjustments-Front

Seat position (forward/backward)
Seatback angle
Height crank (driver side; if equipped)
Lumbar support (driver side; if equipped)

Seats-Head restraints

Front Rear center

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Rear outboard

Lock release button

Lock release button

Seats-Folding down second row seats

(1) Press down

(2) Fold down

13

Lock release button

FEATURES/OPERATIONS

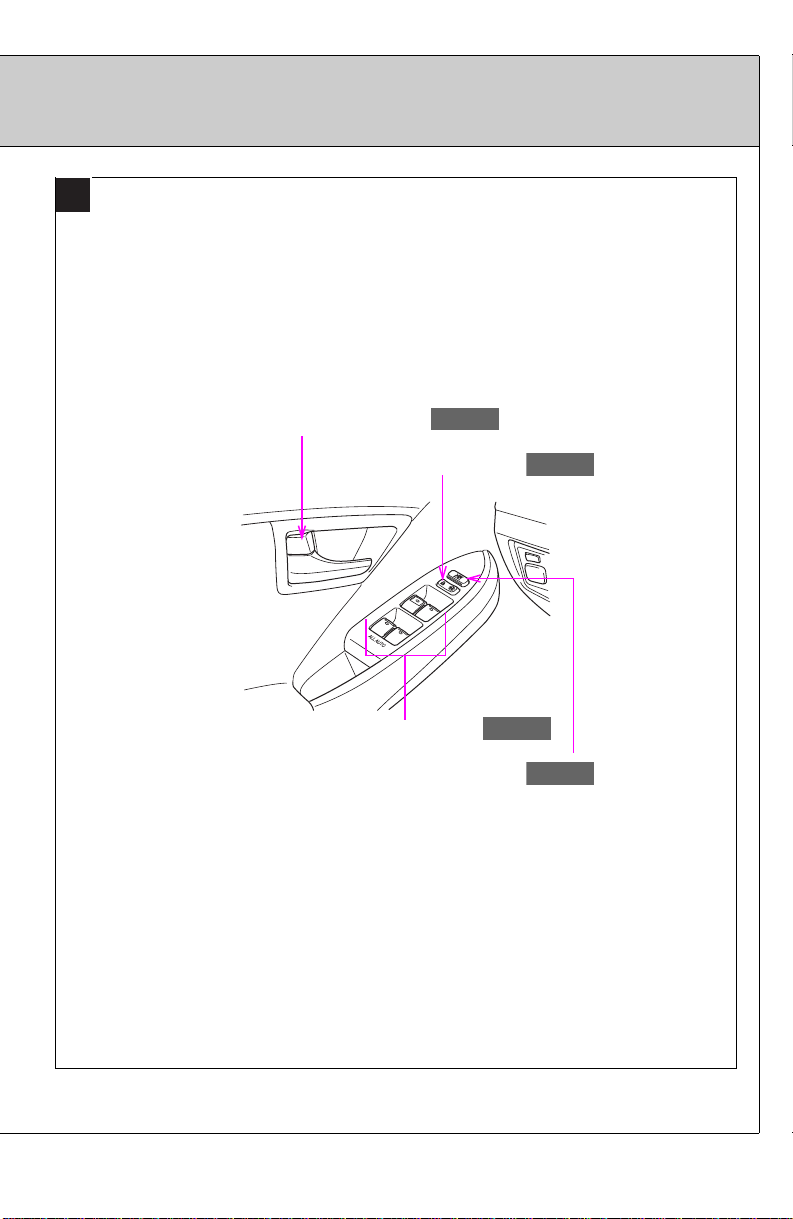

Windows-Power

Up

Down

Window lock switch

Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
push the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.

Windshield wipers & washers

Front

Adjust frequency*

Single wipe

Interval wipe

Slow

Pull to wash and wipe

Fast

* Intermittent windshield wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

Rear (if equipped)

Wash and wipe

Wipe

Interval wipe

Wash and wipe

14

Lights & turn signals

Headlights

Auto*

Headlights

Parking lights

* If equipped

Low beam

High beam flasher

High beam

-Daytime Running Light system (DRL) (if equipped) Automatically turns

on the headlights at a reduced intensity.

-Automatic light cutoff system (if equipped) Automatically turns lights

off after a delay of 30 seconds.

Front fog lights (if equipped)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tu r n

Front fog lights come on only when the headlights are on low beam.

Turn signals

Right turn

Lane change

Lane change

Left turn

15

FEATURES/OPERATIONS

Seat heaters (if equipped)

Air Conditioning/Heating

Front

automatic Air Conditioning

Push

Driver seat

Push

Front passenger seat

Temperature selector
Temperature setting display
Air outlet display
Fan speed display
Fan speed control
Windshield defogger
Air Conditioning ON/OFF
Micro dust and pollen filter mode (turns off automatically after 3
minutes)
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Fresh or recirculated cabin air
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Climate control OFF

16

Solar ventilation system (if equipped)

Off

On

With the “POWER” switch in
ON mode, turn on the solar
ventilation switch.

The solar ventilation system allows ventilation of the vehicle interior when
the vehicle is parked in direct sunlight.

Refer to the Owner’s Manual for more details.

Moonroof (if equipped)

Opening operation

Push once to tilt up;
again to open partway;
again to open completely.

Closing operation

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Push

Recommended driving position to
minimize wind noise.

Push and hold

17

FEATURES/OPERATIONS

Audio

Typ e 1

Eject CD

Push to turn
ON/OFF

Seek station/
CD track select

Station/CD
track scan

Type 2 (with JBL speakers and Bluetooth®function)

Preset buttons - functions in other
modes indicated above number

Mode

Mute

View CD text

Load CD(s)

Push to
adjust tone
& balance

Push to skip
up/down
folder and
radio
category
type

CD PLAYER

To scan tracks on a disc Push and hold “SCAN.” Push again to hold

selection.

CD changer (Type 2 only)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until you hear a beep.

Insert one disc. Shutter will close and then re-open for next disc.

To select a file (MP3/WMA only) Turn “TUNE.FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”

RADIO

To preset stations Tune in the desired station and hold down a preset

button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.

18

AUX audio jack (if equipped)

By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.

Power outlets

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Lower center console

Center console box (if equipped)

Power switch must be set at “ACCESSORY” or “ON” mode to be used.

Steering wheel switches

Audio control

Volume control

“MODE”

Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.

v

v

“”

-In radio mode Push to select a preset station; push and hold to seek

thenextstrongstation.

-In CD mode Push to skip up or down to next/previous track.

Climate control

Fresh or
recirculated
cabin air

Temperature
selector

19

FEATURES/OPERATIONS

Cruise control

(if e quipped)

Turning system ON/OFF

System ON/OFF

Functions

2

Resu me

1

Cancel

Set

1

The set speed may also be cancelled by depressing the brake pedal.

2

The set speed may be resumed once vehicle speed exceeds 25 mph.

Increase speed

Decrease speed

Dynamic Radar Cruise Control
(if equipped)

Refer to the Owner’s Manual for more details and complete safety
precautions before attempting to use “Dynamic Radar Cruise Control.”

Fixed speed mode

(1) To select conventional/fixed speed control Push the ON-OFF button.

Push the lever forward and hold until the “ ” indicator appears.

(2) To set, cancel and resume a speed Refer to instructions in the Cruise

Control section.

20

Distance control mode

Distance control mode will cruise at a set speed, decelerate to maintain
selected distance from a slower vehicle traveling in front of you, and
accelerate back up to the selected speed if the vehicle in front of you
changes lanes or speeds up.
(1) To select distance control mode Push the ON-OFF button. The

“RADAR READY” and “ ” will come on.

(2) To set, cancel and resume a speed Refer to instructions for Cruise

Control on the previous page.

LONG MIDDLE SHORT

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

(3) To change the vehicle-to-vehicle distance

Push the distance button to cycle through the settings, which will
change progressively from LONG to MIDDLE to SHORT.

LKA (Lane Keep Assist) (if equipped)

When activated, the LKA system camera detects lane markings and alerts
the driver when the vehicle strays from its lane. Driver may also
experience a slight steering torque.

Refer to the Owner’s Manual for more details.

21

FEATURES/OPERATIONS

Multi-information display

Push “DISP” to change information in the following:

(1) Energy monitor
(2) Hybrid System Indicator
(3) 5-minute/1-minute interval fuel consumption display
(4) Fuel consumption history display

Push and hold “DISP” to set up the displays.

Telephone controls (Bluetooth®)
(if equipped)

Microphone (type A)

Audio unit

Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.

Refer to “Hands-free phone system (for cellular phone),” Section 3-3 in
the Owner’s Manual for more details.

Microphone (type B)

Steering wheel telephone switches

Vol ume

Voice command
button

End call
Start call

22

Clock

H- Hour set
M- Minute set
:00- Round off

minutes

Refer to the Owner’s Manual for adjusting time.

Hill start Assist Control (HAC)

Brake
pedal

HAC helps prevent rolling backwards on an incline. To engage, push
further down on brake pedal while at a complete stop until a beep sounds
and slip indicator illuminates. HAC holds for approximately two seconds
after releasing brake pedal.

Refer to the Owner’s Manual for more details.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Garage door opener (HomeLink®)*
(if e quipped)

Garage door openers manufactured under license from HomeLink®*can
be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-6 in the Owner’s Manual for
more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.

* HomeLink®is a registered trademark of Johnson Controls, Inc.

23

SAFETY AND EMERGENCY FEATURES

Seatbelts

Take up slack

To o h i g h

Keep as low on
hips as possible

If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.

To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.

Seatbelts-Shoulder belt anchor

Push up, or squeeze
lock release to lower

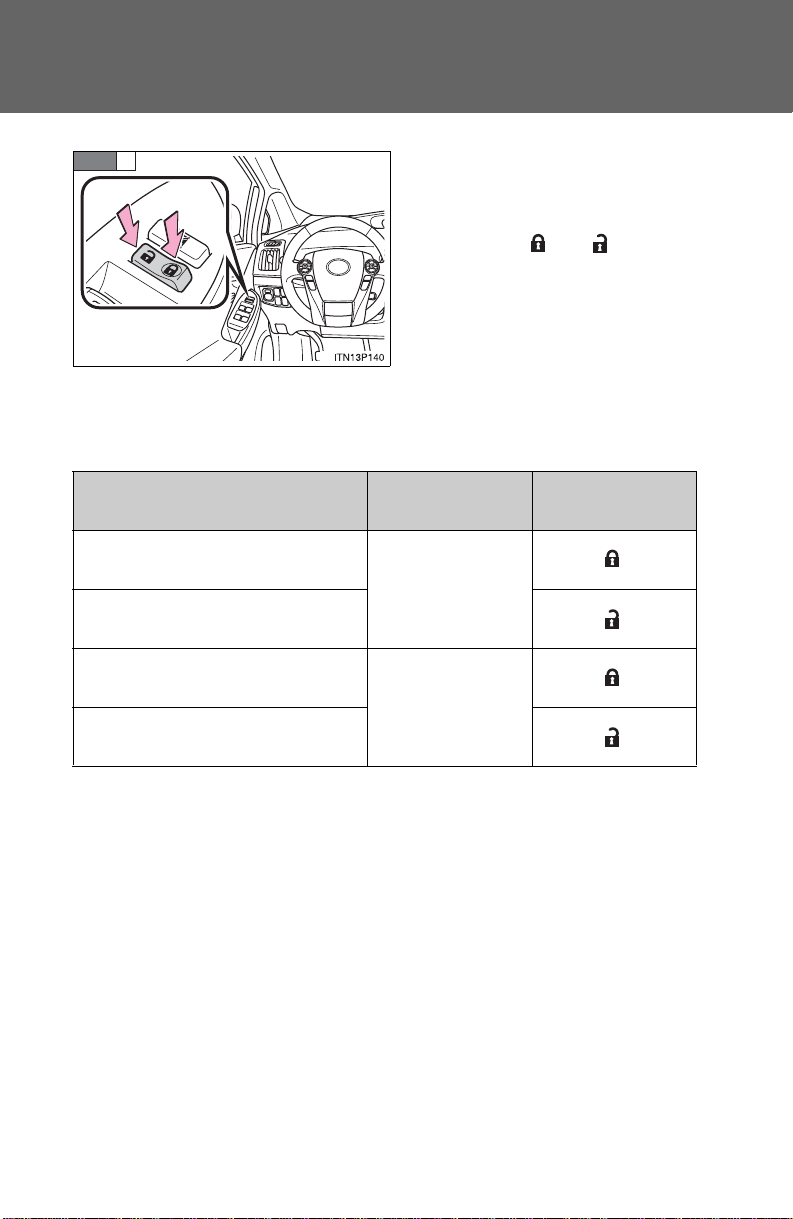

Door locks

Unlock

Lock

Tire Pressure Monitoring (warning)
System

If tire pressure becomes critically low on any of the tires, indicator will
illuminate. Correctly adjusting tire inflation will turn off the light after a
few minutes. If the light does not turn off, have the system checked by
your Toyota dealer.

Refer to the Owner’s Manual for more details.

24

Doors-Child safety locks

Rear door

Moving the lever to “LOCK” will allow the door to be opened only from
the outside.

Spare tire & tools

Tool location

Center auxiliary box

Wheel nut
wrench

Jack handle

Jack

Towing eyelet

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Spare tire

Removing the spare tire

Refer to the Owner’s Manual for tire changing and jack positioning
procedures.

25

MN 00505-QRG10-PRI

Printed in the USA 4/09

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equip­ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of equipment.

Noise from under vehicle after turning off the hybrid system

Approximately five hours after the hybrid system is turned off, you may hear
sound coming from under the vehicle for several minutes. This is the sound
of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehi­cles are currently available in the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non-genuine Toyota products. Mod­ification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In addi­tion, damage or performance problems resulting from the modification may
not be covered under warranty.

22

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could
affect electronic systems such as the multiport fuel injection system/sequen­tial multiport fuel injection system, cruise control system, anti-lock brake sys­tem, vehicle stability control system, SRS airbag system, seat belt
pretensioner system or hybrid system, be sure to check with your Toyota
dealer for precautionary measures or special instructions regarding installa­tion.

High voltage parts and cables on the hybrid vehicles emit approximately the
same amount of electromagnetic waves as the conventional gasoline pow­ered vehicles or home electronic appliances despite of their electromagnetic
shielding.

Unwanted noise may occur in the reception of the mobile two-way radio.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These compo­nents may include airbag, seat belt pretensioners, and wireless remote con­trol batteries.

23

CAUTION

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ­ence of alcohol or drugs that have impaired your ability to operate your vehi­cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that dis­tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to
have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.

■ Dispose of the hybrid battery (traction battery)

If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event of that your vehicle
must be disposed of, the hybrid battery must be disposed of your Toyota
dealer or a qualified service shop. If the hybrid battery is not disposed of
properly, they may cause electric shock that can result in death or serious
injury.

24

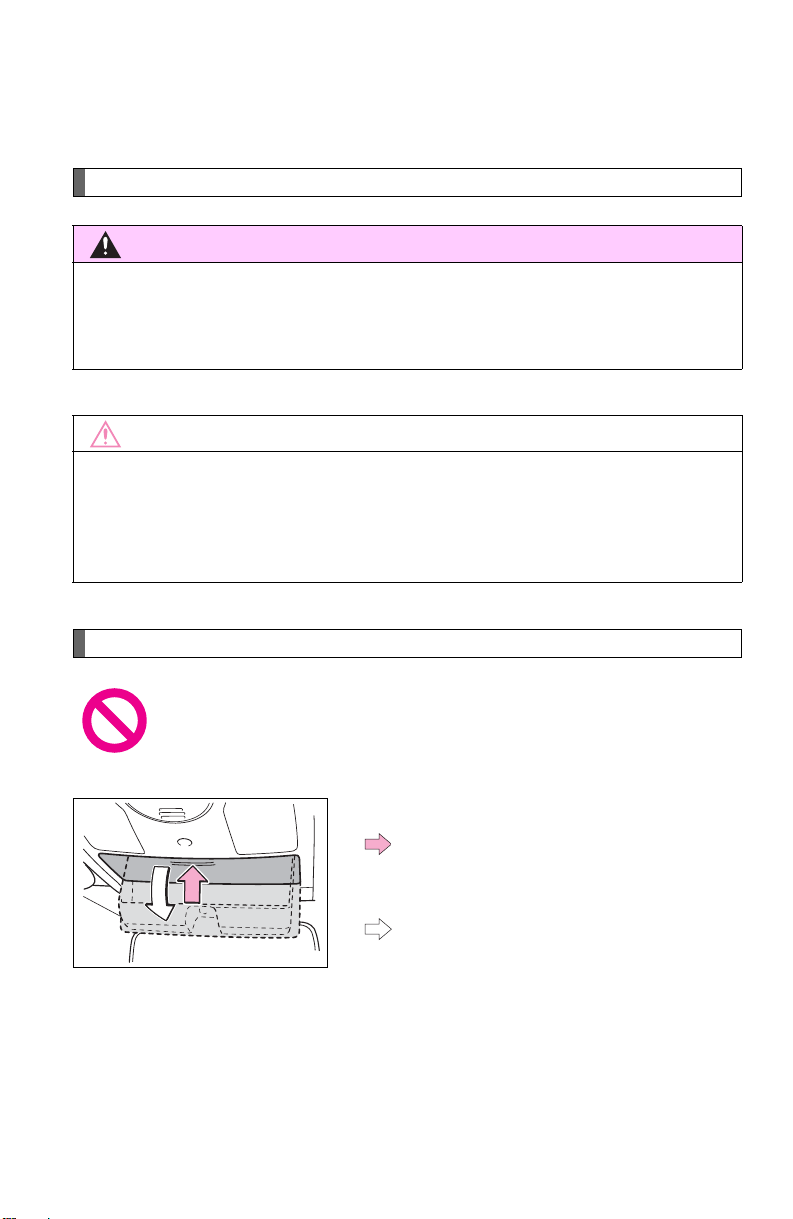

Symbols used throughout this manual

CAUTION

NOTICE

ITOPP105

Cautions & Notices

This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.

This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.

Symbols used in illustrations

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning,
etc.) used to operate switches and
other devices.

Indicates the outcome of an operation
(e.g. a lid opens).

25

26

TABLE OF CONTENTS

1

Before driving

2

When driving

Interior

3

features

Maintenance

4

and care

When trouble

5

arises

Vehicle

6

specifications

Adjusting and operating features such as door locks,
mirrors, and steering column

Driving, stopping and safe-driving information

Air conditioning and audio systems, as well as other in­terior features for a comfortable driving experience

Cleaning and protecting your vehicle, performing do-it­yourself maintenance, and mainten ance inform a tion

What to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident

Detailed vehicle information

7

For owners

Index

Reporting safety defects for U.S. owners and seat belt
instructions for Canadian owners

Alphabetical listing of information contained in this
manual

1

Pictorial index

P. 210

P. 206

P. 420

P. 206

P. 100

P. 96

P. 206

P. 178

P. 209

P. 206

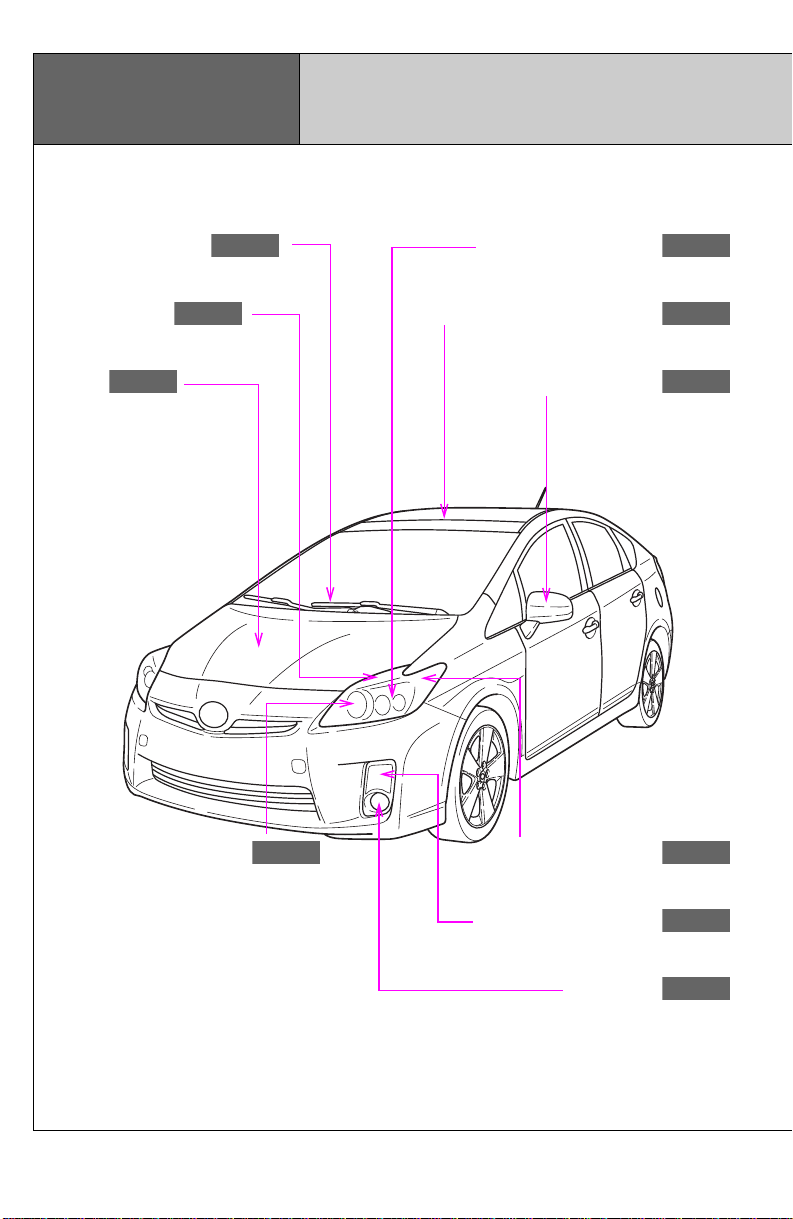

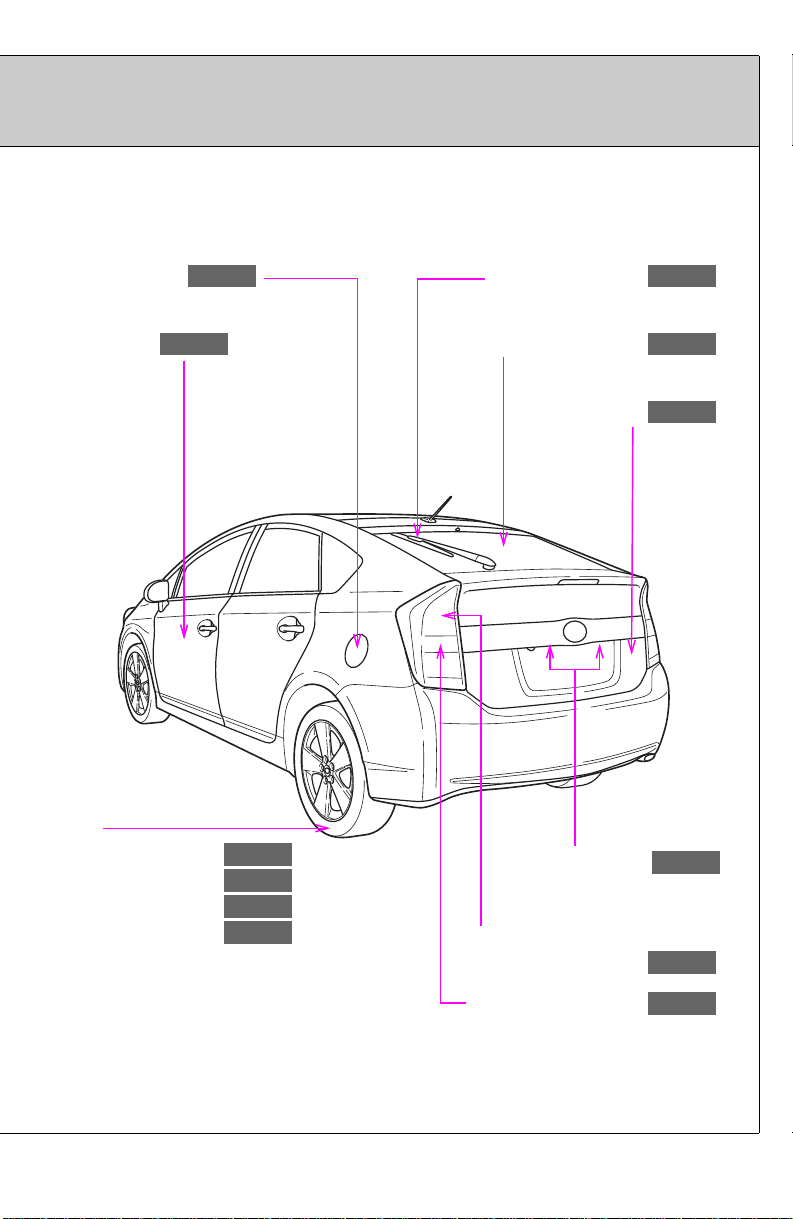

Exterior

Windshield wipers

Parking lights

Hood

Headlights (low beam)

Moonroof with Solar Panel∗

Outside rear view mirrors

Headlights (high beam)

8

Front side marker lights

Front turn signal lights

Fog lights∗

P. 212

Fuel filler door

P. 104

P. 67

P. 289

P. 72

P. 206

P. 206

P. 178

P. 441

P. 524

P. 451

P. 572

Rear window wiper

Side doors

Tires

●Rotation

●Replacement

●Inflation pressure

●Information

Rear window defogger

Back door

License plate lights

Tail and rear side marker lights

Rear turn signal lights

∗: If equipped

9

Pictorial index

P. 98

P. 85

P. 113

P. 113

P. 82

P. 78

P. 383

P. 384

P. 368

P. 369

P. 80

P. 113

P. 372

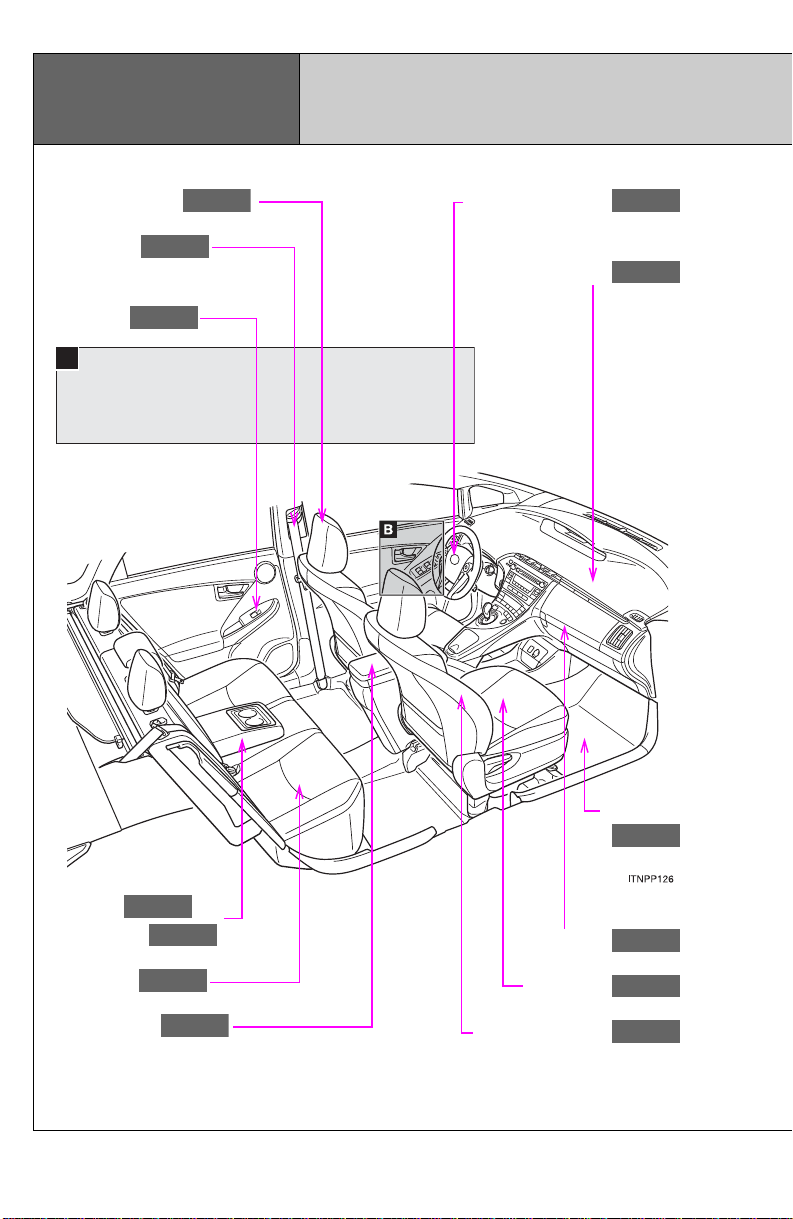

Interior

Head restraints

Seat belts

Power window
switches

A

SRS driver airbag

SRS front passenger

airbag

10

Armrest
Cup holder

Rear seat

Console box

Floor mat

Glove boxes

Front seat

SRS side airbag

A

P. 389

P. 93

P. 100

P. 377

P. 113

P. 363

P. 376

P. 363

P. 395

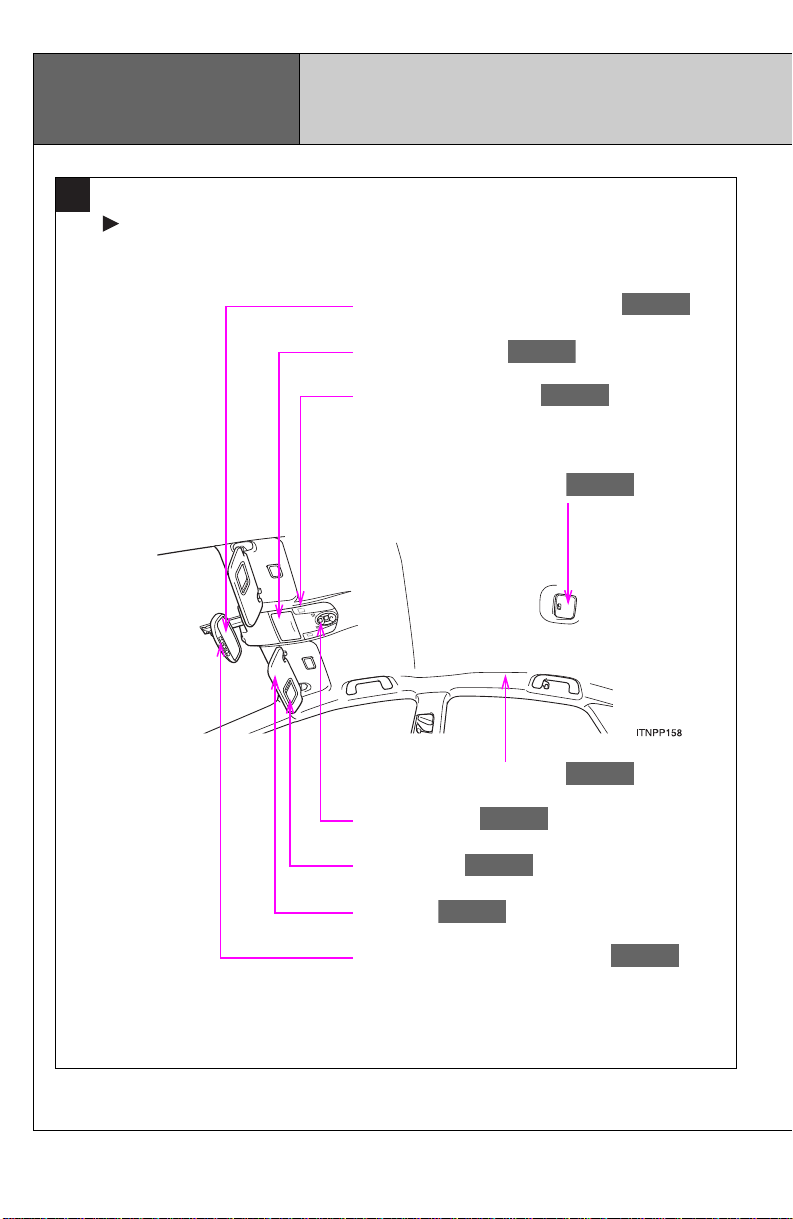

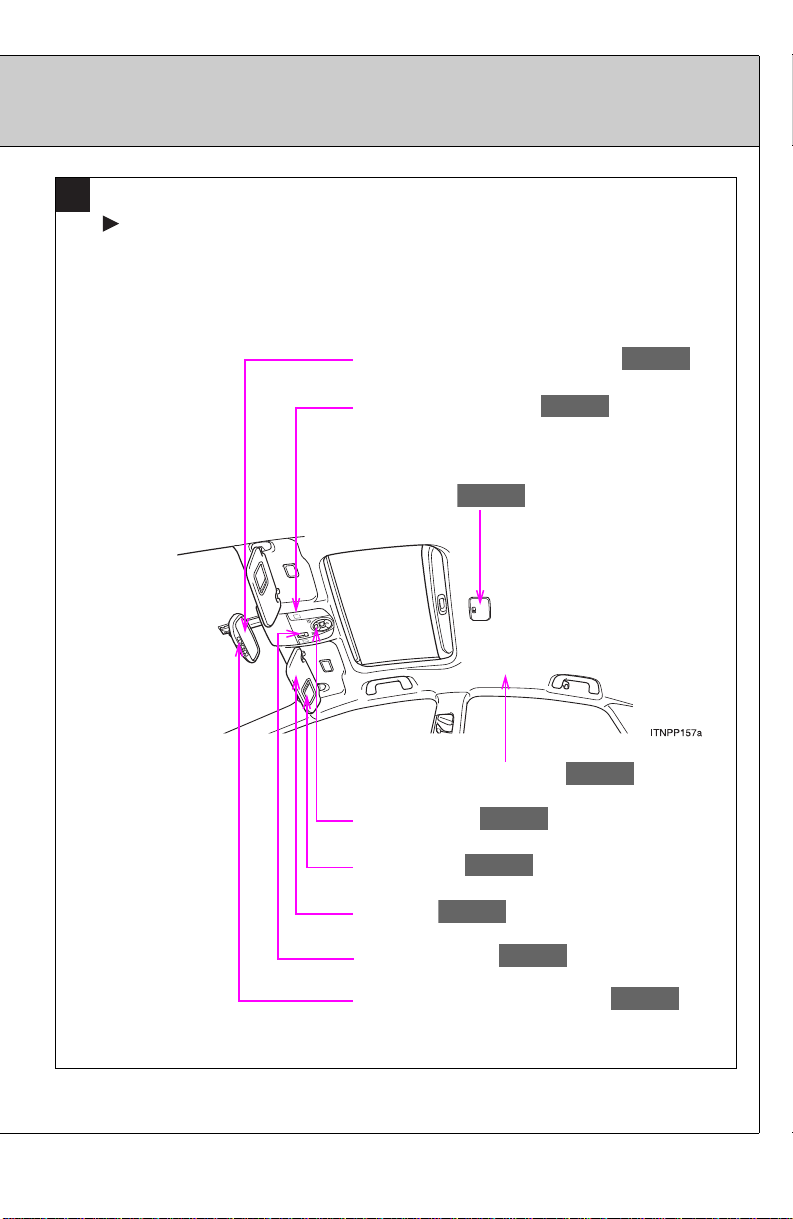

With moon roof

Anti-glare inside rear view mirror

Personal/interior lights

Interior light

SRS curtain shield airbag

“SOS” button∗

Vanity mirror

Sun visor
Moon roof switch
Garage door opener switches∗

∗: If equipped

11

Pictorial index

P. 389

P. 93

P. 377

P. 113

P. 363

P. 376

P. 363

P. 370

P. 395

A

Without moon roof

Interior

Anti-glare inside rear view mirror

Overhead console
Personal/interior lights

Interior light

SRS curtain shield airbag

“SOS” button∗

Vanity mirror

Sun visor
Garage door opener switches∗

12

B

P. 67

P. 98

P. 98

P. 67

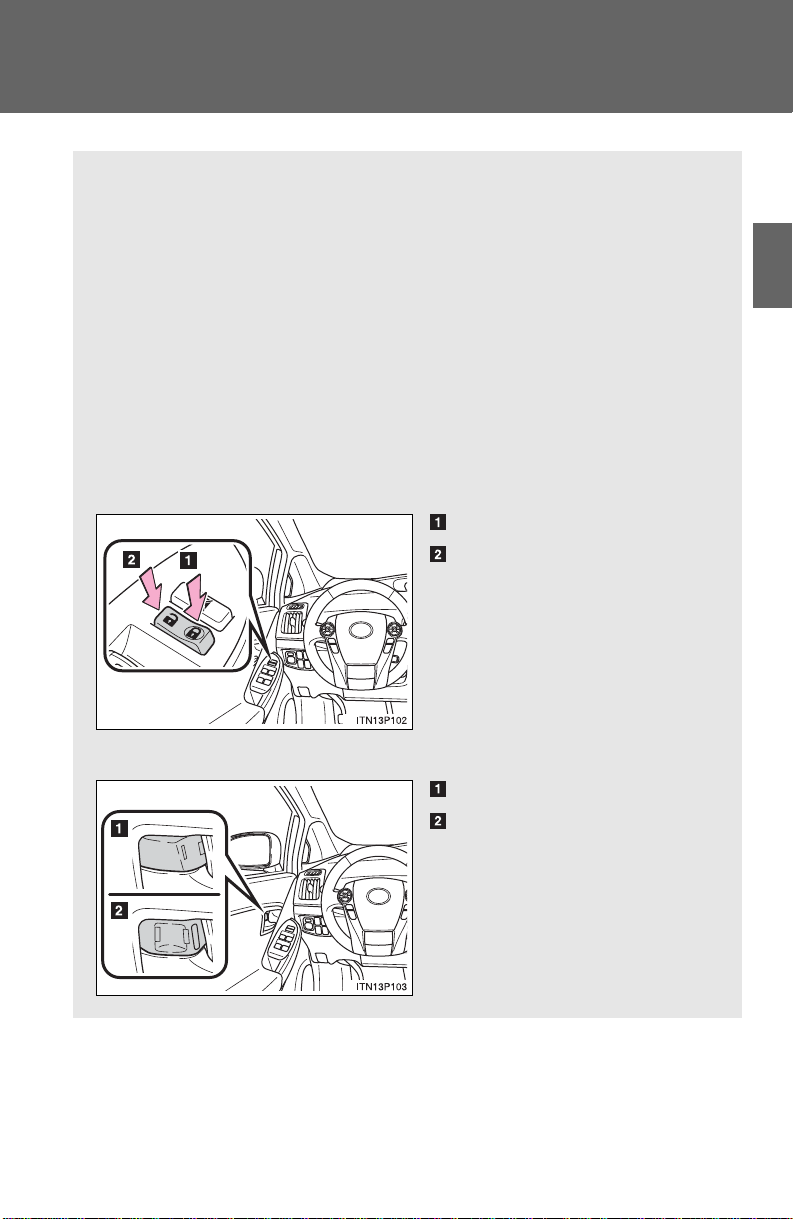

Inside lock button

Door lock switch

ITOPP103

Power window switches

Window lock switch

∗: If equipped

13

Pictorial index

P. 212

P. 181

P. 188

P. 420

P. 113

P. 372

P. 374

P. 180

P. 104

P. 368

P. 92

P. 206

P. 178

P. 209

P. 210

P. 291

P. 179

Bottle holder

Headlight switch
Turn signal lever
Fog light switch∗

Instrument panel

Windshield wipers and washer switch

Rear window wiper and washer switch

Gauges and meters

Multi-information display

Horn

Audio system

Navigation system

Glove boxes
Cup holder
SRS knee airbag
Tilt and telescopic steering lock release lever

*

Parking brake pedal
Hood opener
Fuel filler door opener

14

A

P. 213

P. 96

P. 184

P. 282

Ventilation switch∗

Headlight cleaner switch∗

Outside rear view mirror

switches

ITOPP120

Instrument panel light control dial

∗: If equipped

*: Refer to “Navigation System Owner’s Manual”.

15

Pictorial index

ITOPP116

P. 326

P. 323

P. 280

P. 188

P. 188

P. 326

P. 218

P. 235

P. 214, 218

B

Instrument panel

Talk switch∗*

Audio remote control
switches

Telephone switch∗*

Distance switch∗

“LKA” switch∗

Cruise control switch∗

Climate remote control switches

“DISP” button

“TRIP” button

16

C

P. 183

P. 162

MPH or km/h button

APGS pre-support switch*

Power (ignition) switch

∗: If equipped

*: Refer to “Navigation System Owner’s Manual”.

17

Pictorial index

ITO31P101

P. 289

P. 270

D

Air conditioning system

Instrument panel

Rear window defogger switch

18

E

P. 171

P. 171

P. 171

P. 168

P. 486

P. 171

“PWR MODE” switch

“ECO MODE” switch

“EV” switch

Emergency flasher

switch

Shift lever

“P” position switch

19

Pictorial index

P. 385

P. 72

P. 385

P. 385

P. 385

P. 385

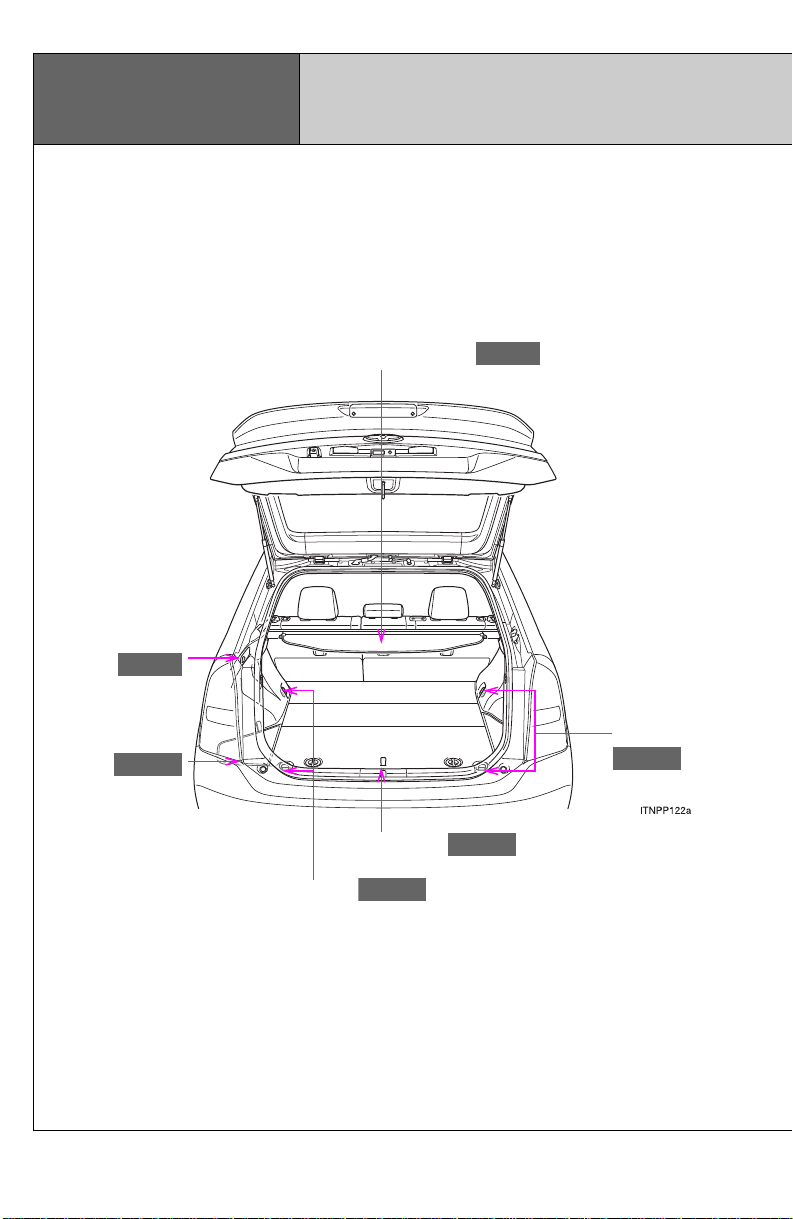

Luggage
compartment
light

Luggage compartment

Luggage cover∗

Auxiliary
box

20

Cargo hooks

Auxiliary box

Cargo hooks

∗: If equipped

21

TABLE OF CONTENTS Index

1

Before driving

1-1. Hybrid system

Hybrid system ...................... 28

1-5. Opening and closing

the windows and moon roof

Power windows..................... 98

Moonroof

with Solar Panel ............... 100

1-2. Key information

Keys..................................... 41

Smart key system

(with entry function)............ 43

Smart key system

(without entry function)....... 57

1-3. Opening, closing and locking

the doors and back door

Wireless remote control ....... 63

Side doors............................ 67

Back door............................. 72

1-4. Adjustable components

(seats, mirrors, steering
wheel)

Front seats........................... 78

Rear seats............................ 80

Head restraints..................... 82

Seat belts............................. 85

Steering wheel ..................... 92

Inside rear view mirror.......... 93

Outside rear view mirrors..... 96

1-6. Refueling

Opening the fuel tank cap... 104

1-7. Theft deterrent system

Immobilizer system............. 108

Theft prevention labels

(U.S.A.)............................. 110

1-8. Safety information

Correct driving posture ....... 111

SRS airbags ....................... 113

Front passenger occupant

classification system......... 126

Child restraint systems ....... 132

Installing child restraints ..... 137

2

2

When driving

2-1. Driving procedures

Driving the vehicle............... 150

Power (ignition) switch........ 162

EV-Drive Mode.................... 168

Transmission....................... 171

Turn signal lever ................. 178

Parking brake...................... 179

Horn.................................... 180

2-2. Instrument cluster

Gauges and meters ............ 181

Indicators and warning

lights ................................. 185

Multi-information display..... 188

2-3. Operating the lights

and windshield wipers

Headlight switch.................. 206

Fog light switch................... 209

Windshield wipers

and washer....................... 210

Rear window wiper

and washer....................... 212

Headlight cleaner switch..... 213

2-4. Using other driving systems

Cruise control..................... 214

Dynamic radar

cruise control.................... 218

Rear view monitor

system.............................. 231

LKA (Lane-Keeping

Assist) .............................. 235

Hill-start assist control........ 243

Driving assist systems........ 245

Pre-Collision System.......... 249

2-5. Driving information

Cargo and luggage............. 255

Vehicle load limits............... 260

Winter driving tips............... 261

Trailer towing...................... 266

Dinghy towing..................... 267

1

2

3

4

5

6

7

3

TABLE OF CONTENTS Index

3

Interior features

3-1. Using the air conditioning

system and defogger

Air conditioning system...... 270

Using the steering wheel

climate remote control

switches ........................... 280

Solar Ventilation System.... 282

Remote Air Conditioning

System............................. 285

Rear window and outside rear

view mirror defoggers....... 289

3-2. Using the audio system

Audio system type.............. 291

Using the radio................... 294

Using the CD player........... 303

Playing back MP3

and WMA discs................ 311

Optimal use of

the audio system.............. 319

Using the AUX adapter ...... 322

Using the steering

switches ........................... 323

3-3. Using the hands-free system

(for cellular phone)

Hands-free system

(for cellular phone)........... 326

Using the hands-free

system.............................. 329

Making a phone call........... 338

Setting a cellular phone...... 344

Security and system

setup ................................ 350

Using the phone book........ 354

4

3-4. Using the interior lights

Interior lights list.................. 363

• Personal/interior

light main switch............... 364

• Personal/interior lights...... 365

• Interior light....................... 365

3-5. Using the storage features

List of storage features....... 367

• Glove boxes ..................... 368

• Console box ..................... 369

• Overhead console............ 370

• Card holder....................... 371

• Cup holders...................... 372

• Bottle holders ................... 374

• Auxiliary box..................... 375

3-6. Other interior features

Sun visors........................... 376

Vanity mirror....................... 377

Outside temperature

display .............................. 378

Power outlets...................... 379

Seat heaters....................... 381

Armrest............................... 383

Floor mats........................... 384

Luggage compartment

features ............................ 385

Garage door opener........... 389

Safety Connect................... 395

4

Maintenance and care

5

When trouble arises

4-1. Maintenance and care

Cleaning and protecting

the vehicle’s exterior......... 404

Cleaning and protecting

the vehicle’s interior.......... 407

4-2. Maintenance

Maintenance

requirements..................... 410

General maintenance.......... 412

Emission inspection

and maintenance (I/M)

programs........................... 415

4-3. Do-it-yourself maintenance

Do-it-yourself service

precautions....................... 416

Hood ................................... 420

Positioning a floor jack........ 423

Engine compartment........... 425

12 volt battery ..................... 436

Tires.................................... 441

Tire inflation pressure ......... 451

Wheels................................ 455

Air conditioning filter............ 457

Electronic key battery.......... 460

Checking and replacing

fuses................................. 462

Light bulbs........................... 472

5-1. Essential information

Emergency flashers............ 486

If your vehicle needs

to be towed....................... 487

If you think something is

wrong ............................... 493

Event data recorder............ 494

5-2. Steps to take in an emergency

If a warning light turns

on or a warning buzzer

sounds.............................. 496

If a warning message is

displayed.......................... 508

If you have a flat tire........... 524

If the hybrid system

will not start...................... 538

If you lose your keys........... 540

If the electronic key does

not operate properly......... 541

If the 12 volt battery is

discharged........................ 543

If your vehicle overheats .... 548

If the vehicle becomes

stuck................................. 553

1

2

3

4

5

6

7

5

TABLE OF CONTENTS Index

6

Vehicle specifications

Index

6-1. Specifications

Maintenance data

(fuel, oil level, etc.)........... 556

Fuel information ................. 568

Tire information.................. 572

6-2. Customization

Customizable features ....... 587

6-3. Initialization

Items to initialize................. 593

7

For owners

Reporting safety defects

for U.S. owners ................ 596

Seat belt instructions for

Canadian owners

(in French)........................ 597

Abbreviation list ............... 600

Alphabetical index............ 601

What to do if...................... 610

6

1

2

3

4

5

6

7

7

1-1. Hybrid system

Your vehicle is a hybrid vehicle. It has characteristics different from
conventional vehicles. Be sure you are closely familiar with the char­acteristics of your vehicle, and operate with care.

The hybrid system combines a gasoline engine and an electric
motor (traction motor) according to driving conditions, improving
fuel efficiency and reducing exhaust emissions.

Gasoline engine
Electric motor (Traction motor)

Hybrid system

28

1-1. Hybrid system

■ When stopped/during take-off

The gasoline engine stops when the vehicle is stopped. During
take-off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine
is stopped and the motor is used.

■ During normal driving

The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as
necessary.

■ When accelerating sharply

The power of the hybrid battery (traction battery) is added via
electric motor (traction motor) to that of the gasoline engine.

■ When braking (Regenerative brake)

The electric motor (traction motor) charges the hybrid battery
(traction battery).

1

Before driving

■ Regenerative braking

The motor generator converts kinetic energy to electric energy when:

● The accelerator pedal is released.

● The brake pedal is depressed with the shift lever in “D” or “B”.

29

1-1. Hybrid system

■ Conditions in which the gasoline engine may not stop

The gasoline engine starts and stops automatically. However, the followings
are examples of conditions under which the engine may not stop automati­cally:

● The gasoline engine is warming up.

● The hybrid battery (traction battery) is being charged.

● The hybrid battery (traction battery) temperature is low or high.

● The temperature setting of the air conditioning system is high.

■ Charging the battery

● As the gasoline engine or regenerative brake charges the hybrid battery

(traction battery), the battery does not need to be charged from an
outside source. However, if the vehicle is left parked for a long time the
hybrid battery will slowly discharge. For this reason, be sure to drive the
vehicle at least once every several months for at least 30 minutes or 10
miles (16 km). If the hybrid battery becomes fully discharged and you are
unable to jump-start the vehicle with the 12 volt battery, contact your
Toyota dealer.

● If the shift lever is in “N”, the hybrid battery (traction battery) will not be

charged. When driving in heavy traffic, operate the vehicle with the shift
lever in “D” or “B” to avoid discharging the battery.

■ After the 12 volt battery has discharged or has been changed or

removed

The gasoline engine may not stop even if the vehicle is running on the hybrid
battery (traction battery). If this continues for a few days, contact your T oyot a
dealer.

30

1-1. Hybrid system

■ Sounds and vibrations specific to a hybrid vehicle

There may be no engine sounds or vibration even though the vehicle is able
to move. Always push the “P” position switch when parked.

The following sounds or vibrations may occur when the hybrid system is
operating, and are not a malfunction.

● Motor sounds may be heard from the engine compartment.

● Sounds may be heard from the hybrid battery (traction battery) behind

the rear seat when the hybrid system starts or stops.

● Sounds from the hybrid system may be heard when the back door is

open.

● Sounds may be heard from the transmission when the gasoline engine

starts or stops, when driving at low speeds, or during idling.

● Engine sounds may be heard when accelerating sharply.

● Sounds may be heard due to regenerative brake when you press the

brake pedal or release the accelerator pedal.

● Vibration may be felt when the gasoline engine starts or stops.

● You may hear cooling fan sounds coming from the air intake vent s behind

the rear seat.

■ Maintenance, repair, recycling, and disposal

Contact your Toyota dealer regarding maintenance, repair, recycling and dis­posal. Do not dispose of the vehicle yourself.

1

Before driving

31

1-1. Hybrid system

ITO11P104

High voltage components

Air conditioning compressor
High voltage cables (orange

color)
Power control unit and DC/

DC converter

Service plug
Hybrid battery (Traction bat-

tery)
Electric motor (Traction

motor)

Caution label

Take care when handling the hybrid system, as it contains a high volt­age system (about 650 V at maximum) as well as parts that become
extremely hot when the hybrid system is operating. Obey the caution
labels attached to the vehicle.

32

1-1. Hybrid system

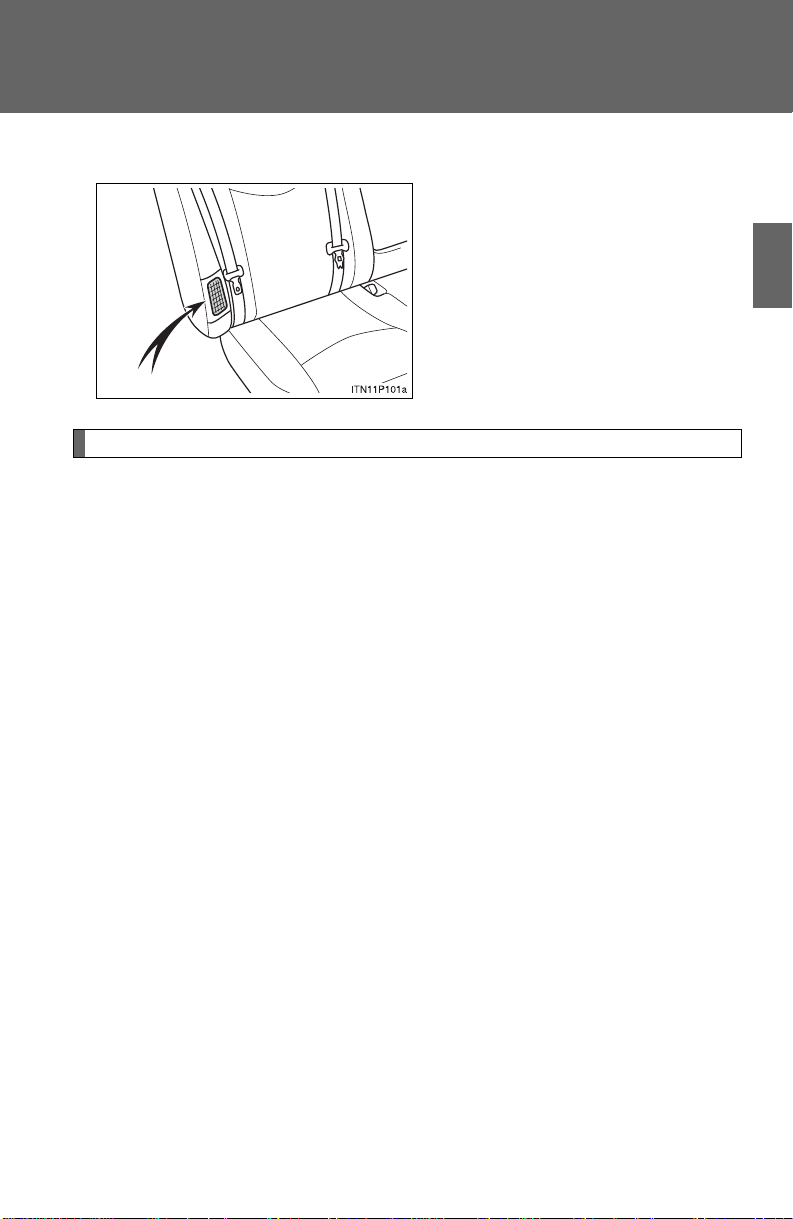

■ Hybrid battery air vent

There is an air intake vent on the
side of the rear right seatback for
the purpose of cooling the hybrid
battery (traction battery). If the
vent becomes blocked, the
hybrid battery may overheat,
leading to a reduction in hybrid
battery output.

Emergency shut off system

The emergency shut off system blocks off the high voltage current
and stops the fuel pump to minimize the risk of electrocution and fuel
leakage when a certain level of impact is detected by the impact sen­sor. If the emergency shut off system activates, your vehicle will not
restart. To restart the hybrid system, contact your Toyota dealer.

1

Before driving

33

1-1. Hybrid system

Eco area

Eco Drive Monitor

The multi-information display features several screens to assist with
environmentally friendly driving. You can drive in an environmentally
friendly manner by using these screens effectively.

■ Hybrid system operating condition

The energy monitor displays the
operating condition of the hybrid
system, showing such informa­tion as the gasoline engine oper­ating status, and the usage and
regeneration status of electrical
energy. (→P. 190)

■ Driving efficiently

The Hybrid System Indicator changes in real-time in accordance with
the driving conditions and operation of the accelerator pedal. Driving
that is friendlier to the environment can be achieved by referring to
the display and by driving as follows. (→P. 192)

● When accelerating

34

Accelerate to the desired speed
while depressing the accelerator
pedal slowly and ensuring that
the indicator bar does not
exceed the Eco area.

● When the desired speed is reached

Hybrid Eco area

■ Checking fuel consumption

1-1. Hybrid system

Release the accelerator pedal
once. Then, depress the acceler­ator pedal slowly and drive at a
constant speed, keeping the indi­cator bar within the Eco area.

When aiming to improve fuel
economy, try to drive within the
Hybrid Eco area. By doing so,
the drive force of the electric
motor (traction motor) will often
be used alone without the need
for fuel consumption, thus allow­ing you to enjoy driving with
improved fuel economy.

1

Before driving

The 5-minute/1-minute interval
fuel consumption display shows
the average fuel consumption
and the regenerated energy
amount in 5-minute or 1-minute
intervals. (→P. 194)

35

1-1. Hybrid system

The fuel consumption record dis­play shows a history of the aver­age fuel consumption in
sections, based on the driving
records of trip meters A and B.
Each section represents the
interval between each trip meter
reset. (→P. 197)

A record of the best consumption
is also kept on this screen. The
best consumption record is
updated whenever a higher
record is achieved.

36

1-1. Hybrid system

Hybrid warning message

A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.

If a warning message is shown on the multi-information display, read
the message and follow the instructions. (→P. 508)

■ If a w arning light comes on or a warning message is displayed, or the

12 volt battery is disconnected

The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.

■ Running out of fuel

When the vehicle has run out of fuel and the hybrid system cannot be
started, refuel the vehicle with at least enough gasoline to make the low fuel
level warning light go off (
the hybrid system may not be able to start. (The minimum amount of fuel to
add to make the low fuel level warning light go out is about 1.6 gal. [6.0 L,

1.3 Imp.gal.], when the vehicle is on a level surface. This value may vary
when the vehicle is on a slope.)

■ Hybrid battery (traction battery)

The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.

→P. 499). If there is only a small amount of fuel,

1

Before driving

37

1-1. Hybrid system

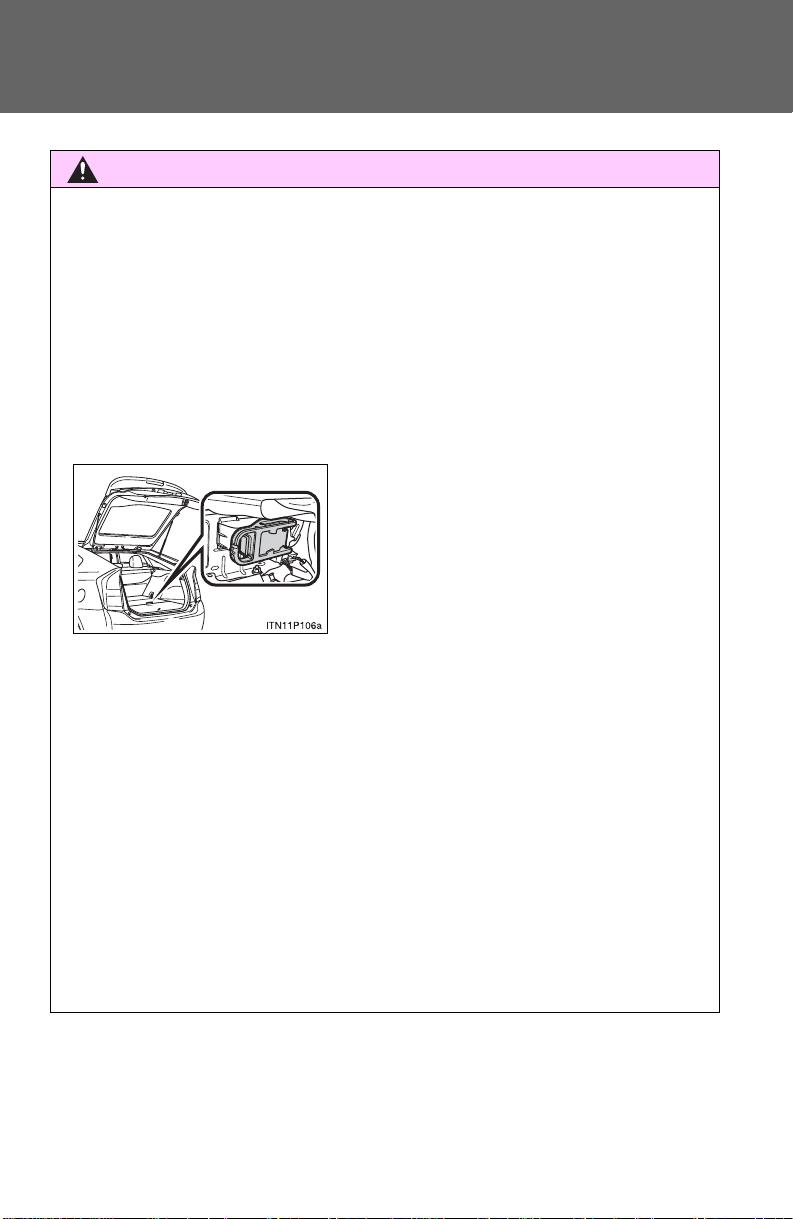

CAUTION

● Never try to open the service plug

access hole located in the luggage
compartment. The service plug is used
only when the vehicle is serviced and is
subject to high voltage.

● Do not subject the service plug to

strong impacts. Also, avoid splashing
large amount of water onto the luggage
compartment, for example while in a
high-pressure car wash.

■ High voltage precautions

The vehicle has high voltage DC and AC systems as well as a 12 volt sys­tem. DC and AC high voltage is very dangerous and can cause severe burns
and electric shock that may result in death or serious injury.

● Never touch, disassemble, remove or replace the high voltage parts,

cables and their connectors.

● The hybrid system will become hot after starting as the system uses high

voltage. Be careful of both the high voltage and the high temperature, and
always obey the caution labels attached to the vehicle.

■ Hybrid battery (traction battery)

Your vehicle contains a sealed nickel-metal hydride battery. If disposed of
improperly, it is hazardous to the environment and there is a risk of severe
burns and electrical shock that may result in death or serious injury.

■ Emergency shut off system

● Carefully check to see if there are exposed high voltage parts or cables.

Never touch the parts or cables. (

● Carefully inspect the ground under the vehicle. If you find that liquid has

leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.

38

→P. 32)

1-1. Hybrid system

CAUTION

■ Road accident cautions

Observe the following precautions to reduce the risk of injury.

● Pull your vehicle off the road, push the “P” position switch, apply the park-

ing brake and turn the hybrid system off.

● Do not touch the high voltage parts, cables and connectors.

● If electric wires are exposed inside or outside your vehicle, an electric

shock may occur. Never touch exposed electric wires.

● If a fluid leak occurs, do not touch it as it may be strong alkaline electrolyte

from the hybrid battery (traction battery). If it comes into contact with your
skin or eyes, wash it off immediately with a large amount of water or if pos­sible, boric acid solution. Seek immediate medical attention.

● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.

Never use a fire extinguisher that is not meant for electric fires. Using even
a small amount of water may be dangerous.

● If your vehicle needs to be towed, do so with the front wheels raised. If the

wheels with the electric motor (traction motor) are on the ground when
towing, the motor may continue to generate electricity. This may cause an
electricity leakage leading to a fire. (

→P. 487)

1

Before driving

39

1-1. Hybrid system

NOTICE

■ Hybrid battery air vent

● Do not put foreign objects over the air vent. The hybrid battery (traction

battery) may overheat and be damaged.

● Clean the air vent regularly to prevent the hybrid battery (traction battery)

from overheating.

● Do not wet the air vent. It may cause a short circuit and damage the hybrid

battery (traction battery).

● Do not load a large amount of water such as an aquarium into the vehicle.

If water spills over the hybrid battery (traction battery), the battery may be
damaged.

40

1-2. Key information

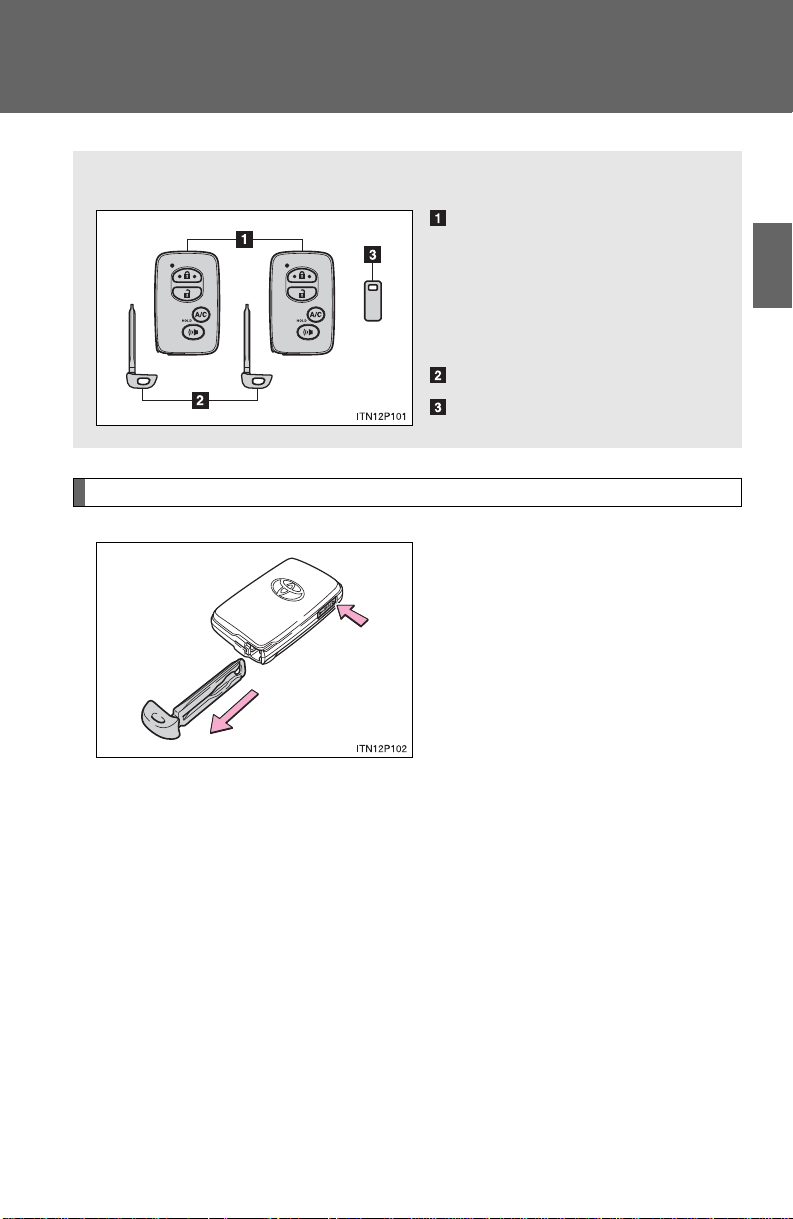

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key
system (→P. 43, 57)

• Operating the wireless
remote control function
(→P. 63)

Mechanical keys
Key number plate

Keys

Using the mechanical key

1

Before driving

Take out the mechanical key.

After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
smart key system does not oper­ate properly, you will need the
mechanical key.

41

1-2. Key information

NOTICE

■ Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a mechanical key is lost, a new key can be made by your Toyota
dealer using the key number plate. (→P. 540)

■ When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not
press any buttons on the electronic key while inside the aircraft cabin. If you
are carrying an electronic key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the elec­tronic key to emit radio waves that could interfere with the operation of the
aircraft.

■ To prevent key damage

● Do not bend the keys, subject them to storing impact, expose them to high

temperatures by placing them in direct sunlight, or get them wet.

● Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

● Do not disassemble the electronic key.

42

1-2. Key information

The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)

Locks and unlocks the doors (→P. 44)
Locks and unlocks the doors (→P. 45)
Starts and stops the hybrid system (→P. 162)

Smart key system (with entry function)

1

Before driving

43

1-2. Key information

Unlocking and locking the doors

Front door handles (including front passenger door handle if
equipped with entry function)

Grip the handle to unlock the
door.

Make sure to touch the sensor on
the back of the handle.

The door cannot be unlocked for
3 seconds after the door is
locked.

Touch the sensor area to lock the
doors.

44

1-2. Key information

Back door (vehicles with entry function of front and back doors)

Press the unlock button to
unlock the doors.

The door cannot be unlocked for
3 seconds after the door is
locked.

Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.

Press the lock button to lock the
doors.

1

Before driving

45

1-2. Key information

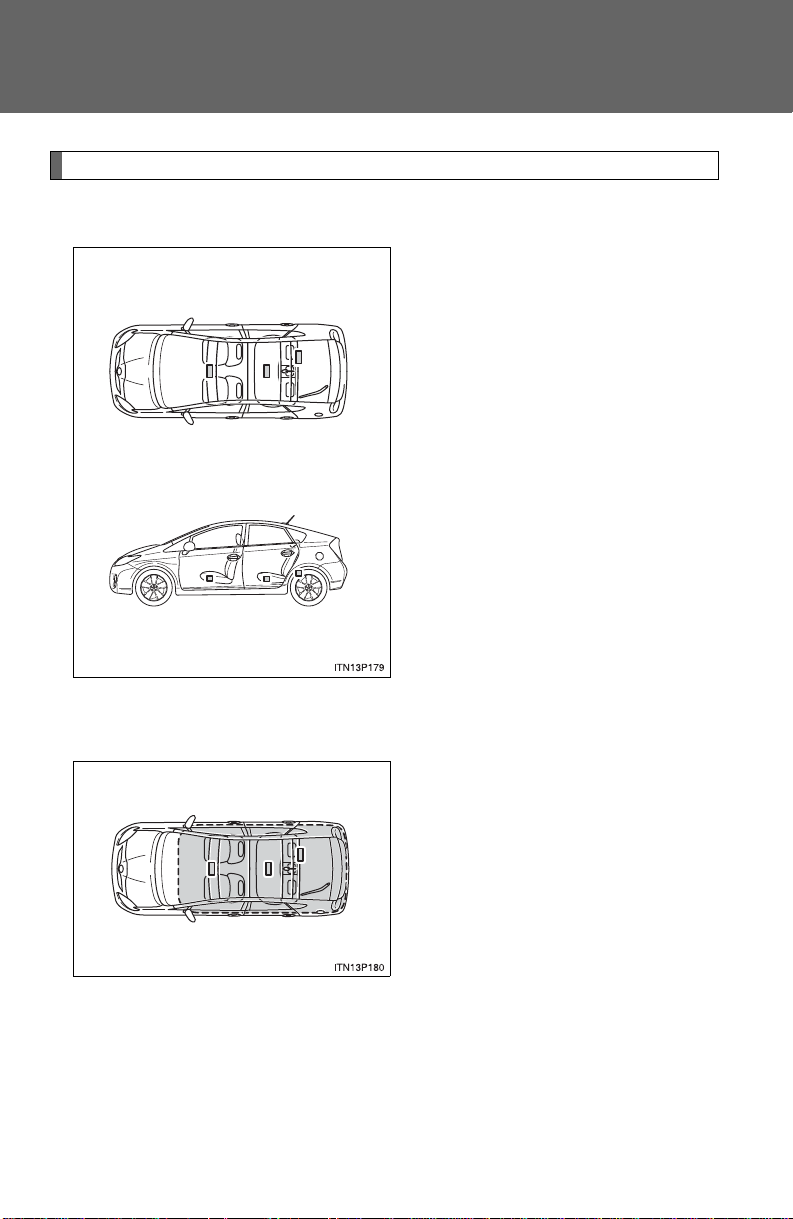

Antenna location and effective range

■ Antenna location

Antennas outside cabin
Antennas inside cabin
Antenna outside luggage com-

partment

46

1-2. Key information

If the door will not lock even when the
topside sensor area is touched, try touch­ing both the topside and underside sen­sor areas at the same time.

■ Effective range (areas within which the electronic key is

detected)

When locking or unlocking
the doors

The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
outside front and back door
handles.

When starting the hybrid
system or changing
“POWER” switch modes

The system can be operated
when the electronic key is
inside the vehicle.

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)

■ When the door cannot be locked using the topside sensor area

1

Before driving

■ Conditions affecting operation

→P. 65

47

1-2. Key information

STEP

1

STEP

2

Multi-information

display

Unlocking doors Beep

Hold the driver’s door
handle to unlock only the
driver’s door.

Exterior: Beeps three
times
Interior: Pings once

Hold the passenger’s door
handle or back door
opener to unlock all the
doors.

Hold the front door handle
or back door opener to
unlock all the doors.

Exterior: Beeps twice
Interior: Pings once

■ Switching the door unlock function

It is possible to set which doors the entry function unlocks.

Turn the “POWER” switch OFF.
When the indicator on the key surface is turned off, push and hold

or for approximately 5 seconds while pushing the but-

ton on the key.

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat .)

STEP

2

48

1-2. Key information

■ Battery-saving function

In the following circumstances, the entry function is disabled in order to pre­vent the vehicle battery from discharging and electronic key battery from
depleting.

● When the entry function has not been used for 5 days or more

● When the electronic key has been left within approximately 6 ft. (2 m) of

the vehicle for 10 minutes or more

● If the entry function has not been used for 9 days or more, the vehicle

cannot be unlocked by a door other than the driver’s door. To unlock the
vehicle, grip the driver’s door handle or use the wireless remote control
or the mechanical key.

The system will resume operation when...

● The vehicle is locked touching the door handle lock sensor area.

● The vehicle is locked/unlocked using the wireless remote control function

(→P. 63) or the mechanical key. (→P. 541)

■ Electronic key battery depletion

→P. 64

1

Before driving

49

1-2. Key information

■ To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func­tion.)

■ Note for the smart key system

● Even when the electronic key is within the effective range (detection

areas), the system may not operate properly in the following cases.

• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.

• The electronic key is near the ground or in a high place, or too close to
the rear bumper center when the back door is locked or unlocked.

• The electronic key is on the instrument panel, luggage cover, floor or in
the glove box when the hybrid system is started or “POWER” switch
modes are changed.

● As long as the electronic key is within the effective range, the doors may

be locked or unlocked by anyone. However, only the doors detecting the
electronic key can be used to unlock the vehicle.

● Even if the electronic key is not inside the vehicle, it may be possible to

start the hybrid system if the electronic key is near the window.

● When the lock operation is performed using the lock sensor, recognition

signals will be shown up to two consecutive times. After this, no recogni­tion signals will be given.

● The doors may unlock or lock if a large amount of water splashes on the

door handle, such as in the rain or in a car wash when the electronic key
is within the effective range. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)

● If the key is kept near the vehicle while it is being washed, water applied

to a door handle may cause the door to lock and unlock repeatedly. In
this event, place the key in a location 6 ft. (2 m) or more from the vehicle,
taking care not to lose the key.

50

1-2. Key information

● If the key is inside the vehicle while it is being washed, water applied to a

door handle may cause a buzzer to sound. In this event, locking all doors
will cause the buzzer to stop sounding.

● It may not be possible to lock the doors if the sensor area is covered by

mud, ice, snow etc. In this event, try locking again after cleaning the
area, or lock by touching the sensor area on the underside of the door
handle.

● Fingernails may scrape against the door during operation of the door

handle. Be careful not to injure fingernails or damage the surface of the
door.

● Gripping the door handle when wearing a glove may not unlock or lock

the door.

● If the wireless remote control is used to lock the doors when the elec-

tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the smart key system. (Use the wireless remote control to
unlock the doors.)

● A sudden approach to the effective range or door handle operation may

prevent the doors from being unlocked. In this case, return the door han­dle to the original position and check that the doors unlock before pulling
the door handle again.

● If there is another electronic key in the detection area, it may take slightly

longer to unlock the doors after the door handle is gripped.

■ When the vehicle is not driven for extended periods

● To prevent theft of the vehicle, do not leave the electronic key within 6 ft.

(2 m) of the vehicle.

● The smart key system can be deactivated in advance. (→P. 587)

■ Security feature

→P. 66

1

Before driving

51

1-2. Key information

Alarm Situation Correction procedure

Interior alarm
pings once and
exterior alarm
sounds once for
10 seconds

*

1

An attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger com­partment

Retrieve the elec­tronic key from the
passenger compart­ment and lock the
doors again

An attempt was made to
exit the vehicle and lock
the doors without first turn­ing the “POWER” switch
OFF

Turn the “POWER”
switch OFF and lock
the doors again

Exterior alarm
sounds once for
10 seconds

An attempt was made to
lock the vehicle while a
door is open

Close all of the doors
and lock the doors
again

■ Alarms and warning indicators

A combination of exterior and interior alarms are used to prevent theft of the
vehicle and unforeseeable accidents resulting from erroneous operation.
Take appropriate measures according to the warning message shown on the
multi-information display. (→P. 508)

The following table describes circumstances and correction procedures
when only alarms are sounded.

52

1-2. Key information

Alarm Situation Correction procedure

Interior alarm
pings continu­ously

*

1

The “POWER” switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the “POWER” switch
was in ACCESSORY
mode)

Turn the “POWER”
switch OFF and close
the driver’s door

Interior alarm
sounds continu­ously

*

1

When the “POWER”
switch is in ON mode or
ACCESSORY mode, an
attempt was made to open
the door and exit the vehi­cle, and the shift position
was not in “P”

Push the “P” position
switch and turn the
“POWER” switch OFF

Interior and exte­rior alarms sound
continuously

*

1

When the “POWER”
switch is in ON mode or
ACCESSORY mode, the
driver’s door was closed
after the key was carried
outside the vehicle, and
the shift position not in “P”

Push the “P” position
switch, turn the
“POWER” switch OFF
and close the driver’s
door again

1

Before driving

53

1-2. Key information

Alarm Situation Correction procedure

Interior alarm
pings once

*

1

The electronic key has a
low battery

Replace the electronic
key battery

An attempt was made to
start the hybrid system
without the electronic key
being present, or the elec­tronic key was not func­tioning normally

Start the hybrid sys­tem with the elec­tronic key present

*

2

Interior alarm
pings once and
exterior alarm
sounds 3 times

*

1

The driver’s door was
closed after the key was
carried outside the vehicle,
and the “POWER” switch
was not turned OFF

Turn the “POWER”
switch OFF and close
the driver’s door again

An occupant carried the
electronic key outside the
vehicle and closed the
door while the “POWER”
switch was not OFF

Bring the electronic
key back into the vehi­cle

1

*

: A message will be shown on the multi-information display in the instru-

ment cluster.

2

*

: If the hybrid system does not start when the electronic key is inside the

vehicle, the electronic key battery may be depleted or there may be dif­ficulties receiving signal from the key. (→P. 541)

54

1-2. Key information

■ If the smart key system does not operate properly

● Locking and unlocking the doors: Use the mechanical key. (→P. 541)

● Starting the hybrid system: →P. 542

■ When the electronic key battery is fully depleted

→P. 460

■ Customization that can be configured at Toyota dealer

Settings (e.g. smart key system) can be changed.
(Customizable features →P. 587)

■ Certification for the smart key system

For vehicles sold in the U.S.A.

FCC ID: NI4TMLF8-2
FCC ID: HYQ14ACX FCC ID: HYQ14ADF
FCC ID: HYQ13CZD FCC ID: HYQ13CZE

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer­ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ­ing interference that may cause undesired operation of the device.

1

Before driving

55

1-2. Key information

CAUTION

■ Caution regarding interference with electronic devices

● People with implanted pacemakers or cardiac defibrillators should keep

away from the smart key system antennas. (→P. 46)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of emitting the radio waves.
Then, consult your doctor to see if you should disable the entry function.

● Users of any electrical medical device other than implanted pacemakers

and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of
such medical devices.

Ask your Toyota dealer for details for disabling the entry function.

56

1-2. Key information

Starting and stopping the hybrid system can be performed simply by
carrying the electronic key on your person, for example in your
pocket.
(The driver should always carry the electronic key.)

Smart key system (without entry function)

1

Before driving

57

1-2. Key information

Antenna location and effective range

■ Antenna location

Antennas inside cabin

■ Effective range (areas within which the electronic key is

detected)

When starting the hybrid system
or changing “POWER” switch
modes

The system can be operated when
the electronic key is inside the vehi­cle.

58

1-2. Key information

■ Conditions affecting operation

→P. 65

■ Electronic key battery depletion

→P. 64

■ To operate the system properly

Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the

key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func­tion.)

■ Note for the smart key system

● Even when the electronic key is within the effective range (detection

areas), the system may not operate properly.
For example, the electronic key is on the instrument panel, luggage
cover, floor or in the glove box when the hybrid system is started or
“POWER” switch modes are changed.

● Even if the electronic key is not inside the vehicle, it may be possible to

start the hybrid system if the electronic key is near the window.

1

Before driving

59

1-2. Key information

Alarm Situation Correction procedure

Exterior alarm
sounds once for
10 seconds

An attempt was made to
lock the vehicle while a
door is open

Close all of the doors
and lock the doors
again

Interior alarm
pings continu­ously

*

1

The “POWER” switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the “POWER” switch
was in ACCESSORY
mode)

Turn the “POWER”
switch OFF and close
the driver’s door

Interior alarm
sounds continu­ously

*

1

When the “POWER”
switch is in ON mode or
ACCESSORY mode, an
attempt was made to open
the door and exit the vehi­cle, and the shift position
was not in “P”

Push the “P” position
switch and turn the
“POWER” switch OFF

Interior and exte­rior alarms sound
continuously

*

1

When the “POWER”
switch is in ON mode or
ACCESSORY mode, the
driver’s door was closed
after the key was carried
outside the vehicle, and
the shift position not in “P”

Push the “P” position
switch, turn the
“POWER” switch OFF
and close the driver’s
door again

■ Alarms and warning indicators

A combination of exterior and interior alarms are used to prevent theft of the
vehicle and unforeseeable accidents resulting from erroneous operation.
Take appropriate measures according to the warning message shown on the
multi-information display. (→P. 508)

The following table describes circumstances and correction procedures
when only alarms are sounded.

60

1-2. Key information

Alarm Situation Correction procedure

Interior alarm
pings once

*

1

The electronic key has a
low battery

Replace the electronic
key battery

An attempt was made to
start the hybrid system
without the electronic key
being present, or the elec­tronic key was not func­tioning normally

Start the hybrid sys­tem with the elec­tronic key present

*

2

Interior alarm
pings once and
exterior alarm
sounds 3 times

*

1

The driver’s door was
closed after the key was
carried outside the vehicle,
and the “POWER” switch
was not turned OFF

Turn the “POWER”
switch OFF and close
the driver’s door again

An occupant carried the
electronic key outside the
vehicle and closed the
door while the “POWER”
switch was not OFF

Bring the electronic
key back into the vehi­cle

1

Before driving

1

*

: A message will be shown on the multi-information display in the instru-

ment cluster.

2

*

: If the hybrid system does not start when the electronic key is inside the

■ If the smart key system does not operate properly

→P. 542

■ When the electronic key battery is fully depleted

→P. 460

■ Customization that can be configured at Toyota dealer

Settings (e.g. smart key system) can be changed.
(Customizable features →P. 587)

vehicle, the electronic key battery may be depleted or there may be dif­ficulties receiving signal from the key. (→P. 541)

61

1-2. Key information

CAUTION

■ Certification for the smart key system

For vehicles sold in the U.S.A.

FCC ID: NI4TMLF8-2
FCC ID: HYQ14ACX FCC ID: HYQ14ADF
FCC ID: HYQ13CZD FCC ID: HYQ13CZE

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer­ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ­ing interference that may cause undesired operation of the device.

■ Caution regarding interference with electronic devices

→P. 56

62

1-3. Opening, closing and locking the doors and back door

The wireless remote control can be used to lock and unlock the vehi­cle and the back door from outside the vehicle.

Locks all doors
Unlocks all doors

Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.

Operates Remote Air Con­ditioning System (if
equipped) (→P. 285)

Sounds alarm
(push and hold) (→P. 64)

Wireless remote control

1

Before driving

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)

63

1-3. Opening, closing and locking the doors and back door

When is pushed for longer than
about one second, an alarm will sound for
about 60 seconds and the vehicle lights
will flash to deter any person from trying
to break into or damage your vehicle.

To stop the alarm, push any button on the
wireless remote control.

■ Panic mode

■ Door lock buzzer (vehicles with entry function)

If a door or back door is not fully closed, a buzzer sounds continuously for 10
seconds if an attempt to lock the door is made. Fully close the door to stop
the buzzer, and lock the vehicle once more.

■ Electronic key battery depletion

● The standard battery life is 1 to 2 years. (The battery becomes depleted

even if the electronic key is not used.) If the smart key system or the
wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when
necessary. (→ P. 460)

● To avoid serious deterioration, do not leave the electronic key within 3 ft.

(1 m) of the following electrical appliance that produce a magnetic field.

•TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Glass top ranges

• Table lamps

64

1-3. Opening, closing and locking the doors and back door

■ Conditions affecting operation

The smart key system and wireless remote control use weak radio waves. In
the following situations, the communication between the electronic key and
the vehicle may be affected, preventing the smart key system and wireless
remote control from operating properly. (Ways of coping: →P. 541)

● When the electronic key battery is depleted

● Near a TV tower, electric power plant, gas station, radio station, large dis-

play, airport or other facility that generates strong radio waves or electri­cal noise

● When carrying a portable radio, cellular phone, cordless phone or other

wireless communication devices

● When the electronic key is in contact with, or is covered by the following

metallic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

● When multiple electronic keys are in the vicinity

● When carrying or using the electronic key together with the following

devices that emit radio waves

• Another vehicle’s electronic key

• A wireless key that emits radio waves

• Personal computer

• Digital audio players

• Portable game systems

● If window tint with a metallic content or metallic objects are attached to

the rear window (vehicles with entry function)

1

Before driving

65

1-3. Opening, closing and locking the doors and back door

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■ If the wireless remote control does not operate properly

● Locking and unlocking the doors: Use the mechanical key. (→P. 541)

● Starting the hybrid system (→P. 162)

■ When the electronic key battery is fully depleted

→P. 460

■ Customization that can be configured at Toyota dealer

Settings (e.g. 2-step unlocking function) can be changed.
(Customizable features →P. 587)

66

1-3. Opening, closing and locking the doors and back door

The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.

■ Entry function (if equipped)

→P. 43

■ Wireless remote control

→P. 63

■ Keys

The doors can also be locked and unlocked with the mechanical
key. (→P. 541)

■ Door lock switch

Locks all doors
Unlocks all doors

■ Inside lock button

Locks the door
Unlocks the door

The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

Side doors

1

Before driving

67

1-3. Opening, closing and locking the doors and back door

STEP

1

STEP

2

Locking the front doors from the outside without a key

Move the inside lock button to the lock position.
Close the door.

The door cannot be locked if the “POWER” switch is in ACCESSORY
or ON mode, or the electronic key is left inside the vehicle.

Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.

Rear door child-protector lock

The door cannot be opened from
inside the vehicle when the locks
are set.

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.

68

1-3. Opening, closing and locking the doors and back door

STEP

1

Automatic door locking and unlocking systems

The following functions can be set or canceled:

Function Operation

Shift position linked
door locking function

Shift position linked
door unlocking function

Speed linked door lock­ing function

Driver’s door linked door
unlocking function

Shifting the shift position out of “P” locks all
doors.

Shifting the shift position to “P” unlocks all
doors.

All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.

All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“POWER” switch OFF.

■ Setting and canceling the functions

To switch between setting and canceling, follow the procedure
below:

Close all the doors and switch the “POWER” switch to ON

STEP

mode. (Perform within 20 seconds.)

2

1

Before driving

69

1-3. Opening, closing and locking the doors and back door

STEP

2

Shift the shift lever to “N” or
press “P” position switch, and
press and hold the driver’s door
lock switch (
5 seconds then release.

The shift and switch positions cor­responding to the desired func­tion to be set are shown as
follows.

Use the same procedure to can­cel the function.

or ) for about

Function Shift position

Shift position linked door lock­ing function

“P”

Shift position linked door
unlocking function

Speed linked door lo cking func­tion

“N”

Driver’s door linked door unlock­ing function

Driver’s door lock

switch position

When the setting or canceling operation is complete, all doors are
locked and then unlocked.

70

1-3. Opening, closing and locking the doors and back door

CAUTION

■ Using the mechanical key

The doors can also be locked and unlocked with the mechanical key.
(→P. 541)

■ Customization that can be configured at Toyota dealer

Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 587)

■ To prevent an accident

Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

● Always use a seat belt.

● Always lock all doors.

● Ensure that all doors are properly closed.

● Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehi­cle and it may result in death or serious injury.
Be especially careful for the front doors, the door may be opened even if
the inside lock button is in locked position.

● Set the rear door child protector locks when children are seated in the rear

seat.

1

Before driving

71

1-3. Opening, closing and locking the doors and back door

The back door can be locked/unlocked and opened by the following
procedures.

■ Unlocking and locking the back door

Door lock switch
→P. 67

Entry function (if equipped)
→P. 43

Wireless remote control
→P. 63

■ Opening the back door from outside the vehicle

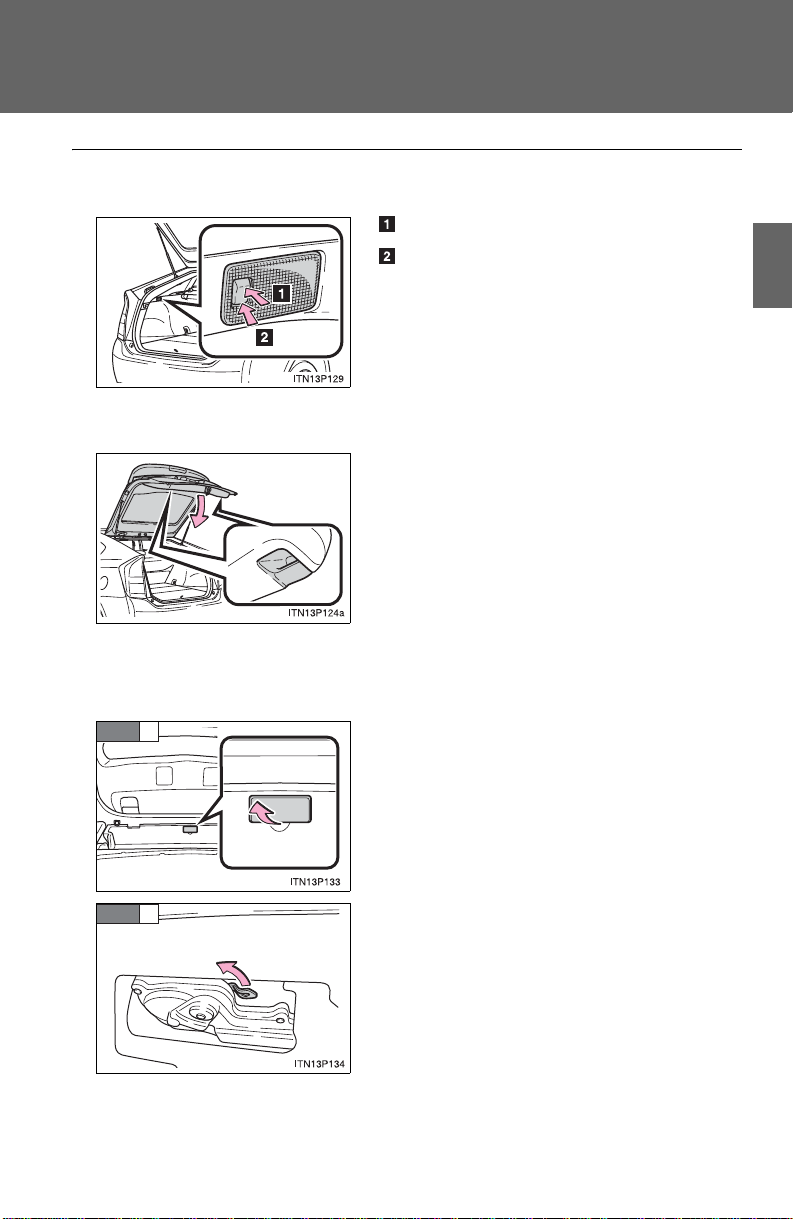

Press
Raise

Back door

72

1-3. Opening, closing and locking the doors and back door

Door position
Off

Lower the back door using the back door
handles, and make sure to push the back
door down from the outside to close it.

Be careful not to pull the back door side­ways when closing the back door with the
handle.

Remove the cover.

Move the lever.

STEP

1

STEP

2

■ Luggage compartment light

■ When closing the back door

1

Before driving

■ If the back door opener is inoperative

The back door can be opened from the inside.

73
