’02 L/C U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel over view 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .
1
1
Instrument panel overview
View A
’02 L/C U (L/O 0108)
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Electric moon roof switches and/or
personal lights
6. Glove box
7. Power door lock switches
8. Power window switches
9. Automatic transmission selector lever
10. Seat heater switches
11. Cup holder
12. Parking brake lever
13. Second start mode selector button and
driving pattern selector button
14. Four–wheel drive control lever
15. Lower vent
16. Hood lock release lever
17. Fuel filler door opener
18. Window lock switch
2
View B
’02 L/C U (L/O 0108)
1. Headlight, turn signal and front fog
light switches
2. Cruise control switch
3. Ignition switch
4. Wiper and washer switches
5. Emergency flasher switch
6. Power antenna switch
7. Car audio
8. Clock and outside temperature display
9. Air conditioning controls
10. Outside rear view mirror heater switch
11. Rear air conditioning switch
12. Rear heater switch
13. Rear window defogger switch
14. Center differential lock switch
15. Manual tilt steering lock release lever
16. Power tilt and telescopic steering
switch
17. Instrument panel light control dial
18. Power rear view mirror control switches
19. Power quarter window switch (left–hand
side)
20. Power quarter window switch (right–
hand side)
3
Lower part of center cluster panel
1. Ashtray
2. Cigarette lighter
3. Power outlet
’02 L/C U (L/O 0108)
4
Instrument cluster overview
’02 L/C U (L/O 0108)
1. Voltmeter
2. Speedometer
3. Service reminder indicators and
indicator lights
4. Tachometer
5. Engine oil pressure gauge
6. Engine coolant temperature gauge
7. Odometer and two trip meters
8. Trip meter reset knob
9. Fuel gauge
5
Indicator symbols on the instrument panel
’02 L/C U (L/O 0108)
∗
Brake system warning light
Driver’s seat belt reminder light
1
∗
1
Front passenger’s seat belt reminder light
∗
Discharge warning light
Malfunction indicator lamp
Low fuel level warning light
SRS warning light
Anti–lock brake system warning light
Open door warning light
1
∗
1
∗
1
∗
1
∗
1
∗
1
∗
Unengaged ”Park” warning light
Automatic transmission fluid temperature warning
∗
1
light
∗
1
Turn signal indicator lights
1
Headlight high beam indicator light
Overdrive–off indicator light
Driving pattern (”POWER” mode) indicator
light
Automatic transmission second start indicator
light
Center differential lock indicator light
∗
Cruise control indicator light
2
6
Automatic transmission indicator lights
Vehicle skid control system off indicator light
’02 L/C U (L/O 0108)
∗
1
Vehicle skid control system and active traction
control system warning light
∗
1
Active traction control system indicator light
Slip indicator light
∗
1
: For details, see ”Service reminder indicators and warning
buzzers” in Section 1–5.
∗
2
: If this light flashes, see ”Cruise control” in Section 1–6.
7
’02 L/C U (L/O 0108)
8
’02 L/C U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys an d D oor s
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power quarter windows 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent syst em 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
9
Keys
Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built–in transponder chip.
2. Sub key (gray)—This key does not
work in the glove box.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked without a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see ”Side doors” in
this section.
’02 L/C U (L/O 0108)
NOTICE
When using a key containing a transponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
10
When starting the engine, do not
use the key with other transponder
keys around (including keys of other vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (including keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
Do not bend the key grip.
’02 L/C U (L/O 0108)
Do not cover the key grip with any
material that cuts off electromagnetic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromagnetic materials.
11
Engine immobiliser system
’02 L/C U (L/O 0108)
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
12
The engine immobiliser system is a
theft prevention system. When you insert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the vehicle. The engine will start, only when
the electronic code in the chip corresponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator conditions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is setting or activating. (See ”Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built–in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the system or start the engine.
FCC ID: MOZ RI–7ATY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
’02 L/C U (L/O 0108)
Side doors—
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
side door. In the driver’s door lock, turning the key once will unlock the driver’s
door and twice in succession will unlock
all the side doors and back door simultaneously.
13
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
The front side doors cannot be locked if
you leave the key in the ignition switch.
’02 L/C U (L/O 0108)
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the side doors and back door lock or
unlock simultaneously.
When the front side doors are locked from
the outside, the switch will not work until
the either front door is unlocked with the
key.
Driver’s side
14
Passenger’s side
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the vehicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the vehicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
’02 L/C U (L/O 0108)
—Wireless remote control
REAR DOOR CHILD–PROTECTORS
Move the lock lever to the ”LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend using this feature whenever small children
are in the vehicle.
Locking operation
Unlocking operation
15
’02 L/C U (L/O 0108)
Your vehicle has a wireless remote
control system that can lock or unlock
all the side doors and back door from a
distance within approximately 1 m (3
ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches slowly and securely. At this time, the indicator light on the key grip flashes once.
To lock: Push the ”LOCK” switch. All the
side doors and back door are locked simultaneously. At this time, parking lights
and tail lights flash once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, or if the key is in the
ignition switch, locking cannot be performed by the ”LOCK” switch.
To unlock: Push the ”UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. At this time, parking lights
and tail lights flash twice.
Together with the activation of unlocking,
the interior light comes on for 15 seconds
if the interior light switch is in “DOOR”
position. However, this function does not
work when the ignition key is in the “ON”
position. (For detailed information, see “Interior light” in Section 1–4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automatically locked again.
If the ”LOCK” or ”UNLOCK” switch is kept
pressed in, the locking or unlocking operation is not repeated. Release the button
and then push again.
”PANIC” SWITCH
Pushing the ”PANIC” switch for 1 sec-
ond blows the horn intermittently and
flashes the headlights and tail lights.
The ”PANIC” switch is used to deter vehicle theft when you witness anyone attempting to break into or damage your
vehicle.
The alarm will last for 1 minute. To stop
the alarm midway, push the ”PANIC” or
”UNLOCK” switch, or unlock any side door
or back door with key. You can also stop
the alarm by turning the ignition key from
”LOCK” to the ”ON” position.
16
’02 L/C U (L/O 0108)
The ”PANIC” mode does not work when
the ignition key is in the ”ON” position.
WIRELESS REMOTE CONTROL KEY
The wireless remote control key is an
electronic component. Observe the following instructions in order not to cause damage and trouble on the key.
Do not leave the key on places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote control keys for the same vehicle. Contact
your Toyota dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To
replace the battery, see following
”REPLACING THE BATTERY”.
If you lose your wireless remote control
key, contact your Toyota dealer as soon
as possible to avoid the possibility of
theft, or an accident. (For detailed information, see “If you lose your keys” in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
17
’02 L/C U (L/O 0108)
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
REPLACING THE BATTERY
For replacement, use a lithium battery
CR1616 and a special screwdriver.
CAUTION
Special care should be taken that
small children do not swallow the removed battery or components.
NOTICE
When replacing the terminal battery,
be careful not to lose the components.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used battery according
to the local laws.
Replace the battery by the following procedures:
1. Remove the screw, and then the cover.
18
2. Remove the module from the key
frame.
3. Remove the 2 screws to take out the
lid of the module. Take out the discharged battery and put a new battery
with the positive side up.
NOTICE
Do not bend the terminals.
’02 L/C U (L/O 0108)
4. Install the lid with the 2 screws.
5. Install the module into the key frame
and secure the cover with the screw.
6. When pushing any switch on the wireless key, make sure the indicator light
comes on.
NOTICE
Make sure the positive side and
negative side of the battery should
be faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any conponents inside of the transmitter, or it
may interfere with proper operation.
Be careful not to bend the electrode
of the battery insertion and that
dust or oils do not adhere to the
case.
Take care not to lose the screws.
Close the cover securely.
19
Power windows
’02 L/C U (L/O 0108)
Window lock
switch
12C010
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the ”ON” position.
Key off operation: If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
20
12C011
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window partway, lightly move the switch in the opposite direction and then release it.
Jam protection function: During automatic closing operation or key off closing operation, the window stops and opens halfway if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
OPERATING THE PASSENGERS’ WINDOWS
Use the switch on each passenger’s
door or the switches on the driver’s
door that control each passenger’s window.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.
12C007
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window partway, lightly move the switch in the opposite direction and then release it.
Jam protection function: During automatic closing operation or key off closing operation, the window stops and opens halfway if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
’02 L/C U (L/O 0108)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely inside the vehicle before you close
the power windows. If someone’s
neck, head or hand gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure he/she operates the windows
safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervision. Use the window lock switch to
prevent them from making unexpected use of the switches.
Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the power window switches and
get trapped in a window. Unattended children can be involved in
serious accidents.
21
Power quarter windows
’02 L/C U (L/O 0108)
Never try jamming any part of your
body in a window to make the jam
protection function work intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
The rear quarter windows can be operated with the ”REAR VENT” switches
on the instrument panel.
The power rear quarter windows work
when the ignition switch is in the ”ON”
position.
Both left and right rear quarter windows
move as long as you hold the switch.
To open: Push the right one of the
switches.
To close: Push the left one of the
switches.
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the hands and
other parts of the body of all occupants are kept completely inside the
vehicle before you close the power
quarter windows. If someone’s
hands get caught in a closing window, it could result in a serious
injury. When anyone closes the
power quarter windows, make sure
he/she operates the windows safely.
Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the power quarter window
switch and get trapped in a window.
Unattended children can be involved
in serious accidents.
22
Back door
’02 L/C U (L/O 0108)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the key hole and
turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simultaneously with back door.
Operating the power door lock switch simultaneously locks or unlocks all the side
doors and back door. (See ”Side doors” in
this section.)
Pull the handle and pull down the lower
side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” in
Section 2 for precautions in loading luggage.
LOCKING AND UNLOCKING FROM INSIDE
To lock: Push the knob.
To unlock: Pull the knob.
Operating the power door lock switch simultaneously locks or unlocks the back
door. (See ”Side doors” in this section.)
23
Push the handle and push down the
lower side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” in
Section 2 for precautions in loading luggage.
CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
If the open back door hides the
stop and tail lights, rear turn signal
lights or rear retro reflectors while
you are parked, other road users
must be warned of the presence of
your vehicle by a warning triangle
or other device.
’02 L/C U (L/O 0108)
BACK DOOR CHILD–PROTECTOR
Move the lock lever to the ”LOCK”
position as shown on the label.
This feature allows you to lock a back
door so it can be opened from the outside
only, not from inside. We recommend using this feature whenever small children
are in the vehicle.
24
CAUTION
Before driving, be sure that the back
door is closed and locked, especially
when small children are in the vehicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the vehicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
’02 L/C U (L/O 0108)
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Otherwise, the hood may open unexpectedly while driving and an accident may
occur.
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
25
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the battery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
SETTING THE SYSTEM
1. Turn the ignition key to the ”LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ”Engine immobiliser system”
for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the side doors, back
door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.
’02 L/C U (L/O 0108)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the vehicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the side doors is unlocked or
opened without the key or wireless remote control key, or if the back door
or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.
26
If any of the side door or back door is
unlocked without the key or wireless remote control key and the key is not in the
ignition switch, all the side doors and
back door will be automatically locked
again.
After one minute, the alarm will automatically stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
”Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the ”LOCK”
to ”ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control key.
These ways cancel the system at the
same time.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The side doors and back door should
be locked with the key or wireless remote control key. Be sure to wait until
the indicator light goes off or starts
flashing.
3. Unlock any side door or back door
from the inside. The system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other
doors, back door and hood. When testing on the hood, also check that the
system is activated when the battery
terminal is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
’02 L/C U (L/O 0108)
Fuel tank cap
12C005
This indicates that the fuel filler door
is on the left side of your vehicle.
27
12C006
’02 L/C U (L/O 0108)
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weather, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly removed.
28
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
Electric moon roof
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the ”ON” position. However,
if both front doors are closed, it works for
45 seconds even after the ignition switch
is turned off. It stops working when any
of the side doors or back door is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the rear
side.
The roof will open and stop partway 35
mm (1.4 in.) from the fully opened position. When you push the switch again, the
moon roof will open fully. To stop the roof
partway, push the same switch or tilt
switch while the roof is moving.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
35 mm (1.4 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the front
side.
’02 L/C U (L/O 0108)
The roof will fully close. To stop the roof
partway, push the same switch or tilt
switch.
Tilting operation—
To tilt up: Push the switch on the ”UP”
side.
The roof will tilt up fully. To stop the roof
partway, push the same switch or slide
switch.
To lower: Push the switch on the opposite
side of the ”UP” side.
The roof will fully close. To stop the roof
partway, push the same switch or slide
switch.
Jam protection function (closing operation only): During closing operation, the
moon roof stops and opens halfway if
something gets caught between the moon
roof and frame.
If an impact is given to the moon roof,
this function may work without anything
caught.
29
’02 L/C U (L/O 0108)
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Otherwise, they could be seriously injured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening before you close the roof. If someone’s neck, head or hand gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.
Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unattended children can be involved in
serious accidents.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work when something gets
caught just before the moon roof is
fully closed.
30
’02 L/C U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seat s 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Armrests 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seats 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

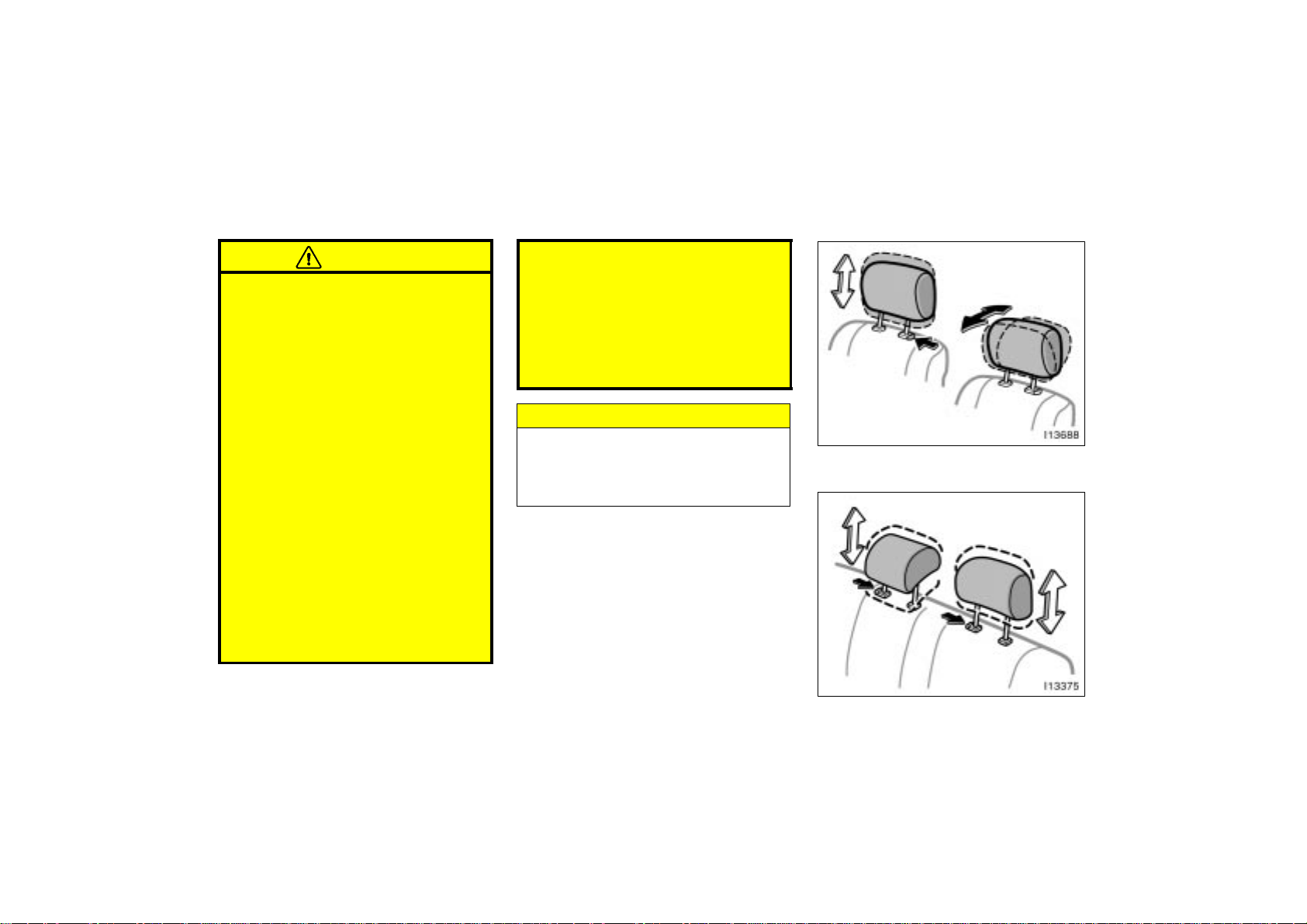

Head rest raints 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater s 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS dri ver and fr ont passenger ai rbags 54. . . . . . . . . . . . . . . . . . . . . . . .

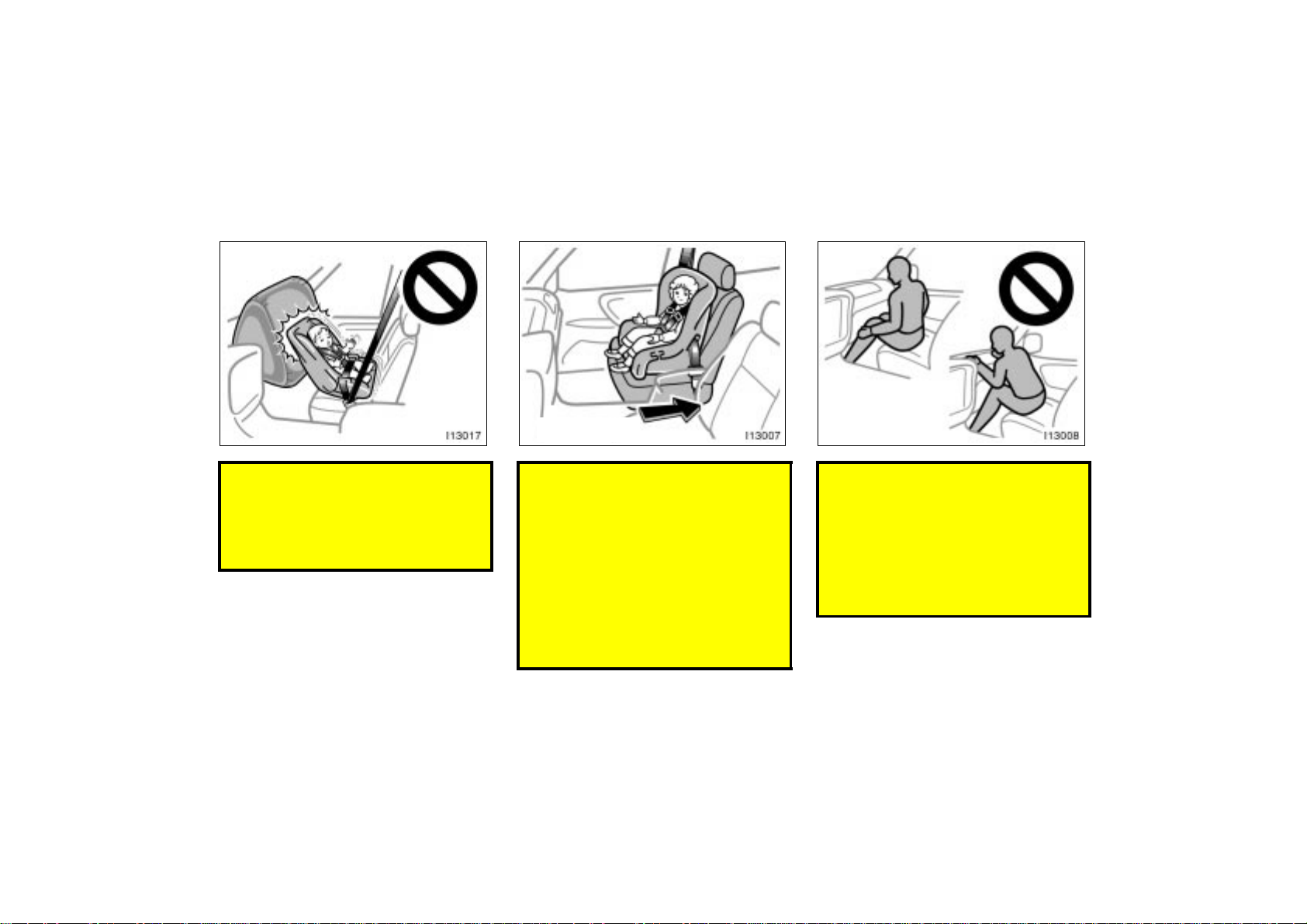

Child restraint 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual ti l t steering wheel 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power tilt and telescopic steering wheel 81. . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti–glare inside rear view mirror 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
31
Seats
While the vehicle is being driven, all vehicle occupants should have the seatback
upright, sit well back in the seat and properly wear the seat belts provided.
CAUTION
Front seats—
—Seat adjustment
precautions
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
’02 L/C U (L/O 0108)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, you
may catch and injure your hands or
fingers.
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded–down seatback, or in the
luggage compartment or cargo area.
Persons not properly seated and/or
not properly restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe injuries can occur in the event of emergency braking or a collision.
32
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
not to hit the seat against a passenger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in position.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seat–lock mechanism or unexpectedly push up the seat position adjusting lever. Otherwise, the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Adjusting front seats
1. SEAT POSITION AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement.
2. SEATBACK ANGLE ADJUSTING
SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seatback at that position.
’02 L/C U (L/O 0108)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maximum protection in a frontal or rear
collision when the driver and the passenger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injuries.
3. SEAT LUMBAR SUPPORT ADJUSTING SWITCH
Push the control switch on either side.
The amount of lumbar support will change
while the switch is pushed.
33
Armrest
To use the armrest, pull it down as
shown above.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
Rear seats—
—Rear seat precautions
CAUTION
Any operations should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a passenger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
in order to prevent personal injury
in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Failure to
do so will prevent seat belt from
operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
’02 L/C U (L/O 0108)
Folding the seats up will enlarge the luggage compartment. See ”Luggage stowage
precautions” in Section 2 for precautions
in loading luggage.
34
—Adjusting second seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever toward
you. Then lean back to the desired
angle and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a frontal
collision, the risk of personal injury
may increase with increasing recline
of the seatback.
Adjustments should not be made
while the vehicle is moving.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
’02 L/C U (L/O 0108)
—Moving second seat for
third seat entry
For easy access to the third seat, do
this;
1. Lower the head restraint to the lowest position.
2. Push the seat back angle adjusting
lever and pull the seat cushion lock
release lever or pull the strap.
After passengers are in, return the seat
until it locks.
35
CAUTION
After returning the seat, make sure
the seat is securely locked by pushing forward and rearward on the top
of the seatback and by trying to pull
up the edge of the bottom cushion.
’02 L/C U (L/O 0108)
—Folding up second seat
36
BEFORE FOLDING UP SECOND SEAT
1. Stow the second seat belt buckles
as shown in the illustration.
This prevents the seat belt buckles from
falling out when you fold up the second
seat.
NOTICE
The seat belt buckles must be stowed
before you fold up the second seat.
2. Make sure the shoulder belt passes
through the hanger when folding the
second seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
’02 L/C U (L/O 0108)
FOLDING UP SECOND SEAT
1. Lower the outer head restraint to the
lowest position and pull up the center head restraint. Unlock the seatback and fold it down.
Vehicles without third seats—Folding up
the rear seats will enlarge the luggage
compartment. See ”Luggage stowage precautions” in Section 2 for precautions in
loading luggage.
2. Unlock the seat cushion. Swing the
whole seat up and forward.
3. Hook the strap.
When returning the second seat to its
original position, put the holding strap into
the hole.
37
4. Remove the seat striker covers from
the back of the seat cushion, and
install them over the seat strikers.
When returning the second seat to its
original position, remove the seat striker
covers from the floor and install them in
the back of the seat cushion.
WHEN RETURNING THE SECOND SEAT
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it hard. Release the lock of the seat
belt in the following way. Push in the
lower front edge of the seatback cushion to slacken the seat belt (1) and let
the seat belt retract a little (2).
’02 L/C U (L/O 0108)
CAUTION
When returning seats to their original
position, observe the following precautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Failure to
do so will prevent seat belt from
operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
38
’02 L/C U (L/O 0108)
—Adjusting third seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever toward
you. Then lean back to the desired
angle and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a frontal
collision, the risk of personal injury
may increase with increasing recline
of the seatback.
Adjustments should not be made
while the vehicle is moving.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
—Folding up third seats
BEFORE FOLDING UP THIRD SEAT
1. Stow the third seat belt and buckles
as shown in the illustration.
This prevents the seat belt and buckles
from falling out when you fold up the third
seat.
NOTICE
The seat belt and buckles must be
stowed before you fold up the third
seat.
39
’02 L/C U (L/O 0108)
2. Make sure the shoulder belt passes
through the hanger when folding the
third seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
40
FOLDING UP THIRD SEAT
1. Lower the head restraint to the lowest position. Unlock the seatback
and fold it down.
Folding up the third seats will enlarge the
luggage compartment. See ”Luggage stowage precautions” in Section 2 for precautions in loading luggage.
2. Unlock the seat cushion and slide
the whole seat to the rear–most
position while pulling up the handle.
’02 L/C U (L/O 0108)
3. Swing the whole seat up. 4. Hook the strap.
When returning the third seat to its original position, put the holding strap into the
hole.
5. Remove the seat striker covers from
the back of the seat cushion, and
install them over the seat strikers.
When returning the third seat to its original position, remove the seat striker covers from the floor and install them in the
back of the seat cushion.
41
CAUTION
When returning seats to their original
position, observe the following precautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback
and by trying to pull up the edge
of the bottom cushion. Be certain
to replace head restraint. Failure to
do so will prevent seat belt from
operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
—Removing third seats
After folding up the third seat, open the
cover, hold the whole seat and pull it
up while pulling the handle toward you.
Removing the third seat will enlarge the
luggage compartment. See ”Luggage stowage precautions” in Section 2 for precautions in loading luggage.
’02 L/C U (L/O 0108)
Remove the seat striker covers from
the back of the seat cushion, and
install them over the seat strikers.
When returning the third seat to its original position, remove the seat striker covers from the floor and install them in the
back of the seat cushion.
42
’02 L/C U (L/O 0108)
Head restraints
CAUTION
When removing or reinstalling the
seat, observe the following precautions to prevent personal injury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
To prevent personal injury in a collision or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent third
seat occupants from using seat
belts properly.
NOTICE
Avoid putting heavy loads on the removed seat. The metallic tips of the
seat legs may be damaged and the
seat cannot be reinstalled.
Front
Rear
43
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraint only—You can also
move the head restraint forward or backward. If such adjustment is desired, pull
or push the head restraint.
Rear center head restraint—When an occupant sits on the rear center seat, always pull up the rear center head restraint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recommended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Seat heaters
Right side
front seat
Left side
front seat
To turn on the seat heater, push the
switch to ”HI” (high heating temperature) or ”LO” (low heating temperature).
The key must be in the ”ON” position.
Pushing lightly on the opposite side will
turn it off.
’02 L/C U (L/O 0108)
CAUTION
Occupants must use caution when operating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or handicapped
persons
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat from overheating,
do not use the seat heater with a
blanket, cushion, or other insulating
objects which cover the seat.
44
NOTICE
Do not put unevenly weighed objects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
When cleaning the seats, do not
use organic substances (paint thinner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Seat belts—
—Seat belt precautions
Toyota strongly urges that the driver and
passengers in the vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the
vehicle’s seat belts. (For details, see
”Child restraint” in this section.)
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid inflation of the airbag may cause death or
serious injury to the child.
’02 L/C U (L/O 0108)
Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious injury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist
Injured person. Toyota recommends the
use of a seat belt. Depending on the injury, first check with your doctor for specific
recommendations.
45
’02 L/C U (L/O 0108)
—3–point seat belts
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maximum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be replaced. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive cleaners—they may severely weaken the
belts. (See ”Cleaning the interior”
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the retractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow easy motion will allow the belt to
extend, and you can move around freely.
46
’02 L/C U (L/O 0108)
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger’s shoulder belt is completely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This feature is used to hold the child restraint
system securely. (For details, see ”Child
restraint” in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
47
’02 L/C U (L/O 0108)
Take up slack
To o h i g h
Keep as low on hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips–not on your waist, then adjust it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION
Both high–positioned lap belts and
loose–fitting belts could cause serious injuries due to sliding under the
lap belt during a collision or other
unintended result. Keep the lap belt
positioned as low on hips as possible.
For your safety, do not place the
shoulder belt under your arm.
To release the belt, press the buckle–release button and allow the belt to retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it retracts.
48
—2–point seat belt
’02 L/C U (L/O 0108)
Lengthen
Sit up straight and well back in the
seat. To fasten your belt, insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
If the belt is not long enough for you, hold
the tab at a right angle to the belt and
pull on the tab.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
To o h i g h
Adjust to a snug fit
Keep as low on hips as possible
Remove excess length of the belt and
adjust the belt position.
To shorten the belt, pull the free end of
the belt.
Position the lap belt as low as possible
on your hips—not on your waist, then adjust it to a snug fit.
CAUTION
Both high–positioned and loose–fitting lap belts could cause serious injuries due to sliding under the lap belt
during a collision or other unintended
result. Keep the lap belt positioned as
low on hips as possible.
49
—Seat belt extender
If your seat belt cannot be fastened securely because it is not long enough, a
personalized seat belt extender is available from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you expect to wear for proper measurement and
selection of length. Additional ordering information is available at your Toyota dealer.
’02 L/C U (L/O 0108)
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one originally intended.
To release the belt, press the buckle–release button.
50
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
vehicle accident, increasing the
chance of personal injury.
Never use the seat belt extender if
you can fasten the seat belt without
it.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the ”PRESS” signs on
the buckle–release buttons of the extender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle–release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
’02 L/C U (L/O 0108)
—Front seat belt pretensioners
The driver and front passenger’s seat
belt pretensioners are designed to be
activated in response to a severe frontal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractor so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are activated even with no passenger in the front
seat.
Collisions occurring at certain speeds and
angles may cause the seat belt pretensioners and SRS airbags not to operate
all together.
51
This indicator comes on when the ignition key is turned to the ”ACC” or
”ON” position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, front seat belt pretensioner assemblies, warning light, interconnecting wiring
and power sources. (For details, see ”Service reminder indicators and warning buzzers” in Section 1–5.)
The front seat belt pretensioner system
consists mainly of the following components, and their locations are shown in
the illustration.
1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are controlled by the airbag sensor assembly. The
airbag sensor assembly consists of a safing sensor and airbag sensor.
’02 L/C U (L/O 0108)
When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smoke–like
gas may be released. This gas is harmless and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner assemblies, airbag sensor or surrounding area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could result in death or serious injury.
Failure to follow this instructions can
result in death or serious injuries.
Consult your Toyota dealer about any
repairs and modifications.
52
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
Repairs on or near the front seat
belt retractor assemblies
Modification of the suspension system
Modification of the front end structure
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure or console
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the ”ACC” or
”ON” position, or the light remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the releavant front seat belt pretensioner.
’02 L/C U (L/O 0108)
In the following cases, contact your Toyota
dealer as soon as possible:
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise damaged.
53
SRS driver and front
passenger airbags
The SRS (Supplemental Restraint System) airbags are designed to provide
further protection for the driver and
front passenger in addition to the primary safety protection provided by the
seat belts.
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help reduce injury by inflating. The SRS airbags help to reduce injuries mainly to the driver’s or front passenger’s head or chest directly hitting the
steering wheel or dashboard. The front
passenger airbag is activated even with
no passenger in the front seat.
Be sure to wear your seat belt properly.
CAUTION
A driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured. Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the vehicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
’02 L/C U (L/O 0108)
This indicator comes on when the ignition key is turned to the ”ACC” or
”ON” position. It goes off after about
6 seconds. This means the SRS airbags
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, inflators, warning light, interconnecting wiring and power sources. (For details,
see ”Service reminder indicators and
warning buzzers” in Section 1–5.)
54
The SRS airbag system is designed to
activate in response to a severe frontal
impact within the shaded area between
the arrows in the illustration.
The SRS airbags will deploy if the severity of the impact is above the designed
threshold level, comparable to an approximate 25 km/h (15 mph) collision when
impacting straight into a fixed barrier that
does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS airbags
may not deploy.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if it is involved in an underride
collision (e.g. a collision in which the nose
of the vehicle ”underrides”, or goes under,
the bed of a truck, etc.).
It is possible that in some collisions at the
lower zone of airbag sensor detection and
activation, the SRS airbags and seat belt
pretensioners will not operate all together.
For the safety of all occupants, always
wear your seat belts properly.
’02 L/C U (L/O 0108)
Collision from the rear
Collision from the side
Vehicle rollover
The SRS airbags are not designed to
inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or
if it is involved in a low–speed frontal
collision.
55
Hitting a curb,
edge of pavement
or hard material
Landing hard or vehicle falling
The SRS airbags may deploy if a serious impact occurs to the underside of
your vehicle. Some examples are shown
in the illustration.
Falling into or
jumping over a
deep hole
The SRS airbag system consists mainly of
the following components, and their locations are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger (airbag and inflator)
4. Airbag sensor assembly
5. Airbag module for driver (airbag and
inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
’02 L/C U (L/O 0108)
In a severe frontal impact, the sensors
detect deceleration and the system triggers the airbag inflators. At this time, a
chemical reaction in the inflators quickly
fills the airbags with non–toxic gas to help
restrain the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non–toxic gas. This
does not indicate a fire. This gas is normally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious injuries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.
56
’02 L/C U (L/O 0108)
A crash severe enough to inflate the airbags may break the windshield as the
vehicle buckles. In vehicles with a passenger airbag, the windshield may also be
damaged by absorbing some of the force
of the inflating airbag.
CAUTION
The SRS airbag system is designed
only as a supplement to the primary protection of the driver side and
front passenger side seat belt systems. The front seat occupants can
be killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move forward into direct contact with or
close proximity to the airbag which
may then deploy during the collision. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wearing a seat belt during an accident
reduces the chances of death or
serious injury or being thrown out
of the vehicle. For instructions and
precautions concerning the seat
belt system, see ”Seat belts” in this
section.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploying airbag. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all infants and children be placed in the
rear seat of the vehicle and properly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installation of a child restraint system, see
”Child restraint” in this section.
57
Move seat fully back
’02 L/C U (L/O 0108)
Never put a rear–facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the front passenger airbag can cause death or serious injury to the child.
58
A forward–facing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, because the force of the deploying
passenger airbag could cause death
or serious injury to the child.
For instructions concerning the
installation of a child restraint system, see ”Child restraint” in this
section.
Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use ,since the airbags inflate with considerable
speed and force. Otherwise, you
may be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.
Do not allow a child to stand up or
to kneel on the front passenger
seat, since the airbag inflates with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instructions concerning the installation of
a child restraint system, see ”Child
restraint” in this section.
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
airbag system. They might restrict
inflation or cause death or serious
injury as they are projected rearward by the force of deploying airbags. Likewise, the driver and front
passenger should not hold objects
in their arms or on their knees.
’02 L/C U (L/O 0108)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, front passenger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing so may cause sudden SRS
airbag inflation or disable the system, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.
59
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS airbag syst em in some cases.
Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
Modification of the suspension system
Modification of the front end structure
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, console, steering column, steering
wheel or dashboard near the front
passenger airbag
This SRS airbag system has a service
reminder indicator to inform the driver of
operating problems. If either of the
following conditions occurs, this indicates
a malfunction of the airbags. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the ”ACC” or
”ON” position, or the light remains on.
The light comes on while driving.
’02 L/C U (L/O 0108)
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS airbags have been inflated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
60
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Child restraint—
—Child restraint precautions
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all 50 states in the U.S.A.
now require the use of a child restraint
system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See ”Seat belts” in this
section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. According to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never put a rear–facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear–facing child restraint system
is put on the front seat.
Unless it is unavoidable, do not put
a child restraint system on the
front seat.
A forward–facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is unavoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
’02 L/C U (L/O 0108)
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly secured.
61
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully consult the manufacturer’s instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufacturer’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
CAUTION
Never put a rear–facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear–facing child restraint system
is put on the front seat.
Unless it is unavoidable, do not put
a child restraint system on the
front seat.
A forward–facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is unavoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
After installing the child restraint
system, make sure it is secured in
place following the manufacturer’s
instructions. If it is not restrained
securely, it may cause death or serious injury to the child in the
event of a sudden stop or accident.
’02 L/C U (L/O 0108)
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from injuring passengers in the event of a sudden stop or accident.
Your vehicle has anchor brackets for securing the top strap of a child rstraint
system.
For instructions about how to use the anchor bracket, see ”Using a top strap” in
this seciton.
62
—Types of child restraint
system
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufacturer.
Child restraint lower anchorages approved
for your vehicle may also be used. See
”Installation with child restraint lower anchorages” in this section.
(A) Infant seat
’02 L/C U (L/O 0108)
(C) Booster seat
(B) Convertible seat
63
—Installation with 2–point
type seat belt
’02 L/C U (L/O 0108)
(A) INFANT SEAT INSTALLATION
An infant seat is used in rear–facing
position only.
64
CAUTION
Do not put a rear–facing child restraint system on the third seat if it
interferes with the lock mechanism of
the second seats. This can cause
death or serious injury to the child
and passengers sitting in the second
seats in case of sudden braking or a
collision.
1. Run the center lap belt through or
around the infant seat following the
instructions provided by its manufacturer and insert the tab into the buckle
taking care not to twist the lap belt.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
2. While pressing the infant seat firmly
against the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.
’02 L/C U (L/O 0108)
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instruction provided by its manufacturer.
65
’02 L/C U (L/O 0108)
3. To remove the infant seat, press the
buckle–release button.
66
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward–
facing or rear–facing position depending on the child’s age and size. When
installing, follow the manufacturer’s
instruction about the applicable child’s
age and size as well as directions for
installing the child restraint system.
CAUTION
Do not put a rear–facing child restraint system on the third seat if it
interferes with the lock mechanism of
the second seats. This can cause
death or serious injury to the child
and passengers sitting second seats
in case of sudden braking or a collision.
1. Run the center lap belt through or
around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
’02 L/C U (L/O 0108)
2. While pressing the convertible seat
firmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.
67
’02 L/C U (L/O 0108)
—Installation with 3–point
type seat belt
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
68
3. To remove the convertible seat, press
the buckle–release button.
(A) INFANT SEAT INSTALLATION
An infant seat is used in rear–facing
position only.
’02 L/C U (L/O 0108)
CAUTION
Never put a rear–facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the passenger airbag can cause death or serious injury to the child.
Do not put a rear–facing child re-
straint system on the second (or
third) seat if it interferes with the
lock mechanism of the front (or second) seats. This may cause death
or serious injury to the child and
front passenger in case of sudden
braking or a collision.
If the driver’s seat position does
not allow sufficient space for safe
installation, install the child restraint system on the second right
seat.
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufacturer and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
69
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
’02 L/C U (L/O 0108)
3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat securely.
70
’02 L/C U (L/O 0108)
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
4. To remove the infant seat, press the
buckle–release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward–
facing or rear–facing position depending on the child’s age and size. When
installing, follow the manufacturer’s instructions about the applicable child’s
age and size as well as directions for
installing the child restraint system.
71
Move seat fully back
’02 L/C U (L/O 0108)
CAUTION
Never put a rear–facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the passenger airbag can cause death or serious injury to the child.
72
A forward–facing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, because the force of the deploying
passenger airbag could cause death
or serious injury to the child.
Do not put a rear–facing child re-
straint system on the second (or
third) seat if it interferes with the
lock mechanism of the front (or second) seats. This may cause death
or serious injury to the child and
passenger sitting in front (or second) seats in case of sudden braking or a collision.
If the driver’s seat position does
not allow sufficient space for safe
installation, install the child restraint system on the second right
seat.
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
’02 L/C U (L/O 0108)
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
73
’02 L/C U (L/O 0108)
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convertible seat securely.
74
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
4. To remove the convertible seat, press
the buckle–release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
Move seat fully back
’02 L/C U (L/O 0108)
(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward–fac-
ing position only.
CAUTION
A forward–facing child restraint system should be allowed to be put on
the front seat only when it is unavoidable. Always move the seat as
far back as possible, because the
force of the deploying passenger airbag could cause death or serious injury to the child.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child following the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See ”Seat belts” in this
section for details.
75
’02 L/C U (L/O 0108)
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Failure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a collision.
Both high–positioned lap belts and
loose–fitting belts could cause serious injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
2. To remove the child restraint system,
press the buckle–release button and allow the belt to retract.
76
—Using a top strap
’02 L/C U (L/O 0108)
Symbol
13C001
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
13C002
Anchor
brakets
Use the anchor bracket located behind the
second seat on the floor to attach the top
strap.
Anchor brackets are installed for each
second seating position.
This symbol indicates the location of user
ready anchor brackets.
13C003
TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.
77
’02 L/C U (L/O 0108)
—Installation with child
restraint lower anchorages
13C004
2. Fix the child restraint system with
the seat belt.
3. Take off the cover, latch the hook
onto the anchor bracket and tighten
the top strap.
For instructions to install the child restraint system, see “Child restraint—” in
this section.
CAUTION
Make sure the top strap is securely
latched, and check that the child restraint system is secure by pushing
and pulling it in different directions.
Follow all installation instructions
provided by its manufacturer.
78
13C005
4. Replace the head restraint.
13C006
The lower anchorages for the child restraint system interfaced with the
FMVSS225 specification are installed in
the second seat.
The anchorages are installed in the clearance between the seat cushion and seatback of left and center second seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
13C007
CHILD RESTRAINT SYSTEM INSTALLATION
1. Take off the cover between the seat
cushion and seatback a little and
confirm the position of the lower anchorages below the tag in the seat
cushion.
Type A
13C009
13C008
’02 L/C U (L/O 0108)
Type A—
2. Latch the hooks of lower straps onto
the anchorages and tighten the lower
straps.
Type B—
2. Latch the buckles onto the anchorages
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.
Type B
79
Manual tilt steering wheel
’02 L/C U (L/O 0108)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular objects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause death or serious injury to the child and front
passenger in case of sudden braking or a collision.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishandle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
To change the steering wheel angle,
hold the steering wheel, pull up the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low position, it will spring up as you release the
lock release lever.
80
Power tilt and telescopic steering wheel
’02 L/C U (L/O 0108)
CAUTION
Do not adjust the steering column
while the vehicle is moving. Doing so
may cause the driver to mishandle
the vehicle and an accident may occur resulting in death or serious injuries.
ADJUSTMENT OF STEERING WHEEL
TILT
To adjust the tilt of the steering wheel,
push the control switch upward or
downward to set it to the desired position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing so
may cause the driver to mishandle
the vehicle and an accident may occur resulting in death or serious injuries.
ADJUSTMENT OF TELESCOPIC STEERING COLUMN
To adjust the steering column length,
push the control switch forward or
backward to set the steering wheel to
the desired position.
When the ignition key is removed, the
steering column moves forward away from
the driver and also tilts up for easy exit
and entry.
When the key is inserted into the ignition
switch, the steering column returns to the
previously set position.
This feature can be set inoperative. Ask
your Toyota dealer.
81
Outside rear view mirrors—
’02 L/C U (L/O 0108)
—Power rear view mirror
control
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious injuries.
Since the mirror surfaces can get
hot, do not touch them when the
mirror heater switch is on.
Adjust the mirror so that you can just
see the side of your vehicle in the mirror.
Be careful when judging the size or distance of any object seen in the outside
rear view mirror on the passenger’s side.
It is a convex mirror with a curved surface. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
When you push the outside rear view mirror heater switch, the heater panels in the
outside rear view mirrors will quickly clear
the mirror surface. (See “Outside rear
view mirror heaters” in Section 1–4.)
82
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to
be adjusted
Place the switch at ”L” (left) or ”R”
(right).
2. Control switch—To move the mirror
Push the switch in the desired direction.
Mirrors can be adjusted when the key is
in the ”ACC” or ”ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mirror face. Use a spray de–icer to free
the mirror.
—Folding rear view mirrors
’02 L/C U (L/O 0108)
Anti–glare inside rear view
mirror—
13C010
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push backward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and passenger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mirror.
Pushing the switch changes the mode
between “AUTO” and “DAY”.
The indicator comes on when the “AUTO”
mode is selected.
“DAY” mode: The mirror surface is normal.
“AUTO” mode: If the mirror detects
light from the headlights of the vehicle
behind you, the mirror surface darkens
slightly to reduce the reflected light.
83
When the ignition key is inserted and
Di
turned on, the inside rear view mirror always turns on in the “AUTO” mode.
When the outside air temperature is low,
it may take a little longer for the mirror
to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the vehicle and an accident may occur resulting in death or serious injuries.
84
—Compass
13C013
The compass indicates the direction in
which the vehicle is heading. The illustration shown above indicates the vehicle is
heading north.
pDisplays
N
NE
E
SE
S
SW
W
NW
rections
North
Northeast
East
Southeast
South
Southwest
West
Northwest
’02 L/C U (L/O 0108)
Pushing the “AUTO” button for longer
3 seconds turns on or off the compass
display.
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning. The compass does not adjust while the vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to interference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view morror.)
The battery has been disconnected.
Any door is open.
The compass works to calibrate the direction automatically while the vehicle is in
motion, if deviation is small.
For obtaining additional precision or for
complete calibrating, see “Calibrating the
compass” below.
NOTICE
Do not put magnets or a metal object
near the inside rear view mirror. Doing this may cause malfunction of the
compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction determined by the earth’s magnetic field, The
amount of deviation varies according to
the geographic position of the vehicle.
To adjust for this deviation, stop the vehicle and push the button for longer than
about 6 seconds until the number (1–15)
appears on the display. Then push the
button again, referring to the following
map to select the number of the zone
where the vehicle is.
’02 L/C U (L/O 0108)
13C015
Zone number Hawaii is included in zone 5.
85
If the direction is displayed several seconds after adjustment, the calibration is
finished.
CAUTION
’02 L/C U (L/O 0108)
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
86
13C011
CALIBRATING THE COMPASS (circling
calibration)
“C” appears on the display in case the
circling calibration is required due to a
drastic change in the magnetic field. To
rectify this, follow the calibration procedure below.
13C012
Drive the vehicle slowly (at 8km/h (5mph)
or lower) in a circle until the direction is
displayed. If there is not enough space to
drive in a circle, drive around the block
until the direction is displayed.
After driving in 1 to 3 circles in the above
method, calibration is complete with the
direction shown on the display.
If calibration cannot be performed because
of the magnetized vehicle, etc., take your
vehicle to Toyota dealer.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to interference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power windows, etc.) as they may interfere with
the calibration.
’02 L/C U (L/O 0108)
Sun visors—
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and vehicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the main sun visor.
To block out glare from the side—Swing
down the main sun visor, remove it from
the hook and swing it to the lateral side.
You can adjust its position as shown.
To block the glare from the front when the
main sun visor is swung down, swing
down the second sun visor.
CAUTION
Slide the main sun visor only when
it is swung down to the lateral side.
It can cover the anti–glare inside rear
view mirror and obstruct the rear
view.
87
—Vanity mirror
To use the vanity mirror, swing down
the main sun visor and open the cover.
The vanity light comes on when you open
the cover.
’02 L/C U (L/O 0108)
88
’02 L/C U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlight and turn signals 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel li ght control 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front f og lights 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal li ghts 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center i nterior and personal lights 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 97. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror h eaters 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
89
Headlight and turn signals
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Position 3 (”AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depending on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are needed immediately when entering a dark tunnel, parking structure, etc.
The automatic light control sensor is on
the top of the passenger’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
If you feel that the automatic light control
comes into operation too early or too late,
have the sensor adjusted by your Toyota
dealer.
’02 L/C U (L/O 0108)
The headlights automatically turn off after
some time since the ignition switch is
turned off, then any side door is opened.
To turn them on again, turn the key to the
”ON” position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the battery from being discharged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
The headlights turn on at reduced intensity when the parking brake is released with
the engine started, even with the light
switch in the ”OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
90
’02 L/C U (L/O 0108)
Emergency flashers
High–Low beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever toward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to ”OFF”.
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the ”ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See ”Replacing light
bulbs” in Section 7–3.
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull your vehicle as far off the
road as possible.
The turn signal light switch will not work
when the emergency flashers are operating.
91
’02 L/C U (L/O 0108)
NOTICE
To prevent the battery from being discharged, do not leave the switch on
longer than necessary when the engine is not running.
Instrument panel light control
To adjust the brightness of the instrument panel lights, turn the dial.
Front fog lights
To turn on the front fog lights, twist
the band of the headlight/turn signal
lever. They will come on only when the
headlights are on low beam.
92
Interior lights
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
”ON”—Keeps the light on all the time.
”OFF”—Turns the light off.
”DOOR”—
—Center: Turn the light on when any of
side doors and back door are opened.
—Rear: Turn the light on when any of the
rear side doors and back door are
opened.
ILLUMINATED ENTRY SYSTEM
Center—
With the switch in the ”DOOR” position,
the light comes on when either side or
back door is opened. After all the doors
are closed, the light remains on for a
certain time and then goes out.
However, in the following cases, the light
goes out immediately:
All the doors are closed when the igni-
tion key is in ”ACC”, ”ON” or ”START”
position.
The ignition key is turned to ”ACC”,
”ON” or ”START” when the light is still
on.
All the doors are locked when the light
is still on.
One front side door will be closed with
the lock knob pushed forward while the
other doors are locked.
’02 L/C U (L/O 0108)
INTERIOR LIGHTS CUT OFF OPERATION
When the ignition switch is ”OFF” and any
interior lights in the vehicle stay lighting
on, the lights will cut off automatically
after 30 minutes.
You can cancel the cut off operation by:
Turning the key to the ”ACC” position.
Opening or closing any of side doors
and back door.
Turning off all the ”ON” lights.
All the lights are cut off when all the
doors are locked by key or wireless remote control key.
93
Personal lights
’02 L/C U (L/O 0108)
Center interior and personal
lights
All the lights are cut off when all the
doors are locked by key or wireless remote control key.
To turn on the personal light, push the
switch on 1 side. To turn the lights off,
push the switch on 2 side.
PERSONAL LIGHTS CUT OFF OPERATION
When the ignition switch is ”OFF” and any
personal lights in the vehicle stay lighting
on, the lights will cut off automatically
after 30 minutes.
You can cancel the cut off operation by:
Turning the key to the ”ACC” position.
Opening or closing any of side doors
and back door.
Turning off all the ”ON” lights.
94
CENTER INTERIOR LIGHT
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
”ON”—Keeps the light on all the time.
”OFF”—Turns the light off.
”DOOR”—Turns the light on when any of
the side doors and back door are opened.
The light remains on when all the side
doors and back door are closed.
CENTER PERSONAL LIGHTS
To turn on the center personal light,
push the switch on 1 side. To turn the
lights off, push the switch on 2 side.
ILLUMINATED ENTRY SYSTEM
With the switch in the ”DOOR” position,
the light comes on when either side or
back door is opened. After all the doors
are closed, the light remains on for a
certain time and then goes out.
However, in the following cases, the light
goes out immediately:
All the doors are closed when the igni-
tion key is in ”ACC”, ”ON” or ”START”
position.
The ignition key is turned to ”ACC”,
”ON” or ”START” when the light is still
on.
All the doors are locked when the light
is still on.
One front side door will be closed with
the lock knob pushed forward while the
other doors are locked.
INTERIOR AND PERSONAL LIGHTS CUT
OFF OPERATION
When the ignition switch is ”OFF” and any
interior lights in the vehicle stay lighting
on, the lights will cut off automatically
after 30 minutes.
You can cancel the cut off operation by:
Turning the key to the ”ACC” position.
Opening or closing any of side doors
and back door.
Turning off all the ”ON” lights.
All the lights are cut off when all the
doors are locked by key or wireless remote control key.
’02 L/C U (L/O 0108)
Ignition switch light
For easy access to the ignition switch,
the ignition switch light comes on when
the driver’s door is opened.
The light remains on for a certain time
after the driver’s door is closed.
It goes off immediately when the ignition
switch is turned to the ”ACC” position or
when all the side doors and back door are
locked.
95
’02 L/C U (L/O 0108)
Windshield wipers and washer
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ”ON” position.
Lever position
Positi on 1 Intermittent
Positi on 2 Slow
Positi on 3 Fast
The ”INT TIME” band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.
Speed setting
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see ”Adding washer fluid” in Section 7–3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may scratch the
glass.
Rear window wiper and washer
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the ”ON” position.
Lever position
Positi on 1 Intermittent
Positi on 2 normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see ”Adding washer fluid” in Section 7–3.
Speed setting
96
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
’02 L/C U (L/O 0108)
Rear window defogger
Make sure you turn the defogger off when
the surfaces are clear. Leaving the defogger on for a long time could cause the
battery to discharge, especially during
stop–and–go driving. The defogger is not
designed for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connectors.
To defog or defrost the rear window,
push the switch.
The key must be in the ”ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off after the defogger has operated about 15
minutes.
97
Outside rear view mirror heaters
To defog or defrost the outside rear
view mirrors, push the switch.
The key must be in the ”ON” position.
The heater panels in the outside rear view
mirrors will quickly clear the surfaces. An
indicator light will illuminate to indicate the
mirror heaters are operating.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off after the mirror heaters have operated about
15 minutes.
’02 L/C U (L/O 0108)
CAUTION
Since the mirror surfaces can get hot,
do not touch them when the mirror
heater switch is on.
Make sure you turn the mirror heaters off
when the surfaces are clear. Leaving the
mirror heaters on for a long time could
cause the battery to discharge, especially
during stop–and–go driving. The mirror
heaters are not designed for drying rain
water or for melting snow.
If the outside rear view mirrors are heavily coated with ice, use a spray de–icer
before operating the switch.
98
’02 L/C U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge 100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 100. . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil pressure gauge 101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltmeter 102. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 102. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters 102. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicat ors and warning buzzers 103. . . . . . . . . . . . . .
5
99
Fuel gauge
15C004
’02 L/C U (L/O 0108)
Engine coolant temperature
gauge
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
The gauge works when the ignition
switch is on and indicates the approximate quantity of fuel remaining in the
tank.
Nearly full—Needle at ”F”
Nearly empty—Needle at ”E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches ”E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
100
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle points to the red zone or
higher, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop–and–go traffic.
Towing a trailer.
Loading...
