SECTION 1− 1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 8. . . . . . . . . . . . . . . . . . . . . . .
2001 MY HIGHLANDER_U (OM48432U)
1
Page 2
Instrument panel overview
’01 HIGHLANDER_U (L/O 0106)
1. Side defroster outlets
2. Instrument cluster
3. Garage door opener
4. Center vents
5. Electric moon roof switch and personal
light
6. Auxiliary box
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Auxiliary box or ashtray
12. Automatic transmission selector lever
13. Hood lock release lever
14. Parking brake pedal
15. Window lock switch
2
2001 MY HIGHLANDER_U (OM48432U)
Page 3
"Vehicles with manual air conditioning controls
’01 HIGHLANDER_U (L/O 0106)
1. Headlight, turn signal and front fog
light switches
2. Instrument panel light control knob
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. Front passenger’s seat belt reminder
light
7. Rear window defogger switch
8. Air conditioning controls
9. Car audio
10. Power outlet
11. Snow mode button
12. Seat heater switches
13. Cigarette lighter
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Traction control system off switch
(two−wheel drive models)
18. Outside rear view mirror defogger and
windshield wiper deicer switch
2001 MY HIGHLANDER_U (OM48432U)
3
Page 4
19. Theft deterrent system/Engine
immobiliser system indicator light
20. Power rear view mirror control switches
’01 HIGHLANDER_U (L/O 0106)
4
2001 MY HIGHLANDER_U (OM48432U)
Page 5
"Vehicles with automatic air conditioning controls
’01 HIGHLANDER_U (L/O 0106)
1. Headlight, turn signal and front fog
light switches
2. Instrument panel light control knob
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. Front passenger’s seat belt reminder
light
7. Air conditioning controls and
multi−information display
8. Rear window defogger switch
9. Car audio
10. Power outlet
11. Snow mode button
12. Seat heater switches
13. Cigarette lighter
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Traction control system off switch
(two−wheel drive models)
18. Outside rear view mirror defogger and
windshield wiper deicer switches
2001 MY HIGHLANDER_U (OM48432U)
5
Page 6
19. Theft deterrent system/Engine
immobiliser system indicator light
20. Power rear view mirror control switches
’01 HIGHLANDER_U (L/O 0106)
6
2001 MY HIGHLANDER_U (OM48432U)
Page 7
Instrument cluster overview
’01 HIGHLANDER_U (L/O 0106)
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
2001 MY HIGHLANDER_U (OM48432U)
7. Trip meter reset knob
8. Odometer and two trip meters
9. Instrument panel light control knob
7
Page 8
Indicator symbols on the instrument panel
’01 HIGHLANDER_U (L/O 0106)
∗
or
Brake system warning light
Driver ’s seat belt reminder light
Front passenger’s seat belt reminder light
Discharge warning light
Low engine oil pressure warning light
or
Malfunction indicator lamp
1
∗
1
∗
1
∗
1
∗
1
∗
1
or
Anti−lock brake system warning light
∗
Open door warning light
Automatic transmission fluid temperature warning
∗
1
light
SRS warning light
1
∗
1
Vehicle skid control system warning light
Traction control system off indicator/warning
∗
1
light
Low windshield washer fluid level warning light
∗
1
∗
1
∗
1
8
2001 MY HIGHLANDER_U (OM48432U)
Page 9
Headlight high beam indicator light
Turn signal indicator lights
Automatic transmission indicator lights
Overdrive−off indicator light
Snow mode indicator light
Slip indicator light
’01 HIGHLANDER_U (L/O 0106)
∗
Cruise control indicator light
∗
1
: For details, see “Service reminder indicators and warning
2
buzzers” on page 102 in Section 1−5.
∗
2
: If this light flashes, see “Cruise control” on page 122 in
Section 1−6.
2001 MY HIGHLANDER_U (OM48432U)
9
Page 10
’01 HIGHLANDER_U (L/O 0106)
10
2001 MY HIGHLANDER_U (OM48432U)
Page 11
’01 HIGHLANDER_U (L/O 0106)
SECTION 1− 2
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2001 MY HIGHLANDER_U (OM48432U)
11
Page 12
’01 HIGHLANDER_U (L/O 0106)
Keys (without engine
immobiliser system)
Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked without a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Keys (with engine
immobiliser system)
Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
12
2001 MY HIGHLANDER_U (OM48432U)
Page 13
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked without a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
’01 HIGHLANDER_U (L/O 0106)
NOTICE
When using a key containing a transponder chip, observe the following
precautions:
z When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
z When starting the engine, do not
use the key with other transponder
keys around (including keys of other vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (including keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
2001 MY HIGHLANDER_U (OM48432U)
13
Page 14
z Do not bend the key grip.
’01 HIGHLANDER_U (L/O 0106)
z Do not cover the key grip with any
material that cuts off electromagnetic waves.
z Do not knock the key hard against
other objects.
z Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
z Do not put the key in water or
wash it in an ultrasonic washer.
z Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
14
2001 MY HIGHLANDER_U (OM48432U)
Page 15
Engine immobiliser system
The engine immobiliser system is a
theft prevention system. When you insert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the vehicle. The engine will start, only when
the electronic code in the chip corresponds to the registered ID code for
the vehicle.
’01 HIGHLANDER_U (L/O 0106)
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.
D The indicator light stays on.
D The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
D The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the system or start the engine.
NOTICE
Do not modify, remove or disassemble the engine immobiliser system. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
2001 MY HIGHLANDER_U (OM48432U)
15
Page 16
For vehicles sold in U.S.A.
’01 HIGHLANDER_U (L/O 0106)
Side doors—
For vehicles sold in Canada
FCC ID: MOZ RI−14BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interference, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

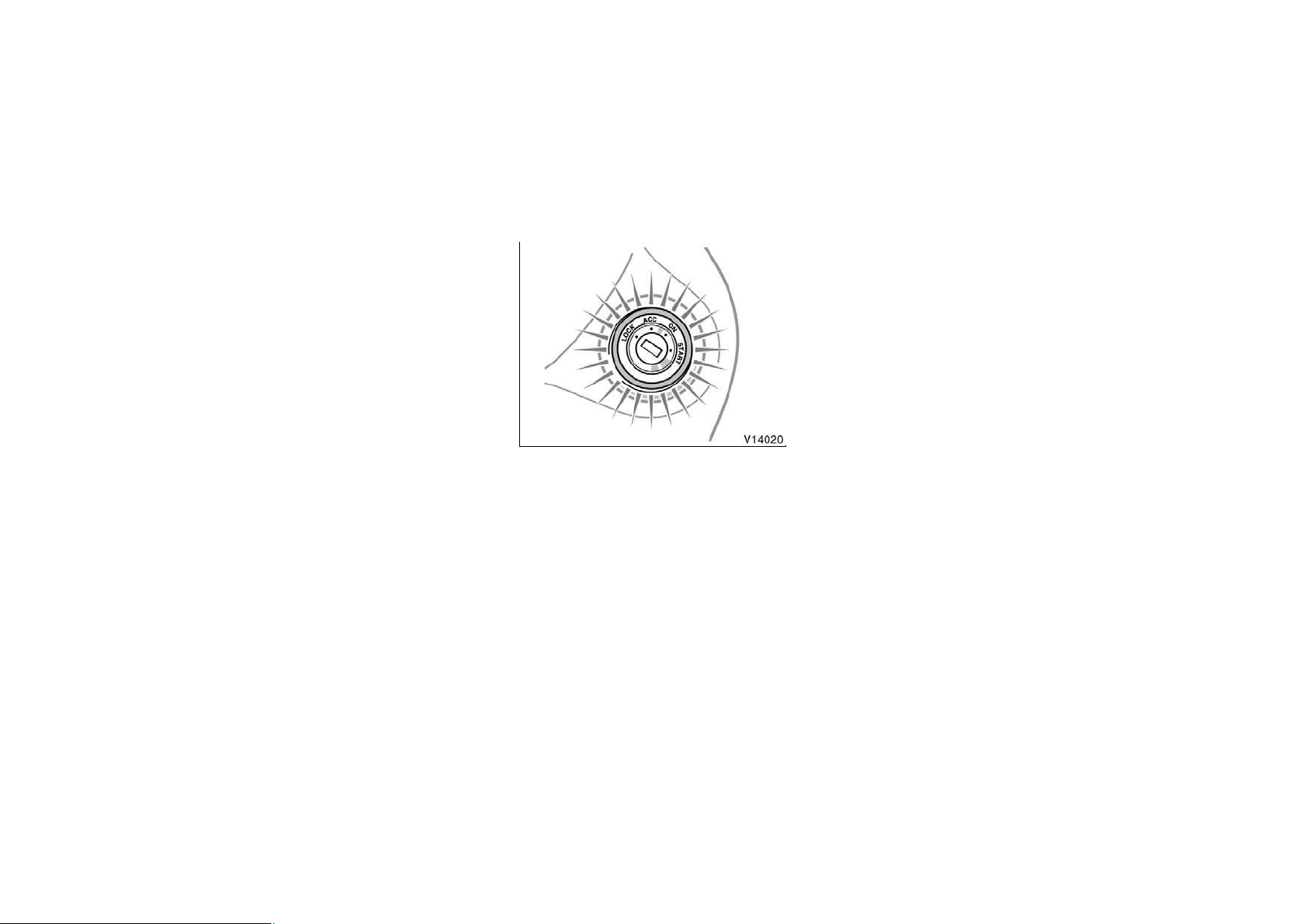

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock
simultaneously with either front door. In
the driver’s door lock, turning the key
backward once will unlock the driver’s
door and twice in succession will unlock
all the side doors and back door simultaneously. In the front passenger ’s door
lock, turning the key backward once will
unlock all the side doors and back door
simultaneously.
16
2001 MY HIGHLANDER_U (OM48432U)
Page 17
When the driver’s door is unlocked by
turning a key in either of the front doors,
the interior light comes on for about 15
seconds and then fades out, even if the
door is not opened. (For further information, see “Interior lights” on page 92 and
“Ignition switch light” on page 93 in Section 1−4.)
’01 HIGHLANDER_U (L/O 0106)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
The side door cannot be locked if you
leave the key in the ignition switch and
the driver’s door is opened.
2001 MY HIGHLANDER_U (OM48432U)
Driver’s side
Passenger’s side
17
Page 18
’01 HIGHLANDER_U (L/O 0106)
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the side doors and back door lock or
unlock simultaneously.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the vehicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the vehicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
REAR DOOR CHILD−PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend using this feature whenever small children
are in the vehicle.
18
2001 MY HIGHLANDER_U (OM48432U)
Page 19
—Wireless remote control
Locking operation
Unlocking operation
’01 HIGHLANDER_U (L/O 0106)
Your vehicle has a wireless remote
control system that can lock or unlock
all the side doors and back door, or
activate the “PANIC” mode from a
distance within approximately 1 m (3
ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked simultaneously. At this time one beep will
be heard, and the turn signal lights flash
once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, locking cannot be
performed by the “LOCK” switch and a
beep will sound continuously for 10 seconds. However, if the key is in the ignition, a beep will not sound.
To stop the buzzer, close all the side
doors and back door securely or push the
“UNLOCK” switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “UNLOCK”
switch is pushed, two beeps will be heard,
and the turn signal lights flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When the driver’s door is unlocked with a
wireless remote control transmitter, the interior light and ignition switch light come
on for about 15 seconds and then fade
out, even if the door is not opened. (For
details, see “Interior lights” on page 92
and “Ignition switch light” on page 93 in
Section 1−4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automatically locked again. At this time one beep
will be heard, and the turn signal lights
flash once.
The timing for the automatic door lock
function can be changed. For details, contact your Toyota dealer.
2001 MY HIGHLANDER_U (OM48432U)
19
Page 20
’01 HIGHLANDER_U (L/O 0106)
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking operation is not repeated. Release the button
and then push again.
The wireless door locking or unlocking
function can be erased. For details, contact your Toyota dealer.
SWITCHING BEEP SOUND ON AND OFF
You can switch the beep on and off. (The
beep is on initially and after battery replacement.)
To switch the beep on and off:
With the driver’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition
key again and turn it to the “ON” position.
3. After 10 seconds, push the same
“LOCK”, “UNLOCK” or “PANIC” button
twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
20
Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this procedure from step 1.
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter vehicle theft when you witness anyone attempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
D Push the “PANIC” switch once again.
D Unlock any of side door or back door
with the key or wireless remote control
transmitter.
D Turn the ignition key from the “LOCK”
to “ON” position.
2001 MY HIGHLANDER_U (OM48432U)
Page 21
’01 HIGHLANDER_U (L/O 0106)
The “PANIC” mode does not work when
the ignition key is in the “ON” position.
The alarm function can be disabled. For
details, contact your Toyota dealer.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the following instructions in order not to cause
damage to the transmitter.
D Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
D Do not disassemble it.
D Avoid knocking it hard against other
objects or dropping it.
D Avoid putting it in water.
You can use up to 4 wireless remote control transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
D Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
D The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an accident. (See “If you lose your wireless remote control transmitter” on page 228 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
2001 MY HIGHLANDER_U (OM48432U)
21
Page 22
’01 HIGHLANDER_U (L/O 0106)
D Reorient or relocate the receiving an-
tenna.
D Increase the separation between the
equipment and receiver.
D Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
D Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interference, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the removed transmitter battery or components.
NOTICE
z During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
z When replacing the transmitter bat-
tery, be careful not to lose the components.
z Replace only with the same or
equivalent type recommended by
the manufacturer.
z Dispose of used batteries according
to the local laws.
Replace the transmitter battery by the following procedures:
1. Using a coin or equivalent, open the
transmitter case.
22
2001 MY HIGHLANDER_U (OM48432U)
Page 23
’01 HIGHLANDER_U (L/O 0106)
z Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
z Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the transmitter still does not operate properly, contact your Toyota dealer.
2. Remove the discharged transmitter battery.
NOTICE
Do not bend the terminals.
3. Put a new transmitter battery with positive (+) side up.
Close the transmitter case securely.
NOTICE
z Make sure the positive side and
negative side of the transmitter battery should be faced correctly.
z Do not replace the battery with wet
hands. Water may cause unexpected
rust.
z Do not touch or move any compo-
nents inside of the transmitter, or
it may interfere with proper operation.
2001 MY HIGHLANDER_U (OM48432U)
23
Page 24
Power windows
’01 HIGHLANDER_U (L/O 0106)
CAUTION
D Never try jamming any part of your
body to make the jam protection
function work intentionally.
D The jam protection function may
not work if something gets caught
just before the window is fully
closed.
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when the either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
24
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window partway, lightly move the switch in the opposite direction and then release it.
Jam protection function: During automatic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
2001 MY HIGHLANDER_U (OM48432U)
Page 25
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger’s
door or the switches on the driver’s
door that control each passenger’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.
’01 HIGHLANDER_U (L/O 0106)
2001 MY HIGHLANDER_U (OM48432U)
25
Page 26
OPERATING THE DRIVER’S WINDOW
FROM OUTSIDE THE VEHICLE
The driver’s window can be operated
with the key inserted in the driver’s
door key cylinder.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the window
begins to open. To stop the window partway, release the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the window begins to close. To stop the window partway,
release the key.
This feature can be disabled. For details,
contact your Toyota dealer.
’01 HIGHLANDER_U (L/O 0106)
CAUTION
To avoid serious personal injury, you
must do the following.
D Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely inside the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the windows safely.
D When small children are in the ve-
hicle, never let them use the power
window switches without supervision. Use the window lock switch to
prevent them from making unexpected use of the switches.
D Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the power window switches and
get trapped in a window. Unattended children can be involved in
serious accidents.
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock release lever.
When the driver’s door is unlocked by
turning a key in either of the front doors,
the interior light comes on for about 15
seconds and then fades out, even if the
door is not opened. (For further information, see “Interior lights” on page 92 and
“Ignition switch light” on page 93 in Section 1−4.)
26
2001 MY HIGHLANDER_U (OM48432U)
Page 27
’01 HIGHLANDER_U (L/O 0106)
Operating the power door lock switch or
wireless remote control transmitter simultaneously locks or unlocks the back door
(see “Side doors” on page 16 in this section).
When closing the back door, make sure
it is fully closed.
See “Luggage stowage precautions” on
page 189 in Section 2 for precautions to
observe in loading luggage.
CAUTION
Keep the back door closed while driving. This not only keeps the luggage
from being thrown out but also prevents exhaust gases from entering
the vehicle.
When closing the back door, use the
inside strap for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is securely closed.
See “Luggage stowage precautions” on
page 189 in Section 2 for precautions in
loading luggage.
2001 MY HIGHLANDER_U (OM48432U)
27
Page 28
Hood
’01 HIGHLANDER_U (L/O 0106)
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Otherwise, the hood may open unexpectedly while driving and an accident may
occur.
28
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
2001 MY HIGHLANDER_U (OM48432U)
3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Page 29
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Closing the hood with the support rod up
could cause the hood to bend.
’01 HIGHLANDER_U (L/O 0106)
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or the battery terminal is disconnected and then reconnected when the system is set.
The alarm blows the horn intermittently
and flashes the headlights, tail lights, turn
signal lights and interior lights. If any of
the side doors and back door is unlocked
forcibly, all the side doors and back door
will be automatically locked.
2001 MY HIGHLANDER_U (OM48432U)
SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
on page 15 for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the side doors, back
door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.
29
Page 30
’01 HIGHLANDER_U (L/O 0106)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the vehicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
D If any of the side doors and back door
is unlocked or the hood is forcibly
opened without the key or wireless remote control transmitter.
D If the battery terminal is disconnected
and then reconnected.
D Hotwire the ignition.
The indicator light will come on when the
system is activating.
If any of the side doors and back door is
unlocked without the key or wireless remote control transmitter, all the side doors
and back door will be automatically locked
again.
After one minute, the alarm will automatically stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
conditions:
D Turn the ignition key from the “LOCK”
to “ON” position.
D Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 2 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The side doors and back door should
be locked with the key or wireless remote control transmitter. Be sure to
wait until the indicator light starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other
doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
30
2001 MY HIGHLANDER_U (OM48432U)
Page 31
Fuel tank cap
’01 HIGHLANDER_U (L/O 0106)
This indicates that the fuel filler door
is on the left side of your vehicle.
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
D Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
D When opening the cap, do not re-
move the cap quickly. In hot weather, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly removed.
2001 MY HIGHLANDER_U (OM48432U)
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
31
Page 32
CAUTION
D Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
D Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
32
’01 HIGHLANDER_U (L/O 0106)
Electric moon roof
Sliding operation
Tilting operation
2001 MY HIGHLANDER_U (OM48432U)
To operate the moon roof, use the
switch beside the personal light.
The moon roof works when the ignition
switch is in the “ON” position. However,
if both front doors are closed, it works for
43 seconds even after the ignition switch
is turned off. It stops working when either
front door is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will open and stop at the three−
quarters closed position. When you push
the switch again, the moon roof will open
fully. To stop the roof partway, push the
switch on either the “SLIDE OPEN” or
“TILT UP” side while the roof is moving.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof at the
three−quarters closed from the fully
opened position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “TILT
UP” side.
Page 33
’01 HIGHLANDER_U (L/O 0106)
The roof will fully close. To stop the roof
partway, push the switch on either the
“SLIDE OPEN” or “TILT UP” side.
Tilting operation—
To tilt up: Push the switch on the “TILT
UP” side.
To lower: Push the switch on the “SLIDE
OPEN” side.
You may stop the moon roof at any desired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
Jam protection function (closing operation only): During closing operation, the
moon roof stops and opens half way if
something gets caught between the moon
roof and frame.
If an impact is given to the moon roof,
this function may work without anything
caught.
CAUTION
To avoid serious personal injury, you
must do the following.
D While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Otherwise, they could be seriously injured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
D Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening before you close the roof. If someone’s neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone close the roof, first make
sure it is safe to do so.
D Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unattended children can be involved in
serious accidents.
D Never sit on top of the vehicle
around the roof opening.
2001 MY HIGHLANDER_U (OM48432U)
33
Page 34
’01 HIGHLANDER_U (L/O 0106)
34
2001 MY HIGHLANDER_U (OM48432U)
Page 35
’01 HIGHLANDER_U (L/O 0106)
SECTION 1− 3
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seats 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Armrests 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heaters 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS driver and front passenger airbags 53. . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti−glare inside rear view mirror 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2001 MY HIGHLANDER_U (OM48432U)
35
Page 36
Seats
While the vehicle is being driven, all vehicle occupants should have the seatback
upright, sit well back in the seat and properly wear the seat belts provided.
CAUTION
D Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded−down seatback, or in the
luggage compartment or cargo area.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.
D During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe injuries can occur in the event of emergency braking or a collision.
’01 HIGHLANDER_U (L/O 0106)
Front seats—
—Front seat precautions
(on vehicles with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
D Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.
D Do not use accessories for the
seats which cover the parts where
the side airbags inflate. Such accessories may prevent the side airbags
from activating correctly, causing
death or serious injury.
D Do not modify or replace the seats
or upholstery of the front seats
with the side airbags. Such changes
may disable the system or cause
the side airbags to inflate accidentally, resulting in death or serious
injury. Consult your Toyota dealer if
you insist on modifications of this
kind.
—Seat adjustment
precautions
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
D Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
D When adjusting the seat, be careful
that the seat does not hit a passenger or luggage.
D After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in position.
D After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
D Do not put objects under the seats.
The objects may interfere with the
seat−lock mechanism or unexpectedly push up the seat position adjusting lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
36
2001 MY HIGHLANDER_U (OM48432U)
Page 37
D While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.
’01 HIGHLANDER_U (L/O 0106)
—Adjusting front seats
(manual seat)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING
KNOBS
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
2001 MY HIGHLANDER_U (OM48432U)
37
Page 38
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maximum protection in a frontal or rear
collision when the driver and the passenger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seatback.
’01 HIGHLANDER_U (L/O 0106)
—Adjusting front seats
(power seat)
1. SEAT POSITION AND SEAT CUSHION
ANGLE/HEIGHT ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats. It might interfere with the seat−lock
mechanism.
2. SEATBACK ANGLE ADJUSTING
SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seatback at that position.
38
2001 MY HIGHLANDER_U (OM48432U)
Page 39
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maximum protection in frontal or rear collision when the driver and the passenger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seatback.
3. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the switch on either way.
The amount of lumbar support will change
as long as the switch is pushed.
’01 HIGHLANDER_U (L/O 0106)

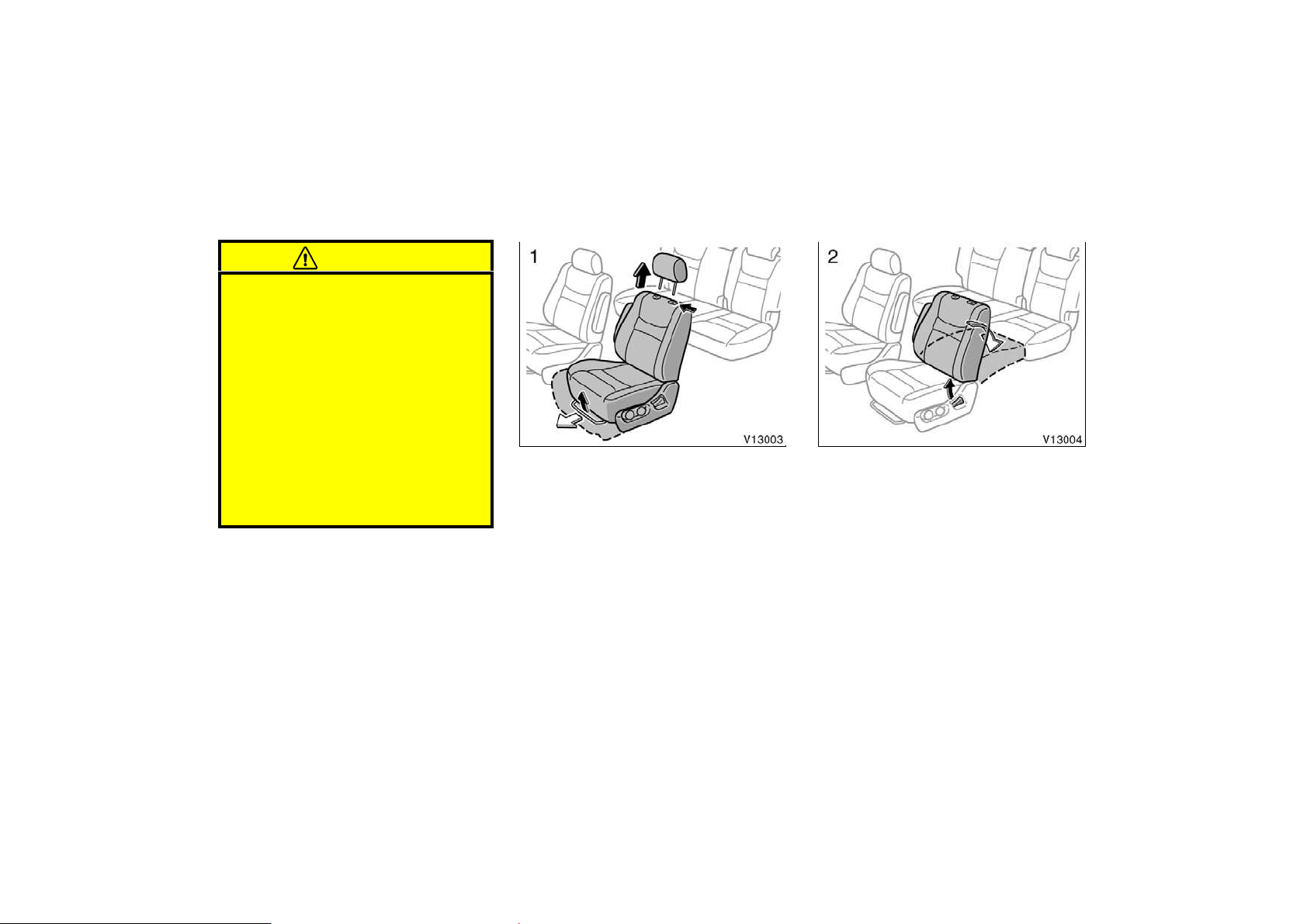

—Flattening seatbacks
(manual seat)
1. Remove the head restraint. Hold the
center of the lever and pull it up.
Then slide the seat further forward
than the front−most lock position.
2. Pull the seatback angle adjusting lever to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with considerable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
2001 MY HIGHLANDER_U (OM48432U)
39
Page 40
CAUTION
D Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
D After putting back the seat, try
pushing the seat and seatback forward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
’01 HIGHLANDER_U (L/O 0106)
—Flattening seatbacks
(power seat)
40
1. Remove the head restraint. Push the
seat position adjusting switch forward to slide the seat further forward than the front−most lock position.
2001 MY HIGHLANDER_U (OM48432U)
2. Move the seatback angle adjusting
switch backward to flatten the seatback.
After returning the seat to its original
position, be certain to replace the head
restraint.
Page 41
’01 HIGHLANDER_U (L/O 0106)
Rear seats—
—Rear seat precautions
—Adjusting rear seats
CAUTION
D Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
D After putting back the seat, try
pushing the seat and seatback forward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
CAUTION
D Adjustment should not be made
while the vehicle is moving.
D When adjusting the seatback, be
careful not to hit the seat against
a passenger or luggage.
D After adjusting the seatback, push
back your body to make sure it is
locked in position.
D When returning the seatback to the
upright position, observe the following precautions in order to prevent
personal injury in a collision or
sudden stop:
Make sure the seatback is securely
locked by pushing forward and rearward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Folding rear seatbacks will enlarge the
luggage compartment. See “Luggage stowage precautions” on page 189 in Section
2 for precautions in loading luggage.
2001 MY HIGHLANDER_U (OM48432U)
SEATBACK ANGLE ADJUSTING LEVER
Pull the lever up. Then lean back to the
desired angle and release the lever.
CAUTION
D Adjustments should not be made
while the vehicle is moving.
41
Page 42
D To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a frontal
collision, the risk of personal injury
may increase with increasing recline
of the seatback.
D After adjusting the seatback, push
back your body to make sure it is
locked in position.
’01 HIGHLANDER_U (L/O 0106)
—Fold−down rear seats

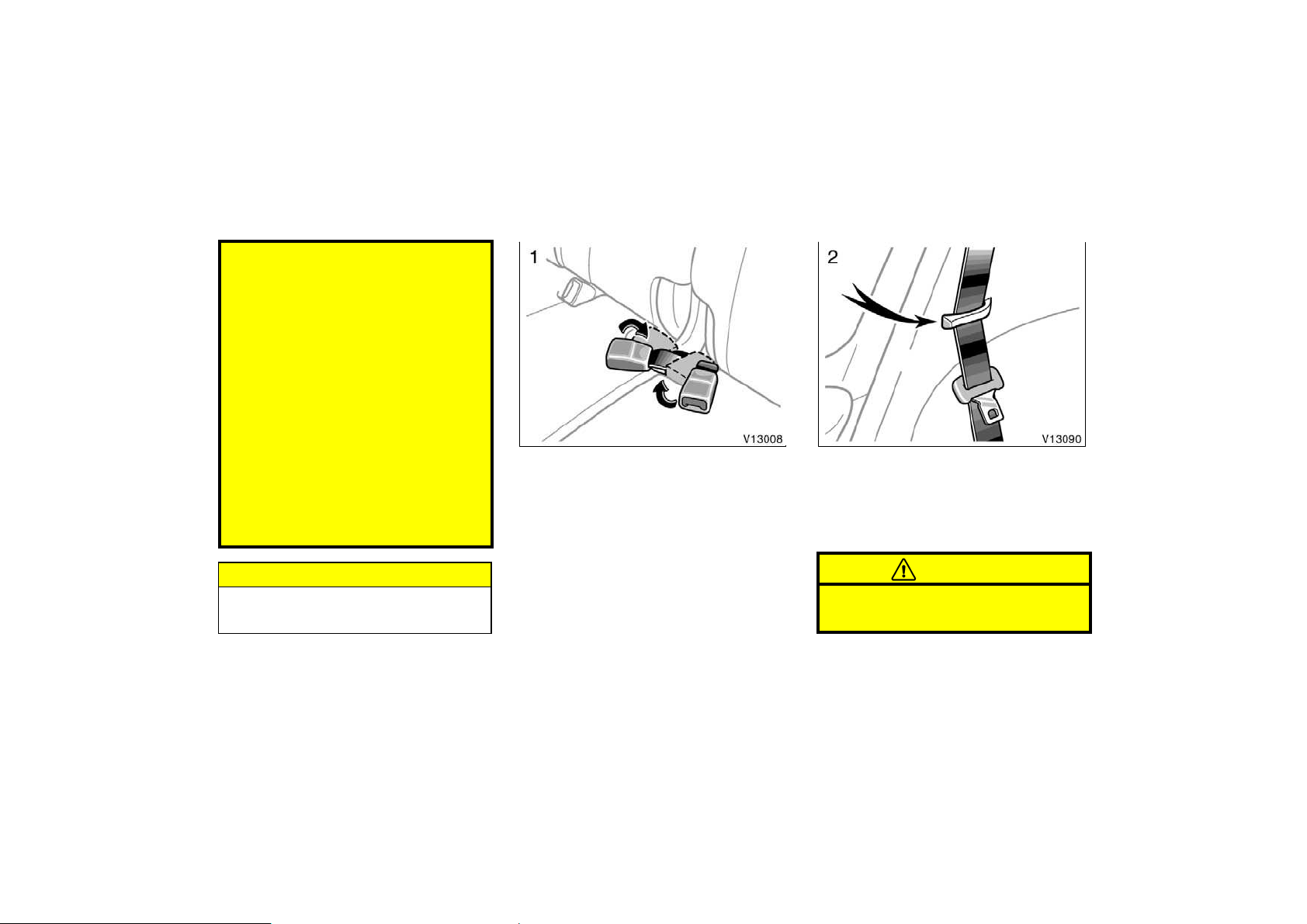

BEFORE FOLD−DOWN REAR SEAT
1. Stow the rear seat belt buckles as
shown above the illustration.
2. Make sure the outer seat belts
passes through the hangers when
folding the rear seat.
This prevents the shoulder belt from being
damaged.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.
42
CAUTION
The seat belt must be removed from
the hangers when they are in use.
2001 MY HIGHLANDER_U (OM48432U)
Page 43

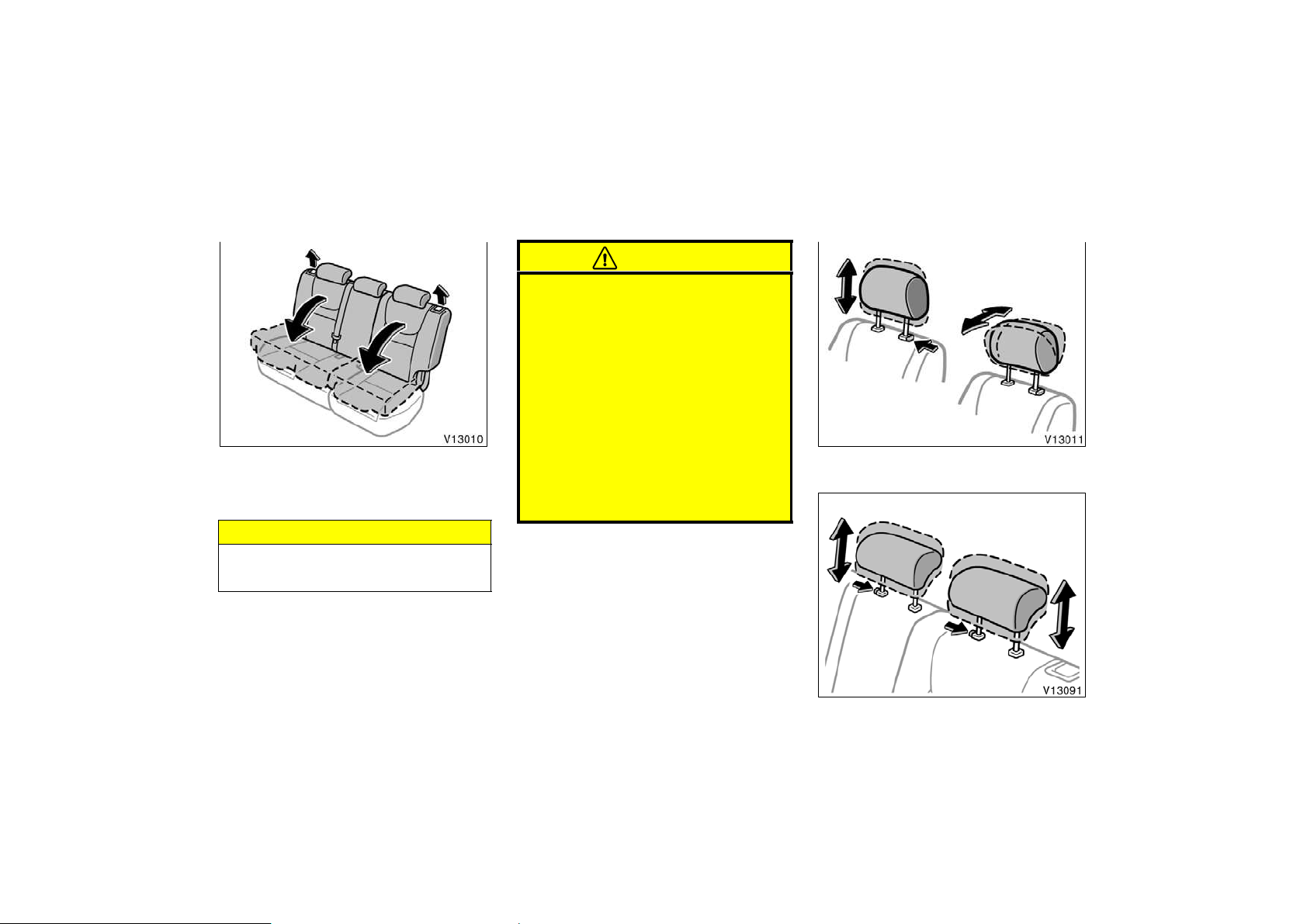

FOLD−DOWN REAR SEATS
Pull the lock release lever and fold
down the seatback.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.
’01 HIGHLANDER_U (L/O 0106)
CAUTION
When returning the seatback to the
upright position, observe the following precautions in order to prevent
personal injury in a collision or sudden stop:
D Make sure the seatback is securely
locked by pushing forward and rearward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
D Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Head restraints
Front
Folding down the rear seats will enlarge
the luggage compartment. See “Luggage
stowage precautions” on page 189 in Section 2 for precautions in loading luggage.
2001 MY HIGHLANDER_U (OM48432U)
Rear
43
Page 44
’01 HIGHLANDER_U (L/O 0106)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraints only—On some models, you can also move the front head
restraint forward or backward. If such adjustment is desired, pull or push the head
restraint.
Rear center head restraint—When an occupant sits on the rear center seat, always pull up the rear center head restraint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recommended.
CAUTION
D Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
D After adjusting the head restraint,
make sure it is locked in position.
D Do not drive with the head re-
straints removed.
Armrests
To use the armrest, pull it down as
shown above.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
Seat heaters
To turn on the seat heater, push the
switch.
The key must be in the “ON” position.
Push the switch once again to turn the
seat heater off.
44
2001 MY HIGHLANDER_U (OM48432U)
Page 45
CAUTION
Occupants must use caution when operating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
D Babies, small children, elderly per-
sons, sick persons or handicapped
persons
D Persons who have delicate skin
D Persons who are exhausted
D Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat from overheating,
do not use the seat heater with a
blanket, cushion, or other insulating
objects which cover the seat.
’01 HIGHLANDER_U (L/O 0106)
NOTICE
z Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
z When cleaning the seats, do not
use organic substances (paint thinner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
z To prevent the battery from being
discharged, turn the switch on
when the engine is running.
Seat belts—
—Seat belt precautions
Toyota strongly urges that the driver and
passengers in the vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 66 for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and seat belts are not
worn properly, the force of the rapid inflation of the airbag may cause death or
serious injury to the child.
2001 MY HIGHLANDER_U (OM48432U)
45
Page 46
’01 HIGHLANDER_U (L/O 0106)
Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious injury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the injury, first check with your doctor for specific
recommendations.
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
D Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
D Avoid reclining the seatbacks too
much. The seat belts provide maximum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
D Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
D Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be replaced. Do not disassemble or
modify the system.
D Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive cleaners—they may severely weaken the
belts. (See “Cleaning the interior”
on page 233 in Section 5.)
D Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
46
2001 MY HIGHLANDER_U (OM48432U)
Page 47
—Front and rear seat belts
’01 HIGHLANDER_U (L/O 0106)
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger’s shoulder belt is completely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This feature is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 66 in this section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
CAUTION
D After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
D Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
D If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
2001 MY HIGHLANDER_U (OM48432U)
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
47
Page 48
’01 HIGHLANDER_U (L/O 0106)
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.
Tak e u p
slack
Too h i gh
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then adjust it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION
D Both high−positioned lap belts and
loose−fitting belts could cause serious injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on hips
as possible.
D For your safety, do not place the
shoulder belt under your arm.
48
2001 MY HIGHLANDER_U (OM48432U)
Page 49
’01 HIGHLANDER_U (L/O 0106)
—Stowing rear seat belt
buckles
—Seat belt extender
If your seat belt cannot be fastened securely because it is not long enough, a
personalized seat belt extender is available from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper required length for the extender. Bring the
heaviest coat you expect to wear for proper measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.
To release the belt, press the buckle−release button and allow the belt to retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it retracts.
The rear seat belt buckles can be
stowed when not in use.
Seat belt buckles must be stowed before
you fold the seat back. (See “—Fold−down
rear seats” on page 42 in this section.)
2001 MY HIGHLANDER_U (OM48432U)
49
Page 50
’01 HIGHLANDER_U (L/O 0106)
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could result in less effectiveness of
the seat belt restraint system in case
of vehicle accident, increasing the
chance of personal injury.
D Never use the seat belt extender if
you can fasten the seat belt without
it.
D Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one originally intended for.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the “PRESS” signs on
the buckle−release buttons of the extender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle−release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
D After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
D Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
D If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
50
2001 MY HIGHLANDER_U (OM48432U)
Page 51

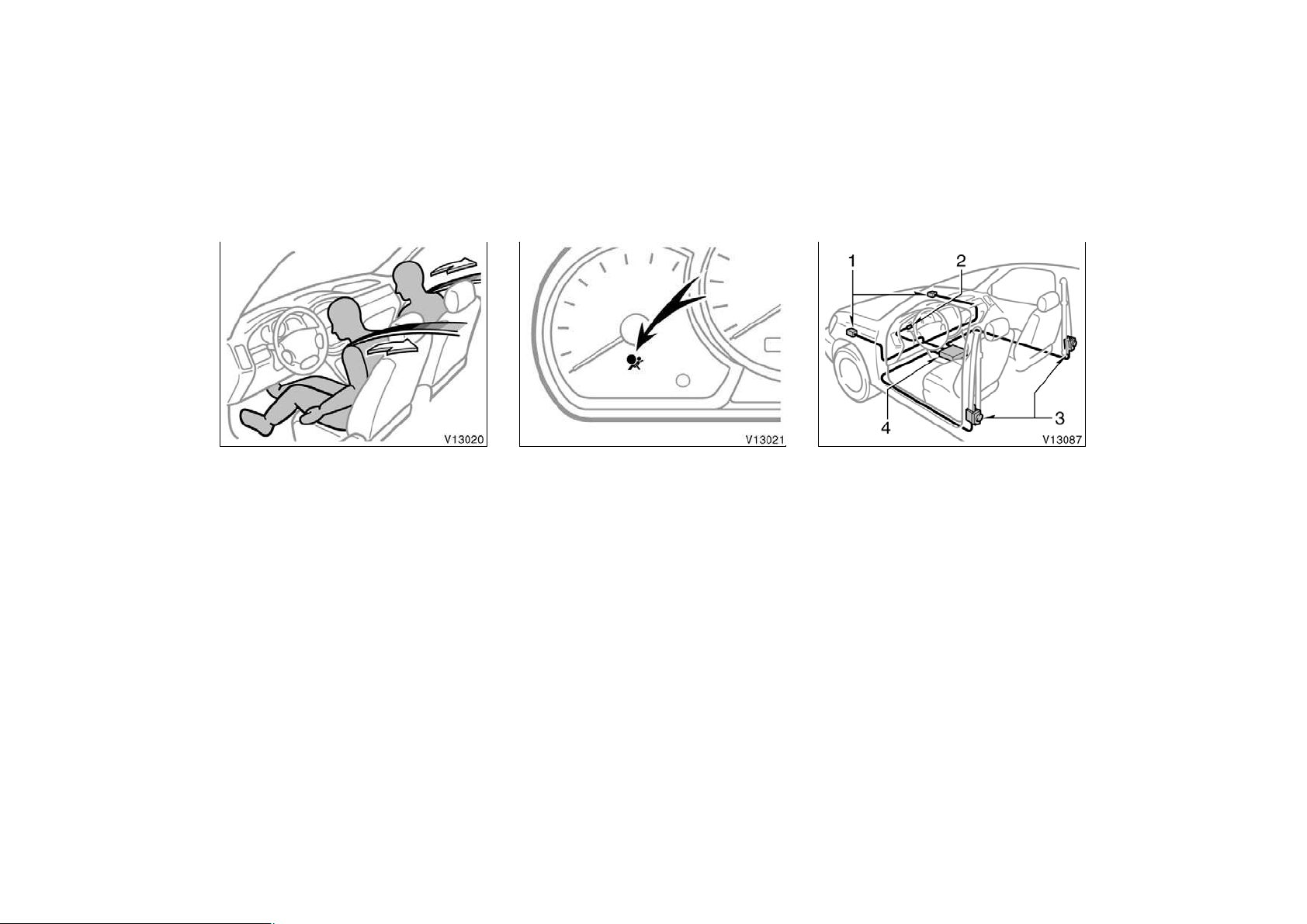

—Front seat belt pretensioners
’01 HIGHLANDER_U (L/O 0106)
The driver and front passenger’s seat
belt pretensioners are designed to be
activated in response to a severe frontal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are activated even with no passenger in the front
seat.
Collisions occurring at certain speeds and
angles may cause the front seat belt pretensioners and SRS airbags not to operate
all together.
This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, side airbag sensors, front seat belt
pretensioner assemblies, inflators, warning
light, interconnecting wiring and power
sources. (For details, see “Service reminder indicators and warning buzzers” on
page 102 in Section 1−5.)
2001 MY HIGHLANDER_U (OM48432U)
The front seat belt pretensioner system
mainly consists of the following components and their locations are shown in the
illustration.
1. Front airbag sensors
2. SRS warning light
3. Front seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are controlled by the airbag sensor assembly. The
airbag sensor assembly consists of a safing sensor and airbag sensor.
51
Page 52

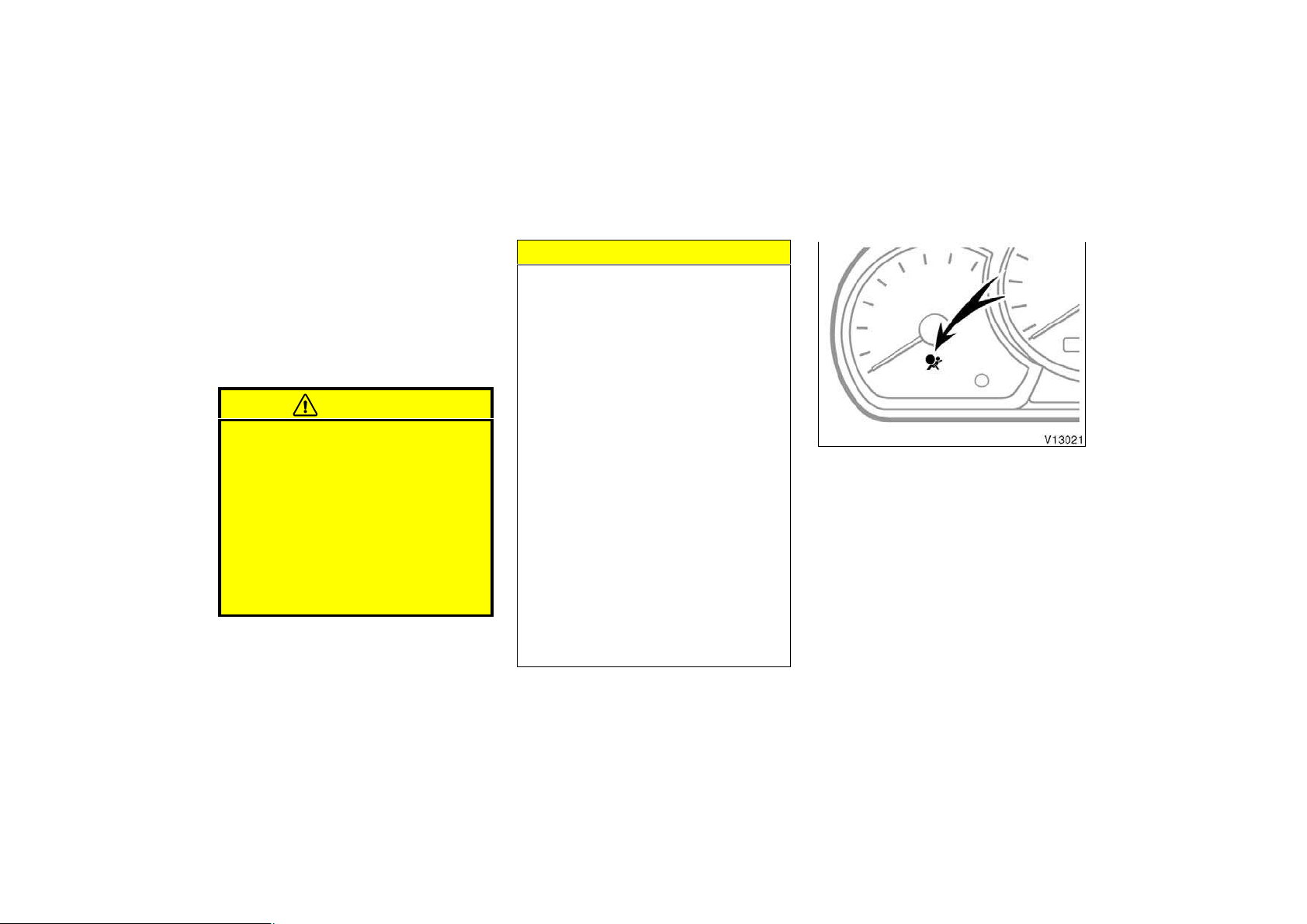

’01 HIGHLANDER_U (L/O 0106)
When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smoke−like
gas may be released. This gas is harmless and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner assemblies, airbag sensor or surrounding area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could result in death or serious injury.
Failure to follow these instructions
can result in death or serious injuries.
52
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.
z Installation of electronic devices
such as a mobile two−way radio,
cassette tape player or compact
disc player
z Repairs on or near the front seat
belt retractor assemblies
z Modification of the suspension sys-
tem
z Modification of the front end struc-
ture
z Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
z Repairs made on or near the front
fenders, front end structure or console
2001 MY HIGHLANDER_U (OM48432U)
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If any of
the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
D The light does not come on when the
ignition key is turned to the “ON” position, or the light remains on.
D The light comes on or flashes while
driving.
D If either front seat belt does not retract
or cannot be pulled out due to a malfunction or activation of the relevant
front seat belt pretensioner.
Page 53

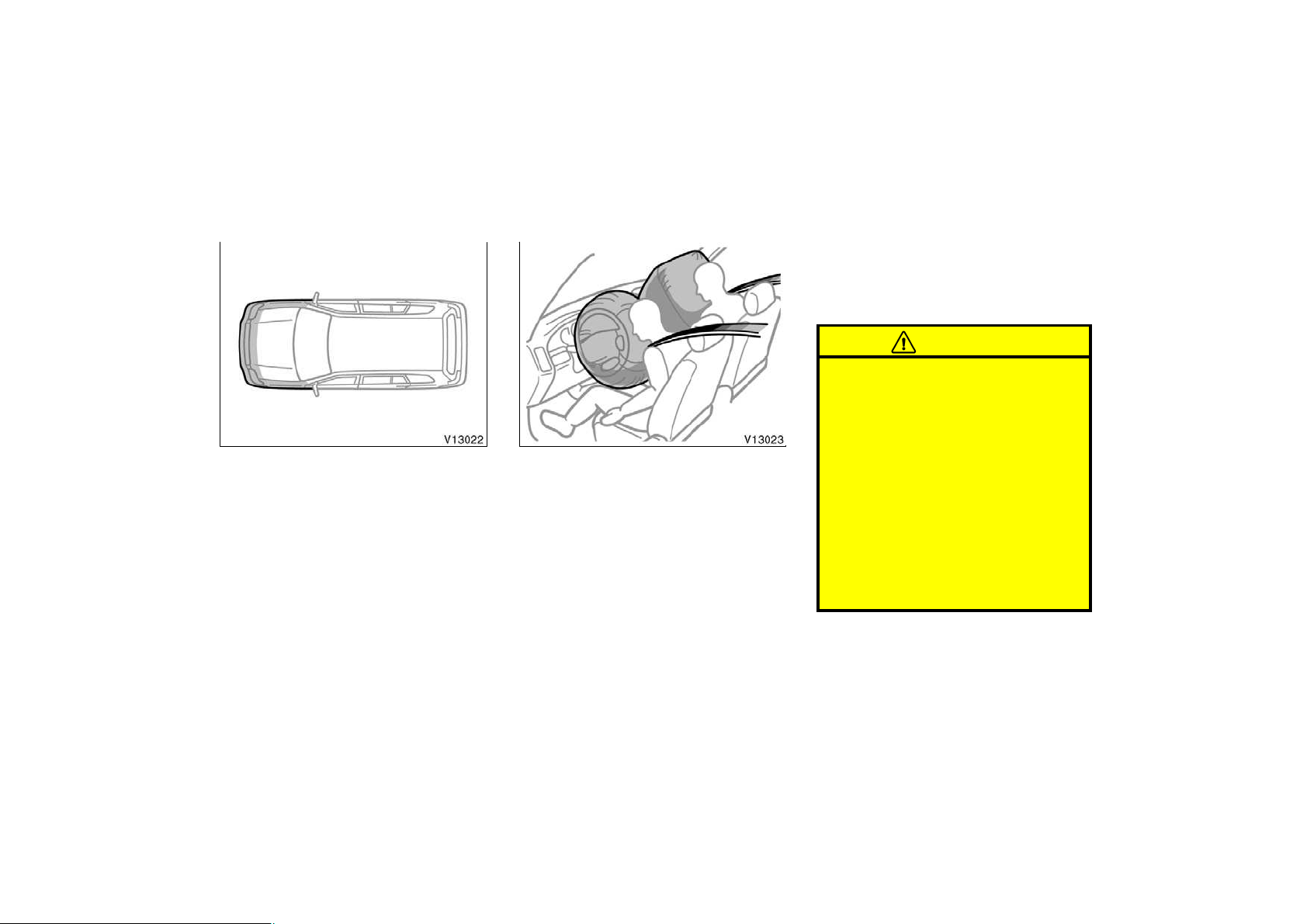

In the following cases, contact your Toyota
dealer as soon as possible:
D The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
D Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise damaged.
’01 HIGHLANDER_U (L/O 0106)
SRS driver and front
passenger airbags
The SRS (Supplemental Restraint System) front airbags are designed to provide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help to
reduce injuries mainly to the driver’s or
front passenger’s head or chest caused by
directly hitting the steering wheel or dashboard. The front passenger airbag is activated even with no passenger in the front
seat.
Be sure to wear your seat belt properly.
2001 MY HIGHLANDER_U (OM48432U)
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and front passenger
when the SRS airbags are inflated.
CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
D The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the vehicle.
D The front passenger sit as far back
as possible from the dashboard.
D All vehicle occupants be properly
restrained using the available seat
belts.
53
Page 54

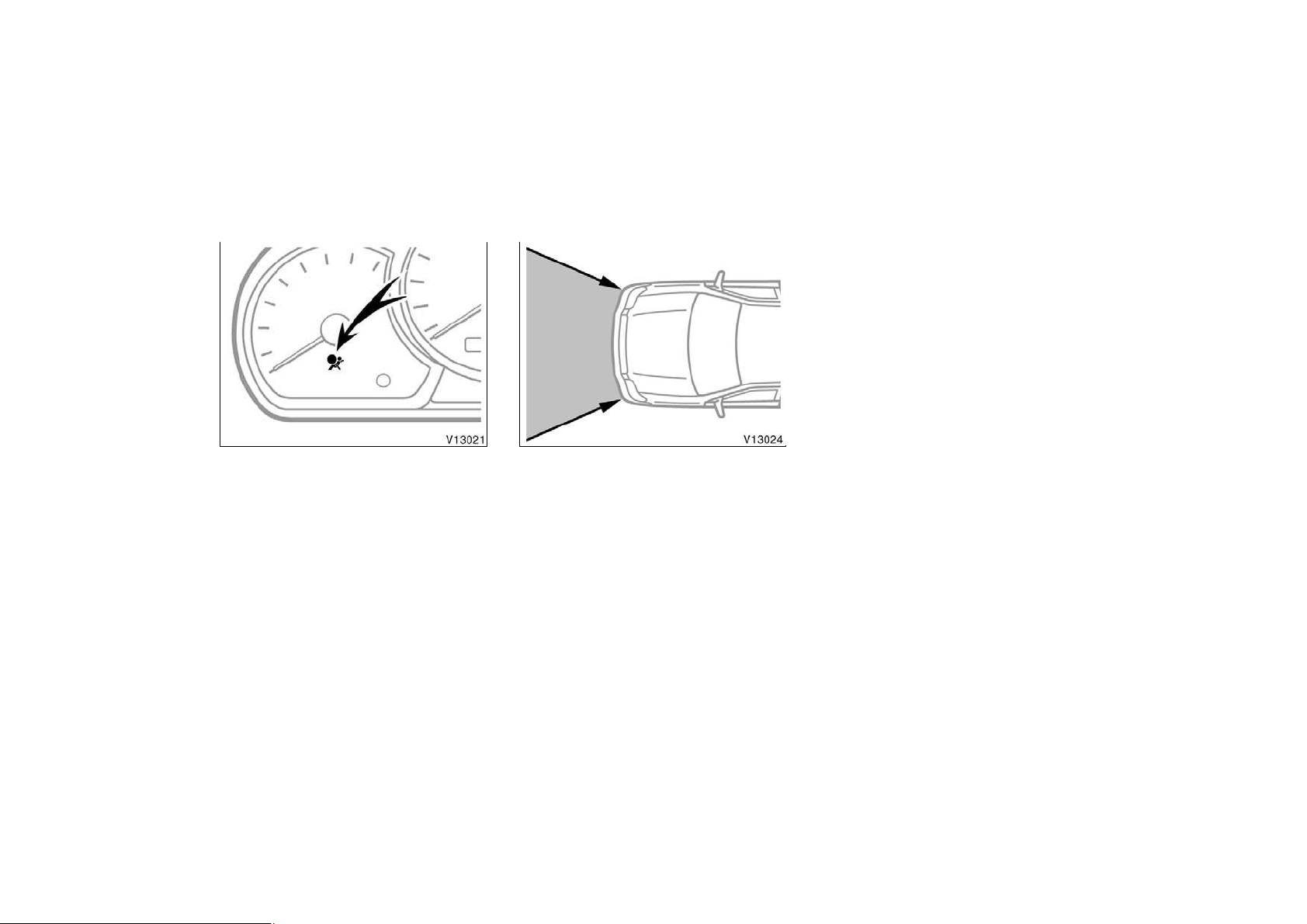

This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, side airbag sensors, front seat belt
pretensioner assemblies, inflators, warning
light, interconnecting wiring and power
sources. (For details, see “Service reminder indicators and warning buzzers” on
page 102 in Section 1−5.)
’01 HIGHLANDER_U (L/O 0106)
The SRS front airbag system is designed to activate in response to a severe frontal impact within the shaded
area between the arrows in the illustration.
The SRS front airbags will deploy if the
severity of the impact is above the designed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when impacting straight into a fixed barrier
that does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS front airbags may not deploy.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if it is involved in an underride
collision (e.g. a collision in which the nose
of the vehicle “underrides”, or goes under,
the bed of a truck, etc.).
It is possible that in some collisions at the
lower zone of airbag sensor detection and
activation the SRS airbags and front seat
belt pretensioners will not operate all together.
For the safety of all occupants, always
wear your seat belts properly.
54
2001 MY HIGHLANDER_U (OM48432U)
Page 55
’01 HIGHLANDER_U (L/O 0106)

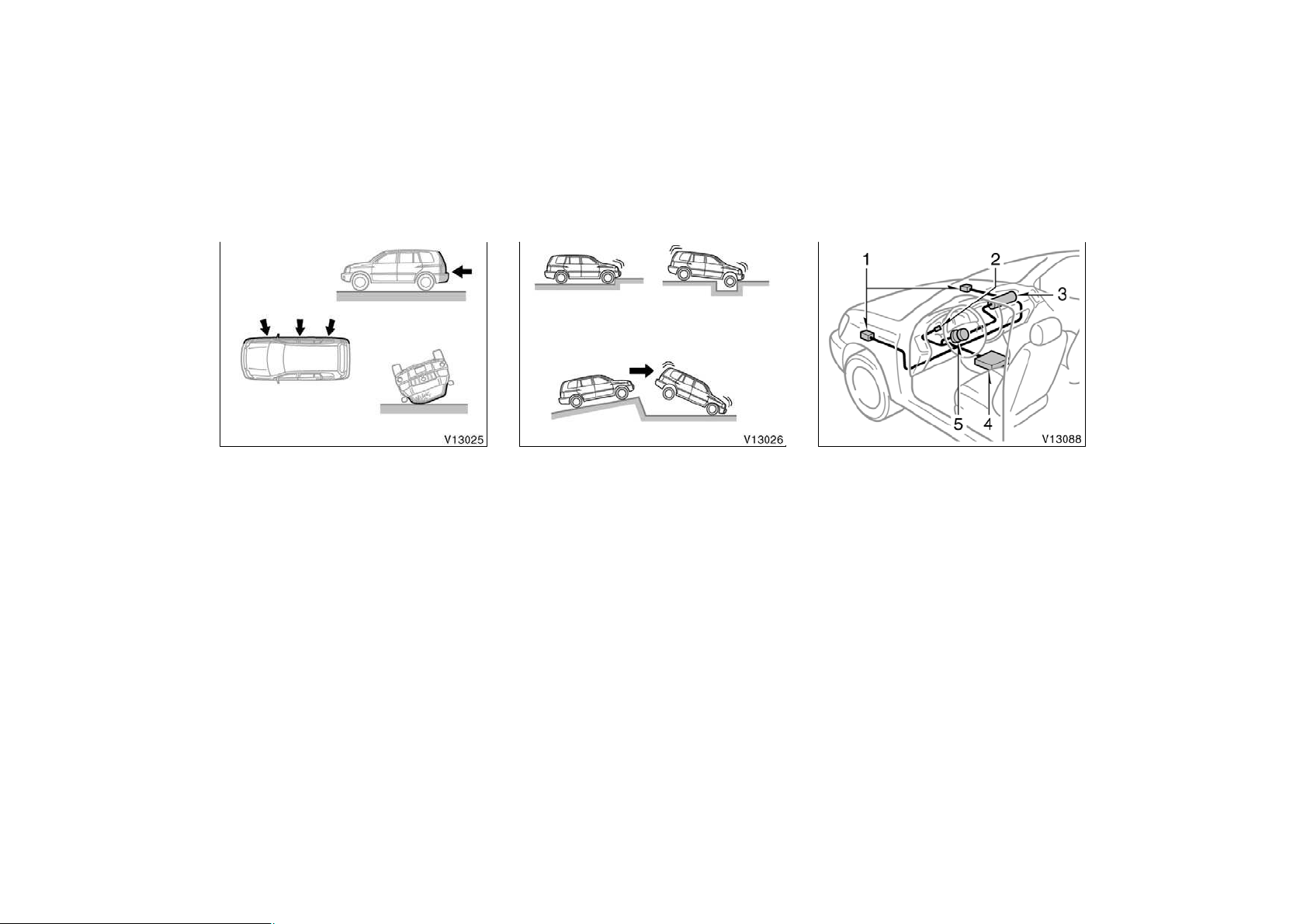

Collision from the rear
Collision from the side
Vehicle rollover
The SRS front airbags are not designed
to inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or
if it is involved in a low−speed frontal
collision.
Hitting a curb,
edge of pavement
or hard material
Landing hard or vehicle falling
Falling into or
jumping over a
deep hole
The SRS front airbags may deploy if a
serious impact occurs to the underside
of your vehicle. Some examples are
shown in the illustration.
2001 MY HIGHLANDER_U (OM48432U)
The SRS airbag system consists mainly of
the following components, and their locations are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger
(airbag and inflator)
4. Airbag sensor assembly
5. Airbag module for driver
(airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
55
Page 56
’01 HIGHLANDER_U (L/O 0106)
In a severe frontal impact, the sensors
detect deceleration and the system triggers the airbag inflators. Then a chemical
reaction in the inflators quickly fills the
airbags with non−toxic gas to help restrain
the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non−toxic gas. This
does not indicate a fire. This gas is normally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious injuries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.
A crash severe enough to inflate the airbags may break the windshield as the
vehicle buckles. In vehicles with a passenger airbag the windshield may also be
damaged by absorbing some of the force
of the inflating airbag.
CAUTION
D The SRS airbag system is designed
only as a supplement to the primary protection of the driver side and
front passenger side seat belt systems. The front seat occupants can
be killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move forward into direct contact with or
close proximity to the airbag which
may then deploy during the collision. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wearing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For
instructions and precautions concerning the seat belt system, see
“Seat belts” on page 45 in this section.
56
2001 MY HIGHLANDER_U (OM48432U)
Page 57

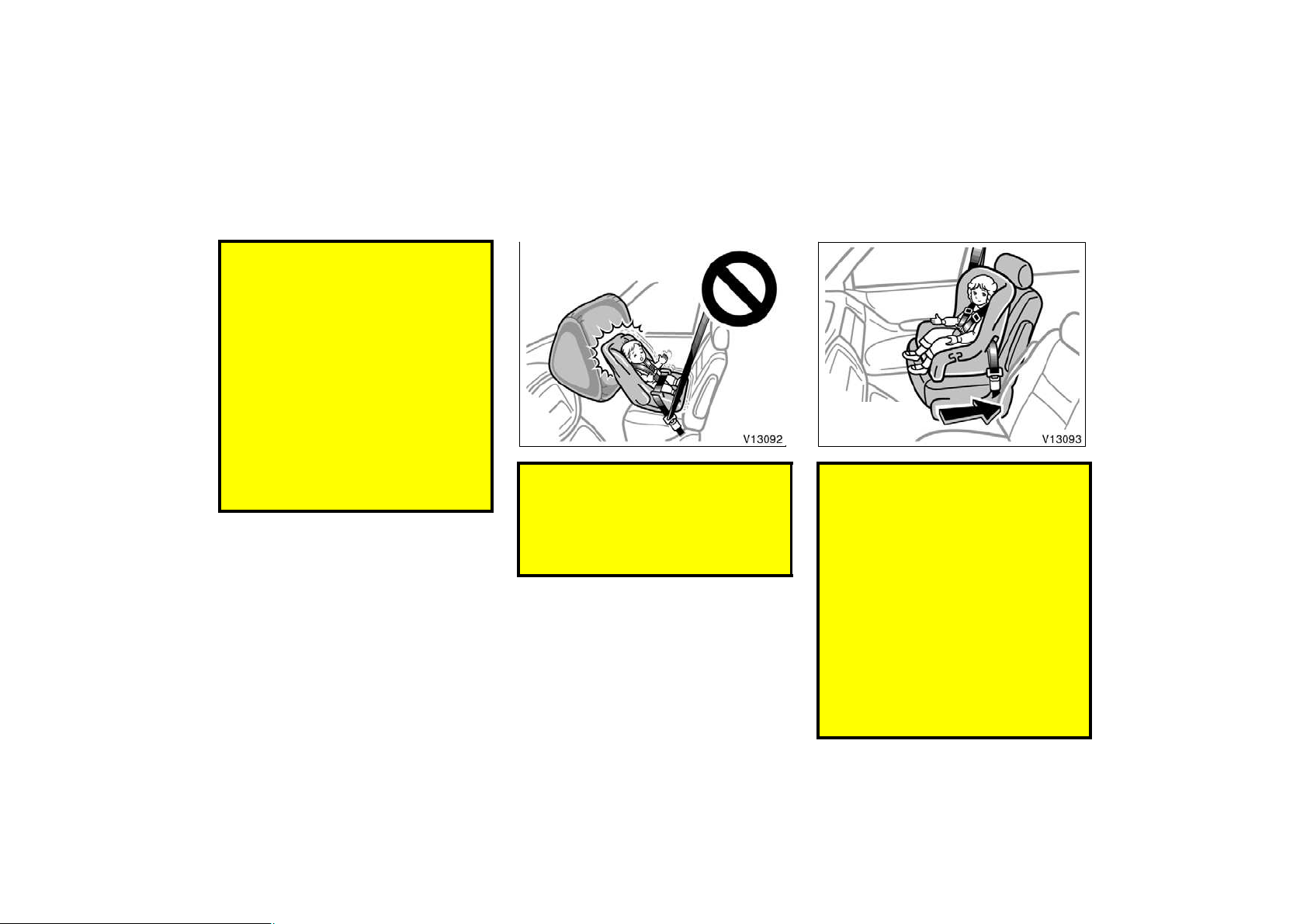

D Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploying front airbags. An infant or child
who is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all infants and children be placed in the
rear seat of the vehicle and properly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installation of a child restraint system, see
“Child restraint” on page 66 in this
section.
’01 HIGHLANDER_U (L/O 0106)
D Never put a rear−facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the front passenger airbag can cause death or serious injury to the child.
Move seat
fully back
D A forward−facing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, because the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
D On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dangerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
2001 MY HIGHLANDER_U (OM48432U)
57
Page 58

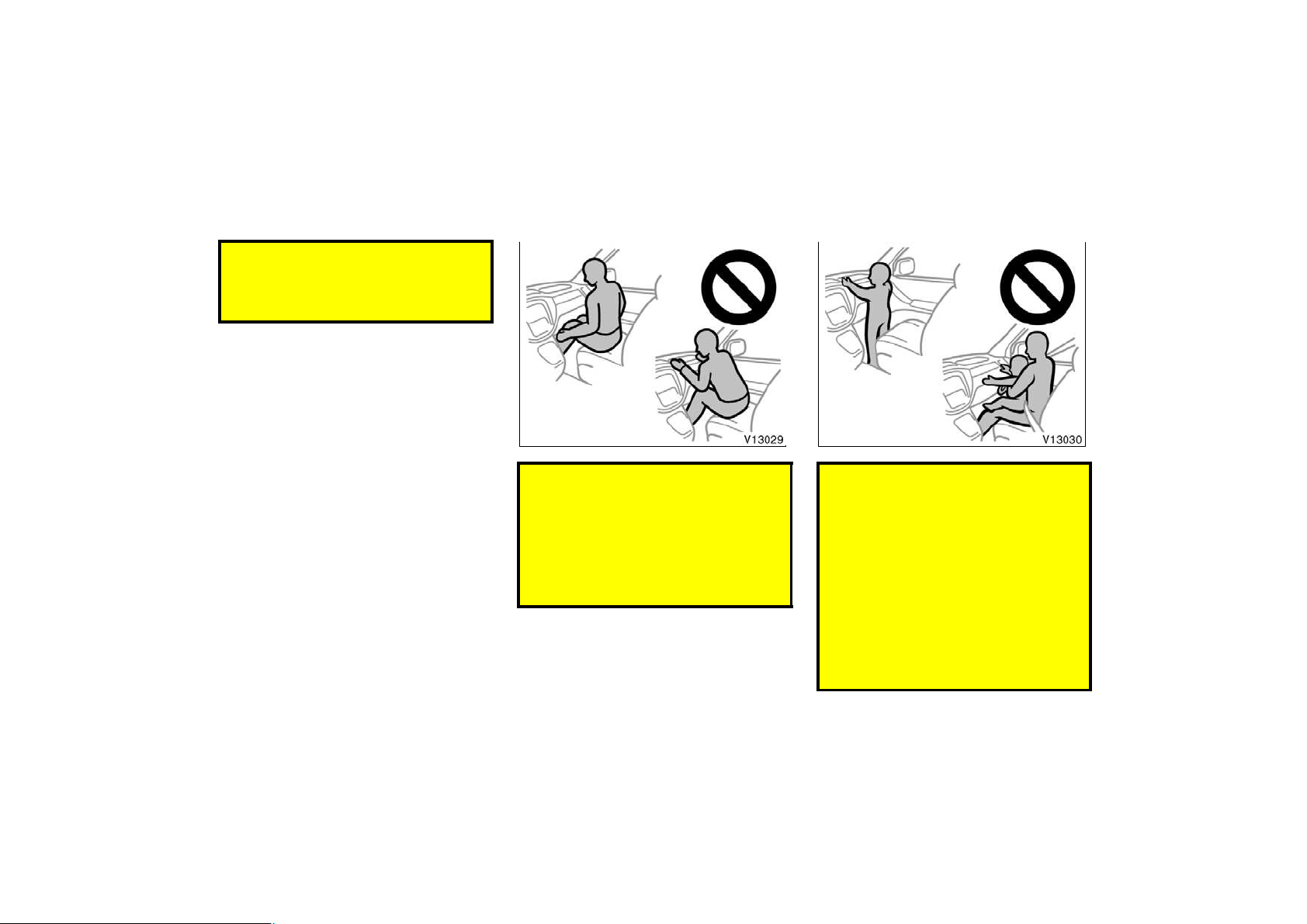

D For instructions concerning the
installation of a child restraint system, see “Child restraint” on page
66 in this section.
’01 HIGHLANDER_U (L/O 0106)
58
D Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use. The front airbags inflate with considerable
speed and force; you may be killed
or seriously injured. Sit up straight
and well back in the seat, and always use your seat belt properly.
2001 MY HIGHLANDER_U (OM48432U)
D Do not allow a child to stand up,
or to kneel on the front passenger
seat. The front airbag inflates with
considerable speed and force; the
child may be killed or seriously injured.
D Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instructions concerning the installation of
a child restraint system, see “Child
restraint” on page 66 in this section.
Page 59
’01 HIGHLANDER_U (L/O 0106)
D Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
front airbag system. They might restrict inflation or cause death or
serious injury as they are projected
rearward by the force of the deploying airbags. Likewise, the driver
and front passenger should not
hold things in their arms or on
their knees.
D Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components, such as
the steering wheel pad, steering
wheel, column cover, front passenger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing any of these may cause sudden SRS front airbag inflation or
disable the system, which could result in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
z Installation of electronic devices
such as a mobile two−way radio,
cassette tape player or compact
disc player
z Modification of the suspension sys-
tem
z Modification of the front end struc-
ture
z Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
z Repairs made on or near the front
fenders, front end structure, console, steering column, steering
wheel or dashboard near the front
passenger airbag
2001 MY HIGHLANDER_U (OM48432U)
59
Page 60
’01 HIGHLANDER_U (L/O 0106)
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

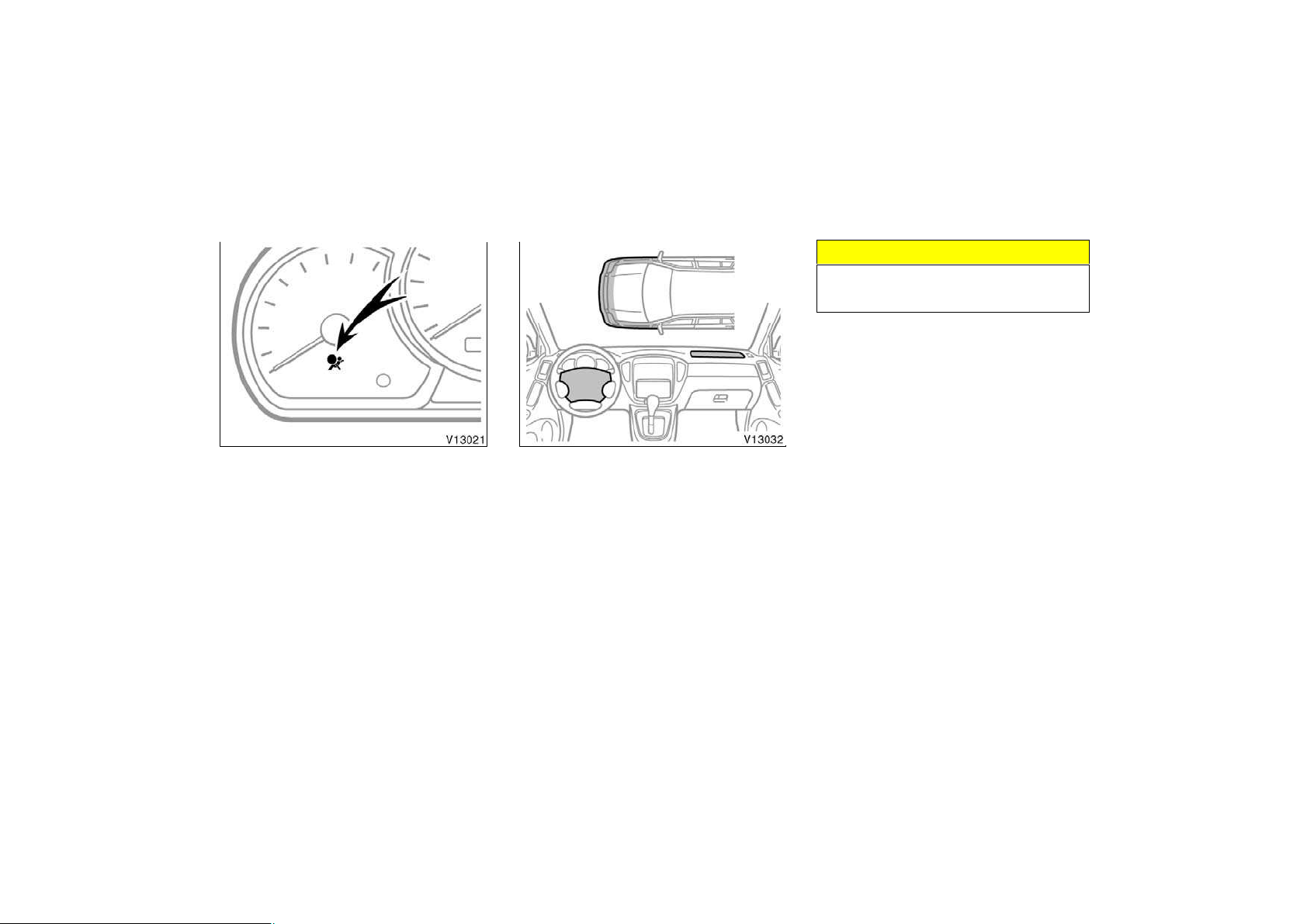

This SRS front airbag system has a
service reminder indicator to inform the
driver of operating problems. If either of
the following conditions occurs, this indicates a malfunction of the airbags. Contact your Toyota dealer as soon as possible to service the vehicle.
D The light does not come on when the
ignition key is turned to the “ON” position, or the light remains on.
D The light comes on while driving.
60
In the following cases, contact your Toyota
dealer as soon as possible:
D The SRS front airbags have been in-
flated.
D The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS front airbags to inflate.
D The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
2001 MY HIGHLANDER_U (OM48432U)
Page 61
SRS side airbags
The SRS (Supplemental Restraint System) side airbags are designed to provide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe side impact, the
SRS side airbags work together with the
seat belts to help reduce injury by inflating. The SRS side airbags help to reduce
injuries mainly to the driver’s or front passenger’s chest. The SRS side airbag on
the passenger seat is activated even with
no passenger in the front seat.
Be sure to wear your seat belt properly.
’01 HIGHLANDER_U (L/O 0106)
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and front passenger
when the SRS side airbags are inflated.
CAUTION
SRS side airbags inflate with considerable force. To avoid potential death
or serious injury when they inflate,
the driver and front passenger must:
D Wear their seat belts properly.
D Remain properly seated with their
back upright and against the seat at
all times.
This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, side airbag sensor, front seat belt
pretensioner assemblies, inflators, warning
light, interconnecting wiring and power
sources. (For details, see “Service reminder indicators and warning buzzers” on
page 102 in Section 1−5.)
2001 MY HIGHLANDER_U (OM48432U)
61
Page 62
Collision from the rear
Collision from the front
’01 HIGHLANDER_U (L/O 0106)
Vehicle rollover
The SRS side airbag system may not
activate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustration.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
For the safety of all occupants, always
wear your seat belts properly.
62
The SRS side airbags are not designed
to inflate if the vehicle is involved in a
front or rear collision, if it rolls over,
or if it is involved in a low−speed side
collision.
2001 MY HIGHLANDER_U (OM48432U)
The SRS side airbag system consists
mainly of the following components, and
their locations are shown in the illustration.
1. SRS warning light
2. Side airbag modules
(airbag and inflator)
3. Side airbag sensors
4. Airbag sensor assembly
The SRS side airbag system is controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sensor and airbag sensor.
Page 63
’01 HIGHLANDER_U (L/O 0106)
In a severe side impact, the side airbag
sensor triggers the side airbag inflators.
Then a chemical reaction in the inflators
quickly fills the airbags with non−toxic gas
to help restrain the lateral motion of the
occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non−toxic gas. This
does not indicate a fire. This gas is normally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happen in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious injuries, it may also cause minor burns or
abrasions and swelling.
Front seats may be hot for several minutes, but the airbags themselves will not
be hot. The airbags are designed to inflate
only once.
CAUTION
D The SRS side airbag system is de-
signed only as a supplement to the
primary protection of the driver
side and front passenger side seat
belt systems. To ensure maximum
protection in an accident, the driver
and all passengers in the vehicle
must wear their seat belts properly.
Wearing a seat belt properly during
an accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For
instructions and precautions concerning the seat belt system, see
“Seat belts” on page 45 in this section.
D Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploying airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all infants and children be placed in the
rear seat of the vehicle and properly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installation of a child restraint system, see
“Child restraint” on page 66 in this
section.
D Do not allow a child to lean his/her
head or any part of his/her body
against the front door or the area
of the seat from which the side airbag deploys even if he/she is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.
For instructions concerning the
installation of a child restraint system, see “Child restraint” on page
66 in this section.
2001 MY HIGHLANDER_U (OM48432U)
63
Page 64
D Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.
D Do not apply excessive weight to
the outer side of the front seats on
vehicles with side airbags.
’01 HIGHLANDER_U (L/O 0106)
D Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag inflates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold things in their
arms or on their knees.
D Do not use accessories for the
seats which cover the parts where
the side airbags inflate. Such accessories may prevent the side airbags
from activating correctly, causing
death or serious injury.
D Do not modify or replace the seats
or upholstery of the front seats
with the side airbags. Such changes
may disable the system or cause
the side airbags to inflate accidentally, resulting in death or serious
injury. Consult your Toyota dealer if
you insist on modifications of this
kind.
Failure to follow these instructions
can result in death or serious injury.
64
2001 MY HIGHLANDER_U (OM48432U)
Page 65
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag system in some
cases.
z Installation of electronic devices
such as a mobile two−way radio,
cassette tape player or compact
disc player
z Modification of the suspension sys-
tem
z Modification of the side structure of
the passenger compartment
z Repairs made on or near the con-
sole or front seat
’01 HIGHLANDER_U (L/O 0106)
This SRS side airbag system has a
service reminder indicator to inform the
driver of operating problems. If either of
the following conditions occurs, this
indicates a malfunction of the airbags.
Contact your Toyota dealer as soon as
possible to service the vehicle.
D The light does not come on when the
ignition key is turned to the “ON” position, or the light remains on.
D The light comes on or flashes while
driving.
In the following cases, contact your Toyota
dealer as soon as possible:
D The SRS side airbags have been in-
flated.
D The portion of the doors (shaded in the
illustration) were involved in an accident that was not severe enough to
cause the SRS side airbags to inflate.
D The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise damaged.
2001 MY HIGHLANDER_U (OM48432U)
65
Page 66
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
’01 HIGHLANDER_U (L/O 0106)
Child restraint—
—Child restraint precautions
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 45 for details.
CAUTION
D For effective protection in automo-
bile accidents and sudden stops,
child must be properly restrained
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
D Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
and is put on the rear seat. According to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
D Never put a rear−facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear−facing child restraint system
is put on the front seat.
D Unless it is unavoidable, do not put
a child restraint system on the
front seat.
D A forward−facing child restraint sys-
tem should be allowed to put on
the front seat only when it is unavoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
66
2001 MY HIGHLANDER_U (OM48432U)
Page 67
D On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dangerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
D Make sure that you have complied
with all installation instructions provided by the child restraint
manufacturer and that the system is
properly secured.
’01 HIGHLANDER_U (L/O 0106)
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt. You must
carefully consult the manufacturer’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufacturer’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
CAUTION
D Never put a rear−facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear−facing child restraint system
is put on the front seat.
D Unless it is unavoidable, do not put
a child restraint system on the
front seat.
D A forward−facing child restraint sys-
tem should be allowed to put on
the front seat only when it is unavoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
D On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dangerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
2001 MY HIGHLANDER_U (OM48432U)
67
Page 68
D After installing the child restraint
system, make sure it is secured in
place following the manufacturer’s
instructions. If it is not restrained
securely, it may cause death or serious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from injuring passengers in the event of a sudden stop or accident.
’01 HIGHLANDER_U (L/O 0106)
—Types of child restraint
system
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.

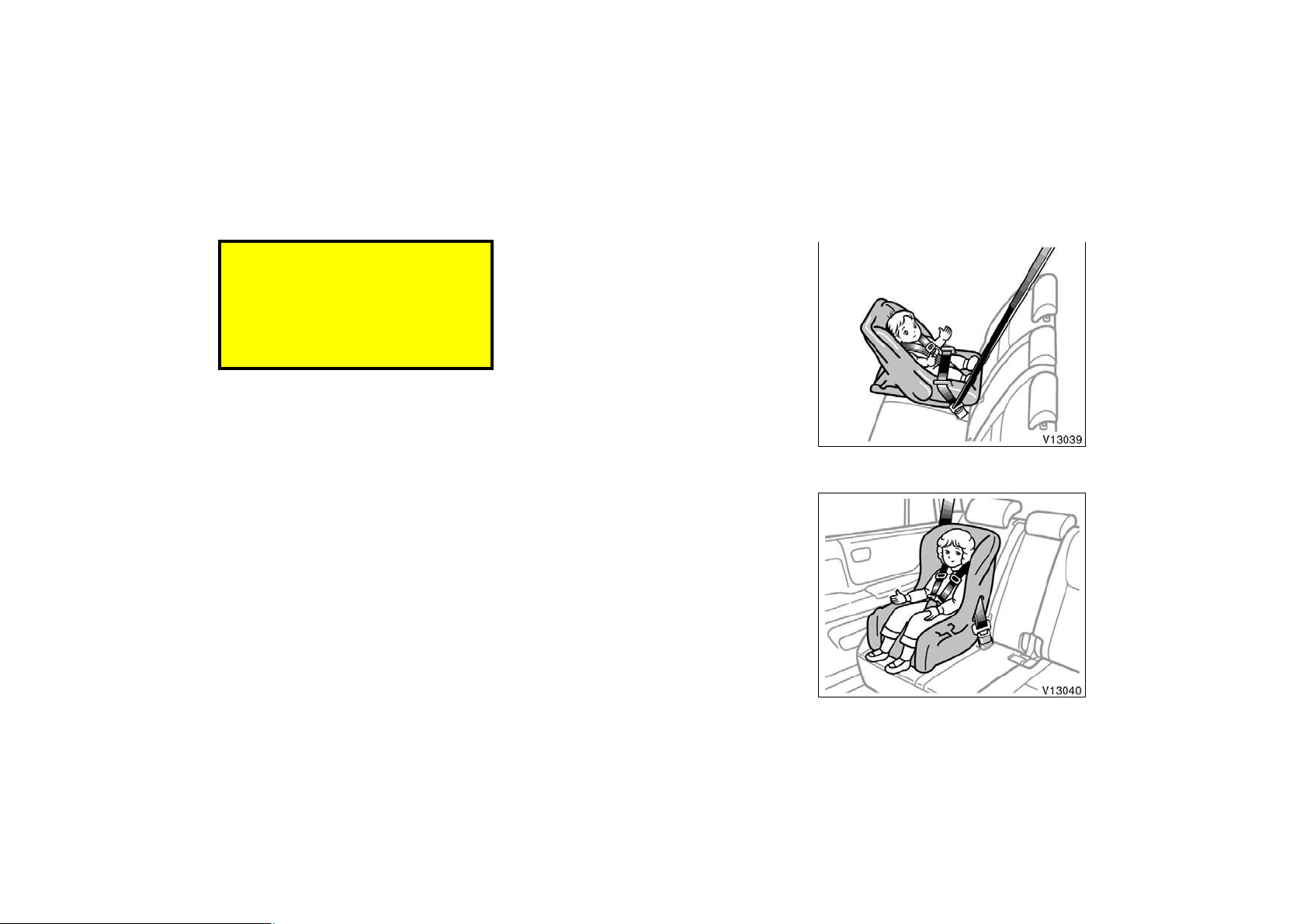

(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufacturer.
Your vehicle has anchor brackets for securing the top strap of a child restraint
system.
For instructions about how to use the anchor bracket, see “—Using a top strap” on
page 79 in this section.
The child restraint lower anchorages approved for your vehicle may also be used.
See “—Installation with child restraint lower anchorages” on page 81 in this section.
(A) Infant seat
68
(B) Convertible seat
2001 MY HIGHLANDER_U (OM48432U)
Page 69
’01 HIGHLANDER_U (L/O 0106)
—Installation with 3−point
type seat belt
(C) Booster seat
(A) INFANT SEAT INSTALLATION
An infant seat is used in rear−facing
position only.
2001 MY HIGHLANDER_U (OM48432U)
CAUTION
D Never put a rear−facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the front passenger airbag can cause death or serious injury to the child.
69
Page 70
’01 HIGHLANDER_U (L/O 0106)
Same angle
D Do not put a rear−facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
death or serious injury to the child
and front passenger in case of sudden braking or a collision.
D If your driving position is not satis-
factory, do not install the child restraint system on the left seat.
70
D When installing a child restraint
system in the rear center position,
align both seatbacks at the same
angle. Otherwise, the child restraint
system cannot be securely restrained and this may cause serious
injuries in a collision.
2001 MY HIGHLANDER_U (OM48432U)
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufacturer and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
Page 71
CAUTION
D After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
D Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
D If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
’01 HIGHLANDER_U (L/O 0106)

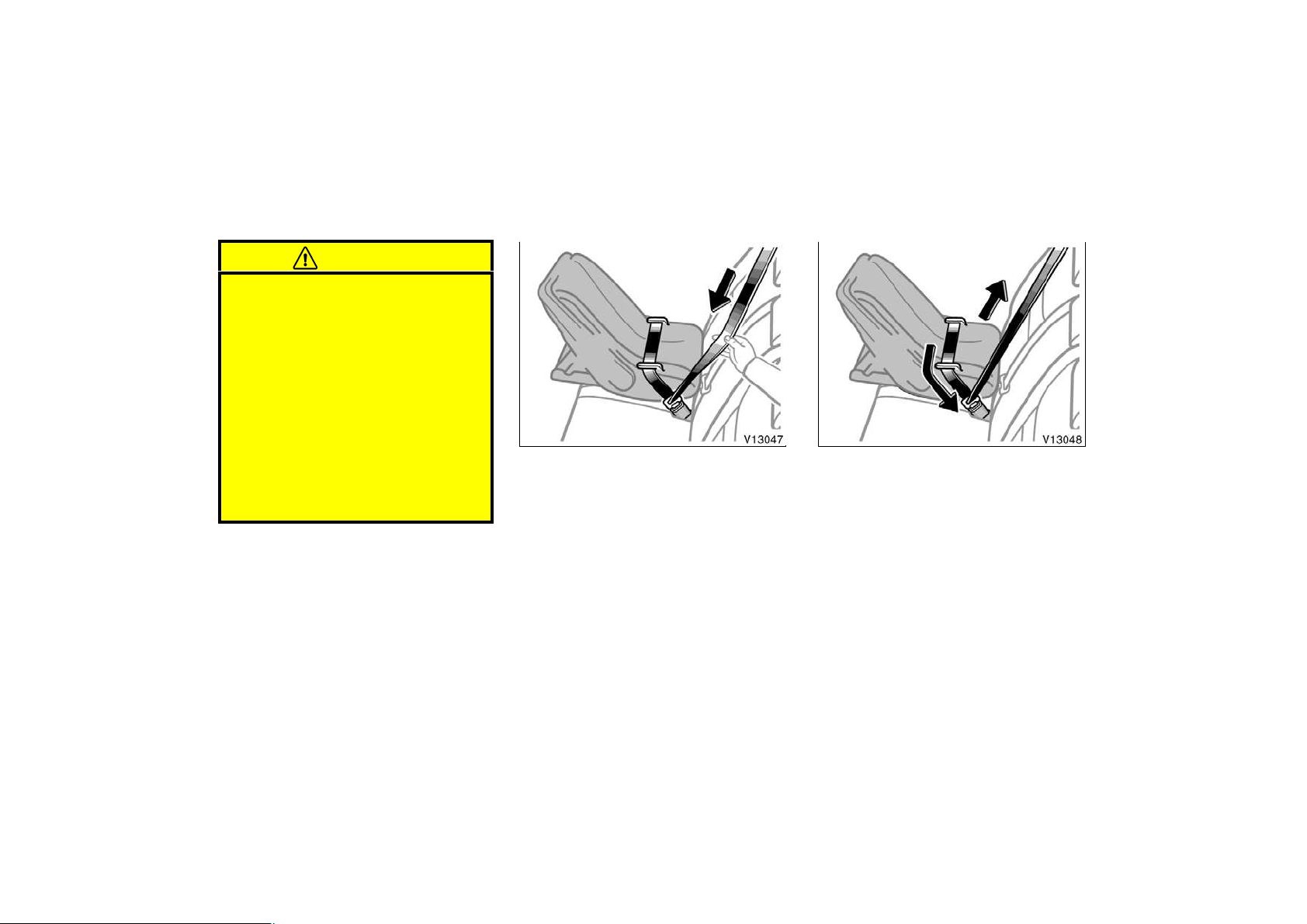

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat securely.
2001 MY HIGHLANDER_U (OM48432U)
71
Page 72

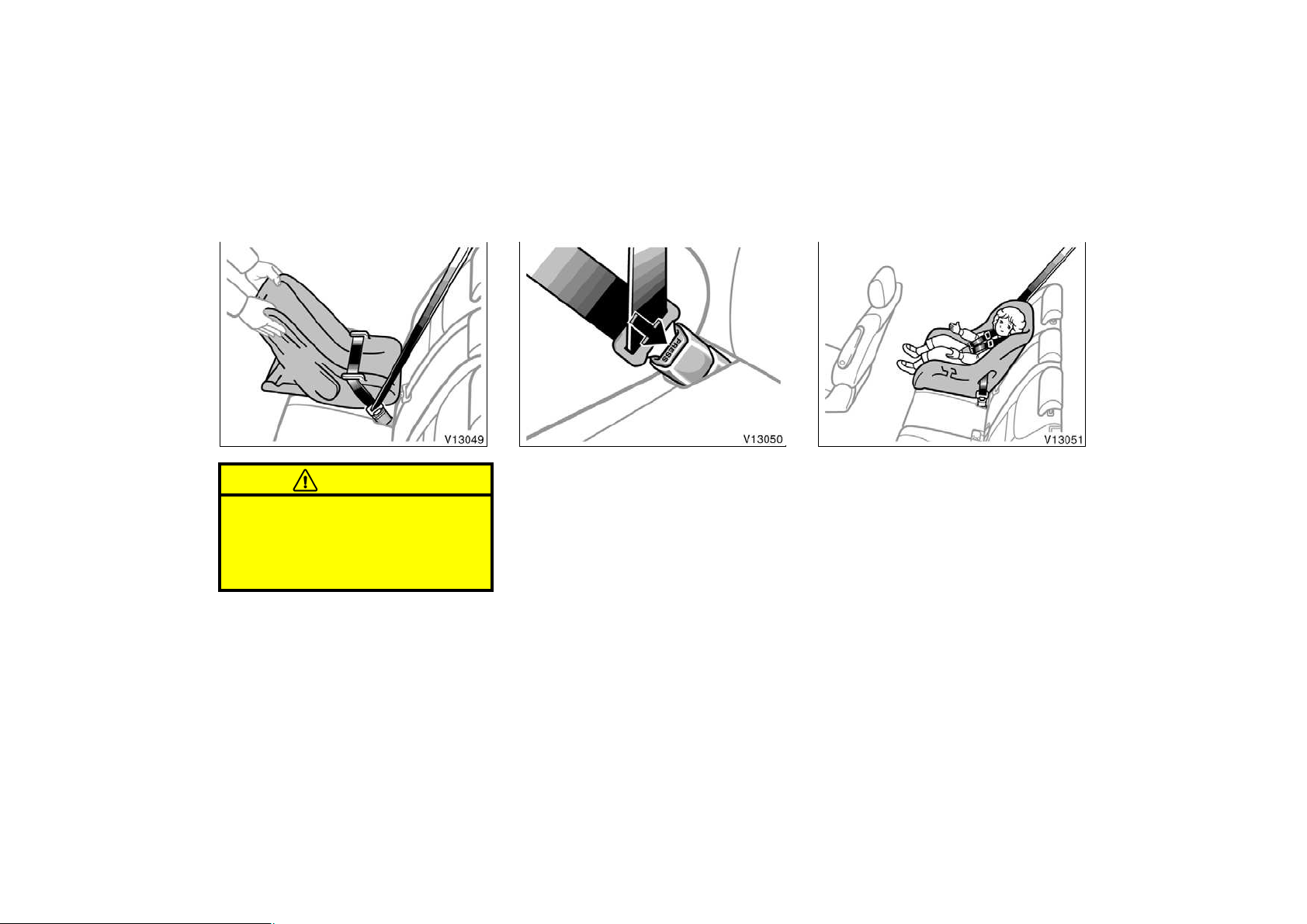

’01 HIGHLANDER_U (L/O 0106)
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
72
4. To remove the infant seat, press the
buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
2001 MY HIGHLANDER_U (OM48432U)
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward−
facing or rear−facing position depending on the child’s age and size. When
installing, follow the manufacturer’s instruction about the applicable child’s
age and size as well as directions for
installing the child restraint system.
Page 73

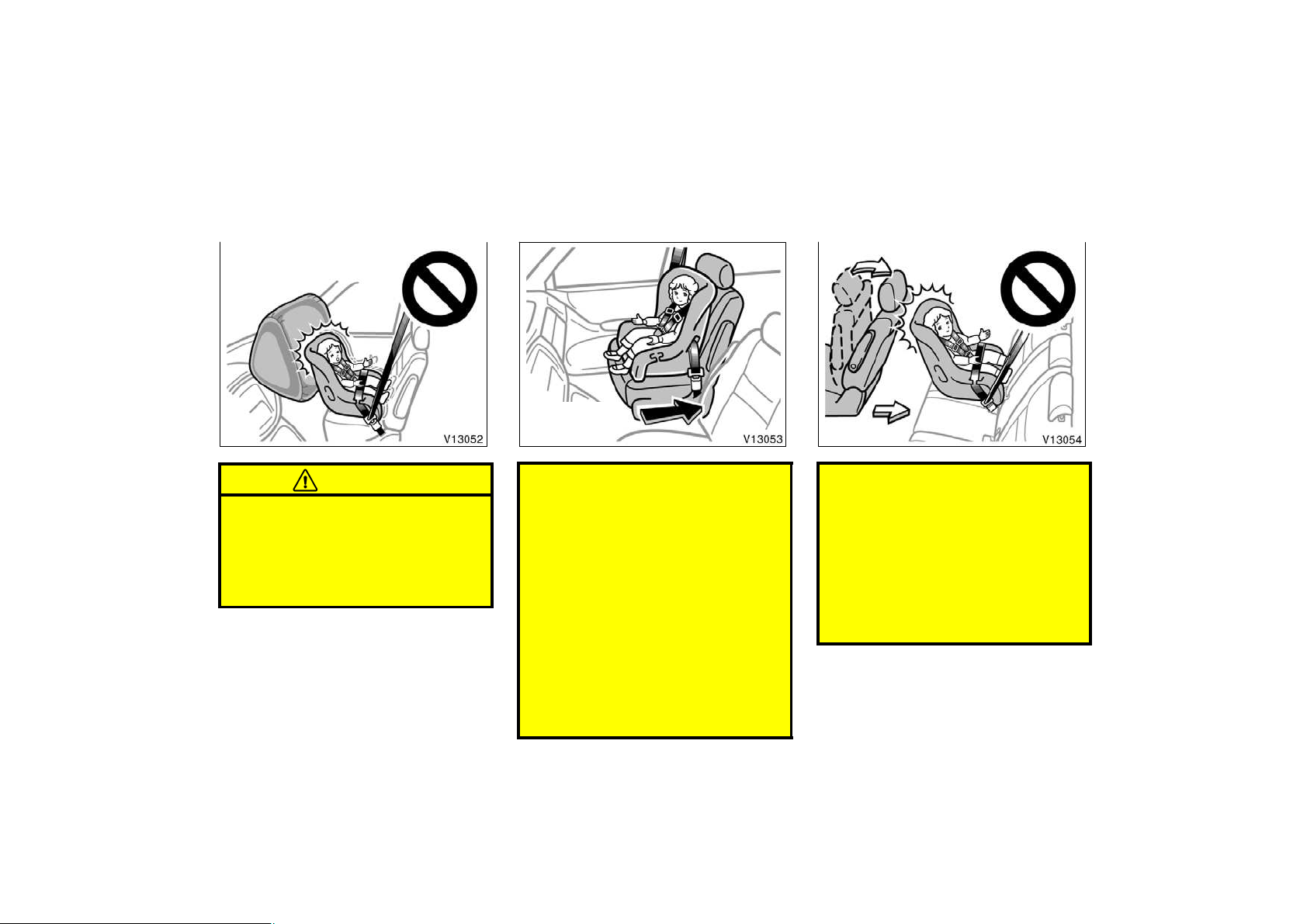

Move seat
fully back
’01 HIGHLANDER_U (L/O 0106)
CAUTION
D Never put a rear−facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the front passenger airbag can cause death or serious injury to the child.
D A forward−facing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, because the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
D On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dangerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
2001 MY HIGHLANDER_U (OM48432U)
D Do not put a rear−facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
death or serious injury to the child
and front passenger in case of sudden braking or a collision.
D If your driving position is not satis-
factory, do not install the child restraint system on the left seat.
73
Page 74
’01 HIGHLANDER_U (L/O 0106)
Same angle
D When installing a child restraint
system in the rear center position,
align both seatbacks at the same
angle. Otherwise, the child restraint
system cannot be securely restrained and this may cause serious
injuries in a collision.
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
D After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
D Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
D If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
74
2001 MY HIGHLANDER_U (OM48432U)
Page 75
’01 HIGHLANDER_U (L/O 0106)
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convertible seat securely.
2001 MY HIGHLANDER_U (OM48432U)
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
75
Page 76
’01 HIGHLANDER_U (L/O 0106)
Move seat
fully back
4. To remove the convertible seat, press
the buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
76
(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward−fac-
ing position only.
2001 MY HIGHLANDER_U (OM48432U)
CAUTION
D A forward−facing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, because the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
Page 77
’01 HIGHLANDER_U (L/O 0106)
D On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dangerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
Same angle
D When installing a child restraint
system in the rear center position,
align both seatbacks at the same
angle. Otherwise, the child restraint
system cannot be securely restrained and this may cause serious
injuries in a collision.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child following the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page
45 for details.
2001 MY HIGHLANDER_U (OM48432U)
77
Page 78
’01 HIGHLANDER_U (L/O 0106)
CAUTION
D Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Failure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a collision.
D Both high−positioned lap belts and
loose−fitting belts could cause serious injuries due to sliding under
the lap belt during a collision or
other unintended. Keep the lap belt
positioned as low on a child’s hips
as possible.
D For child’s safety, do not place the
shoulder belt under child’s arm.
D After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
D Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
D If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system,
press the buckle−release button and allow the belt to retract.
78
2001 MY HIGHLANDER_U (OM48432U)
Page 79

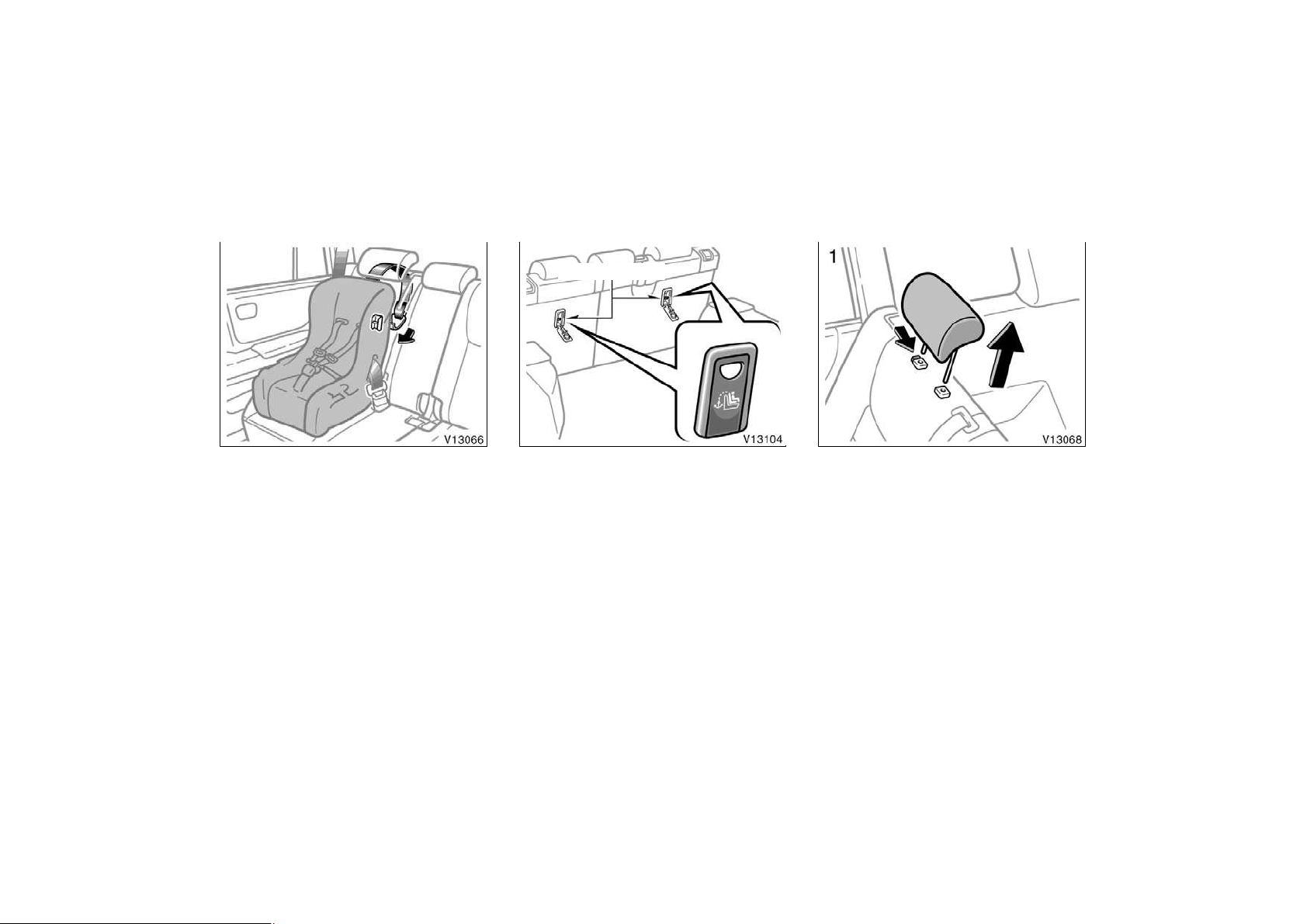

—Using a top strap
’01 HIGHLANDER_U (L/O 0106)
Anchor brackets
Symbol
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for both outside rear seating positions.
This symbol indicates the location of user
ready anchor brackets.
2001 MY HIGHLANDER_U (OM48432U)
TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.
79
Page 80
’01 HIGHLANDER_U (L/O 0106)
2. Open the anchor bracket cover with
the symbol as shown in the illustration.
80
3. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child restraint system, see “Child restraint” on
page 66 in this section.
CAUTION
Make sure the top strap is securely
latched, and check that the child restraint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
2001 MY HIGHLANDER_U (OM48432U)
4. Replace the head restraint.
Be sure to close the cover when the anchor bracket is not in use.
Page 81
—Installation with child
restraint lower anchorages
The lower anchorages for the child restraint system interfaced with the
FMVSS225 specification are installed in
the rear seat.
The anchorages are installed in the clearance between the seat cushion and seatback of both outside rear seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
’01 HIGHLANDER_U (L/O 0106)
Type A Type B
2001 MY HIGHLANDER_U (OM48432U)
81
Page 82
CHILD RESTRAINT SYSTEM
INSTALLATION
Type A —
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the lower anchorages below the tag in the
seatback.
2. Latch the hooks of lower straps onto
the anchorages and tighten the lower
straps.
Type B —
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the lower anchorages below the tag in the
seatback.
2. Latch the buckles onto the anchorages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 79 in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.
’01 HIGHLANDER_U (L/O 0106)
CAUTION
D When using the lower anchorages
for the child restraint system, be
sure that there are no irregular objects around the anchorages or that
the seat belt is not caught.
D Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
D After securing the child restraint
system, never recline the seat.
D Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause severe injury
to the child and front passenger in
case of sudden braking or a collision.

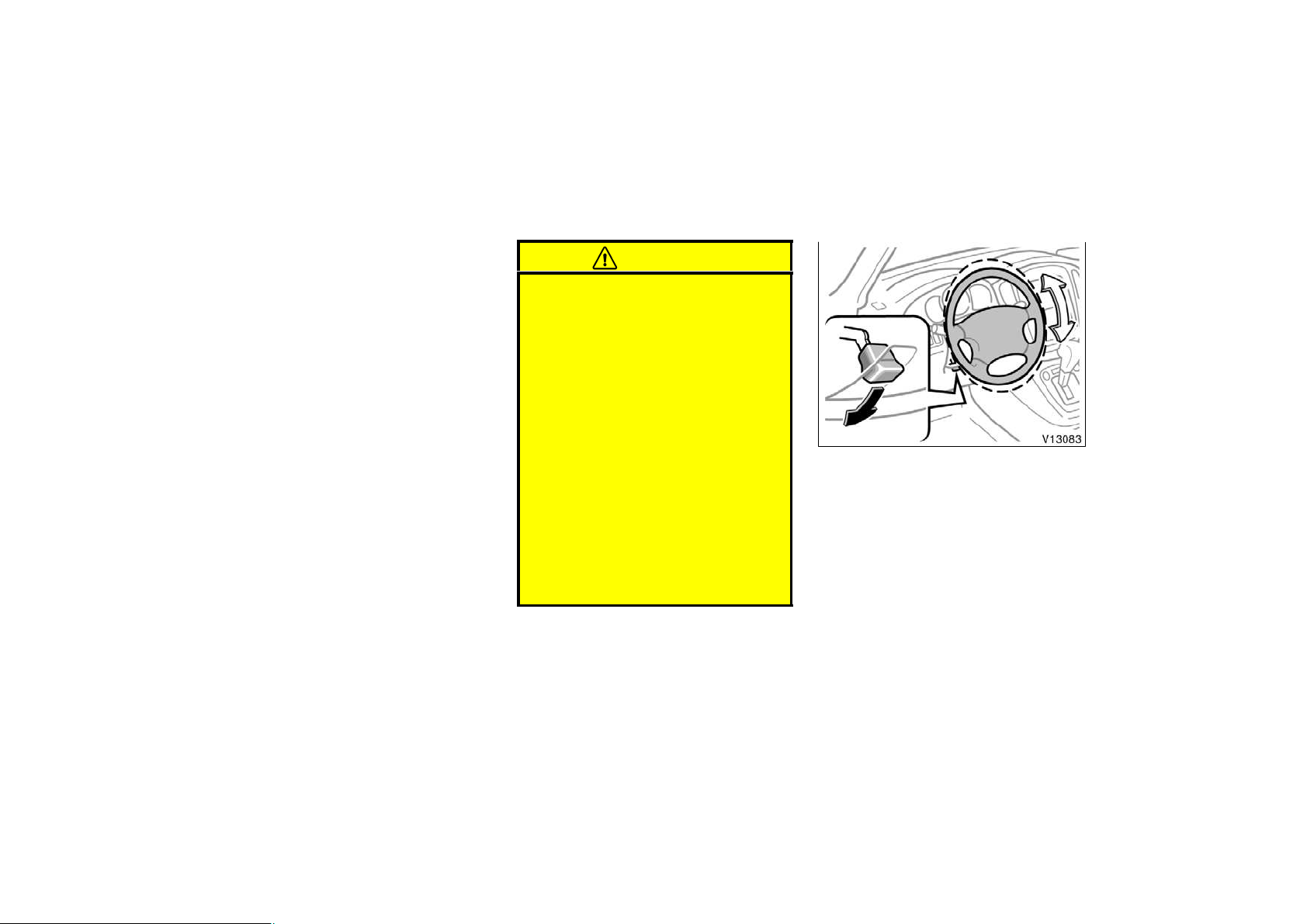

Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
82
2001 MY HIGHLANDER_U (OM48432U)
Page 83
’01 HIGHLANDER_U (L/O 0106)
Outside rear view mirrors—
CAUTION
D Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious injuries.
D After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
CAUTION
D Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
D Since the mirror surfaces can get
hot, keep your hands off them when
the defogger switch is on.
Adjust the mirror so that you can just
see the side of your vehicle in the mirror.
Be careful when judging the size or distance of any object seen in the outside
rear view mirror on the passenger’s side.
It is a convex mirror with a curved surface. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the outside rear view mirror defogger switch, the
heater panels in the outside rear view
mirrors will quickly clear the mirror surface.
2001 MY HIGHLANDER_U (OM48432U)
83
Page 84
’01 HIGHLANDER_U (L/O 0106)
—Power rear view mirror
control
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to
be adjusted
Push the “L” (left) or “R” (right) switch.
2. Control switch—To move the mirror
Push the switch in the desired direction.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mirror face. Use a spray de−icer to free
the mirror.
—Folding rear view mirrors
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push backward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and passenger side rear view mirrors must
be extended and properly adjusted
before driving.
Anti−glare inside rear view
mirror
Adjust the mirror so that you can just
see the rear of your vehicle in the mirror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
84
2001 MY HIGHLANDER_U (OM48432U)
Page 85
Sun visors—
’01 HIGHLANDER_U (L/O 0106)
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the anti−glare
inside rear view mirror and obstruct
the rear view.
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (position 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
2001 MY HIGHLANDER_U (OM48432U)
85
Page 86
—Vanity mirrors
To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
’01 HIGHLANDER_U (L/O 0106)
86
2001 MY HIGHLANDER_U (OM48432U)
Page 87
’01 HIGHLANDER_U (L/O 0106)
SECTION 1− 4
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defogger and windshield wiper deicer 96. . .
2001 MY HIGHLANDER_U (OM48432U)
87
Page 88

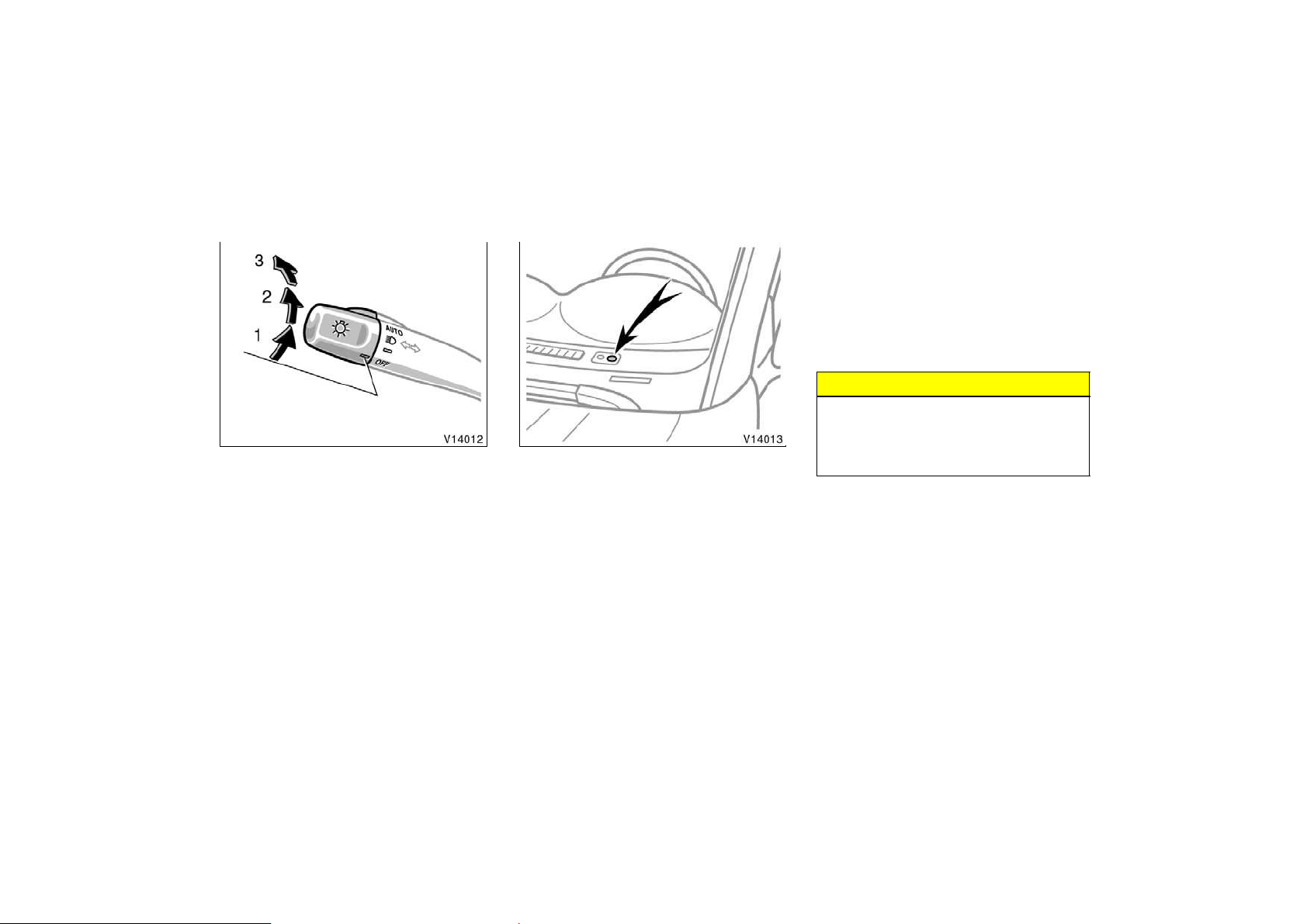

Headlights and turn signals
(with automatic light control
system)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depending on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are needed immediately when entering a dark tunnel, parking structure, etc.
’01 HIGHLANDER_U (L/O 0106)
The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position. To
turn them on again, turn the key to the
“ON” position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the battery from being discharged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensity when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
88
2001 MY HIGHLANDER_U (OM48432U)
Page 89
’01 HIGHLANDER_U (L/O 0106)
Headlights and turn signals
(without automatic light
control system)
High−Low beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever toward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
2001 MY HIGHLANDER_U (OM48432U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
The lights automatically turn off when the
driver ’s door is opened with the ignition
turned off. To turn them on again, turn the
key to the “ON” position or actuate the
headlight switch. If you are going to park
for over one week, make sure the headlight switch is off.
89
Page 90
NOTICE
To prevent the battery from being discharged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensity when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
’01 HIGHLANDER_U (L/O 0106)

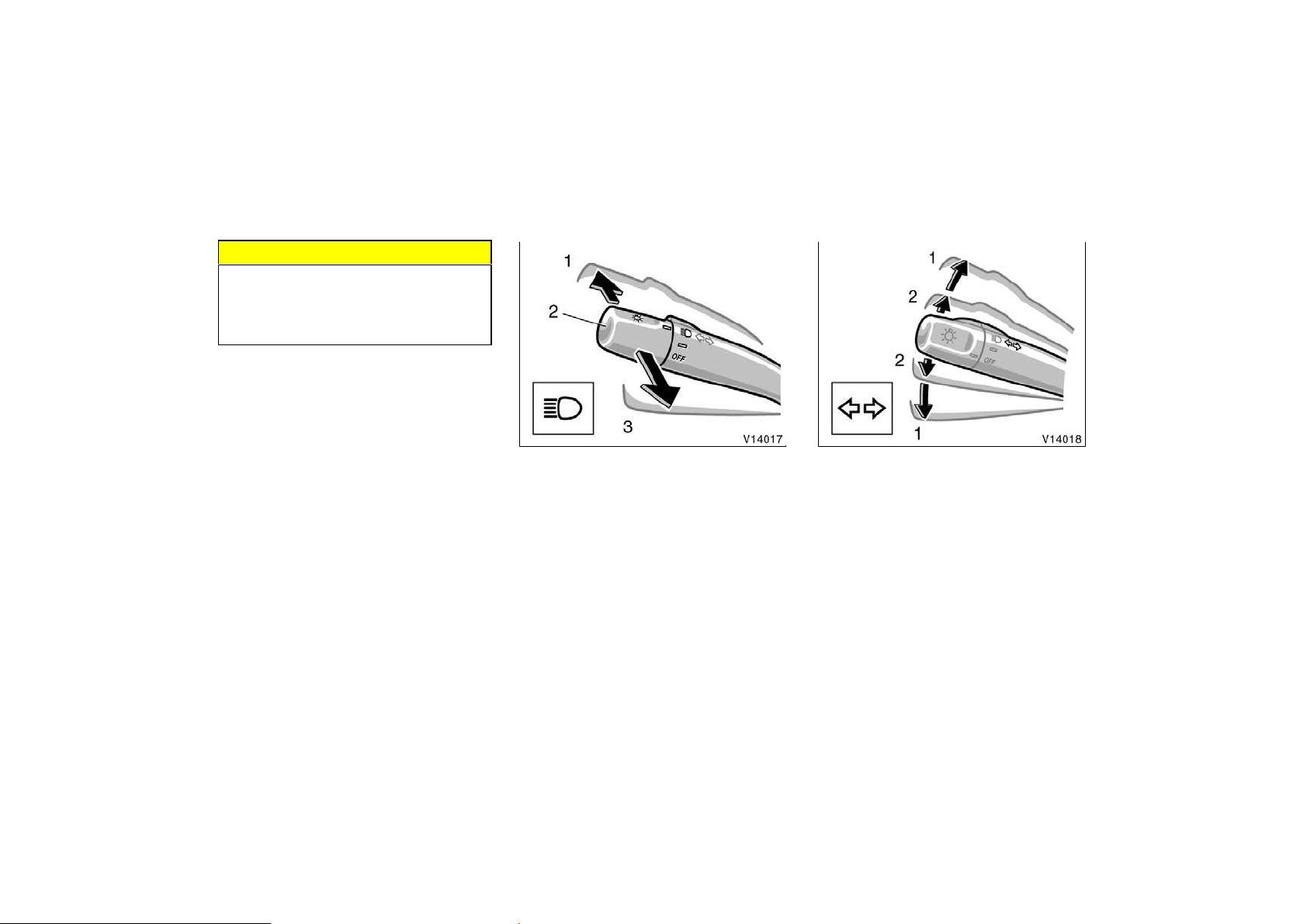

High−Low beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever toward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
90
2001 MY HIGHLANDER_U (OM48432U)
Page 91
’01 HIGHLANDER_U (L/O 0106)
Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as possible.
The turn signal light switch will not work
when the emergency flashers are operating.
Instrument panel light control
NOTICE
To prevent the battery from being discharged, do not leave the switch on
longer than necessary when the engine is not running.
To adjust the brightness of the instrument panel lights, turn the knob.
2001 MY HIGHLANDER_U (OM48432U)
91
Page 92
’01 HIGHLANDER_U (L/O 0106)
Front fog lights
To turn on the front fog lights, twist
the band of the headlight and turn signal switch lever. They will come on
only when the headlights are on low
beam.
Interior lights
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors and back door are opened.
The light goes off when all the side doors
and back door are closed.
ILLUMINATED ENTRY SYSTEM
With the switch in “DOOR” position, the
light comes on when any of the side
doors and back door are opened. After all
the side doors are closed, the light remains on for about 15 seconds and then
fades out.
However, in the following cases, the light
fades out immediately:
D All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
D The ignition key is turned to “ACC”,
“ON”, or “START” after all the side
doors and back door are closed.
D All the side doors and back door are
locked when the light is still on.
When the driver’s door is unlocked by
turning a key in either of the front doors
or with a wireless remote control transmitter, the interior light comes on for about
15 seconds and then fades out, even if
the door is not opened.
92
2001 MY HIGHLANDER_U (OM48432U)
Page 93
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
D Cancelling the door key or wireless re-
mote control operation
D Changing the timing for the light turn-
ing off
’01 HIGHLANDER_U (L/O 0106)
Ignition switch light
For easy access to the ignition switch,
the ignition switch light comes on when
any of the side doors are opened.
The light remains on for some time after
all the side doors and back door are
closed.
However, in the following cases, the lights
go off immediately.
D All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
D The ignition key is turned to “ACC”,
“ON”, or “START” after all the side
doors and back door are closed.
D All the side doors and back door are
closed and locked when the light is still
on.
When the driver’s door is unlocked by
turning a key in either of the front doors
or with a wireless remote control transmitter, the ignition switch light comes on for
about 15 seconds and then fade out, even
if the door is not opened.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
D Cancelling the door key or wireless re-
mote control transmitter linked operation
D Changing the timing for the light turn-
ing off
2001 MY HIGHLANDER_U (OM48432U)
93
Page 94
’01 HIGHLANDER_U (L/O 0106)
Personal lights
With moon roof
Windshield wipers and washer
To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position Speed setting
Position 1 Intermittent
Position 2 Slow
Position 3 Fast
For a single sweep of the windshield,
push the lever up and release it.
Without moon roof
94
2001 MY HIGHLANDER_U (OM48432U)
Page 95
With interval adjuster: The “INT TIME”
band lets you adjust the wiping time interval when the wiper lever is in the intermittent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 267 in
Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may scratch the
glass.
’01 HIGHLANDER_U (L/O 0106)

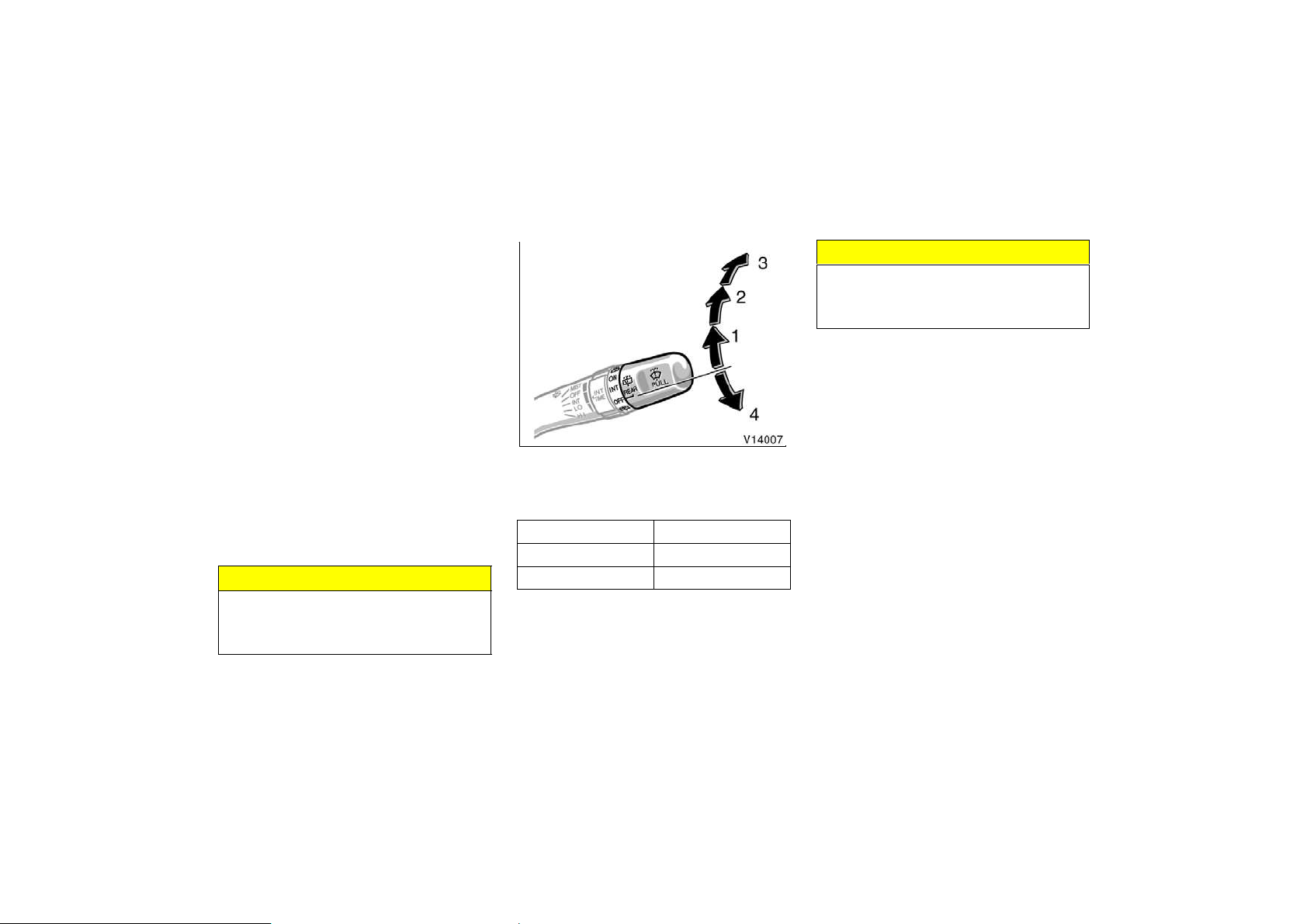

Rear window wiper and washer
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.
Lever position Speed setting
Position 1 Intermittent
Position 2 Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 267 in
Section 7−3.
2001 MY HIGHLANDER_U (OM48432U)
95
Page 96

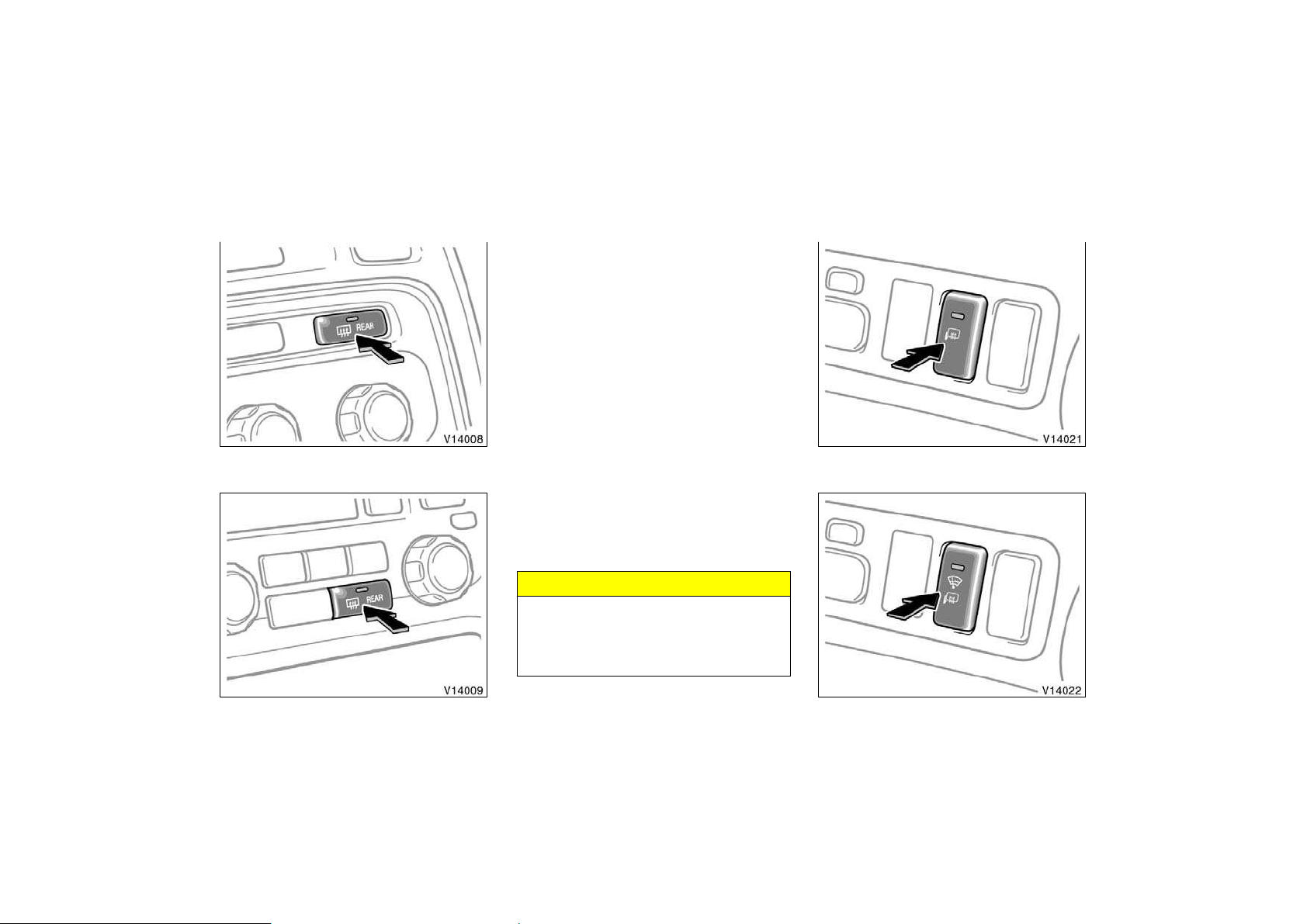

Rear window defogger
With manual air conditioning controls
’01 HIGHLANDER_U (L/O 0106)
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off after the defoggers have operated about 15
minutes.
Make sure you turn the defogger off when
the surfaces are clear. Leaving the defogger on for a long time could cause the
battery to discharge, especially during
stop−and−go driving. The defogger is not
designed for drying rain water or for melting snow.
Outside rear view mirror
defogger and windshield
wiper deicer
Type A
With automatic air conditioning controls
96
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connectors.
Type B
2001 MY HIGHLANDER_U (OM48432U)
Page 97
’01 HIGHLANDER_U (L/O 0106)
To turn on the outside rear view mirror
defogger and windshield wiper deicer,
push the switch.
The key must be in the “ON” position.
The heater panel in the outside rear view
mirrors will quickly clear the mirror surface. An indicator light is on when the
defogger is operating.
Type B only—The windshield wiper deicer
is also equipped to deice the windshield
wiper blades by operating simultaneously
with the defogger.
Push the switch once again to turn off the
system.
The system will automatically shut off after the system has operated about 15
minutes.
CAUTION
Since the mirror surfaces can get hot,
keep your hands off them when the
switch is on.
Make sure you turn the system off when
the mirror surfaces have cleared or the
wiper blades have deiced. Leaving the
system on for a long time could cause the
battery to discharge, especially during
stop−and−go driving. The defogger is not
designed for drying rain water or for melting snow.
If the outside rear view mirrors are heavily coated with ice, use a spray de−icer
before operating the switch.
NOTICE
To prevent the battery from being discharged, do not operate the system
continuously longer than necessary.
2001 MY HIGHLANDER_U (OM48432U)
97
Page 98
’01 HIGHLANDER_U (L/O 0106)
98
2001 MY HIGHLANDER_U (OM48432U)
Page 99
’01 HIGHLANDER_U (L/O 0106)
SECTION 1− 5
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge 100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 100. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters 101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 102. . . . . . . . . . . . . .
2001 MY HIGHLANDER_U (OM48432U)
99
Page 100
Fuel gauge
Low fuel level
warning light
’01 HIGHLANDER_U (L/O 0106)
Engine coolant temperature
gauge
On inclines or curves, due to the movement of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
The gauge works when the ignition
switch is on and indicates the approximate quantity of fuel remaining in the
tank.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, accelerating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
100
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
D Driving up a long hill on a hot day.
D Reducing speed or stopping after high
speed driving.
D Idling for a long period with the air
conditioning on in stop−and−go traffic.
2001 MY HIGHLANDER_U (OM48432U)
Loading...
