Toyota Echo 2002 Owner's Manual
2002MY ECHO U L/O0109

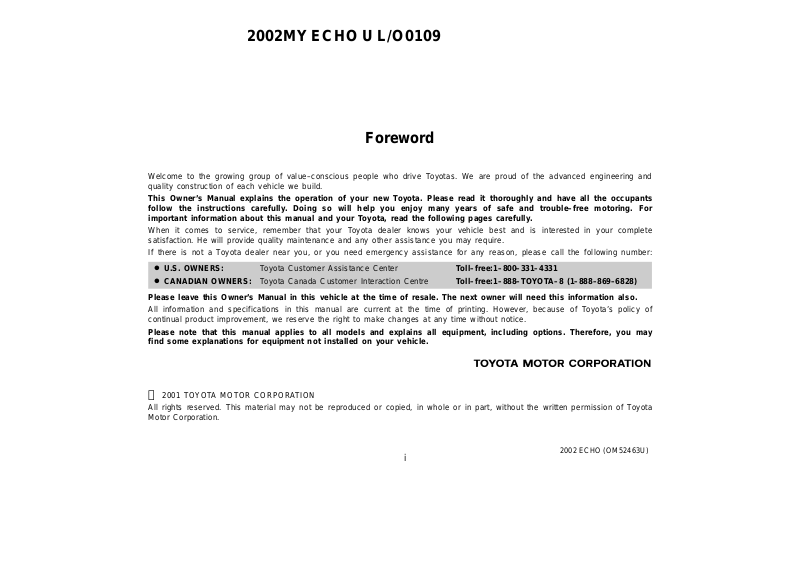

Foreword
Welcome to the growing group of value–conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construct ion of each vehi cle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble–free motoring. For
important information about this manual and your Toyota, read t he following pages car efully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satis faction. He will p rovide qualit y m aintenance and any ot her assis tance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS: Toyota Cus tomer Assis tance Center Toll–free:1–800–331–4331
CANADIAN OWNERS: Toyota Canada Customer Interaction Centre Toll–free:1–888–TOYOTA–8 (1–888–869–6828)
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.
i
2002 ECHO (OM52463U)
2002MY ECHO U L/O0109
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows.
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed what you must or must
not do in order to avoid or reduce the risk of damage
to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.
ii
2002 ECHO (OM52463U)
2002MY ECHO U L/O0109
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner’s Manual
Supplement”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure that the
specified maintenance is performed. Section 6 gives details of these maintenance requirements. Also included
in Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Scheduled
Maintenance Guide” or “Owner’s Manual Supplement”.
Accessories, spare parts and modifi-
cation of your Toyota
A wide variety of non–genuine spare parts and accessories for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non–genuine
Toyota products. Modification with non–genuine Toyota
products could affect its performance, safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
iii
2002 ECHO (OM52463U)
2002MY ECHO U L/O0109
Spark ignition system of your Toyo-
ta
The spark ignition system in your Toyota meets all requirements of the Canadian Interference–Causing Equipment Standard.
Installation of a mobile two–way ra-
dio system
As the installation of a mobile two–way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti–lock brake
system, SRS airbag system and seat belt pretensioner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, it may cause an accident such as a fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by the qualified service shop or by your Toyota dealer before you
dispose of your vehicle.
iv
2002 ECHO (OM52463U)
2002MY ECHO U L/O0109
Quick index
If a service reminder indicator or warning buzzer comes on 82. . . . . . . .
If your vehicle will not start 156. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 159. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 159. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 160. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 168. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break-in period 134. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 148. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 181. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Complete index NO TAG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher
See page 134 for detailed information.
Fuel tank capacity:
45 L (11.9 gal., 9.9 lmp.gal.)
Engine oil:
API grade SJ “Energy–Conserving”, SL “Energy–Conserving” or ILSAC
multigrade engine oil is recommended.
See page 194 for detailed information.
Automatic transmission fluid:
Automatic transmission fluid Type T–IV
See page 218 for detailed information.
Tire information: See pages 199 through 203.
Tire pressure: See page 219.
2002 ECHO (OM52463U)
Publication No. OM52463U
Part No. 01999-52463
Printed in Japan 01–0109–00
I
2002MY ECHO (U) L/O0109
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster o verview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .
1
2002 ECHO (OM52463U)
1
Instrument panel overview
SU11001
2001MY ECHO (U) L/O0008
1. Side vents
2. Instrument cluster
3. Center vents
4. Rear view mirror remote control levers
5. Auxiliary box
6. Power door lock switches
(with power windows)
7. Power window switches
8. Glove box
9. Automatic transmission selector lever or
manual transmission gear shift lever
10. Parking brake lever
11. Power door lock switch
(without power windows)
12. Hood lock release lever
13. Window lock switch
2
2002 ECHO (OM52463U)
SU11002
2002MY ECHO (U) L/O0109
1. Headlight and turn signal switch
2. Wiper and washer switches
3. Rear window defogger switch
4. Emergency flasher switch
5. Clock
6. Air conditioning controls
7. Security indicator light/Front passenger’s
seat belt reminder light
8. Car audio
9. Cigarette lighter/Power outlet
10. Ashtray /Coin box
11. Ignition switch
12. Tilt steering lock release lever
13. Instrument panel light control knob
2002 ECHO (OM52463U)
3
Instrument cluster overview
2001MY ECHO (U) L/O0008
SU11007
1. Service reminder indicators and
indicator lights
2. Speedometer
4
3. Fuel gauge
4. Odometer and two trip meters
2002 ECHO (OM52463U)
5. Tri p meter reset knob
Indicator symbols on the instrument panel
2002MY ECHO (U) L/O0109
SRS warning light
or
Brake system warning light
∗
Low fuel level warning light
Driver’s seat belt reminder light
Front passenger’s seat belt reminder light
Discharge warning light
∗
Malfunction indicator lamp
Low engine oil pressure warning light
or
Anti-lock brake system warning light
∗
∗
Low windshield washer fluid level warning light
Turn signal indicator lights
Headlight high beam indicator light
∗
∗
∗
∗
: For details, see “Service reminder indicators and warning
Overdrive–off indicator light
Low engine coolant temperature indicator light
(in blue)
High engine coolant temperature warning light
(in red)
∗
∗
∗
∗
∗
buzzers” in Section 1–5.
Open door warning light
∗
2002 ECHO (OM52463U)
5
2001MY ECHO (U) L/O0008
6
2002 ECHO (OM52463U)
2002MY ECHO (U) L/O0109
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2002 ECHO (OM52463U)
7
2001MY ECHO (U) L/O0008
Keys (type A)
SU12060
This key works in every lock.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare key in case you accidentally
lock your keys inside the vehicle.
Keys (type B)
SU12001
Your vehicle is supplied with two kinds
of key.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
trunk.
To protect things locked in the trunk when
you have your vehicle parked, leave the
sub key with the attendant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the vehicle.
SU12002
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
8
2002 ECHO (OM52463U)
Side doors—
2002MY ECHO (U) L/O0109
SY12008
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with either front door. In the driver’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the doors simultaneously.
SY12009
LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the knob down.
To unlock: Pull the knob up.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the vehicle.
Vehicles with power door lock system—The door cannot be locked if you
leave the key in the ignition switch.
2002 ECHO (OM52463U)
SU12005
Vehicles with power windows (driver’s
side)
SU12006
Vehicles with power windows (passenger’s side)
9
SY12011
2001MY ECHO (U) L/O0008
SU12030
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the vehicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the vehicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Vehicles without power windows
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
Vehicles with power windows—
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Vehicles without power windows—
To lock: Push the switch on the “LOCK”
side.
To unlock: Push the switch on the opposite side of the “LOCK” side.
All the doors lock or unlock simultaneously.
10
REAR DOOR CHILD–PROTECTORS
(4–door models only)
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend using this feature whenever small children
are in the vehicle.
2002 ECHO (OM52463U)
—Wireless remote control
SU12023
Locking operation
SU12024
2002MY ECHO (U) L/O0109
The wireless remote control system is
designed to lock or unlock all the
doors, or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE
DOORS
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time, parking lights, side marker lights and
tail lights flash.
Check to see that the doors are securely
locked.
If any of the doors is not securely closed,
or if the key is in the ignition switch,
locking cannot be performed by the
“LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. At
this time, parking lights, side marker lights
and tail lights flash twice.
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking operation is not repeated. Release the button
and then push again.
Unlocking operation
2002 ECHO (OM52463U)
11
2001MY ECHO (U) L/O0008
SU12026
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlight and tail lights.
The “PANIC” switch is used to deter the
vehicle theft when you witness anyone attempting to brake into or damage your
vehicle.
The alarm will last for one minute. To stop
this in the midway, push the “PANIC”
switch once again, unlock any door with
the key or transmitter, open the trunk with
the key or turn the ignition key or turn the
ignition key from the “LOCK” to “ON” position.
To cancel the “PANIC” mode, unlock any
door with the key or wireless remote control transmitter, open the trunk with the
key from the “LOCK” to “ON” position.
The “PANIC” mode does not work when
the key is inserted in the ignition switch.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the following instruction in order not to cause
damage on the transmitter.
Do not leave the transmitter on the
places where the temperature becomes
high such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 2 wireless remote control transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance.
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The batteries may have been con-
sumed. Check the batteries in the
transmitter. To replace the batteries,
see “Replacing transmitter batteries”.
Replacing transmitter batteries
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the removed transmitter battery or components.
NOTICE
When replacing the transmitter battery, be careful not to lose the components.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used battery according
to the local laws.
12
2002 ECHO (OM52463U)
Replace the transmitter battery by the following procedures:
2002MY ECHO (U) L/O0109
SU12051
1. Using a coin or equivalent, open the
transmitter case.
2002 ECHO (OM52463U)
SU12058
2. Remove the discharged transmitter battery.
NOTICE
Do not bend the terminals.
13
SU12059
3. Put a new transmitter battery with positive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter battery should be faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any components inside of the transmitter, or
it may interfere with proper operation.
2001MY ECHO (U) L/O0008
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. if the transmitter still does not operate properly, contact your Toyota dealer.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an accident. (See “If you lose your wireless remote control transmitter” in Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
14
2002 ECHO (OM52463U)
Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
2002MY ECHO (U) L/O0109
Power windows
SU12009
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
SU12010
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
2002 ECHO (OM52463U)
15
2001MY ECHO (U) L/O0008
Window lock
switch
SU12011
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.
SU12012
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely inside the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervision. Use the window lock switch to
prevent them from making unexpected use of the switches.
Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the power window switches and
get trapped in a window. Unattended children can be involved in
serious accidents.
16
2002 ECHO (OM52463U)
2002MY ECHO (U) L/O0109
Trunk lid—
SU12013
To open the trunk lid from the outside,
insert the master key and turn it clockwise.
See “Luggage stowage precautions” in
Section 2 for precautions to observe for
loading luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reaches.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Lock release lever
SU12014
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
2002 ECHO (OM52463U)
17
2001MY ECHO (U) L/O0008
—Internal trunk release handle
SU12061
If a person is locked in the trunk, he
or she can pull down the phosphorescent handle on the inside of trunk lid
in case of emergency to open the trunk
lid.
The phosphorescent (glow–in–the–dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
—Luggage security system
SU12055
This system deactivates the lock release lever so that things locked in the
trunk can be protected.
1. Push down the security lock levers
to lock the rear seatbacks.
On vehicles with built–in child restraint,
only the left seatback has a lock lever
and can be lowered. The right seatback
cannot be folded down.
After locking the rear seatbacks, try folding them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.
SU12056
2. After closing the trunk lid, insert the
master key and turn it counterclockwise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
18
2002 ECHO (OM52463U)
Hood
2002MY ECHO (U) L/O0109
SU12016
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Otherwise, the hood may open unexpectedly while driving and an accident may
occur.
SU12017
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
2002 ECHO (OM52463U)
SU12054
3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip–
this prevents rattles. Then lower the hood
and make sure it locks into place. If necessary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood security from falling down
on to your head or body.
19
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Closing the hood with the support rod up
could cause the hood to bend.
2001MY ECHO (U) L/O0008
Theft deterrent system
SU12028
SU12020
20
To deter the vehicle theft, the system
is designed to sound an alarm if any of
the doors, trunk or hood is forcibly unlocked or the battery terminal is disconnected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
2002 ECHO (OM52463U)
SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch.
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.
2002MY ECHO (U) L/O0109
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the vehicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.
If any of the doors are unlocked without
the key and the key is not in the ignition
switch, all the doors will be automatically
locked again.
After one minute, the alarm will automatically stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key.
Open the trunk with the key.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other
doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
2002 ECHO (OM52463U)
21
Fuel tank cap
2001MY ECHO (U) L/O0008
SU12057
This indicates that the fuel filler door
is on the left side of your vehicle.
22
SU12021
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weather, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly removed.
2002 ECHO (OM52463U)
SU12031
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
2002MY ECHO (U) L/O0109
2002 ECHO (OM52463U)
23
2001MY ECHO (U) L/O0008
24
2002 ECHO (OM52463U)
2002MY ECHO (U) L/O0109
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seat s 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fold–down rear seat 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head rest raints 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS dri ver and front passenger airbags 40. . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti–glare inside rear view mirror 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirror 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
2002 ECHO (OM52463U)
25
Loading...
