Toyota ECHO 2001 Owner's Manual

2001MY ECHO (U) L/O0008

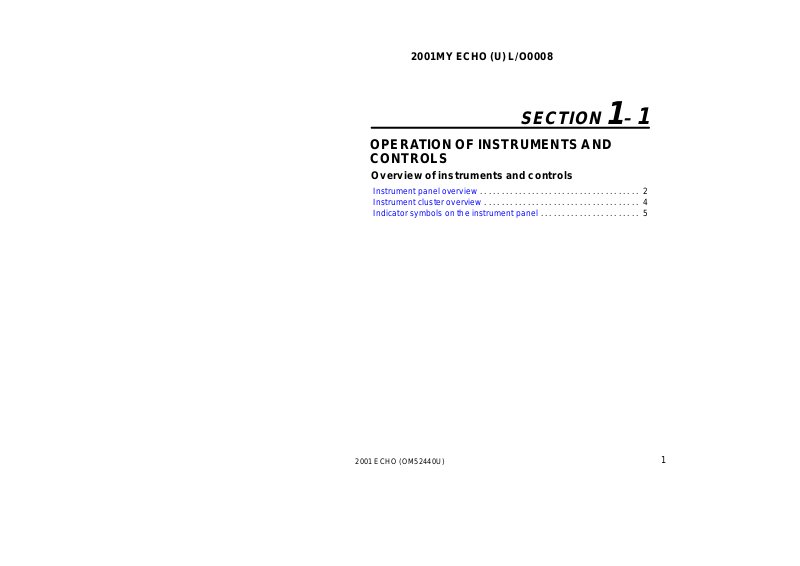

SECTION 1–

OPERATION OF INSTRUMENTS AND
CONTROLS

Overview of instruments and controls

Instrument panel o verview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .

1

2001 ECHO (OM52440U)

1

Instrument panel overview

SU11001

2001MY ECHO (U) L/O0008

1. Side vents

2. Instrument cluster

3. Center vents

4. Rear view mirror remote control levers

5. Auxiliary box

6. Power door lock switches
(with power windows)

7. Power window switches

8. Glove box

9. Automatic transmission selector lever or
manual transmission gear shift lever

10. Parking brake lever

11. Power door lock switch
(without power windows)

12. Hood lock release lever

13. Window lock switch

2

2001 ECHO (OM52440U)
