Toshiba SD-R6112 User Manual

TOSHIBA

STORAGE DEVICE DIVISION

SD-R6112

DVD-R/-RW DRIVE

PRODUCT SPECIFICATION

APRIL 2003

REV. 1.0

Specifications are subject to change without notice

DOCUMENT NUMBER

15998

LIMITATION OF LIABILITY

Those warranties in the express warranty separately agreed between TOSHIBA and your company are the only warranties given to the consumer and are in lieu of any other warranties, whether express or implied with regard to this component. TOSHIBA expressly and unequivocally disclaims the warranties of merchantability and fitness for a particular purpose.

Further, TOSHIBA disclaims all express warranties created by any individual or entity installing this device into a computer unless such express warranties are made with the prior express written consent of TOSHIBA or its authorized representatives.

TOSHIBA will not be responsible for any damages, whether compensatory, incidental, consequential, or special damages of any kind, including but not limited to, punitive or exemplary damages, treble damages, loss of use or lost profits whether such damages are sought by the end-user or the purchaser herein, regardless of whether such liability is sought directly or by way of indemnity proceedings in law or equity.

It shall be the responsibility of the purchaser herein to provide the end-user or ultimate consumer with all product documentation provided with this product including all product specification, manuals, registration forms and warranty information including product capabilities and limitations. By accepting the component(s), the purchaser herein below agrees to do so and further accepts the terms of this limitation. The purchaser herein below expressly waives any and all rights to the contrary.

Warnings:

This equipment (an optical disc drive) handled under the conditions out of equipment specifications may cause heavy load, heat generation, malfunction, erroneous operation and performance degradation. Therefore, please handle this equipment properly in compliance with the warnings provided below. In the event that you do not comply with the warnings, Toshiba cannot guarantee the safety, reliability and performance of the equipment expressly provided in the specification. Manufacturers and resellers of the computer system using this equipment and/or this equipment itself shall notify the end-users of the warnings provided herein and ensure them to comply with these warnings in an appropriate manner.

1. This equipment does not involve any over-current protection circuit. Use an appropriate over-current protection in the computer system which this equipment would be connected. Toshiba shall not be liable for any damages to the system which does not have any over-current protection.

2. DO NOTdisassemble or modify this equipment. Toshiba shall not make any guarantee to the reliability, safety and performance of this equipment expressly provided in the specification and nor be liable for

any damages resulting from such unauthorized disassembly or modification.

3. Read carefully and comply with this Product Specification in order to avoid the risk of data error in writing

operation. Such possible data error would be made by any factors other than this equipment (i.e., poor

storage media, misuse of this equipment, malfunction in a computer system connecting this equipment, etc.). Toshiba shall not be liable for any damages resulting from such data loss. Check whether the original data is correctly copied or stored upon completion of writing operation. Take any necessary measures to protect your data such as system backup and/or mirroring disk subsystems in order to avoid the risk of unexpected data loss or data corruption resulting from failure in this equipment for some reasons.

Manufacturers and resellers of the computer system using this equipment shall be required to consider the safety of such computer system and data integrity in order to avoid the risk of any consequential damages caused by data loss or data corruption and any problems or accident caused by malfunction of the computer system.

SD-R6112 Rev.1.0

DO NOT use this equipment in the system such as medical equipment which may cause personal injury or property damages resulting from malfunction of this equipment and unexpected data corruption or data error in reading operation.

4. Turn off the power for this equipment and wait more than one (1) minute before you eject the disc using the emergency eject mechanism when a disc cannot be ejected for some reasons in order to avoid the risk of damages to the disc.

Notice

1. Turn off the system power before mounting/removing this equipment in order to avoid the risk of damages to this equipment.

2. Insert the DC power plug in correct direction in order to avoid the risk of damages to this equipment.

3. Handle this equipment only in electrostatically safe environment and do not touch connecting terminals with empty hands when you build in or pull out this equipment from other product in order to avoid the risk of malfunction of this equipment.

4.DO NOT do any of the following:

4.1. DO NOT use storage media (CD's / DVD's) that are not the correct size or shape, or do not meet the minimum formatting requirements set forth in section 3.1.(1) of this Product Specification.

4.2. DO NOT insert more than one (1) CD or DVD disc into the drive at any time. Doing so will damage or destroy this equipment and could damage or destroy the disc or cause data loss or corruption.

4.3. DO NOT load or eject any CD or DVD disc with force. Doing so will damage or destroy this equipment and could damage or destroy the disc or cause data loss or destruction.

4.4. DO NOT give a strong shock while load or eject operation is in process. Doing so will damage or

destroy this equipment and could damage or destroy the disc or cause data loss or corruption.

4.5. DO NOT eject a CD or DVD disc while the drive is in operation. Doing so will damage or destroy this equipment and could damage or destroy the disc or cause data loss or corruption.

4.6. DO NOT insert anything else into the drive other than a CD or DVD disc. Doing so will damage or destroy this equipment.

----- To OEM Customers:----------------------------------------------------------------Please notify below notice to your customers.

Notice

Copyrighted works including, but not limited to music, video, computer program, database are protected by copyright laws. Unless specifically permitted under applicable copyright laws, you cannot copy, modify, assign, transmit or otherwise dispose of any copyrighted work without the consent of the owner of the copyright. Please take notice that unauthorized copying, modification, assignment, transmission and other disposition may be subject to claims for damages and to penalties.

SD-R6112 Rev.1.0

Contents

1. Introduction ---------------------------------------------------------------------------------------------------------------------- 1

3. Specifications ------------------------------------------------------------------------------------------------------------------ 2

2. Features -------------------------------------------------------------------------------------------------------------------------- 1

3.1. Performance ------------------------------------------------------------------------------------------------------------ 2

3.2. Environmental Conditions ---------------------------------------------------------------------------------------- 6

3.2.1. Temperature and Humidity ---------------------------------------------------------------------------------- 6

3.2.2. Dust and Dirt ------------------------------------------------------------------------------------------------------ 6

3.2.3. Vibration ----------------------------------------------------------------------------------------------------------- 6

3.2.4. Atmospheric Pressure and Altitude -------------------------------------------------------------------- 6

3.2.5. Shock --------------------------------------------------------------------------------------------------------------- 6

3.3. Installation Conditions --------------------------------------------------------------------------------------------- 7

3.3.1. Equipment -------------------------------------------------------------------------------------------------------- 7

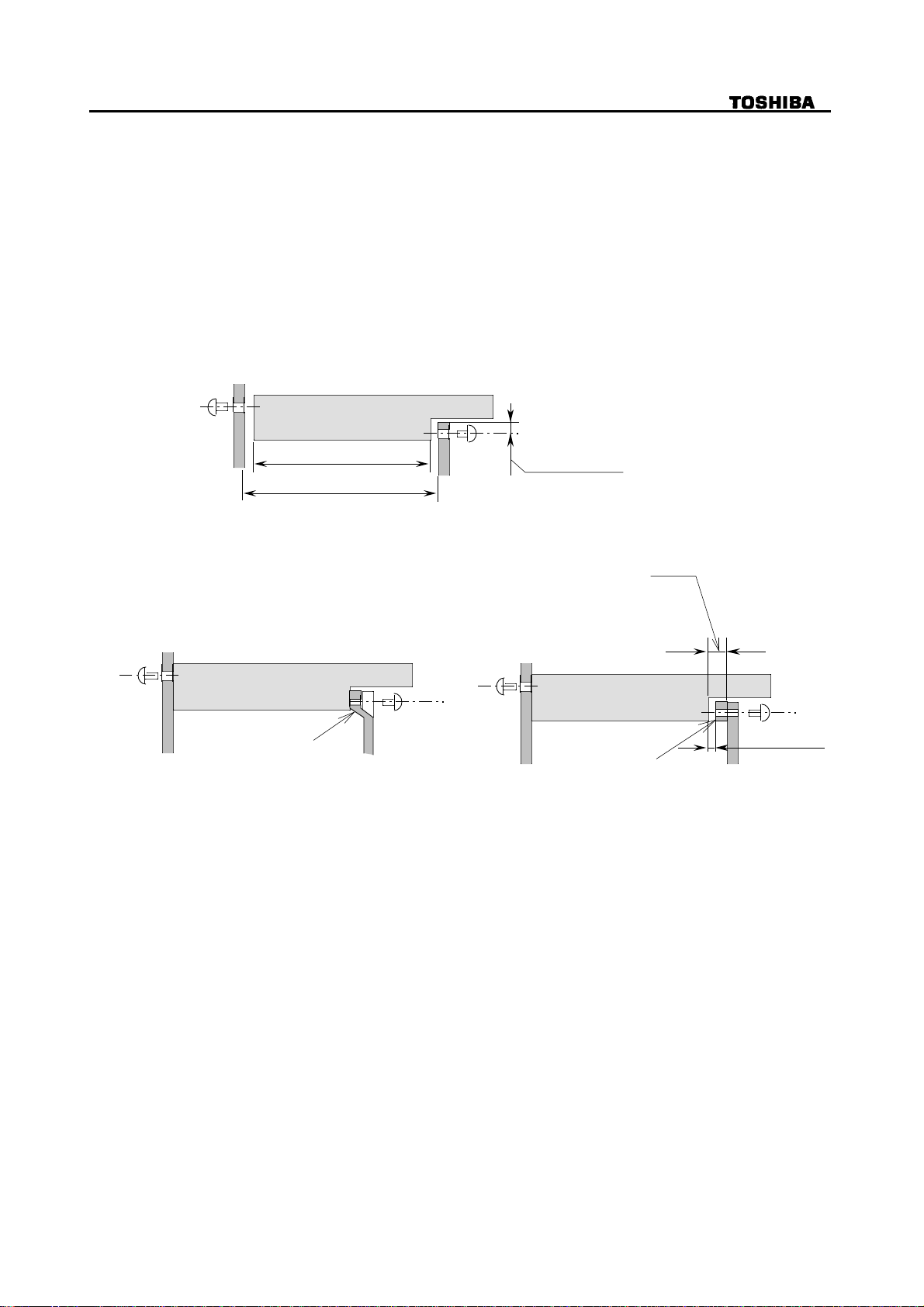

3.3.2. Installation --------------------------------------------------------------------------------------------------------- 9

3.3.3.Recommendation ----------------------------------------------------------------------------------------------- 9

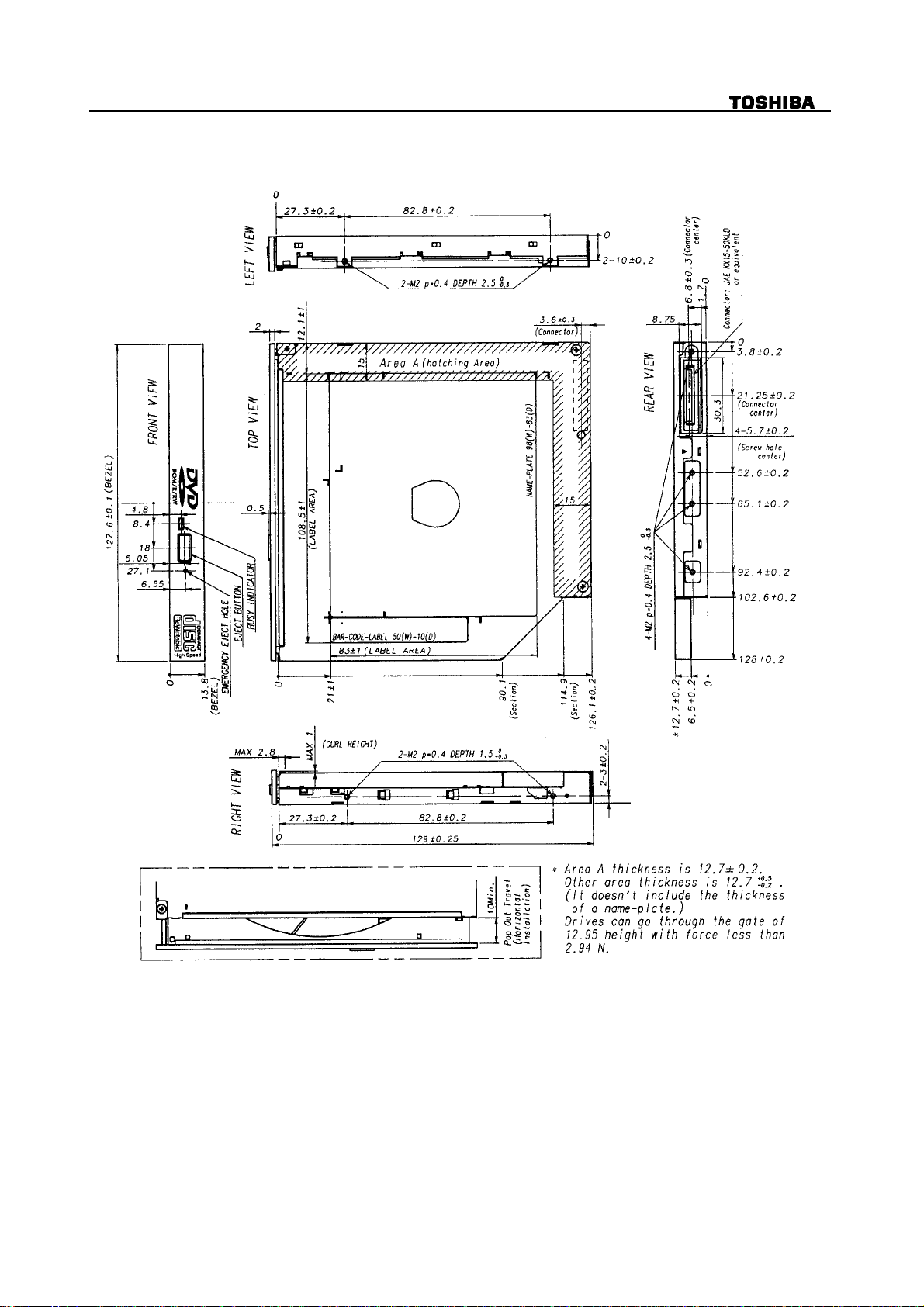

3.4. Dimensions and Mass ---------------------------------------------------------------------------------------------- 9

3.5. Reliabilities ------------------------------------------------------------------------------------------------------------- 11

3.5.1. Error Rate ---------------------------------------------------------------------------------------------------------- 11

3.5.2. MTBF ---------------------------------------------------------------------------------------------------------------- 11

3.5.3. MTTR ---------------------------------------------------------------------------------------------------------------- 11

3.5.4. Drive Life ----------------------------------------------------------------------------------------------------------- 11

4. Configurations ----------------------------------------------------------------------------------------------------------------- 11

4.1. Electrical Circuits ------------------------------------------------------------------------------------------------------ 11

4.2. Optical Pickup --------------------------------------------------------------------------------------------------------- 11

4.3. Spindle Motor ---------------------------------------------------------------------------------------------------------- 11

4.4. Feed Motor -------------------------------------------------------------------------------------------------------------- 11

5. Functions ------------------------------------------------------------------------------------------------------------------------ 13

5.1. Disc Data Configurations ------------------------------------------------------------------------------------------ 13

5.1. 1. DVD-ROM Data Configurations --------------------------------------------------------------------------- 13

5.1. 2.CD-ROM Data Configurations ------------------------------------------------------------------------------ 13

5.1. 3.CD-R/CD-RW Data Configurations ----------------------------------------------------------------------- 14

5.1. 4. DVD-R/-RW Data Configurations ------------------------------------------------------------------------ 14

5.2. Power ON/OFF Timing -------------------------------------------------------------------------------------------- 15

6. Interfaces ------------------------------------------------------------------------------------------------------------------------ 15

6.1. I/O Cable ------------------------------------------------------------------------------------------------------------------ 15

6.2. Signal Summary ------------------------------------------------------------------------------------------------------- 16

6.2.1. Signal Specifications ---------------------------------------------------------------------------------------- 16

6.2.2. Timing of Host Interface (PIO) ---------------------------------------------------------------------------- 17

6.2.3. Timing of Host Interface (DMA Multi) ------------------------------------------------------------------- 18

6.2.4.Timing of Host Interface(Ultra DMA) -------------------------------------------------------------------- 19

6.3. Connector ------------------------------------------------------------------------------------------------------------- 20

6.4. Support Command List -------------------------------------------------------------------------------------------- 21

SD-R6112 Rev.1.0

7. Power Requirements ----------------------------------------------------------------------------------------------------- 22

7.1. Source Voltage ------------------------------------------------------------------------------------------------------ 22

7.1.1. Spike -------------------------------------------------------------------------------------------------------------- 22

7.1.2. Ripple ----------------------------------------------------------------------------------------------------------- 22

7.2. Current Drain ------------------------------------------------------------------------------------------------------- 22

7.2.1.Sleep ------------------------------------------------------------------------------------------------------------ 22

7.2.2. Standby ---------------------------------------------------------------------------------------------------------- 22

7.2.3. Continuous Read ------------------------------------------------------------------------------------------- 22

7.2.4. Idle ------------------------------------------------------------------------------------------------------------------ 22

7.2.5. Average ------------------------------------------------------------------------------------------------------------ 22

7.2.6. Maximum ---------------------------------------------------------------------------------------------------------- 22

7.2.7. Peak in executing Access ---------------------------------------------------------------------------------- 23

7.2.8. Write ---------------------------------------------------------------------------------------------------------------- 23

8. CD Audio ------------------------------------------------------------------------------------------------------------------- 23

8.1. Analog Out ----------------------------------------------------------------------------------------------------------- 23

8.2. Audio Modes ------------------------------------------------------------------------------------------------------- 23

9. Device Configuration Jumper ---------------------------------------------------------------------------------------- 23

9.1 Master Mode Setting ---------------------------------------------------------------------------------------------- 23

9.2 Slave Mode Setting ------------------------------------------------------------------------------------------------ 23

10.Busy Indicator ------------------------------------------------------------------------------------------------------------- 24

11. Emergency Release -------------------------------------------------------------------------------------------------- 25

12. Safety Standards/Agency Approvals --------------------------------------------------------------------------- 26

13. Electrostatic Discharge ---------------------------------------------------------------------------------------------- 26

14. Accessories -------------------------------------------------------------------------------------------------------------- 26

15. Packaging ----------------------------------------------------------------------------------------------------------------- 26

16. CE Declaration of conformity -------------------------------------------------------------------------------------- 26

SD-R6112 Rev.1.0

1. Introduction

This document describes TOSHIBA's SD-R6112 DVD-R/-RW Drive.

2. Features

This drive reads DVD CSS (Contents Scramble Systems) Disc. This drive reads digital data stored on CD-ROM, DVD-ROM and CD audio discs. This drive read and records the digital data on DVD-R/-RW and CD-R/-RW discs. This drive reads digital stored on DVD-ROM discs at maximum 8 times faster rotational speed. This drive reads digital data stored on DVD-RAM discs at standard rotational speed (DVD-RAM Book Ver. 2.1). This drive reads digital data stored on CD-ROM discs at maximum 24 times faster rotational speed. This drive records (write once) digital data on CD-R disc at 4,16 times faster rotational speed. This drive writes / rewrites digital data on CD-RW disc at 4 times faster rotational speed. This drive writes / rewrites digital data on High-Speed CD-RW disc at 4,10 times faster rotational speed. This drive records (write once) digital data on DVD-R disc at 1, 2 time rotational speed. This drive writes / rewrites digital data on DVD-RW disc at 1 time rotational speed. Featuring Buffer Underrun error protection technology. This drive offers long life and durability because the disc is written / read by a LASER, thereby eliminating physical contact with the disc. This drive supports SFF-8020i of ATAPI (ATA Packet Interface ) spec. ,SFF-8090 Ver.5 (Mt.Fuji5) of DVD Commands. This drive shows a highest performance such as 60,000 hour MTBF. This drive can be used in a vertical position or horizontal position. This drive adopts RPC-II for its "Standard Specification Model".

Note: DVD-ROM disc spec (DVD-ROM Book) defines 120 mm and 80 mm in diameter, single and dual layers as recording layer structure and single and double sides as recording side. Maximum storage capacities are 4.38 GBytes and 15.9 GBytes for single layer/single side and dual layer/double side respectively. (1 GByte=2

Bytes)

DVD-RAM disc spec (DVD-RAM Book Version 2.1) defines 120 mm and 80 mm in diameter single and double sides as recording side. Maximum storage capacities are 4.38 GBytes (for single side) and 8.75 Gbytes for double side respectively. Due to these high capacity and high data transfer rate of 1352 KBytes/sec, DVD-ROM and DVD-RAM discs are capable to store high quality and long duration MPEG-2 moving picture data. (1 KByte=2

Byte)

1/28 SD-R6112 Rev.1.0

3. Specifications

3.1.Performance (1) Applicable Write Format DVD-R :Disc at once, Incremental write

DVD-RW :Disc at once, Incremental write, restricted overwrite CD-R/RW :Disc at once, Track at once, Session at once,Packet write

(2) Applicable Write Disc *1DVD-R :DVD-R (Ver2.1 for General)

DVD-RW :DVD-RW (Ver1.1) CD-R/RW : CD-DA, CD+(E)G, CD-MIDI, CD-ROM, CD-ROM XA,

MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video-CD) Multisession CD (Photo-CD, CD-EXTRA, Portfolio)

(3) Applicable Read Disc *1DVD : DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),

DVD-R (Ver.1.0, Ver.2.1) DVD-RW (Ver.1.0, Ver.1.1), DVD-RAM Ver.2.1

CD : CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM,

CD-ROM XA, CD-I, CD-I Bridge (Photo-CD, Video-CD) Multisession CD (Phto-CD, CD-EXTRA, CD-R, CD-RW, Portfolio), CD-R, CD-RW

(4) Data Capacity (1 GB=230Byte, 1 MB=220Byte, 1 KB=210Byte)

User Data/Block

DVD-ROM : 2,048 Byte/Block DVD-RAM : 2,048 Byte/Block CD-ROM : 2,048 Byte/Block (Mode 1)

2,336 Byte/Block (Mode 2)

Data Capacity/Disc

DVD-5 : 4.377 GB (4.700 Billion Byte) DVD-9 : 7.959 GB (8.545 Billion Byte) DVD-10 : 8.754 GB (9.400 Billion Byte) DVD-18 : 15.917 GB (17.091 Billion Byte) DVD-R Ver.1.0 : 3.679 GB (3.950 Billion Byte) DVD-R Ver.2.1 : 4.377 GB (4.700 Billion Byte) DVD-RW Ver.1.1 : 4.377 GB (4.700 Billion Byte) DVD-RAM Ver.2.1 : 4.377 GB (4.700 Billion Byte) CD (Mode-1) : 656.5 MB (688.4 Million Byte) CD (Mode-2) : 748.8 MB (785.2 Million Byte)

2/28 SD-R6112 Rev.1.0

(5) Rotational Speed *

DVD (Single) : Approx. 4,670 rpm (3.3-8X CAV) DVD (Dual) : Approx. 3,792 rpm (2.5-6X CAV) DVD-R Ver.1.0 : Approx. 2,560 rpm (1.7-4X CAV) DVD-R Ver.2.1 : Approx. 2,224 rpm (1.7-4X CAV) DVD-RW Ver. 1.1 : Approx. 2,224 rpm (1.7-4X CAV) DVD-RAM (4.7GB) : Approx. 1,380-3,300 rpm (1X ZCLV) DVD-R Ver.2.1 (Write) : Approx. 570-1,390 rpm (1X CLV) DVD-R Ver.2.1 (Write) : Approx. 1,140-2,780 rpm 2X CLV) DVD-RW (Write) : Approx. 570-1,390 rpm (1X CLV) CD-ROM, CD-R : Approx. 5,100 rpm (10.3-24X CAV) CD-RW : Approx. 2,560-4,300 rpm (8-12X PCAV) CD-DA Transfar : Approx. 2,560-4,300 rpm (8-12X PCAV) CD-DA,Video-CD : Approx. 1,200-2,000 rpm (4-6X PCAV) CD-R (Write) : Approx. 2,648-3,973 rpm (8,12,16X ZCLV)

: Approx. 2,568-3,973 rpm (8,12X ZCLV) : Approx. 1,700-3,960 rpm (8X CLV) : Approx. 850-1,980 rpm (4X CLV)

High speed CD-RW (Write) : Approx. 2,125-4,950 rpm (10X CLV)

: Approx. 850-1,980 rpm (4X CLV)

CD-RW (Write) : Approx. 850-1,980 rpm (4X CLV)

(6) Transfer Rate

( 1 KByte=210Byte=1,024 Bytes, 1 Mbyte=220Byte=1,048,576 Bytes) Sustained Block Transfer Rate

DVD (Single) : CAV 2,230-5,480 Block/s DVD (Dual) : CAV 1,690-4,056 Block/s DVD-R, DVD-RW : CAV 1,082-2,704 Block/s DVD-RAM Version 2.1 : ZCLV 1,352 Block/s CD : CAV 776-1,800 Block/s

: PCAV 300-428 Block/s

CD-RW : PCAV 300-450 Block/s

3/28 SD-R6112 Rev.1.0

Sustained Data Transfer Rate

DVD (Single) : CAV 4,410-10,800 KByte/s DVD (Dual) : CAV 3,375-8,100 KByte/s DVD-R, DVD-RW : CAV 2160-5,400 KByte/s DVD-RAM Version 2.1 : ZCLV 2,704 KByte/s

CD : Mode-1 CAV 1,545-3,600 KByte/s

PCAV 600-900 KByte/s

: Mode-2 CAV 1,761-4,104 KByte/s

PCAV 684-1,026 KByte/s

CD-RW : Mode-1 PCAV 600-900 KByte/s

: Mode-2 PCAV 684-1,026 KByte/s

Burst DataTransfer Rate 16.7 MByte/s (PIO Mode 4 )

16.7 MByte/s ( Multiple word DMA transfer mode-2)

33.3 MByte/s (Ultra DMA )

(7) Access Time

Average Random Access Time DVD-ROM*

CD-ROM* DVD-RAM*

: 115 ms (3.3-8X) : 105 ms (10.3-24X) : 170 ms (4.7GB 1X)

Average Random Seek Time DVD-ROM*

CD-ROM* DVD-RAM*

Average Full Stroke Access Time DVD-ROM*

CD-ROM* DVD-RAM*

: 105 ms (3.3-8X)

: 100 ms (10.3-24X)

: 120 ms (4.7GB 1X)

: 195 ms (3.3-8X)

: 180 ms (10.3-24X)

: 350 ms (4.7GB 1X)

(8) Spin up Time ( Focus Search Time and Disc Motor Start up Time )

DVD-ROM : 3.2 s (3.3-8X) CD-ROM : 2.2 s (10.3-24X) DVD-RAM : 2.6 s (4.7GB 1X)

(9) Data Buffer Capacity 2 MByte

4/28 SD-R6112 Rev.1.0

*1: All discs written in CD or DVD formats except CD-Audio disc, require additional specific application

software and/or hardware.

This drive referred in the specification is capable of reading these data formats. However, in order to

run applications that use these formats you must first have the required software and/or hardware. *2: The Disc motor rotation speed according to the access rate and pattern of Host PC. *3: Measured by performing multiple accesses which means reads of data blocks over whole area of the

media from 0 (h) block to 1E7725(h) (4.089 Billion Byte:87 % of total area) block more than 3000

times. Includes positioning, setting, latency time and ECC implementation time (if required). *4: Measured by performing multiple accesses which means reads of data blocks over whole area of the

media from 00 min 02 sec 00 block to 65 min 03 sec 05 block (599.18 Million Byte:87 % of total area at

linear velocity of 1.2 m/s) more than 3000 times. Includes positioning, setting, latency

time and ECC implementation time (if required). *5: Measured by perfoming multiple accesses which means reads of data blocks over whole area of the

media from 0 (h) block to 1E7725(h) (DVD-RAM Ver.2.1 Disc) block more than 3000 times. Includes

positioning, setting, latency time and ECC implementation time (if required). *6: Measured by performing multiple seek which means seeks of data block over whole area of the media

from 0(h) block to 1E7725(h) block more than 3000 times.

Includes positioning, setting time which is same definition as HDD.

*7: Measured by performing multiple seek which means seeks of data block over whole area of the media

from 00 min 02 sec 00 block to 65 min 03 sec 05 block more than 3000 times. Includes positioning,

setting time which is same definition as HDD. *8: Measured by performing multiple seek which means seeks of data block over whole area of the media

from 0(h) block to 1E7725(h) (DVD-RAM Ver2.1 Disc) block more than 3000 times. Includes positioning,

setting time which is same definition as HDD. *9: Measured by performing maximum accesses which means reads of each data block of 0 (h)block

and 1E7725(h) block alternately more than 100 times. Includes positioning, setting, latency time and ECC implementation time (if required)

*10: Measured by performing maximum accesses which means reads of each data block of 00 min

02 sec 00 block and 65 min 03 sec 05 block alternately more than 100 times. Includes positioning, setting, latency time and ECC implementation time (if required)

*11: Measured by performing maximum accesses which means reads of each data block of 0(h) block and

1E7725(h) (DVD-RAM Ver.2.1 Disc) block alternately more than 100 times. Includes positioning, setting,

latency time and ECC implementation time (if required)

(10) Drawer Load/Release Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command (c) Emergency Release

(11) Air Flow Not Required

(12) Acoustic Noise 40 dB (IEC 179 A weighted at 1 m)

(13) Power Supply +5 V (details in Section 7)

5/28 SD-R6112 Rev.1.0

3.2. Environmental Conditions This drive should be used under the conditions listed below.

3.2.1.Temperature and Humidity (1) Operating Temperature 5 °Cto 50 °C(Media are excluded) (2) Storage Temperature -10 °Cto 60 °C (3) Shipping Temperature -40 °Cto 65 °C *1 (4) Operating Temperature Gradient 11 °C/hour (max) (5) Storage Temperature Gradient 20 °C/hour (max) (6) Shipping Temperature Gradient 20 °C/hour (max) *1

(7) Operating Humidity 8 % to 80 % (8) Storage Humidity 5 % to 95 % (9) Shipping Humidity 5 % to 95 % *1

(10) Wet bulb Maximum Temperature 27 °C (11) Condensation In all the above conditions there must be no condensation

*1: Packed in Toshiba original shipping package.

3.2.2.Dust and Dirt unspecified

3.2.3.Vibration (1) Operating (CD 10.3-24X Read) (1 Oct/min) ---------------- no hard error -----

5 to 500 Hz 2.45 m/s2[0.25 G] (0-p) (excluding resonance point)

(2) Operating (Write) (1 Oct/min) ---------------- no hard error -----

5 to 500 Hz 2.45 m/s2[0.25 G] (0-p) (excluding resonance point)

(3) Non-operating (1 Oct/min) --------- no damage -----

5 to 10 Hz 5 mm (p-p) 10 to 500 Hz 9.8 m/s2[1 G] (0-p)

(4) Shipping (Packaged) (1 Oct/min) ----- no damage -----

10 to 25 Hz 9.8 m/s2[1G] (0-p) X Y Z/30 min each

3.2.4.Atmospheric Pressure and Altitude (1) Operating 0 to 3,000 m (2) Shipping 0 to 12,000 m

3.2.5.Shock (1) Operating (Read ) -------------------- no hard error ---------------

14.7 m/s2[1.5 G] (Horizontal) (Half sine wave 11 ms/10 s interval)

------------------------ no data loss -------------98 m/s2[10 G]

(Half sine wave 11 ms/10 s interval)

6/28 SD-R6112 Rev.1.0

+ 23 hidden pages
