Toshiba SD-M1612 User Manual

TOSHIBA AMERICA INFORMATION SYSTEMS STORAGE DEVICE DIVISION IRVINE, CALIFORNIA

SD-M1612

DVD-ROM DRIVE

USER MANUAL

CONTENTS

Introduction..............................................................................1

Setup ........................................................................................3

Using the DVD-ROM Drive ......................................................6

Troubleshooting.......................................................................9

Specifications ........................................................................10

Drive Connectors................................................................... 13

INTRODUCTION – SD-M1612 DVD-ROM Drive

General Features

Tray Loading Mechanism

3-way Disc Eject (eject button, software, emergency eject hole)

Average Random Access Time

CD-ROM 85ms

DVD 95ms

DVD-RAM 170ms

DAE (Digital Audio Extraction) Audio Capability

MPC3 Compatibility

Multi-Read Capability

Regionalization (RPC2 compliance) (DVD)

ATAPI BUS Interface:

Drive Speed

DVD 16X Single Layer

10X Dual Layer CD 48X DVD-RAM 2X (ver 1.0)

1X (ver 2.1)

Types of Disc Formats Supported

DVD

• DVD-ROM

DVD-5 - Single-sided/Single Layer DVD-9 - Single-sided/Dual Layer DVD-10 - Double-sided/Single Layer DVD-18 - Double-sided/Dual Layer

• DVD-R, DVD-RW, DVD-RAM (Read)

• CD-DA

• CD+(E)G

• CD-MIDI

• CD-TEXT

• CD-ROM

• CD-ROM-XA

• CD-I Bridge (Photo-CD, Video CD)

• CD-I

• Multi-session (Photo-CD, CD Extra, CD-RW, CD-R)

• CD-R (Read)

• CD-RW (Read)

Front Panel

Loading Tray

Busy Indicator

Eject Button

Emergency Eject Hole

Figure 1.SD-M1612 DVD-ROM Drive Front Panel

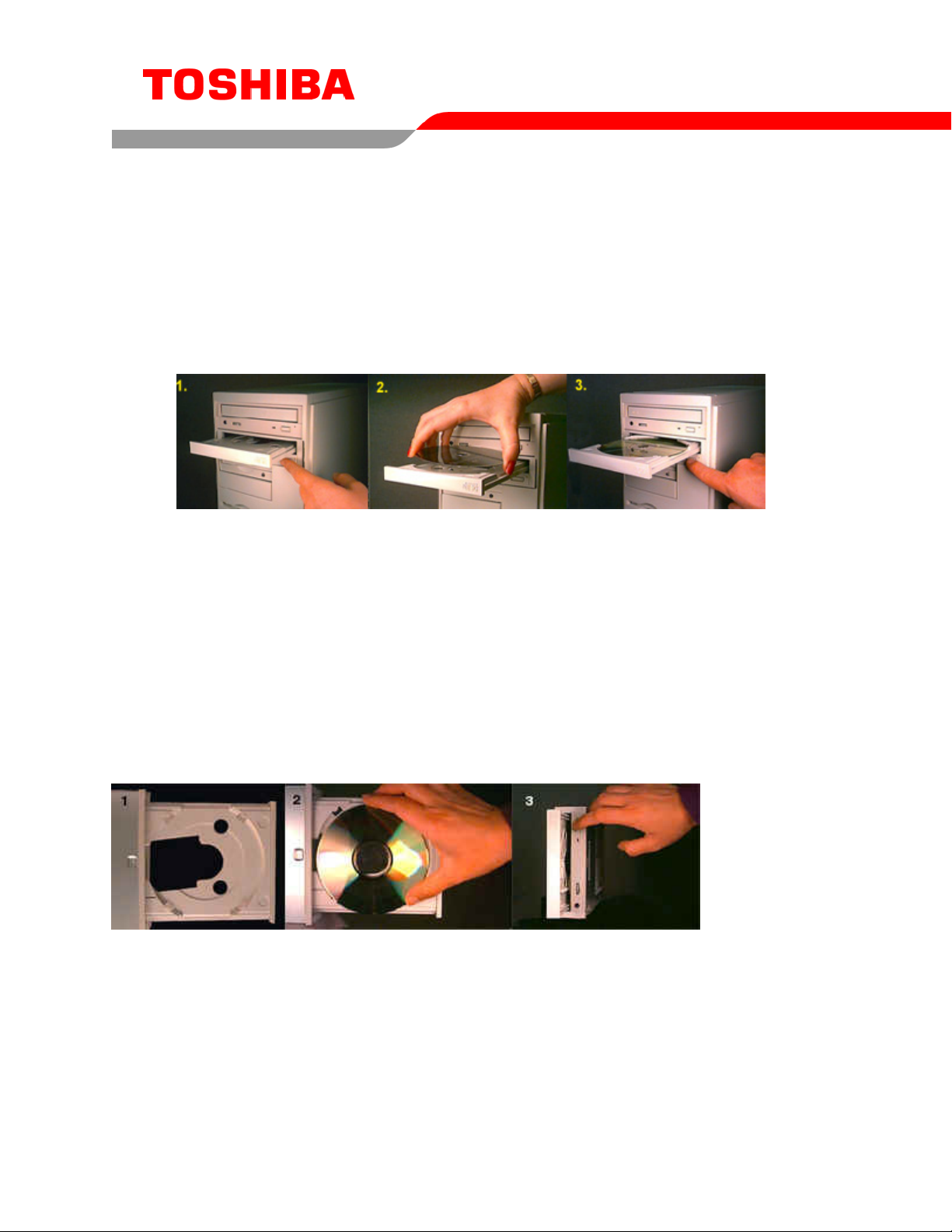

Load disc using tray.

When you install a disc into the DVD-ROM drive, the BUSY light flashes slowly as it attempts to locate the disc. One of the following will occur:

• BUSY light goes out. The DVD-ROM drive is ready to read data from the disc.

• BUSY light flashes slowly. The disc may be dirty.

• BUSY light remains ON. The DVD-ROM is accessing data.

• BUSY light remains ON indefinitely. The DVD-ROM is experiencing an error

The Eject button is used to open the disc tray so you can install or remove a disc.

The emergency eject hole is to be used only when the Loading Tray will not open when Eject button is pressed.

SETUP – SD-M1612 DVD-ROM

The following steps must be performed to properly install your drive:

• Set Drive Jumper Settings

• Connect Audio Cable (optional)

• Attach IDE BUS Cable

• Attach Power Cable

• Mount Drive

Jumper Settings

The mode select jumpers are 6 straight angle pins located on the rear of the DVD-ROM drive. By placing a jumper on the pins, you can select the following functions:

CS SL Configures drive as Slave MA Configures drive as Master (default mode)

In most installations, jumper should remain in the MA position (factory default). It is recommended that you install your DVD-ROM drive only on the secondary IDE BUS. If you are installing on primary IDE BUS, your hard drive would then be the Master, and you should set your DVD-ROM drive to the Slave position (SL)

Drive is configured using host interface signal CSEL

Figure 1.Mode Select Jumper

Figure 2.Jumper Locations

Placing DVD-ROM Drive inside your Computer

Now that you have set the jumpers, you are ready to install your DVD-ROM drive inside your computer.

Important Note: Disconnect power from your computer system before beginning installation.

Remove computer cover and faceplate if required. Refer to your computer systems manual for removal information. If the DVD-ROM drive is replacing a CD-ROM or DVD-ROM, remove drive presently installed in your system.

Your Toshiba DVD-ROM drive can be placed in any free half-height drive slot at the front of your computer. (It can be mounted horizontally or vertically.)

Carefully start sliding the DVD-ROM drive into the opening with the disc tray facing the front of the computer. Before you push the drive all the way in you will need to connect the IDE BUS cable, Audio cable and the Power cable on the back of the drive.

Connecting Cables

IDE BUS Cable (not supplied with drive) - Your computer system should have a primary and secondary IDE BUS, cable with your Hard Drive most likely being the Master on the primary BUS. Connect BUS cable as follows, assuring that pin 1 of cable (side with red stripe) is connected to pin 1 of the DVD-ROM drive's interface connector:

If you are replacing your CD-ROM or DVD: connect DVD-ROM drive to the BUS Cable connector that the CD-ROM or DVD was connected to.

If DVD-ROM drive is not replacing a CD-ROM/DVD or is an addition to a CD-ROM/DVD:

connect DVD-ROM drive to an open connector on the secondary IDE BUS cable (not supplied with drive).

If DVD-ROM drive is to be slave on Primary BUS: connect DVD-ROM drive to open connector on the primary IDE BUS cable (not supplied with drive).

Figure 3.Installing BUS Cable

Power Cable - Connect an internal computer power

supply cable to the power socket at the back of the DVD-ROM drive. One side of the plug has chamfered edges, so the power connector fits only one way. Push plug completely into the socket making sure the plug fits correctly.

Figure 4.Installing Power Cable
