DVD PLAYER

OWNER’S MANUAL

MODEL : SD-3755

Surround

Sound

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

PAGE 2 INTRODUCTION

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVERTISSEMENT

WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISQUE DE CHOC ELECTRIQUE NE

PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

ATTENTION:

CAUTION: This Digital Video Disc Player employs a Laser System.

FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device,

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could

INDUSTRY CANADA REQUIREMENT :

TO RAIN OR MOISTURE.

INSERT.

POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOUD.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location-see service procedure.

Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation is present when the enclosure is opened. DO NOT STARE INTO BEAM.

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connect

- Consult the dealer or an experienced radio/TV technician for help.

void the user’s authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numéruque de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

ed.

RECORD YOUR MODEL NUMBER (Now, while you can see it)

The model and serial number of your new DVD player are located on the back of the DVD player cabinet. For your future convenience, we suggest that you record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

INTRODUCTION PAGE 3

Introduction

❏ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . 2

❏ Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . 3

❏ IMPORTANT SAFETY INSTRUCTIONS . . . . . . 4-5

❏ Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

❏ Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 7

❏ Identification of Controls . . . . . . . . . . . . . . . . . 8-11

Front Panel/Display Window . . . . . . . . . . . . . . . . . . . . 8

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Preparing the Remote Control . . . . . . . . . . . . . . . . . . 11

Operating with the Remote Control . . . . . . . . . . . . . . 11

Connections

❏ Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . 12

❏ Connecting to a TV equipped with component

video inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

❏ Connecting to an Audio System . . . . . . . . . . . . . 14

❏ Connecting to Optional Audio System . . . . . . 15-17

Enjoying Dolby Digital Sound. . . . . . . . . . . . . . . . . . . 15

Enjoying Dolby Pro Logic Surround Sound . . . . . . . . 16

Enjoying 2 Channel Digital Stereo Sound. . . . . . . . . . 17

Enjoying DTS Sound . . . . . . . . . . . . . . . . . . . . . . . . . 17

Basic Operations

❏ Basic Playback . . . . . . . . . . . . . . . . . . . . . . . 18-21

Stopping Play

Resume Play

Last Scene Memory. . . . . . . . . . . . . . . . . . . . . 20

Exchanging Discs during Playback

Skipping Discs

Exchanging the Disc and Starting Playback

❏ Special Playback. . . . . . . . . . . . . . . . . . . . . . 22-23

Still Picture

Frame Advance

Skipping Chapters and Tracks Forward or Back

How To Set The Video Mode . . . . . . . . . . . . . . 22

To Scan at Fast Forward or Fast Reverse Playback .

Playing in Slow-Motion

. . . . . . . . . . . . . . . . . . . . . . . . . . 20

. . . . . . . . . . 21

. . . . . . . . . . . . . . . . . . . . . . . . . 21

. . . . 21

. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

. . . . . . . . . . . . . . . . . . . . . . . . 22

. . 22

. . . . . . . . . . . . . . . . . . . 23

Operation Using GUI Menu

❏ General Information about GUI Menu . . . . . . . . . 24

❏ Detailed Description of each GUI Menu Icon . . . 25

Advanced Operation

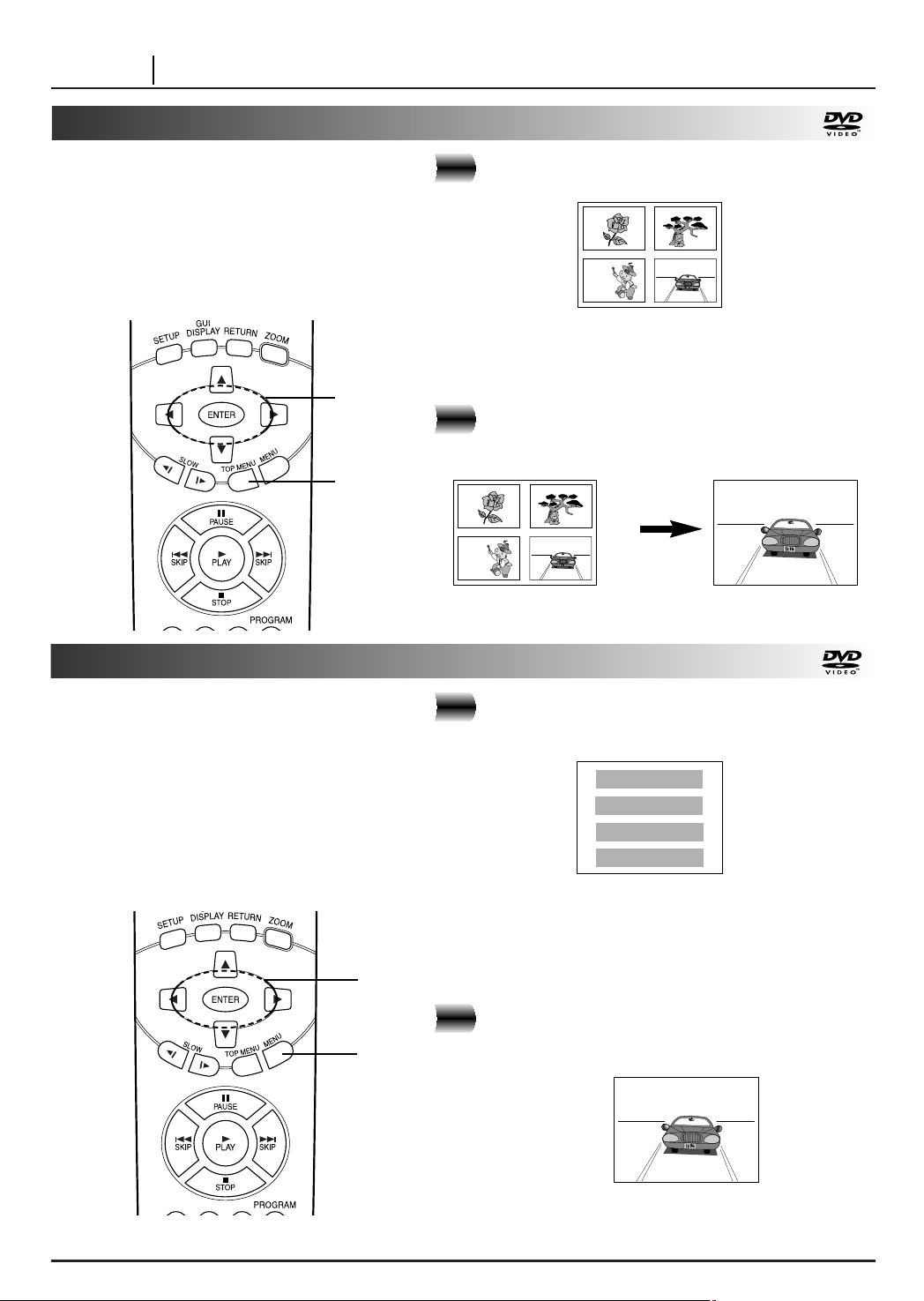

❏ Using a Title Menu . . . . . . . . . . . . . . . . . . . . . . . 26

❏ Using a DVD Menu . . . . . . . . . . . . . . . . . . . . . . 26

❏ Changing Subtitle Language . . . . . . . . . . . . . . . 27

❏ Changing Audio Soundtrack Language. . . . . . . . 27

❏ Viewing Multi Angle Discs . . . . . . . . . . . . . . . . . 28

❏ Producing a 3D Surround Effect . . . . . . . . . . . . . 28

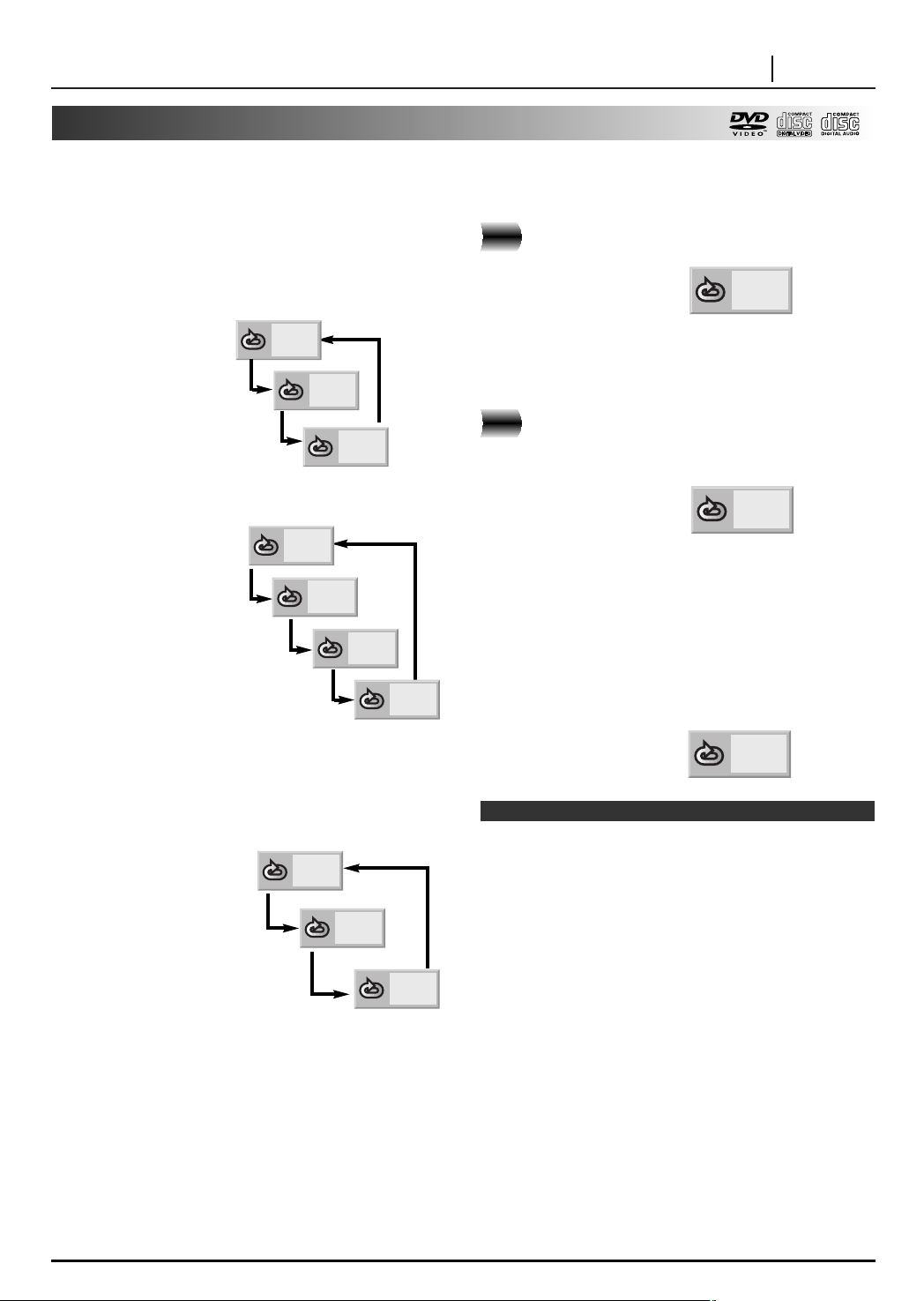

❏ Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

❏ Storing Markers in Memory to be Viewed or

Listened to again . . . . . . . . . . . . . . . . . . . . . . . . 30

❏ Zoom Feature . . . . . . . . . . . . . . . . . . . . . . . . . . 31

❏ Random Play . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

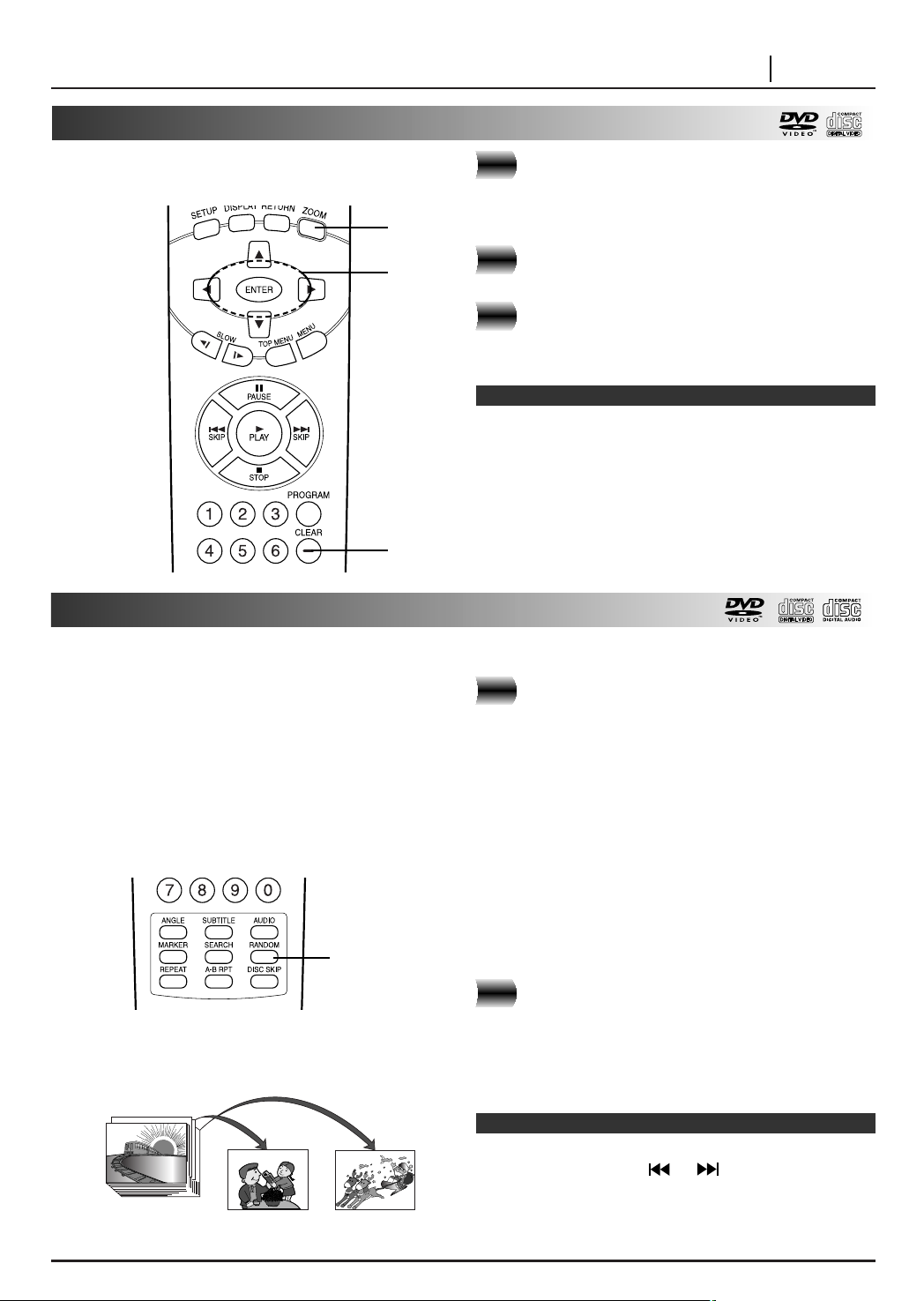

❏ Program Play . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Initial Settings

❏ Selection of Initial Settings . . . . . . . . . . . . . . . . . 33

❏ Selecting Disc Languages . . . . . . . . . . . . . . . . . 34

❏ Selecting Rating Level and Password . . . . . . 35-36

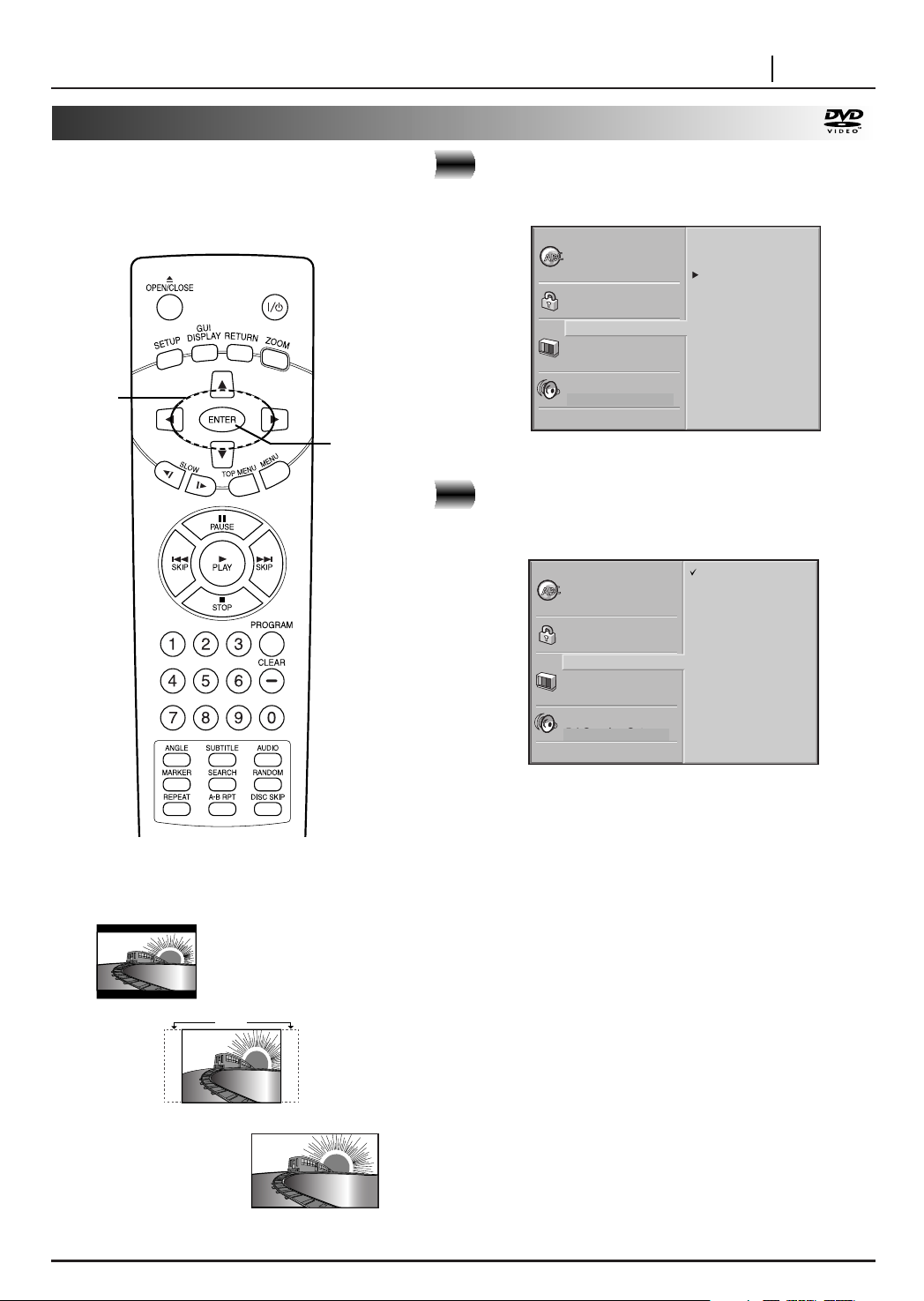

❏ Selecting TV Aspect. . . . . . . . . . . . . . . . . . . . . . 37

❏ Selecting Menu Language . . . . . . . . . . . . . . . . . 38

❏ Selecting Progressive Scan . . . . . . . . . . . . . . . . 39

❏ Selecting Digital Audio Output . . . . . . . . . . . . . . 40

❏ Others (DRC/Vocal/PBC) . . . . . . . . . . . . . . . . . . 41

❏ Table of Languages and Their Abbreviations . . . 42

Reference

❏ Disc Requirements/Copyright Information . . . . . . 43

❏ Before Calling Service Personnel . . . . . . . . . . . . 44

❏ Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Others

❏

LIMITED WARRANTY DVD VIDEO PLAYER

. . . . 46-47

PAGE 4 INTRODUCTION

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL

AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read owner’s manual

After unpacking this product, read the owner’s manual carefully, and follow all operating and related instructions.

2. Power Sources

This product should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply in your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

3. Grounding or Polarization

This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

4. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

5. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

6. Water and Moisture

Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink. or laundry tub; in a wet basement; or near a swimming pool and the like.

7. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

8. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, playing particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

9. Overloading

Do not overload wall outlets, extension cords, or integrated convenience receptacles as this can result in a risk of fire or electric shock.

10. Lightning

For added protection of this product during storms, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

11. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

INTRODUCTION PAGE 5

IMPORTANT SAFETY INSTRUCTIONS (Cont’d)

13. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

14. Disc Tray

Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.

15. Burden

Do not place a heavy object on or step on the product. The object may fall, causing serious personal injury and serious damage to the product.

16. Connecting

When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner’s manual of the other equipment carefully and follow the instructions when making any connections.

17. Sound Volume

Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume sound may cause hearing or speaker damage.

18. Sound Distortion

Do not allow the product to output distorted sound for a prolonged time. It may cause speaker overheating and fire.

20. Laser Beam

Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the laser beam. It may cause damage to your vision.

21. Disc

Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

22. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is

damaged.

b) If liquid has been spilled, or objects have fallen

into the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation. e) If the product has been dropped or damaged in

any way. f) When the product exhibits a distinct change in

performance-this indicates a need for service.

23. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

24. Replacement parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

19. Headphones

When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

25. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

PAGE 6 INTRODUCTION

Optical

pick-up lens

It’s too

warm

Wait!

Precautions

Notes on handling

❏

When shipping the DVD player, always use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory.

❏

Do not use volatile liquids, such as insect spray, near the DVD player. Do not leave rubber or plastic products in contact with the DVD player for a long time. They will leave marks on the finish.

❏

The top and rear panels of the DVD player may become warm after a long period of use. This is normal and not a malfunction.

❏

When the DVD player is not in use, be sure to remove the disc and turn off the power.

❏

If you do not use the DVD player for a long period, the unit may not function properly in the future. Turn on and use the DVD player occasionally.

Notes on Locating

❏

When you place this DVD player near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, move the DVD player away from the TV, radio, or VCR.

Notes on Cleaning

Notes on Moisture Condensation

Moisture condensation damages the DVD player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD player.

Moisture condensation occurs during the following cases.

❏

When you bring the DVD player directly from a cold place to a warm place.

❏

When you use the DVD player in a room where you just turned on the heater, or a place where the cold air from the air conditioner directly hits the unit.

❏

In summer, when you use the DVD player in a hot and humid place just after you move the unit from an air conditioned room.

❏

When you use the DVD player in a humid place.

Use a soft, dry cloth for cleaning.

❏

For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD player.

❏

If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.

Warning: Cleaning and adjustment of lenses and/or other components of playback mechanism should be performed by a qualified service technician.

To Obtain a Clear Picture

The DVD player is a high technology, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

❏

Do not use the DVD player when moisture condensation may occur.

If you use the DVD player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD player to the wall outlet, turn on the DVD player and leave it “ON” for two or three hours. After two or three hours, the DVD player will have warmed up and evaporated any moisture. Keep the DVD player connected to the wall outlet and moisture condensation will seldom occur.

Notes on Discs

This section shows you how to handle, clean, and store discs.

INTRODUCTION PAGE 7

On Handling Discs

❍

Do not touch the playback side of the disc.

❍

Do not attach paper or tape to discs.

On Storing Discs

❍

Do not store discs in a place subject to direct sunlight or near heat sources.

❍

Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

❍

Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

On Cleaning Discs

❍

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outward with a soft cloth. Always keep the disc clean.

❍

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

❍

Do not use any type of solvents such as thinner, benzine, commercially available cleaners or anti-static spray for vinyl LPs. They may damage the disc.

About This Owner’s Manual

❍

This owner’s manual explains the basic instructions of this DVD player.

❍

Some DVD video discs have functions that may not be explained in this owner’s manual. Therefore, some instructions may differ from this owner’s manual, and there may be extra instructions. In this case, follow the instructions displayed on the TV screen or package.

❍

“ ” may appear on the TV screen during operation. This icon means the function explained in this owner’s manual is not available on that specific DVD video disc.

PAGE 8 INTRODUCTION

TITLE

PROG.

RANDOM ALL

CHP/TRK

DVD

VCDMP3

1 2 3 4 5

Identification of Controls

Front Panel

POWER indicator

RANDOM button

POWER button

DISC SELECT (1 – 5)

buttons

Remote sensor

REPEAT button

CLEAR button

Display window

Disc tray

PLAY button

STOP button

PAUSE button

MENU button

DISC SKIP button

EX-CHANGE button

ENTER button

ARROW buttons

SKIP buttons

OPEN/CLOSE button

Display Window

MP3 indicator

CD indicator

Operating status

indicator

Disc 1–5 indicators

Video CD indicator

DVD indicator

Angle icon indicator

Title number indicator

Chapter/Track number indicator

PROGRAM indicator

RANDOM indicator

Repeat playback mode indicators

Total playing time/ elapsed time indicators

Identification of Controls (Cont’d)

Rear Panel

INTRODUCTION PAGE 9

VIDEO OUT jack

COMPONENT VIDEO OUT/ PROGRESSIVE SCAN (I/P) jacks

S-VIDEO OUT jack

VIDEO OUTPUT SELECT switch

POWER CORD

Connect to an AC 120V, 60Hz outlet only.

COAXIAL DIGITAL AUDIO OUT jack

AUDIO OUT (L/R) 1, 2 jacks

OPTICAL DIGITAL AUDIO OUT jack

Remove the dust protection cap from the connector and connect the optical digital cable (not supplied) firmly so that the configurations of both the cable and the connector match. Keep the dust protection cap and always reattach the cap when not using the connector to protect against dust intrusion.

Dust protection cap

PAGE 10 INTRODUCTION

Identification of Controls (Cont’d)

Remote Control

You will find instructions for each of the remote control functions in the appropriate sections of this instruction manual.

OPEN/CLOSE button

GUI DISPLAY button

SLOW (

SKIP (

❈

SEARCH) button

NUMBER buttons

SUBTITLE button

MARKER button

SETUP button

ENTER button

) buttons

V/ V

PLAY button

STOP button

ANGLE button

POWER button

RETURN button

ZOOM button

***ARROW buttons

**MENU button

*TOP MENU button

PAUSE button

❈

SEARCH) button

SKIP (

PROGRAM button

CLEAR button

AUDIO button

SEARCH button

A-B REPEAT button

REPEAT button

*TOP MENU button

Use the TOP MENU button to display the title menu included on selected DVD video discs. To operate a menu screen, follow the instructions in “Using a Title Menu” (page 26).

**MENU button

Use the MENU button to display the menu screen included on selected DVD video discs. To operate a menu screen, follow the instructions in “Using a DVD Menu” (page 26).

RANDOM button

DISC SKIP button

***Directional arrow buttons

(up, down, left, right) for use in highlighting a selection on a GUI menu screen, TITLE and MENU screen.

❈

Press and hold button for about two seconds to activate picture search function.

Identification of Controls (Cont’d)

30° 30°

Within about 23 ft (about 7 m)

AAA

INTRODUCTION PAGE 11

Preparing the Remote Control

Insert the batteries into the remote control so you can use it to operate the DVD player.

Open the battery cover.

Insert batteries (AAA size).

● Make sure to match the + and - on the batteries to the marks inside the battery compartment.

Close the cover.

Operating with the Remote Control

This section shows you how to use the remote control.

Point the remote control at the remote sensor and press the buttons.

Distance: About 23 ft (7 m) from the front of the remote

sensor

Angle: About 30° in each direction of the front of the

remote sensor

* Do not expose the remote sensor of the DVD

player to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the DVD player with the remote control.

Notes on batteries

❍

Improper use of batteries may cause battery leakage and corrosion.

❍

To operate the remote control correctly, follow the instructions.

❍

Do not insert the batteries into the remote control in the wrong direction.

❍

Do not charge, heat, open, or short-circuit the batteries. Do not throw the batteries into fire.

❍

Do not leave dead or exhausted batteries in the remote control.

❍

Do not use different types of batteries together, or mix old and new batteries.

❍

If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

❍

If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

❍

If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

❍

The batteries should last about one year with normal use.

Notes on the remote control

❍

Point the remote control at the remote sensor on the DVD player.

❍

Do not drop or give the remote control a shock.

❍

Do not leave the remote control in an extremely hot or humid place.

❍

Do not spill water or put anything wet on the remote control.

❍

Do not disassemble the remote control.

S-video cable (Not supplied)

To S-VIDEO OUT

To AUDIO OUT (L/R)/ VIDEO OUT

VIDEO OUTPUT SELECT switch

Audio/Video cable (supplied)

To video input

To audio inputs

To S-video input

TV or monitor with audio/video inputs

PAGE 12 CONNECTIONS

Connecting to a TV

Connect the DVD player to your TV.

When using S-VIDEO OUT jack, set the VIDEO OUTPUT SELECT switch to S-VIDEO.

If the TV has an S-video input, connect the DVD player with the S-video cable. When using an S-video cable, do not connect the yellow video cable.

Notes

❍

Refer to the owner’s manual of your TV as well.

❍

Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

❍

Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted because DVD video discs are copy protected.

Warning

Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL OUT jack of this DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to “Selecting Digital Audio Output” on page 40).

To component video input or progressive scan video input

To COMPONENT VIDEO OUT/ PROGRESSIVE SCAN (Y, P

B, PR)

To AUDIO OUT (L/R)

Audio/Video cable (supplied)

To audio inputs

Video cable (Y, P

B, PR) (not supplied)

TV or monitor with component

video or progressive scan inputs

VIDEO OUTPUT SELECT switch

CONNECTIONS PAGE 13

Connecting to a TV equipped with component video inputs

PROGRESSIVE SCAN: Some TVs or monitors are equipped with component video inputs that are capable of

reproducing a progressively scanned video signal. Connecting to these inputs allows you to view the highest quality pictures with less flicker.

COMPONENT VIDEO OUT: Some TVs or monitors are equipped with component video inputs. Connecting to these

inputs allows you to enjoy higher quality picture playback.

■

To switch the output signal (Progressive/Component)

Set the Progressive Scan to “On” on the SETUP menu for Progressive scan signal, or set the Progressive Scan to “Off” on the SETUP menu for Component video signal.

When using COMPONENT VIDEO OUT/PROGRESSIVE

Notes

❍

Refer to the owner’s manual of your TV for TV operating instructions.

❍

Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

❍

Actual labels for component video inputs may vary depending on the TV manufacturer. (ex. Y, -Y, B-Y or Y, Cb, Cr)

❍

In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

SCAN (I/P) jack, set the VIDEO OUTPUT SELECT switch to COMPONENT(PROGRESSIVE SCAN).

To audio inputs

Audio system

To VIDEO OUT To AUDIO OUT (L/R)

S-video cable (Not supplied)

To S-VIDEO OUT

To video input

To S-video input

TV or monitor with audio/video inputs

Audio cable (supplied)

Video cable (supplied)

PAGE 14 CONNECTIONS

Connecting to an Audio System

You can listen to the sound of audio CDs and DVD video discs in stereo.

If the TV has an S-video input, connect the DVD player with the S-video cable.

Notes

❍

Refer to the owner’s manual of your audio system as well.

❍

Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

❍

If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD player away from the tuner and radio.

❍

The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

❍

Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

Warning

CONNECTIONS PAGE 15

To DIGITAL OUT

(COAXIAL or OPTICAL)

75 ohm coaxial cable or Optical cable

To S-VIDEO OUT or VIDEO OUT

Connection example

Front speaker (left)

Rear speaker (left surround)

Rear speaker (right surround)

Front speaker (right)

Subwoofer

To S-video Input or Video Input

Center speaker

To digital audio input

Receiver equipped with a Dolby Digital decoder

or Video cable

S-Video cable

Connecting to Optional Audio System

Enjoying Dolby Digital Sound

You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic, and 2 Channel Digital Stereo.

Dolby Digital

Dolby Digital is the surround sound technology used in theatres showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD player to a 6 channel receiver equipped with a Dolby Digital decoder or Dolby Digital processor.

To enjoy Dolby Digital sound from this DVD player you need the following:

●

DVD recorded in Dolby Digital

●

6 channel receiver equipped with a Dolby Digital decoder, or Dolby Digital processor and power receiver

●

5 speakers and 1 sub woofer

* Manufactured under license from Dolby Laboratories.

To enjoy Dolby Digital sound

You need to select “Dolby Digital”

from the SETUP menu.

Notes

❍

Refer to the owner’s manual of your audio equipment as well.

❍

Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

❍

Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

To AUDIO OUTTo VIDEO OUT

Video cable

Connection example

Receiver equipped with Dolby Pro Logic Surround

Front

speaker

(left)

Front speaker (right)

Subwoofer (Optional)

To video input

Rear speaker

(left)

Rear speaker (right)

Center speaker

To audio input

Audio cable

PAGE 16 CONNECTIONS

Connecting to Optional Audio System (Cont’d)

Enjoying Dolby Pro Logic Surround Sound

Dolby Pro Logic Surround

You can still enjoy the excitement of Surround Sound even if your A/V receiver does not offer Dolby Digital decoding.

If your A/V receiver has a Dolby Pro Logic decoder, refer to the following connection diagram.

Connect one or two rear speakers. The output sound from the rear speakers will be monaural even if you connect two rear speakers.

●

With a receiver equipped with Dolby Digital

Connect the equipment the same way as described in “Enjoying Dolby Digital Sound” on the previous page. Refer to the receiver’s owner’s manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound.

Warning

CONNECTIONS PAGE 17

Connection example

Front speaker

(left)

Front speaker (right)

Receiver equipped with a

digital audio input

To digital audio input

To DIGITAL OUT

(COAXIAL or

OPTICAL)

75 ohm coaxial cable or Optical Cable

To S-VIDEO OUT

or VIDEO OUT

To S-video Input

or Video Input

S-Video cable or Video cable

To DIGITAL OUT

(COAXIAL or

OPTICAL)

Front speaker (left)

Rear speaker

(left surround)

Rear speaker (right surround)

Front speaker (right)

Sub woofer

Center speaker

75 ohm coaxial cable or Optical Cable

Connection example

To digital audio input

Receiver equipped with a DTS decoder

To S-VIDEO OUT

or VIDEO OUT

To S-video Input

or Video Input

S-Video cable or Video cable

Connecting to Optional Audio System (Cont’d)

Enjoying 2 Channel Digital Stereo Sound

2 Channel Digital Stereo

You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a

digital audio input and speaker system (right and left front speakers).

Enjoying DTS Sound

Introducing DTS Digital Surround

tems into six discrete channels of exceptionally clear, better-than-compact disc, digital audio performance. And DTS Digital Surround is the only 5.1 surround sound format that can deliver this revolutionary 3-dimensional experience through new music recordings on compact discs, original 5.1 soundtracks on motion picture laserdiscs, and soon, a wide variety of products on DVD.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

❍

...a high quality multi channel audio format that transforms existing "home theatre" sys-

Notes

Refer to the owner’s manual of your receiver as well. Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections. The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound. Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be damaged.

PAGE 18 BASIC OPERATION

TITLE

PROG.

RANDOM ALL

CHP/TRK

DVD

VCDMP3

1 2 3 4 5

Basic Playback

This section explains the basics on how to play back a DVD video disc.

Preparations

●

When you want to play back DVD video discs, turn on the TV and select the video input source connected to the DVD player.

●

When you want to enjoy the sound of DVD video discs or audio CDs from the audio system, turn on the audio system and select the input source connected to the DVD player.

●

For connection details, see pages 12 through 17.

●

Set the playback picture size according to the aspect ratio of the connected TV via the SETUP menu (TV Aspect).

●

If you do not have the necessary equipment to enjoy Dolby Digital sound, set the Digital Audio Output (via the SETUP menu) to “PCM”.

Press POWER.

The DVD player turns on and the power indicator lights.

Press OPEN/CLOSE.

The disc tray opens.

●

You can open the disc tray by pressing this button even if the DVD player is in standby mode.

2, 4

Place a disc on the disc tray with the

playback side down.

●

There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD player to malfunction.

●

Do not place anything except 3” discs or 5” discs on the disc tray.

● Discs can be loaded one at a time by pressing DISC SKIP or DISC SELECT (1 - 5) to rotate the carousel.

Caution: Do not touch the loading drawer and carousel while they are in motion, and do not attempt to rotate the carousel by hand; doing so could result in incorrect operation of the player and/or damage to the discs.

Press OPEN/CLOSE or PLAY to close the

loading drawer.

The disc on the tray 1 is ready to be played back. Playback may begin automatically depending on the disc. If no disc is loaded on the disc tray 1, select another disc by following step 5.

●

Do not close the loading drawer by hand.

●

If the disc is placed in upside down (and it is a single sided disc), “NO DISC” or “DISC ERROR” appears on the TV screen.

Operating status indicator

●

If you insert an audio CD, the CD indicator lights up on the display. The title number does not appear.

●

After playing back all of the chapters in the title, the DVD player automatically stops and returns to the menu screen.

Basic Playback (Cont’d)

7 7

BASIC OPERATION PAGE 19

If you want to select another disc, press DISC

SKIP on the remote control once or more, or press DISC SELECT (1 - 5) on the front panel.

Also you can select a disc in the DVD player directly by using the remote control, press DISC SKIP and then press a number button (1-5) on the remote control within one second.

Press PLAY to begin playback.

Playback begins. You can skip this step if the disc is already playing automatically.

The menu screen appears on the TV screen.

In the case of interactive DVDs with playback, a menu screen appears on the TV screen. Perform the following steps:

PressDD/EE/FF/

and press ENTER, or press the numeric button(s), to select the desired item.

Playback of the selected item begins.

Video CD

This contains recordings of pictures and sound whose quality is on a par with that of video tape. This player also supports Video CDs with playback control (Version 2.0).

What is playback control (PBC)?

If a Video CD has “playback control” written on its disc or jacket, it means that particular scenes or information can be selected for viewing interactively with the TV monitor using the menu screen.

3 4

Example of interactive DVD On-Screen Menu

●

For further information, refer to the disc jacket of the disc you are playing.

After operation

When the unit is not in use, remove the disc and press POWER to turn off the power.

Notes

❍

Do not move the DVD player during playback. Doing so may damage the disc and the DVD player.

❍

Use the OPEN/CLOSE button on the remote control or DVD player to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD player to malfunction.

❍

Do not push up the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

❍

Keep your fingers well clear of the disc tray as it is closing. Be especially careful with children’s fingers around the closing disc tray as there is a risk of personal injury.

❍

When “” appears on the TV screen while a button is pressed, it means that this function is not available on the disc you are playing.

❍

Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case of the disc you are playing.

PAGE 20 BASIC OPERATION

Basic Playback (Cont’d)

STOP

PLAY

Stopping Play

Press STOP during playback.

Resume Play

● When play is stopped, the unit memorizes the point where STOP was pressed (RESUME function). Press PLAY and playback will resume from this point.

Notes

❍

This operation works only with discs for which the elapsed playing time appears in the DVD display window during stop.

❍

Resume function will be cleared when the STOP is pressed on the STOP mode.

❍

Resume function will be cleared when the power is turned off and then on.

❍

Opening the disc tray cancels Resume function.

❍

The Resume function may not be available on some DVD discs or Video CDs (version 2.0).

Last Scene Memory

Screen Saver

This player memorizes last scene for the last disc you have watched. Settings remain in memory even if you remove the disc from the player or switch off the player. If you load a disc that has its settings memorized, Latest Stop Position is automatically recalled.

Notes

❍

Settings are stored in memory for use any time.

❍

Switching of the audio mode, etc., is automatic on some discs.

❍

This player does not memorize if you switch off the player when a DVD or title menu appears on the TV screen.

Screen Saver

The screen saver is useful to prevent your display from becoming damaged. The screen saver picture appears when you leave the DVD player in stop mode for about 5 minutes.

Automatic power off function

After the Screen Saver has been engaged for about 5 minutes, the DVD player will automatically turn itself off.

Basic Playback (Cont’d)

TITLE

CHP/TRK

DVD

1 2 3 4 5

DISC SKIP

EX-CHANGE

BASIC OPERATION PAGE 21

Exchanging Discs during Playback

Press EX-CHANGE during playback to open

the loading drawer.

Press DISC SKIP to rotate the disc tray to the

desired position.

The carousel will advance clockwise by one disc tray.

Note: The disc tray which was in the play position can

not be exchanged.

Exchange the discs and press EX-CHANGE or

OPEN/CLOSE to close the loading drawer.

OPEN/

PLAY

DISC SKIP

Skipping Discs

Press DISC SKIP during playback or in the stop mode.

● Each time the button is pressed, the next disc tray is selected.

Notes

❍

When the DISC SKIP is pressed during playback or in the stop mode, the disc tray advances to the next disc.

❍

If there is no disc on the selected disc tray, the disc tray of the next number will be selected.

Exchanging the Disc and Starting Playback

Press OPEN/CLOSE during playback or in the

stop mode.

Play is stopped (if pressed during playback), the loading drawer opens and the disc tray which was in the play position comes to the center position.

Exchange the disc in the center position.

Center position

Press OPEN/CLOSE or PLAY again.

The loading drawer closes, the disc tray returns to the play position and playback begins from the new disc.

PAGE 22 BASIC OPERATION

Special Playback

Still Picture (Pause)

Press PAUSE during playback.

●

DVD/Video CD The player will be placed in the still picture mode.

●

CD Playback will be paused.

Frame Advance (DVD and Video CD only)

Press PAUSE during still playback.

(Each time you press PAUSE, the picture advances one frame)

PAUSE

SKIP

STOP

Mini glossary

SKIP

PLAY

Detailed Description of each Video Mode

Auto : The image material types of the DVD video (film

material or video material) are distinguished by this player based on the disc information.

Video1 : Suitable for playing the disc of video material

which has comparatively few movements.

Video2 : Suitable for playing the disc of video material

which has comparatively many movements.

Film : Suitable for playing the disc of film material or of

video material recorded by the progressive scan method.

Adapt : Decides the material type (film or video) by

playing the disc, and switches the modes. Suitable for playing the disc mixed of film and video material.

To resume normal playback, press PLAY.

Skipping Chapters and Tracks

Forward or Back

Skipping forward Press SKIP

A chapter (DVD) or a track (CD/Video CD) is skipped each time this button is pressed.

during playback.

Skipping back Press SKIP

●

When this button is pressed once midway through a chapter/track, the player returns to the start of that chapter/track. When it is pressed repeatedly, a chapter/track is skipped each time the button is pressed.

during playback.

For your reference:

●

When SKIP video CDs equipped with PBC (Version 2.0), a menu

screen may appear.

is pressed during menu play of

How To Set The Video Mode

●

With certain DVD disc, the playback picture is flickering or Dot Crawl is shown on straight lines. That means Vertical interpolation or De-interlace is not perfectly matched with DVD disc. In that case, the picture quality can be improved with changing video mode.

●

To change the video mode, press and hold OSD button on the remote control about 3 seconds during playback of DVD disc. Changed video mode number is displayed on the TV screen. Check whether video quality is improved. You can repeat above procedure until desired picture quality appears.

●

Procedure of video mode is changed; Video1 → Video2 → Film → Adapt → Auto.

●

If you turn off the the power, the video mode will be back to initial state (Auto).

Special Playback (Cont’d)

You can play back discs at various speeds.

SLOW

(

SKIP

V/ V

)

SKIP

PLAY

BASIC OPERATION PAGE 23

To Scan at Fast Forward or Fast

Reverse Playback.

Press and hold SKIP or button for about two seconds during playback.

[TV screen]

FFFF

●

The image advances (or reverses) is relatively slow at first. When the button is pressed again, the speed increases. (Each time the button is pressed, the speed increases up to 4 steps (DVD) or 3 steps (CD/Video CD).)

●

The speed will be maintained even after the button is released.

To return to normal playback, press PLAY.

Note

❍

The DVD player does not play back sound during high speed reverse and forward playback of DVD video discs. However, the DVD player plays back sound during fast forward or fast reverse playback of audio CDs.

❍ Subtitles do not appear on the screen during scan playback.

GGGG

Playing in Slow-Motion (DVD and Video CD only)

Press SLOW

The playback speed is reduced to 1/16 of the normal speed.

[TV screen]

●

The speed that the image advances (or reverses) is slow at first. When the button is pressed again, the speed increases. (Each time the button is pressed, the speed increase up to 4 steps.)

●

The speed will be maintained even after the button is released.

To return to normal playback, press PLAY.

Notes

❍

The sound is muted during slow-motion playback.

❍

The Slow-Motion playback in reverse is not applicable for Video CDs.

❍

The SLOW buttons do not function with Audio CDs.

during playback.

1/16

PAGE 24 OPERATION USING GUI MENU

0:16:57

1 ENG

6 CH

OFF

NORM.

0:16:57

STER.

NORM.

PBC

0:16:57

STER.

NORM.

CHAPT

OFF

A B

1/9

General Information about GUI Menu

This unit features an icon based GUI menu showing disc information (title/chapter/track number, elapsed playing time, audio/subtitle language, angle, and sound) and player information (repeat play, play mode, marker, etc.). Some icons only show the indicated information. Other icons allow settings to be changed.

2, 3

Common procedures

Press GUI DISPLAY during playback.

●

Title function can be accessed from the stop mode.

Press DD/

●

The current selected item is highlighted by a yellow frame around its menu icon.

Press FF/

●

When numbers are displayed (e.g. title number), the numeric buttons can also be used for setting instead of

●

For some functions, the setting will be registered immediately; for others, ENTER must be pressed.

To clear the GUI Menu display, press GUI DISPLAY again.

to select the desired item.

to select the desired setting.

FF/GG

Examples of GUI Menu Icons.

(The screens may differ depending on the disc contents.)

(DVD GUI) (CD/Video CD GUI)

(Video CD (Version 2.0))

(DVD and CD GUI)

OPERATION USING GUI MENU PAGE 25

0:16:57

1 ENG

6 CH

OFF

NORM.

0:16:57

STER.

NORM.

Detailed Description of each GUI Menu Icon

You can view information about a disc and its operational status on the TV screen.

Press GUI DISPLAY during

playback.

[TV screen] DVD GUI

FUNCTION

(Press DD/EEto select desired item)

Indicates the current title number;

and to jump to a desired title number

Indicates the current chapter number;

and to jump to a desired chapter number

Indicates the elapsed time;

and directly select scenes by the desired time.

Indicates the current audio soundtrack language, encoding method, channel number;

and to change the settings.

Indicates the current subtitles language;

and to change the setting.

Indicates the current angle number;

and to change the angle.

Indicates the current sound enhancement (NORMAL or 3D SURROUND);

and to change the setting.

SELECTION

METHOD

, or

FF/GG

Numeric

ENTER

, or Numeric

FF/GG

ENTER

SKIP

Numeric

ENTER

FF/GG

AUDIO

FF/GG

SUBTITLE

FF/GG

ANGLE

FF/GG

Press GUI DISPLAY during

playback.

[TV screen] CD/Video CD GUI

Indicates the current track number;

Note

❍

Some DVD discs may not provide all of the above GUI menu icons.

and to jump to the desired track number

Indicates the elapsed time;

(Display only)

Indicates the current audio (STEREO, LEFT, RIGHT);

and to select a desired audio channel.

Indicates the current sound enhancement (NORMAL or 3D SURROUND);

and to change the setting (Audio CD only).

(Press DD/EEto select desired item)

FUNCTION

SELECTION

METHOD

, or Numeric

FF/GG

ENTER

SKIP

FF/GG

AUDIO

FF/GG

PAGE 26 ADVANCED OPERATION

Using a Title Menu

Some movie discs may contain two or more titles. If the disc has a title menu recorded on it, the TOP MENU button can be used to select the movie title and related menu options. (The details of operation differ depending on the disc used.)

● Selecting a title may not be possible on

certain DVD discs.

Using a DVD Menu

Press TOP MENU.

A list of the titles on the disc is displayed.

Pressing TOP MENU again to resume play from the location when TOP MENU was first pressed.

• Resume play may not be possible on certain discs.

Press DD/EE/FF/GGand press ENTER or PLAY, or

press the numeric button(s), to select a desired title.

The selected title now begins playback.

Some DVDs have unique menu structures called DVD menus. For example, DVDs programmed with complex contents may provide guide menus, and those recorded with various languages may provide menus for audio and subtitle language. Although the DVD menu’s contents and operation differ from disc to disc, the following explains basic operation when this feature is available.

Press MENU during playback.

The DVD menu encoded on the disc is displayed.

3 4

Pressing MENU again resumes playback from the scene when MENU was first pressed.

• Resume playback may not be possible on certain discs.

Press DD/EE/FF/GGand press ENTER, or press

the numeric button(s), to select a desired item.

The selected item is now displayed.

Changing Subtitle Language

OFF

1 ENG

6 CH

2 FRE

6 CH

STER.

LEFT

ADVANCED OPERATION PAGE 27

It is possible to change the subtitle language to a different language from the one selected at the initial setup. (See page 34 for further info.) This operation functions only on discs that include multiple subtitle languages.

1, 2

Notes

❍

In some cases, the subtitle language is not changed to the selected one immediately.

❍

When a disc supporting closed captioned data is played, the subtitle and the closed caption data may overlap each other on the TV screen. In this case, turn the subtitle off.

❍

When a desired language can not be selected even after pressing the button several times, the language is not available on the disc.

❍

When the power is turned on or the disc is removed, subtitles will appear in the language selected at the initial setting. If this language is not recorded on the disc, the disc’s priority language appears.

Press SUBTITLE during playback.

When no subtitles are available, “OFF” will be displayed instead of the language number.

Press SUBTITLE repeatedly until the

desired language is selected.

The number corresponding to the subtitle language being played back is displayed.

To eliminate the On Screen Subtitles.

Press SUBTITLE repeatedly to select OFF at step 2.

Changing Audio Soundtrack Language

It is possible to change the audio soundtrack language (or encoding method, channel number) to a different language from the one selected at the initial setup. (See page 34 for further info.) This operation works only with discs on which multiple audio soundtrack languages are included. It may be possible to change the audio channel in case of audio CD.

1, 2

Notes

❍

When the desired language is not selected even after pressing the AUDIO button several times, the language is not available on the disc.

❍

When the power is turned on or the disc is removed, the language heard is the one selected at the initial setup. If this language is not mastered on the disc, only the language available on the disc will be heard.

❍

Some discs may not respond to Audio feature.

• DVD Press AUDIO during play.

Number of the audio soundtrack language being played back.

Press AUDIO repeatedly until the

desired language (or encoding method, channel number) is selected.

• CD/Video CD Press AUDIO during playback.

Press AUDIO repeatedly until the

desired sound is selected.

PAGE 28 ADVANCED OPERATION

NORM.

1 2 3

3D SUR

Viewing Multi Angle Discs

Some DVDs may contain scenes which have been shot simultaneously from a variety of different angles. You can view each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.)

1, 2

Producing a 3D Surround Effect

Press ANGLE during playback.

Number of angle being played back is displayed.

Press ANGLE repeatedly until the

desired angle is selected.

For your reference

•

The ANGLE indicator will blink in the DVD display window during scenes recorded at different angles as an indication that angle switching is possible.

•

The angle number can be programmed beforehand; the angle will switch to the selected number when the ANGLE indicator blinks.

Note

❍

This function only works for discs that include scenes recorded from multiple angles.

This unit can produce a 3D Surround effect, using 3D Surround Sound technology, which simulates multi-channel audio playback from two conventional stereo speakers instead of the five or more speakers normally required to listen to multi-channel audio from a home theatre. This feature works with DVD discs encoded with Dolby Pro Logic and Dolby Digital audio tracks.

2, 3

Press GUI DISPLAY during playback.

Press

sound is selected.

Each time this button is pressed, the icon display changes.

Notes

❍

This 3D Surround effect may not be available on some DVD discs, including those recorded with a mono audio soundtrack.

❍

Turn off the TV surround sound and other surround effects when using this 3D surround effect.

❍ For best 3D Surround effect using only two speakers it is

recommended that the two speakers be positioned approximately 8’ to 10’ apart, and the listening position should be 8’ to 10’ away from the speakers.

to select SOUND item.

DD/EE

repeatedly until the desired

FF/GG

Repeat Play

A *

A B

OFF

CHAPT

TITLE

OFF

DISC

ALL

TRACK

OFF

ALL

TRACK

ADVANCED OPERATION PAGE 29

Repeating viewing (listening)

Press REPEAT during playback.

Each time this button is pressed, the icon display changes as shown below and the disc will repeat a chapter or title (DVD) or a track (CD/Video CD).

• DVD

Repeat of chapter being played

Repeat of title being played

Cancels repeat mode (normal play)

• CD/Video CD

Repeat of track being played

Repeat of entire current disc contents

Repeat of entire all disc contents

Cancels repeat mode (normal play)

Repeating sections between two specific points (A-B repeat)

While the disc is playing, press A-B RPT at

the point where repeat play is to start (A).

• You can select “OFF” at this step by pressing

CLEAR.

Press A-B RPT during playback at the

point where repeat play is to be concluded (B).

Repeat play of the selection between points A and B starts.

To return to normal play

Press A-B RPT once “OFF” is displayed.

To enjoy program repeat play (CD/Video CD)

If REPEAT is pressed during program play, repeat play is operated as below.

Repeat of the current programmed track

Repeat of all programs

Cancel repeat mode (Program play)

To return to normal play

Press REPEAT several times until “OFF” is displayed.

Notes

❍ Repeat play works only with discs for which the elapsed

playing time appears in the DVD display window during playback.

❍ Repeat play may not work correctly with some DVDs and

some Video CDs.

❍ A-B repeat play works only within a DVD title or a

CD/Video CD track .

❍ Some subtitles proceeding point A or B may not be

displayed.

PAGE 30 ADVANCED OPERATION

1/9

MARKER SEARCH

123456789

Storing Markers in Memory to be Viewed or Listened to again

Storing a MARKER in the DVD memory is similar to marking your page in a book. It allows you to quickly return to any point on the disc.

4 3

Storing a marker in the memory

Press MARKER during play at the starting

point to be viewed (listened to) again.

Indicates “1/9” is stored in the memory. Up to 9 marks can be stored in the memory.

Recalling/Clearing a marker

Press SEARCH during playback.

The MARKER SEARCH menu will appear on the TV screen.

Press FF/GGto select the marker to be

recalled/cleared.

Press ENTER to recall a marker.

Or press CLEAR to clear a marker.

Playback resumes from the point corresponding to the selected marker.

Notes

❍ These operations work only with discs for which the elapsed

playing time appears in the DVD display window during playback or stop operation.

❍ Some subtitles recorded around the marker may not be

displayed (DVD).

❍ All the markers are cleared when the power is turned off or the

disc is removed.

❍ The marker cannot be memorized when the DVD or title menu is

displayed on the TV screen.

Zoom Feature

ADVANCED OPERATION PAGE 31

The Zoom function allows you to magnify the video image and to navigate through the enlarged image.

1 2

Random Play

Note: This function only works with karaoke DVD,

Audio CD and Video CD. The random feature does not work with DVD movies.

You can playback titles or tracks in random order. (Random playback) The DVD player automatically selects the titles on a DVD video karaoke disc and plays them randomly.

Press ZOOM during playback or still

playback to activate the Zoom function.

If you press ZOOM repeatedly, the magnification level increases (6 steps).

Press DD/EE/FF/GGbuttons to move through

the zoomed picture.

Press CLEAR to resume normal play-

back.

Notes

❍

Some discs may not respond to the Zoom feature.

❍

Zoom does not work on subtitles or menus included on DVD video discs.

Random play (Karaoke DVD, Video CD or CD)

Press RANDOM repeatedly until desired

random mode is selected during playback or stop mode.

The unit automatically begins Random Playback and RANDOM (1-3) appears on the TV screen.

• RANDOM1: Plays all the tracks on a single disc in random order and then stops.

• RANDOM2: Plays all the tracks on current disc in random order and then plays all the tracks on each succeeding disc in random order and then stops.

• RANDOM3: Plays 2 tracks randomly from a disc and then plays 2 tracks randomly from a different disc until all tracks on all discs have been played.

1, 2

To return to normal playback, press

RANDOM repeatedly until NORMAL appears on the TV screen.

The RANDOM indicator in the DVD display window disappears.

Notes

❍

Random playback may not be possible on certain discs.

❍

If you press the SKIP or button during random playback, the DVD player skips to another track and starts random playback.

PAGE 32 ADVANCED OPERATION

Step 1

Program

Clear All

Program Play

The player plays the tracks on the disc in the order you specify.

Note: Program play function is possible only with audio CDs. It does not work with DVD movie discs and Video CDs (Version 2.0).

2, 3

Press PROGRAM on the stop mode.

The program menu screen appears on the TV.

• To exit the screen, press PROGRAM or RETURN.

Enter the disk number using the numerical

keys (1-5) and then press ENTER.

Enter the track number using the numerical

keys (0-9) and then press ENTER.

The next area is selected.

Repeat steps 2 to 3.

Up to 20 tracks can be programmed.

2, 3

Press PLAY to exit the menu.

The selected tracks are stored in the player memory and playback begins with the first programmed sequence.

After playback of all programmed tracks is completed, playback is stopped

Clearing the program

● To clear the programmed tracks one by one

Press D/E/F/G to select the unwanted track and then press CLEAR.

● To clear all the programmed tracks

Press D/E/F/G to select “Clear All” and then press ENTER. Press PROGRAM or RETURN to exit the screen. (The programs are also cleared when the power is turned off or the disc is removed.)

Selection of Initial Settings

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

Original

Spanish

English

Chinese

Polish

Hungarian

Russian

French

German

Italian

Other — — — —

INITIAL SETTINGS PAGE 33

Once the initial settings have been completed, the player can always be operated under the same conditions (especially with DVD discs). The settings will be retained in the memory until they are changed, even if the power is switched off.

2, 3

Selection of initial settings

Press SETUP in the stop or playback mode.

The SETUP menu is displayed.

Press DD/EEto select the desired item.

The screen will show the current setting for the selected item, and the alternate setting(s).

• Disc Audio (see page 34.)

• Disc Subtitle (see page 34.)

• Disc Menu (see page 34.)

• Rating (see page 35.)

• Password (see page 36.)

• TV Aspect (see page 37.)

• Menu Language (see page 38.)

• Progressive Scan (see page 39.)

• Digital Audio Output (see page 40.)

• Others (see page 41.)

Press GGand then DD/

setting and press ENTER.

Some items require additional steps. (See their

•

respective page.)

When the alternate setting is selected the screen returns to the Initial Settings display.

to select the desired

To exit SETUP menu

Press SETUP, RETURN or PLAY.

PAGE 34 INITIAL SETTINGS

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

Original

Spanish

English

Chinese

Polish

Hungarian

Russian

French

German

Italian

Other — — — —

Selecting Disc Languages

To select the audio soundtrack language, subtitle language and the language used in title menus or DVD menus.

When you play back a DVD video disc, the DVD player automatically displays the pre-selected subtitle language if it is included on the disc.

1, 2 2

At the setup screen, press DD/EEto select

“Disc Audio” and press

Press

DD/EE

to select the desired language and

then press ENTER.

Disc Audio

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Original

English

French

German

Spanish

Italian

Chinese

Polish

Hungarian

Russian

Other — — — —

Original :The native, or default language of each disc will be

selected.

English : English will be Selected. Other : Another language can be selected. You can input a

4-digit language code. (Refer to the language codes on page 42. Press CLEAR if an incorrect language code is entered.)

The “Disc Subtitle” and “Disc Menu” settings are selected by the same method.

Note

❍

If the language selected is not available on the disc, the native, or default language designated by each disc will be selected.

Selecting Rating Level and Password

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

Unlock

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

8 Blocked

7 Blocked

Unlock

Disc Audio

INITIAL SETTINGS PAGE 35

To prohibit the playing of specified DVDs which are unsuitable for children.

● Some DVD discs contain a restriction level

which enables parents to remove scenes or prevent playback of discs by children. DVD players are equipped with a password designed to prevent children from changing the restriction level settings.

1, 2 2

Selecting rating level (DVD only)

From the SETUP screen, press DD/EEto select

“Rating” and press

Press

press ENTER.

DD/EE

to select the desired level and

For your reference

In order for this DVD Player to maintain a permanent Parental Lock selection, you must enter a 4 digit personal security code.

You cannot play DVD video discs rated higher than the level you selected unless you cancel the parental lock function. For example, when you select level 7, discs rated higher than level 7 are blocked and cannot be played.

The parental lock level is equivalent to the following USA movie ratings.

Level 7: NC-17 Level 6: R Level 4: PG 13 Level 3: PG Level 1: G

• Some titles do not match with the rating level described above.

If you change the level and enter a password, playback of all DVDs with ratings higher than your selection will be blocked, unless the correct password is entered again. For example: if you change the level to “5”, the DVD player will not play discs with ratings of “6”, “7” or “8” unless the correct password is entered on the remote control.

PAGE 36 INITIAL SETTINGS

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

New

— — — — Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

Change

Clear

Selecting Rating Level and Password (Cont’d)

Setting your password (DVD only)

If you change the rating level to “7” or lower, you must enter a 4-digit “password” to prevent playback of discs with higher ratings.

At the SETUP screen, press EEto select

“Password” and press

1 2, 3

Input a 4-digit password and press ENTER.

Example : 1234 Do not forget your password.

2, 3

To clear your 4-digit password

If you forget your password, to clear the current password, follow the procedure below.

1 Press SETUP.

The SETUP menu is displayed.

2 Enter 6-digit number “210499” by

pressing number buttons.

The 4-digit password is cleared. “P CLr” appears on the display.

3 Enter a new password.

Refer to “Setting your password” section on the right.

Input the 4-digit password again and press

ENTER to verify.

Setting is completed.

● The rating is locked. Any disc whose rating is higher than the setting, cannot be played back unless the correct password is entered, and parental lock level is modified.

To change/clear memorized password

At the SETUP screen, press EEto select

“Password” and press Input your password and press ENTER.

To change or clear your password, press

to select the “Change” or “Clear” and press ENTER.

To change the rating level/password, follow the steps on page 35-36 again.

DD/EE

Selecting TV Aspect

16:9 Wide

4:3 Panscan

Cut Off

4:3 Letterbox

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

4:3 Letterbox

4:3 Panscan

16:9 Wide

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

4:3 Letterbox

4:3 Panscan

16:9 Wide

INITIAL SETTINGS PAGE 37

Select the appropriate screen type according to your TV set; conventional size screen (4:3) or wide-screen (16:9).

1, 2

At the SETUP screen, press DD/EEto select “TV

Aspect” and press

Press

press ENTER.

DD/EE

to select the desired Aspect and

4:3 Letterbox : Select when a conventional TV set is

connected widescreen. Video material not formatted to the Pan & Scan style is played back in the letterbox style (black bands appear at top and bottom of screen).

4:3 Panscan : Select when a conventional TV set is connected widescreen. Video material formatted in the Pan & Scan style is played back in that style (Full screen display).

However, the left and right edges of the original theatrical presentation will be cropped off.

16:9 Wide : Select when a wide-screen TV set is connected. Played in “FULL” size. (Setting the wide-screen TV to “FULL” mode is also necessary.) Displays a full widescreen picture or slightly letterboxed picture depending upon the aspect ratio of the original theatrical content.

* Each screen shows an example when the video material

for a wide-screen is played.

PAGE 38 INITIAL SETTINGS

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

English

Spanish

French

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

English

Spanish

French

Selecting Menu Language

Selects language for SETUP menus and onscreen displays.

1, 2

From the SETUP screen, press DD/EEto select

“Menu Language” and press

Press

press ENTER.

DD/EE

to select the desired Language and

Selecting Progressive Scan

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

Off

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

Off

INITIAL SETTINGS PAGE 39

If your television is high-definition or “digital ready” television, you may take advantage of the DVD Player’s progressive scan output for the highest video resolution possible. Make the component video connections as shown on page 13 or you may connect the component video jacks directly to the component video or HD component inputs on your TV or monitor. Once the connection is made, the progressive scan circuitry must be activated by changing the SETUP menu.

Note: The progressive scan capability is not operational with standard analog component video connections.

1, 2

At the SETUP screen, press DD/EEto select

“Progressive Scan” and press

Press

Scan mode (On or Off) and press ENTER.

DD/EE

to select the desired Progressive

Off: If you are using the COMPONENT VIDEO OUT jacks,

but are connecting the DVD player to a standard (analog) television, set the Progressive Scan mode to “Off”.

On: If you are using the COMPONENT VIDEO OUT jacks

for connection to a TV that is compatible with a progressive scan signal, set the Progressive Scan mode to “On”.

Notes

❍

The Progressive function only works when VIDEO OUTPUT SELECT switch on the rear panel is set to COMPONENT (PROGRESSIVE SCAN). The setup menu for “Progressive Scan” is not available when the “VIDEO OUTPUT SELECT” switch is set to S-VIDEO.

Warning

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible video display. If you change the setting to “On” in error, you must reset the unit by first pressing the STOP to stop any disc that is playing. Next, press the STOP again and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog display.

PAGE 40 INITIAL SETTINGS

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

DOLBY DIGITAL

/PCM

Stream/PCM

PCM

Sample Freq.

48 KHz

96KHz

Selecting Digital Audio Output

Each DVD disc has a variety of audio output options. Set the player’s Digital Audio Output according to the type of audio system you use.

1, 2

At the SETUP screen, press DD/EEto select

Digital Audio Output and press

DD/EE

Press

to select the desired output and

press ENTER.

You can select Digital Audio Output or Sampling Frequency item by pressing ENTER.

■

Digital Audio Output

DOLBY DIGITAL/PCM:

Select “DOLBY DIGITAL/PCM” if an active digital output is supplied to a Dolby Digital decoder, (or an amplifier or other equipment with Dolby Digital decoder).

Stream/PCM: Select “Stream/PCM” if an active

digital output is supplied to an amplifier or other equipment with DTS decoder, Dolby Digital decoder and MPEG decoder.

PCM: Select “PCM” if an active digital output is

supplied to an amplifier or other equipment with linear PCM only (or MD recorder or DAT deck).

Playback

Disc

96 kHz Linear PCM DVD

DTS DVD

Dolby Digital DVD

MPEG DVD

Audio CD/ Video CD

DTS Audio CD

Stream/PCM

PCM

DTS bit Stream

Dolby Digital bit Stream

MPEG bit Stream

PCM

DTS bit Stream

OUTPUT

Dolby Digital/ PCM

PCM

DTS bit Stream

Dolby Digital bit Stream

PCM

DTS bit Stream

PCM only

PCM

DTS bit Stream

PCM

DTS bit Stream

■

Sampling Frequency

To change the Sample Frequency setting, first select the desired digital audio output type as indicated above. If your A/V receiver or surround processor is NOT capable of handling 96kHz signals, select the 48kHz option. When this choice is made, this unit will automatically convert any 96kHz signals to a 48kHz output so that your system is capable of decoding them. If your A/V receiver or surround processor is capable of handling 96kHz signals, select the 96kHz option. When this choice is made, this unit will pass each type of signal through without any further processing.

Notes

❍

When you are not using the player’s digital audio output, don’t select any of the options.

❍

If an active digital audio output signal is supplied to a receiver or other equipment without a corresponding digital decoding capability, a very loud noise may be produced which could permanently damage the speakers.

❍

The DTS DVD disc sound is played back only when the DVD player is connected to a receiver with a DTS decoder.

Others (DRC/Vocal/PBC)

Disc Subtitle

Disc Menu

Rating

Password

TV Aspect

Menu Language

Progressive Scan

Digital Audio Output

5.1 Speaker Setup

Others

Disc Audio

DRC On

Vocal On

PBC On

INITIAL SETTINGS PAGE 41

The DRC, Vocal and PBC settings can be changed.

1, 2

At the SETUP screen, press DD/EEto select

“Others” and press

DD/EE

Press

press ENTER.

to select the desired items and

The setting of the selected item are changed between On and Off.

■

DRC (Dynamic Range Compression) On/Off

On: Select this option to turn on the Dynamic Range

Compression circuitry so that dialogue remains clear even at low volume levels.

Off: Select this option to turn off the Dynamic Range

Compression and have the soundtrack presented exactly as it was created.

About DRC (Dynamic Range Compression)

With the DVD format you have the opportunity to listen to program’s soundtrack in the most accurate and realistic presentation possible, thanks to the use of digital audio technology. However, in certain instances you may wish to slightly compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones) so that you may listen to a movie at a lower volume and still retain dialogue intelligibility.

■

Vocal On/Off

Set to On only when a multi-channel karaoke DVD is being played. The karaoke channels on the disc will then be mixed into a normal stereo sound.

■

PBC On/Off

Set Playback Control (PBC) to On or Off

On: Video CDs with PBC are played back according to

the PBC.

Off: Video CDs with PBC are played back in the same

way as Audio CDs.

Notes

❍

The DRC function works only during playback of Dolby Digital recorded discs.

❍

The level of Dynamic Range Compression may vary depending on the DVD disc.

❍

When playing karaoke, connect appropriate audio equipment (such as an amplifier) to the DVD video player.

PAGE 42 INITIAL SETTINGS

Table of Languages and Their Abbreviations

Enter the appropriate code number for the initial settings “Audio”, “Subtitle” and/or “Menu” (See page 34).

Code Language

6565 Afar

6566 Abkhazian

6570 Afrikaans

6577 Ameharic

6582 Arabic

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6669 Byelorussian

6671 Bulgarian

6672 Bihari

6678 Bengali; Bangla

6679 Tibetan

6682 Breton

6765 Catalan

6779 Corsican

6783 Czech

6789 Welsh

6865 Danish

6869 German

6890 Bhutani

6976 Greek

6978 English

6979 Esperanto

6983 Spanish

6984 Estonian

6985 Basque

7065 Persian

7073 Finnish

7074 Fiji

Code Language

7079 Faroese

7082 French

7089 Frisian

7165 Irish

7168 Scots Gaelic

7176 Galician

7178 Guarani

7185 Gujarati

7265 Hausa

7273 Hindi

7282 Croatian

7285 Hungarian

7289 Armenian

7365 Interlingua

7378 Indonesian

7383 Icelandic

7384 Italian

7387 Hebrew

7465 Japanese

7473 Yiddish

7487 Javanese

7565 Georgian

7575 Kazakh

7576 Greenlandic

7577 Cambodian

7578 Kannada

7579 Korean

7583 Kashmiri

7585 Kurdish

7589 Kirghiz

7665 Latin

Code Language

7678 Lingala

7679 Laothian

7684 Lithuanian

7686 Latvian, Lettish

7771 Malagasy

7773 Maori

7775 Macedonian

7776 Malayalam

7778 Mongolian

7779 Moldavian

7782 Marathi

7783 Malay

7784 Maltese

7789 Burmese

7865 Nauru

7869 Nepali

7876 Dutch

7879 Norwegian

7982 Oriya

8065 Panjabi

8076 Polish

8083 Pashto, Pushto

8084 Portuguese

8185 Quechua

8277 Rhaeto-Romance

8279 Rumanian

8285 Russian

8365 Sanskrit

8368 Sindhi

8372 Serbo-Croatian

8373 Singhalese

Code Language

8375 Slovak

8376 Slovenian

8377 Samoan

8378 Shona

8379 Somali

8381 Albanian

8382 Serbian

8385 Sundanese

8386 Swedish

8387 Swahili

8465 Tamil

8469 Telugu

8471 Tajik

8472 Thai

8473 Tigrinya

8475 Turkmen

8476 Tagalog

8479 Tonga

8482 Turkish

8484 Tatar

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

8779 Wolof

8872 Xhosa

8979 Yoruba

9072 Chinese

9085 Zulu

Disc Requirements/Copyright Information

Playable Discs

This DVD player can play back the following discs.

REFERENCE PAGE 43

Disc mark Contents

Audio+Video

DVD video discs

Video CDs

Audio CDs

CD-R/RW discs are also available.

You cannot playback discs other than those listed above. (CD-ROM, CD-Extra, CD-G, photo CD, and CD-i discs can not be played on this DVD player.) CD-R/RW discs recorded by CD-DA method can be played. Some CD-R/RW discs may be incompatible. You cannot play discs of DVD-RAM, DVD-RW, etc., even if they may be labeled marks listed above.

(moving pictures)

Audio+Video

Audio

Disc size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

Maximum playback time

Approx. 4 hours (single sided disc)

Approx. 8 hours (double sided disc)

Approx. 80 minutes (single sided disc)

Approx. 160 minutes (double sided disc)

74 minutes

20 minutes

74 minutes

20 minutes

Region Management Information

Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc.

The Region number of this DVD player is 1.

Notes on Unauthorized Discs

You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or made for business purposes. When you try to play back an unauthorized disc, “Check Regional Code” appears on the TV screen.

Notes on Copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission. DVD video discs are copy protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

PAGE 44 REFERENCE

Before Calling Service Personnel

Symptoms and Correction

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

The power is on, but the DVD player does not work.

No picture.

No sound.

The playback picture is poor.

The DVD player does not start playback.

The remote control does not work properly.

Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal

output.

• The video cable is not connected securely.

• The connected TV power is turned off.

• The equipment connected with the

audio cable is not set to receive DVD signal output.

• The audio cables are not connected securely.

• The power of the equipment connected with the audio cable is turned off.

• The Digital Audio Output is set to the wrong position.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• A menu is on the TV screen.

• The Rating level is set.

• The remote control is not pointed at the

remote sensor of the DVD player.

• The remote control is too far from the DVD player.

• There is an obstacle in the path of the remote control and the DVD player.

• The batteries in the remote control are exhausted.

Correction

• Plug the power cord into the wall outlet securely.

• Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.)

• Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen.

• Connect the video cable into the jacks securely.

• Turn on the TV.

• Select the correct input mode of the

audio receiver so you can listen to the sound from the DVD player.

• Connect the audio cable into the jacks securely.

• Turn on the equipment connected with the audio cable.

• Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing the POWER button.

• Clean the disc.

• Insert a disc. (Check that the DVD, or

audio CD indicator in the DVD display is lit.)

• Insert a playable disc. (Check the disc type, color system and Regional code.)

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Press the SETUP button to turn off the

menu screen.

• Cancel the Rating function or change the rating level.

• Point the remote control at the remote sensor of the DVD player.

• Operate the remote control within about 23 ft (7 m).

• Remove the obstacle.

• Replace the batteries with new ones.

Specifications

Power supply AC 120V, 60 Hz

Power consumption 16 W

Weight 12.6 lbs (5.7 kg)

External dimensions (W X H X D) 17” X 4.7” X 15.1” (430 x 118 x 381 mm)

Signal system NTSC

Laser Semiconductor laser, wavelength 650 nm (DVD), 780 nm (CD)

Frequency range (audio) 4 Hz to 20 kHz

[DVD player]

Signal-to-noise ratio (audio) More than 100 dB (EIAJ)

Dynamic range (audio) More than 90 dB (EIAJ)

Harmonic distortion (audio) 0.008 %

REFERENCE PAGE 45

DVD player/Outputs/Supplied Accessories

Wow and flutter

Below measurable level (less than + 0.001 % (W.PEAK)) (EIAJ)

Operating conditions Temperature: 41°F to 95°F, Operation status: Horizontal

Video output

1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1

S-video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1

Component video output (Y) 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1

[Outputs]

(Pb)/(Pr) 0.7 V (p-p), 75 Ω

Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1

Audio output (analog audio) 2.0 Vrms(1 KHz, 0 dB), 330 Ω, RCA jack (L, R) x 2

●

Video cable ................................................................................................1

●

Audio cable ................................................................................................1

●

Remote control...........................................................................................1

[Supplied

●

Batteries .....................................................................................................2

Accessories]

❋ Designs and specifications are subject to change without notice.

PAGE 46 OTHERS

LIMITED WARRANTY DVD VIDEO PLAYER

Toshiba America Consumer Products, Inc. (“TACP”), Toshiba Hawaii (“THI”) and Toshiba Canada Limited (“TCL”) make the following limited warranties. These limited warranties extend to original purchaser or any person receiving this set as a gift from the original purchaser and to no other purchaser or transferee.

Limited Ninety (90) Day Warranty

TACP/THI warrant this product against defects in materials or workmanship for a period of ninety (90) days after the date of original retail purchase. During this period, TACP/ THI will repair or replace a defective product or part, at their option, with a new or refurbished product or part without charge to you. You must deliver the entire product to a TACP/THI Authorized Service Station. You are responsible for all transportation and insurance charges for the unit to and from the Authorized Service Station. If you live in the U.S.A. you may, at your option, return your DVD Unit to:

Toshiba America Consumer Products Inc. Returns Center 1420C Toshiba Dr. Lebanon, TN 37087

Upon receipt we will, at our option, exchange the DVD Unit with a new or refurbished unit. Canadian consumers are

requested to contact TCL. In Hawaii consumers are requested to contact THI.

Limited One (1) Year Warranty

TACP/THI further warrant the parts in this product against defects in materials or workmanship for a period of one (1) year after the date of original retail purchase. During this period, TACP/THI will repair or replace a defective product or part, at their option, with a new or refurbished product or part without charge to you, except that if a defective part is replaced after ninety (90) days from the date of the original retail purchase you pay labor charges involved in the replacement. You must also deliver the entire product to a TACP/THI Authorized Service Station. You are responsible for all transportation and insurance charges for the unit to and from the Authorized Service Station. If you live in the U.S.A. you may, at your option, return your DVD Unit to:

Toshiba America Consumer Products Inc. Returns Center 1420C Toshiba Dr. Lebanon, TN 37087

Upon receipt we will, at our option, exchange the DVD Unit with a new or refurbished unit. Canadian Consumers are

requested to contact TCL. In Hawaii consumers are requested to contact THI.

Rental Units

The warranty for rental units begin with the first rental or thirty (30) days from the date of shipment to the rental firm, whichever comes first.

Commercial Units

Products sold and used for commercial use have a limited ninety (90) day warranty for all parts and labor.

Owner’s Manual

You should read the owner’s manual thoroughly before operating this product. You should complete and mail the enclosed Demographic card within ten (10) days after you, or the person who has given you this product as a gift, purchased this product. This is one way to enable TACP to provide you with better customer service and improved products. Failure to return the card will not affect your rights under this warranty.

Your Responsibility

The above warranties are subject to the following conditions: (1) You must retain your bill of sale or provide other proof of

purchase.

(2) You must notify a TACP/THI/TCL /Authorized Service

Station within thirty (30) days after you discover a defective product or part.

(3) All warranty servicing of this product must be made by a

TACP/THI/TCL Authorized Service Station.

(4) U.S.A. warranties are effective only if the product is pur-

chased and operated in the Continental U.S.A. or Puerto Rico.

(5) Labor service charges for set installation. Set up, adjust-

ment of customer controls and installation or repair of antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna systems are your responsibility.

(6) Warranties extend only to defects in materials or workman-

ship as limited above and do not extend to any product or parts which have been lost or discarded by you or to damage to products or parts caused by misuse, accident, damage caused by Acts of God, such as lighting or fluctuations in electric power, improper installation, improper maintenance or use in violation of instructions furnished by us; or to units which have been altered or modified without authorization of TACP/THI/TCL or to damage to products or part thereof which have had the serial number removed, altered, defaced or rendered illegible.

(7) Should you elect to return your DVD Unit to TACP after the

ninety (90) days and within one (1) year, or after the warranty period has expired: Call (800)-631-3811 to receive information concerning an exchange price. Payment must be enclosed with product in the form of a certified check or money order including reason for return.

(8) Physically damaged DVD Units are not acceptable for

repair or exchange whether in or out of warranty and will be returned as received.

(Continued)

OTHERS PAGE 47

Toll Free 800-631-3811

LIMITED WARRANTY DVD VIDEO PLAYER (Cont’d)

How to Obtain Warranty Service

(1) Refer to the troubleshooting guide in your owner’s manual. This check list may solve your problem. (2) In the U.S.A., only call the TACP toll free number 800-631-3811, or if in Hawaii or Canada see listing below within (30) days

after you find a defective product or part.

(3) Arrange for the delivery of the product to the TACP/THI/TCL Authorized Service Station or TACP Return Center. Products

shipped to the Service Station must be insured and safely and securely packed, preferably in the original shipping carton, and a letter explaining the defect and also a copy of the bill of sale or other proof of purchase must be enclosed.

In the Continental United States contact: In Hawaii contact:

Toshiba Hawaii Inc. 327 Kamakee Street Honolulu, HA 96814 (808)-521-5377

In Canada contact:

Consumer Electronics Group 191 McNabb Street Markham, Ontario L3R 8H2 (905)-470-5400

Consumer Electronics Group 1643 North Service Road Droval, QC H9P 1J1 (514)-856-4100

Consumer Electronics Group 22171 Fraserwood Way Richmond, B.C. V6W 1J5 (604)-303-2500

All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall TACP/THI be liable for consequential or incidental damages. No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever. The time within which an action must be commenced to enforce any obligation of TACP/THI arising under the warranty or under any statute, or law of the United States or any state thereof, is hereby limited to ninety (90) days from the date you discover or should have discovered, the defect. This limitation does not apply to implied warranties arising under state law. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Some states do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or limitation of incidental or consequential damages, so the above provisions may not apply to you.

ATTENTION CANADIAN CONSUMERS:

Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and forward this completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product must be purchased from an Authorized Canadian Dealer. Products purchased in the U.S.A. and used in Canada are not covered by these warranties.

IMPORTANT: PACKING AND SHIPPING INSTRUCTION

When you send the product to a Service Station, you must use the original carton box and packing material, then insert the original carton box containing the unit into another carton using more packing material.

P/NO: 3834RS0023H Printed in Korea

Toshiba SD-3755 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

PAGE 2 INTRODUCTION

Safety Precautions

Table of Contents

Precautions

Notes on Discs

Identification of Controls

PAGE 12 CONNECTIONS

Connecting to a TV

Connecting to a TV equipped with component video inputs

Connecting to an Audio System

Connecting to Optional Audio System

PAGE 18 BASIC OPERATION

Basic Playback

Special Playback

PAGE 24 OPERATION USING GUI MENU

Detailed Description of each GUI Menu Icon

PAGE 26 ADVANCED OPERATION

Repeat Play

Program Play

Selection of Initial Settings

INITIAL SETTINGS PAGE 33

Selecting Disc Languages

Selecting Rating Level and Password

Selecting TV Aspect

Selecting Menu Language

Selecting Progressive Scan

Selecting Digital Audio Output

Table of Languages and Their Abbreviations

Disc Requirements/Copyright Information

REFERENCE PAGE 43

Before Calling Service Personnel

Specifications
