DVD VIDEO PLAYER &

VIDEO CASSETTE RECORDER

SD-16VBSB

User’s Manual

PAL

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 1

Getting Started

2 -

English

Safety Precautions

CAUTION. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lighting flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

WARNING : Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION : The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the apparatus.

This product is manufactured to comply with the radio interference requirements of EEC

DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

CAUTION :

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 2

English

- 3

Getting Started

Disc Markings

Disc Type and Characteristics

This DVD-VCR is capable of playing the following types of discs with the corresponding logos:

12 Cm

8 Cm

Single-sided 240 min. Double-sided 480 min.

Single-sided 80 min.

Double-sided 160 min.

Audio

Video

- DVD contains excellent sound and video due to Dolby Digital, DTS and MPEG-2 system.

-Various screen and audio functions can be easily selected through the onscreen menu.

Disc Types (Logos)

Recording Types Disc Size Max. Playing Time Characteristics

DVD

12 Cm

8 Cm

74 min.

20 min.

74 min.

20 min.

12Cm

8 Cm

Audio

Video

- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

-Video with CD sound, VHS quality & MPEG-1 compression technology.

AUDIO-CD

VIDEO-CD

- DO NOT play CD-ROM, CD-I and DVD-ROM in this player! (CDGs play audio only, not graphics.)

- It may not play CD-R,CD-RW and DVD-R, -RW, DVD+R, +RW in all cases due to the type of disc or condition of the recording.

- The recorded disc may not run as playback depends on the recording speed.

-Do not run the player with two discs loaded at the same time.

PAL

Play Region Number

PAL colour system in Europe, Australia, New Zealand, etc.

NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.

Dolby Digital disc

Stereo disc

Digital Audio disc

DTS disc

DIGITAL

SOUND

STEREO

NTSC

Play Region Number

Both the DVD-VCR and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not be played.

The Region Number for this player is described on the rear panel of the player.

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 3

4 -

English

Getting Started

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must by authorized by Macrovision Corporized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT.

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. So, please read the points below for your own safety.

**************

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections

between the pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment.

**************

DON'T remove any fixed cover as this may expose dangerous voltages. DON'T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains,

etc. Overheating will cause damage and shorten the life of the equipment.

DON'T allow electrical equipment to be exposed to dripping or splashing, or objects filled with liquids, such as

vases, to be placed on the equipment.

DON'T place hot objects or naked flame sources such as lighted candles or nightlights on, or close to

equipment. High temperatures can melt plastic and lead to fires.

DON'T use makeshift stands. DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for

unattended operation or has a stand-by mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T continue to operate the equipment if you are in any doubt it working normally, or if it is damaged in any

way-switch off, withdraw the mains plug and consult your dealer.

ABOVE ALL

---NEVER let anyone especially children push anything into holes, slots or any other opening in the casethis could result in a fatal electrical shock;

---NEVER guess or take chances with electrical equipment of any kind

---it is better to be safe than sorry!

**************

Safety Instructions

THIS DEVICE IS NOT FOR USE IN INDUSTRIAL

ENVIRONMENTS

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 4

English

- 5

Getting Started

Contents



Getting Started

Safety Precautions . . . . . . . . . . . . . . . . . . . . . 2

Disc Type and Characteristics . . . . . . . . . . . . . 3

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . 4

Overviews . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front View of the DVD-VCR . . . . . . . . . . . . 6

Rear View of the DVD-VCR . . . . . . . . . . . . 6

Display Indicators . . . . . . . . . . . . . . . . . . . . 6

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Inserting Batteries in the Remote Control . . . . 7

Tour of the Remote Control . . . . . . . . . . . . . 8



Connections

Quick Overview . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting DVD-VCR to the TV using the

RF Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting DVD-VCR to the TV using the

SCART Cable . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting DVD-VCR to a Satellite Receiver

or Other Equipment . . . . . . . . . . . . . . . . . . . . 11

Connecting DVD-VCR to the TV using the

Audio/Video Cable . . . . . . . . . . . . . . . . . . . . . 11

Connecting DVD-VCR to the TV using the

S-Video Cable . . . . . . . . . . . . . . . . . . . . . . . . 12

AV Receiver Connections . . . . . . . . . . . . . . . . 12

Connecting an Audio/Video Input Cable . . . . . 13

Plug & Auto Set up . . . . . . . . . . . . . . . . . . . . . 13



Settings

Tuning Your Television for the DVD-VCR . . . . 15

Setting the Date and Time . . . . . . . . . . . . . . . 16

Setting the Menu Language . . . . . . . . . . . . . . 17

Presetting the Stations Automatically . . . . . . . 17

Presetting the Stations Manually . . . . . . . . . . . 18

Clearing a Preset Station . . . . . . . . . . . . . . . . 20

Changing the Preset Station Table . . . . . . . . . 20

Setting the VCR Output Channel . . . . . . . . . . 21



VCR Functions

Selecting the Colour Mode . . . . . . . . . . . . . . . 22

NICAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Intelligent Picture Control . . . . . . . . . . . . . . . . 23

Auto Power off . . . . . . . . . . . . . . . . . . . . . . . . 24

Screen Messages . . . . . . . . . . . . . . . . . . . . . . 24

Selecting the Cassette Type . . . . . . . . . . . . . . 25

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Selecting the Recording Speed . . . . . . . . . . . . 26

Protecting a Recorded Cassette . . . . . . . . . . . 26

Recording a Programme Immediately . . . . . . . 27

Recording a Programme with Automatic Stop . 27

Recording from Another VCR or Camcorder . . . . . 28

Using the Assemble Edit Function . . . . . . . . . . 28

Using the Timer Programming Feature . . . . . . 29

Checking a Preset Recording . . . . . . . . . . . . . 31

Cancelling a Preset Recording . . . . . . . . . . . . 31



Playing Back

Playing a Cassette . . . . . . . . . . . . . . . . . . . . . 32

Adjusting Picture Alignment Manually . . . . . . . 32

Selecting the Audio Output Mode . . . . . . . . . . 33

Playing a Cassette in Slow Motion . . . . . . . . . 33

Playing a Sequence Frame by Frame . . . . . . . 33

Playing a Sequence at Variable Speeds . . . . . 33

Searching for a Specific Sequence . . . . . . . . . 34

Using the Tape Counter . . . . . . . . . . . . . . . . . 36



DVD Fuctions

Setting Up the Language Features . . . . . . . . . 37

Setting Up the Audio Options . . . . . . . . . . . . . 39

Setting Up the Display Options . . . . . . . . . . . . 40

Setting Up the Parental Control . . . . . . . . . . . 41

Setting Up the DVD function . . . . . . . . . . . . . . 43

Special Playback Features . . . . . . . . . . . . . . . 43

Using the Display Function . . . . . . . . . . . . . . . 44

Adjusting the Aspect Ratio (EZ View) . . . . . . . 45

Selecting the Subtitle Language . . . . . . . . . . . 46

Selecting the Audio Language . . . . . . . . . . . . 46

Changing the Camera Angle . . . . . . . . . . . . . . 47

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Repeat Chapter/Title . . . . . . . . . . . . . . . . . . . . 48

Ato B Repeat . . . . . . . . . . . . . . . . . . . . . . . . . 49

MP3 Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Program & Random Play (CD/MP3) . . . . . . . . . . . 51

Picture CD Playback . . . . . . . . . . . . . . . . . . . . 52



Reference

Technical Specifications . . . . . . . . . . . . . . . . . 55

Troubleshooting Guide (VCR) . . . . . . . . . . . . . 56

Troubleshooting Guide (DVD) . . . . . . . . . . . . . 57

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 5

6 -

English

Getting Started

Front View of the DVD-VCR

Overviews

1. DVD DECK

2. OPEN/CLOSE BUTTON

3. VIDEO CASSETE COMPARTMENT

4. EJECT BUTTON

5. ON/STANDBY BUTTON

6. REWIND/SKIP BACK BUTTON

7. STOP BUTTON

8. PLAY/STILL BUTTON

9. FAST FORWARD / SKIP NEXT BUTTON

10. RECORD BUTTON

11. EZ VIEW BUTTON

12. FRONT PANEL DISPLAY

13. PROGRAMME SELECTION BUTTON

14. DVD/VCR SELECTION BUTTON

15. AUX VIDEO INPUT JACK

16. AUX AUDIO L/R INPUT JACK

12 3 4

5 6 7 8 9 10 11 12 13 14 15 16

Display Indicators

1. The DVD Deck is active.

2. Disc is loaded.

3. The time, counter position, current deck status is displayed.

4. VHS tape is inserted.

5. The VCR Deck is active.

6. A Timer Recording is programmed or in progress.

1 2 3 4 5 6

Rear View of the DVD-VCR

1. AUDIO L, R OUT JACKS

2. AERIAL IN CONNECTOR

3. AV2 (DEC./EXT.) SCART (EURO-21) JACK

4. AUDIO L, R OUT JACKS (DVD ONLY)

5. VIDEO OUT JACK

6. OUT TO TV CONNECTOR

7. AV1 (EURO AV) IN/OUT SCART (EURO-21) JACK

8. DIGITAL AUDIO OUT JACKS (COAXIAL)

9. S-VIDEO OUT JACK

5 6 7 8 9

1 2 3 4

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 6

English

- 7

Getting Started

Accessories Inserting Batteries in

the Remote Control

You have just purchased a TOSHIBA DVD-VCR. Together with your DVD-VCR, you will find the following accessories in the box.

You must insert or replace the batteries in the remote control when you:

• Purchase the DVD-VCR

• Find that the remote control is no longer working correctly

Push the tab in the direction of the arrow to release the battery compartment cover on the rear of the remote control.

Insert two AA, R6 or equivalent batteries, taking care to respect the polarities:

• + on the battery with + on the remote control

• – on the battery with – on the remote control

•

Do not mix different battery types (manganese and alkaline for example).

Replace the cover by aligning it with the base of the remote control and pushing it back into place.

Remote

Control

Batteries for

Remote Control

Owner’s

Instructions

RF Cable

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 7

8 -

English

Getting Started

Tour of the Remote Control

6. CLEAR

Used to clear a preset TV station. Used to cancel a preset recording. Used to cancel a preset mark. Used to set the tape counter to zero. Used to resume normal play during repeat play.

7. DVD

Used to operate DVD.

8. VCR

Used to operate VCR.

9. AUDIO

Used to access various audio functions.

10. TRK

…… / ††

Used to adjust picture alignment manually to obtain the best possible picture during playback.

11. SEARCH/SKIP (

œœ/ √√, lœœ/√√l

)

Used to search forward or backward through a disc. Used to skip the title, chapter, or track.

12. STOP ( ■ )

Used to stop during playback.

13. MENU

Used to display the on-screen menu.

14. OK

œœ/ √√ , …… / ††

Used to control the cursor in the on-screen menu and confirm your choice.

15. REC ( ●)

Used to make a recording on cassette.

16. SPEED

Used to select the recording speed.

17. OPEN/CLOSE

Used to open and close the disc and video cassette tray.

18. DISPLAY

Used to display the current setting or disc status.

19. SHUTTLE

Used to play a sequence at variable speeds.

20. TIMER

Used to activate the timer recording of a programme.

21. ANGLE

Used to access various camera angles on a DVD. IPC (Intelligent Picture Control)

Used to adjust the sharpness of the picture.

22. TV/VCR

Used to select TV or VCR.

23. INPUT SEL.

Used to select an external input signal.

24. PROG /

Used to select a TV programme.

25. F.ADV/STEP

Used to advance a sequence frame by frame.

26. PLAY/PAUSE (

√ll

)

Used to play or pause during playback.

27. RETURN

Used to return to a previous menu.

28. DISC MENU

Used to display a disc menu.

29. SUBTITLE

Used to change the DVD’s subtitle language.

1. ON/STANDBY

Used to turn the power on or off.

2. Number Buttons

3. EZ VIEW

Used to adjust the aspect ratio on a disc.

4. MODE

Used to select the programme or random play.

REPEAT

Used to allow the repeat play a title, chapter, track, disc or A-B.

5. MARK

Used to mark a position during playback a disc.

Used to search for a specific sequence.

2 3

6 7 8

10 11

12 13

18 19

21 22

23 24

26 27

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 8

English

- 9

Connections

•

Quick Overview . . . . . . . . . . . . . . . . . . . . . 9

•

Connecting DVD-VCR to the TV using the

RF Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 10

•

Connecting DVD-VCR to the TV using the

SCART Cable . . . . . . . . . . . . . . . . . . . . . . . 10

•

Connecting DVD-VCR to a Satellite Receiver or

Other Equipment . . . . . . . . . . . . . . . . . . . . 11

•

Connecting DVD-VCR to the TV using the

Audio/Video Cable . . . . . . . . . . . . . . . . . . 11

•

Connecting DVD-VCR to the TV using the

S-Video Cable . . . . . . . . . . . . . . . . . . . . . . . 12

•

AV Receiver Connections . . . . . . . . . . . . . . 12

•

Connecting an Audio/Video Input Cable . . . . . 13

•

Plug & Auto Setup . . . . . . . . . . . . . . . . . . . 13

Quick Overview

A Quick overview presented in this guide will give you enough information to start using the DVD-VCR.

Connecting DVD-VCR to the TV using the RF Cable

Connecting DVD-VCR to the TV using the SCART Cable

Connecting DVD-VCR to a Satellite Receiver or Other Equipment

Connecting DVD-VCR to the TV using the Audio/Video Cable

Connecting DVD-VCR to the TV using the S-Video Cable

AV Receiver Connections

Connecting an Audio/Video Input Cable

Plug & Auto Setup

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 9

10 -

English

Connections

Connecting DVD-VCR to the TV using the RF Cable

To receive television programmes, a signal must be received from one of the following sources:

• An outdoor aerial

• An indoor aerial

• A cable television network

• A satellite receiver

Remove the aerial or network input cable from the television.

Connect this cable to the 75Ω coaxial jack marked on the rear of your DVD-VCR.

Plug the RF Cable supplied into , the jack on your DVD-VCR.

Plug the other end of the RF Cable into the connector previously used for the aerial on the television.

 Make sure that both the television and the

DVD-VCR are switched off before connecting the cables.

Note

RF cable

Aerial cable

Aerial

Connecting DVD-VCR to the TV using the SCART Cable

You can connect your DVD-VCR to the television using the SCART cable if the appropriate input is available on the television. You thus:

• Obtain better quality sound and pictures

• Simplify the setting up procedure of your DVD-VCR

Connect the Aerial Cable.

Connect one end of the SCART cable to the AV1 (EURO AV) jack on the rear of the DVD-VCR.

Plug the other end into the appropriate connector on the television.

❚

Connecting the Audio Output Cable

You can connect your DVD-VCR to a Hi-Fi system. Example:You wish to take advantage of the quality of

your Hi-Fi stereo system when watching a disc play.

Plug the audio output cables into the audio connectors on the rear of your DVD-VCR.

Plug the other end of the audio cables into the appropriate input connectors on your Hi-Fi stereo system.

 Regardless of the type of connection chosen,

you must always connect the RF Cable supplied. Otherwise, no picture will be visible on the screen when the DVD-VCR is switched off.

 Make sure that both the television and the

DVD-VCR are switched off before connecting the cables.

Note

RF cable

Aerial

SCART Cable

(not supplied)

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 10

English

- 11

Connections

Connecting DVD-VCR to the TV using the Audio/Video Cable

You can connect your DVD-VCR to the television using the audio/video cable if the appropriate input is available on the television.

Connect one end of the video cable into the

VIDEO output jack on the rear of the DVD-VCR.

Plug the other end of the video cable into the appropriate input connector on the television.

Connect one end of the audio cable into the AUDIO output jacks on the rear of the DVD-VCR.

•Take care to respect the colour coding of the left and right channels.

Plug the other end of the audio cables into the appropriate input connectors on the television.

Connecting DVD-VCR to a Satellite Receiver or Other Equipment

You can connect your DVD-VCR to a Satellite receiver or other DVD-VCR using the SCART cable if the appropriate outputs are available on the equipment chosen. The following illustrations give a few examples of the connection possibilities.

AV2 IN: By means of 21-pin Scart Cable

Plug the SCART Cable with satellite receiver or other equipment into the AV2 (DEC./EXT.) socket on the rear of the DVD-VCR. After making this connection, select the source by pressing the INPUT SEL. button for the AV2 input sources. When using the SCART cable, set the TV to audio/video mode (AV).

AV1(EURO AV): By means of 21-pin Scart Cable

Connect the end of the SCART cable to the AV1(EURO AV) socket on the rear of the DVDVCR. Plug the other end into the appropriate connector on the television. When using the SCART cable, set the TV to audio/video mode (AV).

By means of RF Cable

After making this connection, you must preset the station received through the satellite tuner. RF output channel of the satellite receiver should be adjusted away from channel 60, which is used by the DVD-VCR, e.g. re-adjust to channel 65.

SCART Cable

(not supplied)

*Audio/Video cable (not supplied)

RF cable

Aerial

Satellite Receiver or other Equipment

Aerial cable

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 11

12 -

English

Connections

Digital Audio out

Jack

AV Receiver Connections

To take full advantage of the movie theater experience that DVD offers, you may want to connect your DVDVCR to a complete Surround Sound system, including an A/V Receiver and six Surround Sound speakers. If your A/V receiver is equipped with a Dolby Digital Decoder, you have the option to bypass the DVD-VCR’s built-in Dolby Digital Decoder. Use the Digital Audio Out connection below.

Connect a Digital Audio coaxial cable from the Digital Audio Out jacks on the panel of the DVDVCR to their corresponding Digital Audio Input jacks on your A/V Receiver:

To Digital Audio Input of an A/V

Receiver with a Dolby, MPEG2, DTS,

Digital Decoder

Connecting DVD-VCR to the TV using the S-Video Cable

You will enjoy high quality images. S-Video seperates the picture element into black and white(Y) and colour(C) signals to present clearer images than regular video input mode.

Connect one end of the S-Video cable into the

S-VIDEO output jack on the rear of the DVD-VCR.

Plug the other end of the S-Video cable into the appropriate input connector on the television.

Connect one end of the audio cables into the AUDIO LINE output jacks on the rear of the DVDVCR.

•Take care to respect the colour coding of the left and right channels.

Plug the other end of the audio cables into the appropriate input connectors on the television.

 Use the S-Video connection method only for

the DVD.

Note

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 12

English

- 13

Connections

Connecting an Audio/Video Input Cable

You can connect other audio/video equipment to your DVD-VCR using audio/video cables if the appropriate outputs are available on the equipment chosen.

Examples : • You wish to copy a video cassette with

the help of a second VCR.

• You wish to play back and/or copy pictures taken with a camcorder

• Make sure that both the external devices

and the DVD-VCR are switched off before connecting the cables.

Connect one end of the video cable into the

VIDEO input jack on the front of the DVD-VCR.

Plug the other end of the video cable into the appropriate output connector on the other system (VCR or Camcorder etc).

Connect one end of the audio cables into the AUDIO input jacks on the front of the DVD-VCR.

•Take care to respect the colour coding of the left and right channels.

Plug the other end of the audio cable into the appropriate output connectors on the other system (VCR, camcorder etc).

Plug & Auto Setup

Your DVD-VCR will automatically set itself up when it is plugged into the mains for the first time. TV stations will be stored in memory. The process takes a few minutes. Your DVD-VCR will then be ready for use.

Connect the RF Cable as indicated on page 10. (Connecting Your DVD-VCR to the TV Using the RF Cable)

Plug the DVD-VCR into the mains.

• “AUTO” in the front panel display flickers.

Start the auto setup.

Start the auto scanning. The number of stations automatically stored by the DVD-VCR depends on the number of stations that it has found.

Auto Setup will be started. Check antenna and TV cable connection.

RETURN

Auto Setup

RETURN

Please Wait

10%

√√

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 13

14 -

English

Connections

The current time and date are displayed automatically.

Check the date and time. if it is :

• Incorrect, refer to “Setting the date and time”. (See page 16)

• Correct, press the RETURN button twice to

exit the menu.

 Now, you only have to switch the DVD-VCR

on and it is ready for use.

 Function for “Plug & Auto Set Up” is fixed

already. So if you want to change this fixed one, you can change. (refer to “Presetting the Stations Manually” page 18)

Note

SETUP

DVD

VCR

PROG

FUNC

Clock Set

Time Date Year

12 : 00 01 / JAN / 2005 SAT

Auto Clock : On

RETURN

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 14

English

- 15

Settings

Tuning Your Television for the DVD-VCR

You must tune your television for the DVD-VCR only if you are using the RF cable. To view pictures from your DVD-VCR when a Scart cable is used, the television must be set to the audio/video mode (AV).

Switch on the television.

Switch on the DVD-VCR by pressing the I/ ON/STANDBY on the front of the DVD-VCR or ON/STANDBY on the remote control.

Select a programme position on the television to be reserved for use with your DVD-VCR.

Insert the video cassette in the DVD-VCR. Check that the DVD-VCR starts reading the cassette; if not, press the √II button.

Start a scan on your television or set the television to UHF channel 60.

Fine tune the television until the pictures and sound are obtained clearly.

When the picture and sound are perfectly clear, store this channel at the desired programme position on the television. That programme is now reserved for use with your DVD-VCR.

•Tuning Your Television for the DVD-VCR . . 15

• Setting the Date and Time . . . . . . . . . . . . . . 16

• Setting the Menu Language . . . . . . . . . . . . . 17

• Presetting the Stations Automatically . . . . . 17

• Presetting the Stations Manually . . . . . . . . . 18

• Clearing a Preset Station . . . . . . . . . . . . . . . 20

• Changing the Preset Station Table . . . . . . . . 20

• Setting the VCR Output Channel . . . . . . . . . 21

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 15

16 -

English

Settings

Press the œ or √ button to select the hour, day, month, and year. The selected option is highlighted. Press the … or † button to set them. The day of the week is displayed automatically. Press the OK button.

•You can hold the … or † button to scroll more quickly through the values.

• Press the MENU button to exit the menu.

❚

Setting the Clock Automatically

Press the œ or √ button to select Auto Clock. Press the … or † button to select On.

SETUP

DVD

VCR

PROG

FUNC

Clock Set

Time Date Year

12 : 00 01 / JAN / 2005 SAT

Auto Clock : On

RETURN

SETUP

DVD

VCR

PROG

FUNC

Clock Set

OK RETURN MENU

Time Date Year

12 : 00 01 / JAN / 2005 SAT

Auto Clock : On

Setting the Date and Time

Your DVD-VCR contains a 24-hour clock and calendar used to:

• Automatically stop programme recording

• Preset your DVD-VCR to record a programme automatically

You must set the date and time when:

• You purchase the DVD-VCR.

• Do not forget to reset the time when you change clocks from winter to summer time and vice versa.

Press the MENU button, then press the OK or

√ button.

Press the … or † button to select Clock, then press the OK or √ button. The Clock Set menu is displayed.

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

RETURN

SETUP

DVD

VCR

PROG

FUNC

Clock Set

Time Date Year

12 : 00 01 / JAN / 2005 SAT

Auto Clock : On

RETURN

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 16

English

- 17

Settings

Setting the Menu Language

Press the MENU button, then press the OK or

√ button. The Language Set is highlighted.

Press the OK or √ button again. The Language Set menu is displayed.

Press the … or † button to select desired language, then press the OK or √ button.

• Press the MENU button to exit the menu.

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

Language Set

√√

English

Français

Deutsch

Español

Italiano

Nederlands

RETURN

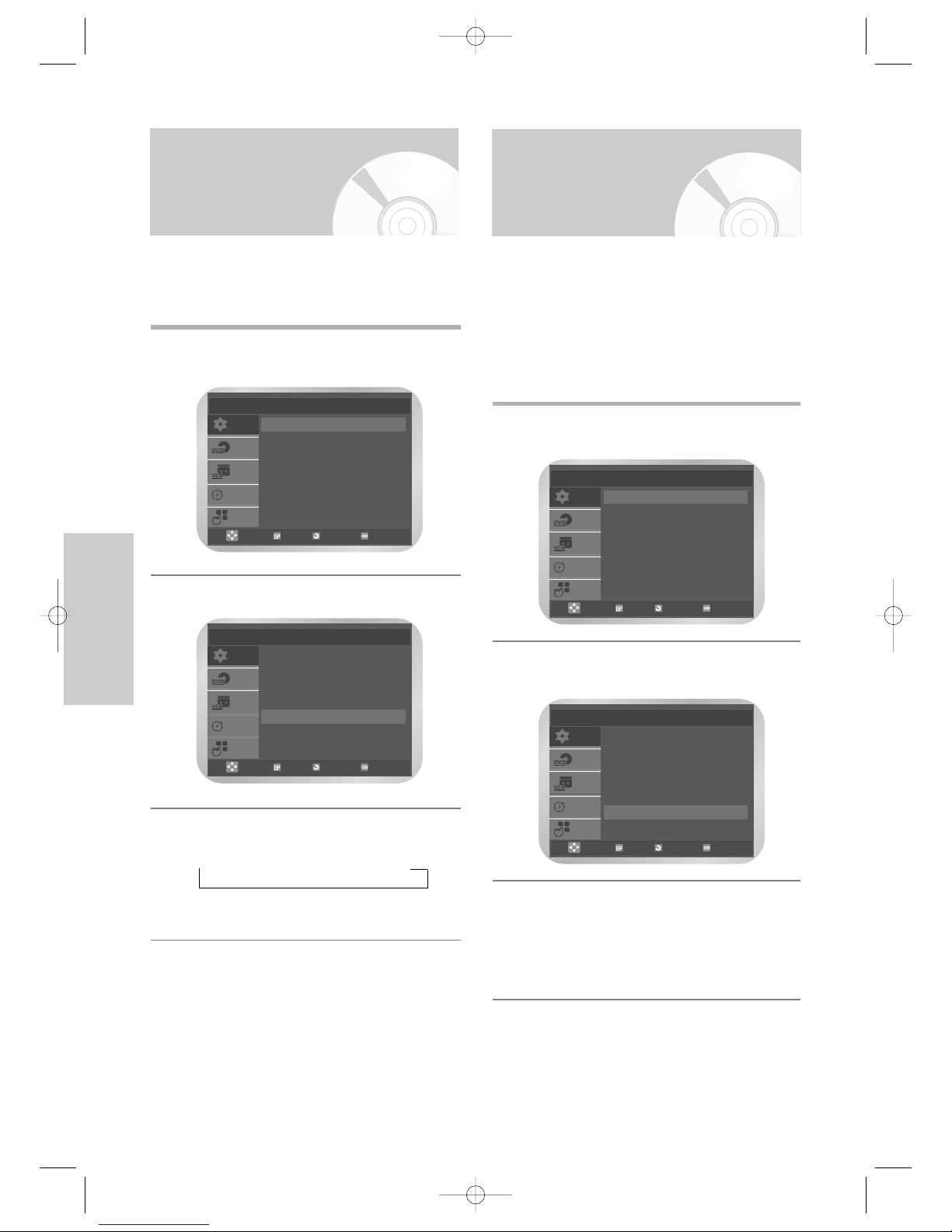

Presetting the Stations Automatically

You do not need to preset the stations if you have already set them automatically (refer to “Plug & Auto Set Up” on page 13).

Your DVD-VCR contains a built-in tuner used to receive television broadcasts. You must preset the stations received through the tuner. This can be done:

• Plug & Auto Set up (refer to page 13)

• Automatically

• Manually (refer to page 18) You can store up to 80 stations.

Press the MENU button, then press the OK or

√ button.

Press the … or † button to select Install, then press the OK or √ button.

The Install menu is displayed.

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

Install

Auto Setup

√√

Manual Setup

√√

VCR Output CH :CH60

√√

OK RETURN MENU

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 17

18 -

English

Settings

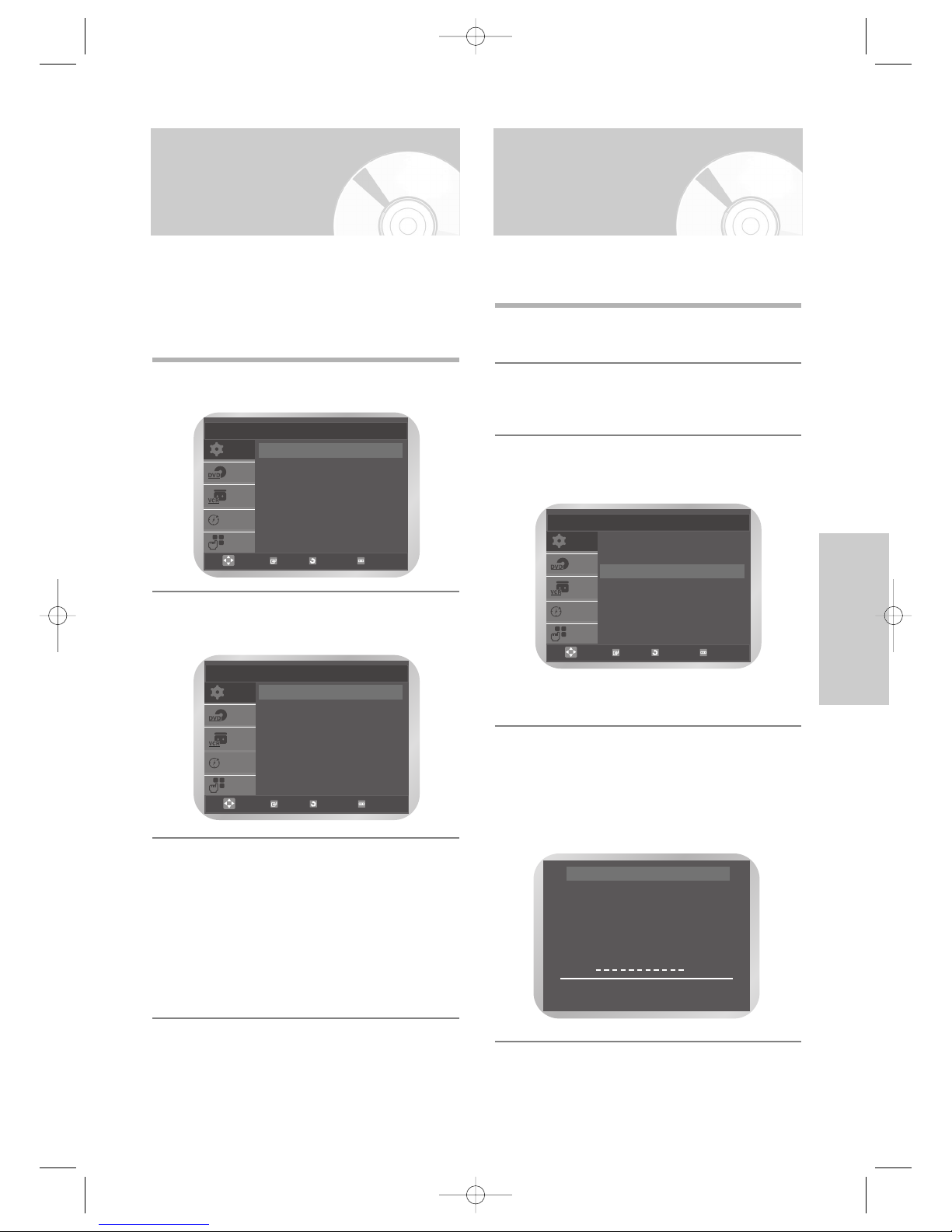

Presetting the Stations Manually

You do not need to preset the stations manually if you have already set them automatically.

Press the MENU button, then press the OK or

√ button. The Language is selected.

Press the … or † button to select Install, then press the OK or √ button. The Install menu is displayed.

Press the … or † button to select Manual Setup, then press the OK or √ button. The TV STATION TABLE menu is displayed.

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

Install

Auto Setup

√√

Manual Setup

√√

VCR Output CH :CH60

√√

OK RETURN MENU

❉ ❉ TV STATION TABLE ❉ ❉

PR CH NAME

1 2 3 4 5

……†† √√

SWAPPING : OK

DELETE : CLEAR RETURN

Press the … or † button to select Auto Setup, then press the OK or √ button. A message is displayed, indicating that any channels already preset on your DVD-VCR will be deleted.

Press the OK button to start the auto scanning. The message Please Wait is displayed.

• The first frequency band is scanned and stored. Then the DVD-VCR searches for the second station and so on. When the automatic scanning procedure has finished, the DVD-VCR switches automatically to programme 1.

• If you wish to cancel the auto scanning before the end, press the MENU button.

Auto Setup

Your data will be lost

Press OK to continue

MENU to exit

RETURN MENU

Auto Setup

RETURN

Please Wait

10%

√√

 The number of stations automatically stored

by the DVD-VCR depends on the number of stations that it has found.

 The time and date are set automatically

from the broadcast signal. If the signal is weak or ghosting occurs, the time and date may not be set automatically. In this case, they should be set manually (refer to page

16).

 Once the auto scanning procedure has

finished, some stations may have been stored more than once; select the stations with the best reception and delete the ones no longer required (refer to page 20).

Note

SD-16VBSB/TSB-eng1 3/10/05 10:12 AM Page 18

English

- 19

Settings

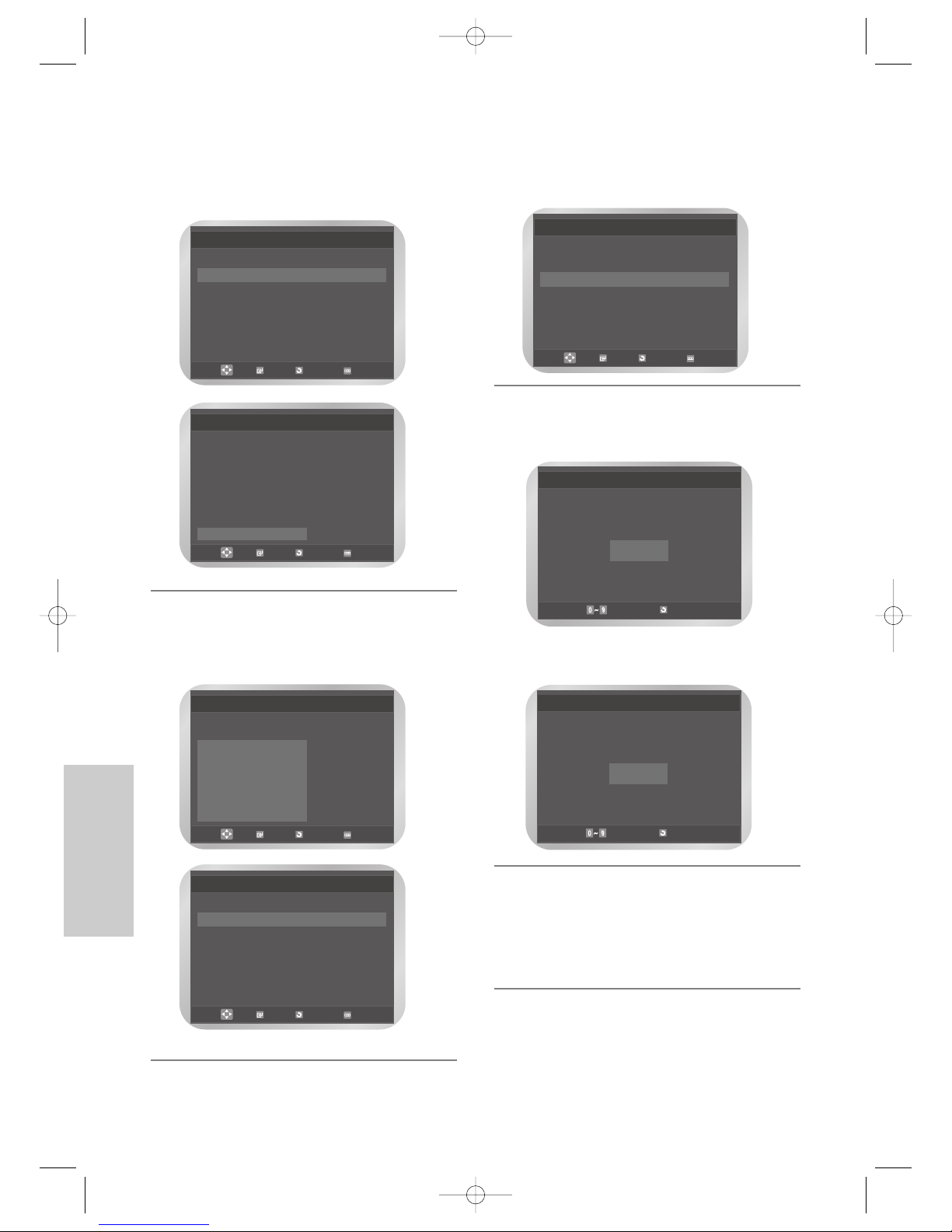

Press the … or † button to select the required programme number. Press the √ button to preset the station. The MANUAL TUNING menu is displayed.

Press the … or † button to select CH, then press the œ or √ button to start scanning the channels. The frequency band is scanned and the first station found is displayed.

If necessary, press the … or † button to select MFT, then press the œ or √ button to adjust the picture.

❉ ❉ MANUAL TUNING ❉ ❉

PR : 1 CH : - - MFT : NAME : - - - -

……†† œœ √√

MEMORY : OK

RETURN

❉ ❉ MANUAL TUNING ❉ ❉

PR : 1 CH : - - MFT : NAME : - - - -

……†† œœ √√

MEMORY : OK

RETURN

Press the … or † button to select NAME. The station name is set automatically from the broadcast signal.

•To change the programme’s name, press the √ button. The first letter of the name flashes.

Repeat this procedure from step 4 onwards, until all the required stations have been stored.

Press the MENU button to exit the menu.

❉ ❉ MANUAL TUNING ❉ ❉

PR : 1 CH : - - MFT : NAME : - - - -

……†† œœ √√

MEMORY : OK

RETURN

Select a character in the name

Move to the next or previous character

Press the … or † button until the required character is displayed (letters, numbers or “-” character).

Press the œ or √ button respectively.

To... Then...

If you... Then... Wish to store the

station displayed

Do not wish to store the station displayed

•

Press OK to store the station.

•

Press the … or † button until the CH is selected.

•

Press the œ or √ button to go on scanning the frequency band and display the next station.

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 19

20 -

English

Settings

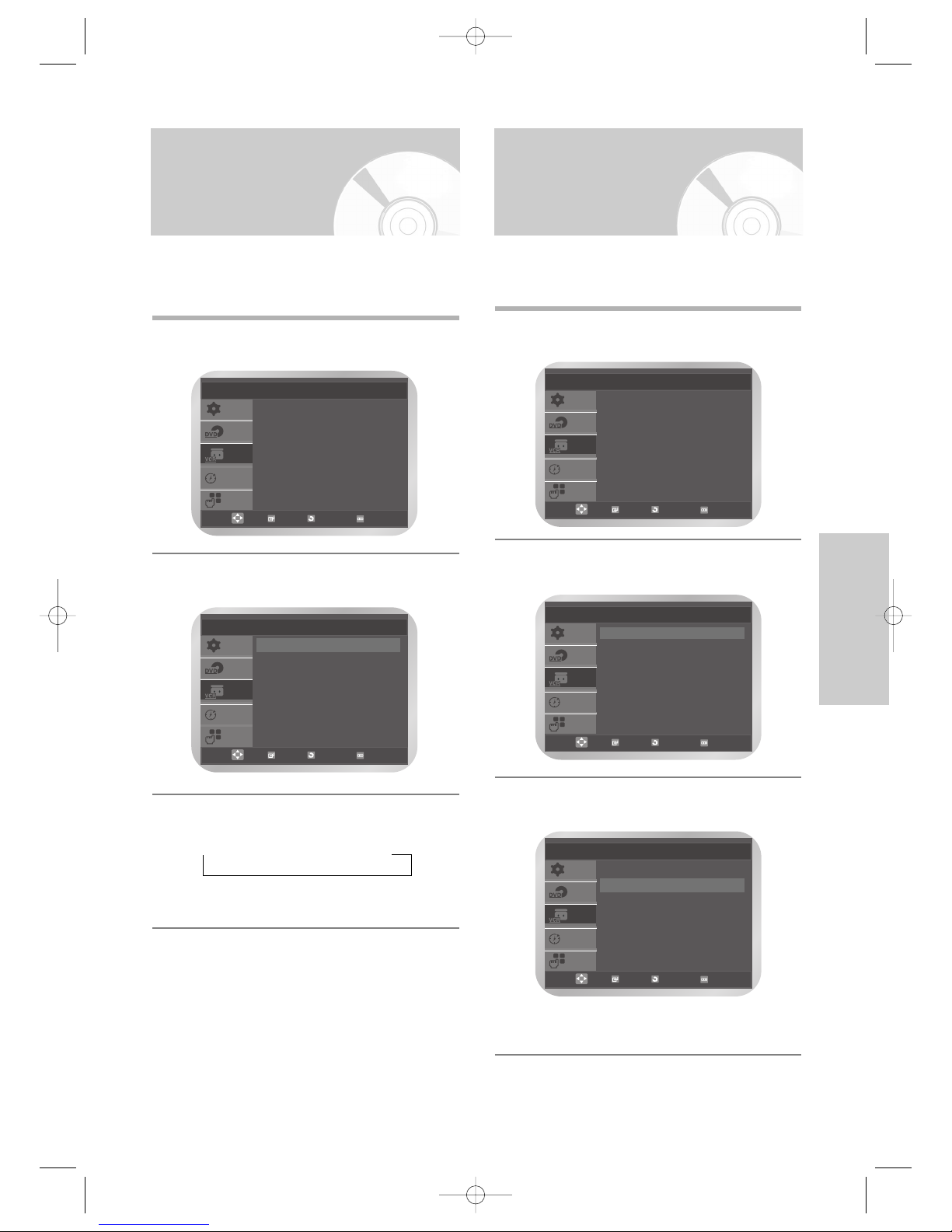

Changing the Preset Station Table

You can rearrange the station table and give different programme numbers to the stations listed according to your own preferences.

Press the MENU button, then press the OK or

√ button.

Press the … or † button to select Install, then press the OK or √ button. The Install menu is displayed.

Press the … or † button to Select Manual Setup, then press the OK or √ button. The TV STATION TABLE menu is displayed.

SETUP

DVD

VCR

PROG

FUNC

Install

Auto Setup

√√

Manual Setup

√√

VCR Output CH :CH60

√√

RETURN

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

❉ ❉ TV STATION TABLE ❉ ❉

PR CH NAME

1 021 - - - 2 3 4 5

……†† √√

SWAPPING : OK

DELETE : CLEAR RETURN

Clearing a Preset Station

If you have stored a TV station:

• That you do not require

• At the wrong programme position, you can cancel it.

Press the MENU button, then press the OK or

√ button.

Press the … or † button to select Install, then press the OK or √ button. The Install menu is displayed.

Press the … or † button to Select Manual Setup, then press the OK or √ button. The TV STATION TABLE menu is displayed.

Press the … or † button to select required preset TV station. Press the CLEAR button to delete.

Repeat the same procedure from step 4 onwards until all the required stations have been cleared.

SETUP

DVD

VCR

PROG

FUNC

Install

Auto Setup

√√

Manual Setup

√√

VCR Output CH :CH60

√√

OK RETURN MENU

❉ ❉ TV STATION TABLE ❉ ❉

PR CH NAME

1 021 - - - 2 3 4 5

……†† √√

SWAPPING : OK

DELETE : CLEAR RETURN

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 20

English

- 21

Settings

Press the … or † button to select required preset TV station. The selected station is displayed at the same time on the television screen.

Press the OK button to change the programme number assigned to a station.

Press the … or † button to select required position, then press the OK button to swap the position. For example, To move a TV station in programme 1 to programme 3.

• Press the MENU button to exit the menu.

❉ ❉ TV STATION TABLE ❉ ❉

PR CH NAME

1 2 3 021 - - - 4 5

……†† √√

SWAPPING : OK

DELETE : CLEAR RETURN

❉ ❉ TV STATION TABLE ❉ ❉

PR CH NAME

1 021 - - - 2 3 4 5

……††

SWAPPING : OK

RETURN

Setting the VCR Output Channel

Your DVD-VCR output channel may need to be changed if the pictures suffer from interference or if your TV cannot find the pictures.

Press the MENU button, then press the OK or

√ button.

Press the … or † button to select Install, then press the OK or √ button. The Install menu is displayed.

Press the … or † button to select VCR Output CH.

Press the OK or œ or √ button to select the required output channel (CH21~CH69).

➝ CH21 ➝ ..CH60 ➝ ..CH69

• Press the MENU button to exit the menu. Then tune your television again (see page 15).

SETUP

DVD

VCR

PROG

FUNC

Install

Auto Setup

√√

Manual Setup

√√

VCR Output CH : CH60

√√

RETURN

SETUP

DVD

VCR

PROG

FUNC

Install

Auto Setup

√√

Manual Setup

√√

VCR Output CH : CH60

√√

RETURN

 You can select the required output channel

directly by using the number button.

Note

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 21

22 -

English

VCR Functions

Before recording or playing back a cassette, you can select the required system standard. Otherwise, the system automatically selects the reception standard when you select AUTO.

• When playing back a cassette, the standard is automatically selected by the DVD-VCR.

• When you playback an NTSC-recorded tape on this DVD-VCR make a setting on the colour system according to your TV. If your TV is a PAL system only TV, set NTPB. If your TV is multi system TV (NTSC

4.43 compatible), set NT4.43 and you can record NT4.43.

Press the MENU button, then press the OK or √ button.

Press the … or † button to select User Set, then press the OK or √ button. The User Set menu is displayed.

Press the OK or √ button to select required Colour System. Auto ➝ PAL ➝ B/W

• Auto : When playing back a cassette, the system standard is automatically selected by the DVD-VCR.

• B/W : Black and White

SETUP

DVD

VCR

PROG

FUNC

User Set

Colour System : Auto

√√

NICAM : On

√√

IPC : On

√√

RETURN

VCR Functions

Selecting the Colour Mode

• Selecting the Colour Mode . . . . . . . . . . . . . 22

• NICAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

• Intelligent Picture Control . . . . . . . . . . . . . . 23

• Auto Power off . . . . . . . . . . . . . . . . . . . . . . 24

• Screen Messages . . . . . . . . . . . . . . . . . . . . . 24

• Selecting the Cassette Type . . . . . . . . . . . . . 25

• Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . 25

• Selecting the Recording Speed . . . . . . . . . . 26

• Protecting a Recorded Cassette . . . . . . . . . . 26

• Recording a Programme Immediately . . . . . 27

• Recording a Programme with Automatic Stop . 27

• Recording from Another VCR or Camcorder . . . 28

• Using the Assemble Edit Function . . . . . . . . 28

• Using the Timer Programming Feature . . . . 29

• Checking a Preset Recording . . . . . . . . . . . . 31

• Cancelling a Preset Recording . . . . . . . . . . . 31

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

RETURN

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 22

English

- 23

VCR Functions

NICAM

NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound. Please refer to page 33.

Press the MENU button, then press the OK or √ button.

Press the … or † button to select User Set, then Press the OK or √ button. The User Set menu is displayed.

Press the … or † button to select NICAM, then press the OK or √ button to select On or Off.

• On (for NICAM mode): Normally set at this position

• Off (for MONO mode): Only set at this position to record the standard mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception conditions.

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

User Set

Colour System : Auto

√√

NICAM : On

√√

IPC : On

√√

RETURN

Intelligent Picture Control

This feature allows you to adjust the sharpness of the image automatically, according to your own preferences.

During playback press the MENU button, then press the OK or √ button.

Press the … or † button to select User Set, then press the OK or √ button. The User Set menu is displayed.

Press the … or † button to select IPC (Intelligent Picture Control), then press the OK or √ button to

select IPC option.

• You can select the modes simply by pressing the IPC button.

To adjust the sharpness manually, press the † button to turn the IPC mode OFF. The sharpness of the picture is adjusted manually.

Press the œ or √ buttons until the picture is displayed according to your preferences.

SETUP

DVD

VCR

PROG

FUNC

User Set

Colour System : Auto

√√

NICAM : On

√√

IPC : On

√√

OK RETURN MENU

❉ ❉ PICTURE ❉ ❉

IPC : OFF

SOFTEN SHARPEN

œœ √√

ON/OFF

††

❉

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 23

24 -

English

VCR Functions

Screen Messages

Your DVD-VCR displays most information on both the DVD-VCR and the television. You can choose to display or hide this information on the television screen (If you configure the Screen Message to Off, the Fast Forward and Rewind messages will not be displayed on the screen. However, the Search message will not be displayed on the screen regardless of the Screen Message configuration).

Press the MENU button, then press the OK or √ button.

Press the … or † button to select Screen Messages.

Press the OK or √ button to select On or Off.

• On : Select to display on-screen information.

• Off : Select to hide on-screen information.

• Press the MENU button to exit the menu.

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

Auto Power off

This feature automatically turns off your DVD-VCR if no signal is received and you do not press any button for the selected time.

Press the MENU button, press the OK or √ button.

Press the … or † button to select Auto Power Off.

Press the OK or √ button to select the preset interval.

➝ Off ➝ 1 Hour ➝ 2 Hour ➝ 3 Hour

• Press the MENU button to exit the menu.

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

Setup

Language : English

√√

Clock

√√

Install

√√

User Set

√√

Auto Power Off : Off

√√

Screen Messages : On

√√

OK RETURN MENU

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 24

English

- 25

VCR Functions

Selecting the Cassette Type

If you wish to use the tape counter to display the time remaining on a cassette, you must indicate the type of cassette inserted.

Press the MENU button, then press the … or † button to select VCR.

Press the OK or √ button. The Tape Select is selected.

Press the OK or √ button to select the correct cassette length.

➝ E180 ➝ E240 ➝ E260 ➝ E300

• Press the MENU button to exit the menu.

SETUP

DVD

VCR

PROG

FUNC

VCR Setup

Tape Select : E180

√√

Repeat Play : Off

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

VCR Setup

Tape Select : E180

√√

Repeat Play : Off

√√

OK RETURN MENU

Repeat Play

You can set repeat play to repeat the tape continuously from beginning to end.

Press the MENU button, then press the … or † button to select VCR.

Press the OK or √ button. The Tape Select is selected.

Press the … or † button to select Repeat Play. Press the OK or √ button to select On or Off.

• On : Repeat play.

• Off : Do not wish to repeat play.

SETUP

DVD

VCR

PROG

FUNC

VCR Setup

Tape Select : E180

√√

Repeat Play : Off

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

VCR Setup

Tape Select : E180

√√

Repeat Play : Off

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

VCR Setup

Tape Select : E180

√√

Repeat Play : Off

√√

OK RETURN MENU

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 25

26 -

English

VCR Functions

Video cassettes have a safety tab to prevent accidental erasure. When this tab has been removed, you cannot record on the tape.

If you wish to protect a cassette, break off the tab using a small screwdriver.

To re-record over a protected cassette (safety tab broken), cover the hole with adhesive tape.

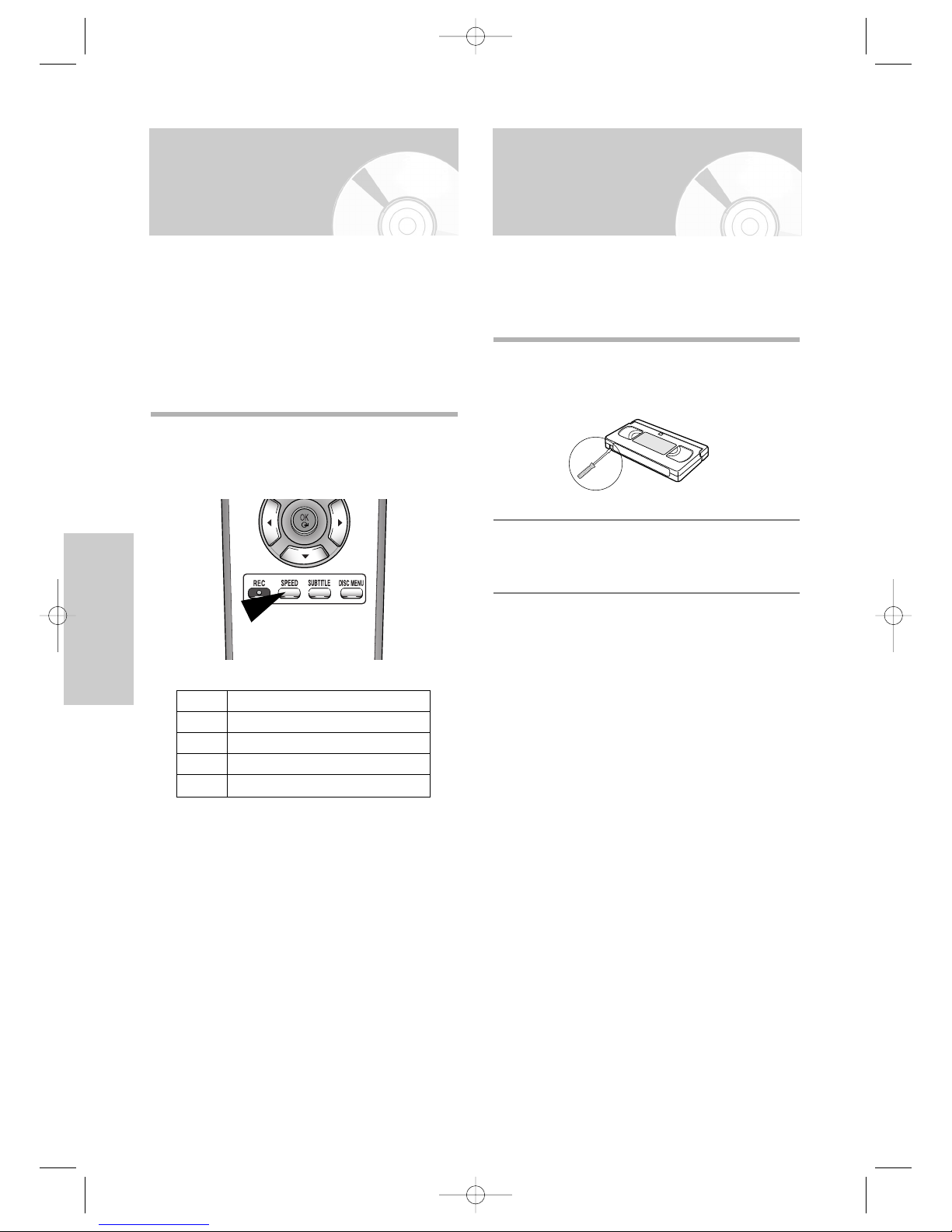

Selecting the Recording Speed

You can record a cassette at two different speeds:

• SP (Standard Play)

• LP (Long Play)

In Long Play modes:

• Each cassette lasts twice as long

• The recording is of a slightly lower quality

Press the SPEED button to select SP or LP.

• The selected record speed will appear on the front panel display.

Type Recording Time (in SP) E180 180 mins. or 3 hours E240 240 mins. or 4 hours E260 260 mins. or 4 hours and 20 mins. E300 300 mins. or 5 hours

Protecting a Recorded Cassette

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 26

English

- 27

VCR Functions

Recording a Programme with Automatic Stop

This function enables you to record up to nine hours (LP) of programmes. Your DVD-VCR stops automatically after the requested length of time.

Switch on the television.

Insert the cassette on which the programme is to be recorded, with the window visible and the safety tab intact or the opening covered with adhesive tape. The DVD-VCR is switched on automatically.

Select the station to be recorded by pressing the PROG or button or select the source (AV1, AV2, or AUX) by pressing the INPUT SEL. button for a satellite tuner or external video source. The station number is displayed and the programme can be seen on the television.

Select the recording speed by pressing the SPEED button (refer to page 26).

Hold down the REC (●) button for a while to start recording. The record indicator appears on the television screen and DVD-VCR display. An index is recorded on the tape (refer to page 34).

Press the REC (●) button several times to increase the recording time in:

• 30-minute intervals up to four hours

• 1-hour intervals up to nine hours The length is displayed on the television displays.

The selected programme is recorded for the length of time requested. At the end of that time, the DVD-VCR stops recording automatically and power off.

If you wish to cancel the recording before the end, press the ON/STANDBY button.

• If the end of the tape is reached while recording, the recording stops and power off.

LENGTH 2:30

SET LENGTH :

PRESS REC

●

Recording a Programme Immediately

Before recording a programme, you must have preset the corresponding station (unless you are recording via an external video source). If you have not done so, refer to pages 17~21.

Switch on the television.

Insert the video tape into the VCR deck, with the window visible and the safety tab intact or the opening covered with adhesive tape. The DVDVCR is switched on automatically.

Select the station by pressing the PROG or button or select the source (AV1, AV2 , or AUX) by pressing the INPUT SEL. button for a satellite tuner or external video source. The station number is displayed and the programme can be seen on the television.

Select the recording speed by pressing the SPEED button as many times as required (refer to page 26).

Hold down the REC (●) button for a while to start recording. The record indicator appears on the television and DVD-VCR display. An index is recorded on the tape (refer to page 34).

To stop recording, press the ■button once.

• If your DVD-VCR ejects the cassette when you start recording, check to make sure that the cassette’s safety tab is intact or that the opening (created by a broken safety tab) is covered with adhesive tape.

• If you reach the end of the tape while recording,

the cassette rewinds automatically.

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 27

28 -

English

VCR Functions

You can copy a cassette to your DVD-VCR from another video source, such as another VCR or a Camcorder etc.

• It is an infringement of copyright laws to copy prerecorded cassettes or to re-record them in any form without the permission of the owners of the corresponding copyright.

Connect the output jack of your External devices to the SCART input connector or AUX on the front or rear of the DVD-VCR.

Insert a blank cassette in your DVD-VCR.

Insert the pre-recorded cassette in the other video source (VCR or Camcorder etc).

Press the INPUT SEL. button to select the appropriate input on your DVD-VCR:

• AV1, AV2 for the SCART input

• AUX for the RCA input

Start playing back the cassette to be copied.

Hold down the REC (●) button for a while to start recording on your DVD-VCR.

When you have finished recording, press the

■

button on both VCR or Camcorder and

DVD-VCR.

• If you wish to view the cassette being copied, your DVD-VCR must be connected as usual to the television (refer to page 10 for further details).

Recording from Another VCR or Camcorder

Using the Assemble Edit Function

This function allows you to start a new recording at a specific position on the cassette while maintaining a very smooth scene change.

Insert the cassette to be edited in your DVD-VCR.

Press the √ll button to start playback.

When you reach the position from which you wish to start the new recording, press the √

ll button.

Press the F. ADV/STEP button as often as necessary to advance frame by frame, until the exact recording position is located.

While the DVD-VCR is in still mode, hold down the REC (

●

) button for a while to activate the

assemble edit function.

Select the source from which you wish to record by pressing:

• The PROG or button for television channels

• The INPUT SEL. button for the AV1, AV2 or AUX input source.

Press the √ll button to start recording. When you have finished recording, press the

■

button.

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 28

English

- 29

VCR Functions

Using the Timer Programming Feature

The Timer Programming feature allows you to preset the DVD-VCR to record a programme up to one month before that programme is to be broadcast. Up to six programmes can be preset.

• Before presetting a recording, check that the date and time are correct.

• You must check that the cassette tape is loaded.

Press the MENU button, then press the … or † button to select PROG. The Timer Method menu is displayed.

Press the OK or √ button. The timer programming menu is displayed.

• It can be displayed simply by pressing the TIMER button on the remote control.

SETUP

DVD

VCR

PROG

FUNC

Timer Method

If you want to set the

timer program, press

the OK key.

OK RETURN MENU

Press the OKor √ button to select PR, then press the … or † button to select the required station.

• Press the INPUT SEL. button to select an input source (AV1, AV2, or AUX) other than the tuner.

Press the √ button to select Day, then press the … or † button to select the required day.

•

DLY : Daily

•

W-SU :Weekly Sunday W-MO Weekly Monday

W-SA Weekly Saturday

•

SA 01 : Saturday 01

Press the √ button to select Start (recording start time).

• Press the œ or √ button to select the hour or minute.

• Press the … or † button to set the stop time.

PR Day Start Stop Speed V/P

RETURN

PR Day Start Stop Speed V/P

RETURN MENU

PR Day Start Stop Speed V/P

RETURN MENU

01 SA 01

PR Day Start Stop Speed V/P

RETURN MENU

01 SA 01 13 : 25

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 29

30 -

English

VCR Functions

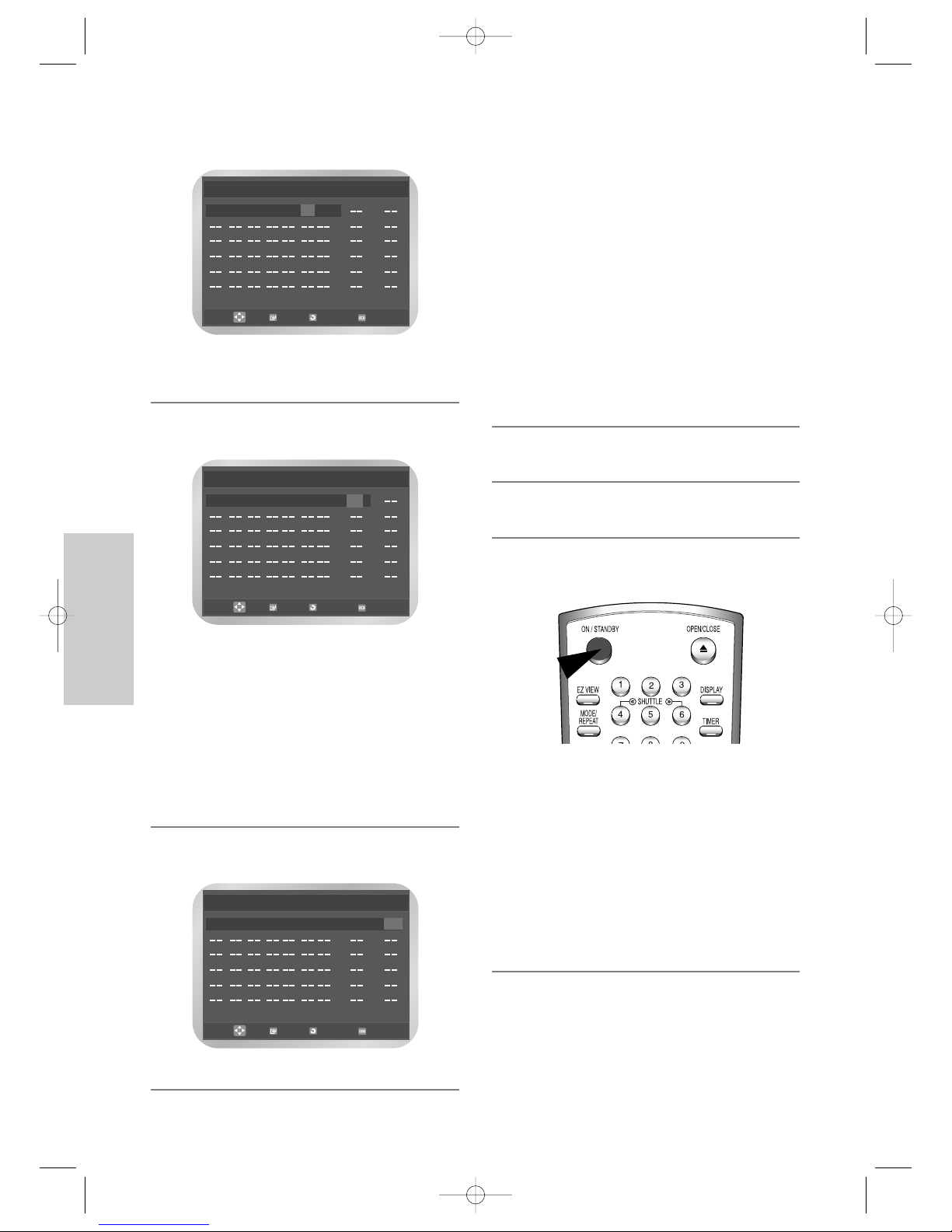

Press the √ button to select Stop (recording stop time).

• Press the œ or √ button to select the hour or minute.

• Press the … or † button to set the stop time.

Press the √ button to select Speed (recording speed).

• Press the … or † button to select the required recording speed.

• Auto ➝ SP (Standard Play) ➝ LP (Long Play)

• Auto Tape Speed Select

The DVD-VCR’s “Auto Tape Speed Select” function compares the duration of the timer recording to the actual recording time remaining on the tape loaded. If there is insufficient tape to complete a timer recording in Auto mode, the DVD-VCR automatically switches to LP mode to record the whole programme.

Press the √ button to select V/P (recording VPS/PDC).

• Press the … or † button to select On or Off.

• VPS (Video Programme System) /

PDC (Programme Delivery Control System)

Depending on TV stations, VPS/PDC signals are transmitted with TV programmes. The VCR can control the timer recording start and end times by the VPS/PDC signals to assure the recording of a whole programme, covering any changes in the published broadcast time, that is, time shift, extension or interruption of the programme. lf the TV programme is interrupted, during the VPS/PDC controlled timer recording,the recording will be automatically interrupted and resumed when the programme continues.

Important: The VPS/PDC function only works when the VPS/PDC signal is transmitted with the TV programme to be recorded. If the broadcasting station does not transmit the VPS/PDC signal, the timer recording will be done in the normal mode even if it was programmed in the VPS/PDC mode.

When you have finished, press the OK button to set the Timer Programming.

Press the MENU button to exit the menu.

Press the ON/STANDBY button to activate the timer.

Before starting recording, the DVD-VCR compares the timer duration with the remaining time on the cassette.

• Press the ON/STANDBY button to stop Timer programming recording.

•Timer Recording will not work when the power is on.

• When power is switched on, programs registered for recording in Timer Recording will be automatically cleared after the start time and date have passed.

PR Day Start Stop Speed V/P

RETURN MENU

01 SA 01 13 : 25 19 : 57

PR Day Start Stop Speed V/P

RETURN MENU

1 SA 1 13 : 25 19 : 57 SP

PR Day Start Stop Speed V/P

RETURN MENU

01 SA 01 13 : 25 19 : 57 SP Off

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 30

English

- 31

VCR Functions

Cancelling a Preset Recording

Yo u can cancel any programmes that are:

• Incorrect

• No longer required

Press the MENU button, then press the … or † button to select PROG. The Timer Method menu is displayed.

Press the OK or √ button. The list of preset recodings is displayed with the corresponding information.

• It can be displayed simply by pressing the

TIMER button on the remote control.

Press the … or † button to select the programme to be cancelled, then press the CLEAR button.

• All the recording information is deleted and the broadcast will not be recorded.

• Press the MENU button to exit the menu.

SETUP

DVD

VCR

PROG

FUNC

Timer Method

If you want to set the

timer program, press

the OK key.

OK RETURN MENU

Checking a Preset Recording

You can check your preset recordings:

• When you have finished presetting the DVD-VCR

• If you have forgotten which programmes will be recorded

Press the MENU button, then press the … or † button to select PROG. The Timer Method menu is displayed.

Press the OK or √ button. The list of preset recodings is displayed with the corresponding information.

• It can be displayed simply by pressing the

TIMER button on the remote control.

To change any values, select the required programme by pressing the … or † button, then change any values as required. For more details refer to page 29. (Step 2 to 9)

• Press the MENU button to exit the menu.

SETUP

DVD

VCR

PROG

FUNC

Timer Method

If you want to set the

timer program, press

the OK key.

OK RETURN MENU

PR Day Start Stop Speed V/P

RETURN

01 SA 01 13 : 25 19 : 57 SP Off

-- -- -- --: -- --: -- -- --

PR Day Start Stop Speed V/P

OK RETURN MENU

-- -- -- --: -- --: -- -- --

PR Day Start Stop Speed V/P

-- -- -- --: -- --: -- -- --

RETURN

01 SA 01 13 : 25 19 : 57 SP Off

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 31

32 -

English

Playing Back

Playing a Cassette

This function allows you to play back any pre-recorded cassette.

Switch on both the television and your DVD-VCR.

Insert the video cassette. If the safety tab on the cassette is intact, press the

√ll (play/pause)

button. Otherwise, the cassette is played automatically.

• When a cassette is loaded, the tape position is optimized automatically to reduce disturbance (Digital Auto Tracking). When playing a cassette, if the end of the tape is reached, the cassette is rewound automatically. NTSC tapes can be played back but cannot be recorded with this DVD-VCR.

Press the ■(stop) button to stop the playback. Press the (eject) button to eject the playback.

This feature allows you to adjust the alignment manually to obtain the best possible picture. When noise bars or streaks appear during playback, adjust alignment manually by pressing the TRK

……or††

button until the picture is clear and stable.

◆ The tracking bar appears.

◆ The image is adjusted.

Adjusting Picture Alignment Manually

• Playing a Cassette . . . . . . . . . . . . . . . . . . . . 32

• Adjusting Picture Alignment Manually . . . . . 32

• Selecting the Audio Output Mode . . . . . . . . 33

• Playing a Cassette in Slow Motion . . . . . . . . 33

• Playing a Sequence Frame by Frame . . . . . . 33

• Playing a Sequence at Variable Speeds . . . . 33

• Searching for a Specific Sequence . . . . . . . . 34

• Using the Tape Counter . . . . . . . . . . . . . . . 36

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 32

English

- 33

Playing Back

Playing a Sequence at Variable Speeds

You can vary the playback speed using the Shuttle function (up to nine times the normal speed).

Example: You wish to analyse a sportsperson’s

technique, movement by movement.

• No sound is heard when playing a sequence at variable speeds.

Press the :

• √

ll button to start playing the cassette.

• SHUTTLE (

<<) button to play the cassette

backwards.

• SHUTTLE (

>>) button to play the cassette

forwards.

Each time you press the SHUTTLE button, the speed is changed as shown in the following illustration.

Playing a Sequence Frame by Frame

You can

• Stop the cassette at a given frame (image)

• Advance one frame at a time

No sound is heard when playing back frame by frame.

Press the :

• √

ll button to start playing the cassette.

• √

ll button again to make still mode.

• F.ADV button to advance frame by frame.

• √

ll button to return to normal playback.

• Vertical stability: When playing back frame by frame, interference may be seen on the screen. Press the TRK

……or††

button to minimize this

effect.

REVERSE

PLAY

REVERSE

PLAY

REVERSE

PLAY

STILL

SLOW

MOTION

X1/10

SLOW

MOTION

X1/5

PLAY

PLAYX3PLAYX5PLAY

Selecting the Audio Output Mode

You can select the mode in which the sound is reproduced on the loudspeakers and AV outputs. The following options are available.

Press the AUDIO button on the remote control until the required option is displayed.

Playing a Cassette in Slow Motion

You can play a cassette in slow motion.

• No sound is heard when playing back a cassette in slow motion.

Press the :

• √

ll button to start playing the cassette.

• √

ll button again to make still mode.

• √√ button to start slow mode.

• œœ or √√ button as many times as required to decrease or increase the speed respectively.

• √

ll button twice to return to the normal speed.

• The slow motion feature does not support running

video backwards.

When playing back in slow motion, picture interference may occur. Press the TRK

……or††

button to minimize this

effect.

• When you have been using the Slow Motion function for more than about two minutes, the DVD-VCR will automatically play to protect the:

- Cassette

- Video heads

Option Description

L Used to listen to the sound on the left Hi-Fi channel. R Used to listen to the sound on the right Hi-Fi channel.

MIX Used to listen to the mixed sound of the Hi-Fi and

normal channels.

MONO Used to listen to the sound on the normal mono

channel.

LR Used to listen to Hi-Fi stereo sound on the left

and right channels

• When playing back tapes recorded in Hi-Fi, the

sound switches to Hi-Fi after five seconds of Mono.

To select the sound mode, simply press the AUDIO button on the remote control until the required option is displayed.

➝ L ➝ R ➝ MIX

LR MONO

➝

SD-16VBSB/TSB-eng1 3/10/05 10:13 AM Page 33

34 -

English

Playing Back

Searching for a Specific Sequence

Each time you record a cassette on this DVD-VCR, an “index” is automatically marked on the tape when recording starts. The Search function allows you to fast-forward or rewind to a specific index and start playback from that point. Depending on the direction selected, the indexes are numbered as follows:

• This DVD-VCR uses a standard indexing system (VISS). As a result, it will recognize any indexes marked by other VCRs using the same system and vice versa.

❚

Go To [0:00:00] Stop

Use this feature when you want to search for the 0:00:00 counter position on a cassette. Press the CLEAR button at the point on the tape where you want to set the counter to 0:00:00. The VCR will rewind or fast forward, searching for the 0:00:00 counter position, and then automatically stop at that position.

Press the MENU button, then press the … or † button to select FUNC. Press the OK or √ button. The Function menu is displayed.

etc.

21 1 2

etc.

Prev Seq.

Seq. being

played

Next Seq.

➔

Press the … or † button to select

VCR Function

then press the OK or √ button. The VCR Function menu is displayed with the Go To [0:00:00] selected.

• It can be displayed simply by pressing the

SEARCH button.

Press the OK or √ button.

❚

End Search

Use this feature when you want to search for a blank position to record a program on a cassette.

The VCR will fast forward, searching for a blank position, and then automatically stop at that position. If the VCR reaches the end of the tape during end search, the tape will be ejected.

Press the SEARCH button. The VCR Function menu is displayed. Press the … or † button to select End Search.

Press the OK or √ button.

SETUP

DVD

VCR

PROG

FUNC

Function

DVD Function

√√

VCR Function

√√

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

VCR Function

Go To [0:00:00]

End Search

Intro Scan

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

VCR Function

Go To [0:00:00]

End Search

Intro Scan

OK RETURN MENU

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 34

English

- 35

Playing Back

❚

Intro Scan

Press the SEARCH button. The VCR Function menu is displayed. Press the … or † button to select Intro Scan.

Press the OK or √ button.

Press the œœor√√button depending on the direction where your desired programme is located.

When an Index mark is found the DVD-VCR will playback the tape for 5 seconds, after which it will continue searching for the next Index mark.

If you want to watch the tape from a particular Index, press the √

button twice.

❚

Index Skip Search

This feature will enable you to fast forward/rewind to a specific point on a tape: e.g. if you have recorded 3 different programmes on a tape and you have rewound the tape to the beginning, by using this feature you can go directly to the start of programme 2 simply by pressing the SEARCH button.

Press the SEARCH button. The VCR Function menu is displayed. Press the … or † button to select Intro Scan.

Press the OK or √ button.

Press the œœ or √√ button twice more.

These Index searches can be made forwards (press the √√ button) or backwards (press the œœ button). (œœ -20

● ● 0● ●

+20 √√) This will take you directly to the start of the desired programme is located.

To cancel an Index search simply press the √

ll or

■

button.

SETUP

DVD

VCR

PROG

FUNC

VCR Function

Go To [0:00:00]

End Search

Intro Scan

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

VCR Function

Go To [0:00:00]

End Search

Intro Scan

OK RETURN MENU

INTRO SCAN: œœ

√√

INTRO SCAN : œœ

INDEX SEARCH : œœ -06

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 35

36 -

English

Playing Back

Using the Tape Counter

The tape counter:

• Indicates the elapsed time in the play and record modes (hours, minutes and seconds)

• Is reset when a cassette is inserted in the DVD-VCR

• Allows you to find the beginning of a sequence easily

• If the remaining time is to be calculated correctly, you must indicate the type of cassette being used.

Insert a cassette in your DVD-VCR. To set the tape counter to zero at the beginning of a sequence:

• Press the DISPLAY button twice to display the

counter

• Press the CLEAR button when you want to set

the tape counter to zero

When you are ready,

• Start playback or Recording.

• Press the

■

button.

•To fast-froward or rewind to the sequence at which the counter was set to zero, press the œœ or √√ button.

• Some DVD-VCR information, such as the

counter, can be displayed on the television screen (unless you have deactivated the Screen Messages mode; refer to page 24).

Press the DISPLAY button:

• Once to display the current function, programme

number, recording speed, date, time and counter

• Twice to display the counter only

• Three times to display the time remaining on the

cassette

• Four times to clear the display

0:00:00

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 36

English

- 37

DVD Functions

Setting Up the Language Features

If you set disc menu, audio and subtitle language in advance, it will come up automatically every time you watch a movie.

❚

Using the Disc Menu Language

Press the MENU button in the stop mode. Press the … or † button to select DVD, then press the OK or √ button.

Press the OK or √ button again. Press the … or † button to select Disc Menu, then press the OK or √ button.

Press the … or † button to select the required language.

•

Select Others if the language you want is not listed.

Press the OK button.

SETUP

DVD

VCR

PROG

FUNC

DVD Setup

Language Setup

√√

Audio Setup

√√

Display Setup

√√

Parental Setup :

√√

OK RETURN MENU

Language Setup

Disc Menu : English

√√

Audio : English

√√

Subtitle : Automatic

√√

RETURN

DVD Functions

• Setting Up the Language Features . . . . . . . . 37

• Setting Up the Audio Options . . . . . . . . . . . 39

• Setting Up the Display Options . . . . . . . . . . 40

• Setting Up the Parental Control . . . . . . . . . 41

• Setting up the DVD function . . . . . . . . . . . 43

• Special Playback Features . . . . . . . . . . . . . . 43

• Using the Display Function . . . . . . . . . . . . . 44

• Adjusting the Aspect Ratio (EZ View) . . . . . 45

• Selecting the Subtitle Language . . . . . . . . . . 46

• Selecting the Audio Language . . . . . . . . . . . 46

• Changing the Camera Angle . . . . . . . . . . . . 47

• Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

• Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

• Repeat Chapter/Title . . . . . . . . . . . . . . . . . 48

• A to B Repeat . . . . . . . . . . . . . . . . . . . . . . . 49

• MP3 Play . . . . . . . . . . . . . . . . . . . . . . . . . . 50

• Program & Random Play (CD/MP3) . . . . . . . . . 51

• Picture CD Playback . . . . . . . . . . . . . . . . . . 52

Disc Menu Language

√√

English

Français

Deutsch

Español

Italiano

Nederlands

Others

Disc Menu

RETURN

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 37

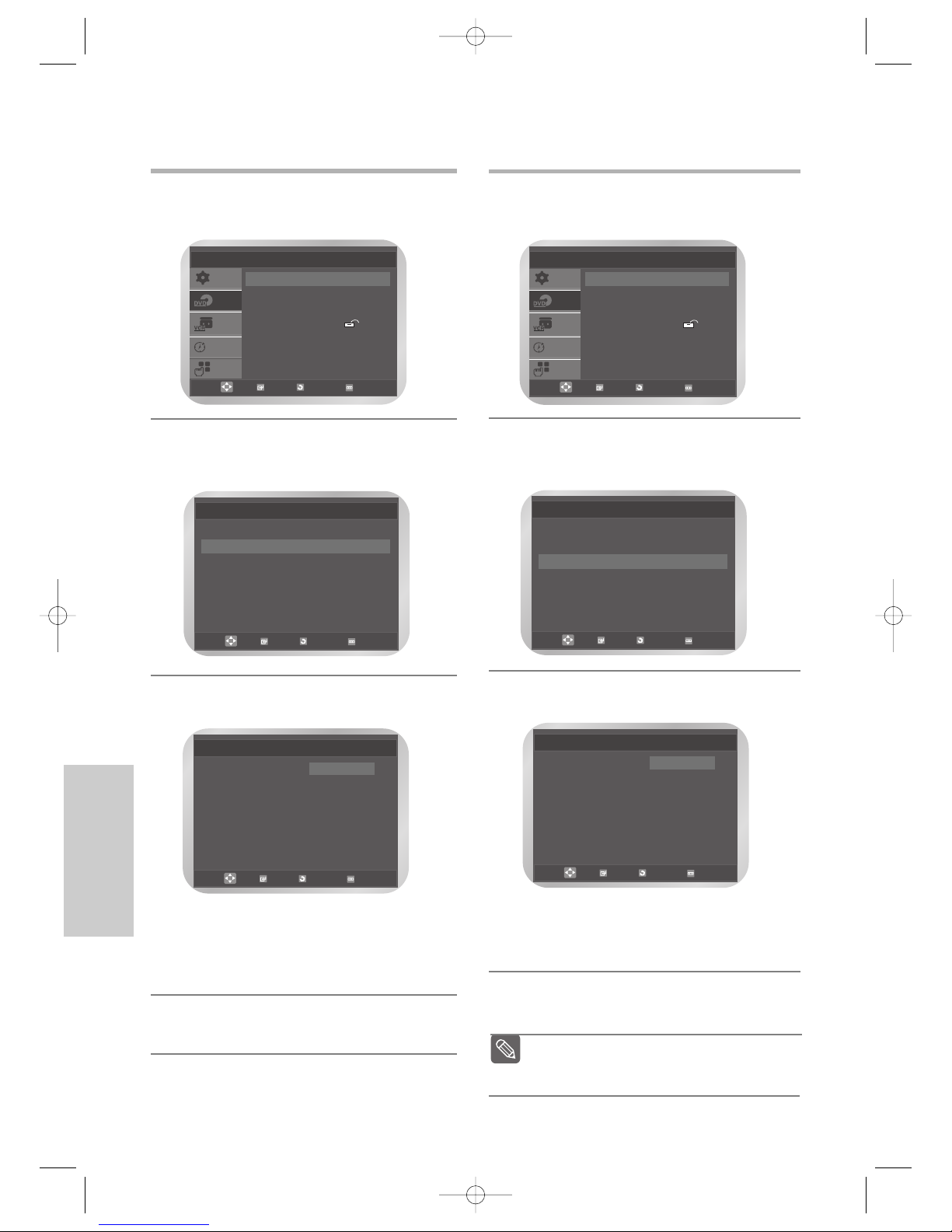

38 -

English

DVD Functions

❚

Using the Audio Language

Press the MENU button in the stop mode. Press the … or † button to select DVD, then press the OK or √ button.

Press the OK or √ button again. Press the … or † button to select Audio, then press the OK or √ button.

Press the … or † button to select the required language.

• Select Original if you want the default soundtrack

language to be the original language the disc is recorded in.

• Select Others if the language you want is not

listed.

Press the OK button.

Language Setup

Disc Menu : English

√√

Audio : English

√√

Subtitle : Automatic

√√

RETURN

SETUP

DVD

VCR

PROG

FUNC

DVD Setup

Language Setup

√√

Audio Setup

√√

Display Setup

√√

Parental Setup :

√√

OK RETURN MENU

Audio Language

√√

English Français Deutsch Español Italiano Nederlands Original Others

Audio

RETURN

❚

Using the Subtitle Language

Press the MENU button in the stop mode. Press the … or † button to select DVD, then press the OK or √ button.

Press the OK or √ button again. Press the … or † button to select Subtitle, then press the OK or √ button.

Press the … or † button to select the required language.

• Select Automatic if you want the subtitle language

to be the same as the language selected as the audio language.

• Select Others if the language you want is not listed.

Press the OK button.

SETUP

DVD

VCR

PROG

FUNC

DVD Setup

Language Setup

√√

Audio Setup

√√

Display Setup

√√

Parental Setup :

√√

OK RETURN MENU

Language Setup

Disc Menu : English

√√

Audio : English

√√

Subtitle : Automatic

√√

OK RETURN

Subtitle Language

√√

Automatic English Français Deutsch Español Italiano Nederlands Others

Subtitle

RETURN

 Some discs may not contain the language you

select as your initial language; in that case the disc will use its original language setting.

Note

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 38

English

- 39

DVD Functions

Setting Up the Audio Options

Press the MENU button in the stop mode. Press the … or † button to select DVD, then press the OK or √ button.

Press the … or † button to select Audio Setup, then press the OK or √ button. The Audio Setup menu is displayed.

Press the … or † button to select the required item.

Press the OK or √ button to select the required option.

❚

Dolby Digital Out

• Bitstream :

Converts to Dolby Digital Bitstream (5.1CH). Select Bitstream when using the Digital Audio Output.

• PCM : Converts to PCM (2CH) audio.

Select PCM when using the Analog Audio Outputs.

❚

MPEG-2 Digital Out

• PCM : Converts to PCM (2CH) audio.

Select PCM when using the Analog Audio Outputs.

• Bitstream : Converts to MPEG-2 Digital Bitstream

(5.1CH or 7.1CH). Select Bitstream when using the Digital Audio Output.

❚

DTS

• On : Outputs DTS Bitstream via digital output only.

Select DTS when connecting to a DTS Decoder.

• Off : Doesn’t output digital signal.

❚

Dynamic Compression

• On :To select dynamic compression.

• Off :To select the standard range.

❚

PCM Down Sampling

• On : Select this when the amplifier connected to the

player is not 96KHz compatible. In this case, the 96KHz signals will be down converted to 48KHZ.

• Off : Select this when the amplifier connected to the

player is 96KHz compatible. In this case, all signals will be output without any changes.

Be sure to select the correct Digital Output or no audio will be heard.

Note

SETUP

DVD

VCR

PROG

FUNC

DVD Setup

OK RETURN MENU

Audio Setup

Dolby Digital Out : Bitstream

√√

MPEG-2 Digital Out : PCM

√√

DTS : On

√√

Dynamic Compression : On

√√

PCM Down Sampling : On

√√

RETURN

 How to make the DVD menu disappear or

return to menu screen during set up; Press RETURN or œ button.

 Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

 “DTS” and “DTS Digital Out” are trademarks of

Digital Theater Systems, Inc.

Note

Language Setup

√√

Audio Setup

√√

Display Setup

√√

Parental Setup :

√√

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 39

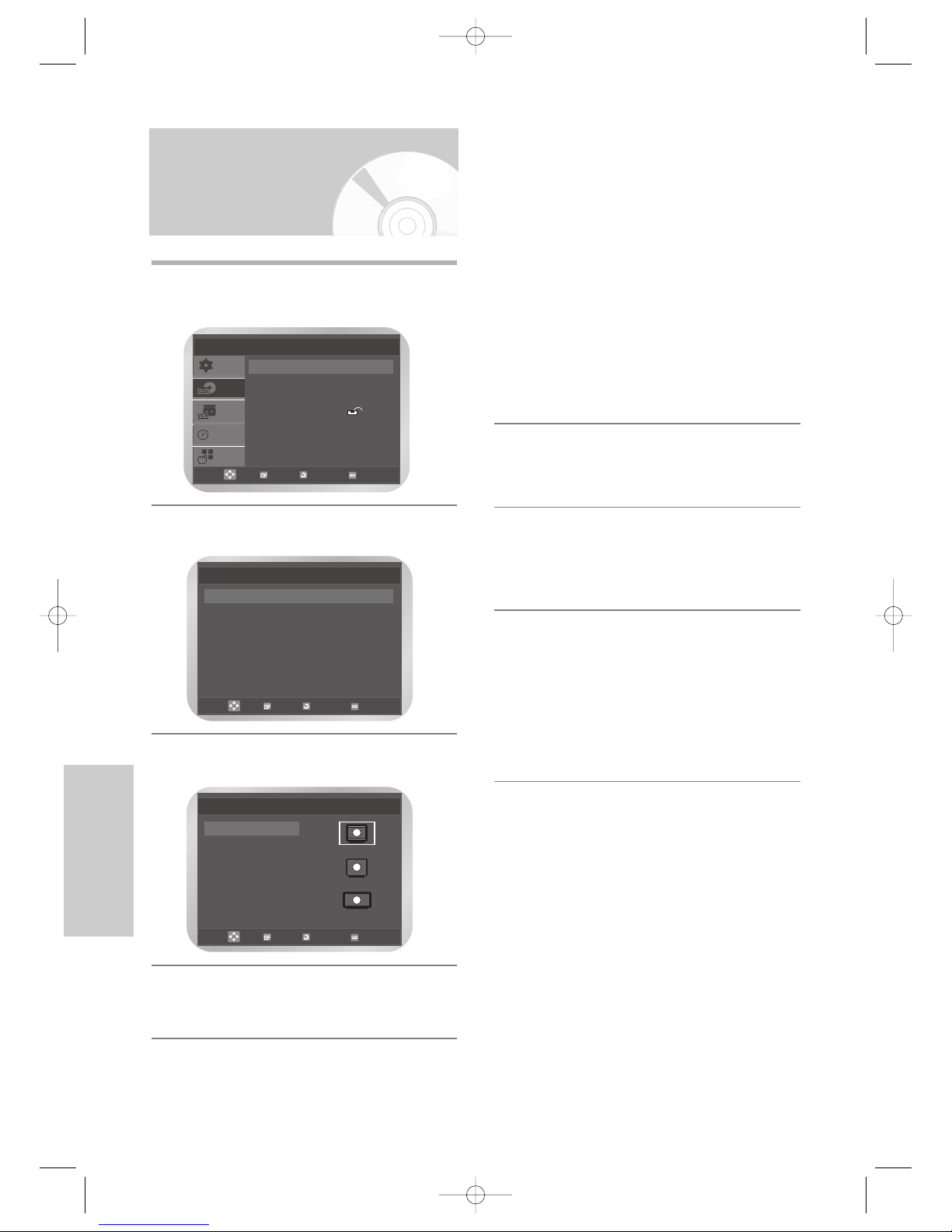

40 -

English

DVD Functions

Setting Up the Display Options

Press the MENU button in the stop mode. Press the … or † button to select DVD, then press the OK or √ button.

Press the … or † button to select Display Setup, then press the OK or √ button.

Press the … or † button to select TV Aspect, press the OK or √ button.

Press the … or † button to select the required item, then press the OK button to select the required option.

❚

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting (aspect ratio).

• 4:3 Letter Box :

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

• 4:3 Pan Scan :

Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

• 16:9 Wide :

You can view the full 16:9 picture on your widescreen TV.

❚

Black Level

Adjusts the brightness of the screen. (On/Off)

- Black level function works on NTSC system only.

❚

NTSC Disc Output

"NTSC" for TV with NTSC mode. "PAL60" for TV without NTSC mode.

❚

DVD Out

• RGB : Sends RGB signal from the SCART

socket (AV1).

• S-Video : Sends S-VIDEO signal from the

S-Video jack.

• Video : Sends COMPOSITE VIDEO signal from

the Video jack and SCART socket (AV1).

SETUP

DVD

VCR

PROG

FUNC

DVD Setup

Language Setup

√√

Audio Setup

√√

Display Setup

√√

Parental Setup :

√√

OK RETURN MENU

Display Setup

TV Aspect : 4:3 L-Box

√√

Black Level : Off

√√

NTSC Disc Output : PAL60

√√

DVD Out : RGB

√√

RETURN

TV Aspect

√√

4:3 Letter Box

4:3 Pan Scan

16:9 Wide

RETURN

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 40

English

- 41

DVD Functions

The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Press the MENU button in the stop mode. Press the … or † button to select DVD, then press the OK or √ button. Press the … or † button to select Parental Setup.

Press the OK or √ button. The Use Password menu is displayed.

Press the OK or √ button again if you want to use a password. The Enter Password menu is displayed. Enter your password by pressing the number buttons.

The Re-enter Password menu is displayed to confirm the password.

Enter your password again. The Use Password is set to Yes and the Parental Setup menu is displayed. The DVD-VCR is locked ( ).

Create Password

RETURN

Enter Password

– – – –

Create Password

RETURN

Re-enter Password

– – – –

Parental Setup

Use Password : Yes

√√

Rating Level : 1

√√

Change Password

√√

RETURN

Setting Up the Parental Control

SETUP

DVD

VCR

PROG

FUNC

DVD Setup

OK RETURN MENU

Language Setup

√√

Audio Setup

√√

Display Setup

√√

Parental Setup :

√√

Parental Setup

Use Password : No

√√

RETURN

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 41

42 -

English

DVD Functions

❚

Setting up the Rating Level

Press the … or † button to select Rating Level, then press the OK or √ button.

Press the … or † button to select the required level (e.g. Level 6). Press the OK or √ button.

• Discs that contain Level 7 will now not play.

Parental Setup

Use Password : Yes

√√

Rating Level : 1

√√

Change Password

√√

RETURN MENU

Parental Setup

Use Password : Yes

√√

Rating Level : 6

√√

Change Password

√√

RETURN MENU

Rating Level

Level 8 Adult Level 7 Level 6 Level 5 Level 4 Level 3 Level 2 Level 1 Kids Safe

OK RETURN

Rating Level

Level 8 Adult Level 7 Level 6 Level 5 Level 4 Level 3 Level 2 Level 1 Kids Safe

OK RETURN

❚

Changing the Password

Press the … or † button to select Change password.

Press the OK or √ button. The Enter New Password is displayed. Enter your password by pressing the number buttons.

The Re-enter Password is displayed to confirm the password.

Enter your password again.

• How to make the DVD menu disappear or return

to menu screen during set up; Press the RETURN or œ button.

• If you have forgotten your password, refer to Forgot Password in the Troubleshooting Guide (See page 57).

Change Password

RETURN

Enter New Password

– – – –

Change Password

RETURN

Re-enter Password

– – – –

Parental Setup

Use Password : Yes

√√

Rating Level : 1

√√

Change Password

√√

RETURN MENU

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 42

English

- 43

DVD Functions

Special Playback Features

Setting up the DVD function

During DVD/VCD/CD playback you can select from the following special playback options. To resume normal playback, press the

√ll button.

❚

Still

Press the √ll button during playback.

• The picture will be still and the audio will be muted.

•To resume playback, press the √ll button.

• If the player is left in still mode for 5 minutes, it will stop automatically.

❚

Frame Advance (Step)

While in playback mode, press the F.ADV/STEP button

on the remote control to advance one frame at a time.

• Audio is muted during frame advance mode.

• Press the √ll button to resume normal playback.

❚

Skip Forward/Back

While a DVD or VCD/CD disc is in play mode, press the

œœor√√

l button to jump forward and backward

through disc chapters/tracks.

• Skip Forward (

√√

l) will jump to the next chapter/track.

• Skip Back (

œœ

) will jump to the beginning of the

current chapter/track.

• Press the

œœ

button again in quick succession to

jump to the beginning of the previous chapter/track.

❚

Search Forward/Back

While a disc is in play mode, press and hold the œœ or √√ button to visually search forward/backward at 2X - 4X - 8X - 16X - 32X - 128X speed. Press the √ll button to resume normal speed.

• CD : 2X - 4X - 8X - 16X - 32X

❚

Slow Motion

During playback, press the √ll button to still the image.

Then press the

√√

button to play in slow motion at

variable speeds.

• Each press increases the slow motion speed playback to 1/8, 1/4 or 1/2 normal speed.

• Audio is muted during slow motion playback.

Note

 Frame Advance operates only in the forward

direction.

Note

 Slow motion operates only in the forward

direction. Slow motion is not available for CD.

During playback, press the MENU button. Press the corresponding … , † buttons to select

FUNC, then press the OK or √ button.

Press the … or † button to select

DVD Function,

then press the OK or √ button.

Press the … or † button to select the desired function, then press the OK or √ button.

• Title menu

Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title.

• Disc menu

You can display the menu included on many DVD Video discs. Use the … , † or œ , √ buttons to select the item you want to view, then press OK to execute the item.

• DISPLAY

Similar to Display Function, see page 44.

• Zoom : See page 47.

• Book mark : See page 48.

• Repeat : See page 48.

• EZ View : See page 45.

SETUP

DVD

VCR

PROG

FUNC

DVD Function

OK RETURN MENU

Title Menu Disc Menu DISPLAY Zoom Bookmark Repeat EZ View

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 43

44 -

English

DVD Functions

Using the Display Function

❚

Stop/Resume

• Press the ■button once to stop playback. To resume the DVD/CD from the point where the disc stopped, press the √ll button.

• Press the

■

button twice to completely stop playback.

The next time you press the √ll button, the disc will start over from the beginning.

To view the current Title, Chapter/Track, and counter position, press the DISPLAY button during DVD playback. The Display screen can also be used to quickly choose a title, chapter/track, or playing time.

View the Display

During DVD/VCD/CD playback, press the DISPLAY button.

•To make the screen disappear, press the

DISPLAY button again.

Use the … , † buttons to select the desired item.

Use the œ , √ buttons to make the desired setup.

• You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from the desired time.

To make the screen disappear, press the DISPLAY button again.

• What is a Chapter?

Each Title on a DVD is usually divided into chapters (similar to tracks on an audio CD).

• What is a Title?

A DVD may contain several different titles. For example, if a disc contains four different movies, each might be considered a title.

To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.

Most of DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on VCD and audio CD).

Allows playback of the film from a desired time.

Refers to the language of the film soundtrack. In the example, the soundtrack is played in English 5.1CH. A DVD disc can have up to eight different soundtracks.

Refers to the subtitle languages available in the disc. You will be able to choose the subtitles language or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

ENG 5.1CH

ENG

MOVE OK

DVD

VCD

MOVE OK

Note

 When in VCD 2.0 MODE (Menu On), this

function does not work. Use the DISC MENU button in the VCD 2.0 mode to select Menu On or Off.

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 44

English

- 45

DVD Functions

Adjusting the Aspect Ratio (EZ View)

This function may behave differently depending on the type of disc.

❚

To play back using aspect ratio (DVD)

Press the EZ VIEW button.

• The screen size changes when the button is pressed repeatedly.

• The screen zoom mode operates differently depending on the screen setting in the initial DVD menu.

•To ensure correct operation of the EZ VIEW button, you should set the correct aspect ratio in the initial setup.

❚

If you are using a 16:9 TV

For 16:9 aspect ratio discs

-Wide Screen

Displays the content of the DVD title in 16:9 aspect ratio.

- Screen Fit

The top and bottom portions of the screen are cut off. When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)

- Zoom Fit

The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 16:9 aspect ratio. The picture will look horizontally stretched.

- Screen Fit

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- Zoom Fit

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

❚

If you are using a 4:3 TV

For 16:9 aspect ratio discs

- 4:3 Letter Box

Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen.

- 4:3 Pan Scan

The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed.

- Screen Fit

The top and bottom portions of the screen are cut off and a full screen appears.

The picture will look vertically stretched.

- Zoom Fit

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

For 4:3 aspect ratio discs

- Normal Screen

Displays the content of the DVD title in 4:3 aspect ratio.

- Screen Fit

The top and bottom portions of the screen are cut off and the full screen appears. The picture will look vertically stretched.

- Zoom Fit

The top, bottom, left and right portions of the screen are cut off and the central portion of the screen is enlarged.

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 45

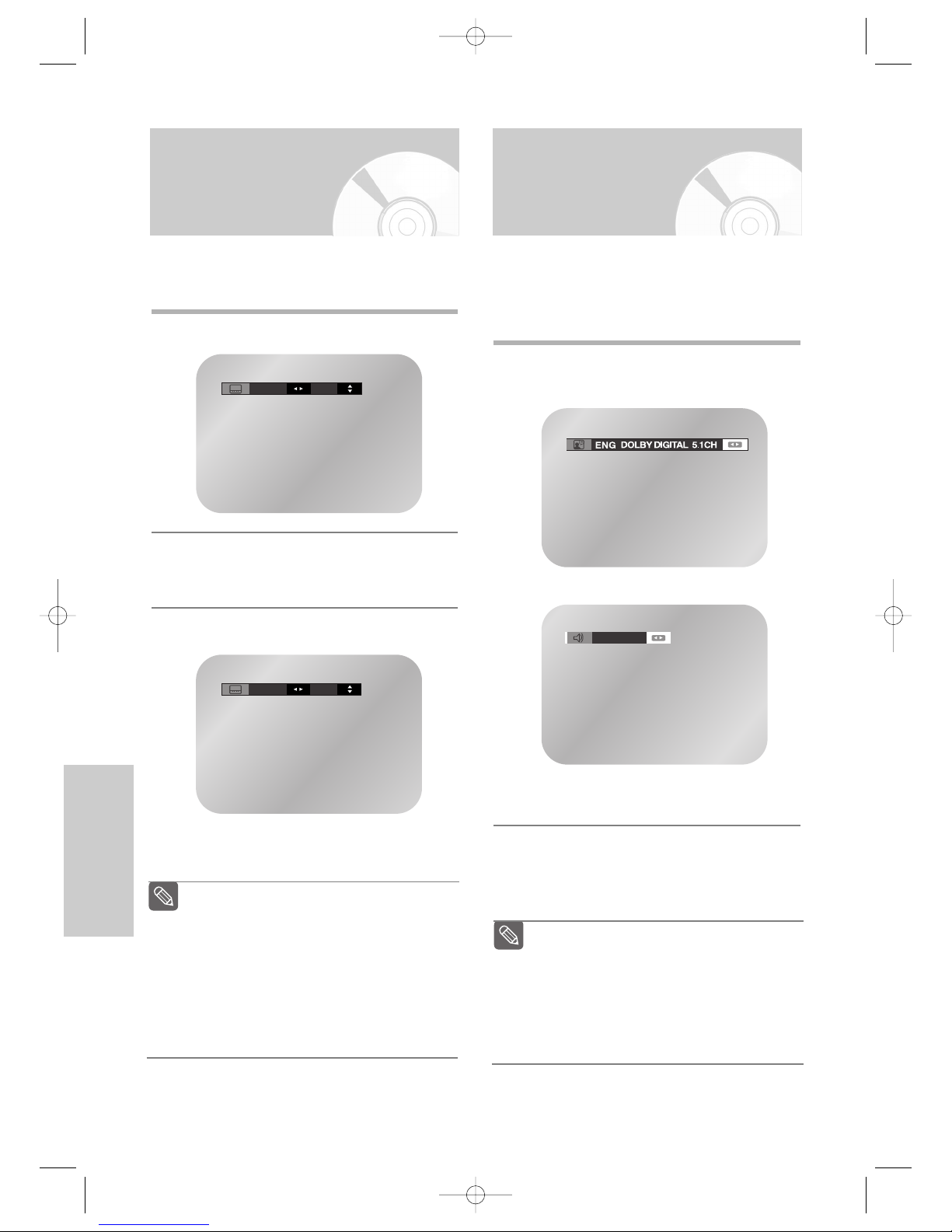

46 -

English

DVD Functions

Selecting the

Audio

Language

Selecting the Subtitle Language

Some DVDs provide subtitles in one or more languages. You can use the SUBTITLE button to quickly view and change settings.

During playback, press the SUBTITLE button.

Press the œ or √ button to select the desired subtitle language

•

The default is Off.

Press the … or † button to select On.

• To make the screen disappear, press the

SUBTITLE button again.

ENG Off

ENG On

 The subtitle languages are represented by

abbreviations.

 This function depends on what languages are

encoded on the disc and may not work with all DVDs.

 A DVD disc can contain up to 32 subtitle

languages.

 How to have the same subtitle language come

up whenever you play a DVD; Refer to “Setting Up the Language Features” on page 38.

Note

Multiple language/audio setup options, such as Dolby Digital 5.1, Dolby Pro Logic or LPCM 2 Channel audio are available on some DVDs. You can use the AUDIO button to quickly view and select the options available on a disc.

During playback, press the AUDIO button.

•

Press the œor√button to select stereo Left or

Right.

Press the œor√button to select the desired language or audio setup on the DVD.

•

Languages are represented by abbreviations, e.g. ENG for English.

DVD

VCD, CD

Stereo

 This function depends on what languages are

encoded on the disc and may not work with all DVDs.

 A DVD disc can contain up to 8 audio

languages.

 How to have the same audio language come

up whenever you play a DVD ; Refer to “Setting Up the Language Features” on page 38.

Note

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 46

English

- 47

DVD Functions

Some DVD Movies provide you with various camera angle views on the same scene while they are showing. To activate the feature press the ANGLE button.

You’ll see the angle icon while watching a DVD with multi angles available.

When the angle icon comes up to the screen press the ANGLE button to see the angle menu.

Press the œ or √ button to select a camera angle you may wish to see.

Zoom

Changing the Camera Angle

During playback, press the MENU button. Press the … or † button to select FUNC, then press the OK or √ button. The Function menu is displayed.

Press the … or † button to select

DVD Function,

then press the OK or √ button.

Press the … or † button to select

ZOOM

, then

press the OK or √ button.

Press the … / † or œ / √ button to select the part of the screen you want to zoom in on, then press the OK button.

• Press the OK button to zoom in

2X/4X/2X/Normal in order.

SETUP

DVD

VCR

PROG

FUNC

DVD Function

OK RETURN MENU

SETUP

DVD

VCR

PROG

FUNC

Function

DVD Function

√√

VCR Function

√√

RETURN

Title Menu Disc Menu DISPLAY Zoom Bookmark Repeat EZ View

Note

 Depending on a disc, the Zoom function may

not work.

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 47

48 -

English

DVD Functions

Marks

Repeat Chapter/Title

Up to three Bookmarks can be inserted for a given DVD/ VCD , allowing you to quickly jump to your favourite scene or song.

During playback, press the MARK button.

Press the œ or √ button to select one of the three mark placeholders (- - -). Keep on playing the DVD up to the scene you want to mark, then press the OK button. The placeholder (-) is changed to a number (1, 2 or 3).

• You may continue to set up to three marks.

Press the MARK button when complete.

❚

Recalling a Marked Scene

1 During playback, press the MARK button. 2 Press the œ or √ button to select the mark you want

to watch.

3 Press the √ll button to play the mark.

❚

Clearing Mark

1 During playback, press the MARK button. 2 Press the œ or √ button to select the mark you want

to delete.

3 Press the CLEAR button to delete the mark.

• Press the MARK button again to exit the mark menu.

1 – –

CLEAR

Note

 Up to three scenes may be marked at a time.  When in VCD 2.0 mode (Menu On mode),

this function does not work.

 Use the DISC MENU button in the VCD 2.0

mode to select MENU ON or OFF.

 Depending on the disc, the mark function

may not work.

You can repeat a single chapter or a complete title.

Press the REPEAT button while in playback mode to open the repeat menu. The current repeat mode is displayed.

Press the œ or √ button to select Chapter/Title. Press the OK button to repeat the current Chapter/Title.

• The menu will display Track/Disc in place of Chapter/Title if you are playing a VCD/CD.

❚

Cancel Chapter/Title

Press the REPEAT button to open the repeat menu.

Press the œ or √ button to selected Off, then press the OK button.

• It is available to press the CLEAR button in order to stop repeat play.

Off

Chapter Title A - B



A - B



Off

Chapter Title

Off

Chapter Title A - B



A - B



Off

Track Disc

DVD

VCD, CD

Off

Chapter Title A - B



A - B



Off

Chapter Title

Off

Chapter Title A - B



A - B



Off

Track Disc

DVD

VCD, CD

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 48

English

- 49

DVD Functions

A to B Repeat

A to B Repeat feature enables you to repeat the designated section on a DVD or VCD/CD. To activate, mark where to start (A) and where to end (B) of the section you want to watch.

Press the REPEAT button while in playback mode, then press the œ or √ button to select A-.

Press the OK button at the beginning of the segment you want to repeat (Point A). The B is selected.

• The minimum A-B Repeat time is 5 seconds.

Off

Chapter Title A - B



A - B



Off

Chapter Title

Off

Chapter Title A - B



A - B



Off

Track Disc

DVD

VCD, CD

Off

A -

Off

Chapter Title A - B



A - B



Off

Chapter Title

DVD

Off

A -

Off

Chapter Title A - B



A - B



Off

Track Disc

VCD, CD

Press the OK button again at the end of the segment you want to repeat (Point B). The segment will begin repeating in a continuous loop.

❚

Cancel A-B Repeat

Press the REPEAT button to open the repeat menu.

Press the œ or √ button to selected Off, then press the OK button.

• It is available to press the CLEAR button in order

to stop repeat play.

Off

Chapter Title A - B



A - B



Of f

Chapter Title

Off

Chapter Title A - B



A - B



Of f

Track Disc

DVD

VCD, CD

Note

 When in VCD 2.0 mode (Menu On mode),

this function does not work.

 Use the DISC MENU button in the VCD 2.0

mode to select MENU ON or OFF.

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 49

50 -

English

DVD Functions

❚

CD-R MP3 discs

When playing CD-R/MP3 discs, please follow all the recommendations for CD-R above, plus the comments below:

Your MP3 files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 files are compatible with Apple's Mac. These two formats are the most widely used.

When naming your MP3 files do not exceed 8 characters, and place ".mp3" as the file extension.

General name format of: Title.mp3.. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).

Use a decompression transfer rate of at least 128Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose. Getting audio CD quality sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128Kbps and up to 160Kbps. However, choosing higher rates, like 192Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128Kbps will not be played properly.

Do not try recording copyright protected MP3 files.

Certain "securized" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered trade mark of The SDMI Foundation). You cannot copy such files.

Important :

The above recommendations cannot be taken as a guarantee that the DVD-VCR will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).

MP3 Play

If you insert an MP3 Disc into the DVD-VCR, you can see the folder directory.

❚

MP3 Play Function

Press the … or † button to select the desired music folder, then press the OK button.

• Up to 8 music folders can be displayed at a time. If you have more than 8 folders on a disc, press the

† button to display them.

Press the … or † button again to select a music file. Press the OK button to begin playback of a music file.

❚

Repeat

Press the REPEAT button in play mode to hear only music continuously and press it once again to release.

Total : 1/3

ROOT AVI JPEG MP3 WMA

.. A B C

MP3

Total : 3/4

ROOT ROOT

AVI JPEG MP3 WMA

Total : 1/3

ROOT AVI JPEG MP3 WMA

Repeat file

.. A B C

MP3

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 50

English

- 51

DVD Functions

Program & Random Play

(CD/MP3)

You can listen to songs randomly or in the desired sequence.

❚

Program Play

Press the MODE button in the stop mode. Press the œ or √ button to select

PROGRAM.

Press the OK button.

Press the …/†,œ/√ buttons to select the first track to add to the program. Press the OK button. The selection numbers are displayed in the Program Order box. Repeat to place additional track in the Program Order box.

Press the √ll button. The disc will be played in programmed order.

❚

Cancel Program play

During playback, press the CLEAR button.

05 06 07 08 09 10 11 12 13 14 15 16

- - - - - - - -

01 02 03 04

OK RETURN

PROGRAM RANDOM

PROGRAM 01

Track Program Order

RETURN CLEAR

❚

Random Play

Press the MODE button in the stop mode.

Press the œ or √ button to select

RANDOM.

Press the OK button. The disc will be played in random order.

• Depending on the disc, the Program and Random Play functions may not work.

• To resume normal play, press the CLEAR button.

• For MP3 disc, the MODE button is activated only when a file is highlighted.

RETURN

PROGRAM RANDOM

ROOT AVI JPEG MP3 WMA

.. A B C

MP3

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 51

52 -

English

DVD Functions

❚

Album Mode

Press the œ or √ button to select . Press the OK button. The album mode is displayed.

• Press the …/†,œ/√ buttons to select the required

picture, then press the OK button. The selected picture is displayed.

• Press the lœœ or √√l button to display the

previous or next 6 pictures.

❚

Rotation

Press the œ or √ button to select . Each time the OK button is pressed, the picture rotates 90 degrees clockwise.

❚

Zoom

Press the œ or √ button to select . Each time the OK button is pressed, the picture is enlarged up to 4X. (Normal ➝ 2X ➝ 4X ➝ Normal)

Album Photo : 1/215

RETURN

Photo : 1/215

Picture CD Playback

If you insert a Picture (JPEG) CD Disc into the DVDVCR, you can see the folder directory.

Press the … or † button to select the picture you want to view, then press the OK button. The selected picture is displayed.

Press the lœœ or √√l button to display the previous or next picture.

ROOT ROOT

JPEG01

JPEG

JPEG02

JPEG

JPEG03

JPEG

JPEG04

JPEG

JPEG05

JPEG

JPEG06

JPEG

JPEG07

JPEG

RETURN

Total : 1/215

Photo : 1/215

Note

 If no buttons on the remote control are

pressed for 10 seconds, the menu bar will disappear. Press the DISC MENU button on the remote control to display the menu bar.

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 52

English

- 53

DVD Functions

❚

Slide show

Press the œ or √ button to select . Press the OK button. The 3 icons are displayed for time interval.

Press the œ or √ button to select one of these. Press the OK button.

The pictures change automatically with about an interval of 6 seconds.

The pictures change automatically with an interval of 12 seconds.

The pictures change automatically with an interval of 18 seconds.

• Depending on the file size, each interval between images may take longer or shorter than the manual suggests.

RETURN

Timer :

RETURN

Photo : 1/215

❚

CD-R JPEG Discs

• Only files with the “.jpg” and “.JPG” extensions can be played.

• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

• The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).

• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

• When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.

• Picture discs other than Kodak Picture CD may take longer to start playing or may not play at all.

• If a number of files in 1 Disc is over 500, only 500 JPEG file can be played.

• If a number of folders in 1 Disc is over 300, only JPEG files in 300 folders can be played.

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 53

54 -

English

Reference

• Technical Specifications . . . . . . . . . . . . . . . 55

• Troubleshooting Guide (VCR) . . . . . . . . . . . 56

• Troubleshooting Guide (DVD) . . . . . . . . . . . 57

Technical Specifications

Troubleshooting Guide (VCR)

Troubleshooting Guide (DVD)

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 54

English

- 55

Reference

Rated voltage AC 220 - 240V, 50Hz

Power consumption 19 Watts

Weight 3.6 Kg

General Size 430mm X 282mm X 82mm

Operating ambient temperature +5°C ~ +40°C

Installation conditions Operation position : Horizontal,

Relative humidity : Below 75%

Input

Video input (Rear) Euro Scart socket : 1.0Vp-p (unbalanced) 75Ω

Audio input (Rear) Euro Scart socket : -8dBm, 47Kohm unbalanced

Input (Front) RCA jack

RF out UHF 21-69 (Initial CH60)

Audio (DVD, VCR) RCA jack, Euro Scart socket

Output Audio (DVD only) COAXIAL, RCA jack

Video (DVD, VCR) RCA jack, Euro Scart socket

Video (DVD only) S-Video out

RGB out : Euro Scart socket

Tape format VHS type video tape

Colour system PAL, NTSC4.43, NTSC playback on PAL TV

VCR Tuning system I

Video S/N Above 43dB (standard recording)

Resolution Above 240 lines (standard recording)

Audio S/N Above 68dB (Hi-Fi), 39dB (Mono)

Audio frequency characteristics 20Hz - 20KHz (Hi-Fi)

Disc DVD, CD(12cm, 8cm), VCD

DVD Audio S/N 100dB

Audio dynamic range 95dB

Technical Specifications

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 55

56 -

English

Reference

Problem Solution

No power ◆ Check that the power plug is connected to a wall outlet.

◆ Have you pressed the ON/STANDBY button?

You cannot insert a video cassette ◆ Avideo cassette can only be inserted with the window

side up and the safety tab facing you.

The television programme ◆ Check the DVD-VCR aerial connections.

was not recorded

◆ Is the DVD-VCR tuner properly set?

◆ Check if the safety tab is intact on the cassette.

Timer recording was unsuccessful ◆ Was the ON/STANDBY button pressed to activate the timer?

◆ Re-check the recording start/stop time settings.

◆ If there was a power failure or interruption during timer

recording, the recording will have been cancelled.

No playback picture or the picture ◆ Check to see if you are using a prerecorded tape. is distorted

You cannot see normal broadcasts ◆ Check the tuner or external setting. It should be on tuner.

◆ Check the TV or VCR aerial connections.

Noise bars or streaks on playback ◆ Press the

TRK (……or††)

buttons to minimize this effect.

When the

√

button is pressed ◆ A still picture may have “noise bars”, depending on the

during playback, the still picture

condition of the tape. Press the

TRK (……or††)

buttons

has severe “noise bars” streaks during slow motion to minimize this effect.

Video Head Cleaning ◆ If poor pictures appear on a variety of cassettes, the video heads may need

cleaning. This is not a common problem and unless it appears, the heads should not be cleaned. When cleaning the video heads, read all instructions provided with the head cleaning cassette. Incorrect head cleaning can permanently damage the video heads.

If when tuning in your TV to the DVD-VCR TV does not find the Screen or the pattern when found suffers from interference, it may be due to the DVD-VCR output channel clashing with the normal TV transmissions in your area. To prevent this you will need to change the DVD-VCR output channel in the following way

Troubleshooting Guide (VCR)

Before contacting the Toshiba after-sales service, perform the following simple checks. If you are unable to solve the problem after reading the below instructions, note:

•

The model and serial number on the rear of your DVD-VCR

•

The warranty information

•

A clear description of the problem

Then contact your nearest TOSHIBA after-sales service.

1. Remove the aerial input plug the socket marked (aerial symbol) on the rear of the DVD-VCR.

2. Carry out the instructions “Tuning Your Television for the DVD-VCR” (see page 15).

3. Carry out the instructions “Setting the DVD-VCR output Channel” (see page 21), move the channel number one channels down from the original setting.(example: from 60 to 69).

4. Replace the aerial plug into the socket marked (aerial symbol) on the rear of the DVD-VCR.

5. Re-tune your TV to the DVD-VCR again by following instructions “Tuning Your Television for the DVD-VCR” (see page 15).

6. If the problem still exists repeat steps 1 to 5 moving several more channels away from the original setting.

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 56

English

- 57

Reference

Troubleshooting Guide (DVD)

Disc does not play.

5.1 channel sound is not being reproduced.

The icon appears on screen.

Playback mode differs from the Setup menu selection.

The screen ratio cannot be changed.

No audio.

Forgot password

If you experience other problems.

◆ Ensure that the disc is installed with the label side facing up.

◆ Check the region number of the DVD.

◆ This player cannot play CD-ROMs, DVD-ROMs, etc. Insert a DVD,

or a CD.

◆ 5.1 channel sound is reproduced only when the following conditions are met. :

1) The DVD-VCR player is connected with the proper amplifier

2) The disc is recorded with 5.1 channel sound.

◆ Check whether the disc being played has the “5.1 ch” mark on the outside.

◆ Check if your audio system is connected and working properly.

◆ The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is

out of range.

◆ Some of the functions selected in the Setup menu may not work properly if the disc is not encoded with the corresponding function.

◆ The screen ratio is fixed on your DVDs.

◆ Make sure you have selected the correct Digital Output in the

Audio Options Menu.

◆ Press ON/STANDBY with no disc in the unit. Press the œœ and √√ buttons simultaneously on the front panel for five seconds.

Power off and on the DVD-VCR by pressing ON/STANDBY button. The parental mode is now unlocked as indicated on the display. You can now set your rating level and change your password to a new number.

◆ Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.

◆ If the problem still cannot be solved, please contact your nearest authorized service center.

Problem

Solution

Page

P13 P39

P37~53

P37~42

P40

P39

P41

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 57

Printed in Slovakia

BY634936

SD-16VBSB/TSB-eng2 3/10/05 10:14 AM Page 58

Toshiba SD-16VBSB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
