Toshiba PDA01U-00101F, PDA01U-00501F User Manual

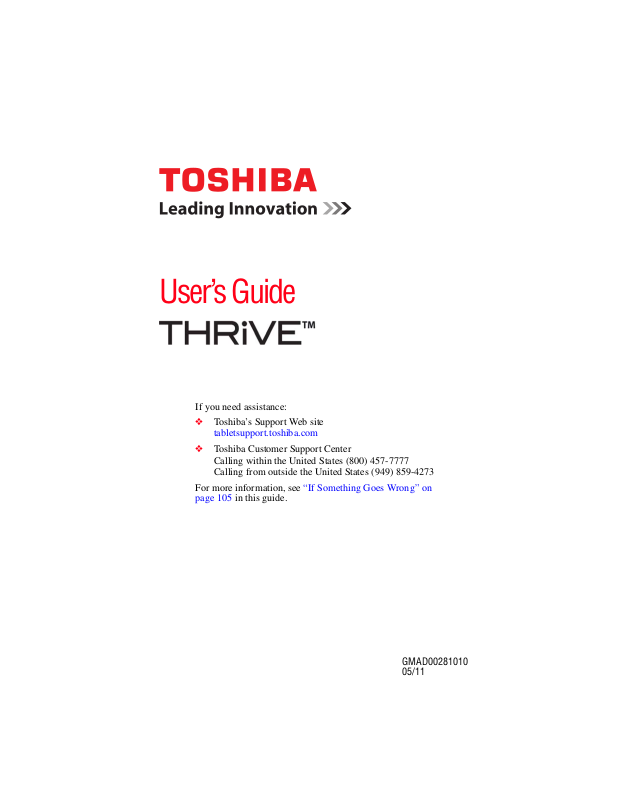

User’s Guide

If you need assistance:

❖ Toshiba’s Support Web site

tabletsupport.toshiba.com

❖ Toshiba Customer Support Center

Calling within the United States (800) 457-7777 Calling from outside the United States (949) 859-4273

For more information, see “If Something Goes Wrong” on

page 105 in this guide.

GMAD00281010 05/11

Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

Model: AT100 Series

Regulatory Information

Protection of Stored Data

For your important data, please make periodic back-up copies of all the data stored on the hard disk or other storage devices as a precaution against possible failures, alteration, or loss of the data. IF YOUR DATA IS ALTERED OR

LOST DUE TO ANY TROUBLE, FAILURE OR MALFUNCTION OF THE HARD DISK DRIVE OR OTHER STORAGE DEVICES AND THE DATA CANNOT BE RECOVERED, TOSHIBA SHALL NOT BE LIABLE FOR ANY DAMAGE OR LOSS OF DATA, OR ANY OTHER DAMAGE RESULTING THEREFROM. WHEN COPYING OR TRANSFERRING YOUR DATA, PLEASE BE SURE TO CONFIRM WHETHER THE DATA HAS BEEN SUCCESSFULLY COPIED OR TRANSFERRED. TOSHIBA DISCLAIMS ANY LIABILITY FOR THE FAILURE TO COPY OR TRANSFER THE DATA CORRECTLY.

Critical Applications

The device you have purchased is not designed for any “critical applications.” “Critical applications” means life support systems, medical applications, connections to implanted medical devices, commercial transportation, nuclear facilities or systems or any other applications where product failure could lead to injury to persons or loss of life or catastrophic property damage.

ACCORDINGLY, TOSHIBA, ITS AFFILIATES AND SUPPLIERS DISCLAIM ANY AND ALL LIABILITY ARISING OUT OF THE USE OF THE DEVICE PRODUCTS IN ANY CRITICAL APPLICATIONS. IF YOU USE THE DEVICE PRODUCTS IN A CRITICAL APPLICATION, YOU, AND NOT TOSHIBA, ASSUME FULL RESPONSIBILITY FOR SUCH USE.

Radio Frequency (RF) Energy Exposure

NOTE

When the transmitter and receiver on your device is powered ON, RF energy is received and transmitted. The power level your device transmits at is controlled by your network access while in communication.

Your device is approved to the radio standard by the country/region listed in the approved countries table for the module installed in your device.

FCC Notice “Declaration of Conformity Information”

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❖ Reorient or relocate the receiving antenna. ❖ Increase the separation between the equipment and receiver. ❖ Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

❖ Consult the dealer or an experienced radio/TV technician for help.

Only Peripherals complying with the FCC Class B limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by Toshiba is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the device's ports. Changes or modifications made to this equipment not expressly approved by Toshiba or parties authorized by Toshiba could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

❖ This device may not cause harmful interference. ❖ This device must accept any interference received, including interference

that may cause undesired operation.

Contact either:

❖ Toshiba’s Support Web site at tabletsupport.toshiba.com.

❖ Or call the Toshiba Customer Support Center:

Within the United States at (800) 457-7777 Outside the United States at (949) 859-4273

Industry Canada Requirement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conformé à la norme NMB-003 du Canada.

Wireless Interoperability

The Toshiba Wireless LAN Card products are designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS) radio technology, and is compliant to:

❖ The IEEE 802.11 Standard on Wireless LANs (Revision A/B/G), as defined

and approved by the Institute of Electrical and Electronics Engineers.

❖ The Wireless Fidelity (Wi-Fi

Alliance. The “Wi-Fi CERTIFIED” logo is a certification mark of the Wi-Fi Alliance.

Bluetooth® and Wireless LAN devices operate within the same radio

frequency range and may interfere with one another. If you use Bluetooth® and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off your

Bluetooth

Please contact Toshiba product support on Web site http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or tabletsupport.toshiba.com in the United States for more information.

or Wireless LAN device.

) certification as defined by the Wi-Fi

Wireless LAN and Your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, Toshiba believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels

and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

❖ Using the Wireless LAN equipment on board airplanes, or ❖ In any other environment where the risk of interference to other devices or

services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

Exposure to Radio Frequency Radiation

The radiated output power of the Toshiba Wireless LAN Card is far below the FCC radio frequency exposure limits. Nevertheless, the Toshiba Wireless LAN Card shall be used in such a manner that the potential for human contact during normal operation is minimized. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Specific Absorption Rate (IEEE)

Your device is designed to be in compliance with Radio Waves exposure regulations and does not exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) in accordance with the Federal Trade Communications Commission (FCC) and Industry Canada (IC). A substantial safety margin is set to assure the safety of all persons, regardless of health.

A unit of measurement known as the Specific Absorption rate, or SAR is utilized for the radio wave exposure guidelines. The SAR measurement for devices does not exceed 1.6W/kg.

The actual SAR values for your device, while in use, are normally well below the stated values. The operating power of your device is automatically decreased when full power is not needed for the wireless connection to increase system efficiency and to minimize interference on the network. The lower the power output of the device the lower its SAR value.

As stated by the World Health Organization, present scientific information indicates no special precautions are needed for the use of this device. To further reduce any exposure, limit your usage.

Turn Wi-Fi®, Bluetooth®, and Wireless WAN Functionalities off for Cardiac Pacemakers

❖ Turn Wi-Fi

when you are near a person who may have a cardiac pacemaker implant or other medical electric device. Radio waves may affect pacemaker or medical device operation, possibly resulting in serious injury. Follow the instructions of your medical device when using any Wi-Fi functionally.

Regulatory Information

This device complies with the following radio frequency and safety standards.

Canada – Industry Canada (IC)

This device complies with RSS 210 of Industry Canada.

The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s Web site www.hc-sc.gc.ca/rpb. The RF device shall not be co-located with any other transmitter that has not been tested with this device.

, Bluetooth®, and Wireless WAN functionality off

or Bluetooth® or Wireless WAN

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

L’ utilisation de ce dispositif est soumis aux deux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même s’il est susceptible de compromettre son fonctionnement.

The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres afin de Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit faire l’objet d’une licence.

Radio Approvals for Wireless Devices

Approved Countries/Regions for the Broadcom® Wireless Wi-Fi® AW-NH931 Series

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except tin the countries/regions in the following table.

Australia Austria Bangladesh Belgium Bolivia Bulgaria Canada Colombia Cyprus Czech Republic Denmark Dominican Republic El Salvador Estonia Finland France Germany Greece Guatemala Hong Kong Hungary Iceland Ireland Italy Japan Latvia Liechtenstein Lithuania Luxembourg Malta Monaco Netherlands New Zealand Norway Panama Poland Portugal Puerto Rico Romania Saudi Arabia Slovak Republic Slovenia Spain Sri Lanka Sweden Switzerland Taiwan Turkey United Kingdom USA

België/ Belgique:

Europe - Restrictions for use of 2.4 GHz Frequencies in European Community Countries

For private usage outside buildings across public grounds over less than 300m no special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required for private usage outside buildings across public grounds over more than 300m. For registration and license please contact IBPT/BIPT.

Voor privé-gebruik buiten gebouw over publieke groud over afstand kleiner dan 300m geen registratie bij BIPT/IBPT nodig; voor gebruik over afstand groter dan 300m is wel registratie bij BIPT/IBPT nodig. Voor registratie of licentie kunt u contact opnemen met BIPT.

Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, audessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.

Deutschland: License required for outdoor installations. Check with reseller for

France: Restricted frequency band: only channels 1 to 7 (2400 MHz and 2454

Italia: License required for indoor use. Use with outdoor installations not

Nederland: License required for outdoor installations. Check with reseller for

procedure to follow. Anmeldung im Outdoor-Bereich notwendig, aber nicht

genehmigungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.

MHz respectively) may be used outdoors in France. Please contact A.R.T. (http://www.art-telecom.fr) for applicable procedures to follow.

Bande de fréquence restreinte: seuls les canaux 1- 7 (2400 et 2454 MHz respectivement) doivent être utilisés endroits extérieur en France. Vous pouvez contacter l’Autorité de Régulation des Télécommunications (http://www.art-telecom.fr) pour la procédure à suivre.

allowed. È necessaria la concessione ministeriale anche per l’uso interno.

Verificare con i rivenditori la procedura da seguire.

procedure to follow. Licentie verplicht voor gebruik met buitenantennes. Neem contact op

met verkoper voor juiste procedure.

Bluetooth® Wireless Technology Interoperability

Bluetooth® Cards from Toshiba are designed to be interoperable with any product

with Bluetooth Spectrum (FHSS) radio technology, and is compliant to:

❖ Bluetooth

Special Interest Group.

wireless technology that is based on Frequency Hopping Spread

Specification as defined and approved by The Bluetooth®

❖ Logo certification with Bluetooth

Bluetooth® Special Interest Group.

Always use Bluetooth® cards from Toshiba in order to enable wireless networks over two or more (up to a total of seven) Toshiba portable computers using these cards. Please contact Toshiba product support on Web site http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or tabletsupport.toshiba.com in the United States for more information.

When you use Bluetooth LAN devices, Bluetooth you detect certain interference while you use Bluetooth® cards from Toshiba,

always change the frequency, move your device to the area outside of the interference range of 2.4 GHz Wireless LAN devices (40 meters/43.74 yards or more) or stop transmitting from your device. Please contact Toshiba product support on Web site http://www.toshiba-europe.com/computers/tnt/ bluetooth.htm in Europe or tabletsupport.toshiba.com in the United States for more information.

Bluetooth

and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection. If you should experience any such problem, immediately turn off either one of your Bluetooth product support on Web site http://www.toshiba-europe.com/computers/tnt/ bluetooth.htm in Europe or tabletsupport.toshiba.com in the United States for more information.

cards from Toshiba close to 2.4 GHz Wireless

transmissions might slow down or cause errors. If

wireless technology as defined by The

or Wireless LAN. Please contact Toshiba

Approved Countries/Regions for use (Bluetooth® wireless technology)

Bluetooth® Card from Toshiba equipment is approved to the radio standard by the

countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

Australia Austria Bangladesh Belgium Bolivia Bulgaria Canada Colombia Cyprus Czech Republic Denmark Dominican Republic El Salvador Estonia Finland France Germany Greece

Guatemala Hong Kong Hungary Iceland Ireland Italy Japan Latvia Liechtenstein Lithuania Luxembourg Malta Monaco Netherlands New Zealand Norway Panama Poland Portugal Puerto Rico Romania Saudi Arabia Slovak Republic Slovenia Spain Sri Lanka Sweden Switzerland Taiwan Turkey United Kingdom USA

Bluetooth® Wireless Technology and Your Health

The products with Bluetooth® wireless technology, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by devices with Bluetooth electromagnetic energy emitted by wireless devices such as mobile phones.

Because products with Bluetooth® wireless technology operate within the guidelines found in radio frequency safety standards and recommendations, Toshiba believes Bluetooth® wireless technology is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Bluetooth may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

❖ Using the equipment with Bluetooth

airplanes, or

❖ In any other environment where the risk of interference to other devices or

services is perceived or identified as harmful.

wireless technology however is much less than the

wireless technology

wireless technology on board

wireless technology prior to

Exposure to Radio Frequency Radiation

The radiated output power of the Bluetooth the FCC radio frequency exposure limits. Nevertheless, the Bluetooth from Toshiba shall be used in such a manner that the potential for human contact during normal operation is minimized.

This guide is copyrighted by Toshiba America Information Systems, Inc. with all rights reserved. Under the copyright laws, this guide cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, however, with respect to the use of the information contained herein.

Export Administration Regulation

This product and/or document contains technical data that may be controlled under the U.S. Export Administration Regulations, and may be subject to the approval of the U.S. Department of Commerce prior to export. Any export, directly or indirectly, in contravention of the U.S. Export Administration Regulations is prohibited.

Card from Toshiba is far below

Card

Notice

While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice. For the most up-to-date product information about your device, or to stay current with the various product software or hardware options, visit Toshiba’s Web site at tabletsupport.toshiba.com. Toshiba assumes no liability for any damages incurred directly or indirectly from any errors or omissions contained herein. In no event shall Toshiba be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this information or any other information contained herein or the use thereof.

Trademarks

App Place, Resolution+, and THRiVE are either trademarks or registered trademarks of Toshiba America Information Systems, Inc. and/or Toshiba Corporation.

Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Toshiba is under license. Other trademarks and trade names are those of their respective owners.

Broadcom is a registered trademark of Broadcom Corporation and/or its affiliates in the United States, certain other countries, and/or the EU.

Google, the Google logo, Android, Android Market, Google Maps, Google eBooks, Gmail, YouTube, and Google Talk are trademarks of Google, Inc.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Microsoft is a registered trademarks of Microsoft Corporation in the United States and/or other countries.

Secure Digital and SD are trademarks of SD Card Association. Wi-Fi is a registered trademark of the Wi-Fi Alliance. All other brand and product names are trademarks or registered trademarks of

their respective companies.

Product Disposal Information

Discard this device in accordance with applicable laws and regulations.

Disposal of this product may be regulated due to environmental considerations. For disposal, reuse or recycling information, please contact your local government or the Electronic Industries Alliance

at www.eiae.org.

As part of Toshiba’s commitment to preserving the environment, Toshiba supports various trade-in and recycling programs. For details, please

visit us.toshiba.com/green.

Licenses

This Product is licensed under the AVC, the VC-1 and the MPEG-4 Part 2 Visual patent portfolio licenses for the personal and non-commercial use of a consumer to (i) encode video in compliance with the above standards (“Video Standards”) and/or (ii) decode AVC, VC-1 and MPEG-4 Part 2 Visual that was encoded by a consumer engaged in personal and non-commercial activity or was obtained from a video provider licensed to provide such video. None of the licenses extend to any other product regardless of whether such product is included with this product in a single article. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See www.mpegla.com.

Introduction................................................................................ 18

This guide ...............................................................19

Safety icons ............................................................19

Other icons used...............................................20

Your device’s features and specifications .........20

Other documentation ..............................................20

Service options .......................................................21

Precautions.......................................................21

File management tips..............................................22

Toshiba’s online resources .....................................22

Chapter 1: Getting Started......................................................... 23

Features and components.......................................23

Front .................................................................24

Back..................................................................25

Right side..........................................................26

Left side ............................................................27

Top ...................................................................27

Bottom..............................................................28

Connecting to a power source ................................29

Contents

Charging the battery ...............................................31

Changing the battery...............................................32

Removing the battery from the device ..............32

Inserting a charged battery ...............................34

Taking care of your battery .....................................36

Safety precautions ............................................36

Optimizing battery life .......................................36

Maintaining your battery ...................................37

Disposing of used batteries ....................................38

Using the device for the first time ...........................39

Turning on the power .......................................39

Setting up your device ......................................40

Setting up your Wi-Fi® connection....................40

Setting location preferences .............................41

Setting the date and time ..................................41

Setting up Wi-Fi® and Bluetooth®

connections ...............................................44

Registering your Toshiba device.............................45

Backing up your data ..............................................45

Backing up data using TOSHIBA

File Manager ...............................................45

Backing up data using your

Google™ Account .......................................45

Restoring your data using your

Google™ Account .......................................46

Navigation and features ..........................................47

Home screen.....................................................48

Touch screen navigation ...................................49

Navigating the Home screen .............................50

System bar........................................................50

Securing your tablet..........................................53

Customizing your Home screens ............................55

Adding an item to a Home screen .....................55

Moving an item from the Home screen.............56

Removing an item from a Home screen............56

Contents

Changing the wallpaper.....................................56

Turning off the device .............................................57

Options for turning off the device .....................57

Using Shut down mode ....................................57

Using Sleep mode.............................................58

Syncing and managing your accounts ....................59

Add an account .................................................59

Remove an account ..........................................60

Navigation, Maps, Places, and Latitude...................60

Managing downloads..............................................61

Factory data reset ...................................................62

Caring for your device.............................................63

Cleaning the device ...........................................63

Chapter 2: Settings .................................................................... 64

Customizing your device’s settings.........................64

Apps and Settings menus .................................64

Wireless and networks settings ........................69

Sound settings..................................................71

Screen settings .................................................72

Multimedia settings ..........................................72

Location and security settings ..........................73

Applications settings.........................................75

Accounts & sync settings .................................76

Privacy settings ................................................77

Storage settings................................................78

Language & input settings ................................78

Accessibility settings ........................................81

Date & time settings .........................................81

About tablet .....................................................82

Chapter 3: Working with Apps.................................................. 84

Downloading Toshiba Apps ...................................84

TOSHIBA Media Player .....................................84

Apps .......................................................................85

Downloading from Android Market™................85

Contents

Preinstalled Apps on your tablet .......................85

Uninstalling Apps on your tablet .......................86

Chapter 4: Exploring the Features on your Device.................. 87

Using the onscreen keyboard..................................87

Type to enter text ..............................................88

Speak to enter text ............................................90

Using the built-in speakers .....................................90

Using external speakers or headphones..................90

Recording sounds.............................................91

Using the cameras ..................................................91

Using an SD™ Card.................................................91

Inserting memory media...................................92

Removing memory media.................................92

Adding optional external devices.............................93

Using external devices ......................................93

Connecting an HDMI™-compatible

television or display device .........................94

Using an external keyboard...............................94

Using an external mouse ..................................94

Using a docking station ..........................................95

Connecting your tablet to a docking

station.........................................................95

Chapter 5: Utilities...................................................................... 97

TOSHIBA Service Station ........................................98

Check for application updates...........................99

Downloading updates .......................................99

Installing updates............................................100

Downloading and installing System

updates .....................................................100

TOSHIBA File Manager Utility................................101

File browsing screen .......................................102

Operation of files/folders.................................102

TOSHIBA Adaptive display ....................................104

TOSHIBA Resolution+® ..................................104

Contents

Chapter 6: If Something Goes Wrong ................................... 105

Problems when you turn on the device.................105

The operating system is not working ....................106

Internet problems ...........................................106

Power and the batteries ........................................107

Display problems ..................................................108

Sound system problems .......................................108

Wireless networking problems..............................109

If you need further assistance...............................109

Before you contact Toshiba ............................110

Contacting Toshiba .........................................110

Other Toshiba Internet Web sites..........................111

Toshiba’s worldwide offices..................................111

Appendix A: Power Cord/Cable Connectors.......................... 113

Glossary.................................................................................... 114

Index..........................................................................................124

Introduction

NOTE

Welcome to the world of powerful, portable, multimedia. With your Toshiba tablet device, you can watch movies, listen to your favorite music, read books, play games and do much more.

The product specifications and configuration information are designed for a product Series. Your particular model may not have all the features and specifications listed or illustrated. For more detailed information about the features and specifications on your particular model, please visit Toshiba’s Web site at

tabletsupport.toshiba.com.

This guide

NOTE

This guide introduces the features on your device as well as some basic procedures needed to perform tasks on your tablet powered by Android™. You can:

❖ Read the entire guide from beginning to end. ❖ Skim through and stop when a topic interests you. ❖ Use the table of contents and the index to find specific

Safety icons

All of the Safety instructions contained in this manual must be read carefully and be fully understood before you attempt to use this device, in order to avoid potential hazards that could cause bodily injury, property damage, or damage to the device.

❖ The Safety Instructions contained in this Manual have been

Introduction

This guide

information.

categorized according to the seriousness of the potential hazards, through the use of the following signal words.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Provides important information.

Introduction

Service options

Toshiba’s standard limited warranty, extended warranty, and service upgrade terms and conditions are available at warranty.toshiba.com.

To stay current on the most recent applications, application updates, and hardware options for your device, as well as other product information, be sure to regularly check the Toshiba Web site at

tabletsupport.toshiba.com.

If you have a problem or need to contact Toshiba, see “If Something

Goes Wrong” on page 105.

Precautions

Your device is designed to provide optimum safety and ease of use, and to withstand the rigors of travel. You should observe certain precautions to further reduce the risk of personal injury or damage to the device.

IKeep this device away from small children. This device is not a toy and may be hazardous to small children, for example, small detachable parts may be a choking hazard. Improper use of device could result in loud volume emitting from the device possibly causing hearing damage, and improper use and handling of batteries could result in possible injury.

Introduction

Service options

Never place a heavy object on the device and be careful not to drop a heavy object onto the device. It could damage the device or cause system failure.

❖ Never turn off the device if a drive light indicates a drive is active.

Turning off the device while it is reading from or writing to an external hard drive or flash media may damage the disk or flash media.

❖ Keep the device and disks away from objects that generate

strong magnetic fields, such as large stereo speakers.

❖ Scan all new files for viruses.

This precaution is especially important for files you receive via email or download from the Internet. Occasionally, even new programs you buy from a supplier may contain a virus. You need a special program to check for viruses.

Introduction

File management tips

❖ Back up your files to external media on a regular basis. Label

the backup copies clearly and store them in a safe place. Your data stays in the device’s temporary memory until you

back it up to external media. If the network you are using goes down and you must restart your device to reconnect, or your battery runs out of charge while you are using your device, you will lose all data since you last backed it up. See “Backing up

your data” on page 45 for further information.

❖ Scan all new files for viruses.

This precaution is especially important for files you receive via external media, email, or download from the Internet.

❖ Do not turn off the device if a drive indicator light indicates a

drive is active.

Toshiba’s online resources

Toshiba maintains a number of online sites to which you can connect. These sites provide information about Toshiba products, give help with technical questions and keep you up to date with future upgrades. For more information, see “Contacting Toshiba”

on page 110.

Chapter 1

Getting Started

This chapter provides tips for using your device effectively, summarizes how to connect components, and explains what to do the first time you use your device.

Please read and adhere to all safety information carefully and make sure you fully understand the instructions before you attempt to use your device in order to avoid potential hazards that could cause bodily injury, property damage, or damage the device.

Features and components

For further details on each of the items listed in the following section, be sure to follow the provided references to sections later in this document.

Front

Getting Started

Features and components

Camera indicator light

10.1” HD display

Internal microphone

Camera

System indicator lights

Power light

Battery light

Wireless indicator light

(Sample Illustration) Front view

❖ Front Camera indicator light—Glows blue when the front

Camera is in operation. For more information, see “Using the

cameras” on page 91.

❖ Internal microphone—Allows you to record sounds for your

application. For more information, see “Recording sounds” on

page 91.

❖ Front Camera—Allows you to take still photos or record

videos.

❖ Power light—Glows white when the device is on.

❖ Battery light

❖ Tablet is plugged into AC power: The light glows white

when the battery is fully charged and glows amber when battery power is low.

❖ Tablet is not plugged into AC power: The light does not

glow.

❖ Wireless indicator light—Glows amber when Wi-Fi

Bluetooth

is enabled. For more information, see “Setting up

Wi-Fi® and Bluetooth® connections” on page 44.

Back

Features and components

Camera

Removable back cover

Getting Started

(Sample Illustration) Back view

❖ Camera—Allows you to take still photos and videos. For more

information, see “Using the cameras” on page 91.

❖ Removable back cover—Can be removed to replace the

battery. For more information, see “Changing the battery” on

page 32.

Right side

Getting Started

Features and components

Locked position Unlocked position

SD™ Card slot

(Sample Illustration) Right side view

❖ SD™ Card slot—Supports the use of Secure Digital™ (SD™)

media. For more information, see “Using an SD™ Card” on

page 91.

❖ Screen rotation lock/unlock switch—Allows you to lock the

orientation of the display screen so that the current view does not rotate with movement. For more information, see “Screen

settings” on page 72.

❖ Volume control buttons—Allows you to increase/decrease the

volume.

❖ Power button—Turns the device on and off. Press and hold

the button for several seconds to turn the device ON/OFF. Press the button quickly to wake the device from Sleep mode or to place it into Sleep mode. For more information, see “Options

for turning off the device” on page 57.

Screen rotation lock/unlock switch

Volume control buttons

Power button

Left side

Getting Started

Features and components

SpeakerSpeaker

(Sample Illustration) Left side view

❖ Docking connector—Allows connection to a docking station.

Remove the docking connector cover to access to the docking connector. For more information, see “Using a docking

station” on page 95.

❖ Speakers—Allow you to listen to sounds on your device. For

more information, see “Using the built-in speakers” on

page 90.

To p

Locked position Unlocked position

Back cover lock/unlock switch

(Sample Illustration) Top view

❖ Back Cover lock/unlock switch—Allows or prevents removal

of the back cover. The locked position secures the cover in place, and in the unlocked position the back cover can be removed. For more information, see “Removing the battery

from the device” on page 32.

Docking connector

NOTE

Bottom

Getting Started

Features and components

HDMI™ Out port

Mini-USB port

DC-IN

USB port

Headphone/Microphone Line-In jack

(Sample Illustration) Bottom view

Remove the port cover to access the ports.

❖ DC-IN—Allows connection of the AC adaptor to charge the

battery or run your device on AC power. For more information, see “Using the device for the first time” on page 39.

❖ Headphone/Microphone Line-In jack—Allows you to listen

to or record sounds onto your device. For more information, see “Using external speakers or headphones” on page 90.

❖ USB port—Allows the transfer of data, and connection of

some external devices (consult your device manufacturer).

❖ HDMI™ Out port—Allows for the transfer of video and

audio signals, as well as control signals. For more information, see “Using external devices” on page 93.

❖ Mini-USB port—Allows the transfer of data.

Port cover

Connecting to a power source

Your device requires power to operate. Use the power cord/cable and AC adaptor to connect the device to a live electrical outlet, or to charge the device’s battery.

Always confirm that the power plug (and extension cable plug if used) has been fully inserted into the socket, to ensure a secure electrical connection. Failure to do so may result in a fire or electric shock, possibly resulting in serious injury.

Be careful if you use a multiple connector. An overload on one socket could cause a fire or electric shock, possibly resulting in serious injury.

Always use the Toshiba AC adaptor that was provided with your device, or use AC adaptors specified by Toshiba to avoid any risk of fire or other damage to the device. Use of an incompatible AC adaptor could cause fire or damage to the device possibly resulting in serious injury. Toshiba assumes no liability for any damage caused by use of an incompatible adaptor.

Getting Started

AC adaptor

Power cord/cable

AC adaptor cord

(Sample Illustration) Power cord/cable and AC adaptor

Getting Started

Connecting to a power source

To connect AC power to the device:

1 Connect the power cord/cable to the AC adaptor.

(Sample Illustration) Connecting the power cord/cable to the AC adaptor

Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

2 Plug the AC adaptor cord into the DC-IN on the bottom of the

device.

(Sample Illustration) Connecting the AC adaptor cord to the device

3 Connect the power cord/cable to a live electrical outlet.

The Power light on the indicator panel glows white.

Never attempt to connect or disconnect a power plug with wet hands. Failure to follow this instruction could result in an electric shock, possibly resulting in serious injury.

The device’s battery light gives you an indication of the battery’s current charge:

❖ Glows amber while the battery is being charged

(AC adaptor connected)

❖ Glows white when the battery is fully charged

+ 101 hidden pages
