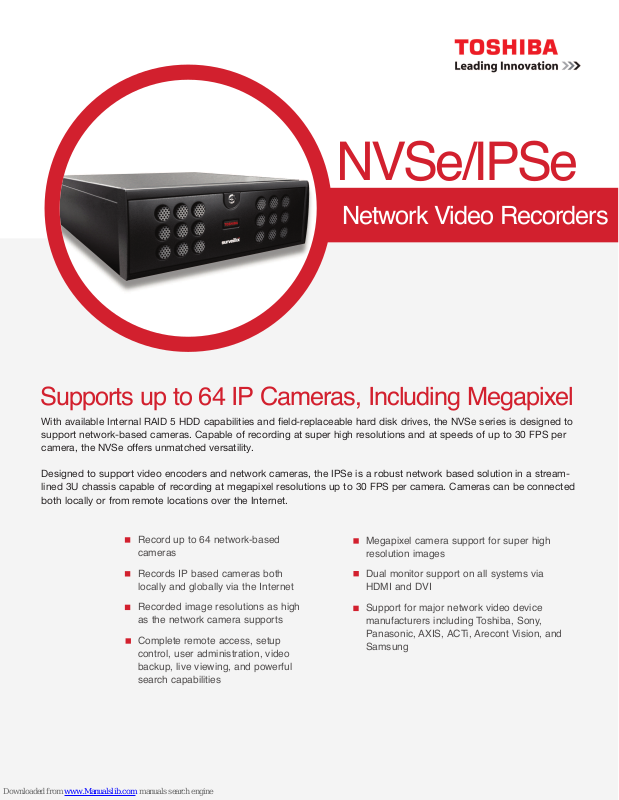

Toshiba NVSe, IPSe Specifications
NVSe/IPSe
Network Video Recorders
Supports up to 64 IP Cameras, Including Megapixel
With available Internal RAID 5 HDD capabilities and field-replaceable hard disk drives, the NVSe series is designed to
support network-based cameras. Capable of recording at super high resolutions and at speeds of up to 30 FPS per
camera, the NVSe offers unmatched versatility.
Designed to support video encoders and network cameras, the IPSe is a robust network based solution in a streamlined 3U chassis capable of recording at megapixel resolutions up to 30 FPS per camera. Cameras can be connected
both locally or from remote locations over the Internet.
Record up to 64 network-based
cameras
Records IP based cameras both
locally and globally via the Internet
Recorded image resolutions as high
as the network camera supports
Complete remote access, setup
control, user administration, video
backup, live viewing, and powerful
search capabilities
Megapixel camera support for super high
resolution images
Dual monitor support on all systems via
HDMI and DVI
Support for major network video device
manufacturers including Toshiba, Sony,
Panasonic, AXIS, ACTi, Arecont Vision, and
Samsung
NVSe Network Video Recorders
ecording Resolutions Recording resolutions dependent on
R
IP Video Input Up to 64 Ch.
ideo Output DVI-I x 1; HDMI x 1
V
ecording Rate Up to 30 FPS Per Camera**
R
udio Recording Up to 16 CH (on supported cameras)
A
TZ Controls Via IP Protocols
P
Image Compression Proprietary MJPEG, MPEG4, H.264
Storage Capacity 12 TB
LAN 100/1000 Gigabit Ethernet
ritical Recording Archive DVD Multi Burner, eSATA x 1
C
assword Control User Defined Access Level
P
ower Interruption Recovery Automatic restart after power
P
Remote Connection TCP/IP, UDP, Internet, LAN, WAN
Power Input AC 100~240V Input (50 Hz/60 Hz)
entral Processing Unit Intel Core i3, i5, i7
C
AM 4GB
R
perating System Microsoft® Windows® 7
O
Dimensions (h x w x d) 7” x 17.3” x 21.75”
Weight 47-52 lbs (21.3-23.5 kg)
NVSe SERIES PART NUMBERS
NVSe64-1T/2T/4T/8T/12T
NVSe32-1T/2T/4T/8T/12T
NVSe16-1T/2T/4T/8T/12T
NVSe8-1T/2T/4T/8T/12T
the supported resolutions of network
cameras
interuption / recording operation
resumes
Embedded
(180mm x 440mm- x 552mm)
4 - 84 lbs (29-38 kg) with packaging
6
OPTIONAL ACCESSORIES FOR NVSe
• Internal RAID5 (RAID5-XXTA)
• Additional Hard Drives (1TB: HDD-1TB,
2TB: HDD-2TB; 3TB: HDD-3TB)
• Redundant Power Supply
(2-RDNT-PS)
IPSe Network Video Recorders
ecording Resolutions Recording resolutions dependent on
R
IP Video Input Up to 32 Ch. (expandable to 64)***
Video Output DVI-I x 1; HDMI x 1
ecording Rate Up to 30 FPS Per Camera**
R
TZ Controls Via IP Protocols
P
mage Compression Proprietary MJPEG, MPEG4, H.264
I
torage Capacity 9 TB
S
LAN 100/1000 Gigabit Ethernet
Critical Recording Archive DVD Multi Burner, eSATA x 1
Password Control User Defined Access Level
ower Interruption Recovery Automatic restart after power
P
Remote Connection TCP/IP, UDP, Internet, LAN, WAN
Power Input AC 100~240V Input (50 Hz/60 Hz)
Central Processing Unit Intel Core i3, i5
RAM 4GB
perating System Microsoft® Windows® 7
O
Dimensions (h x w x d) 5.8” x 17.25” x 19.5”
eight 30-33 lbs (13.6-15 kg)
W
Monitor not included. Monitor is required for setup and maintenance.
*
** Total recording throughput dependent on multiple factors including: system
specs, camera codec, camera settings,camera resolution, and network bandwidth. Refer to the Toshiba IP platform estimator for more information on the
specifics of your installation.
*** Additional IP licenses required.
IPSe SERIES PART NUMBERS
IPSe32-1T/2T/4T/6T/9T
IPSe16-1T/2T/4T/6T/9T
IPSe8-1T/2T/4T/6T/9T
he supported resolutions of network
t
cameras
nteruption / recording operation
i
esumes
r
Embedded
148mm x 438mm x 495mm)
(
0-43 lbs (18-19.5 kg) with packaging
4
OPTIONAL ACCESSORIES FOR IPSe
• Additional Hard Drives (1TB:
HDD-1TB, 2TB: HDD-2TB; 3TB:
HDD-3TB)
SAMPLE CONFIGURATION for NVSe/IPSe
©2013 Toshiba America Information Systems, Inc. All rights reserved. All products
and names mentioned are the property of their respective owners. While Toshiba
has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.
Surveillance & IP Video Products, Imaging Systems Division
Toshiba America Information Systems, Inc.
9740 Irvine Boulevard, Irvine, California 92618
1-877-855-1349 • www.toshibasecurity.com
NVSe/IPSe 9/2013
